Article

Cu-Mo2C/MCM-41: An Efficient Catalyst for the Selective Synthesis of Methanol from CO2

by
Xiaoran Liu
,
Yingquan Song
,
Wenhao Geng
,
Henan Li
,
Linfei Xiao
and
Wei Wu
*
International Joint Research Center of Catalytic Technology, Key Laboratory of Chemical Engineering Process & Technology for High-efficiency Conversion, College of Heilongjiang Province; School of Chemistry and Material Sciences, Heilongjiang University, Harbin 150080, China
*
Author to whom correspondence should be addressed.
Catalysts 2016, 6(5), 75; https://doi.org/10.3390/catal6050075
Submission received: 26 April 2016 / Revised: 12 May 2016 / Accepted: 16 May 2016 / Published: 20 May 2016
Browse Figures
Versions Notes

Abstract

:
Supported molybdenum carbide (yMo2C/M41) and Cu-promoted molybdenum carbide, using a mechanical mixing and co-impregnation method (xCuyMo2C/M41-M and xCuyMo2C/M41-I) on a mesoporous molecular sieve MCM-41, were prepared by temperature-programmed carburization method in a CO/H2 atmosphere at 1073 K, and their catalytic performances were tested for CO2 hydrogenation to form methanol. Both catalysts, which were promoted by Cu, exhibited higher catalytic activity. In comparison to 20Cu20Mo2C/M41-M, the 20Cu20Mo2C/M41-I catalyst exhibited a stronger synergistic effect between Cu and Mo2C on the catalyst surface, which resulted in a higher selectivity for methanol in the CO2 hydrogenation reaction. Under the optimal reaction conditions, the highest selectivity (63%) for methanol was obtained at a CO2 conversion of 8.8% over the 20Cu20Mo2C/M41-I catalyst.

Graphical Abstract

1. Introduction

Due to increasing CO2 emissions every year, human life and the environment have been greatly affected by global warming and climate changes [1,2]. The chemical utilization of CO2, which is the cheapest and most abundant C1 resource, has become an important global challenge [3,4,5]. Catalytic hydrogenation of CO2 can produce various types of valuable chemicals and has been recently identified as one of the most promising processes for the utilization of CO2 [6]. Among these processes, the synthesis of methanol from CO2 is important because methanol can be used as a starting feedstock for chemical industries as well as an alternative to fossil fuels [7,8,9,10].
Over the past decades, significant efforts have been devoted to developing effective catalysts for CO2 hydrogenation to form methanol. These studies primarily focused on modifying and improving the Cu/Zn-based catalyst by introducing suitable promoters or supports (e.g., Au [11], TiO2 [12], Ga2O3 [13,14], MgO [15], and CeO2 [16]). In recent years, researchers found that the addition of an appropriate amount of ZrO2 could enhance the copper dispersion and the surface basicity [17,18], and a high selectivity for methanol was obtained over the CuO/ZnO/ZrO2 catalyst, while the conversion of CO2 was limited [19]. In addition, some studies reported that the noble metal Pd could be used as an active component in catalysts for CO2 hydrogenation to produce higher catalytic activity and methanol selectivity [20,21,22]. However, because both Cu/Zn-based and noble metal Pd catalysts have poor resistance to sulfur poisoning, their requirements for the purity of the feed gas are very high. Moreover, the wide industrial application of noble metal Pd catalyst is also limited due to its high cost.
Due to their unique tolerance of sulfur and potential alternatives to noble metals, transition metal carbides have attracted considerable attention in catalytic applications since the 1970s [23,24]. Molybdenum carbide exhibits catalytic properties similar to those of Pt or Pd catalysts, and this catalyst has been applied in various chemical reactions, such as the isomerization of n-heptane [25], steam reforming of methanol [26], dry reforming of methane [27], CO hydrogenation [28,29,30], and CO2 hydrogenation [31,32,33]. Recently, researchers have demonstrated that a higher catalytic activity was obtained when another metal, which acted as a promoter, was introduced into the transition metal carbides, because the metal promoter results in the preferential formation of admetal-C bonds with significant electronic perturbations in the admetal [34]. Rodriguez et al. systematically studied the conversion of CO2 into methanol catalyzed by α-MoC1−x, β-Mo2C, Cu/β-Mo2C, Ni/β-Mo2C, and Co/β-Mo2C surfaces and found that Cu/β-Mo2C exhibited preferable catalytic activity for the selective synthesis of methanol [31,35]. Recently, they proposed a new route for methanol production over Cu/β-Mo2C catalysts by means of a combined experimental and theoretical study [36]. In this case, the Cu particles were effective sites for hydrogen dissociation and enhanced the hydrogen surface coverage [37]. However, the effects of the loading amount of Mo2C and Cu, as well as the degree of interaction between Cu and Mo2C on the catalytic performance for CO2 hydrogenation, have not been previously investigated.
Usually, transition metal carbides are prepared using alkanes, alkene, and alkyne as carbon sources, but excess polymeric carbon from the pyrolysis of the carbonaceous gases at relatively low temperatures can deposit on the surface of the resultant carbide. To solve this problem, one strategy was to introduce H2 into carburizing gas, which made it possible for deposited carbon species to be converted into gas hydrocarbon by hydrogenation [38,39]. In this study, a series of supported yMo2C/M41 and Cu-promoted yMo2C/M41 catalysts were prepared using the mixture of CO and H2 as a carburizing gas, which can be derived from coal and heavy oil via steam reforming and applied to CO2 hydrogenation to methanol. In particular, the effects of the degree of interaction between Cu and Mo2C on the surface of the catalysts, which were prepared using different methods, on the catalytic performance were investigated. In addition, the relationship between the catalytic performance and the surface property was studied.

2. Results and Discussion

2.1. Catalyst Characterization

2.1.1. X-Ray Diffraction (XRD)

The XRD patterns of the yMo2C/M41 samples with different Mo2C loadings are shown in Figure 1. Several peaks that were located at 2θ = 34.4°, 38.0°, 39.4°, 52.1°, 61.5°, 69.5°, and 74.6° were assigned to the β-Mo2C phase with a hexagonal closest packed (hcp) crystal structure, and the peak located at 2θ = 15°–30° was attributed to the MCM-41 molecular sieve phase. However, for the 10Mo2C/M41 sample, the characteristic diffraction peaks corresponding to β-Mo2C were not observed, which may be due to the high dispersion of the Mo2C particles on the support. In addition, the intensity of the diffraction peaks corresponding to β-Mo2C became more intense as the Mo2C loading increased, which indicated that the crystallite size or crystallinity of β-Mo2C increased.
To improve the catalytic performance of 20Mo2C/M41, a series of xCu20Mo2C/M41-I catalysts with different Cu loadings (12%, 20% and 28%) were prepared using the co-impregnation method, and the XRD patterns are shown in Figure 2. Except for several characteristic diffraction peaks corresponding to β-Mo2C phase, the peaks located at 2θ = 43.4°, 50.5°, and 74.2° were ascribed to Cu°. In addition, the peak located at 2θ = 36.7° corresponded to α-MoC1−x. These results indicated that the Cu promoter had a substantial effect on the crystal phase of molybdenum carbide [26,40]. As the Cu loading increased, the intensity of the diffraction peak corresponding to the Cu° phase increased (Figure 2), which indicated that the crystallite size of Cu increased. This result is in agreement with the average crystallite size of Cu° in xCu20Mo2C/M41-I (Table 1).

2.1.2. N2 Adsorption–Desorption

The N2 adsorption–desorption isotherms measured at 77.36 K allowed the textural properties of samples yMo2C/M41 to be assessed, and the results are shown in Figure 3 and Table 2. All the samples exhibited type IV isotherms as defined by the International Union of Pure and Applied Chemistry (IUPAC) classification with type H1 hysteresis loop at P/P0 = 0.4–1.0. These results indicated that the mesoporous structure of MCM-41 was not destroyed when the catalysts were carbonized. However, the Brunauer-Emmett-Teller (BET) surface area and pore volume of the yMo2C/M41 samples decreased as the Mo2C loading increased (Table 2), which suggests that a portion of the pores in MCM-41 was blocked by Mo2C.

2.1.3. X-ray Photoelectron Spectroscopy (XPS)

The X-ray photoelectron spectroscopy (XPS) analysis was carried out to elucidate the surface properties of the catalysts. The Cu and Mo surface contents for xCu20Mo2C/M41-I are listed in Table 3. As shown in Table 3, as the Cu loading increased from 12% to 20%, the surface Cu atom content increased. When the Cu loading was 20%, the surface Cu atom content was the highest (i.e. 43.8%). However, as the Cu loading continues to 28%, the surface Cu content decreased to 35.2% because Cu atoms agglomerated, leading to the formation of larger Cu particles that reduced the Cu content exposed on the surface of the catalyst. This result is consistent with the calculated average Cu crystallite size listed in Table 1.
In addition, the valence distribution of molybdenum on the catalyst surface was affected by the Cu loading. The Mo 3d XPS spectra of the 20Mo2C/M41 and xCu20Mo2C/M41-I samples are shown in Figure 4. As shown in Figure 4, the doublet peaks, which were assigned to Mo 3d5/2 and Mo 3d3/2, exhibited a splitting of ~3.13 eV, and the ratio of Mo 3d5/2 to Mo 3d3/2 was 3:2. The XPS results suggested the presence of four molybdenum species as follows: the Mo 3d5/2 binding energy of 228.8-229.0 eV corresponded to MoII species involved in Mo–C bonding and the Mo 3d5/2 binding energies of 229.6–229.8, 232.1–232.2, and 233.3–233.4 eV corresponded to MoIV (MoO2), Moδ (MoOxCy), and MoVI (MoO3), respectively, in which the δ was an intermediate oxidation state between 4 and 6 (4 < δ < 6) [26,41]. By curve fitting the Mo 3d profiles, the ratio of the surface MoIV and Moδ species to the total molybdenum species (i.e., (MoIV + Moδ)/Mototal (Mototal = MoII + MoIV + Moδ + MoVI)) was obtained and summarized in Table 4. When Cu was introduced to 20Mo2C/M41 using the co-impregnation method, the (MoIV + Moδ)/Mototal ratio increased, and the ratio reached the highest value for the 20Cu20Mo2C/M41-I sample (Table 4). This result is similar to that reported by Liu where (MoIV + Moδ)/Mototal increased when the Ca promoter was introduced into the Mo2C system [29].

2.2. Catalytic Performance for the Hydrogenation of CO2

2.2.1. Catalytic Performance of the yMo2C/M41 Samples

The catalytic performances of the yMo2C/M41 samples were studied for the hydrogenation of CO2 at 493 K under a pressure of 3.0 MPa and GHSV of 3600 mL/(h·g), and the results are shown in Figure 5. The conversion of CO2 increased from ~6% to ~8% as the Mo2C loading increased from 10% to 40%, which was due to a higher density of active sites on the catalyst surface. In this process, H2 was activated by the forming C–H between the surface of Mo2C and the adsorbed H2 [41]; at the same time, CO2 was activated by the forming a C–C bond between the surface of Mo2C and the adsorbed CO2 by a net carbide→CO2 charge transfer [33]. As the Mo2C loading increased, a decrease in the selectivity of CH4 was observed. However, the selectivity to CO increased. When the loading of Mo2C was 10% and 20%, the selectivity for CH3OH was higher, and a selectivity of 28% for CH3OH was observed over the 20Mo2C/M41 catalyst when the reaction was carried out for 14 h. However, the selectivity for CH3OH decreased when the Mo2C loading exceeded 30%, and more CO was produced. During the hydrogenation of CO2, CO and CH3OH were produced by two competitive pathways. The HOCO intermediate was formed firstly on the Mo2C surface. The cleavage of one C–O bond of the HOCO intermediate results in its decomposition to CO. However, the HOCO intermediate can transform into the HCOO intermediate, which can undergo stepwise hydrogenation to CH3OH [34,42]. Therefore, based on the effect of the Mo2C loading amount on CO2 conversion and CH3OH selectivity, the optimal Mo2C loading was 20%.

2.2.2. Catalytic Performance for the Cu-Promoted 20Mo2C/M41 Catalyst

Due to the high capability of the Cu promoter to absorb and activate H2 [37], which are beneficial to CO2 hydrogenation, a series of Cu-promoted 20Mo2C/M41 catalysts were prepared using the mechanical mixing method (M) and the co-impregnation method (I) (i.e. 20Cu20Mo2C/M41-M and 20Cu20Mo2C/M41-I, respectively), and their catalytic performances were evaluated for CO2 hydrogenation to synthesize CH3OH. As shown in Figure 6, both 20Cu/M41 and 20Mo2C/M41 catalysts exhibited low CO2 conversion and methanol selectivity. However, the CO2 conversion and CH3OH selectivity increased over the 20Cu20Mo2C/M41-M catalyst (mechanical mixing 20Cu/M41 and 20Mo2C/M41). When 20Cu20Mo2C/M41-I prepared by co-impregnation method was employed as the catalyst, its catalytic performance further improved. Furthermore, regardless of the method used to introduce the Cu promoter to 20Mo2C/M41 catalytic system, the CO2 conversion and CH3OH selectivity increased, and the selectivity to CH4 and CO decreased. This indicated that there was a synergetic effect between Cu and Mo2C in the hydrogenation of CO2 when the Cu-promoted supported molybdenum carbide was used as a catalyst. In the hydrogenation of CO2, the adsorption and activation of hydrogen primarily occurred on Cu sites; in addition, the adsorption and activation of CO2 occurred over Mo2C sites in the Cu–Mo2C/M41 system (Scheme 1). In particular, the CO2 molecule was attached to the Mo2C surface, and a C–C bond was formed between the surface and the adsorbate by a net carbide→CO2 charge transfer. Simultaneously, some bonding interactions were generated between the O atoms of CO2 and nearby Mo atoms [33]. Then, the activated hydrogen was transported from the Cu surface to the Mo2C surface sites via spillover followed by hydrogenation of the adsorbed CO2 to form the HOCO intermediate. The HOCO intermediate decomposed to CO due to cleavage of the C–O bond. If the C–O bond of CO cracked continually, C was produced, which was hydrogenated to yield CH4. However, the HOCO intermediate was isomerized to the HCOO intermediate, which underwent stepwise hydrogenation to CH3OH [34,42]. In combination with the experimental results shown in Figure 6, the introduction of Cu in 20Cu20Mo2C/M41 increased the concentration of MoIV and Moδ cations, which may be favorable for the isomerization of HOCO to HCOO, leading to an increase in the CH3OH selectivity.
In comparison to 20Cu20Mo2C/M41-M, the 20Cu20Mo2C/M41-I catalyst exhibited a higher CO2 conversion and CH3OH selectivity because the Cu particles were highly dispersed on the support in 20Cu20Mo2C/M41-I, which enhanced the interaction between Cu and Mo2C. In addition, H2 can be easily adsorbed and activated on Cu atoms, with the dissociated H spillover followed by the Mo2C surface, to add to a H reservoir that is available for the sequential hydrogenation of CO2 at the Mo-carbide interface, which led to an improvement in the catalytic performance of 20Cu20Mo2C/M41-I in the hydrogenation of CO2. In particular, the CH3OH selectivity significantly increased, which is consistent with previously reported results [43].
These results indicate that a higher CH3OH selectivity can be achieved when the co-impregnation method was used to introduce Cu into the 20Mo2C/M41 catalytic system. Therefore, the effects of Cu loading on the catalytic performance of the xCu20Mo2C/M41-I catalysts in CO2 hydrogenation were also studied, and the results are shown in Figure 7. When the Cu loading increased to 20%, the highest content of Cu was observed on the catalyst surface (Table 3), and the loaded Cu was beneficial for the activation of H2 and had a substantial positive effect on the conversion of CO2. The highest CO2 conversion was 11.4%; however, the conversion of CO2 decreased when the Cu loading was 28% because the size of the Cu particles increased. In addition, the Cu atom content exposed on the surface of the catalyst decreased (Table 1 and Table 3). When Cu was introduced to the catalyst system as a promoter, the selectivity of the catalysts for CH4 and CO decreased, and the CH3OH selectivity increased. This result may be due to the promotion of the isomerization of HOCO to HCOO when 20Mo2C/M41 was modified by Cu. The highest selectivity (63%) for methanol was obtained at a CO2 conversion of 8.8% over the 20Cu20Mo2C/M41-I catalyst because the highest amount of MoIV and Moδ species was detected on the catalyst surface, which favored the synthesis of methanol. The same results were found in the literature [29].

2.2.3. The Stability of the 20Cu20Mo2C/M41-I Catalyst

In order to study the stability of the 20Cu20Mo2C/M41-I catalyst, we investigated its catalytic performance over 110 h, and the results are presented in Figure 8. It can be seen that the stable catalytic performance was given when the 20Cu20Mo2C/M41-I catalyst was used for more than 10 h. When the reaction was carried out for 110 h, the selectivity for methanol and the conversion of CO2 remained stable, which exhibited an excellent stability in CO2 hydrogenation.

3. Experimental Section

3.1. Catalyst Preparation

The catalysts were prepared by incipient wetness co-impregnation onto MCM-41 (purchased from Nankai University Catalyst Co., Ltd. Tianjin, China) with an aqueous solution consisting of (NH4)6Mo7O24·4H2O and Cu(NO3)2·3H2O. Then, the catalysts were dried overnight at 373 K, followed by calcination at 923 K for 3 h to afford supported molybdenum oxide and copper oxide. Carburization of the catalysts was accomplished using a temperature-programmed reaction. Specifically, this step was performed in a quartz tube reactor by heating at a rate of 10 K·min−1 from room temperature to 573 K and then at a rate of 1 K·min−1 from 573 to 1073 K in 20% CO/H2 mixture, and the temperature was maintained at 1073 K for 4 h. The catalysts were subsequently cooled to room temperature in H2, followed by passivation in a stream of 1% O2/N2 mixture at room temperature for 2 h prior to exposure to air. These catalysts are referred to as xCuyMo2C/M41-I, where x and y represent the mass percentages of Cu and Mo2C, respectively, and I refers to the co-impregnation method. In addition, xCuyMo2C/M41-M was prepared by mechanical mixing and grinding xCu/M41 and yMo2C/M41, where M refers to the mechanical mixing method.

3.2. Characterization

Powder XRD patterns of the prepared samples were recorded on a Bruker D8 Advance diffractometer using Cu Kα (λ = 1.5404 Å) irradiation at 40 kV and 40 mA with a Lynx eye detector in the range of 2θ = 5°–80°. The N2 adsorption–desorption characterization of the samples was performed using an Autosorb-1-MP apparatus (Quantachrome Instruments, Boynton Beach, FL, USA). Prior to the adsorption measurements, the catalysts were degassed under vacuum for nearly 12 h at 573 K. The specific surface areas were calculated using the Brunauer-Emmett-Teller (BET) method. The pore volumes were estimated from the desorption branch of the N2 adsorption-desorption isotherms by applying the Barrett-Joyner-Halenda (BJH) method. The XPS analyses were performed using a Surface Science Instruments spectrometer (ESCALAB 250) (Waltham, MA, USA) with focused Al Kα radiation (1486.6 eV).

3.3. Catalytic Test

The performances of the catalysts for CO2 hydrogenation were investigated under pressurized conditions with a high-pressure fixed bed reactor system. A 0.5-g portion of the catalyst was placed in the reactor along with inert quartz sands above and below the catalyst. All the catalysts were reduced in a flow of hydrogen at 673 K for 1 h prior to the reaction. When the temperature was cooled from 673 K to 493 K, the feed gas (i.e. CO2/H2/Ar (H2:CO2 volume ratio was 3:1)) flowed into the system at a pressure of 3.0 MPa and GHSV of 3600 mL/(h·g). All the products were produced in the gaseous state and analyzed using a gas chromatograph (GC). Ar, CO and CO2 were analyzed using a GC equipped with a thermal conductivity detector (TCD) and a column consisting of activated charcoal. CH4 and CH3OH were analyzed using another GC equipped with a flame ionization detector (FID). Ar was used as the internal standard for the GC/TCD analyses. It was important to note that only trace amounts of C2H6, C3H8, and CH3OCH3 were detected in the products, and their content was ignored.

4. Conclusions

In summary, the catalytic performance of yMo2C/M41 for the hydrogenation of CO2 to methanol can be tuned by loading the appropriate amount of Mo2C. Among these catalysts, the 20Mo2C/M41 catalyst exhibited excellent catalytic performance. When Cu was introduced to 20Mo2C/M41 by the mechanical mixing method (M) and co-impregnation method (I), the catalytic performance improved to different extents. In the Cu–Mo2C/M41 catalytic system, a synergistic effect was observed between Cu and Mo2C on the catalyst surface. Therefore, the adsorption and activation of hydrogen primarily occurred on Cu sites, and the adsorption of CO2 occurred over Mo2C sites. In addition, the introduction of Cu increased the concentration of MoIV and Moδ cations, which may be beneficial to the isomerization of HOCO to HCOO, leading to an increase in CH3OH selectivity. In comparison to 20Cu20Mo2C/M41-M, the 20Cu20Mo2C/M41-I catalyst exhibited significantly increased CH3OH selectivity because the Cu promoter was highly dispersed on the surface of the catalyst. In addition, enhanced interactions existed between Cu and Mo2C active sites. The valence distribution of molybdenum on the catalyst surface was affected by loaded Cu introduced by the co-impregnation method. When the Cu loading amount was 20%, the surface Cu atom content was the highest with the largest amount of MoIV and Moδ species, and the highest selectivity (63%) for methanol was obtained at a CO2 conversion of 8.8% and excellent stability during 110 h was observed over it.

Acknowledgments

This work was supported by Programs of International S&T cooperation (2013DFR40570, 2014DFR41110).

Author Contributions

Xiaoran Liu, Yingquan Song, Wenhao Geng, and Henan Li performed the experiment. Wei Wu and Linfei Xiao analyzed and discussed the experimental results. Xiaoran Liu wrote the paper.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Aresta, M.; Dibenedetto, A.; Angelini, A. Catalysis for the valorization of exhaust carbon: From CO2 to chemicals, materials, and fuels. Technological use of CO2. Chem. Rev. 2014, 114, 1709–1742. [Google Scholar] [CrossRef] [PubMed]
  2. Du, X.L.; Jiang, Z.; Su, D.S.; Wang, J.Q. Research progress on the indirect hydrogenation of carbon dioxide to methanol. ChemSusChem 2016, 9, 322–332. [Google Scholar] [CrossRef] [PubMed]
  3. Ganesh, I. Conversion of carbon dioxide into methanol-a potential liquid fuel: Fundamental challenges and opportunities. Renew. Sust. Energy Rev. 2014, 31, 221–257. [Google Scholar] [CrossRef]
  4. Wang, W.H.; Himeda, Y.; Muckerman, J.T.; Manbeck, G.F.; Fujita, E. CO2 hydrogenation to formate and methanol as an alternative to photo- and electrochemical CO2 reduction. Chem. Rev. 2015, 115, 12936–12973. [Google Scholar] [CrossRef] [PubMed]
  5. Ali, K.A.; Abdullah, A.Z.; Mohamed, A.R. Recent development in catalytic technologies for methanol synthesis from renewable sources: A critical review. Renew. Sust. Energy Rew. 2015, 44, 508–518. [Google Scholar] [CrossRef]
  6. Liang, X.L.; Xie, J.R.; Liu, Z.M. A novel Pd-decorated carbon nanotubes-promoted Pd-ZnO catalyst for CO2 hydrogenation to methanol. Catal. Lett. 2015, 145, 1138–1147. [Google Scholar] [CrossRef]
  7. Kong, H.; Li, H.Y.; Lin, G.D.; Zhang, H.B. Pd-decorated CNT-promoted Pd-Ga2O3 catalyst for hydrogenation of CO2 to methanol. Catal. Lett. 2011, 141, 886–894. [Google Scholar] [CrossRef]
  8. Koizumi, N.; Jiang, X.; Kugai, J.; Song, C.S. Effects of mesoporous silica supports and alkaline promoters on activity of Pd catalysts in CO2 hydrogenation for methanol synthesis. Catal. Today 2012, 194, 16–24. [Google Scholar] [CrossRef]
  9. Jiang, X.; Koizumi, N.; Guo, X.W.; Song, C.S. Bimetallic Pd-Cu catalysts for selective CO2 hydrogenation to methanol. Appl. Catal. B-Environ. 2015, 170–171, 173–185. [Google Scholar] [CrossRef]
  10. Olah, G.A. After oil and gas: Methanol economy. Catal. Lett. 2004, 93, 1–2. [Google Scholar] [CrossRef]
  11. Pasupulety, N.; Driss, H.; Alhamed, Y.A.; Alzahrani, A.A.; Daous, M.A.; Petrov, L. Studies on Au/Cu-Zn-Al catalyst for methanol synthesis from CO2. Appl. Catal. A-Gen. 2015, 504, 308–318. [Google Scholar] [CrossRef]
  12. Graciani, J.; Mudiyanselage, K.; Xu, F.; Baber, A.E.; Evans, J.; Senanayake, S.D.; Stacchiola, D.J.; Liu, P.; Hrbek, J.; Sanz, J.F. Highly active copper-ceria and copper-ceria-titania catalysts for methanol synthesis from CO2. Science 2014, 345, 546–550. [Google Scholar] [CrossRef] [PubMed]
  13. Ladera, R.; Pérez-Alonso, F.J.; González-Carballo, J.M.; Ojeda, M.; Rojas, S.; Fierro, J.L.G. Catalytic valorization of CO2 via methanol synthesis with Ga-promoted Cu-ZnO-ZrO2 catalysts. Appl. Catal. B-Environ. 2013, 142–143, 241–248. [Google Scholar] [CrossRef]
  14. Toyir, J.; de la Piscina, P.R.; Homs, N. Ga-promoted copper-based catalysts highly selective for methanol steam reforming to hydrogen; relation with the hydrogenation of CO2 to methanol. Int. J. Hydrogen. Energy 2015, 40, 11261–11266. [Google Scholar] [CrossRef]
  15. Ren, H.; Xu, C.H.; Zhao, H.Y.; Wang, Y.X.; Liu, J.; Liu, J.Y. Methanol synthesis from CO2 hydrogenation over Cu/γ-Al2O3 catalysts modified by ZnO, ZrO2 and MgO. J. Ind. Eng. Chem. 2015, 28, 261–267. [Google Scholar] [CrossRef]
  16. Senanayake, S.D.; Ramírez, P.J.; Waluyo, I.; Kundu, S.; Mudiyanselage, K.; Liu, Z.Y.; Liu, Z.; Axnanda, S.; Stacchiola, D.J.; Evans, J.; et al. Hydrogenation of CO2 to methanol on CeOx/Cu(111) and ZnO/Cu(111) catalysts: Role of the metal-oxide interface and importance of Ce3+ sites. J. Phys. Chem. C 2016, 120, 1778–1784. [Google Scholar] [CrossRef]
  17. Huang, C.J.; Chen, S.Y.; Fei, X.Y.; Liu, D.; Zhang, Y.C. Catalytic hydrogenation of CO2 to methanol: Study of synergistic effect on adsorption properties of CO2 and H2 in CuO/ZnO/ZrO2 system. Catalysts 2015, 5, 1846–1861. [Google Scholar] [CrossRef]
  18. Gao, P.; Li, F.; Zhan, H.J.; Zhao, N.; Xiao, F.K.; Wei, W.; Zhong, L.S.; Wang, H.; Sun, Y.H. Influence of Zr on the performance of Cu/Zn/Al/Zr catalysts via hydrotalcite-like precursors for CO2 hydrogenation to methanol. J. Catal. 2013, 298, 51–60. [Google Scholar] [CrossRef]
  19. Arena, F.; Mezzatesta, G.; Zafarana, G.; Trunfio, G.; Frusteri, F.; Spadaro, L. Effects of oxide carriers on surface functionality and process performance of the Cu-ZnO system in the synthesis of methanol via CO2 hydrogenation. J. Catal. 2013, 300, 141–151. [Google Scholar] [CrossRef]
  20. Collins, S.E.; Delgado, J.J.; Mira, C.; Calvino, J.J.; Bernal, S.; Chiavassa, D.L.; Baltanás, M.A.; Bonivardi, A.L. The role of Pd-Ga bimetallic particles in the bifunctional mechanism of selective methanol synthesis via CO2 hydrogenation on a Pd/Ga2O3 catalyst. J. Catal. 2012, 292, 90–98. [Google Scholar] [CrossRef]
  21. Song, Y.Q.; Liu, X.R.; Xiao, L.F.; Wu, W.; Zhang, J.W.; Song, X.M. Pd-Promoter/MCM-41: A highly effective bifunctional catalyst for conversion of carbon dioxide. Catal. Lett. 2015, 145, 1272–1280. [Google Scholar] [CrossRef]
  22. Chiavassa, D.L.; Barrandeguy, J.; Bonivardi, A.L.; Baltanas, M.A. Methanol synthesis from CO2/H2 using Ga2O3-Pd/silica catalysts: Impact of reaction products. Catal. Today 2008, 133–135, 780–786. [Google Scholar] [CrossRef]
  23. Dhandapani, B.; Ramanathan, S.; Yu, C.C.; Frühberger, B.; Chen, J.G.; Oyama, S.T. Synthesis, characterization, and reactivity studies of supported Mo2C with phosphorus additive. J. Catal. 1998, 176, 61–67. [Google Scholar] [CrossRef]
  24. Levy, R.B.; Boudart, M. Platinum-like behavior of tungsten carbide in surface catalysis. Science 1973, 181, 547–579. [Google Scholar] [CrossRef] [PubMed]
  25. Lamic, A.F.; Pham, T.L.H.; Potvin, C.; Manoli, J.M.; Mariadassou, G.D. Kinetics of bifunctional isomerization over carbides (Mo, W). J. Mol. Catal. A-Chem. 2005, 237, 109–114. [Google Scholar] [CrossRef]
  26. Ma, Y.F.; Guan, G.Q.; Hao, X.G.; Zuo, Z.J.; Huang, W.; Phanthong, P.; Kusakabe, K.; Abudula, A. Highly-efficient steam reforming of methanol over copper modified molybdenum carbide. RSC. Adv. 2014, 4, 44175–44184. [Google Scholar] [CrossRef]
  27. Shi, C.; Zhang, A.J.; Li, X.S.; Zhang, S.H.; Zhu, A.M.; Ma, Y.F. Ni-modified Mo2C catalysts for methane dry reforming. Appl. Catal. A-Gen. 2012, 431–432, 164–170. [Google Scholar] [CrossRef]
  28. Christensen, J.M.; Duchstein, L.D.L.; Wagner, J.B.; Jensen, P.A.; Temel, B.; Jensen, A.D. Catalytic conversion of syngas into higher alcohols over carbide catalysts. Ind. Eng. Chem. Res. 2012, 51, 4161–4172. [Google Scholar] [CrossRef]
  29. Liu, C.C.; Lin, M.G.; Jiang, D.; Fang, K.G.; Sun, Y.H. Preparation of promoted molybdenum carbides nanowire for CO hydrogenation. Catal. Lett. 2014, 144, 567–573. [Google Scholar] [CrossRef]
  30. Yin, K.H.; Shou, H.; Ferrari, D.; Jones, C.W.; Davi, R.J. Influence of cobalt on rubidium-promoted alumina-supported molybdenum carbide catalysts for higher alcohol synthesis from syngas. Top. Catal. 2013, 56, 1740–1751. [Google Scholar] [CrossRef]
  31. Xu, W.Q.; Ramirez, P.J.; Stacchiola, D.; Rodriguez, J.A. Synthesis of α-MoC1−x and β-MoCy catalysts for CO2 hydrogenation by thermal carburization of Mo-oxide in hydrocarbon and hydrogen mixtures. Catal. Lett. 2014, 144, 1418–1424. [Google Scholar] [CrossRef]
  32. Nagai, M.; Oshikawa, K.; Kurakami, T.; Miyao, T.; Omi, S. Surface properties of carbided molybdena-alumina and its activity for CO2 hydrogenation. J. Catal. 1998, 180, 14–23. [Google Scholar] [CrossRef]
  33. Posada-Pérez, S.; Viñes, F.; Ramirez, J.A.; Vidal, A.B.; Rodriguez, J.A.; Illas, F. The bending machine: CO2 activation and hydrogenation on δ-MoC(001) and β-Mo2C(001) surfaces. Phys. Chem. Chem. Phys. 2014, 16, 14912–14921. [Google Scholar] [CrossRef] [PubMed]
  34. Rodriguez, J.A.; Evans, J.; Feria, L.; Vidal, A.B.; Liu, P.; Nakamura, K.; Illas, F. CO2 hydrogenation on Au/TiC, Cu/TiC, and Ni/TiC catalysts: Production of CO, methanol, and methane. J. Catal. 2013, 307, 162–169. [Google Scholar] [CrossRef]
  35. Xu, W.Q.; Ramĭrez, P.J.; Stacchiola, D.; Brito, J.L.; Rodriguez, J.A. The carburization of transition metal molybdates (MxMoO4, M=Cu, Ni or Co) and the generation of highly active metal/carbide catalysts for CO2 hydrogenation. Catal. Lett. 2015, 145, 1365–1373. [Google Scholar] [CrossRef]
  36. Posada-Pérez, S.; Ramĭrez, P.J.; Gutiérrez, R.A.; Stacchiola, D.J.; Viñes, F.; Liu, P.; Illas, F.; Rodriguez, J.A. The conversion of CO2 to methanol on orthorhombic β-Mo2C and Cu/β-Mo2C catalysts: Mechanism for admetal induced change in the selectivity and activity. Catal. Sci. Technol. 2016. [Google Scholar] [CrossRef]
  37. Chen, Y.; Choi, S.; Thompson, L.T. Low-temperature CO2 hydrogenation to liquid products via a heterogeneous cascade catalytic system. ACS Catal. 2015, 5, 1717–1725. [Google Scholar] [CrossRef]
  38. Wang, X.H.; Hao, H.L.; Zhang, M.H.; Li, W.; Tao, K.Y. Synthesis and characterization of molybdenum carbides using propane as carbon source. J. Solid State Chem. 2006, 179, 538–543. [Google Scholar] [CrossRef]
  39. Xiao, T.; York, A.P.E.; Williams, V.C.; Al-Megren, H.; Hanif, A.; Zhou, X.; Green, M.L.H. Preparation of molybdenum carbides using butane and their catalytic performance. Chem. Mater. 2000, 12, 3896–3905. [Google Scholar] [CrossRef]
  40. Jung, K.T.; Kim, W.B.; Rhee, C.H.; Lee, J.S. Effects of transition metal addition on the solid-state transformation of molybdenum trioxide to molybdenum carbides. Chem. Mater. 2004, 16, 307–314. [Google Scholar] [CrossRef]
  41. Liu, C.C.; Lin, M.G.; Fang, K.G.; Meng, Y.; Sun, Y.H. Preparation of nanostructured molybdenum carbides for CO hydrogenation. RSC Adv. 2014, 4, 20948–20954. [Google Scholar] [CrossRef]
  42. Posada-Pérez, S.; Viñes, F.; Rodriguez, J.A.; Illas, F. Fundamentals of methanol synthesis on metal carbide based catalysts: Activation of CO2 and H2. Top. Catal. 2015, 58, 159–173. [Google Scholar] [CrossRef]
  43. Rodriguez, J.A.; Liu, P.; Stacchiola, D.J.; Senanayake, S.D.; White, M.G.; Chen, J.G. Hydrogenation of CO2 to methanol: Importance of metal-oxide and metal-carbide interfaces in the activation of CO2. ACS Catal. 2015, 5, 6696–6706. [Google Scholar] [CrossRef]

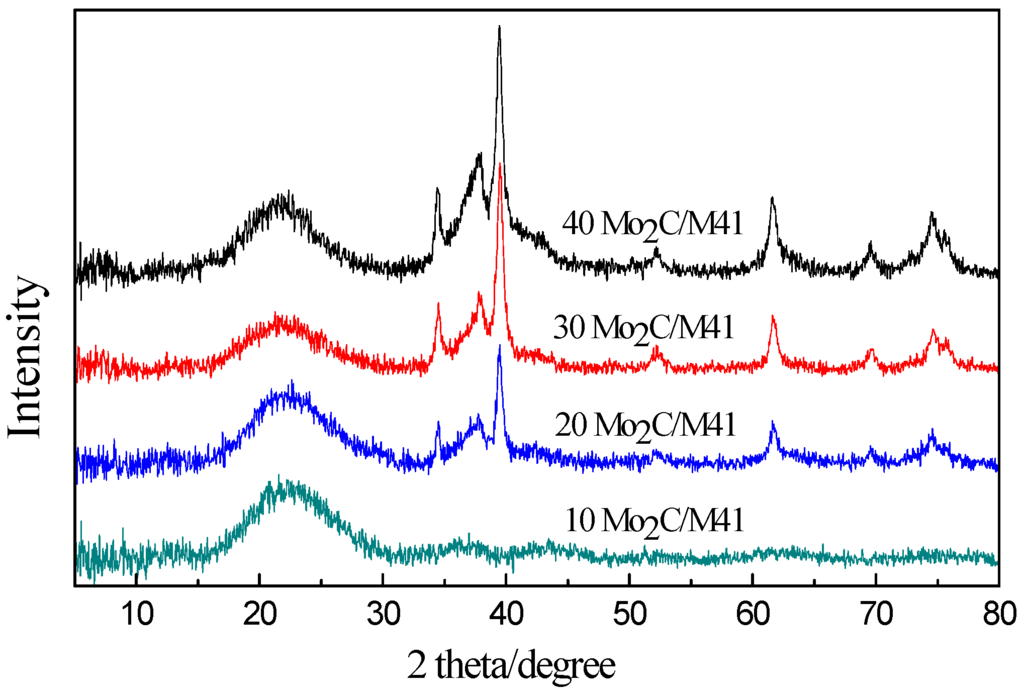

Catalysts 06 00075 g001 1024
Figure 1. X-ray diffraction (XRD) patterns of the yMo2C/M41 samples.
Figure 1. X-ray diffraction (XRD) patterns of the yMo2C/M41 samples.
Catalysts 06 00075 g001
Catalysts 06 00075 g002 1024

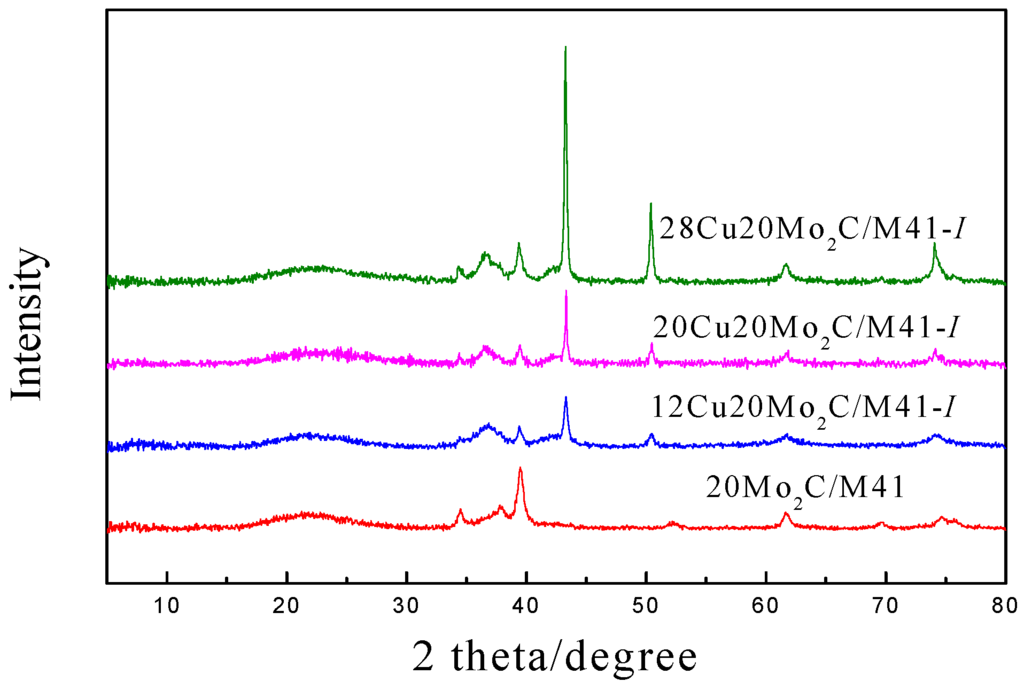

Figure 2. XRD patterns of the xCu20Mo2C/M41-I samples.
Figure 2. XRD patterns of the xCu20Mo2C/M41-I samples.
Catalysts 06 00075 g002
Catalysts 06 00075 g003 1024

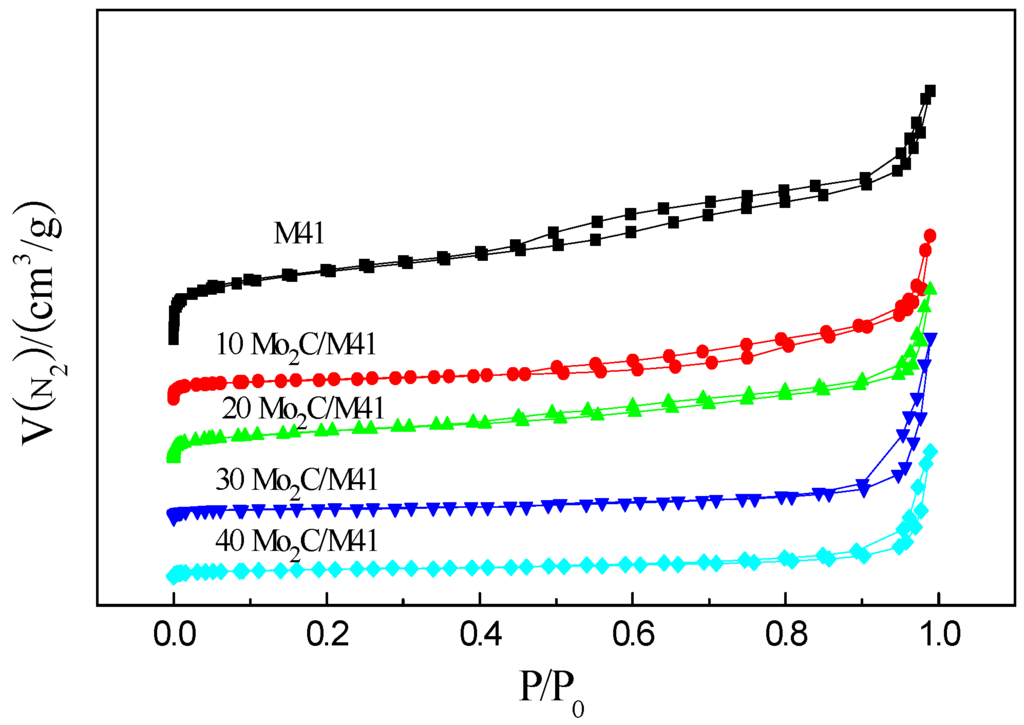

Figure 3. N2 adsorption and desorption isotherms of the yMo2C/M41 samples.
Figure 3. N2 adsorption and desorption isotherms of the yMo2C/M41 samples.
Catalysts 06 00075 g003

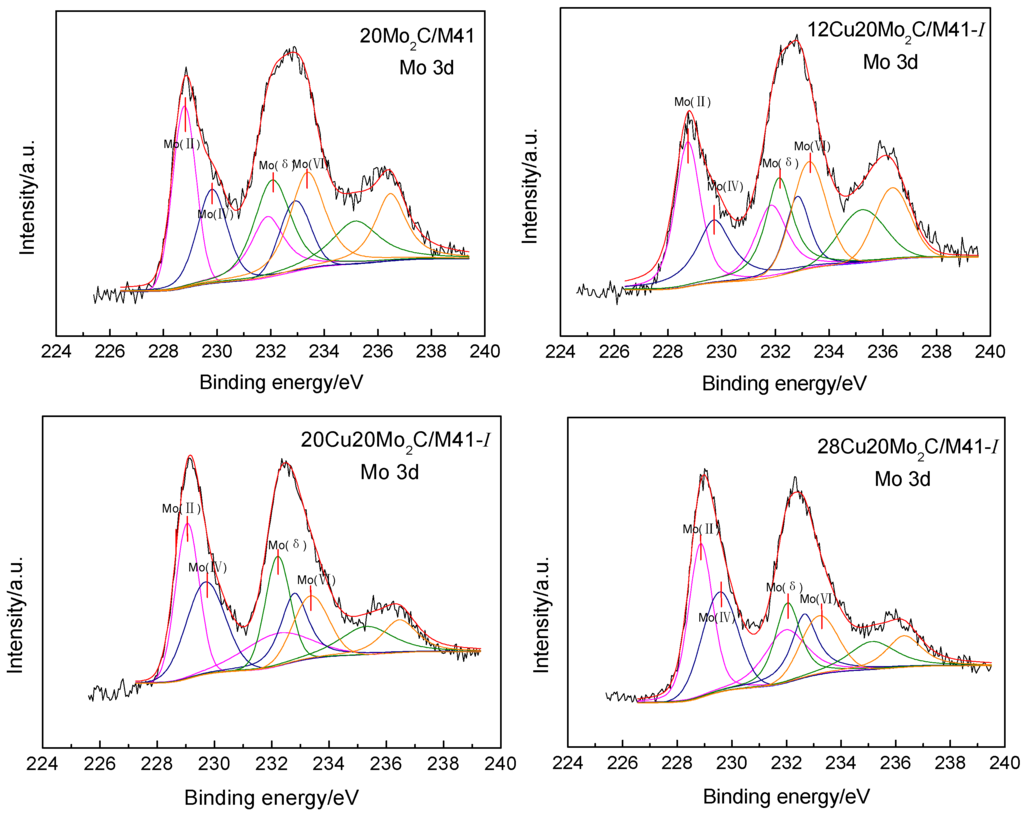

Catalysts 06 00075 g004 1024
Figure 4. X-ray photoelectron spectroscopy (XPS) spectra of 20Mo2C/M41 and xCu20Mo2C/M41-I.
Figure 4. X-ray photoelectron spectroscopy (XPS) spectra of 20Mo2C/M41 and xCu20Mo2C/M41-I.
Catalysts 06 00075 g004

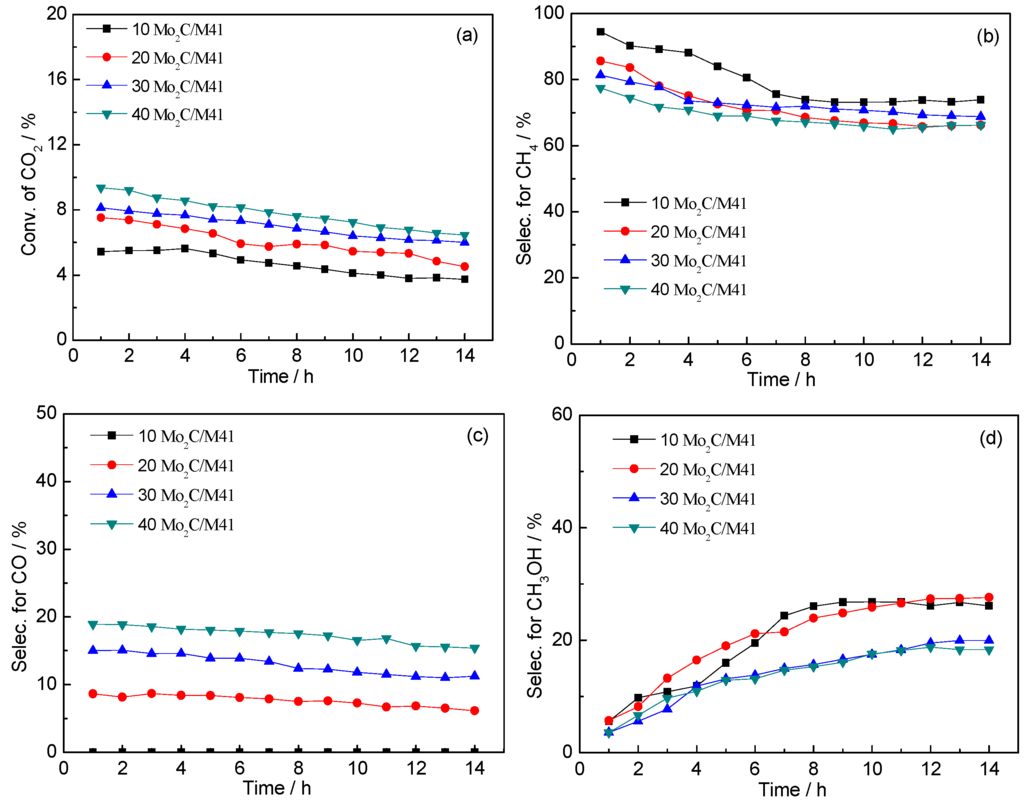

Catalysts 06 00075 g005 1024
Figure 5. Catalytic performance of yMo2C/M41 in CO2 hydrogenation. (a) CO2 conversion; (b) CH4 selectivity; (c) CO selectivity; (d) CH3OH selectivity. Reaction conditions: catalyst 0.5 g, temperature 493 K, pressure 3.0 MPa (H2:CO2 = 3:1), GHSV 3600 mL/(h·g).
Figure 5. Catalytic performance of yMo2C/M41 in CO2 hydrogenation. (a) CO2 conversion; (b) CH4 selectivity; (c) CO selectivity; (d) CH3OH selectivity. Reaction conditions: catalyst 0.5 g, temperature 493 K, pressure 3.0 MPa (H2:CO2 = 3:1), GHSV 3600 mL/(h·g).
Catalysts 06 00075 g005

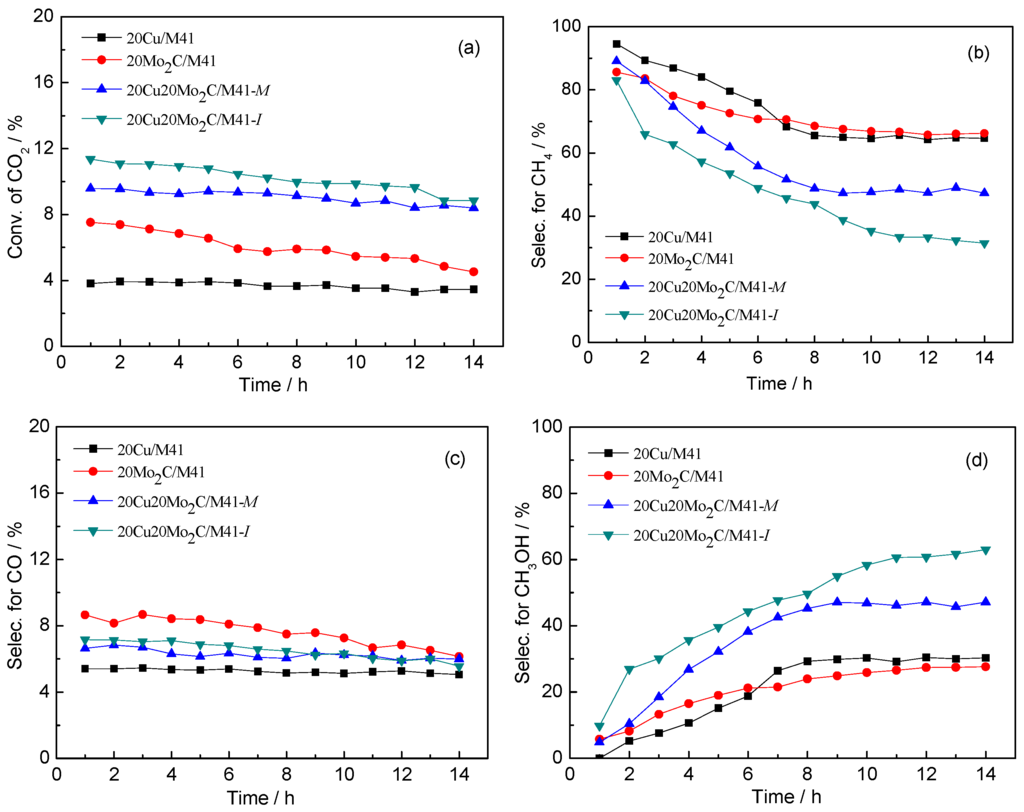

Catalysts 06 00075 g006 1024
Figure 6. Catalytic performance of 20Cu20Mo2C/M41 with different introducing method of Cu promoter in CO2 hydrogenation. (a) CO2 conversion; (b) CH4 selectivity; (c) CO selectivity; (d) CH3OH selectivity. Reaction conditions: catalyst 0.5 g, temperature 493 K, pressure 3.0 MPa (H2:CO2 = 3:1), GHSV 3600 mL/(h·g).
Figure 6. Catalytic performance of 20Cu20Mo2C/M41 with different introducing method of Cu promoter in CO2 hydrogenation. (a) CO2 conversion; (b) CH4 selectivity; (c) CO selectivity; (d) CH3OH selectivity. Reaction conditions: catalyst 0.5 g, temperature 493 K, pressure 3.0 MPa (H2:CO2 = 3:1), GHSV 3600 mL/(h·g).
Catalysts 06 00075 g006

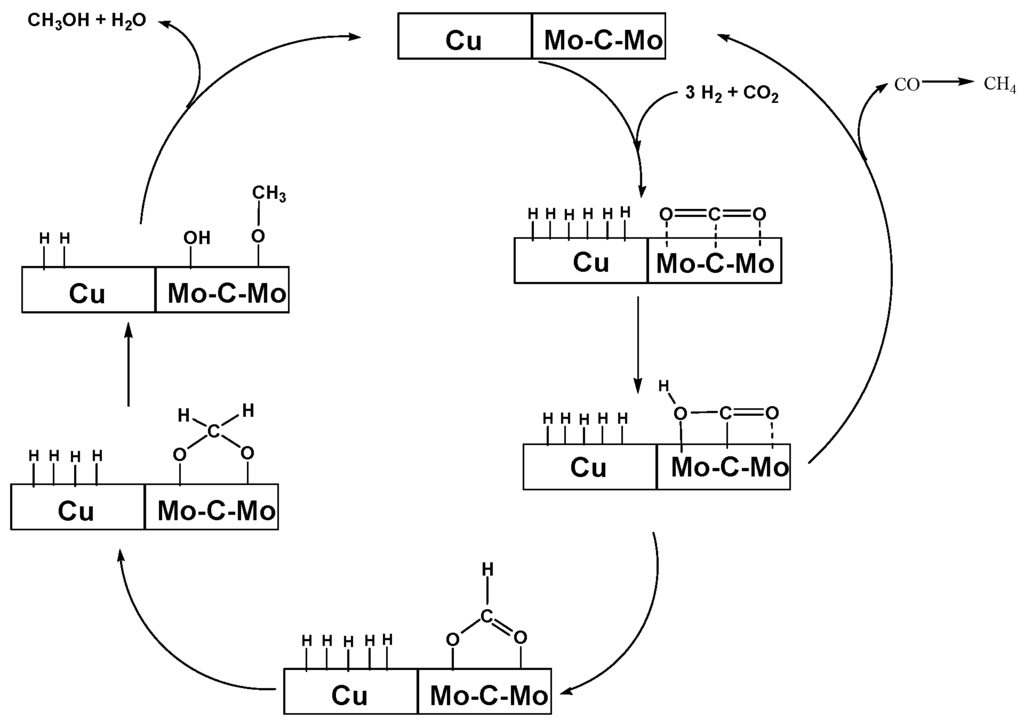

Catalysts 06 00075 sch001 1024
Scheme 1. Proposed reaction mechanism for CO2 hydrogenation over Cu–Mo2C/M41 catalysts.
Scheme 1. Proposed reaction mechanism for CO2 hydrogenation over Cu–Mo2C/M41 catalysts.
Catalysts 06 00075 sch001

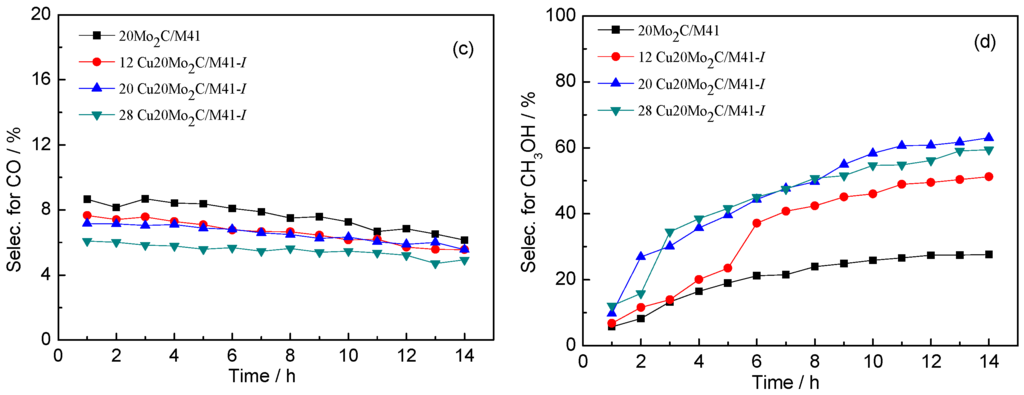

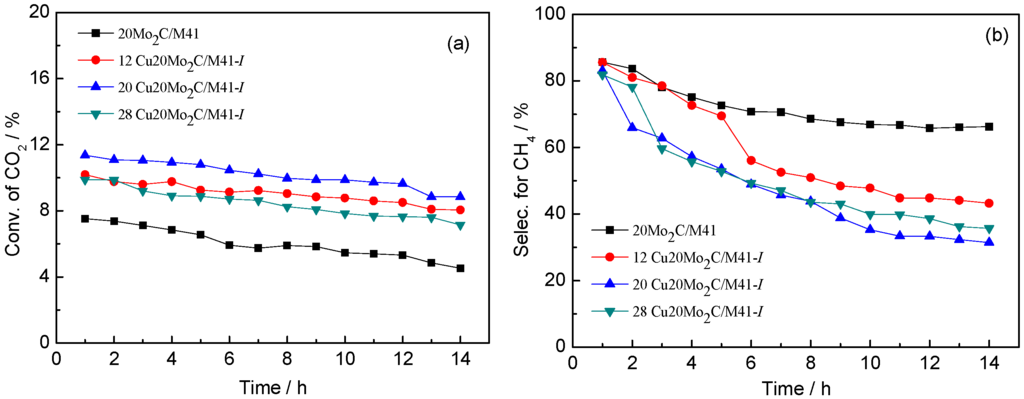

Catalysts 06 00075 g007a 1024Catalysts 06 00075 g007b 1024
Figure 7. Catalytic performance of xCu20Mo2C/M41-I in CO2 hydrogenation. (a) CO2 conversion; (b) CH4 selectivity; (c) CO selectivity; (d) CH3OH selectivity. Reaction conditions: catalyst 0.5 g, temperature 493 K, pressure 3.0 MPa (H2:CO2 = 3:1), GHSV 3600 mL/(h·g).
Figure 7. Catalytic performance of xCu20Mo2C/M41-I in CO2 hydrogenation. (a) CO2 conversion; (b) CH4 selectivity; (c) CO selectivity; (d) CH3OH selectivity. Reaction conditions: catalyst 0.5 g, temperature 493 K, pressure 3.0 MPa (H2:CO2 = 3:1), GHSV 3600 mL/(h·g).
Catalysts 06 00075 g007aCatalysts 06 00075 g007b

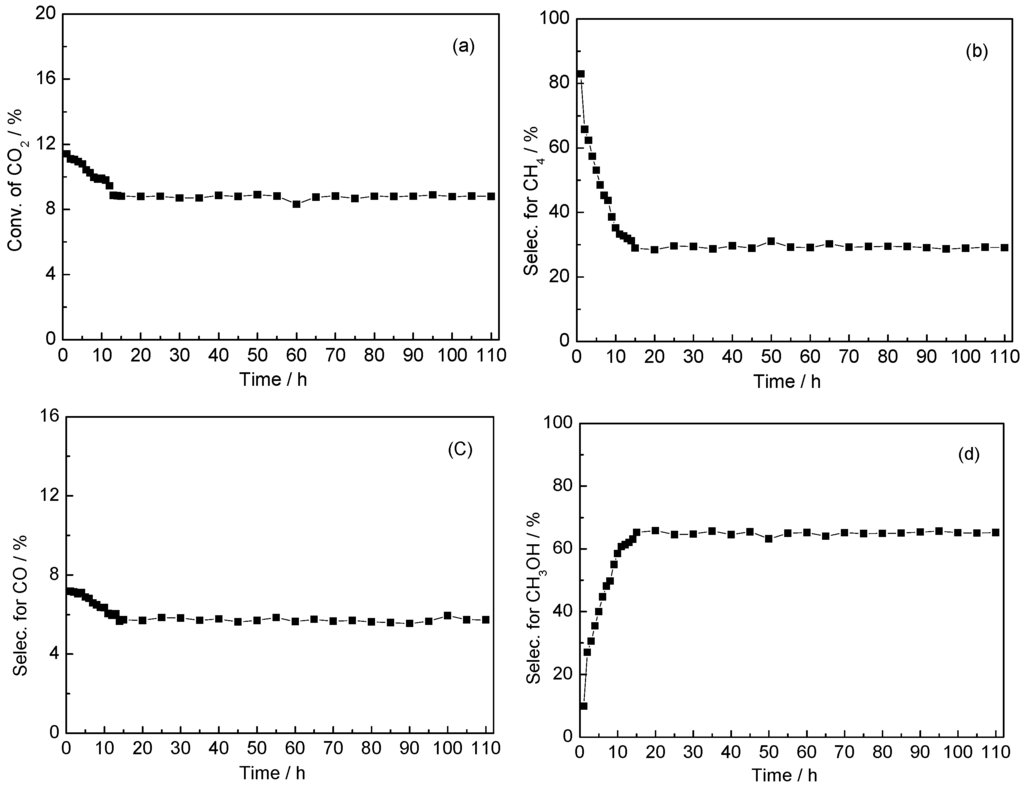

Catalysts 06 00075 g008 1024
