Effect of Porphyrin Molecular Structure on Water Splitting Activity of a KTaO3 Photocatalyst

1
Department of Applied Chemistry, Kyushu University, Motooka 744, Nishi-ku, Fukuoka 819-0395, Japan
2
International Institute for Carbon-Neutral Energy Research (I2CNER), Motooka 744, Nishi-ku, Fukuoka 819-0395, Japan
*
Author to whom correspondence should be addressed.
Catalysts 2016, 6(3), 42; https://doi.org/10.3390/catal6030042
Submission received: 15 January 2016 / Revised: 12 February 2016 / Accepted: 22 February 2016 / Published: 10 March 2016
(This article belongs to the Special Issue Photocatalytic Water Splitting-1)

Abstract

:
Photocatalytic water splitting is one of the ideal methods for solving the global energy crisis and its associated environmental problems. In this study, the effect of altering the molecular structure of porphyrins was investigated to improve the water splitting activity of Zr-doped KTaO3 (KTa(Zr)O3) modified with porphyrin dyes. UV-vis spectra indicated that porphyrins with long alkoxy chains tended to form well-developed H-aggregates on the KTa(Zr)O3 surface. The photocatalytic activity of Pt-loaded KTa(Zr)O3 was improved by using porphyrins with longer alkoxy chains because of the improvement in the charge migration between porphyrin dye molecules. While the charge transfer between the inorganic semiconductor and porphyrin dye interface is important, it was found that the formation of H-aggregation was more effective in improving the water splitting activity of the porphyrin-modified photocatalysts.

Graphical Abstract

1. Introduction

Photocatalytic water splitting is one of the most promising strategies for renewable and clean production of hydrogen. This method of hydrogen production has attracted much attention not only for the conversion of light energy but also from a scientific viewpoint, because photocatalytic water splitting is regarded as an artificial photosynthetic system. In photosynthesis, two photons are required to facilitate NADPH synthesis from NADP+ and water [1]. This two-step excitation process, the so-called “Z-scheme”, has been widely studied in both fundamental and applied fields of research [2,3,4,5]. In the past decade, various systems capable of Z-scheme water splitting (Figure 1b), such as Pt or Ru/SrTiO3:Rh–Fe3+/Fe2+–WO3, BiVO4, or Bi2MoO6 [6,7], Pt/TaON–IO3-/I-–PtOX/WO3 or RuO2/TaON [8,9], Pt/ZrO2/TaON–IO3/I–Ir/TiO2/Ta3N5 or RuO2/TaON [10,11], and other systems [12,13,14,15], have been reported. Our research group has also reported Z-scheme water splitting using porphyrin-dye-modified inorganic semiconductors, such as KTa(Zr)O3 [16,17,18], GaN:ZnO [19] and TaON [20]. In these dye-modified photocatalysts, the dyes used for modification improve the utilization efficiency of visible light and increase the charge separation lifetime owing to the electron transfer between the excited inorganic semiconductors and the dyes, as shown in Figure 1c. In our previous results, it was found that 5,10,15,20-tetrakis(tetraphenyl)porphyrin-Cr(III) chloride (Cr-TPPCl, Dye 1 in this study) had a positive effect on the photocatalytic activity of KTa(Zr)O3 for overall water splitting [17]. Cr-TPPCl formed aggregates on the surface of KTa(Zr)O3, which is similar to the structure of the chlorophyll special pair in the naturally occurring photosynthetic reaction center [21]. Thus, we have an interest in the relation between the aggregation states of porphyrins and their effects on the photocatalytic activity of the Cr-TPPCl/KTa(Zr)O3 system. Therefore, in this study, we have synthesized various porphyrins that contain chromium-coordinated porphyrin structures with different alkoxy chain lengths and used these compounds as modification dyes for the KTa(Zr)O3 photocatalyst. The aggregation states of the porphyrins were investigated by using UV-vis absorption spectroscopy; photocatalytic water splitting on KTa(Zr)O3 modified with various porphyrins was also demonstrated.

2. Results and Discussion

Various porphyrins (Figure 2), including 5,10,15,20-tetrakis(tetraphenyl)porphyrin-Cr(III) chloride (Dye 1), 5,10,15,20-tetrakis(4-methoxyphenyl)porphyrin-Cr(III) chloride (Dye 2), 5,10,15,20-tetrakis(4-(propoxy)phenyl)porphyrin-Cr(III) chloride (Dye 3), 5,10,15,20-tetrakis (4-(hexyloxy) phenyl)porphyrin-Cr(III) chloride (Dye 4), 5,10,15,20-tetrakis(4-(dodecyloxy)phenyl) porphyrin-Cr(III) chloride (Dye 5) and 5,10,15,20-tetrakis(4-(hexadecyloxy)phenyl)porphyrin-Cr(III) chloride (Dye 6), were used to investigate the effect of molecular structure on the photocatalytic activity of KTa(Zr)O3. The 1H NMR, 13C NMR and CSI-MS spectra of the porphyrins are summarized in the Supplementary Materials (Figures S1–S9). From these results, we could confirm that the porphyrins were successfully synthesized.
Figure 3 shows the UV-vis spectra of the synthesized porphyrins dissolved in CH2Cl2. In all spectra, the Soret and Q-band absorptions, which are typical porphyrin absorption bands, were observed at 450 and 560–610 nm, respectively. Compared with the spectrum of Dye 1 (Figure 3a), the absorption peaks of Dyes 26 were slightly shifted to longer wavelengths because of electron donation from alkoxy groups. The peak intensities in the absorption spectra of Dyes 26 appeared at the same positions; thus, it appears that the porphyrin dyes 26 exhibit similar energy states. To investigate the energy states of the porphyrin dyes, cyclic voltammetry was performed (Figure S10). The first oxidation-reduction potential was observed at −1.48 V (vs. Ag/Ag+) for Dye 1, while the potentials for Dyes 26 were observed at −1.51 V (vs. Ag/Ag+). The small difference between Dye 1 and the other dyes was also attributed to electron donation from the alkoxy groups. The ability of the alkoxy chain to donate electron density to the porphyrin ring appears to be similar, regardless of the length of the chain.
The morphology of the prepared samples was determined using FIB-SEM. Figure 4 shows SEM images of the various KTa(Zr)O3 photocatalysts modified with Dyes 16. All the samples exhibited small particles of various size distributions (<10 nm) deposited on the surface of larger KTa(Zr)O3 particles. These smaller particles appear to be Pt co-catalyst and/or aggregates of porphyrin dyes loaded on the KTa(Zr)O3 surface. The particle size of KTa(Zr)O3 was approximately 1 μm, which corresponded well with the results of a laser diffraction analysis of the particle diameters (Figure S11). TEM images of the dye-modified KTa(Zr)O3 samples are shown in Figure 5. In all images, the Pt-co-catalysts were observed as black small particles loaded on the larger KTa(Zr)O3 particles. The average diameter of Pt-co-catalysts was approximately 2–3 nm. Compared to a TEM image of KTa(Zr)O3 without dye modification (Figure S12), the dye-modified KTa(Zr)O3 surface seemed to be dappled, which suggested that the porphyrin dyes partially coated the KTa(Zr)O3 surface.
To investigate the aggregation states of Dyes 16, UV-vis absorption spectra were measured. Figure 6 shows the UV-vis spectra of the KTa(Zr)O3 photocatalyst modified with Dyes 16. As shown in Figure S13, KTa(Zr)O3 absorbed UV light at wavelengths shorter than 350 nm. Broad absorption peaks corresponding to Dyes 16 were observed in the visible region from 420 to 700 nm. In comparison with the absorption spectra of the dye solutions (Figure 3), the Soret band absorption peaks of Dyes 16 became broad and blue-shifted (6–26 nm), while the Q-band absorption peaks were red-shifted (11–38 nm). This tendency was most obviously observed in the porphyrins bearing longer alkoxy chains, such as Dye 5 and Dye 6. These peak shifts in the absorption spectra occurred as a result of the differences in the aggregation states of the dye compounds. In general, a red-shift is assigned to J-aggregations and a blue-shift to H-aggregations [22]. The peak-shift of J- and H-aggregates are dependent on the differences in transition dipoles: transition dipoles of J-aggregates are aligned parallel, while those of H-aggregates are aligned perpendicular. In the case of porphyrin derivatives, it has been reported that the aggregation state of the porphyrins can be determined by the shift direction of the Soret band [23,24]. Thus, all porphyrins used in this study appear to form H-aggregates on the KTa(Zr)O3 surface. Furthermore, the porphyrins that have longer alkoxy chains formed well-developed H-aggregates. In comparison with amorphous aggregates, dye aggregates have an advantage when transporting photogenerated charge carriers.
Figure 7 shows the time course for water splitting on Pt-loaded KTa(Zr)O3 modified with Dye 2. A 1–2 h induction period was observed after starting photoirradiation, and then the amounts of H2 and O2 formed linearly increased with time. This tendency was observed in all samples (Figure S14). This behavior might be attributed to state changes of the photocatalysts, such as changes in the Pt co-catalysts’ oxidation states or oxidative dye decomposition. The results of a recycle test of the photocatalyst are also shown in Figure 7. The circulating Ar gas was evacuated and exchanged every 5 h. Liner gas formation was observed during each run, and formation rates were slightly decreased over the 15 h period of the experiment. After the photocatalytic reaction, the amount of Dye 2 remaining on the KTa(Zr)O3 surface had decreased to 40% of the original loading (Figure S15). Although the porphyrin dyes remained in the reaction mixture for at least 15 h under the photocatalytic water splitting conditions, improving porphyrin stability to allow for their use in prolonged reactions is necessary.
Table 1 shows H2 and O2 formation rates for photocatalytic water splitting on Pt-loaded KTa(Zr)O3 modified with Dyes 16. In comparison with the result observed for the unmodified Pt-loaded KTa(Zr)O3, the photocatalytic activity of the KTa(Zr)O3 catalysts was improved by using the porphyrins. In all cases, the gas formation ratio is slightly different from the expected stoichiometry. The errors in the values of formation rates were evaluated using the Pt/Dye 2/KTa(Zr)O3 photocatalyst. As shown in Figure S16, the error observed in the oxygen formation rate was larger than that of the hydrogen formation rate. This difference may come from the low sensitivity for oxygen detection in gas chromatography with an Ar carrier and the hole consumption by oxidative dye decomposition. From the viewpoint of dye structure, the porphyrins which have small functional groups (Dye 1 and 2) tended to have a larger positive influence on photocatalytic activity. The porphyrins with small alkoxy groups closely adsorbed onto the KTa(Zr)O3 surface; thus, the charge transfer between the photo-excited electrons in KTa(Zr)O3 and the porphyrin dyes occurred easily compared with the porphyrins that contained large and bulky alkoxy groups. In our previous study, it was found that efficient electron transfer between the inorganic semiconductor surface and a porphine ring (or its central metal) is important for prolonging the charge separation lifetime and improving the water splitting activity of dye-modified photocatalysts [17,18]. Therefore, Dye 2–modified KTa(Zr)O3, containing a methoxy group, showed the highest photocatalytic activity for water splitting in this study. On the contrary, the gas formation rates gradually increased with increasing alkoxy chain length (i.e., from Dye 3 to Dye 6). As mentioned above, the porphyrins with longer alkoxy chains formed well-developed H-aggregates on the KTa(Zr)O3 surface. The photogenerated electrons (holes) are transported via redox of the porphyrin units; thus, the porphyrin aggregations have great advantages for charge migration because of their overlapping π electron clouds. Improvements in the electronic conductivity of the dye aggregates lead to an increase in photogenerated charges that reach the reaction sites on the photocatalyst surface. Therefore, the photocatalytic activity of KTa(Zr)O3 was improved by using the porphyrins with longer alkoxy chains. As a result of these two different factors, the modification effects of Dyes 16 were observed, as shown in Table 1. Although the porphyrin H-aggregates effectively improved the water splitting activity of the KTa(Zr)O3 photocatalyst, the charge transfer between the inorganic semiconductor and porphyrin dye interface appears to be the most important factor for achieving efficient water splitting.

3. Materials and Methods

3.1. Photocatalyst Preparation

3.1.1. Zr-doped KTaO3 Preparation

All reagents were used without further purification. KTa(Zr)O3 was synthesized by a solid-state reaction method, as reported elsewhere [17]. Ta2O5 (Kojundo Chemical Lab., Tokyo, Japan), K2CO3 (Wako, Osaka, Japan) and ZrO(NO3)2·2H2O (Nacalai tesque, Kyoto, Japan) were mixed in pure water. The water was evaporated to dryness with stirring. The resultant mixture was ground in an alumina mortar for 10 min and calcined in an alumina crucible at 900 °C for 10 h under an air atmosphere. The crystal structure of the resultant sample was determined by using powder X-ray diffraction (Figure S17).

3.1.2. Porphyrin Dye Synthesis

The 5,10,15,20-Tetraphenylporphyrin (Tokyo Chemical Industry Co., Ltd., Tokyo, Japan) was purchased and used without further purification. The 5,10,15,20-Tetrakis(4-methoxyphenyl)porphyrin and 4,4′,4″,4′″-(porphyrin-5,10,15,20-tetrayl) tetraphenol were synthesized according to literature methods [25]. A mixture of 4,4′,4″,4′″-(porphyrin-5,10,15,20-tetrayl)tetraphenol (350 mg, 0.516 mmol), K2CO3 (Tokyo Chemical Industry Co., Ltd., Tokyo, Japan) (1.43 g, 10.33 mmol), 18-crown-6 (Tokyo Chemical Industry Co., Ltd., Tokyo, Japan) (0.273 g, 1.034 mmol) and DMF (Sigma-Aldrich Co. LLC.,Tokyo, Japan) (40 mL) was stirred at 60 °C under nitrogen atmosphere. After 15 min, alkyl bromide (Tokyo Chemical Industry Co. Ltd., Tokyo, Japan) (10.33 mmol) was added in one portion, and the reaction was stirred for additional 5 h at reflux under a nitrogen atmosphere. The reaction was quenched with water, and the resultant precipitate was filtered. Silica gel chromatography (KANTO Kieselgel Si 60 (40–63 mm) , Kanto Chemical Co., Inc., Tokyo, Japan) using CH2Cl2 (Kanto Chemical Co. Inc., Tokyo, Japan) as the eluent gave the desired porphyrin. The porphyrin chromium chloride complexes were synthesized according to methods given in the literature [26] as follows: porphyrin (1 mmol) was dissolved in dry DMF and heated to reflux. To this mixture was added an excess amount of CrCl3 (Sigma-Aldrich Co. LLC., Tokyo, Japan) (4 mmol). After UV-vis measurements showed the complete disappearance of the free-base porphyrin, the reaction mixture was poured into ice water. The green-colored precipitate was then filtered and washed with water. Silica gel column chromatography using CHCl3-MeOH (Kanto Chemical Co., Inc., Tokyo, Japan)was used to purify the product. Further details of the syntheses are summarized in Supplementary Materials.

3.1.3. Preparation of Porphyrin-Modified KTa(Zr)O3 Photocatalysts

An “evaporation to dryness” method was employed to modify the KTa(Zr)O3 surface using pyridine as the solvent at 130 °C. In this study, the dye amount was unified at 0.8 wt. %. For loading the Pt co-catalyst onto the porphyrin/KTa(Zr)O3, the “evaporation to dryness” method was also used using water as the solvent. Pt(NH3)4(NO3)2 (Sigma-Aldrich Co. LLC., Tokyo, Japan) was used as the Pt co-catalyst precursor. The loading amount of the Pt co-catalyst was 0.2 wt. %.

3.2. Photocatalytic Water Splitting Reaction

The photocatalytic activity for water splitting was evaluated using a closed-circulation-type glass reactor with a dead volume of 450 mL (Figure S18). The catalyst (50 mg) was dispersed in 30 mL of distilled water. A quartz reaction cell was illuminated by a 300 W Xe lamp (Cermax, PE300BUV, Excelitas Technologies Corp., Waltham, MA USA). The spectrum of the excitation light source is shown in Supplementary Materials (Figure S19). Argon gas (10.67 kPa) was used as a carrier gas in the reactor. Gas leakage was checked for 1 h in the dark prior to reaction initiation. Gas evolution amounts were measured using a gas chromatograph (GC-8A, Shimadzu Corp., Kyoto, Japan).

3.3. Photocatalyst Characterization

TEM (JEM-2100TI, JEOL, Tokyo, Japan) and FIB-SEM (Versa 3D HiVac, FEI, Hillsboro, OH, USA) were used to observe the surface morphology of the dye-modified KTa(Zr)O3 samples. UV-vis absorption spectra of the porphyrin-pyridine solutions and the dye-modified KTa(Zr)O3 were measured using a spectrophotometer (U-3310, Hitachi, Tokyo, Japan). The 1H and 13C NMR spectra were recorded on a Bruker AVANCE-400 NMR spectrometer (400 MHz). The chemical shifts are reported as δ values (ppm) relative to internal tetramethylsilane. The coupling constants (J) are given in hertz. Absorption spectra were recorded on a Shimadzu UV-3600 spectrometer. Mass spectra were recorded on either a Bruker Autoflex mass spectrometer or a JEOL JMS-T100LP mass spectrometer. Silica gel 60 F254 (Merck, Frankfurt, Germany) was used for analytical thin-layer chromatography. Cyclic voltammetry was performed using a three-electrode cell, with a glassy carbon electrode as the working electrode, a platinum (Pt) wire as the counter electrode and 0.01 M Ag/AgNO3 in 0.1 M tetrabutylammonium perchlorate as the reference electrode. An X-ray diffractometer (RINT-2500, Rigaku, Tokyo, Japan) was used to determine the crystal structures of the samples.

4. Conclusions

The effect of porphyrin molecular structure on the water splitting activity of porphyrin-modified KTa(Zr)O3 was investigated in this study. Although the surface morphologies of the Pt/porphyrin dye/KTa(Zr)O3 photocatalysts were similar in SEM and TEM observations, UV-vis spectra indicated that the porphyrins with long alkoxy chains formed well-developed H-aggregates on the KTa(Zr)O3 surface. The photocatalytic activity of Pt-loaded KTa(Zr)O3 was improved by the porphyrins with longer alkoxy chains because of the improvement in the charge migration between the porphyrin dye molecules. Although the charge transfer between the inorganic semiconductor and porphyrin dye interface is important for water splitting, this study revealed that the formation of H-aggregates was more effective in improving the activity of porphyrin-modified photocatalysts.

Supplementary Materials

The following are available online at www.mdpi.com/2073-4344/6/3/42/s1: Figure S1, S3, S5 and S7: 1H NMR spectra of the precursor compounds of Dyes 3, 4, 5 and 6; Figure S2, S4, S6 and S8: 13C NMR spectra of the precursor compounds of Dyes 3, 4, 5 and 6; Figure S9: CSI-MS spectra of Dyes 16; Figure S10: Cyclic voltammograms of Dyes 16; Figure S11: Particle size distribution of KTa(Zr)O3 measured using a laser diffraction particle size analyzer; Figure S12: TEM image of KTa(Zr)O3; Figure S13: UV-vis spectrum of KTa(Zr)O3; Figure S14: Time course of water splitting over Pt-loaded KTa(Zr)O3 modified with Dyes 16; Figure S15: UV-vis absorption spectra of Dye 2 present on KTa(Zr)O3 before and after the photocatalytic reaction; Figure S16: Gas formation rates of water splitting on Pt/Dye 2/KTa(Zr)O3; Figure S17: XRD pattern of KTa(Zr)O3; Figure S18: Schematic image of a closed-circulation type glass reactor; Figure S19: Spectrum of the Xe lamp used in this study.

Acknowledgments

This work was supported by a Grant-in-Aid for Exploratory Research (No. 26630497) from the Ministry of Education, Culture, Sports, Science, and Technology (MEXT) of Japan.

Author Contributions

H.H., M.W., S.I., and T.I. conceived and designed the experiments; H.H., K.H., M.W., and R.K. performed the experiments; H.H. and M.W. analyzed the data and wrote the paper.

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

The following abbreviations are used in this manuscript:
NADPH
Nicotinamide adenine dinucleotide phosphate (reduced form)
NADP+
Nicotinamide adenine dinucleotide phosphate (oxidized form)
TEM
Transmission electron microscopy
NMR
Nuclear Magnetic Resonance
CSI-MS
Cold-spray ionization mass spectroscopy
FIB-SEM
focused ion beam-scanning electron microscopy
DMF
N,N-dimethylformamide
SEM
Scanning electron microscopy

References

  1. Loll, B.; Kern, J.; Saenger, W.; Zouni, A.; Biesiadka, J. Towards complete cofactor arrangement in the 3.0 Å resolution structure of photosystem II. Nature 2005, 438, 1040–1044. [Google Scholar] [CrossRef] [PubMed]
  2. May, M.M.; Lewerenz, H.-J.; Lackner, D.; Dimroth, F.; Hannappel, T. Efficient direct solar-to-hydrogen conversion by in situ interface transformation of a tandem structure. Nat. Commun. 2015, 6, 8286. [Google Scholar] [CrossRef] [PubMed]
  3. Peltier, G.; Tolleter, D.; Billon, E.; Cournac, L. Auxiliary electron transport pathways in chloroplasts of microalgae. Photosynth. Res. 2010, 106, 19–31. [Google Scholar] [CrossRef] [PubMed]
  4. Jin, J.; Yu, J.; Guo, D.; Cui, C.; Ho, W. A hierarchical Z-scheme CdS-WO3 photocatalyst with enhanced CO2 reduction activity. Small 2015, 16, 5262–5271. [Google Scholar] [CrossRef] [PubMed]
  5. Zhou, P.; Yu, J.; Jaroniec, M. All-solid-state Z-scheme photocatalytic systems. Adv. Mater. 2014, 26, 4920–4935. [Google Scholar]
  6. Kato, H.; Hori, M.; Konta, R.; Shimodaira, Y.; Kudo, A. Construction of Z-scheme type heterogeneous photocatalysis systems for water splitting into H2 and O2 under visible light irradiation. Chem. Lett. 2004, 33, 1348–1349. [Google Scholar] [CrossRef]
  7. Sasaki, Y.; Iwase, A.; Kato, H.; Kudo, A. The effect of co-catalyst for Z-scheme photocatalysis systems with an Fe3+/Fe2+ electron mediator on overall water splitting under visible light irradiation. J. Catal. 2008, 259, 133–137. [Google Scholar] [CrossRef]
  8. Abe, R.; Takata, T.; Sugihara, H.; Domen, K. Photocatalytic overall water splitting under visible light by TaON and WO3 with an IO3/Ishuttle redox mediator. Chem. Commun. 2005, 3829–3831. [Google Scholar] [CrossRef] [PubMed]
  9. Higashi, M.; Abe, R.; Ishikawa, A.; Takata, T.; Ohtani, B.; Domen, K. Z-scheme overall water splitting on modified-TaON photocatalysts under visible light (λ < 500 nm). Chem. Lett. 2008, 37, 138–139. [Google Scholar]
  10. Tabata, M.; Maeda, K.; Higashi, M.; Lu, D.; Takata, T.; Abe, R.; Domen, K. Modified Ta3N5 powder as a photocatalyst for O2 evolution in a two-step water splitting system with an iodate/iodide shuttle redox mediator under visible light. Langmuir 2010, 26, 9161–9165. [Google Scholar] [CrossRef] [PubMed]
  11. Maeda, K.; Abe, R.; Domen, K. Role and function of ruthenium species as promoters with TaON-based photocatalysts for oxygen evolution in two-step water splitting under visible light. J. Phys. Chem. C 2011, 115, 3057–3564. [Google Scholar] [CrossRef]
  12. Matoba, T.; Maeda, K.; Domen, K. Activation of BaTaO2N photocatalyst for enhanced non-sacrificial hydrogen evolution from water under visible light by forming a solid solution with BaZrO3. Chem. Eur. J. 2011, 17, 14731–14735. [Google Scholar] [CrossRef] [PubMed]
  13. Maeda, K.; Lu, D.; Domen, K. Solar-Driven Z-scheme water splitting using modified BaZrO3–BaTaO2N solid solutions as photocatalysts. ACS Catal. 2013, 3, 1026–1033. [Google Scholar] [CrossRef]
  14. Ma, S.S.K.; Maeda, K.; Hisatomi, T.; Tabata, M.; Kudo, A.; Domen, K. A redox-mediator-free solar-driven Z-Scheme water-splitting system consisting of modified Ta3N5 as an oxygen-evolution photocatalyst. Chem. Eur. J. 2013, 19, 7480–7486. [Google Scholar] [CrossRef] [PubMed]
  15. Iwase, A.; Ng, Y.H.; Ishiguro, Y.; Kudo, A.; Amal, R. Reduced graphene oxide as a solid-state electron mediator in Z-scheme photocatalytic water splitting under visible light. J. Am. Chem. Soc. 2011, 133, 11054–11057. [Google Scholar] [CrossRef] [PubMed]
  16. Hagiwara, H.; Inoue, T.; Ida, S.; Ishihara, T. Long-time charge separation in porphyrin/KTa(Zr)O3 as water splitting photocatalyst. Phys. Chem. Chem. Phys. 2011, 13, 18031–18037. [Google Scholar] [CrossRef] [PubMed]
  17. Hagiwara, H.; Inoue, T.; Kaneko, K. Ishihara, Charge-transfer mechanism in Pt/KTa(Zr)O3 photocatalysts modified with porphyrinoids for water splitting. Chem. Eur. J. 2009, 15, 12862–12870. [Google Scholar] [CrossRef] [PubMed]
  18. Hagiwara, H.; Ono, N.; Inoue, T.; Matsumoto, H.; Ishihara, T. Dye-sensitizer effects on a Pt/KTa(Zr)O3 catalyst for the photocatalytic splitting of water. Angew. Chem. Int. Ed. 2006, 45, 1420–1422. [Google Scholar] [CrossRef] [PubMed]
  19. Hagiwara, H.; Nagatomo, M.; Seto, C.; Ida, S.; Ishihara, T. Dye-modification effects on water splitting activity of GaN:ZnO photocatalyst. J. Photochem. Photobio. A 2013, 272, 41–48. [Google Scholar] [CrossRef]
  20. Hagiwara, H.; Nagatomo, M.; Seto, C.; Ida, S.; Ishihara, T. Dye modification effects on TaON for photocatalytic hydrogen production from water. Catalysts 2013, 3, 614–624. [Google Scholar] [CrossRef]
  21. Rutherford, A.W.; Faller, P. Photosystem II: Evolutionary perspectives. Phil. Trans. R. Soc. Lond. B 2003, 358, 245–253. [Google Scholar] [CrossRef] [PubMed]
  22. Würthner, F.; Kaiser, T.E.; Saha-Möller, C.R. J-aggregates: From serendipitous discovery to supramolecular engineering of functional dye materials. Angew. Chem. Int. Ed. 2011, 50, 3376. [Google Scholar] [CrossRef] [PubMed]
  23. Kano, K.; Fukada, K.; Wakami, H.; Nishiyabu, R.; Pasternack, R.F. Factors influencing self-aggregation tendencies of cationic porphyrins in aqueous solution. J. Am. Chem. Soc. 2000, 122, 7494–7502. [Google Scholar] [CrossRef]
  24. Král, V.; Schmidtchem, F.P.; Lang, K.; Berger, M. Anion-controlled assembly of porphyrin-bicyclic guanidine conjugates. Org. Lett. 2002, 1, 51–54. [Google Scholar] [CrossRef]
  25. Miyajima, N.; Furuta, N.; Wakunami, S.; Mizutani, T. Functionalization of silica surface by tetrahydroxyporphyrin via Si-O linkages. Bull. Chem. Soc. Jpn. 2011, 84, 794–801. [Google Scholar]
  26. Chen, A.P.; Chisholm, M.H.; Gallucci, J.C.; Zhang, X.; Zhou, Z. Binding of propylene oxide to porphyrin- and Salen-M(III) cations, where M = Al, Ga, Cr, and Co. Inorg. Chem. 2005, 44, 2588–2595. [Google Scholar] [CrossRef] [PubMed]

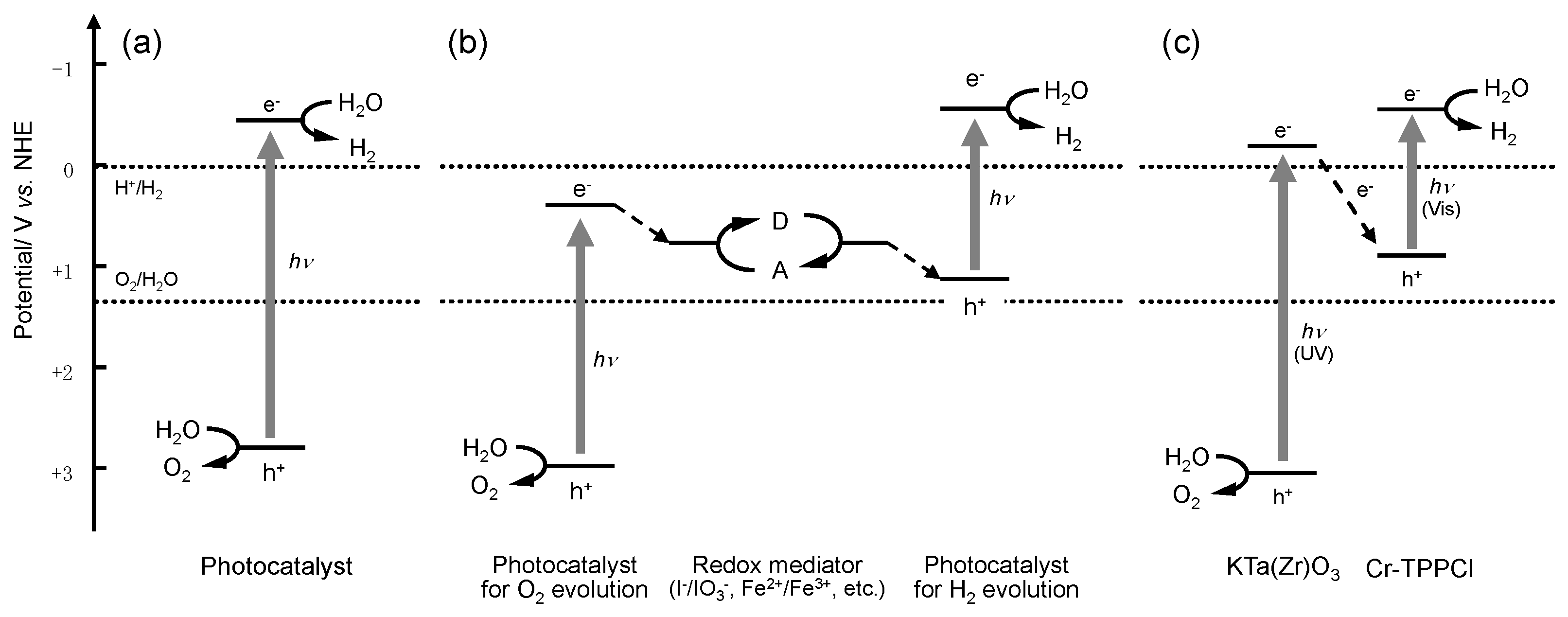

Figure 1. Various heterogeneous photocatalyst systems for water splitting reaction. (a) A one-photon system; (b) the Z-scheme system; and (c) the Cr-TPPCl-modified KTa(Zr)O3 system.
Figure 1. Various heterogeneous photocatalyst systems for water splitting reaction. (a) A one-photon system; (b) the Z-scheme system; and (c) the Cr-TPPCl-modified KTa(Zr)O3 system.
Catalysts 06 00042 g001

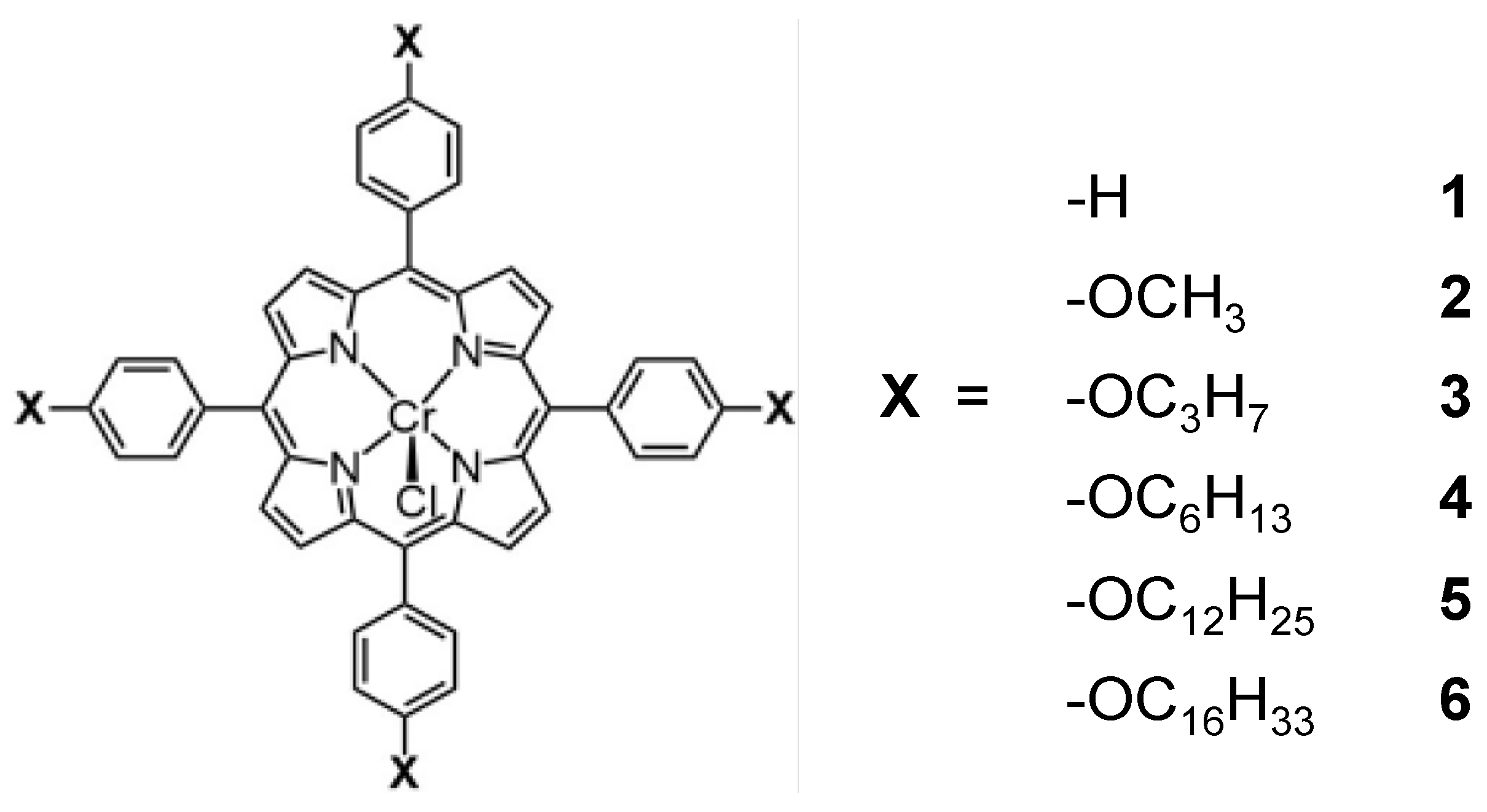

Figure 2. Molecular structures of the porphyrin dyes used for the modification of KTa(Zr)O3.
Figure 2. Molecular structures of the porphyrin dyes used for the modification of KTa(Zr)O3.
Catalysts 06 00042 g002

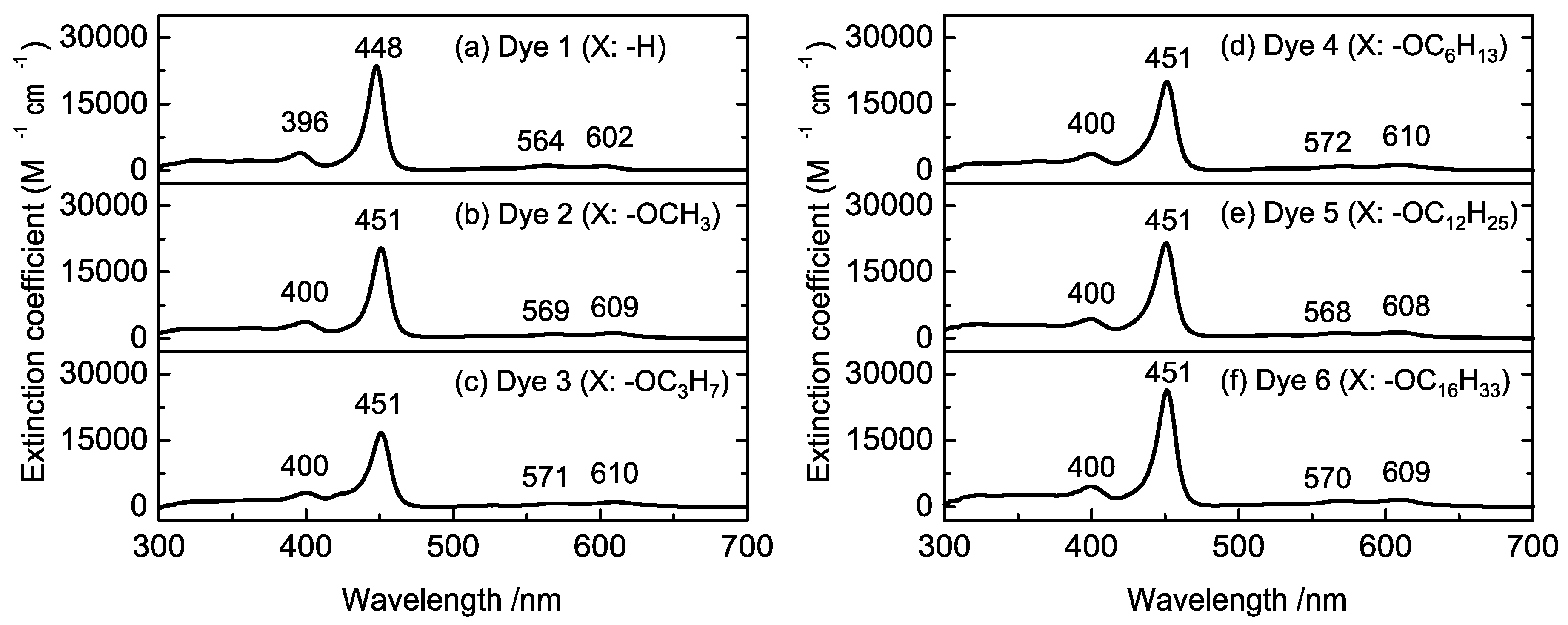

Figure 3. UV-vis spectra of Dyes 16 in CH2Cl2.
Figure 3. UV-vis spectra of Dyes 16 in CH2Cl2.
Catalysts 06 00042 g003

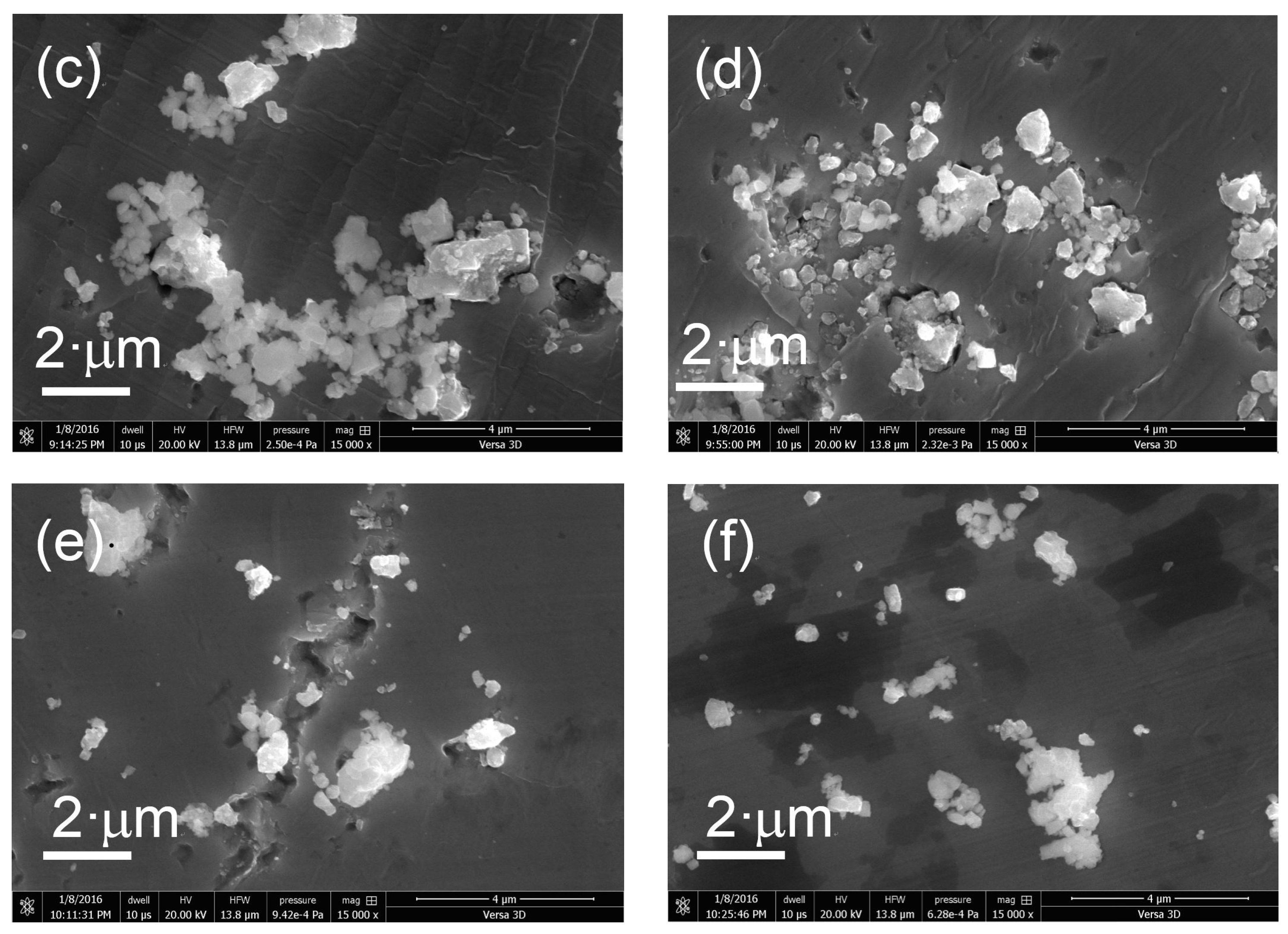

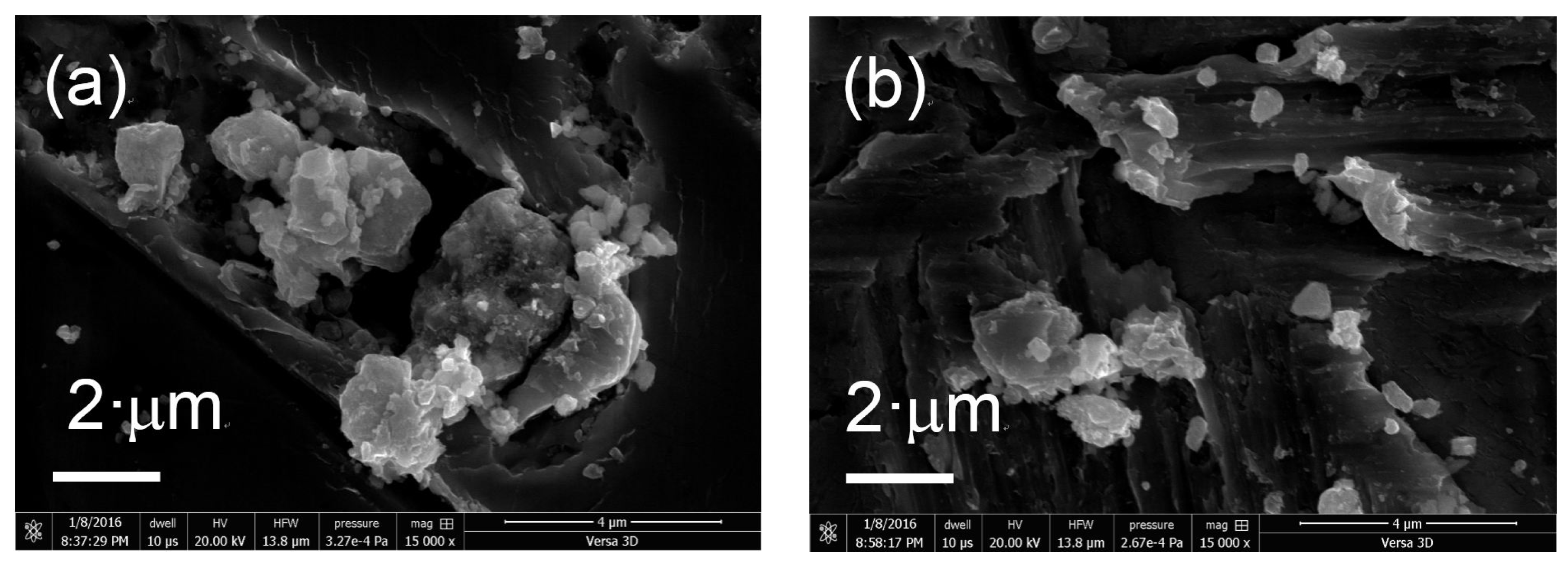

Figure 4. SEM images of Pt/KTa(Zr)O3 modified with (a) Dye 1, (b) Dye 2, (c) Dye 3, (d) Dye 4, (e) Dye 5 and (f) Dye 6.
Figure 4. SEM images of Pt/KTa(Zr)O3 modified with (a) Dye 1, (b) Dye 2, (c) Dye 3, (d) Dye 4, (e) Dye 5 and (f) Dye 6.
Catalysts 06 00042 g004aCatalysts 06 00042 g004b

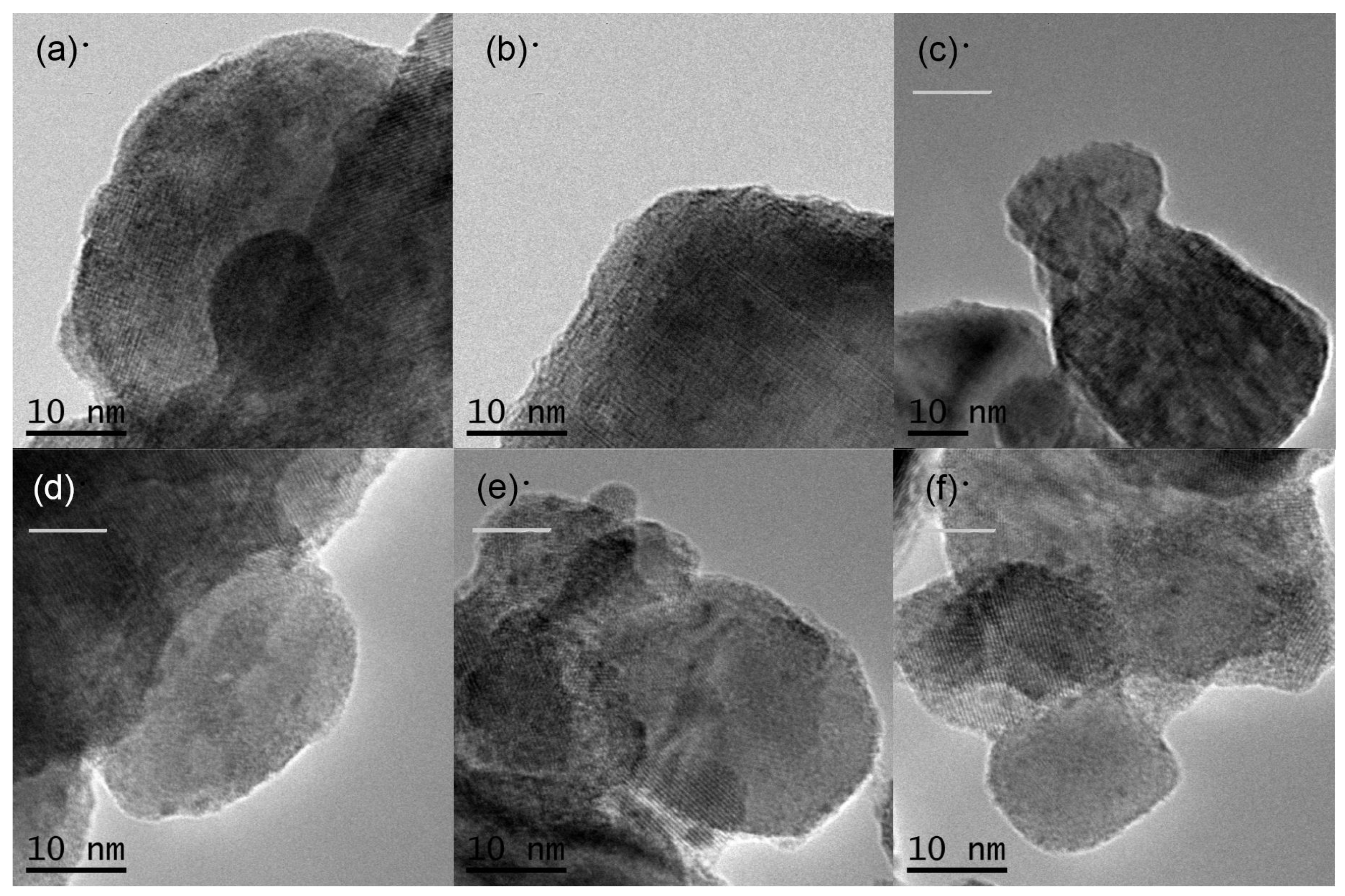

Figure 5. TEM images of Pt/KTa(Zr)O3 modified with (a) Dye 1, (b) Dye 2, (c) Dye 3, (b) Dye 4, (e) Dye 5 and (f) Dye 6.
Figure 5. TEM images of Pt/KTa(Zr)O3 modified with (a) Dye 1, (b) Dye 2, (c) Dye 3, (b) Dye 4, (e) Dye 5 and (f) Dye 6.
Catalysts 06 00042 g005

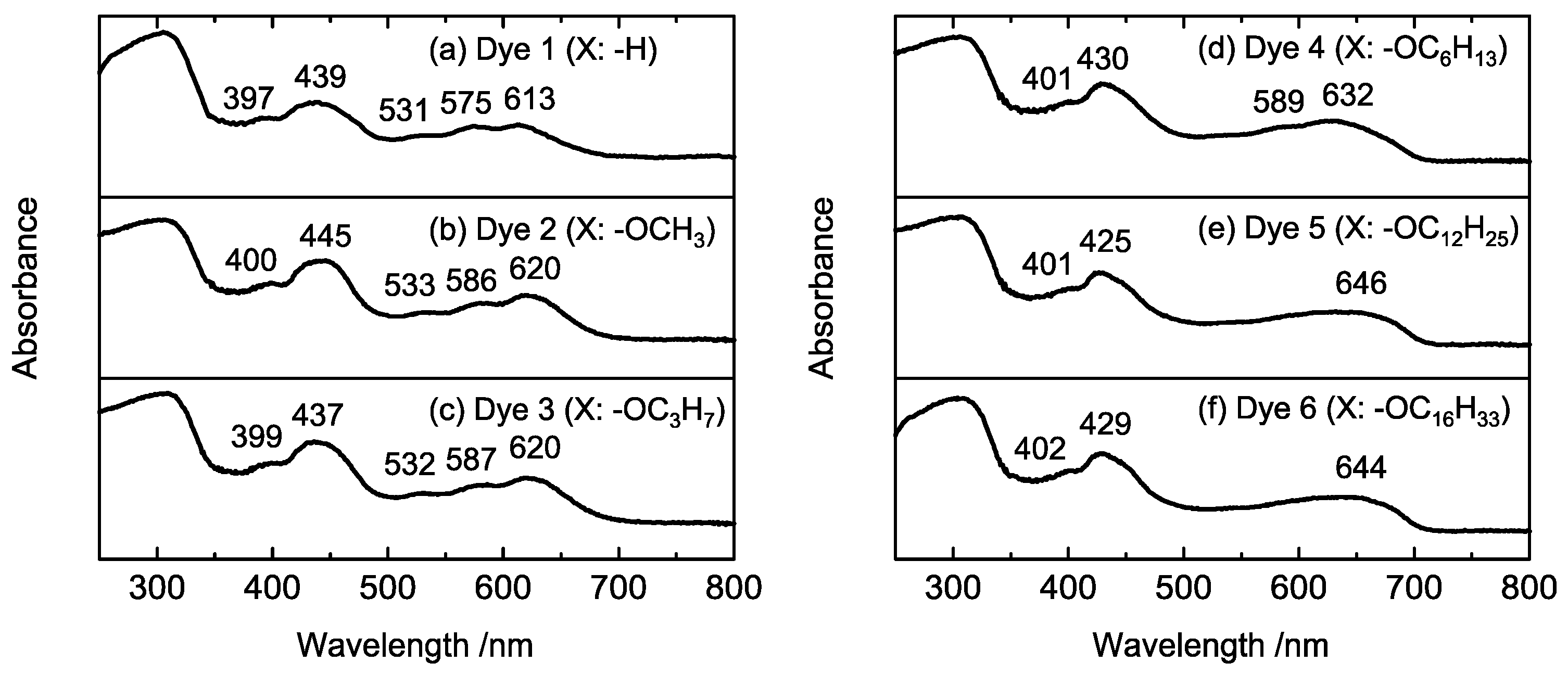

Figure 6. UV-vis absorption spectra of Pt (0.2 wt. %)/porphyrin dye (0.8 wt. %)/KTa(Zr)O3.
Figure 6. UV-vis absorption spectra of Pt (0.2 wt. %)/porphyrin dye (0.8 wt. %)/KTa(Zr)O3.
Catalysts 06 00042 g006

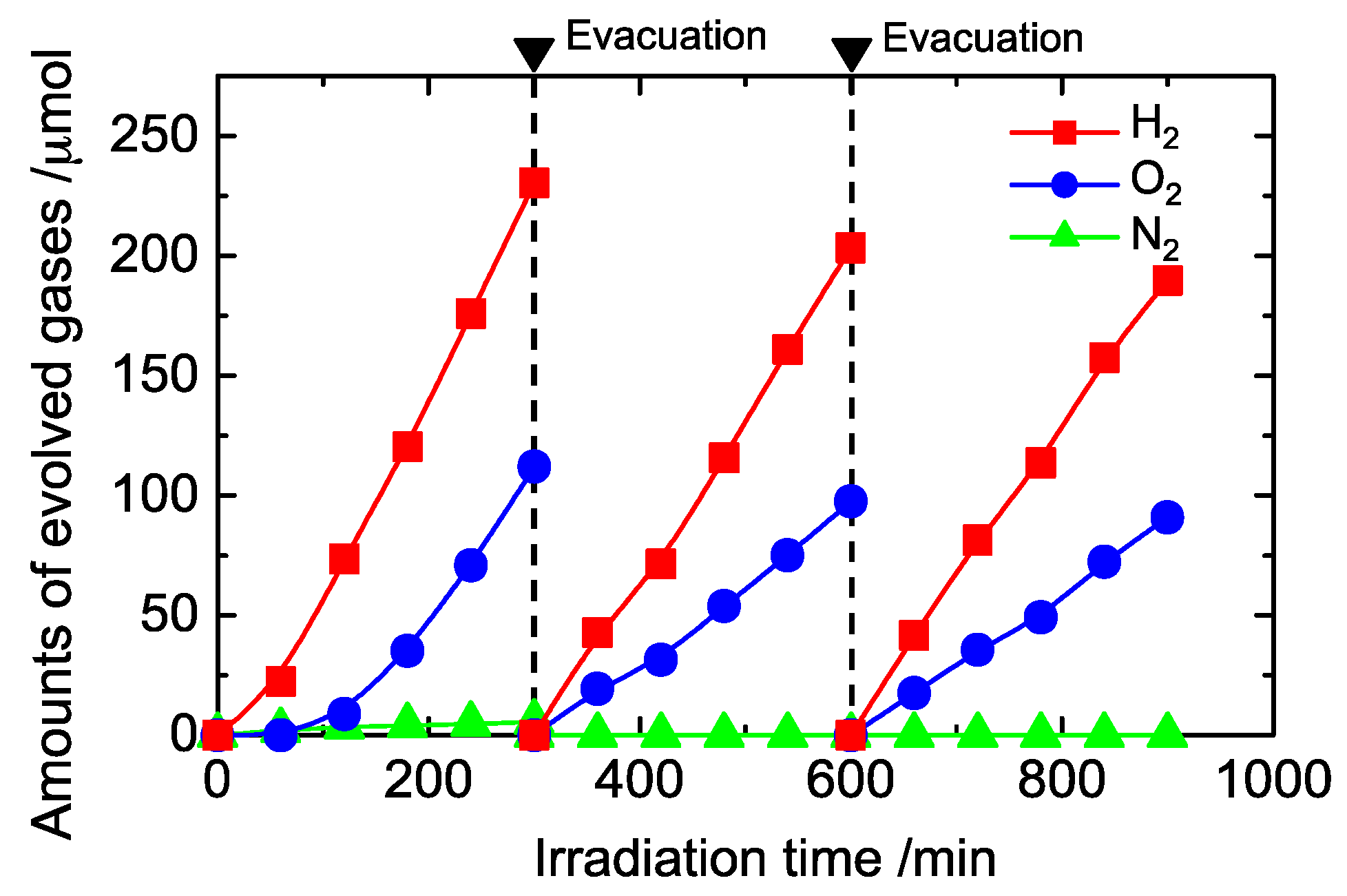

Figure 7. Time course for water splitting on Pt (0.2 wt. %)/Dye 2 (0.8 wt. %)/KTa(Zr)O3.
Figure 7. Time course for water splitting on Pt (0.2 wt. %)/Dye 2 (0.8 wt. %)/KTa(Zr)O3.
Catalysts 06 00042 g007
Table 1. Photocatalytic activity of porphyrin-modified KTa(Zr)O3 for water splitting 1.
Table 1. Photocatalytic activity of porphyrin-modified KTa(Zr)O3 for water splitting 1.
DyeXAmount of dye/μmolGas Formation Rate/μmol h1
H2O2
1−H0.5740.022.7
2−OCH30.4953.729.4
3−OC3H70.4326.812.8
4−OC6H130.3630.314.9
5−OC12H250.2834.719.1
6−OC16H330.2443.123.9
None-0.07.84.6
1 Photocatalyst: Pt (0.2 wt. %)/Dye (0.8 wt. %)/KTa(Zr)O3 (50 mg), Light: Xe lamp (Full arc, 620 mW), Reaction time: 5 h.
