Ethylene Polymerization Using (Imino)vanadium(V) Dichloride Complexes Containing (Anilido)methyl-pyridine, -quinoline Ligands–Halogenated Al Alkyls Catalyst Systems

Catalysts 2013, 3(1), 157-175; https://doi.org/10.3390/catal3010157

Review
Half-Titanocenes Containing Anionic Ancillary Donor Ligands: Effective Catalyst Precursors for Ethylene/Styrene Copolymerization
Department of Chemistry, Tokyo Metropolitan University, 1-1 Minami Osawa, Hachioji, Tokyo 192-0397, Japan
Received: 25 December 2012; in revised form: 21 January 2013 / Accepted: 25 January 2013 / Published: 18 February 2013

Abstract

:
This review summarizes recent results for ethylene/styrene copolymerization using half-titanocenes containing anionic donor ligands, Cp’TiX2(Y) (X = halogen, alkyl; Y = aryloxo, ketimide etc.)–cocatalyst systems. The product composition, the styrene incorporation and microstructures in the resultant copolymers are highly influenced by the anionic donor employed. A methodology for an exclusive synthesis of the copolymers even under high temperature and high styrene concentrations has been introduced on the basis of a proposed catalytically-active species in this catalysis.
Keywords:
polymerization; ethylene; styrene; copolymerization; titanium; catalyst; polymerization mechanism; homogeneous catalysis

1. Introduction

Precise control over macromolecular structure is a central goal in synthetic polymer chemistry, and copolymerization is an important method that usually modifies physical, mechanical and electronic properties by varying the ratio of the individual components. Considerable effort has been devoted to establishing a new synthetic strategy for precise placement of a chemical functionality, and the design and synthesis of efficient transition metal complex catalysts for precise olefin polymerization have been a subject of extensive studies [1,2,3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18]. Ethylene/styrene copolymers, which cannot be prepared by free radical or ordinary Ziegler-Natta processes [19,20,21,22], are promising due to their unique properties [23,24,25]. The introduction of styrene into the PE backbone results in drastic changes in both the viscoelastic behavior and thermo-mechanical properties of the polymeric material [24], since the crystallizability of PE chains is gradually inhibited by the incorporation of styrene. The copolymers range from semi-crystalline to amorphous materials, depending on the styrene content [23]. Therefore, these copolymers can become effective blend compatibilizers for PS/PE blends and also have potential in foam, film and sheet applications.
Half-titanocenes, such as Cp*TiF3, Cp*Ti(OMe)3 and (indenyl)TiCl3, are efficient catalyst precursors for syndiospecific styrene polymerization [26,27,28,29,30,31,32,33,34,35,36,37,38,39,40]; however, these catalyst precursors showed low activities in the copolymerization, and the resultant polymers were a mixture of polyethylene (PE), syndiotactic polystyrene (SPS) and the copolymer (E-S) [41,42,43,44,45]. As related examples, Cp*TiMe3 exhibited catalytic activities for both ethylene polymerization and styrene polymerization in the presence of MAO or B(C6F5)3, and the resultant polystyrene possessed both atactic (via a cationic mechanism) and syndiotactic (via a coordination insertion mechanism) stereoregularity; the ratios were dependent upon the polymerization temperature [46,47,48,49,50,51]. This catalyst also polymerizes isobutene via a carbocationic mechanism rather than a coordination insertion mechanism [51].
In contrast, it has been known that modified half-titanocenes, Cp’TiX2(Y) (Cp’ = cyclopentadienyl group; Y = anionic ligand, such as O-2,6-iPr2C6H3, N=CtBu2, N=PR3 etc.; X = halogen, alkyl), are effective not only for syndiospecific styrene polymerization, but also for ethylene/styrene copolymerization to exclusively give poly(ethylene-co-styrene)s [15,17,52,53,54,55,56,57,58,59,60,61,62,63]. Linked half-titanocenes (so-called “constrained geometry type”) are also effective for copolymerization [5,64,65,66,67,68,69,70,71,72,73,74,75,76,77], although these complexes exhibited extremely low catalytic activities for styrene polymerization [64,73]. In this reviewing article, I wish to summarize reported examples for copolymerization, especially using modified half-titanocene catalysts [78,79].

2. Ethylene/Styrene Copolymers: Microstructures, Thermal Properties and Composition Analyses

Poly(ethylene-co-styrene)s are generally obtained by the copolymerization of ethylene with styrene in the presence of catalysts composed of a transition metal complex and cocatalyst [methylaluminoxane (MAO), methyl isobutyl aluminoxane (modified MAO, MMAO), borate, such as B(C6F5)3, Ph3CB(C6F5)4, PhN(H)MeB(C6F5)4] [78,79]. In most cases, the resultant copolymer (E-S copolymer) should be isolated from a mixture of atactic polystyrene (APS, prepared by the cocatalyst itself), polyethylene (PE) and syndiotactic polystyrene (SPS).
Typical 13C NMR spectra (methylene and methine regions) of the copolymers, including assignment of the monomer sequences, are shown in Figure 1 [53]. As described below, the microstructures for the resultant poly(ethylene-co-styrene)s depend on the catalysts used. The glass transition temperature (Tg), as measured by differential scanning calorimetry (DSC) increased with an increase in the styrene content (−8.1–58.3 °C), because the crystallizability of PE chains is gradually inhibited by the incorporation of styrene [23].

2.1. Ethylene/Styrene Copolymerization Using Modified Half-Titanocenes, Cp’TiX2(Y)

2.1.1. Copolymerization Using Cp'TiX2(Y)–Cocatalyst Systems

Modified half-titanocenes of the type Cp’TiX2(Y) (Cp’ = cyclopentadienyl group; X = halogen, alkyl; Y = anionic ligand, such as O-2,6-iPr2C6H3, N=CtBu2, N=PR3) have been known to exhibit unique characteristics as olefin polymerization catalysts [15,16,17,18]. In particular, Cp’TiCl2(OAr) (OAr = O-2,6-iPr2C6H3) not only showed high activities for ethylene polymerization [80], but also exhibited efficient comonomer incorporations for copolymerization of ethylene with α-olefin [81,82,83], as well as with styrene [52,53,54,55,56] in the presence of MAO (Scheme 1).
Figure 1. 13C NMR spectra (in CDCl3 at 60 °C) of poly(ethylene-co-styrene)s (methylene and methine region, tetrahydrofuran (THF) soluble fraction) [53]. (a) catalyst = [Me2Si(C5Me4)(NtBu)]TiCl2, styrene content 32.7 mol%; (b) catalyst = (1,2,3-Me3C5H2)TiCl2(O-2,6-iPr2C6H3), styrene content 38.8 mol%. The peak at 30.5 ppm is due to the impurity (2,6-di-tert-butyl-p-cresol) added.
Figure 1. 13C NMR spectra (in CDCl3 at 60 °C) of poly(ethylene-co-styrene)s (methylene and methine region, tetrahydrofuran (THF) soluble fraction) [53]. (a) catalyst = [Me2Si(C5Me4)(NtBu)]TiCl2, styrene content 32.7 mol%; (b) catalyst = (1,2,3-Me3C5H2)TiCl2(O-2,6-iPr2C6H3), styrene content 38.8 mol%. The peak at 30.5 ppm is due to the impurity (2,6-di-tert-butyl-p-cresol) added.
Catalysts 03 00157 g001
Scheme 1. Effective catalyst precursors for random ethylene/styrene copolymerization [52,53,54,55,56].
Scheme 1. Effective catalyst precursors for random ethylene/styrene copolymerization [52,53,54,55,56].
Catalysts 03 00157 g004
As summarized in Table 1, Cp'TiCl2(OAr) (Cp' = 1,2,3-Me3C5H2 (1), 1,3-Me2C5H3 (2), tBuC5H4 (3) etc.; Ar = 2,6-iPr2C6H3) exhibited remarkable activities for ethylene/styrene copolymerization in the presence of MAO [52,53], whereas the Cp* analogue (4), which exhibited remarkable activities and comonomer incorporations in ethylene/α-olefin copolymerization [80,81,82,83], exhibited lower activities than 13 (Table 1) [52,53,54,55,56]. The resultant polymers are poly(ethylene-co-styrene)s exclusively without by-producing polyethylene and/or syndiotactic polystyrene [52,53]. The resultant copolymers possessed not only relatively high molecular weights with unimodal molecular weight distributions, but also a single composition, as confirmed by DSC thermograms, CFC and GPC/FT-IR [53]. The activities by 1-3 decreased slightly with an increase in the styrene concentration, whereas the styrene contents in the copolymers increased upon increasing the styrene concentration. Styrene incorporations with aryloxo analogues is more efficient than that with [Me2Si(C5Me4)(NtBu)]TiCl2 (5). An analysis of the microstructure of the resultant poly(ethylene-co-styrene)s by 13C NMR spectroscopy (Figure 1) indicated that the resultant copolymer prepared by 1 possesses resonances ascribed to two and three styrene units connected via head-to-tail coupling [at δ = 40.7–41.0 ppm (Tββ), 43.1–45 ppm (Sαα and Tβδ), respectively], in addition to the resonances ascribed to tail-to-tail coupling of a styrene unit or head-to-head bridged by an intervening ethylene unit (Sαβ, at δ = 34.3 and 35.1 ppm). This is especially interesting in contrast to the results with the linked half-titanocene (5).
Copolymerization with the other modified half-titanocenes has also been reported (Scheme 2). Ethylene/styrene copolymerization by Cp*TiCl2(N=CtBu2) (6) took place in a living manner in the presence of MAO cocatalyst, although the homopolymerization of ethylene and styrene did not proceed in a living manner [57]. No styrene repeating units were observed in the resultant copolymers, which suggest that a certain degree of styrene insertion inhibits chain transfer in this catalysis. The living nature was maintained under various conditions (Al/Ti molar ratios, ethylene pressure, styrene concentrations, temperature) [58].
Table 1. Ethylene/styrene copolymerization by Cp’TiCl2(OAr) [Cp’ = 1,2,3-Me3C5H2 (1), 1,3-Me2C5H3 (2), tBuC5H4 (3); OAr = O-2,6-iPr2C6H3] or [Me2Si(C5Me4)(NtBu)]TiCl2 (5)–MAO catalyst systems [52,53].a
Table 1. Ethylene/styrene copolymerization by Cp’TiCl2(OAr) [Cp’ = 1,2,3-Me3C5H2 (1), 1,3-Me2C5H3 (2), tBuC5H4 (3); OAr = O-2,6-iPr2C6H3] or [Me2Si(C5Me4)(NtBu)]TiCl2 (5)–MAO catalyst systems [52,53].a
ComplexesStyreneActivity bTHF soluble (E/S copolymer)
/mL Content c /wt.%Mw d× 10−4Mw/Mn dStyrene /mol% e
(1,2,3-Me3C5H2)TiCl2(OAr) (1)3410099.1 17.0 1.6 26.0
(1,2,3-Me3C5H2)TiCl2(OAr) (1)5307098.3 11.0 1.7 38.8
(1,2,3-Me3C5H2)TiCl2(OAr) (1)10272097.8 6.6 1.6 51.2
(1,3-Me2C5H3)TiCl2(OAr) (2)3367097.1 6.4 1.8 32.3
(1,3-Me2C5H3)TiCl2(OAr) (2)5428098.2 6.0 2.1 38.5
(1,3-Me2C5H3)TiCl2(OAr) (2)10414098.2 3.7 1.6 49.0
(tBuC5H4)TiCl2(OAr) (3)5218099.65.91.737.6
(tBuC5H4)TiCl2(OAr) (3)10184098.73.52.251.2
[Me2Si(C5Me4)(NtBu)]TiCl2 (5)10563099.6 18.0 1.8 32.7
a Reaction conditions: catalyst 1.0 μmol (2 μmol/mL-toluene), ethylene 4 atm, total volume of toluene and styrene = 30 mL, MAO white solid (Al/Ti = 2000, molar ratio), 25 ºC, 10 min. b Activity (kg-polymer/mol-Ti·h), polymer yield in acetone insoluble fraction. c Percentage of content in copolymer based on polymer obtained. d GPC data in o-dichlorobenzene vs. polystyrene standards. e Styrene content (mol%) in copolymer estimated by 1H NMR (1,1,2,2-C2D2Cl4).
Scheme 2. Other half-titanocenes employed for ethylene/styrene copolymerization [48,49,50,51].
Scheme 2. Other half-titanocenes employed for ethylene/styrene copolymerization [48,49,50,51].
Catalysts 03 00157 g005
Copolymerization with CpTiX2(N=PCy3) (7, X = Cl, Me)–cocatalyst (MAO, borates) systems proceeded with remarkable catalytic activities [at 60–90 °C, ethylene 70 psi (4.76 atmv)], however, styrene incorporation seemed less efficient than with either aryloxo analogues (13) or linked half-titanocene (5) [styrene content: 33.4–61.4 wt% (<27.6 mol%)] [60,84]. Half-titanocene-containing imidazolidin-2-iminato ligand (8a) also exhibited remarkable catalytic activity under certain conditions, but the styrene content in the resultant copolymer was low [ethylene 5 bar, styrene/toluene = 20/210 mL, 80 °C; activity = 1960 kg-polymer/mol-Ti·h, Mw = 1.79×105, Mw/Mn = 2.1, styrene 10 wt% (2.9 mol%)] [59]. However, the copolymerization using the dichloro- analogue (8b) afforded a mixture of PE and the copolymer confirmed by DSC thermograms [61]. The imidazolin-2-iminato analogue (9) showed moderate catalytic activities and afforded the copolymers exclusively under the optimized conditions: the copolymerization proceeded in a quasi living manner, as observed in the copolymerization by 6 [63]. The pyrazolato analogue (10) also showed the similar copolymerization behavior to those observed by 6,9, although the activities were low [62]. Microstructure analysis results indicate that the resultant poly(ethylene-co-styrene)s prepared by 9,10 possessed resonances ascribed to isolated and alternating styrene inserted units. On the basis of these experiments, it seems likely that an isolated (and/or alternating) insertion of styrene plays a role for the (quasi) living polymerization to disturb the propagated chain from β-H elimination [57,58,62,63].
On the basis of the above results, modified half-titanocenes, Cp’TiX2(Y), especially the aryloxo modified half-titanocenes, are better catalyst precursors for the synthesis of ethylene/styrene copolymers, and both the activity and the styrene incorporation are highly affected by the kind of ligands used (both cyclopentadienyl and anionic donor).

2.1.2. Role of Anionic Donor Ligand (Y) and Mechanistic Considerations

Three half-titanocene complexes containing Cp* ligand of type, Cp*TiX2(Y) [X = Cl, Y = N= CtBu2 (6), O-2,6-iPr2C6H3 (4), Cl (11); X = Me, Y = O-2,6-iPr2C6H3 (12), Me (13)]–cocatalyst systems were used for the copolymerization to explore the effect of anionic donor ligands under the same conditions (Table 2, Table 3) [58,85,86]. The ketimide analogue (6)–MAO catalyst showed moderate catalytic activities, and the styrene content increased at higher temperature. The resultant copolymers prepared with 6 even at 55 and 70 °C still possessed relatively low PDI values, suggesting that the living nature was maintained under these conditions (Table 2). In contrast, the polymerizations by the aryloxide analogue (4) gave copolymers with high styrene contents (31.9–34.3 mol%), and a significant increase in the activity was not observed at high temperature. The resultant copolymers possessed lower Mn values with unimodal, rather large PDI values (Mw/Mn = 1.50–1.62), which strongly suggests that a chain transfer reaction occurred to some degree. Note that the polymers prepared with the trichloride analogue (11) showed bimodal molecular weight distributions consisting of a mixture of PE and SPS, and the proportion of SPS increased at high temperature, due to an increase in the activity for syndiospecific styrene polymerization [58,87,88].
Table 2. Copolymerization of ethylene with styrene by Cp*TiCl2(Y) [Y = N= CtBu2 (6), O-2,6-iPr2C6H3 (OAr, 4), Cl (11)]–MAO catalyst systems [58] a.
Table 2. Copolymerization of ethylene with styrene by Cp*TiCl2(Y) [Y = N= CtBu2 (6), O-2,6-iPr2C6H3 (OAr, 4), Cl (11)]–MAO catalyst systems [58] a.
CatalystsTemp.Composition (%) cActivity dStyrene cont.eMn fMw/Mn f
Y/°CE-SPESPS /mol%×10−4
N=CtBu2 (6)25>99 tracetrace3967.49.51.18
N=CtBu2 (6)40>99tracetrace7909.314.41.28
N=CtBu2 (6)55>99tracetrace111010.419.71.31
N=CtBu2 (6)70>99tracetrace126012.216.31.57
OAr (4)25>99tracetrace50431.99.281.62
OAr (4)40>98tracetrace66034.39.791.5
Cl (11)25trace86.813.2250>99 g5.851.26
-0.292.69
Cl (11)40trace81.618.4280>99 g5.071.31
-0.311.75
Cl (11)55trace69.830.2260>99 g3.561.48
-0.211.77
aConditions: catalyst 2.0 μmol, MAO (prepared by removing AlMe3 and toluene from PMAO) 3.0 mmol, ethylene 6 atm., styrene 10 mL, styrene + toluene total 30 mL, 10 min. b Initial molar ratio of styrene/ethylene in the reaction mixture. cBased on a mixture of PE, SPS and copolymer. (acetone insoluble fraction). d Activity in kg-polymer/mol-Ti·h. e Styrene content (mol%) estimated by 1H NMR. fGPC data in o-dichlorobenzene vs. polystyrene standards. gConfirmed by GPC/FT-IR, 13C NMR spectra, DSC thermograms.
Copolymerization using the aryloxo-dimethyl analogue (12)–MAO or [PhN(H)Me2][B(C6F5)4] (AFPB) catalyst system afforded the copolymer (Table 3); no distinct differences in the microstructures were seen between MAO and AFPB in the 13C NMR spectra. In contrast, note that the polymer prepared with the Cp*TiMe3 (13)–AFPB catalyst was PE (containing a trace amount of the copolymer with low styrene content) or the copolymer with an extremely low styrene content, whereas the copolymerization in the presence of MAO afforded a mixture of PE and SPS, as seen with the trichloride analogue (11). The fact that no SPS was formed in polymerization with 13–AFPB catalyst was analogous to the fact that Cp*Ti(CH2Ph)3–AFPB catalyst did not afford SPS in an attempted styrene polymerization (under dark conditions), and only poly(propylene-co-styrene) oligomer was formed in the propylene/styrene copolymerization [89]. These results strongly suggest that cationic Ti(IV) species play an important key role in ethylene polymerization, as well as ethylene/styrene copolymerization. These results also suggest that another catalytically-active species [likely Ti(III)] for syndiospecific styrene polymerization is formed in the presence of MAO [58].
Table 3. Ethylene/styrene copolymerization by Cp*TiMe2(O-2,6-iPr2C6H3) (12), Cp*TiMe3 (13)–MAO or [PhN(H)Me2][B(C6F5)4] (AFPB)–catalyst systems [58] a.
Table 3. Ethylene/styrene copolymerization by Cp*TiMe2(O-2,6-iPr2C6H3) (12), Cp*TiMe3 (13)–MAO or [PhN(H)Me2][B(C6F5)4] (AFPB)–catalyst systems [58] a.
Cat. (μmol)TimeComposition (%) bActivity cstyrene cont.dMneMw/Mn e
/minE-SPESPS /mol%×10−4
12/MAO (2.0)1099tracetrace51930.55.342.05
12/AFPB (5.0)2099tracetrace79.246.72.812.16
13/MAO (2.0)10trace 68.631.4366>998.661.37
-0.812.33
13/AFPB (10.0)20trace99trace43.8trace0.53.53
aConditions: catalyst 2.0 μmol, MAO 3.0 mmol or AliBu3 1.0 mmol (borate system), [C6H5NH(CH3)2]-[B(C6F5)4] (AFPB) 2.0 μmol, styrene 10.0 mL, toluene 20 mL, 10 min. bBased on a mixture of PE, SPS and copolymer. (acetone insoluble fraction). cActivity in kg-polymer/mol-Ti·h. dStyrene content (mol%) estimated by 1H NMR. eGPC data in O-dichlorobenzene vs. polystyrene standards.
The exclusive formation of copolymers without formation of SPS as a by-product was observed with the introduction of ethylene into a solution of syndiospecific styrene polymerization using Cp’TiCl2(O-2,6-iPr2C6H3)–MAO catalysts (Scheme 3) [90]. Moreover, the activities and the Mw values, as well as the styrene contents in the latter copolymerizations, were identical to those in independent runs (Table 4), clearly indicating that the catalytically active species for the syndiospecific styrene polymerization can be tuned to the active species for copolymerization by exposure of ethylene.
Scheme 3. Step (co)polymerization of ethylene with styrene [90].
Scheme 3. Step (co)polymerization of ethylene with styrene [90].
Catalysts 03 00157 g006
Taking into account these findings [58,87,88,91], it is thus highly assumed that the cationic Ti(IV) species, [Cp’TiR(Y)]+, likely play a role in copolymerization, and the active species containing an anionic ancillary donor ligand [assumed to be neutral Ti(III), Cp’TiR(Y)] proposed by Tomotsu et al. [37,38] plays a role in syndiospecific styrene polymerization (Scheme 4) [90]. These results should also explain the reported finding that the catalytic activities and molecular weight of the resultant syndiotactic polystyrene in styrene polymerization using Cp'TiX2(Y)–cocatalyst systems were highly dependent upon the anionic donor ligand (Y), regardless of the kind of the cocatalyst used [90]. These proposals are in contrasts to the hypothesis that cationic Ti(III) species, [Cp'Ti(R)(styrene)]+, play a role as the catalytically-active species for the styrene polymerization using Cp’TiX3 [89,92]. This hypothesis should help to explain why polystyrene structures in the resultant copolymers prepared with Cp'TiCl2(Y)–MAO catalysts are atactic [52,53,54,55,56,57,58,59,60,61,62,63].
Table 4. Two step ethylene/styrene (co)polymerization by Cp'TiCl2(O-2,6-iPr2C6H3) [Cp' = 1,2,4-Me3C5H2 (1), tBuC5H4 (3)]–MAO catalysts [90] a.
Table 4. Two step ethylene/styrene (co)polymerization by Cp'TiCl2(O-2,6-iPr2C6H3) [Cp' = 1,2,4-Me3C5H2 (1), tBuC5H4 (3)]–MAO catalysts [90] a.
catalystsEthylene bTime.CopolymerscSPSd
Cp'1st+2nd1st+2ndYieldMweMw/Styrene fYieldMweMw/
/atm./min/mg×10−4Mne/mol%/mg×10−4Mne
1,2,4-Me3C5H2 (1)05- 4524.11.82
1,2,4-Me3C5H2 (1)010- 17524.62.07
1,2,4-Me3C5H2 (1)6544012.41.8048.3trace
1,2,4-Me3C5H2 (1)61059311.51.5450.4trace
tBuC5H4 (3)05- 24217.22.70
tBuC5H4 (3)6557412.71.8544.7trace
1,2,4-Me3C5H2 (1)0+610+534010.72.5448.314021.92.53
1,2,4-Me3C5H2 (1)0+610+1057710.81.9249.815725.72.07
tBuC5H4 (3)0+65+536013.22.3645.322116.82.51
a Conditions: Ti cat. 1.0 μmol, styrene 10 mL, toluene 20 mL, MAO 3.0 mmol, 25 °C. b1st styrene 10 mL (5 or 10 min, ethylene 0 atmv) and then ethylene 6 atm (5 or 10 min). c Isolated as acetone insoluble and THF soluble fraction. dIsolated as acetone insoluble and THF insoluble fraction. e GPC data in O-dichlorobenzene vs. polystyrene standards. fStyrene content (mol%) estimated by 1H NMR spectra.

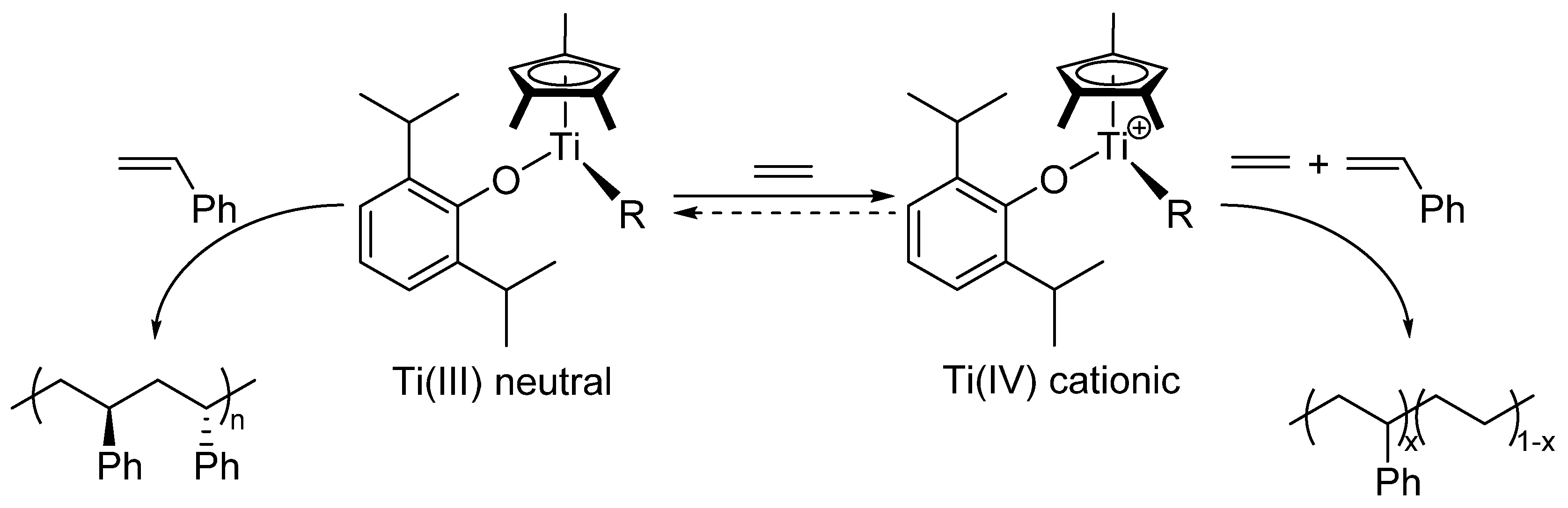

Scheme 4. Proposed active species in two polymerization using half-titanocenes [90].
Scheme 4. Proposed active species in two polymerization using half-titanocenes [90].
Catalysts 03 00157 g007

2.2. Effect of Cocatalyst in Ethylene/Styrene Copolymerization by Aryloxo-Modified Half-Titanocene Catalysts for Exclusive Synthesis of Copolymers under High Styrene Concentration Conditions

Although ethylene/styrene copolymerizations using the aryloxo-modified half-titanocenes, Cp'TiCl2(OAr) [Cp' = 1,2,3-Me3C5H2, 1,3-Me2C5H3, tBuC5H4, C5Me5 (Cp*, 4); OAr = O-2,6-iPr2C6H3], in the presence of MAO generally affords copolymers [52,53,58,90], it was revealed that syndiotactic polystyrene (SPS) was a by-produced when the polymerization was performed especially at a rather high temperature under high styrene concentrations [54,55]: the ratio of the copolymer/SPS was affected by the polymerization temperature and the [styrene]/[ethylene] feed molar ratio in the reaction mixture [54]. For example, the resultant polymers were poly(ethylene-co-styrene)s when the copolymerization was conducted at 25 °C or 40 °C under ethylene 6 atm. (Table 5, runs 1,4), whereas SPS was by-produced when the reactions were conducted at 40 °C or 55 °C under ethylene 4 atm (runs 2-3,5) [55]. As shown in Figure 2a, resonances ascribed to two (head-to-tail) styrene repeating units (Tβδ, Sαα) in addition to resonances due to so-called pseudo random [Sαβ, SS by tail-to-tail and/or SES (S = styrene, E = ethylene)] were observed in the NMR spectrum. However, resonances ascribed to carbons in SPS (marked as * ca. 40.8 and 44.1 ppm) also increased upon increasing the polymerization temperature (runs 2,3 in Figure 2b,c) [55].
Since the reports concerning the efficient synthesis of the copolymers with high styrene contents have been limited so far, we explored a possibility for the exclusive synthesis of copolymers under high temperature conditions. Development of the catalyst systems for the exclusive synthesis should be thus considered as potentially important in terms of not only polymer synthesis, but also better understanding of polymerization mechanism, although the copolymers with high styrene contents can be easily prepared when the polymerizations were conducted at 25 ºC under high styrene concentrations [52,53].
Table 5. Copolymerization of ethylene with styrene by Cp*TiCl2(O-2,6-iPr2C6H3) (4)–MAO catalyst system [55]a.
Table 5. Copolymerization of ethylene with styrene by Cp*TiCl2(O-2,6-iPr2C6H3) (4)–MAO catalyst system [55]a.
RunEthyleneTemp[S]0/[E]0 bActivity cComp. d/wt.%MweMw/Mn eStyrene f
/atm./°C E-SSPS×10−4 /mol%
14256.01525>99-8.42.2534
24407.1338477238.71.72-
34558.34363435710.01.8-
46404.75660>99-9.81.534
56555.5660069314.2/9.201.64/2.32-
a Conditions: Ti 2.0 μmol, ethylene 4 atm, styrene 10 mL, toluene 20 mL, MAO (white solid prepared by removing AlMe3 and toluene from commercially available PMAO-S, Tosoh Finechem Co.) 3.0 mmol, (Al/Ti = 1500, molar ratio), 10 min. b Initial molar ratio of styrene/ethylene in the reaction mixture. c Activity in kg-polymer/mol-Ti·h, polymer yields were based on a mixture of SPS (syndiotactic polystyrene) and E-S (copolymer) as acetone insoluble fraction. d Composition estimated by 13C NMR spectra (and confirmed by 1H NMR spectra). e GPC data in o-dichlorobenzene vs. polystyrene standards. f Styrene content in mol% estimated by 1H NMR spectra.

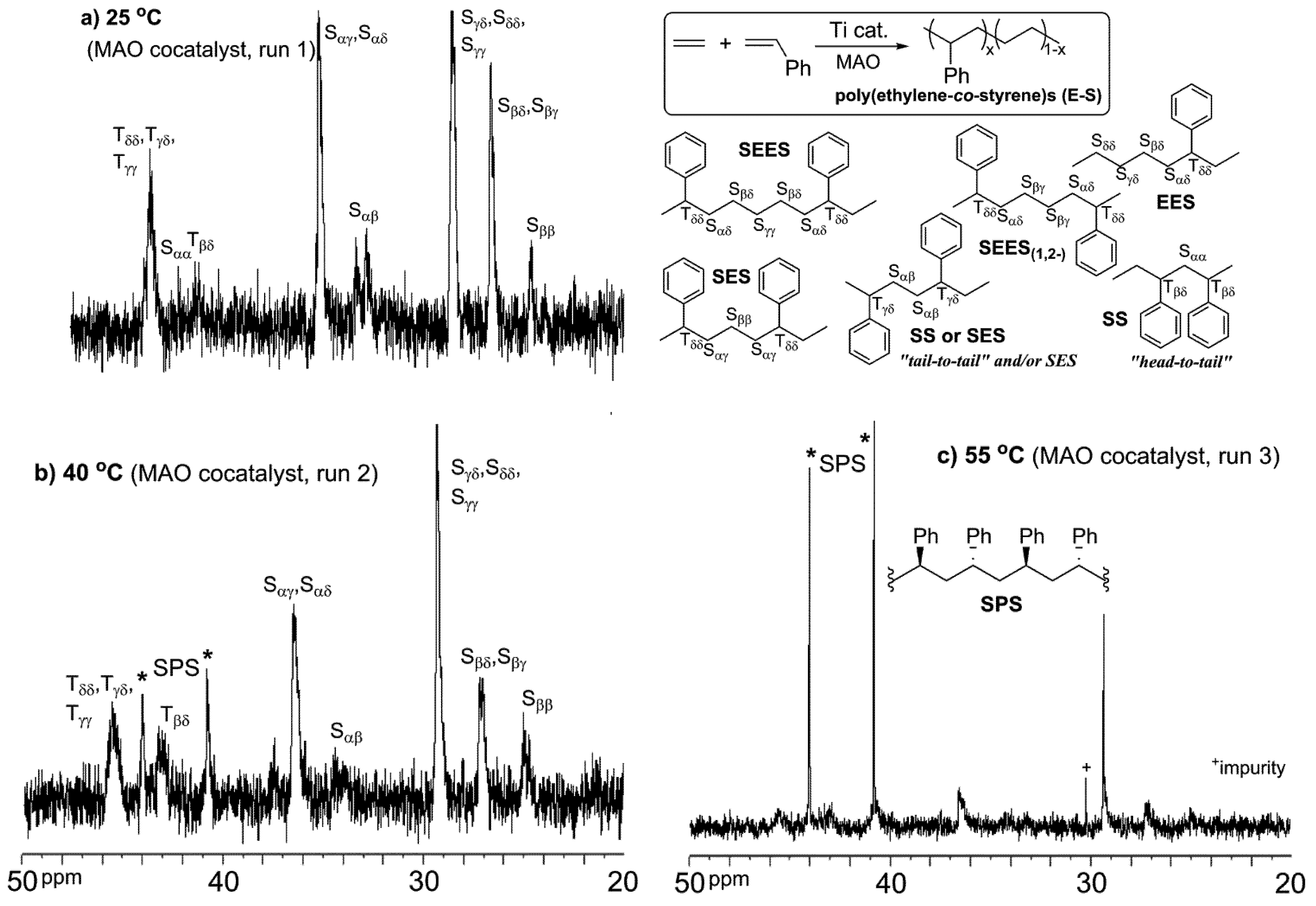

Figure 2. 13C NMR spectra (in 1,1,2,2,-tetrachloroethane-d2 at 110 °C) for the resultant polymers (acetone insoluble fraction) prepared by Cp*TiCl2(O-2,6-iPr2C6H3) (4)–MAO catalyst system [55]. Conditions: 4 2.0 μmol, ethylene 4 atm., styrene 10 mL, toluene 20 mL, 10 min., temperature at (a) 25 °C (run 1), (b) 40 °C (run 2), (c) 55 °C (run 3).
Figure 2. 13C NMR spectra (in 1,1,2,2,-tetrachloroethane-d2 at 110 °C) for the resultant polymers (acetone insoluble fraction) prepared by Cp*TiCl2(O-2,6-iPr2C6H3) (4)–MAO catalyst system [55]. Conditions: 4 2.0 μmol, ethylene 4 atm., styrene 10 mL, toluene 20 mL, 10 min., temperature at (a) 25 °C (run 1), (b) 40 °C (run 2), (c) 55 °C (run 3).
Catalysts 03 00157 g002
On the basis of our proposed assumption shown in Scheme 4 that two catalytically active species (for the syndiospecific styrene polymerization and ethylene/styrene copolymerization) are present in the reaction mixture, we chose an approach in the presence of borate (in place of MAO) as the cocatalyst in combination with Al alkyls to generate the cationic species preferentially. [PhN(H)Me2][B(C6F5)4] was chosen, because the cationic polymerization of styrene (probable accompanying reaction in the mixture) by this borate did not proceed rapidly as that by [Ph3C][B(C6F5)4] in the presence of Al alkyls [93]. Although the observed catalytic activities were lower than those in the presence of MAO, poly(ethylene-co-styrene)s became the sole reaction product by 4 when the polymerizations were conducted in the presence of [PhN(H)Me2][B(C6F5)4] and AliBu3/Al(n-octyl)3 (Table 6) [55]. The exclusive synthesis has been achieved even at 70 °C (run 13), and the styrene content exceeded 50 mol% under high styrene concentration conditions (run 12). An optimization of Al/Ti molar ratios was a prerequisite for the exclusive synthesis (runs 8-10, Figure 3), and the observed activities were affected by the Al/Ti molar ratios. Moreover, the observed catalytic activity could be improved when partially fluorinated Cp*TiCl[OCH(CF3)2](O-2,6-iPr2C6H3) (14) was employed as the catalyst precursor [56]. The high activity, as well as the high selectivity, could be thus maintained even at 70 °C (Table 7).
Table 6. Ethylene/styrene copolymerization by Cp*TiCl2(O-2,6-iPr2C6H3) (4)–[PhN(H)Me2][B(C6F5)4]-AliBu3/Al(n-octyl)3 systems [55] a.
Table 6. Ethylene/styrene copolymerization by Cp*TiCl2(O-2,6-iPr2C6H3) (4)–[PhN(H)Me2][B(C6F5)4]-AliBu3/Al(n-octyl)3 systems [55] a.
RunAl cocat.TempActivity cComp. (wt.%) dMweMw/Styrene f
(molar ratio, Al/Ti) b/°C E-SSPS×10−4Mne/mol%
1MAO (1500)25525>99-8.42.2534
6Al iBu3 (100)25256>99-181.8137
2MAO (1500)4038477238.71.72
3MAO (1500)55363435710.01.8
7Al iBu3 (100)55568317
8Al iBu3 (20)/Al(n-octyl)3 (80)40224946
9Al iBu3 (20)/Al(n-octyl)3 (20)4053>99---7.61.7238
10Al iBu3 (5)/Al(n-octyl)3 (35)40100>99-121.5637
11Al iBu3 (5)/Al(n-octyl)3 (35)55104>99-8.21.7440
12 gAl iBu3 (5)/Al(n-octyl)3 (35)5517>99-9.51.7951
13Al iBu3 (5)/Al(n-octyl)3(35)7051>99-5.81.6044
a Conditions: Ti 5.0 μmol, [PhN(H)Me2][B(C6F5)4] 5.0 μmol, ethylene 4 atm, styrene 10 mL, toluene 20 mL, 10 min. b Initial molar ratio of Al/Ti. c Activity in kg-polymer/mol-Ti·h, polymer yields were based on a mixture of SPS (syndiotactic polystyrene) and E-S (copolymer) as acetone insoluble fraction. d Composition estimated by 13C NMR spectra (and confirmed by 1H NMR spectra). e GPC data in O-dichlorobenzene vs. polystyrene standards. fStyrene content in mol% estimated by 1H NMR spectra. gStyrene 15 mL, toluene 15 mL.

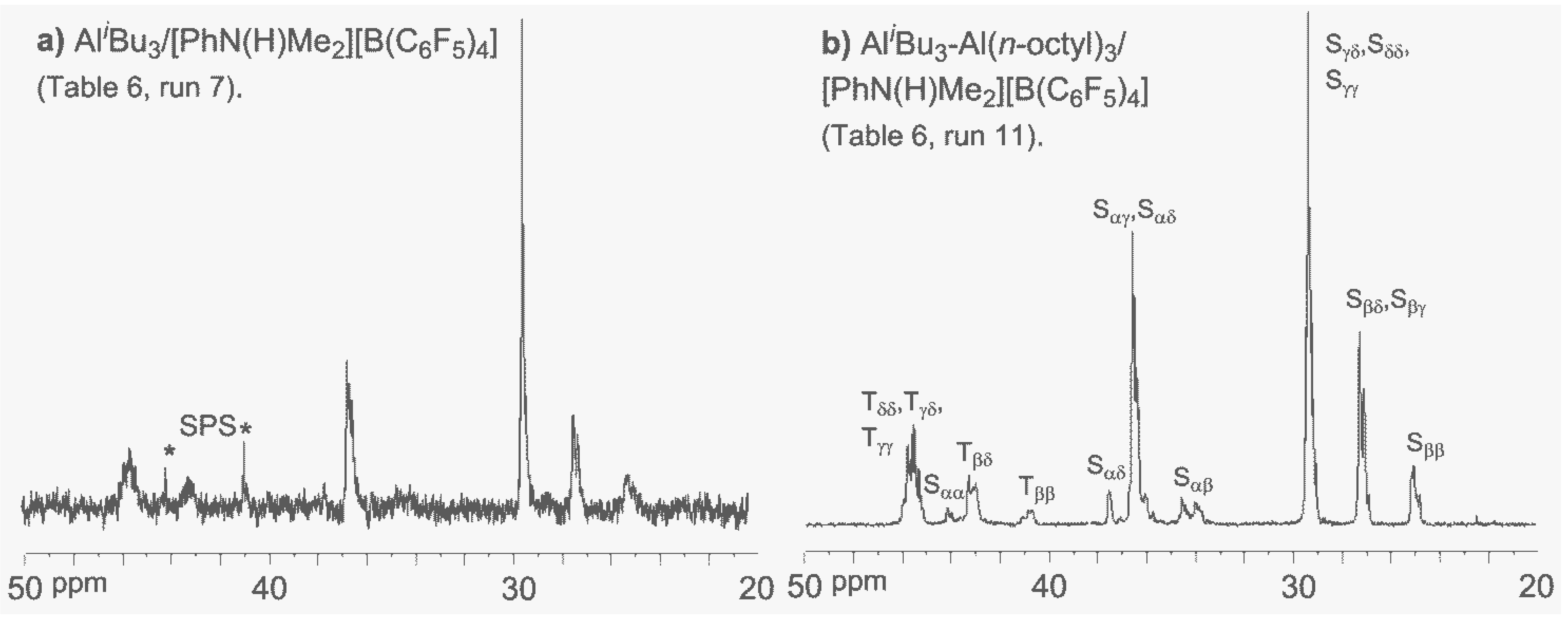

Figure 3. 13C NMR spectra for the resultant polymers (acetone insoluble fraction) prepared by Cp*TiCl2(O-2,6-iPr2C6H3) (4)–[PhN(H)Me2][B(C6F5)4]–Al alkyls systems (in 1,1,2,2,-tetrachloroethane-d2 at 110 °C) [55].
Figure 3. 13C NMR spectra for the resultant polymers (acetone insoluble fraction) prepared by Cp*TiCl2(O-2,6-iPr2C6H3) (4)–[PhN(H)Me2][B(C6F5)4]–Al alkyls systems (in 1,1,2,2,-tetrachloroethane-d2 at 110 °C) [55].
Catalysts 03 00157 g003
We have shown that an exclusive synthesis of ethylene/styrene copolymers has been achieved by using modified half-titanocene, Cp*TiCl2(O-2,6-iPr2C6H3), in the presence of [PhN(H)Me2][B(C6F5)4] and AliBu3/Al(n-octyl)3. The fact presented here should be promising not only from academic, but also from practical, viewpoints. We are exploring a possibility for synthesis of new styrene copolymers by efficient copolymerization. An exclusive synthesis of the copolymers at high temperature should be important in terms of better process application (viscosity, mass transport), especially from the practical viewpoint. The exclusive synthesis of copolymers with high styrene contents by adopting the borate cocatalyst should also be important. This is because the fact may suggest a presence of two catalytically active species [for the syndiospecific styrene polymerization and ethylene/styrene copolymerization, neutral Ti(III) and cationic Ti(IV)], as well as preferred formation of the cationic species in situ.
Table 7. Ethylene/styrene copolymerization by Cp*TiCl2(O-2,6-iPr2C6H3) (4), Cp*TiCl[OCH(CF3)2](O-2,6-iPr2C6H3) (14)–AliBu3/Al(n-octyl)3/[PhN(Me)H][B(C6F5)4] catalyst systems [55,56] a.
Table 7. Ethylene/styrene copolymerization by Cp*TiCl2(O-2,6-iPr2C6H3) (4), Cp*TiCl[OCH(CF3)2](O-2,6-iPr2C6H3) (14)–AliBu3/Al(n-octyl)3/[PhN(Me)H][B(C6F5)4] catalyst systems [55,56] a.
RunComplexTemp.Activity bComp. (wt.%) cMwdMw/Mn dStyrene e
/ ºC E-SSPS×10−4 / mol%
11155104>99-8.21.7440
1317051>99-5.81.6044
141455130>99-5.71.9842
151470106>99-5.81.8544
a Conditions: Ti 5.0 μmol, ethylene 4 atm, styrene 10 mL, toluene 20 mL, 10 min, AliBu3/Al(n-octyl)3/[PhN(Me)H][B(C6F5)4]/Ti = 5.0/35/1.0/1.0 (molar ratio). b Activity in kg-polymer/mol-Ti·h, polymer yields were based on a mixture of SPS (syndiotactic polystyrene) and E-S (copolymer) as acetone insoluble fraction. c Compositions estimated by 1H NMR spectra. d GPC data in O-dichlorobenzene vs. polystyrene standards. e Styrene content in mol% estimated by 1H NMR spectra.

3. Summary and Outlook

Promising results have been reported regarding copolymerization using modified half-titanocenes [Cp'TiX2(Y), Y = anionic ancillary donor ligands], affording a random copolymer with various styrene contents, and both the catalytic activities and the styrene incorporation are highly affected by both the cyclopentadienyl fragments and anionic donor ligands employed. The efficient synthesis of random copolymers could be achieved by using half-titanocene-containing aryloxo ligands. Cationic Ti(IV) species play an important role as catalytically active species in copolymerization, whereas (neutral and/or cationic) Ti(III) species play roles in syndiospecific styrene polymerization, and these findings may suggest why the polystyrene structure in random copolymer prepared with half-titanocenes was atactic. Various copolymers, which differ with regard to their compositions, microstructures and properties, and these unique characteristics are dependent upon the nature of the complex catalysts used. I hope that the development of other new polyolefin materials would follow the use of this synthetic technique, which can be applied not only to styrene, but also to styrene-containing reactive functionalities (in combination with other polymerization techniques, such as ATRP, RAFT, ROP etc.).

Acknowledgments

K.N. expresses his thanks to his group members (Nara Institute of Science and Technology and Tokyo Metropolitan University) who contributed to this project as the coauthors. The present research is partly supported by Grant-in-Aid for Scientific Research (B) from the Japan Society for the Promotion of Science (JSPS, Nos. 21350054, 24350049). Part of the present research is also supported by a grant from the Fundamental R&D Program for Core Technology of Materials funded by the Ministry of Knowledge Economy, Korea. K.N. also expresses his thanks to Tosoh Finechem Co. for donating aluminoxanes.

Conflict of Interest

The authors declare no competing financial interest.
