Synthesis of Nitrogen-Doped Biomass-Based Activated-Carbon-Supported Nickel Nanoparticles for Hydrazine Oxidation

Abstract

In this study we present an application of wood biomass—alder wood char—as the carbon precursor for the synthesis of novel and sustainable nitrogen-doped activated-carbon-supported nickel nanoparticle catalyst (AWC-Ni-N) for hydrazine oxidation. For comparison, the wood-based carbon material doped with nitrogen only (AWC-N) was also synthesized. Extensive characterization, including SEM, Raman spectroscopy, XPS, and XRD revealed the catalysts’ microstructure and properties. Electrochemical testing demonstrated that the AWC-Ni-N catalyst significantly enhanced the efficiency of the hydrazine oxidation reaction. In addition, direct N₂H₄-H₂O₂ single-fuel-cell tests were conducted using the prepared AWC-N and AWC-Ni-N catalysts as the anodes and cathodes. Peak power densities of up to 10.8 mW cm⁻² were achieved at 25 °C, corresponding to a current density of 27 mA cm⁻² and a cell voltage of 0.4 V when the AWC-Ni-N catalyst was used as both the anode and cathode. Furthermore, the peak power density increased by approximately 1.6 and 2.9 times, respectively, when the operating temperature was raised from 25 °C to 55 °C for the AWC-N and AWC-Ni-N catalysts. Overall, the AWC-N and AWC-Ni-N catalysts demonstrated significant potential as anode and cathode materials in direct N₂H₄-H₂O₂ fuel cells.

1. Introduction

Recently, there has been a growing interest in carbon-based catalysts due to their unique properties and sustainability. These catalysts are becoming increasingly attractive to various industries and researchers. Activated carbon and nanostructured carbon materials, such as graphene, doped carbon, and carbon nanotubes, have a large surface area. This enables them to adsorb reagents more efficiently and catalyze reactions effectively [1,2]. Carbon-based catalysts are versatile and can be used in electrochemical reactions, water purification, organic compound synthesis, and other processes. Since they are often produced from biomass or waste, they are both economically attractive and affordable, reducing dependence on expensive metals such as platinum or palladium. The use of biomass waste for catalyst synthesis also contributes to waste reduction and supports the development of a circular economy [3,4].

Biomass is a popular carbon precursor in terms of its renewability, earth abundance, environmental friendliness, low cost, non-toxicity, sustainability, ease of production, and the variety of heteroatoms (N, P, S, etc.) in its intrinsic composition. In addition, biomass-derived carbons have emerged as a promising potential alternative to the carbon-based catalysts that are conventionally produced. They hold great promise as a renewable source of sustainable carbon materials for the next generation of energy storage and conversion systems. Carbon can be doped with nitrogen, sulfur, or metals, or it can be treated with chemicals. This makes it more active, conductive, and selective. For instance, the nitrogen doping of carbon materials has been shown to improve their electrical conductivity and reaction selectivity. Similarly, the incorporation of metal particles has been demonstrated to enable better control of reaction mechanisms [5,6,7]. Furthermore, nitrogen and metal (Ni, Co, Cu, Mo) doping creates a synergistic effect that is particularly important in electrocatalytic reactions, such as the hydrazine oxidation reaction (HzOR), by improving the reaction rate, selectivity, and energy efficiency. Nitrogen atoms are incorporated into the carbon lattice to form nitrogen-containing structures (e.g., pyridine or pyrrole). This increases the electron density on the catalyst surface, facilitating electron transfer during the reaction. Nitrogen doping generates more active sites on the catalyst surface, enabling easier adsorption of reactants such as hydrazine (N₂H₄). It also modifies the catalyst’s surface properties, making it more selective for the desired reaction and reducing the likelihood of side reactions [8,9,10]. On the other hand, metals (Ni, Co, Cu, Mo) also act as redox centers and assist in the HzOR. These metal centers can quickly switch between different oxidation states, allowing them to effectively facilitate redox reactions. Although doping with transition metals such as Co, Cu, and Mo can enhance catalytic properties, each metal has notable limitations. Cobalt-based catalysts often suffer from lower catalytic stability, higher operational voltages, and increased toxicity concerns, restricting their practical application in sustainable catalytic processes [11,12]. Although initially active, copper catalysts often experience rapid deactivation due to metal leaching, surface oxidation, and susceptibility to corrosion during prolonged electrochemical reactions [13]. Similarly, molybdenum-based catalysts pose challenges due to their relatively low intrinsic electrical conductivity and poor electrochemical stability, particularly in strongly alkaline media, which limit their effectiveness in long-term applications [14,15]. In contrast, nickel (Ni) emerges as a particularly viable alternative due to its superior electrochemical stability, high catalytic efficiency, relative abundance, low cost, and minimal environmental concerns compared with these metals. Moreover, nickel-based catalysts have demonstrated remarkable performance in terms of activity, durability, and resistance to corrosion under harsh operational conditions, such as those involving NiFe₂O₄-rGO composites, Ni-W alloys, and nickel iron sulphide/hydroxide catalysts [12,15,16,17]. These attributes make nickel highly attractive for sustainable catalytic applications, especially for crucial reactions such as the hydrazine oxidation reaction (HzOR) and related electrochemical processes [12,17]. In addition, nickel particles on the catalyst surface enhance the adsorption of N₂H₄ molecules, stabilize intermediate states, and accelerate the reaction rate. The interaction between nitrogen doping and nickel atoms enhances the stability and efficiency of nickel during the reaction. Together, nitrogen and nickel reduce the activation energy of the reaction, enabling faster and more efficient processes. In addition, doping improves the chemical and structural stability of the catalyst, ensuring long-lasting catalytic activity. This makes nitrogen- and nickel-doped catalysts a cost-effective and sustainable alternative for various catalytic applications [18,19,20,21,22]. The use of nickel as the active metal allows the avoidance of more expensive noble metals, such as platinum, palladium, and ruthenium without compromising catalytic efficiency [23,24,25]. The importance of the HzOR lies in its applications in sustainable energy production, environmental solutions, and the development of advanced catalysts. N₂H₄ serves as a fuel source in direct hydrazine fuel cells (DHFCs) [26,27], where its oxidation reaction enables efficient electricity generation with high energy density and low emissions. This makes it particularly relevant for powering vehicles and portable devices. The DHFC is based on the HzOR in an alkaline medium, which occurs at the anode (Equation (1)) and the reduction of oxygen (O₂) at the cathode (Equation (2)):

N₂H₄ + 4OH⁻ → N₂ + 4H₂O + 4 e⁻  E⁰ = −1.16 V vs. SHE

(1)

2O₂ + 4H₂O + 8e⁻ → 8OH⁻    E⁰ = 0.40 V vs. SHE

(2)

The total cell reaction can be written as Equation (3) [28,29]:

N₂H₄ + O₂ → N₂ + 2H₂O  E = 1.56 V

(3)

The HzOR produces only H₂O and N₂ as by-products (Equation (1)) [30,31]. From this point of view, N₂H₄ can act as a carbon dioxide (CO₂) reducer because its oxidation produces nitrogen and water without contributing to atmospheric CO₂ levels. This property highlights its potential role in mitigating carbon emissions. The HzOR, a critical reaction in applications such as DHFCs, rocket fuels, and carbon-neutral energy systems, relies heavily on the development of advanced catalytic materials [32,33]. Moreover, N₂H₄ as a fuel has many advantages, including its wide availability, a high theoretical potential of 1.56 V of DHFC—higher than many other fuels such as hydrogen (1.24 V) or methanol (1.19 V)—resulting in high power density, and the absence of the greenhouse gas CO₂ or carbon-based intermediates that could poison the electrocatalyst [28,34,35]. Typically, O₂ is used as the oxidant in fuel cells, but fuel cells using hydrogen peroxide (H₂O₂) as the oxidant have also been proposed and are finding various potential applications [28,36,37,38]. The reduction of H₂O₂ at the cathode in an acidic medium is given by Equation (4):

4H₂O₂ + 8e⁻ + 8H⁺ → 8H₂O    E⁰ = 1.77 V vs. SHE

(4)

The theoretical cell voltage of 2.93 V of the direct hydrazine–hydrogen peroxide (N₂H₄-H₂O₂) fuel cell (Equation (5)) is significantly higher than that of the DHFC (1.56 V), which uses O₂ as the oxidant.

N₂H₄ + 2H₂O₂ → N₂ + 4H₂O  E = 2.93 V

(5)

The fact that H₂O₂ is a liquid oxidant at ambient temperature and pressure makes it easier to transport, store, and handle than O₂. It has the additional advantage of being good to use in a small-volume single-stack fuel cell. The development of electrocatalysts with reasonable cost and high electroactivity for fuel oxidation is of industrial importance. In this study, we present the synthesis of novel nitrogen-doped biomass-based catalyst-supported nickel nanoparticles with the aim of improving HzOR efficiency while maintaining high activity and durability. The results highlight the novelty of biomass-derived catalysts in the advancement of green catalytic technologies and their potential for energy and environmental applications. In addition, this study introduces a novel sustainable catalyst, that provides a cost-effective alternative to noble metals. By enhancing the efficiency of the HzOR, it supports carbon-neutral energy systems and is consistent with green chemistry principles, demonstrating the relevance of addressing both environmental and energy challenges. The energy released during the HzOR can be harnessed for various energy systems, offering potentially higher efficiencies compared with traditional fuel sources. The study of the HzOR provides valuable insights into the activity, selectivity, and durability of catalysts, which are key to optimizing the process.

2. Results

2.1. Microstructure and Morphology Studies

In this study, we propose a simple strategy for synthesizing an efficient non-noble metal-based carbon catalyst. The SEM images in Figure 1 illustrate the morphological differences between AWC-N (a) and AWC-Ni-N (b) catalysts at different magnifications. AWC-N (Figure 1a) had a highly porous structure with irregular, rough particles. At higher magnifications, micro- and mesopores were visible, along with sharp edges and a layered morphology, indicating effective chemical activation. In contrast, AWC-Ni-N (Figure 1b) exhibited more compact and interconnected particles. At higher magnifications (Figure 1b), wire-like or fibrous nanostructures were observed, likely due to the catalytic effect of nickel during the co-doping process. The wire-like or fibrous nanostructures observed in the AWC-Ni-N catalyst (Figure 1b, right panel) were absent in the AWC-N sample (Figure 1a), clearly indicating that their formation was linked to the incorporation of nickel during the synthesis process. Nickel has been widely reported to act as a catalyst for the growth of carbon nanofibers (CNFs) and carbon nanotubes (CNTs) under thermal conditions [39,40]. During the co-doping process, nickel likely facilitated the decomposition of carbon-containing precursors and promoted the precipitation of carbon into one-dimensional (1D) forms through a catalytic mechanism. Although no external carbon source was introduced, it is likely that carbonaceous species derived from the precursor material (e.g., biomass-derived alder wood char) underwent partial decomposition under thermal treatment in the presence of Ni, resulting in the formation of web-like fibrous carbon structures. Nitrogen co-doping may have further influenced the morphology by stabilizing these 1D structures. Such nanostructures improved the catalytic performance of AWC-Ni-N in subsequent electrochemical measurements.

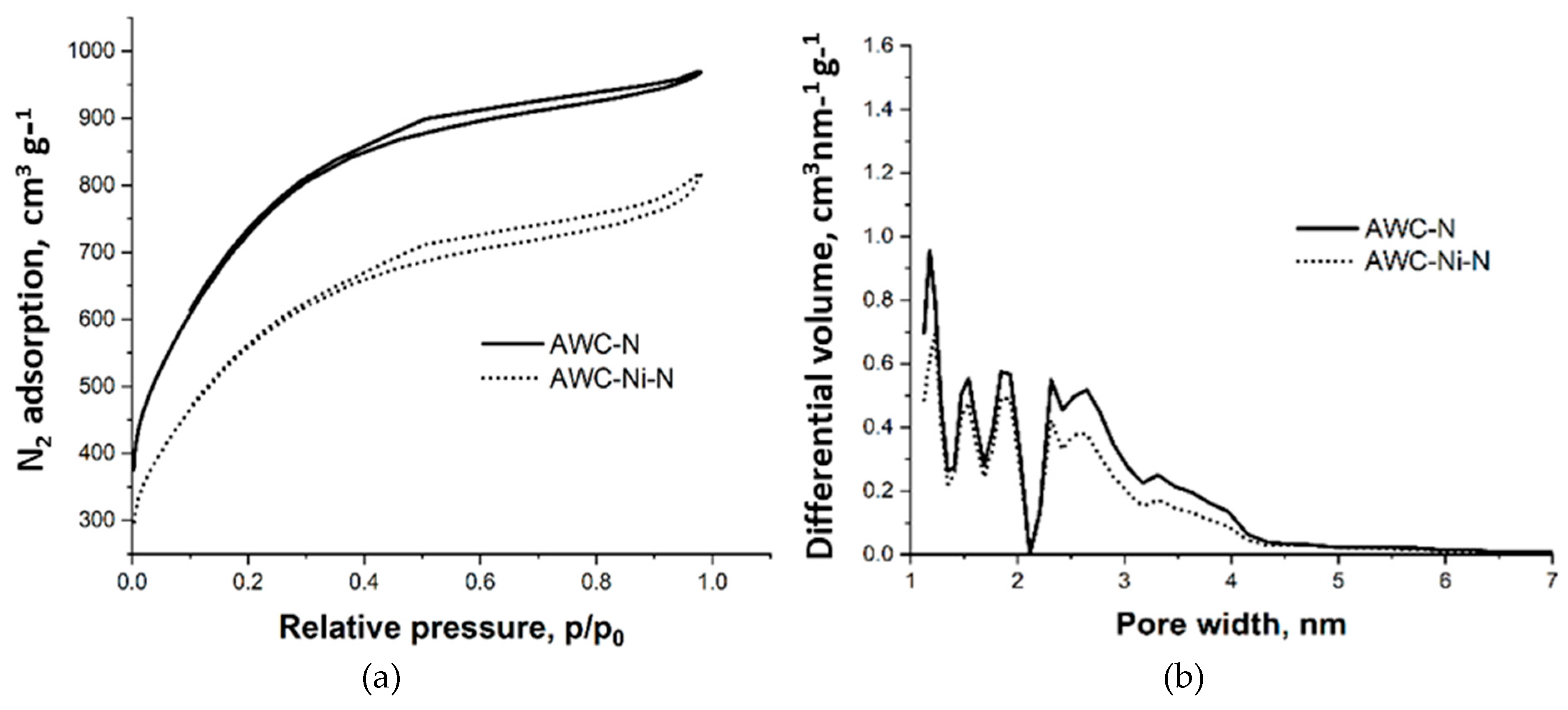

The characterization of the porous structure of the obtained doped carbon materials was carried out by determination of the surface area and pore-size distribution of the materials from nitrogen adsorption–desorption isotherms at 77 K (Figure 2). The isotherms can be classified as type I according to the IUPAC and are characterized by type H4 hysteresis, which indicates the predominantly microporous structure with strong adsorbent–adsorptive interaction of these materials, with some contribution from mesoporosity [41]. It should be noted that nitrogen doping did not alter porosity of the activated carbons to any significant extent, which the authors of this paper have demonstrated previously [42].

The porous-structure parameters (

Table 1. Porous-structure parameters of the AWC-N and AWC-Ni-N catalysts.

Sample	Specific Surface Area, m2 g−1			Pore Volume, cm3 g−1			Average Pore Width, nm	Mesopores from Vt, %
	BET	DR	DFT	Total	Micro	Meso
AWC-N	2217	1921	1496	1.6	0.7	0.9	2.9	56.6
AWC-Ni-N	2050	1791	1387	1.3	0.6	0.6	2.5	49.7

) indicate differences in the textural properties of AWC-N and AWC-Ni-N catalysts. AWC-N had a slightly higher specific surface area (BET: 2217 m² g⁻¹) compared with AWC-Ni-N (2050 m² g⁻¹), as well as a larger pore volume (1.6 cm³ g⁻¹ vs. 1.3 cm³ g⁻¹). A decrease in the specific surface area of AWC-Ni-N may have been related to an increase in the density of the material, as it was enriched with heavier Ni moieties, and to a possible partial blocking of the micropores by the Ni particles [7].

The average pore width of AWC-N (2.9 nm) was marginally larger than that of AWC-Ni-N (2.5 nm). Additionally, the mesopore contribution to the total pore volume was higher in AWC-N (56.6%) compared with AWC-Ni-N (49.7%). This difference suggests that co-doping slightly reduced the porosity and the proportion of mesopores while potentially increasing the density of micropores or smaller pores. The main reason for this change was an increase in material density due to the introduction of metal/metal oxide particles into the structure as well as blockage of number of pores as the result of this process.

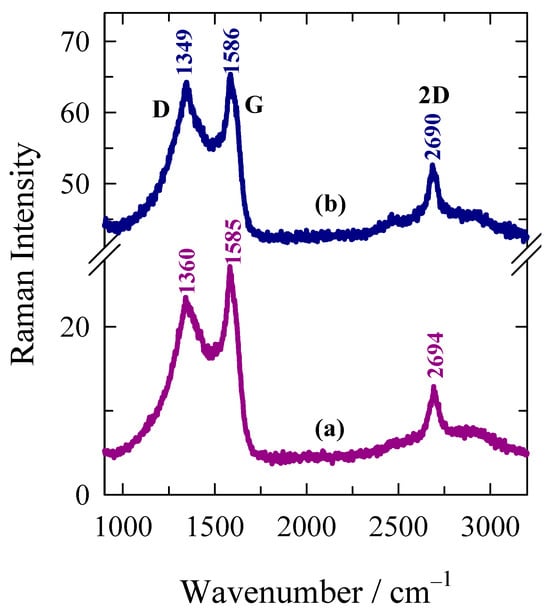

Figure 3 compares the 532 nm-excited Raman spectra of AWC-N and AWC-Ni-N catalysts. Both samples showed two strong bands visible at 1349–1360 cm⁻¹ and 1585–1586 cm⁻¹, corresponding to prominent D and G modes of graphite, respectively. In addition, a well-defined feature at 2690–2694 cm⁻¹ was visible in the both samples. This feature belonged to the prominent 2D band and indicated an increase in the structural ordering of this carbon-based sample [43]. The important structural parameter in sp²-hybridized layered carbon material was the average in-plane crystallite size L_a [44,45].

The experimentally obtained FWHM(G) value can be used to determine the L_a [44,46,47]:

$${\mathrm{L}}_{\mathrm{a}}={\displaystyle \frac{{\mathrm{l}}_{\mathrm{c}}}{2}}\mathrm{l}\mathrm{n}\left[{\displaystyle \frac{\mathrm{C}}{\mathrm{F}\mathrm{W}\mathrm{H}\mathrm{M}\left(\mathrm{G}\right)-\mathrm{F}\mathrm{W}\mathrm{H}\mathrm{M}\left({\mathrm{G}}_{0 }\right)}}\right]$$

(6)

where the photon coherence length l_c = 32 nm, C = 95 cm⁻¹, and FWHM(G) and FWHM(G₀) are the widths of the G band of sample under investigation and undoped pristine graphene (15 cm⁻¹), respectively. The equation is valid for measuring the L_a between 32 and 2.8 nm [44]. To estimate the FWHM(G) value, the experimental spectra in the frequency region from 1000 to 1800 cm⁻¹ were fitted with five Gaussian- or Lorentzian-form components. The prominent D and G bands were fitted with Lorentzian-form functions and the additional D* (1275 cm⁻¹) and D″ (1520 cm⁻¹) bands with Gaussian-form functions. The presence of the D″ band was associated with the amorphization of carbon material [2,47]. The relatively narrow disorder-induced D′ band near 1624 cm⁻¹ was also introduced into the fitting procedure. The FWHM(G) and estimated L_a values are given in

Table 2. G-peak full width at half-maximum FWHM(G), average crystallite size L_a, and intensity ratio I(D″)/I(G) of carbon-based samples.

Sample	FWHM(G) (cm−1)	La (nm)	I(D″)/I(G)
AWC-N	55.7	13.6	0.51
AWC-Ni-N	49.8	16.1	0.55

.

In the case of AWC-N and AWC-Ni-N, the L_a varied from 13.6 to 16.1 nm, respectively. The larger in-plane crystallite size value was obtained for AWC-Ni-N. Another important structural parameter is the relative intensity of the D″ band, measured as the intensity ratio I(D″)/I(G) [2]. This parameter probes the amorphization of the carbon material. The higher ratio was found for the AWC-Ni-N catalyst indicating the higher amount of amorphous phase in this material.

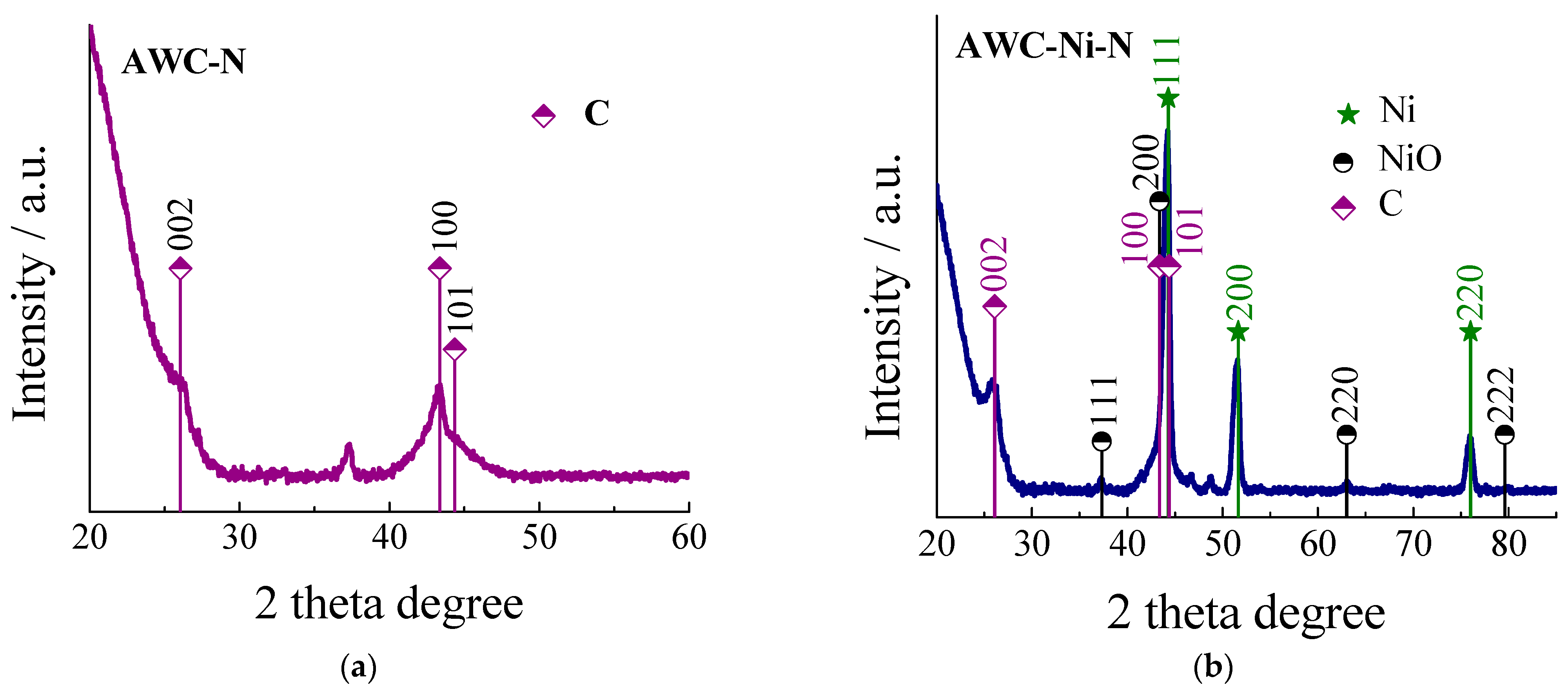

XRD analysis was applied to determine the structure of the synthesized AWC-N and AWC-Ni-N catalysts (Figure 4). The diffraction peaks in both XRD patterns for AWC-N and AWC-Ni-N were located at around 2θ = 26.07°, 43.37°, and 44.37° and can be indexed to the (002), (100), and (101) planes of the graphite C (JCPDS card. No. 25–284). These peaks are characteristic of amorphous carbon or partially graphitized carbon, indicating that both materials retained an overall porous structure with significant disorder. The XRD pattern of AWC-Ni-N displayed peaks at 2θ ≈ 37.23°, 43.38°, 44.22°, 51.55°, 63.04°, 75.92°, and 79.77° (Figure 4b). The diffraction peaks at 44.22°, 51.55°, and 75.92° can be assigned to the (111), (200), and (220) planes of the face-centered cubic phase (fcc) of Ni (JCPDS card. no. 04–0850), while the peaks observed at 37.23°, 43.38°, 63.04°, and 79.77° can be indexed as the (111), (200), (220), and (222) lattice planes of the fcc NiO phase (JCPDS card. no. 47–1049). Incorporation of nickel into AWC-Ni-N resulted in the formation of new nickel-based crystalline phases and promoted the partial graphitization of the carbon material (Figure 4b).

These structural modifications may enhance the material’s electrical conductivity and catalytic activity, making AWC-Ni-N more suitable for applications such as catalysis or energy storage.

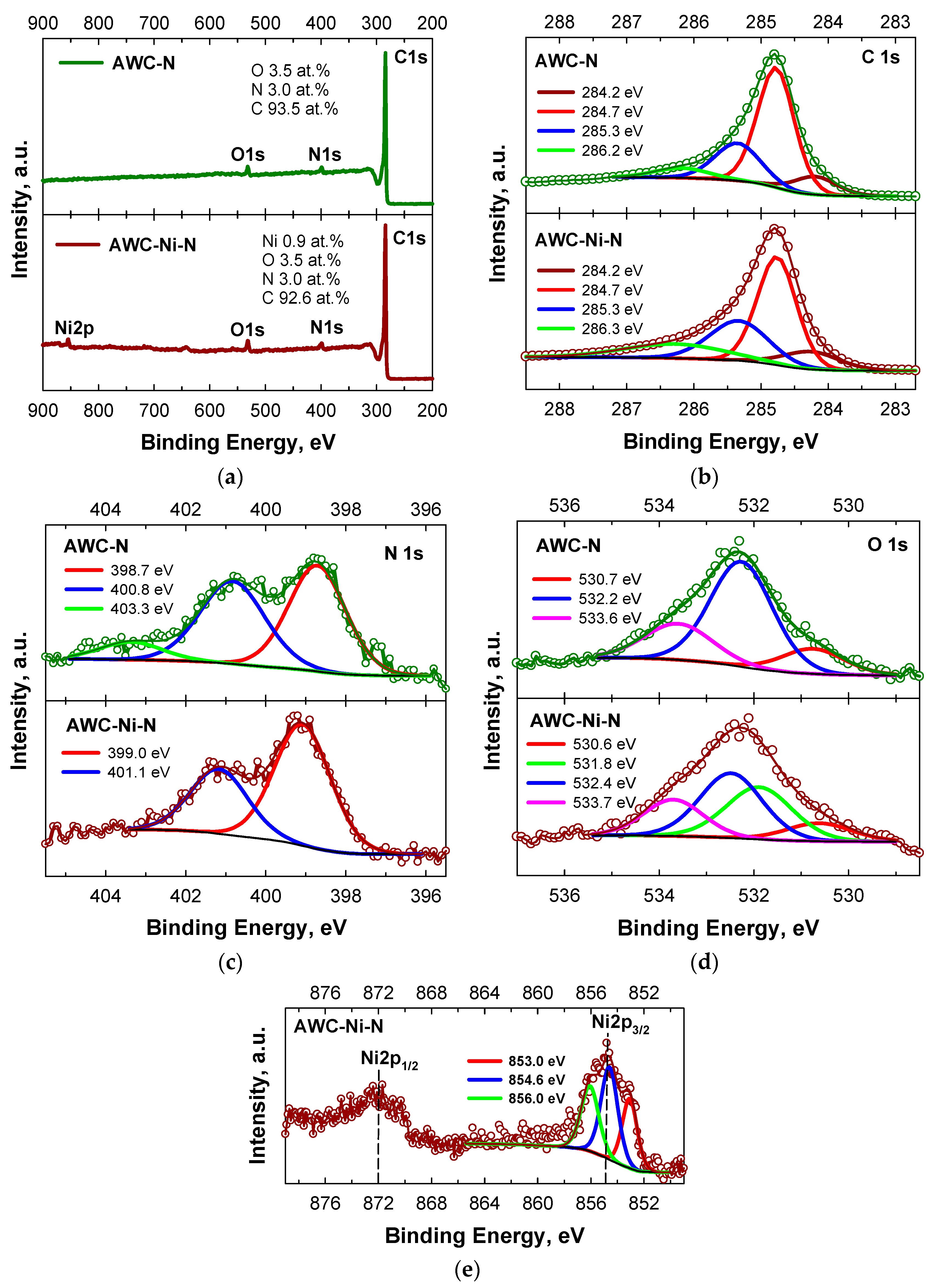

XPS was used to analyze the elemental composition and bonding configurations of the AWC-N and AWC-Ni-N catalysts. Figure 5 shows the survey (a) and deconvoluted C 1s (b), N 1s (c), O 1s (d), and Ni 2p (e,f) high-resolution XPS spectra of the AWC-N and AWC-Ni-N catalysts. The presence and percentages of carbon, nitrogen, oxygen, and nickel species (Figure 5a) are shown in the survey XPS spectra. These are consistent with the XRD patterns. The high-resolution XPS C 1s spectra for the both catalysts were divided into four major peaks that appeared at 284.2 (Csp²), 284.7 (Csp³), 285.3 (N-sp²-C), and 286.2 ± 0.1 (N-sp³-C) (Figure 5b) [48]. Notably, most of carbon existed in the sp³-hybridized state (

Table 3. XPS analysis of the elemental composition of AWC-N and AWC-Ni-N.

Sample	C 1s		N 1s		O 1s		Ni 2p3/2
	Eb, eV	at. %	Eb, eV	at. %	Eb, eV	at. %	Eb, eV	at. %
AWC-N	284.2	10.49	398.7	48.38	530.7	14.89
	284.7	59.27	400.8	42.72	532.2	61.86
	285.3	23.13	403.3	8.90	533.5	23.25
	286.2	7.11
AWC-Ni-N	284.2	11.02	399.0	64.79	530.6	10.91	853.0	27.71
	284.7	46.92	401.1	35.21	531.8	31.82	854.6	41.55
	285.3	26.00			532.4	37.26	856.0	30.75
	286.3	16.06			533.7	20.00

) [49,50]. The N 1 s spectra were deconvoluted into two main pyridinic-N (∼399 eV) and graphitic-N (∼401 eV) peaks, respectively, for the AWC-N and AWC-Ni-N catalysts, respectively (Figure 5c). Most of the nitrogen was present in the catalytically active pyridinic-N form, which was higher (~65%) for the AWC-Ni-N catalyst prepared by a one-step doping of N and Ni compared with the AWC-N catalyst doped with N only (~48%) (Table 3).

The Ni 2p_3/2 spectrum could be deconvoluted to three component peaks, one at 853.0 eV, corresponding to Ni⁰, and the other two at 854.6 eV and 856.0 eV, corresponding, in the same way as NiO, to Ni²⁺ (Figure 5e) [51,52,53]. The Ni metal 2p_3/2 peak position of 853.0 eV was within the literature value range of 852.7eV± 0.4 eV [54]. The binding energy of O 1s for the AWC-Ni-N catalyst was fitted as 530.6 eV (C–O–C, 10.91%), 531.8 eV (C–O–Ni, 31.82%), 532.1 eV (C=O/O–Ni, 37.26%), and 533.7 eV (C–OH/C–O–C, 20.0%), respectively (Table 3).

2.2. Determination of Electroactivity of Catalysts for the HzOR

The electrocatalytic activity of the AWC-N and AWC-Ni-N catalysts was evaluated toward the HzOR in alkaline media. The activity of the prepared AWC-N and AWC-Ni-N catalysts was evaluated by cyclic voltammetry by recording CVs in 1 M KOH solution containing different concentrations of N₂H₄ in the potential range of −1.2 V to 0.2 V (vs. SCE) at an electrode-potential scan rate of 50 mV s⁻¹ (Figure 6a,b). Figure 6c shows the stabilized (5th) LSVs for both catalysts in the same solution.

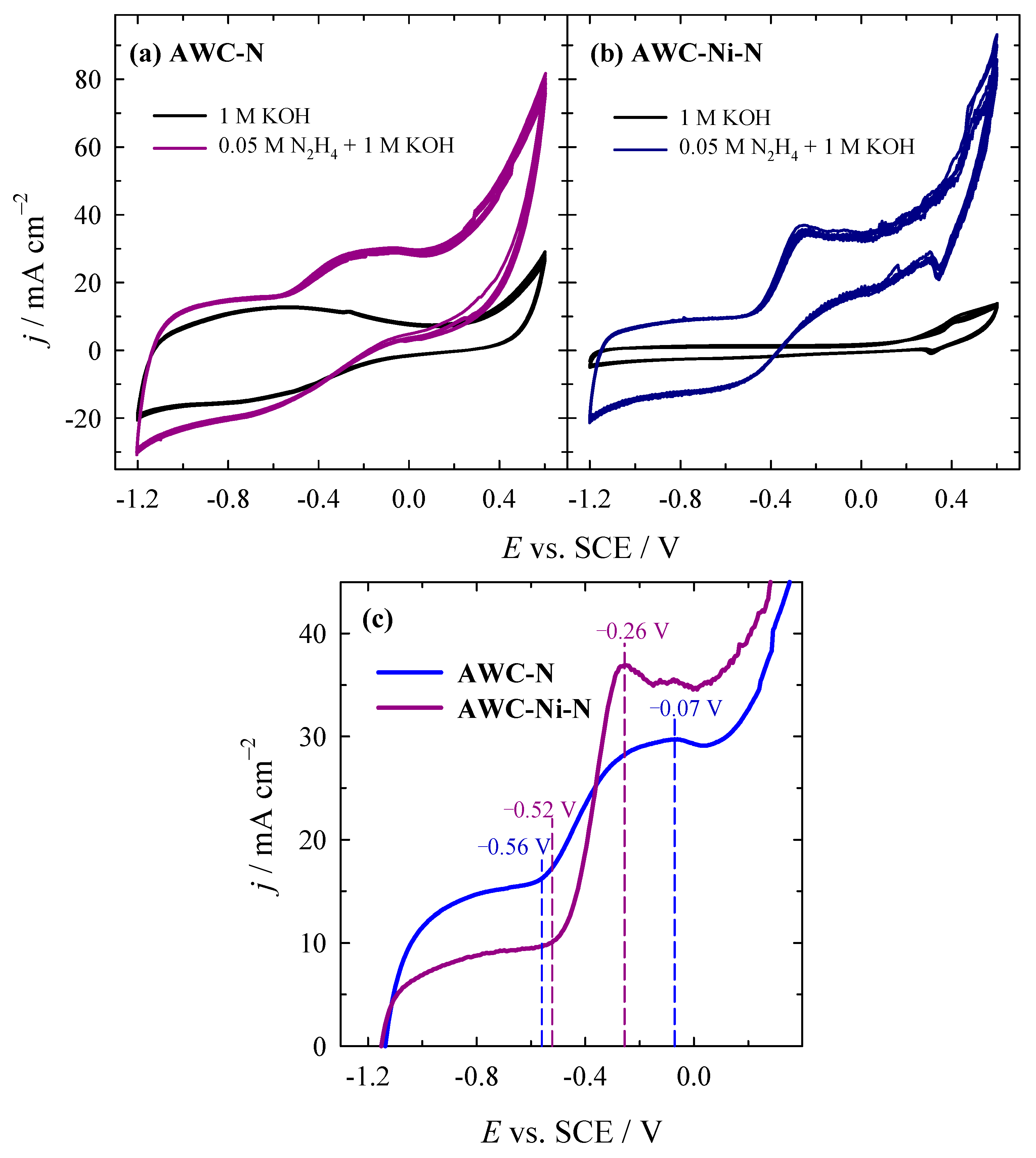

In 1 M KOH solutions (Figure 6a,b, black lines), the current density remained relatively low, indicating limited electrochemical activity when using the AWC-N and AWC-Ni-N catalysts. The current density increased significantly when 0.05 M N₂H₄ was added, especially in the positive potential region, indicating that the HzOR (Equation (6)) occurred on both AWC-N (Figure 6a, blue line) and AWC-Ni-N (Figure 6b, dark pink line) catalysts. Both catalysts demonstrated characteristic oxidation peaks in the presence of N₂H₄, with AWC-Ni-N exhibiting sharper and higher peaks. This suggests that the incorporation of nickel enhanced the kinetics of the oxidation reaction. The onset potential for the HzOR occurred at potentials of −0.52 and −0.56 V for AWC-Ni-N and AWC-N, respectively. The peak HzOR values on the AWC-Ni-N catalyst were obtained at more negative potentials of −0.26 V (Figure 6c, dark pink line) as compared with that for AWC-N (−0.07 V) (Figure 6c, blue line), indicating it’s a superior electrocatalytic activity for hydrazine oxidation. The enhanced electrocatalytic activity of the AWC-Ni-N catalyst for hydrazine oxidation can be attributed to the formation of nickel-based active sites, such as metallic Ni or NiO, which improved hydrazine adsorption and activation. In addition, the AWC-Ni-N catalyst, which was doped with both nitrogen and nickel, exhibited a more compact structure with interconnected particles and distinctive wire-like nanostructures. These wire-like nanostructures, likely formed due to the catalytic influence of nickel during the co-doping process, were absent in the AWC-N catalyst. These web-like carbon fibers might have contributed to an increased surface area and enhanced conductivity. In contrast, the AWC-N catalyst, doped with nitrogen only, displayed a highly porous, rough, and irregular morphology. The inclusion of nickel significantly enhanced the efficiency of the oxidation process.

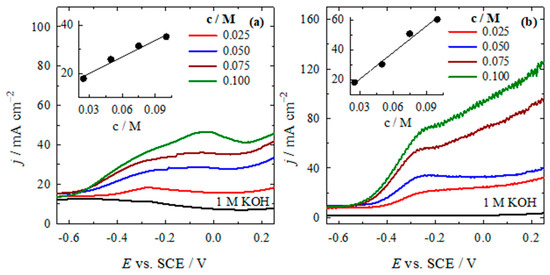

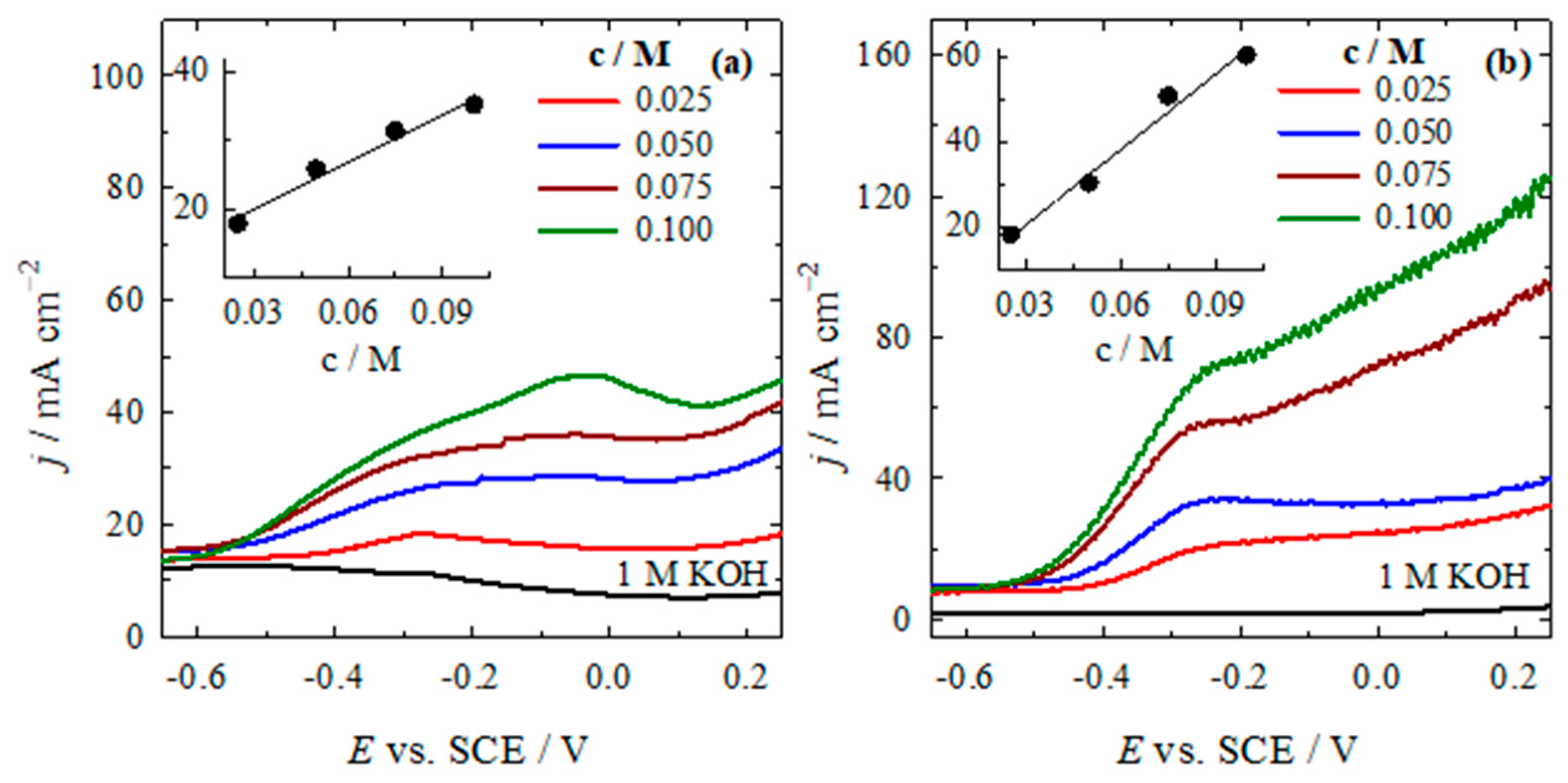

In addition, the dependence of the HzOR on the N₂H₄ concentration and on the scan rate was determined for both catalysts. Figure 7 shows the LSVs recorded on both catalysts in 1 M KOH solution containing different amounts of N₂H₄. As the concentration of N₂H₄ increased in the 1 M KOH solution (0.025–0.10 M), the measured current density also increased. This increase was observed in both the AWC-N and AWC-Ni-N catalysts (see Figure 7a,b).

In addition, the current density values increased by approximately two and three times as the N₂H₄ concentration increased from 25 to 100 mM recorded on the AWC-N and AWC-Ni-N catalysts, respectively. The insets in both graphs show a linear relationship between the peak current density and N₂H₄ concentration, indicating that the reaction kinetics were concentration-dependent, likely governed by a diffusion-controlled mechanism. AWC-Ni-N exhibited significantly higher current densities than AWC-N under identical conditions, highlighting the enhanced catalytic performance of the nickel-doped material.

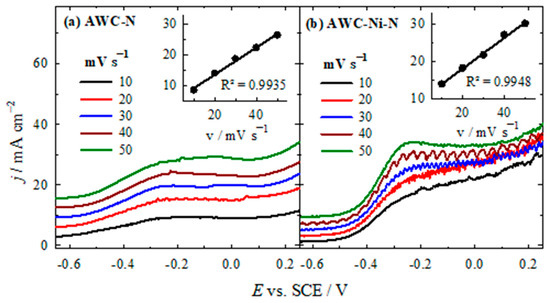

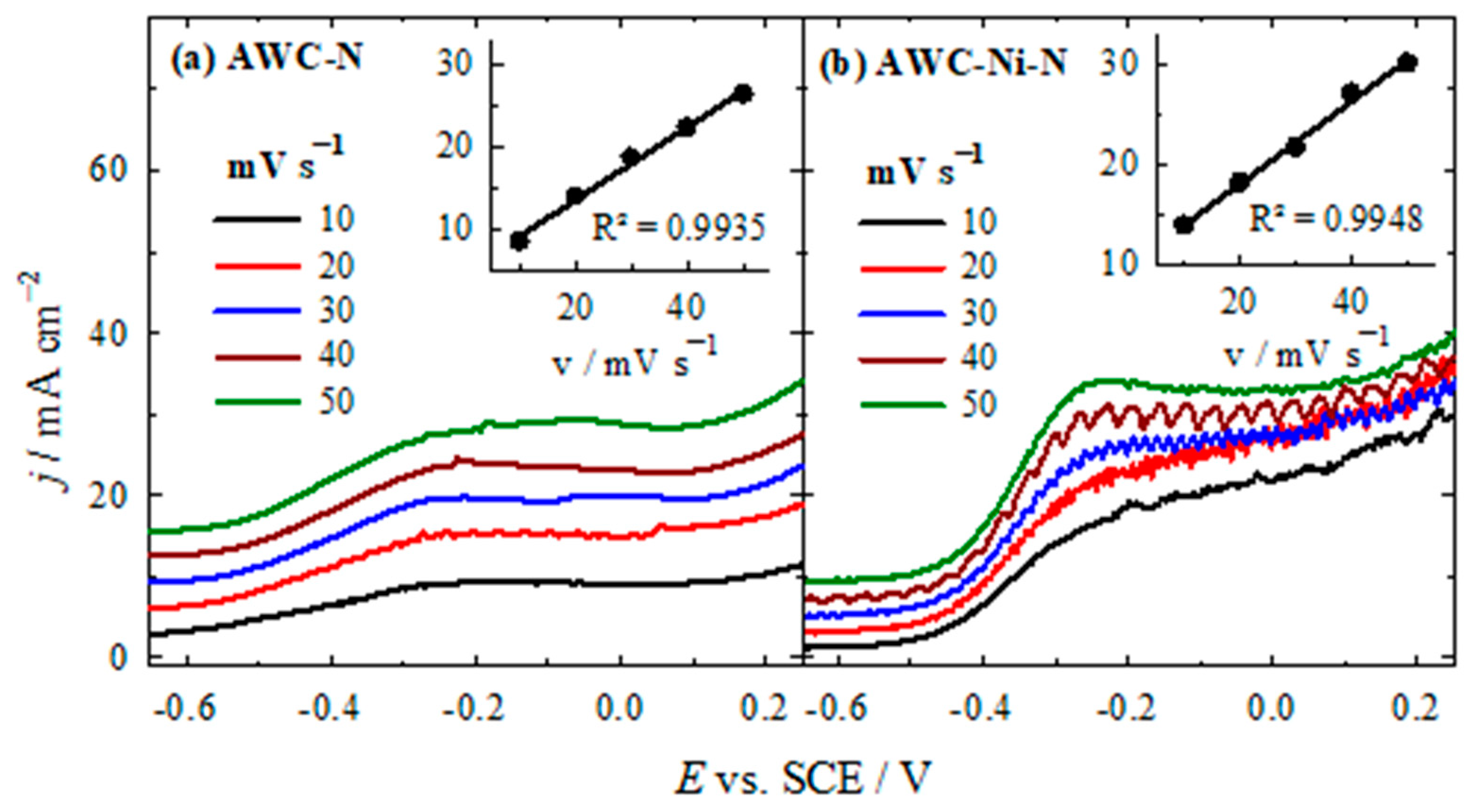

The dependence of the HzOR current densities for the AWC-N and AWC-Ni-N catalysts, recorded in a solution of 0.05 M N₂H₄ and 1 M KOH, on different potential scan rates is shown in Figure 8. The AWC-Ni-N catalyst (Figure 8b) exhibited a higher current density compared with the AWC-N catalyst (Figure 8a) under similar conditions, indicating that the incorporation of Ni enhanced the catalytic activity. For both catalysts, as the scan rate increases from 10 to 50 mV s⁻¹, the peak current density increased by approximately three times for the AWC-N catalyst and two times for the AWC-Ni-N catalyst. The insets in both graphs show a linear relationship between the peak current density and the scan rate, with R² > 0.99. This strong correlation suggests that the electrochemical reactions at the electrode for both catalysts were diffusion-controlled. Overall, the AWC-Ni-N catalyst demonstrated superior catalytic performance compared with AWC-N, making it more suitable for applications involving the HzOR.

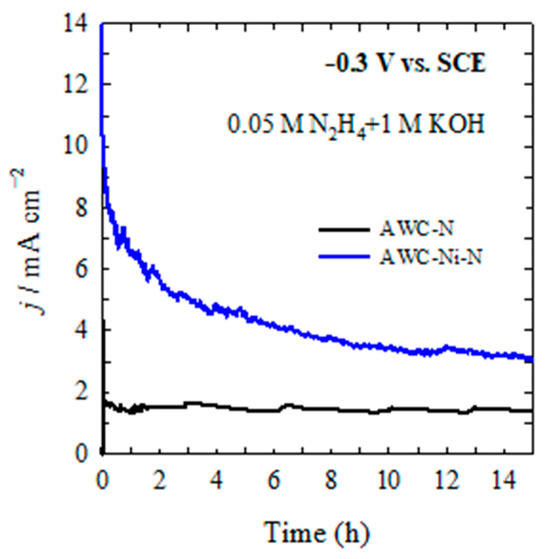

Figure 9 illustrates the chronoamperometric (CA) curves representing the catalytic activities of two different catalysts, AWC-N (black line) and AWC-Ni-N (blue line), tested for the electro-oxidation reaction of N₂H₄ in an electrolyte solution containing 0.05 M N₂H₄ and 1 M KOH at a constant applied potential of −0.3 V (vs. SCE) and maintained at room temperature (25 °C).

During the initial stage (0–1.4 h), a significantly higher current density was observed, approximately 10 mA cm⁻² at time zero, indicating rapid catalytic activity and excellent initial catalytic efficiency. However, there was a noticeable rapid decrease in current density during this initial period, likely due to the rapid stabilization of catalytic sites, consumption or rearrangement of active species, or partial deactivation of catalyst. The AWC-N catalyst showed a much lower current density, approximately 1.5 to 2 mA cm⁻², compared with the AWC-Ni-N catalyst, and displayed a stable, nearly constant current density throughout this initial interval, suggesting moderate initial activity but good immediate stability. During the intermediate stage (1.4–8.3 h), the current density for the AWC-Ni-N catalyst continued to gradually decrease, showing a slow but steady decline from approximately 5–6 mA cm⁻² at around 1.4 h to nearly 4 mA cm⁻² at 8.3 h. This gradual decay may have reflected slow surface changes, the loss of some active sites, or the formation of surface species that partially blocked or modified the catalyst sites. The current density of AWC-N remained consistently stable around 1–2 mA cm⁻² over the same time period, maintaining its lower but stable catalytic activity without noticeable degradation. At the long-term or steady-state stage (8.3–13.9 h), the AWC-Ni-N catalyst reached a nearly stable steady-state current density of 3–4 mA cm⁻², indicating sustained catalytic activity even after prolonged exposure to reaction conditions. This final stabilized current density was significantly higher (approximately double) compared with the AWC-N catalyst, highlighting the enhanced long-term catalytic performance and stability. The AWC-N catalyst remained largely stable, maintaining a steady-state current density of around 1–2 mA cm⁻², indicating that, although its catalytic activity was comparatively lower, it exhibited high operational stability under long-term test conditions.

The CA curves clearly show that incorporating Ni into the AWC-N structure, forming the AWC-Ni-N catalyst, significantly improved catalytic performance in N₂H₄ oxidation. Although there was an initial drop from a high initial current density, the AWC-Ni-N catalyst maintained superior activity and good long-term stability compared with the unmodified AWC-N catalyst. In contrast, the AWC-N catalyst, although highly stable, showed relatively low catalytic activity throughout the test period. Overall, the data in Figure 9 strongly support the conclusion that the AWC-Ni-N catalyst offered significantly improved catalytic efficiency and durability for N₂H₄ electro-oxidation compared with the AWC-N catalyst alone.

2.3. Performance of Direct N₂H₄-H₂O₂ Fuel Cell

For potential application in a direct N₂H₄-H₂O₂ fuel cell, the performance and stability of the AWC-N and AWC-Ni-N catalysts were evaluated. A direct N₂H₄-H₂O₂ single fuel cell was constructed using the AWC-N and AWC-Ni-N catalysts as both anodes and cathodes. The performance of the N₂H₄-H₂O₂ system is strongly influenced by the choice of electrode materials, the membrane separator, and the electrolyte composition. Based on previous studies of different catholyte and anolyte compositions, a catholyte consisting of 5 M H₂O₂ + 1.5 M HCl and an anolyte of 1 M N₂H₄ + 1 M KOH were used in the present study. The separator used was a standard Nafion^® N117 membrane. Figure 10 presents the fuel-cell polarization and corresponding power density curves for the AWC-N and AWC-Ni-N catalysts at temperatures of 25, 35, 45, and 55 °C.

Polarization curves were run in triplicate, and no significant loss of activity was observed. The overlapping curves between repetitions show that the AWC-N and AWC-Ni-N electrocatalysts had excellent stability. The key fuel-cell performance parameters determined from these tests are summarized in

Table 4. Electrochemical parameters of the N₂H₄-H₂O₂ employing the AWC-N and AWC-Ni-N anode/cathode catalysts.

Catalyst	T (°C)	Peak Power Density (mW cm−2)	j at Peak Power Density (mA cm−2)	E at Peak Power Density (V)
AWC-N	25	4.4	7.3	0.60
	35	5.0	8.4	0.60
	45	6.0	9.9	0.60
	55	7.0	11.7	0.60
AWC-Ni-N	25	10.8	27.0	0.40
	35	19.3	32.2	0.60
	45	25.1	38.6	0.65
	55	31.1	47.9	0.65

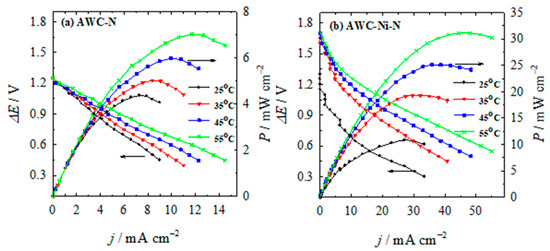

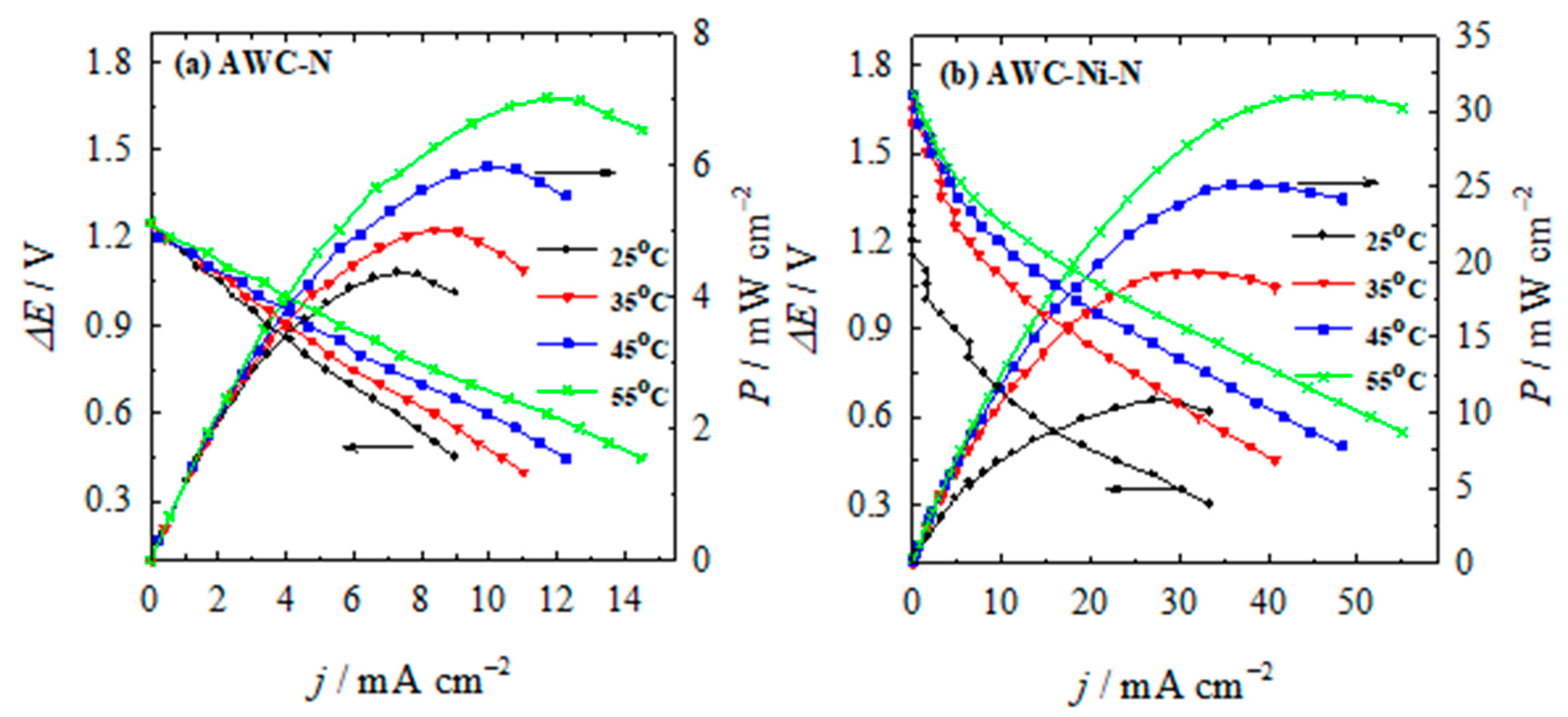

. The fuel cell displayed an open circuit voltage of approximately 1.25 V and 1.7 V using AWC-N and AWC-Ni-N as the anode and cathode catalysts, respectively. It was observed that the power density achieved with the AWC-Ni-N catalyst was significantly higher than that obtained with the AWC-N catalyst (Figure 10, Table 4). Peak power densities of up to 10.8 mW cm⁻² were achieved at 25 °C, corresponding to a current density of 27 mA cm⁻² and a cell voltage of 0.4 V (Figure 10), when the AWC-Ni-N catalyst was used as both anode and cathode. In addition, the peak power-density values increased by approximately 1.6 times and 2.9 times for the AWC-N and AWC-Ni-N catalysts, respectively, when the operating temperature was increased from 25 °C to 55 °C.

The performance difference between AWC-N and AWC-Ni-N can be attributed to the enhanced electrocatalytic activity of Ni-incorporated catalysts. The presence of Ni-based active sites (such as metallic Ni and NiO) likely promoted more efficient hydrazine oxidation at the anode, reducing activation losses and improving overall fuel-cell efficiency. Additionally, the nitrogen-doped carbon network in AWC-Ni-N enhanced electrical conductivity, facilitating faster electron transfer. Furthermore, the wire-like nanostructure of AWC-Ni-N improved mass transport, ensuring better fuel utilization and higher reaction rates. The significant increase in peak power density at elevated temperatures suggests that higher operating temperatures enhanced reaction kinetics and mass diffusion, contributing to improved cell performance. These factors collectively explain why AWC-Ni-N achieved superior performance compared with AWC-N in the direct N₂H₄-H₂O₂ fuel cell.

Table 5. The comparison of N₂H₄-H₂O₂ performance using different electrocatalysts and anolyte–catholyte compositions.

Anode	Cathode	Anolyte	Catholyte	Pmax, mW cm−2	T, (°C)	Ref.
AWC-N	AWC-N	1 M N2H4 + 1 M KOH	5 M H2O2 + 1.5 M HCl	4.4 7.0	25 55	[This work]
AWC-Ni-N	AWC-Ni-N	1 M N2H4 + 1 M KOH	5 M H2O2 + 1.5 M HCl	10.8 31.1	25 55	[This work]
Ni0.5Co0.5Se2	Ni0.5Co0.5Se2	4.0 M KOH	0.5 H2SO4	13.3	25	[55]
Pd–Ni/NrGO (1.0 mg cm−2)	Pt/C (0.5 mg cm−2)	1.0 M N2H4 + 2.0 M NaOH	2 M H2O2 + 0.5 M H2SO4	187.9 216.7	25 60	[56]
Pt53Cu47/C (0.5 mg cm−2)	Pt/C (20 wt.%) (1.0 mg cm−2)	1.0 M N2H4 + 1.0 M KOH	O2 flow rate: 30 SCCM	56.1	80	[57]
Ni0.6Co0.4 nanosheets (1.4 mg cm−2)	Pt/C (40.0 wt.%)	20wt% M N2H4 + 4.0 M KOH	20.0% H2O2 + 0.5 M H2SO4	107.1	80	[58]
Ni foam@Ag–Ni	Pd/CFC	0.045 M N2H4 + 1 M KOH	1 M H2O2 +2 M H2SO4	6.7	-	[59]
Ni foam@Ni	Pd/CFC	0.045 M N2H4 + 1 M KOH	1 M H2O2 +2 M H2SO4	4.1	-	[59]

compares various catalyst systems and their performance in direct hydrazine-based fuel cells, with a specific emphasis on their maximum power densities (P_max), operating temperatures, and electrolyte conditions. The developed catalyst (AWC-Ni-N) showed a significant enhancement in room-temperature catalytic performance compared with the unmodified AWC-N, and was competitive with other room-temperature catalysts, such as Ni–Co–Se nanorods and metal-foam catalysts. Although it did not outperform high-temperature Pd–Ni- or Pt–Cu-based catalysts, it represents a valuable balance between cost, complexity, and efficiency, making it a promising option for practical and economically viable low-temperature N₂H₄ fuel-cell applications.

3. Materials and Methods

3.1. Preparation of Nitrogen-Doped Activated-Carbon-Supported Nickel Particles

Alder wood char (Ltd. “Fille”, Valmiera, Latvia) was used as a carbon precursor. Activated carbon material (AWC) was synthesized by mixing 50 g of char with 150 g of NaOH, following an activation procedure at a temperature of 800 °C for 2 h in an argon (Ar) atmosphere using a muffle furnace. After cooling, the AWC material was demineralized by treatment with a 10% hydrochloric acid (HCl) solution for 2 h. The material was washed with demineralized water until the pH stabilized at 5–6, and then dried in an oven at 105 ± 2 °C for 12 h.

Doping of the obtained activated carbon (AWC) with nickel and nitrogen was per-formed in a single step and the resulting material was designated as AWC-Ni-N. The mixture of 2 g AWC, 40 g dicyandiamide (DCDA), and 0.62 g nickel acetate (Ni(CH₃COO)₂) was soaked in 250 mL dimethylformamide (DMF) for two hours, followed by evaporation of DMF in rotary evaporator and treatment of the resulting solid residue at a temperature of 800 °C for 1 h under an Ar atmosphere in muffle oven. Nitrogen-doped activated carbon (AWC-N) was synthesized for the comparison using the similar approach. AWC was doped with nitrogen by dispersing it in a solution of DCDA and DMF, with the same mass ratio of carbon to DCDA of 1:20. After solvent removal with a rotary evaporator, the resulting mixture was treated at 800 °C for 1 h in an Ar atmosphere in muffle oven.

3.2. Characterization of Catalysts

The structural and surface morphology of the synthesized materials was examined using a Helios NanoLab 650 SEM/FIB workstation, equipped with an INCA Energy 350 X-Max 20 energy dispersive X-ray (EDX) spectrometer (Oxford Instruments, Abingdon, UK).

The textural properties, including porous structure, specific surface area, total volumes of micro- and mesopores, and pore-size distribution, were determined from isotherms of low-temperature adsorption–desorption of nitrogen at 77 K. Isotherms were recorded using a Nova 4200e device (Quantachrome, Boynton Beach, FL, USA). Samples were degassed for 3 h at 300 °C before each test.

An inVia Raman spectrometer (Renishaw, New Mills, UK), equipped with a thermoelectrically cooled (−70 ◦C) CCD camera and microscope, was used for Raman spectra recording. The Raman signal was excited with 532 nm radiation from a pumped solid state (DPSS) laser (Renishaw, UK). The Raman spectra were recorded using the 20×/0.40 NA objective lens and 1800 lines/mm grating. The accumulation time was 40 s. The laser power at the sample was limited to 0.4 mW to avoid sample degradation,. Calibration of the Raman frequencies was done using the polystyrene standard. The parameters of the bands were determined by fitting the experimental spectra with Gaussian- and Lorentzian-shaped components using GRAMS/A1 8.0 software (Thermo Scientific, East Grinstead, UK).

The chemical composition of the samples was analyzed using the Kratos AXIS Supra+ spectrometer (Kratos Analytical, UK, Manchester, 2019) with monochromatic Al Kα (1486.6 eV) X-ray radiation powered at 225 W. Binding energies were referenced to the adventitious C 1s peak at 284.8 eV. The XPS data were converted to the VAMAS format and processed using the Avantage software 5.9931.0.6755 (Thermo Scientific, East Grinstead, UK). The base pressure in the analysis chamber was less than 1 × 10⁻⁸ mbar, and a low electron flood gun was used as a charge neutralizer. Survey scans were recorded at a pass energy of 80 eV with an energy step of 1 eV, while high-resolution spectra (pass energy—10 eV, in 0.1 eV steps) were recorded over individual element peaks.

X-ray diffraction (XRD) analysis was performed using a D2 PHASER diffractometer (Bruker, Karlsruhe, Germany), employed with Cu-K-alpha as the X-ray source. Measurements were conducted in the 2θ range from 10° to 90° in step-scan mode with the step size of 0.02° and counting time of 1s per step.

3.3. Electrochemical Measurements

Electrochemical characterization was carried out in a conventional three-electrode setup of 100 mL connected to a PGSTAT302 potentiostat (Metrohm Autolab B.V., Utrecht, The Netherlands), controlled via the Nova 2.1.4 software. The working electrodes utilized in this study were the AWC-N and AWC-Ni-N catalysts, which were coated on the glassy carbon (GC) electrode with a geometric area of 0.2 cm². The ink was prepared by dispersing 21.5 mg of the catalysts in 1 mL of a C₂H₅OH:H₂O (vol 1:1) solution and mixed with 8 μL of a 5 wt.% Nafion solution. Then, 8 μL of the obtained ink was deposited on a pretreated GC electrode surface, resulting in a catalyst loading of 0.8764 mg_cat cm⁻².

A Pt sheet served as the counter electrode, and a saturated calomel electrode (SCE) was used as the reference electrode. The HzOR studies were performed by recording cyclic voltammograms (CVs) in an Ar-deaerated solution of 0.05 M N₂H₄ and 1 M KOH, as well as in the background solution of 1 M KOH at room temperature. The potential was cycled in the range of −1.2 to 0.6 V (versus SCE) at various scan rates from 10 to 50 mV s⁻¹. Additional CV measurements were conducted with different concentrations of N₂H₄ in the range from 25 to 100 mM at a fixed scan rate of 50 mV s⁻¹.

3.4. Fuel-Cell Test Experiments

Direct N₂H₄-H₂O₂ fuel-cell experiments were done by employing the AWC-N and AWC-Ni-N catalysts with a geometric area of 1 cm² as the anode and as the cathode. An alkaline solution containing 1 M N₂H₄ and 1 M KOH was used as the anolyte, whereas the catholyte contained 5 M H₂O₂ and 1.5 M HCl. Each compartment of the cell was filled with 100 mL of the freshly prepared electrolytes. A Nafion N117 membrane was used for separation of the anodic and cathodic compartments of the single direct N₂H₄-H₂O₂ fuel cell. The current densities shown were normalized to the geometric area of the catalysts. Electrochemical measurements were assessed using a Zennium workstation (ZAHNER-Elektrik GmbH & Co., KG, Kronach, Germany). Cell polarization curves were recorded at temperatures between 25 and 55 °C.

4. Conclusions

In this study, efficient biomass-derived carbon catalysts were synthesized. It was found that nitrogen and nickel doping profoundly affected the properties of biomass-derived carbon catalysts. Nitrogen doping introduced a porous structure and a high surface area, while nickel co-doping further modified the morphology, enhanced the structural ordering, and significantly improved the electrocatalytic activity for both hydrazine oxidation. The AWC-Ni-N catalyst, which was doped with both nitrogen and nickel, demonstrated higher electrocatalytic activity for hydrazine oxidation compared with the AWC-N catalyst, doped with nitrogen only. The oxidation of N₂H₄ over these catalysts was controlled by the diffusion of reactants to the catalyst surface. Overall, the AWC-N and AWC-Ni-N catalysts show promise as anode/cathode materials for N₂H₄-H₂O₂ fuel cells. The fuel cells exhibited voltages of approximately 1.25 V and 1.7 V, employing AWC-N and AWC-Ni-N as the anode and cathode catalysts, respectively. The fuel cell incorporating AWC-Ni-N as both the anode and cathode achieved a significantly higher power density than the fuel cell using AWC-N. This improved performance is attributed to the superior catalytic activity of AWC-Ni-N for hydrazine oxidation. Nickel- and nitrogen-co-doped carbon catalysts are promising materials for energy conversion applications. The use of nickel as the active metal avoids the need for more expensive noble metals, such as platinum, palladium, and ruthenium, without compromising catalytic efficiency.
