A Closed-Loop Biorefinery Approach for the Valorization of Winery Waste: The Production of Iron-Sulfonated Magnetic Biochar Catalysts and 5-Hydroxymethyl Furfural from Grape Pomace and Stalks

Abstract

In this work, a closed-loop strategy for the management and valorization of winery waste was proposed. The exhausted pomace and grape stalks that are typically obtained from white wine industries were used as a source of simple sugars, namely, glucose and fructose, and of lignocellulosic feedstock for the preparation of selective catalysts for the 5-hydroxymethylfurfural (5-HMF) production from fructose. A novel synthetic procedure was developed for the synthesis of iron-sulfonated magnetic biochar catalysts (Fe-SMBCs). Fourier transform infrared spectroscopy (FTIR), X-ray diffraction (XRD), scanning electron microscopy (SEM), energy-dispersive X-ray (EDX), BET surface area, porous structure analysis and determination of total amount of acid sites were performed in order to characterize the physico-chemical properties of the synthesized systems. Then, these heterogeneous catalysts were successfully tested via the dehydration of simple sugars into 5-HMF by using methyl isobutyl ketone (MIBK) and gamma valerolactone (GVL) as co-solvents. The optimum 5-HMF yield of 40.9 ± 1.1%mol with a selectivity of 59.8 ± 2.6%mol was achieved by adopting the following optimized conditions: 0.1 g of catalyst, volume ratio of GVL to H₂O = 2 to 1, 403 K, 6 h. In addition, the catalyst was easily recycled using an external magnetic field and used for at least five reaction cycles without significant loss of catalytic activity.

1. Introduction

1.1. Global Wine Production and Waste Management

Wine production is one of the most important agricultural activities in the world. According to the latest report by the International Organization of Vine and Wine (OIV) [1], global wine production was estimated at 244 million hectolitres (Mhl) in 2023. France is the largest producer, with 45.8 Mhl, followed by Italy with 43.9 Mhl and Spain with 30.7 Mhl, which together account for around 80% of the wine that is produced in Europe. Such a wine productivity generates large amounts of secondary products. It has been estimated that the processing of 100 kg of grapes generates 20–25 kg of wet solids [2], of which about 88–86% corresponds to pomace (skins and seeds) and 12–14% to stalks [3,4]. Therefore, the management of these waste side-currents leads to environmental and economic problems [5,6,7]. The European Council Regulation (EC) 479/2008 on the Common Organization of the Wine Market [8] stipulates that these by-products must be sent to distilleries or to other alternative uses (e.g., spreading or composting for agronomic use or energy production by incineration). Despite their wide application, however, some aspects should be considered. In the production of distillates, large quantities of grape marc must be stored and processed in a short time to avoid the formation of undesired products, thus leading to an increase in production costs [9,10]. For white wine production, especially where pomace and stalks are immediately removed from the first squeezed grape, they must be sent to the fermentation/vinification, and the resulting residues are wet solids containing simple sugars that need to be appositely fermented into ethanol before being washed and distilled. Spreading or composting is a cost-effective and practical method of treating winery/distillery end-products [11,12]. However, such application can lead to soil and groundwater pollution due to the accumulation of heavy metals and other organic substances such as alcohols, polyphenols and organic acids [13]. Lastly, the energy generation through incineration is not considered a sustainable alternative due to the high water content in winery waste (up to 60–70%), which requires energy-intensive pre-treatments and desiccation [14]. For these reasons, there is a clear need of an alternative safer management of these residues, with the aim of their valorization for the recovery of fine chemicals and components with a high added value, according to circular economy principles.

1.2. Integrated Approach to Biorefinery: Development of Heterogeneous Carbon-Based Catalysts for Industrial Processes

The design and development of an integrated biorefinery for the valorization of wine waste could offer potential benefits in terms of environmental and economic sustainability, especially if the objective of “zero-waste” discharge was achieved [15,16,17]. Several studies have been conducted on the valorization of winery waste through the extraction of chemical compounds [18,19,20] and bioactive molecules, including phenolic compounds, flavonoids, anthocyanins and stilbenes, for their antimicrobial, antioxidant and anti-inflammatory properties [21,22,23,24]. However, these components represent only 5–10% of the dry matter, not effectively solving the problem of waste disposal. The use of a pyrolytic step for the valorization of organic residues is increasingly investigated for the concomitant generation of renewable energy and biochar, which could possibly find good applications. In particular, the use of biochar as a precursor for the obtainment of specifically functionalized catalysts for the production of fine chemicals has attracted a considerable attention recently [25,26,27]. Biochar is an economical and environmentally friendly carbon-based material that can be produced from thermochemical degradation of biomass of various origins (e.g., agricultural waste, FORSU, sewage sludge) through pyrolysis, gasification or hydrothermal carbonization [28,29]. The surface area, porous structure and presence of oxygen-containing functional groups on the biochar surface, such as hydroxylic and carboxylic groups, have enabled its use in a wide range of applications, including the adsorption of organic pollutants and heavy metals [30,31], electrochemistry [32] and energy storage [33]. In addition, these physico-chemical properties can be further improved by activation and functionalization processes. In the field of acid catalysis, sulfonation is the most efficient method for improving the surface functionalities of biochar. Sulfonated carbon-based catalysts are obtained by direct sulfonation of biochar with sulfuric acid (H₂SO₄) by introducing sulfonic groups (-SO₃H) as Brønsted acid sites on the surface [34,35,36]. On the other hand, magnetic carbon-based materials have emerged as a sustainable alternative to facilitate the recovery of catalysts in heterogeneously catalyzed liquid-phase reactions [37,38,39]. At the end of the use, they can easily be recovered from the reaction medium in the presence of an external magnetic field.

1.3. Dehydration of Fructose for Synthesis of 5-HMF

5-Hydroxymethylfurural (5-HMF) is one of the most promising platform molecules for the synthesis of a wide range of chemical compounds, including fine chemicals, biofuels, additives, polymers and pharmaceuticals [40,41]. 5-HMF can be produced through the dehydration of simple sugars, such as glucose and fructose, in the presence of appropriate homogeneous and heterogenous catalysts. Homogeneous acid catalysts like mineral acids [42], organic acids [43] and ionic liquids [44] present several disadvantages, including low selectivity, corrosion of the equipment, low sustainability, high toxicity and the difficulty in the recovery of the catalyst. To overcome these problems, heterogeneous acid catalysts such as ion-exchange resins [45], metal oxides [46] and heteropoly acids [47] are currently used, because they are less corrosive and easily recoverable at the end of a reaction cycle. In this work, a closed-loop strategy for the complete valorization of winery waste was proposed. After a preliminary characterization of raw biomass wastes (grape pomace and stalks), the free simple sugars (e.g., fructose, glucose) that were present in the grape pomace were recovered using water washes. Subsequently, the exhausted washed pomace and grape stalks were subjected to pyrolysis, and the obtained biochar was used as a starting support for the synthesis of iron-sulfonated magnetic biochar catalysts (Fe-SMBCs). These new species were thoroughly characterized and used for the conversion of simple sugars (recovered using water-washing) into 5-hydroxymethylfurfural (5-HMF). The application of this innovative and sustainable approach for the management and valorization of winery waste will lead to a series of advantages, such as (i) no waste being produced, (ii) the simultaneous production of useful products (5-HMF), thus increasing the profitability of the vinification process, and (iii) the use of green and low-environmental-impact technologies for the winery waste treatment.

2. Results and Discussion

2.1. Scheme of Valorization Route: Chemical Characterization of Winery Waste

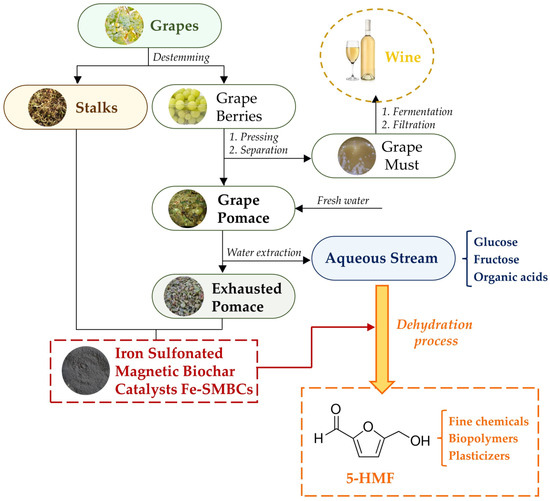

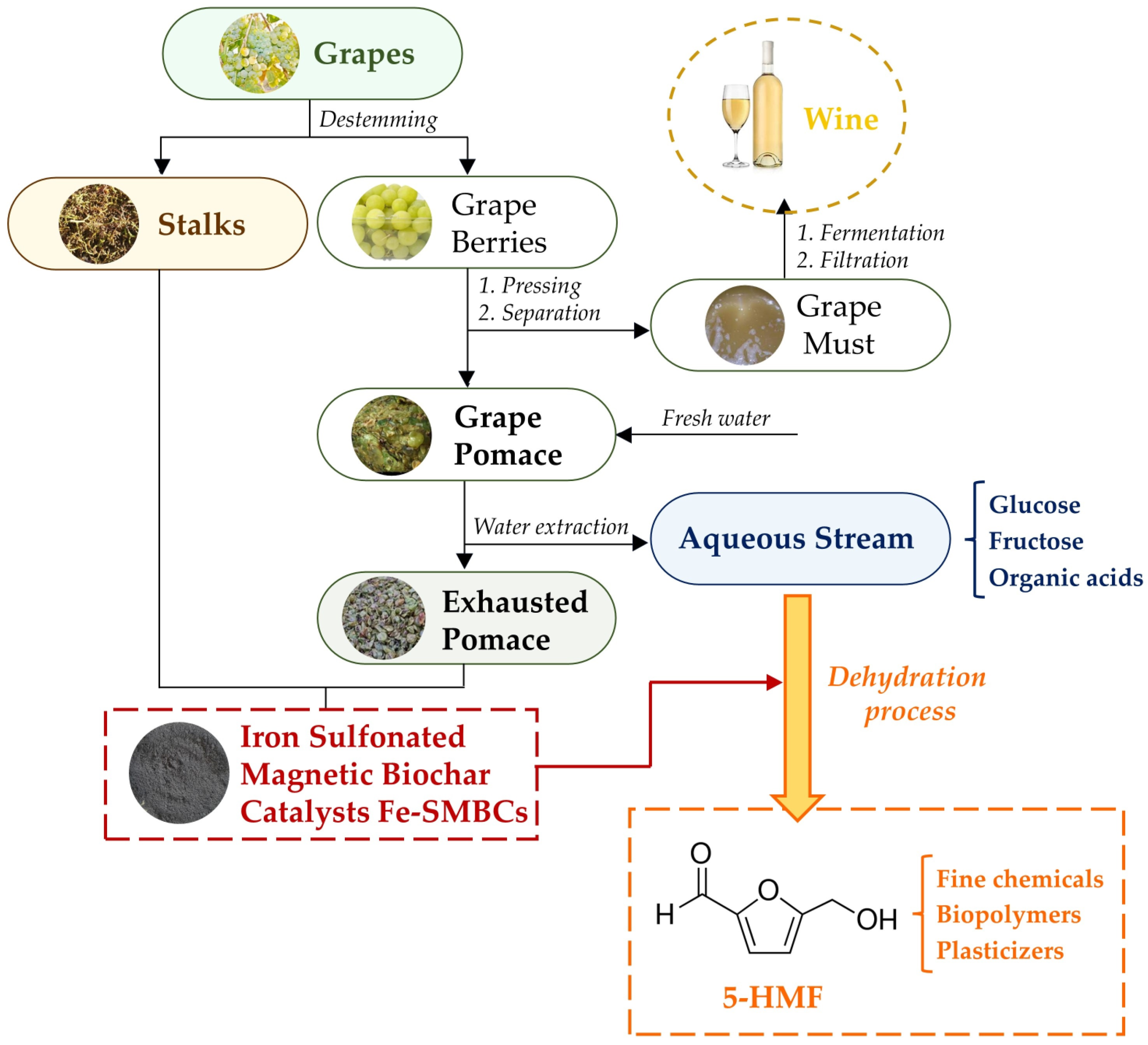

A new closed-loop valorization of fresh grape pomace, schematized as reported in Figure 1, was investigated.

The scheme of valorization of fresh grape pomace is essentially based on a preliminary washing, operated with water (1:1 by weight, carried out in duplicate), with the intent of recovering simple sugars contained therein. In fact, for white wine production in particular, the fermentation appositely occurs on grape musts when it is separated from solids, which results in solids being embedded in the grape must. The results of the preliminary characterization of winery waste from the vinification process (namely, grape pomace and grape stalks) and the residues obtained after water-washing (exhausted pomace) are shown in

Table 1. Chemical characterization of winery waste obtained from vinification process.

Winery Waste	Grape Pomace	Exhausted Pomace	Grape Stalks
Total Solids (TS, %wt)	67.9 ± 2.2	44.0 ± 1.4	91.8 ± 2.7
TS composition (mg/gTS)
Total Lipids	118.8 ± 3.6	86.7 ± 2.7	19.0 ± 0.3
Free simple sugars           Glucose	30.2 ± 0.6	2.3 ± 0.1	-
Fructose	80.6 ± 1.4	5.4 ± 0.2	-
Total	110.8 ± 2.0	7.7 ± 0.3	-
Easy Hydrolysable Sugars (EHSs)     Arabinose	5.9 ± 0.2	8.4 ± 0.2	1.1 ± 0.3
Glucosamine	10.6 ± 0.3	15.3 ± 0.4	-
Galactose	18.9 ± 0.4	25.9 ± 0.7	16.1 ± 0.6
Glucose	27.2 ± 1.1	34.7 ± 0.5	61.0 ± 1.8
Xylose	10.0 ± 0.4	13.1 ± 0.2	77.9 ± 2.6
Total	72.6 ± 2.4	97.4 ± 2.0	156.1 ± 5.3
Cellulose                Glucose	162.9 ± 2.7	251.7 ± 3.5	313.6 ± 4.2
Xylose	25.1 ± 0.8	41.6 ± 0.7	31.4 ± 0.8
Total	188.0 ± 3.5	293.3 ± 4.2	345.8 ± 5.0
Lignin	248.3 ± 6.5	277.8 ± 4.1	310.4 ± 5.1
Proteins	96.3 ± 2.1	84.9 ± 2.6	35.3 ± 1.2
Ashes	57.2 ± 1.4	69.9 ± 1.4	65.3 ± 2.1

.

Significant differences in chemical composition between grape pomace and stalks were determined. As well as the higher level of humidity, grape pomace is characterized by a higher content of lipids and proteins of 118.8 ± 3.6 and 96.3 ± 2.1 mg/g_TS, respectively. In addition, free simple sugars, mainly fructose and glucose, amounting to 110.8 ± 2.0 mg/g_TS, are typically present in grape pomace. However, after water-washing, the simple sugar content decreased to 7.7 ± 0.3 mg/g_TS. These sugars were easily recovered from the grape pomace (recovery efficiency > 95%), producing an aqueous sugar stream whose composition is reported in

Table 2. Chemical composition of aqueous stream obtained from extraction of free simple sugars from grape pomace.

Chemical Composition	Concentration (mmol/L)
Glucose	120 ± 0.9
Fructose	320 ± 1.6
Tartaric acid	14 ± 0.4
Malic acid	260 ± 1.4
Succinic acid	26 ± 1.0
Acetic acid	24 ± 0.7

.

Glucose and fructose are the major components, with a concentration of 120 ± 0.9 mmol/L and 320 ± 1.6 mmol/L, respectively. However, organic acids are also present, in which malic acid is the main constituent (260 ± 1.4 Mm). This aqueous stream was directly used for the subsequent dehydration tests for the production of 5-HMF. This recovery of water-soluble components makes the residual exhausted pomace richer in EHSs (97.4 ± 2.0 mg/g_TS), cellulose (293.3 ± 4.2 mg/g_TS) and lignin (277.8 ± 4.1 mg/g_TS). In grape stalks, cellulose and lignin are the main components, with values of 345.8 ± 5.0 and 310.4 ± 5.1 mg/g_TS. These lignocellulosic biomass wastes (exhausted pomace and grape stalks) were used as starting material for the synthesis of iron-sulfonated magnetic biochar catalysts (Fe-SMBCs).

2.2. Synthesis and Characterization of Iron-Sulfonated Magnetic Biochar Catalysts (Fe-SMBCs)

The conventional method for the preparation of a sulfonated magnetic carbon catalyst [48,49,50] generally consists of a preliminary impregnation of biochar obtained from raw biomass with an aqueous solution of iron (III) chloride or sulfate, followed by thermal activation of the impregnated biochar under a nitrogen flow (typically 773–973 K), resulting in magnetite (Fe₃O₄) formation and deposition on the carbon-based surface. Finally, the acid functionalities are introduced on the Fe₃O₄-supported biochar by direct sulfonation with sulfuric acid (H₂SO₄). However, this sequence of operations results in a partial loss of iron oxide after the acid treatment, adversely affecting the processes of separation and recovery of the catalyst by application of an external magnetic field. In this work, a novel synthetic procedure was developed to obtain heterogenous catalysts, in which nanostructured magnetite (Fe₃O₄) was deposited onto sulfonated biochar that was characterized by strong acid properties. The synthetic procedure adopted for the synthesis of Fe-SMBCs is reported in Figure 2.

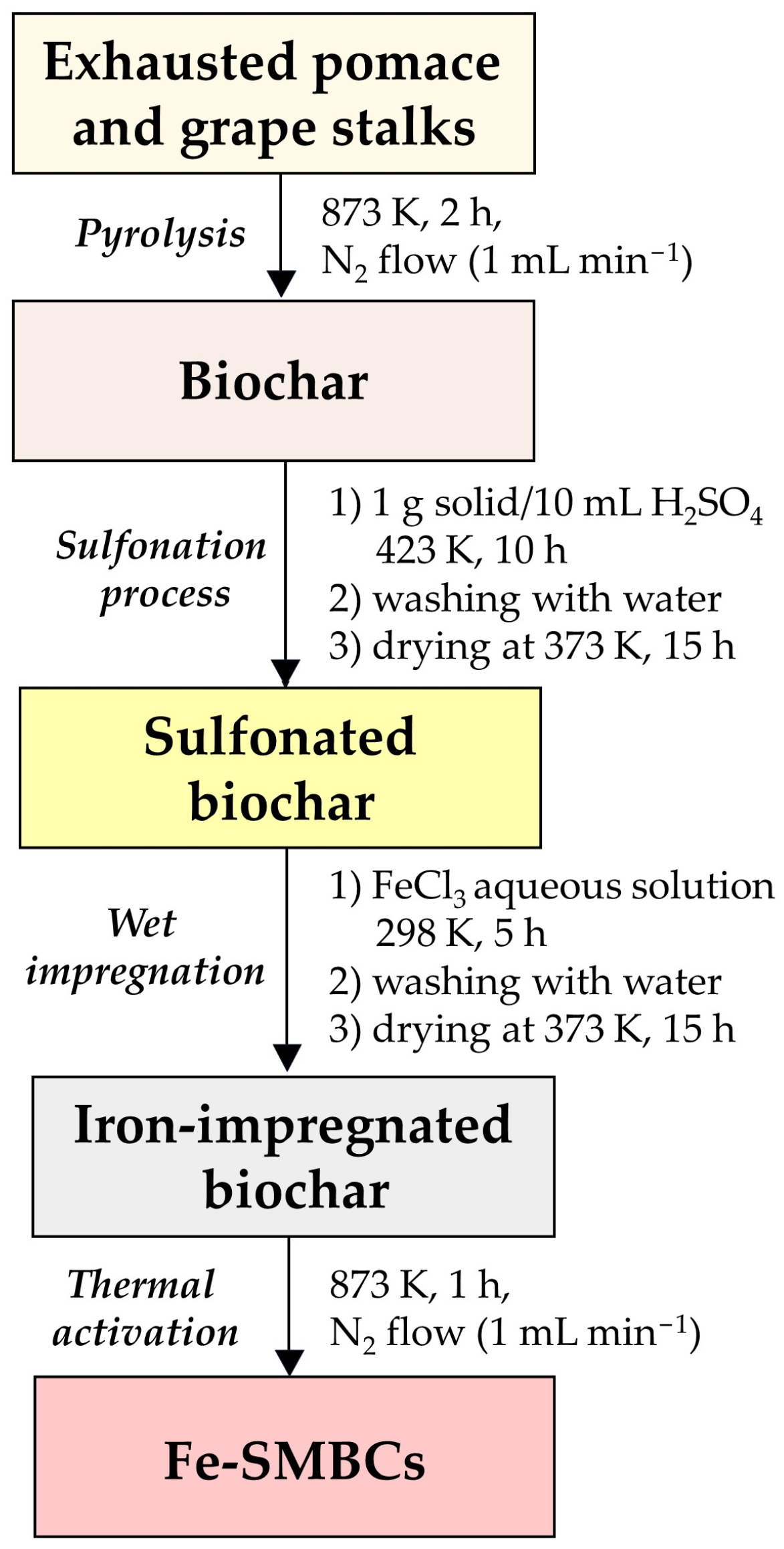

Firstly, biochar was produced from the pyrolysis of dried winery waste (exhausted pomace and grape stalks) at high temperatures (873 K, 2 h). This specific treatment produced a loss of weight of 71 and 73% of the original weight of the exhausted pomace and stalks, respectively. The resulting carbonaceous materials were then treated with concentrated sulfuric acid (373 K, 15 h), which led to the functionalization of the catalyst surface with sulfonic groups. FTIR analysis was performed to identify the different groups that were present in the sulfonated biochar. The FTIR spectra of raw and sulfonated biochars are shown in Figure 3. Both spectra showed similar infrared absorption bands at 3418 and 1610 cm⁻¹, which are attributed to the stretching vibrations of the -OH and -COOH groups, respectively, generated during the pyrolysis process. In addition, discrete vibrational frequencies at 2927 and 2850 cm⁻¹ should be assigned to symmetric and asymmetric vibrations of the saturated aliphatic groups. After the sulfonation process, the presence of signals at 1123 and 1100 cm⁻¹, related to C-O-S and O=S=O stretching vibrations [51,52], confirmed the successful loading of -SO₃H functional groups on the native biochar surfaces.

Subsequently, the sulfonated biochar was impregnated with an aqueous solution of iron (III) chloride dihydrate (298 K, 5 h) and thermally activated (873 K, 1 h under a N₂ flow) in order to obtain the formation of iron-sulfonated magnetic biochar catalysts. Figure 4 shows the XRD patterns of the biochar and Fe-SMBCs obtained from the two different types of winery waste (exhausted pomace and grape stalks).

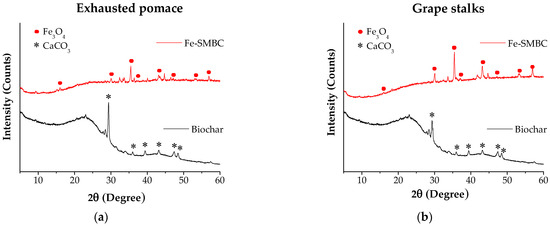

Signals located at 2θ of 29.3°, 35.9°, 43.0°, 47.4° and 48.5° identify the presence of calcium carbonate (CaCO₃) in the starting biochar. A weak broad diffraction peak at 2θ = 23–28° in both spectra (biochar and Fe-SMBCs) can be attributed to amorphous carbon structures with aromatic carbon layers [53]. The diffraction peaks in the Fe-SMBCs at 2θ of 16.1°, 30.2°, 35.5°, 37.7°, 43.2°, 47.5°, 53.5° and 57.1° highlight the formation of magnetite (Fe₃O₄) on the catalyst, according to the reaction mechanism proposed by Bedia et al. [54] (Equations (1)–(4)):

$$\mathrm{Fe}{\mathrm{Cl}}_3·2{\mathrm{H}}_2\mathrm{O} \stackrel{373 K}{\to } \mathrm{FeOCl}·{\mathrm{H}}_2\mathrm{O}+2\mathrm{HCl} \left(\mathrm{g}\right)$$

(1)

$$\mathrm{FeOCl}·{\mathrm{H}}_2\mathrm{O} \stackrel{373 K}{\to }\mathrm{FeOOH}+\mathrm{HCl} \left(\mathrm{g}\right)$$

(2)

$$2\mathrm{FeOOH} \stackrel{873 K}{\to } {\mathrm{Fe}}_2{\mathrm{O}}_3$$

(3)

$${3\mathrm{Fe}}_2{\mathrm{O}}_3+\mathrm{C} \stackrel{873 K}{\to }2{\mathrm{Fe}}_3{\mathrm{O}}_4+\mathrm{CO} \left(\mathrm{g}\right)$$

(4)

During the drying of the iron-impregnated biochar (373 K, 15 h), FeCl₃·2H₂O is decomposed into the amorphous iron (III) oxide–hydroxide (FeOOH) (Equations (1) and (2)). Subsequently, FeOOH is first decomposed to iron (III) oxide (Fe₂O₃) as the temperature increases (873 K, 1 h) (Equation (3)) and finally reduced to form Fe₃O₄ by reacting with the carbon surface of the catalyst. EDX analysis was used to confirm the effectiveness of the synthesis process at all stages of the preparation.

Table 3. Elemental analysis of biochar, sulfonated biochar and Fe-SMBCs obtained from winery waste (exhausted pomace and grape stalks).

Samples	Elemental Composition (%wt)
	C	O	Ca	S	Fe
Exhausted pomace
Biochar	62.6 ± 2.3	18.6 ± 2.1	0.5	-	-
Sulfonated biochar	63.3 ± 3.6	28.9 ± 2.6	0.7	5.8 ± 0.7	-
Fe-SMBCs	51.4 ± 9.4	15.4 ± 2.5	0.5	4.0 ± 0.4	18.6 ± 3.9
Grape stalks
Biochar	75.5 ± 2.3	23.1 ± 3.3	0.5	-	-
Sulfonated biochar	61.3 ± 1.7	29.8 ± 1.2	0.9	6.8 ± 0.4	-
Fe-SMBCs	46.1 ± 1.9	15.8 ± 1.8	0.8	4.3	21.1 ± 0.4

shows the elemental analyses of biochar, biochar sulfonate and Fe-SMBCs obtained from the exhausted pomace and grape stalks, respectively.

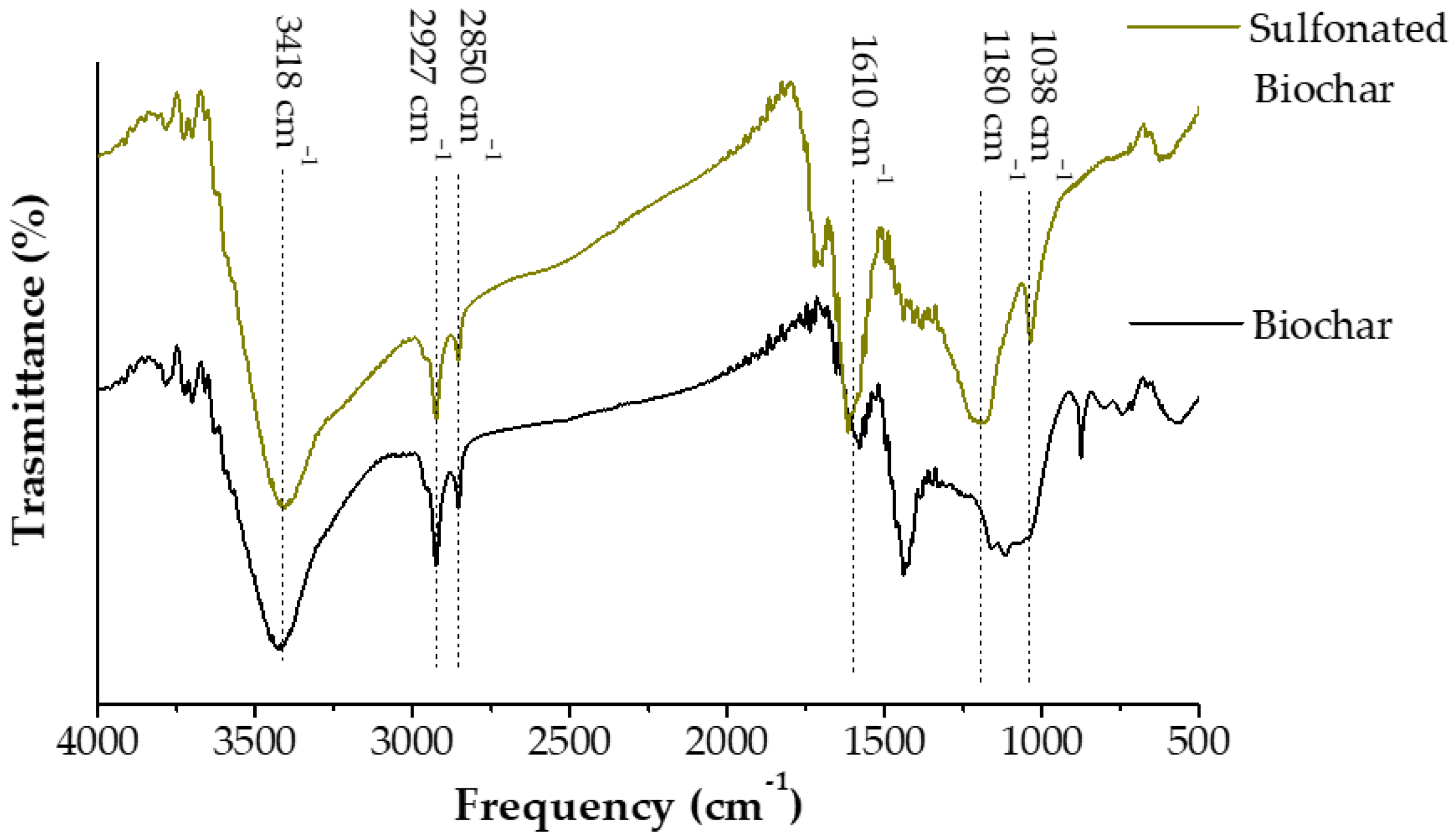

After the sulfonation process, the chemical composition of the biochar was clearly different. The increase in sulfur (S) and oxygen (O) from 5.8 ± 0.7%wt and 6.8 ± 0.4%wt to 28.9 ± 2.6%wt and 29.8 ± 1.2%wt, respectively, indicated the successful incorporation of -SO₃H groups on the biochar surfaces. The presence of iron (Fe) in the sulfonated materials after the wet impregnation, washing with water, and thermal activation was 18.6 ± 3.9%wt and 21.1 ± 0.4%wt and confirmed the formation of Fe₃O₄ in the Fe-SMBCs. The surface morphologies of the synthesized catalysts were then studied by SEM analysis. The images obtained are shown in Figure 5. Biochar obtained from the pyrolysis of exhausted pomace (Figure 5a’,a”) exhibits an irregular morphology with a well-developed pore structure, resulting from the loss of volatile compounds during the thermal treatment. A similar structure was also found for biochar obtained from grape stalks (Figure 5d’,d”); however, the alveolar structure was less developed due to the higher lignin content that was present in the initial biomass (310.4 ± 5.1 mg/g_TS). After the sulfonation process, a noticeable change in the surface structure of the biochar was observed in both cases (Figure 5b’,b”,e’,e”). A partial reduction in porosity on the surface of the carbonaceous material was obtained due to the partial removal of part of the amorphous carbon that was present in the starting biochar after the treatment with H₂SO₄ [55,56].

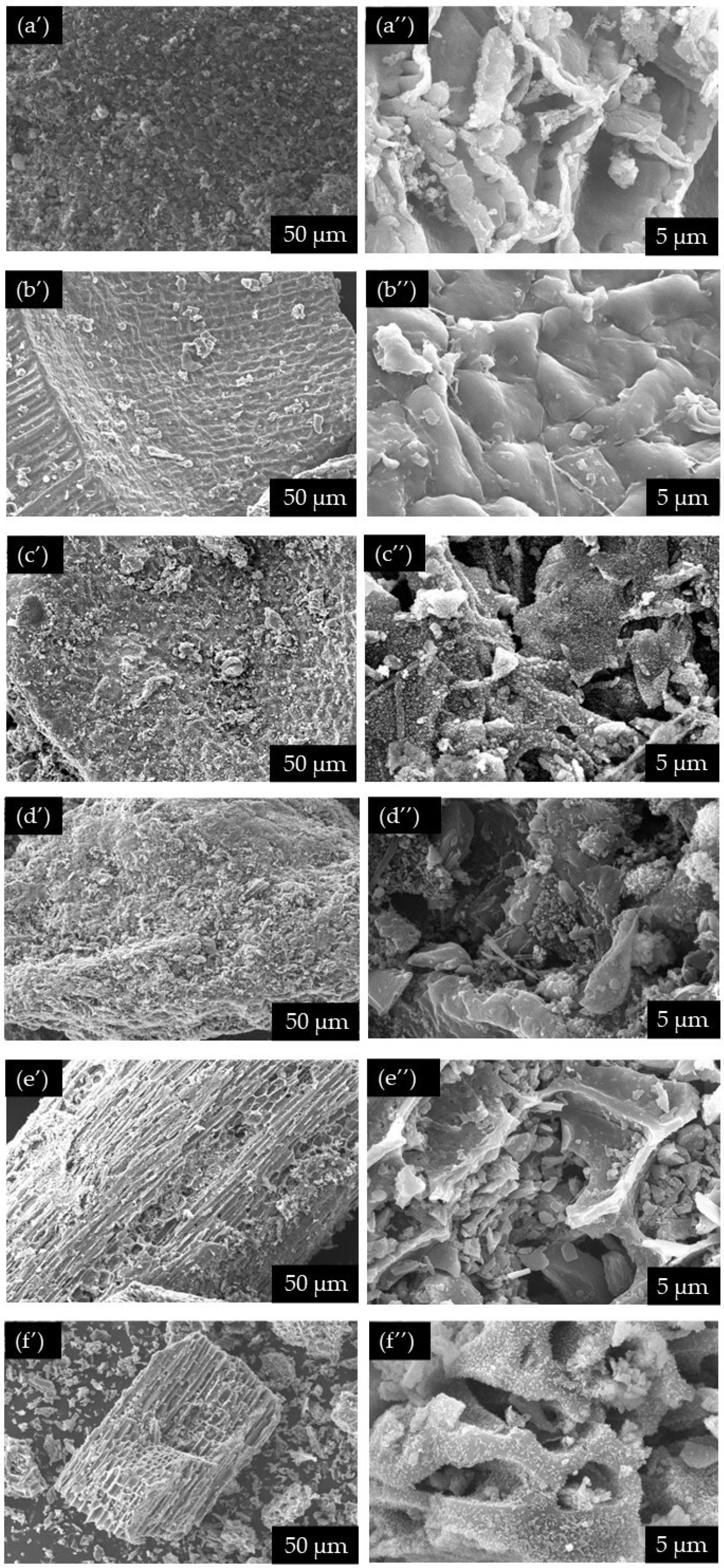

Fe₃O₄ nanoparticles were found on the surface of the Fe-SMBCs after the wet impregnation of the sulfonated biochar with FeCl₃ and the subsequent activation process, as confirmed by elemental EDX analysis (see Table 3). Finally, the synthesized materials were completely characterized by their BET surface area, an analysis of porosity and the determination of the total acid sites. As reported in

Table 4. Chemical properties of biochar, sulfonated biochar and Fe-SMBCs obtained from exhausted pomace and grape stalks.

Samples	Total Surface Area (m2/g)	Total Pore Volume (cm3/g)	Mesoroporous Volume (cm3/g)	Total Acid Density (mmolSO3H/g)
Exhausted pomace
Biochar	6.7	0.039	0.023	-
Sulfonated biochar	2.5	0.006	0.005	0.86 ± 0.01
Fe-SMBCs	4.1	0.013	0.010	0.91 ± 0.03
Grape stalks
Biochar	17.0	0.029	0.024	-
Sulfonated biochar	10.4	0.019	-	0.85 ± 0.01
Fe-SMBCs	6.2	0.019	0.015	0.92 ± 0.02

, a partial collapse of the porous structure of the biochar obtained from the exhausted pomace and grape stalks was observed after the sulfonation process, with a reduction in the BET surface area from 6.7–17.0 m²/g to 2.5–10.4 m²/g, respectively, and pore volume from 0.039–0.029 cm³/g to 0.006–0.019 cm³/g. At the same time, an increase in the total number of acid sites was observed on the surface of the sulfonated biochar to 0.86 ± 0.01 mmol_SO3H/g and 0.85 ± 0.01 mmol_SO3H/g.

The support of magnetite on the surface of the sulfonated biochar does not affect the acid properties of the synthesized catalysts, resulting in an overall acid density that is equal to 0.91 ± 0.03 mmol_SO3H/g and 0.92 ± 0.02 mmol_SO3H/g.

2.3. Use of Fe-SMBCs in Dehydration of Fructose for the Synthesis of 5-HMF

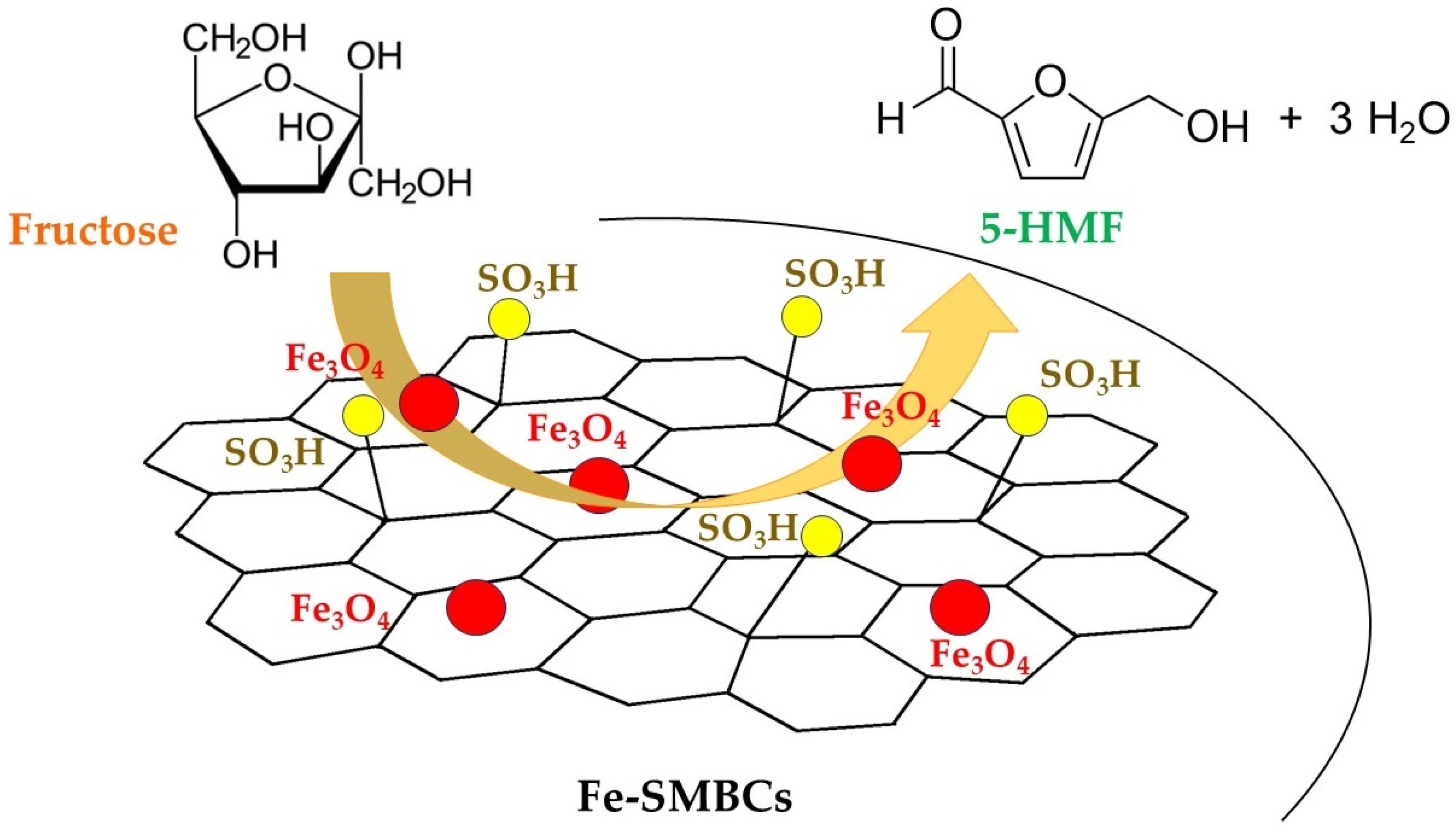

Fe-SMBCs obtained from exhausted pomace and grape stalks (denoted as EX and GSs, respectively) were initially tested in the dehydration of pure fructose for the synthesis of 5-HMF (Figure 6).

Although water is the most economical and environmentally friendly solvent, 5-HMF presents high instability in aqueous solutions, undergoing several side reactions that lead to the formation of oligomeric by-products (humins) [40,41]. In order to improve the yield of 5-HMF while maintaining good selectivity in the process, the dehydration reaction was conducted using methyl isobutyl ketone (MIBK) or γ-valerolactone (GVL) as co-solvents. In addition, the catalytic activity of the commercial sulfonic acid resins Amberlyst-15 was also investigated as a sort of reference of reactivity. The results obtained are reported in

Table 5. Reactivity tests of the dehydration of fructose for the synthesis of 5-HMF. Reaction conditions: 0.1 g of catalyst, 1 mL of aqueous solution of fructose (0.2 mmol), 2 mL of organic solvent (MIBK or GVL), 403 K, 3–6 h, 300 rpm.

E	Solvent	Catalyst	Time (h)	Fructose Conversion (%mol)	5-HMF			Formic Acid	Levulinic Acid
					Yield (%mol)	Selectivity (%mol)	R	Yield (%mol)	Yield (%mol)
1	MIBK	No catalyst	3	30.4 ± 0.6	4.0 ± 0.2	13.2 ± 0.9	2.0	-	-
2			6	34.7 ± 1.2	8.1 ± 0.3	23.3 ± 1.7	2.2	-	-
4		Amberlyst-15	3	61.3 ± 2.3	8.2 ± 0.3	13.4 ± 1.0	2.2	14.2 ± 0.5	10.4 ± 0.4
5			6	91.8 ± 1.4	14.5 ± 0.5	15.8 ± 0.8	2.4	32.3 ± 1.6	28.6 ± 1.4
6		Fe-SMBCs (EX)	3	45.8 ± 0.8	5.2 ± 0.2	11.4 ± 0.6	2.0	-	-
7			6	61.2 ± 1.2	23.4 ± 0.7	38.2 ± 1.9	2.4	-	-
8		Fe-SMBCs (GSs)	6	60.1 ± 1.0	22.1 ± 0.5	36.8 ± 1.4	2.7	-	-
9	GVL	No catalyst	6	33.0 ± 0.7	5.6 ± 0.2	17.0 ± 0.9
10		Fe-SMBCs (EX *)	3	50.7 ± 1.2	20.1 ± 0.6	39.6 ± 2.1	-	-	-
11			6	72.5 ± 1.1	41.8 ± 0.8	57.7 ± 1.9	-	-	-
12		Fe-SMBCs (GSs *)	6	70.5 ± 1.2	40.8 ± 0.7	57.9 ± 2.1	-	-	-
			6	8.1 ± 0.4 **	2.1 ± 0.1	25.9 ± 0.7

* EX = exhausted pomace, GSs = grape stalks; ** reaction conducted in the presence of glucose (0.2 mmol).

.

In the absence of a catalyst, when 0.2 mmol fructose was reacted in 1 mL of water and 2 mL of MIBK at 403 K, a conversion of 34.7 ± 1.2%mol was achieved after 6 h, with a 5-HMF yield of 8.1 ± 0.3%mol and a selectivity of 23.3 ± 1.7%mol (Entry 2). When Amberlyst-15 was used as a catalyst (Entry 5), the fructose conversion was 91.8 ± 2.3%mol with a 5-HMF yield of 14.5 ± 0.5%mol. However, the selectivity for producing 5-HMF was found to be only 15.8 ± 0.8%mol, which was lower than the non-catalyzed process. In particular, the Amberlyst-15 acidity was found to be strong enough to promote the subsequent hydrolysis to produce formic and levulinic acids as reaction by-products (32.3 ± 1.6%mol and 28.6 ± 1.4%mol, respectively) [45]. In contrast, despite a lower fructose conversion rate of 61.2 ± 1.2%mol–60.1 ± 1.0%mol (Entries 7,8), Fe-SMBC showed a higher yield and selectivity towards 5-HMF production, with values in the range of 23.4 ± 0.7%mol–22.1 ± 0.5%mol and 38.2 ± 1.9%mol–36.8 ± 1.4%mol, confirming the effectiveness and the selectivity of catalysts in the dehydration process. The simultaneous presence of Brønsted (sulfonic groups) and Lewis (magnetite) acid sites effectively catalyzed the dehydration of fructose, in contrast to Amberlyst-15, which only contains sulfonic groups (4.3 mmol_SO3H/g, experimentally detected). These values can be further improved by using GVL as a co-solvent reaction (Entries 11,12), with yields in 5-HMF of 41.8 ± 0.8%mol–40.8 ± 0.7%mol and selectivity of 57.7 ± 1.9%mol–57.9 ± 2.1%mol. In the adopted reaction conditions (volume ratio GVL:H₂O = 2:1), the reaction medium becomes homogeneous. However, the use of GVL as a co-solvent limits the degradation processes of fructose and 5-HMF that lead to the formation of humic substances, thus increasing the selectivity towards the production of 5-HMF [57]. However, in the case of MIBK, a clear and convenient separation of the produced 5-HMF was achieved at the end of the process. More than 70% of the 5-HMF was easily recovered in the organic phase (R = 2.4–2.7), allowing for the subsequent isolation of the final product by distillation, with a purity greater than 90%mol [58,59]. In addition, the catalytic activity of Fe-SMBC in the direct dehydration of glucose for the synthesis of 5-HMF was measured. By adopting the same experimental conditions (Entry 13), the yield of 5-HMF was only 8.4 ± 0.4%mol. Lewis acid sites on the catalyst surface were not sufficient to promote the isomerization of glucose to fructose, which was subsequently converted to 5-HMF. After this preliminary investigation, in order to assess the closed-loop strategy for the management and valorization of winery waste, Fe-SMBCs were tested in the dehydration of free simple sugars that were recovered from grape pomace. The aqueous current that was recovered from washing grape pomace was directly used without any pre-treatment in the dehydration process for the production of 5-HMF (

Table 6. Dehydration of the aqueous stream obtained from the recovery of free simple sugars from grape pomace for the synthesis of 5-HMF. Reaction conditions: 0.1 g of catalyst, 1 mL of aqueous solution, 2 mL of organic solvent (GVL), 403 K, 6 h, 300 rpm.

E	Solvent	Catalyst	Sugar Conversion (%mol)	5-HMF
				Yield (%mol)	Selectivity (%mol)
1	GVL	No catalyst	26.9 ± 0.8	5.6 ± 0.2	20.8 ± 1.3
2		Fe-SMBCs (EX *)	69.5 ± 1.4	40.7 ± 1.2	58.6 ± 2.8
3		Fe-SMBCs (GSs *)	68.4 ± 1.3	40.9 ± 1.1	59.8 ± 2.6

* EX = exhausted pomace, GSs = grape stalks.

).

A total sugar conversion of 69.5 ± 1.4%mol–68.4 ± 1.3%mol was obtained with a 5-HMF yield of 40.7 ± 1.2%mol–40.9 ± 1.1%mol and selectivity of 58.6 ± 2.8%mol–59.8 ± 2.6%mol, resulting in very similar activities with respect to the use of pure reagents. Once the robustness was checked, in order to evaluate the stability of the Fe-SMBCs, the catalyst was recovered at the end of the first reaction cycle by using an external magnet and reused for at least five reaction cycles without any significant loss of catalytic activity (Figure 7). No sulfate ions were detected in the reaction mixture after the process [60]. In addition, the acid properties of the catalyst were recovered at the end of the 5° cycle of reaction (total acid density = 0.90 mmol_SO3H/g), which confirms the stability of the catalyst and the absence of leaching during the process.

These results clearly demonstrated that the new procedure of preparing the magnetic sulfonated biochar derived from winery waste allowed us to obtain selective and stable systems for the catalysis of dehydration of fructose to produce 5-HMF. These experimental findings validated the effectiveness of the proposed scheme of valorization of the winery waste, as reported in Figure 1, offering an alternative procedure for the management of grape pomace and stalks, towards a final zero-waste discharge and the concomitant generation of fine chemicals.

2.4. Scaling up of Dehydration Process and Future Perspectives

In order to perform a preliminary study on the feasibility of the dehydration process of simple sugars that are contained in winery waste for the synthesis of 5-HMF, a first evaluation of the methods that are currently used for the isolation of the target product was carried out. In general, thermal evaporation of organic solvents for the recovery of 5-HMF at the end of the dehydration process is not always the most efficient solution. It leads to a partial decrease in the amount of 5-HMF that is produced (recovery yield = 50–70%mol) [40]. The problem of separating 5-HMF has been addressed in several reports, in which a variety of different techniques have been discussed. Reactive distillation under a very high vacuum and temperature (130–150 Pa, 453 K) has been proposed, despite the risk of thermal stability of the 5-HMF, achieving a final recovery greater than 90%mol [61,62]. However, downstream separation and purification of 5-HMF make up most of the costs of the overall production (60–70%). An alternative to distillation is the recovery of 5-HMF from the reaction medium by using adsorbents. Several systems, including zeolites, polymers and resins, have been investigated for the selective adsorption of 5-HMF [63,64]. However, this approach requires further process steps for the recovery of the final product, which leads to an increase in overall costs. For these reasons, the in situ conversion of 5-HMF into more stable and easier-to-isolate chemical compounds is currently the most useful and cost-effective strategy [65]. For example, Motagamwala et al. (2018) [66] reported a process for converting 5-HMF to 2,5-furandicarboxylic acid (2,5-FDCA), a monomer that is used for the production of bio-based polymers [67]. In detail, fructose was dehydrated to 5-HMF in a GVL/H₂O solvent system and directly oxidized to FDCA over a Pt/C catalyst (yield = 93%mol). Due to its low solubility in the reaction medium (GVL/H₂O), FDCA was then simply recovered by crystallization, resulting in a 99% pure product. At the same time, useful compounds like 2,5-furandimethanol (2,5-FDM), 2,5-dimethylfuran (2,5-DMF) and 2,5-dimethyltetrahydrofuran (2,5-DMTHF) can be easily obtained by reduction of 5-HMF in the presence of noble metal catalysts (Pt, Ru, Au) and directly used to produce fine chemicals, liquid fuels and polymer materials [68,69,70]. For these reasons, further studies are being carried out to determine the best strategy for the recovery and conversion of 5-HMF into useful compounds, which will make it possible to define in detail the economic balance of the entire production process.

3. Materials and Methods

3.1. Reagents and Instruments

All reagents and solvents used in this work were of analytical grade (≥99%) and were used as commercially received from Sigma-Aldrich (St. Louis, MO, USA), without any purification or treatment. Fourier transform infrared spectroscopy (FTIR) experiments were performed by using a FTIR spectrophotometer (Nicolet Summit Thermo Fisher Scientific, Waltham, MA, USA) equipped with an Everest Diamond ATR module. FTIR spectra were recorded in the frequency range of 4000 to 400 cm⁻¹ at resolution of 4 cm⁻¹ with 32 scans. Scanning electron microscopy (SEM) and energy-dispersive X-ray (EDX) spectra were carried out by using a tabletop microscope TM4000Plus (Hitachi, Tokyo, Japan). X-ray diffraction (XRD) analysis was conducted by using an Empyrean (Malvern169 Panalytical, Chipping Norton, Australia) diffractometer equipped with a PIXcel1D-Medipix3 detector operating with CuKα radiation (Cu Kα λ = 1.5406 Å, 45 kV, 40 mA). The data were collected in the range (2θ) of 5–60° and processed with the HighScore Plus software (version 4.8) and PDF2 database. The N₂ adsorption isotherms were measured with a high-performance adsorption analyzer (ASAP 2020,Micromeritics, Norcross, GA, USA) at the temperature of liquid nitrogen (77 K). The specific surface area was determined by using the Brunauer–Emmett–Teller (BET) method. The pore diameter, volume and distribution were calculated by the NonLocal Density Functional Theory (NLDFT) method from the obtained isotherms. Structural carbohydrates (free simple sugars, EHS and cellulose) were determined by using a GS50 chromatography system (High-Performance Anion-Exchange Chromatography, Dionex-Thermo Fisher Scientific, Sunnyvale, CA, USA) equipped with an AS50 autosampler (Dionex, Sunnyvale, CA, USA), an ED50 pulsed amperometric detector (Dionex, Sunnyvale, CA, USA), with gold electrode and a Carbopac PA10 analytical column (250 mm, 4 mm; Dionex, Sunnyvale, CA, USA). The microfiltered Milli-Q water (Sigma-Aldrich, St. Louis, MO, USA) solutions were injected into the instrument (25 µL loop) and analyzed with a flow rate of 0.5 mL min⁻¹ of an aqueous 18 mM KOH solution generated by an EG40 Eluent generator (Dionex, Sunnyvale, CA, USA). Organic acids and 5-HMF were quantified through high-performance liquid chromatography (HPLC) analysis by using a JASCO instrument (Easton, MD, USA) equipped with an AS 2055 autosampler (Easton, MD, USA), a UV-150 detector (detection wavelengths 235 and 260 nm, respectively) and a Hi-Plex H column (300 mm, 4 mm; Agilent, Santa Clara, CA, USA). The column was thermostatically controlled at 328 K with a flow rate of 0.6 mL min⁻¹ of an aqueous 10 mM H₂SO₄ solution used as a mobile phase.

3.2. Winery Waste

Grape pomace and stalks were obtained from white grapes harvested from four different terraces of a winery located in Puglia (southern Italy). First, the stalks were manually separated from the grape berries (destemming) by obtaining two different samples, as shown in Figure 1. Subsequently, the grape berries were washed with deionized water to remove dust and soil particles and mechanically pressed to achieve the separation of grape must and pomace, simulating the traditional winemaking process. At the end of the process, part of the obtained grape pomace and the collected stalks were uniformly distributed on trays and dried in a M80-VF convection oven (MPM Instruments S.r.l, Bernareggio, Italy) at 333 K for 3 days for the determination of Total Solids (TSs). The obtained solids were then milled in a commercial mill (Moulinex, Milano, Italy) and sieved to obtain a particle size of 0.4–0.7 mm. At the same time, the residual grape pomace was collected, and the free simple sugars (e.g., glucose, fructose) recovered by two consecutive extractions with deionized water (weight ratio grape-pomace-to-deionized water of 1-to-1). The extracts were collected together (aqueous stream) and analyzed for the determination of the total carbohydrate content for the next dehydration tests (denoted as aqueous stream). Finally, the exhausted pomace was recovered after the extraction process, dried and treated following the same procedure previously described for grape pomace and stalks.

3.3. Biomass Characterization

The dried biomass that was recovered in the different phases of the vinification process (grape pomace, exhausted pomace and grape stalks) was analyzed in order to determine the main exploitable components. Their average chemical composition in terms of esterifiable lipids, proteins, free simple sugars, EHS, cellulose, lignin and ashes content are reported in Table 1. All experiments were conducted in triplicate, allowing us to calculate the mean value and standard deviations. Details about the protocol used for the chemical characterization of biomass are given below.

3.3.1. Determination of Total Lipids

In a Falcon tube of 50 mL, 4 g of dried sample was placed with 20 mL of hexane. The system was closed and kept at 298 K for 15 min under stirring (300 rpm) in an orbital incubator (Gallenkamp). At the end of the process, a two-phase system was observed, comprising an upper organic phase in which lipids are dissolved and a lower phase of exhausted biomass. Four consecutive extractions with hexane on the wet residual solids were carried out with the extracts that were recovered and collected together. Finally, the total lipid content was determined by evaporating the organic solvent under vacuum (353 K, 500 mbar, Rotavapor R-205, Büchi Labortechnik AG, Flawil, Switzerland) and accurately weighing the obtained crude lipid extract [71,72].

3.3.2. Determination of Structural Carbohydrates and Lignin Content

The residual solids that were recovered after the preliminary extraction of the lipid component with hexane were dried in an oven at 373 for 24 h. Structural carbohydrates and lignin content were then determined by adopting a modified National Renewable Energy Laboratory (NREL) method for the characterization of raw biomass. Then, 2 g of the dried sample was suspended into 100 mL of 4%wt H₂SO₄ solution and stirred at room temperature for 1 h. Following this, 2 mL of this suspension was filtered with a Whatman filter (N°42), diluted if necessary, and analyzed for the determination of free simple sugars. The suspension was then kept under reflux for 2 h. The resultant cooled solution was filtered, made up to 200 mL with Milli-Q water and analyzed to determine EHS (including hemicellulose, pectin sugars and exopolysaccharides) and protein content (see Section 3.3.3). The solids recovered from the filtration were washed with over 100 mL of Milli-Q water and dried at 378 K for 24 h. The dried solids were weighed and suspended with 5 mL of 72%wt H₂SO₄ solution at 277 K for 24 h. The resulting solution was then transferred into a 250 mL glass balloon, made up to 100 mL with Milli-Q water and refluxed for another 2 h. The suspension was filtered through a previously weighed filter, made up to 100 mL with Milli-Q water and analyzed for the determination of cellulose content. Finally, filtered solids were thoroughly washed with Milli-Q water, dried at 378 K for 24 and weighed. Lignin content was determined by the difference between the weight obtained and the respective ashes after the thermal treatment at 823 K for 3 h.

3.3.3. Determination of Protein Content

The protein content was determined using a modified Folin–Lowry method based on the complexation of peptides with copper ions under alkaline conditions and subsequent oxidation, resulting in the formation of a colored complex with its maximum adsorption at 660 nm [73]. Specifically, the aqueous solutions that were obtained after the first acid hydrolysis of the dried samples (see Section 3.3.2) were used for spectrophotometric determinations, in which the proteins that were present were completely hydrolyzed and solubilized by thermal treatment (under reflux, 2 h). The following aqueous solutions were prepared for the analysis:

(i)

Solution A: 268 mg/L sodium tartrate dihydrate (C₄H₄Na₂O₆·2H₂O), 23.4 g/L sodium carbonate (Na₂CO₃) and 4 g/L sodium hydroxide (NaOH);

(ii)

Solution B: 1.56%wt copper sulfate (CuSO₄);

(iii)

Solution C: volume ratio Solution A-to-Solution B of 100-to-1;

(iv)

Solution D: 50%vol Folin–Ciocalteu reagent

Subsequently, 2 mL of aqueous solution was placed into a glass Pyrex tube of 20 mL containing 10 mL of Solution C and 1 mL of Solution D. The system was closed and stirred at room temperature for 20 min. Finally, the protein content was spectroscopically detected UV–Visible SP8001 (Metertech, Taipei City, Taiwan, Cina) spectrophotometer by using an external calibration curve obtained with bovine serum albumin (BSA) aqueous solutions in the range from 25 to 150 mg/mL.

3.3.4. Determination of Ashes

Ashes were determined by weight loss of dried samples (see Section 3.2) obtained after heating in a muffle furnace at 823 K for 3 h.

3.4. Synthesis of Iron Sulfonated Magnetic Biochar Catalysts

A multi-step procedure was used for the synthesis of iron-sulfonated magnetic biochar catalysts (Fe-SMBCs). The process diagram describing the different synthetic steps is reported in Figure 1. Firstly, biochar was obtained by pyrolysis of dried biomass (exhausted pomace and grape stalks) at 873 K for 2 h under nitrogen flow (heating rate 10 K min⁻¹, Eurotherm tubular furnace). Subsequently, the biochar obtained was subjected to sulfonation treatment. In particular, the carbonaceous material was immersed into concentrated sulfuric acid (95–98%wt, 1 g solid/10 mL H₂SO₄) and kept at 423 K for 10 h under stirring (300 rpm) in a Teflon-lined stainless autoclave. The recovered solid was then filtered, washed with deionized water (until the filtrate was neutral and free of sulfate ions [60]) and dried at 373 K for 15 h. The wet impregnation technique was used to deposit nanometric iron oxide particles on the surface of the sulfonated biochar by using ferric chloride hexahydrate as a precursor. Then, 2 g of sample was suspended in 50 mL of an aqueous solution of FeCl₃·6H₂O (weight ratio of Fe-to-biochar 25%) and kept at room temperature for 5 h at 300 rpm. The suspension was then evaporated at 383 K, and the solid was dried at 373 K for 15 h. Finally, Fe-SMBCs were obtained after thermal activation of iron-impregnated biochar at 873 K for 1 h with the formation of Fe₃O₄ on the surface of the catalysts.

Determination of Total Acid Sites

The quantification of the total acid sites of the catalysts and the materials obtained in the different phases of the process (biochar, sulfonated biochar) was determined by Boehm titration method [74]. First, 0.1 of sample was suspended into 10 mL of deionized water, and after 10 min of stirring, the pH of the supernatant solution was measured. The system was then titrated with an aqueous 0.01 M NaOH solution until the neutralization of the supernatant solution was achieved. The total acidity density was calculated as shown in Equation (5):

$$\mathrm{Total} \mathrm{acid} \mathrm{density} ({\mathrm{mmol}}_{\mathrm{SO}3\mathrm{H}}/\mathrm{g})=\frac{{\mathrm{C}}_{\mathrm{NaOH}}\times {\mathrm{V}}_{\mathrm{NaOH}}}{{\mathrm{m}}_{\mathrm{sample}}}$$

(5)

where C_NaOH is the concentration of NaOH, V_NaOH is the volume of NaOH added and m_c is the starting amount of sample.

3.5. Dehydration Tests

The synthesized catalysts were preliminary tested in the fructose dehydration reaction for the synthesis of 5-HMF. The reactions were carried out in a glass Pyrex reactor of 10 mL with a stopper and a magnetic stirrer. In a typical experimental procedure, 0.1 g of catalyst was mixed with 1 mL of aqueous fructose solution (0.2 mmol) and 2 mL of organic solvent (MIBK or GVL), resulting in a final volume ratio of organic-to-aqueous-phase of 2-to-1. The reactor was closed and placed in a preheated oil bath, maintained at 403 K, and magnetically stirred at 600 rpm for a given reaction time (3, 6 and 12 h). At the end of the process, the system was rapidly cooled in an ice water bath, and the catalyst was recovered using an external magnet to obtain the liquid sample for analysis. The conversion of fructose, the yield and the selectivity of 5-HMF were calculated according to Equations (6)–(8):

$$\mathrm{Fructose} \mathrm{conversion} \left(\%\mathrm{mol}\right)=\frac{{\mathrm{mmol}}_{\mathrm{starting} \mathrm{fructose}}-{\mathrm{mmol}}_{\mathrm{residual} \mathrm{fructose}}}{{\mathrm{mmol}}_{\mathrm{starting} \mathrm{fructose}}} \times 100$$

(6)

$$\mathrm{Yield} \mathrm{product}\left(\%\mathrm{mol}\right)=\frac{{\mathrm{mmol}}_{\mathrm{product}}}{{\mathrm{mmol}}_{\mathrm{starting} \mathrm{fructose}}} \times 100$$

(7)

$$\mathrm{Selectivity} 5\text{-}\mathrm{HMF}\left(\%\mathrm{mol}\right)=\frac{{\mathrm{mmol}}_{5\text{-}\mathrm{HMF}}}{{\mathrm{mmol}}_{\mathrm{starting} \mathrm{fructose}}} \times 100$$

(8)

In the case of MIBK, the partition coefficient (R) of 5-HMF between the two phases (aqueous and organic) was also evaluated by Equation (9).

$$\mathrm{R}=\frac{{\mathrm{mmol}}_{5\text{-}\mathrm{HMF} \mathrm{organic} \mathrm{phase}}}{{\mathrm{mmol}}_{5\text{-}\mathrm{HMF} \mathrm{aqueous} \mathrm{phase}}}$$

(9)

Once the best experimental conditions were identified, the catalysts were finally tested in the dehydration of simple sugars that were present in the water stream and recovered from grape pomace by extraction with water.

Reusability of the Catalyst

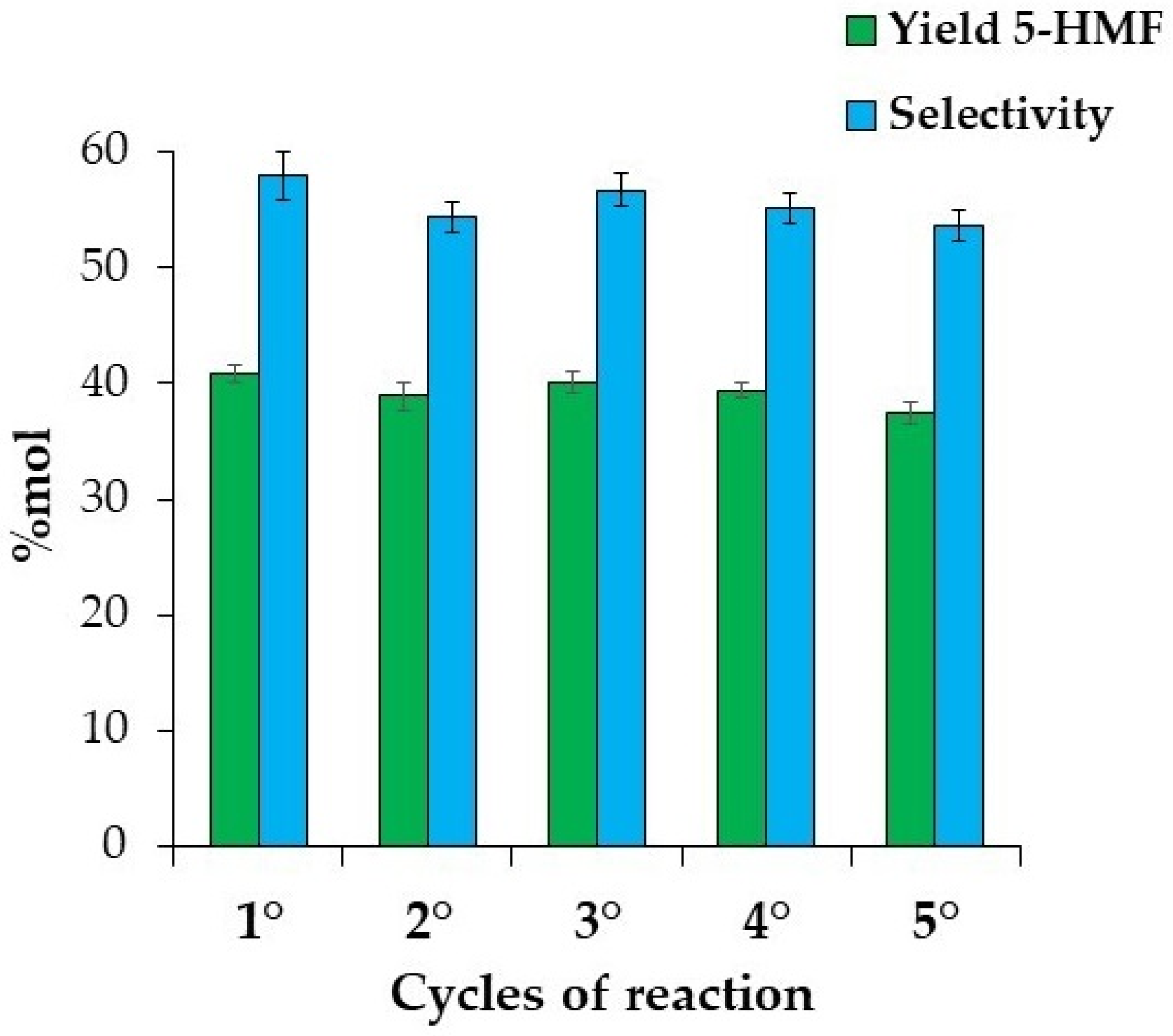

After each reaction cycle, Fe-SMBCs were recovered by using an external magnet. Then, the catalyst was rinsed thoroughly with water to remove any organic species that were present on the catalyst surface. After drying at 373 K for 15 h, the recovered catalyst was then reused for the next reaction cycle.

4. Conclusions

In this study, a closed-loop strategy for the management and valorization of winery waste was proposed. Starting from grape pomace and stalks, a novel synthetic methodology was developed to obtain iron-sulfonated magnetic biochar catalysts (Fe-SMBCs) after the preliminary recovery of free simple sugars that were present in the winery waste by water extraction. Thanks to their acid and magnetic properties, these catalysts were successfully tested in the dehydration of free simple sugars that were present in the aqueous stream generated for the production of 5-HMF. The application of this innovative and sustainable approach to the management of winery waste will lead not only to a reduction in management costs but also the conversion of waste into a resource, in accordance with the principles of circular economy. Several experimental aspects of this valorisation strategy will be thoroughly studied to achieve better results, and a complete structural characterization of Fe-supported sulfonated biochars will be performed, to elucidate the catalytic potentialities.
