Hydrogenation of Carbon Monoxide in the Liquid Phase: Influence of the Synthetic Methods on Characteristics and Activity of Hydrogenation Catalysts
Abstract
:1. Introduction
2. Results and Discussion
2.1. X-ray Fluorescence Measurements of All Synthesised Catalysts
2.1.1. Pure Ruthenium Systems
2.1.2. Ruthenium-Promoted Nickel Systems

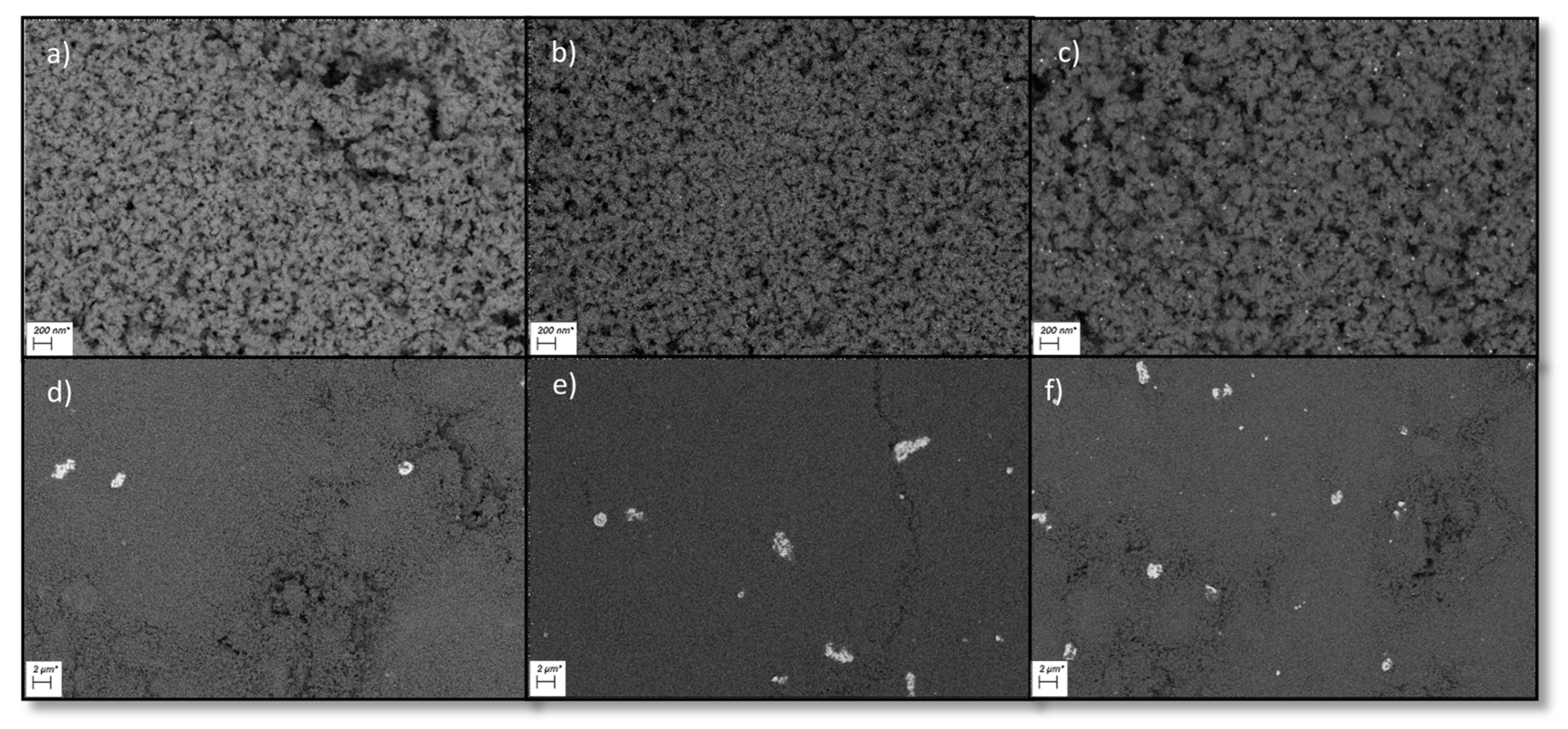

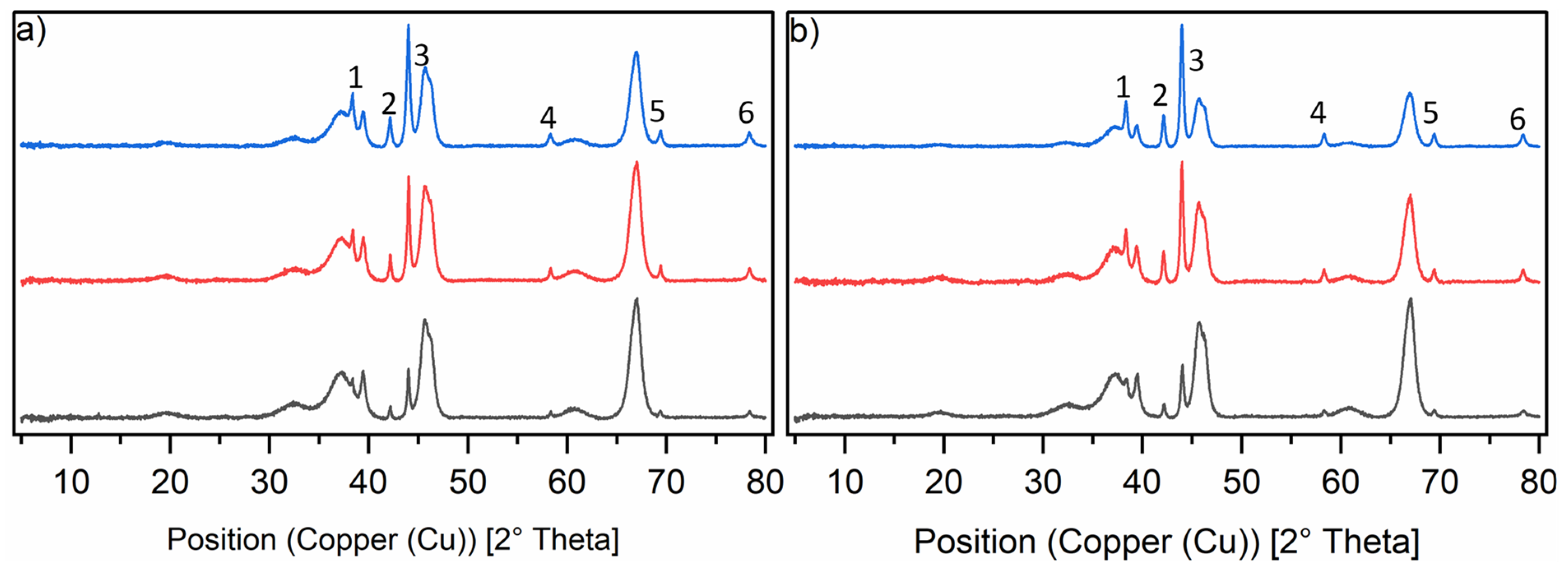

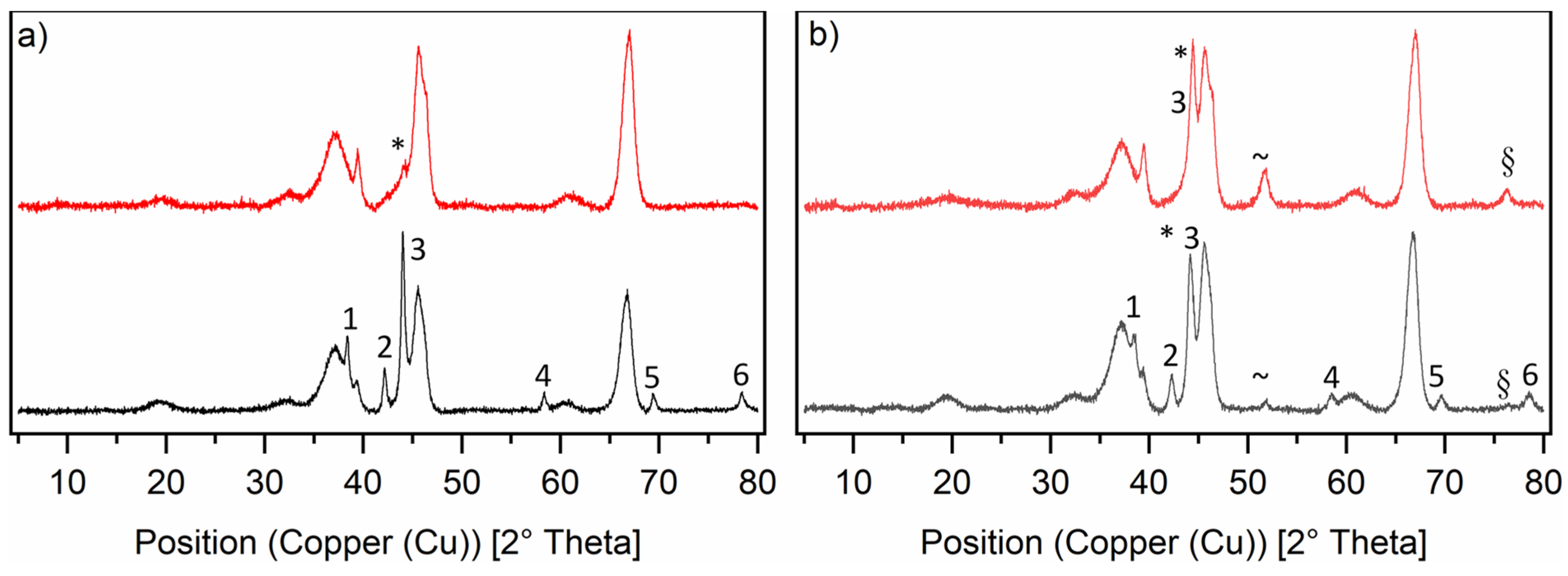

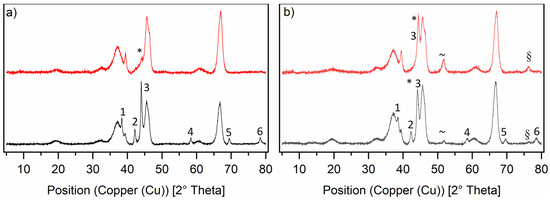

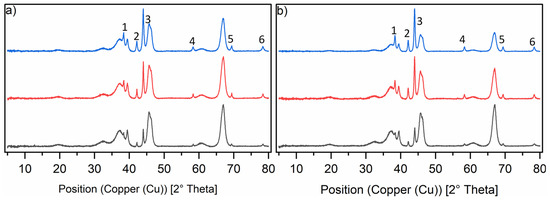

2.2. Powder X-ray Diffraction (XRD) and Scanning Electron Microscopy (SEM)
2.2.1. Pure Ruthenium Systems
2.2.2. Ruthenium-Promoted Nickel Systems

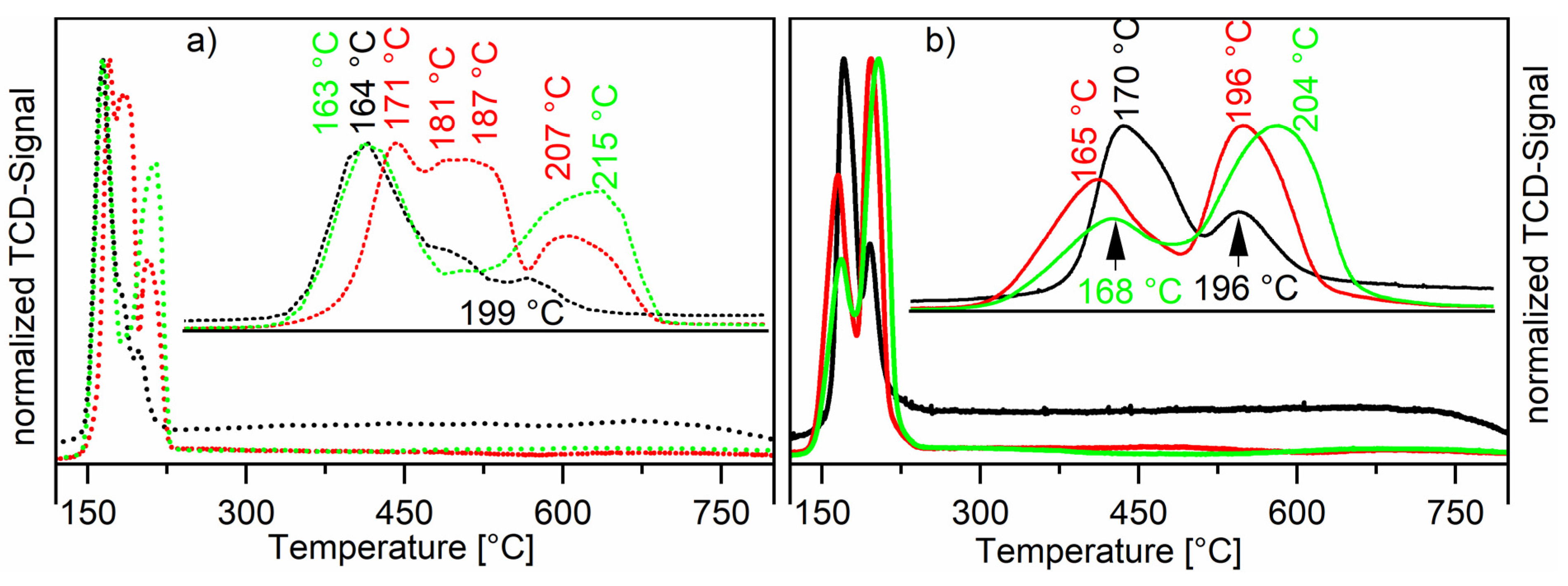

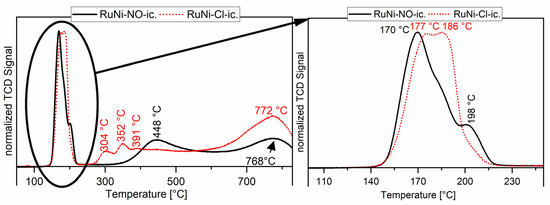

2.3. Temperature-Programmed Reduction (TPR) and Temperature-Programmed Desorption (TPD) Studies
2.3.1. Pure Ruthenium Systems (TPR)
2.3.2. Ruthenium-Promoted Nickel Systems (TPR)
2.3.3. Comparison of H2 Uptakes for Pure Ruthenium and Ruthenium-Nickel Systems (TPR)

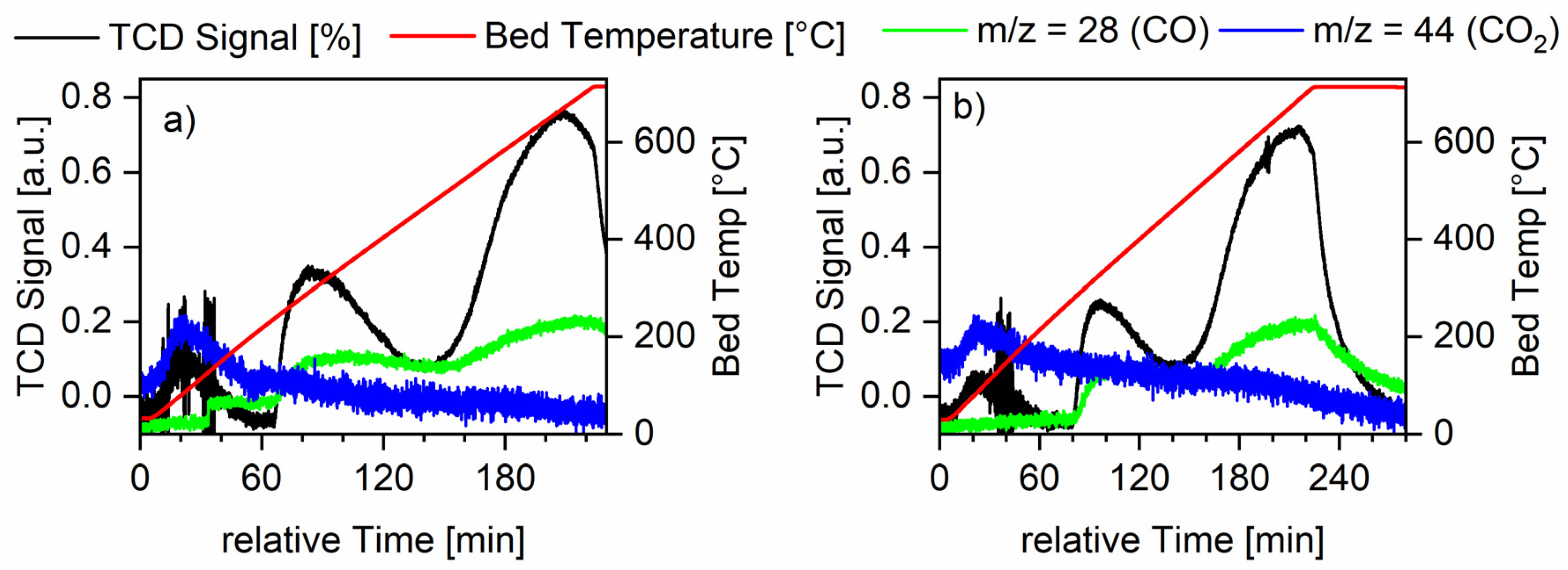

2.3.4. Temperature-Programmed CO Desorption–Pure Ruthenium Systems (CO-TPD)

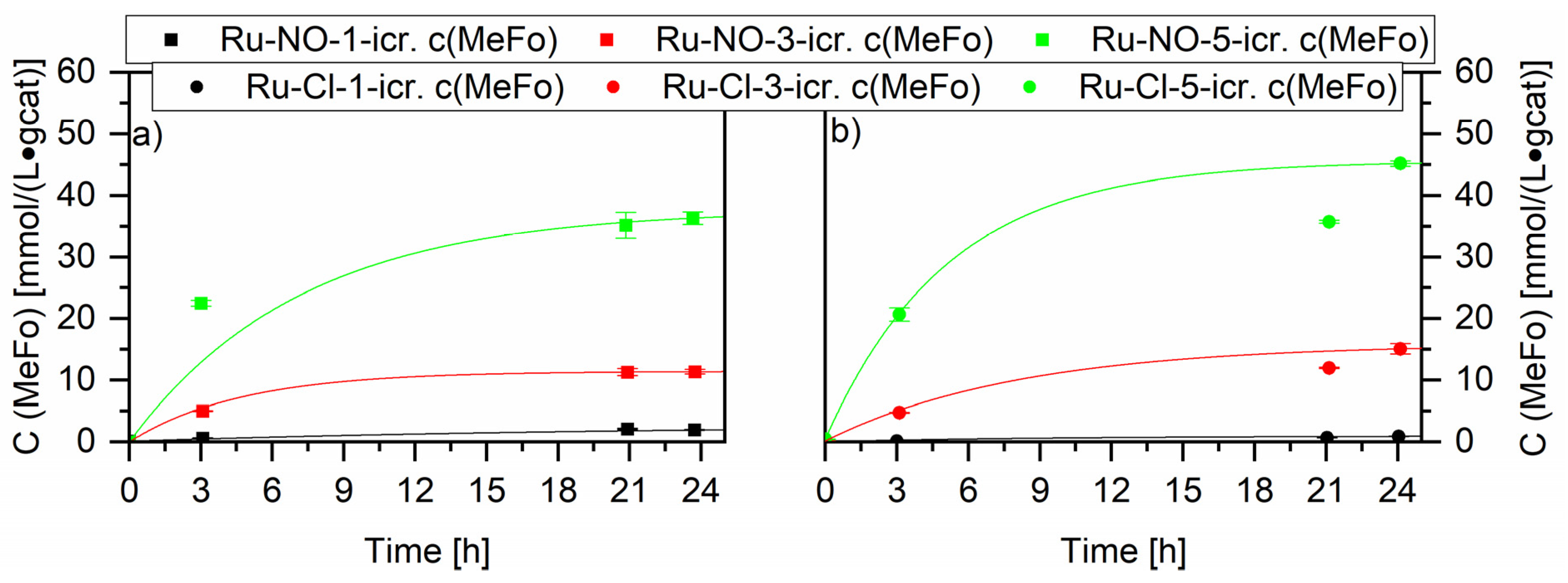

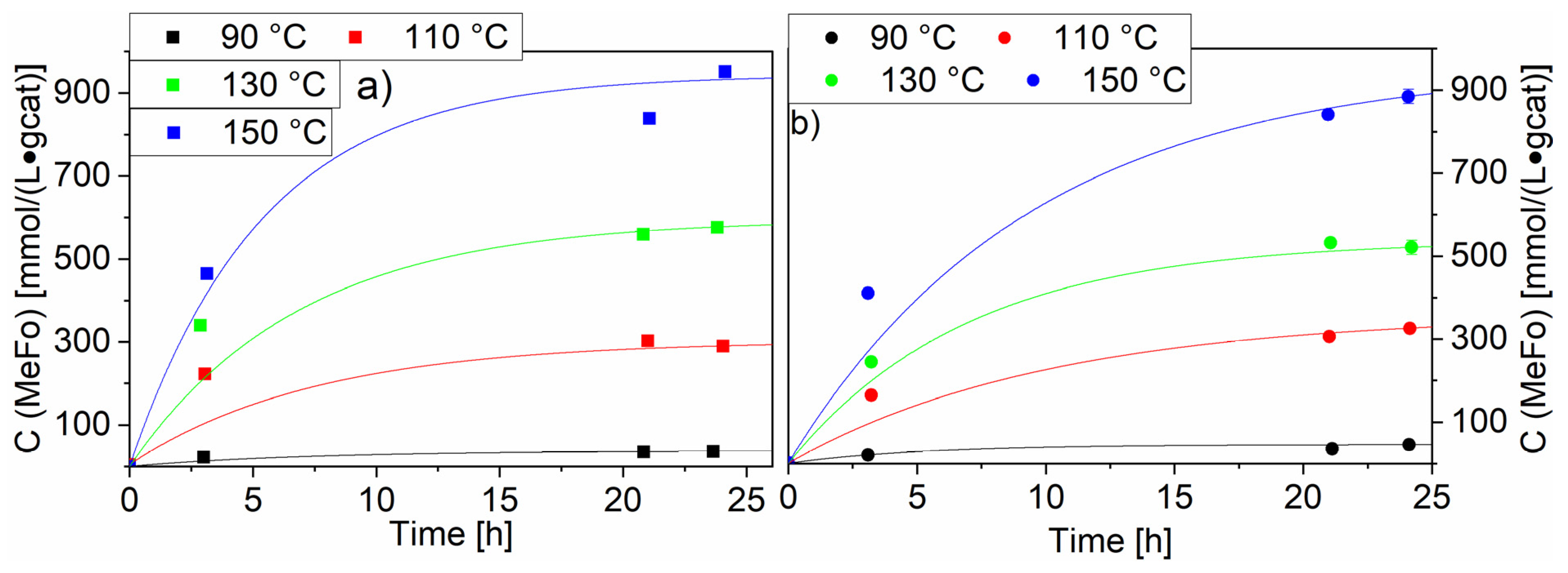

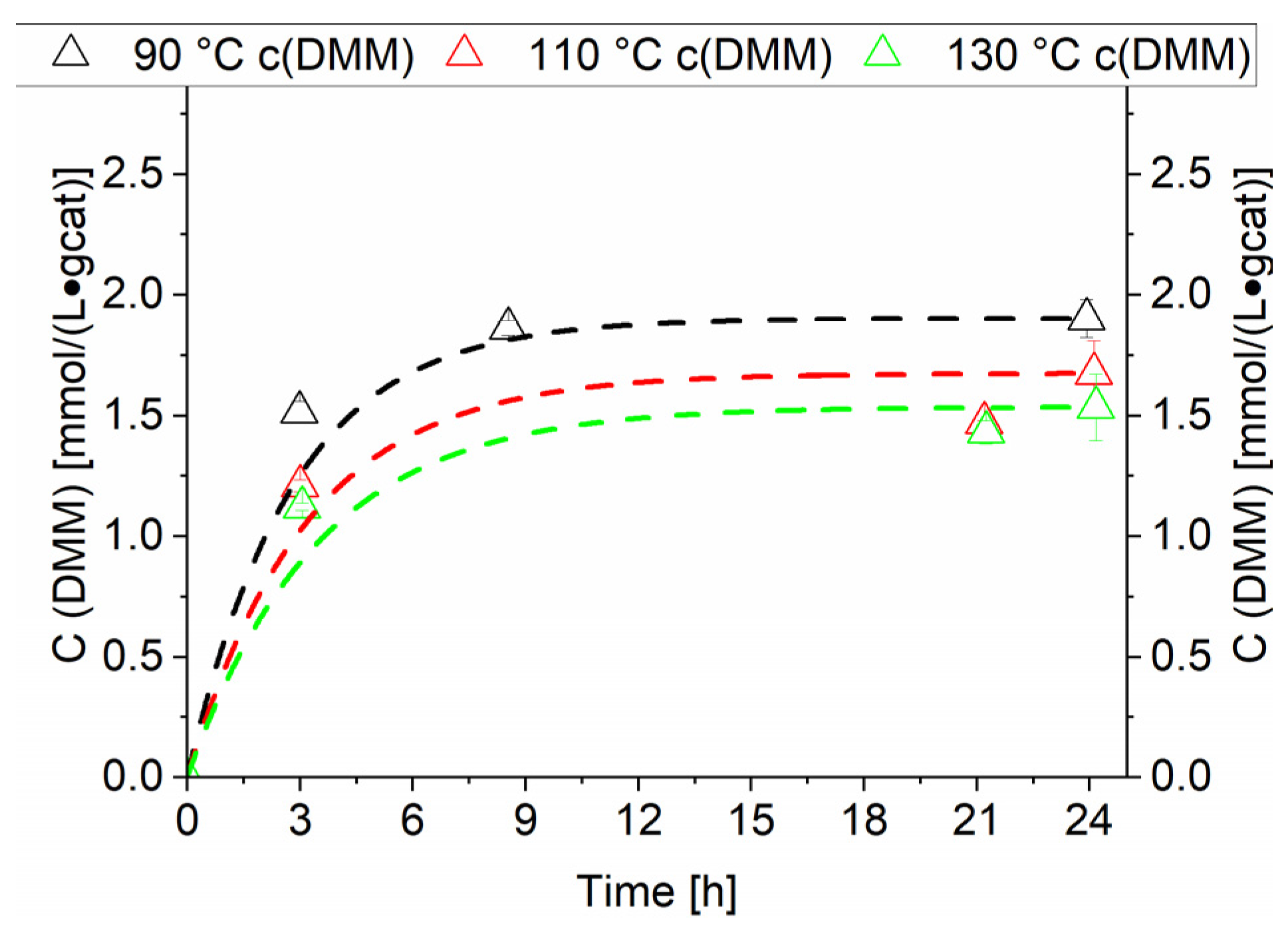

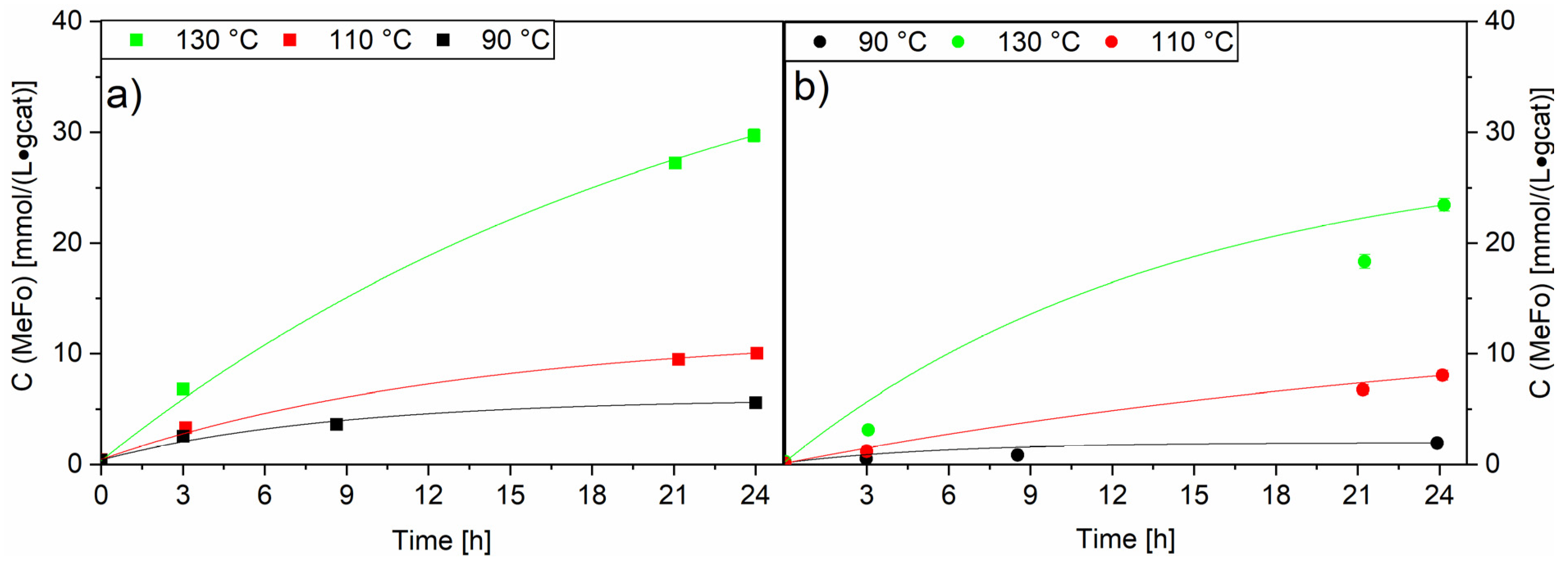

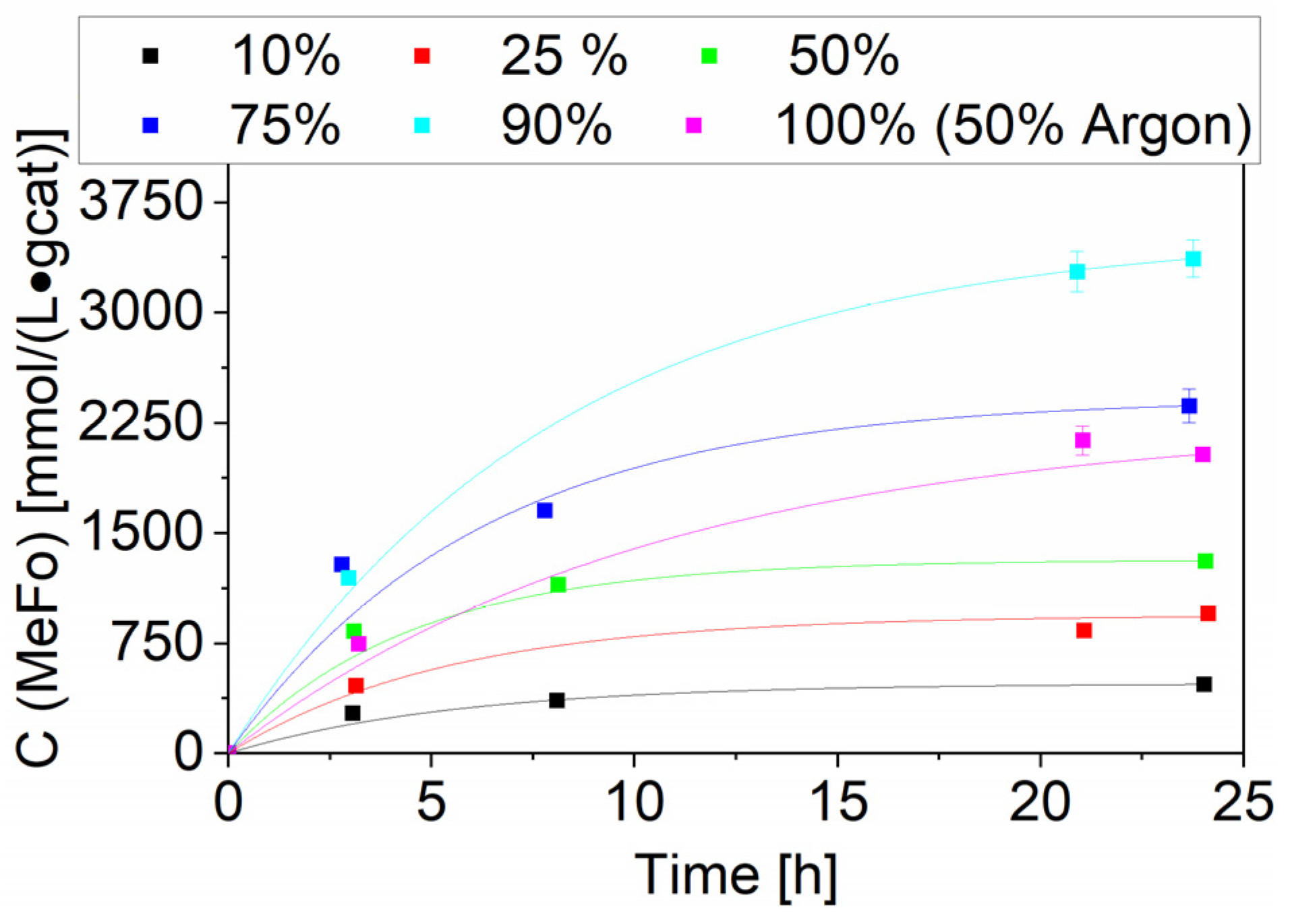

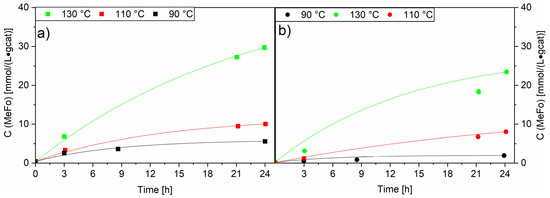

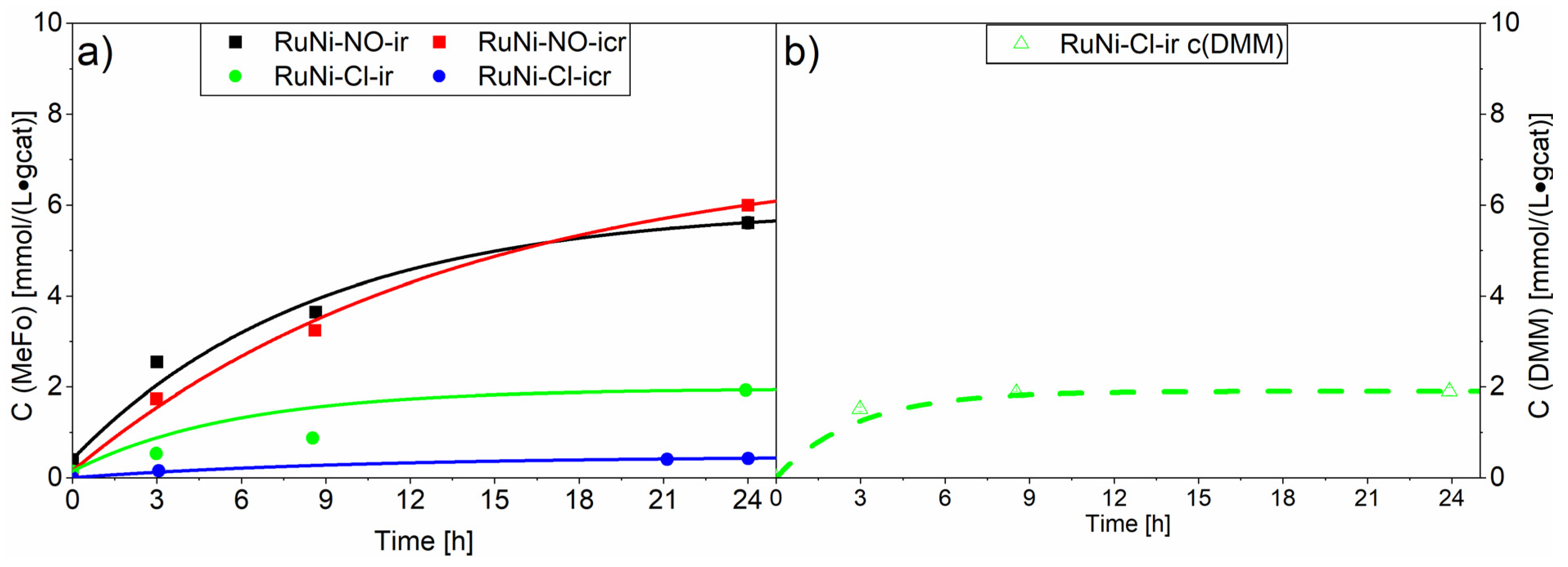

2.4. Catalyst Activity
3. Materials and Methods
3.1. Materials
3.2. Catalyst Synthesis
3.3. Catalyst Characterisation
3.3.1. X-ray Fluorescence Spectroscopy (XRF)
3.3.2. Powder X-ray Diffraction (PXRD)
3.3.3. Temperature-Programmed Desorption of CO (CO-TPD)
3.3.4. Temperature-Programmed Reduction (TPR)

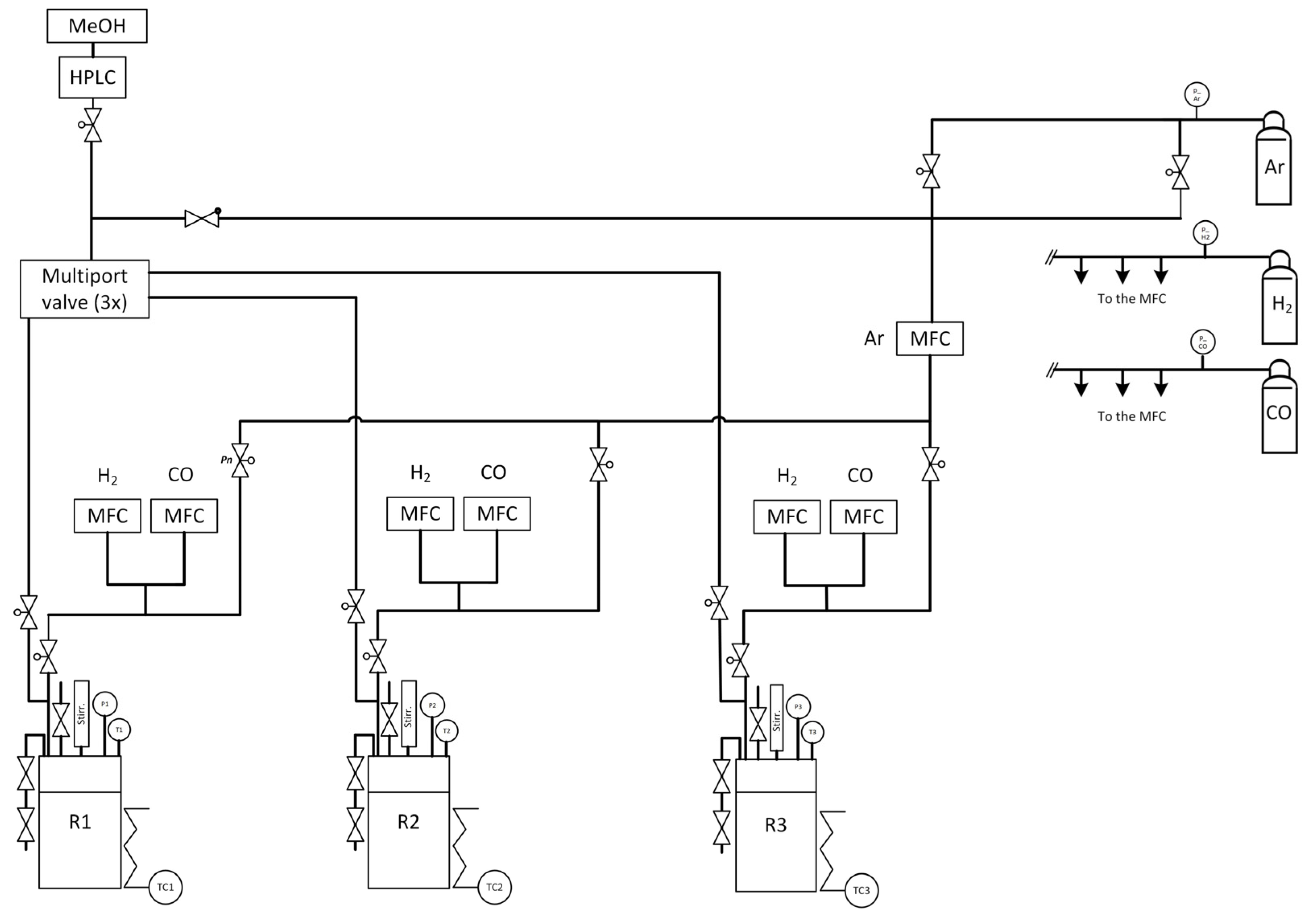

3.4. Catalyst Activity Tests

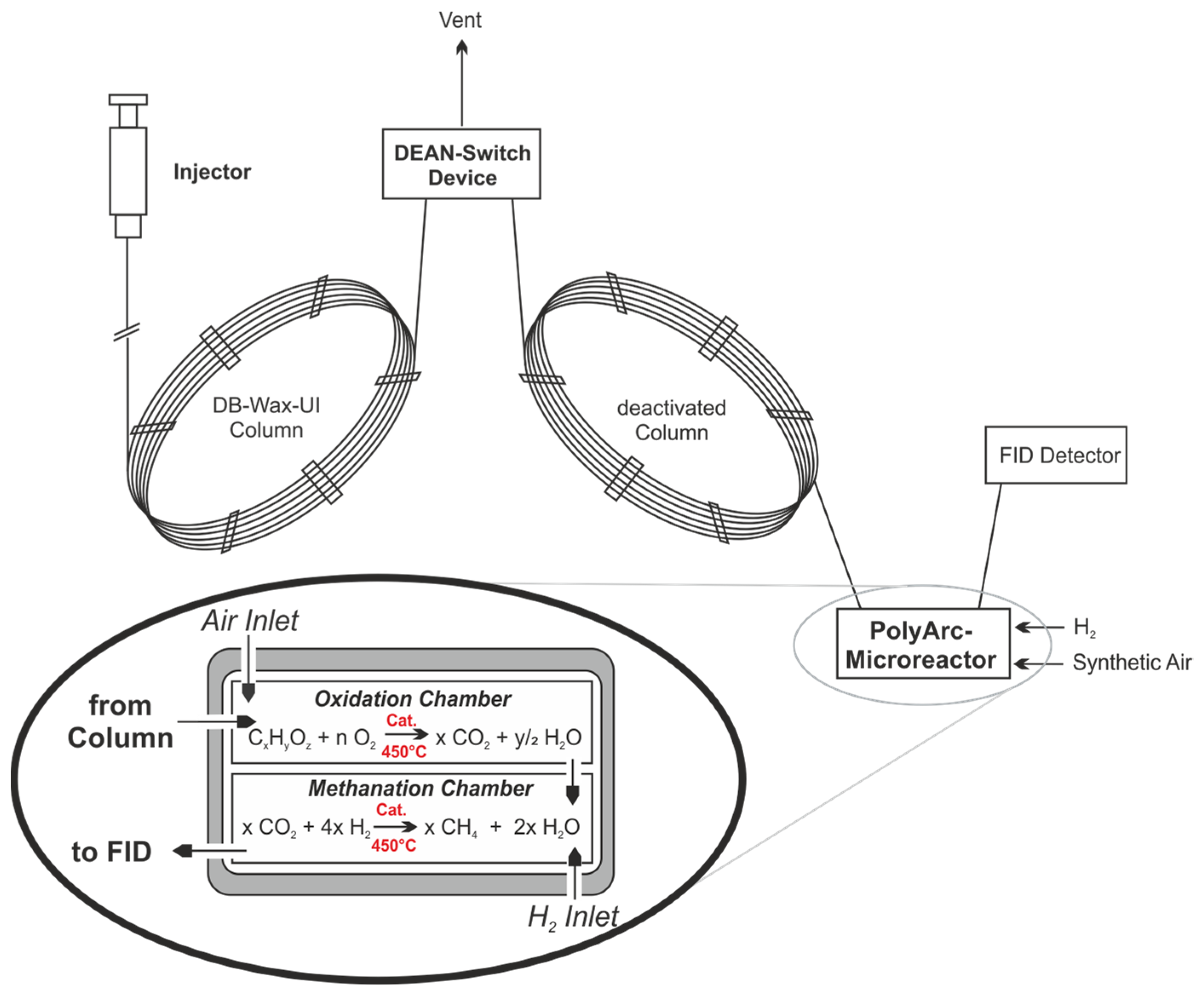

3.5. Process Analytics
4. Conclusions
Supplementary Materials
Author Contributions
Funding
Data Availability Statement
Acknowledgments
Conflicts of Interest
References
