Investigation of ZrMnFe/Sepiolite Catalysts on Toluene Degradation in a One-Stage Plasma-Catalysis System

Abstract

Toluene removal by double dielectric barrier charge (DDBD) plasma combined with a ZrMnFe/Sepiolite (SEP) catalyst was investigated and compared with the results from Fe/SEP, Mn/SEP and MnFe/SEP ones. All the catalysts were prepared by the impregnation method and characterized by XRD, BET, ICP, SEM, TEM, H₂-TPR and XPS. The effect of catalysts on toluene degradation efficiency, carbon balance, CO₂ selectivity and residual O₃ concentration was studied. The experimental results indicated that the ZrMnFe/SEP catalyst presented the best catalytic performance. This is because of the high content of lattice oxygen contained in its surface, owing to the addition of Zr. When the SIE was 740 J/L, the highest toluene removal efficiency (87%), carbon balance (93%) and CO₂ selectivity (51%) were obtained. The ZrMnFe/SEP catalyst had a better ozone inhibition effect than other catalysts. The catalyst has good stability, which the toluene removal efficiency, carbon balance and CO₂ selectivity did not decrease significantly after 36 h of work at a constant energy density. The results indicated that the ZrMnFe/SEP catalyst is an efficient catalyst for degradation of toluene by plasma-catalyst measures.

1. Introduction

Volatile organic compounds (VOCs) are considered to be one of the main sources of air pollutants. The conventional technologies for VOC removal, such as adsorption, combustion, catalytic oxidation, biological purification, etc., all have their own defects and limitations for practical application [1,2,3,4]. Therefore, it is urgent to improve existing treatments or develop new technologies for VOC degradation. In recent years, non-thermal plasma (NTP) has attracted more attention due to its simple structure, non-selective oxidation of VOCs and high removal efficiency at ambient temperature and atmospheric pressure, which is suitable for VOCs treatment. However, studies have shown that the degradation of VOCs by only dielectric barrier discharge (DBD) NTP had the disadvantages of high energy consumption, undesired by-products and low CO₂ selectivity, etc. [5,6,7,8]. As a solution, the plasma, combined with catalyst measures, has been proved a promising method to solve these problems [7,8,9,10,11,12,13].

The raw materials of high-performance catalysts were mostly noble metals, which could not be widely used due to their high cost. As an alternative, transition metal oxides were widely investigated due to their low cost, low toxicity and environmental friendliness [14]. The transitional metal oxides catalysts commonly used for VOC degradation are MnO_x, CeO_x, FeO_x, CuO, NiO, TiO₂, ZrO₂, etc. [15,16,17]. Among them, MnO_x has been widely used for synergistic degradation of VOCs combined with NTP, which mainly presented obvious inhibition of ozone [18,19,20]; Fe₂O₃ was a common metal oxide in daily life, which was rarely applied in VOC degradation combined with NTP. The raw material of Fe₂O₃ is cheap and environmentally friendly, and it has been proved to be effective in catalytic denitration, wastewater degradation, catalytic combustion degradation of VOCs and in other fields [21,22,23,24], which presented good moisture resistance and activity for long-term treatment compared with other catalysts [24]; ZrO₂ was often applied in the photocatalytic oxidation of wastewater for abundant oxygen vacancies on its surface. Nanometric ZrO₂ has the advantages of a good chemical resistance ionic conductivity and stable photochemical properties, etc. A single catalyst often has some unique advantages, but the overall catalytic performance is still inferior, which needs further improvement.

Catalysts introduced in NTP reactors are usually supported by different porous materials to achieve a higher dispersion of the active components and obtain a better catalytic performance. The most commonly used supports are activated carbon fiber [25], alumina [26], zeolite [27], etc. Exploring and developing the catalyst and the catalysis support with good VOC adsorption surface areas, stable catalytic ability and good anti-deactivation is an important topic of plasma-catalyst VOC decomposition and its practical application [28,29]. Sepiolite fiber (SEP) is a fibrous magnesium silicate mineral with the general structure formula of Si₁₂Mg₈O₃₀(OH)₄(H₂O)₄·8H₂O. It is composed of a silica tetrahedron and magnesium oxide octahedron. It is fibrous and has a unique internal pore structure, with the advantages of good plasticity, a large surface area, and good adsorption behaviors and stability. It has been used to prepare the emerging catalysts due to its low cost, easy availability, and lack of pollution to the environment [30,31,32,33]. For example, Ning et al. used sodium-treated sepiolite-supported transition metal catalysts for HCHO oxidation and showed that elevated acidity, the abundance of oxygen species and low-temperature reducibility were responsible for the excellent catalytic activity of Cu/NaSEP [31]. Niu et al. used sepiolite-supported Cu_1-yMn₂Ce_yO_x in the oxidation reaction of toluene, the results showed that sepiolite provides a large number of physical adsorption sites for gas-solid phase reactions and 20% of Cu_0.8Mn₂Ce_0.2O_x/sepiolite is able to remove toluene completely at a temperature of 289 °C [32]. Htet used sepiolite-supported BiVO₄ nanocomposites for efficient photocatalytic degradation of organic pollutants and the results showed that the combination of sepiolite clay could suppress the photogenerated electron-hole pairs’ recombination and significantly improved the photoelectrochemical activity of monoclinic BiVO₄/sepiolite nanocomposites [33]. Up to now, the study of VOC decomposition by NTP combining with sepiolite-supported catalysts is rarely reported.

In this paper, a cylindrical double dielectric barrier discharge (DDBD) reactor, as one of the main atmosphere plasma generators, was used to investigate toluene degradation by NTP combined with catalysts [13,34,35,36]. Sepiolite fiber was used as the catalyst carrier, and Fe₂O₃, MnO₂ and ZrO₂ were compounded to prepare a new ZrMnFeO_x catalyst, so that the catalyst can simultaneously present the advantages of different single catalysts. VOC degradation by NTP, combined with different catalysts, was carried out. The toluene degradation rate, ozone production and carbon oxide production were compared and analyzed.

2. Results and Discussion

2.1. The Effect of Catalysis

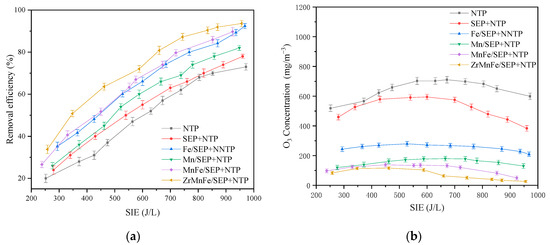

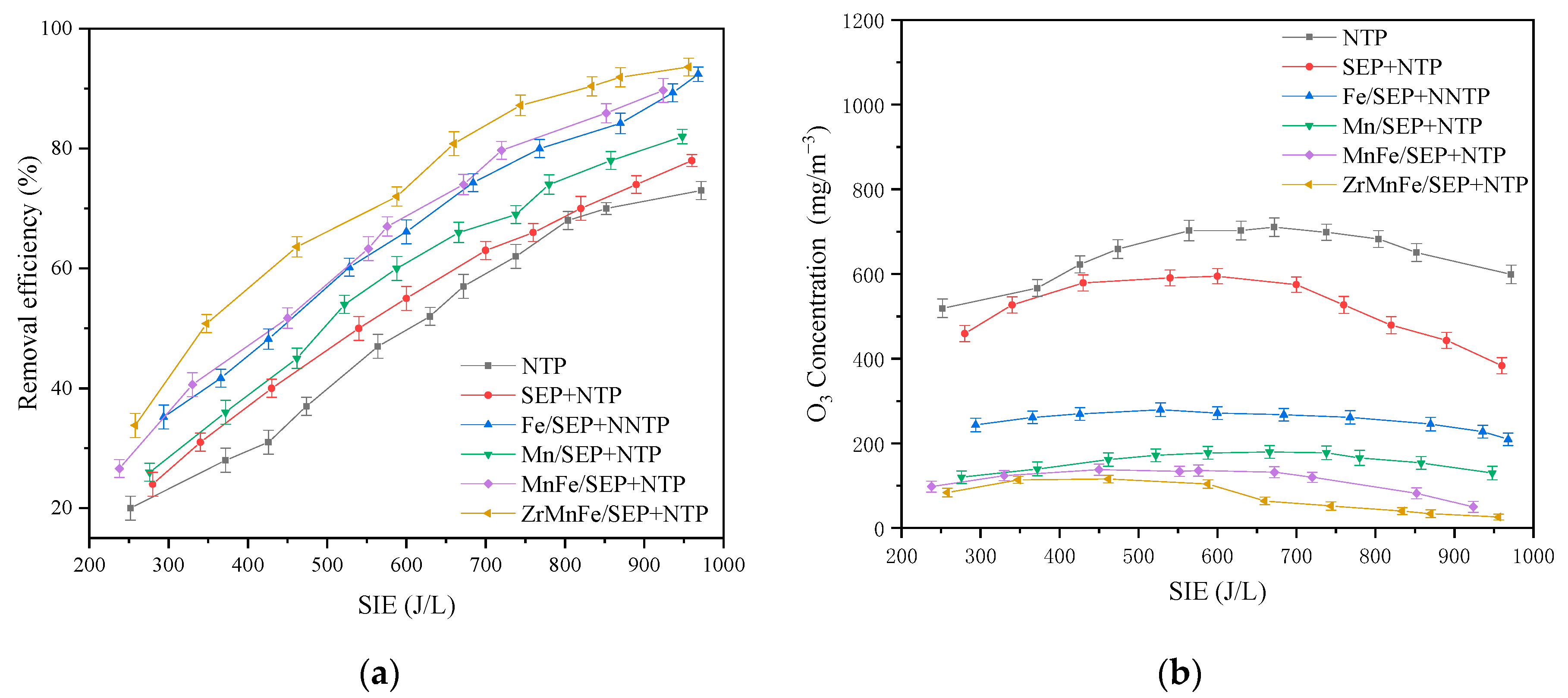

Toluene removal efficiency, carbon balance, CO₂ selectivity and ozone production of toluene degradation in different systems are presented in Figure 1. As shown in Figure 1a, the toluene removal efficiency in different systems kept increasing with the rising of SIE, which was the same as the results in published literature [35,37,38]. The increase in SIE could lead to the generation of more high-energy electrons and active species, which were beneficial for the oxidation of VOCs molecules. Toluene removal efficiency in a SEP+NTP system was promoted to a certain extent compared with that in an NTP system, which was mainly due to the increase in micro-discharge in the discharge area. With the introduction of catalysts, toluene removal efficiency was further enhanced. For example, toluene removal efficiency was 65% in a SEP+NTP system, while values of 69% and 78% were found in a Mn/SEP+NTP system and Fe/SEP+NTP system, respectively, with an SIE of 740 J/L. When Mn was doped into the Fe/SEP catalyst, in a MnFe/SEP+NTP system, a slight enhancement of 3.8% was achieved compared with that in a Fe/SEP+NTP system. When further doped with Zr, a toluene removal efficiency of 87% was finally obtained in the ZrMnFe/SEP+NTP system, which led to the highest enhancement of 11.5% compared with that in Fe/SEP+NTP system.

Ozone was an inevitable by-product in the process of VOC degradation by NTP, which could cause damage to the environment and the human body. As presented in Figure 1b, the ozone production increased first and then decreased with the increase in SIE. The formation of ozone could be described as follows [39]:

$$\mathrm{e}+O_2\to 2O+e$$

(1)

$$\mathrm{O}+O_2+M\to O_3+M$$

(2)

As the rising of SIE, more high-energy electrons were generated, and more oxygen atoms were generated by the collision of oxygen molecules with high-energy electrons, which finally led to the increase in ozone production. However, the temperature in the reactor also increased with the increase in SIE due to the ohmic effect, which could lead to the decomposition of ozone [12]. On the other hand, the ozone production was obviously inhibited with the introduction of catalysts [37,38]. For instance, the ozone concentration was 272 ppm in a SEP+NTP system, while the value was 132 ppm in a Fe/SEP+NTP system with a SIE of 740 J/L. Compared with the Fe/SEP+NTP system, a more obvious inhibitory effect on ozone production was observed in the Mn/SEP+NTP system, where a lower ozone concentration of 90 ppm was measured at the outlet of the reactor. The lowest ozone production at the same SIE was obtained in the ZrMnFe/SEP+NTP system, where the ozone concentration was only 27 ppm.

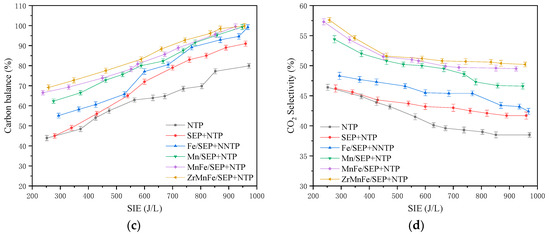

Carbon balance and CO₂ selectivity were frequently applied to characterize the mineralization of VOC degradation. As shown in Figure 1c, d, the carbon balance of toluene degradation in different systems increased with the increase in SIE, while the CO₂ selectivity decreased. Both carbon balance and CO₂ selectivity were significantly improved with the introduction of catalysts. For example, when the SIE was 740 J/L, the carbon balance in the NTP system was 68%, while the value was 86% in the Fe/SEP+NTP system, which led to an increase of 20.6%. The CO₂ selectivity, meanwhile, was 39.1% in the NTP system but 45.4% in the Fe/SEP+NTP system. When Mn was doped with the Fe/SEP catalyst, the mineralization was further improved, and the carbon balance and CO₂ selectivity were 90% and 49.5%, respectively, in the MnFe/SEP+NTP system. When further doped with Zr, the highest carbon balance and CO₂ selectivity of 93% and 50.7% were obtained in the ZrMnFe/SEP+NTP system. The introduction of catalysts increased the micro-discharge in the discharge area, which led to the increase in active species that are beneficial (such as O· and OH) to the further oxidation of intermediate products of toluene degradation [39]. The decomposition of ozone on the surface of the catalyst could also be responsible for the improvement of mineralization. The oxygen atom produced by ozone decomposition had a strong oxidizability, which could further oxidize the intermediate products.

2.2. Durability of Catalyst

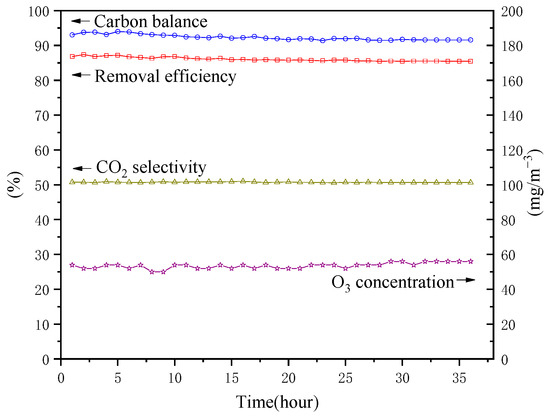

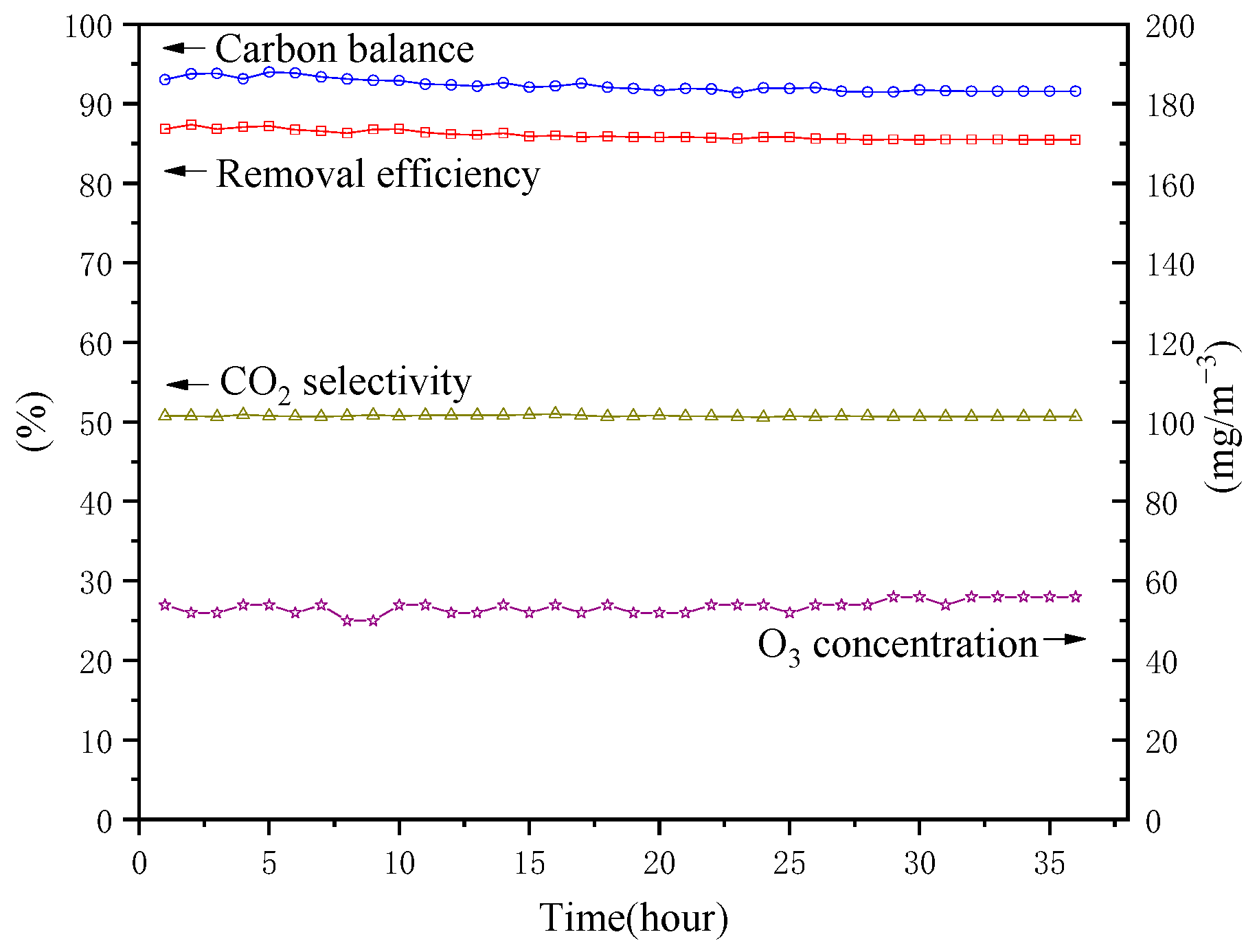

Figure 2 shows the 36 h data of toluene treated with ZrMnFe/SEP when the SIE is 740 J/L and RH is 5%. As shown, the removal efficiency of toluene is stable at 87%, the CO₂ selectivity is stable at 50.7%, the carbon balance is stable at 92.6% and the ozone concentration is stable at about 27 ppm. The catalyst performance was not significantly reduced after 36 h of continuous use. Therefore, the ZrMnFe/SEP catalyst has high catalytic stability when applied for degradation of toluene.

3. Materials and Methods

3.1. Experimental Setup

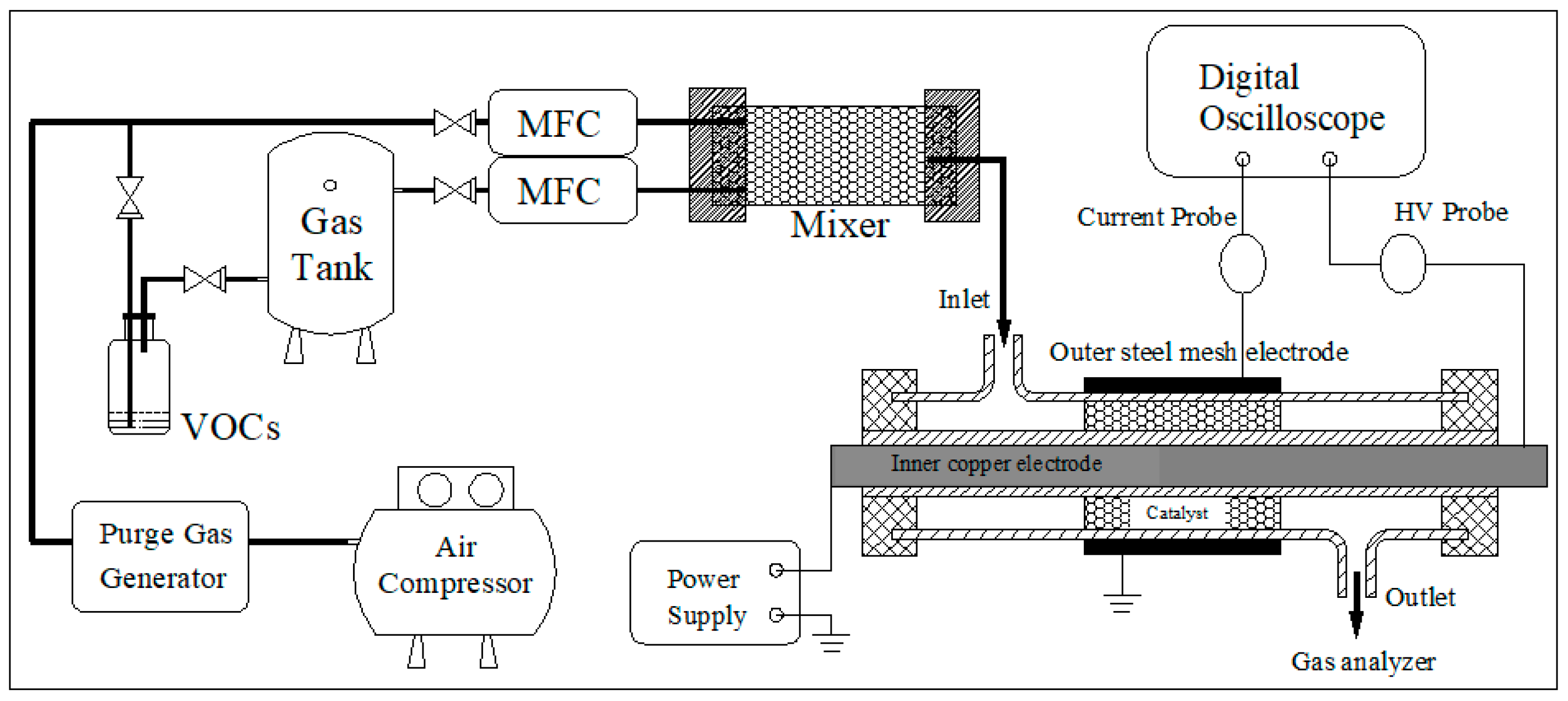

The experimental setup is shown in Figure 3. The compressed air from an air compressor was dried by an air purification unit (75-52NA, Parker Hannifin Co., Cleveland, OH, USA). One path of the dried air was passed into a bubbling tank containing pure toluene liquid (A.R., Sinopharm Chemical Reagent Co., Ltd., Shanghai, China) to obtain a high concentration of toluene gas. The high-concentration toluene gas was stored in a buffer tank (60 L) to stabilize the concentration. The high-concentration toluene gas output from the buffer tank was further diluted by another path of air from an air compressor before treatment. Two mass flow controllers (MFCs) (D07, Beijing Sevenstar Electronics Co., Ltd., Beijing, China) were used to control the flow rate of high-concentration toluene gas and air to obtain the required concentration of toluene for experiments. In the experiments, the total gas flow rate was fixed at 1 L/min, the initial toluene concentration was 300 ± 10 ppm, the gas temperature (T) was 20 ± 2 °C and relative humidity (RH) was 5%. Then, 2 g of catalyst that had both ends fixed with glass fiber was set inside the plasma area, and the volumetric space velocity (GHSV) was 15,000 h⁻¹.

The DDBD reactor used in the experiment was made up of two coaxial quartz tubes. The outer diameters of the outer and inner tubes were 20 and 8 mm, respectively, and the thicknesses were 1.5 and 1 mm, respectively. A copper rod with a diameter of 6 mm was placed inside the inner tube and served as the high-voltage electrode. The dense wire mesh wound around the outer tube’s wall served as the ground electrode. The length of the wire mesh covering the outer tube was 100 mm. A high-voltage pulse modulation power supply (CTP-2000 k/P, Nanjing Suman Electronics Co., Ltd., Nanjing, China) was used for discharge. In the experiment, the pulse repetition frequency and duty cycle of the power supply were fixed at 150 Hz and 20%, respectively, which, as has been proved, could improve the VOC degradation energy yield greatly in the DBD reactor.

3.2. Catalyst Preparation

(1) Sepiolite purification: The sepiolite fiber used in this experiment was provided by Hebei Yi County Sepiolite Developing Co., LTD (Baoding, China). Put 100 g sepiolite fiber into 500 mL distilled water and stir for 20 min, let it stand for 60 min, pour out the supernatant, take out the middle layer suspension and filter it with vacuum, put filter cake into a drying oven and dry it at 60 °C for 24 h.

(2) Sepiolite acid activation: Weigh 90 g of purified sepiolite, add 450 mL of 1 mol/L hydrochloric acid solution, mechanically stir for 2 h until no bubbles are generated, pour out the supernatant liquid after standing for 1 h, carry out loop vacuum filtration and wash with water until the filtrate is neutral. The obtained solids were dried at 80 °C overnight.

(3) Sepiolite acid modification: Prepare different concentrations of ferric nitrate (A.R., Sinopharm Chemical Reagent Co., Ltd., Shanghai, China), manganous nitrate (A.R., Sinopharm Chemical Reagent Co., Ltd., Shanghai, China), and zirconium nitrate (A.R., Sinopharm Chemical Reagent Co., Ltd., Shanghai, China) solutions as precursors and prepare ZrMnFe/SEP catalysts with different loadings by impregnation. Preparation conditions: Slowly drip different concentrations of precursor solutions onto 10 g acid-activated sepiolite carrier, solid (sepiolite) liquid (ferric nitrate solution) ratio of 1:1 g/mL, mechanical stirring for 1 h, ultrasound for 0.5 h. Let it stand for 12 h, dry it at 80 °C for 24 h, and calcined at 450 °C for 4 h in air.

Fe element content was 5 wt% in the Fe/SEP, MnFe/SEP and ZrMnFe/SEP catalysts, Mn element content was 5 wt% in the MnFe/SEP and ZrMnFe/SEP catalysts, Zr element content was 2 wt% in the ZrMnFe/SEP catalysts.

3.3. Catalyst Characterization

The model of Brunauer-Emmett-Teller (BET) was used to calculate the specific surface areas and the Barrett-Joyner-Halenda (BJH) model was used to analyze the pore size distributions based on the N₂ adsorption-desorption isotherms recorded by an automatic specific surface and micropore pore size analyzer (ASAP2020M, Micromeritics Instruments Co., Norcross, GA, USA). All samples were vacuum degassed at 300 °C for 3 h before the measurement. The morphology and composition of catalyst particles were investigated by a field emission scanning electron microscope (FE-SEM, S-4800, Hitachi Ltd., Tokyo, Japan) operating at 5 kV. The sizes and lattices of samples were studied by a high-resolution transmission electron microscope (HRTEM, JEM-2100F, JEOL Ltd., Tokyo, Japan) operated at 100 kV accelerating voltage. TEM lattice resolution: ≤0.10 nm. The phase and crystallinity of the sample was performed in an X-ray diffractometer (XRD, D/Max-2550PC, Rigaku Service Co., Ltd., Tokyo, Japan) using Cu Kα (1.5406 Å) radiation, in the 5–90° 2θ range, with a scanning velocity of 2°/min. Temperature-programmed reduction of H₂ (H₂-TPR) was performed on a chemisorption analyzer (Autochem 2920-Hiden HPR20, Micrometric, Norcross, GA, USA). All samples were pretreated with N₂ at 300 °C for 30 min before the measurement. X-ray photoelectron spectroscopy (XPS, EscaLab 250Xi, Thermo Fisher Scientific, Waltham, MA, USA) was employed to determine the Fe 2p, Mn 2p, Zr 3d and O 1s binding energies of surface species of the sample; the data were calibrated against the C 1s peak of contaminant carbon at 284.8 eV. The amounts of Zr, Mn and Fe elements in catalysts were examined by inductively coupled plasma optical emission spectroscopy (ICP-OES) measurements.

3.4. Evaluation Method

The discharge voltage (V) and current (I) were measured by a high-voltage probe (P6015A, Tektronix, Beaverton, OR, USA) and a current probe (ETA5315, Suzhou Zongye Electronics Co., Ltd., Suzhou, China), respectively, and recorded by a digital oscilloscope (MDO3032, Tektronix, OR, USA).

The calculation of discharge power (P) can be calculated by Equation (3).

$$P=f{{\displaystyle \int }}_0^{T}V\left(t\right)I\left(t\right)dt$$

(3)

where T is the pulse duration, s; f is the modulated pulse frequency, Hz.

Then, the specific input energy (SIE), which was often used to characterize the discharge, can be calculated by Equation (4).

$$SIE\left(\mathrm{J}/\mathrm{L}\right)=\frac{P}{F}\times 60$$

(4)

where P is the discharge power of the DDBD reactor, W; F is the total flow rate of the mixed gas entering the reactor, L/min.

Toluene conversion (RE) can be calculated by Equation (5).

$$RE(\%)=\frac{C_{in}-C_{out}}{C_{in}}\times 100\%$$

(5)

where C_in and C_out are the initial concentrations of toluene before and after degradation, ppm.

The concentrations of toluene, CO and CO₂ before and after degradation were determined by gas chromatography (GC2060III, Shanghai Ruimin Instrument Co., Ltd., China) with a FID detector and a methanation conversion furnace.

The carbon balance (CB) was calculated by Equation (6).

$$CB(\%)=\frac{n_{CO}+n_{C{O}_2}}{7\times n_{C_7{H}_8}}\times 100\%$$

(6)

where $n_{C_7{H}_8}$ is the concentration of removed toluene, ppm; $n_{C{O}_2}$ and $n_{CO}$ are the concentrations of CO₂ and CO generated after reaction, respectively, ppm.

The CO₂ selectivity (${\mathrm{S}}_{\mathrm{C}{\mathrm{O}}_{\mathrm{2}}}$) can be calculated by Equation (7).

$$S_{C{O}_2}(\%)=\frac{n_{C{O}_2}}{n_{CO}+n_{C{O}_2}}\times 100\%$$

(7)

An ozone analyzer (GT-2000-k3, Shenzhen Korno Electronics Co., Ltd., Shenzhen, China) was used to measure the ozone concentration at the reactor outlet.

4. Catalyst Characterization

4.1. XRD

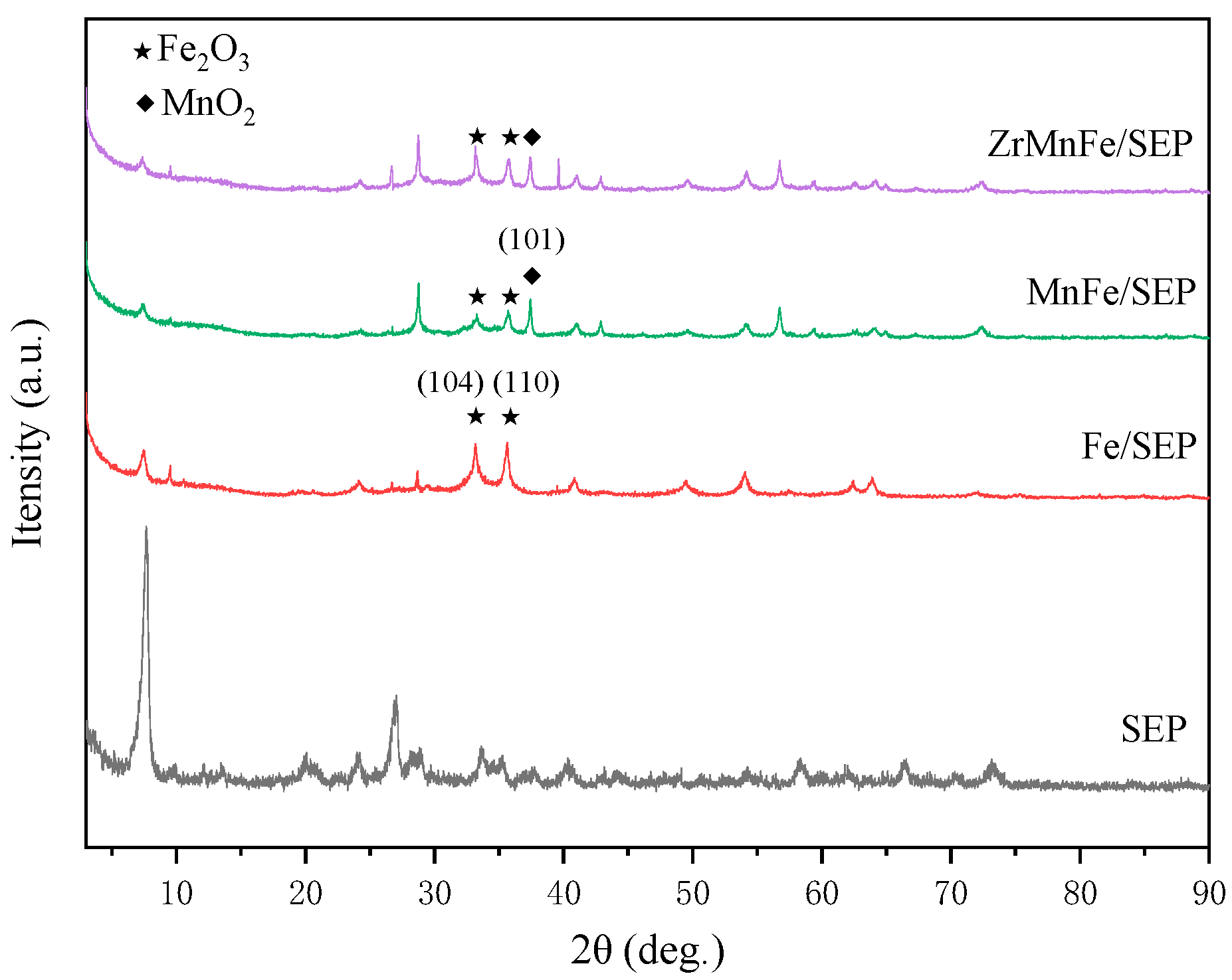

The crystal structures of Fe/SEP, Mn/SEP, MnFe/SEP and ZrMnFe/SEP catalysts were analyzed by XRD. As shown in Figure 4, the XRD pattern of Fe₂O₃ (PDF#89-059), MnO₂ (PDF#24-0735) is presented clearly. The peaks of Fe₂O₃ centered at 33.1° and 35.6° could be assigned to (104) and (110) planes, and (101) planes of MnO₂ could be found at 36.2°. No obvious ZrO₂ peak was found, which demonstrated that ZrO₂ was evenly dispersed on the surface of the sepiolite carrier. For different catalysts, the sepiolite carrier still maintained its original characteristic structure and part of the peak value decreased.

4.2. BET

The surface area, pore diameter and pore volume of catalysts were obtained on the basis of N₂ adsorption−desorption isotherms (

Table 1. Physical properties of the metal-doped sepiolite catalysts.

Catalyst Sample	Surface Area (m2/g)	Pore Volume (cm3/g)	Pore Diameter (nm)	Content (1) (mg/g)
SEP	174.9	0.56	9.3	-
Mn/SEP	154.8	0.53	7.2	Mn: 47.3
Fe/SEP	141.4	0.48	7.9	Fe: 46.6
MnFe/SEP	142.1	0.49	8.9	Mn/Fe: 47.1/46.2
ZrMnFe/SEP	138.9	0.45	5.6	Zr:Mn/Fe: 17.9/46.9/46.3

⁽¹⁾ The analytical result of ICP.

). The rank order of surface area for the catalysts was not in agreement with that of catalytic activity, indicating that surface area was not the main factor determining the differences in catalytic activity for these metal-doped catalysts in toluene conversion [40,41].

4.3. SEM and TEM

The morphology of catalysts was observed by FE-SEM and TEM (Figure 5). It could be seen that sepiolite fiber was covered with many nano metal oxide particles. The sepiolite fiber has a smooth surface and a clear fiber structure (Figure 5a). When iron oxide was loaded on it, small crystal (10–20 nm) structures formed and some agglomerated together to become cubic iron oxide crystals (200 × 200 nm) that could be clearly seen on the surface of the sepiolite fiber (Figure 5b). After sepiolite fiber was loaded with manganese dioxide, a small spherical (20–30 nm) crystal structure could be seen, and some small spheres agglomerated together to become flower spherical (400 × 400 nm) (Figure 5c). The flower spherical manganese dioxide and cubic iron oxide were present on both MnFe/SEP (Figure 5d) and ZrMnFe/SEP (Figure 5e) catalysts. As shown in Figure 5e, the doping of Zr could inhibit the growth of grain. Lattice fringes with lattice spacing of 0.252 and 0.271 nm presented in TEM (Figure 5f,g), contributed to the (110) and (104) planes of Fe₂O₃ in the ZrMnFe/SEP catalyst.

4.4. XPS

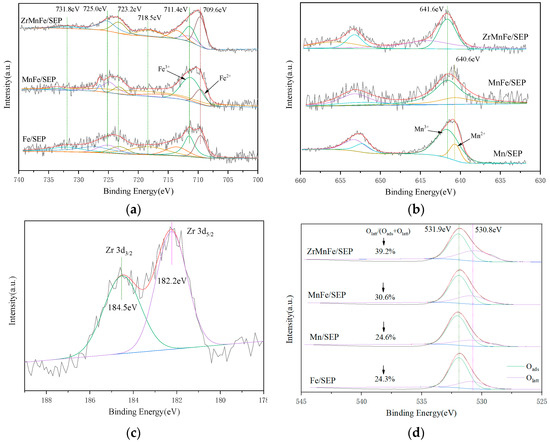

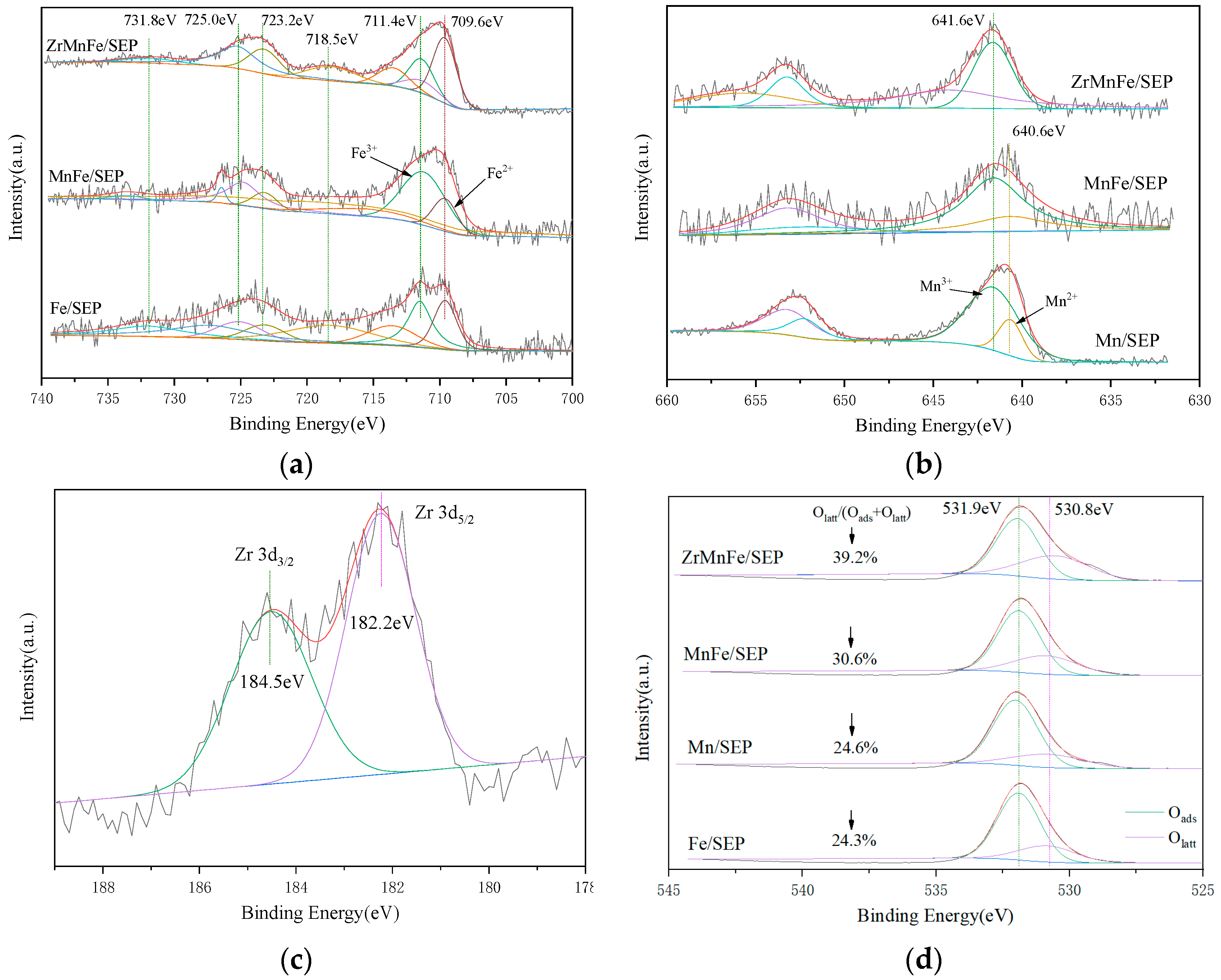

XPS was used to identify the chemical states of Fe, Mn, Zr, and O on the ZrMnFe/SEP catalysts. The elements Fe and O elements were examined by XPS of Fe 2p and O 1s orbits. The results are illustrated in Figure 6. It can be seen from Figure 6a that Fe 2p_3/2 and Fe 2p_1/2 have two energy peaks [42,43]. The peaks of 711.4, 725.0, 709.6.8 and 723.3.6 eV obtained after peak separation were consistent with the standard spectrum of Fe₂O₃, which illustrated that the Fe element in the catalyst mainly exists in the form of Fe³⁺. As shown in Figure 6b, two obvious peaks were presented that located at 640.6 and 641.6 eV, which matched with the values reported for MnO₂. Two peaks corresponded to Mn⁴⁺ and Mn³⁺ species, respectively. It can be seen from Figure 6c that the Zr 3d_5/2 peak at 181.8 eV corresponds to the Zr⁴⁺ in ZrO₂ [42].

The XPS spectra and Gaussian line that fitted O 1s spectra of ZrMnFe/SEP are shown in Figure 6d. The binding energy at around 530.8 eV could be attributed to the lattice oxygen, and the binding energy at around 531.9 eV could be related to the adsorbed oxygen. The proportion of lattice oxygen of ZrMnFe/SEP was higher than that of MnFe/SEP, Mn/SEP and Fe/SEP. It is indicated that Zr could increase the content of lattice oxygen. A high lattice oxygen content was conducive to the catalytic oxidation of organic compounds.

5. Conclusions

The ZrMnFe/SEP catalysts were prepared by the impregnation method and the enhancement of toluene removal by DDBD in the plasma-catalysis configuration was investigated. In the experiment, sepiolite fiber had a larger specific surface area and good stability. The toluene conversion rate, carbon balance and carbon dioxide selectivity were greatly improved, while the generation of ozone was suppressed with the addition of ZrO₂, MnO₂ and Fe₂O₃. The reduction in temperature of composite metal (Zr, Mn and Fe) oxide was lower and this was helpful to improve the catalytic performance. ZrMnFe/SEP+NTP could increase toluene removal rate by 40% compared to only NTP, and the ozone concentration was reduced from 350 to 27 ppm. The results showed that ZrMnFe/SEP is an efficient and stable catalyst for plasma-catalyst degradation of toluene.
