A Three-Component Hybrid Templated by Asymmetric Viologen Exhibiting Visible-Light-Driven Photocatalytic Degradation on Dye Pollutant in Maritime Accident Seawater

by
Xueqiang Zhuang
1,2,
Qiqi Wu
3,
Xihe Huang
3,
Haohong Li
3,
Tianjin Lin
1,2 and
Yali Gao
1,2,*
1
School of Marine Engineering, Jimei University, Xiamen 361021, China
2
Fujian Province Key Laboratory of Ship and Ocean Engineering, Xiamen 361021, China
3
College of Chemistry, Fuzhou University, Fuzhou 350116, China
*
Author to whom correspondence should be addressed.
Catalysts 2021, 11(5), 640; https://doi.org/10.3390/catal11050640
Submission received: 27 April 2021 / Revised: 11 May 2021 / Accepted: 13 May 2021 / Published: 18 May 2021
Browse Figures
Versions Notes

Abstract

The increasing dangerous chemical pollutants led by shipping accidents call for the new pollutant treatment strategy. In this work, a new three-component hybrid {[(BiI6)I13]·2I3·(H-BPA)4}n (1) can be used in dye degradation in seawater. The highly interesting feature of 1 lies in its unique 1-D Z-shape [(BiI6)I13]n6− infinite chain constructed from the I···I contacts between mono-nuclear (BiI6)3− anions and I133− polyiodide anions. Finally, the hydrogen bonds between [(BiI6)I13]n6− polyanions and H-BPA2+ cations contribute to the formation a quasi-3-D network. Specifically, 1 exhibits the wide absorption zone from ultraviolet to visible regions and high charge-separation efficiency, hinting its application in visible-light catalysis. As expected, 1 represents photocatalytic activity for the degradation of rhodamine B in seawater with degradation ratio of 90%, and the photocatalytic performance is stable. This work might provide new photocatalytic material for pollutant treatment in shipping accidents.

Graphical Abstract

1. Introduction

With the rapid development of the global economy, dangerous chemicals have become an important part in sea transportation, which increases sea safety uncertainty because of shipping accidents [1]. In the last decade, the increasing dangerous chemical pollutants led by shipping accidents call for the new pollutant treatment strategy. Among the dangerous chemicals, organic dyes such as rhodamine types are the most commonly observed, which have been extensively used in printing, biological staining, textiles, etc. [2]. This kind of pollutant possesses chronic toxicity not only to humans but also to animals and aquatic life, which are hard to be degraded [3]. Thus far, various treatment technologies on dye pollutants in wastewater have been executed, including biological, physical, and chemical methods [4,5]. As a green technology, photocatalysis method is popular in the complete mineralization of organic dyes in wastewater. Researchers have already developed numerous photocatalysts, including the traditional TiO2 semiconductor materials [6], nano particles (ZnO, CdS, PbMoO4) [7,8], g-C3N4 or its composites [9], and inorganic/organic hybrids [10,11]. Among these photocatalysts, inorganic/organic hybrids are good photocatalysts because they are stable, efficient, and band-gap tunable [12,13], which can be achieved by the structural modification on their inorganic/organic moieties or their interactions. The Pb-based hybrids have demonstrated their photocatalysis activities on organic dyes, which stem from the synergism of all moieties [13,14]. Iodobismuthate-based photocatalysts such as BiOI have also illustrated the visible light activities for removal of methylene blue [15,16,17,18]. However, most of the degradation reactions were applied in fresh water, and the studies about the removal of dye pollutants in seawater are still in its infancy, because the Na+, Mg2+, and Ca2+ ions in seawater will affect the degradation efficiency [19,20,21]. In this work, a three-component hybrid containing iodobismuthate (BiI6)3− anion, polyiodides (I3− and I133−), and asymmetric viologen cation (protonized 4,4’-bipyridinium-N-pentanoic acid, (H-BPA)2+), i.e., {[(BiI6)I13]·2I3·(H-BPA)4}n (1) was used as photocatalyst to degrade RhB in seawater, because all components are photo-active [14]. Interestingly, efficient photocatalytic degradation performances on RhB have been observed and the mechanism was discussed.

2. Results and Discussion

2.1. Structure Description

The hybrid 1 crystallizes in monoclinic space group P21/c, which is composed of a 1-D Z-shape [(BiI6)I13]n6− infinite chain constructed from the I···I contacts between mono-nuclear (BiI6)3− anion, the I133− polyiodide anion, two I3 ions, and one and four protonized 4,4’-bipyridinium-N-pentanoic acid (H-BPA2+). Hydrogen bonds between [(BiI6)I13]n6− polyanions and H-BPA2+ cations contribute to the formation a 3-D network. The (BiI6)3− anion is commonly observed in halobismuthate system [22], which is an ideal octahedron with nearly identical equator Bi-I length and linear axial I-Bi-I angle (Figure 1a, Table 1). Polyiodides display a very rich structural chemistry ranging from I2− to I293−, whose orientation, aggregation, and dimensionality can be controlled by the counteractions [23]. Three crystallographically independent I3− anions can be found in the lattice, among which I(4)–I(5)–I(6) anion is I-I2 adducts with un-symmetrical I-I distances (Table 1). The other two (I(7)–I(8)–I(9), I(10)–I(11)–I(10)b) are symmetrical and can be treated as molecular triiodide [10]. A I2 molecule (I(12)–I(13)) with typical I-I length of 2.741(2) Å can be found, which interacts with adjacent I3− anions via short I···I interactions (I(9)–I(12) 3.361(4) Å; I(10)–I(13) 3.30(3)Å, I(11)–I(10)–I(13) angle 144.42(5)°) to generate a Z-shape I133− polyiodide anion (Figure 1a, Table 1). Furthermore, Z-shape I133− interacts with (BiI6)3− cluster via additional secondary I···I contacts (I(4)–I(4)a 3.776(3) Å) to generate a unique [(BiI6)I13]n6− 1-D infinite chain (Figure 1a). Besides, two isolated I3− anions are connected into a I62− dimmer through weak I···I contact (I(3)–I(7) 3.727(3)Å). These I···I distances are definitively shorter than the sums of the Van der Waal’s radii of I (3.92 Å) [24], which verify the presence of secondary I···I contacts [25]. In H-BPA2+ cation, the C-O bond distances in carboxyl groups (C(15)-O(1) 1.309(18) Å, C(15)-O(2) 1.220(14)Å; C(30)-O(3) 1.303(18)Å, O(4)-C(30)-O(4) 1.240(19)Å) hint the maintenance of protons, and the protonization on N atoms are deduced from the charge balance. The dihedral angles between two pyridine rings in two independent H-BPA2+ cations are 9.88 and 11.73°, suggesting a slight distortion. Two H-BPA2+ cations are combined into a (H-BPA)24+ dimer via O(2)–H(2W)···O(3) hydrogen bonds, which are captured in the cavities defined by [(BiI6)I13]n6− chains and I62− anions through N/C–H···I hydrogen bonds (Figure 1b, Table 2). Consequently, based on these I···I contacts and hydrogen bonds, a quasi-3-D network is generated (Figure 2).

2.2. Absorption Spectrum and Photocurrent Response Behavior

The purity of crystalline sample of 1 has been proved by powder X-ray diffraction (PXRD), as shown in Figure 3. The good agreement between experimental and simulated patterns indicates its good phase purities. In order to determine its photo-responsive domains, the solid-state diffuse reflectance spectrum of the newly prepared crystalline sample of 1 was conducted at room temperature (Figure 4a). Interestingly, 1 exhibits a wide absorption zone from ultraviolet to visible regions (250–800 nm), suggesting its application in visible-light catalysis. No such absorption behavior is observed for viologen compounds [26]. The presence of visible and near-infrared absorptions in this work could be attributed to charge or partial electron transfers between the [(BiI6)I13]n6− anions and H-BPA2+ cations induced by short contacts such as hydrogen bonding. The peaks at about 247 and 345 nm can be attributed to the n/π-π* charge transfer of H-BPA2+ cation [10], the broad band around 534 nm might relate to a mixed metal/halide-ligand charge transfer processing between the I-5p/5s to the π* orbital of H-BPA2+ cations [27]. As the absorptions locate in visible regions, the photocatalytic activity was further driven by visible light.
To estimate the charge separation efficiency of 1, the crystalline sample-coated ITO electrode was prepared. A 150 W xenon lamp was used as light resource, and the electrode was irradiated using an ON−OFF cycle with intervals of 20 s, and sensitive photocurrent response can be monitored (Figure 4b). When the electrode was illuminated, repeatable and steady photocurrents with rapid response with the photocurrent density of 2.35 μA·cm−2 can be achieved. This result clearly demonstrates the charges in this electrode can be separated efficiently. The good photocurrent density can be explained as the wide absorption band in visible zone or narrow optical gap [28].

2.3. Photocatalytic Degradation of RhB in Seawater

The photocatalytic degradation of RhB in seawater using this three-component hybrid as catalyst was conducted. Before irradiation by visible light, the absorption–desorption equilibrium must be achieved by stirring the suspension magnetically in the dark for 30 min. As shown in Figure 5a, {[(BiI6)I13]·2I3·(H-BPA)4}n exhibits a high photocatalytic performance for the degradation of RhB in seawater. The time-dependent UV−Vis spectra of RhB showing its wavelength/absorption intensity changes under the irradiation of xenon-lamp are revealed in Figure 5a, and the concentrations of RhB (C) versus the irradiation time (t) of 1 are plotted in Figure 5b. As expected, with the lengthening of irradiation time, the absorption spectra of RhB decrease gradually, implying the occurrence of degradation reactions of RhB. The degradation rates of two catalysts are 90% after the irradiation time of 120 min. This degradation data are higher than that of (PBPY-H2)2[PbI4(I3)2] [10]. Comparably, the blank experiment without the presence of a catalyst among the same time scope shows that the photolysis rate of RhB is very low (about 5.0%). Therefore, we can conclude that 1 is vigorous for the decomposition of RhB under visible light irradiation in seawater. The stability and reusability of photocatalyst was verified by recovering the sample from reaction solution after 12 h. As the degradation reaction is heterogeneous, the catalyst can be recovered by a centrifugal method. The recovered sample was washed with ethanol and vacuum-dried at 55 °C. To our interest, the recovered amount is 38.6 mg (the recovered ratio is 96.50%). The PXRD pattern of recovered catalyst is nearly identical with that of the as-prepared sample (Figure 3), hinting that the catalyst is stable in seawater. Moreover, as seen in Figure 5c, the catalyst can maintain its original activity after repeating the photocatalytic degradation of RhB three cycles, indicating good photochemical stabilities of 1. According to the reported literatures, the degradation process of RhB under the visible light irradiation involves N-de-ethylation, chromophore cleavage, and mineralization, which leads to the final products of CO2, H2O, NO3−, and NH4+ [29]. TOC analysis on degradation solution suggests that the removal ratio is 88.3%, indicating that most of RhB has been degraded. However, there is only slightly TOC decrease (about 1.2%) without irradiation of visible light.

3. Experimental

3.1. Materials and Methods

The chemicals including inorganic salts and organic solvents involved in the synthesis process were purchased from commercial sources with AR quality. 4,4’-bipyridinium-N-pentanoic acid (BPA·Br) was self-prepared according to literature [30]. IR spectrum was executed on a JASCO FT/IR-4100 FTIR spectrophotometer (Jasco, Easton, MD, USA) (4000–400 cm−1). The solid-state diffuse reflectance spectrum was measured on a UV-Visible Spectrometer (Thermo SCIENTIFIC, Waltham, MA, USA, EVLUTION 220). The optical gap was evaluated from diffuse reflectance data based on Kubelka−Munk function: α/S = (1 − R)2/(2R), in which the absorption coefficient (α), scattering coefficient (S), and reflectance (R) are adopted [31]. Elemental analysis for C, H, and N was carried out on a Vario MICRO elemental analyzer (Frankfurt, Elementar, Germary). The crystalline purity of the catalyst was characterized by powder X-ray diffraction (XRD, D8-advanced, Bruker, Karlsruhe, Germany, CuKα radiation). The photocurrent data was obtained using a CHI650 electrochemistry workstation (Shanghai, Chenghua, China) with three-electrode system. Total organic carbon (TOC) was determined on a Shimadzu TOC-LCPH-CPN equipment (Kyoto, Shimadzu, Japan).

3.2. Synthesis

  • Synthesis of BPA·Br
BPA·Br was self-prepared based on the literature process (Scheme 1). 4,4’-bipyridine (4.7000 g, 0.03 mol) and 5-bromo-pentanoic acid (3.6000 g, 0.02 mol) were dissolved in 50 mL CH3CN, the mixture was heated to 40 °C for 24 h. Afterwards, the yellow solids can be obtained after removal of solvents by rotary evaporation. The raw product was washed with ethyl acetate four times (25 mL) and dried at 60 °C for 1 h (4.721 g, yield: 70%).
  • Synthesis of {[(BiI6)I13]·2I3·(H-BPA)4}n (1)
BPA·Br (0.1120 g, 0.33 mmol), BiI3 (0.1900 g, 0.33 mmol), and I2 (0.0600 g, 0.33 mmol) were dissolved in 5 mL HI (concentration: 50%) and stirred magnetically for 90 min. Then, a typical hydrothermal reaction was executed under 120 °C for 72 h. Finally, after cooling the autoclave to room temperature in 24 h, black block single crystals can be separated and washed with ether (0.2913 g, yield 20% based on Bi.). Elemental analysis calculated for C60H72BiI25N8O8 (4414.74): C, 16.33; H, 1.64; N, 2.54%. Found: C, 16.45; H, 1.72; N, 2.63%. IR (KBr, cm−1): 3589(w), 3036(w), 2933(w), 1703(w), 1610(m), 1580(m), 1540(m), 1416(m), 1225(m), 1062(s), 610(s), 812(s), 720(m), 500(m), 403(w).

3.3. Photocurrent Measurements

Solution method was adopted in the fabrication of electrode in the photocurrent measurement [32]. In detail, the newly prepared crystalline sample of 1 (5 mg) was dispersed into 0.5 mL DMF, and the resultant solution was spread on an indium tin oxide glass (ITO, 0.36 cm2), which was precleaned by acetone. Epoxy resin was used to cover the uncoated parts of ITO. After evaporating the solvent under an ambient atmosphere, the electrode can be obtained. A 150 W xenon lamp equipped with a cutoff filter (>420 nm) was used as light resource to determine its photo-responsive behavior. Photocurrent data was plotted by electrochemical workstation in a typical three-electrode system in NaSO4 aqueous solution (0.2 M): the 1-coated electrode as working electrode, the platinum plate as counter electrode, and a Ag/AgCl electrode as reference electrode. The lamp was turn on throughout the measurement, and the irradiation was blocked by a manual shutter at intervals of 10 s.

3.4. Photodegradation of RhB

The photocatalytic degradation of RhB in seawater was executed under normal condition. The visible light was simulated by a A 300W xenon lamp equipped with a cutoff filter (>420 nm). Artificial seawater was prepared according to the literature amounts, i.e., 3.4 wt% containing NaCl (77.9%), MgCl2 (9.6%), MgSO4 (6.1%), CaSO4 (4.0%), and KCl (0.07%) [33]. Then, rhodamine B was added into seawater solution with concentration of 0.01 mM. The crystalline sample of 1 (40 mg) was directly scattered into the above solution (80 mL). Before light irradiation, the absorption equilibrium must be formed by stirring the mixture in dark for 2 h. Afterwards the light resource was turned on. The initial concentration of RhB was marked as C0 at the absorption equilibrium, which was determined by the absorption band maximum in the UV–Vis spectra. Aliquots (3 mL) in the degradation mixture were extracted to monitor the RhB concentration change with intervals of 30 min, which were labelled as C. The percentage of degradation is reported as C/C0, which is a typical method in photocatalytic degradation [34].

3.5. X-ray Crystallography

The single crystal structure of 1 was determined at room temperature by X-Ray diffraction method using a Bruker APEX II diffractometer equipped with graphite-monochromated MoKα radiation (λ = 0.71073 Å). Afterwards, direct method and Fourier technique in the SHELXTL-97 program package were adopted to visualize its structure [35,36]. For all non-hydrogen atoms, anisotropical refinements were carried out, and hydrogen atoms attached to carbon/oxygen atoms were geometrically placed. Crystal data: monoclinic, space group P21/c with Mr = 4414.74, a = 14.859(2), b = 14.340(2), c = 24.718(4) Å, β = 103.264(3)°, V = 5126.3(14)Å3, Z = 2, Dc = 2.857 g/cm3, F (000) = 3920, μ(MoKα) = 9.293 mm–1, the final R = 0.0642 and wR = 0.1884, S = 1.070, (Δ/σ)max = 0.000, (Δρ)max = 2.413 and (Δρ)min = −2.028e/Å3. Important bond lengths and angles are given in Table 1, C–H···π interactions are shown in Table 2. (See the Supplementary Materials).

4. Conclusions

In summary, a three-component hybrid containing [(BiI6)I13]n6− infinite chain, I3- ions, and one and protonized 4,4’-bipyridinium-N-pentanoic acid (H-BPA2+) has been synthesized and structurally determined. Specifically, its unique 1-D Z-shape [(BiI6)I13]n6− chain is constructed from the I···I contacts between mono-nuclear (BiI6)3− anion and I133− polyiodide anion, and hydrogen bonds between [(BiI6)I13]n6− polyanions and H-BPA2+ cations contribute to the formation a quasi-3-D network. The wide absorption zone from ultraviolet to visible regions (250–800 nm) and high charge-separation efficiency suggest its application in visible-light catalysis. As expected, 1 can be used as a good photocatalyst in the photo-degradation of rhodamine B in seawater with degradation ratio of 90%. This work might provide new photocatalytic material for pollutant treatment in shipping accidents.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/catal11050640/s1, Data S1 for publication: Crystal structure data, Report S2 for review only: Crystal structure correctness report.

Author Contributions

Conceptualization, X.Z. and H.L.; methodology, Q.W. and Y.G.; data curation, Q.W. and T.L.; writing—original draft preparation, X.H.; writing—review and editing, Y.G.; funding acquisition, X.Z. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Open Fund of Fujian Province Key Laboratory of Ship and Ocean Engineering, the Natural Science Foundation of Fujian Province, China (Grant Number: 2020J05140), the Science and Technology Project of Fujian Province (Grant Number: 2019H6017), the Project of Fujian Provincial Department of Ocean and Fisheries (Grant Number: FJHJF-L-2020-6), and the Science Foundation of Jimei University, China (ZQ2020007).

Data Availability Statement

Data available on request due to restrictions, e.g., privacy or ethical.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Wang, X.P.; Shang, H.Y.; Liu, X.D.; Bai, Y.J. Fuzzy assessment methodology for emergency response capability in hazardous materials transportation. Int. J. Innov. Comput. Inf. Control 2008, 4, 2689–2696. [Google Scholar]
  2. Sahoo, C.; Gupta, A.K.; Pal, A. Photocatalytic degradation of Crystal Violet (C.I. Basic Violet 3) on silver ion doped TiO2. Dyes Pigment. 2005, 66, 189–196. [Google Scholar] [CrossRef]
  3. Maryanti, S.A.; Suciati, S.; Wahyuni, E.S.; Santoso, S.; Wiyasa, I.W.A. Rhodamine B triggers ovarian toxicity through oxidative stress, decreases in the number of follicles, 17B-estradiol level, and thickness of endometrium. Cukurova Med. J. 2014, 39, 451–457. [Google Scholar]
  4. Feng, Y.; Zhang, Z.; Zhao, Y.; Song, L.; Wang, X.; Yang, S.; Long, Y.; Zhao, C.; Qiu, L. Accelerated rhodamine B removal by enlarged anode electric biological (EAEB) with electro-biological particle electrode (EPE) made from steel converter slag (SCS). Bioresour. Technol. 2019, 283, 1–9. [Google Scholar] [CrossRef] [PubMed]
  5. Ai, X.; Zhang, P.; Dou, Y.; Wu, Y.; Pan, T.; Chu, C.; Cui, P.; Ran, J. Graphene oxide membranes with hierarchical structures used for molecule sieving. Sep. Purif. Technol. 2020, 230, 115879. [Google Scholar] [CrossRef]
  6. Zhang, X.; Wang, Y.; Liu, B.; Sang, Y.; Liu, H. Heterostructures construction on TiO2 nanobelts: A powerful tool for building high-performance photocatalysts. Appl. Catal. B 2017, 202, 620–641. [Google Scholar] [CrossRef]
  7. Robi, S.D.; Jian, Z.; Md, M.; Benjamin, J.C.; Yue, Z.B.; Hareem, K.; Nitu, S.; Ali, Z.; Farjana, H.; Torben, D.; et al. Two dimensional PbMoO4: A photocatalytic material derived from a naturally non-layered crystal. Nano Energy 2018, 49, 237–246. [Google Scholar]
  8. Hadis, D.; Alireza, N. Increased photocatalytic activity of NiO and ZnO in photodegradation of a model drug aqueous solution: Effect of coupling, supporting, particles size and calcination temperature. J. Hazard. Mater. 2017, 321, 629–638. [Google Scholar]
  9. Chen, X.; Chen, H.; Guan, J.; Zhen, J.; Sun, Z.; Du, P.; Lu, Y.; Yang, S. A facile mechanochemical route to a covalently bonded graphitic carbon nitride (g-C3N4) and fullerene hybrid toward enhanced visible light photocatalytic hydrogen production. Nanoscale 2017, 9, 5615–5623. [Google Scholar] [CrossRef]
  10. Wang, D.H.; Lin, X.Y.; Wang, Y.K.; Zhang, W.T.; Song, K.Y.; Lin, H.; Li, H.H.; Chen, Z.R. A new iodiplumbate-based hybird constructed from asymmetric viologen and polyiodides: Structure, properties and photocatalytic aactivity for the degradation of organic dye. Chin. J. Struct. Chem. 2017, 36, 2000–2006. [Google Scholar]
  11. Li, J.W.; Jiang, C.C. Iodoplumbate(II)-based hybrid templated by 1,4-diazabicyclo[2.2.2]octane derivative: Structure, photocurrent response behavior and photocatalytic activity for the degradation of organic dye. Chin. J. Struct. Chem. 2018, 37, 1635–1644. [Google Scholar]
  12. Li, H.H.; Zeng, X.H.; Wu, H.Y.; Jie, X.; Zheng, S.T.; Chen, Z.R. Incorporating guest molecules into honeycomb structures constructed from uranium(VI)-polycarboxylates: Structural diversities and photocatalytic activities for the degradation of organic dye. Cryst. Growth Des. 2015, 15, 10–13. [Google Scholar] [CrossRef]
  13. Song, K.Y.; Zhao, L.M.; Zhang, W.T.; Li, Y.; Li, H.H.; Chen, Z.R. Two-dimensional silver-thiocyanate layers drected by viologens: Structural transformations upon low pressure stimuli, piezochromic luminescence, photocurrent responses, and photocatalytic properties. Cryst. Growth Des. 2019, 19, 177–192. [Google Scholar] [CrossRef]
  14. Zhao, L.M.; Zhang, W.T.; Song, K.Y.; Wu, Q.Q.; Li, Y.; Li, H.H.; Chen, Z.R. Lead-carboxylate/polyiodide hybrids constructing from halogen bonding and asymmetric viologen: Structures, visible-light-driven photocatalytic properties and enchanced photocurrent responses. CrystEngComm 2018, 20, 2245–2252. [Google Scholar] [CrossRef]
  15. Adonin, S.A.; Gorokh, I.D.; Novikov, A.S.; Samsonenko, D.G.; Yushina, I.V.; Sokolov, M.N.; Fedin, V.P. Halobismuthates with halopyridinium cations: Appearance or non-appearance of unusual colouring. CrystEngComm 2018, 20, 7766–7772. [Google Scholar] [CrossRef]
  16. Adonin, S.A.; Gorokh, I.D.; Samsonenko, D.G.; Antonova, O.V.; Korolkov, I.V.; Sokolov, M.N.; Fedin, V.P. Bi(iii) polybromides: A new chapter in coordination chemistry of bismuth. Inorg. Chim. Acta 2018, 32, 5061–5063. [Google Scholar] [CrossRef]
  17. VenkatRamani, S.; Schrock, R.R.; Hoveyda, A.H.; Müller, P.; Tsay, C. Synthesis of high-oxidation-State Mo-CHX complexes, where X = Cl, CF3, phosphonium, CN. Organometallics 2018, 37, 1641–1644. [Google Scholar] [CrossRef]
  18. Moyet, M.A.; Kanan, S.M.; Varney, H.M.; Abu-Farha, N.; Gold, D.B.; Lain, W.J.; Pike, R.D.; Patterson, H.H. Synthesis and characterization of (RPh3P)3[Bi3I12] (R = Me, Ph) iodobismuthate complexes for photocatalyticdegradation of organic pollutants. Res. Chem. Intermed. 2019, 45, 5919–5933. [Google Scholar] [CrossRef]
  19. Wang, Q.; Cai, C.; Wang, M.; Guo, Q.; Wang, B.; Luo, W.; Wang, Y.; Zhang, C.; Zhou, L.; Zhang, D.; et al. Efficient photocatalytic degradation of malachite green in seawater by the hybrid of zinc-oxide nanorods grown on three-dimensional (3D) reduced graphene oxide(RGO)/Ni foam. Materials 2018, 11, 1004. [Google Scholar] [CrossRef]
  20. Chen, P.; Hu, X.; Qi, Y.; Wang, X.; Li, Z.; Zhao, L.; Liu, S.; Cui, C. Rapid degradation of azo dyes by melt-spun Mg-Zn-Ca metallic glass in artificial seawater. Metals 2017, 7, 485. [Google Scholar] [CrossRef]
  21. Makita, M.; Harata, A. Photocatalytic decolorization of rhodamine B dye as a model of dissolved organic compounds: Influence of dissolved inorganic chloride salts in seawater of the sea of Japan. Chem. Eng. Process. 2008, 47, 859–863. [Google Scholar] [CrossRef]
  22. Wu, L.M.; Wu, X.T.; Chen, L. Structural overview and structure–property relationships of iodoplumbate and iodobismuthate. Coord. Chem. Rev. 2009, 253, 2787–2804. [Google Scholar] [CrossRef]
  23. Garcia, M.D.; Marti-Rujas, J.; Metrangolo, P.; Peinador, C.; Pilati, T.; Resnati, G.; Terraneo, G.; Ursini, M. Dimensional caging of polyiodides: Cation-templated synthesis using bipyridinium salts. CrystEngComm 2011, 13, 4411–4416. [Google Scholar] [CrossRef]
  24. Bondi, A.J. van der Waals volumes and radii. J. Phys. Chem. 1964, 68, 441–451. [Google Scholar] [CrossRef]
  25. Wang, Y.K.; Wu, Y.L.; Lin, X.Y.; Wang, D.H.; Zhang, W.T.; Song, K.Y.; Li, H.H.; Chen, Z.R. Halobismuthate/diphenyliodonium hybrids stabilized by secondary hypervalent I(III)···X interactions: Structures, optical studies and thermochromisms. J. Mol. Struct. 2018, 1151, 81–87. [Google Scholar] [CrossRef]
  26. Tong, Z.; Pu, S.; Xiao, Q.; Liu, G.; Cui, S. Synthesis and photochromism of a novel water-soluble diarylethene with glucosyltriazolyl groups. Tetrahedron Lett. 2013, 54, 474–477. [Google Scholar] [CrossRef]
  27. Patel, E.N.; Arthur, R.B.; Nicholas, A.D.; Reinheimer, E.W.; Omary, M.A.; Brichacek, M.; Patterson, H.H. Synthesis, structure and photophysical properties of a 2D network with gold dicyanide donors coordinated to aza[5]helicene viologen acceptors. Dalton Trans. 2019, 48, 10288–10297. [Google Scholar] [CrossRef] [PubMed]
  28. Wang, C.; Wang, S.J.; Kong, F.G. Calixarene-protected titanium-oxo clusters and their photocurrent responses and photocatalytic performances. Inorg. Chem. 2021, 60, 5034–5041. [Google Scholar] [CrossRef]
  29. Li, J.; Yang, F.; Zhou, Q.; Ren, R.; Wu, L.; Lv, Y. A regularly combined magnetic 3D hierarchical Fe3O4/BiOBr heterostructure: Fabrication, visible-light photocatalytic activity and degradation mechanism. J. Colloid Interface Sci. 2019, 546, 139–151. [Google Scholar] [CrossRef]
  30. Zhou, X.J.; Chen, C.; Ren, C.X.; Sun, J.K.; Zhang, J. Tunable solid-state photoluminescence based on proton-triggered structural transformation of 4,4prime-bipyridinium derivative. J. Mater. Chem. C 2013, 1, 744–750. [Google Scholar] [CrossRef]
  31. Wendlandt, W.M.; Hecht, H.G. Reflectance Spectroscopy; Interscience: New York, NY, USA, 1966. [Google Scholar]
  32. Lin, X.Y.; Zhao, L.M.; Wang, D.H.; Wang, Y.K.; Li, M.; Li, H.H.; Chen, Z.R. Structural diversities of squarate-based complexes: Photocurrent responses and thermochromic behaviours enchanced by viologens. Inorg. Chem. Front. 2018, 5, 189–199. [Google Scholar] [CrossRef]
  33. Bailey, R.A.; Clark, H.M.; Ferris, J.P.; Krause, S.; Strong, R.L. The environmental chemistry of some important elements. Chem. Environ. 2002, 347–416. [Google Scholar] [CrossRef]
  34. Huang, H.W.; He, Y.; Lin, Z.S.; Kang, L.; Zhang, Y.H. Two novel Bi-Based Borate photocatalysts: Crystal structure, electronic structure, photoelectrochemical properties, and photocatalytic activity under simulated solar light irradiation. J. Phys. Chem. C 2013, 117, 22986–22994. [Google Scholar] [CrossRef]
  35. Sheldrick, G.M. SHELXS-97: Program for Crystal Structure Solution; Göttingen University: Göttingen, Germany, 1997. [Google Scholar]
  36. Sheldrick, G.M. SHELXL-97: Program for the Refinement of Crystal Structures; Göttingen University: Göttingen, Germany, 1997. [Google Scholar]
Catalysts 11 00640 g001aCatalysts 11 00640 g001b

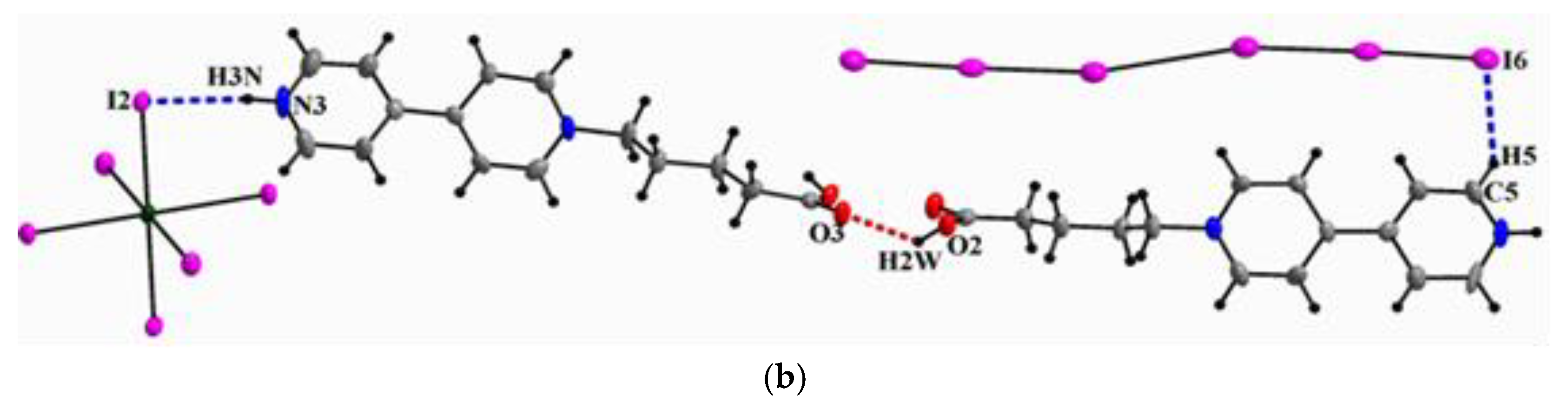

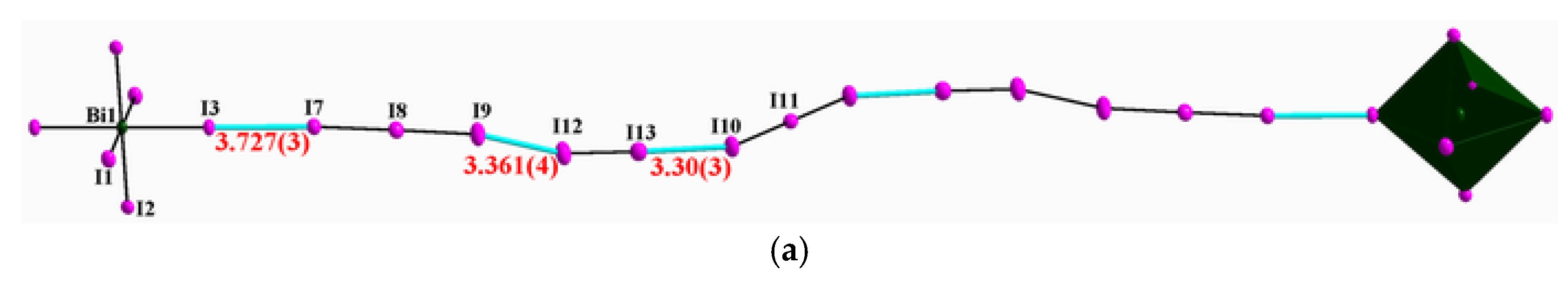

Figure 1. (a) The 1-D [(BiI6)I13]n6− infinite chain constructed from the I···I contacts between (BiI6)3− ion and Z-shape I133− polyiodide anions; (b) hydrogen bonds between [(BiI6)I13]n6− chains, I62− anions and H-BPA2+ cations.
Figure 1. (a) The 1-D [(BiI6)I13]n6− infinite chain constructed from the I···I contacts between (BiI6)3− ion and Z-shape I133− polyiodide anions; (b) hydrogen bonds between [(BiI6)I13]n6− chains, I62− anions and H-BPA2+ cations.
Catalysts 11 00640 g001aCatalysts 11 00640 g001b
Catalysts 11 00640 g002

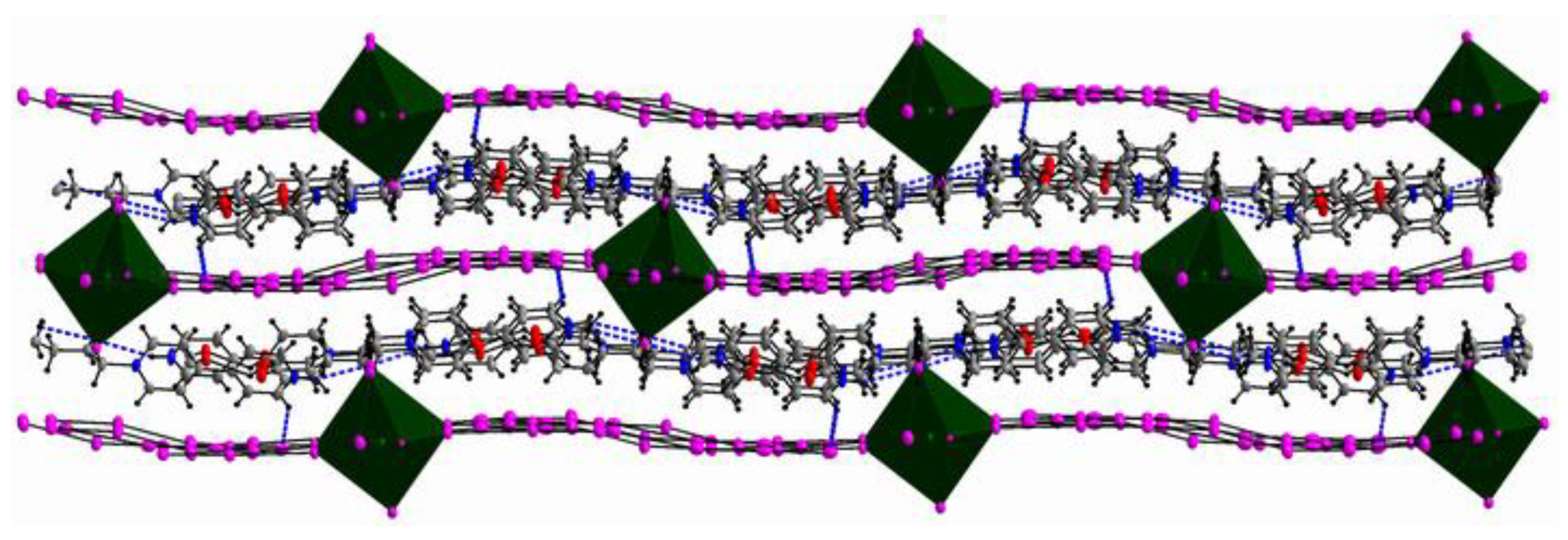

Figure 2. Quasi-3-D network of 1 based on I···I contacts and hydrogen bonds.
Figure 2. Quasi-3-D network of 1 based on I···I contacts and hydrogen bonds.
Catalysts 11 00640 g002
Catalysts 11 00640 g003

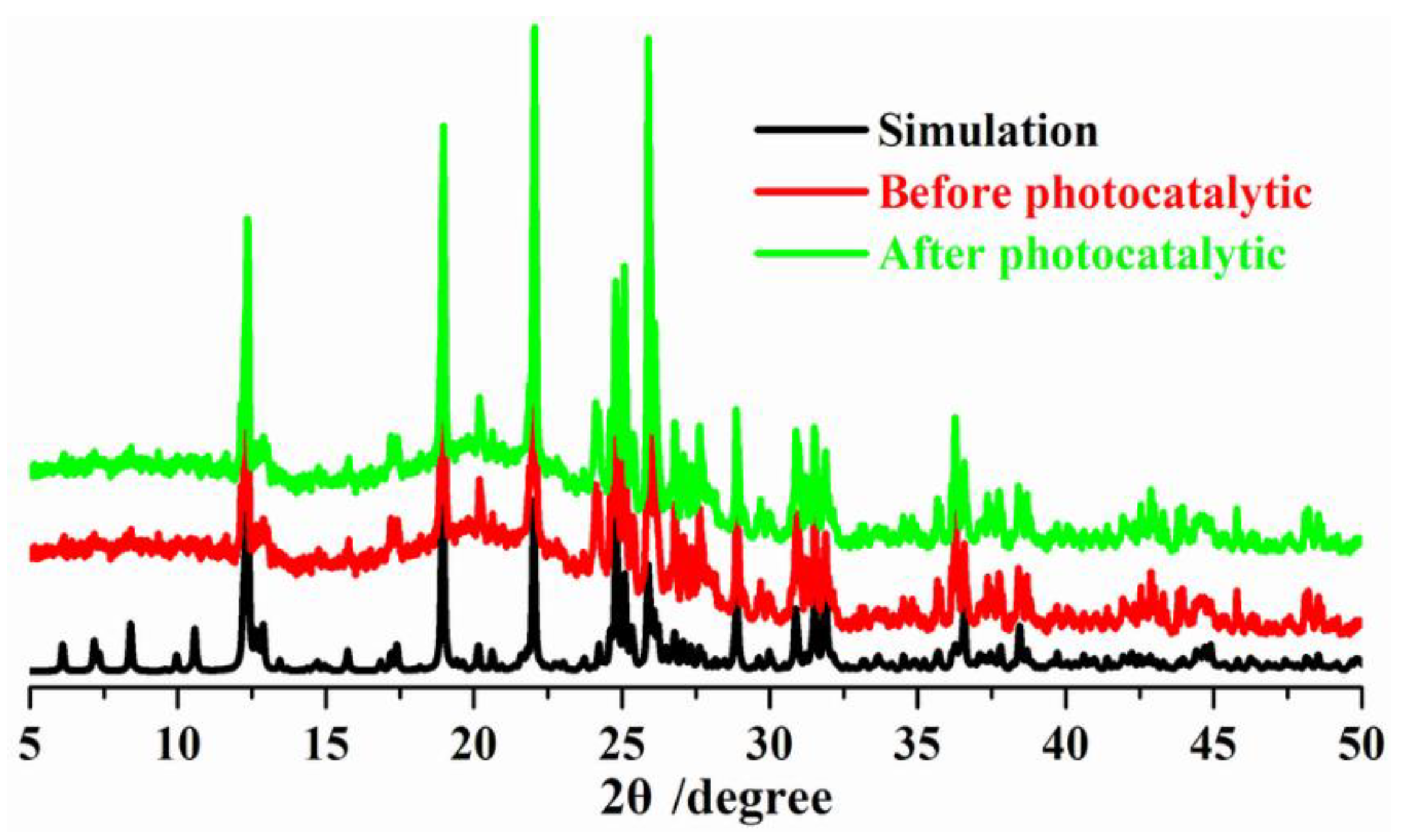

Figure 3. Powder X-ray diffraction (PXRD) patterns under different conditions for 1.
Figure 3. Powder X-ray diffraction (PXRD) patterns under different conditions for 1.
Catalysts 11 00640 g003
Catalysts 11 00640 g004aCatalysts 11 00640 g004b

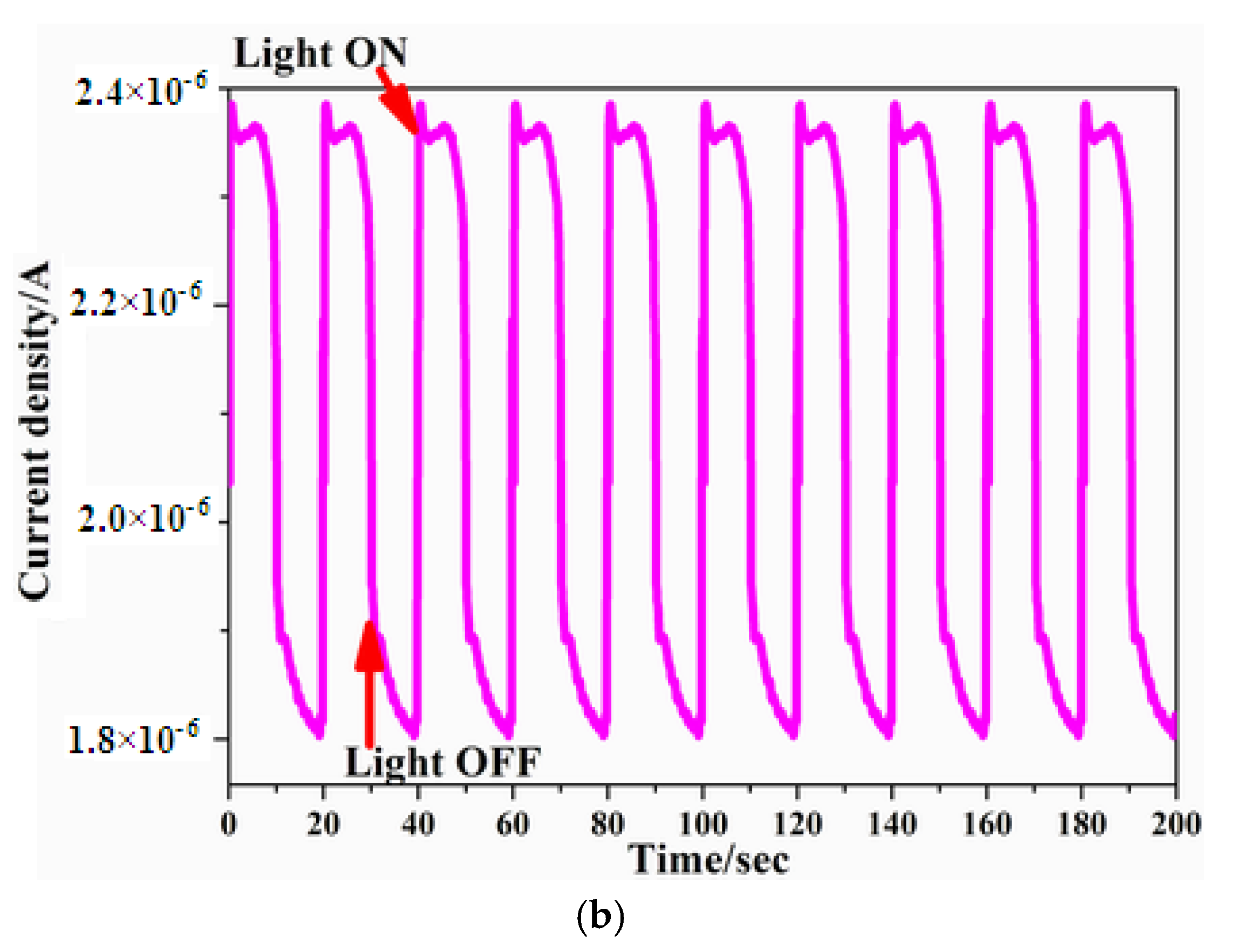

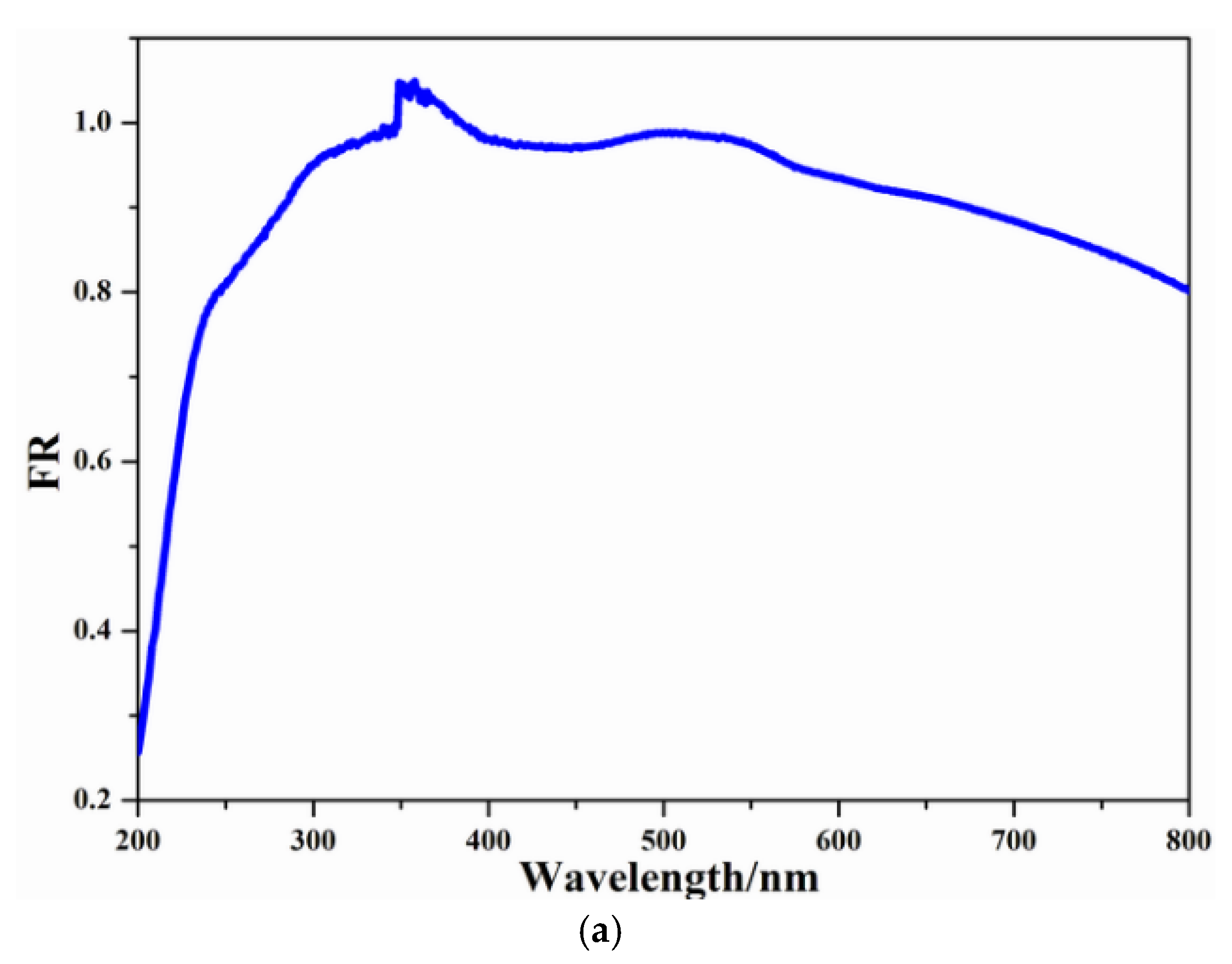

Figure 4. (a) Solid state electronic spectrum and (b) photocurrent response behavior of 1.
Figure 4. (a) Solid state electronic spectrum and (b) photocurrent response behavior of 1.
Catalysts 11 00640 g004aCatalysts 11 00640 g004b
Catalysts 11 00640 g005aCatalysts 11 00640 g005b

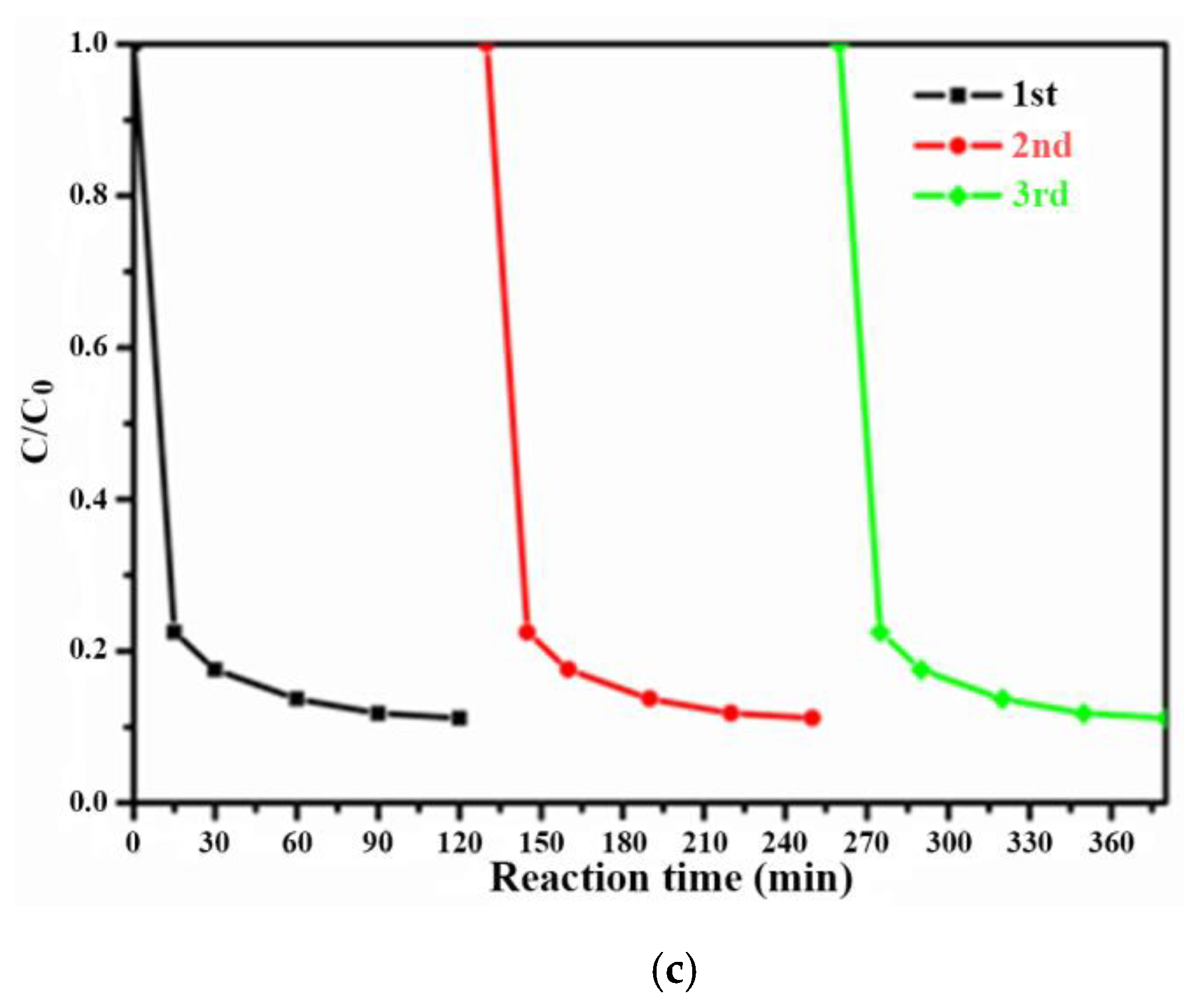

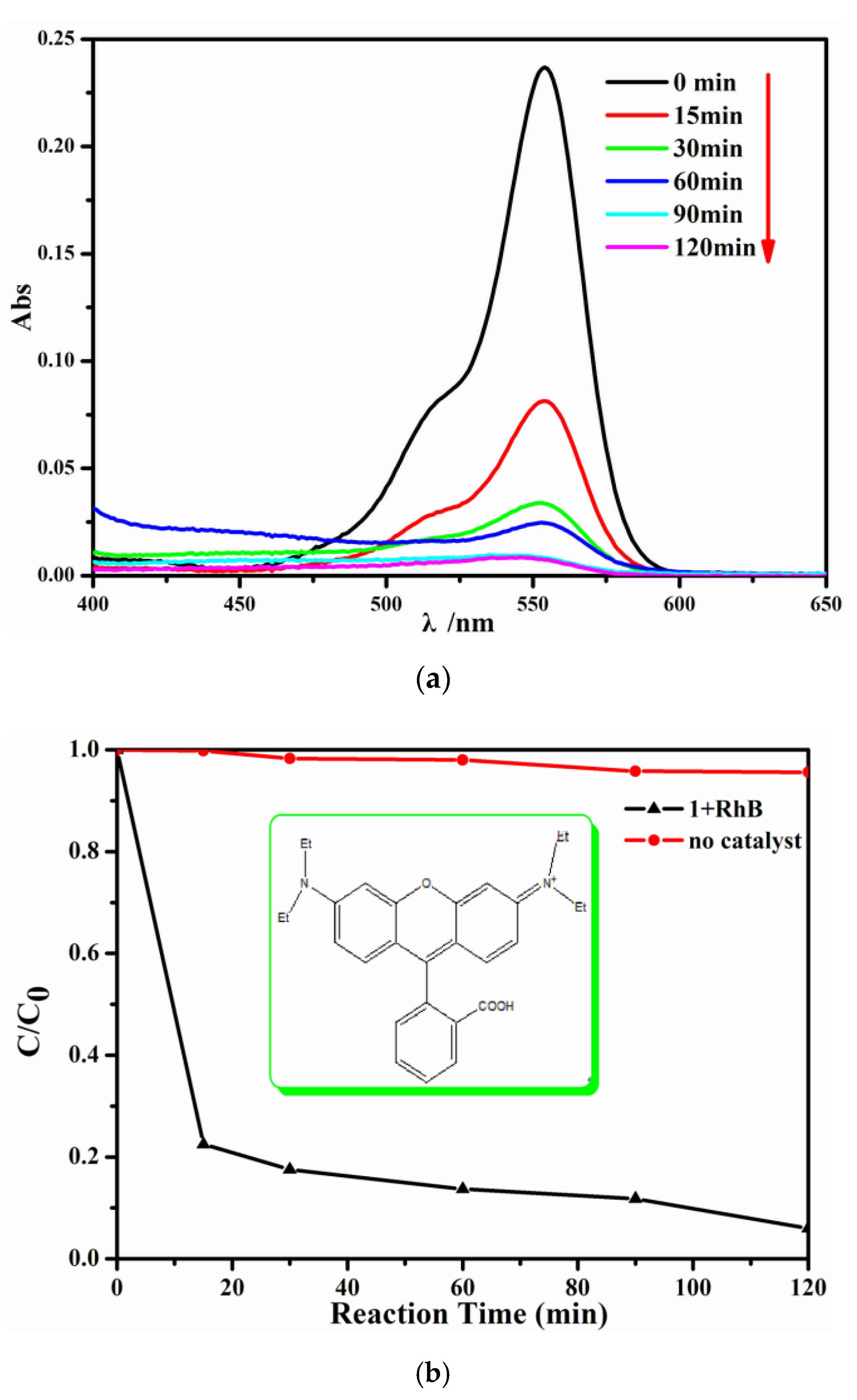

Figure 5. (a) Time-dependent UV−Vis spectra of RhB with the presence of 1 as catalyst; (b) Degradation ratio of RhB different irradiation time with or without the presence of catalyst; (c) Recycling tests of 1 for RhB photodegradation under light irradiation.
Figure 5. (a) Time-dependent UV−Vis spectra of RhB with the presence of 1 as catalyst; (b) Degradation ratio of RhB different irradiation time with or without the presence of catalyst; (c) Recycling tests of 1 for RhB photodegradation under light irradiation.
Catalysts 11 00640 g005aCatalysts 11 00640 g005b
Catalysts 11 00640 sch001

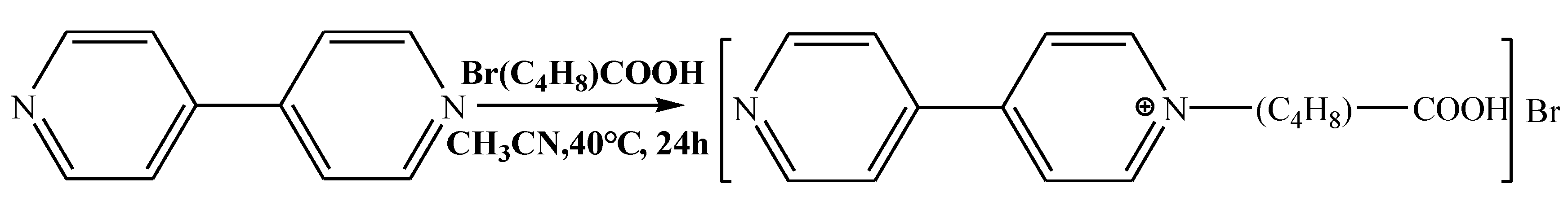

Scheme 1. Synthesis of BPA·Br.
Scheme 1. Synthesis of BPA·Br.
Catalysts 11 00640 sch001
Table 1. Selected Bond Lengths (Å) and Bond Angles (°).
Table 1. Selected Bond Lengths (Å) and Bond Angles (°).
BondDist.BondDist.Dist.Dist.
Bi(1)–I(1)3.0568(11)Bi(1)–I(1) a3.0568(11)Bi(1)–I(2)3.1094(12)
Bi(1)–I(2) a3.1094(12)Bi(1)–I(3)3.0761(10)Bi(1)–I(3) a3.0760(10)
I(4)–I(5)2.970(2)I(5)–I(6)2.888(2)I(7)–I(8)2.9226(17)
I(8)–I(9)2.9316(19)I(10)–I(11)2.9024(13)I(9)–I(12)3.361(4)
I(10)–I(13)3.30(3)I(12)–I(13)2.741(2)I(3)–I(7)3.727(3)
Angle(°)Angle(°)Angle(°)
I(1) a–Bi(1)–I(2) a87.53(3)I(1)–Bi(1)–I(2) a92.47(3)I(3) a–Bi(1)–I(2) a89.43(3)
I(3)–Bi(1)–I(2) a90.57(3)I(1) a–Bi(1)–I(2)92.47(3)I(1)–Bi(1)–I(2)87.53(3)
I(3) a–Bi(1)–I(2)90.57(3)I(3)–Bi(1)–I(2)89.43(3)I(2) a–Bi(1)–I(2)180.0
I(6)–I(5)–I(4)176.62(6)I(7)–I(8)–I(9)176.31(6)I(10)–I(11)–I(10) b180.00(4)
I(9)–I(12)–I(13)164.87(7)I(11)–I(10)–I(13)144.42(5)
Symmetry transformation: a: −x, −y + 2, −z + 1; b: −x − 1, −y + 2, −z + 1.
Table 2. Hydrogen Bond Lengths (Å) and Bond Angles (°).
Table 2. Hydrogen Bond Lengths (Å) and Bond Angles (°).
D–H…Ad(D–H)d(H…A)d(D…A)∠DHASymmetry Codes
N(1)–H(1N)…I(2)0.862.843.597(13)149−1 − x, 2 − y, −z
N(3)–H(3N)…I(2)0.862.793.578(13)153−1 + x, y, −1 + z
C(5)–H(5)…I(6)0.933.043.84(2)146−1 − x, 2 − y, −z
O(2)–H(2W)…O(3)0.822.102.640(14)123−1 − x, 1/2 + y, 1/2 − z
