Ru Catalysts Supported on Commercial and Biomass-Derived Activated Carbons for the Transformation of Levulinic Acid into γ-Valerolactone under Mild Conditions

by
Zaira Ruiz-Bernal
,
María Ángeles Lillo-Ródenas
and
María del Carmen Román-Martínez
*
MCMA Group, Department of Inorganic Chemistry and Materials Institute (IUMA), Faculty of Sciences, University of Alicante, Ap. 99, E-03080 Alicante, Spain
*
Author to whom correspondence should be addressed.
Catalysts 2021, 11(5), 559; https://doi.org/10.3390/catal11050559
Submission received: 23 March 2021 / Revised: 23 April 2021 / Accepted: 26 April 2021 / Published: 28 April 2021
(This article belongs to the Section Environmental Catalysis)
Browse Figures
Versions Notes

Abstract

:
Ru catalysts (1 wt.%) supported on commercial and biomass-derived activated carbons (AC) have been prepared, thoroughly characterized, and used in the hydrogenation of levulinic acid to produce gamma-valerolactone (GVL). This is an important platform compound that plays a key role in the production of liquid fuels and that can also be used, for example, as a food flavoring agent, antifreeze, and solvent. The study focuses on the influence of the carbon support characteristics, such as porous texture and acidity, on the properties and performance (LA conversion and selectivity to GVL) of the catalysts. Catalytic activity tests have been carried out at 170 °C and also in noticeably milder conditions (70 °C) to implement a less energy-demanding process. All the catalysts show high LA conversion and GVL yield at 170 °C, while at 70 °C, important differences between them, related to the support properties, have been found. The catalysts prepared with more acidic supports show better catalytic properties: very good catalytic performance (98% LA conversion and 77% selectivity to GVL) has been obtained in mild temperature conditions.

Graphical Abstract

1. Introduction

The massive use of fossil fuels has led to their depletion and to important environmental pollution problems. To face this situation, it is necessary to promote the use of renewable energy sources and to develop both new strategies for energy production and sustainable methods to obtain chemical products. In this line, lignocellulosic biomass residues are renewable raw materials with the potential to produce high added-value products [1,2], such as fuels, platform molecules for the chemical industry, and functional materials [3]. The main sources of lignocellulosic biomass are agricultural and forestry residues.
Lignocellulosic biomass is composed of hemicellulose (15–30 wt.%), cellulose (30–50 wt.%), and lignin (15–30 wt.%), in proportions that depend on the biomass nature and with different reactivity and transformation possibilities (Figure 1). The hydrolysis of cellulose produces glucose, which can be further hydrolyzed to 5-hydroxymethylfurfural (HMF), an interesting precursor for the synthesis of other high added-value chemicals, and leads to the formation of levulinic acid (LA) and formic acid (FA) [4,5] by rehydration. Levulinic acid can be also obtained from xylose, the hydrolysis product of hemicellulose, after dehydration to furfural and hydrogenation to furfuryl alcohol (Figure 1). LA is one of the best chemical platform compounds, leading to suitable intermediates for the preparation of a variety of pharmaceutical and industrial products with applications, such as food flavoring agents, antifreeze, solvents, etc. [6,7,8,9,10]. Among the interesting products that can be obtained from LA, gamma-valerolactone (GVL) stands out because it is a relevant compound in a “cascade” of processes for the production of liquid fuels and also because it has important direct applications, for example, as a fragrance, food ingredient, fuel additive, and solvent. Some of these applications are related to interesting properties, such as limited reactivity with water or oxygen, high boiling point, low vapor pressure, and low toxicity [11,12,13]. GVL can be obtained from levulinic acid by any of the two routes shown in Figure 2 [14]: (i) dehydration to produce the intermediate angelica lactone (AL), which is further hydrogenated, or (ii) hydrogenation, to produce 4-hydroxypentanoic acid (HPA) by reduction of the carbonyl group, followed by dehydration.
The process requires the use of a catalyst and severe pressure and temperature conditions to achieve a high GVL yield [15]. Regarding the catalytic system, it must be active for the hydrogenation of carbonyl groups, but some acidity is also required for the dehydration step.
Catalysts 11 00559 g002 550

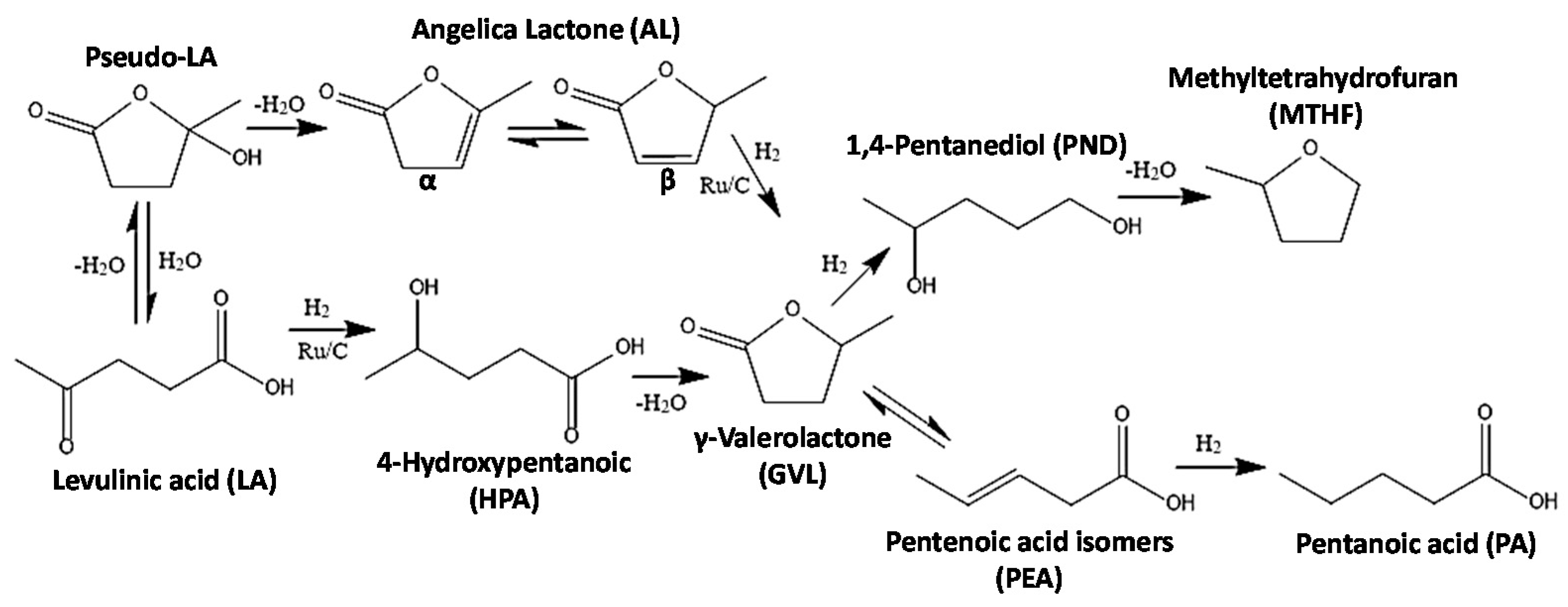

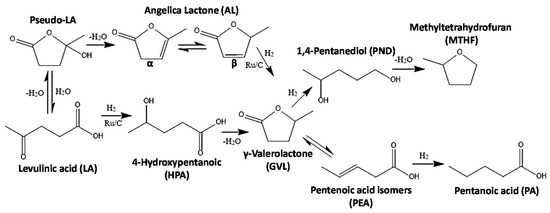

Figure 2. Scheme of potential reactions taking place in the hydrogenation of levulinic acid to obtain γ-valerolactone, based on schemes in [14,16].
Figure 2. Scheme of potential reactions taking place in the hydrogenation of levulinic acid to obtain γ-valerolactone, based on schemes in [14,16].
Catalysts 11 00559 g002
Hydrogenation of LA to obtain GVL has been carried out with both homogenous and heterogeneous catalysts [12]. In reference to homogenous systems, Starodubtseva et al. [17] reported the effectivity of a RuII-BINAP-HCl catalytic system, with 95% GVL yield in ethanol, and Mehdi et al. [18] reported a 96% GLV yield using Ru(acac)3-TPPTS in a water solution. However, homogeneous systems have limitations, such as difficult recoverability and lower thermal stability, hindering their use on an industrial scale. Because of that, heterogeneous catalysts are the most promising and technically feasible option. A current challenge is to reduce the energy demand of the process by using more efficient (active and selective) catalysts and milder reaction conditions.
Many authors have claimed that supported noble metal catalysts show good performance in the conversion of LA to GVL, among which ruthenium-based ones present the highest catalytic activity and selectivity [12,14,15,19,20,21]. The ruthenium-supported catalysts have proved to be efficient in many other reactions, highlighting, as an example, their performance in hydrogenation reactions [14,22,23]. The support plays a relevant role, as it allows a good dispersion of the hydrogenation active species and regulates the degree of metal-support interaction, which has been reported to influence the catalytic activity [24,25]. Besides, it must also be responsible for the acidic character of the catalysts, being an active species as well.
Several materials have been reported as supports for Ru and other noble metals in the development of catalysts for the transformation of LA into GVL. Some examples are inorganic oxides like SiO2 [26], ZrO2 [27], and TiO2 [28], polymeric materials as cross-linked sulfonated polyethersulfone (SPES) [29], materials of mineral origin like hydroxyapatite (HPA) [30], and carbon materials [21]. Among them, carbon materials can be considered an interesting option, due to their tunable surface area and porous structure, surface chemistry, and the possibility of being shaped in different morphologies [24]. Moreover, as they can be obtained from lignocellulosic biomass residues, the use of this kind of carbon materials to prepare catalysts for LA hydrogenation would contribute to an integral approach towards the valorization of the mentioned residues. From a broad perspective, they can be regarded as a suitable alternative to prepare green catalysts.
There are a number of publications dealing with Ru/C catalysts [19,24,25,31,32]. However, in most of them, the obtained catalytic activity results are not discussed in relation to the support physicochemical properties. Moreover, although interesting results have been already obtained with carbon-supported Ru catalysts, it is still a challenge to develop a catalytic system with high efficiency (high GVL yield) achieved in as mild as possible conditions (mainly, low temperature, low pressure, short reaction time, low metal content, and water as a solvent).
Thus, the purpose of this work is to develop carbon-supported Ru catalysts that fulfill the aforementioned requirements, optimizing as much as possible the resources. Catalysts with a low Ru content, 1 wt.%, have been prepared using different carbon materials as supports. They have been characterized in detail and tested in the LA hydrogenation to GVL both in regular and mild reaction conditions. The study focuses on the influence of the supports’ characteristics (porous structure, surface area, and surface chemistry), on the catalysts’ properties and catalytic behavior.

2. Results and Discussion

2.1. Textural Properties of Supports and Catalysts

Figure 3 shows the N2 adsorption–desorption isotherms obtained for the supports and the reduced RuR/C catalysts. The isotherms are type IV according to IUPAC classification [33], typical of materials that contain both micro and mesopores.
The calculated values of specific surface area and pore volumes for supports and catalysts (as prepared and reduced) are presented in Table 1.
Data in Table 1 show that the carbon materials used in this work have significantly different textural properties, regarding both surface area and pore size distribution.
After impregnation with the RuCl3 aqueous solution and drying, the samples show, in general, a small decrease in their adsorption capacity with respect to the corresponding carbon supports. However, after the reduction treatment there is a noticeable increase in the surface area of sample RuR/LC (a very slight increase is also found for RuR/WV). Data in Table 1 show that the surface area increase in sample RuR/LC is related to a significant increase in the micro and supermicropore volumes. It seems that part of this porosity of the LC carbon was blocked and it has been cleared upon the catalyst reduction heat treatment. Such treatment, in pure H2 at 250 °C for 4 h, probably removes oxygen functional groups (OFG), leaving some pores accessible to gas adsorption. The process of OFG removal could be catalyzed by the reduced Ru species. Thus, as it will be shown in the next paragraph, the TPD profiles of the reduced catalysts are different from those of the pristine supports (Table S1 and Figure S1). These differences can be related to modifications associated to the impregnation step, but also to a catalytic effect of metallic Ru to decompose OFG. Data of Table S1 show that the amount of CO2 and CO evolved increases for all the reduced catalysts compared to the supports, but such an increase is particularly high in the case of sample RuR/LC. This means that in this case, the surface chemistry (and likely also the textural properties) of the LC carbon is more prone to thermally induced modifications, in particular, those catalyzed by the Ru nanoparticles.
A thorough analysis comparing the different pore volumes (Table 1) in supports and reduced catalysts shows that, in general, and due to the low Ru loading, the supported Ru nanoparticles have a relatively slight effect on the porosity. However, such an effect is not equal for the different catalysts and allows to draw an approximate image of the location of the Ru particles within the porosity. Figure S2 shows a graphic of such a comparison. Thus, for sample RuR/SA-30, there is only a small decrease of the micropore volume (V DR,N2, and V DR,CO2); for RuR/WV-1100, the pore volume does not decrease at all; in the case of RuR/ASC, there is a significant decrease of the micropore volume (VDR, N2, VDR, CO2, and Vsuper micro) and in the case of RuR/LC, the decrease is noticeable in the mesopore volume, although, as commented, the micropore volume also increases, due to OFG removal.

2.2. Surface Chemistry of Supports and Catalysts

Figure 4 shows the CO2 and CO evolution TPD curves obtained for the carbon supports. CO2 and CO evolve as a consequence of the decomposition of oxygen functional groups (OFG) with different thermal stability and different chemical nature [34,35,36,37]. CO2 is mainly generated by the decomposition of functional groups with acidic character like carboxylic acids, anhydrides, and lactones, that decompose in the following temperature intervals: ~230–380 °C, ~ 520–550 °C, and ~ 650–670 °C, respectively. On the other hand, CO emission is due to the decomposition of weakly acidic phenol type groups, and carbonyls and quinones, with basic character, that decompose at higher temperatures: at ~650–700 °C and ~750–943 °C, respectively.
Besides, CO and, especially, CO2 desorption at high temperature, above ~860 °C (Figure 4) is not common and can be explained by the decomposition of OFG related to the presence of residual phosphorus species remaining from the H3PO4 activation treatment. As previously reported, C–O–P bonds present on the surface are thermally unstable at temperatures above 700 °C [38,39].
The quantification of the TPD profiles of the carbon supports is presented in Table 2. These data reveal important differences in the surface chemistry of the supports: biomass-derived ACs have a lower amount of surface oxygen groups, and lower CO2/CO ratio, than commercial ones, which can be linked to a higher basic character of the former ones.
The reduced catalysts have been also characterized by TPD experiments. As mentioned above, the TPD profiles of the reduced catalysts are significantly different from those of the pristine supports (Table S1 and Figure S1) as a consequence of modifications of the OFG associated with the impregnation step and the influence of the presence of metallic Ru in their thermal decomposition [40,41]. The amounts of generated CO2 and CO, products of the OFG decomposition, are higher for the reduced catalysts than for the supports and reflects that with the aid of the Ru nanoparticles more OFG can be decomposed in the temperature interval used in the TPD experiments. The mentioned increment of decomposed OFG depends on the nature of the carbon material and has shown to be the highest for sample RuR/LC.

2.3. TEM and XPS Analysis of Ru Catalysts

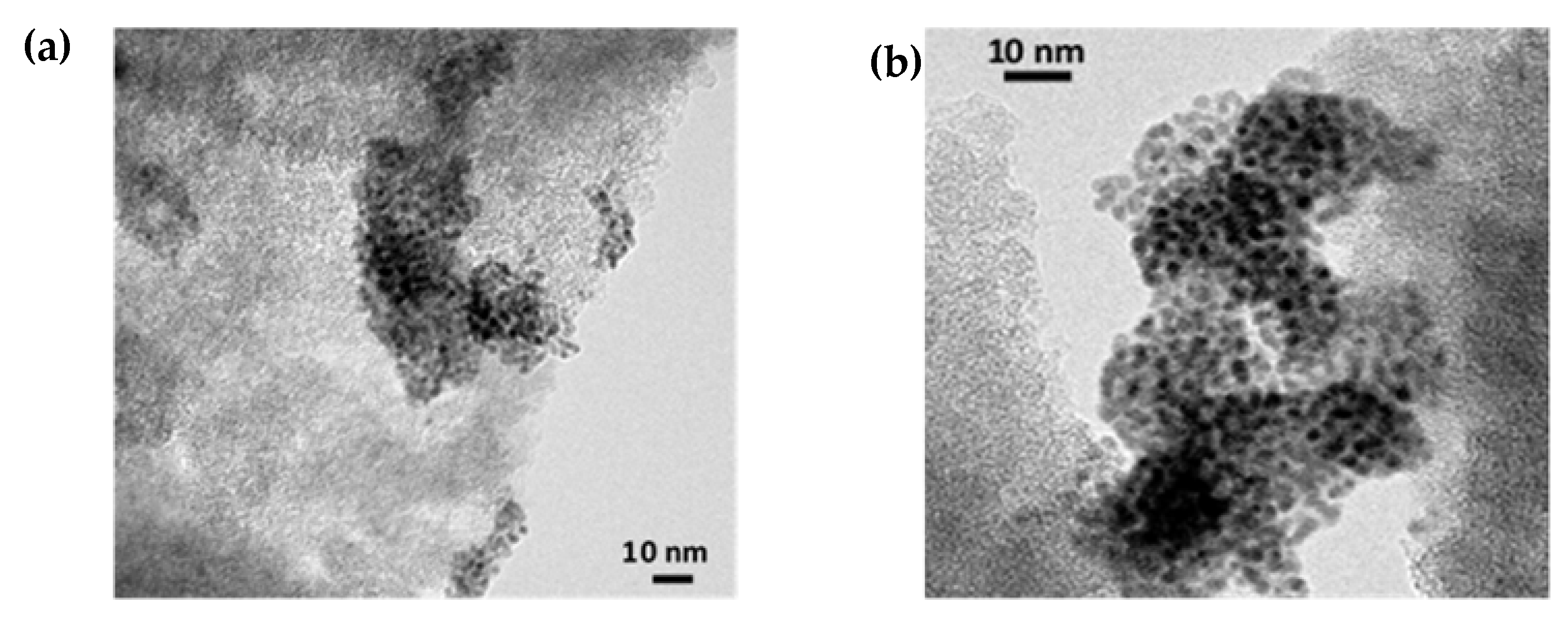

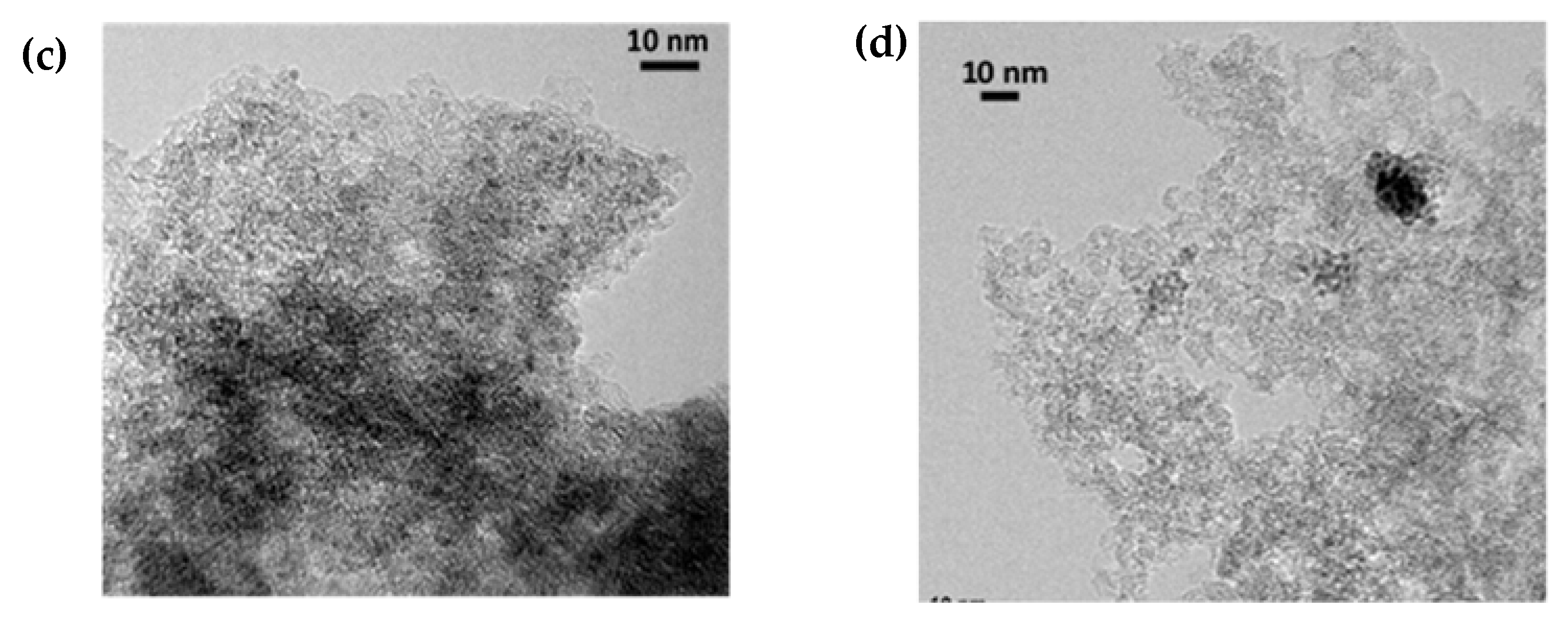

Figure 5 shows some representative TEM images of the RuR/C catalysts. It can be observed that the four samples contain small Ru nanoparticles. The particle size distribution determined from the measurement of more than 100 particles (see Figure S3 and Table S2) reveals that the average particle size is around 2 nm in the four catalysts. The observed particles are very well distributed in the RuR/ASC catalyst, whereas in the other three catalysts they seem to be concentrated in particular regions. Besides, for the RuR/SA-30 catalyst some larger particles have also been observed (see inset of Figure S3). These differences imply that the support properties affect the interaction of the Ru precursor with the support’s surface and, likely, also the modifications occurring during the reduction process.

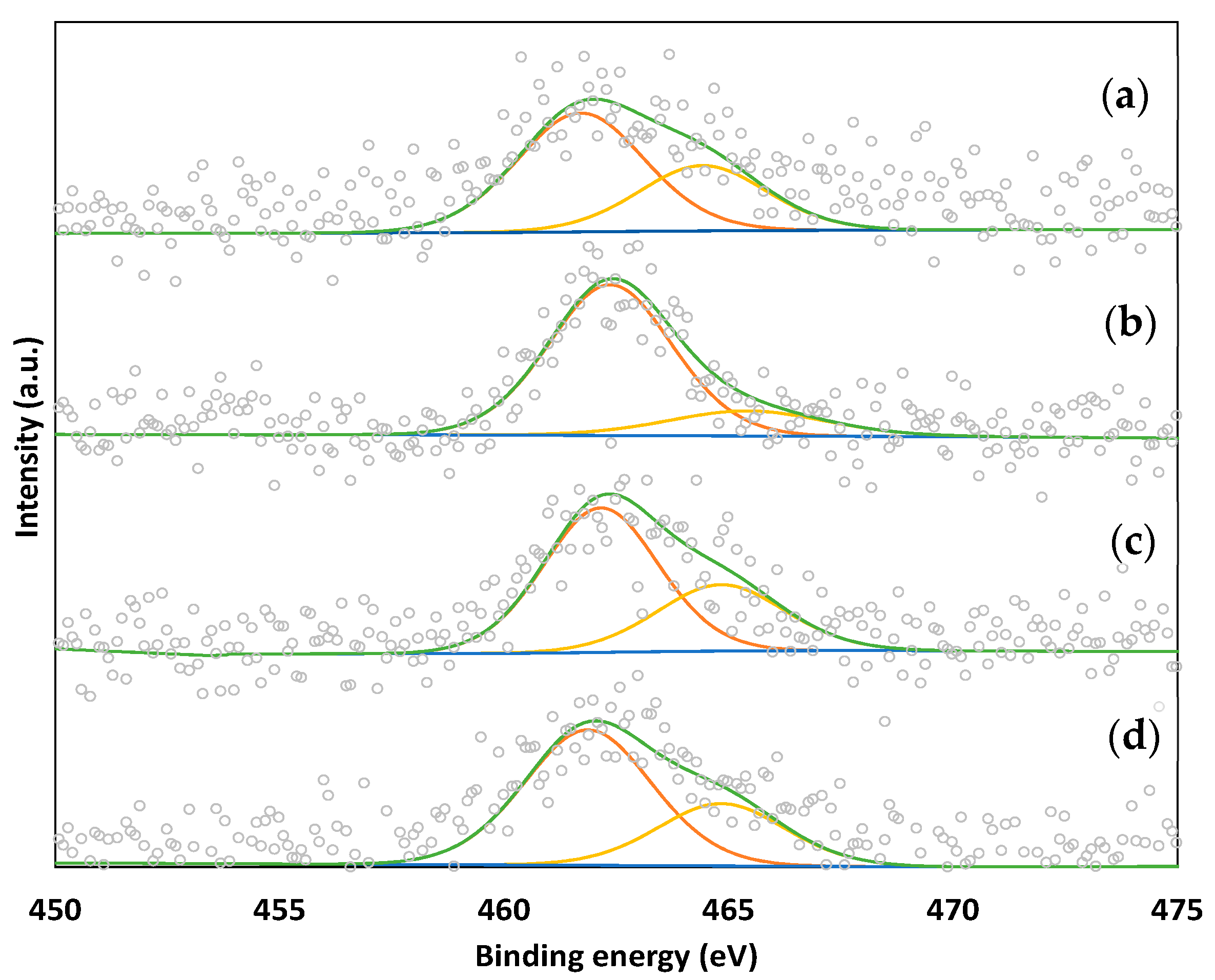

Figure 6 shows the Ru 3p3/2 XPS spectra of the RuR/C catalysts. Two Ru species with different 3p3/2 binding energy (B.E.) are present in these samples: Ru0 (B.E. of about 462 eV) [42] and RuOx/Ru0 (Ru oxide on metallic Ru, with B.E. of about 465 eV) [43]. The presence of RuCl3 can be discarded because the reported B.E. for this species is 464.1 eV [44]. The B.E. values, the atomic percentage of the two mentioned species, and the atomic Ru/C, Cl/C, and Cl/Ru ratios are presented in Table 3. Ru0 is the predominant species in the four catalysts (more than 60 at.%). The presence of Ru as RuOx/Ru0 means that partial surface oxidation of the Ru particles takes place upon exposure to the environment. It can be pointed out that the proportion of Ru0 is the largest (83 at.%) in the RuR/WV-1100 catalyst, meaning that the reduced Ru particles are more stable in this sample. However, there is not a clear relationship between this observation and the carbon support properties.
The slight differences in the Ru 3p3/2 B.E. values corresponding to Ru0 and RuOx/Ru0 in the different catalysts are not significant. The standard deviation is 0.25 and 0.35, respectively—values which are well in the reported intervals for these data [44]—and can be associated with fitting difficulties, due to the lower intensity signal arising from the low Ru loaded catalysts.
The Ru/C atomic ratio is very similar for the four catalysts, meaning that the Ru dispersion is similar, in agreement with the similitude of the Ru particle size determined from the TEM analysis. Small amounts of chlorine (~0.1–0.9 wt.%) and phosphor (~1.5–2 wt.%) have been detected to be present in the catalysts. According to the Cl/Ru ratio, the RuR/WV-1100 and RuR/ASC catalysts keep about 1/3 of the chlorine from the impregnation process. Some chloride commonly remains in catalysts prepared by a similar preparation method and conditions, as evidenced in other works as [24,30,45,46].

2.4. Catalytic Activity Tests

Blank experiments (without catalyst) do not show LA conversion. However, the tests carried out with the carbon supports show some LA conversion and GVL yield (at 170 °C, LA conversion is about 40% with 5% GVL yield, and at 70 °C, about 11% LA is converted, without GVL formation). These results can be considered in agreement with those reported by Sudhakar et al. [30], who proved that, at 70 °C and 5 bar H2, 2% LA conversion, with 99% selectivity to GVL, was achieved using hydroxyapatite support.
Table 4 shows the catalytic activity results obtained with the four tested catalysts in tests performed at 170 °C.
No other products apart from GVL have been detected in this study. Intermediates such as 4-hydroxypentanoic acid (HPA) or angelica lactone (AL) (Figure 2), are not present in the resulting solution. However, as the chromatographic column used for HPLC analysis, well suited for the analysis of LA and GVL, is not very appropriate for 1,4-pentanediol (PND) detection, the formation of this compound cannot be discarded. This would explain the fact that the selectivity to GVL did not reach 100%.
Recycling tests have been performed with three of the catalysts, showing that they maintain their high LA conversion and GVL yield in a second catalytic run. Table 5 shows the obtained results.
The four catalysts show a very good catalytic behavior at 170 °C, with LA conversion close to 100% and GVL yield above 80%. Hence, operating at this reaction temperature, it is not possible to assess the relative influence of the properties of the catalysts (surface area, surface chemistry, and/or state of active species) in the catalytic behavior. Note that the mean nanoparticle size is similar in all the catalysts (~2 nm), so it is not a decisive parameter to explain the differences in the catalytic behavior of the studied catalysts.
The obtained catalytic results are interesting, but to put them in context it is necessary to compare them with analogous results obtained with different Ru/C catalysts reported in the literature. Such a comparison (Table 6) shows that the carbon supports used in the present work play a relevant role in the high performance of the prepared catalysts. Although reaction conditions differ in most of the reported studies, a general comparative analysis can be drawn from such a comparison.
As shown in Table 6, most of the reported studies deal with 4–5 wt.% Ru catalysts, while the present work leads to comparable conversion and selectivity results with a much lower Ru loading, 1 wt.%.
As reported by Yan et al. [25] (entry 1) a high LA conversion and GVL yield has been obtained with a 5 wt.% Ru/C catalyst using methanol as a solvent at 130 °C under 12 bar H2 in 160 min reaction time. Although the authors do not give details about the catalyst support, they seem to have used a commercial one. In any case, information on the carbon properties is not provided.
Manzer [19] (entries 2 and 3) has studied the LA hydrogenation to GVL as the first step in the production of α-methylene-γ-valerolactone (MeMLB) at 150 °C in dioxane. The authors prepared the catalyst by incipient wetness impregnation with a metal salt solution, followed by reduction with H2 (400 °C, 2 h), but neither details about the properties of the carbon used as support, nor the catalyst dosage are detailed. 100% LA conversion and 97% selectivity to GVL were obtained in 240 min using 34 bar H2 (entry 3).
In the work of Ruppert et al. [31] (entry 4), the catalyst was prepared with the commercial activated carbon C-DARCO, but the authors did not give information about surface area or surface chemistry (it is probably a support with around 1600 m2/g). LA hydrogenation was carried out in water at 190 °C and 10 bar H2 for 60 min using a relatively low S/C ratio. In these conditions, although LA conversion was high, the specific reaction rate was low.
A recent work of Jędrzejczyk et al. [24] has focused on the nature of the carbon material used as support for Ru/C catalysts (entry 5). These authors have used four commercial carbon materials with surface area ranging from 649 to 973 m2/g and some derived samples with different grain size. Reaction conditions are 190 °C, 10 bar H2, 60 min, and S/C ratio of 58. The study has included a good characterization of supports and catalysts, and some differences in acidic properties are reported for them. However, the authors attribute the observed differences in catalytic activity to a different metal–support interaction strength related to defects on the surface of the carbon material and the type of Ru species. In their study, the most active catalyst is the one with the highest number of defects, which, according to the authors, stimulate the strong interaction of the metal with the support.
Finally, the work of Song et al. [32] deals also with Ru/C catalysts prepared with quite different carbon materials (an AC from olive stones, high surface graphite, carbon nanotubes, and reduced graphene oxide). Entries 6 and 7 show the data corresponding to the highest and lowest LA conversion achieved. With all the studied catalysts, excepting Ru/AC, selectivity to GVL is 80%. The differences in the catalysts’ behavior are attributed to differences in the Ru particle size (2.9 nm in Ru/AC and 1.2 nm in Ru/rGO). The reported catalytic behavior is very good.
This comparison with literature results indicates that the catalysts reported in the present work show, with much lower Ru content, a comparable or in some cases even better catalytic behavior, with a high specific reaction rate and a very high selectivity to GVL (entry 8). This good behavior is probably due to the properties of the carbon materials used as support, but also to the selected reaction conditions.
To better analyze the effect of the carbon properties of these supported ruthenium catalysts, and also to perform LA hydrogenation in milder and less energy-demanding reaction conditions, a second set of catalytic activity tests has been carried out at 70 °C.

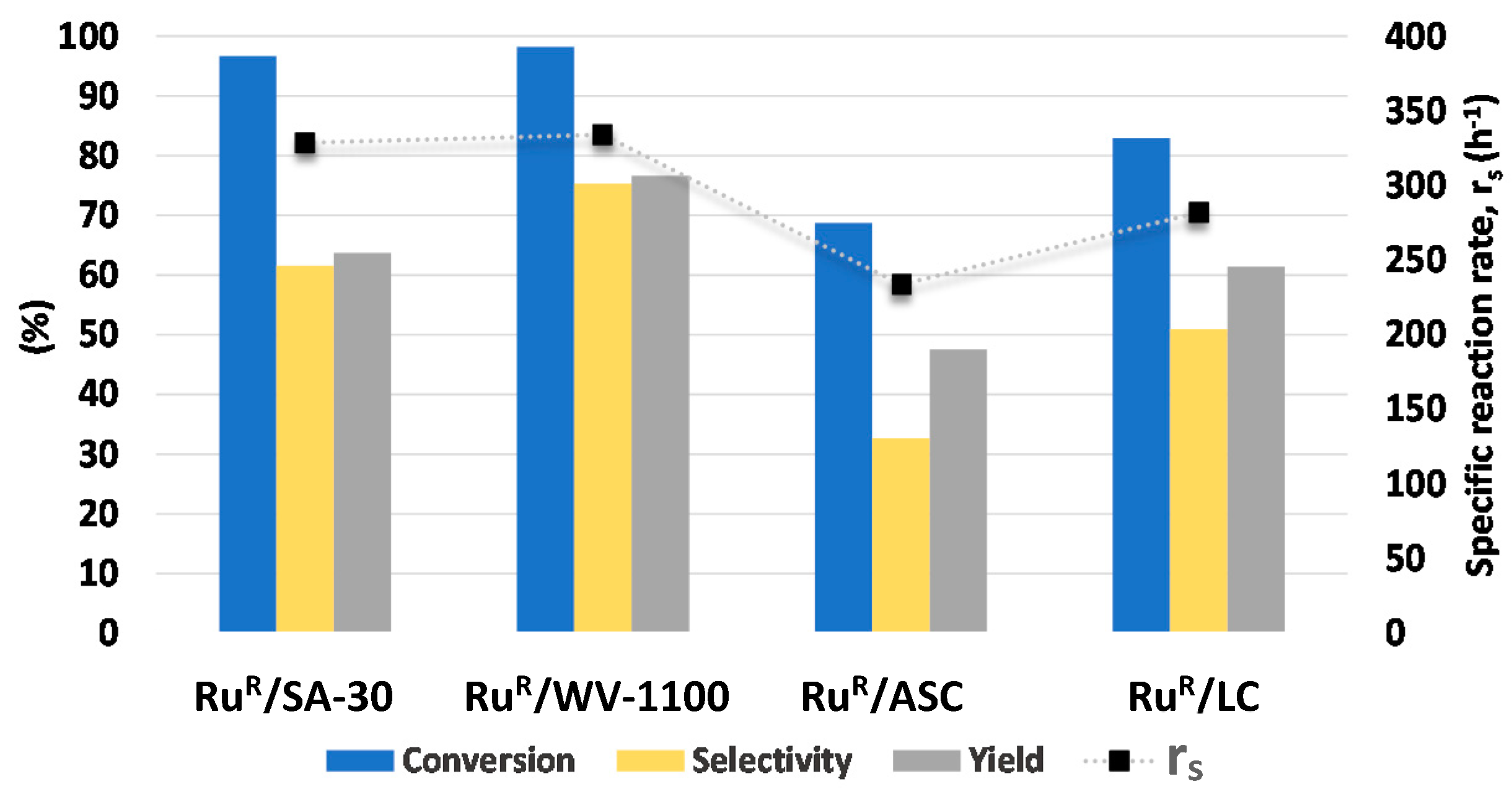

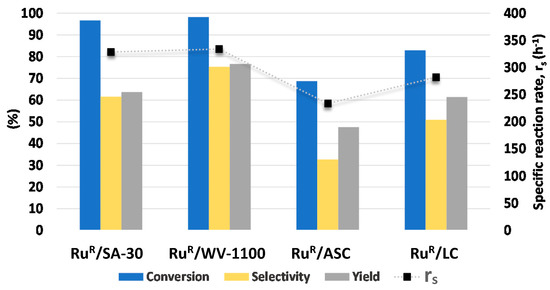

The obtained results (Figure 7) show that, at this lower temperature, the four catalysts present a significantly different behavior, which would be related to the carbon support properties. Thus, at high reaction temperature, the four catalysts give a high LA conversion, close to 100%, but as the reaction temperature decreases, the particular features of the catalysts show their influence in the process.
Compared to the results obtained at 170 °C, LA conversion at 70 °C is only slightly lower in the case of RuR/SA-30 and RuR/WV-1100 catalysts, but it is about 15% and 30% lower for RuR/LC and for RuR/ASC catalysts, respectively (these changes are also observed in the rs values). As the LA conversion at 70 °C for two catalysts is only slightly lower than at 170 °C, it can be assumed that the effect of temperature on the hydrogen diffusion in the solvent is not very important [25]. The poorer LA conversion and selectivity to GVL shown by the biomass-derived carbon-supported catalysts suggests that the support acidity plays a relevant role in the process, in agreement with [14,30,47,48]. It can be assumed that if the support acidity is lower, as in the case of RuR/ASC and RuR/LC, the dehydration step required to convert LA into GVL is hindered (see reaction scheme in Figure 2).
Then, these results highlight the important influence of the surface chemistry of the carbon supports on the catalytic performance of the Ru/C catalysts under mild conditions, being the acidity of the catalysts that favors the LA hydrogenation and selectivity to GVL. It can be then concluded that the reaction temperature can be lowered, maintaining a high activity if a carbon support with a suitable acidity is chosen.
It must also be pointed out that at 70 °C the RuR/WV-1100 catalyst keeps a GVL yield relatively close to the one obtained at 170 °C (75% vs. 87%), showing good catalytic performance at this relatively low reaction temperature.
Reported studies using such a low temperature for LA conversion to GVL are scarce. For example, Yao et al. [29] performed the reaction at 70 °C, but at 30 bar H2 for 120 min with a commercial 2 wt.% Ru/C catalysts (1850 m2/g). Using an S/C ratio of 348, they obtained an rs value of 95 h−1 (much lower than the one obtained for most of the catalysts in this work (Figure 7)). In the work of Galletti et al. [49], the reaction was also carried out at 70 °C and 30 bar H2, but acid agents were also used to increase the activity. They found that the combination of Amberlyst A70, or niobium phosphate, with a commercial 5 wt.% Ru/C catalyst (880 m2/g) led to a catalytic system that produced a high GVL yield (99%) in 3 h reaction time and rs value of 558 h−1.
The use of a reaction temperature as low as 70 °C is a promising alternative to increase the energetic efficiency of the process. The optimization of the operation conditions, together with the modification of the catalyst acidity to obtain more efficient bifunctional catalysts, could improve the good catalytic results already achieved in the present study for this reaction.

3. Materials and Methods

3.1. Materials

The carbon materials used as supports to prepare the Ru/C catalysts are two commercial activated carbons from MeadWestvaco (now Ingevity Corporation, North Charleston, SC, USA), named SA-30 and WV-1100, and two activated carbons prepared from biomass residues by activation with phosphoric acid (H3PO4). ASC was prepared by hydrothermal carbonization from almond shells in conditions, such as those reported in [50]. Milled almond shells were mixed with an aqueous H3PO4 solution (25 wt.%) in a stainless-steel autoclave (H3PO4/almond shell wt. ratio = 1) and heated at 200 °C for 24 h. The resulting hydrochar was then heated (450 °C, 2 h, N2 50 mL min−1). Afterward, the sample was washed with distilled water at 65 °C and dried at 110 °C overnight. LC was prepared from Luffa Cylindrica, a lignocellulosic plant original from the region of Metidja in northern Algeria (commonly called loofah sponge, by chemical activation using 85% phosphoric acid, in a H3PO4/LAC wt. ratio of 5/1, at 550 °C, 1 h, N2 60 mL min−1. The obtained carbon was washed many times with distilled water, using a Soxhlet, until a neutral pH and dried (105 °C, 24 h).
RuCl3 (45–55 wt.% Ru), levulinic acid (98%), and gamma-valerolactone (99%) were purchased from Sigma Aldrich (St. Louis, MO, USA).

3.2. Catalysts Preparation

Carbon supported Ru catalysts were prepared by impregnation using an aqueous solution of RuCl3 (18 mL solution/g of support) of the appropriate concentration (0.56 mmol/L) to get 1 wt.% Ru (nominal content). The mixture was mechanically stirred for 24 h and then ultrasonicated for 3 h. Finally, the solvent was removed in a stove at 115 °C.
The as-prepared catalysts are named Ru/Sup, where Sup is the name of the carbon material used as support as indicated before. If they have been submitted to a reduction treatment (250 °C, H2 (75 mL/min), 4 h) the name includes the letter “R” as a superscript (RuR/Sup).

3.3. Characterization of Supports and Catalysts

The surface area and porosity of supports and catalysts were characterized by gas adsorption, N2 at −196 °C and CO2 at 0 °C [51,52], using a volumetric Autosorb-6B apparatus from Quantachrome. Before the analysis, the samples were degassed at 250 °C for 4 h. The apparent surface area (SBET) was calculated by application of the BET equation to the nitrogen adsorption data [53]. The Dubinin–Radushkevich equation was applied to the N2 and CO2 adsorption isotherms to determine the total micropore volume (VDR, N2, micropores smaller than 2 nm) and the narrow micropore volume (VDR, CO2, micropores smaller than 0.7 nm), respectively [54]. The difference between VDR, N2 and V DR, CO2 is known as Vsuper micro [51,53]. The mesopore volume (Vmeso, pores of size between 2 and 20 nm) was estimated as the difference of the volume of N2 adsorbed as a liquid at P/P0 = 0.9 and at P/P0 = 0.2 [53], while the total pore volume (VT) corresponds to the volume of N2 adsorbed as a liquid at P/P0 = 0.99.
The surface chemistry of the supports was studied by temperature-programmed desorption (TPD) in the following conditions: about 10 mg of the sample were heated at 20 °C /min in He flow (100 mL/min) up to 950 °C. The equipment used consists of a thermobalance (TA-SDT Q600) coupled to a mass spectrometer (Thermostar, Balzers, Pfeiffer Vacuum, Asslar, Germany) allowing the simultaneous record of weight loss and analysis of evolved gases (CO2, CO, and H2O).
X-ray photoelectron spectroscopy (XPS, VGMicrotech Multilab ESCA-3000 spectrometer, ThermoFisher Scientific, Waltham, MA, USA) was used to characterize the surface chemical composition of the catalysts and the electronic states of the supported Ru species. Ru 3p electrons were analyzed (instead of 3d ones) since Ru 3d and C 1s electrons have similar B.E. [42,55].
Transmission electron microscopy (TEM, JEM-2010 with digital camera GATAN ORIUS SC600, (JEOL, Tokyo, Japan)) was used to analyze the size and distribution of the Ru particles in the reduced catalysts. Particle size was measured with the ImageJ program.

3.4. Catalytic Activity Tests

In a typical LA hydrogenation catalytic test 0.445 mL LA, 130 mg catalyst, and 25 mL distilled water were mixed in the Teflon insert of a 100 mL stainless-steel batch reactor (Parr Instrument Company, Moline, IL, USA). After purging with He and under mechanical stirring (500 rpm), the H2 pressure was increased up to 15 bar at the selected reaction temperature (170 °C or 70 °C) and then, the system was kept in these conditions for 1 h. Afterward, the reactor was cooled down to room temperature and depressurized, and then the solid and liquid phases were separated by sedimentation. The supernatant solution was collected and filtrated with a syringe (filter of 0.45 µm) to be analyzed by High-Performance Liquid Chromatography (HPLC, Agilent 1100 series, Santa Clara, CA, USA), equipped with UV-Visible Variable Wavelength Detector) coupled to a Mass Trap Spectrometer (MS) with Ion Trap Analyzer (Agilent 1100 Series LC/MSD Trap SL, Santa Clara, CA, USA). The column used was ZORBAX Eclipse XDB-C8 (Agilent, Santa Clara, CA, USA) (dimensions 4.6 × 150 m2). More details can be found in Table S3.
Blank experiments, without catalyst and with the carbon supports, were carried out in the same conditions and following the same procedures.
After catalytic tests at 170 °C, the liquid and solid phases were separated by sedimentation, and then the solution was removed and filtered using a syringe. In each case, the catalyst was washed with three portions (25 mL) of distilled water and dried (115 °C, 24 h). Then, a second catalytic run was performed with the recovered catalyst under the same reaction conditions.

3.5. Product Analysis

LA conversion, GVL yield, selectivity to GVL and specific reaction rate were calculated as follows:
LA   conversion   ( % ) = n LA , initial − n LA , final n LA , initial × 100
  GVL   yield   ( % ) = n GVL n LA , initial × 100
GVL   selectivity   ( % ) = Yield Conversion × 100
Specific   reaction   rate ,   r s   ( h − 1 ) = n LA , initial − n LA , final n Ru ×   t × 100
where nLA,initial represents the number of moles of LA added to the reactor and nLA, final and nGVL represent the number of moles of LA and GVL in the liquid reaction product, respectively. nRu represents the number of moles of the active phase in the catalyst and t is the reaction time. Calibration was carried out using several standard and independent solutions of LA and GVL.

4. Conclusions

Active and selective Ru/C catalysts for the hydrogenation of levulinic acid to gamma-valerolactone have been prepared using as supports two commercial and two biomass-derived activated carbons (ACs).
The four Ru/C tested catalysts present a very high LA conversion and GVL yield when the reaction is performed at 170 °C. Thus, in these conditions the different support properties do not lead to differences between the catalysts, although they seem to be appropriate to achieve efficient catalysts. The prepared catalysts have shown a catalytic behavior superior to that of many of the Ru/C catalysts reported in the literature.
At lower reaction temperature (70 °C), noticeable differences between the catalysts’ behavior have been observed. The two catalysts prepared with the commercial ACs show better performance, which has been attributed to the higher acidic character of these materials. In particular, the catalyst prepared with the WV-1100 AC shows 98% LA conversion and 77% selectivity to GVL, with a specific reaction rate (rs) value very close to that obtained at 170 °C. These results highlight the importance of the support’s surface chemistry and allow us to conclude that the reaction temperature can be lowered, maintaining a high activity if a carbon support with a suitable acidity is chosen. This also leads to the next research step, focused on the functionalization of the biomass-derived ACs to increase their acidity.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/catal11050559/s1, Table S1. Amount of CO2 and CO from TPD experiments and calculated total oxygen content in the Ru/C catalysts (as prepared and reduced); Table S2. Mean nanoparticle size and the error associated; Table S3. Details of the HPLC analysis; Figure S1. TPD spectra of carbon supports and reduced catalysts: CO2 and CO evolution (be aware of the different scale in y-axis); Figure S2. Pore volume data comparison for supports and reduced catalysts. Figure S3. Particle size distribution for: (a) RuR/SA-30 (inset: particle size distribution beyond 4 nm), (b) RuR/WV-1100, (c) RuR/ASC and (d) RuR/LC.

Author Contributions

Conceptualization, M.Á.L.-R. and M.d.C.R.-M.; methodology, Z.R.-B., M.Á.L.-R. and M.d.C.R.-M.; investigation, Z.R.-B., M.Á.L.-R. and M.d.C.R.-M.; resources, M.Á.L.-R. and M.d.C.R.-M.; data curation, Z.R.-B., M.Á.L.-R. and M.d.C.R.-M.; writing—original draft preparation, Z.R.-B., M.Á.L.-R. and M.d.C.R.-M.; writing—review and editing, Z.R.-B., M.Á.L.-R. and M.d.C.R.-M.; supervision, M.Á.L.-R. and M.d.C.R.-M.; project administration, M.Á.L.-R. and M.d.C.R.-M.; funding acquisition, M.Á.L.-R. and M.d.C.R.-M. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Spanish Ministry of Science, Innovation and Universities (RTI2018-095291-B-I00), Generalitat Valenciana (PROMETEO/2018/076), European ComissionFEDER, and the University of Alicante (VIGROB-136).

Data Availability Statement

The data presented in this study are available in this article and in the Supplementary Materials.

Acknowledgments

Z.R.-B. thanks the Spanish Ministry of Science, Innovation and Universities for the predoctoral scholarship, reference PRE2019-090049. Z.R.-B., M.Á.L-R. and M.d.C.R.-M. thank J. Chaparro-Garnica and S. Boumad for providing ASC and LC carbon materials, respectively.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Alonso, D.M.; Bond, J.Q.; Dumesic, J.A. Catalytic conversion of biomass to biofuels. Green Chem. 2010, 12, 1493–1513. [Google Scholar] [CrossRef]
  2. Serrano-Ruiz, J.C.; Luque, R.; Sepúlveda-Escribano, A. Transformations of biomass-derived platform molecules: From high added-value chemicals to fuels via aqueous-phase processing. Chem. Soc. Rev. 2011, 40, 5266–5281. [Google Scholar] [CrossRef]
  3. Anjali, K.; Venkatesha, N.J.; Christopher, J.; Sakthivel, A. Rhodium porphyrin molecule-based catalysts for the hydrogenation of biomass derived levulinic acid to biofuel additive γ-valerolactone. New J. Chem. 2020, 44, 11064–11075. [Google Scholar] [CrossRef]
  4. Weingarten, R.; Conner, W.C.; Huber, G.W. Production of levulinic acid from cellulose by hydrothermal decomposition combined with aqueous phase dehydration with a solid acid catalyst. Energy Environ. Sci. 2012, 5, 7559. [Google Scholar] [CrossRef]
  5. Alonso, D.M.; Wettstein, S.G.; Dumesic, J.A. Gamma-valerolactone, a sustainable platform molecule derived from lignocellulosic biomass. Green Chem. 2013, 15, 584–595. [Google Scholar] [CrossRef]
  6. Du, X.L.; Bi, Q.Y.; Liu, Y.M.; Cao, Y.; Fan, K.N. Conversion of biomass-derived levulinate and formate esters into γ-valerolactone over supported gold catalysts. ChemSusChem 2011, 4, 1838–1843. [Google Scholar] [CrossRef] [PubMed]
  7. Galletti, A.M.R.; Antonetti, C.; De Luise, V.; Licursi, D.; Di Nasso, N.N.O. Levulinic acid production from waste biomass. BioResources 2012, 7, 1824–1835. [Google Scholar] [CrossRef] [Green Version]
  8. Wang, Y.; Vernières-Hassimi, L.; Casson-Moreno, V.; Hébert, J.P.; Leveneur, S. Thermal risk assessment of levulinic acid hydrogenation to γ-valerolactone. Org. Process Res. Dev. 2018, 22, 1092–1100. [Google Scholar] [CrossRef]
  9. Horváth, I.T.; Mehdi, H.; Fábos, V.; Boda, L.; Mika, L.T. γ-Valerolactone—a sustainable liquid for energy and carbon-based chemicals. Green Chem. 2008, 10, 238–242. [Google Scholar] [CrossRef]
  10. Mafokoane, M.; Seguel, J.; García, R.; Díaz de León, J.N.; Sepúlveda, C.; Escalona, N. Conversion of levulinic acid using CuO/WO3(x)-Al2O3 catalysts. Catal. Today 2020, 367, 310–319. [Google Scholar] [CrossRef]
  11. Dutta, S.; Yu, I.K.M.; Tsang, D.C.W.; Ng, Y.H.; Ok, Y.S.; Sherwood, J.; Clark, J.H. Green synthesis of gamma-valerolactone (GVL) through hydrogenation of biomass-derived levulinic acid using non-noble metal catalysts: A critical review. Chem. Eng. J. 2019, 372, 992–1006. [Google Scholar] [CrossRef]
  12. Tang, X.; Zeng, X.; Li, Z.; Hu, L.; Sun, Y.; Liu, S.; Lei, T.; Lin, L. Production of γ-valerolactone from lignocellulosic biomass for sustainable fuels and chemicals supply. Renew. Sustain. Energy Rev. 2014, 40, 608–620. [Google Scholar] [CrossRef]
  13. Hengst, K.; Schubert, M.; Carvalho, H.W.P.; Lu, C.; Kleist, W.; Grunwaldt, J.D. Synthesis of γ-valerolactone by hydrogenation of levulinic acid over supported nickel catalysts. Appl. Catal. A Gen. 2015, 502, 18–26. [Google Scholar] [CrossRef]
  14. Luo, W.; Deka, U.; Beale, A.M.; Van Eck, E.R.H.; Bruijnincx, P.C.A.; Weckhuysen, B.M. Ruthenium-catalyzed hydrogenation of levulinic acid: Influence of the support and solvent on catalyst selectivity and stability. J. Catal. 2013, 301, 175–186. [Google Scholar] [CrossRef]
  15. Abdelrahman, O.A.; Heyden, A.; Bond, J.Q. Analysis of kinetics and reaction pathways in the aqueous-phase hydrogenation of levulinic acid to form γ-Valerolactone over Ru/C. ACS Catal. 2014, 4, 1171–1181. [Google Scholar] [CrossRef]
  16. Wright, W.R.H.; Palkovits, R. Development of heterogeneous catalysts for the conversion of levulinic acid to γ-valerolactone. ChemSusChem 2012, 5, 1657–1667. [Google Scholar] [CrossRef] [PubMed]
  17. Starodubtseva, E.V.; Turova, O.V.; Vinogradov, M.G.; Gorshkova, L.S.; Ferapontov, V.A. Enantioselective hydrogenation of levulinic acid esters in the presence of the RuII-BINAP-HCl catalytic system. Russ. Chem. Bull. 2005, 54, 2374–2378. [Google Scholar] [CrossRef]
  18. Mehdi, H.; Fábos, V.; Tuba, R.; Bodor, A.; Mika, L.T.; Horváth, I.T. Integration of homogeneous and heterogeneous catalytic processes for a multi-step conversion of biomass: From sucrose to levulinic acid, γ-valerolactone, 1,4-pentanediol, 2-methyl-tetrahydrofuran, and alkanes. Top. Catal. 2008, 48, 49–54. [Google Scholar] [CrossRef]
  19. Manzer, L.E. Catalytic synthesis of α-methylene-γ-valerolactone: A biomass-derived acrylic monomer. Appl. Catal. A Gen. 2004, 272, 249–256. [Google Scholar] [CrossRef]
  20. Selva, M.; Gottardo, M.; Perosa, A. Upgrade of biomass-derived levulinic acid via Ru/C-catalyzed hydrogenation to γ-valerolactone in aqueous-organic-ionic liquids multiphase systems. ACS Sustain. Chem. Eng. 2013, 1, 180–189. [Google Scholar] [CrossRef]
  21. Feng, J.; Gu, X.; Xue, Y.; Han, Y.; Lu, X. Production of γ-valerolactone from levulinic acid over a Ru/C catalyst using formic acid as the sole hydrogen source. Sci. Total Environ. 2018, 633, 426–432. [Google Scholar] [CrossRef]
  22. Glotov, A.; Novikov, A.; Stavitskaya, A.; Nedolivko, V.; Kopitsyn, D.; Kuchierskaya, A.; Ivanov, E.; Stytsenko, V.; Vinokurov, V.; Lvov, Y. Nanoreactors based on hydrophobized tubular aluminosilicates decorated with ruthenium: Highly active and stable catalysts for aromatics hydrogenation. Catal. Today 2020. [Google Scholar] [CrossRef]
  23. Glotov, A.; Vutolkina, A.; Pimerzin, A.; Nedolivko, V.; Zasypalov, G.; Stytsenko, V.; Karakhanov, E.; Vinokurov, V. Ruthenium catalysts templated on mesoporous MCM-41 type silica and natural clay nanotubes for hydrogenation of benzene to cyclohexane. Catalysts 2020, 10, 537. [Google Scholar] [CrossRef]
  24. Jędrzejczyk, M.; Soszka, E.; Goscianska, J.; Kozanecki, M.; Grams, J.; Ruppert, A.M. The influence of carbon nature on the catalytic performance of Ru/C in levulinic acid hydrogenation with Internal Hydrogen Source. Molecules 2020, 25, 5362. [Google Scholar] [CrossRef]
  25. Yan, Z.P.; Lin, L.; Liu, S. Synthesis of γ-valerolactone by hydrogenation of biomass- derived levulinic acid over Ru/C catalyst. Energy Fuels 2009, 23, 3853–3858. [Google Scholar] [CrossRef]
  26. Bourne, R.A.; Stevens, J.G.; Ke, J.; Poliakoff, M. Maximising opportunities in supercritical chemistry: The continuous conversion of levulinic acid to γ-valerolactone in CO2. Chem. Commun. 2007, 44, 4632–4634. [Google Scholar] [CrossRef] [PubMed]
  27. Hengne, A.M.; Rode, C.V. Cu–ZrO2 nanocomposite catalyst for selective hydrogenation of levulinic acid and its ester to γ-valerolactone. Green Chem. 2012, 14, 1064–1072. [Google Scholar] [CrossRef]
  28. Primo, A.; Concepción, P.; Corma, A. Synergy between the metal nanoparticles and the support for the hydrogenation of functionalized carboxylic acids to diols on Ru/TiO2. Chem. Commun. 2011, 47, 3613–3615. [Google Scholar] [CrossRef] [PubMed]
  29. Yao, Y.; Wang, Z.; Zhao, S.; Wang, D.; Wu, Z.; Zhang, M. A stable and effective Ru/polyethersulfone catalyst for levulinic acid hydrogenation to γ-valerolactone in aqueous solution. Catal. Today 2014, 234, 245–250. [Google Scholar] [CrossRef]
  30. Sudhakar, M.; Lakshmi Kantam, M.; Swarna Jaya, V.; Kishore, R.; Ramanujachary, K.V.; Venugopal, A. Hydroxyapatite as a novel support for Ru in the hydrogenation of levulinic acid to γ-valerolactone. Catal. Commun. 2014, 50, 101–104. [Google Scholar] [CrossRef]
  31. Ruppert, A.M.; Jȩdrzejczyk, M.; Sneka-Płatek, O.; Keller, N.; Dumon, A.S.; Michel, C.; Sautet, P.; Grams, J. Ru catalysts for levulinic acid hydrogenation with formic acid as a hydrogen source. Green Chem. 2016, 18, 2014–2028. [Google Scholar] [CrossRef]
  32. Song, W.; Lozano-Martin, M.C.; Gallegos-Suarez, E.; Ramirez-Barria, C.; Weng, W.; Yi, X.; Bachiller-Baeza, B.; Guerrero-Ruiz, A.; Rodriguez-Ramos, I. New insights in the development of carbon supported ruthenium catalysts for hydrogenation of levulinic acid. Curr. Catal. 2018, 7, 129–137. [Google Scholar] [CrossRef]
  33. Thommes, M.; Kaneko, K.; Neimark, A.V.; Olivier, J.P.; Rodríguez-Reinoso, F.; Rouquerol, J.; Sing, K.S.W. Physisorption of gases, with special reference to the evaluation of surface area and pore size distribution (IUPAC Technical Report). Pure Appl. Chem. 2015, 87, 1051–1069. [Google Scholar] [CrossRef] [Green Version]
  34. Figueiredo, J.L.; Pereira, M.F.R. The role of surface chemistry in catalysis with carbons. Catal. Today 2010, 150, 2–7. [Google Scholar] [CrossRef]
  35. Figueiredo, J.L.; Pereira, M.F.R.; Freitas, M.M.A.; Órfão, J.J.M. Modification of the surface chemistry of activated carbons. Carbon 1999, 37, 1379–1389. [Google Scholar] [CrossRef]
  36. Szymański, G.S.; Karpiński, Z.; Biniak, S.; Światkowski, A. The effect of the gradual thermal decomposition of surface oxygen species on the chemical and catalytic properties of oxidized activated carbon. Carbon 2002, 40, 2627–2639. [Google Scholar] [CrossRef]
  37. Román-Martínez, M.C.; Cazorla-Amorós, D.; Linares-Solano, A.; Salinas-Martínez de Lecea, C. TPD and TPR characterization of carbonaceous supports and Pt/C catalysts. Carbon 1993, 31, 895–902. [Google Scholar] [CrossRef]
  38. Azar, F.-Z.; Lillo-Ródenas, M.A.; Román-Martínez, M.C. Cellulose hydrolysis catalysed by mesoporous activated carbons functionalized under mild conditions. SN Appl. Sci. 2019, 1, 1739. [Google Scholar] [CrossRef] [Green Version]
  39. Valero-Romero, M.J.; García-Mateos, F.J.; Rodríguez-Mirasol, J.; Cordero, T. Role of surface phosphorus complexes on the oxidation of porous carbons. Fuel Process. Technol. 2017, 157, 116–126. [Google Scholar] [CrossRef]
  40. Peng, G.; Gramm, F.; Ludwig, C.; Vogel, F. Effect of carbon surface functional groups on the synthesis of Ru/C catalysts for supercritical water gasification. Catal. Sci. Technol. 2015, 5, 3658–3666. [Google Scholar] [CrossRef] [Green Version]
  41. Grigorev, M.E.; Mikhailov, S.P.; Bykov, A.V.; Tiamina, I.Y.; Nikoshvili, L.Z.; Sulman, M.G.; Vasiliev, A.L.; Sidorov, A.I.; dos Santos, T.V.; Meneghetti, M.R.; et al. Surface interactions with the metal oxide surface control Ru nanoparticle formation and catalytic performance. Colloids Surf. A Physicochem. Eng. Asp. 2021, 610, 125722. [Google Scholar] [CrossRef]
  42. Folkesson, B.; Bjorøy, M.; Pappas, J.; Skaarup, S.; Aaltonen, R.; Swahn, C.-G. ESCA Studies on the charge distribution in some dinitrogen complexes of Rhenium, Iridium, Ruthenium, and Osmium. Acta Chem. Scand. 1973, 27, 287–302. [Google Scholar] [CrossRef]
  43. Shen, J.Y.; Adnot, A.; Kaliaguine, S. An ESCA study of the interaction of oxygen with the surface of ruthenium. Appl. Surf. Sci. 1991, 51, 47–60. [Google Scholar] [CrossRef]
  44. Morgan, D.J. Resolving ruthenium: XPS studies of common ruthenium materials. Surf. Interface Anal. 2015, 47, 1072–1079. [Google Scholar] [CrossRef]
  45. Auroux, A.; Gervasini, A. Microcalorimetric study of the acidity and basicity of metal oxide surfaces. J. Phys. Chem. 1990, 94, 6371–6379. [Google Scholar] [CrossRef]
  46. Coşkuner Filiz, B.; Gnanakumar, E.S.; Martínez-Arias, A.; Gengler, R.; Rudolf, P.; Rothenberg, G.; Shiju, N.R. Highly selective hydrogenation of levulinic acid to γ-Valerolactone Over Ru/ZrO2 Catalysts. Catal. Lett. 2017, 147, 1744–1753. [Google Scholar] [CrossRef] [Green Version]
  47. Seretis, A.; Diamantopoulou, P.; Thanou, I.; Tzevelekidis, P.; Fakas, C.; Lilas, P.; Papadogianakis, G. Recent advances in Ruthenium-catalyzed hydrogenation reactions of renewable biomass-derived levulinic acid in aqueous media. Front. Chem. 2020, 8, 221. [Google Scholar] [CrossRef] [Green Version]
  48. Piskun, A.S.; van de Bovenkamp, H.H.; Rasrendra, C.B.; Winkelman, J.G.M.; Heeres, H.J. Kinetic modeling of levulinic acid hydrogenation to γ-valerolactone in water using a carbon supported Ru catalyst. Appl. Catal. A Gen. 2016, 525, 158–167. [Google Scholar] [CrossRef]
  49. Galletti, A.M.R.; Antonetti, C.; De Luise, V.; Martinelli, M. A sustainable process for the production of γ-valerolactone by hydrogenation of biomass-derived levulinic acid. Green Chem. 2012, 14, 688–694. [Google Scholar] [CrossRef]
  50. Chaparro-Garnica, J.; Navlani-García, M.; Salinas-Torres, D.; Morallón, E.; Cazorla-Amorós, D. Highly stable N-doped carbon-supported Pd-based catalysts prepared from biomass waste for H2 production from formic acid. ACS Sustain. Chem. Eng. 2020, 8, 15030–15043. [Google Scholar] [CrossRef]
  51. Linares-Solano, A.; Salinas-Martínez de Lecea, C.; Alcañiz-Monge, J.; Cazorla-Amorós, D. Further advances in the characterization of microporous carbons by physical adsorption of gases. TANSO 1998, 185, 316–325. [Google Scholar] [CrossRef]
  52. Cazorla-Amorós, D.; Alcañiz-Monge, J.; Linares-Solano, A. Characterization of activated carbon fibers by CO2 adsorption. Langmuir 1996, 12, 2820–2824. [Google Scholar] [CrossRef]
  53. Rodriguez-Reinoso, F.; Linares-Solano, A. Microporous Structure of Activated Carbons as Revealed by Adsorption Methods; Thrower, P.A., Ed.; Chemistry and Physics of Carbon: New York, NY, USA, 1989; Volume 21, pp. 2–146. ISBN 0-8247-7939-8. [Google Scholar]
  54. Lillo-Ródenas, M.A.; Marco-Lozar, J.P.; Cazorla-Amorós, D.; Linares-Solano, A. Activated carbons prepared by pyrolysis of mixtures of carbon precursor/alkaline hydroxide. J. Anal. Appl. Pyrolysis 2007, 80, 166–174. [Google Scholar] [CrossRef]
  55. Xiao, C.; Goh, T.W.; Qi, Z.; Goes, S.; Brashler, K.; Perez, C.; Huang, W. Conversion of levulinic acid to γ-valerolactone over few-layer graphene-supported ruthenium catalysts. ACS Catal. 2016, 6, 593–599. [Google Scholar] [CrossRef] [Green Version]
Catalysts 11 00559 g001 550

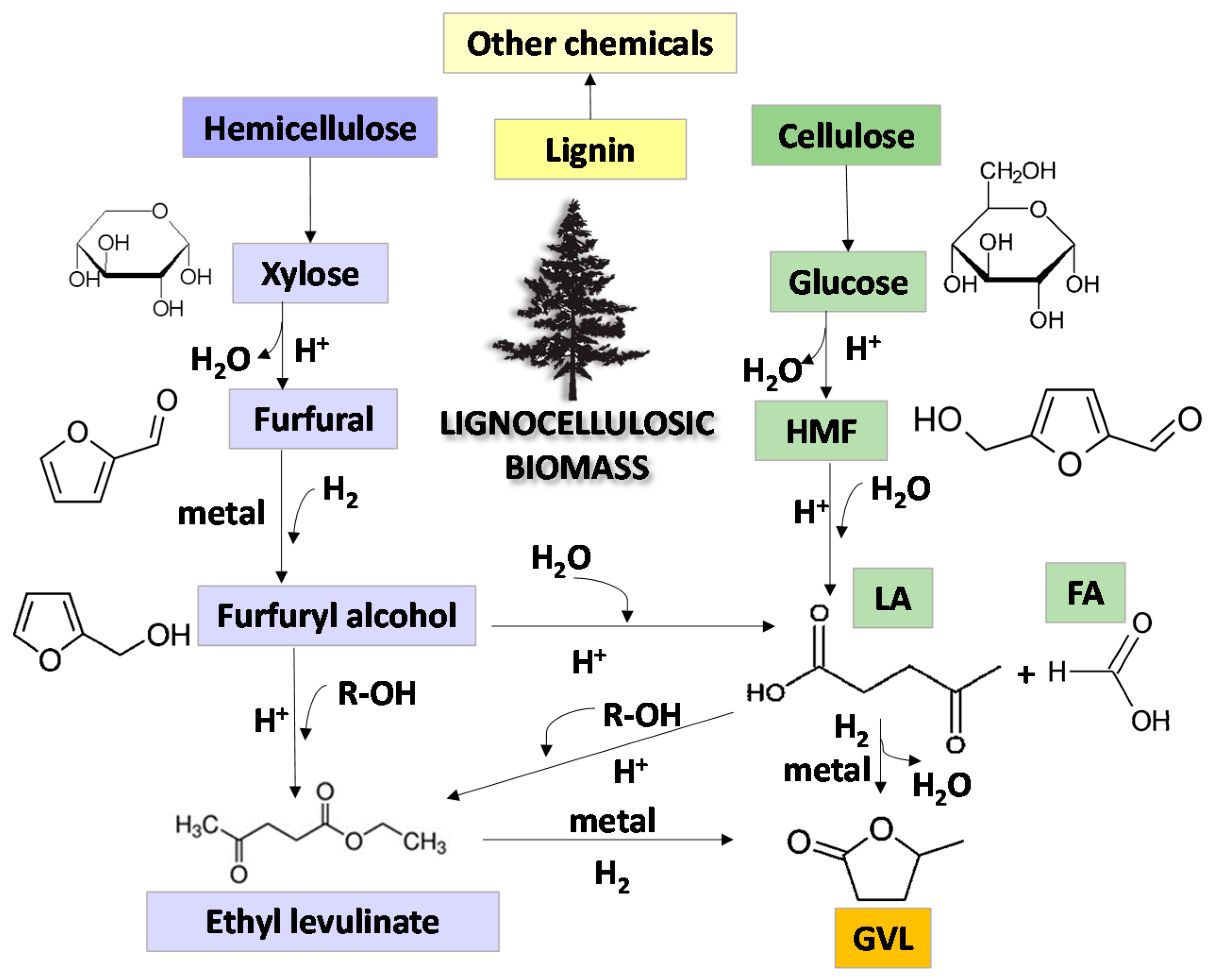

Figure 1. Degradation routes of lignocellulosic biomass, adapted from [5].
Figure 1. Degradation routes of lignocellulosic biomass, adapted from [5].
Catalysts 11 00559 g001
Catalysts 11 00559 g003 550

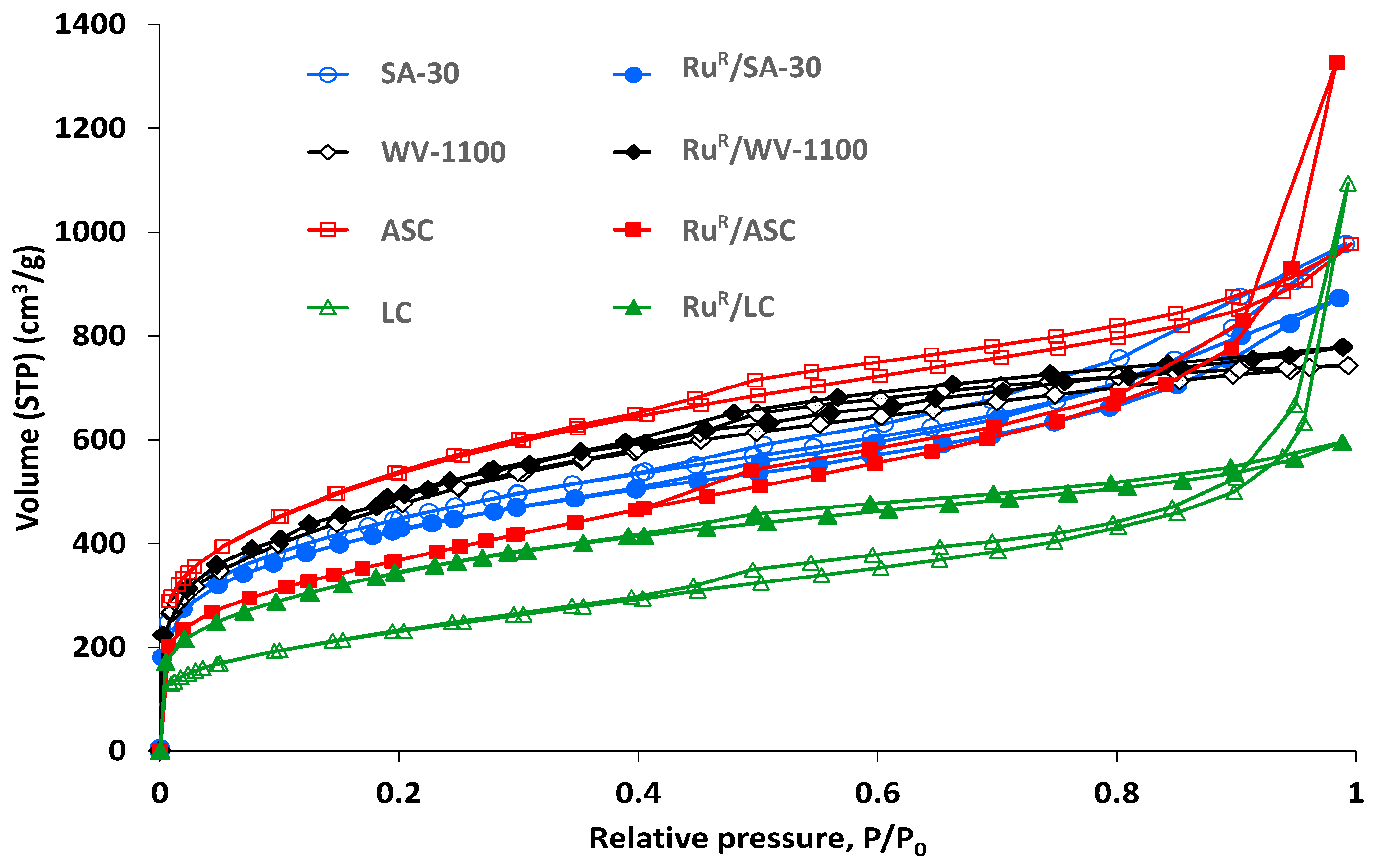

Figure 3. N2 adsorption–desorption isotherms at −196 °C for the carbon supports and the reduced catalysts.
Figure 3. N2 adsorption–desorption isotherms at −196 °C for the carbon supports and the reduced catalysts.
Catalysts 11 00559 g003
Catalysts 11 00559 g004 550

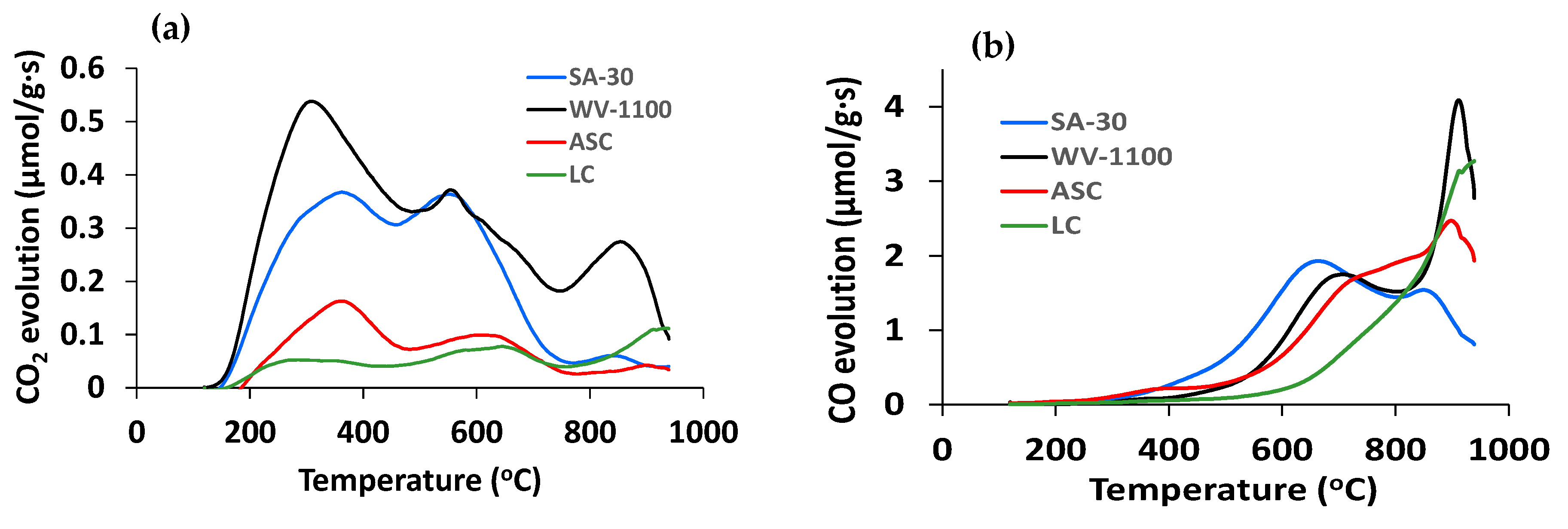

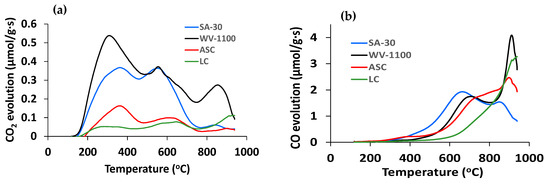

Figure 4. TPD spectra of carbon supports: (a) CO2 evolution and (b) CO evolution (be aware of the different scales in the y-axis in figures (a,b)).
Figure 4. TPD spectra of carbon supports: (a) CO2 evolution and (b) CO evolution (be aware of the different scales in the y-axis in figures (a,b)).
Catalysts 11 00559 g004
Catalysts 11 00559 g005a 550Catalysts 11 00559 g005b 550
Figure 5. TEM images of reduced catalysts: (a) RuR/SA-30, (b) RuR/WV-1100, (c) RuR/ASC and (d) RuR/LC.
Figure 5. TEM images of reduced catalysts: (a) RuR/SA-30, (b) RuR/WV-1100, (c) RuR/ASC and (d) RuR/LC.
Catalysts 11 00559 g005aCatalysts 11 00559 g005b
Catalysts 11 00559 g006 550
Figure 6. Ru 3p3/2 XPS spectra of (a) RuR/SA-30, (b) RuR/WV-1100, (c) RuR/ASC and (d) RuR/LC.
Figure 6. Ru 3p3/2 XPS spectra of (a) RuR/SA-30, (b) RuR/WV-1100, (c) RuR/ASC and (d) RuR/LC.
Catalysts 11 00559 g006
Catalysts 11 00559 g007 550
Figure 7. LA conversion, GVL yield, and selectivity to GVL obtained with the RuR/C catalyst at 70 °C (0.445 mL LA, 130 mg catalyst, 15 bar H2, 1 h).
Figure 7. LA conversion, GVL yield, and selectivity to GVL obtained with the RuR/C catalyst at 70 °C (0.445 mL LA, 130 mg catalyst, 15 bar H2, 1 h).
Catalysts 11 00559 g007
Table
Table 1. Textural properties of carbon supports and catalysts (as prepared and reduced).
Table 1. Textural properties of carbon supports and catalysts (as prepared and reduced).
SampleSBET
(m2/g)		VDR, N2 (cm3/g)Vmeso
(cm3/g)		VT
(cm3/g)		VDR, CO2 (cm3/g)Vsuper micro
(cm3/g)
SA-3015870.680.571.510.350.33
Ru/SA-3014650.630.511.360.330.30
RuR/SA-3015050.640.511.350.310.33
WV-110017130.700.381.150.370.33
Ru/WV-110016710.680.391.160.380.30
RuR/WV-110017710.730.401.200.380.35
ASC19160.790.491.510.430.36
Ru/ASC19180.790.491.500.430.36
RuR/ASC13230.550.601.440.270.28
LC8310.330.410.980.190.12
Ru/LC7610.300.390.950.170.13
RuR/LC12380.510.300.920.170.34
Table
Table 2. Amount of CO2 and CO from TPD experiments, CO2/CO molar ratio and calculated total oxygen content in the carbon supports.
Table 2. Amount of CO2 and CO from TPD experiments, CO2/CO molar ratio and calculated total oxygen content in the carbon supports.
SampleCO2 (µmol/g)CO (µmol/g)CO2/COO total (wt.%)
SA-3053920650.265.0
WV-110073522030.335.9
ASC27620240.144.1
LC14614550.102.8
Table
Table 3. Ru 3p3/2 XPS data: B.E (eV), atomic percentages, and relevant atomic ratios.
Table 3. Ru 3p3/2 XPS data: B.E (eV), atomic percentages, and relevant atomic ratios.
SampleRu 3p3/2 B.E. (eV) Atomic Ratio
Ru0RuOx/Ru0Ru/CCl/CCl/Ru
RuR/SA-30461.70 (63%)464.42 (37%)0.00260.00050.19
RuR/WV-1100462.36 (83%)465.42 (17%)0.00320.00321.00
RuR/ASC462.15 (66%)464.83 (34%)0.00320.00351.10
RuR/LC461.87 (68%)464.84 (32%)0.00310.00110.36
Table
Table 4. Catalytic activity results obtained with the RuR/C catalysts at 170 °C *.
Table 4. Catalytic activity results obtained with the RuR/C catalysts at 170 °C *.
CatalystLA Conversion (%)GVL Yield
(%)		GVL Selectivity (%)rs **
(h−1)
RuR/SA-301008282340
RuR/WV-11001008787340
RuR/ASC968184327
RuR/LC989294334
* 0.445 mL LA, 130 mg catalyst, 15 bar H2, 1 h. ** Specific reaction rate: mol of LA converted per mol Ru and per unit of time (h).
Table
Table 5. Catalytic activity results obtained with the Ru/C catalysts reused at 170 °C *.
Table 5. Catalytic activity results obtained with the Ru/C catalysts reused at 170 °C *.
CatalystConversion
(%)		GVL Yield
(%)		GVL Selectivity (%)
Ru/SA-30 run 11008282
Ru/SA-30 run 21007878
Ru/ASC run 1968184
Ru/ASC run 21008484
Ru/LC run 1989294
Ru/LC run 21009494
* 0.445 mL LA, 130 mg catalyst, 15 bar H2, 1 h.
Table
Table 6. Comparison of reported results for LA hydrogenation with Ru/C catalysts.
Table 6. Comparison of reported results for LA hydrogenation with Ru/C catalysts.
EntrySupportRu wt.%S/C aSolventT
(°C)		P
(bar)		t
(min)		Conv. (%)Sel.
(%)		rs *
(h−1)		Ref.
1C (not specified)5348methanol130121609291129[25]
2C (not specified)5--dioxane150551208072--[19]
3C (not specified)5--dioxane1503424010097--[19]
4C-DARCO b558water1901060877549[31]
5C c–h558water190106080–9580–8744–55[24]
6AC i42256water100501804391329[32]
7rGO j42256water1005018010080764[32]
8C (Table 2)1338water170156096–10082–94327–340This work
* Specific reaction rate: mol of LA converted per mol Ru per unit of time (h). a: Substrate/catalyst ratio, initial LA moles/Ru moles in the catalyst; b: from Sigma Aldrich; c: (grain size < 0.1 mm) from ChemPur, Piekary Śląskie, Poland; d: (grain size < 0.1 mm) from ChemPur, Piekary Śląskie, Poland; e: (grain size < 0.1 mm) from Gryfskand, Gryfino, Poland; f–h: grain size < 0.1; 0.25–0.5; 0.75–1 mm, respectively. From by Windsor Laboratories, Ltd., Slough-Berkshire, UK; i: AC produced from olive stones; j: reduced graphene oxide.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Ruiz-Bernal, Z.; Lillo-Ródenas, M.Á.; Román-Martínez, M.d.C. Ru Catalysts Supported on Commercial and Biomass-Derived Activated Carbons for the Transformation of Levulinic Acid into γ-Valerolactone under Mild Conditions. Catalysts 2021, 11, 559. https://doi.org/10.3390/catal11050559

AMA Style

Ruiz-Bernal Z, Lillo-Ródenas MÁ, Román-Martínez MdC. Ru Catalysts Supported on Commercial and Biomass-Derived Activated Carbons for the Transformation of Levulinic Acid into γ-Valerolactone under Mild Conditions. Catalysts. 2021; 11(5):559. https://doi.org/10.3390/catal11050559

Chicago/Turabian Style

Ruiz-Bernal, Zaira, María Ángeles Lillo-Ródenas, and María del Carmen Román-Martínez. 2021. "Ru Catalysts Supported on Commercial and Biomass-Derived Activated Carbons for the Transformation of Levulinic Acid into γ-Valerolactone under Mild Conditions" Catalysts 11, no. 5: 559. https://doi.org/10.3390/catal11050559

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
