Review

Radial TiO2 Nanorod-Based Mesocrystals: Synthesis, Characterization, and Applications

by
Atsunobu Akita
and
Hiroaki Tada
*
Graduate School of Science and Engineering, Kindai University, 3-4-1, Kowakae, Higashi-Osaka, Osaka 577-8502, Japan
*
Author to whom correspondence should be addressed.
Catalysts 2021, 11(11), 1298; https://doi.org/10.3390/catal11111298
Submission received: 15 October 2021 / Revised: 26 October 2021 / Accepted: 26 October 2021 / Published: 28 October 2021
(This article belongs to the Section Photocatalysis)
Browse Figures
Review Reports Versions Notes

Abstract

:
Radial TiO2 nanorod-based mesocrystals (TiO2-NR MCs) or so-called “sea-urchin-like microspheres” possess not only attractive appearance but also excellent potential as photocatalyst and electrode materials. As a new type of TiO2-NR MCs, we have recently developed a radial heteromesocrystal photocatalyst consisting of SnO2(head) and rutile TiO2 nanorods(tail) (TiO2-NR//SnO2 HEMCs, symbol “//” denotes heteroepitaxial junction) with the SnO2 head oriented in the central direction in a series of the studies on the nanohybrid photocatalysts with atomically commensurate junctions. This review article reports the fundamentals of TiO2-NR MCs and the applications to photocatalysts and electrodes. Firstly, the synthesis and characterization of TiO2-NR//SnO2 HEMCs is described. Secondly, the photocatalytic activity of recent TiO2-NR MCs and the photocatalytic action mechanism are discussed. Thirdly, the applications of TiO2-NR MCs and the analogs to the electrodes of solar cells and lithium-ion batteries are considered. Finally, we summarize the conclusions with the possible future subjects.

Graphical Abstract

1. Introduction

Among various photocatalyst materials, TiO2 is the most promising one in terms of suitability and safety in environmental purification and anti-bacterial applications due to strong photoinduced oxidation ability, extreme stability, non-toxicity, and inexpensiveness [1,2]. While the photocatalytic activity of TiO2 particles is sensitive to the crystal phase, crystallinity, and dimension [3], the assembled structure of TiO2 particles or the mesocrystal (MC) structure can have a great effect on the photocatalytic activity [4,5]. The geometries of the TiO2-based MCs so far reported can be classified into two-dimensional (2D) and three-dimensional (3D) types (Scheme 1). Majima and co-workers prepared 2D-TiO2 MCs consisting of TiO2 plates with 3–5 μm size and 100–300 nm thickness linking through the edges (TiO2-NPL MCs) using a simple impregnation method (2D-type in Scheme 1) [5]. Gold nanoparticle-loaded TiO2 (Au/TiO2) works as a visible-light responsive photocatalyst under excitation of the localized surface plasmon resonance [6]. The Au/TiO2-NPL MC plasmonic photocatalyst was shown to exhibit significantly higher organic pollutant degradation activity than the usual Au/TiO2 particles due to the effective charge separation via the anisotropic interparticle electron transfer. The development of 3D-TiO2 MCs has been triggered by the study of dye-sensitized solar cells [7]. The cell performance was dramatically enhanced by using a TiO2 nanocrystalline film electrode in which anatase TiO2 nanoparticles (NPs) with 20–30 nm diameter are interconnected randomly to yield a mesoporous structure and a large surface area (3D-type I in Scheme 1). More recently, radial homomesocrystals consisting of rutile TiO2 nanorods (TiO2-NR HOMCs), so-called “sea-urchin-like microspheres” (3D-type II in Scheme 1), have attracted much interest due to features including a high light harvesting ability due to multiple light scattering between the reflective rutile TiO2 NRs [8,9] and large surface area comparable with that of NPs. These unique nano/micro-sized properties render the radial TiO2-NR HOMCs fascinating as a photocatalyst material. Unexpectedly, the photocatalytic activity for aerobic oxidation of organics still remains low, probably because of the poor ability of rutile TiO2 for oxygen reduction reaction (ORR) [10,11]. Thus, if the abilities of effective charge separation and electrocatalytic activity for ORR can be endowed with radial TiO2-NR HOMCs, the photocatalytic activity would be enhanced, and their applications should be greatly extended. To achieve this, we have recently developed a radial heteromesocrystal photocatalyst consisting of SnO2(head) and rutile TiO2 nanorods (tail) (TiO2-NR//SnO2 HEMCs, “//” denotes heteroepitaxial junction) (3D-type III in Scheme 1) and studied the photocatalytic activity for aerobic oxidation of organics.
This review article describes the synthesis, characterization, and the photocatalytic activity of TiO2-NR//SnO2 HEMCs and other recent TiO2-NR HOMCs. The photocatalytic action mechanism of TiO2-NR//SnO2 HEMCs is also discussed by comparison with TiO2-NR HOMCs. Further, the applications of TiO2-NR HOMCs and the analogs to the electrodes for solar cells and lithium-ion batteries are considered. Finally, the conclusions are summarized with the possible future subjects.

2. Synthesis and Characterization

In 2006, Yang and Gao synthesized sea-urchin-like TiO2 nanostructures (~1 μm) (3D-type II in Scheme 1) for the first time using a sol–solvothermal method from a water–benzene solution of TiCl4 and Ti(OBu)4 without using any template or surfactant [12]. Several review papers on the synthesis and characterization of TiO2-NR HOMCs have already been reported [8,9,13]. Here, we explain the method for synthesizing TiO2-NR//SnO2 HEMCs (3D-type III in Scheme 1). TiO2-NR//SnO2 HEMCs were synthesized using a hydrothermal method in the presence of SnO2 seeds with particle size of 22–43 nm [14]. HCl (6 M, 30 mL) and Ti(OBu)4 (0.4 mL) were mixed in a reaction vessel made of Teflon (50 mL), and the solution was slowly stirred for 0.5 h at ambient temperature. SnO2 nanocrystals (0.01 g) were dispersed into the mixed solution by ultrasonic irradiation and stirred for 24 h. The reaction vessel was sealed in a stainless-steel cylinder, and then it was placed in an oil bath, the temperature of which was maintained at 150 °C for various reaction times (tHT). Solid products produced after the reaction were collected by centrifugation. The same synthetic procedures were conducted using HNO3 and H2SO4 in the place of HCl.
The product morphology is strongly affected by the kinds of acids used in the hydrothermal reaction (Figure 1a–c). In the case of HCl, 3D-radial microspheres with a diameter of ~3 μm are produced at tHT = 8 h. The specific surface area of the particles was determined by the Brunauer–Emmett–Teller (BET) method to be 41.1 ± 0.2 m2 g−1, which is 1.75 × 102 times larger than the value for the spherical particle with a diameter of 3 μm. On the one hand, the use of HNO3 or H2SO4 produces irregularly shaped aggregates. In the XRD pattern of the sample prepared with HCl, there are sharp peaks at 2θ = 27.38°, 36.04°, 41.18°, and 54.28° indexed as the diffraction from the (110), (101), (111), and (211) crystal planes of rutile TiO2 (ICDD 00-021-1276), respectively, in addition to the peaks at 2θ = 26.5°, 33.78°, and 51.74° assignable to the diffraction from the (110), (101), and (211) planes of SnO2, respectively (ICDD 01-075-2893) (Figure 1d).
Transmission electron microscopy (TEM) analyses of the particles generated at the early stage of reaction provide information about the crystal growth mechanism and the state of the junction between SnO2 and TiO2. The TEM image of a particle generated at tHT = 1 h shows a single TiO2 NR grown from a SnO2 seed crystal with the mean lengths of short axis (~13 nm) and long axis (~90 nm) (Figure 2a). An atomically commensurate junction is also formed between the SnO2 seed and TiO2 NR, whose lattice spacings near the interface are close to the values of the (110) crystal planes. A plausible interface model is proposed based on the analysis of the high-resolution (HR)-TEM images (Figure 2b,c), where the TiO2-NR and SnO2 are connected with an orientation of (001)TiO2//(001)SnO2, and the TiO2 NR grows toward the [001] direction. Consequently, anisotropic one-dimensional (1D) TiO2-NR//SnO2 particles are formed during the initial process of reaction. Density functional theory (DFT) simulations indicated that Cl- ions act as a habit modifier in this reaction, i.e., their preferential adsorption on the oxygen-defect sites on the rutile TiO2(110) plane induces the anisotropic growth of TiO2 in the [001] direction yielding the NR with the {110} side walls [15].
To clarify the orientation of the 1D-TiO2-NR//SnO2 particles in the 3D-microsphere, scanning transmission electron microscopy (STEM)–energy dispersive spectroscopic (EDS, Figure 3a) elemental mapping was performed on a particle generated at tHT = 8 h. Many 1D-TiO2-NR//SnO2 particles are self-assembled to form a radial 3D-microsphere (Figure 3a). Ti and O are uniformly distributed over the microsphere (Figure 3b,c). On the contrary, Sn is unevenly present near the center (Figure 3d). Clearly, each 1D-TiO2-NR/SnO2 particle is oriented with the SnO2 head in the central direction of the microsphere.
The formation mechanism of TiO2-NR//SnO2 HEMCs can be explained as follows (Scheme 2). Initially, Ti(OBu)4 undergoes hydrolysis–polycondensation in HCl solution with SnO2 seed nanocrystals, where HCl suppresses the hydrolysis–polycondensation to inhibit the homogeneous particle formation [16]. At tHT ≤ 0.5 h, the SnO2 surface is covered by an amorphous TiO2 layer (SnO2@amorphous-TiO2). At 0.5 h < tHT < 1 h, rutile TiO2 nuclei occur on the SnO2 surface to grow in the [001] direction with the most stable {110} facets exposed at the side planes. In this process, the adsorption of Cl- ions on the TiO2{110} planes restricts their growth to induce the anisotropic growth along the [001] direction yielding 1D-TiO2-NR//SnO2 particles [15]. The self-assembling to the radial 3D-microsphere can arise from the balance between the repulsion and attraction forces between the 1D-TiO2-NR//SnO2 particles. Since the points of zero charge of rutile TiO2 and SnO2 are ~5 and ~3.5, respectively [17], the SnO2 head in the 1D-TiO2-NR//SnO2 particle has smaller positive surface charge than the TiO2 tail under the strong acidic conditions. Additionally, the van der Waals attractive force for SnO2 particles would be larger than that for rutile TiO2 particles since the former has a Hamaker constant of 5.5 × 10−20 J, larger than the latter of 4 × 10−20 J [18]. Consequently, the smaller repulsive and larger attractive forces between the SnO2 heads of 1D-TiO2-NR//SnO2 particles induce the formation of the radial 3D-microsphere with the heads oriented toward the central direction.

3. Photocatalytic Applications

3.1. TiO2-Nanorod Homomesocrystals

The most outstanding feature of the TiO2-NR MCs is the high light harvesting ability due to the multiple light scattering between TiO2 NRs, which should be more effective for rutile TiO2 (refractive index, nE//c = 2.616, nE┴c = 2.903) than anatase TiO2 (nE//c = 2.554, nE┴c = 2.493) [19]. The photocatalytic studies of radial rutile TiO2-NR HOMCs (3D-type II in Scheme 1) and the analogs are less than expected from the excellent potential. In this section, some of the studies performed over the last decade are introduced.
Zhao and co-workers prepared rutile TiO2-NR HOMCs (1~3 μm) with the specific surface area of ~40 m2 g−1 using a solvothermal method [20]. P-25 (specific surface area = ~50 m2 g−1, rutile/anatase = 30:70, Evonik) is known to exhibit a high level of photocatalytic activity for various reactions, being used as a benchmark photocatalyst. The photocatalytic activity of the TiO2-NR HOMCs (1~3 μm) and P-25 for degradation of methylene blue (MB) was studied under UV–visible irradiation. The TiO2-NR HOMCs (1~3 μm) show higher photocatalytic activity than P-25, which was ascribable to the efficient light absorption of the former. Further, the photocatalytic activity decreases with an increase in the diameter of the TiO2-NR HOMCs from ~1 to ~3 μm, although the reason is unclear.
The same group prepared Au NP (2–10 nm) and Ag NP (~20 nm)-loaded rutile TiO2-NR HOMCs (1~2 μm) with a specific surface area of ~40 m2 g−1 using a chemical reduction method [20]. The photocatalytic activity for MB degradation was examined under UV–visible irradiation. Unmodified TiO2-NR HOMCs show photocatalytic activity comparable with that of P-25. Further, loading Ag and Au NPs significantly increases the photocatalytic activity. This is probably because of the enhancement of charge separation due to the interfacial electron transfer from TiO2 to the metal NPs. The authors proposed that visible-light irradiation induces the hot-electron transfer from the metal NPs to TiO2 to yield one-electron ORR on rutile TiO2 causing the MB degradation, although no evidence is provided.
Xu, Li, and co-workers prepared rutile TiO2-NR HOMCs (2–3 μm) with a very large specific surface area of 224 m2 g−1 using a solvothermal method [21]. The diameter and length of TiO2 NRs are 5–8 nm and ~0.2 μm, respectively. Under sunlight irradiation of the sample, Cr6+ ions are reduced to Cr3+ ions with the yield of ~100% at the concentration below 53.7 ppm. The removal capacity under irradiation of sunlight for 3 h was reported to reach ~1 g g−1. In this case, it is worth noting that the reduction with a very positive standard electrode potential (E0(Cr2O72-/Cr3+) = +1.36 V) is thermodynamically permitted [22].
Next, the studies of anatase TiO2-NR HOMCs are described. Zhang and co-workers synthesized an anatase analog of 3D-rutile TiO2-NR HOMCs for the first time [23]. It is known that anatase TiO2 shows higher photocatalytic activity than rutile TiO2 in most aerobic oxidation reactions [24]. Wang and co-workers reported the large-scale synthesis of urchin-like mesoporous TiO2 hollow spheres (UMTHS) (~0.45 μm) surrounded by single-crystal anatase nanohorns with a diameter of 10–20 nm and a length of 40–60 nm [25]. The synthesized sample with a large specific surface area of 129 m2 g−1 and excellent light harvesting efficiency exhibits photocatalytic activity for removal of gaseous nitric oxide (NO) superior to P-25.
Xu and co-workers prepared hierarchical golden wattle-like microspheres consisting of rutile TiO2 NRs with a diameter of 40–60 nm and a length of 400–500 nm using a solvothermal method using a reaction solution of acetone (20 mL) containing titanium n-butoxide (4 mL) and HCl (x mL, 36–38 wt%) [26]. The HCl concentration in the reaction solution plays an important role in controlling the size and morphology of products. The photocatalytic activities of the samples and P-25 for the degradation of phenol were assessed under UV-light irradiation (λex = 365 nm). The photocatalytic activity strongly depends on x, and the sample prepared at x = 2 mL exhibits photocatalytic activity comparable to that of P-25. The authors attributed the high photocatalytic activity of the sample to the suppression of the recombination by smooth electron transportation through the 1D-TiO2 NRs with high crystallinity, efficient light harvesting ability, and large surface area or large number of adsorption sites for phenol.
Li, Liu, Wang, and co-workers synthesized ultrathin nanobelt-assembled urchin-like anatase TiO2 nanostructures (~0.25 μm) with a large specific surface area of 171 m2 g−1 using a one-step hydrothermal route [27]. The length of the nanobelts is several μm, and the width and thickness are in the ranges of 50 to 100 and 23 to 30 nm, respectively. The sample was shown to exhibit photocatalytic activities significantly higher than commercial anatase TiO2 NPs and P-25 for the degradation of methyl orange and phenol under irradiation of UV-light (λex = 365 nm).
Einaga and co-workers partially reduced sea-urchin-like TiO2 microspheres (~0.25 μm) consisting of anatase TiO2 NRs by heating at various temperatures (Tc) under vacuum [28]. The photocatalytic activity of the samples for benzene degradation depends on Tc with a maximum at Tc = 250 °C. The optimal sample shows significantly higher activity than P-25 for the decomposition of benzene to CO2 with good stability.

3.2. TiO2-Nanorod//SnO2 Heteromesocrystals

Acetaldehyde is a useful intermediate for various chemical products, medicines, and pharmaceuticals [29]. Industrially, acetaldehyde is produced by the Wacker oxidation of ethylene with PdCl2-CuCl2 as the catalyst at high temperature and pressure [30]. From the perspective from the Sustainable Development Goals (SDGs), the solar-driven production of acetaldehyde from biomass-derived ethanol with high selectivity is highly desired [31]. Gas-phase photocatalytic oxidation of ethanol to acetaldehyde was studied under UV-light irradiation of TiO2-NR//SnO2 HEMCs (3D-type III in Scheme 1) and TiO2-NR HOMCs (3D-type II in Scheme 1) (λ > 300 nm, I = 2.0 mW cm−2) (Figure 4a) [32]. In each system, irradiation yields acetaldehyde, while no acetaldehyde is generated in the dark. The apparent first-order rate constants (kAA) were 1.9 × 10−2 h−1 for TiO2-NR HOMCs and 3.2 × 10−2 h−1 for TiO2-NR//SnO2 HEMCs. The external quantum yield (φex) or apparent quantum yield at λex = 365 nm was also calculated to be 7.7% for TiO2-NR HOMCs and 13.4% for TiO2-NR//SnO2 HEMCs, which is larger than the values reported for the TiO2-photocatalyzed oxidation of ethanol to acetaldehyde (<~10%) [33,34,35].
Photoluminescence (PL) spectra of TiO2-NR//SnO2 HEMC, TiO2-NR HOMC, and rutile TiO2 NPs for comparison were measured (Figure 4b) to evaluate the relative charge separation efficiency in the photocatalytic process [36]. Rutile TiO2 NPs have three signals around 410 (B1), 520 (B2), and 800 nm (B3) assigned to the interband emission and the emissions by the recombination at shallow [37] and deep vacancy sites [38], respectively. In the spectra of TiO2-NR//SnO2 HEMCs and TiO2-NR HOMCs, the B2 band almost disappears. It is also worth noting that the emission intensity of TiO2-NR//SnO2 HEMCs is weaker than that of TiO2-NR HOMCs. Thus, the charge separation is suggested to occur more effectively in the TiO2-NR//SnO2 HEMC system than the TiO2 NP and TiO2-NR HOMC systems through the interfacial electron transfer from TiO2 to SnO2 [39].

3.3. Photocatalytic Action Mechanism

The key to boosting the photocatalytic activity of the radial rutile TiO2-NR MCs for aerobic oxidation of organics is imparting them to the electrocatalytic activity for multiple ORR in addition to the charge separation enhancement [10,11,40]. Photocatalytic two-electron ORR has received much attention as a “green” route for producing H2O2 [41], and so far, highly active electrocatalysts such as Au NPs [42,43,44] and Pd NPs [45] have been reported. The development of the electrocatalyst for four-electron ORR is a major challenge in proton exchange membrane fuel cells, and Pt-based catalysts have mainly been studied [46]. Abe, Ohtani, and co-workers previously showed that loading of Pt NPs on WO3 drastically increases the photocatalytic activity for aerobic oxidative decomposition of organics [47]. Recently, some metal oxides such as SnO2 [48] and CoFe2O4 [49] have been shown to exhibit electrocatalytic activity for multiple-electron ORR, and consequently, the coupling with TiO2 can increase the photocatalytic activity for aerobic oxidation of organics.
The striking photocatalytic activity of TiO2-NR//SnO2 HEMCs (3D-type III in Scheme 1) for the partial oxidation of ethanol can stem from the following features (Scheme 3). Firstly, the radial TiO2-NRs of several microns in length enable efficient light absorption due to the multiple light scattering between the highly reflective rutile TiO2 NRs exciting the electrons in the valence band (VB) to the conduction band (CB). Secondly, the CB-electrons in the TiO2 NRs are transported in the [001] direction due to the highest conductivity direction [50] and effectively transferred to the CB of SnO2 through the high-quality interface [39]. Thirdly, the heteroepitaxial junction-induced CB-band bending in SnO2 enhances the charge separation [39]. The CB-edge potentials of rutile TiO2 [51] and FTO (or SnO2) [52] are located around +0.11 and +0.48 V (vs. SHE at pH 0), respectively. Fourthly, the electrons collected in SnO2 can induce two-electron ORR (E0(O2/H2O2) = +0.695 V) due to the electrocatalytic activity [48], whereas one-electron ORR (E0(O2/O2−) = −0.33 V) [22] is thermodynamically difficult on TiO2 NRs. Thus, TiO2-NR//SnO2 HEMCs exhibit much higher photocatalytic activity than TiO2-NR HOMCs [32]. Fifthly, the reaction field of the oxidation by the VB holes in rutile TiO2 is limited to the near-surface [53], and also, the adsorptivity of rutile TiO2 for acetaldehyde is weak [54]. Consequently, the over-oxidation of acetaldehyde can be effectively inhibited.

4. Electrochemical Applications

Besides the photocatalysts, the radial TiO2-NR HOMCs (3D-type II in Scheme 1) and the analogs can be suitably applied to the electrodes for the solar cells and lithium-ion batteries by taking the unique geometrical, optical, and electrochemical properties. In this section, some of the studies reported over the last decade are described.

4.1. Solar Cells

Jang and co-workers synthesized radial TiO2 HOMCs with a size of 4–7 μm consisting of rutile TiO2 NRs with a diameter of ~50 nm and length of few micrometers using a simple solvothermal route [55]. A CdS/CdSe/ZnS quantum dot-sensitized solar cell was constructed using a base electrode including the rutile TiO2 HOMCs and anatase TiO2 NPs with a diameter of ~20 nm. The solar cell provided a conversion efficiency of 4.2% with a short-circuit photocurrent of 18.2 mA cm−2 and an open-circuit voltage of 531 mV, while the conversion efficiency of the reference cell using the TiO2 NP electrode without rutile TiO2 HOMCs was 3.5%. The superior performance of the cell made of the hybrid photoanode of rutile TiO2 NR HOMCs and anatase TiO2 NPs was ascribable to the high light harvesting and charge collection properties of the rutile TiO2 NR HOMCs.
Wang and co-workers fabricated a dye(Z907)-sensitized solar cell using UMTHS as an active layer of photoanode with Co(bpy)33+/2+ electrolyte [25]. The solar cell provided an impressive power conversion efficiency of 5.5% under one-sun irradiation (AM-1.5). The excellent cell performance was ascribable to the large surface area and high light-scattering property of UMTHS.
Zhou and co-workers synthesized flower-like and sea-urchin-like TiO2 NR HOMCs using a solvothermal method [56]. The geometrical effect of the TiO2 photoanode on the performance of a dye(N719)-sensitized solar cell was studied. The conversion efficiency increases in the order of sphere-like (0.82%) < flower-like (3.61%) < sea-urchin-like (8.04%). The authors suggested that the superior performance of the cell with the sea-urchin-like TiO2 photoanode partly results from the 1D-channel of electron transport in the rutile TiO2 NR enhancing the charge separation.
Peng and co-workers formed a film consisting of rutile TiO2 NR HOMCs with a diameter of 5–6 μm on Ti foil (TiO2 NR MC/Ti) using a hydrothermal method [57]. A quasi-solid-state dye(N719)-sensitized solar cell was fabricated, and a high conversion efficiency of 7.27% was achieved by using the film as an underlayer of a nanosized anatase TiO2 film. A similar effect was obtained in a dye(N719)-sensitized solar cell using the TiO2 NR MC/Ti covered with anatase nanotubes as a photoanode [58]. Interestingly, in these systems, the combination of 3D-type I and 3D-type II in Scheme 1 remarkably enhances the cell performance due to their large surface area and effective light scattering property.

4.2. Lithium-Ion Batteries

Archer, Lou, and co-workers synthesized TiO2 nanosheet hierarchical spheres (TiO2 NSHSs) with an average size of ~1 μm using a hydrothermal method [59]. TiO2 NSHSs consisting of (001)-faceted anatase TiO2 nanosheets with a thickness of ~3 nm and size of 100–300 nm has a mesoporous structure with a very large specific surface area of 170 m2 g−1. Consequently, TiO2 NSHSs manifest an unusual high Coulombic efficiency for lithium extraction, excellent capacity retention over 175 mA h g−1 even at 100 charge–discharge cycles, and superior rate of insertion-release in batteries.
Han and co-workers prepared radial rutile TiO2 HOMCs using a hydrothermal method, and the geometry was maintained after annealing at 300 °C with a specific surface area of 115.3 m2 g−1 and a pore size of 2.26 nm [60]. The electrochemical properties were examined in a 1M LiPF6 electrolyte solution of ethylene carbonate and dimethylcarbonate (1:1 v/v) for the application to lithium-ion batteries. The radial rutile TiO2 HOMC electrode shows outstanding energy storage behavior, with a high capacity of 457 mA h g−1 at the first discharge cycle, a reversible and high rate charge–discharge capability, high rate performance, and good cycling stability.

5. Conclusions and Future Subjects

This review article highlights the synthesis, characterization, and photocatalytic activity of TiO2-NR//SnO2 HEMCs. TiO2-NR//SnO2 HEMCs surpass TiO2-NR HOMCs in photocatalytic activity. The striking photocatalytic activity of TiO2-NR//SnO2 HEMCs can stem from the following features: (1) Incident light is efficiently absorbed by to the multiple light scattering between TiO2 NRs, (2) smooth 1D-electron transport along the [001] direction due to the large electron mobility, (3) efficient interfacial electron transfer from TiO2 to SnO2 can occur through the high-quality interface, (4) effective charge separation can be achieved by the heteroepitaxial junction-induced CB-potential gradient in SnO2, and (5) the electrocatalytic activity of SnO2 for multiple ORR can complete the catalytic cycle because the holes in the VB of TiO2 have strong oxidizing ability. Consequently, the development from the HOMCs to HEMCs can extend the applications of the TiO2 NR-based MC photocatalysts to various chemical transformations. In the meantime, TiO2 NR-based MCs possess various features including large charge capacity, excellent electron-transport, electron-collecting properties, and robustness in addition to efficient light harvesting ability. As a result, TiO2 NR-based MCs can also be a very promising electrode material for solar cells and lithium-ion batteries. Research to improve the cell performance by optimizing the geometry and physicochemical properties of TiO2 NR-based MCs is ongoing.
There are two important subjects for the TiO2 NR-based MCs. The first one relates to the sample production. In the hydrothermal synthesis of TiO2-NR//SnO2 HEMCs, the yield remains <50% even at tHT = 8 h. The development of the technique enabling the synthesis of TiO2-NR MCs in a shorter reaction time with a higher yield would accelerate research and raise feasibility. The second one is concerned with the application to photocatalysts. Since rutile TiO2 NR-based MCs with an absorption edge of ~410 nm mainly absorb UV-light occupying only 3% of solar energy, endowing them with visible-light responsiveness and simultaneous enhancement of UV-light activity are crucial for applications to efficient solar-to-chemical transformations. So far, the study on the visible-light activation of the TiO2-NR MCs is limited. Rodriguez and co-workers have recently reported the visible-light activation of TiO2-NR MCs by Ru-doping for H2 generation from methanol aqueous solution [61]. Finally, it has recently been revealed that heteroepitaxial junctions are impossible in the bulk system due to the significant lattice mismatch that can be formed in the nanohybrid systems [62]. We anticipate that the new approach of interface control at an atomic level can widely contribute to enhancement in the performance of nanohybrids as photocatalysts and other functional materials.

Author Contributions

H.T. chose the topic; H.T. and A.A. wrote the article. All authors have read and agreed to the published version of the manuscript.

Funding

The authors greatly acknowledge financial support from JST Adaptable and Seamless Technology Transfer Program through Target-driven R&D, JSPS KAKENHI Grant-in-Aid for Scientific Research (C) no. 20K05674, and Nippon Sheet Glass Foundation for Materials Science and Engineering.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

All links are given to publications that are in the open press and are easily available.

Acknowledgments

The authors acknowledge H. Sugime and S. Naya for helpful discussion, and S. Sugita and R. Kojima for experimental support.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Hashimoto, K.; Irie, H.; Fujishima, A. TiO2 photocatalysis: A historical overview and future prospects. Jpn. J. Appl. Phys. 2005, 44, 8269–8285. [Google Scholar] [CrossRef]
  2. Park, H.; Park, Y.; Kim, W.; Choi, W. Surface modification of TiO2 photocatalyst for environmental applications. J. Photochem. Photobiol. C 2013, 15, 1–20. [Google Scholar] [CrossRef]
  3. Sang, L.; Zhao, Y.; Burda, C. TiO2 nanoparticles as functional building blocks. Chem. Rev. 2014, 114, 9283–9318. [Google Scholar] [CrossRef]
  4. Chen, X.; Li, C.; Grätzel, M.; Kostecki, R.; Mao, S.S. Nanomaterials for renewable energy production and storage. Chem. Soc. Rev. 2012, 41, 7909–7937. [Google Scholar] [CrossRef] [PubMed]
  5. Bian, Z.; Tachikawa, T.; Zhang, P.; Fujitsuka, M.; Majima, T. Au/TiO2 Superstructure-based plasmonic photocatalysts exhibiting efficient charge separation and unprecedented activity. J. Am. Chem. Soc. 2014, 136, 458–465. [Google Scholar] [CrossRef]
  6. Tada, H. Overall water splitting and hydrogen peroxide synthesis by gold nanoparticle-based plasmonic photocatalysts. Nanoscale Adv. 2019, 1, 4238–4245. [Google Scholar] [CrossRef] [Green Version]
  7. O’Regan, B.; Grätzel, M. A low-cost, high-efficiency solar cell based on dye-sensitized colloidal titanium dioxide films. Nature 1991, 353, 737–740. [Google Scholar] [CrossRef]
  8. Xiang, L.; Zhao, X. Wet-chemical preparation of TiO2-based composites with different morphologies and photocatalytic properties. Nanomaterials 2017, 7, 310. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  9. Wu, W.-Q.; Xu, Y.-F.; Liao, J.-F.; Wang, L.; Kuang, D.-B. Branched titania nanostructures for efficient energy conversion and storage: A review on design strategies, structural merits and multifunctionalities. Nano Energy 2019, 62, 791–809. [Google Scholar] [CrossRef]
  10. Ohno, T.; Sarukawa, K.; Matsumura, M. Photocatalytic activities of pure rutile particles isolated from TiO2 powder by dissolving the anatase component in HF solution. J. Phys. Chem. B 2001, 105, 2417. [Google Scholar] [CrossRef]
  11. Ohno, T.; Tokieda, K.; Higashida, S.; Matsumura, M. Synergism between rutile and anatase TiO2 particles in photocatalytic oxidation of naphthalene. Appl. Catal. A 2003, 244, 383. [Google Scholar] [CrossRef]
  12. Yang, S.; Gao, L. Fabrication and shape-evolution of nanostructured TiO2 via a sol-solvothermal process based on benzene-water interfaces. Mater. Chem. Phys. 2006, 99, 437–440. [Google Scholar] [CrossRef]
  13. Fattakhova-Rohlfing, D.; Zaleska-Medynska, A.; Bein, T. Three-dimensional titanium dioxide nanomaterials. Chem. Rev. 2014, 114, 9487–9558. [Google Scholar] [CrossRef] [PubMed]
  14. Akita, A.; Tada, H. Synthesis of 1D-anisotropic particles consisting of TiO2 nanorod and SnO2 with heteroepitaxial junctions and the self-assembling to 3D-microspheres. Langmuir 2019, 35, 17096–17102. [Google Scholar] [CrossRef]
  15. Akita, A.; Kobayashi, H.; Tada, H. Action of chloride ions as a habit modifier in the hydrothermal crystal growth of rutile TiO2 nanorod from SnO2 seed crystal. Chem. Phys. Lett. 2020, 761, 138003. [Google Scholar] [CrossRef]
  16. Liu, B.; Aydil, E.S. Growth of oriented single-crystalline rutile TiO2 nanorods on transparent conducting substrates for dye-sensitized solar cells. J. Am. Chem. Soc. 2009, 131, 3985–3990. [Google Scholar] [CrossRef] [PubMed]
  17. Kosmulski, M. pH-Dependent surface charging and points of zero charge. IV. Update and new approach. J. Colloid Interface Sci. 2009, 337, 439–448. [Google Scholar] [CrossRef]
  18. Israelachivili, J.N. Intermolecular and Surface Forces; Academic Press: London, UK, 1985. [Google Scholar]
  19. Nosaka, Y.; Nosaka, A. Nyumon Hikarisyokubai; Tokyo Tosho: Tokyo, Japan, 2004. [Google Scholar]
  20. Xiang, L.; Zhao, X.; Shang, C.; Yin, J. Au or Ag nanoparticle-decorated 3D urchin-like TiO2 nanostructures: Synthesis, characterization, and enhanced photocatalytic activity. J. Colloid Interface Sci. 2013, 403, 22–28. [Google Scholar] [CrossRef] [PubMed]
  21. Xu, S.; Zhang, Y.; Wang, S.; Xu, J.; Ding, H.; Li, G. Structure-enhanced photocatalytic removal of CrVI by a TiO2 superstructure with ultrathin rutile nanorods and abundant {110} faces. Eur. J. Inorg. Chem. 2013, 2601–2607. [Google Scholar] [CrossRef]
  22. The Electrochemical Society of Japan. Denki Kagaku Binran, 5th ed.; Maruzen: Tokyo, Japan, 2000. [Google Scholar]
  23. Qiao, H.; Wang, Y.; Xiao, L.; Zhang, L. High lithium electroactivity of hierarchical porous rutile TiO2 nanorod microspheres. Electrochem. Commun. 2008, 10, 1280–1283. [Google Scholar] [CrossRef]
  24. Ahmed, A.Y.; Kandiel, T.A.; Oekermann, T.; Bahnemann, D. Photocatalytic Activities of Different Well-defined Single Crystal TiO2 Surfaces: Anatase versus Rutile. J. Phys. Chem. Lett. 2011, 2, 2461. [Google Scholar] [CrossRef]
  25. Pan, J.H.; Wang, X.Z.; Huang, Q.; Shen, C.; Koh, Z.Y.; Wang, Q.; Engel, A.; Bahnemann, D.W. Large-scale synthesis of urchin-like mesoporous TiO2 hllow spheres by targeted etching and their photoelectrochemical properties. Adv. Funct. Mater. 2014, 24, 95–104. [Google Scholar] [CrossRef]
  26. Sun, X.; Xu, S.; Gao, Y.; Yue, M.; Yue, Q.; Gao, B. 3D hierarchical golden wattle-like TiO2 microspheres: Polar acetone-based solvothermal synthesis and enhanced water purification performance. CrystEngComm 2017, 19, 2187–2194. [Google Scholar] [CrossRef]
  27. Yu, X.; Zhao, Z.; Zhang, J.; Guo, W.; Li, L.; Liu, H.; Wang, Z.L. One-step synthesis of ultrathin nanobelts-assembled urchin-like anatase TiO2 nanostructures for highly efficient photocatalysis. CrystEngComm 2017, 19, 129–136. [Google Scholar] [CrossRef]
  28. Liu, X.; Zhang, Y.; Matsushima, S.; Hojo, H.; Einaga, H. Photocatalytic oxidation Process for treatment of gas phase benzene using Ti3+ self-doped TiO2 microsphere with sea urchin-like structure. Chem. Eng. J. 2020, 402, 126220. [Google Scholar] [CrossRef]
  29. Wittcoff, H.A.; Reuben, B.G.; Plotkin, J.S. Industrial Organic Chemicals; Wiley: Hoboken, NJ, USA, 2013. [Google Scholar]
  30. Jira, R. Acetaldehyde from ethylene—A retrospective on the discovery of the Wacker process. Angew. Chem. Int. Ed. 2009, 48, 9034–9037. [Google Scholar] [CrossRef]
  31. Takei, T.; Iguchi, N.; Haruta, M. Synthesis of acetoaldehyde, acetic acid, and others by the dehydrogenation and oxidation of ethanol. Catal. Surv. Asia 2011, 15, 80–88. [Google Scholar] [CrossRef]
  32. Akita, A.; Sugita, S.; Naya, S.; Tada, H. A heteromesocrystal photocatalyst consisting of SnO2(head)-TiO2(tail) nanorod hybrids. Catal. Commun. 2021, 154, 106301. [Google Scholar]
  33. Harvey, P.R.; Rudham, R.; Ward, S. Photocatalytic oxidation of liquid alcohols and binary alcohol mixtures by rutile. J. Chem. Soc. Faraday Trans. 1 1983, 79, 2975–2981. [Google Scholar] [CrossRef]
  34. Coutts, J.L.; Levine, L.H.; Richards, J.T.; Mazyck, D.W. The effect of photon source on heterogeneous photocatalytic oxidation of ethanol by a silica-titania composite. J. Photochem. Photobiol. A Chem. 2011, 225, 58–64. [Google Scholar] [CrossRef] [Green Version]
  35. Zhang, J.; Nosaka, Y. Photocatalytic oxidation mechanism of methanol and the other reactants in irradiated TiO2 aqueous suspension investigated by OH radical detection. Appl. Catal. B Environ. 2015, 166-167, 32–36. [Google Scholar] [CrossRef]
  36. Tada, H.; Kiyonaga, T.; Naya, S. Rational design and applications of highly efficient reaction systems photocatalyzed by noble metal nanoparticle-loaded titanium(iv) sioxide. Chem. Soc. Rev. 2009, 38, 1849–1858. [Google Scholar] [CrossRef] [PubMed]
  37. Shi, J.; Chen, J.; Feng, Z.; Chen, T.; Lian, Y.; Wang, X.; Li, C. Photoluminescence characteristics of TiO2 and their relationship to the photoassisted reaction of water/methanol mixture. J. Phys. Chem. C 2007, 111, 693–699. [Google Scholar] [CrossRef]
  38. Nakamura, R.; Ohashi, N.; Imanishi, A.; Osawa, T.; Matsumoto, Y.; Koinuma, H.; Nakato, Y. Crystal-face dependences of surface band edges and hole reactivity, revealed by preparation of essentially atomically smooth and stable (110) and (100) n-TiO2 (rutile) surfaces. J. Phys. Chem. B 2005, 109, 1648–1651. [Google Scholar] [CrossRef] [PubMed]
  39. Awa, K.; Akashi, R.; Akita, A.; Naya, S.; Kobayashi, H.; Tada, H. Highly efficient and selective oxidation of ethanol to acetaldehyde by a hybrid photocatalyst consisting of SnO2 nanorod and rutile TiO2 with heteroepitaxial junction. ChemPhysChem 2019, 20, 2155–2161. [Google Scholar] [CrossRef]
  40. Wang, C.; Zhang, X.; Liu, Y. Promotion of multi-electron transfer for enhanced photocatalysis: A review focused on oxygen reduction reaction. Appl. Surf. Sci. 2015, 358, 28–45. [Google Scholar] [CrossRef]
  41. Hou, H.; Zeng, X.; Zhang, X. Production of hydrogen peroxide by photocatalytic processes. Angew. Chem. Int. Ed. 2020, 59, 17356–17376. [Google Scholar] [CrossRef] [PubMed]
  42. Kawano, S.; Fujishima, M.; Tada, H. Size effect of zinc oxide-supported gold nanoparticles on the photocatalytic activity for two-electron oxygen reduction reaction. Catal. Commun. 2020, 144, 106076. [Google Scholar] [CrossRef]
  43. Feng, L.; Li, B.; Xiao, Y.; Li, L.; Zhang, Y.; Zhao, Q.; Zuo, G.; Meng, X.; Roy, V.A.L. Au modified Bi2O3-TiO2 hybrid for photocatalytic synthesis of hydrogen peroxide. Catal. Commun. 2021, 155, 106315. [Google Scholar] [CrossRef]
  44. Xu, W.; Sheng, X.; Zhou, H.; Wang, D.; Ding, Z.; Feng, X. Enhanced plasmonic photocatalytic synthesis of hydrogen peroxide at an air-liquid-solid triphasic interface. Chem. Eng. J. 2021, 410, 128342. [Google Scholar] [CrossRef]
  45. Adams, J.S.; Chembulkar, A.; Priyadarshini, P.; Ricciardulli, T.; Lu, Y.; Maliekkal, V.; Sampath, A.; Winikoff, S.; Karim, A.M.; Neurock, M.; et al. Solvent molecules from surface redox mediators in situ and cocatalyze O2 reduction on Pd. Science 2021, 371, 626–632. [Google Scholar] [CrossRef]
  46. Sui, S.; Wang, X.; Zhou, X.; Su, Y.; Riffat, S.; Liu, C.-j. A comprehensive review of Pt electrocatalysts for the oxygen reduction reaction: Nanostructure, activity, mechanism and carbon support in PEM fuel cells. J. Mater. Chem. A 2017, 5, 1808–18025. [Google Scholar] [CrossRef]
  47. Abe, R.; Takami, H.; Murakami, N.; Ohtani, B. Pristine simple oxides as visible light driven photocatalysts: Highly efficient decomposition of organic compounds over platinum-loaded tungsten oxide. J. Am. Chem. Soc. 2008, 130, 7780–7781. [Google Scholar] [CrossRef] [PubMed]
  48. Tada, H.; Naya, S. Atomic level interface control of SnO2-TiO2 nanohybrids for the photocatalytic activity enhancement. Catalysts 2021, 11, 205. [Google Scholar] [CrossRef]
  49. Sun, Q.; Wu, S.; Li, K.; Han, B.; Chen, Y.; Pang, B.; Yu, L.; Dong, L. The favorable synergistic operation of photocatalysis and catalytic oxygen reduction reaction by a novel heterogeneous CoFe2O4-TiO2 nanocomposite. Appl. Surf. Sci. 2020, 516, 146142. [Google Scholar] [CrossRef]
  50. Byl, O.; Yates, J.T., Jr. Anisotropy in the electrical conductivity of rutile TiO2 in the (110) plane. J. Phys. Chem. B 2006, 110, 22966–22967. [Google Scholar] [CrossRef]
  51. Cooper, G.; Turner, J.A.; Nozik, A.J. Mott-Schottky plots and flatband potentials for single crystal rutile electrodes. J. Electrochem. Soc. 1982, 129, 1973–1977. [Google Scholar] [CrossRef]
  52. Tada, H.; Hattori, A.; Tokihisa, Y.; Imai, K.; Tohge, N.; Ito, S. A patterned-TiO2/SnO2 bilayer type photocatalyst. J. Phys. Chem. B 2000, 104, 4585–4587. [Google Scholar] [CrossRef]
  53. Kim, W.; Tachikawa, T.; Moon, G.-H.; Majima, T.; Choi, W. Molecular-level understanding of the photocatalytic activity difference between anatase and rutile nanoparticles. Angew. Chem. Int. Ed 2014, 53, 14036–14041. [Google Scholar] [CrossRef] [PubMed]
  54. Nikawa, T.; Naya, S.; Kimura, T.; Tada, H. Rapid removal and subsequent low-temperature mineralization of gaseous acetaldehyde by the dual thermocatalysis of gold nanoparticle-loaded titanium(IV) oxide. J. Catal. 2015, 326, 9–14. [Google Scholar] [CrossRef]
  55. Kong, E.-H.; Chang, Y.-J.; Park, Y.-C.; Yoon, Y.-H.; Park, H.-J.; Jang, H.M. Sea urchin TiO2-nanoparticle hybrid composite photoelectrodes for CdS/CdSe/ZnS quantum-dot-sensitized solar cells. Phys. Chem. Chem. Phys. 2012, 14, 4620–4625. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  56. Zhou, Y.; Wang, Y.; Li, M.; Li, X.; Yi, Q.; Deng, P.; Wu, H. Solvothermal synthesis and high optical performance of three-dimensional sea-urchin-like TiO2. Mater. Res. Bull. 2015, 66, 115–122. [Google Scholar] [CrossRef]
  57. Ri, J.H.; Wu, S.; Jin, J.; Peng, T. Growth of a sea urchin-like rutile TiO2 hierarchical microsphere frilm on Ti foil for a quai-solid-state dye-sensitized solar cell. Nanoscale 2017, 9, 18498–18506. [Google Scholar] [CrossRef] [PubMed]
  58. Ri, J.H.; Wu, S.; Jin, J.; Peng, T.; Kim, B.; Sonu, K.S. Preparation of Ti foil-based film containing rutile sea urchin-like microspheres covered with anatase nanotubes self-organized layer and its application in dye-sensitized solar cells. Electrochim. Acta 2017, 247, 754–763. [Google Scholar] [CrossRef]
  59. Chen, J.S.; Tan, Y.L.; Li, C.M.; Cheah, Y.L.; Luan, D.; Madhavi, S.; Boey, F.Y.C.; Archer, L.A.; Lou, X.W. Constructing hierarchical spheres from large ultrathin anataseTiO2 nanosheets with nearly 100% exposed (001) facets for fast reversible lithium storage. J. Am. Chem. Soc. 2010, 132, 6124–6130. [Google Scholar] [CrossRef] [Green Version]
  60. Ambade, R.B.; Koh, K.H.; Ambade, S.B.; Eom, W.; Noh, S.H.; Koo, C.M.; Kim, S.H.; Han, T.H. Kinetically controlled low-temperature solution-processed mesoporous rutile TiO2 for high performance lithium-ion batteries. J. Ind. Eng. Chem. 2019, 80, 667–676. [Google Scholar] [CrossRef]
  61. Nguyen-Phan, T.-D.; Luo, S.; Vovchok, D.; Llorca, J.; Sallis, S.; Kattel, S.; Xu, W.; Piper, L.F.J.; Polyansky, D.E.; Senanayake, S.D.; et al. Three-dimensional Ruthenium-Doped TiO2 Sea Urchins for Enhanced Visible-Light-Responsive H2 Production. Phys. Chem. Chem. Phys. 2016, 18, 15972–15979. [Google Scholar] [CrossRef]
  62. Tada, H.; Naya, S.; Fujishima, M. Nanohybrid crystals with heteroepitaxial junctions for solar-to-chemical transformations. J. Phys. Chem. C 2020, 124, 25657–25666. [Google Scholar] [CrossRef]
Catalysts 11 01298 sch001 550

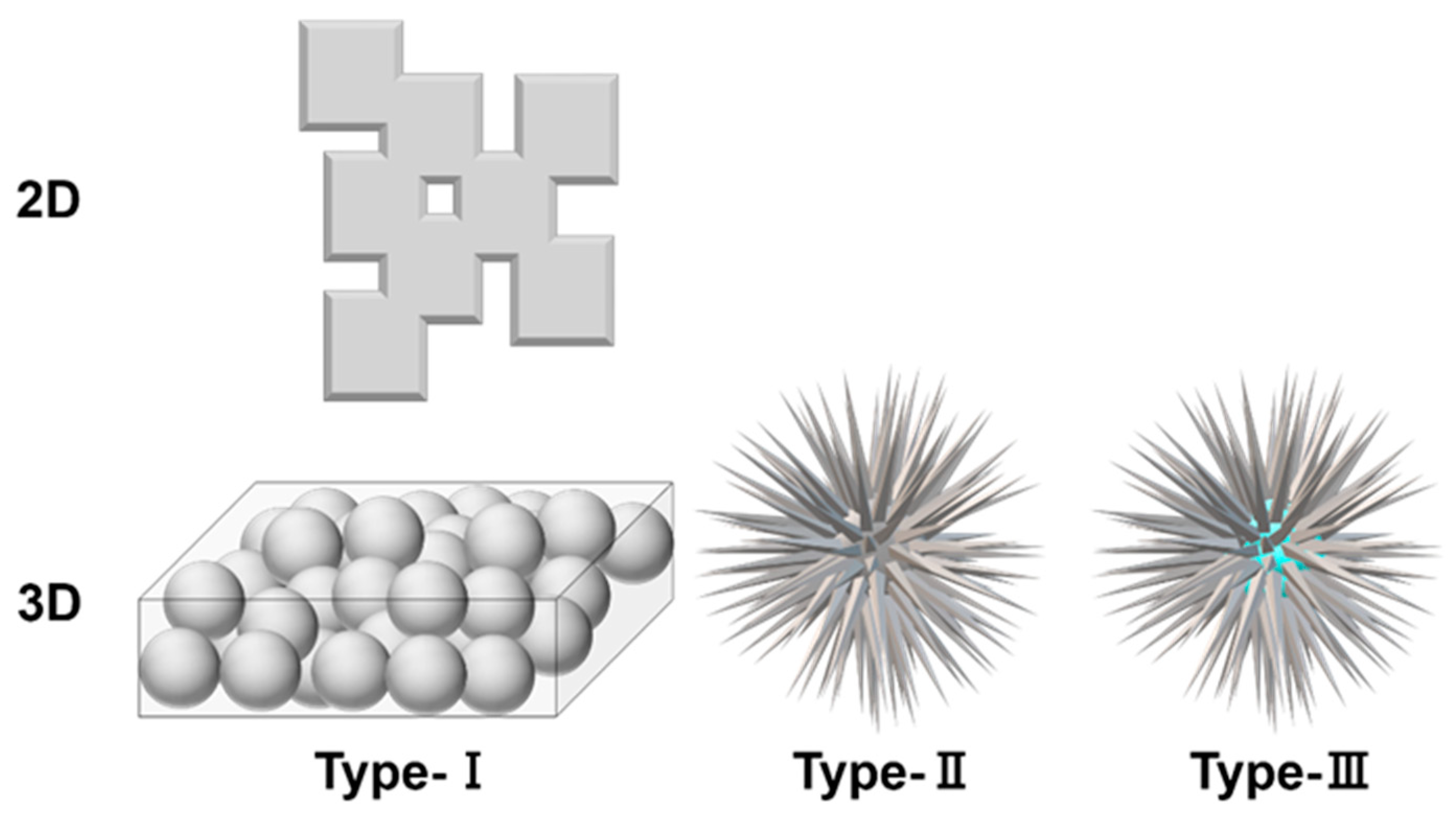

Scheme 1. Representative geometries of the TiO2-based MCs.
Scheme 1. Representative geometries of the TiO2-based MCs.
Catalysts 11 01298 sch001
Catalysts 11 01298 g001 550

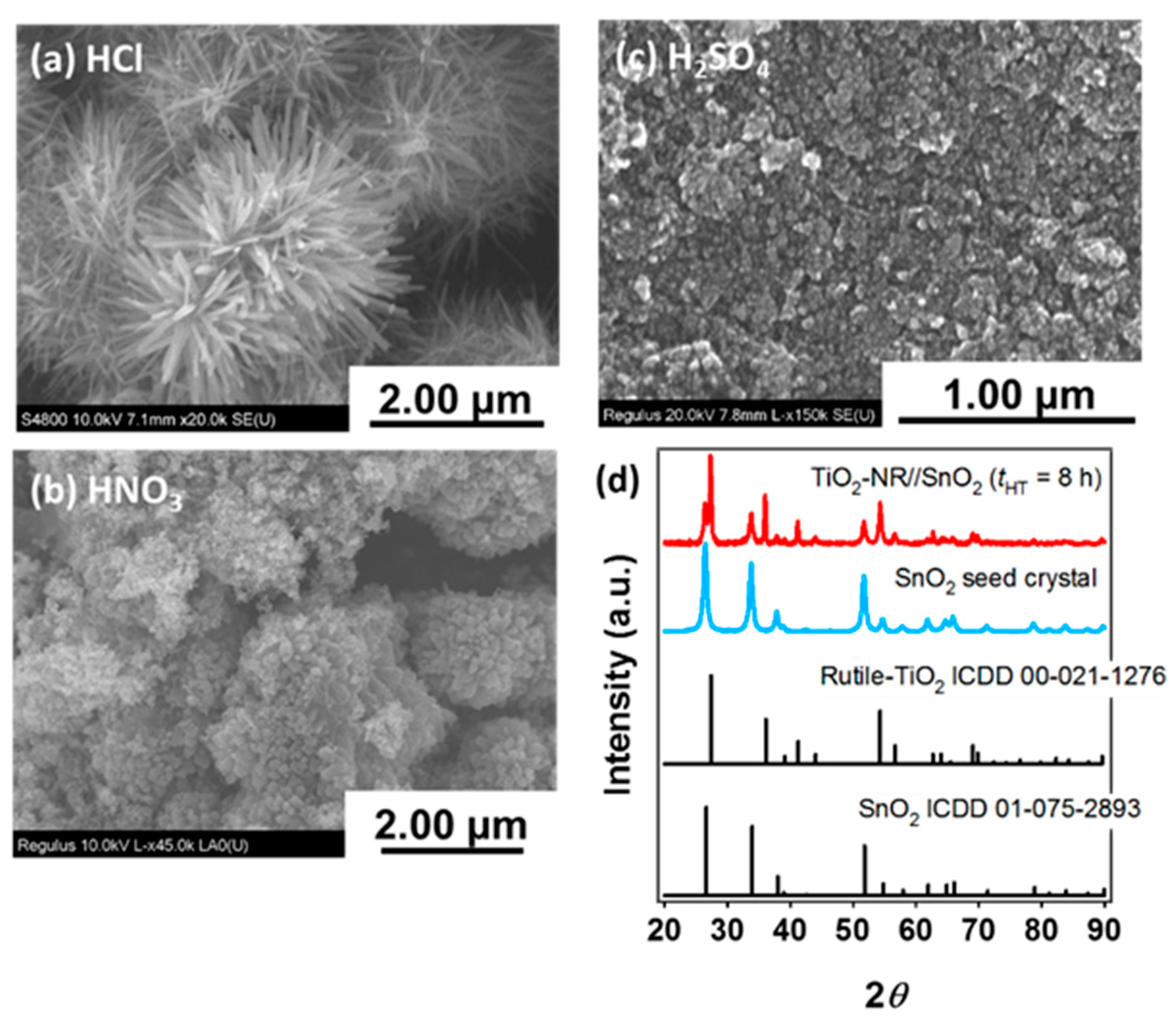

Figure 1. SEM images for the TiO2-SnO2 hybrids prepared by the hydrothermal method under acidic conditions using HCl (a), HNO3 (b), and H2SO4 (c): hydrothermal reaction time (tHT) = 8 h. (d) X-ray diffraction patterns of the samples before and after the hydrothermal method under acidic conditions using HCl. The figures are taken from Reference [15] (reproduced with permission from Akita, A.; Kobayashi, H.; Tada, H., Chem. Phys. Lett.; published by Elsevier, 2020).
Figure 1. SEM images for the TiO2-SnO2 hybrids prepared by the hydrothermal method under acidic conditions using HCl (a), HNO3 (b), and H2SO4 (c): hydrothermal reaction time (tHT) = 8 h. (d) X-ray diffraction patterns of the samples before and after the hydrothermal method under acidic conditions using HCl. The figures are taken from Reference [15] (reproduced with permission from Akita, A.; Kobayashi, H.; Tada, H., Chem. Phys. Lett.; published by Elsevier, 2020).
Catalysts 11 01298 g001
Catalysts 11 01298 g002 550

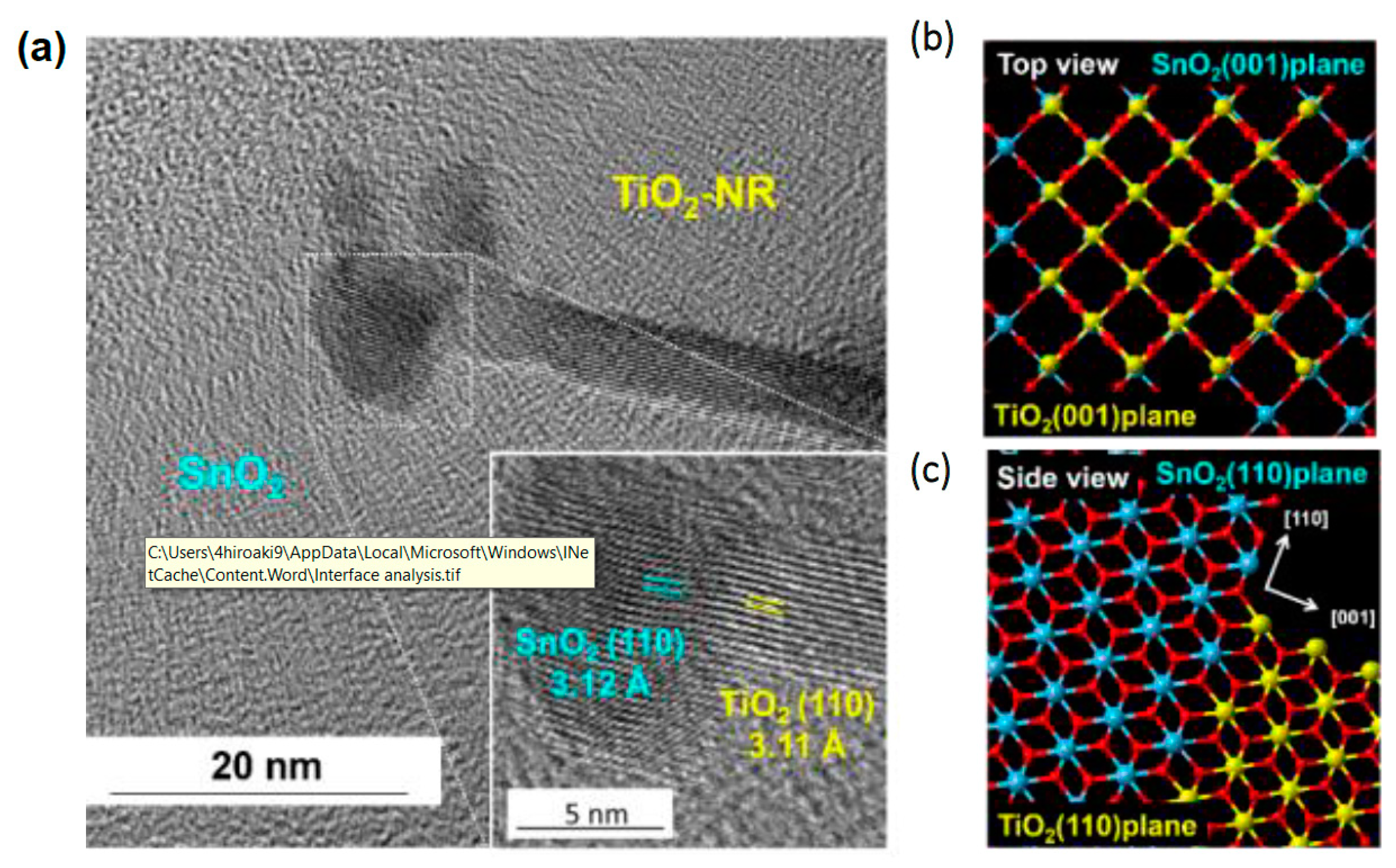

Figure 2. (a) TEM image for a particle prepared by the hydrothermal reaction at tHT = 1 h, and the inset is the HR-TEM image for the interface of the same sample. Top view (b) and side view (c) for the interface model constructed from the HR-TEM image. The figure is taken from Reference [14] (reproduced with permission from Akita, A.; Tada, H., Langmuir; published by American Chemical Society, 2019).
Figure 2. (a) TEM image for a particle prepared by the hydrothermal reaction at tHT = 1 h, and the inset is the HR-TEM image for the interface of the same sample. Top view (b) and side view (c) for the interface model constructed from the HR-TEM image. The figure is taken from Reference [14] (reproduced with permission from Akita, A.; Tada, H., Langmuir; published by American Chemical Society, 2019).
Catalysts 11 01298 g002
Catalysts 11 01298 g003 550

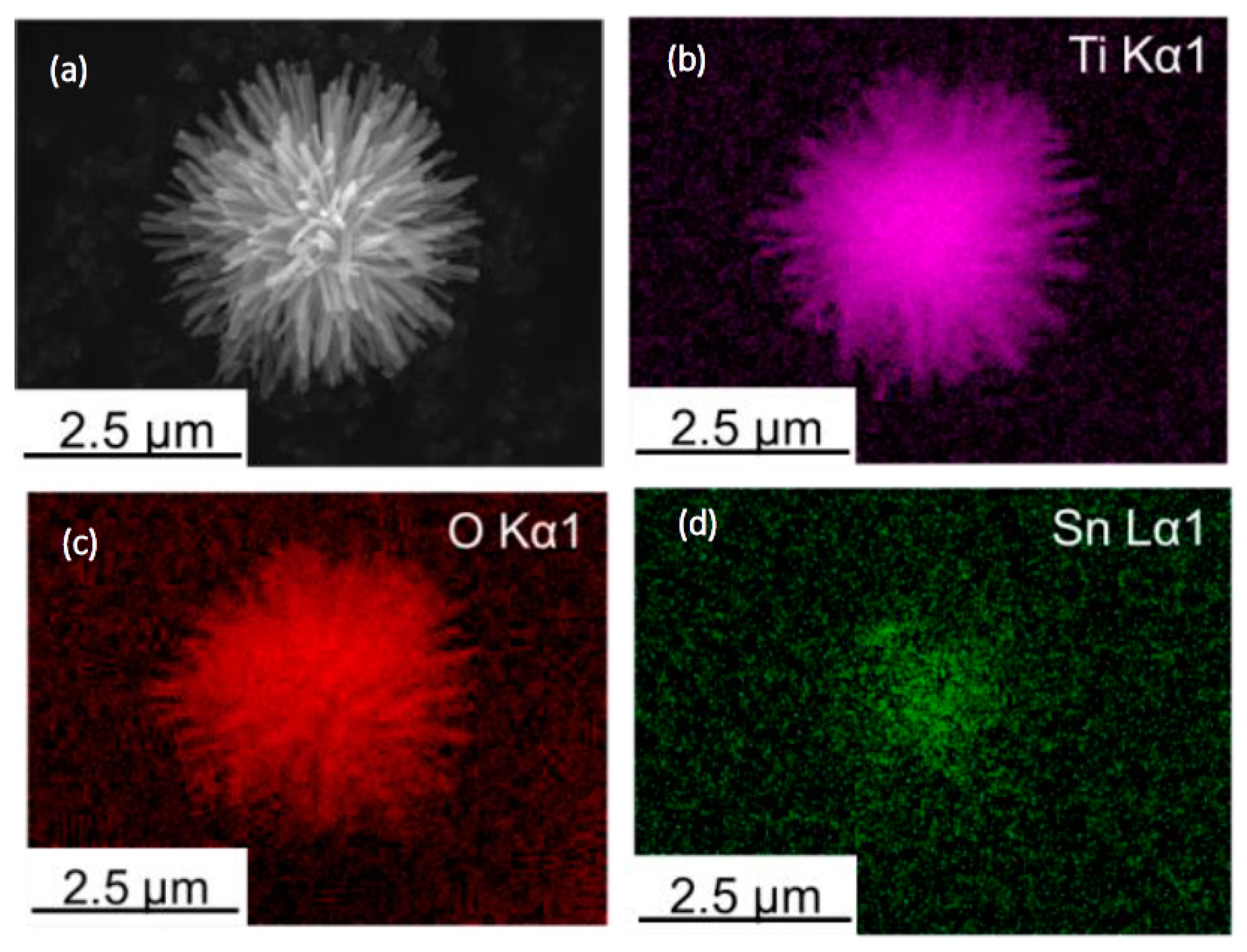

Figure 3. (a) STEM–EDS elemental mapping for a particle prepared by the hydrothermal reaction at tHT = 8 h ((b), Ti; (c), O; (d), Sn). The figure is taken from Reference [14] (reproduced with permission from Akita, A.; Tada, H., Langmuir; published by American Chemical Society, 2019).
Figure 3. (a) STEM–EDS elemental mapping for a particle prepared by the hydrothermal reaction at tHT = 8 h ((b), Ti; (c), O; (d), Sn). The figure is taken from Reference [14] (reproduced with permission from Akita, A.; Tada, H., Langmuir; published by American Chemical Society, 2019).
Catalysts 11 01298 g003
Catalysts 11 01298 sch002 550

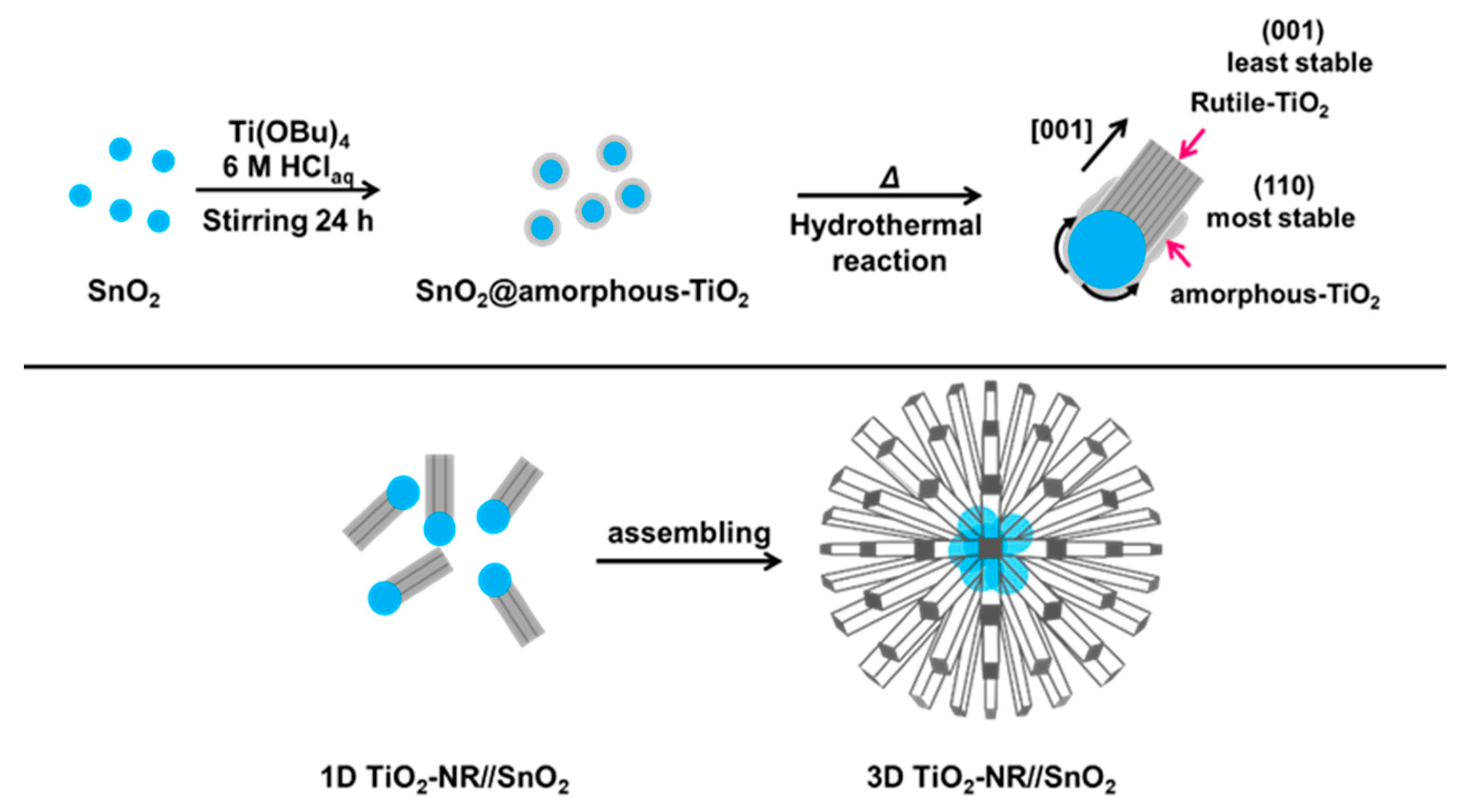

Scheme 2. A schematic representation of the formation and self-assembling of TiO2-NR//SnO2. The figure is taken from Reference [14] (reproduced with permission from Akita, A.; Tada, H., Langmuir; published by American Chemical Society, 2019).
Scheme 2. A schematic representation of the formation and self-assembling of TiO2-NR//SnO2. The figure is taken from Reference [14] (reproduced with permission from Akita, A.; Tada, H., Langmuir; published by American Chemical Society, 2019).
Catalysts 11 01298 sch002
Catalysts 11 01298 g004 550

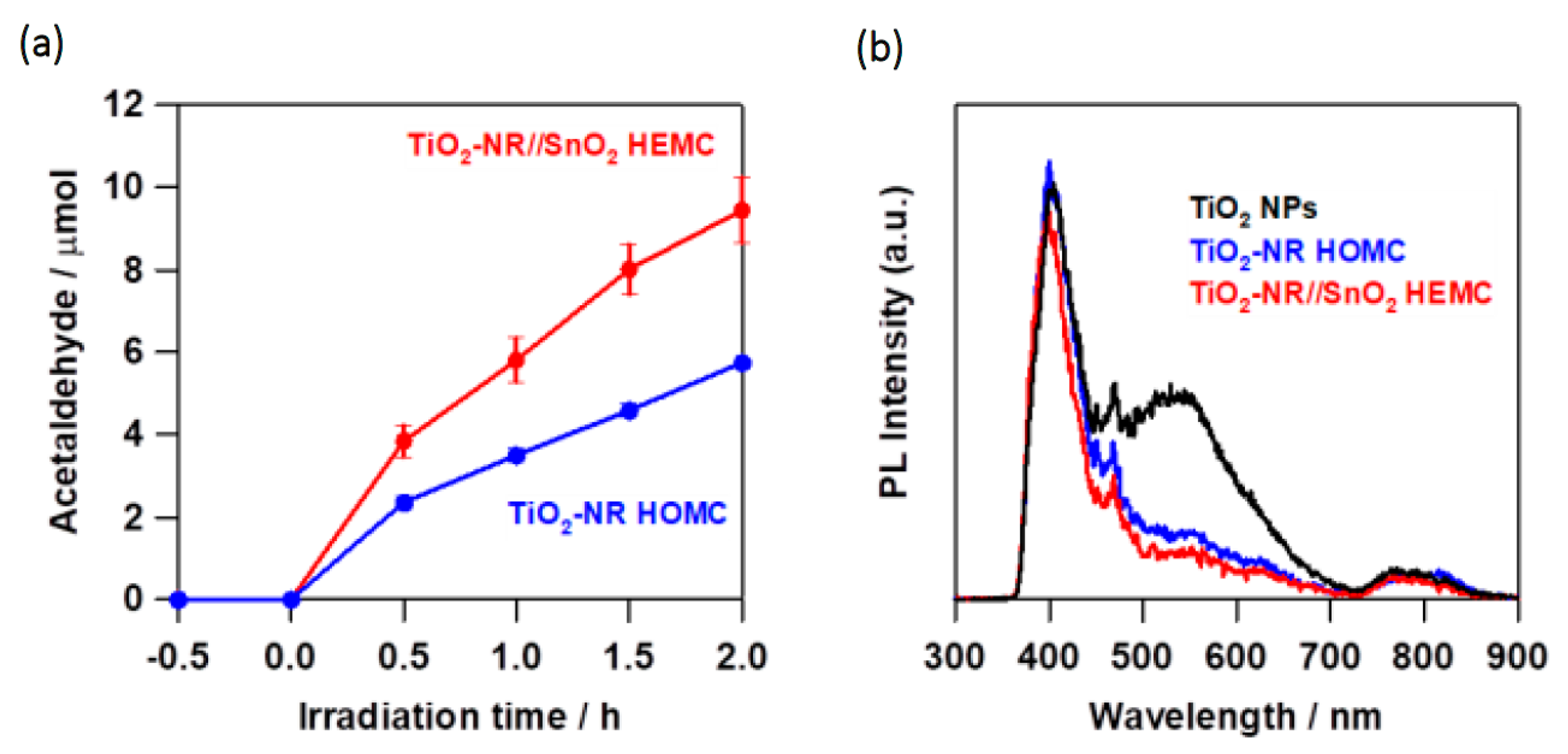

Figure 4. (a) Comparison of the photocatalytic activities of TiO2-NR//SnO2 HEMCs (tHT = 8 h) and TiO2-NR HOMCs (tHT = 8 h) for gas-phase oxidation of ethanol under UV-light irradiation (λ = 365 nm, I = 2.0 mW cm−2). (b) PL spectra were measured for TiO2-NR//SnO2 HEMCs, TiO2-NR HOMCs, and TiO2 NPs for comparison at 77 K with an excitation wavelength of 340 nm. The figure is taken from Reference [32] (reproduced with permission from Akita, A.; Sugita, S.; Naya, S.; Tada, H., Catal. Commun.; published by Elsevier, 2021).
Figure 4. (a) Comparison of the photocatalytic activities of TiO2-NR//SnO2 HEMCs (tHT = 8 h) and TiO2-NR HOMCs (tHT = 8 h) for gas-phase oxidation of ethanol under UV-light irradiation (λ = 365 nm, I = 2.0 mW cm−2). (b) PL spectra were measured for TiO2-NR//SnO2 HEMCs, TiO2-NR HOMCs, and TiO2 NPs for comparison at 77 K with an excitation wavelength of 340 nm. The figure is taken from Reference [32] (reproduced with permission from Akita, A.; Sugita, S.; Naya, S.; Tada, H., Catal. Commun.; published by Elsevier, 2021).
Catalysts 11 01298 g004
Catalysts 11 01298 sch003 550

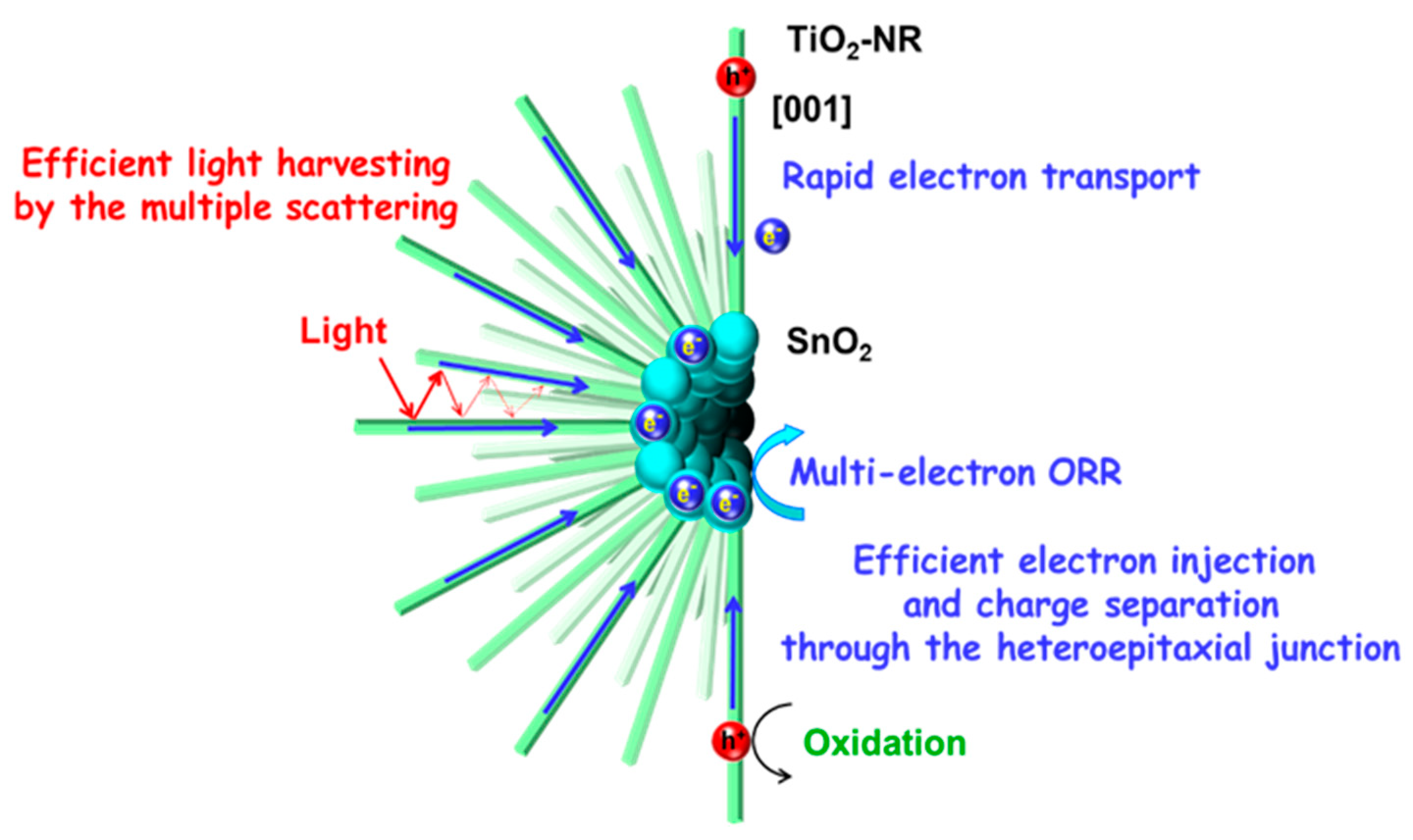

Scheme 3. Action mechanism of TiO2-NR//SnO2 HEMC photocatalyst. The figure is taken from Reference [32] (reproduced with permission from Akita, A.; Sugita, S.; Naya, S.; Tada, H., Catal. Commun.; published by Elsevier, 2021).
Scheme 3. Action mechanism of TiO2-NR//SnO2 HEMC photocatalyst. The figure is taken from Reference [32] (reproduced with permission from Akita, A.; Sugita, S.; Naya, S.; Tada, H., Catal. Commun.; published by Elsevier, 2021).
Catalysts 11 01298 sch003
