Performance Study of Zn-Co-Ni/AC Catalyst in Acetylene Acetylation

Abstract

Zinc acetate (Zn(OAc)₂) loaded on activated carbon (AC) is the most commonly used catalyst for the industrial synthesis of vinyl acetate (VAc) using the acetylene method. The aim of this study is to optimize the Zn(OAc)₂/AC catalyst by adding co-catalysts to improve its activity and stability. Ternary catalysts were synthesized by adding Co and Ni to the Zn(OAc)₂/AC catalyst (Zn-Co-Ni/AC). Due to the strong synergistic effect among promoter Co, Ni, and the active component of Zn(OAc)₂, the resulting catalyst is capable to absorb more acetic acid and less acetylene. The stability and activity of Zn-Co-Ni/AC catalyst have been improved through electron transfer to alter the electron cloud density around the Zn element. Under the same reaction conditions, the activity of Zn-Co-Ni/AC catalyst was enhanced by 83% compared to that of Zn(OAc)₂/AC, and the activity was still as high as 30.1% after 120 h of testing.

1. Introduction

As one of the biggest organic chemistry intermediates in the world, VAc has been used to produce a lot of downstream productions that are widely used in medicine, textile, machinery, construction, leather processing, and other fields [1,2,3,4]. At present, there are two main industrial production methods for VAc, one is the acetylene method represented in the equation below, using acetylene with acetic acid (HAc) as raw materials.

$${ \mathrm{C}}_2{\mathrm{H}}_2+{\mathrm{CH}}_3\mathrm{COOH}\stackrel{\mathrm{Zn}/\mathrm{AC}}{\to }{\mathrm{CH}}_2{\mathrm{CHCOOCH}}_3$$

(1)

The other using ethylene, acetic acid, and oxygen as raw materials is the ethylene method [5] below.

$${ \mathrm{C}}_2{\mathrm{H}}_4+{\mathrm{CH}}_3\mathrm{COOH}+0.5{\mathrm{O}}_2\stackrel{\mathrm{Pd}/\mathrm{Au}}{\to }{\mathrm{CH}}_2{\mathrm{CHCOOCH}}_3+{\mathrm{H}}_2\mathrm{O}$$

(2)

The bimetallic Pd-Au catalyst system is used by the ethylene method and has good performance in industrial production, but the Pd and Au are expensive and their prices are on an upward trend [6,7]. The acetylene method is a simple technology, Zn(OAc)₂/AC catalyst is low cost and has good catalytic performance. However, the Zn(OAc)₂/AC catalyst has the disadvantages of increasing the yield of by-products with rising temperature, besides, it has a short lifetime and can be deactivated easily.

Regarding active components, Xu et al. [8] loaded ionic liquid containing the active ingredient Zn(OAc)₂ into porous silica gel to form a supported ionic liquid catalyst which exhibited good selectivity. Miyazawa et al. [9,10] synthesized several highly active metal oxide catalysts, but there are obvious defects in terms of stability. In carrier modification, Bong and coworkers [11,12] modified the activated carbon with hydrogen peroxide, nitric acid and acetic acid, the adsorption capacity and the adsorption rate of zinc acetate with the catalyst were increased. Yan et al. [13] prepared the porous carbon sphere (PCS) and used it for supporting zinc acetate in a single pass operation performed at 220 °C, the conversions of acetic acid reached 22.6%. In terms of engineering simulations and theoretical calculations, many researchers have done a lot of work on the reaction mechanism, active site, carrier modification and side reactions of VAc synthesis [14,15,16,17,18,19].

In the synthesis process of VAc by acetylene method, our group also have done some work on active components selection and carrier modification. A type of catalyst containing nitrogen with high activity was prepared by Yu et al. [20]. Wang and coworkers [21,22] used zinc-cobalt and zinc-nickel as active components and explained the relevant reaction mechanisms. Wang et al. [23] prepared nitrogen-doped AC by modifying AC with dicyandiamide (N-AC) and used it for loading Zn(OAc)₂, which exhibited good performance. Zhu et al. [24] modified the catalyst with the supports of boron by simple impregnation method.

Skala and co-workers [25] explored zinc-nickel-cobalt as a catalyst for water oxidation reactions for the first time and which showed excellent activity. Zhu et al. [26] prepared a new type of electrode material GO/Zn-Co-Ni that layered double hydroxides with a fluffy cotton-like structure, showing a combination of carbon materials and ternary metals. For the acetylene-acetic acid based synthesis of VAc, the activity of different metal active components increase in the order: Hg(II) > Bi > Cd > Zn > Ni > Mg > Co > Fe > Ca > Ba [9]. We noticed that Zn, Co, and Ni are active and able to interact with each other. Based on this, we synthesized Zn-Co-Ni/AC catalyst, which shows good activity and stability.

2. Catalysts Characterization

N₂ adsorption-desorption isotherms were determined and obtained on an ASAP 2460 apparatus (Micromeritics, Norcross, Georgia, USA). BET surface areas, total pore volumes and average pore sizes were acquired based on the Brunauer–Emmett–Teller (BET) method together with the Barrett–Joyner–Halenda (BJH) method. TPD-N₂ was performed by heating the sample from 25 °C to 800 °C with a ramp rate of 10 °C/min in N₂ atmosphere. XPS data were measured using Kratos AXIS Ultra DLD X-ray photoelectron spectrometer from the Trafford Park, Manchester, UK. High-resolution TEM (HRTEM) data were performed by using a Tecnai G2 F20 instrument(FEI Company, Hillsboro, Oregon, USA). TG analysis was carried out on a NETZSCH STA 449F3 (Selp, Bavaria, Germany) Jupiter1 instrument and the test temperature was increased from 30 °C to 850 °C at a rate of 10 °C min⁻¹ in an air atmosphere. The inductively coupled plasma (ICP) evaluation was performed using the Agilent ICPOES 730 (Agilent Technologies, Santa Clara, CA, USA) for metal elemental measurement.

3. Catalyst Evaluation

As shown in Figure S1, Catalyst was evaluated in a fixed bed microreactor (i.d. of 10 mm). We first filled a small amount of quartz wool into the bottom of the reaction tube and then added 5 mL of catalyst. The entire tube was purged with nitrogen before the reaction, and then the temperature of the preheater and reactor were controlled using a CKW-1100 temperature regulator (Beijing Chaoyang Automation Instrument Factory).

When the temperature of the preheater and reactor were adjusted to 150 °C and 180 °C, respectively, the peristaltic pump controlling the flow of acetic acid was turned on and the acetic acid was vaporized into the reactor after passing through the preheater to activate the catalyst in a 30-min process. The temperature of the reactor was adjusted to 220 °C, the nitrogen was turned off and acetylene was introduced into the reaction, where the flow of acetylene and nitrogen was controlled by a mass flow meter. After the product vinyl acetate was condensed by the condenser, the product was sampled per hour by a sample tube and was injected into the GC-9A gas chromatograph by the micro-injector for analysis. The acetylene space velocity was 500 h⁻¹, the molar ratio of acetylene to acetic acid was 3:1, and the reaction temperature was 220 °C.

The conversion of acetic acid, VAc selectivity and yield from acetic acid were defined according to the following equations:

$$\begin{array}{c}\mathrm{Conversion}=\frac{n_0-n_1}{n_0}\times 100\%\\ \mathrm{Selectivity}=\frac{n_p}{n_0-n_1}\times 100\%\\ \mathrm{Yield}=\frac{n_p}{n_0}\times 100\%\end{array}$$

(3)

where in, $n_0$ represents the amount of acetic acid for feedstock before reaction; n₁ denotes amount of acetic acid for residue after reaction; and $n_p$ is amount of acetic acid for forming VAc. The calculation of carbon conservation is as shown in Table S1. The turnover frequency (TOF) and turnover number (TON) are as shown in Figure S4.

4. Results and Discussions

4.1. Catalytic Performance Evaluation

As can be seen from

Table 1. Effect of different active components on the performance of catalysts.

Samples	Composition of Samples	Acetic Acid Conversion (%)
Zn/AC	10 wt% Zn(OAc)2	19.9
Co/AC	10 wt% Co(OAc)2	4.8
Ni/AC	10 wt% Ni(OAc)2	4.4

, at a theoretical loading of 10% for three monometallic catalysts. The Co/AC and Ni/AC catalysts were basically inactive, and the Zn/AC catalyst had the best activity with acetic acid conversion of 19.9%. Therefore, at this loading, the zinc acetate is the active phase.

It can be seen from Figure 1a that different molar ratios of Zn, Co, Ni have significant influence on the catalyst activity. The acetic acid conversion rate of the single metal Zn(OAc)₂/AC catalyst was 19.9%. When the molar ratio of Zn: Co: Ni was 1:0.3:0.05, the ternary metal catalyst Zn1Co0.3N0.05/AC showed quite excellent catalytic activity, reaching 36.4%.

In order to study the mechanism of the ternary catalysts, Zn1Co0.3 + Ni0.05/AC, Zn1Ni0.05 + Co0.3/AC, and Zn1 + Ni0.05Co0.3/AC catalysts were prepared, respectively. The catalysts prepared by secondary impregnation did not show excellent performance, as shown in Figure 1b. The ternary catalysts prepared by a one-step process showed that Zn, Co, and Ni elements were uniformly mixed and evenly dispersed on the carrier, which is supported by the data in Figure S2. Strong interactions occurred between the additive and the active component, when the catalysts were prepared by secondary impregnation, the original active sites were covered by the co-catalysts, which reduced the performance of the active components, and the pore blockage of the carriers was also responsible for the reduced activity.

4.2. Structure Characterizations of the As-Prepared Catalysts

The structural parameters such as specific surface area (S_BET), pore volume (V), and pore diameter (D) of the catalyst were measured with ASAP 2460 pore size analyzer. As can be seen from

Table 2. Textural parameters of catalysts.

Samples	SBET (m2 g–1)	V (cm3 g–1)	D (nm)
AC	1134.4	0.61	2.16
Zn(OAc)2/AC	929.9	0.50	2.17
Zn1Co0.1Ni0.05/AC	795.7	0.42	2.09
Zn1Co0.3Ni0.05/AC	718.9	0.39	2.12
Zn1Co0.5Ni0.05/AC	621.2	0.34	2.11
Zn1Co0.3Ni0.01/AC	730.5	0.33	2.10
Zn1Co0.3Ni0.09/AC	724.6	0.38	2.12

, as the added amount of Co and Ni gradually increased, the specific surface area and pore volume of the catalyst decreased. On the one hand, due to the dilution effect, the loading of the active component reduces the ratio of the carrier in the catalyst, and as the loading amount of the active component increases, the proportion of the carrier gradually decreases, and the dilution effect becomes more significant. On the other hand, the loaded cobalt acetate, nickel acetate, and zinc acetate blocked or filled some pores of the carrier, resulting in the reduction of the specific surface area and pore volume of the catalyst. With more loadings, the more pores were filled or blocked by the carrier; therefore, the less the specific surface area and total pore volume of the catalyst will be. The results also indicate the successful preparation of the Zn-Co-Ni/AC ternary catalysts.

4.3. Effect of Co and Ni on the Zinc Catalyst

By analyzing the causes of catalyst deactivation in the previous work, it was found that the adsorption capacity of the catalyst to the reactant molecules is closely related to its catalytic performance [23].

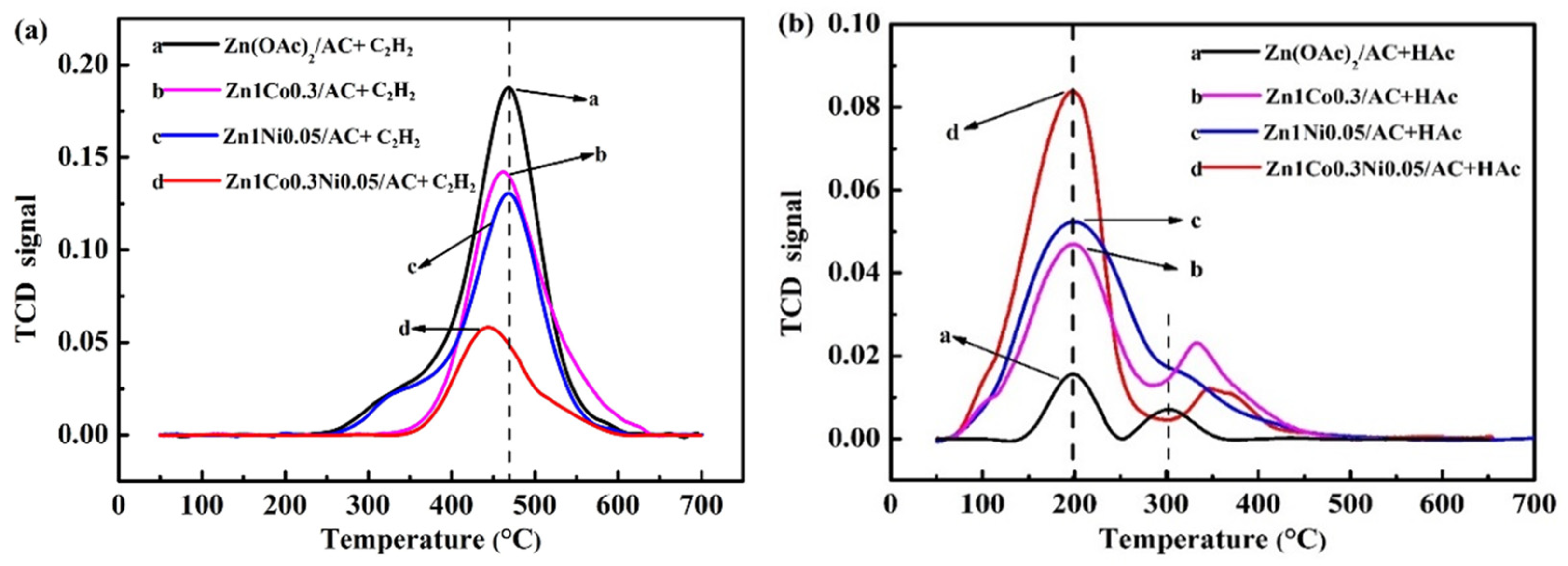

In Figure 2a, the central temperature of the acetylene desorption peaks of Zn(OAc)₂/AC, Zn1Co0.3/AC, and Zn1Ni0.05/AC catalysts are around 473 °C, but the temperature of the acetylene desorption peak for the Zn1Co0.3Ni0.05/AC catalyst is around 447 °C, The area of the desorption peak of Zn1Co0.3Ni0.05/AC catalyst is significantly smaller than that of the other catalysts. It can be seen from Figure 2b, the temperatures of acetic acid desorption peaks for the Zn1Co0.3Ni0.05/AC catalyst are about 198 °C and 354 °C, which for Zn(OAc)₂/AC catalyst are around 198 °C and 302 °C, while the peak areas of the Co and Ni co-doped catalysts have significantly increased. We found that the introduction of cobalt and nickel elements could also improve the adsorption of acetic acid by the catalyst. The above results indicate that there is a strong synergistic effect among Zn, Co, and Ni, which reduces the adsorption amount and intensity of acetylene and enhances the adsorption amount and intensity of acetic acid, thus enhancing the activity of the catalysts. Besides, the increase of the desorption peak area may also due to the additives which make the nanoparticles of active components more uniformly dispersed and more active sites exposed on the carrier. In summary, the excellent catalytic performance of Zn1Co0.3Ni0.05/AC catalyst is attributed to the addition of Co and Ni, which have changed the adsorption performance of the catalyst and the one-step synthesis could induce more active sites.

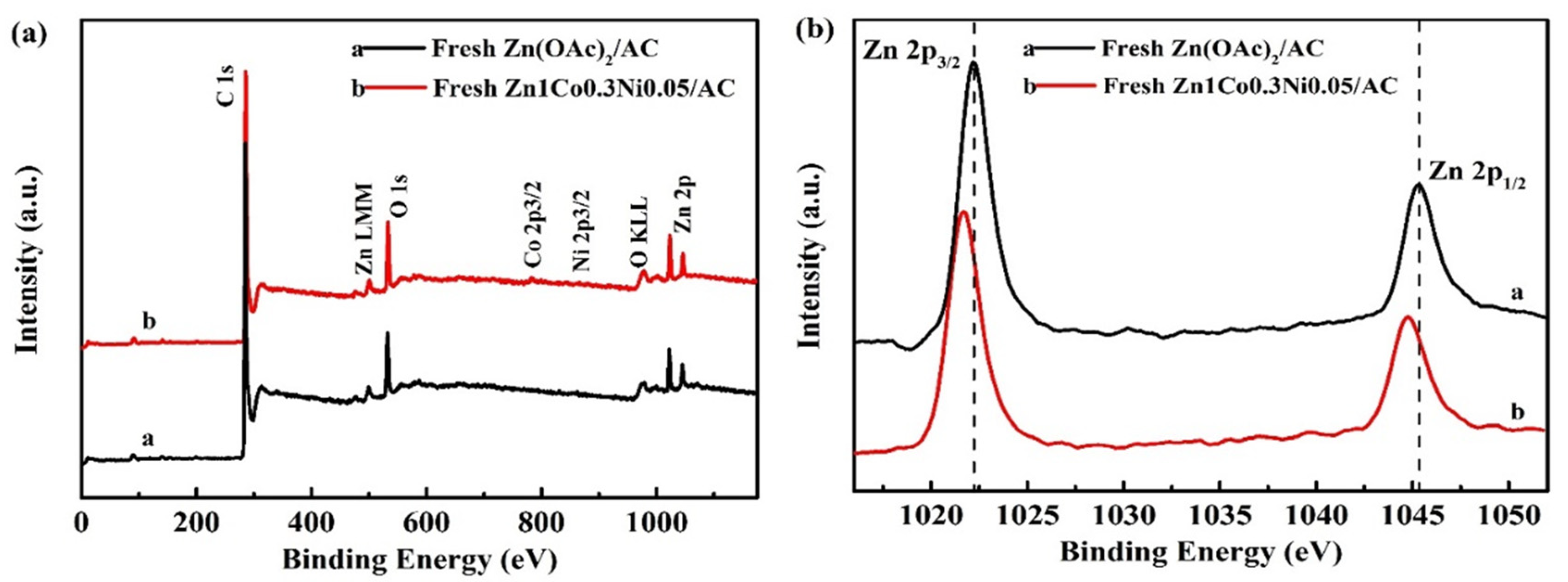

In order to explore the chemical state of Zn element on the surface of the catalyst, we conducted XPS experiment analysis. As shown in Figure 3a, the XPS full spectrum of the Zn(OAc)₂/AC catalyst proves the presence of C, O, and Zn. The XPS full spectrum of the Zn1Co0.3Ni0.05/AC catalyst shows the existence of C, O, Co, Zn, Ni elements, which means Co and Ni were successfully doped in Zn(OAc)₂/AC catalyst, this is consistent with the energy dispersive spectrometer (EDS) result in Table S2. In Figure 3b, the binding energy positions of Zn 2p3/2 and Zn 2p1/2 of the Zn(OAc)₂/AC catalyst in Figure 3b are located at 1022.2 eV and 1045.3 eV, respectively, which is consistent with the binding energy positions of Zn 2p of zinc acetate reported in the literature [27,28]. The binding energy positions of Zn 2p3/2 and Zn 2p1/2 of the Zn1Co0.3Ni0.05/AC catalyst shift toward the lower binding energy, which are located at 1021.6 eV and 1044.8 eV, respectively. This indicates that the addition of Co and Ni changes the electron cloud density around the active site through electron transfer. The Co²⁺ and Ni²⁺ standard reduction electrode potentials are higher than that of Zn²⁺, leading to the electrons transfers from the former to the latter, which enhances the electron density of the Zn active center and thus increases the adsorption capacity of the catalyst for acetic acid. For Zn1Co0.3Ni0.05/AC catalyst, the active component is the element zinc, the elements cobalt and nickel are the promoter. The promoter plays the most critical role by changing the outer electron density of the active component zinc, resulting in a shift in the binding energy of the zinc element. As Richardson, J.T. [29] writes in his book, Principles of Catalyst Development, promoter interactions on active component can also be structural or electronic. This is consistent with the analytical results of TPD experiments.

In order to verify that the doping of Co and Ni elements would make a uniform Zn element distribution, the catalysts were subjected to TEM-mapping tests, as shown in Figure 4b. There is a significant inhomogeneity in the distribution of Zn elements, which present as agglomeration in Zn(OAc)₂/AC catalyst. However, as displayed in Figure 4c,e,f, not only Zn elements are uniformly dispersed, but also Ni and Co are equally uniformly dispersed. This is mainly due to the interaction between Zn, Co, and Ni, which is also consistent with the XPS data.

4.4. Catalytic Stability of the Zn-Co-Ni/AC Catalysts

Lifetime testing under laboratory reaction conditions is to explore the industrial application prospects of the Zn1Co0.3Ni0.05/AC catalyst. The results are shown in Figure 5. There is a certain reaction induction period for the Zn1Co0.3Ni0.05/AC catalyst, during this time, the activity of the catalyst gradually increased. After about 4 h of reaction, the acetic acid conversion rate reaches a maximum of 36.4%. After 120 h of testing, the conversion rate is still up to 30.1%, which is 82.3% of the highest conversion rate. The maximum value of Zn(OAc)₂/AC catalyst acetic acid conversion rate is 19.9%, after 120 h of reaction, the conversion rate drops to 11.8%, only 59.3% of the highest conversion rate, these results show that adding the appropriate amount of Co and Ni can greatly improve the stability of zinc acetate catalyst.

Reaction conditions: Temperature (T) = 220 °C, GHSV (C₂H₂) = 500 h⁻¹, and a feed molar ratio C₂H₂ (g)/CH₃COOH (g) = 3.

The loadings of Zn(OAc)₂, Co(OAc)₂, and Co(OAc)₂ in the Zn(OAc)₂/AC and Zn1Co0.3Ni0.05/AC catalysts fresh and used are listed in

Table 3. Loading of Zn (OAc)₂, Co (OAc)₂ and Ni (OAc)₂ in the catalysts.

Catalysts	Zn (OAc)2 Loading, wt%	Co (OAc)2 Loading, wt%	Ni (OAc)2 Loading, wt%
Zn (OAc)2/AC	8.69	-	-
Zn1Co0.3Ni0.05/AC	8.75	2.61	0.38
Zn (OAc)2/AC-U	7.51	-	-
Zn1Co0.3Ni0.05/AC-U	7.71	0.92	0.34

, respectively. The loadings of Zn(OAc)₂ in the two catalysts before the reaction are 8.69% and 8.75%, respectively, which are lower than the theoretical loading of 10%, this can be attributed to the presence of bound water in Zn(OAc)₂. The loadings of Zn(OAc)₂ in the reacted Zn(OAc)₂/AC and Zn1Co0.3Ni0.05/AC catalysts are 7.51% and 7.81%, separately, and the loss rates of Zn(OAc)₂ in the Zn(OAc)₂/AC and Zn1Co0.3Ni0.05/AC catalysts are calculated to be 13.6% and 11.9%, respectively. The same method was used to obtain the loss rates of Co(OAc)₂ and Ni(OAc)₂, which are 64.8% and 10.5%, respectively. The results show that the addition of Co and Ni did not inhibit the loss of zinc acetate during the reaction. After the reaction period, the catalytic activity of the catalyst decreases to some extent.

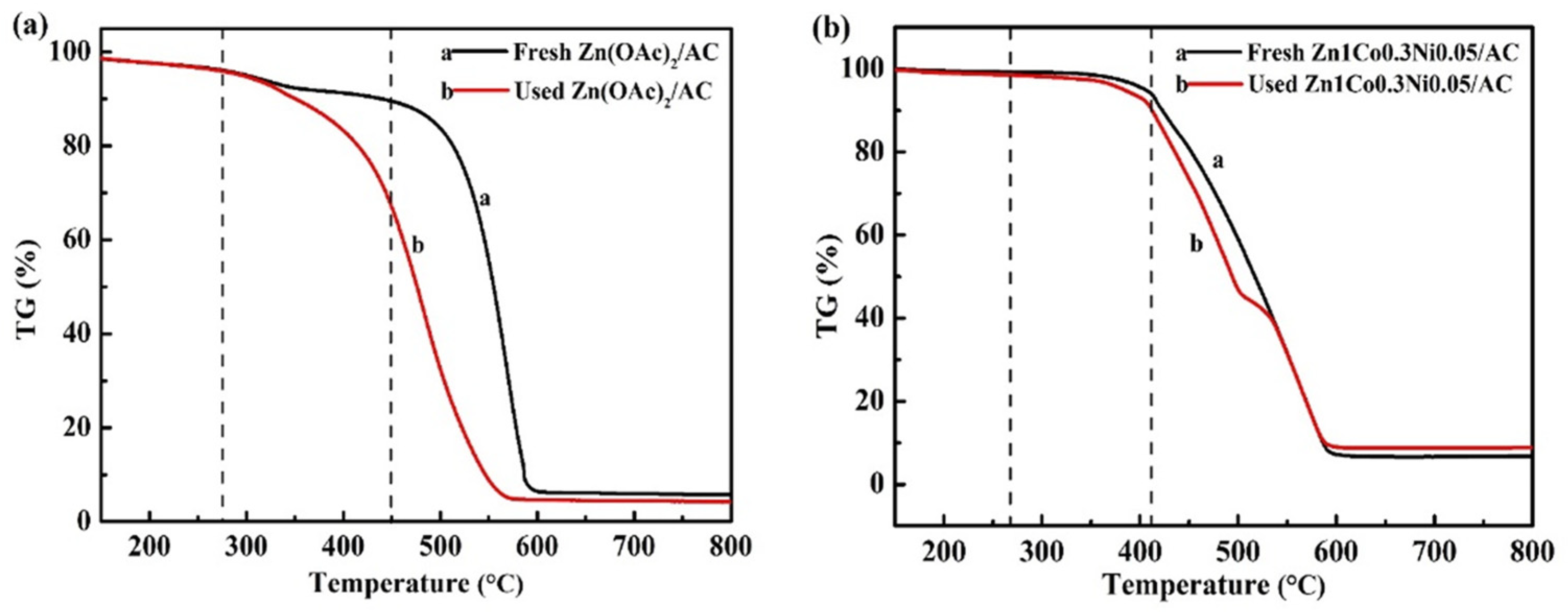

The thermogravimetric analysis of Zn1Co0.3Ni0.05/AC and Zn (OAc)₂/AC catalysts before and after the reaction is shown in Figure 6. It can be seen from Figure 6a that the fresh catalyst Zn (OAc)₂/AC has a weight loss of 6.5% between 275 °C and 448 °C. When the temperature exceeds 448 °C, the weight loss rate of the catalyst is extremely fast, mainly due to the carrier activated carbon burning. After the reaction, the weight loss of the catalyst Zn (OAc)₂/AC between 275–448 °C is as high as 28.1%, which related to the combustion of carbon on the surface area of the catalyst. After adding Co and Ni species, the weight loss of fresh catalyst Zn1Co0.3Ni0.05/AC between 267–411 °C was 5.0%, and the weight loss of the catalyst after reaction in this temperature range was 8.94%. We calculated the amount of carbon deposition on the catalyst surface by calculating the difference in weight loss between the catalyst before and after the reaction. After 120 h of reaction, the Zn (OAc)₂/AC surface area of the catalyst has a large carbon content of 21.6%. Carbon deposits tend to block the activated carbon pores and reduce the specific surface area to cover the active sites, resulting in a reduction in catalyst conversion. The surface area carbon content of the catalyst Zn1Co0.3Ni0.05/AC after the reaction is only 3.94%, indicating that the addition of Co and Ni effectively suppresses the production of carbon in the surface area of the catalyst, so the stability of Zn1Co0.3Ni0.05/AC catalyst is improved.

5. Materials and Methods

5.1. Materials

AC (pH = 6–8, coconut carbon), Zn(OAc)₂·2H₂O (99.8%, Aldrich, Saint Louis, MO, USA), Ni(OAc)₂·4H₂O (99.8%, Aldrich), Co(OAc)₂·4H₂O (99.8%, Aldrich); C₂H₂(gas,99%), CH₃COOH (acetic acid liquid,99%).

5.2. Catalysts Preparation

Pretreatment of catalyst carrier: The commercial coconut shell activated carbon was passed through a sieve and screened, the 60–80-mesh activated carbon was used as a carrier. In order to remove the ash and impurities from the carrier without changing the surface structure of the activated carbon, the carrier was fully washed with deionized water. The cleaned carrier was put into the oven at 120 °C to dry, and finally the pre-treated carrier was obtained.

Added a certain mass of Zn(OAc)₂·2H₂O, Co(OAc)₂·4H₂O, and Ni(OAc)₂·4H₂O was added into 3 mL of deionized water and then fully stirred. 2.0 g of pretreated activated carbon carrier was put into a beaker, the prepared active component dissolved solution was added drop by drop to the carrier using the isometric impregnation method. After stirring for 24 h at room temperature, the target product was dried in an oven at 80 °C for 10 h. A series of Zn-Co-Ni/AC catalysts with different molar ratios were prepared by the same method and named as Zn1Co0.1Ni0.05/AC, Zn1Co0.3Ni0.05/AC, Zn1Co0.5Ni0.05/AC, Zn1Co0.3Ni0.01/AC, and Zn1Co0.3Ni0.09/AC, respectively, while the monometallic catalyst Zn(OAc)₂/AC was prepared as control. Zn(OAc)₂·2H₂O and Co(OAc)₂·4H₂O were prepared in a certain ratio to form a mixed solution, impregnated with AC of an equal volume solution, stirred and dried to obtain Zn1Co0.3/AC catalyst. A certain proportion of Ni(OAc)₂·4H₂O solution was prepared, and then impregnated with Zn1Co0.3/AC catalyst in the same volume solution, stirred and dried to obtain Zn1Co0.3 + Ni0.05/AC catalyst. Using the same method, Zn1Ni0.05 + Co0.3/AC and Zn1 + Co0.3Ni0.05/AC catalysts were prepared by changing the addition order of co-catalysts. The theoretical loading of zinc acetate in all catalysts was 10 wt%.

6. Conclusions

A ternary Zn-Co-Ni/AC catalyst was prepared by using Zn as the main catalyst and Co and Ni as co-catalysts, and then we have investigated its reaction mechanism and application prospects. It was found that a strong interaction between the co-catalyst and the main catalyst occurred, leading to the enhanced the electron density of the active center atoms mainly through electron transfer, which in turn promoted the adsorption of acetic acid molecules and reduced the adsorption of acetylene molecules by the catalyst. The catalytic performance of Zn-Co-Ni/AC was better than the corresponding mono- and bimetallic catalysts, and the conversion of acetic acid was 36.4% under the same conditions, and the conversion was still as high as 30.1% after 120 h of reaction. The ternary catalysts showed higher activity and stability compared to the conventional Zn(OAc)₂/AC catalysts. This work complements the studies on auxiliaries in acetylene acetylation reactions and also provides a reference for the application of ternary catalysts in other fields. However, this study still has limitations, although the loss of Zn can be suppressed by the co-catalyst, the loss of Zn still happens and stopping the loss of the active component is still an urgent problem to be solved.
