C-,N- and S-Doped TiO2 Photocatalysts: A Review

Aleksandra Piątkowska
Magdalena Janus
Kacper Szymański
1 and
Sylwia Mozia
Department of Inorganic Chemical Technology and Environment Engineering, Faculty of Chemical Technology and Engineering, West Pomeranian University of Technology in Szczecin, ul. Pułaskiego 10, 70-322 Szczecin, Poland
Department of Environmental Engineering, Faculty of Civil and Environmental Engineering, West Pomeranian University of Technology in Szczecin, al. Piastów 50, 70-311 Szczecin, Poland
Authors to whom correspondence should be addressed.
Catalysts 2021, 11(1), 144;
Submission received: 30 November 2020 / Revised: 13 January 2021 / Accepted: 14 January 2021 / Published: 19 January 2021
(This article belongs to the Special Issue State-of-the-Art Catalytic Materials in Europe)


This article presents an overview of the reports on the doping of TiO2 with carbon, nitrogen, and sulfur, including single, co-, and tri-doping. A comparison of the properties of the photocatalysts synthesized from various precursors of TiO2 and C, N, or S dopants is summarized. Selected methods of synthesis of the non-metal doped TiO2 are also described. Furthermore, the influence of the preparation conditions on the doping mode (interstitial or substitutional) with reference to various types of the modified TiO2 is summarized. The mechanisms of photocatalysis for the different modes of the non-metal doping are also discussed. Moreover, selected applications of the non-metal doped TiO2 photocatalysts are shown, including the removal of organic compounds from water/wastewater, air purification, production of hydrogen, lithium storage, inactivation of bacteria, or carbon dioxide reduction.

1. Introduction

More than ever before, environmental problems have become a major concern. Urbanization and rapid growth of industries generate abundant amounts of pollutants which are released into the environment. Among them, there are highly hazardous materials such as pharmaceuticals [1,2], dioxins [3], pesticides [4], herbicides [1], phenols [4,5], and textile dyes [1,4,5,6]. This increasing occurrence of organic pollutants in the environment is a serious danger for health and the lives of humans and other living beings. Conventional treatment methods very often fail in the removal of these kinds of residues entirely, because of their high (bio)chemical stability. Moreover, a conventional approach is associated with the operational problems and high costs. Hence, the development of new and efficient methods of the removal of organic contaminants is a matter of growing interest [1,2,4].

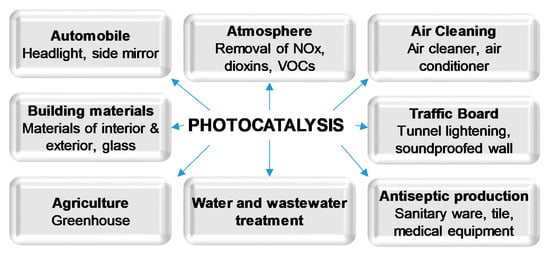

In recent decades, semiconductor photocatalysis has been proved to be an efficient approach for organic compounds decomposition and degradation. TiO2 has been widely and successfully used as a photocatalyst in many different areas (Figure 1) due to its advantages, such as low cost and good chemical stability. However, it requires employing relatively high photon energy to be activated. For this reason, many methods of narrowing of the band gap of TiO2 have been proposed, aimed at the direct usage of sunlight [7,8]. Amongst them, doping of TiO2 with non-metals such as carbon, nitrogen and sulfur is often reported as one of the most effective ways of increasing its photocatalytic activity under visible light [1,9,10]. Non-metal doping of TiO2 leads to changes in the electronic band structure, resulting in a smaller band gap energy value, and thus an improved response in the visible light [7,8,11].
The idea of non-metal doping of TiO2 has been discussed in numerous reviews through the years [1,9,10,12,13,14,15,16,17,18,19,20,21,22,23]. Most of the recent reviews referred to nitrogen only, which is one of the most frequently used non-metal dopants [17,24,25,26,27,28,29,30,31,32,33,34]. On the other hand, the reviews devoted exclusively to S-doped TiO2 are very limited [35]. In some papers, the modifications of TiO2 with carbon are also summarized [1,10,36,37]. Shi et el. [36] presented various carbon-based (nano)composites, including C-doped TiO2. Moreover, diverse, more complex configurations, e.g., with multi-walled carbon nanotubes (MWCNT) in TiO2-SiO2/MWCNT [37], with carbon dots (CDs) in CDs-N-TiO2 [38], and Ag-modified g-C3N4/N-doped TiO2 [24] have been reported. There is only one review referring to the beneficial effects and challenges of tri-doping of TiO2 with carbon, nitrogen, and sulfur, which was published in 2017 [39]. Moreover, recently, a review on single doping of TiO2 with various non-metals, including C, N, and S was published [1].
In contrast with the above papers, this review focuses on a complex comparison of various types and configurations of TiO2 doping with non-metals such as carbon, nitrogen, and sulfur, including single-, co-, and tri-doping. The aim of this work was to systematize the knowledge with reference to the abovementioned doping types, especially in terms of the doping mode (i.e., the way the dopant interacts with the unit cell of crystal structure or the surface of a semiconductor), the effect of the single-, co-, and tri-doping on the mechanism of photocatalysis, as well as the possible applications of the doped TiO2. The overview of the single C, N, and S doping creates a base for a better understanding of the co- and tri-doping. The first part of the review presents a brief introduction to the TiO2 photocatalysis. The influence of various non-metal dopants (C, N, and S) on the photocatalysts’ properties is reported in the subsequent sections. A discussion on the type of the doping source, TiO2 precursor, and the photocatalyst preparation method is presented for all modes of doping of TiO2 with C, N, or S. The morphological and structural characteristics of the photocatalysts as well as the photocatalytic activity are also summarized. The literature reports selected for this review are distributed appropriately among Section 3, Section 4, Section 5, Section 6, Section 7, Section 8 and Section 9 according to the description of the doping type proposed by the authors of the cited papers.

2. TiO2 Photocatalysis

The discovery of the photocatalytic splitting of water on TiO2 electrodes in 1972 heralded a new era of heterogeneous photocatalysis [40]. Despite several decades having passed since then, the most popular photocatalyst is still TiO2. Amongst the different structures of titania, anatase and rutile are commonly used in photocatalysis, with anatase displaying a higher photocatalytic activity.

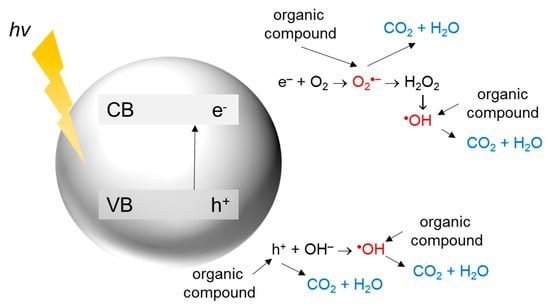

In heterogeneous photocatalysis, a reaction takes place on the surface of a photocatalyst. The general mechanism of photocatalytic decomposition of organic compounds is summarized in Figure 2.
First, the energy higher than the band gap energy of the semiconductor is required for photon absorption and excitation of an electron (e) from the valence band (VB) to the conduction band (CB), resulting in hole (h+) generation. The holes in the VB can react with the surface adsorbed water or hydroxyl ions to form hydroxyl radicals, which are extremely strong oxidants (oxidation potential around +2.7 V). The photoexcited electrons in the CB can generate superoxide radicals due to the reaction with oxygen, being the main electron acceptor in the system. Further reactions lead to the formation of other reactive oxygen species (ROS) such as hydrogen peroxide, hydroperoxyl radicals, or hydroxyl radicals. These species participate in the degradation of organic contaminants [41,42,43,44].
The effectiveness of the photodegradation of pollutants on the semiconductor surface is influenced by: (i) the chemical composition, structure and concentration of pollutants, (ii) the radiation intensity, (iii) the exposure time, (iv) the amount of photocatalyst used, (v) the oxygen content in the reaction medium, (vi) the pH value of the solution, (vii) the properties of a photocatalyst (specific surface area, crystallographic structure, number of surface defects, presence of additives and dopants, etc.) [45,46].
Photocatalysis can be also applied for the oxidation of inorganic compounds, such as nitrogen oxides. The mechanism of photocatalytic NOx oxidation under UV illumination is represented by Equations (1)–(7) [47]. The reactants are adsorbed on the photocatalyst surface:
TIO 2 + H 2 O TiO 2 H 2 O
TiO 2 + O 2 TiO 2 O 2
TiO 2 + NO TiO 2 NO
TiO 2 + NO 2 TiO 2 NO 2
and subsequently the NOx species undergo oxidation by the OH radicals as follows:
NO + O   H   HNO 2
HNO 2 + O   H NO 2 + H 2 O
NO 2 + O   H NO 3 + H +
Photocatalysis is also used for water splitting. In this process, the electrons excited to the CB participate in the H+ reduction to generate H2, while the holes oxidize H2O to form O2. To realize the water splitting, the bottom of the CB must be more negative than the reduction potential of H+/H2 (0 V vs. NHE (normal hydrogen electrode) at pH = 0), and the top of the VB must be more positive than the oxidation potential of H2O/O2 (1.23 V vs. NHE at pH = 0). Furthermore, the band gap of the semiconductor must exceed the free energy (1.23 eV) of water splitting [48].
In another approach, photocatalysis is applied for photoreduction of CO2 [49,50,51,52,53,54,55,56,57,58,59,60,61], resulting in the production of CO, CH4, CH3OH, HCOOH, or HCHO. The process can be realized either in the gaseous or liquid phase. In most systems, H2O is used as a reductant and the first step of the process is the formation of H and H2. The reaction mechanism of the subsequent steps is still under debate, and the pathways depend on the process conditions and the photocatalyst properties [58].
TiO2 photocatalysis can be also applied for the selective photocatalytic oxidation of a broad range of organic compounds, including hydrocarbons, aromatic compounds, and alcohols. The hydroxylation of aromatics is one of the examples of the photocatalytic synthesis of industrially important chemicals. Phenol (Ph), hydroquinone, and catechol are the chemicals which are widely used as precursors of resins and pharmaceutical products. Alcohols, in principle, can be photocatalytically oxidized to the corresponding carbonyl compounds [62].
Another approach is the inactivation of bacteria by the photocatalytic process. Qiu et al. [63] confirmed that the cell damage occurred and the destruction of the cytoplasmic components such as DNA and enzymes was the primary reason responsible for the bacterial inactivation.
More details on the photocatalysis subject can be found elsewhere [40,41,42,43,44,63,64,65,66].

3. C-Doped TiO2

The introduction of C atoms into TiO2 structure can lead to band gap narrowing and thus improvement in visible light absorption. The C-doped TiO2 photocatalysts were employed for the removal of organic compounds, e.g., dyes and pharmaceuticals, from aqueous matrices [67,68,69,70], the production of hydrogen, or utilized as the bactericidal agents [71,72,73]. The development of photocatalysts containing various carbon species has recently been presented by Shi et al. [36]. The authors paid special attention to the strategies of synthesis of C-doped TiO2, N,C-doped TiO2, metal-C-doped TiO2, and other co-doped C/TiO2 composites. In the present review, the C-doping of TiO2 using different types of carbon precursors is discussed.
In general, it is hard to distinguish the most frequently used carbon precursors, because the researchers apply very different compounds to prepare C-doped TiO2 photocatalysts. Some examples are summarized in Table 1. Among the applied compounds, there are several substances which simultaneously acted as the TiO2 and carbon precursors, e.g., titanium carbide (TiC) [68,69,72], titanium(IV) oxyacetylacetonate [74], and titanium(IV) butoxide (TBOT) [73,75,76,77].
Selection of the carbon precursor affects the properties of the photocatalyst. Mani et al. [95] prepared two series of C-doped TiO2 via solution combustion synthesis using titanyl nitrate (TiO(NO3)2) as TiO2 precursor, and citric (Cit-TiO2) and ascorbic (Asc-TiO2) acids as carbon sources. The authors compared the properties and the photocatalytic activity of the photocatalysts in the Ph and Cr(VI) removal process. X-ray diffraction (XRD) studies confirmed the anatase phase with the crystallite size of 4–6 nm in both types of the photocatalysts. The band gap energy calculated from the diffuse reflectance UV–vis (UV-vis/DR) spectra was found to be 0.2 eV lower for Cit-TiO2 compared to Asc-TiO2 and equaled 2.8 eV. The observed specific surface area (SBET) was found to be 290 and 230 m2 g−1 for TiO2 modified with citric and ascorbic acid, respectively. Due to the lower band gap energy and a higher SBET, Cit-TiO2 revealed higher photocatalytic activity under the simulated solar light irradiation than Asc-TiO2. Moreover, both photocatalysts were more active than the commercial TiO2 P25.
Numerous researchers have reported the C-doped TiO2 fabrication by commonly used methods, such as sol-gel [73,77,90,91,93,97], sol-microwave [98], and solvothermal [67,71,75,99]. However, there are also works, in which other approaches have been applied, including electrospinning [100], CBD [80], or hydrothermal treatment of TiC powder [69].

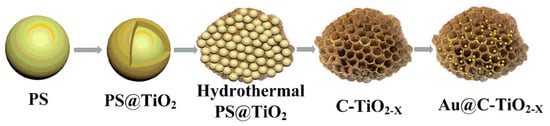

Qian et al. [101] presented the preparation procedure of TiO2-based photocatalysts with a honeycombed structure (Figure 3). A facile template method of synthesis involves the use of PS microspheres as a template. The TiO2 layer is formed on the surface of the template as a result of the hydrolysis process. Subsequently, calcination is applied in order to remove the template and obtain a honeycombed morphology. During the calcination, an incomplete combustion of the PS results in the formation of carbon-doped TiO2. There is a possibility of further processing of the as-received photocatalyst, for instance by depositing of Au onto C-doped TiO2 layer.

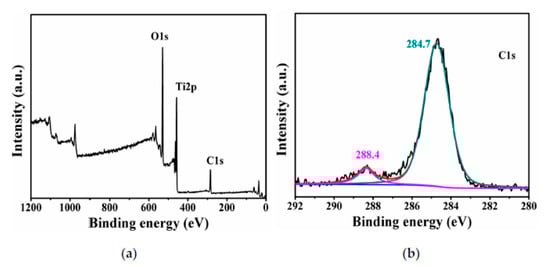

The successful incorporation of carbon atoms into the TiO2 lattice can be confirmed on the basis of X-ray photoelectron spectroscopy (XPS) analysis [76,102,103,104]. Exemplary XPS spectra of the C-doped TiO2 are shown in Figure 4 [103]. The two strong peaks occurring usually in the range of 527–531 and 456–465 eV correspond to O 1s and Ti 2p binding energies (BE), respectively, indicating the presence of oxygen and titanium [76,102,103,104]. The peaks centered near 530 eV are attributed either to lattice (Olat) or surface adsorbed (Osur) oxygen. The C-doping may result in a decrease in O 1s BE, thus enhancing the generation of oxygen vacancies (Ov). Qian et al. [101] reported an increase in the Olat/Osur ratio upon doping with carbon from 2.7 to 3.3. Furthermore, the introduction of carbon into the TiO2 lattice results in a simultaneous increase in Ti3+ and Ti4+ binding energy, observed as a shift of the Ti 2p3/2 position, which is associated with a change in the coordination environment of O and Ti atoms. The C 1s peak is observed typically at about 284–285 eV. In the example shown in Figure 4b, this peak can be further deconvoluted into two peaks corresponding to BE of 284.7 and 288.4 eV, and representing residual carbon (C-C) with sp2 hybridization and C atoms substituting Ti in the TiO2 lattice (C-O) [76,102,103,104]. Other peaks related to carbon species can be also present in the case of C-modified TiO2. For example, the peak assigned to the residual C=O species was observed at BE of 288.6 eV [101], while the Ti-C peak was reported at 282.3 eV [105].
The above data reveal that carbon doping into TiO2 can occur according to 3 various pathways: (i) substitution of Olat with C leading to a replacement of Ti-O by Ti-C bonds, (ii) replacement of Ti by C due to the rupture of Ti-O and creation of C-O bonds, or (iii) stabilization of C at the interstitial position [106,107].
C-doped TiO2 photocatalysts exhibit enhanced photocatalytic activity associated with changes in the crystalline structure, narrowing of the band gap, and lowering of the point of zero charge value [1]. The crystalline structure is affected by the preparation conditions of the photocatalysts, such as calcination temperature and atmosphere. In general, the presence of carbon retards the phase transformation from anatase to rutile [1]. Moreover, it was found that the crystallinity of C-doped TiO2 nanotubes can be enhanced by annealing in argon atmosphere instead of oxygen or nitrogen [108]. Furthermore, application of Ar or N2 was found to be advantageous in terms of improvement in photocatalytic activity. That was ascribed to the formation of Ov due to C-doping, which could trap the electrons and reduce the recombination of e/h+ pairs [108].

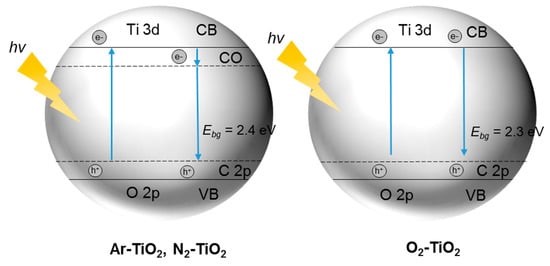

Figure 5 presents a comparison of the pathways of electron transfer in the C-doped TiO2 annealed under inert (Ar, N2) and oxidizing (O2) atmosphere. In both cases, the formation of a new state above the VB can be observed, which was attributed to the C 2p state of the interstitial carbon. Moreover, in the case of the photocatalysts annealed in the inert environment, a formation of an additional state below the CB was postulated, which was ascribed to the antibonding C-O state resulting from the creation of Ov. The C-O state was not observed in the case of calcination in oxygen flow because such conditions diminished the Ov [108].

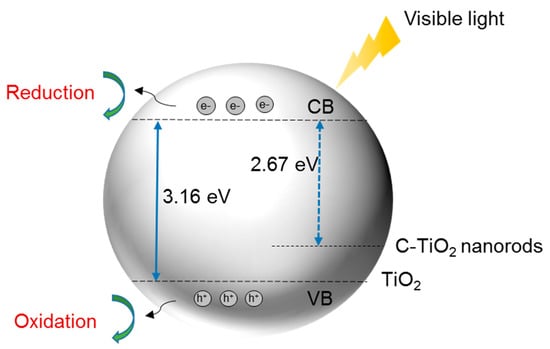

Shao et al. [109] proposed a possible mechanism of the enhanced photocatalytic activity of C-doped TiO2 nanorods (Figure 6). The appearance of a new impurity energy level above the VB, caused by C-doping of TiO2, results in narrowing of the band gap, and the photocatalyst can absorb the visible light. Direct promotion of electrons from the impurity level to the CB leads to the production of photogenerated electron–hole pairs. Electrons participate in the reduction of O2 molecules to form O2•−, while holes oxidize hydroxyl ions and water molecules to OH radicals.
The photocatalytic activity of the nonmetal-doped photocatalysts under visible light irradiation is commonly evaluated with the application of various dyes as model compounds, although such an approach was already discussed in the literature as the inappropriate method [110]. This is because dyes absorb visible light and as a result the photocatalytic reaction might be induced not only by the absorption of the visible light by the photocatalyst, but also by the photoabsorption of the radiation by the dye (i.e., dye sensitization). Nonetheless, since, in most literature reports on the visible light-active photocatalysts, the dyes are routinely applied, in this review some examples are also presented and discussed. For instance, Song et al. [100] applied the C-doped TiO2/carbon nanofibrous films (CTCNF) for photocatalytic decomposition of rhodamine B (Rh B) under visible light irradiation. After 150 min of the experiment the decolorization rate reached 66.4%–94.2%, being the lowest for the film carbonized at 900 °C and the highest for the film carbonized at 800 °C (CTCNF-800). The photocatalytic stability of the CTCNF-800 was kept constant during six cycles of recycle and reuse, with the decolorization efficiency exceeding 92%. Moreover, the authors reported good durability of the film stored for 1 year in air without illumination (90% Rh B decolorization efficiency).
The C-doped TiO2 photocatalysts were also applied for the removal of other organic compounds, such as pharmaceuticals, personal care products and even bacteria, from water [67,68,69,70,72,73], as well as for hydrogen production [71]. For instance, Shi et al. [68] prepared the carbon self-doped TiO2 flakes (CTF) with octahedral bipyramid skeleton structure and exposed {001} facet by hydrothermal treatment of TiC powder in a HF-HNO3 aqueous solution. The photocatalyst was applied for the mineralization of antibiotic ciprofloxacin (CIP) under visible light irradiation. The researchers revealed that about 70% of CIP was mineralized in 6 h of experiment. For comparison, the CIP mineralization in the presence of TiO2 P25 as a reference did not occur, while in the case of C-doped TiO2 sheets (CTS), it was about half the value (35%). According to the authors, the enhanced photoactivity of CTF was mainly caused by the synergic effect of several factors: (i) the narrowing of the band gap due to the carbon doping, (ii) the higher percentage of the exposed {001} facets, (iii) the larger specific surface area of C-doped TiO2, and (iv) its unique octahedral bipyramid skeleton structure.
The application of C-doped TiO2 for the removal of various pollutants from air was also examined [81,111]. Huang et al. [81] applied mesoporous nanocrystalline C-doped TiO2 obtained through a direct solution-phase carbonization using TiCl4 and DEA as precursors in order to oxidize NOx in indoor air conditions under simulated solar light irradiation. The effectiveness of removal was significantly higher compared to the commercial TiO2 P25 and amounted to 25% and 12% after 40 min of irradiation in the case of C-doped TiO2 calcined at 500 and 600 °C, respectively.
Shim et al. [73], fabricated C-doped TiO2 in order to inactivate Listeria monocytogenes bacteria. After 2.5 h of visible light irradiation with and without UV radiation, a 2.10 and 2.45 log reduction in bacteria was achieved, respectively. The authors stated that the photocatalytically produced ROS were responsible for the observed disinfection effect.
The C-doped TiO2 materials were also applied for hydrogen production [71]. In the presence of the carbon-doped TiO2 decorated with reduced graphene oxide (r-GO) and methanol as an electron donor, the H2 production under visible light (400–690 nm) amounted to 1.50 ± 0.2 mmol g−1 h−1 [71].
In another approach, the C-doped TiO2 was applied for photoreduction of CO2 [59]. A series of photocatalysts were prepared by sol-gel method with the application of citric acid as a carbon source. The best performance exhibited the C-doped TiO2 calcined at 300 °C and subsequently subjected to Al reduction treatment. The space–time yield of CH4 and CO amounted to 4.1 and 2.5 µmol g−1 h−1 under solar light, and 0.53 and 0.63 µmol g−1 h−1 in the case of visible light irradiation, respectively.
The presented above overview shows that C-doping of TiO2 is at the center of interest of numerous researchers. Various substrates and synthesis methods have been applied for production of C-doped TiO2. Among them, the most common approaches include utilization of sugars, organic acids, and (bio)polymers as carbon sources and titanium alkoxides as TiO2 precursors, and synthesis of the photocatalysts via sol-gel, sol-microwave, and solvothermal methods. There are only a few works on less common approaches, such as those based on utilization of banana stem fibers and butterfly wings as carbon sources, or application of electrospinning for the photocatalysts fabrication. The C-doped TiO2 was reported to have a potential application in photocatalytic processes utilizing visible or solar light. They include removal of organic contaminants from water, bacterial inactivation and hydrogen production. Nonetheless, a majority of papers are still focused on the decolorization of dyes, while degradation and mineralization of other contaminants are less extensively investigated.

4. N-Doped TiO2

Among all the non-metal dopants, nitrogen is the one most frequently used [1]. This is predominantly due to its small ionization energy and its atomic size comparable with that of oxygen [112]. Numerous precursors of nitrogen have been employed for the preparation of N-doped TiO2, as can be seen in Table 2.
A comparison of the properties of the N-doped TiO2 photocatalysts prepared from TTIP as a TiO2 precursor and three different nitrogen sources (urea, ethylenediamine (EDA) and trimethylamine (TEA)), at different N/Ti molar ratios, was presented by Mahy et al. [165]. They prepared photocatalysts with activity extended towards the visible region using an aqueous sol-gel synthesis. For urea and TEA-modified photocatalysts, the anatase-brookite TiO2 nanoparticles (NPs) were formed, with a specific surface area of 200-275 m2 g−1. In the case of EDA-modified photocatalysts, the formation of a rutile phase was observed and the SBET was 185–240 m2 g−1. The XPS measurements suggest the incorporation of nitrogen in the TiO2 materials through Ti–O–N bonds, allowing light absorption in the visible region.
Makropoulou et al. [166] synthesized the N-doped TiO2 photocatalysts using TTIP as a TiO2 precursor and various nitrogen dopants: urea, TEA and NH3. A comparison of their properties is presented in Table 3. The highest specific surface area was observed for the N-doped TiO2 prepared with urea dopant, while the lowest band gap energy value was found in the case of the photocatalyst prepared with TEA.
Huang et al. [164] prepared novel N-doped anatase mesoporous bead photocatalysts using a two-cycle microwave-assisted hydrothermal method with three various nitrogen precursors: 1,6-diaminohexane (HDA), TEA and urea. They used TTIP as a TiO2 precursor. Different nitrogen sources gave different degrees of N doping: 6.16, 1.14, and 1.24 wt.% for HDA, TEA and urea, respectively.
Apart from different nitrogen precursors, various other approaches for N doping into TiO2 have also been described (Table 2). Typically, wet chemical methods were applied, including hydrolysis [164,167,168,169,170,171,172,173], sol-gel [112,134,165,174,175,176,177,178,179,180,181,182,183,184,185,186,187], solvothermal [135,153,188] and plasma enhanced electrolysis [173,189]. There are also dry methods, such as magnetron sputtering [190,191] and other approaches, e.g., chemical vapor deposition (CVD) [136], pulsed laser deposition (PLD) [192], and arc melting [193].
The as-prepared N-doped TiO2 is typically post-annealed to improve the photocatalytic activity. Zhang et al. [185] investigated the influence of the calcination temperature on the optical and photocatalytic properties of the photocatalysts. They found that the temperature should not be lower than 200 °C. Moreover, a very high calcination temperature was reported to have an adverse effect on the TiO2 photocatalytic activity. The highest visible-light activity of N-TiO2 at N/Ti molar ratio of 1 was observed for the calcination temperature of 350 °C.
Krivtsov et al. [194] demonstrated that thermal treatment at temperatures of 400−500 °C caused nitrogen species to occupy interstitial positions in TiO2. However, the treatment under air at higher temperatures almost completely removed the N-dopants, reducing the photoactivity.
Mohamed et al. [183] examined photocatalytic activity of the N-doped TiO2 calcined at different temperatures. They prepared the photocatalysts with the sol-gel method using HNO3 and TBOT as N and TiO2 precursors, respectively. The results of their research are presented in Table 4. The photocatalytic activity increased under both visible and UV irradiation as the calcination temperature increased, reaching its maximum at 400 °C. A further increase in the temperature led to a decrease in the photocatalytic activity both for visible and UV light. Moreover, the efficiency of Ph photodecomposition under visible light in the presence of the N-doped TiO2 was visibly higher compared to that observed for commercial TiO2 P25 and pure anatase TiO2 (TAA). The incorporation of nitrogen resulted in a considerably narrower band gap, leading to an improved vis-light photoactivity of the modified photocatalysts compared to the undoped TiO2.
There are two possible modes of nitrogen incorporation into the TiO2 structure, interstitial (addition of nitrogen into the TiO2 lattice) and substitutional (replacement of oxygen) [112,195]. To show the state of nitrogen, XPS analysis is performed. In the literature, the peak around 400 eV is widely assigned to the interstitial nitrogen species, directly bound to the lattice oxygen (Ti-O-N) [164,195]. According to Marques et al. [134] and Mahy et al. [165], the photoelectron lines associated with Ti-N bonds inherent to a successful substitutional doping appear in the 396–398 eV range, while lines above 400 eV are usually assigned to the interstitially doped nitrogen. Cao et al. [196] confirmed the presence of the peak at 399.4 eV, implying substitutional nitrogen doping (O-Ti-N) and the other peak at 400.8 eV, which can be assigned to the interstitial nitrogen doping (Ti-O-N) (Figure 7). It has been reported that the interstitial N atoms give rise to the higher energy states in the band gap and behave as stronger hole trapping sites, reducing the direct oxidation ability. They are also easily oxidized in air at high temperatures [193].

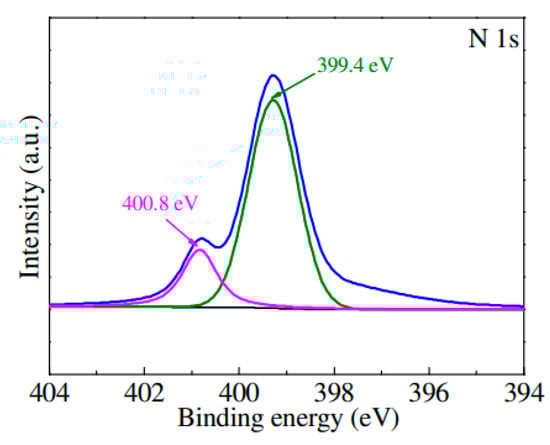

The N 1s peak localized around 400 eV may also correspond to many other contributions, potentially due to impurities, usually indicating the presence of oxidized nitrogen species such as N2O22−, NOx, N2, NHx or NHOH [165,172,174]. Nitrogen within nitrites (NO2) and nitrates (NO3) is commonly characterized by the N 1s with BE higher than 403 eV, while nitrogen within nitrides (N3) occurs in a range of 396–398 eV [195].
Nitrogen incorporation into TiO2 creates an N 2p intermediate band localized above the O 2p VB. That results in a decrease in the band gap of the photocatalyst and a shift of the optical absorption to the visible light region. It was reported [39,197,198] that substitutional N-doping of TiO2 narrows the band gap to a lesser extent than the interstitial N-doping.

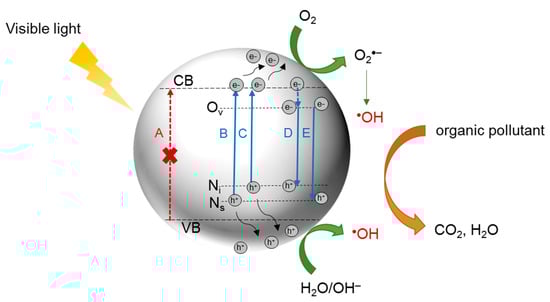

The mechanism of photocatalysis in the presence of N-doped TiO2 is summarized in Figure 8. The substitutional nitrogen state (Ns) and the interstitial nitrogen state (Ni) are directly responsible for the origin of the visible light induced photocatalysis. Nitrogen doping allows the electron to be excited from the N impurity levels (Ns and Ni) to the CB of TiO2 (paths B and C). Then the electron can be trapped by the oxygen vacancy, which is an energetically favorable process. The electrons in the CB and Ov states may recombine with h+ in the N impurity levels, which is an unfavorable phenomenon. Alternatively, the photoexcited e can reduce O2 molecules to O2•−, resulting further in the formation of OH. Hydroxyl radicals can be also generated upon reaction of the holes with H2O or OH. Pathway A, representing direct excitation of electrons from VB to CB of TiO2, is not possible under visible light irradiation [17,199].
A modified mechanism was proposed by Cao et al. [196] in the case of the solar-driven photocatalysis over Ti3+ and N co-doped photocatalysts. The materials were obtained by NaBH4 reduction of urea-modified mesoporous TiO2 spheres under Ar atmosphere and elevated temperature (350 °C). The mechanism is schematically illustrated in Figure 9. N-doping of TiO2 resulted in emerging of a new impurity level above the VB, which was already discussed above. Additionally, below the CB, an intermediate energy level was generated by introduction of Ti3+ and Ov. That narrowed the band gap and consequently improved photocatalytic efficiency in a visible light.

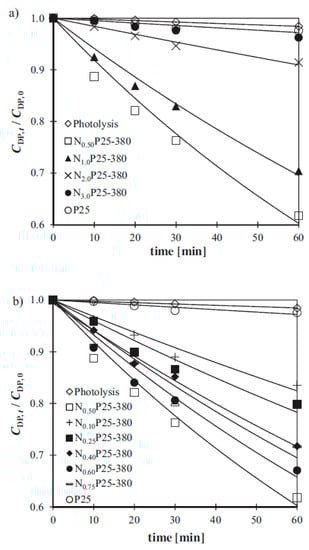

The ratio of the substitutional to interstitial N can be changed, e.g., via the calcination procedure. Bjelajac et al. [201] reported that N-doping of TiO2 nanotubes realized by annealing in an ammonia atmosphere resulted in both substitutional and interstitial incorporation of nitrogen. However, only interstitial N was observed when a post-treatment by calcination in air was realized. It was also reported [200] that in the case of the doping of a crystalline material (strong Ti-O bonds), the substitution of oxygen with N can be prevented, which results in a lower concentration of substitutional N. On the opposite, the amorphous structure of TiO2 (weak Ti-O bonds) facilitates substitutional N-doping.
Nonetheless, the role of the interstitial and substitutional nitrogen in the improvement in the photocatalytic activity of N-doped TiO2 is still unclear. Some authors reported that interstitial N exhibited better photoactivity under visible irradiation than substitutional N [202,203], while others reported that the substitutional N improves the photocatalytic activity to a higher extent [204,205]. Moreover, there are works showing that the visible photocatalytic activity is better when the quantity of the interstitial and substitutional N is equal [200].
Photocatalytic activity of the N-doped TiO2 has been examined in various applications. In general, the N-doped TiO2 photocatalysts were used for the removal of organic compounds, in particular dyes [164,167,170,174,175,182,185,196,206,207,208] and pharmaceuticals [170,174,209,210] from water. The other degraded pollutants were phenol [128], furfural [211], parabens [176], surfactants [212], and herbicides (paraquat [172], and bentazon [213]). The application of the N-doped TiO2 photocatalysts for removal of contaminants such as acetaldehyde [214], benzene [215], ethylbenzene [216], NH3 [117], and NOx [217] from gaseous phase was also proposed. Some of the photocatalysts exhibited antibacterial properties, e.g., towards Escherichia coli [166,209,218,219] and against oral cariogenic biofilms [153]. Moreover, application of the N-doped TiO2 for human breast cancer diagnostics [220] and treatment of cancers such as melanoma [221] was proposed.
Monteiro et al. [209] prepared a series of visible light-active N-doped TiO2 photocatalysts by a simple impregnation method, well suited for a scale-up to mass production. They used urea and TiO2 P25 as precursors. Photocatalytic activity of the obtained photocatalysts was tested by degradation of diphenhydramine hydrochloride (DP) under visible light irradiation and was found to depend on the amount of nitrogen dopant and calcination temperature. The optimal calcination temperature was found to be 380 °C. The photocatalyst prepared at the urea/TiO2 ratio of 0.5 exhibited the highest photocatalytic efficiency (Figure 10). This was explained by the lowest band gap energy obtained for that photocatalyst (2.99 eV).
Xing et al. [174] used a common antibiotic CIP to evaluate the photocatalytic properties of the N-doped TiO2 immobilized on the glass spheres. The photocatalytic activity experiments were carried out with 20 mL CIP aqueous solution (20 mg L−1) and the supported photocatalyst loading was equal to 3 g L−1. A 90% removal rate in 90 min under visible light irradiation from a 500 W xenon lamp (λ > 420 nm) was reported. Moreover, the removal rate of CIP in the five cycles of reuse was more than 90% in 120 min and almost no exfoliated photocatalyst was observed.
Delavari et al. [139] synthesized the N-doped titania nanotube arrays via electrochemical anodization method. The photocatalyst was applied to photocatalytic conversion of CO2 and CH4. With optimal experimental conditions of 250 W UV light power, 2 cm distance between UV lamp and reactor and initial amount of 10% CO2, the efficiency of photoconversion was up to 41.5% and 62.2% for CO2 and CH4, respectively.
The N-doped TiO2 was also used in the photocatalytic production of hydrogen [168,222]. Reddy et al. [168] prepared various N-doped TiO2 photocatalysts using the hydrothermal method followed by calcination in air at 350 °C. Among them, the one with multiphase titania consisting of 69% anatase, 17% brookite and 14% rutile showed the highest photoactivity towards hydrogen production (10.5 mmol h−1 g−1). Preethi et al. [222] synthesized their photocatalyst by anodization method followed by annealing under 50 mL min−1 NH3 flow at 450 and 550 °C for 2 h. The obtained efficiency of H2 generation was ~2–3 mmol h−1 g−1.
The N-doped TiO2 microsheets fabricated hydrothermally from TiN in the presence of HF and HCl were successfully applied for CO2 photoreduction [60]. After 2 h of UV-vis or visible light irradiation, the production rate of CH3OH reached 0.71 µmol g−1 and 0.28 µmol g−1, respectively, and was significantly higher than observed for TiO2 P25 (0.05 µmol g−1 and 0 µmol g−1, respectively).
The above overview confirms that the N-doped TiO2 is the most widely investigated photocatalyst among all of the non-metal-doped titania with enhanced visible light photocatalytic activity. The incorporation of nitrogen into the TiO2 structure is relatively easy due to its atomic size, comparable with that of oxygen. Various methods of modification of TiO2 with nitrogen have been applied, including both the wet (hydrolysis, sol-gel, solvothermal, plasma enhanced electrolysis) and dry (magnetron sputtering, CVD, PLD) approach. The most common nitrogen sources are urea, ammonia, nitric acid, N2 gas and TEA, although numerous other compounds were also applied. Nitrogen-doped TiO2 exhibits a broad absorption in the visible region, which allows the utilization of a large part of the solar spectrum. This is caused by a reduction in the band gap resulting from the interstitial or substitutional incorporation of nitrogen in TiO2. The N-doped TiO2 was proposed to be applied for effective water and air purification, as well as energy production, or medical and antimicrobial applications.

5. S-Doped TiO2

The application of sulfur as a TiO2 dopant is considered to provide significant beneficial effects for the photocatalytic activity. In a considerable number of literature reports on the S-doped TiO2, sulfur is introduced into the photocatalyst by using an organic precursor, thiourea [45,46,102,223,224,225,226,227,228,229,230,231,232,233,234,235,236,237,238,239,240,241,242,243,244,245]. Nevertheless, it should be emphasized here that some authors used this precursor for the preparation of co-doped S,N-TiO2, C,S-TiO2 or C,N-TiO2. In this section, thiourea is considered as a precursor of the S-doped TiO2 only. There are also other organic compounds applied as a source of sulfur, including dimethyl sulfoxide (DMSO) [246,247,248], 1,2-ethanedithiol (EDT) [249], thioacetamide [250], and thiourea dioxide [251]. Accordingly, there are reports on application of inorganic compounds containing sulfur, such as TiOSO4 [252,253,254], CS2 [236,255], TiS2 [256,257,258], H2S [259,260], H2SO4 [261], K2S2O5 [262], Na2SO4 [263], sulfur powder [245,264,265,266,267], and sodium thiosulfate [268]. During a typical preparation of the S-doped TiO2 photocatalysts, TiO2 precursors are mostly titanium alkoxides (TTIP [45,223,224,227,228,229,230,242,249,250,260,261,265], TBOT [225,226,232,233,234,246,248,266]). Inorganic titanium sources can be Ti(OH)4 [267], TiCl4 [237,238,239,240,247,263], TiH2 [251], TiO2 P25 [46,231], TiC [269], or metallic Ti [235,236,255]. Wang et al. [256] used TiS2 as a source of both sulfur and titanium. They applied the low-temperature hydrothermal oxidation of TiS2 in pH neutral solvent to obtain an S-doped TiO2 photocatalyst with a high photocatalytic activity. Another example of a compound acting as a precursor of both sulfur and titanium can be TiOSO4 [252,253,254]. Table 5 presents an overview of the sulfur precursors and synthesis methods applied during the preparation of the S-doped TiO2 photocatalysts.
Various approaches have been employed for the doping of TiO2 with sulfur. Some common methods were used, including hydrothermal [232,257], solvothermal [248], sol-gel [45,102,223,224,227,228,230,234,247,271], sol-gel followed by hydrothermal treatment [229,242], sonothermal [249,266], wet impregnation [46,231,268], and intercalation [246].

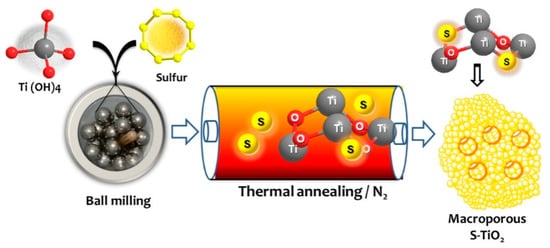

Moreover, newer synthetic strategies have also been proposed. Pillai et al. [267] used continuous ball milling with moderate thermoannealing (Figure 11), which resulted in a unique S-doped TiO2 nanostructure composed of macroporous channels with mesoporous cores. This environmentally friendly, solventless and template-free method requires titanium hydroxide and elemental sulfur as substrates.
Sharotri et al. [249] investigated the influence of sulfur doping on the phase transition of TiO2. In order to study that, they prepared the S-doped TiO2 photocatalysts calcined at 750 °C with different molar ratios of EDT (S source) to TiO2 (1:0.1, 1:0.5 and 1:1). The results (Table 6) confirm that sulfur doping leads to a delay in the phase transition from anatase to rutile.
There are two possible routes of sulfur doping-cationic or anionic. It has been reported that cationic doping takes place by titanium substitution with S4+ or S6+, while anionic doping occurs by oxygen substitution with S2− [272]. The chemical state of the doped sulfur can be investigated by the XPS analysis (Figure 12). Generally, a peak at the BE values above 168 eV in the S 2p spectra can be assigned to sulfur on the higher oxidation state (S4+, S6+), substituting Ti atoms in the lattice of TiO2 [236,260]. The peaks around 160–163 eV can indicate the Ti-S bonds’ formation due to the substitution of O atoms in the TiO2 lattice by S2− [236,246,251,273].

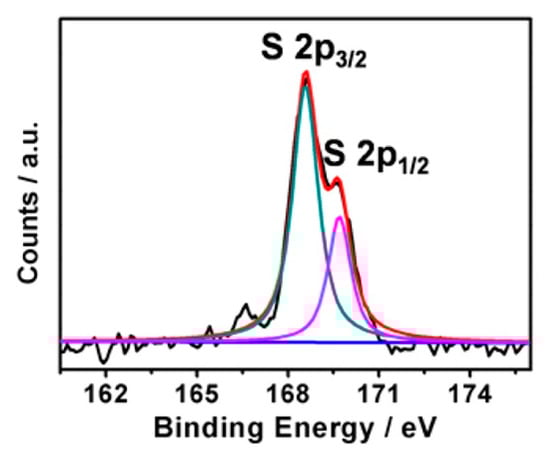

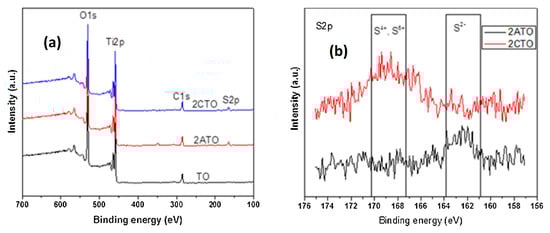

The presence of cationic sulfur in the S-doped TiO2 photocatalysts was confirmed in the literature by the peaks positioned at 168.3 [246], 168.5 [232], or 168.9 eV [233]. Zhu et al. [248] claimed that the peak at 168.5 eV, corresponding to S6+, can be further deconvoluted into two peaks at 168.5 and 169.7 eV (Figure 13), which can be attributed to S 2p3/2 and S 2p1/2, respectively, with S 2p3/2 peak about twice the intensity or area higher than the S 2p1/2 peak. Doping S6+ into TiO2 structure can form an impurity energy level above the VB, resulting in a reduction in the TiO2 band gap [260].
Anionic sulfur doping is more difficult to achieve since the bond strength of the existing Ti-O bond (672.4 KJ/mol) is larger than Ti-S bond (418.0 KJ/mol). Additionally, the ionic radius of S2− (1.7 Å) has a higher value than O2− (1.22 Å) [246]. As a result, the incorporation of sulfur by substitution of Ti4+ with S6+ is energetically more favorable than the replacement of O2− by S2− [248].
Basera et al. [274] applied the density functional theory (DFT) to model the S-doped TiO2, referring to various defect possibilities: (i) substitutional (S)O, i.e., representing sulfur substituting oxygen, (ii) interstitial sulfur (SO)O, and (iii) a combination of (S)O and (SO)O in which interstitial sulfur shares a lattice site with (S)O forming (S2)O. The authors reported that under conditions poor in oxygen, the substitutional sulfur (S)O is dominant, while under conditions rich in oxygen, the interstitial sulfur (SO)O becomes more stable. In other words, the incorporation of (S)O may be easier than (SO)O under oxygen-poor conditions, which is due to a lower formation energy.
Bakar et al. [236] compared photodecomposition efficiency of methyl orange (MO) over 2ATO and 2CTO S-doped TiO2. The photocatalysts were prepared via template free and low-temperature OPM followed by crystallization through hydrothermal treatment. Thiourea was reported to be mainly responsible for cationic S-doping due to the substitution of Ti4+ by S6+, while CS2 promoted the anionic doping via substitution of O2− by S2−. Both, cationic and anionic S-doped photocatalysts revealed the enhanced visible light photocatalytic activity. However, S6+ was found to be responsible for reducing the TiO2 crystallite size and in the cationic S-doped TiO2 the photoinduced holes and chemisorbed hydroxyls played a major role during photocatalysis. On the other hand, the S2− doping resulted in an increased TiO2 crystallite size, and in anionic S-doped TiO2, the photoinduced holes and electrons played a nearly equal role in the photocatalytic activity.

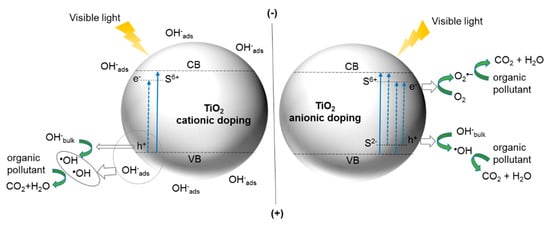

The mechanism of photocatalysis in the presence of the cationic and anionic S-doped TiO2 was proposed by various researchers [236,275]. Ma et al. [275] obtained the cationic doping by the application of thiourea as sulfur precursor, while the usage of CS2 resulted in both cationic and anionic doping (Figure 14).
The improvement of the photocatalytic activity of the cationic S-doped TiO2 was attributed to [261,275]: (i) the formation of a midgap level under the CB due to the incorporation of S6+, leading to the band gap narrowing and increase in the visible-light absorption; (ii) the enhanced adsorption of OH on the photocatalyst surface resulting from the created charge imbalance in the bulk of TiO2 upon replacement of Ti4+ by S6+. These adsorbed hydroxyl ions and the OH ions present in the bulk solution can be oxidized by h+ to form highly oxidative OH radicals; and (iii) the formation of Ti-O-S bonds, which due to the higher electronegativity of O atoms leads to a partial transfer of electrons from sulfur to oxygen. As a result, the electron-deficient S atoms can capture the e, which reduces the recombination of electron-hole pairs and improves the quantum efficiency. In the case of the cationic and anionic S-doped TiO2, the enhancement of the photoactivity was explained by: (i) the formation of Ti-O-S and O-Ti-S bands in the crystal lattice under the cationic and anionic S-doping, respectively, which introduce new impurity levels between the VB and CB. As a result, the formation of electron–hole pairs under the visible light radiation is improved; (ii) the generation of Ov and defects in the TiO2 lattice, which contribute to the improvement of photoactivity by (a) enhancement of visible light absorption and (b) capture of electrons thus inhibiting the e-h+ recombination; (iii) the increased generation of hydroxyl and superoxide radicals by the reaction of h+ and e with the adsorbed H2O and O2, respectively [261,275]. Moreover, an important role of the surface-adsorbed SO42− groups in charge separation due to acting as electron traps was also proposed [261].
The photocatalytic activity of S-doped TiO2 under visible light is usually investigated using dyes as model compounds. Table 7 presents the properties of different thiourea S-doped TiO2 prepared using various titania precursors and the efficiency of methylene blue (MB) decomposition under visible light in the presence of these photocatalysts.

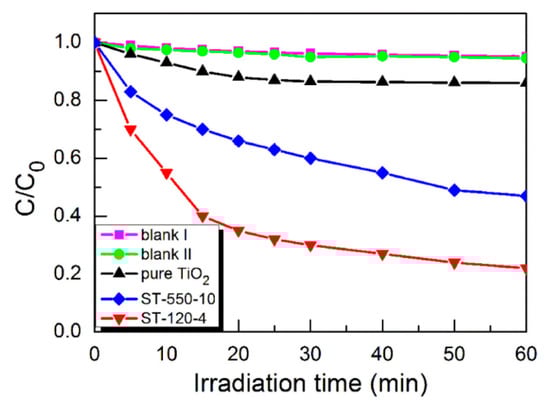

Wang et al. [256] examined the effect of synthesis temperature on the visible light photocatalytic activity of the S-doped TiO2 prepared by hydrothermal oxidation of TiS2 (ST-120-4) or its high temperature calcination in air (ST-550-10). Rh B was used as a model compound. As can be seen from the plot (Figure 15), about 50% of Rh B was decomposed using TS-550-10 and 80% using TS-120-4 within 60 min. This difference in the photocatalytic activity was attributed to the significantly larger surface area of ST-120-4, afforded by the low-temperature hydrothermal synthesis. The surface area of ST-550-10 was 6.6 m2 g−1, while that of ST-120-4 was 46.4 m2 g−1, i.e., seven times greater.
Boningari et al. [261] investigated the photodegradation of acetaldehyde over a cationic S-doped TiO2 in the presence of visible light. In order to obtain the photocatalysts, sulfuric acid at various concentrations (1–3 mol L−1) was applied as S source, while TTIP was used as TiO2 precursor. The presence of both S6+/S4+ oxidation states, corresponding to the BE of 167.5–167.9 and 169.1–169.6 eV, respectively, was noted. The highest content of S calculated on the basis of XPS was observed for the photocatalyst prepared using 2 mol L−1 H2SO4 (8.9 at%). For this photocatalyst, the S6+/S4+ ratio was also the highest (5.61). Nevertheless, the most efficient total organic carbon (TOC) removal (ca. 60%) was found in the case of the photocatalyst fabricated from 3 mol L−1 H2SO4 (containing 5.19 at% of S).
Bakar et al. [236] applied the anionic and cationic S-doped TiO2 for the decomposition of colored MO and colorless Ph under visible light irradiation. The rate of MO decolorization after 240 min of the experiment reached 89.32% for 2ATO and 85.43% for 2CTO. A significant mineralization efficiency was also found for both photocatalysts. Moreover, the authors reported that the efficiency of Ph photodegradation and mineralization was similar to that observed for MO. It was also noted that the pristine TiO2 exhibited no significant photoactivity under visible light.
Sraw et al. [268] prepared S-doped TiO2 photocatalyst via wet impregnation method. The authors demonstrated the degradation process of two persistent and highly toxic organophosphorus pesticides, monocrotophos (MCP) and quinalphos (QP). The S-doped photocatalyst showed better performance under the sunlight than under UV irradiation. The removal efficiency of MCP (25 mg L−1) was 95.36% and 68.21% for sunlight and UV, respectively. In the case of QP (20 mg L−1), a similar effectiveness of decomposition was observed (98.09% and 68.67%, respectively). The increase in photocatalytic activity under the sunlight was due to the changes in the band gap energy of the photocatalyst caused by doping with sulfur. Examination of different S:Ti ratios (Table 8) revealed that the optimum value was 0.7:1, in the case of which the band gap energy was lowered by about 10% compared to the undoped TiO2. Moreover, the photocatalyst with the S:Ti ratio of 0.7:1 had the lowest average particle size (27.2 nm), as was determined by the transmission electron microscopy (TEM).
In another case [269], a photodegradation of atrazine was investigated. The applied S-doped TiO2 photocatalysts were obtained from TiCl4 and (NH4)2SO4, and contained sulfur in S6+ state. The studies revealed higher effectiveness of atrazine oxidation by the solar/S-doped TiO2 system in comparison with the solar/TiO2 system. After 30 min of irradiation, the removal rate reached 60% and 40%, respectively. The authors also emphasized that lower water pH favored the photodegradation of herbicide, while the presence of humic acids (HA) decreased the decomposition rate due to the competition with the atrazine molecules for hydroxyl radicals and partial absorption of sunlight before it reached TiO2.
In turn, Lin et al. [271] examined the S-doped TiO2 synthesized from TTIP and thiourea, in terms of degradation of gaseous 1,2-dichloroethane. The S-doped TiO2 photocatalysts exhibited superior photocatalytic activity under visible light compared to that of pure TiO2. The conversion rate of 1,2-dichloroethane was 55.3 nmol min−1 g−1, whereas in the case of the undoped TiO2 it was 2.16 nmol min−1 g−1 after 1 h of irradiation. Among all the examined photocatalysts, the highest efficiency of photodecomposition was found for the S-doped TiO2 containing 2.46 wt.% of sulfur.
The S-doped TiO2 synthesized by Baeissa [230] was applied for photooxidation of cyanide in water (KCN concentration: 25–200 mg L−1). The photocatalytic activity of the S-doped TiO2 increased with increasing sulfur content from 0 to 0.3 wt.%. In the case of the highest S content, the efficiency of photocatalytic oxidation of cyanide reached 100% after 30 min of irradiation with a blue fluorescent lamp (150 W). The stability of the photocatalyst was confirmed during five cycles of recycling and reuse.
Yi et al. [234] proposed the sol-gel method followed by calcination at 300 °C to prepare the S-doped TiO2 for visible light photocatalytic degradation of diclofenac (DCF) (10 mg L−1). The efficiency of DCF decomposition reached 93% after 4 h for 0.8 g L−1 of photocatalyst. A significant role of h+, OH, and O2•− in the DCF degradation was confirmed in the experiments involving various scavengers: (a) benzoquinone (BQ) as a superoxide radical scavenger, (b) AgNO3 as electron capturer, (c) tert-butyl alcohol as an OH scavenger, and (d) methanol (MeOH) and potassium iodide (KI) as both OH and h+ scavengers.
Furthermore, the S-doped TiO2 showed potential for application in antimicrobial field. Dunnill et al. [279] investigated the inhibition of E. coli growth in the presence of the S-doped TiO2 films. The samples were irradiated with the white light source, typically used in the hospitals. After 24 h of irradiation, a 99.5% inhibition of bacterial growth (i.e., 2.3 log10 reduction) was observed.
Other researchers [61] described a significant improvement in the photoreduction of CO2 using S-doped TiO2 under UV-A and visible light irradiation. A series of photocatalysts was obtained via simple sonothermal method using sulfur powder as a dopant source. For the most active S-doped TiO2, the evolution of 6.25 µmol g−1 of methane, 2.74 µmol g−1 of ethylene, 0.074 µmol g−1 of propylene and 0.030 µmol g−1 of propane after 24 h of UV-A irradiation in KOH solution was reported. Moreover, generation of methane and methanol in the acetonitrile-water mixture was observed under visible light, with the yield of 167.6 and 12,828.4 µmol g−1, respectively.
Based on the analysis of the literature data, it can be concluded that doping of TiO2 with sulfur is not as common as doping it with nitrogen, but still is one of the major strategies of non-metal modification of TiO2 aimed at improvement of its visible light photoactivity. The main source of sulfur is thiourea, although many other compounds have also been used, such as DMSO, TiOSO4, and sulfur powder. A majority of the photocatalysts were prepared with the use of titanium alkoxides as TiO2 precursors. Among numerous synthesis methods, sol-gel and hydrothermal treatment are the most common approaches. The two possible routes of sulfur doping are cationic (S6+/S4+) or anionic (S2−), with the former being more energetically favorable and thus more often reported. It was found that S-doped TiO2 materials exhibit superior properties as antibacterial agents. Moreover, this type of photocatalyst was employed in the decolorization of dyes and decomposition of both organic and inorganic contaminants.

6. C,N-Co-Doped TiO2

The C,N-co-doped TiO2 can be obtained by application of various carbon and nitrogen sources. A summary of the precursors is shown in Table 9. Among all nitrogen precursors, ammonia was the most commonly used, while in the case of the carbon source, various researchers applied different compounds (Table 9). The most popular Ti sources were TTIP and TBOT. The modified photocatalysts were obtained by numerous approaches, including sol-gel, solvothermal and hydrothermal methods, calcination, pyrolysis, or even green bioinspired synthesis.

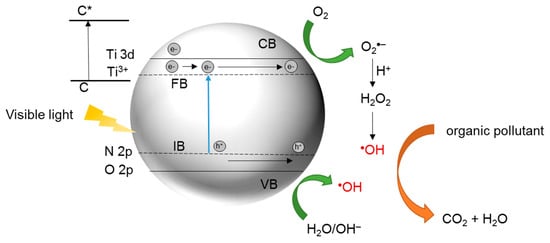

According to Ananpattarachai et al. [89] the C,N-co-doped TiO2 combines the synergistic effect of the C-doped and N-doped TiO2. Due to the carbon doping, the pollutant could be easier adsorbed on the surface of TiO2. The carbonaceous specie I formed by the incorporated C atoms could act as a photosensitizer (C*). After the excitation of this specie, electrons can be injected into the CB of TiO2. Further, these electrons could be transferred to O2 adsorbed on the photocatalyst surface, leading to the formation of the superoxide anion radicals (O2•−), which could be subsequently transformed to H2O2 and OH, and together with the oxidative species formed by the oxidation of H2O and OH by holes participate in pollutants degradation (Figure 16). Nitrogen doping could lead to the narrowing of the band gap by creation of an intra band gap states (IB) above the VB, enabling the visible light absorption. Furthermore, nitrogen doping can result in a shift of the flat-band (FB) potential position to a higher level than in the case of an unmodified TiO2.
To investigate the state of N and C in the modified photocatalysts the XPS analysis is typically conducted. Table 10 presents a summary of the nitrogen and carbon species detected in the XPS spectra of the C,N-co-doped TiO2. Usually, the N 1s signals in the range of ca. 396–402 eV are attributed to the presence of O-Ti-N bonds, indicating the substitutional incorporation of N atom into the TiO2 lattice [89,280,298,300,302,303,305,306,307,308]. The presence of carbon is confirmed by the peaks ranging from 284.6 to 289.6 eV (Table 10). The most commonly reported signals are the peaks at 285.9–286.7 and 288.5–288.7 eV, which are mainly ascribed to C-O and C=O bonds [89,280,289,296,298,302,303,305,306], and the signals at 288.0–288.9 eV attributed to the Ti-O-C bonds [89,288,296,297,301,303,306].
The visible light photocatalytic activity of the C,N-co-doped TiO2 was evaluated mainly on the basis of the decomposition of dyes and phenolic compounds (Table 9). Ananpattarachai et al. [89] compared the photocatalytic activity of the C-doped TiO2, N-doped TiO2, and C,N-co-doped TiO2 photocatalysts, prepared via sol-gel method with TTIP used as a TiO2 precursor. ETA, DEA and TELA were applied as the carbon and nitrogen sources. The activity of the photocatalysts was tested in the 2-chlorophenol removal process under visible light. After 90 min of irradiation, the C,N-co-doped TiO2 exhibited the highest removal efficiency of 94.39%, while for the C-doped and N-doped TiO2, it was 79.74% and 69.36%, respectively. Under the same conditions, the photodegradation efficiency in the case of the undoped TiO2 was about 24%. The best performance of the C,N-co-doped TiO2 was accounted by a synergistic effect of carbon and nitrogen co-doping, which allowed to obtain the lowest band gap energy amongst all the prepared photocatalysts (2.80 eV).
Xiao et al. [284] applied the C-modified and N-doped TiO2 hollow spheres for the degradation of tetracycline (TC) and TCH under simulated solar irradiation. The degradation rate constants k reached 0.1812 and 0.1785 min−1, respectively. Moreover, the authors reported that after four cycles of reusing, the material exhibited almost unchanged TC degradation efficiency.

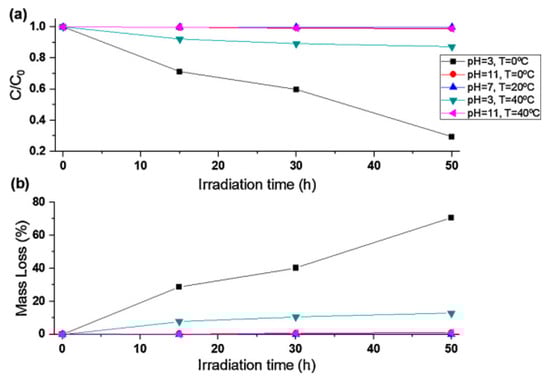

Recently, the pollution of the environment with microplastics has become a matter of concern. Ariza-Tarazona et al. [287] prepared C,N-co-doped TiO2 photocatalysts and investigated the impact of pH and temperature on the degradation process of the high-density polyethylene (HDPE) microplastics under visible light. The influence of these factors is shown in Figure 17. The results prove that low pH and low temperature had a combined positive effect on the microplastics’ degradation. This could be due to the presence of H+ ions facilitating the degradation process. Low temperature contributed to the microplastics’ fragmentation, increasing their surface area and interaction with the photocatalyst. The authors obtained over 70% average mass loss at pH 3 and temperature of 0 °C.
Another proposed application is photocatalytic H2 production. Zhang et al. [308] prepared the C,N-co-doped TiO2 hollow spheres using TiCN as a precursor of anatase TiO2 and a self-doping source of C and N. The photocatalyst was synthesized by a one-pot hydrothermal method. The resulting C,N-co-doped TiO2 showed enhanced photocatalytic activity towards H2 production under the visible light irradiation. The H2 generation rate was 445 times higher than for pure TiO2.
The modification of TiO2 with nitrogen and carbon was also found to be an efficient approach to enhance its antibacterial activity [282]. The photocatalysts were prepared using gaseous NH3 as a nitrogen source and aliphatic alcohols (methanol, ethanol and isopropanol) as carbon sources. The C,N-co-doped TiO2 was incorporated into concrete plates. The plates were irradiated with an artificial solar light in the presence of Escherichia coli bacteria. A complete inactivation of bacteria after 60 min of irradiation was observed in the case of the photocatalysts treated at 100 °C in the presence of ethanol and isopropanol and treated at 300 °C in the presence of methanol. The authors reported that not only inactivation but also damage of the bacterial cells was achieved.
The review of the current state of the art revealed that the simultaneous doping with carbon and nitrogen is a predominately used mode of co-doping of TiO2 with C, N and S non-metals. A majority of the photocatalysts were synthesized on the base of titanium alkoxides as TiO2 precursors, similarly as in the case of C- and N-doped TiO2. Numerous methods have been applied; some of them were common, such as sol-gel, solvothermal or calcination under gas flow, but there were also others such as pyrolysis, electrospinning, and CBD. Various alcohols are usually used as carbon sources. The most common nitrogen source is ammonia, although many other compounds were used, for example compounds containing amine groups such as glycine, HMT, or polyaniline. Moreover, some researchers used a single compound as both C and N source. Among others, PAN, TELA and urea were used for this purpose. The C,N-co-doped TiO2 has been successfully applied to decompose various organic pollutants and hydrogen production. It was also used as an antibacterial agent.

7. C,S-Co-Doped TiO2

The literature reports on the C,S-co-doped TiO2 are very limited. There are only a few papers on that subject and a majority of them were published in the last 5 years. The summary of substrates and methods applied for the preparation of the C,S-co-doped TiO2 is shown in Table 11.
Ivanov et al. [156], Khalyavka et al. [157], and Romanovska et al. [310] used the widely applied thiourea as a dopant of C and S. Although the authors [310] claimed their photocatalyst to be C,S-co-doped TiO2, the XPS analysis revealed the signals characteristic for C, N and S (285, 400, and 170 eV, respectively). The calculated surface content of the non-metals was 16.7 at% for C, 0.4 at% for S and 0.3 at% for N. Nonetheless, since the elemental analysis showed no presence of nitrogen, the authors attributed the observed weak XPS signal in the N 1s region to the adsorption of gaseous N2 and NH3 from the atmosphere.
The entirely new approaches were proposed by El Nemr et al. [102] and Chaudhary et al. [309]. The method reported by El Nemr et al. [102] was an ecofriendly procedure based on the sol-gel synthesis under alkaline conditions in the presence of Eichhornia crassipes aqueous leaf extract, followed by calcination in air at 400 °C. Except for deionized water, no other solvents were applied. Chaudhary et al. [309] proposed the application of the sulfate rich seaweed polysaccharides, carrageenans, (kappa (κ-), iota (ι-) and lambda (λ-)) from red seaweeds as a source of sulfur and carbon, while TTIP was used as TiO2 substrate. Sulfur was present in two oxidation states, S4+ and S0, corresponding to the XPS BE of 168 and 164.4 eV, respectively. It was observed that application of calcination at 600 °C led to a conversion of S0 to S4+, as was concluded from a disappearance of the 164.4 eV peak and the presence of an intense peak at ~168 eV. The authors concluded that no new Ti-S bond was formed at the expense of Ti-O bonds, and that the sulfate ions could form O-S-O bonds on the TiO2 surface. The presence of C 1s peak at 287.4 eV was also observed and it was assigned to the graphitic carbon.
Ivanov et al. [156] proposed a more conventional approach in which metatitanic acid was applied as a TiO2 precursor, while thiourea was the source of carbon and sulfur. A homogenous mixture of the substrates was calcined at 500 °C. The obtained C,S-co-doped TiO2 contained sulfur exclusively in the oxidation state of +6 (XPS BE of 168.8 eV). In the case of carbon, three peaks at BE of 285, 287 and 289 eV were observed. The signal at 285 eV was attributed to an external post-synthesis (not in vacuo) contamination. The other two peaks were assigned to C-O and C=O bonds indicating the presence of carbon substituting lattice Ti atoms and forming a Ti-O-C structure or C=O groups adsorbed on the photocatalyst surface. The surface content of sulfur and carbon was visibly higher (2.8 and 30.3 at%, respectively) than the content in the powder volume (0.36 and 5.07 at%, respectively).
Photocatalytic activity of the C,S-co-doped TiO2 was analyzed mainly on the basis of the removal of various dyes, including Rh B [156,313], RB19 [102], RR76 [102], MB [156] and ST [157]. El Nemr et al. [102] investigated the photoactivity of the C,S-co-doped TiO2 with reference to RB19 and RR76 decolorization in a real textile wastewater and the toxicity of the treated and untreated effluents. A 400 W halide lamp was used as a radiation source. The results were compared with those obtained in the presence of C-doped TiO2 and S-doped TiO2. It was reported that although all the doped photocatalysts exhibited higher photocatalytic activity than pure TiO2, the efficiency of decolorization was higher for the C-doped TiO2 than for the other photocatalysts. After 30 min of irradiation the concentration of RB19 decreased by 5.5%, 77.8%, 72.2%, and 73.3%, while the concentration of RR76 was lowered by 7.5%, 86.7%, 73.3%, and 63.3%, in the presence of TiO2, C-TiO2, C,S-TiO2 and S-TiO2, respectively. However, the analysis of chemical oxygen demand revealed that the highest degradation efficiency was obtained in the presence of C,S-co-doped TiO2 (97%), while in the case of the C-doped TiO2 and S-doped TiO2, it amounted to 91%. The toxicity of the treated wastewater samples analyzed with reference to rotifer and Artemia salina was less than 4%, being significantly lower compared to that of the untreated wastewater (95–98%). On the basis of the tests conducted in the presence of scavengers, it was concluded that the main species participating in the decomposition of the dyes were photogenerated holes, not the hydroxyl radicals. Moreover, the obtained photocatalyst was successfully recovered and reused at least three times without significant decrease in photoactivity.
In another case [157], the dye ST was photocatalytically degraded under UV and visible (568 nm) light in the presence of a series of C,S-co-doped TiO2 with various dopants content. The decolorization rates were in the range of 0.68–4.04 × 104 s−1 for UV and 0.20–0.63 × 104 s−1 for visible light, depending on the photocatalyst composition. In the case of the pure TiO2, the decolorization rate was 2.58 × 104 s−1 for UV, while no visible decomposition was observed for vis. The authors concluded that the following effects were responsible for the enhanced dye removal: (i) interfacial bonding, (ii) defective sites, (iii) narrowing of the band gap, (iv) inhibition of electron-hole pair recombination in the presence of carbon and sulfur, (v) prolongation of the lifetime of the photogenerated charges, (vi) formation of doping electronic states and (vii) change in textural characteristics.
Hohol et al. [313] applied the C,S-co-doped TiO2 as well as TiO2 P25 as the modifiers of the cement mortars. The photocatalytic activity was analyzed on the basis of Rh B removal in the visible light. The sample containing 2 wt.% of the C,S-co-doped TiO2 revealed the highest photocatalytic activity corresponding to the 87% removal efficiency after 2 h of irradiation. The cement mortars modified with 1 wt.% of the C,S-co-doped TiO2, 2 wt.% of TiO2 P25 and 1 wt.% of TiO2 P25 showed a removal efficiency of 65, 44 and 37%, respectively.
The overview presented above reveals that the number of papers on C,S-co-doped TiO2 is very limited. However, it is worth noting again here the case of thiourea precursor. As was already explained, this compound is used for the preparation of the S-doped TiO2, C,S-co-doped TiO2, or even C,N,S-tri-doped TiO2, thus in some cases it is difficult to distinguish between these types of single- and multiple doping. Thus, further investigations on the C,S-co-doped TiO2 are necessary. The studies should be especially related to the synthesis method and type of precursors, the structural and electronic properties of the photocatalysts and their effect on the photocatalytic activity analyzed with reference to other compounds than dyes.

8. N,S-Co-Doped TiO2

The simultaneous doping with nitrogen and sulfur is considered as an efficient method to obtain a reduction in the band gap of TiO2 [314]. Thiourea [231,247,276,315,316,317,318,319,320] as an S source and urea [87,231,315,316,318] or ammonium nitrate [276] as an N source are usually proposed. There are also reports on the application of ammonium sulfate [321] and ammonium thiocyanate [322] as both N and S precursors. Albrbar et al. [247] applied an aprotic solvent DMSO as a precursor for S-doping, while the annealing in ammonia stream was applied for N-doping.
Some authors performed a comparative evaluation of the non-metal doped TiO2. The N,S-co-doped TiO2 was compared with the N-doped and S-doped photocatalysts. A summary of these data is shown in Table 12. Sol-gel and wet impregnation were mainly applied as synthesis methods. In general, co-doping resulted in a smaller crystallite size of anatase and lower band gap energy values than observed in the case of the single-doped photocatalysts. The effect of the co-doping on the SBET was dependent on the synthesis method. An increase in the specific surface area compared to the single co-doped photocatalysts was observed only in the case of the sol-gel approach.

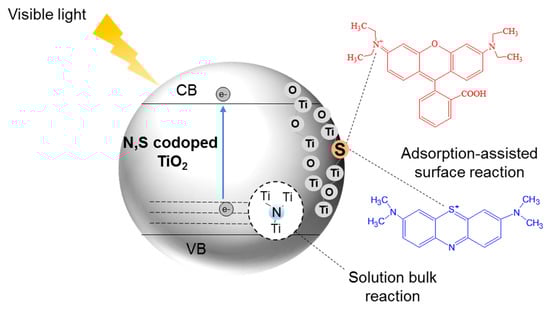

Figure 18 shows the effects of the N and S dopants on the visible light photocatalytic activity of the N,S-co-doped TiO2 photocatalyst. According to Chung et al. [314], nitrogen forms a delocalized state in the band gap of TiO2 leading to the enhanced solution bulk reaction by increasing the visible light absorption. On the other hand, sulfur promotes the adsorption of organic species present in the solution onto the surface of the N,S-co-doped TiO2, thereby enhancing the surface reaction with cationic organic pollutants.
The XPS analysis of the N,S-co-doped TiO2 synthesized by the non-hydrolytic sol-gel approach using DMSO and gaseous NH3 as S and N precursors, respectively, revealed interstitial nitrogen doping and cationic sulfur doping by the substitution of Ti4+ with S4+ and S6+ [247]. The N 1s peak was observed at ~400 eV. The authors noticed that the interstitial doping of N3- ion into TiO2 lattice is typical for annealing of titania in ammonia atmosphere. The S 2 p signal was in the form of a doublet with a maximum of the S 2p3/2 at 169.6 eV. It was also noted that annealing in ammonia suppresses the oxidation of sulfur, and as a result the substitution of Ti4+ with S4+ and S6+ is less favorable compared to calcination in air [247]. The presence of interstitial N and substitution of Ti4+ with S4+/S6+ was also reported in the case of application of ammonium thiocyanate as a dopant [322]. In contrast, Abu Bakar et al. [316] reported the absence of the interstitial nitrogen and the presence of the anionic N-doping in the case of N,S-co-doped TiO2 obtained by the OPM-assisted hydrothermal procedure using ammonia, thiourea and urea as N and S precursors. The substitution of O atoms by N atoms in the TiO2 lattice led to the formation of O-Ti-N bonds. The main form of sulfur was S6+ substituting Ti4+, as was found on the basis of the XPS peak at 168.7 eV. Moreover, a weak signal at the BE of 163.8 eV was observed indicating that anionic doping due to the replacement of oxygen by S2− in the crystal lattice of TiO2 also occurred. The above data clearly show that the synthesis route strongly affects the type of doping.
The photocatalytic activity of the N,S-co-doped TiO2 was examined using dyes such as Rh B [314,316,324], MB [291], MO [317,322,326], reactive orange 16 (RO16) [247], as well as HA [87,231], Ph [276,316], TC [325], non-steroidal anti-inflammatory drugs such as ibuprofen (IBP) and naproxen (NPX) [323], anti-cancer drug 5-fluorouracil (5-FU) [327], or an organophosphorus flame retardant tris(1-chloro-2-propyl)phosphate (TCPP) [321]. Table 13 presents selected examples of the application of the N,S-co-doped TiO2 photocatalysts in organic pollutants removal.
Eslami et al. [323] prepared the N,S-co-doped TiO2 NPs and nanosheets through facile sol-gel and hydrothermal methods, respectively. They used thiourea as nitrogen and sulfur source, and TBOT as the TiO2 precursor. The photocatalytic activity of the two types of the modified TiO2 was examined in IBP and NPX decomposition under visible light (Figure 19). The NPs displayed better photocatalytic activity by degrading 85% of IBP and 99.3% of NPX, whereas 71.6% of IBP and 99.1% of NPX were degraded by nanosheet structures. Both photocatalysts exhibited higher degradation and mineralization efficiency than TiO2 P25.
The N,S-co-doped TiO2 nanowires (NWs) were synthesized by Zhang et al. [318] via hydrothermal approach using titanium sulfate, thiourea and urea as the precursors. The experiments exhibited that the N,S-co-doped NWs can be easily separated from aqueous suspension by a simple sedimentation within ca. 30 min, while TiO2 P25 suspension remains turbid at this time. Furthermore, the N,S-co-doped NWs were proved to maintain their photocatalytic activity during five cycles of atrazine degradation under visible light. The authors concluded that the ease of separation and the stable photocatalytic performance make the prepared photocatalyst an attractive candidate for the industrial water purification.
The influence of the climate conditions on the photocatalysis process with N,S-co-doped TiO2 was studied by Khalilian et al. [326]. Thiourea was applied as a source of nitrogen and sulfur while TBOT was used as TiO2 precursor. The authors compared the degradation efficiency of MO under natural sunlight irradiation in cloudy and clear sky. The MO decomposition rate was 96% after 3 h in clear sky conditions, while in the case of the cloudy sky it reached 90% after 4.5 h. A more significant difference was observed after a shorter irradiation time, e.g., after 1 h, the decolorization rate amounted to about 75% and 30%, respectively.
Ju et al. [317] applied hydrothermal treatment followed by calcination for the preparation of the N,S-co-doped TiO2 photocatalysts from Ti(SO4)2 and thiourea as precursors. Various N/Ti atomic ratio and calcination temperature were used. The highest photocatalytic activity during MO removal under sunlight exhibited the photocatalyst obtained at 3% of N and calcined at 500 °C. The authors attributed the highest photoactivity of this photocatalyst to the small crystallite size of anatase (7 nm). The analysis of the influence of the pH of MO solution on its decolorization rate revealed the highest removal efficiency (92% after 6 h) at pH 4.
Yan et al. [324] prepared the N,S-co-doped TiO2 films by S-doping with thiourea of the previously N-doped TiO2 nanograss array films on Ti wire mesh obtained through moderate chemical oxidation. The films were applied for Rh B decolorization under visible light irradiation. The decomposition rate constants calculated for the undoped, N-doped and N,S co-doped TiO2 amounted to 9.77 × 10−4, 3.39 × 10−3 and 1.70 × 10−2, respectively. These data show that the photocatalytic activity of the pure TiO2 was increased by 2.5 times due to N-doping, while the subsequent S-doping enhanced it by 4.0 times. The N,S-co-doped TiO2 film kept its photocatalytic activity under visible light during five cycles of reuse, while in the case of the N-doped TiO2, a gradual deterioration of the photodecolorization rate was observed.
Birben et al. [231] compared the photocatalytic performance of the N-doped TiO2, S-doped TiO2 and S,N-co-doped TiO2 synthesized according to the wet impregnation method with the use of TiO2 P25 (about 80% anatase and 20% rutile) or Hombikat UV-100 (100% anatase) as TiO2 sources. The photocatalytic activity of the prepared photocatalysts was assessed regarding the photocatalytic degradation of HA in terms of decolorization and mineralization. The experiment was conducted in the reactor equipped with a 250 W m−2 Xenon lamp (wavelength range of 300–800 nm). Initial concentrations of HA and photocatalysts were 20 mg L−1 and 0.25 g L−1, respectively. The results reveal that the S,N-co-doped TiO2 prepared with the use of Hombikat UV-100 had the highest photocatalytic degradation efficiency among all the examined photocatalysts. The pseudo-first order rate constants k calculated for color removal and mineralization amounted to 11.4 × 10−2 min−1 and 6.80 × 10−2 min−1, respectively. In the case of the S,N-co-doped TiO2 P25, the photocatalytic performance was significantly worse (k = 2.28 × 10−2 min−1 and 2.81 × 10−2 min−1, respectively).
Another application of the N,S-co-doped TiO2 photocatalyst was described by Antonopoulou et al. [321]. The authors prepared the photocatalysts via the sol-gel method using TBOT as a TiO2 precursor and ammonium sulfate as a source of S and N. Different N,S:Ti molar ratios of 0.5, 1, and 1.5 were applied. The photocatalytic efficiency of the obtained materials was evaluated during photodegradation of an organophosphorus flame retardant TCPP under simulated solar light (Xenon lamp (2.2 kW) with 290 nm cut-off glass filter) and under visible light (>400 nm, 20 W led flood lamp emitting 1600 lumens). The highest photodegradation efficiency under visible light was observed in the case of the N,S-co-doped TiO2 obtained with the equimolar N,S:Ti ratio. The pseudo-first order rate constant k amounted to 0.64 × 10−3 min−1. For the simulated solar light, however, the photodegradation was more efficient in the presence of the single N-doped TiO2 than in the case of the N,S-co-doped TiO2 with the rate constants of 2.6 × 10−3 and 1.6 × 10−3 min−1, respectively. Nonetheless, the lowest photodegradation of TCPP was observed for the undoped TiO2 (0.01 × 10−3 and 0.31 × 10−3 min−1 for visible and simulated solar light, respectively).
The N,S-co-doped TiO2 was also proposed to be applied in lithium storage. Jiao et al. [328] compared the lithium storage capacity of the undoped, N-doped, S-doped and N,S-co-doped TiO2 as active anode materials. The N-doped TiO2 revealed only slightly (3.5 times) higher storage capacity than the undoped TiO2, while the S-doped TiO2 was characterized by even lower efficiency than TiO2. However, co-doping of TiO2 with N and S led to a significantly (17 times) higher storage capacity compared to the undoped TiO2. The superior performance of the N,S-co-doped TiO2 compared to the undoped and single doped TiO2 was ascribed to its significantly improved electronic conductivity resulting from a modified electronic structure of the semiconductor due to a homogenous distribution of the N and S dopants.
The presented above overview shows that co-doping of TiO2 with N and S can enhance the photocatalytic activity of titania under visible light due to the formation of new impurity levels. The N,S-co-doped TiO2 photocatalysts were prepared mainly via sol-gel and wet impregnation approaches. The major reported source of sulfur is thiourea, while the applied nitrogen sources include primarily ammonia, ammonium nitrate and urea. It remains unclear what the role of thiourea is as a source of nitrogen in this context. Furthermore, the authors did not discuss the presence of carbon, which is another element in the thiourea structure. Hence, an additional research on this subject is essential. The N,S-co-doped TiO2 photocatalysts were successfully employed in the photodecomposition of organic compounds, mostly dyes, but also pharmaceuticals and HA.

9. C,N,S-Tri-Doped TiO2

Single doping of TiO2 with carbon, nitrogen, or sulfur results in an improved photocatalytic activity under visible light. Tri-doping of TiO2 has been proposed as a more efficient method of enhancement of photoactivity and extending the visible light absorption range of titania photocatalysts [7,8,329,330,331,332,333,334,335,336,337]. Sushma et al., in their review [39], summarized the progress on C,N,S-tri-doped TiO2 in the years 2008–2015. They compared the characteristics of the photocatalysts regarding preparation method and further temperature treatment, the type of dopant as well as TiO2 precursor, the band gap energy obtained from UV-vis/DR spectra and the dopant states acquired from XPS. The most common methods were sol-gel and hydrothermal treatment. TBOT and TTIP were often used as the TiO2 precursors, while thiourea and cystine were the most frequently applied sources of C, N and S dopants. In Table 14, there is a continuation of the overview covering the articles from the year 2015 to the present.
It can be seen (Table 14) that the most widely used C, N and S dopant is still thiourea [7,8,329,330,331,332,333,334,338,339,340,341]. Moreover, cystine [335,336], L-cysteine [342], and urea [337] were used as the precursors. The incorporation of the non-metals into TiO2 was usually confirmed on the basis of the XPS analysis. Most reports [8,330,331,332,333,334,335,336,337,338,339,341,342] indicated the occurrence of the peaks at about 285 eV, which could be related to the presence of carbonate species (Table 14). Additionally, some reports [7,8,330,331,334,335,336,337] revealed the presence of the peak at about 290 eV, related to the C=O bonds. Nitrogen was reported to be present in two major modes-substitutional (∼399 eV) [7,8,331,333,335,336,337,338,341,342] and interstitial (∼400 eV) [8,330,331,332,333,334,335,336,337,338,339,341]. Moreover, the adsorbed N2 and NH3 were also found [337]. In most of the reviewed articles [7,8,330,331,333,334,335,336,337], cationic doping of sulfur was observed. Sulfur existed in S6+ oxidation state, as was confirmed by the peaks at about 168 and 169 eV [7,8,331,333,334,335,336,337,338,339,341]. Anionic doping was reported by Wang et al. [342], who observed an XPS peak at about 163.3 eV corresponding to the S2− oxidation state.

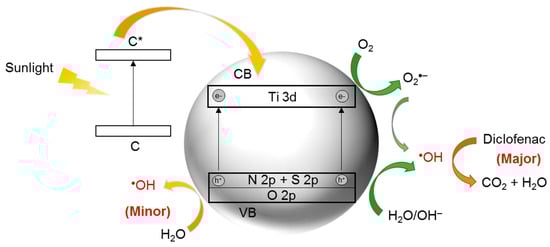

A probable mechanism of the photocatalytic degradation of a colorless compound, DCF, with the use of the C,N,S-tri-doped TiO2 was proposed by Ramandi et al. [7] (Figure 20). According to the authors, the doping of TiO2 with C, N, and S could generate new impurity levels including the N 2p, S 2p and C 1s. Under sunlight irradiation, carbon acts as a photosensitizer, injecting an electron into the CB (compare Figure 16), whereas incorporation of nitrogen and sulfur leads to mixing of the O 2p orbitals of TiO2 with N 2p and S 2p orbitals. As a result, the band gap is narrower compared to the undoped TiO2, which allows the direct electron excitation into CB using the visible light. Additionally, the anionic superoxide radials O2•− could be generated by a reduction of the adsorbed O2 molecules with CB electrons, and afterwards hydroxyl radicals OH can be formed. According to the authors [7], in the case of the C,N,S-tri-doped TiO2, this route of hydroxyl radicals formation plays a significant role.

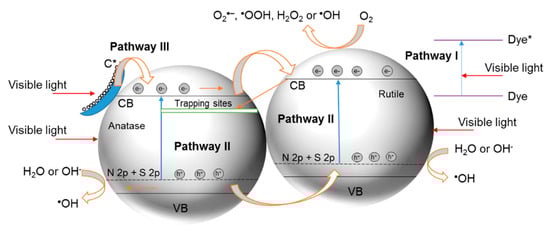

Another mechanism was proposed by Amreetha et al. [334] (Figure 21) in the case of a colorful compound-an organic dye Rh B. They suggested three pathways of the photodecolorization. The first pathway refers to the dye photosensitization process and is based on the excitation of the dye to the triplet excited state under the visible light irradiation. Furthermore, the dye molecules are converted to cationic dye radicals and the electrons are injected to the TiO2 CB according to Equations (8)–(10):
dye + h ν dye
dye + TiO 2 dye + + TiO 2 ( e )
O 2 + e ( CB ) O 2
Electrons contribute to the production of the anionic superoxide radicals O2•−, followed by the formation of hydroperoxyl radicals OOH and then H2O2, which further dissociates into hydroxyl radicals OH. The hydroxyl radicals participate in the decomposition and mineralization of the dye. The second pathway is similar to the mechanism proposed by Ramandi et al. [7]. However, Amreetha et al. [334] discussed it with reference to a mixed phase material composed of anatase and rutile. The electrons from the intermediate states created due to N and S doping (N 2p, S 2p) are excited to the CB of TiO2. Due to the presence of the mixed phases the charge separation occurs which limits the negative phenomenon of electron-hole recombination. There are two possible methods of electron transfer: (i) from the CB of anatase to the CB of rutile and (ii) from the CB edge of rutile to the lattice trapping sites of anatase localized below the CB of both anatase and rutile. At the same time, the hole transfer from the VB of anatase to the VB of rutile occurs. The third pathway assumes carbon to behave like a photosensitizer, which injects an electron into the CB (compare Figure 20).
Table 15 presents a brief summary of photocatalytic applications of the C,N,S-tri-doped TiO2. It was used to decompose dyes such as Rh B [330,333], MB [337,340], MO [335] and Rose Bengal [329]. Another common application was the removal of pharmaceutical compounds such as DCF [7], IBP [8], and TC [338] from water. Chun et al. [332] used the C,N,S-tri-doped TiO2 for the decomposition of volatile organic compounds (VOCs) such as benzene, toluene, ethyl benzene and o-xylene. Tri-doped TiO2 was also applied for decomposition of NOx [339,342].
Khedr et al. [8] revealed about 40 times higher initial rate of IBP photodegradation under visible light with application of the C,N,S-tri-doped TiO2 (1.779 µmol min−1) in comparison with the undoped TiO2 (0.043 µmol min−1). The efficiency of mineralization was 95.2% and 2.8% for the tri-doped and unmodified photocatalysts, respectively.
Wang et al. [338] prepared several C,N,S-tri-doped TiO2 photocatalysts via sol-gel method using different thiourea to Ti molar ratio (0.03:1, 0.05:1, 0.10:1 and 0.15:1) and various calcination temperature (350, 450, 550 and 650 °C). The authors tested the photocatalytic activity of the obtained photocatalysts in the TC removal process under visible light irradiation. The highest photocatalytic activity (97% removal after 3 h) exhibited the photocatalyst calcined at 450 °C with the thiourea to Ti molar ratio of 0.05:1. The surface content of the non-metals in that photocatalyst was 12.56 at% of C, 1.60 at% of S, and 0.54 at% of N, as was found from the XPS analysis. For comparison, the commercial TiO2 P25 achieved 26% removal efficiency. The authors attributed the superior performance of the C,N,S-tri-doped TiO2 to the synergistic effects of (i) the high adsorption of TC associated with the high specific surface area of the photocatalyst, (ii) the narrowing of the band gap resulting from the C,N,S tri-doping, (iii) the presence of carbonaceous species which acted as a photosensitizer, and (iii) the good crystallinity of the anatase phase.
The C,N,S-tri-doped single crystal black TiO2 nanosheets with exposed {001} facets synthesized by the hydrothermal in situ solid state reduction approach were applied for the photocatalytic decolorization of MO and evolution of hydrogen under visible light. After 180 min of irradiation, the MO decomposition rate reached 92.13% and was significantly higher than that obtained in the presence of the undoped TiO2 (42.38%). Similarly, the highest H2 evolution rate (149.7 µmol h−1 g−1) was observed for the C,N,S-tri-doped single crystal black TiO2. The authors asserted the high stability of the photocatalyst, confirmed by the constant hydrogen evolution rate during five cycles of reuse [335].
Bengtsson et al. [339] applied the C,N,S-tri-doped TiO2 synthesized from TTIP and thiourea for the degradation of NOx in air under visible light. The influence of the calcination temperature (400–650 °C) and thiourea content on the properties and activity of the photocatalysts was especially investigated. It was found that the increase in the calcination temperature improved the photoactivity under visible light, while in the case of UV irradiation, the correlation was not clear. Moreover, it was reported that a key role in the decomposition of NOx under visible light was played by the presence of nitrogen doped in the TiO2 structure. On the contrary, an increase in sulfur content resulted in a decrease in the efficiency of NOx degradation. The effect of the carbon amount was ambiguous and it was postulated than an optimal content exists (16–20 at.%), above and below which the presence of carbon has a negative influence on the photoactivity. Moreover, no correlation between the band gap and the photocatalytic activity under visible light was observed.
The data presented above show that in recent years, only a few groups of researchers worked on the C,N,S-tri-doped TiO2 photocatalysts. Most of them used thiourea as the C, N and S source. Thiourea was also utilized for the preparation of S-doped, C,S-co-doped and N,S-co-doped TiO2. Thus, it remains vague as to what is the role of this precursor in the synthesis of single- and co-doped photocatalysts. The C,N,S-tri-doped TiO2 was obtained mainly through sol-gel and hydrothermal procedures, although wet impregnation and sonochemical approaches were also proposed. Regardless of the synthesis method, sulfur was typically incorporated in the TiO2 crystal lattice in the S6+ oxidation state, as was concluded on the basis of the XPS analysis. Incorporation of carbon was usually confirmed by the peaks related to the presence of C–O and C=O species. In the case of nitrogen, both doping modes, i.e., substitutional or interstitial, were reported, depending on the preparation procedure. The C,N,S-tri-doped TiO2 materials have been proved to exhibit a superior photocatalytic performance towards the photodecomposition of organic compounds such dyes and pharmaceuticals in water, as well as the photodegradation of VOCs or NOx in air.

10. Conclusions and Perspectives

The present review is focused on the progress of the research on the doping, co-doping and tri-doping of TiO2 with C, N, or S. It confirms the great potential of this approach for the fabrication of visible light-active photocatalysts. The influence of the methods of the photocatalysts synthesis, including the applied precursors and process parameters, on the physicochemical properties and photoactivity of the doped TiO2 is discussed. Moreover, the mechanisms of photocatalysis in the presence of the single-, co- or tri-doped TiO2 are presented. Numerous applications of the non-metal doped TiO2 are also summarized, including the removal of organic compounds from water/wastewater, treatment of air, production of hydrogen, lithium storage, or inactivation of bacteria.
The most widespread approaches of the synthesis of the C, N or S-doped TiO2 photocatalysts are sol-gel, hydrothermal, solvothermal and wet impregnation methods, while the major precursors of TiO2, carbon, nitrogen and sulfur are titanium alkoxides, sugars, urea, and thiourea, respectively. However, great ambiguity in the case of the application of thiourea as a modifying agent exists. Thiourea has been used as the source of sulfur in S-doped, C,S-co-doped, and N,S-co-doped TiO2 or as the source of carbon and sulfur in the C,S-co-doped TiO2, while for the C,N,S-tri-doped TiO2 it was the precursor of all three non-metals. Thus, it remains vague as to what the role of thiourea is and which of the three mentioned above non-metals are built in the structure of the modified TiO2 photocatalysts. This leads to the conclusion that further thorough research regarding the effect of not only thiourea, but also other C, N and S sources on the structure and properties of the doped TiO2 is essential.
Numerous studies have shown that the incorporation of non-metals into TiO2 usually results in the narrowing of the band gap due to the formation of new impurity levels (C 2p, N 2p, S 2p) above the VB of the semiconductor. As a result, a red shift of optical absorption leading to an enhancement of the visible light photocatalytic activity is commonly reported. Moreover, the presence of C, N, or S could also contribute to the increase in the specific surface area or the improvement in crystallinity, thus additionally enhancing the photocatalytic performance.
The most common method of doping of TiO2 is modification with nitrogen. This issue has been widely investigated over the years. Presently, there is growing interest in the doping of TiO2 with more than one non-metal, including C,N-, C,S-, and N,S-co-doping or C,N,S-tri-doping. Two possible modes of nitrogen incorporation can occur, depending on the preparation conditions, i.e., interstitial (Ti-O-N) and substitutional (O-Ti-N) doping. In the case of sulfur, anionic (as S2−) or cationic (as S4+ or S6+) doping is possible, with the latter case being more energetically favorable and, thus, more commonly reported. The modification with carbon includes the widest range of species that could possibly be formed, such as Ti-C, C-C, C-N, C=N, C=O or C-O, etc. The reported pathways of C-doping include: (i) substitution of lattice oxygen with carbon (formation of Ti-C bonds); (ii) replacement of Ti by C (formation of C-O bonds); or (iii) stabilization of C at the interstitial position. The various mechanisms of doping affect the properties of the photocatalysts, although clear correlations between the modification procedure and the type of doping difficult to find. Therefore, more extensive investigations regarding this issue are necessary, especially when the photocatalysts with designed properties are considered.
It is not possible to unambiguously indicate the most advantageous mode of non-metal doping of TiO2. Each of them has some advantages and disadvantages. Moreover, a clear correlation between the doping mode and the physicochemical properties or photoactivity of the modified TiO2 is difficult to find. Co-doping and tri-doping of TiO2 can result in combining the properties of the particular single doped TiO2, leading to the enhancement of photoactivity. However, such improvement usually requires the employment of more reagents and more complicated synthesis procedures. Moreover, only a few authors compared the co-doped or tri-doped photocatalysts with single doped ones, while most of the others referred their results to an undoped TiO2. On the other hand, comparing the photocatalysts obtained by different authors would not be reliable since various conditions of experiments were applied, e.g., light sources and intensity, type and concentration of model pollutant, or dose of photocatalysts. Therefore, simple and reliable standard methods for testing of photocatalytic activity that will be widely applied by scientists around the world are a key issue to enable the comparison of the results obtained in different laboratories. That would contribute to defining the correlations and development of methods for designing the highly active photocatalysts.
A majority of applications of doped photocatalysts refer to the removal of pollutants from water and wastewater. The C-, N-, and S-doped photocatalysts were applied mainly for the decomposition of various dyes. Considering that the main aim of modification of TiO2 with the non-metals is the enhancement of its visible light photoactivity, such an attempt is not appropriate, as was already widely discussed in the literature. This is because of the dye sensitization effect. Therefore, it is very important to study the photocatalytic activity with the application of colorless compounds, such as phenols, pharmaceuticals, etc. Moreover, the determination of mineralization efficiency apart from decomposition rates is also important. A detailed evaluation of the mechanisms of the visible light photocatalysis, with reference to the by-product formation or the role of various ROS is also of high significance. Finally, the toxicity of the treated solutions should be carefully examined as one of the most important parameters reflecting the treatment efficiency and environmental safety. The important research should also focus on applications of doped photocatalysts other than water/wastewater treatment. The visible light photocatalytic air treatment, hydrogen production, CO2 photoreduction, and bacterial inactivation are still not thoroughly examined.
The enhanced photocatalytic activity under visible light irradiation makes the doped TiO2 a promising material for low-cost photocatalytic processes. Nonetheless, although the modified photocatalysts show superior properties compared to the undoped TiO2, more investigations are still needed to develop the production methods at the industrial scale. The crucial matter is to obtain stable and reusable photocatalysts using simple and economically feasible procedures.

Author Contributions

Conceptualization, A.P., S.M.; writing—original draft preparation, review and editing A.P., M.J., K.S. and S.M.; visualization, A.P. and M.J.; supervision, S.M.; funding acquisition, S.M. All authors have read and agreed to the published version of the manuscript.


This work was supported by the National Science Centre, Poland under project No. 2019/33/B/ST8/00252.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations and Symbols

2ATOanionic S-doped TiO2 nanorods
2CTOcationic S-doped TiO2 nanorods
Asc-TiO2TiO2 modified with citric acid as carbon source
BE binding energy
BPAbisphenol A
CBconduction band
CBDchemical bath deposition
C/C0normalized concentration
CDscarbon dots
Cit-TiO2TiO2 modified with citric acid as carbon source
CTCNF C-doped TiO2/carbon nanofibrous film
CTFC-doped TiO2 flakes
CTSC-doped TiO2 sheets
CVDchemical vapor deposition
DFTdensity functional theory
DMSOdimethyl sulfoxide
DPdiphenhydramine hydrochloride
dTiO2crystallite size estimated from XRD
Ebgband gap energy
EDTA-Na2ethylenediaminetetraacetic acid disodium salt
EPFextrapallial fluid
HA humic acids
HDPEhigh-density polyethylene
IBintra band gap states
kpseudo-first order rate constant
MBmethylene blue
MOmethyl orange
MWCNTmulti-walled carbon nanotubes
Niinterstitial nitrogen state
Nssubstitutional nitrogen state
NHE normal hydrogen electrode
Olatlattice oxygen
Osursurface adsorbed oxygen
Ovoxygen vacancy
OPMoxidant peroxide method
PLD pulsed laser deposition
r-GOreduced graphene oxide
RB19reactive blue 19
Rh Brhodamine b
RO16reactive orange 16
ROSreactive oxygen species
RR198reactive red 198
RR76reactive red 76
RTroom temperature
SBETspecific surface area estimated with the Brunauer–Emmett–Teller (BET) method
(S)Osubstitutional sulfur
(SO)Ointerstitial sulfur
(S2)Ointerstitial sulfur sharing a lattice site with substitutional sulfur
ST safranin T
TAAanatase TiO2 from Sigma Aldrich
TBAHtetrabutylammonium hydroxide
TBOTtitanium(IV) butoxide
TCHtetracycline hydrochloride
TEMtransmission electron microscopy
TiO2 P25Aeroxide® TiO2 P25 from Evonik, Germany
TOCtotal organic carbon
TTIPtitanium isopropoxide
UV-vis/DRUV-vis diffuse reflectance (spectroscopy)
VBvalence band
VOCsvolatile organic compound
XPSX-ray photoelectron spectroscopy
XRDX-ray diffraction


  1. Mittal, A.; Mari, B.; Sharma, S.; Kumari, V.; Maken, S.; Kumari, K.; Kumar, N. Non-metal Modified TiO2: A Step towards Visible Light Photocatalysis. J. Mater. Sci. Mater. Electron. 2019, 30, 3186–3207. [Google Scholar] [CrossRef]
  2. Cuerda-Correa, E.M.; Alexandre-Franco, M.F.; Fernández-González, C. Advanced Oxidation Processes for the Removal of Antibiotics from Water. An Overview. Water 2019, 12, 102. [Google Scholar] [CrossRef] [Green Version]
  3. Saibu, S.; Adebusoye, S.A.; Oyetibo, G.O. Aerobic Bacterial Transformation and Biodegradation of Dioxins: A Review. Bioresour. Bioprocess. 2020, 7. [Google Scholar] [CrossRef] [Green Version]
  4. Kumari, V.; Mittal, A.; Jindal, J.; Yadav, S.; Kumar, N. S-, N- and C-doped ZnO as Semiconductor Photocatalysts: A Review. Front. Mater. Sci. 2019, 13, 1–22. [Google Scholar] [CrossRef]
  5. Din, M.I.; Khalid, R.; Hussain, Z. Recent Research on Development and Modification of Nontoxic Semiconductor for Environmental Application. Sep. Purif. Rev. 2020, 1–18. [Google Scholar] [CrossRef]
  6. Al-Mamun, M.R.; Kader, S.; Islam, M.S.; Khan, M.Z.H. Photocatalytic Activity Improvement and Application of UV-TiO2 Photocatalysis in Textile Wastewater Treatment: A Review. J. Environ. Chem. Eng. 2019, 7, 103248. [Google Scholar] [CrossRef]
  7. Ramandi, S.; Entezari, M.H.; Ghows, N. Sono-Synthesis of Solar Light Responsive S–N–C–Tri Doped TiO2 Photo-Catalyst under Optimized Conditions for Degradation and Mineralization of Diclofenac. Ultrason. Sonochem. 2017, 38, 234–245. [Google Scholar] [CrossRef]
  8. Khedr, T.M.; El-Sheikh, S.M.; Hakki, A.; Ismail, A.A.; Badawy, W.A.; Bahnemann, D.W. Highly Active Non-metals Doped Mixed-Phase TiO2 for Photocatalytic Oxidation of Ibuprofen under Visible Light. J. Photoch. Photobiol. A. 2017, 346, 530–540. [Google Scholar] [CrossRef]
  9. Nasirian, M.; Lin, Y.P.; Bustillo-Lecompte, C.F.; Mehrvar, M. Enhancement of Photocatalytic Activity of Titanium Dioxide Using Non-metal Doping Methods under Visible Light: A Review. Int. J. Environ. Sci. Technol. 2017, 15, 2009–2032. [Google Scholar] [CrossRef]
  10. Islam, S.; Nagpure, S.; Kim, D.; Rankin, S. Synthesis and Catalytic Applications of Non-metal Doped Mesoporous Titania. Inorganics 2017, 5, 15. [Google Scholar] [CrossRef]
  11. Sanchez-Martinez, A.; Ceballos-Sanchez, O.; Koop-Santa, C.; López-Mena, E.R.; Orozco-Guareño, E.; García-Guaderrama, M. N-doped TiO2 Nanoparticles Obtained by a Facile Coprecipitation Method at Low Temperature. Ceram. Int. 2018, 44, 5273–5283. [Google Scholar] [CrossRef]
  12. Lazar, M.; Varghese, S.; Nair, S. Photocatalytic Water Treatment by Titanium Dioxide: Recent Updates. Catalysts 2012, 2, 572–601. [Google Scholar] [CrossRef] [Green Version]
  13. Chen, J.; Qiu, F.; Xu, W.; Cao, S.; Zhu, H. Recent Progress in Enhancing Photocatalytic Efficiency of TiO2 -based Materials. Appl. Catal. A-Gen. 2015, 495, 131–140. [Google Scholar] [CrossRef]
  14. Devi, L.G.; Kavitha, R. A Review on Non Metal Ion Doped Titania for the Photocatalytic Degradation of Organic Pollutants under UV/Solar Light: Role of Photogenerated Charge Carrier Dynamics in Enhancing the Activity. Appl. Catal. B-Environ. 2013, 140–141, 559–587. [Google Scholar] [CrossRef]
  15. Al Jitan, S.; Palmisano, G.; Garlisi, C. Synthesis and Surface Modification of TiO2-based Photocatalysts for the Conversion of CO2. Catalysts 2020, 10, 227. [Google Scholar] [CrossRef] [Green Version]
  16. Basavarajappa, P.S.; Patil, S.B.; Ganganagappa, N.; Reddy, K.R.; Raghu, A.V.; Reddy, C.V. Recent Progress in Metal-doped TiO2, Non-metal Doped/Codoped TiO2 and TiO2 Nanostructured Hybrids for Enhanced Photocatalysis. Int. J. Hydrogen Energ. 2020, 45, 7764–7778. [Google Scholar] [CrossRef]
  17. Asahi, R.; Morikawa, T.; Irie, H.; Ohwaki, T. Nitrogen-Doped Titanium Dioxide as Visible-Light-Sensitive Photocatalyst: Designs, Developments, and Prospects. Chem. Rev. 2014, 114, 9824–9852. [Google Scholar] [CrossRef]
  18. Rammohan, G.; Nadagouda, M. Green Photocatalysis for Degradation of Organic Contaminants: A Review. COC 2013, 17, 2338–2348. [Google Scholar] [CrossRef]
  19. Teh, C.M.; Mohamed, A.R. Roles of Titanium Dioxide and Ion-Doped Titanium Dioxide on Photocatalytic Degradation of Organic Pollutants (Phenolic Compounds and Dyes) in Aqueous Solutions: A Review. J. Alloys Compd. 2011, 509, 1648–1660. [Google Scholar] [CrossRef]
  20. Ismail, A.A.; Bahnemann, D.W. Mesoporous Titania Photocatalysts: Preparation, Characterization and Reaction Mechanisms. J. Mater. Chem. 2011, 21, 11686. [Google Scholar] [CrossRef] [Green Version]
  21. Akpan, U.G.; Hameed, B.H. The Advancements in Sol–Gel Method of Doped-TiO2 Photocatalysts. Appl. Catal. A Gen. 2010, 375, 1–11. [Google Scholar] [CrossRef]
  22. Ajmal, A.; Majeed, I.; Malik, R.N.; Idriss, H.; Nadeem, M.A. Principles and Mechanisms of Photocatalytic Dye Degradation on TiO2based Photocatalysts: A Comparative Overview. RSC Adv. 2014, 4, 37003–37026. [Google Scholar] [CrossRef]
  23. Ahmed, S.; Rasul, M.G.; Martens, W.N.; Brown, R.; Hashib, M.A. Heterogeneous Photocatalytic Degradation of Phenols in Wastewater: A Review on Current Status and Developments. Desalination 2010, 261, 3–18. [Google Scholar] [CrossRef] [Green Version]
  24. Wang, W.; Chen, M.; Huang, D.; Zeng, G.; Zhang, C.; Lai, C.; Zhou, C.; Yang, Y.; Cheng, M.; Hu, L.; et al. An Overview on Nitride and Nitrogen-doped Photocatalysts for Energy and Environmental Applications. Compos. Part B Eng. 2019, 172, 704–723. [Google Scholar] [CrossRef]
  25. Kaur, N.; Shahi, S.K.; Shahi, J.S.; Sandhu, S.; Sharma, R.; Singh, V. Comprehensive Review and Future Perspectives of Efficient N-doped, Fe-doped and (N,Fe)-co-doped Titania as Visible Light Active Photocatalysts. Vacuum 2020, 178, 109429. [Google Scholar] [CrossRef]
  26. Samokhvalov, A. Hydrogen by Photocatalysis with Nitrogen Codoped Titanium Dioxide. Renew. Sustain. Energ. Rev. 2017, 72, 981–1000. [Google Scholar] [CrossRef]
  27. Ansari, S.A.; Khan, M.M.; Ansari, M.O.; Cho, M.H. Nitrogen-doped Titanium Dioxide (N-doped TiO2) for Visible Light Photocatalysis. New J. Chem. 2016, 40, 3000–3009. [Google Scholar] [CrossRef]
  28. Bakar, S.A.; Ribeiro, C. Nitrogen-doped Titanium Dioxide: An Overview of Material Design and Dimensionality Effect over Modern Applications. J. Photoch. Photobiol. C 2016, 27, 1–29. [Google Scholar] [CrossRef]
  29. Gomes, J.; Lincho, J.; Domingues, E.; Quinta-Ferreira, R.; Martins, R. N–TiO2 Photocatalysts: A Review of Their Characteristics and Capacity for Emerging Contaminants Removal. Water 2019, 11, 373. [Google Scholar] [CrossRef] [Green Version]
  30. Zhang, W.; Jia, B.; Wang, Q.; Dionysiou, D. Visible-light Sensitization of TiO2 Photocatalysts via Wet Chemical N-doping for the Degradation of Dissolved Organic Compounds in Wastewater Treatment: A Review. J. Nanopart. Res. 2015, 17. [Google Scholar] [CrossRef]
  31. Spadavecchia, F.; Ceotto, M.; Presti, L.L.; Aieta, C.; Biraghi, I.; Meroni, D.; Ardizzone, S.; Cappelletti, G. Second Generation Nitrogen Doped Titania Nanoparticles: A Comprehensive Electronic and Microstructural Picture. Chin. J. Chem. 2014, 32, 1195–1213. [Google Scholar] [CrossRef]
  32. Gomathi Devi, L.; Kavitha, R. Review on Modified N–TiO2 for Green Energy Applications under UV/Visible Light: Selected Results and Reaction Mechanisms. RSC Adv. 2014, 4, 28265–28299. [Google Scholar] [CrossRef]
  33. Dunnill, C.W.; Parkin, I.P. Nitrogen-Doped TiO2 thin Films: Photocatalytic Applications for Healthcare Environments. Dalton Trans. 2011, 40, 1635–1640. [Google Scholar] [CrossRef] [PubMed]
  34. Thompson, T.L.; Yates, J.T., Jr. TiO2-Based Photocatalysis: Surface Defects, Oxygen and Charge Transfer. Top. Catal. 2005, 35, 197–210. [Google Scholar] [CrossRef]
  35. Lamo, M.P.B.; Nowotny, J. Water Purification Using Solar Energy: Effect of Sulphur on Photocatalytic Properties of TiO2. Energy Mater. 2009, 4, 150–158. [Google Scholar] [CrossRef]
  36. Shi, Z.-J.; Ma, M.-G.; Zhu, J.-F. Recent Development of Photocatalysts Containing Carbon Species: A Review. Catalysts 2018, 9, 20. [Google Scholar] [CrossRef] [Green Version]
  37. Mestre, A.S.; Carvalho, A.P. Photocatalytic Degradation of Pharmaceuticals Carbamazepine, Diclofenac, and Sulfamethoxazole by Semiconductor and Carbon Materials: A Review. Molecules 2019, 24, 3702. [Google Scholar] [CrossRef] [Green Version]
  38. Zhao, X.; Zhang, G.; Zhang, Z. TiO2-Based Catalysts for Photocatalytic Reduction of Aqueous Oxyanions: State-of-the-Art and Future Prospects. Environ. Int. 2020, 136, 105453. [Google Scholar] [CrossRef]
  39. Sushma, C.; Kumar, S.G. C–N–S Tridoping into TiO2 matrix for Photocatalytic Applications: Observations, Speculations and Contradictions in the Codoping Process. Inorg. Chem. Front. 2017, 4, 1250–1267. [Google Scholar] [CrossRef]
  40. Linsebigler, A.L.; Lu, G.; Yates, J.T. Photocatalysis on TiO2 Surfaces: Principles, Mechanisms, and Selected Results. Chem. Rev. 1995, 95, 735–758. [Google Scholar] [CrossRef]
  41. Hoffmann, M.R.; Martin, S.T.; Choi, W.; Bahnemann, D.W. Environmental Applications of Semiconductor Photocatalysis. Chem. Rev. 1995, 95, 69–96. [Google Scholar] [CrossRef]
  42. Banerjee, S.; Pillai, S.C.; Falaras, P.; O’Shea, K.E.; Byrne, J.A.; Dionysiou, D.D. New Insights into the Mechanism of Visible Light Photocatalysis. J. Phys. Chem. Lett. 2014, 5, 2543–2554. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  43. Fujishima, A.; Zhang, X.; Tryk, D. TiO2 Photocatalysis and Related Surface Phenomena. Surf. Sci. Rep. 2008, 63, 515–582. [Google Scholar] [CrossRef]
  44. Fujishima, A.; Rao, T.N.; Tryk, D.A. Titanium Dioxide Photocatalysis. J. Photoch. Photobiol. C 2000, 1, 1–21. [Google Scholar] [CrossRef]
  45. Ahmed, S.; Rasul, M.G.; Brown, R.; Hashib, M.A. Influence of Parameters on the Heterogeneous Photocatalytic Degradation of Pesticides and Phenolic Contaminants in Wastewater: A Short Review. J. Environ. Manag. 2011, 92, 311–330. [Google Scholar] [CrossRef] [Green Version]
  46. Ramanathan, R.; Bansal, V. Ionic Liquid Mediated Synthesis of Nitrogen, Carbon and Fluorine-codoped Rutile TiO2 Nanorods for Improved UV and Visible Light Photocatalysis. RSC Adv. 2015, 5, 1424–1429. [Google Scholar] [CrossRef]
  47. Chen, M.; Chu, J.-W. NOx Photocatalytic Degradation on Active Concrete Road Surface—From Experiment to Real-Scale Application. J. Clean. Prod. 2011, 19, 1266–1272. [Google Scholar] [CrossRef]
  48. Su, T.; Shao, Q.; Qin, Z.; Guo, Z.; Wu, Z. Role of Interfaces in Two-Dimensional Photocatalyst for Water Splitting. ACS Catal. 2018, 8, 2253–2276. [Google Scholar] [CrossRef]
  49. Razzaq, A.; Sinhamahapatra, T.-H.; Kang, C.A.; Grimes, J.-S.; Yu, S.-I. Efficient Solar Light Photoreduction of CO2 to Hydrocarbon Fuels via Magnesiothermally Reduced TiO2 Photocatalyst. Appl. Catal. B-Environ. 2017, 215, 28–35. [Google Scholar] [CrossRef]
  50. Spadaro, L.; Arena, F.; Negro, P.; Palella, A. Sunfuels from CO2 Exhaust Emissions: Insights Into the Role of Photoreactor Configuration by the Study in Laboratory and Industrial Environment. J. CO2 Util. 2018, 26, 445–453. [Google Scholar] [CrossRef]
  51. Tahir, B.; Tahir, M.; Amin, N.S. Gold-Indium Modified TiO2 Nanocatalysts for Photocatalytic CO2 Reduction with H2 as Reductant in a Monolith Photoreactor. Appl. Surf. Sci. 2015, 338, 1–14. [Google Scholar] [CrossRef]
  52. Hu, B.; Guild, C.; Suib, S.L. Thermal, Electrochemical, and Photochemical Conversion of CO2 to Fuels and Value-Added Products. J. CO2 Util. 2013, 1, 18–27. [Google Scholar] [CrossRef]
  53. Tahir, M.; Amin, N.S. Advances in Visible Light Responsive Titanium Oxide-Based Photocatalysts for CO2 Conversion to Hydrocarbon Fuels. Energ. Convers. Manag. 2013, 76, 194–214. [Google Scholar] [CrossRef]
  54. Spadaro, L.; Arena, F.; Palella, A. Which Future Route in the Methanol Synthesis? Photocatalytic Reduction of CO2, the New Challenge in the Solar Energy Exploitation. In Methanol: Science and Engineering; Dalena, F., Basile, A., Eds.; Elsevier: Amsterdam, The Netherlands, 2018. [Google Scholar] [CrossRef]
  55. Abdullah, H.; Khan, M.M.; Ong, H.R.; Yaakob, Z. Modified TiO2 Photocatalyst for CO2 Photocatalytic Reduction: An Overview. J. CO2 Util. 2017, 22, 15–32. [Google Scholar] [CrossRef]
  56. Carp, O.; Huisman, C.L.; Reller, A. Photoinduced Reactivity of Titanium Dioxide. Prog. Solid State Chem. 2004, 32, 33–177. [Google Scholar] [CrossRef]
  57. Kočí, K.; Obalová, L.; Matějová, L.; Plachá, D.; Lacný, Z.; Jirkovský, J.; Šolcová, O. Effect of TiO2 Particle Size on the Photocatalytic Reduction of CO2. Appl. Catal. B-Environ. 2009, 89, 494–502. [Google Scholar] [CrossRef]
  58. Adekoya, D.; Tahir, M.; Amin, N.A. Recent Trends in Photocatalytic Materials for Reduction of Carbon Dioxide to Methanol. Renew. Sustain. Energy Rev. 2019, 116, 109389. [Google Scholar] [CrossRef]
  59. Wang, P.; Yin, G.; Bi, Q.; Huang, X.; Du, X.; Zhao, W.; Huang, F.-Q. Efficient Photocatalytic Reduction of CO2 Using Carbon-Doped Amorphous Titanium Oxide. Chem. Cat. Chem. 2018, 10, 3854–3861. [Google Scholar] [CrossRef]
  60. Akple, M.S.; Low, J.; Qin, Z.; Wageh, S.; Al-Ghamdi, A.A.; Yu, J.; Liu, S. Nitrogen-Doped TiO2 Microsheets with Enhanced Visible Light Photocatalytic Activity for CO2 Reduction. Chin. J. Catal. 2015, 36, 2127–2134. [Google Scholar] [CrossRef]
  61. Habisreutinger, S.N.; Schmidt-Mende, L.; Stolarczyk, J.K. Photocatalytic Reduction of CO2 on TiO2 and Other Semiconductors. Angew. Chem. Int. Ed. 2013, 52, 7372–7408. [Google Scholar] [CrossRef]
  62. Friedmann, D.; Hakki, A.; Kim, H.; Choi, W.; Bahnemann, D. Heterogeneous Photocatalytic Organic Synthesis: State-of-the-Art and Future Perspectives. Green Chem. 2016, 18, 5391–5411. [Google Scholar] [CrossRef] [Green Version]
  63. Qiu, H.; Fang, S.; Huang, G.; Bi, J. A Novel Application of In2S3 for Visible-Light-Driven Photocatalytic Inactivation of Bacteria: Kinetics, Stability, Toxicity and Mechanism. Environ. Res. 2020, 190, 110018. [Google Scholar] [CrossRef] [PubMed]
  64. Pan, J.; Shen, S.; Zhou, W.; Tang, J.; Ding, H.; Wang, J.; Chen, L.; Au, C.-T.; Yin, S.-F. Recent Progress in Photocatalytic Hydrogen Evolution. Acta Phys. Chim. Sin. 2020, 36, 1–9. [Google Scholar] [CrossRef]
  65. Sakar, M.; Mithun Prakash, R.; Do, T.-O. Insights into the TiO2-Based Photocatalytic Systems and Their Mechanisms. Catalysts 2019, 9, 680. [Google Scholar] [CrossRef] [Green Version]
  66. Fang, Y.; Zheng, Y.; Fang, T.; Chen, Y.; Zhu, Y.; Liang, Q.; Sheng, H.; Li, Z.; Chen, C.; Wang, X. Photocatalysis: An Overview of Recent Developments and Technological Advancements. Sci. China Chem. 2019, 63, 149–181. [Google Scholar] [CrossRef] [Green Version]
  67. Matos, J.; Miralles-Cuevas, S.; Ruíz-Delgado, A.; Oller, I.; Malato, S. Development of TiO2-C Photocatalysts for Solar Treatment of Polluted Water. Carbon 2017, 122, 361–373. [Google Scholar] [CrossRef]
  68. Shi, J.-W.; Wang, Z.; He, C.; Li, G.; Niu, C. Carbon-Doped Titania Flakes with an Octahedral Bipyramid Skeleton Structure for the Visible-Light Photocatalytic Mineralization of Ciprofloxacin. RSC Adv. 2015, 5, 98361–98365. [Google Scholar] [CrossRef]
  69. Shi, J.-W.; Liu, C.; He, C.; Li, J.; Xie, C.; Yang, S.; Chen, J.-W.; Li, S.; Niu, C. Carbon-doped Titania Nanoplates with Exposed {001} Facets: Facile Synthesis, Characterization and Visible-Light Photocatalytic Performance. RSC Adv. 2015, 5, 17667–17675. [Google Scholar] [CrossRef]
  70. Chauhan, A.; Sharma, M.; Kumar, S.; Thirumalai, S.; Kumar, R.V.; Vaish, R. TiO2@C Core@shell Nanocomposites: A Single Precursor Synthesis of Photocatalyst for Efficient Solar Water Treatment. J. Hazard. Mater. 2020, 381, 120883. [Google Scholar] [CrossRef]
  71. Kuang, L.; Zhang, W. Enhanced Hydrogen Production by Carbon-doped TiO2 Decorated with Reduced Graphene Oxide (RGO) under Visible Light Irradiation. RSC Adv. 2016, 6, 2479–2488. [Google Scholar] [CrossRef]
  72. Jia, G.; Wang, Y.; Cui, X.; Zheng, W. Highly Carbon-doped TiO2 Derived from MXene Boosting the Photocatalytic Hydrogen Evolution. ACS Sustain. Chem. Eng. 2018, 6, 13480–13486. [Google Scholar] [CrossRef]
  73. Shim, J.; Seo, Y.-S.; Oh, B.-T.; Cho, M. Microbial Inactivation Kinetics and Mechanisms of Carbon-doped TiO2 (C-TiO2) under Visible Light. J. Hazard. Mater. 2016, 306, 133–139. [Google Scholar] [CrossRef] [PubMed]
  74. Marszewski, M.; Marszewska, J.; Pylypenko, S.; Jaroniec, M. Synthesis of Porous Crystalline Doped Titania Photocatalysts Using Modified Precursor Strategy. Chem. Mater. 2016, 28, 7878–7888. [Google Scholar] [CrossRef] [Green Version]
  75. Yuan, Y.; Qian, X.; Han, H.; Chen, Y. Synthesis of Carbon Modified TiO2 Photocatalysts with High Photocatalytic Activity by a Facile Calcinations Assisted Solvothermal Method. J. Mater. Sci. Mater. Electron. 2017, 28, 10028–10034. [Google Scholar] [CrossRef]
  76. Shaban, Y.A.; Fallata, H.M. Sunlight-Induced Photocatalytic Degradation of Acetaminophen over Efficient Carbon Doped TiO2 (CTiO2) Nanoparticles. Res. Chem. Intermed. 2019, 45, 2529–2547. [Google Scholar] [CrossRef]
  77. de Luna, M.D.G.; Lin, J.C.-T.; Gotostos, M.J.N.; Lu, M.-C. Photocatalytic Oxidation of Acetaminophen Using Carbon Self-doped Titanium Dioxide. Sustain. Environ. Res. 2016, 26, 161–167. [Google Scholar] [CrossRef] [Green Version]
  78. Purbia, R.; Borah, R.; Paria, S. Carbon-Doped Mesoporous Anatase TiO2 Multi-Tubes Nanostructures for Highly Improved Visible Light Photocatalytic Activity. Inorg. Chem. 2017, 56, 10107–10116. [Google Scholar] [CrossRef]
  79. Nawawi, W.I.; Ani, A.Y.; Ishak, M.A.M.; Ramli, A.; Azami, M.S.; Zaid, F.; Bakar, F.; Zaharudin, R. Modification and Characterization of C-doped TiO2 Photocatalyst for Photodegradation of Reactive Red (RR4). Desalin. Water Treat. 2018, 113, 254–261. [Google Scholar] [CrossRef]
  80. Rajamanickam, A.T.; Thirunavukkarasu, P.; Dhanakodi, K. A Simple Route to Synthesis of Carbon Doped TiO2 Nanostructured Thin Film for Enhanced Visible-Light Photocatalytic Activity. J. Mater. Sci. Mater. Electron. 2015, 26, 4038–4045. [Google Scholar] [CrossRef]
  81. Huang, Y.; Ho, W.; Lee, S.; Zhang, L.; Li, G.; Yu, J.C. Effect of Carbon Doping on the Mesoporous Structure of Nanocrystalline Titanium Dioxide and Its Solar-Light-Driven Photocatalytic Degradation of NOx. Langmuir 2008, 24, 3510–3516. [Google Scholar] [CrossRef]
  82. Ding, Y.; Nagpal, P. Standalone Anion- and Co-doped Titanium Dioxide Nanotubes for Photocatalytic and Photoelectrochemical Solar-to-Fuel Conversion. Nanoscale 2016, 8, 17496–17505. [Google Scholar] [CrossRef] [PubMed]
  83. Jiang, L.; Huang, Y.; Liu, T. Enhanced Visible-Light Photocatalytic Performance of Electrospun Carbon-doped TiO2/Halloysite Nanotube Hybrid Nanofibers. J. Colloid Interf. Sci. 2015, 439, 62–68. [Google Scholar] [CrossRef] [PubMed]
  84. An, N.; Ma, Y.; Liu, J.; Ma, H.; Yang, J.; Zhang, Q. Enhanced Visible-light Photocatalytic Oxidation Capability of Carbon-doped TiO2 via Coupling with Fly Ash. Chin. J. Catal. 2018, 39, 1890–1900. [Google Scholar] [CrossRef]
  85. Zhang, J.; Huang, G.-F.; Li, D.; Zhou, B.-X.; Chang, S.; Pan, A.; Huang, W.-Q. Facile Route to Fabricate Carbon-doped TiO2 Nanoparticles and Its Mechanism of Enhanced Visible Light Photocatalytic Activity. Appl. Phys. A 2016, 122. [Google Scholar] [CrossRef]
  86. Qiu, B.; Zhong, C.; Xing, M.; Zhang, J. Facile Preparation of C-modified TiO2 Supported on MCF for High Visible-Light-Driven Photocatalysis. RSC Adv. 2015, 5, 17802–17808. [Google Scholar] [CrossRef]
  87. Birben, N.C.; Uyguner-Demirel, C.S.; Sen-Kavurmaci, S.; Gürkan, Y.Y.; Türkten, N.; Kılıç, M.; Çınar, Z.; Bekbolet, M. Photocatalytic Performance of Anion Doped TiO2 on the Degradation of Complex Organic Matrix. J. Adv. Oxid. Technol. 2016, 19. [Google Scholar] [CrossRef]
  88. Choi, Y.; Umebayashi, T.; Yoshikawa, M. Fabrication and Characterization of C-Doped Anatase TiO2 photocatalysts. J. Mater. Sci. 2004, 39, 1837–1839. [Google Scholar] [CrossRef]
  89. Ananpattarachai, J.; Seraphin, S.; Kajitvichyanukul, P. Formation of Hydroxyl Radicals and Kinetic Study of 2-Chlorophenol Photocatalytic Oxidation Using C-doped TiO2, N-doped TiO2, and C,N Co-doped TiO2 under Visible Light. Environ. Sci. Pollut. Res. 2015, 23, 3884–3896. [Google Scholar] [CrossRef]
  90. Tijani, J.O.; Mouele, M.E.S.; Tottito, T.C.; Fatoba, O.O.; Petrik, L.F. Degradation of 2-Nitrophenol by Dielectric Barrier Discharge System: The Influence of Carbon Doped TiO2 Photocatalyst Supported on Stainless Steel Mesh. Plasma Chem. Plasma P 2017, 37, 1343–1373. [Google Scholar] [CrossRef]
  91. Tijani, J.O.; Fatoba, O.O.; Totito, T.C.; Roos, W.D.; Petrik, L.F. Synthesis and Characterization of Carbon Doped TiO2 Photocatalysts Supported on Stainless Steel Mesh by Sol-Gel Method. Carbon Lett. 2017, 22, 48–59. [Google Scholar] [CrossRef]
  92. Zhang, Y.; Zhao, Z.; Chen, J.; Cheng, L.; Chang, J.; Sheng, W.; Hu, C.; Cao, S. C-doped Hollow TiO2 Spheres: In Situ Synthesis, Controlled Shell Thickness, and Superior Visible-Light Photocatalytic Activity. Appl. Catal. B-Environ. 2015, 165, 715–722. [Google Scholar] [CrossRef]
  93. Li, J.; Gao, L.; Gan, W. Bioinspired C/TiO2 Photocatalyst for Rhodamine B Degradation under Visible Light Irradiation. Front. Agr. Sci. Eng. 2017, 4, 459. [Google Scholar] [CrossRef]
  94. Mohamed, M.A.; Salleh, W.N.W.; Jaafar, J.; Mohd Hir, Z.A.; Rosmi, M.S.; Mutalib, M.A.; Ismail, A.F.; Tanemura, M. Regenerated Cellulose Membrane as Bio-Template for in-Situ Growth of Visible-light Driven C-modified Mesoporous Titania. Carbohyd. Polym. 2016, 146, 166–173. [Google Scholar] [CrossRef]
  95. Mani, A.D.; Reddy, P.M.K.; Srinivaas, M.; Ghosal, P.; Xanthopoulos, N.; Subrahmanyam, C. Facile Synthesis of Efficient Visible Active C-doped TiO2 Nanomaterials with High Surface Area for the Simultaneous Removal of Phenol and Cr(VI). Mater. Res. Bull. 2015, 61, 391–399. [Google Scholar] [CrossRef]
  96. Yang, Y.; Ni, D.; Yao, Y.; Zhong, Y.; Ma, Y.; Yao, J. High Photocatalytic Activity of Carbon Doped TiO2 Prepared by Fast Combustion of Organic Capping Ligands. RSC Adv. 2015, 5, 93635–93643. [Google Scholar] [CrossRef]
  97. Habibi, S.; Jamshidi, M. Sol–Gel Synthesis of Carbon-doped TiO2 Nanoparticles Based on Microcrystalline Cellulose for Efficient Photocatalytic Degradation of Methylene Blue under Visible Light. Environ. Technol. 2019, 41, 3233–3247. [Google Scholar] [CrossRef]
  98. Payormhorm, J.; Idem, R. Synthesis of C-Doped TiO2 by Sol-Microwave Method for Photocatalytic Conversion of Glycerol to Value-Added Chemicals under Visible Light. Appl. Catal. A Gen. 2020, 590, 117362. [Google Scholar] [CrossRef]
  99. Ouyang, W.; Santiago, A.R.P.; Cerdán-Gómez, K.; Luque, R. Nanoparticles within Functional Frameworks and Their Applications in Photo(Electro)Catalysis. In Photoactive Inorganic Nanoparticles; Elsevier: Amsterdam, The Netherlands, 2019; pp. 109–138. [Google Scholar] [CrossRef]
  100. Song, L.; Jing, W.; Chen, J.; Zhang, S.; Zhu, Y.; Xiong, J. High Reusability and Durability of Carbon-doped TiO2/Carbon Nanofibrous Film as Visible-Light-Driven Photocatalyst. J. Mater. Sci. 2018, 54, 3795–3804. [Google Scholar] [CrossRef]
  101. Qian, H.; Hou, Q.; Duan, E.; Niu, J.; Nie, Y.; Bai, C.; Bai, X.; Ju, M. Honeycombed Au@C-TiO2-X Catalysts for Enhanced Photocatalytic Mineralization of Acid Red 3R under Visible Light. J. Hazard. Mater. 2020, 391, 122246. [Google Scholar] [CrossRef]
  102. El Nemr, A.; Helmy, E.T.; Gomaa, E.A.; Eldafrawy, S.; Mousa, M. Photocatalytic and Biological Activities of Undoped and Doped TiO2 Prepared by Green Method for Water Treatment. J. Environ. Chem. Eng. 2019, 7, 103385. [Google Scholar] [CrossRef]
  103. Xie, C.; Yang, S.; Shi, J.; Niu, C. Highly Crystallized C-doped Mesoporous Anatase TiO2 with Visible Light Photocatalytic Activity. Catalysts 2016, 6, 117. [Google Scholar] [CrossRef] [Green Version]
  104. Xie, C.; Yang, S.; Li, B.; Wang, H.; Shi, J.-W.; Li, G.; Niu, C. C-Doped Mesoporous Anatase TiO2 Comprising 10 nm Crystallites. J. ColloidInterf. Sci. 2016, 476, 1–8. [Google Scholar] [CrossRef] [PubMed]
  105. Wu, J.; Jiang, X.; Zhang, Y.; Fu, Q.; Pan, C. Preparation of High-concentration Substitutional Carbon-doped TiO2 Film via a Two-step Method for High-performance Photocatalysis. RSC Adv. 2018, 8, 36691–36696. [Google Scholar] [CrossRef] [Green Version]
  106. Shaban, Y.A. Solar Light-Induced Photodegradation of Chrysene in Seawater in the Presence of Carbon-modified n-TiO2 Nanoparticles. Arab. J. Chem. 2019, 12, 652–663. [Google Scholar] [CrossRef]
  107. Di Valentin, C.; Pacchioni, G.; Selloni, A. Theory of Carbon Doping of Titanium Dioxide. Chem. Mater. 2005, 17, 6656–6665. [Google Scholar] [CrossRef]
  108. Saharudin, K.A.; Sreekantan, S.; Lai, C.W. Fabrication and Photocatalysis of Nanotubular C-doped TiO2 Arrays: Impact of Annealing Atmosphere on the Degradation Efficiency of Methyl Orange. Mat. Sci. Semicon. Proc. 2014, 20, 1–6. [Google Scholar] [CrossRef]
  109. Shao, J.; Sheng, W.; Wang, M.; Li, S.; Chen, J.; Zhang, Y.; Cao, S. In Situ Synthesis of Carbon-doped TiO2 Single-Crystal Nanorods with a Remarkably Photocatalytic Efficiency. Appl. Catal. B-Environ. 2017, 209, 311–319. [Google Scholar] [CrossRef]
  110. Ohtani, B. Photocatalysis A to Z—What We Know and What We Do Not Know in a Scientific Sense. J. Photoch. Photobiol. C. 2010, 11, 157–178. [Google Scholar] [CrossRef] [Green Version]
  111. Dong, F.; Guo, S.; Wang, H.; Li, X.; Wu, Z. Enhancement of the Visible Light Photocatalytic Activity of C-Doped TiO2 Nanomaterials Prepared by a Green Synthetic Approach. J. Phys. Chem. C 2011, 115, 13285–13292. [Google Scholar] [CrossRef]
  112. Bergamonti, L.; Predieri, G.; Paz, Y.; Fornasini, L.; Lottici, P.P.; Bondioli, F. Enhanced Self-cleaning Properties of N-doped TiO2 Coating for Cultural Heritage. Microchem. J. 2017, 133, 1–12. [Google Scholar] [CrossRef]
  113. Preethi, L.K.; Antony, R.P.; Mathews, T.; Walczak, L.; Gopinath, C.S. A Study on Doped Heterojunctions in TiO2 Nanotubes: An Efficient Photocatalyst for Solar Water Splitting. Sci. Rep. 2017, 7. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  114. Calisir, M.D.; Gungor, M.; Demir, A.; Kilic, A.; Khan, M.M. Nitrogen-doped TiO2 Fibers for Visible-Light-Induced Photocatalytic Activities. Ceram. Int. 2020, 46, 16743–16753. [Google Scholar] [CrossRef]
  115. Liu, T.; Chen, W.; Liu, X.; Zhu, J.; Lu, L. Well-Dispersed Ultrafine Nitrogen-doped TiO2 with Polyvinylpyrrolidone (PVP) Acted as N-source and Stabilizer for Water Splitting. J. Energy Chem. 2016, 25, 1–9. [Google Scholar] [CrossRef]
  116. Wang, T.; Yan, X.; Zhao, S.; Lin, B.; Xue, C.; Yang, G.; Ding, S.; Yang, B.; Ma, C.; Yang, G.; et al. A Facile One-Step Synthesis of Three-Dimensionally Ordered Macroporous N-Doped TiO2 with Ethanediamine as the Nitrogen Source. J. Mater. Chem. A 2014, 2, 15611–15619. [Google Scholar] [CrossRef]
  117. Sirivallop, A.; Areerob, T.; Chiarakorn, S. Enhanced Visible Light Photocatalytic Activity of N and Ag Doped and Co-doped TiO2 Synthesized by Using an In-Situ Solvothermal Method for Gas Phase Ammonia Removal. Catalysts 2020, 10, 251. [Google Scholar] [CrossRef] [Green Version]
  118. Breeson, A.C.; Sankar, G.; Goh, G.K.L.; Palgrave, R.G. Rutile to Anatase Phase Transition Induced by N Doping in Highly Oriented TiO2 Films. Phys. Chem. Chem. Phys. 2016, 18, 24722–24728. [Google Scholar] [CrossRef]
  119. Siuzdak, K.; Szkoda, M.; Sawczak, M.; Lisowska-Oleksiak, A. Novel Nitrogen Precursors for Electrochemically Driven Doping of Titania Nanotubes Exhibiting Enhanced Photoactivity. New J. Chem. 2015, 39, 2741–2751. [Google Scholar] [CrossRef]
  120. May Ix, L.A.; Estrella González, A.; Cipagauta-Díaz, S.; Gómez, R. Effective Electron–Hole Separation over N-doped TiO2 Materials for Improved Photocatalytic Reduction of 4-nitrophenol Using Visible Light. J. Chem. Technol. Biotechnol. 2020. [Google Scholar] [CrossRef]
  121. Cheng, Z.-L.; Han, S. Preparation and Photoelectrocatalytic Performance of N-doped TiO2/NaY Zeolite Membrane Composite Electrode Material. Water Sci. Technol. 2015, 73, 486–492. [Google Scholar] [CrossRef]
  122. Huang, L.; Fu, W.; Fu, X.; Zong, B.; Liu, H.; Bala, H.; Wang, X.; Sun, G.; Cao, J.; Zhang, Z. Facile and Large-Scale Preparation of N doped TiO2 Photocatalyst with High Visible Light Photocatalytic Activity. Mater. Lett. 2017, 209, 585–588. [Google Scholar] [CrossRef]
  123. Cheng, X.; Yu, X.; Xing, Z.; Yang, L. Synthesis and Characterization of N-doped TiO2 and Its Enhanced Visible-Light Photocatalytic Activity. Arab. J. Chem. 2016, 9, S1706–S1711. [Google Scholar] [CrossRef]
  124. Zeng, H.; Xie, J.; Xie, H.; Su, B.-L.; Wang, M.; Ping, H.; Wang, W.; Wang, H.; Fu, Z. Bioprocess-Inspired Synthesis of Hierarchically Porous Nitrogen-Doped TiO2 with High Visible-Light Photocatalytic Activity. J. Mater. Chem. A 2015, 3, 19588–19596. [Google Scholar] [CrossRef]
  125. Ariza-Tarazona, M.C.; Villarreal-Chiu, J.F.; Barbieri, V.; Siligardi, C.; Cedillo-González, E.I. New Strategy for Microplastic Degradation: Green Photocatalysis Using a Protein-Based Porous N-TiO2 Semiconductor. Ceram. Int. 2019, 45, 9618–9624. [Google Scholar] [CrossRef]
  126. Xu, X.; Song, W. Enhanced H2 Production Activity under Solar Irradiation over N-doped TiO2 Prepared Using Pyridine as a Precursor: A Typical Sample of N-doped TiO2 Series. Mater. Technol. 2016, 32, 52–63. [Google Scholar] [CrossRef]
  127. Zhou, X.; Peng, F.; Wang, H.; Yu, H.; Yang, J. Preparation of Nitrogen Doped TiO2 Photocatalyst by Oxidation of Titanium Nitride with H2O2. Mater. Res. Bull. 2011, 46, 840–844. [Google Scholar] [CrossRef]
  128. Huang, J.-G.; Zhao, X.-G.; Zheng, M.-Y.; Li, S.; Wang, Y.; Liu, X.-J. Preparation of N-Doped TiO2 by Oxidizing TiN and Its Application on Phenol Degradation. Water Sci. Technol. 2013, 68, 934–939. [Google Scholar] [CrossRef]
  129. Nguyen-Le, M.-T.; Lee, B.-K. Novel Fabrication of a Nitrogen-doped Mesoporous TiO2-Nanorod Titanate Heterojunction to Enhance the Photocatalytic Degradation of Dyes under Visible Light. RSC Adv. 2016, 6, 31347–31350. [Google Scholar] [CrossRef]
  130. Assayehegn, E.; Solaiappan, A.; Chebude, Y.; Alemayehu, E. Fabrication of Tunable Anatase/Rutile Heterojunction N/TiO2 Nanophotocatalyst for Enhanced Visible Light Degradation Activity. Appl. Surf. Sci. 2020, 515, 145966. [Google Scholar] [CrossRef]
  131. Assayehegn, E.; Solaiappan, A.; Chebudie, Y.; Alemayehu, E. Influence of Temperature on Preparing Mesoporous Mixed Phase N/TiO2 Nanocomposite with Enhanced Solar Light Photocatalytic Activity. Front. Mater. Sci. 2019, 13, 352–366. [Google Scholar] [CrossRef]
  132. Fang, Q.; Tang, J.; Zou, H.; Cai, T.; Deng, Q. Preparation of N-doped Mesoporous TiO2 Using Nitromethane as Nitrogen Source and Their High Photocatalytic Performance. Synth. React. Inorg. Met. Chem. 2015, 46, 766–774. [Google Scholar] [CrossRef]
  133. Lee, S.-H.; Yamasue, E.; Okumura, H.; Ishihara, K.N. Effect of Oxygen and Nitrogen Concentration of Nitrogen Doped TiOx Film as Photocatalyst Prepared by Reactive Sputtering. Appl. Catal. A-Gen. 2009, 371, 179–190. [Google Scholar] [CrossRef]
  134. Marques, J.; Gomes, T.D.; Forte, M.A.; Silva, R.F.; Tavares, C.J. A New Route for the Synthesis of Highly-Active N-doped TiO2 Nanoparticles for Visible Light Photocatalysis Using Urea as Nitrogen Precursor. Catal. Today 2019, 326, 36–45. [Google Scholar] [CrossRef]
  135. Pu, X.; Hu, Y.; Cui, S.; Cheng, L.; Jiao, Z. Preparation of N-doped and Oxygen-deficient TiO2 Microspheres via a Novel Electron Beam-Assisted Method. Solid State Sci. 2017, 70, 66–73. [Google Scholar] [CrossRef]
  136. Quesada-Cabrera, R.; Sotelo-Vázquez, C.; Quesada-González, M.; Melián, E.P.; Chadwick, N.; Parkin, I.P. On the Apparent Visible-Light and Enhanced UV-Light Photocatalytic Activity of Nitrogen-doped TiO2 Thin Films. J. Photoch. Photobiol. A. 2017, 333, 49–55. [Google Scholar] [CrossRef] [Green Version]
  137. Karim, A.V.; Shriwastav, A. Degradation of Ciprofloxacin Using Photo, Sono, and Sonophotocatalytic Oxidation with Visible Light and Low-Frequency Ultrasound: Degradation Kinetics and Pathways. Chem. Eng. J. 2020, 392, 124853. [Google Scholar] [CrossRef]
  138. Huang, W.; Cheng, H.; Feng, J.; Shi, Z.; Bai, D.; Li, L. Synthesis of Highly Water-Dispersible N-doped Anatase Titania Based on Low Temperature Solvent-Thermal Method. Arab. J. Chem. 2018, 11, 871–879. [Google Scholar] [CrossRef]
  139. Delavari, S.; Amin, N.A.S.; Ghaedi, M. Photocatalytic Conversion and Kinetic Study of CO2 and CH4 over Nitrogen-doped Titania Nanotube Arrays. J. Clean. Prod. 2016, 111, 143–154. [Google Scholar] [CrossRef]
  140. Islam, S.Z.; Rankin, S.E. Hydrazine-Based Synergistic Ti(III)/N Doping of Surfactant-Templated TiO2 Thin Films for Enhanced Visible Light Photocatalysis. Mater. Chem. Phys. 2016, 182, 382–393. [Google Scholar] [CrossRef] [Green Version]
  141. Pikuda, O.; Garlisi, C.; Scandura, G.; Palmisano, G. Micro-Mesoporous N-doped Brookite-Rutile TiO2 as Efficient Catalysts for Water Remediation under UV-free Visible LED Radiation. J. Catal. 2017, 346, 109–116. [Google Scholar] [CrossRef]
  142. Fiorenza, R.; Di Mauro, A.; Cantarella, M.; Gulino, A.; Spitaleri, L.; Privitera, V.; Impellizzeri, G. Molecularly Imprinted N-doped TiO2 Photocatalysts for the Selective Degradation of o-Phenylphenol Fungicide from Water. Mat. Sci. Semicon. Proc. 2020, 112, 105019. [Google Scholar] [CrossRef]
  143. Ananpattarachai, J.; Kajitvichyanukul, P. Photocatalytic Degradation of p,p′-DDT under UV and Visible Light Using Interstitial N-doped TiO2. J. Environ. Sci. Heal. B 2015, 50, 247–260. [Google Scholar] [CrossRef]
  144. Ananpattarachai, J.; Boonto, Y.; Kajitvichyanukul, P. Visible Light Photocatalytic Antibacterial Activity of Ni-doped and N-doped TiO2 on Staphylococcus aureus and Escherichia coli Bacteria. Environ. Sci. Pollut. Res. 2015, 23, 4111–4119. [Google Scholar] [CrossRef]
  145. Nursam, N.M.; Tan, J.Z.Y.; Wang, X.; Li, W.; Xia, F.; Caruso, R.A. Mesoporous Nitrogen-Modified Titania with Enhanced Dye Adsorption Capacity and Visible Light Photocatalytic Activity. Chem. Sel. 2016, 1, 4868–4878. [Google Scholar] [CrossRef]
  146. Szkoda, M.; Siuzdak, K.; Lisowska-Oleksiak, A. Non-Metal Doped TiO2 Nanotube Arrays for High Efficiency Photocatalytic Decomposition of Organic Species in Water. Phys. E 2016, 84, 141–145. [Google Scholar] [CrossRef]
  147. Pablos, C.; Marugán, J.; van Grieken, R.; Dunlop, P.; Hamilton, J.; Dionysiou, D.; Byrne, J. Electrochemical Enhancement of Photocatalytic Disinfection on Aligned TiO2 and Nitrogen doped TiO2 Nanotubes. Molecules 2017, 22, 704. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  148. Mehdizadeh, P.; Tavangar, Z.; Shabani, N.; Hamadanian, M. Visible Light Activity of Nitrogen-doped TiO2 by Sol-Gel Method Using Various Nitrogen Sources. J. Nanostruct. 2020, 10, 307–316. [Google Scholar] [CrossRef]
  149. Kamaludin, R.; Mohamad Puad, A.S.; Othman, M.H.D.; Kadir, S.H.S.A.; Harun, Z. Incorporation of N-doped TiO2 into Dual Layer Hollow Fiber (DLHF) Membrane for Visible Light-Driven Photocatalytic Removal of Reactive Black 5. Polym. Test. 2019, 78, 105939. [Google Scholar] [CrossRef]
  150. Ramchiary, A.; Samdarshi, S.K. Hydrogenation Based Disorder-Engineered Visible Active N-doped Mixed Phase Titania. Sol. Energ. Mat. Sol. C 2015, 134, 381–388. [Google Scholar] [CrossRef]
  151. Tobaldi, D.M.; Pullar, R.C.; Gualtieri, A.F.; Otero-Irurueta, G.; Singh, M.K.; Seabra, M.P.; Labrincha, J.A. Nitrogen-modified Nano-titania: True Phase Composition, Microstructure and Visible-Light Induced Photocatalytic NO Abatement. J. Solid State Chem. 2015, 231, 87–100. [Google Scholar] [CrossRef]
  152. Choi, A.Y.; Han, C.-H. FTIR Investigation of Sonochemically N-doped TiO2 Nano Powder. J. Nanosci. Nanotechnol. 2016, 16, 11109–11112. [Google Scholar] [CrossRef]
  153. Esteban Florez, F.L.; Hiers, R.D.; Larson, P.; Johnson, M.; O’Rear, E.; Rondinone, A.J.; Khajotia, S.S. Antibacterial Dental Adhesive Resins Containing Nitrogen-doped Titanium Dioxide Nanoparticles. Mater. Sci. Eng. C 2018, 93, 931–943. [Google Scholar] [CrossRef] [PubMed]
  154. Khore, S.K.; Tellabati, N.V.; Apte, S.K.; Naik, S.D.; Ojha, P.; Kale, B.B.; Sonawane, R.S. Green Sol–Gel Route for Selective Growth of 1D Rutile N–TiO2: A Highly Active Photocatalyst for H2 Generation and Environmental Remediation under Natural Sunlight. RSC Adv. 2017, 7, 33029–33042. [Google Scholar] [CrossRef] [Green Version]
  155. Li, X.; Zhang, G.; Wang, X.; Liu, W.; Yu, K.; Liang, C. Facile Synthesis of Nitrogen-doped Titanium Dioxide with Enhanced Photocatalytic Properties. Mater. Res. Express 2019, 6, 115019. [Google Scholar] [CrossRef]
  156. Ivanov, S.; Barylyak, A.; Besaha, K.; Bund, A.; Bobitski, Y.; Wojnarowska-Nowak, R.; Yaremchuk, I.; Kus-Liśkiewicz, M. Synthesis, Characterization, and Photocatalytic Properties of Sulfur- and Carbon-Codoped TiO2 Nanoparticles. Nanoscale Res. Lett. 2016, 11. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  157. Khalyavka, T.; Bondarenko, M.; Shcherban, N.; Petrik, I.; Melnyk, A. Effect of the C and S Additives on Structural, Optical, and Photocatalytic Properties of TiO2. Appl. Nanosci. 2018, 9, 695–702. [Google Scholar] [CrossRef]
  158. Zou, X.; Shang, X.; Wang, R.; Zhang, J.; Pan, Q.; Guo, Y. Sulfur and Carbon Co-doped TiO2 Composite Fabricated by Lignosulphonate and Its Suitability for Removal of Cadmium. Clean Soil Air Water 2019, 47, 1800446. [Google Scholar] [CrossRef]
  159. Minnekhanov, A.A.; Le, N.T.; Konstantinova, E.A.; Kashkarov, P.K. Influence of Defects on Photoconductivity and Photocatalytic Activity of Nitrogen-doped Titania. Appl. Magn. Reson. 2017, 48, 335–345. [Google Scholar] [CrossRef] [Green Version]
  160. Chen, Y.; Luo, X.; Luo, Y.; Xu, P.; He, J.; Jiang, L.; Li, J.; Yan, Z.; Wang, J. Efficient Charge Carrier Separation in L-Alanine Acids Derived N-TiO2 Nanospheres: The Role of Oxygen Vacancies in Tetrahedral Ti4+ Sites. Nanomaterials 2019, 9, 698. [Google Scholar] [CrossRef] [Green Version]
  161. Batra, R.; Sharotri, N.; Sud, D. Ultrasound Assisted Synthesis of Visible Light Responsive Nitrogen Doped TiO2 Nano Photocatalyst. AMR 2013, 856, 22–24. [Google Scholar] [CrossRef]
  162. Wang, X.-K.; Wang, C.; Guo, W.-L.; Wang, J.-G. A Novel Single-Step Synthesis of N-Doped TiO2 via a Sonochemical Method. Mater. Res. Bull. 2011, 46, 2041–2044. [Google Scholar] [CrossRef]
  163. Wang, H.; Gao, X.; Duan, G.; Yang, X.; Liu, X. Facile Preparation of Anatase–Brookite–Rutile Mixed-Phase N-doped TiO2 with High Visible-Light Photocatalytic Activity. J. Environ. Chem. Eng. 2015, 3, 603–608. [Google Scholar] [CrossRef]
  164. Huang, W.C.; Ting, J.-M. Novel Nitrogen-Doped Anatase TiO2 Mesoporous Bead Photocatalysts for Enhanced Visible Light Response. Ceram. Int. 2017, 43, 9992–9997. [Google Scholar] [CrossRef]
  165. Mahy, J.; Cerfontaine, V.; Poelman, D.; Devred, F.; Gaigneaux, E.; Heinrichs, B.; Lambert, S. Highly Efficient Low-Temperature N-doped TiO2 Catalysts for Visible Light Photocatalytic Applications. Materials 2018, 11, 584. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  166. Makropoulou, T.; Panagiotopoulou, P.; Venieri, D. N-doped TiO2 Photocatalysts for Bacterial Inactivation in Water. J. Chem. Technol. Biotechnol. 2018, 93, 2518–2526. [Google Scholar] [CrossRef]
  167. Chen, X.; Kuo, D.-H.; Lu, D. N-doped Mesoporous TiO2 Nanoparticles Synthesized by Using Biological Renewable Nanocrystalline Cellulose as Template for the Degradation of Pollutants under Visible and Sun Light. Chem. Eng. J. 2016, 295, 192–200. [Google Scholar] [CrossRef]
  168. Reddy, P.A.K.; Reddy, P.V.L.; Kim, K.-H.; Kumar, M.K.; Manvitha, C.; Shim, J.-J. Novel Approach for the Synthesis of Nitrogen-Doped Titania with Variable Phase Composition and Enhanced Production of Hydrogen under Solar Irradiation. J. Ind. Eng. Chem. 2017, 53, 253–260. [Google Scholar] [CrossRef]
  169. Li, X.; Liu, P.; Mao, Y.; Xing, M.; Zhang, J. Preparation of Homogeneous Nitrogen-Doped Mesoporous TiO2 Spheres with Enhanced Visible-light Photocatalysis. Appl. Catal. B-Environ. 2015, 164, 352–359. [Google Scholar] [CrossRef]
  170. Kowalska, K.; Maniakova, G.; Carotenuto, M.; Sacco, O.; Vaiano, V.; Lofrano, G.; Rizzo, L. Removal of Carbamazepine, Diclofenac and Trimethoprim by Solar Driven Advanced Oxidation Processes in a Compound Triangular Collector Based Reactor: A Comparison between Homogeneous and Heterogeneous Processes. Chemosphere 2020, 238, 124665. [Google Scholar] [CrossRef] [PubMed]
  171. Singha, K.; Ghosh, S.C.; Panda, A.B. N-Doped Yellow TiO2 Hollow Sphere-Mediated Visible-Light-Driven Efficient Esterification of Alcohol and N -Hydroxyimides to Active Esters. Chem. Asian J. 2019, 14, 3205–3212. [Google Scholar] [CrossRef]
  172. Suwannaruang, T.; Kamonsuangkasem, K.; Kidkhunthod, P.; Chirawatkul, P.; Saiyasombat, C.; Chanlek, N.; Wantala, K. Influence of Nitrogen Content Levels on Structural Properties and Photocatalytic Activities of Nanorice-like N-doped TiO2 with Various Calcination Temperatures. Mater. Res. Bull. 2018, 105, 265–276. [Google Scholar] [CrossRef]
  173. Ibukun, O.; Jeong, H.K. Enhancement of Photocatalytic Activities of Nitrogen-doped Titanium Dioxide by Ambient Plasma. Chem. Phys. Lett. 2020, 744, 137234. [Google Scholar] [CrossRef]
  174. Xing, X.; Du, Z.; Zhuang, J.; Wang, D. Removal of Ciprofloxacin from Water by Nitrogen Doped TiO2 Immobilized on Glass Spheres: Rapid Screening of Degradation Products. J. Photoch. Photobiol. A. 2018, 359, 23–32. [Google Scholar] [CrossRef]
  175. Pandiangan, I.F.D.; Sutanto, H.; Nurhasanah, I. Effect of Annealing Temperature on Optical Properties and Photocatalytic Properties of TiO2:N 8% Thin Film for Rhodamine B Degradation. Mater. Res. Express 2018, 5, 086404. [Google Scholar] [CrossRef]
  176. Fernandes, E.; Contreras, S.; Medina, F.; Martins, R.C.; Gomes, J. N-doped Titanium Dioxide for Mixture of Parabens Degradation Based on Ozone Action and Toxicity Evaluation: Precursor of Nitrogen and Titanium Effect. Process Saf. Environ. 2020, 138, 80–89. [Google Scholar] [CrossRef]
  177. Kusano, D.; Emori, M.; Sakama, H. Influence of Electronic Structure on Visible Light Photocatalytic Activity of Nitrogen-doped TiO2. RSC Adv. 2017, 7, 1887–1898. [Google Scholar] [CrossRef] [Green Version]
  178. Konstantinova, E.A.; Zaitsev, V.B.; Minnekhanov, A.A.; Le, N.T.; Kashkarov, P.K. The Effect of Spin Center Parameters on the Photoactivity of Nanocrystalline Titanium Dioxide in the Visible Spectral Range. Crystallogr. Rep. 2020, 65, 130–137. [Google Scholar] [CrossRef]
  179. Than, L.D.; Luong, N.S.; Ngo, V.D.; Tien, N.M.; Dung, T.N.; Nghia, N.M.; Loc, N.T.; Thu, V.T.; Lam, T.D. Highly Visible Light Activity of Nitrogen Doped TiO2 Prepared by Sol–Gel Approach. J. Electron. Mater. 2016, 46, 158–166. [Google Scholar] [CrossRef]
  180. Fornasini, L.; Bergamonti, L.; Bondioli, F.; Bersani, D.; Lazzarini, L.; Paz, Y.; Lottici, P.P. Photocatalytic N-doped TiO2 for Self-cleaning of Limestones. Eur. Phys. J. Plus 2019, 134. [Google Scholar] [CrossRef]
  181. Jang, I.; Leong, H.J.; Noh, H.; Kang, T.; Kong, S.; Oh, S.-G. Preparation of N-functionalized TiO2 Particles Using One-Step Sol–Gel Method and Their Photocatalytic Activity. J. Ind. Eng. Chem. 2016, 37, 380–389. [Google Scholar] [CrossRef]
  182. Kamaludin, R.; Othman, M.H.D.; Kadir, S.H.S.A.; Ismail, A.F.; Rahman, M.A.; Jaafar, J. Visible-Light-Driven Photocatalytic N-doped TiO2 for Degradation of Bisphenol A (BPA) and Reactive Black 5 (RB5) Dye. Water Air Soil Pollut. 2018, 229. [Google Scholar] [CrossRef]
  183. Mohamed, M.A.; Salleh, W.N.W.; Jaafar, J.; Ismail, A.F.; Nor, N.A.M. Photodegradation of Phenol by N-doped TiO2 Anatase/Rutile Nanorods Assembled Microsphere under UV and Visible Light Irradiation. Mater. Chem. Phys. 2015, 162, 113–123. [Google Scholar] [CrossRef]
  184. Mohamed, M.A.; Salleh, W.N.W.; Jaafar, J.; Ismail, A.F. Structural Characterization of N-doped Anatase–Rutile Mixed Phase TiO2 Nanorods Assembled Microspheres Synthesized by Simple Sol–Gel Method. J. Sol. Gel. Sci. Technol. 2015, 74, 513–520. [Google Scholar] [CrossRef] [Green Version]
  185. Zhang, W.; Zou, L.; Dionysio, D. A Parametric Study of Visible-Light Sensitive TiO2 photocatalysts Synthesis via a Facile Sol–Gel N-doping Method. J. Exp. Nanosci. 2014, 10, 1153–1165. [Google Scholar] [CrossRef] [Green Version]
  186. Samsudin, E.M.; Abd Hamid, S.B. Effect of Band Gap Engineering in Anionic-doped TiO2 Photocatalyst. Appl. Surf. Sci. 2017, 391, 326–336. [Google Scholar] [CrossRef]
  187. Zhang, D.; Wang, J. Modification of the Optical and Electronic Properties of TiO2 by N Anion-doping for Augmentation of the Visible Light Assisted Photocatalytic Performance. J. Struct. Chem. 2018, 59, 1353–1361. [Google Scholar] [CrossRef]
  188. Zhao, B.; Wang, X.; Zhang, Y.; Gao, J.; Chen, Z.; Lu, Z. Synergism of Oxygen Vacancies, Ti3+ and N Dopants on the Visible-Light Photocatalytic Activity of N-doped TiO2. J. Photochem. Photobiol. A 2019, 382, 111928. [Google Scholar] [CrossRef]
  189. Kim, T.H.; Go, G.-M.; Cho, H.-B.; Song, Y.; Lee, C.-G.; Choa, Y.-H. A Novel Synthetic Method for N doped TiO2 Nanoparticles Through Plasma-Assisted Electrolysis and Photocatalytic Activity in the Visible Region. Front. Chem. 2018, 6. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  190. Sun, Z.; Pichugin, V.F.; Evdokimov, K.E.; Konishchev, M.E.; Syrtanov, M.S.; Kudiiarov, V.N.; Li, K.; Tverdokhlebov, S.I. Effect of Nitrogen-Doping and Post Annealing on Wettability and Band Gap Energy of TiO2 Thin Film. Appl. Surf. Sci. 2020, 500, 144048. [Google Scholar] [CrossRef]
  191. Jin, Y.J.; Linghu, J.; Chai, J.; Chua, C.S.; Wong, L.M.; Feng, Y.P.; Yang, M.; Wang, S. Defect Evolution Enhanced Visible-Light Photocatalytic Activity in Nitrogen-doped Anatase TiO2 Thin Films. J. Phys. Chem. C 2018, 122, 16600–16606. [Google Scholar] [CrossRef]
  192. Farkas, B.; Heszler, P.; Budai, J.; Oszkó, A.; Ottosson, M.; Geretovszky, Z. Optical, Compositional and Structural Properties of Pulsed Laser Deposited Nitrogen-Doped Titanium-Dioxide. Appl. Surf. Sci. 2018, 433, 149–154. [Google Scholar] [CrossRef] [Green Version]
  193. Zhao, Z.; Kou, T.; Zhang, L.; Zhai, S.; Wang, W.; Wang, Y. Dealloying Induced N-doping in Spindle-like Porous Rutile TiO2 for Enhanced Visible Light Photocatalytic Activity. Corros. Sci. 2018, 137, 204–211. [Google Scholar] [CrossRef]
  194. Krivtsov, I.; Ilkaeva, M.; Salas-Colera, E.; Amghouz, Z.; García, J.R.; Díaz, E.; Ordóñez, S.; Villar-Rodil, S. Consequences of Nitrogen Doping and Oxygen Enrichment on Titanium Local Order and Photocatalytic Performance of TiO2 Anatase. J. Phys. Chem. C 2017, 121, 6770–6780. [Google Scholar] [CrossRef] [Green Version]
  195. Kovalevskiy, N.; Selishchev, D.; Svintsitskiy, D.; Selishcheva, S.; Berezin, A.; Kozlov, D. Synergistic Effect of Polychromatic Radiation on Visible Light Activity of N-doped TiO2 Photocatalyst. Catal. Commun. 2020, 134, 105841. [Google Scholar] [CrossRef]
  196. Cao, Y.; Xing, Z.; Shen, Y.; Li, Z.; Wu, X.; Yan, X.; Zou, J.; Yang, S.; Zhou, W. Mesoporous Black Ti3+ /N-TiO2 Spheres for Efficient Visible-Light-Driven Photocatalytic Performance. Chem. Eng. J. 2017, 325, 199–207. [Google Scholar] [CrossRef]
  197. Di Valentin, C.; Pacchioni, G.; Selloni, A.; Livraghi, S.; Giamello, E. Characterization of Paramagnetic Species in N-doped TiO2 Powders by EPR Spectroscopy and DFT Calculations. J. Phys. Chem. B 2005, 109, 11414–11419. [Google Scholar] [CrossRef]
  198. Boningari, T.; Inturi, S.N.R.; Suidan, M.; Smirniotis, P.G. Novel One-Step Synthesis of Nitrogen-doped TiO2 by Flame Aerosol Technique for Visible-Light Photocatalysis: Effect of Synthesis Parameters and Secondary Nitrogen (N) Source. Chem. Eng. J. 2018, 350, 324–334. [Google Scholar] [CrossRef]
  199. Dong, F.; Zhao, W.; Wu, Z.; Guo, S. Band Structure and Visible Light Photocatalytic Activity of Multi-Type Nitrogen Doped TiO2 Nanoparticles Prepared by Thermal Decomposition. J. Hazard. Mater. 2009, 162, 763–770. [Google Scholar] [CrossRef] [PubMed]
  200. Dawson, M.; Soares, G.B.; Ribeiro, C. Influence of Calcination Parameters on the Synthesis of N-doped TiO2 by the Polymeric Precursors Method. J. Solid State Chem. 2014, 215, 211–218. [Google Scholar] [CrossRef]
  201. Bjelajac, A.; Petrović, R.; Popović, M.; Rakočević, Z.; Socol, G.; Mihailescu, I.N.; Janaćković, D. Doping of TiO2 Nanotubes with Nitrogen by Annealing in Ammonia for Visible Light Activation: Influence of Pre- and Post-Annealing in Air. Thin Solid Films 2019, 692, 137598. [Google Scholar] [CrossRef]
  202. Peng, F.; Cai, L.; Yu, H.; Wang, H.; Yang, J. Synthesis and Characterization of Substitutional and Interstitial Nitrogen-doped Titanium Dioxides with Visible Light Photocatalytic Activity. J. Solid State Chem. 2008, 181, 130–136. [Google Scholar] [CrossRef]
  203. Azami, M.S.; Nawawi, W.I.; Shukri, D.S.M. Formation of Predominant Interstitial N-TiO2 Using Physical Preparation under Microwave Irradiation for Reactive Red 4 Dye Removal. Desalin. Water Treat. 2017, 92, 172–180. [Google Scholar] [CrossRef] [Green Version]
  204. Zhou, Y.; Liu, Y.; Liu, P.; Zhang, W.; Xing, M.; Zhang, J. A Facile Approach to Further Improve the Substitution of Nitrogen into Reduced TiO2− with an Enhanced Photocatalytic Activity. Appl. Catal. B-Environ. 2015, 170–171, 66–73. [Google Scholar] [CrossRef]
  205. Lee, S.; Cho, I.-S.; Lee, D.K.; Kim, D.W.; Noh, T.H.; Kwak, C.H.; Park, S.; Hong, K.S.; Lee, J.-K.; Jung, H.S. Influence of Nitrogen Chemical States on Photocatalytic Activities of Nitrogen-doped TiO2 Nanoparticles under Visible Light. J. Photoch. Photobiol. A 2010, 213, 129–135. [Google Scholar] [CrossRef]
  206. Huang, J.; Song, H.; Chen, C.; Yang, Y.; Xu, N.; Ji, X.; Li, C.; You, J.-A. Facile Synthesis of N-doped TiO2 Nanoparticles Caged in MIL-100(Fe) for Photocatalytic Degradation of Organic Dyes under Visible Light Irradiation. J. Environ. Chem. Eng. 2017, 5, 2579–2585. [Google Scholar] [CrossRef]
  207. Borges, K.A.; Santos, L.M.; Paniago, R.M.; Barbosa Neto, N.M.; Schneider, J.; Bahnemann, D.W.; Patrocinio, A.O.T.; Machado, A.E.H. Characterization of a Highly Efficient N-doped TiO2 Photocatalyst Prepared via Factorial Design. New J. Chem. 2016, 40, 7846–7855. [Google Scholar] [CrossRef] [Green Version]
  208. Le, P.; Hieu, L.; Lam, T.-N.; Hang, N.; Truong, N.; Tuyen, L.; Phong, P.; Leu, J. Enhanced Photocatalytic Performance of Nitrogen-doped TiO2 Nanotube Arrays Using a Simple Annealing Process. Micromachines 2018, 9, 618. [Google Scholar] [CrossRef] [Green Version]
  209. Monteiro, R.A.R.; Miranda, S.M.; Vilar, V.J.P.; Pastrana-Martínez, L.M.; Tavares, P.B.; Boaventura, R.A.R.; Faria, J.L.; Pinto, E.; Silva, A.M.T. N-Modified TiO2 Photocatalytic Activity towards Diphenhydramine Degradation and Escherichia coli Inactivation in Aqueous Solutions. Appl. Catal. B Environ. 2015, 162, 66–74. [Google Scholar] [CrossRef]
  210. Kuźmiński, K.; Morawski, A.W.; Janus, M. Adsorption and Photocatalytic Degradation of Anionic and Cationic Surfactants on Nitrogen-Modified TiO2. J. Surfactants Deterg. 2018, 21, 909–921. [Google Scholar] [CrossRef]
  211. Veisi, F.; Zazouli, M.A.; Ebrahimzadeh, M.A.; Charati, J.Y.; Dezfoli, A.S. Photocatalytic Degradation of Furfural in Aqueous Solution by N-doped Titanium Dioxide Nanoparticles. Environ. Sci. Pollut. Res. 2016, 23, 21846–21860. [Google Scholar] [CrossRef]
  212. Janus, M.; Mądraszewski, S.; Zając, K.; Kusiak-Nejman, E.; Morawski, A.W.; Stephan, D. Photocatalytic Activity and Mechanical Properties of Cements Modified with TiO2/N. Materials 2019, 12, 3756. [Google Scholar] [CrossRef] [Green Version]
  213. Mungondori, H.H.; Tichagwa, L.; Katwire, D.M.; Aoyi, O. Preparation of Photo-Catalytic Copolymer Grafted Asymmetric Membranes (N-TiO2-PMAA-g-PVDF/PAN) and Their Application on the Degradation of Bentazon in Water. Iran. Polym. J. 2016, 25, 135–144. [Google Scholar] [CrossRef]
  214. Khalilzadeh, A.; Fatemi, S. Spouted Bed Reactor for VOC Removal by Modified Nano-TiO2 Photocatalytic Particles. Chem. Eng. Res. Des. 2016, 115, 241–250. [Google Scholar] [CrossRef]
  215. Sun, P.; Zhang, J.; Liu, W.; Wang, Q.; Cao, W. Modification to L-H Kinetics Model and Its Application in the Investigation on Photodegradation of Gaseous Benzene by Nitrogen-doped TiO2. Catalysts 2018, 8, 326. [Google Scholar] [CrossRef] [Green Version]
  216. Kamaei, M.; Rashedi, H.; Dastgheib, S.; Tasharrofi, S. Comparing Photocatalytic Degradation of Gaseous Ethylbenzene Using N-doped and Pure TiO2 Nano-catalysts Coated on Glass Beads under Both UV and Visible Light Irradiation. Catalysts 2018, 8, 466. [Google Scholar] [CrossRef] [Green Version]
  217. Rokicka, P.; Markowska-Szczupak, A.; Kowalczyk, Ł.; Kowalska, E.; Morawski, A.W. Influence of Titanium Dioxide Modification on the Antibacterial Properties. Pol. J. Chem. Technol. 2016, 18, 56–64. [Google Scholar] [CrossRef] [Green Version]
  218. Kawashita, M.; Endo, N.; Watanabe, T.; Miyazaki, T.; Furuya, M.; Yokota, K.; Abiko, Y.; Kanetaka, H.; Takahashi, N. Formation of Bioactive N-doped TiO2 on Ti with Visible Light-Induced Antibacterial Activity Using NaOH, Hot Water, and Subsequent Ammonia Atmospheric Heat Treatment. Colloid. Surf. B. 2016, 145, 285–290. [Google Scholar] [CrossRef]
  219. Kassahun, S.K.; Kiflie, Z.; Kim, H.; Gadisa, B.T. Effects of Operational Parameters on Bacterial Inactivation in Vis-LEDs Illuminated N-doped TiO2 Based Photoreactor. J. Environ. Chem. Eng. 2020, 8, 104374. [Google Scholar] [CrossRef]
  220. Surmacki, J. Nitrogen-Doped Titanium Dioxide Nanoparticles Modified by an Electron Beam for Improving Human Breast Cancer Detection by Raman Spectroscopy: A Preliminary Study. Diagnostics 2020, 10, 757. [Google Scholar] [CrossRef]
  221. Mohammadalipour, Z.; Rahmati, M.; Khataee, A.; Moosavi, M.A. Differential Effects of N-TiO2 Nanoparticle and Its Photo-activated Form on Autophagy and Necroptosis in Human Melanoma A375 Cells. J. Cell Physiol. 2020, 235, 8246–8259. [Google Scholar] [CrossRef]
  222. Preethi, L.K.; Antony, R.P.; Mathews, T.; Loo, S.C.J.; Wong, L.H.; Dash, S.; Tyagi, A.K. Nitrogen Doped Anatase-Rutile Heterostructured Nanotubes for Enhanced Photocatalytic Hydrogen Production: Promising Structure for Sustainable Fuel Production. Int. J. Hydrogen Energ. 2016, 41, 5865–5877. [Google Scholar] [CrossRef]
  223. Shvadchina, Y.O.; Cherepivskaya, M.K.; Vakulenko, V.F.; Sova, A.N.; Stolyarova, I.V.; Prikhodko, R.V. The Study of Properties and Catalytic Activity of Titanium Dioxide Doped with Sulphur. J. Water Chem. Technol. 2015, 37, 283–288. [Google Scholar] [CrossRef]
  224. Lin, Y.-H.; Hsueh, H.-T.; Chang, C.-W.; Chu, H. The Visible Light-Driven Photodegradation of Dimethyl Sulfide on S-doped TiO2: Characterization, Kinetics, and Reaction Pathways. Appl. Catal. B-Environ. 2016, 199, 1–10. [Google Scholar] [CrossRef]
  225. Hosseinzadeh, G.; Rasoulnezhad, H.; Ghasemian, N.; Hosseinzadeh, R. Ultrasonic-Assisted Spray Pyrolysis Technique for Synthesis of Transparent S-doped TiO2 Thin Film. J. Aust. Ceram. Soc. 2018, 55, 387–394. [Google Scholar] [CrossRef]
  226. Sun, X.-Y.; Sun, X.; Zhang, X.; Qian, N.-X.; Wang, M.; Ma, Y.-Q. Improved Adsorption and Degradation Performance by S-doping of (001)-TiO2. Beilstein J. Nanotechnol. 2019, 10, 2116–2127. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  227. Taherinia, M.; Nasiri, M.; Abedini, E.; Pouretedal, H.R. Comparing the Photocatalytic Activity of N-doped and S-doped Titanium Dioxide Nanoparticles for Water Splitting under Sunlight Radiation. J. Iran. Chem. Soc. 2018, 15, 1301–1310. [Google Scholar] [CrossRef]
  228. Esquivel-Escalante, K.; Nava-Mendoza, R.; Velázquez-Castillo, R. Crystal structure determination of the S/TiO2 system and the correlation with its photocatalytic properties. J. Nanosci. Nanotechnol. 2016, 16, 967–972. [Google Scholar] [CrossRef]
  229. Ramacharyulu, P.V.R.K.; Nimbalkar, D.B.; Kumar, J.P.; Prasad, G.K.; Ke, S.-C. N-doped, S-doped TiO2 nanocatalysts: Synthesis, Characterization and Photocatalytic Activity in the Presence of Sunlight. RSC Adv. 2015, 5, 37096–37101. [Google Scholar] [CrossRef]
  230. Baeissa, E.S. Synthesis and Characterization of Sulfur-Titanium Dioxide Nanocomposites for Photocatalytic Oxidation of Cyanide Using Visible Light Irradiation. Chin. J. Catal. 2015, 36, 698–704. [Google Scholar] [CrossRef]
  231. Birben, N.C.; Uyguner-Demirel, C.S.; Sen-Kavurmaci, S.; Gurkan, Y.Y.; Turkten, N.; Cinar, Z.; Bekbolet, M. Comparative Evaluation of Anion Doped Photocatalysts on the Mineralization and Decolorization of Natural Organic Matter. Catal. Today 2015, 240, 125–131. [Google Scholar] [CrossRef]
  232. Chen, X.; Sun, H.; Zhang, J.; Guo, Y.; Kuo, D.-H. Cationic S-doped TiO2/SiO2 Visible-Light Photocatalyst Synthesized by Co-hydrolysis Method and Its Application for Organic Degradation. J. Mol. Liq. 2019, 273, 50–57. [Google Scholar] [CrossRef]
  233. McManamon, C.; O’Connell, J.; Delaney, P.; Rasappa, S.; Holmes, J.D.; Morris, M.A. A Facile Route to Synthesis of S-doped TiO2 Nanoparticles for Photocatalytic Activity. J. Mol. Catal. A-Chem. 2015, 406, 51–57. [Google Scholar] [CrossRef]
  234. Yi, C.; Liao, Q.; Deng, W.; Huang, Y.; Mao, J.; Zhang, B.; Wu, G. The Preparation of Amorphous TiO2 Doped with Cationic S and Its Application to the Degradation of DCFs under Visible Light Irradiation. Sci. Total Environ. 2019, 684, 527–536. [Google Scholar] [CrossRef] [PubMed]
  235. Abu Bakar, S.; Ribeiro, C. An Insight Toward the Photocatalytic Activity of S Doped 1-D TiO2 Nanorods Prepared via Novel Route: As Promising Platform for Environmental Leap. J. Mol. Catal. A-Chem. 2016, 412, 78–92. [Google Scholar] [CrossRef]
  236. Bakar, S.A.; Ribeiro, C. A Comparative Run for Visible-Light-Driven Photocatalytic Activity of Anionic and Cationic S-doped TiO2 Photocatalysts: A Case Study of Possible Sulfur Doping through Chemical Protocol. J. Mol. Catal. A-Chem. 2016, 421, 1–15. [Google Scholar] [CrossRef]
  237. Chen, X.; Sun, H.; Zelekew, O.A.; Zhang, J.; Guo, Y.; Zeng, A.; Kuo, D.-H.; Lin, J. Biological Renewable Hemicellulose-Template for Synthesis of Visible Light Responsive Sulfur-doped TiO2 for Photocatalytic Oxidation of Toxic Organic and As(III) Pollutants. Appl. Surf. Sci. 2020, 525, 146531. [Google Scholar] [CrossRef]
  238. Meng, Q.; Liu, B.; Liu, H.; Cai, Y.; Dong, L. Effects of S and Ta Codoping on Photocatalytic Activity of Rutile TiO2. J. Sol-Gel Sci. Technol. 2018, 86, 631–639. [Google Scholar] [CrossRef]
  239. Anitha, B.; Ravidhas, C.; Venkatesh, R.; Raj, A.M.E.; Ravichandran, K.; Subramanian, B.; Sanjeeviraja, C. Self Assembled Sulfur Induced Interconnected Nanostructure TiO2 Electrode for Visible Light Photoresponse and Photocatalytic Application. Phys. E 2017, 91, 148–160. [Google Scholar] [CrossRef]
  240. Chen, X.; Kuo, D.-H.; Lu, D. Visible Light Response and Superior Dispersed S-doped TiO2 Nanoparticles Synthesized via Ionic Liquid. Adv. Powder Technol. 2017, 28, 1213–1220. [Google Scholar] [CrossRef]
  241. Nam, S.-H.; Kim, T.K.; Boo, J.-H. Physical Property and Photo-Catalytic Activity of Sulfur Doped TiO2 Catalysts Responding to Visible Light. Catal. Today 2012, 185, 259–262. [Google Scholar] [CrossRef]
  242. Ramacharyulu, P.V.R.K.; Praveen Kumar, J.; Prasad, G.K.; Sreedhar, B. Sulphur Doped Nano TiO2: Synthesis, Characterization and Photocatalytic Degradation of a Toxic Chemical in Presence of Sunlight. Mater. Chem. Phys. 2014, 148, 692–698. [Google Scholar] [CrossRef]
  243. Yu, J.C.; Ho, W.; Yu, J.; Yip, H.; Wong, P.K.; Zhao, J. Efficient Visible-Light-Induced Photocatalytic Disinfection on Sulfur-Doped Nanocrystalline Titania. Environ. Sci. Technol. 2005, 39, 1175–1179. [Google Scholar] [CrossRef] [PubMed]
  244. Zhongchen, Y.; Song, W.; Lu, H.; Zhuan, L.; Yuanlin, N. Photocatalytic Property of Nanostructured S Doped TiO2 Films Prepared by the Micro Plasma Method. Rare Met. Mater. Eng. 2015, 44, 1629–1632. [Google Scholar] [CrossRef]
  245. Randeniya, L.K.; Murphy, A.B.; Plumb, I.C. A Study of S-Doped TiO2 for Photoelectrochemical Hydrogen Generation from Water. J. Mater. Sci. 2007, 43, 1389–1399. [Google Scholar] [CrossRef]
  246. Bu, X.; Wang, Y.; Li, J.; Zhang, C. Improving the Visible Light Photocatalytic Activity of TiO2 by Combining Sulfur Doping and Rectorite Carrier. J. Alloys Compd. 2015, 628, 20–26. [Google Scholar] [CrossRef]
  247. Albrbar, A.J.; Djokić, V.; Bjelajac, A.; Kovač, J.; Ćirković, J.; Mitrić, M.; Janaćković, D.; Petrović, R. Visible-Light Active Mesoporous, Nanocrystalline N,S-doped and Co-doped Titania Photocatalysts Synthesized by Non-Hydrolytic Sol-Gel Route. Ceram. Int. 2016, 42, 16718–16728. [Google Scholar] [CrossRef]
  248. Zhu, M.; Zhai, C.; Qiu, L.; Lu, C.; Paton, A.S.; Du, Y.; Goh, M.C. New Method to Synthesize S-doped TiO2 with Stable and Highly Efficient Photocatalytic Performance under Indoor Sunlight Irradiation. ACS Sustain. Chem. Eng. 2015, 3, 3123–3129. [Google Scholar] [CrossRef]
  249. Sharotri, N.; Sud, D. A Greener Approach to Synthesize Visible Light Responsive Nanoporous S-doped TiO2 with Enhanced Photocatalytic Activity. New J. Chem. 2015, 39, 2217–2223. [Google Scholar] [CrossRef]
  250. Kovačić, M.; Perović, K.; Papac, J.; Tomić, A.; Matoh, L.; Žener, B.; Brodar, T.; Capan, I.; Surca, A.K.; Kušić, H.; et al. One-Pot Synthesis of Sulfur-doped TiO2/Reduced Graphene Oxide Composite (S-TiO2/RGO) with Improved Photocatalytic Activity for the Removal of Diclofenac from Water. Materials 2020, 13, 1621. [Google Scholar] [CrossRef] [Green Version]
  251. Huang, Z.; Gao, Z.; Gao, S.; Wang, Q.; Wang, Z.; Huang, B.; Dai, Y. Facile Synthesis of S-doped Reduced TiO2-x with Enhanced Visible-Light Photocatalytic Performance. Chin. J. Catal. 2017, 38, 821–830. [Google Scholar] [CrossRef]
  252. Xing, Z.; Li, Z.; Wu, X.; Wang, G.; Zhou, W. In-Situ S-doped Porous Anatase TiO2 Nanopillars for High-Efficient Visible-Light Photocatalytic Hydrogen Evolution. Int. J. Hydrog. Energy 2016, 41, 1535–1541. [Google Scholar] [CrossRef]
  253. Li, M.; Xing, Z.; Jiang, J.; Li, Z.; Kuang, J.; Yin, J.; Wan, N.; Zhu, Q.; Zhou, W. In-Situ Ti3+/S Doped High Thermostable Anatase TiO2 Nanorods as Efficient Visible-Light-Driven Photocatalysts. Mater. Chem. Phys. 2018, 219, 303–310. [Google Scholar] [CrossRef]
  254. Mohan Kumar, K.; Godavarthi, S.; Karthik, T.V.K.; Mahendhiran, M.; Hernandez-Eligio, A.; Hernandez-Como, N.; Agarwal, V.; Martinez Gomez, L. Green Synthesis of S-doped Rod Shaped Anatase TiO2 Microstructures. Mater. Lett. 2016, 183, 211–214. [Google Scholar] [CrossRef]
  255. Bakar, S.A.; Ribeiro, C. Rapid and Morphology Controlled Synthesis of Anionic S-doped TiO2 Photocatalysts for the Visible-Light-Driven Photodegradation of Organic Pollutants. RSC Adv. 2016, 6, 36516–36527. [Google Scholar] [CrossRef]
  256. Wang, F.; Li, F.; Zhang, L.; Zeng, H.; Sun, Y.; Zhang, S.; Xu, X. S-TiO2 with Enhanced Visible-Light Photocatalytic Activity Derived from TiS2 in Deionized Water. Mater. Res. Bull. 2017, 87, 20–26. [Google Scholar] [CrossRef]
  257. Ho, W.; Yu, J.C.; Lee, S. Low-Temperature Hydrothermal Synthesis of S-Doped TiO2 with Visible Light Photocatalytic Activity. J. Solid State Chem. 2006, 179, 1171–1176. [Google Scholar] [CrossRef]
  258. Umebayashi, T.; Yamaki, T.; Itoh, H.; Asai, K. Band Gap Narrowing of Titanium Dioxide by Sulfur Doping. Appl. Phys. Lett. 2002, 81, 454–456. [Google Scholar] [CrossRef]
  259. Shin, S.W.; Lee, J.Y.; Ahn, K.-S.; Kang, S.H.; Kim, J.H. Visible Light Absorbing TiO2 Nanotube Arrays by Sulfur Treatment for Photoelectrochemical Water Splitting. J. Phys. Chem. C 2015, 119, 13375–13383. [Google Scholar] [CrossRef]
  260. Bento, R.T.; Correa, O.V.; Pillis, M.F. Photocatalytic Activity of Undoped and Sulfur-doped TiO2 Films Grown by MOCVD for Water Treatment under Visible Light. J. Eur. Ceram. Soc. 2019, 39, 3498–3504. [Google Scholar] [CrossRef]
  261. Boningari, T.; Inturi, S.N.R.; Suidan, M.; Smirniotis, P.G. Novel One-Step Synthesis of Sulfur Doped-TiO2 by Flame Spray Pyrolysis for Visible Light Photocatalytic Degradation of Acetaldehyde. Chem. Eng. J. 2018, 339, 249–258. [Google Scholar] [CrossRef]
  262. Momeni, M.M.; Ghayeb, Y.; Ghonchegi, Z. Visible Light Activity of Sulfur-doped TiO2 Nanostructure Photoelectrodes Prepared by Single-Step Electrochemical Anodizing Process. J. Solid State Electrochem. 2015, 19, 1359–1366. [Google Scholar] [CrossRef]
  263. Wang, Z.; Liu, X.; Li, W.; Wang, H.; Li, H. Enhancing the Photocatalytic Degradation of Salicylic Acid by Using Molecular Imprinted S-Doped TiO2 under Simulated Solar Light. Ceram. Int. 2014, 40, 8863–8867. [Google Scholar] [CrossRef]
  264. Sun, S.; Zhang, J.; Gao, P.; Wang, Y.; Li, X.; Wu, T.; Wang, Y.; Chen, Y.; Yang, P. Full Visible-Light Absorption of TiO2 Nanotubes Induced by Anionic S22− Doping and Their Greatly Enhanced Photocatalytic Hydrogen Production Abilities. Appl. Catal. B Environ. 2017, 206, 168–174. [Google Scholar] [CrossRef]
  265. Adiansyah, A.; Purba, I.E.; Tarigan, M.; Lisnadiyanti, L.; Yusnaidar, Y.; Mahendra, I.P. Preparation of S-doped TiO2 via Sol-Gel/Hydrothermal Method and Its Activity as Photodegradation of RB05. RJC 2020, 13, 757–760. [Google Scholar] [CrossRef]
  266. Olowoyo, J.O.; Kumar, M.; Jain, S.L.; Shen, S.; Zhou, Z.; Mao, S.S.; Vorontsov, A.V.; Kumar, U. Reinforced Photocatalytic Reduction of CO2 to Fuel by Efficient S-TiO2: Significance of Sulfur Doping. Int. J. Hydrog. Energy 2018, 43, 17682–17695. [Google Scholar] [CrossRef]
  267. Pillai, V.V.; Lonkar, S.P.; Alhassan, S.M. Template-Free, Solid-State Synthesis of Hierarchically Macroporous S-doped TiO2 Nano-photocatalysts for Efficient Water Remediation. ACS Omega 2020, 5, 7969–7978. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  268. Sraw, A.; Kaur, T.; Pandey, Y.; Verma, A.; Sobti, A.; Wanchoo, R.K.; Toor, A.P. Photocatalytic Degradation of Monocrotophos and Quinalphos Using Solar-Activated S-Doped TiO2. Int. J. Environ. Sci. Technol. 2020, 17, 4895–4908. [Google Scholar] [CrossRef]
  269. Liu, C.; Chen, W.; Sheng, Y.; Li, L. Atrazine Degradation in Solar Irradiation/S-Doped Titanium Dioxide Treatment. In Proceedings of the 2009 3rd International Conference on Bioinformatics and Biomedical Engineering, Beijing, China, 11–13 June 2009. [Google Scholar] [CrossRef]
  270. Umebayashi, T.; Yamaki, T.; Tanaka, S.; Asai, K. Visible Light-Induced Degradation of Methylene Blue on S-Doped TiO2. Chem. Lett. 2003, 32, 330–331. [Google Scholar] [CrossRef]
  271. Lin, Y.-H.; Chou, S.-H.; Chu, H. A Kinetic Study for the Degradation of 1,2-Dichloroethane by S-Doped TiO2 under Visible Light. J. Nanopart. Res. 2014, 16. [Google Scholar] [CrossRef]
  272. Vorontsov, A.V.; Valdés, H. Insights into the Visible Light Photocatalytic Activity of S-doped Hydrated TiO2. Int. J. Hydrogen Energ. 2019, 44, 17963–17973. [Google Scholar] [CrossRef]
  273. Etghani, S.A.; Ansari, E.; Mohajerzadeh, S. Evolution of Large Area TiS2-TiO2 Heterostructures and S-doped TiO2 Nano-sheets on Titanium Foils. Sci. Rep. 2019, 9. [Google Scholar] [CrossRef]
  274. Basera, P.; Saini, S.; Arora, E.; Singh, A.; Kumar, M.; Bhattacharya, S. Stability of Non-metal Dopants to Tune the Photo-Absorption of TiO2 at Realistic Temperatures and Oxygen Partial Pressures: A Hybrid DFT Study. Sci. Rep. 2019, 9. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  275. Ma, D.; Xin, Y.; Gao, M.; Wu, J. Fabrication and Photocatalytic Properties of Cationic and Anionic S-doped TiO2 Nanofibers by Electrospinning. Appl. Catal. B-Environ. 2014, 147, 49–57. [Google Scholar] [CrossRef]
  276. Syafiuddin, A.; Hadibarata, T.; Zon, N.F. Characterization of Titanium Dioxide Doped with Nitrogen and Sulfur and Its Photocatalytic Appraisal for Degradation of Phenol and Methylene Blue. J. Chin. Chem. Soc. Taip. 2017, 64, 1333–1339. [Google Scholar] [CrossRef]
  277. Khang, N.C.; Van, D.Q.; Thuy, N.M.; Minh, N.V.; Minh, P.N. Remarkably Enhanced Photocatalytic Activity by Sulfur-doped Titanium Dioxide in Nanohybrids with Carbon Nanotubes. J. Phys. Chem. Solids 2016, 99, 119–123. [Google Scholar] [CrossRef]
  278. Wang, M.; Zhang, X.; Rao, R.; Qian, N.X.; Ma, Y.Q. Study on Vapor-Thermal Synthesis and Sulfur-doping of TiO2/Graphene Composites. Appl. Surf. Sci. 2020, 507, 144856. [Google Scholar] [CrossRef]
  279. Dunnill, C.W.; Aiken, Z.A.; Kafizas, A.; Pratten, J.; Wilson, M.; Morgan, D.J.; Parkin, I.P. White Light Induced Photocatalytic Activity of Sulfur-Doped TiO2 Thin Films and Their Potential for Antibacterial Application. J. Mater. Chem. 2009, 19, 8747. [Google Scholar] [CrossRef] [Green Version]
  280. Osin, O.A.; Yu, T.; Cai, X.; Jiang, Y.; Peng, G.; Cheng, X.; Li, R.; Qin, Y.; Lin, S. Photocatalytic Degradation of 4-Nitrophenol by C,N-TiO2: Degradation Efficiency vs. Embryonic Toxicity of the Resulting Compounds. Front. Chem. 2018, 6. [Google Scholar] [CrossRef] [Green Version]
  281. Janus, M.; Bubacz, K.; Zatorska, J.; Kusiak-Nejman, E.; Czyżewski, A.; Morawski, A.W. Preliminary Studies of Photocatalytic Activity of Gypsum Plasters Containing TiO2 Co-modified with Nitrogen and Carbon. Pol. J. Chem. Technol. 2015, 17, 96–102. [Google Scholar] [CrossRef] [Green Version]
  282. Janus, M.; Kusiak-Nejman, E.; Rokicka-Konieczna, P.; Markowska-Szczupak, A.; Zając, K.; Morawski, A.W. Bacterial Inactivation on Concrete Plates Loaded with Modified TiO2 Photocatalysts under Visible Light Irradiation. Molecules 2019, 24, 3026. [Google Scholar] [CrossRef] [Green Version]
  283. Janus, M.; Zatorska, J.; Czyżewski, A.; Bubacz, K.; Kusiak-Nejman, E.; Morawski, A.W. Self-Cleaning Properties of Cement Plates Loaded with N,C-modified TiO2 Photocatalysts. Appl. Surf. Sci. 2015, 330, 200–206. [Google Scholar] [CrossRef]
  284. Xiao, Y.; Sun, X.; Li, I.; Chen, J.; Zhao, S.; Jiang, C.; Yang, L.; Cheng, L.; Cao, S. Simultaneous Formation of a C/N-TiO2 Hollow Photocatalyst with Efficient Photocatalytic Performance and Recyclability. Chin. J. Catal. 2019, 40, 765–775. [Google Scholar] [CrossRef]
  285. Buda, W.; Czech, B. Preparation and Characterization of C,N-Codoped TiO2 Photocatalyst for the Degradation of Diclofenac from Wastewater. Water Sci. Technol. 2013, 68, 1322–1328. [Google Scholar] [CrossRef] [PubMed]
  286. Krishnan, J.; Nerissa, E.; Hadi, A. Synthesis, Characterization and Efficiency of N, C-TiO2 as an Active Visible Light Photocatalyst. AMM 2014, 661, 63–67. [Google Scholar] [CrossRef]
  287. Ariza-Tarazona, M.C.; Villarreal-Chiu, J.F.; Hernández-López, J.M.; Rivera De la Rosa, J.; Barbieri, V.; Siligardi, C.; Cedillo-González, E.I. Microplastic Pollution Reduction by a Carbon and Nitrogen-doped TiO2: Effect of pH and Temperature in the Photocatalytic Degradation Process. J. Hazard. Mater. 2020, 395, 122632. [Google Scholar] [CrossRef] [PubMed]
  288. El-Sheikh, S.M.; Khedr, T.M.; Hakki, A.; Ismail, A.A.; Badawy, W.A.; Bahnemann, D.W. Visible Light Activated Carbon and Nitrogen Co-doped Mesoporous TiO2 as Efficient Photocatalyst for Degradation of Ibuprofen. Sep. Purif. Technol. 2017, 173, 258–268. [Google Scholar] [CrossRef]
  289. Li, F.; Zhou, J.; Du, C.; Li, W.; Wang, Y.; He, G.; He, Q. Preparation and Photocatalytic Properties of Porous C and N Co-doped TiO2 Deposited on Brick by a Fast, One-Step Microwave Irradiation Method. J. Environ. Sci. 2017, 60, 24–32. [Google Scholar] [CrossRef] [PubMed]
  290. Du, C.; Zhou, J.; Li, F.; Li, W.; Wang, Y.; He, Q. Extremely Fast Dark Adsorption Rate of Carbon and Nitrogen Co-doped TiO2 Prepared by a Relatively Fast, Facile and Low-Cost Microwave Method. Appl. Phys. A 2016, 122. [Google Scholar] [CrossRef]
  291. Zhou, J.; Li, F.; Du, C.; Liu, J.; Wang, Y.; Li, W.; He, G.; He, Q. Photodegradation Performance and Recyclability of a Porous Nitrogen and Carbon Co-doped TiO2/Activated Carbon Composite Prepared by an Extremely Fast One-Step Microwave Method. RSC Adv. 2016, 6, 84457–84463. [Google Scholar] [CrossRef]
  292. Al-Hajji, L.A.; Ismail, A.A.; Alseidi, M.; Almutawa, F.; Ahmad, S.; Bumajdad, A. Green Approach and Ease Synthesis of C/N-codoped TiO2 Nanocrystals for Photodegradation of Endocrine. J. Nanopart. Res. 2020, 22. [Google Scholar] [CrossRef]
  293. Wang, X.; Lim, T.-T. Effect of Hexamethylenetetramine on the Visible-Light Photocatalytic Activity of C–N Codoped TiO2 for Bisphenol A Degradation: Evaluation of Photocatalytic Mechanism and Solution Toxicity. Appl. Catal. A-Gen. 2011, 399, 233–241. [Google Scholar] [CrossRef]
  294. Wang, X.; Lim, T.-T. Solvothermal Synthesis of C–N Codoped TiO2 and Photocatalytic Evaluation for Bisphenol A Degradation Using a Visible-Light Irradiated LED Photoreactor. Appl. Catal. B-Environ. 2010, 100, 355–364. [Google Scholar] [CrossRef]
  295. Komatsuda, S.; Asakura, Y.; Vequizo, J.J.M.; Yamakata, A.; Yin, S. Enhanced Photocatalytic NO Decomposition of Visible-Light Responsive F-TiO2/(N,C)-TiO2 by Charge Transfer between F-TiO2 and (N,C)-TiO2 through Their Doping Levels. Appl. Catal. B-Environ. 2018, 238, 358–364. [Google Scholar] [CrossRef]
  296. Huang, X.; Yang, W.; Zhang, G.; Yan, L.; Zhang, Y.; Jiang, A.; Xu, H.; Zhou, M.; Liu, Z.; Tang, H.; et al. Alternative Synthesis of Nitrogen and Carbon Co-doped TiO2 for Removing Fluoroquinolone Antibiotics in Water under Visible Light. Catal. Today 2019. [Google Scholar] [CrossRef]
  297. Zhang, J.; Xing, Z.; Cui, J.; Li, Z.; Tan, S.; Yin, J.; Zou, J.; Zhu, Q.; Zhou, W. C,N Co-doped Porous TiO2 hollow Sphere Visible Light Photocatalysts for Efficient Removal of Highly Toxic Phenolic Pollutants. Dalton Trans. 2018, 47, 4877–4884. [Google Scholar] [CrossRef] [PubMed]
  298. Boscaro, P.; Cacciaguerra, T.; Cot, D.; Fajula, F.; Hulea, V.; Galarneau, A. C,N-doped TiO2 Monoliths with Hierarchical Macro-/Mesoporosity for Water Treatment under Visible Light. Microporous Mesoporous Mater. 2019, 280, 37–45. [Google Scholar] [CrossRef]
  299. Ji, L.; Zhou, S.; Liu, X.; Gong, M.; Xu, T. Synthesis of Carbon- and Nitrogen-Doped TiO2/Carbon Composite Fibers by a Surface-Hydrolyzed PAN Fiber and Their Photocatalytic Property. J. Mater Sci. 2019, 55, 2471–2481. [Google Scholar] [CrossRef]
  300. Abdullah, A.M.; Al-Thani, N.J.; Tawbi, K.; Al-Kandari, H. Carbon/Nitrogen-Doped TiO2: New Synthesis Route, Characterization and Application for Phenol Degradation. Arab. J. Chem. 2016, 9, 229–237. [Google Scholar] [CrossRef] [Green Version]
  301. Wang, M.; Han, J.; Hu, Y.; Guo, R. Mesoporous C, N-codoped TiO2 Hybrid Shells with Enhanced Visible Light Photocatalytic Performance. RSC Adv. 2017, 7, 15513–15520. [Google Scholar] [CrossRef] [Green Version]
  302. Liu, X.; Chen, Y.; Cao, C.; Xu, J.; Qian, Q.; Luo, Y.; Xue, H.; Xiao, L.; Chen, Y.; Chen, Q. Electrospun Nitrogen and Carbon Co-doped Porous TiO2 Nanofibers with High Visible Light Photocatalytic Activity. New J. Chem. 2015, 39, 6944–6950. [Google Scholar] [CrossRef]
  303. Zhang, X.; Zhang, Y.; Zhou, L.; Li, X.; Guo, X. In Situ C,N-codoped Mesoporous TiO2 Nanocrystallites with High Surface Areas and Worm-like Structure for Efficient Photocatalysis. J. Porous Mater. 2017, 25, 571–579. [Google Scholar] [CrossRef]
  304. Chen, D.; Jiang, Z.; Geng, J.; Wang, Q.; Yang, D. Carbon and Nitrogen Co-Doped TiO2 with Enhanced Visible-Light Photocatalytic Activity. Ind. Eng. Chem. Res. 2007, 46, 2741–2746. [Google Scholar] [CrossRef]
  305. Zhang, X.; Cai, M.; Cui, N.; Chen, G.; Zou, G.; Zhou, L. One-Step Synthesis of b-N-TiO2/C Nanocomposites with High Visible Light Photocatalytic Activity to Degrade Microcystis Aeruginosa. Catalysts 2020, 10, 579. [Google Scholar] [CrossRef]
  306. Chen, H.; Chen, K.-F.; Lai, S.-W.; Dang, Z.; Peng, Y.-P. Photoelectrochemical Oxidation of Azo Dye and Generation of Hydrogen via CN Co-doped TiO2 Nanotube Arrays. Sep. Purif. Technol. 2015, 146, 143–153. [Google Scholar] [CrossRef]
  307. Wu, T.; Niu, P.; Yang, Y.; Yin, L.; Tan, J.; Zhu, H.; Irvine, J.T.S.; Wang, L.; Liu, G.; Cheng, H. Homogeneous Doping of Substitutional Nitrogen/Carbon in TiO2 Plates for Visible Light Photocatalytic Water Oxidation. Adv. Funct. Mater. 2019, 29, 1901943. [Google Scholar] [CrossRef] [Green Version]
  308. Zhang, D.; Ma, X.; Zhang, H.; Liao, Y.; Xiang, Q. Enhanced Photocatalytic Hydrogen Evolution Activity of Carbon and Nitrogen Self-Doped TiO2 Hollow Sphere with the Creation of Oxygen Vacancy and Ti3+. Mater. Today Energy 2018, 10, 132–140. [Google Scholar] [CrossRef]
  309. Chaudhary, J.P.; Mahto, A.; Vadodariya, N.; Kholiya, F.; Maiti, S.; Nataraj, S.K.; Meena, R. Fabrication of Carbon and Sulphur-Doped Nanocomposites with Seaweed Polymer Carrageenan as an Efficient Catalyst for Rapid Degradation of Dye Pollutants Using a Solar Concentrator. RSC Adv. 2016, 6, 61716–61724. [Google Scholar] [CrossRef]
  310. Romanovska, N.I.; Manoryk, P.A.; Selyshchev, O.V.; Ermokhina, N.I.; Yaremov, P.S.; Grebennikov, V.M.; Shcherbakov, S.M.; Zahn, D.R.T. Effect of the Modification of TiO2 with Thiourea on Its Photocatalytic Activity in Doxycycline Degradation. Theor. Exp. Chem. 2020, 56, 183–191. [Google Scholar] [CrossRef]
  311. Mansingh, S.; Das, K.K.; Behera, A.; Subudhi, S.; Sultana, S.; Parida, K. Bandgap Engineering via Boron and Sulphur Doped Carbon Modified Anatase TiO2: A Visible Light Stimulated Photocatalyst for Photo-Fixation of N2 and TCH Degradation. Nanoscale Adv. 2020, 2, 2004–2017. [Google Scholar] [CrossRef] [Green Version]
  312. Sun, H.; Bai, Y.; Cheng, Y.; Jin, W.; Xu, N. Preparation and Characterization of Visible-Light-Driven Carbon−Sulfur-Codoped TiO2 Photocatalysts. Ind. Eng. Chem. Res. 2006, 45, 4971–4976. [Google Scholar] [CrossRef]
  313. Hohol, M.; Sanytsky, M.; Kropyvnytska, T.; Barylyak, A.; Bobitski, Y. The Effect of Sulfur- and Carbon-Codoped TiO2 Nanocomposite on the Photocatalytic and Mechanical Properties of Cement Mortars. EEJET 2020, 4, 6–14. [Google Scholar] [CrossRef]
  314. Chung, J.; Chung, J.W.; Kwak, S.-Y. Adsorption-Assisted Photocatalytic Activity of Nitrogen and Sulfur Codoped TiO2 under Visible Light Irradiation. Phys. Chem. Chem. Phys. 2015, 17, 17279–17287. [Google Scholar] [CrossRef]
  315. Akan, P.; Birben, N.C.; Bekbolet, M. Adsorption of Molecular Size Fractions of Humic Acid onto Anion-Doped TiO2 specimens. Desalin. Water Treat. 2015, 57, 2455–2465. [Google Scholar] [CrossRef]
  316. Bakar, S.A.; Ribeiro, C. Prospective Aspects of Preferential {001} Facets of N,S-co-doped TiO2 Photocatalysts for Visible-Light-Responsive Photocatalytic Activity. RSC Adv. 2016, 6, 89274–89287. [Google Scholar] [CrossRef]
  317. Ju, J.; Chen, X.; Shi, Y.; Miao, J.; Wu, D. Hydrothermal Preparation and Photocatalytic Performance of N, S-Doped Nanometer TiO2 under Sunshine Irradiation. Powder Technol. 2013, 237, 616–622. [Google Scholar] [CrossRef]
  318. Zhang, Y.; Wu, H.; Liu, P. Enhanced Transformation of Atrazine by High Efficient Visible Light-Driven N, S-Codoped TiO2 Nanowires Photocatalysts. Int. J. Photoenergy 2014, 1–8. [Google Scholar] [CrossRef]
  319. Rengifo-Herrera, J.A.; Mielczarski, E.; Mielczarski, J.; Castillo, N.C.; Kiwi, J.; Pulgarin, C. Escherichia Coli Inactivation by N, S Co-Doped Commercial TiO2 Powders under UV and Visible Light. Appl. Catal. B-Environ. 2008, 84, 448–456. [Google Scholar] [CrossRef]
  320. Gao, H.; Liu, Y.; Ding, C.; Dai, D.; Liu, G. Synthesis, Characterization, and Theoretical Study of N, S-Codoped Nano-TiO2 with Photocatalytic Activities. Int. J. Miner. Metall. Mater. 2011, 18, 606–614. [Google Scholar] [CrossRef]
  321. Antonopoulou, M.; Giannakas, A.; Bairamis, F.; Papadaki, M.; Konstantinou, I. Degradation of Organophosphorus Flame Retardant Tris (1-Chloro-2-Propyl) Phosphate (TCPP) by Visible Light N,S-codoped TiO2 Photocatalysts. Chem. Eng. J. 2017, 318, 231–239. [Google Scholar] [CrossRef]
  322. Chen, J.; Zhong, J.; Li, J.; Dou, L. Enhanced Sunlight Photocatalytic Performance of N,S-codoped TiO2 Prepared by Sol-Gel Method Using Ammonium Thiocyanate. Synth. Synth. React. Inorg. Met. Chem. 2016, 46, 1596–1604. [Google Scholar] [CrossRef]
  323. Eslami, A.; Amini, M.M.; Yazdanbakhsh, A.R.; Mohseni-Bandpei, A.; Safari, A.A.; Asadi, A. N,S Co-doped TiO2 nanoparticles and Nanosheets in Simulated Solar Light for Photocatalytic Degradation of Non-Steroidal Anti-Inflammatory Drugs in Water: A Comparative Study. J. Chem. Technol. Biotechnol. 2016, 91, 2693–2704. [Google Scholar] [CrossRef]
  324. Yan, J.; Zhao, J.; Hao, L.; Hu, Y.; Liu, T.; Guan, S.; Zhao, Q.; Zhu, Z.; Lu, Y. Low-Temperature S-Doping on N-doped TiO2 Films and Remarkable Enhancement on Visible-Light Performance. Mater. Res. Bull. 2019, 120, 110594. [Google Scholar] [CrossRef]
  325. Farhadian, N.; Akbarzadeh, R.; Pirsaheb, M.; Jen, T.-C.; Fakhri, Y.; Asadi, A. Chitosan Modified N, S-doped TiO2 and N, S-Doped ZnO for Visible Light Photocatalytic Degradation of Tetracycline. Int. J. Biol. Macromol. 2019, 132, 360–373. [Google Scholar] [CrossRef]
  326. Khalilian, H.; Behpour, M.; Atouf, V.; Hosseini, S.N. Immobilization of S, N-codoped TiO2 Nanoparticles on Glass Beads for Photocatalytic Degradation of Methyl Orange by Fixed Bed Photoreactor under Visible and Sunlight Irradiation. Sol. Energy 2015, 112, 239–245. [Google Scholar] [CrossRef]
  327. Koltsakidou, Α.; Antonopoulou, M.; Εvgenidou, Ε.; Konstantinou, I.; Giannakas, A.E.; Papadaki, M.; Bikiaris, D.; Lambropoulou, D.A. Photocatalytical Removal of Fluorouracil Using TiO2-P25 and N/S Doped TiO2 Catalysts: A Kinetic and Mechanistic Study. Sci. Total Environ. 2017, 578, 257–267. [Google Scholar] [CrossRef]
  328. Jiao, W.; Li, N.; Wang, L.; Wen, L.; Li, F.; Liu, G.; Cheng, H.-M. High-Rate Lithium Storage of Anatase TiO2 Crystals Doped with Both Nitrogen and Sulfur. Chem. Commun. 2013, 49, 3461. [Google Scholar] [CrossRef]
  329. Malini, B.; Allen Gnana Raj, G. C,N and S-doped TiO2—Characterization and Photocatalytic Performance for Rose Bengal Dye Degradation under Day Light. J. Environ. Chem. Eng. 2018, 6, 5763–5770. [Google Scholar] [CrossRef]
  330. Wang, F.; Ma, Z.; Ban, P.; Xu, X. C, N and S Codoped Rutile TiO2 Nanorods for Enhanced Visible-Light Photocatalytic Activity. Mater. Lett. 2017, 195, 143–146. [Google Scholar] [CrossRef]
  331. Lei, X.F.; Xue, X.X.; Yang, H.; Chen, C.; Li, X.; Niu, M.C.; Gao, X.Y.; Yang, Y.T. Effect of Calcination Temperature on the Structure and Visible-Light Photocatalytic Activities of (N, S and C) Co-doped TiO2 Nano-Materials. Appl. Surf. Sci. 2015, 332, 172–180. [Google Scholar] [CrossRef]
  332. Chun, H.-H.; Jo, W.-K. Heterogeneous Decomposition of Volatile Organic Compounds by Visible-Light Activated N, C, S-embedded Titania. J. Nanosci. Nanotechnol. 2016, 16, 4544–4553. [Google Scholar] [CrossRef]
  333. Amreetha, S.; Dhanuskodi, S.; Nithya, A.; Jothivenkatachalam, K. Photocatalytic Degradation of Rhodamine B by C-N-S Tridoped TiO2 nanoparticles. In Oxide-Based Materials and Devices VI; Teherani, F.H., Look, D.C., Rogers, D.J., Eds.; SPIE: Bellingham, WA, USA, 2015. [Google Scholar] [CrossRef]
  334. Amreetha, S.; Dhanuskodi, S.; Nithya, A.; Jothivenkatachalam, K. Three Way Electron Transfer of a C–N–S Tri Doped Two-Phase Junction of TiO2 Nanoparticles for Efficient Visible Light Photocatalytic Dye Degradation. RSC Adv. 2016, 6, 7854–7863. [Google Scholar] [CrossRef]
  335. Yan, X.; Xing, Z.; Cao, Y.; Hu, M.; Li, Z.; Wu, X.; Zhu, Q.; Yang, S.; Zhou, W. In-Situ C-N-S-Tridoped Single Crystal Black TiO2 Nanosheets with Exposed {001} Facets as Efficient Visible-Light-Driven Photocatalysts. Appl. Catal. B Environ. 2017, 219, 572–579. [Google Scholar] [CrossRef]
  336. Li, D.; Xing, Z.; Yu, X.; Cheng, X. One-Step Hydrothermal Synthesis of C-N-S-Tridoped TiO2-based Nanosheets Photoelectrode for Enhanced Photoelectrocatalytic Performance and Mechanism. Electrochim. Acta 2015, 170, 182–190. [Google Scholar] [CrossRef]
  337. Guo, Y.; Guo, T.; Chen, J.; Wei, J.; Bai, L.; Ye, X.; Ding, Z.; Xu, W.; Zhou, Z. Synthesis of C–N–S Co-doped TiO2 Mischcrystal with an Isobandgap Characteristic and Its Photocatalytic Activity under Visible Light. Catal. Sci. Technol. 2018, 8, 4108–4121. [Google Scholar] [CrossRef]
  338. Wang, P.; Yap, P.-S.; Lim, T.-T. C–N–S Tridoped TiO2 for Photocatalytic Degradation of Tetracycline under Visible-Light Irradiation. Appl. Catal. A Gen. 2011, 399, 252–261. [Google Scholar] [CrossRef]
  339. Folli, A.; Jakobsen, U.H.; Guerrini, G.L.; Macphee, D.E. Rhodamine B Discolouration on TiO2 in the Cement Environment: A Look at Fundamental Aspects of the Self-Cleaning Effect in Concretes. J. Adv. Oxid. Technol. 2009, 12. [Google Scholar] [CrossRef]
  340. Eun, S.-R.; Mavengere, S.; Cho, B.; Kim, J.-S. Photocatalytic Reactivity of Carbon–Nitrogen–Sulfur-Doped TiO2 Upconversion Phosphor Composites. Catalysts 2020, 10, 1188. [Google Scholar] [CrossRef]
  341. Dong, F.; Zhao, W.; Wu, Z. Characterization and Photocatalytic Activities of C, N and S Co-Doped TiO2 with 1D Nanostructure Prepared by the Nano-Confinement Effect. Nanotechnology 2008, 19, 365607. [Google Scholar] [CrossRef]
  342. Wang, Y.; Huang, Y.; Ho, W.; Zhang, L.; Zou, Z.; Lee, S. Biomolecule-Controlled Hydrothermal Synthesis of C–N–S-Tridoped TiO2 Nanocrystalline Photocatalysts for NO Removal under Simulated Solar Light Irradiation. J. Hazard. Mater. 2009, 169, 77–87. [Google Scholar] [CrossRef] [PubMed]
  343. Lan, N.T.; Anh, V.H.; An, H.D.; Hung, N.P.; Nhiem, D.N.; Van Thang, B.; Lieu, P.K.; Khieu, D.Q. Synthesis of C-N-S-Tridoped TiO2 from Vietnam Ilmenite Ore and Its Visible Light-Driven-Photocatalytic Activity for Tetracyline Degradation. J. Nanomater. 2020, 1–14. [Google Scholar] [CrossRef] [Green Version]
Figure 1. Applications of photocatalysis.
Figure 1. Applications of photocatalysis.
Catalysts 11 00144 g001
Figure 2. The mechanism of photocatalytic decomposition of organic compounds.
Figure 2. The mechanism of photocatalytic decomposition of organic compounds.
Catalysts 11 00144 g002
Figure 3. Schematic illustration of the preparation procedure of the honeycombed C-doped TiO2 and Au@C-doped TiO2. Reproduced from [101] with permission from Elsevier.
Figure 3. Schematic illustration of the preparation procedure of the honeycombed C-doped TiO2 and Au@C-doped TiO2. Reproduced from [101] with permission from Elsevier.
Catalysts 11 00144 g003
Figure 4. XPS spectra of C-doped TiO2: (a) full scan; (b) focus scan of C 1s. Reproduced from [103] with permission.
Figure 4. XPS spectra of C-doped TiO2: (a) full scan; (b) focus scan of C 1s. Reproduced from [103] with permission.
Catalysts 11 00144 g004
Figure 5. Pathways of electron transfer in the presence of radiation in C-doped TiO2 annealed under inert (Ar-TiO2, N2-TiO2) and oxidizing (O2-TiO2) atmosphere (adapted from [108]).
Figure 5. Pathways of electron transfer in the presence of radiation in C-doped TiO2 annealed under inert (Ar-TiO2, N2-TiO2) and oxidizing (O2-TiO2) atmosphere (adapted from [108]).
Catalysts 11 00144 g005
Figure 6. Schematic illustration of the mechanism of photocatalysis over C-doped TiO2 nanorods under visible light (adapted from [109]).
Figure 6. Schematic illustration of the mechanism of photocatalysis over C-doped TiO2 nanorods under visible light (adapted from [109]).
Catalysts 11 00144 g006
Figure 7. Photoelectron N 1s spectral region for the N-doped TiO2 photocatalyst. Reproduced from [196] with permission from Elsevier.
Figure 7. Photoelectron N 1s spectral region for the N-doped TiO2 photocatalyst. Reproduced from [196] with permission from Elsevier.
Catalysts 11 00144 g007
Figure 8. Effect of N-doping on TiO2 photocatalysis. Proposed band structure of N-doped TiO2 under visible light irradiation (adapted from [17,39,200]).
Figure 8. Effect of N-doping on TiO2 photocatalysis. Proposed band structure of N-doped TiO2 under visible light irradiation (adapted from [17,39,200]).
Catalysts 11 00144 g008
Figure 9. Schematic illustration for the solar-driven photocatalytic mechanism of N-doped TiO2 (adapted from [196]).
Figure 9. Schematic illustration for the solar-driven photocatalytic mechanism of N-doped TiO2 (adapted from [196]).
Catalysts 11 00144 g009
Figure 10. Photocatalytic degradation of DP (10 mg L−1) under visible light illumination for TiO2 P25 modified with different urea contents. Photocatalyst loading = 1.0 g L−1. The curves represent the fitting of the pseudo-first order equation to the experimental data. Reproduced from [209] with permission from Elsevier.
Figure 10. Photocatalytic degradation of DP (10 mg L−1) under visible light illumination for TiO2 P25 modified with different urea contents. Photocatalyst loading = 1.0 g L−1. The curves represent the fitting of the pseudo-first order equation to the experimental data. Reproduced from [209] with permission from Elsevier.
Catalysts 11 00144 g010
Figure 11. Schematic representation of the procedure of preparation of macroporous S-doped TiO2 photocatalysts. Reprinted with permission from [267]. Copyright 2020 American Chemical Society.
Figure 11. Schematic representation of the procedure of preparation of macroporous S-doped TiO2 photocatalysts. Reprinted with permission from [267]. Copyright 2020 American Chemical Society.
Catalysts 11 00144 g011
Figure 12. XPS survey spectra (a) of undoped (TO) and S-doped TiO2 nanorods and S 2p region spectra (b) of anionic (2ATO) and cationic (2CTO) S-doped TiO2 nanorods. Reproduced from [236] with permission from Elsevier.
Figure 12. XPS survey spectra (a) of undoped (TO) and S-doped TiO2 nanorods and S 2p region spectra (b) of anionic (2ATO) and cationic (2CTO) S-doped TiO2 nanorods. Reproduced from [236] with permission from Elsevier.
Catalysts 11 00144 g012
Figure 13. S 2p signals taken from the XPS spectrum of the S-doped TiO2 NPs. Reprinted with permission from [248]. Copyright 2015 American Chemical Society.
Figure 13. S 2p signals taken from the XPS spectrum of the S-doped TiO2 NPs. Reprinted with permission from [248]. Copyright 2015 American Chemical Society.
Catalysts 11 00144 g013
Figure 14. Schematic representation of the photocatalytic degradation mechanism over cationic and anionic S-doped TiO2 (adapted from [275]).
Figure 14. Schematic representation of the photocatalytic degradation mechanism over cationic and anionic S-doped TiO2 (adapted from [275]).
Catalysts 11 00144 g014
Figure 15. Normalized concentration (C/C0) of Rh B as a function of illumination time for pure TiO2, ST-120-4, ST-550-10, and blank references. Reproduced from [256] with permission.
Figure 15. Normalized concentration (C/C0) of Rh B as a function of illumination time for pure TiO2, ST-120-4, ST-550-10, and blank references. Reproduced from [256] with permission.
Catalysts 11 00144 g015
Figure 16. Schematic mechanism of photocatalysis in the presence of C,N-co-doped TiO2 under visible light (adapted from [89]).
Figure 16. Schematic mechanism of photocatalysis in the presence of C,N-co-doped TiO2 under visible light (adapted from [89]).
Catalysts 11 00144 g016
Figure 17. Photocatalytic degradation of microplastics under different experimental conditions: (a) microplastics relative concentration and (b) microplastics mass loss. Reproduced from [287] with permission from Elsevier.
Figure 17. Photocatalytic degradation of microplastics under different experimental conditions: (a) microplastics relative concentration and (b) microplastics mass loss. Reproduced from [287] with permission from Elsevier.
Catalysts 11 00144 g017
Figure 18. Schematic illustration of the suggested effects of the nitrogen and sulfur dopants on the enhanced visible light photocatalytic activity of the N,S-co-doped TiO2 (adapted from [314,323,324,325,326]).
Figure 18. Schematic illustration of the suggested effects of the nitrogen and sulfur dopants on the enhanced visible light photocatalytic activity of the N,S-co-doped TiO2 (adapted from [314,323,324,325,326]).
Catalysts 11 00144 g018
Figure 19. Comparison of degradation and mineralization of IBP and NPX under visible light in the presence of various photocatalysts (S1-N,S-co-doped TiO2 NPs and S2-N,S-co-doped TiO2 nanosheets). Process parameters: initial IBP or NPX concentration: 5 mg L−1, photocatalyst loading 2 g L−1, pH 6, irradiation time: 90 min. Reproduced from [323] with permission from John Wiley and Sons.
Figure 19. Comparison of degradation and mineralization of IBP and NPX under visible light in the presence of various photocatalysts (S1-N,S-co-doped TiO2 NPs and S2-N,S-co-doped TiO2 nanosheets). Process parameters: initial IBP or NPX concentration: 5 mg L−1, photocatalyst loading 2 g L−1, pH 6, irradiation time: 90 min. Reproduced from [323] with permission from John Wiley and Sons.
Catalysts 11 00144 g019
Figure 20. Schematic representation of the improvement of the photoactivity of C,S,N-tri-doped TiO2 photocatalyst (adapted from [7]).
Figure 20. Schematic representation of the improvement of the photoactivity of C,S,N-tri-doped TiO2 photocatalyst (adapted from [7]).
Catalysts 11 00144 g020
Figure 21. Electron migration in C,N,S-tri-doped TiO2 with binary polymorphs (adapted from [334]).
Figure 21. Electron migration in C,N,S-tri-doped TiO2 with binary polymorphs (adapted from [334]).
Catalysts 11 00144 g021
Table 1. Selected examples of methods and precursors applied during preparation of C-doped TiO2 photocatalysts.
Table 1. Selected examples of methods and precursors applied during preparation of C-doped TiO2 photocatalysts.
MethodTiO2 PrecursorCarbon SourceReferences
Biomimetic template approachTBOTBanana stem fibers[78]
CalcinationAeroxide® TiO2 P25 from Evonik, Germany
(TiO2 P25)
Polyethylene glycol[79]
Chemical bath deposition (CBD)Titanium isopropoxide (TTIP)Melamine borate[80]
Direct solution-phase carbonizationTiCl4Diethanolamine (DEA)[81]
Electrochemical anodizationTi foilsAscorbic acid[82]
Electrospinning combining sol-gelTBOTPolyvinyl-pyrrolidone (PVP)[83]
Electrospinning followed by heat treatmentTTIPAcetic acid[84]
Hydrothermal treatment and calcinationTi(SO4)2Glucose[86]
Incipient wetness impregnationTiO2 P25Glucose[87]
Oxidative annealingTiCTiC[88]
Sol impregnation and carbonizationTBOTAcetic acid[84]
Sol-gelTTIP, TBOT, TiCl4, TiCl3Ethanolamine (ETA), Glycine, Polyacrylonitrile (PAN), Polystyrene (PS), Starch, TBOT[76,77,82,89,90,91,92]
Sol-gel and calcinationTBOTButterfly wings[93]
Sol-gel bio-templatingTBOTCellulose[94]
Solution combustion synthesisTTIPCitric acid[95]
Solvothermal treatment and calcinationTiCl4Alcohols (benzyl alcohol and anhydrous ethanol)[75]
Thermal decompositionTTIPOleylamine[96]
Table 2. Selected examples of methods and precursors applied during preparation of the N-doped TiO2 photocatalysts.
Table 2. Selected examples of methods and precursors applied during preparation of the N-doped TiO2 photocatalysts.
Method TiO2 PrecursorNitrogen SourceReferences
Addition of N source to the TiO2 precursor solutionTBOTTetramethyl-ethylene-diamine[113]
BioprocessTBOTExtrapallial fluid of fresh blue mussels[114]
Centrifugal spinningTitanium diisopropoxide bis(acetyl-acetonate)PVP[115]
Colloidal crystal-templatingTBOTEthanediamine[116]
CVDTiCl4tert-butylamine, benzylamine[117,118]
ElectrochemicalTitania nanotubesDiethylenetriamine, ethylenediamine, hydrazine[113,119,120,121]
Electrochemical anodizationTitanium foilsAmmonium fluoride[122]
HydrolysisTTIPNH4Cl, pyridine[123,124,125]
Hydrothermal treatment of TiN with H2O2TiNTiN[127]
Incomplete oxidation of titanium nitrideTiNTiN[128]
L-alanine acids assisted processTTIPL-alanine acids[129]
Low temperature non-aqueous solvent-thermal methodTiCl4NH4Cl[130,131]
One-pot hybridizationTTIPEthylenediaminetetraacetic acid disodium salt (EDTA-Na2)[132]
Radio-frequency magnetron reactive sputteringTiOx filmN(NOx)[133]
Sol-gelTTIP, TBOT, TiCl4, Titanic acid Urea, NH3, nitromethane, n-butylamine, N2, hydrazine, HNO3, guanidinium chloride, ethylenediamine, diethanolamine, NH4NO3, NH4Cl, (NH4)2CO3[119,134,135,136,137,138,139,140,141,142,143,144,145,146,147,148,149,150,151]
Solvent-based ambient condition sol processTiCl4N,N-dimethylformamide (DMF)[152]
SolvothermalTBOT, TiCl4Trimethylamine (TEA), PVP, hydrazine, diethylamine[102,153,154,155,156,157,158]
Sonication of aqueous solutionTiO2 P254-nitrophenol (4-NP)[159]
SonochemicalTiO2 P25, TBOT,TTiPSodium amide, hydroxylamine hydrochloride, urea[160,161,162]
Surfactant-free solvothermal treatmentTBOT,TiCl4Carbamide[163]
Two cycle microwave-assisted hydrothermalTTIPDiaminohexane[164]
Table 3. A comparison of the properties of the N-doped TiO2 photocatalysts synthesized using TTIP as TiO2 precursor and different nitrogen sources (concentration of 25 vol%) [166].
Table 3. A comparison of the properties of the N-doped TiO2 photocatalysts synthesized using TTIP as TiO2 precursor and different nitrogen sources (concentration of 25 vol%) [166].
PhotocatalystdTiO2 a (nm)SBET b (m2 g−1)Ebg c (eV)
N-TiO2 (urea)10.8793.03
N-TiO2 (TEA)11.5122.89
N-TiO2 (NH3)18.0293.01
a Crystallite size estimated from XRD. b SBET estimated with the Brunauer-Emmett-Teller (BET) method. c Band gap energy determined according to the Tauc method.
Table 4. Properties and photocatalytic activity of the N-doped TiO2 photocatalysts prepared at different calcination temperature, where T75 is the photocatalyst dried at 75 °C, and T200, T400, T600 and T800 are the photocatalysts calcined at 200, 400, 600, and 800 °C respectively, TAA is pure anatase TiO2 purchased from Sigma Aldrich. Initial concentration of Ph was 50 mg L−1 [183].
Table 4. Properties and photocatalytic activity of the N-doped TiO2 photocatalysts prepared at different calcination temperature, where T75 is the photocatalyst dried at 75 °C, and T200, T400, T600 and T800 are the photocatalysts calcined at 200, 400, 600, and 800 °C respectively, TAA is pure anatase TiO2 purchased from Sigma Aldrich. Initial concentration of Ph was 50 mg L−1 [183].
PhotocatalystCalcination Temperature (°C)Anatase (%)Rutile (%)Ebg (eV)Decomposition of Ph after 540 min (%)
Visible LightUV Light
TiO2 P25-72283.245.2180.64
Table 5. Selected examples of methods and precursors applied during preparation of the S-doped TiO2 photocatalysts.
Table 5. Selected examples of methods and precursors applied during preparation of the S-doped TiO2 photocatalysts.
MethodTiO2 PrecursorSulfur SourceReferences
Ball millingTiO2 P25Sulfur powder, thiourea[245]
Electrochemical anodizationTitanium sheetH2S, K2S2O5[259,262]
Flame spray pyrolysisTTIPH2SO4[261]
HydrolysisTiCl4, TTIP, TiCNa2SO4, thiourea[242,263,269]
HydrothermalTiH2, TiS2, TTIP, TiOSO4Thiourea dioxide, thiourea, TiS2, TTIP, TiOSO4[242,243,251,254,256,257]
Micro-plasma oxidationTitanium sheetThiourea[244]
Oxidant peroxide method (OPM)Metallic TiCS2[236]
Oxidation annealingTiS2TiS2[258,270]
Sol-gelTBOT, TTIPThiourea[102,242,245,271]
SolvothermalTBOT, TTIPDMSO, thioacetamide[248,250]
SonothermalTBOTSulfur powder[266]
Thermochemical treatmentTTIPH2S[260]
Ultrasound applicationTTIP, TiOSO4EDT, TiOSO4[249,254]
Wet impregnationTiO2 P25Sodium thiosulfate[268]
Table 6. Effect of S-dopant concentration on the crystallite phase of TiO2. Calcination temperature: 750 °C [249].
Table 6. Effect of S-dopant concentration on the crystallite phase of TiO2. Calcination temperature: 750 °C [249].
EDT/TiO2 Molar RatioPhase Composition
Anatase (%)Rutile (%)
Table 7. Methylene blue (MB) decomposition under visible light irradiation in the presence of S-doped TiO2 obtained using thiourea and various titania precursors.
Table 7. Methylene blue (MB) decomposition under visible light irradiation in the presence of S-doped TiO2 obtained using thiourea and various titania precursors.
Titania PrecursorPreparation MethodTreatment Temperature (°C)S ContentBinding Energy (eV)SBET
(m2 g−1)
Ebg (eV)Irradiation SourceInitial Concentration of MB (mg L−1)Degradation RateRef.
TTIPSol-gel600--47.6-Household lamp (2.5 W/m2)1071.83%, 6 h[276]
Hydrolysis1200.64–0.80 wt.%---150 W high-pressure Xenon lamp10Up to 59%, 4 h[277]
Vapor-thermal250-162.2 (S2−), 164.0 (S), 165.2 (S4+), 168.6 (S6+)99.1–125.2-300 W Xenon lamp1078.4–99.9%, 1 h[278]
TBOTUltrasonic-assisted spray pyrolysis400---2.85570 W Xenon lamp3.280%, 5 h[225]
Thermal CVD180 and 250S/Ti molar ratio of 0.5, 1, 2, 3, 4, and 5163.5 (S2−), 164.4 (S), 168.0 (S6+)81.7–210.92.4300 W Xenon lamp1092.5–99.8%, 2 h[226]
TiCl4Sol-gel5004 mol%173.1 (S6+)--350 W Xenon lamp9~60%, 100 min[238]
Ti(OH)2OThermal hydrolysis600Ti(OH)2O/thiourea molar ratio of 1:3--2.56Visible light8~70%, 6 h[241]
Metallic TiLow temperature and template free OPM200Ti/S molar ratio of 1:1, 1:2 and 1:3168.4 (S6+)-2.8918 W Daylight lamp10Up to 92%, 4 h[235]
Table 8. Effect of S-dopant concentration on the Ebg and average particle size of S-doped TiO2 [268].
Table 8. Effect of S-dopant concentration on the Ebg and average particle size of S-doped TiO2 [268].
PhotocatalystEbg (eV)Average Particle Size by TEM (nm)
TiO2 P253.2233.0
S:Ti = 0.5:13.1832.2
S:Ti = 0.6:13.1029.6
S:Ti = 0.7:12.9027.2
S:Ti = 0.8:13.1428.6
Table 9. A summary of the precursors applied for the synthesis of the C,N-co-doped TiO2 and the examples of application of the photocatalysts.
Table 9. A summary of the precursors applied for the synthesis of the C,N-co-doped TiO2 and the examples of application of the photocatalysts.
Nitrogen PrecursorCarbon PrecursorTio2 Precursor or TypeSynthesis MethodPollutant (Initial Concentration)Photodecomposition or Removal Efficiency and ConditionsRef.
Citric acidTiCl4Sol-gel4-NP (7.0 × 10−2 mmol L−1)87% in 420 min, visible light[280]
EthanolAmorphous TiO2Calcination under gas flowReactive Red 198 (RR198)
(500 mg L−1)
96% in 20 h, visible light[281]
Escherichia coli (1.5 × 108 CFU mL−1)100% of bacteria inactivated in 60 min, visible light[282]
IsopropanolEscherichia coli (1.5 × 108 CFU mL−1)100% of bacteria inactivated in 60 min, visible light[282]
MethanolRR198 (500 mg L−1)54.6% in 100 h, visible light[283]
Escherichia coli (1.5 × 108 CFU mL−1)100% of bacteria inactivated in 60 min, visible light[282]
StyreneTBOTPyrolysisTetracycline hydrochloride (TCH) (10 mg L−1)99.6% in 30 min, visible light[284]
Titanium ethoxideTitanium ethoxideSol-gelDCF (10, 30 and 50 mg L−1)80% in 100 min, UV light[285]
Ammonium nitrateAcetylacetoneTTIPSol-gelMB (10 mg L−1)91.3% in 3 h, visible light[286]
Extrapallial fluid (EPF) of blue musselsEPF of blue musselsTBOTGreen bioinspired synthesisMicroplastic
(0.4 w/v%)
71.77 ± 1.88% in 50 h, visible light[287]
GlycineGlycineTitanium(III) sulfateHydrothermalIbuprofen (IBP)
(20 mg L−1)
100% in 360 min, visible light[288]
Guanidine hydrochlorideGuanidine hydrochlorideAnatase TiO2One-step microwaveMO (20 mg L−1)Up to 94% in 2 h, visible light[289,290,291]
Hexamethylenetetramine (HMT)HMTTiCl4SolvothermalResorcinol
(20 mg L−1)
Up to 96% within 90 min, visible light[292]
TTIPBisphenol A (BPA)
(5 and 0.02 mg L−1)
Over 99% in 5 h and 95% in 2 h, white LED[293,294]
MethanolNOx (1 ppm)~10% at 530 nm, ~23% at 445 nm, ~40% at 390 nm[295]
Nitric acidTween 80TTIPSol-gelCIP and levofloxacin78.2% and 96.7% in 2 h, visible light[296]
N-lauroyl-L-glutamic acidN-lauroyl-L-glutamic acidTitanium (diisopropoxide) bis (2,4-pentanedionate)Selfassembly soft-templatePh (10 mg L−1)92% in 150 min, visible light[297]
N-methyl-formamideN-methyl-formamideTTIPSol-gelOrange G
(80 mg L−1)
99% in 1 h, visible light[298]
PANPANTBOTHydrolysis and calcinationRh B (20 mg L−1)About 99% in 4 h, visible light[299]
PolyanilineCarbon tetrachlorideTiO2 NPs powderStirring and carbonizationPh (20 mg L−1)87% in 150 min, UV radiation[300]
PolyanilineTBOTPolymerization and sol-gel coatingRh B
(2.0 × 10−5 mol L−1) and Ph (10 mg L−1)
90% in 100 min and 84% in 150 min, visible light[301]
PVPPVPTTIPElectrospinning and calcinationMB
(2.0 × 10−5 mol L−1)
95% in 120 min, visible light[302]
Tetrakis(dimethylamino) titanium (TDMAT)Mesoporous carbon molecular sieves CMK-3TDMATStirring in autoclaveRh B (10 mg L−1)99.87% in 60 min, visible light[303]
Triethanolamine (TELA)TELATTIPSol-gel2-chlorophenol
(100 mg L−1)
94.39% in 90 min, visible light[89]
UreaTetrabutylammonium hydroxide (TBAH)TBOTSol-gelMB
(1.8 × 10−5 mol L−1)
Over 90% in 7 h, visible light[304]
UreaMicrocystis aeruginosa (~3.0 × 106 cells mL−1)Up to 92.7% of bacteria inactivated in 12 h, visible light[305]
Ti foilCBDMO (5 mg L−1)100% in 30 min, visible light[306]
Table 10. An overview of N 1s and C 1s signals reported in the XPS spectra of the C,N-co-doped TiO2.
Table 10. An overview of N 1s and C 1s signals reported in the XPS spectra of the C,N-co-doped TiO2.
XPS RegionChemical StateBE [eV]References
N 1sN-Ti-N395.7[297]
C 1sC-C (usually adventitious carbon)284.6–285[289,298,301,303,305,307]
Table 11. A summary of the precursors applied for C,S-co-doped TiO2 synthesis and the examples of application of the photocatalysts.
Table 11. A summary of the precursors applied for C,S-co-doped TiO2 synthesis and the examples of application of the photocatalysts.
Doping SourceTiO2 Precursor or TypeSynthesis MethodPollutant (Initial Concentration)Photodecomposition or Removal Efficiency and ConditionsRef.
Eichhornia crassipes extractTTIPGreen modification of sol-gelReactive Blue 19 (RB19) (6.10 mg L−1) and Reactive Red 76 (RR76) (4.49 mg L−1)72.2% and 73.3% after 30 min, visible light[102]
Carrageenans (kappa (κ-), iota (ι-) and lambda (λ-)) from red seaweedsTTIPHydrothermal followed by calcinationRB5, MB and MO
(25 mg L−1)
100% after <5, <5 and <20 min for κ-, ι- and λ- carrageenans, solar concentrator[309]
ThioureaMeta-titanic acidSolid-phaseRh B and MBUp to about 60% (Rh B) and 50% (MB) after 30 min of contact with photocatalytic coatings, visible light[156]
TBOTSolvothermal sol-gelDoxycycline (DC)43.1% after 1 h, visible light[310]
1-octadecene and sulfurTiCl4SolvothermalTCH (10 mg L−1)86% after 1 h, visible light[311]
Thiourea, carbon, citric acid and glycerolTitanium ethoxideStirring followed by stepwise heatingSafranin T (ST)
(30 mg L−1)
Rate constants: up to 4.04 × 104 s−1 for UV and 0.63 × 104 s−1 for vis[157]
Thiourea, ureaTBOTHydrolysis4-chlorophenol
(1.5 × 10−4 mol L−1
~35% in 3 h, visible light[312]
Table 12. A comparison of the properties of the N-doped TiO2, S-doped TiO2 and N,S-co-doped TiO2, synthesized by various methods with the use of different dopant sources.
Table 12. A comparison of the properties of the N-doped TiO2, S-doped TiO2 and N,S-co-doped TiO2, synthesized by various methods with the use of different dopant sources.
No.PhotocatalystDoping SourceSynthesis MethodSBET (m2 g−1)Crystallite Size of Anatase (nm)Ebg (eV)Ref.
1N-doped TiO2AmmoniaNon-hydrolytic sol-gel100.18.22.67[87,231,315]
S-doped TiO2DMSO69.710.53.07
N,S-co-doped TiO2Ammonia and DMSO144.85.12.32
2N-doped TiO2UreaWet impregnation55.3518.82.79[276]
S-doped TiO2Thiourea50.1618.52.65
N,S-co-doped TiO2Urea and thiourea45.7416.92.68
3N-doped TiO2Ammonium nitrateSol-gel39.5--[231]
S-doped TiO2Thiourea47.6--
N,S-co-doped TiO2Ammonium nitrate and thiourea68.6--
4N-doped TiO2Dodecylamine-10.322.95[320]
S-doped TiO2Thiourea-10.833.00
N,S-co-doped TiO2Dodecylamine and thiourea-9.592.89
5N-doped TiO2UreaWet impregnation143.6113.72.99[247]
S-doped TiO2Thiourea158.3014.13.08
N,S-co-doped TiO2Urea and thiourea97.1113.82.96
Table 13. Selected examples of precursors, methods applied during preparation and applications of the N,S-co-doped TiO2 photocatalysts.
Table 13. Selected examples of precursors, methods applied during preparation and applications of the N,S-co-doped TiO2 photocatalysts.
Nitrogen PrecursorSulfur PrecursorTio2 Precursor or TypeSynthesis MethodPollutant (Initial Concentration)Photo-Decomposition or Removal Efficiency and ConditionsRef.
AmmoniaDMSOTiCl4 and TTIPNon-hydrolytic sol-gelRO16 (20 mg L−1)100% after 30 min, visible light[247]
Ammonium nitrateThioureaTTIPSol-gelMB (10 mg L−1) and Ph (10 mg L−1)78.64% after 6 h and 77.87% after 4 h, visible light[276]
Ammonium sulfateAmmonium sulfateTBOTSol-gel impregnation5-FU (10 mg L−1)Ca. 90% after 90 min, simulated solar light[327]
ThioureaThioureaTBOTSol-gelMO (7 mg L−1)96% after 3 h, sunlight[326]
TiO2 P25Mixing—calcinationTC (10 mg L−1)91% after 20 min, visible light[325]
TiO2 powder (Tayca Corp., Japan)E. coli (104 CFU mL−1)Total bacteria inactivation after 75 min, visible light [319]
Ti(SO4)2HydrothermalMO (10 mg L−1)92% after 6 h, sunlight[317]
UreaThioureaTi(SO4)2HydrothermalAtrazine (5 mg L−1)Over 70% after 6 h, visible light[318]
Table 14. Characteristics of the C,N,S-tri-doped TiO2 obtained by various methods and using different precursors.
Table 14. Characteristics of the C,N,S-tri-doped TiO2 obtained by various methods and using different precursors.
YearPreparation MethodPrecursorsPrecursor Ratio (C, N, S Source to Ti Source)Annealing Temperature, TimeEbg (eV)Doping Mode of C, N and S and Respective BE from XPSRef.
2015Sol-gelThiourea, TTIP20 mL TTIP, 15 wt.% thiourea300, 400, 500 and 600 °CNRCarbon: adventitious carbon species (284.6 eV), graphite intercalation compounds (285.3 eV) and C-O (298.6 eV);
Nitrogen: substituted oxygen lattice sites as O-Ti-N (396.5 eV) and interstitially doped into TiO2 lattice (400.5 eV);
Sulfur: Ti4+ substituted by S6+ (169.4 eV)
2016Sol-gelThiourea, TBOT1:100450 °C, 1 hNRCarbon: XPS peak at 285 eV;
Nitrogen: XPS peak 400 eV;
Sulfur: XPS peaks at 165 and 233 eV
(120 °C, 2 h)
Thiourea, TiC0.63-NRCarbon: C-O (286.5 eV) and C=O (288.6 eV) bonds;
Nitrogen: interstitially doped as Ti-O-N (400.1 eV);
Sulfur: formed Ti-O-S bonds due to cationic doping (168.5 eV)
(200 °C, 20 h)
anatase/brookite heterojunction TiO2
1:1450 °C, 1 h2.9Carbon: carbonate species C-O (286.46 eV) and C=O (288.9 eV);
Nitrogen: interstitially Ti-O-N and substitutionally O-Ti-N doped (400.9 eV);
Sulfur: Ti4+ substituted by S6+ (168.6 eV)
(180 °C, 24 h)
Cystine, TBOT1.7 mL TBOT, 0.5 g cystine450 °C, 2 h2.51–2.95Carbon: hydrocarbons from precursor and adventitious carbon (284.6 eV), C-O (286.1 eV) and C=O (288.6 eV) species;
Nitrogen: partially substituted oxygen lattice sites as O-Ti-N (399.7 eV) and interstitially doped as Ti-O-N (400.9 eV)
Sulfur: Ti4+ substituted by S6+ (168.3 eV)
(20 kHz, room temperature (RT))
Thiourea, TBOT0.05:1, 0.2:1 and 0.5:1300, 400 and 500 °C, 3 h2.66Carbon: elemental C on the surface (287.60 eV), C-O (289.40 eV) and C=O (291.50 eV) bonds;
Nitrogen: N doped into the TiO2 lattice (396.00 eV);
Sulfur: Ti4+ substituted by S6+ (171.50 eV)
(RT, 6 h)
Thiourea, TTIP10 mL TTIP,
5 wt.% thiourea
400 °C2.91NR[329]
2018Thermal decompositionUrea, Ti(SO4)2N:Ti = 4:1600 °C, 2 and 4 h1.39–3.05Carbon: C substituted oxygen atom in the TiO2 lattice forming Ti-C (281.7 eV), C formed complex unsaturated groups and carbonate species C=C or C-C (284.4 eV), C-O (287.5 eV) and C=O (289.1 eV);
Nitrogen: N substituted oxygen atom O-Ti-N (∼399 eV) and interstitially doped in the TiO2 lattice (∼400 eV), adsorbed as N2 and NH3 (∼401, ∼402, ∼404 and ∼408 eV);
Sulfur: S6+ in TiO2 (168.38 and 169.48 eV)
2020Sol-gel followed by dip coatingThiourea, TBOT10 mL TBOT,
2.5 mol% thiourea
450 °C, 2 hNRNR[340]
2020Hydrothermal (180 °C, 12 h)Thiourea, TiOSO42:1400, 500, 600 and 700 °C, 1 h2.88Carbon: elemental carbon formed by incomplete combustion (284.7 eV), C replaced Ti atoms in lattice forming Ti-O-C structure (286.4 eV), presence of C=O bond (289.0 eV)
Nitrogen: N replaced O atoms (400.3 eV)
Sulfur: S6+ replaced Ti4+ (168.7 eV and 169.5 eV)
NR—not reported.
Table 15. A brief summary of photocatalytic applications of C,N,S-tri-doped TiO2.
Table 15. A brief summary of photocatalytic applications of C,N,S-tri-doped TiO2.
Model CompoundType of RadiationExperiment ConditionsDegradation RateRef.
Rh BVisible300 W Xenon lamp with a 420 nm cut-off filter
Rh B: 10 mg·L−1
Photocatalyst: 1 g L−1
68% Rh B decomposed after 10 min,
complete decolorization after 60 min
MBVisible500 W Xenon lamp equipped with a UV cutoff filter.
MB: 20 mg L−1
Photocatalyst: 1 g L−1
91.9% MB decomposed after 60 min[337]
MOVisible300 W Xenon lamp with a 420 nm cut-off filter
MO: 10 mg L−1
Photocatalyst: 1 g L−1
Up to 92.13% MO decomposed within 180 min[335]
Rose BengalSunlightSunny day under clear sky conditions at Tirunelveli between 11 a.m. to 2 p.m.
Rose Bengal: 20 mg L−1
Photocatalyst: 1 g L−1
Complete decolorization after 60 min[329]
DCFSunlightSunny days in April 2015 with the intensity of 750 lx
DCF: 25 mg L−1
Photocatalyst: 1 g L−1
Up to 69.81% DCF decomposed within 90 min[7]
IBPVisibleLED lamp (λmax = 420 nm, intensity = 1 mW cm−2, height 31.8 cm)
IBP: 20 mg L−1
Photocatalyst: 0.5 g L−1
Mineralization of TOC: 95.2%,
complete decomposition after 5 h
TCVisible6 W cold white visible lamp with a 420 nm cut-off filter
TC: 5 mg L−1
Photocatalyst: 0.5 g L−1
97% TC removed after 3 h[338]
NOxVisibleTwo 15 W fluorescent light tubes with emission between 400–700 nm
NO: 400 ± 50 ppb
Relative humidity: 60 ± 10%
Flow rate: 1.140 ± 0.027 L min−1
Up to 18% NOx degraded[339]
NOSimulated solar light300 W tungsten halogen lamp
NO: 400 ppb
Relative humidity: 70%
Flow rate: 4 L min−1
Up to 25% NO degraded after 30 min[342]
VOCsVisible8 W fluorescent daylight lamp
VOCs: 0.1 ppm
Relative humidity: 45%
Flow rate: 1 L min−1
70, 87, ∼100, and ∼100% of decomposition for benzene, toluene, ethyl benzene and o-xylene, respectively[332]
TolueneUV8 W fluorescent lamp
Toluene: 1 mL toluene vapor
Photocatalyst: 6 g dispersed on a borosilicate Petri dish in a Teflon sampling bag
Above 95% of toluene degraded after 4 h[340]
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Piątkowska, A.; Janus, M.; Szymański, K.; Mozia, S. C-,N- and S-Doped TiO2 Photocatalysts: A Review. Catalysts 2021, 11, 144.

AMA Style

Piątkowska A, Janus M, Szymański K, Mozia S. C-,N- and S-Doped TiO2 Photocatalysts: A Review. Catalysts. 2021; 11(1):144.

Chicago/Turabian Style

Piątkowska, Aleksandra, Magdalena Janus, Kacper Szymański, and Sylwia Mozia. 2021. "C-,N- and S-Doped TiO2 Photocatalysts: A Review" Catalysts 11, no. 1: 144.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
