Article

A Novel CdS Quantum Dots Decorated 3D Bi2O2CO3 Hierarchical Nanoflower with Enhanced Photocatalytic Performance

by
Zhilin Ji
,
Hongwei Wang
* and
Xilin She
School of Environmental Science and Engineering, Qingdao University, Qingdao 266071, China
*
Author to whom correspondence should be addressed.
Catalysts 2020, 10(9), 1046; https://doi.org/10.3390/catal10091046
Submission received: 25 June 2020 / Revised: 9 August 2020 / Accepted: 26 August 2020 / Published: 11 September 2020
Browse Figures
Review Reports Versions Notes

Abstract

:
Heterojunction engineering has shown great potential in the field of photocatalysis to deal with environmental pollutants. The design and synthesis of heterojunction photocatalysts with high efficiency and stability still face great challenges. In this work, a novel CdS quantum dots (QDs) decorated 3D Bi2O2CO3 hierarchical nanoflower heterojunction photocatalyst (Bi2O2CO3/CdS QDs) was synthesized to investigate the photocatalytic Rhodamine B (RhB) degradation performance. CdS QDs were evenly distributed on the surface of the Bi2O2CO3 nanoflower. Bi2O2CO3/CdS QDs showed significantly enhanced photocatalytic RhB degradation performance compared with pristine Bi2O2CO3 and CdS QDs. The enhanced photocatalytic performance was attributed to the synergistic effect of hierarchical structure and heterojunction, which greatly increased the active sites of the reaction and the photogenerated carriers transfer.

1. Introduction

As a green technology, photocatalysis has great potential in dealing with environmental pollution and the energy crisis. Photocatalyst is the key and core in the process of photocatalytic reaction, which can effectively convert solar energy into electrical energy and chemical energy [1,2,3,4]. However, the absorption and utilization of sunlight, the migration rate of photocarriers, the redox ability of active radicals and the number of reactive sites directly affect the photocatalytic performance of photocatalysts [5,6,7,8]. Therefore, it is of great significance to improve the photocatalytic performance by selecting appropriate photocatalyst and further modifying it.
Heterojunction engineering can effectively improve the photocatalytic performance of composite photocatalysts, and accelerate the transport of photocarriers in the photocatalytic process [9,10,11]. The three-dimensional (3D) hierarchical structures can bring advantages for the establishment of heterojunctions, and provide high specific surface area for the smooth progress of photocatalytic reaction. Huang et al. [12] successfully prepared a novel 3D WO3-x/Bi/BiOCl hierarchical heterostructure to investigate the drastically enhanced photocatalytic degradation performance for RhB. They attributed the enhanced photocatalytic activity to the formed heterojunction structure and improved light-harvesting ability by 3D WO3-x. Zhang et al. [13] fabricated a 3D Bi2MoO6/ZnO hierarchical heterostructured photocatalyst to explore the enhanced photocatalytic reduction performance for Cr(VI) under visible-light irradiation. The formation of the heterojunction between Bi2MoO6 and ZnO effectively facilitated the separation and transfer of electrons and holes, which enhanced the photocatalytic activity. Wang et al. [14] synthetized Ag and CdS quantum dots (QDs) co-decorated 3D hierarchical Bi5O7I heterojunction photocatalyst. The formation of tandem heterojunctions favored the separation of charge carriers; the 3D hierarchical structure of Bi5O7I offered adequate surface-active sites; and the surface plasmon resonance effect of Ag promoted the photothermal effect. These all endowed the Bi5O7I/Ag/CdS photocatalyst with super photocatalytic activity. Based on the above, the fabrication of a 3D hierarchical photocatalyst with efficient heterojunction is beneficial to improve the photocatalytic activity.
Bismuth subcarbonate (Bi2O2CO3) is an attractive photocatalyst for degrading environmental pollutants due to its low toxicity and good photocatalytic performance [15,16]. However, the wide band gap and the fast recombination of electrons and holes will limit its utilization value [17,18]. Morphology control and heterojunction can promote the absorption and utilization of solar energy, and accelerate the transmission of photogenerated carriers [5,19,20], thus improving the photocatalytic performance of Bi2O2CO3. Herein, we fabricated a novel CdS QDs decorated 3D Bi2O2CO3 hierarchical nanoflower photocatalyst (Bi2O2CO3/CdS QDs) to investigate the photocatalytic Rhodamine B (RhB) degradation performance. CdS QDs are evenly distributed on the surface of the Bi2O2CO3 nanoflower to form the heterojunction with Bi2O2CO3 nanosheet. Bi2O2CO3/CdS QDs displays significantly enhanced photocatalytic performance for RhB degradation. The 3D hierarchical structure provides a large number of active sites and the establishment of heterojunction accelerates the transmission of photogenerated carriers. The synergistic effect of hierarchical structure and heterojunction significantly improved the photocatalytic RhB degradation performance of Bi2O2CO3/CdS QDs.

2. Results and Discussion

Figure 1 displays SEM images of the prepared photocatalysts. As shown in Figure 1A, the prepared Bi2O2CO3 photocatalyst presents a nanoflower-like sphere with hierarchical structure, which can facilitate the deposition of CdS QDs. The pristine CdS agglomerates together, and presents the nanoparticle with the size of 60–100 nm shown in Figure 1B. As can be found from Figure 1C–F, the Bi2O2CO3 hierarchical nanoflowers keep good flower shape after deposited with different amounts of CdS QDs. Some fragments are observed in the SEM images of Bi2O2CO3/CdS QDs, which may be ascribed to the damage of Bi2O2CO3 nanoflowers caused by ultrasound and agitation during the synthesis process of the heterojunction photocatalysts.
Figure 2A shows the XRD patterns of the prepared Bi2O2CO3, Bi2O2CO3/CdS QDs-10 photocatalysts. The XRD characteristic diffraction peaks of Bi2O2CO3 nanoflower well correspond to tetragonal Bi2O2CO3 (JCPDS card No. 41-1488) [21,22]. The XRD diffraction peaks of CdS QDs cannot be clearly distinguished through Figure 1A, indicating the low crystallinity of the prepared CdS. In the high resolution XRD pattern of CdS as shown in Figure 2B, the (111), (200) and (311) crystal planes can well correspond to the cubic phase of CdS (JCPDS 80–0019) [23,24]. For the XRD pattern of Bi2O2CO3/CdS QDs-10, except of the characteristic diffraction peaks of Bi2O2CO3, the diffraction peaks of CdS cannot be found due to its low crystallinity and high dispersion on the surface of Bi2O2CO3 nanoflower.
TEM characterization is further used to observe the distribution state of CdS QDs on the surface of Bi2O2CO3, and the results are shown in Figure 3. As can be found in Figure 3A, some QDs with a size of approximately 5 nm appear on the Bi2O2CO3 nanoflakes. With higher resolution as shown in Figure 3B, the observed lattice spacing of 0.27 nm and 0.33 nm correspond well to the (110) crystal plane of Bi2O2CO3 and (110) crystal plane of CdS, respectively. The lattice spacing of CdS QDs cannot be observed clearly, which further proves the low crystallinity of CdS.
Figure 4 shows the SEM image and corresponding EDS measurement of the prepared Bi2O2CO3/CdS QDs-10 photocatalyst. Figure 4A,B show the SEM image and corresponding EDS spectrum. The elements of C, O, Bi, S and Cd can be clearly observed, which are well consistent with the elements in Bi2O2CO3/CdS QDs-10. The EDS elemental mapping results are displayed in Figure 4C–G. The distribution of O, Bi, S and Cd elements can be observed well corresponding to the morphology of Bi2O2CO3/CdS QDs-10 in Figure 1A, which proves the uniform distribution of CdS QDs on the surface of Bi2O2CO3 hierarchical nanoflower. The C element is distributed in the whole scanning area because of the carbon conductive adhesive as the substrate in the process of SEM measurement. No other impurity elements are found in the EDS test, indicating the purity of Bi2O2CO3/CdS QDs-10.
The XPS measurement was further used to analyze the elemental states of the prepared Bi2O2CO3/CdS QDs-10 photocatalyst. Figure 5 displays the XPS results of Bi2O2CO3/CdS QDs-10. Cd, Bi, S, C and O elements can be found in the total survey spectrum as shown in Figure 5A, which well corresponds to the element composition in Bi2O2CO3/CdS QDs-10. The bind energy peaks of C 1s at 284.82 and 288.69 eV in Figure 5B are attributed to C-C bond and carbonate ion in Bi2O2CO3, respectively [18,25]. Figure 5C shows the O 1s peak for Bi2O2CO3/CdS QDs-10. The XPS peak at 529.81 is ascribed to the Bi-O bond of Bi2O2CO3. The other two peaks at 530.75 and 531.42 eV can be labeled as C-O bond and the surface hydroxyl groups adsorbed on Bi2O2CO3/CdS QDs-10 [26]. The XPS peaks of Bi 4f at 159.17 and 164.44 eV are attributed to the [Bi2O2]2+ layers in Bi2O2CO3. Figure 5E,F present the high-resolution spectra of S 2s and Cd 3d. The XPS characteristic peak of S 2s at 225.72 eV well corresponds to S2−, and that of Cd 3d at 405.15 and 411.85 eV are well ascribed to Cd2+ in CdS [27,28].
Based on the above results, it can be concluded that the CdS QDs decorated 3D Bi2O2CO3 hierarchical nanoflower photocatalysts were successfully synthesized in the present work. The Bi2O2CO3 hierarchical nanoflower can act as the carrier for the deposited CdS, and CdS QDs with low crystallinity are evenly dispersed on the surface of hierarchical nanoflower to form the heterojunction. Heterojunction photocatalysts with hierarchical structure can provide a large number of active sites for photocatalytic reaction, thus accelerating the process of photocatalytic reaction.
Figure 6A displays the photocatalytic RhB degradation performance of the prepared Bi2O2CO3, CdS QDs and Bi2O2CO3/CdS QDs photocatalysts under visible light illumination. Before the degradation test, the photocatalysts and RhB solution were mixed and stirred in dark for 30 min to achieve adsorption equilibrium. As can be found in Figure 6A, the adsorption capacities of the prepared photocatalysts for RhB are very weak. Under 150 min visible light illumination, Bi2O2CO3 and CdS QDs can only degrade about 28% and 52% of rhodamine, respectively. The prepared Bi2O2CO3/CdS QDs photocatalysts show significantly enhanced photocatalytic degradation performance. With the increase in CdS QDs deposition, the photocatalytic degradation performance of Bi2O2CO3/CdS QDs first increased and then decreased. Bi2O2CO3/CdS QDs-10 exhibits the best photocatalytic performance and can achieve 98% RhB degradation in 150 min under visible light illumination. Bi2O2CO3/CdS QDs-5 has fewer heterojunctions, which are not enough to effectively catalyze the degradation of RhB. The deposition of large amount of CdS QDs will hinder the formed heterojunction from effectively degrading RhB in the photocatalytic reaction. Therefore, Bi2O2CO3/CdS QDs-10 shows the optimum photocatalytic degradation performance. Figure 6B shows the cyclic photocatalytic RhB degradation test of Bi2O2CO3/CdS QDs-10. After four cycles of photocatalytic RhB degradation tests, Bi2O2CO3/CdS QDs-10 can degrade 97% of RhB after 150-min visible light illumination, indicating its good stability.
Figure 7A shows the UV-Vis absorption spectra of Bi2O2CO3, Bi2O2CO3/CdS QDs-10 and CdS QDs. Bi2O2CO3 shows weaker light absorption performance compared with CdS QDs does in the range of 200–800 nm. Bi2O2CO3/CdS QDs-10 and CdS QDs have similar light absorption thresholds, indicating the deposition of CdS QDs on the surface of Bi2O2CO3. Compared with pure Bi2O2CO3, Bi2O2CO3/CdS QDs-10 displays stronger absorption and wider optical response ranges due to the deposition of CdS QDs, suggesting the enhanced light absorption performance of Bi2O2CO3/CdS QDs than that of Bi2O2CO3. The plot of transformed Kubelka–Munk function versus the light energy of Bi2O2CO3 and CdS QDs are shown in Figure 7B. The Mott–Schottky measurement can be used for analyzing the band potential and carrier concentration of the prepared photocatalysts. As can be found from Figure 7C, the Mott–Schottky curves with positive slopes indicate that the prepared Bi2O2CO3, CdS QDs and Bi2O2CO3/CdS QDs-10 photocatalysts are n-type semiconductors. The flat band potentials of Bi2O2CO3 and CdS QDs are obtained as −0.36 and −0.62 eV, and that of Bi2O2CO3/CdS QDs-10 is −0.53 eV, indicating that the formation of heterojunction makes the band of Bi2O2CO3 and CdS QDs bend. Figure 7D shows the electrochemical impedance spectroscopy of Bi2O2CO3, CdS QDs and Bi2O2CO3/CdS QDs-10. A significantly reduced arc radius of Bi2O2CO3/CdS QDs-10 indicating that Bi2O2CO3/CdS QDs-10 has a significantly improved photogenerated carriers transfer efficiency in the process of photocatalytic reaction. Figure 7E shows the photoluminescence spectra of Bi2O2CO3, CdS QDs and Bi2O2CO3/CdS QDs-10. The intensity of the fluorescence peak of Bi2O2CO3/CdS QDs-10 is significantly reduced compared with those of Bi2O2CO3 and CdS QDs, indicating that the Bi2O2CO3/CdS QDs effectively inhibits the recombination of photogenerated electrons and holes, thus enhancing the photocatalytic performance. Nitrogen adsorption-desorption isotherm measurements are performed to analyze the specific surface area and pore structure distribution of Bi2O2CO3 and Bi2O2CO3/CdS QDs-10. As shown in Figure 7F, Bi2O2CO3 and Bi2O2CO3/CdS QDs-10 conform to the type-IV isotherm law, indicating that the prepared photocatalysts contain the slit-shaped mesopore structure. As shown in the inserted table in Figure 7F, the calculated BET surface area of Bi2O2CO3/CdS QDs-10 is slight lower than that of Bi2O2CO3 due to the deposition of CdS QDs. The Vpore and dpore of CdS/Co9S8-0.2 can be obtained as 0.13 cm3/g and 23.79 nm, respectively.
The photocatalytic mechanism of Bi2O2CO3/CdS QDs-10 is further analyzed by adding different scavengers for the photogenerated holes (EDTA-Na2, 5 mM), the ·OH (isopropyl alcohol, IPA, 5 mM) and the ·O2− (P-benzoquinone, BQ, 5 mM) into the RhB solution in the photocatalytic process. As displayed in Figure 8, the photocatalytic performance shows slightly reduced with adding 5 mM IPA to eliminate the ·OH. However, when 5 mM EDTA-Na2 or BQ are added into the RhB solution to eliminate the photogenerated holes or ·O2−, the photocatalytic degradation performance is significantly decreased under visible light illumination. The results indicate that the photogenerated holes and ·O2− are the main active groups for the photocatalytic degradation for RhB.
Figure 9 shows the schematic illustration of the enhanced photocatalytic degradation performance of Bi2O2CO3/CdS QDs-10 under visible light illumination. CdS QDs are uniformly dispersed on the surface of Bi2O2CO3 hierarchical nanoflower to form the heterojunction. Under visible light illumination, the photogenerated electrons and holes are excited to the conduction band (CB) and valence band (VB) of Bi2O2CO3 and CdS QDs, respectively. Driven by the heterojunction electric field, the photogenerated electrons formed on the CB of CdS can quickly transfer to the CB of Bi2O2CO3 and catalyze the absorbed O2 to form ·O2−. Concurrently, the photogenerated holes of Bi2O2CO3 flow to the VB of CdS and transfer to the surface of photocatalyst rapidly. In this way, the photocarriers can be separated quickly and efficiently in the photocatalytic reaction due to the Bi2O2CO3/CdS heterojunction. Furthermore, the 3D Bi2O2CO3 hierarchical nanoflowers provide a large number of reactive sites, which can cooperate with the formed ·O2− and photogenerated holes to accelerate the photocatalytic reaction process, thus enhancing the photocatalytic degradation performance of Bi2O2CO3/CdS QDs.

3. Experimental Section

3.1. Preparation of the Series of Photocatalysts

The Bi2O2CO3 hierarchical nanoflower was prepared by a hydrothermal method. Amounts of 0.97 g Bi(NO3)3·5H2O, 1.76 g sodium citrate, 0.48 g urea and 1 g polyvinylpyrrolidone (PVP) were dispersed in 60 mL deionized water under stirring for 45 min. The mixed solution was transferred into a 100 mL Teflon-lined autoclave, and heated in an oven at 180 °C for 12 h. The precipitate was washed 5 times and dried at 60 °C to obtain the Bi2O2CO3 hierarchical nanoflower.
The preparation of CdS QDs follows the following steps: First, 4.00 g CdCl2·2.5H2O was dispersed in 200 mL deionized water with the thioglycollic acid (TGA) as stabilizer. Then the pH of the solution was adjusted to 10 by using 1 M NaOH. Then 10 mL solution containing 0.84 g Na2S·H2O was dropped into the CdCl2 solutions, and the mixed solution was stirred at 60 °C for 60 min. The obtained solution was centrifuged, and CdS QDs were extracted and washed with deionized water for 5 times. CdS QDs solution was obtained by redispersing the obtained CdS QDs into deionized water.
The Bi2O2CO3/CdS QDs was prepared as the following method: First, 0.3 g Bi2O2CO3 was dispersed into 20 mL deionized water containing 0.015 g, 0.03 g, 0.045 g and 0.06 g CdS QDs, respectively. After stirring for 60 min, 10 mL acetone was added into the above mixed solution and stirring for 24 h. The obtained precipitates were washed 5 times with deionized water and dried at 80 °C overnight. The precipitates were then calcined at 300 °C for 1 h and labeled as Bi2O2CO3/CdS QDs-5, Bi2O2CO3/CdS QDs-10, Bi2O2CO3/CdS QDs-15, Bi2O2CO3/CdS QDs-20, respectively. The numbers 5, 10, 15 and 20 represent the mass percentage of CdS in Bi2O2CO3, respectively.

3.2. Characterization of the Prepared Photocatalysts

The morphology of the prepared Bi2O2CO3, CdS QDs and Bi2O2CO3/CdS QDs photocatalysts was observed by field emission scanning electron microscopy (FE-SEM, Ultra 55, Zeiss, Germany) and field emission transmission electron microscope (FE-HRTEM, Tecnai G2 F20, FEI Company, Hillsboro, OR, USA). The crystal structures of the prepared photocatalysts were identified by using an X-ray diffractometer (XRD, D/max-500, Rigaku Co., Tokyo, Japan). The element composition, distribution and Chemical states of Bi2O2CO3/CdS QDs-10 are characterized by an X-ray energy dispersive spectrometer (EDS, Oxford, UK) and an X-ray photoelectron spectroscopy (XPS, ESCALAB 250Xi, England American Somerfly Technology Company, Schenectady, NY, USA). The optical absorption properties of the prepared Bi2O2CO3, CdS QDs and Bi2O2CO3/CdS QDs-10 photocatalysts was analyzed by a UV-visible diffuse reflectance spectrophotometer (U-41000; HITACHI, Tokyo, Japan). BaSO4 was used as the reference material in the process of optical absorption performance tests.

3.3. Photocatalytic Degradation Performance and Electrochemical Measurement

An amount of 100 mg of the prepared photocatalysts was dispersed into 100 mL of RhB aqueous solution (10 mg·L−1) in the photocatalytic degradation tests. The mixture was kept for stirring for 30 min in the dark before the tests. A 300 W Xe lamp (PLS-SXE300, Beijing Changtuo Co., Ltd., Beijing, China) was applied as the light source, and a 420 nm cut-off filter to remove ultraviolet light was used to obtain the visible light. The visible light illumination intensity is controlled at 250 mW·cm−2 in the photocatalytic degradation tests. Circulating water system is used to maintain the temperature of the degraded solution at 25 °C. In the process of photocatalytic degradation stability test, the photocatalyst was recovered by centrifugation and fully dried before the next cycle photocatalytic degradation of RhB solution. The degradation conditions were the same as before, and the number of cycles was 4.
The electrochemical test was carried out by the CHI660D electrochemical workstation (Shanghai Chenhua Instrument Co., Ltd., Shanghai, China). The typical three electrode system (the preparation electrode is the working electrode, Pt is the counter electrode and Ag/AgCl is the reference electrode) is used in the test process, which is carried out in 0.1 M Na2SO4 solution. The test technology used in the Electrochemical Impedance Spectroscopy test was AC impedance. The applied bias voltage was 0 V and the frequency range was 105–10−2 Hz. The Mott–Schottky test used the impedance potential technology, with a voltage range of −0.8–0 V and a frequency of 1000 Hz. One point was taken every 20 mV during the scanning process.

4. Conclusions

In summary, a novel 3D Bi2O2CO3/CdS QDs hierarchical nanoflower heterojunction photocatalyst has been successfully prepared to explore the enhanced photocatalytic degradation performance for RhB. CdS QDs are uniformly dispersed on the surface of Bi2O2CO3 hierarchical nanoflower to form the heterojunction. The prepared Bi2O2CO3/CdS QDs photocatalysts show significantly enhanced photocatalytic degradation performance compared with Bi2O2CO3 and CdS QDs, and Bi2O2CO3/CdS QDs-10 exhibits the best photocatalytic performance which can achieve 98% RhB degradation in 150 min under visible light illumination. The establishment of the heterojunction can improve the efficiency of photocarrier transfer and restrain the recombination of photogenerated electrons and holes. In addition, the photogenerated holes and formed ·O2− are the main active groups for the degradation of RhB in the photocatalytic process. The 3D Bi2O2CO3 hierarchical nanoflower can provide a large number of reactive sites, which can cooperate with the formed ·O2− and photogenerated holes to accelerate the photocatalytic reaction process, thus enhancing the photocatalytic degradation performance of Bi2O2CO3/CdS QDs.

Author Contributions

Z.J.: literature search, data collection, figures, data analysis, data interpretation, writing. H.W.: literature search, conception or design of the work; data analysis, Drafting the work or revising it critically. X.S.: literature search, analysis and interpretation of data for the work, Drafting the work or revising it critically. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Natural Science Foundation of Shandong Province (ZR2017MEM018).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Li, X.; Yu, J.; Jaroniec, M. Hierarchical photocatalysts. Chem. Soc. Rev. 2016, 45, 2603–2636. [Google Scholar] [CrossRef] [PubMed]
  2. Meng, A.; Zhu, B.; Zhong, B.; Zhang, L.; Cheng, B. Direct Z-scheme TiO2/CdS hierarchical photocatalyst for enhanced photocatalytic H2-production activity. Appl. Surf. Sci. 2017, 422, 518–527. [Google Scholar] [CrossRef]
  3. Feng, C.; Chen, Z.; Jing, J.; Hou, J. The photocatalytic phenol degradation mechanism of Ag-modified ZnO nanorods. J. Mater. Chem. C 2020, 8, 3000–3009. [Google Scholar] [CrossRef]
  4. Zhang, Y.; Li, Y.; Ni, D.; Chen, Z.; Wang, X.; Bu, Y.; Ao, J.P. Improvement of BiVO4 photoanode performance during water photo-oxidation using Rh-doped SrTiO3 perovskite as a co-catalyst. Adv. Funct. Mater. 2019, 29, 1902101. [Google Scholar] [CrossRef]
  5. Feng, C.; Chen, Z.; Hou, J.; Li, J.; Li, X.; Xu, L.; Sun, M.; Zeng, R. Effectively enhanced photocatalytic hydrogen production performance of one-pot synthesized MoS2 clusters/CdS nanorod heterojunction material under visible light. Chem. Eng. J. 2018, 345, 404–413. [Google Scholar] [CrossRef]
  6. Wang, S.; Guan, B.Y.; Wang, X.; Lou, X.W.D. Formation of hierarchical Co9S8@ ZnIn2S4 heterostructured cages as an efficient photocatalyst for hydrogen evolution. J. Am. Chem. Soc. 2018, 140, 15145–15148. [Google Scholar] [CrossRef]
  7. Ruan, X.; Hu, H.; Che, G.; Zhou, P.; Liu, C.; Dong, H. Iodine ion doped bromo bismuth oxide modified bismuth germanate: A direct Z-scheme photocatalyst with enhanced visible-light photocatalytic performance. J. Colloid Interface Sci. 2019, 553, 186–196. [Google Scholar] [CrossRef]
  8. Adnan, M.A.M.; Julkapli, N.M.; Amir, M.N.I.; Maamor, A. Effect on different TiO2 photocatalyst supports on photodecolorization of synthetic dyes: A review. Int. J. Environ. Sci. Technol. 2019, 16, 547–566. [Google Scholar] [CrossRef]
  9. Li, H.; Zhou, Y.; Tu, W.; Ye, J.; Zou, Z. State-of-the-Art Progress in Diverse Heterostructured Photocatalysts toward Promoting Photocatalytic Performance. Adv. Funct. Mater. 2015, 25, 998–1013. [Google Scholar] [CrossRef]
  10. Li, W.; Feng, C.; Dai, S.; Yue, J.; Hua, F.; Hou, H. Fabrication of sulfur-doped g-C3N4/Au/CdS Z-scheme photocatalyst to improve the photocatalytic performance under visible light. Appl. Catal. B 2015, 168, 465–471. [Google Scholar] [CrossRef]
  11. Wang, W.; Wang, L.; Li, W.; Feng, C.; Qiu, R.; Xu, L.; Cheng, X.; Shao, G. Fabrication of a novel g-C3N4/Carbon nanotubes/Ag3PO4 Z-scheme photocatalyst with enhanced photocatalytic performance. Mater. Lett. 2019, 234, 183–186. [Google Scholar] [CrossRef]
  12. Huang, Y.; Xu, H.; Luo, D.; Zhao, Y.; Fang, Y.; Guo, Q.; Wei, Y.; Fan, L.; Wu, J. Facile synthesis of three-dimensional WO3-x/Bi/BiOCl hierarchical heterostructures with broad spectrum driven photocatalytic activity. J. Alloys Compd. 2019, 806, 418–427. [Google Scholar] [CrossRef]
  13. Zhang, G.; Chen, D.; Li, N.; Xu, Q.; Li, H.; He, J.; Lu, J. Fabrication of Bi2MoO6/ZnO hierarchical heterostructures with enhanced visible-light photocatalytic activity. Appl. Catal. B 2019, 250, 313–324. [Google Scholar] [CrossRef]
  14. Wang, K.; Xing, Z.; Du, M.; Zhang, S.; Li, Z.; Pan, K.; Zhou, W. Plasmon Ag and CdS quantum dot co-decorated 3D hierarchical ball-flower-like Bi5O7I nanosheets as tandem heterojunctions for enhanced photothermal–photocatalytic performance. Catal. Sci. Technol. 2019, 9, 6714–6722. [Google Scholar] [CrossRef]
  15. Huang, Y.; Fan, W.; Long, B.; Li, H.; Zhao, F.; Liu, Z.; Tong, Y.; Ji, H. Visible light Bi2S3/Bi2O3/Bi2O2CO3 photocatalyst for effective degradation of organic pollutions. Appl. Catal. B 2016, 185, 68–76. [Google Scholar] [CrossRef]
  16. Xu, W.; Chen, J.; Qiu, Y.; Peng, W.; Shi, N.; Zhou, J. Highly efficient microwave catalytic oxidation degradation of 4-nitrophenol over magnetically separable NiCo2O4-Bi2O2CO3 composite without adding oxidant. Sep. Purif. Technol. 2019, 213, 426–436. [Google Scholar] [CrossRef]
  17. Lan, Y.; Li, Z.; Xie, W.; Li, D.; Yan, G.; Guo, S.; Pan, C.; Wu, J. In situ fabrication of I-doped Bi2O2CO3/g-C3N4 heterojunctions for enhanced photodegradation activity under visible light. J. Hazard. Mater. 2020, 385, 121622. [Google Scholar] [CrossRef] [PubMed]
  18. Yang, B.; Lv, K.; Li, Q.; Fan, J.; Li, M. Photosensitization of Bi2O2CO3 nanoplates with amorphous Bi2S3 to improve the visible photoreactivity towards NO oxidation. Appl. Surf. Sci. 2019, 495, 143561. [Google Scholar] [CrossRef]
  19. Deng, X.; Zhang, Q.; Wang, L.; Han, J.; Wu, Y.; Sun, Z.; Li, W.; Li, X.; Xu, L.; Feng, C. Fabrication of Ag-modified porous ZnMgO nanorods with enhanced photocatalytic performance. J. Mater. Sci. Mater. Electron. 2018, 29, 16962–16970. [Google Scholar] [CrossRef]
  20. Guo, H.; Niu, C.; Huang, D.; Tang, N.; Liang, C.; Zhang, L.; Wen, X.; Yang, Y.; Wang, W.; Zeng, G. Integrating the plasmonic effect and p-n heterojunction into a novel Ag/Ag2O/PbBiO2Br photocatalyst: Broadened light absorption and accelerated charge separation co-mediated highly efficient visible/NIR light photocatalysis. Chem. Eng. J. 2019, 360, 349–363. [Google Scholar] [CrossRef]
  21. Bai, P.; Tong, X.; Wan, J.; Gao, Y.; Xue, S. Flower-like Bi2O2CO3-mediated selective oxidative coupling processes of amines under visible light irradiation. J. Catal. 2019, 374, 257–265. [Google Scholar] [CrossRef]
  22. Ding, P.; Di, J.; Chen, X.; Zhao, J.; Gu, K.; Zhang, Y.; Yin, S.; Liu, G.; Xia, J.; Li, H. Partially etched Bi2O2CO3 by metal chloride for enhanced reactive oxygen species generation: A tale of two strategies. Appl. Catal. B 2019, 245, 325–333. [Google Scholar] [CrossRef]
  23. Wang, D.; Li, X.; Zheng, L.; Qin, L.; Li, S.; Ye, P.; Li, Y.; Zou, J. Size-controlled synthesis of CdS nanoparticles confined on covalent triazine-based frameworks for durable photocatalytic hydrogen evolution under visible light. Nanoscale 2018, 10, 19509–19516. [Google Scholar] [CrossRef]
  24. Kadeer, K.; Tursun, Y.; Dilinuer, T.; Okitsu, K.; Abulizi, A. Sonochemical preparation and photocatalytic properties of CdS QDs/Bi2WO6 3D heterojunction. Ceram. Int. 2018, 44, 13797–13805. [Google Scholar] [CrossRef]
  25. Sun, M.; Li, S.; Yan, T.; Ji, P.; Zhao, X.; Yuan, K.; Wei, D.; Du, B. Fabrication of heterostructured Bi2O2CO3/Bi2O4 photocatalyst and efficient photodegradation of organic contaminants under visible-light. J. Hazard. Mater. 2017, 333, 169–178. [Google Scholar] [CrossRef]
  26. Yu, S.; Zhang, Y.; Dong, F.; Li, M.; Zhang, T.; Huang, H. Readily achieving concentration-tunable oxygen vacancies in Bi2O2CO3: Triple-functional role for efficient visible-light photocatalytic redox performance. Appl. Catal. B 2018, 226, 441–450. [Google Scholar] [CrossRef]
  27. Bao, S.; Wu, Q.; Chang, S.; Tian, B.; Zhang, J. Z-scheme CdS-Au-BiVO4 with enhanced photocatalytic activity for organic contaminant decomposition. Catal. Sci. Technol. 2017, 7, 124–132. [Google Scholar] [CrossRef]
  28. Chu, J.; Han, X.; Yu, Z.; Du, Y.; Song, B.; Xu, P. Highly efficient visible-light-driven photocatalytic hydrogen production on CdS/Cu7S4/g-C3N4 ternary heterostructures. ACS Appl. Mater. Interfaces 2018, 10, 20404–20411. [Google Scholar] [CrossRef]
Catalysts 10 01046 g001 550

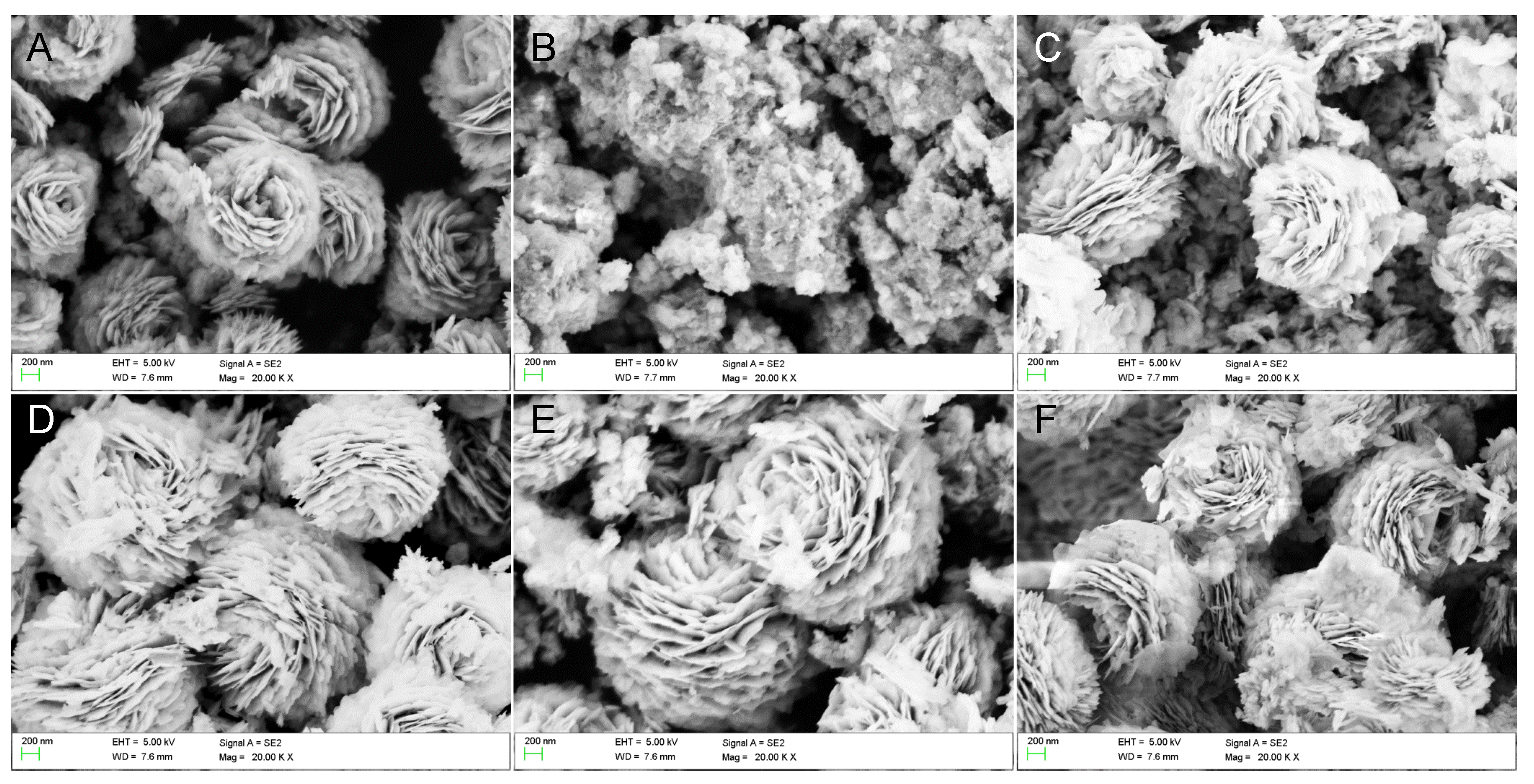

Figure 1. SEM images of the prepared photocatalysts: Bi2O2CO3 (A), CdS QDs (B), Bi2O2CO3/CdS QDs-5 (C) Bi2O2CO3/CdS QDs-10 (D), Bi2O2CO3/CdS QDs-15 (E) and Bi2O2CO3/CdS QDs-20 (F).
Figure 1. SEM images of the prepared photocatalysts: Bi2O2CO3 (A), CdS QDs (B), Bi2O2CO3/CdS QDs-5 (C) Bi2O2CO3/CdS QDs-10 (D), Bi2O2CO3/CdS QDs-15 (E) and Bi2O2CO3/CdS QDs-20 (F).
Catalysts 10 01046 g001
Catalysts 10 01046 g002 550

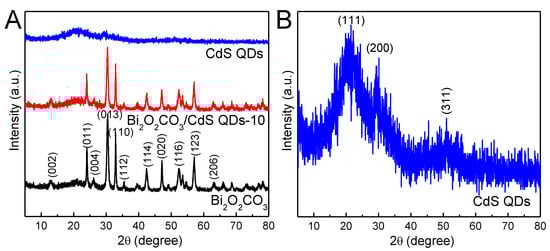

Figure 2. XRD patterns of the prepared Bi2O2CO3, Bi2O2CO3/CdS QDs-10 and CdS QDs photocatalysts (A); XRD curve of the pristine CdS QDs photocatalyst (B).
Figure 2. XRD patterns of the prepared Bi2O2CO3, Bi2O2CO3/CdS QDs-10 and CdS QDs photocatalysts (A); XRD curve of the pristine CdS QDs photocatalyst (B).
Catalysts 10 01046 g002
Catalysts 10 01046 g003 550

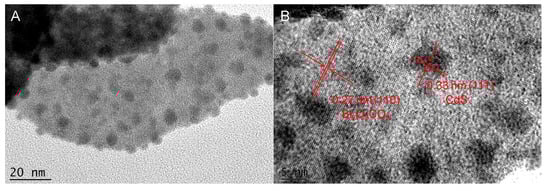

Figure 3. TEM images of the prepared Bi2O2CO3/CdS QDs-10 photocatalyst: low magnification (A) and high magnification (B).
Figure 3. TEM images of the prepared Bi2O2CO3/CdS QDs-10 photocatalyst: low magnification (A) and high magnification (B).
Catalysts 10 01046 g003
Catalysts 10 01046 g004 550

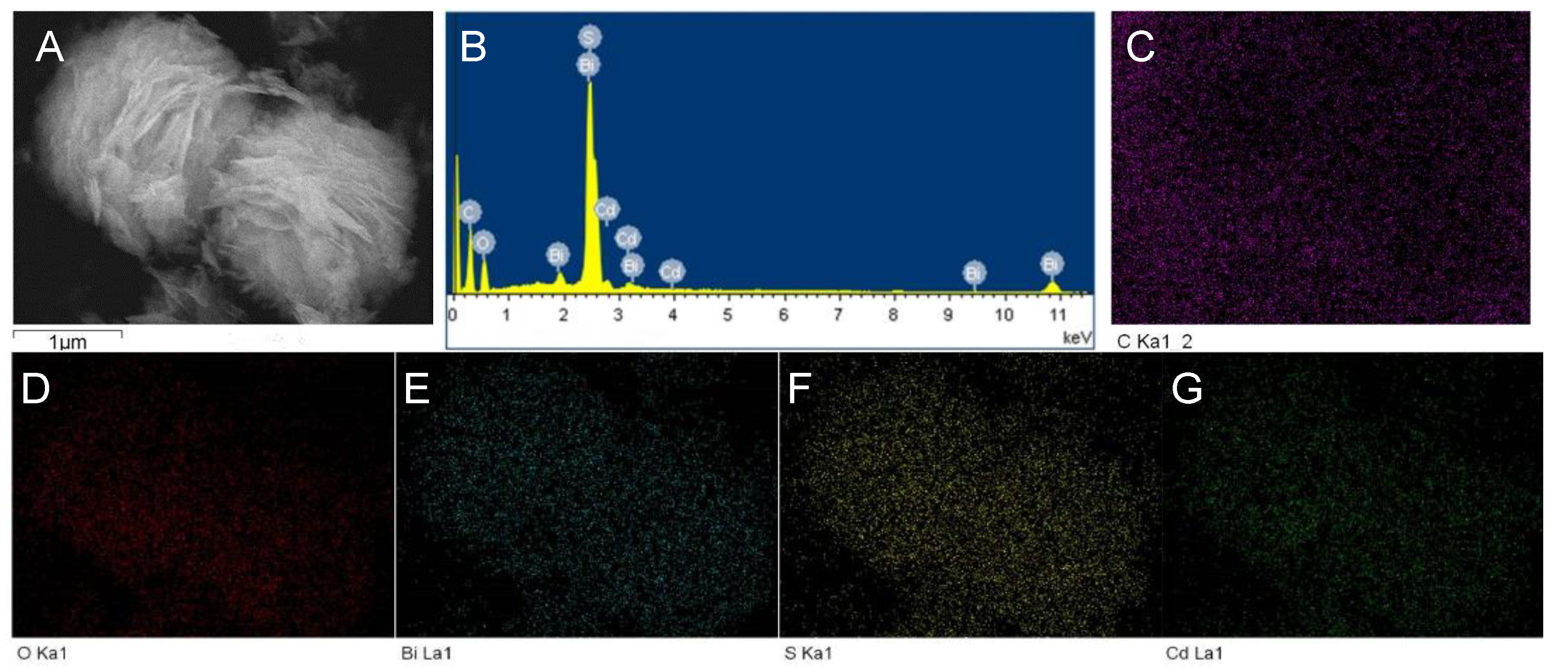

Figure 4. SEM image (A), the corresponding EDS spectrum (B) and EDS elemental mappings (C–G) of Bi2O2CO3/CdS QDs-10.
Figure 4. SEM image (A), the corresponding EDS spectrum (B) and EDS elemental mappings (C–G) of Bi2O2CO3/CdS QDs-10.
Catalysts 10 01046 g004
Catalysts 10 01046 g005 550

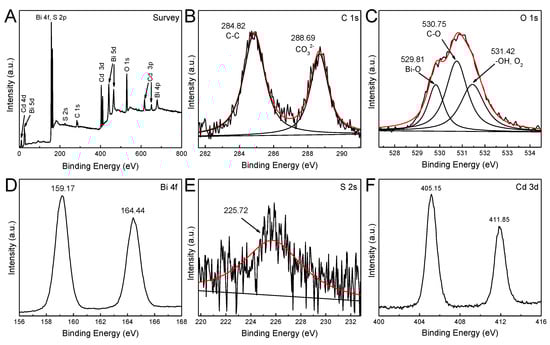

Figure 5. XPS spectra of the prepared Bi2O2CO3/CdS QDs-10 photocatalyst: the total survey (A), C 1s (B), O 1s (C), Bi 4f (D), S 2p (E), Cd 3d (F) XPS core level spectra.
Figure 5. XPS spectra of the prepared Bi2O2CO3/CdS QDs-10 photocatalyst: the total survey (A), C 1s (B), O 1s (C), Bi 4f (D), S 2p (E), Cd 3d (F) XPS core level spectra.
Catalysts 10 01046 g005
Catalysts 10 01046 g006 550

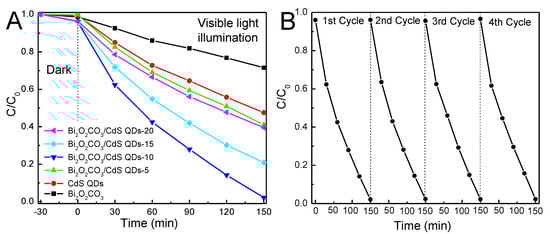

Figure 6. Photocatalytic RhB degradation performance of the prepared photocatalysts (A); the cyclic photocatalytic RhB degradation test of Bi2O2CO3/CdS QDs-10 (B).
Figure 6. Photocatalytic RhB degradation performance of the prepared photocatalysts (A); the cyclic photocatalytic RhB degradation test of Bi2O2CO3/CdS QDs-10 (B).
Catalysts 10 01046 g006
Catalysts 10 01046 g007 550

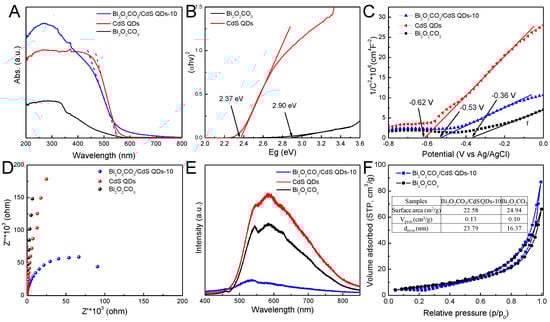

Figure 7. UV–Vis absorption spectra of Bi2O2CO3, CdS QDs and Bi2O2CO3/CdS QDs-10 (A); the plot of transformed Kubelka–Munk function versus the light energy of Bi2O2CO3 and CdS QDs (B); Mott–Schottky plots (C), electrochemical impedance spectroscopy (D) and Photoluminescence spectra (E) of Bi2O2CO3, CdS QDs and Bi2O2CO3/CdS QDs-10; Nitrogen adsorption-desorption isotherms (The inset is the inserted table of the calculated BET surface areas, Vpore and dpore) of Bi2O2CO3 and Bi2O2CO3/CdS QDs-10 (F).
Figure 7. UV–Vis absorption spectra of Bi2O2CO3, CdS QDs and Bi2O2CO3/CdS QDs-10 (A); the plot of transformed Kubelka–Munk function versus the light energy of Bi2O2CO3 and CdS QDs (B); Mott–Schottky plots (C), electrochemical impedance spectroscopy (D) and Photoluminescence spectra (E) of Bi2O2CO3, CdS QDs and Bi2O2CO3/CdS QDs-10; Nitrogen adsorption-desorption isotherms (The inset is the inserted table of the calculated BET surface areas, Vpore and dpore) of Bi2O2CO3 and Bi2O2CO3/CdS QDs-10 (F).
Catalysts 10 01046 g007
Catalysts 10 01046 g008 550

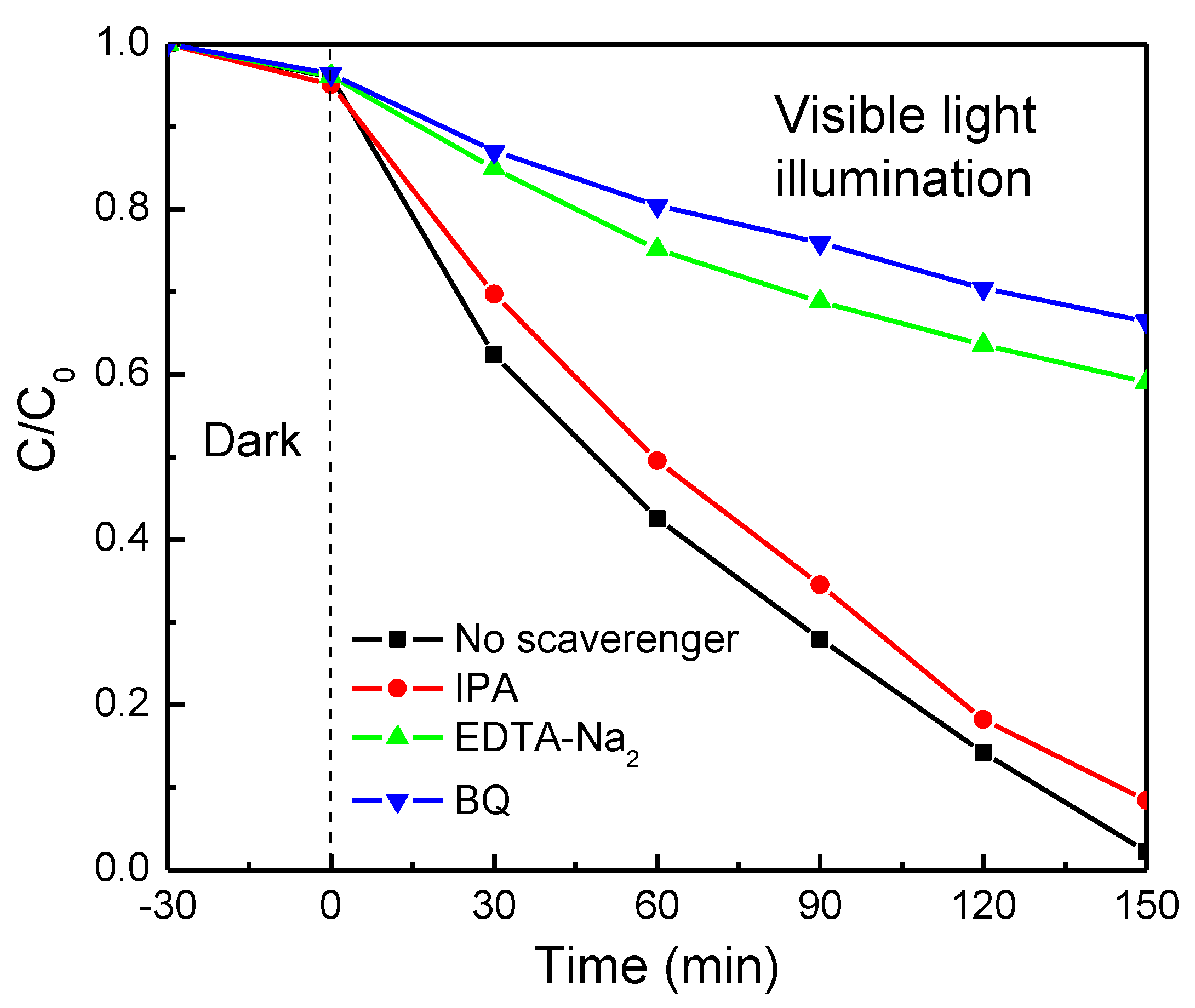

Figure 8. Photocatalytic RhB degradation curves of Bi2O2CO3/CdS QDs-10 containing with different scavengers.
Figure 8. Photocatalytic RhB degradation curves of Bi2O2CO3/CdS QDs-10 containing with different scavengers.
Catalysts 10 01046 g008
Catalysts 10 01046 g009 550

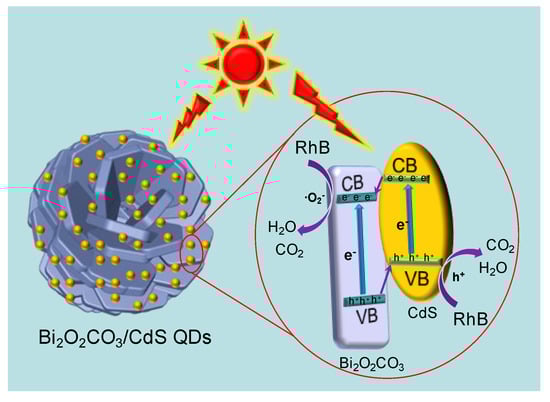

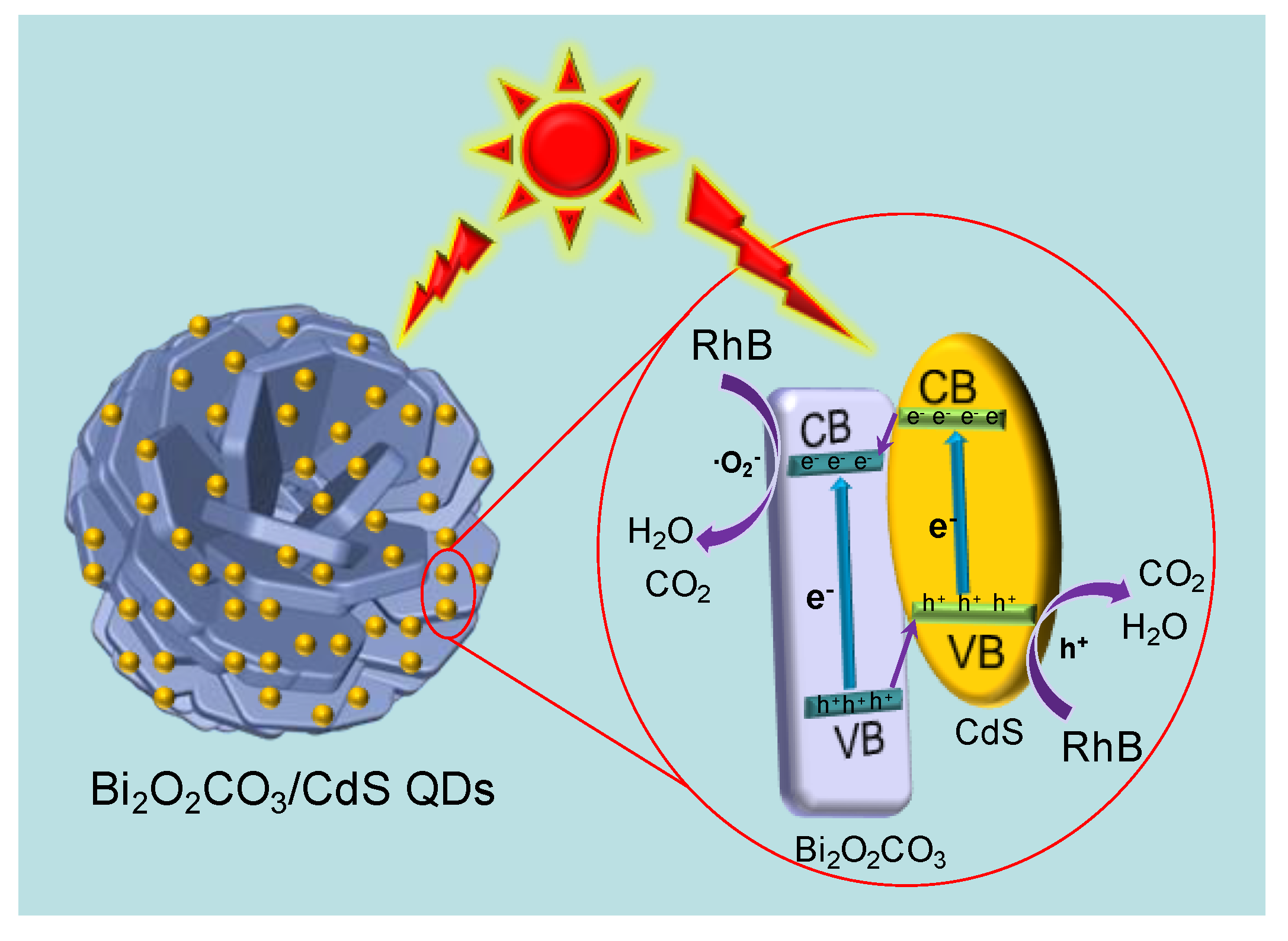

Figure 9. Schematic illustration of the enhanced photocatalytic degradation performance of Bi2O2CO3/CdS QDs-10.
