Rhodium (II)-Catalyzed Synthesis of Tetracyclic 3,4-Fused Indoles and Dihydroindoles

Department of Chemistry, Tsinghua University, Beijing 100084, China
State Key Laboratory of Chemical Resource Engineering, Beijing University of Chemical Technology, Beijing 100029, China
Authors to whom correspondence should be addressed.
H.Q. and J.B. contributed equally to this work.
Catalysts 2020, 10(8), 920;
Submission received: 4 July 2020 / Revised: 6 August 2020 / Accepted: 6 August 2020 / Published: 11 August 2020


An efficient synthetic method of tetracyclic 3,4-fused indoles and dihydroindoles via rhodium-catalyzed (3+2) cycloaddition of N-tosyl-4-(2-phenoxyphenyl)-1,2,3-triazole was described. The aromatized xanthene derivatives can be achieved in a one-pot synthesis starting from 1-ethynyl-2-phenoxybenzene. The xanthene-based fused heterocycles were considered as the valuable fluorophore.

Graphical Abstract

1. Introduction

Xanthene-based fluorescent dyes largely containing fluorescein and rhodamine have attracted continuous attention from researchers because of their good photophysical properties such as high absorption coefficient, high photostability, and high fluorescence quantum yield [1,2,3,4,5,6,7,8]. However, absorption and emission wavelengths of many xanthene derivatives are in the ultraviolet-visible light range below 600 nm, which makes them unsuitable for bioimaging in living systems [9]. An important modification to the dyes is the introduction of a fused aryl ring into the xanthene skeleton. This modification brings a remarkable bathochromic shift in excitation and emission wavelengths [10]. The classic examples are Rho 101, naphthoxanthene, and SNARF-1, which exhibit much longer wavelengths than those of rhodamine and fluorescein under basic conditions (Figure 1) [11,12,13].
Rhodium-stabilized donor/acceptor carbenes as reactive intermediates have been widely applied in modern organic synthesis [14,15,16,17,18,19,20,21,22,23,24,25,26]. Among them, N-sulfonyl-1,2,3-triazole as an alternative source of carbene precursor has been used to achieve the transannulation reaction for the direct synthesis of heterocycles [27,28,29,30,31,32,33,34,35,36,37,38,39,40,41]. Murakami’s group described a rhodium-catalyzed (3+2) annulation reaction of tricyclic 3,4-fused dihydroindoles via the corresponding 1,2,3-triazoles [42,43,44,45]. Recently, Davies et al. described a series of rhodium(II)-catalyzed intramolecular annulations of indolyl- and pyrrolyl-tethered N-sulfonyl-1,2,3-triazoles, including tetrahydropyrrolopyridine, tetrahydrocarboline, tetrahydro pyrrolo-[2,3-d]azepine, and azepino [4,5-b]indoles [46,47]. Based on these findings, we wondered if an analogous α-imino carbene can be used to construct a tetracyclic aryl-fused structure from simple materials in the presence of rhodium(II) catalysts. Thus, we here described a rhodium-catalyzed intramolecular (3+2) annulation to synthesize tetracyclic compounds. In addition, the reaction constituted a simple synthesis of aromatizing pyrrole-fused xanthene starting from 1-ethynyl-2-phenoxybenzene in one pot (Figure 1).

2. Results and Discussion

Firstly, the substituted phenylboronic acids were coupled with 2-iodophenol in the presence of Cu(OAc)2 to provide 1-iodo-2-phenoxybenzene 1. Iodine was converted to a trimethylsilylacetylene (TMSA) functional group using PdCl2(PPh3)2 and CuI as the catalysts, and then trimethylsilyl was removed in CH2Cl2 solution containing K2CO3 to give 1-ethynyl-2-phenoxybenzene 3 [48]. Subsequently, the key intermediate N-tosyl-4-(2-phenoxyphenyl)-1,2,3-triazole 4 was obtained via (3+2) cycloaddition of 3 with tosyl azide in the presence of CuTc. When the triazole 4 reacted with rhodium(II) octanoate dimer in toluene at 80 °C for 4 h, the desired tetracyclic compound 5 was obtained after chromatography purification. The results delineated the scope of the (3+2) annulation reaction as shown in Scheme 1. Substrates possessing the electron-withdrawing groups smoothly reacted, and the corresponding products 5c–5f were isolated in yields ranging from 84% to 92%. The unsubstituted and electron-donating group substituted substrates also successfully involved in the transformation with yields of 72% and 70%, respectively (5a and 5b). The stereochemistry of the tetracyclic products was analyzed by 1H NMR data of 5a5f. H atoms on the methenyl group showed relatively large coupling constants (J = 14.0–15.8 Hz). Narasaka K. et al. reported a series of cis- and trans-fused (4,5,6,7-η)-3a,7a-dihydro-3H-indoles, in which the J of the cis-fused isomer was much larger than the trans- one [49]. Similarly, the coupling constants of cis-fused indole derivatives in Murakami’s report were also up to 14 Hz [42]. Thus, the compounds 5a5f were considered as cis-fused isomers.
We next speculated the possible mechanism for the production of the tetracyclic 3,4-fused dihydroindole 5 (Scheme 2). An α-diazo imino A was formed by reversible tautomerization from the corresponding triazole 4. The intermediate α-imino rhodium carbene B was obtained with the release of N2 (g) when A rapidly reacted with rhodium (II). Subsequently, the intramolecular electrophilic reaction of B occurred to form the zwitterionic intermediate C. The anionic rhodium released bonding electrons, completing the second cyclization [42]. The intermediate A acts as a 1,3-dipole equivalent due to the nucleophilic character of the imino nitrogen. According to Davies report [47], alternatively, α-diazoimine A undergoes thermal decomposition to generate free carbene D, which could cyclopropanate an arene to give norcaradiene E. The intermediate E does not have the correct geometry to undergo a (3,5)-sigmatropic rearrangement to give 5.
It is noted that it was a bit hard to isolate compound 5 after the reaction because we found these tetracyclic structures were easily oxidized in air, giving the corresponding aromatized pyrrole-fused xanthene derivative 6. According to Murakami’s report, a special oxidant (such as MnO2) was needed to complete further oxidative aromatization [42]. However, in our case, thorough aromatization can be achieved by stirring in air for some hours. Thus, we subsequently tried to directly synthesize aromatized xanthene derivatives.
The construction of these pyrrole-fused xanthene compounds was successfully integrated into a one-pot synthesis directly from 1-ethynyl-2-phenoxybenzene 3 (Scheme 3). For example, 3g (1.0 equiv), tosyl azide (1.0 equiv), CuTc (0.05 equiv), Rh2(oct)4 (0.02 equiv), and toluene were mixed together in a flask. The above mixture was stirred at 25 °C for 12 h, during which 3g was converted to the corresponding triazole 4g. The mixture was then stirred at 80 °C for additional 4 h. After being cooled to room temperature, the mixture was further stirred for 4 h in air. Finally, preparative thin-layer chromatography was used to afford 6g in 73% yield based on 3g. The all-in-one-pot procedure showed that the catalysts and reagents requisite in each step barely interfered with each other.
The present reaction was also used to synthesize xanthone 7 from triazole diaryl ether 4, as shown in Scheme 4. When N,N-diethyl substituted 4k in toluene and was catalyzed by Rh2(oct)4 at 80 °C, no pyrrole-fused xanthene skeleton was obtained. Instead, the corresponding xanthone 7k was obtained in 75% isolated yield. After the first cycloaddition to form intermediate C, the strong electron-donating substituent N(C2H5)2 weakened the electropositivity of the allyl position, which was unfavorable for the second cyclization with the imino nitrogen. The tosyl amide was further oxidized to a carbonyl group in air, affording a stable xanthone derivative. Similarly, the substrate 4l’ with an intense electron-donor group diethyl amine also underwent a single cycloaddition reaction to give xanthone 7l’ in 80% yield. Shen et al. reported a similar process for the synthesis of N-methyl acridone derivatives [50]. The triazole intermediate was converted to acridone by rhodium catalysis via a single cycloaddition.
In addition, a special case of the rhodium catalysis process was obtained for the O-methoxy substrate. The (3+2) annulation reaction of N-tosyl-4-(2-phenoxyphenyl)-1,2,3-triazole 4m took place by Rh2(oct)4 in toluene under the same conditions. However, oxidative aromatization directly occurred during the process of annulation, and also the O-methoxy group was simultaneously removed, affording the aromatized pyrrole-fused xanthene 8 with 78% yield (Scheme 5). Due to the rotatable C-O bond in diaryl ether, the carbenoid carbon of B is electrophilic to react with methoxyl site. When intramolecular attack of the phenyl ring in the methoxyl site occurs to furnish the zwitterionic intermediate, methoxyl as a good leaving group could be removed. In the tested substrates, only O-methoxy-substituted triazole could be aromatized, retaining a tosyl group in the oxidation process.
Encouraged by the straightforward synthetic pathway described above, we tried to investigate the fluorescent properties of the pyrrole-fused xanthene skeleton. The excitation (λex) and emission (λem) wavelengths of the typical structures were tested as shown in Table 1. The unaromatized 5a showed spectral characteristics that were comparable to rhodamine with λem = 443 nm and Φ = 0.31. The entirely aromatized structures via oxidation, such as 6g6j, exhibited longer emission wavelengths at 471, 480, and 552 nm, respectively. When the substituent was an electron-withdrawing NO2 group, the fluorescent properties including emission wavelength and quantum yield remarkably increased. Two xanthone-based products, 7k and 7l’, were also analyzed, giving λem = 426 nm and λem = 457 nm with acceptable quantum yields, respectively. These results indicated that the pyrrole-fused xanthene or imino-modified derivatives in pyrrole were used as a potential fluorophore to develop new applications.

3. Materials and Methods

3.1. Materials

Unless specifically mentioned, all chemicals were purchased from Beijing Ouhe Technology Co. Ltd., Beijing, China, or J&K Scientific Ltd., Beijing, China, and used without further purification.

3.2. Typical Procedure for the Synthesis of Triazole 4

A mixture of 3a (1.32 g, 6.80 mmol) and copper(I) thiophene-2-carboxylate (64.79 mg, 0.34 mmol) was dissolved in dry toluene (30 mL). TsN3 (1.38 mL, 6.80 mmol) was added via syringe, and the solution was stirred at room temperature for 12 h under a nitrogen atmosphere. The crude product was further recrystallized from hexane/CH2Cl2 (15:1) to yield the final pure 4a as a white solid (77% yield). Compounds 4bf were synthesized using a similar route according to 4a.

3.3. Tetracycle 5 Synthesis by Rh(II) Catalyst

Compound 4a (0.65 g, 1.66 mmol) and Rh2(oct)4 (25.86 mg, 0.03 mmol) were dissolved in dry toluene (10 mL) in a Schlenk tube. The solution was heated for 4 h at 80 °C. Then, the mixture was evaporated under vacuum to give the crude product, which was purified by silica gel column chromatography hexane/ethyl acetate (20:1) to give 5a (72% yield). Compounds 5b–f were synthesized using a similar route according to 5a.

3.4. One-Pot Synthesis of 6 Starting from 1-ethynyl-2-phenoxybenzene

Compound 3g (0.8 g, 3.84 mmol), TsN3 (0.76 g, 3.84 mmol), CuTc (36.62 mg, 0.19 mmol), and Rh2(oct)4 (59.82 mg, 76.83 μmol) were dissolved in dry toluene (10 mL) in a Schlenk tube. The solution was stirred at room temperature for 12 h and then heated to 80 °C for 4 h. After being cooled to room temperature, the solution was further stirred at room temperature for 4 h in air. Then, the mixture was evaporated under vacuum to give the crude product, which was purified by silica gel column chromatography hexane/ethyl acetate (20:1) to give 6g (60% yield). Compounds 6h–j were synthesized using a similar route according to 6g.

3.5. Synthesis of 9H-xanthen-9-one and Special Oxidative Aromatization Reaction of 4-(2-phenoxyphenyl)-1,2,3-triazole

Compounds 7k, 7l’, and 8 were synthesized using a similar route according to 5a.

3.6. Calculation of the Fluorescence Quantum Yield

The quantum yield of the fluorophore was calculated according to Equation (1):
φ U = φ S ( F U F S ) ( A S A U ) ( η U 2 η S 2 )
where φs is the quantum yield of the standard, F is the area under the emission spectra, A is the absorbance at the excitation wavelength, and η is the refractive index of the solvent used. U subscript denotes unknown, and S means standard. Rhodamine B was chosen as the standard.

4. Conclusions

In conclusion, we have described the intramolecular (3+2) annulation of α-imino rhodium carbene complexes to construct tetracyclic 3,4-fused indoles and dihydroindoles. Of note is that the reaction is illustrated by its successful integration into a one-pot synthesis directly from 1-ethynyl-2-phenoxybenzene, giving a series of xanthene derivatives. Xanthenes are important in fluorescent dye and medicinal chemistry, and we think that the current approach is an appealing choice for the construction of molecular libraries for diversity-oriented synthesis.

Supplementary Materials

The following are available online at NMR and HRMS data of compounds 48; 1H NMR, 13C NMR, and HRMS spectra of compounds 4–8; fluorescence spectra of 5a, 6g, 6h, 6j, 7k, and 7l’.

Author Contributions

Performed the experiments, H.Q. and J.B.; wrote the manuscript, S.Z. and C.L.; analyzed the characterization of compounds, M.Z., J.G., and A. All authors have read and agreed to the published version of the manuscript.


This research was funded by the National Natural Science Foundation of China (21974078, 21672021, and 21572018).

Conflicts of Interest

The authors declare no conflict of interest.


  1. Lavis, L.D.; Rutkoski, T.J.; Raines, R.T. Tuning the pKa of Fluorescein to Optimize Binding Assays. Anal. Chem. 2007, 79, 6775. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Yan, F.Y.; Fan, K.Q.; Bai, Z.J.; Zhang, R.Q.; Zu, F.L.; Xu, J.X.; Li, X. Fluorescein applications as fluorescent probes for the detection of analytes. Trend. Anal. Chem. 2017, 97, 15. [Google Scholar] [CrossRef]
  3. Beija, M.; Afonso, C.A.M.; Martinho, J.M.G. Synthesis and applications of Rhodamine derivatives as fluorescent probes. Chem. Soc. Rev. 2009, 38, 2410. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Lavis, L.D. Teaching Old Dyes New Tricks: Biological Probes Built from Fluoresceins and Rhodamines. Annu. Rev. Biochem. 2017, 86, 825. [Google Scholar] [CrossRef]
  5. Wang, L.; Du, W.; Hu, Z.; Uvdal, K.; Li, L.; Huang, W. Hybrid Rhodamine Fluorophores in the Visible/NIR Region for Biological Imaging. Angew. Chem. Int. Ed. 2019, 58, 14026. [Google Scholar] [CrossRef]
  6. Lavis, L.D.; Raines, R.T. Bright Ideas for Chemical Biology. ACS Chem. Biol. 2008, 3, 142. [Google Scholar] [CrossRef] [Green Version]
  7. Kushida, Y.; Nagano, T.; Hanaoka, K. Silicon-substituted xanthene dyes and their applications in bioimaging. Analyst 2015, 140, 685. [Google Scholar] [CrossRef]
  8. Derayea, S.M.; Nagy, D.M. Application of a xanthene dye, eosin Y, as spectroscopic probe in chemical and pharmaceutical analysis; a review. Rev. Anal. Chem. 2018, 37, 20170020. [Google Scholar] [CrossRef]
  9. Zhao, M.; Guo, Y.S.; Xu, W.N.; Zhao, Y.F.; Xie, H.Y.; Li, H.J.; Chen, X.F.; Zhao, R.S.; Guo, D.S. Far-red to near-infrared fluorescent probes based on silicon-substituted xanthene dyes for sensing and imaging. Trend. Anal. Chem. 2020, 122, 115704. [Google Scholar] [CrossRef]
  10. Zheng, H.; Zhan, X.Q.; Bian, Q.N.; Zhang, X.J. Advances in modifying fluorescein and rhodamine fluorophores as fluorescent chemosensors. Chem. Commun. 2013, 49, 429. [Google Scholar] [CrossRef] [PubMed]
  11. Lee, L.G.; Berry, G.M.; Chen, C.H. Vita blue: A new 633-nm excitable fluorescent dye for cell analysis. Cytometry 1989, 10, 151. [Google Scholar] [CrossRef] [PubMed]
  12. Whitaker, J.E.; Haugland, R.P.; Prendergast, F.G. Spectral and photophysical studies of benzo[c]xanthene dyes: Dual emission pH sensors. Anal. Biochem. 1991, 194, 330. [Google Scholar] [CrossRef]
  13. Liu, J.; Diwu, Z.; Leung, W.Y. Synthesis and photophysical properties of new fluorinated benzo[c]xanthene dyes as intracellular pH indicators. Bioorg. Med. Chem. Lett. 2001, 11, 2903. [Google Scholar] [CrossRef]
  14. Gu, J.; Du, W.; Chen, Y. Combined Asymmetric Aminocatalysis and Carbene Catalysis. Synthesis 2015, 47, 3451. [Google Scholar]
  15. Mahrwald, R. Organocatalytic methods for C-C bond formation. Drug Discov. Today 2013, 10, 29. [Google Scholar] [CrossRef] [PubMed]
  16. Meng, J.; Wen, M.; Zhang, S.W.; Pan, P.W.; Yu, X.X.; Deng, W.P. Unexpected O-H Insertion of Rhodium-Azavinylcarbenes with N-Acylhydrazones: Divergent Synthesis of 3,6-Disubstituted- and 3,5,6-Trisubstituted-1,2,4-Triazines. J. Org. Chem. 2017, 82, 1676. [Google Scholar] [CrossRef]
  17. Lavigne, F.; Kazzi, A.E.; Escudie, Y.; Maerten, E.; Kato, T.; Saffon-Merceron, N.; Branchadell, V.; Cossio, F.P.; Baceiredo, A. Azavinylidenephosphoranes: A class of cyclic push-pull carbenes. Chem. Eur. J. 2014, 20, 12528. [Google Scholar] [CrossRef]
  18. Arduengo, A.J.; Dias, H.V.; Harlow, R.L. Electronic stabilization of nucleophilic carbenes. J. Am. Chem. Soc. 1992, 114, 5530. [Google Scholar] [CrossRef]
  19. Chuprakov, S.; Malik, J.A.; Zibinsky, M.; Fokin, V.V. Catalytic Asymmetric C-H Insertions of Rhodium(II) Azavinyl Carbenes. J. Am. Chem. Soc. 2011, 133, 10352. [Google Scholar] [CrossRef] [Green Version]
  20. He, J.; Shi, Y.P.; Cheng, W.L.; Man, Z.M.; Yang, D.D.; Li, C.Y. Rhodium-Catalyzed Synthesis of 4-Bromo-1,2-dihydroisoquinolines: Access to Bromonium Ylides by the Intramolecular Reaction of a Benzyl Bromide and an α-Imino Carbene. Angew. Chem. Int. Ed. 2016, 55, 4557. [Google Scholar] [CrossRef]
  21. Wang, Y.H.; Lei, X.Q.; Tang, Y.F. Rh(II)-catalyzed cycloadditions of 1-tosyl 1,2,3-triazoles with 2H-azirines: Switchable reactivity of Rh-azavinylcarbene as [2C]- or aza-[3C]-synthon. Chem. Commun. 2015, 51, 4507. [Google Scholar] [CrossRef] [PubMed]
  22. Stéphane, B.; Dagorne, S. Group 1 and 2 and Early Transition Metal Complexes Bearing N-Heterocyclic Carbene Ligands: Coordination Chemistry, Reactivity, and Applications. Chem. Rev. 2014, 114, 8747. [Google Scholar]
  23. Pal, K.; Hoque, A.; Volla, C.M.R. Rh-Catalyzed Denitrogenative Reaction of N-Sulfonyl-1,2,3-triazoles with Isatoic Anhydrides and Oxadiazolones. Chem. Eur. J. 2018, 24, 2558. [Google Scholar] [CrossRef] [PubMed]
  24. Selander, N.; Worrell, B.T.; Fokin, V.V. Ring Expansion and Rearrangements of Rhodium(II) Azavinyl Carbenes. Angew. Chem. Int. Ed. 2012, 51, 13054. [Google Scholar] [CrossRef] [Green Version]
  25. Selander, N.; Worrell, B.T.; Chuprakov, S.; Velaparthi, S.; Fokin, V.V. Arylation of Rhodium(II) Azavinyl Carbenes with Boronic Acids. J. Am. Chem. Soc. 2012, 134, 14670. [Google Scholar] [CrossRef] [Green Version]
  26. Jung, D.J.; Jeon, H.J.; Kim, J.H.; Kim, Y.; Lee, S. DMF as a Source of Oxygen and Aminomethine: Stereoselective 1,2-Insertion of Rhodium(II) Azavinyl Carbenes into the C=O Bond of Formamides for the Synthesis of cis-Diamino Enones. Org. Lett. 2014, 16, 2208. [Google Scholar] [CrossRef]
  27. Chattopadhyay, B.; Gevorgyan, V. Rh-catalyzed transannulation of N-tosyl-1,2,3-triazoles with terminal alkynes. Org. Lett. 2011, 13, 3746. [Google Scholar] [CrossRef] [Green Version]
  28. Zibinsky, M.; Fokin, V.V. Sulfonyl-1,2,3-Triazoles: Convenient Synthones for Heterocyclic Compounds. Angew. Chem. Int. Ed. 2013, 52, 1507. [Google Scholar] [CrossRef]
  29. Kubiak, R.W.; Mighion, J.D.; Wilkerson-Hill, S.M.; Alford, J.S.; Yoshidomi, T.; Davies, H.M.L. Enantioselective Intermolecular C-H Functionalization of Allylic and Benzylic sp3 C-H Bonds Using N-Sulfonyl-1,2,3-triazoles. Org. Lett. 2016, 18, 3118. [Google Scholar] [CrossRef] [Green Version]
  30. Alford, J.S.; Davies, H.M.L. Expanding the scope of donor/acceptor carbenes to N-phthalimido donor groups: Diastereoselective synthesis of 1-cyclopropane α-amino acids. Org. Lett. 2012, 14, 6020. [Google Scholar] [CrossRef]
  31. Khaidarov, A.R.; Rostovskii, N.V.; Zolotarev, A.A.; Khlebnikov, A.F.; Novikov, M.S. Synthesis of 1-(2-Aminovinyl)indoles and 1,3’-Biindoles by Reaction of 2,2-Diaryl-Substituted 2H-Azirines with α-Imino Rh(II) Carbenoids. J. Org. Chem. 2019, 84, 3743. [Google Scholar] [CrossRef] [PubMed]
  32. Chuprakov, S.; Hwang, F.W.; Gevorgyan, V. Rh-catalyzed transannulation of pyridotriazoles with alkynes and nitriles. Angew. Chem. Int. Ed. 2007, 46, 4757. [Google Scholar] [CrossRef] [PubMed]
  33. Horneff, T.; Chuprakov, S.; Chernyak, N. Rhodium-Catalyzed Transannulation of 1,2,3-Triazoles with Nitriles. J. Am. Chem. Soc. 2008, 130, 14972. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  34. Garlets, Z.J.; Davies, H.M.L. Harnessing the β-Silicon Effect for Regioselective and Stereoselective Rhodium(II)-Catalyzed C-H Functionalization by Donor/Acceptor Carbenes Derived from 1-Sulfonyl-1,2,3-triazoles. Org. Lett. 2018, 20, 2168. [Google Scholar] [CrossRef] [PubMed]
  35. Pan, X.H.; Jiang, P.; Jia, Z.H.; Xu, K.; Cao, J.; Chen, C.; Shen, M.H.; Xu, H.D. Expedient catalytic construction of azabicyclo[4.1.0]/[5.1.0] carbaldehydes via intramolecular cyclopropanation. Tetrahedron 2015, 71, 5124. [Google Scholar] [CrossRef]
  36. Alcaide, B.; Almendros, P.; Fernandez, I.; Campo, T.M.; Palop, G.; Toledano-Pinedo, M.; Delgado-Martinez, P. Chemoselectivity Switching in the Rhodium-Catalyzed Reactions of 4-Substituted-1-sulfonyl-1,2,3-triazoles with Allenols: Noticeable Differences between 4-Acyl- and 4-Aryl-Triazoles. Adv. Synth. Catal. 2019, 361, 1160. [Google Scholar] [CrossRef]
  37. Bora, P.P.; Luo, Z.L.; Chen, L. Rh(II)-catalyzed intramolecular dearomatizing annulation of N-sulfonyl-1,2,3-triazoles: Synthesis of polycyclic spiroindolines. Tetrahedron 2016, 72, 1467. [Google Scholar] [CrossRef]
  38. Chuprakov, S.; Worrell, B.T.; Selander, N.; Sit, R.K.; Fokin, V.V. Stereoselective 1,3-Insertions of Rhodium(II) Azavinyl Carbenes. J. Am. Chem. Soc. 2014, 136, 195. [Google Scholar] [CrossRef] [Green Version]
  39. Grimster, N.; Zhang, L.; Fokin, V.V. Synthesis and Reactivity of Rhodium(II) N-Triflyl Azavinyl Carbenes. J. Am. Chem. Soc. 2010, 132, 2510. [Google Scholar] [CrossRef] [Green Version]
  40. Miura, T.; Biyajima, T.; Fujii, T.; Murakami, M. Synthesis of α-amino ketones from terminal alkynes via rhodium-catalyzed denitrogenative hydration of N-sulfonyl-1,2,3-triazoles. J. Am. Chem. Soc. 2012, 134, 194. [Google Scholar] [CrossRef]
  41. Jeon, H.J.; Jung, D.J.; Kim, J.H.; Kim, Y.; Bouffard, J.; Lee, S. From Triazoles to Imidazolines through the Sequential N-H Insertion of α-Imino Rhodium-Carbenes into β-Enamino Esters/Enamine-Imine Tautomerization/Conjugate Addition Cascade. J. Org. Chem. 2014, 79, 9865. [Google Scholar] [CrossRef] [PubMed]
  42. Miura, T.; Funakoshi, Y.; Murakami, M. Intramolecular Dearomatizing [3+2] Annulation of α-Imino Carbenoids with Aryl Rings Furnishing 3,4-Fused Indole Skeletons. J. Am. Chem. Soc. 2014, 136, 2272. [Google Scholar] [CrossRef]
  43. Miura, T.; Zhao, Q.; Murakami, M. Selective Functionalization of Aromatic C(sp2)-H Bonds in the Presence of Benzylic C(sp3)-H Bonds by Electron-Deficient Carbenoids Generated from 4-Acyl-1-Sulfonyl-1,2,3-Triazoles. Angew. Chem. Int. Ed. 2017, 56, 16645. [Google Scholar] [CrossRef] [PubMed]
  44. Miura, T.; Funakoshi, Y.; Fujimoto, Y.; Nakahashi, J.; Murakami, M. Facile Synthesis of 2,5-Disubstituted Thiazoles from Terminal Alkynes, Sulfonyl Azides, and Thionoesters. Org. Lett. 2015, 17, 2454. [Google Scholar] [CrossRef] [PubMed]
  45. Miura, T.; Fujimoto, Y.; Funakoshi, Y.; Murakami, M. A Reaction of Triazoles with Thioesters to Produce β-Sulfanyl Enamides by Insertion of an Enamine Moiety into the Sulfur-Carbonyl Bond. Angew. Chem. Int. Ed. 2015, 54, 9967. [Google Scholar] [CrossRef] [PubMed]
  46. Fu, L.; Davies, H.M.L. Scope of the Reactions of Indolyl- and Pyrrolyl-Tethered N-Sulfonyl-1,2,3-triazoles: Rhodium(II)-Catalyzed Synthesis of Indole- and Pyrrole-Fused Polycyclic Compounds. Org. Lett. 2017, 19, 1504. [Google Scholar] [CrossRef] [Green Version]
  47. Wilkerson-Hill, S.M.; Haines, B.E.; Musaev, D.G.; Davies, H.M.L. Synthesis of [3a,7a]-Dihydroindoles by a Tandem Arene Cyclopropanation/3,5-Sigmatropic Rearrangement Reaction. J. Org. Chem. 2018, 83, 7939. [Google Scholar] [CrossRef]
  48. Xu, Y.P.; Hu, R.H.; Cai, M.Z. A facile synthesis of terminal arylacetylenes via Sonogashira coupling reactions catalyzed by MCM-41-supported mercapto palladium(0) complex. Chin. Chem. Lett. 2008, 19, 783. [Google Scholar] [CrossRef]
  49. Tanaka, K.; Yukimura, N.; Narasaka, K. Radical cyclization of O-pentafluorobenzoyloximes having a (cyclohexadiene)Fe(CO)3 moiety. Bull. Chem. Soc. Jpn. 2004, 77, 575. [Google Scholar] [CrossRef]
  50. Xu, H.D.; Pan, Y.P.; Ren, X.T.; Zhang, P.; Shen, M.H. A one-pot construction of acridones by rhodium catalyzed reaction of N-phenyl-2-(1-sulfonyl-1H-1,2,3-triazol-4-yl)aniline. Tetrahedron Lett. 2015, 56, 6734. [Google Scholar] [CrossRef]

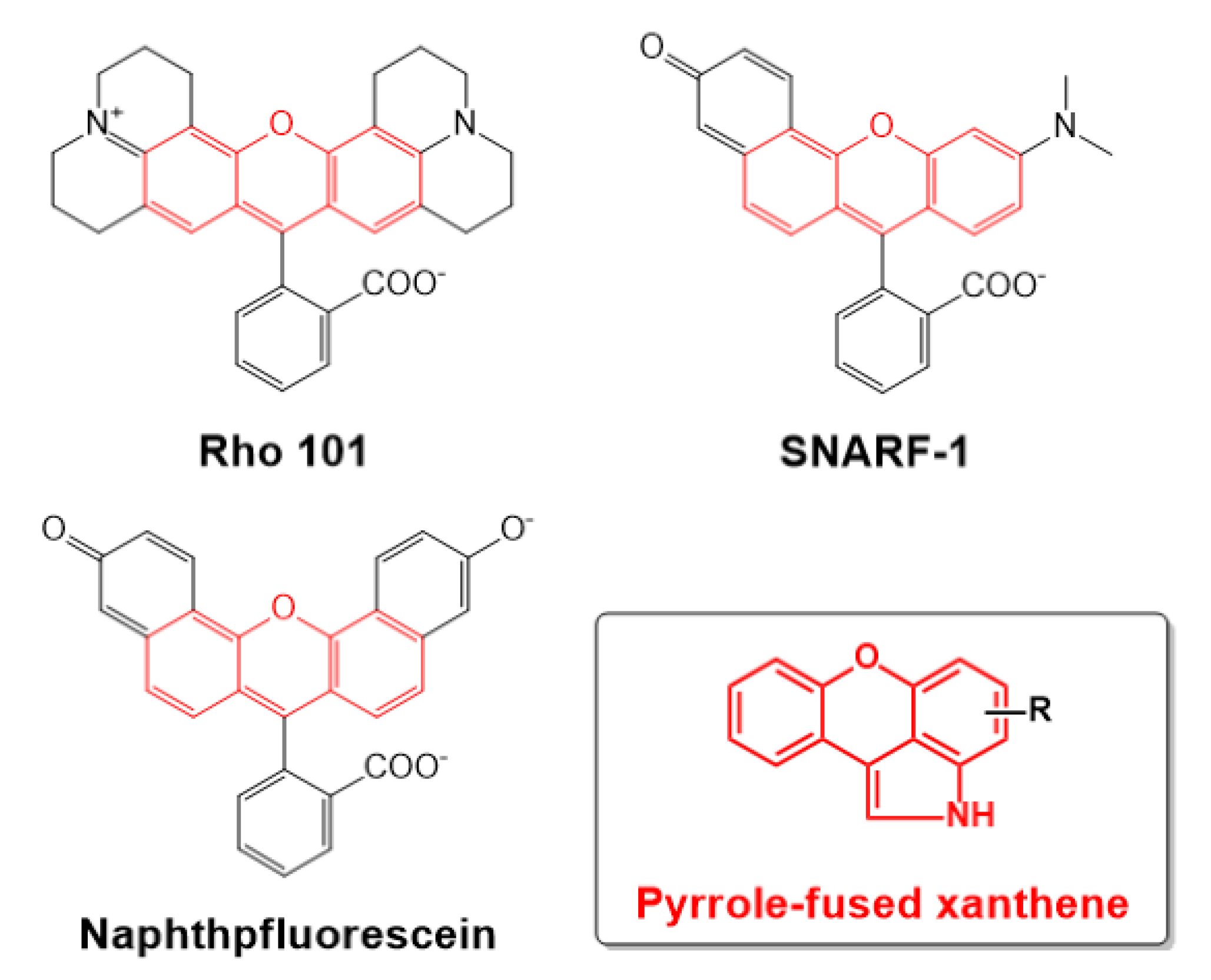

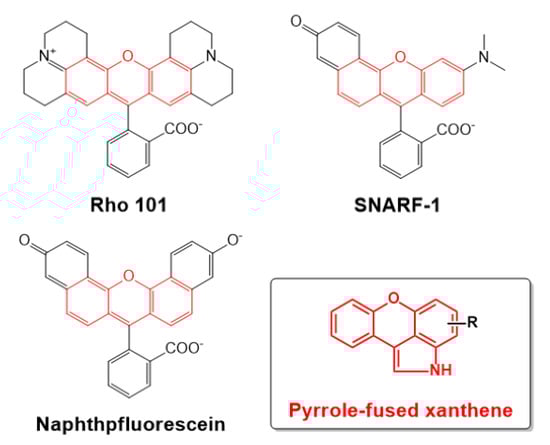

Figure 1. The fluorophores based on xanthene moiety.
Figure 1. The fluorophores based on xanthene moiety.
Catalysts 10 00920 g001

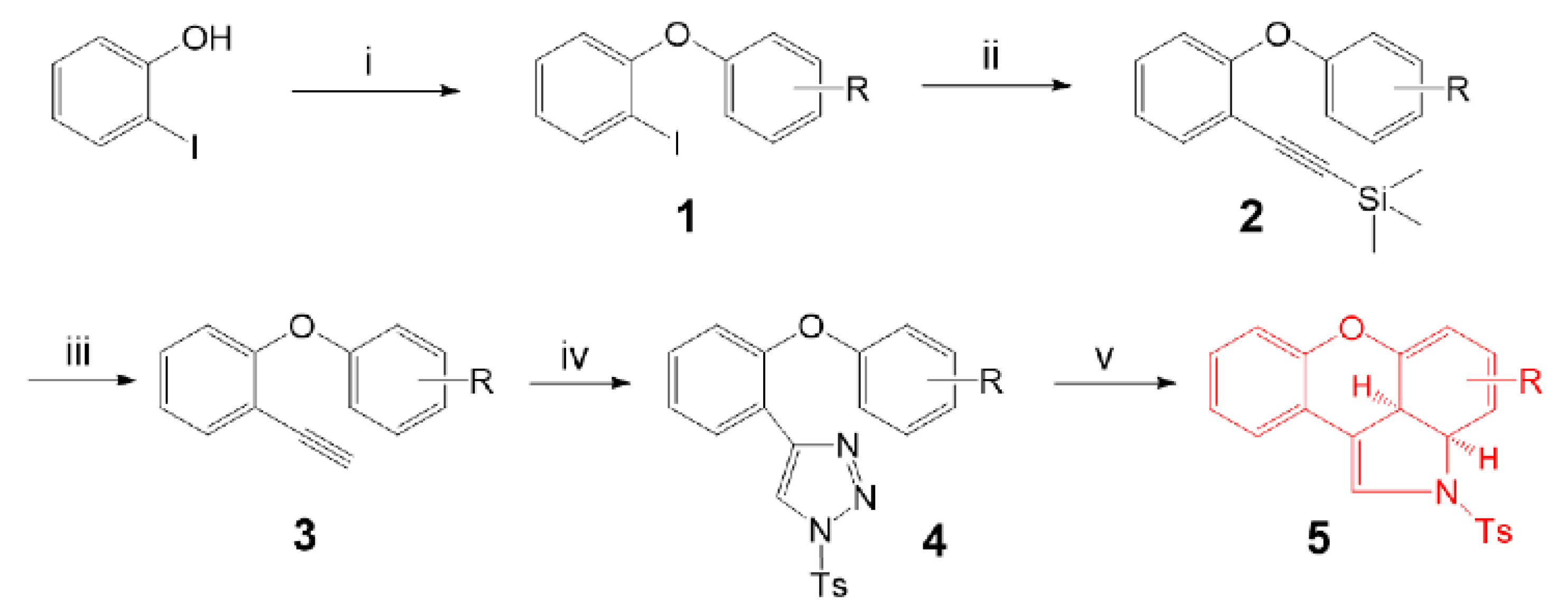

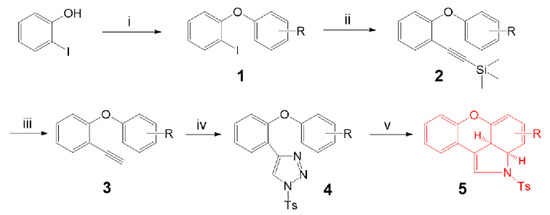

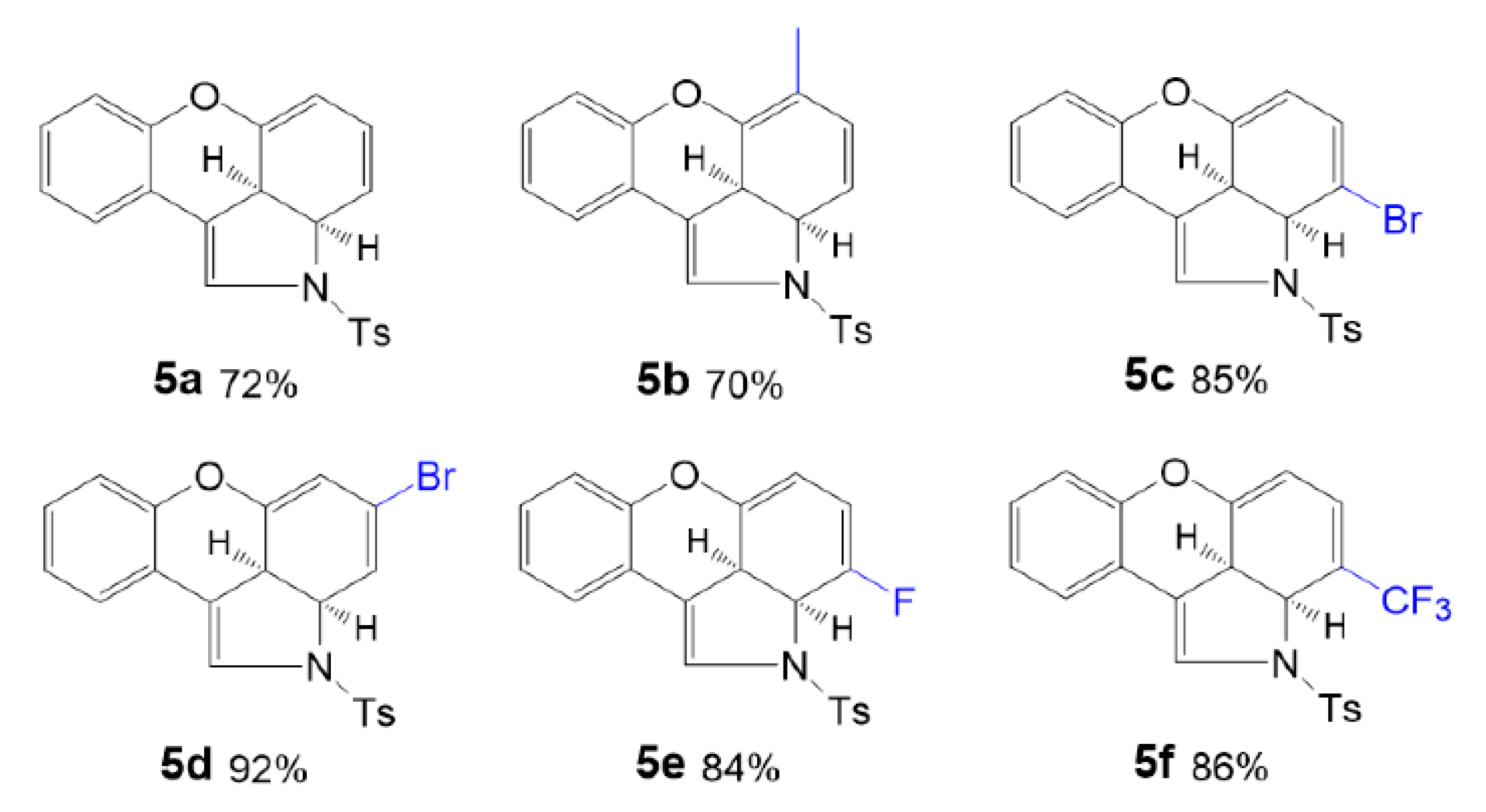

Scheme 1. Tetracycles synthesis by Rh(II) catalyst a. a Reaction conditions: (i) 2-iodophenol (1.0 equiv), substituted arylboronic acids (1.5 equiv), Et3N (5.0 equiv), anhydrous Cu(OAc)2 (1.2 equiv), CH2Cl2, r.t., 6 h. (ii) 1 (1.0 equiv), TMSA (1.1 equiv), PdCl2(PPh3)2 (0.02 equiv), CuI (0.04 equiv), Et3N, r.t., 4 h. (iii) 2 (1.0 equiv), K2CO3 (0.5 equiv), CH2Cl2:CH3OH = 1:1, r.t., 2 h. (iv) 3 (1.0 equiv), TsN3 (1.0 equiv), TcCu (0.05 equiv), toluene, r.t., N2(g), 12 h. (v) 4 (1.0 equiv), Rh2(oct)4 (0.02 equiv), toluene, 80 °C, N2(g), 4 h.
Scheme 1. Tetracycles synthesis by Rh(II) catalyst a. a Reaction conditions: (i) 2-iodophenol (1.0 equiv), substituted arylboronic acids (1.5 equiv), Et3N (5.0 equiv), anhydrous Cu(OAc)2 (1.2 equiv), CH2Cl2, r.t., 6 h. (ii) 1 (1.0 equiv), TMSA (1.1 equiv), PdCl2(PPh3)2 (0.02 equiv), CuI (0.04 equiv), Et3N, r.t., 4 h. (iii) 2 (1.0 equiv), K2CO3 (0.5 equiv), CH2Cl2:CH3OH = 1:1, r.t., 2 h. (iv) 3 (1.0 equiv), TsN3 (1.0 equiv), TcCu (0.05 equiv), toluene, r.t., N2(g), 12 h. (v) 4 (1.0 equiv), Rh2(oct)4 (0.02 equiv), toluene, 80 °C, N2(g), 4 h.
Catalysts 10 00920 sch001aCatalysts 10 00920 sch001b

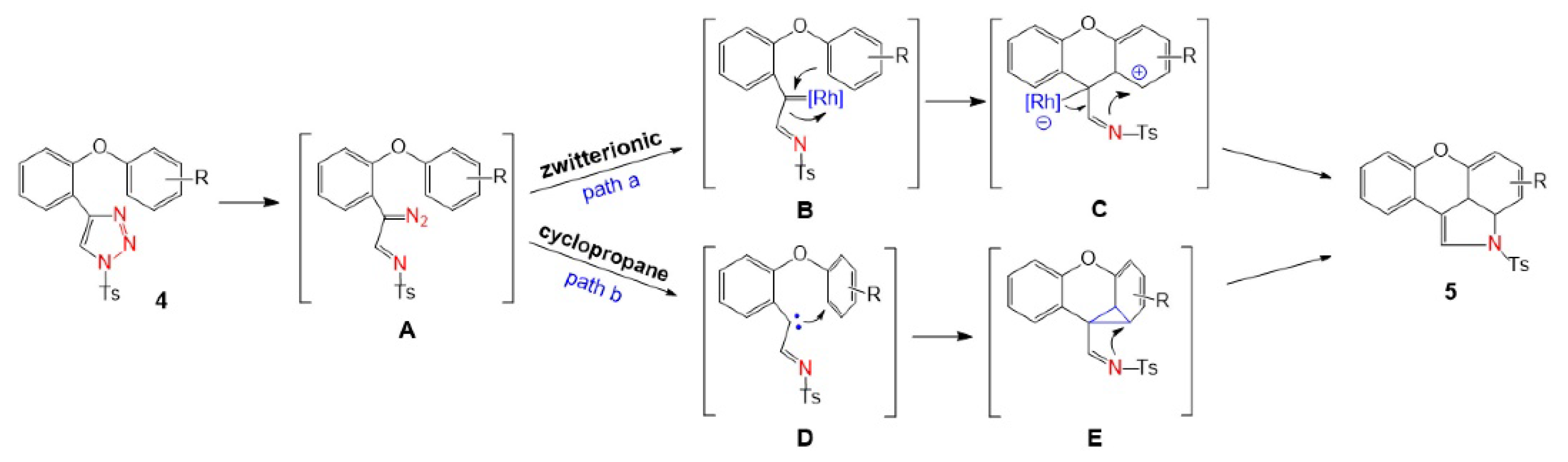

Scheme 2. Proposed mechanistic pathways.
Scheme 2. Proposed mechanistic pathways.
Catalysts 10 00920 sch002

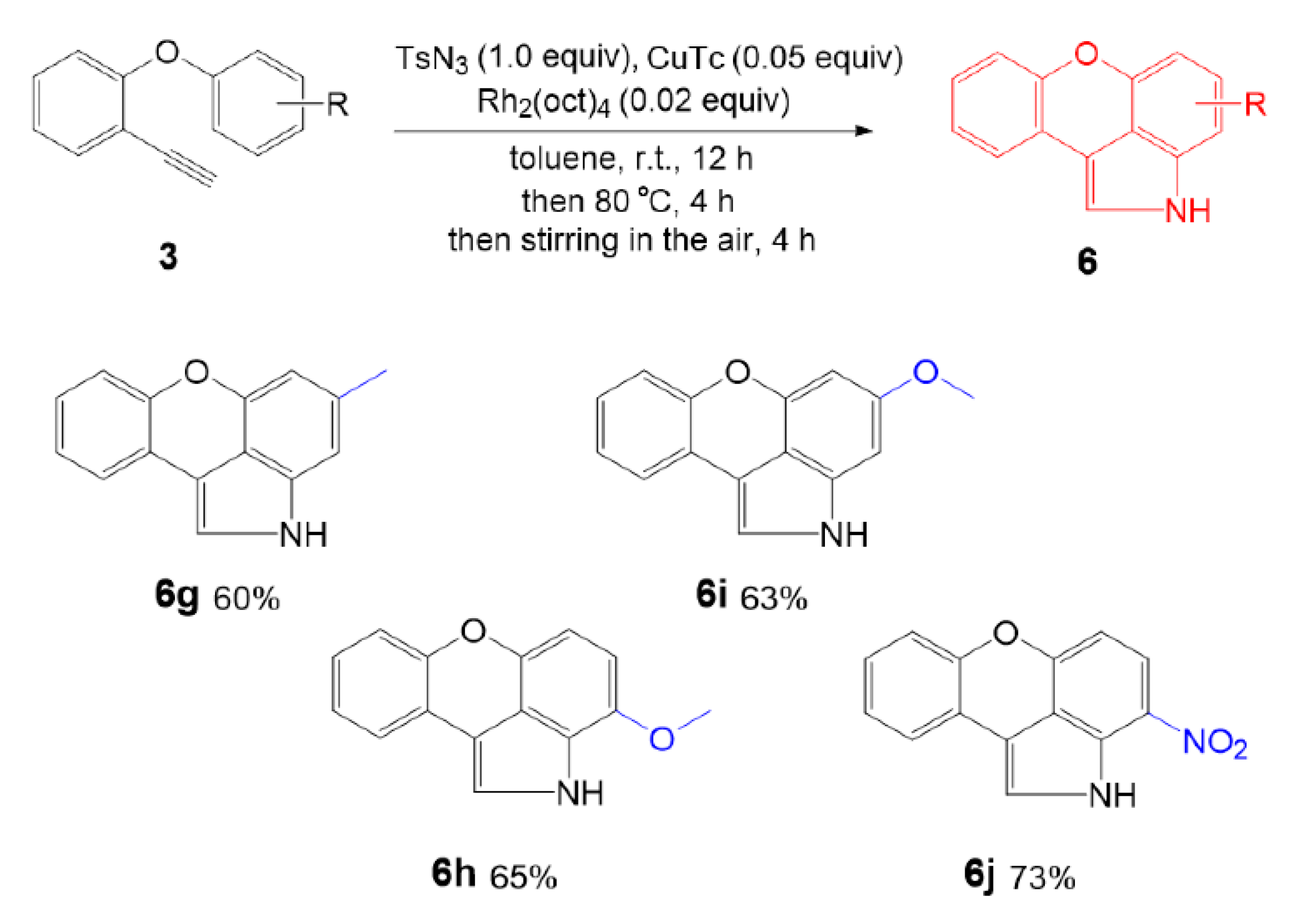

Scheme 3. One-pot synthesis starting from 1-ethynyl-2-phenoxybenzene.
Scheme 3. One-pot synthesis starting from 1-ethynyl-2-phenoxybenzene.
Catalysts 10 00920 sch003

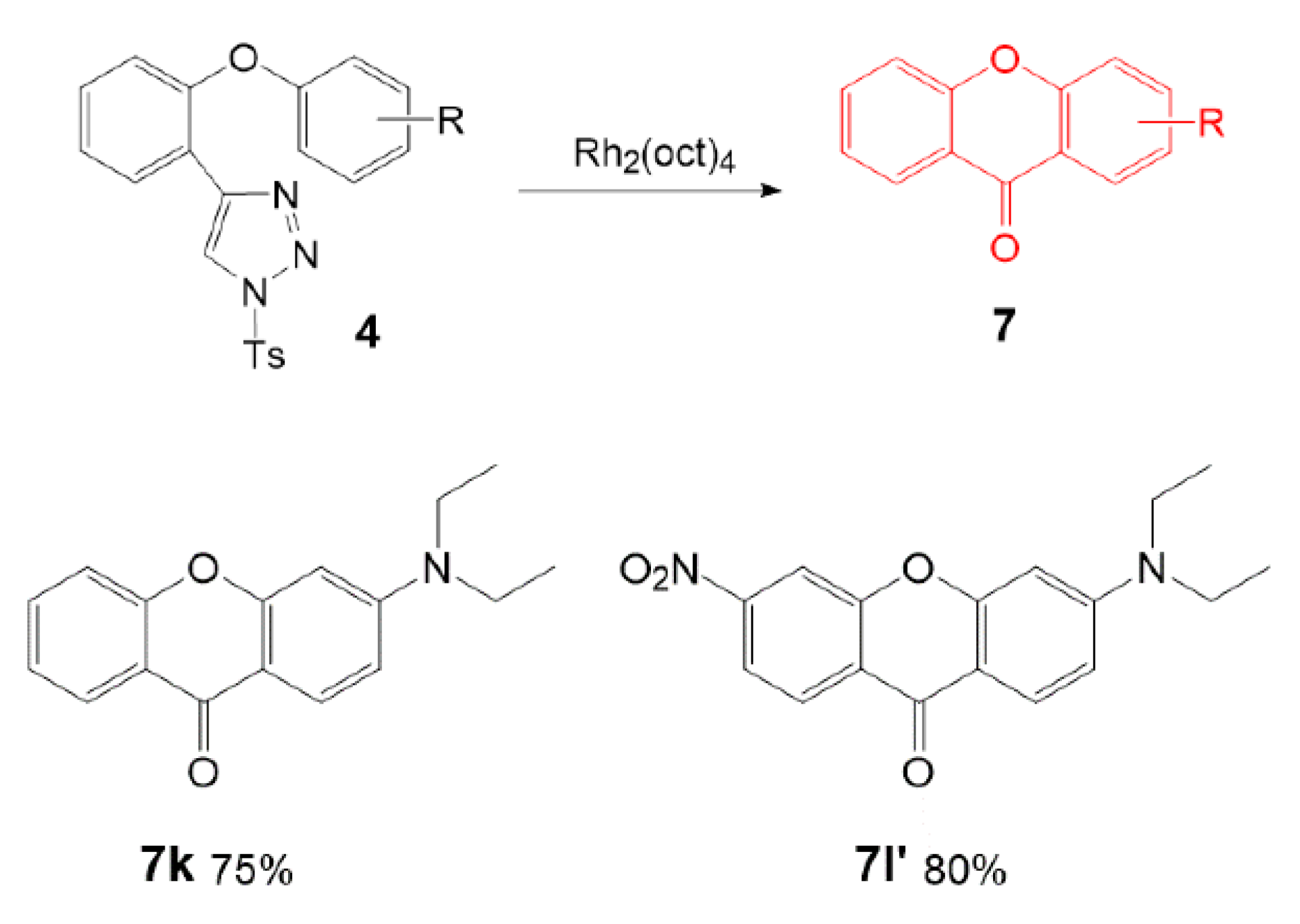

Scheme 4. Synthesis of 9H-xanthen-9-one a.
Scheme 4. Synthesis of 9H-xanthen-9-one a.
Catalysts 10 00920 sch004

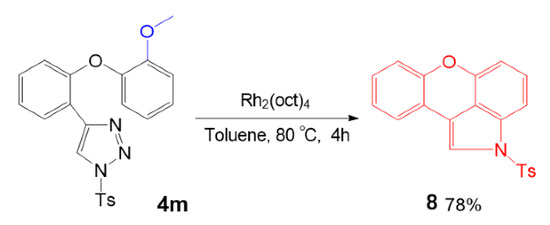

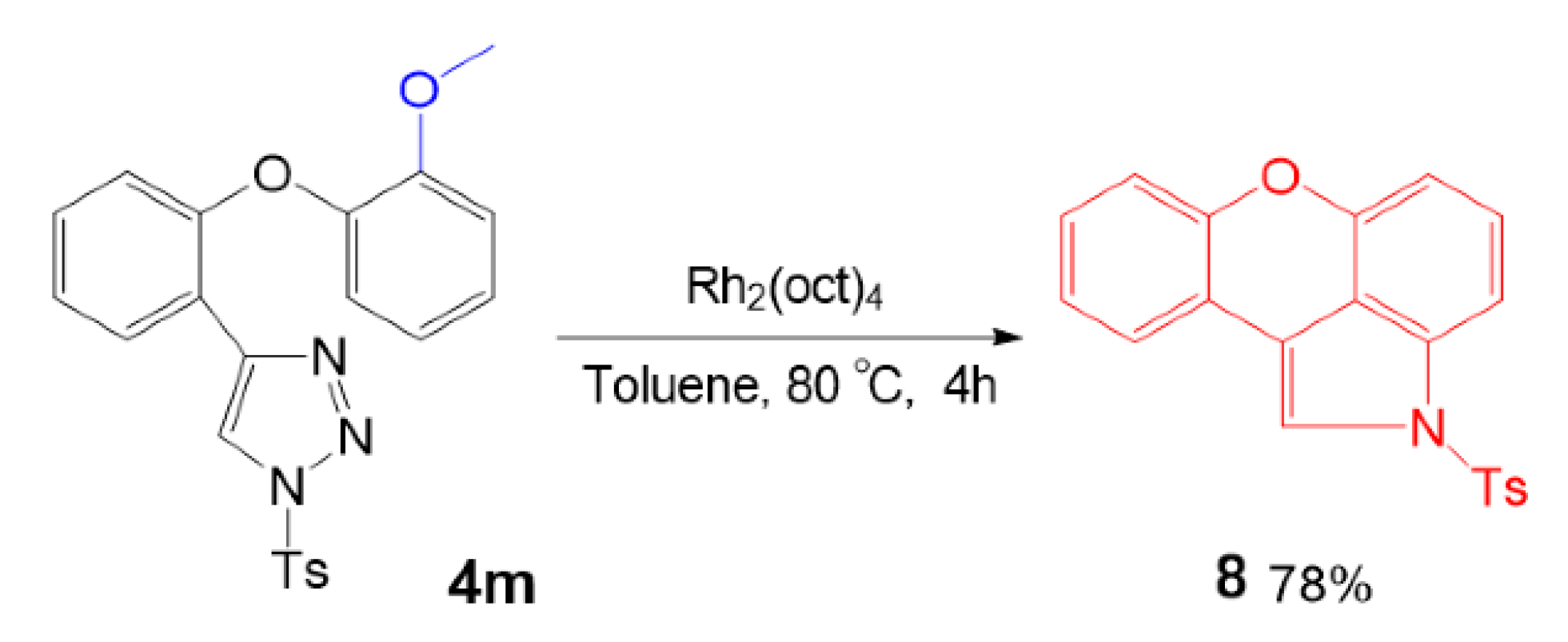

Scheme 5. Special oxidative aromatization reaction of 4-(2-phenoxyphenyl)-1,2,3-triazole.
Scheme 5. Special oxidative aromatization reaction of 4-(2-phenoxyphenyl)-1,2,3-triazole.
Catalysts 10 00920 sch005
Table 1. Fluorescent properties of the typical structures a.
Table 1. Fluorescent properties of the typical structures a.
Comp.Solventλex (nm)λem (nm)Quantum Yield (Φ)
a See SI Figure S1 for details of emission (λem) wavelength and quantum yield (Φ) for the typical compounds.
