Article

Environmental Reactions of Air-Quality Protection on Eco-Friendly Iron-Based Catalysts

by
Melissa Greta Galloni
1,†,
Sebastiano Campisi
1,†,
Sergio Gustavo Marchetti
2 and
Antonella Gervasini
1,*
1
Dipartimento di Chimica, Università degli Studi di Milano, via Camillo Golgi 19, 20133 Milano, Italy
2
Centro de Investigación y Desarrollo en Procesos Catalíticos, CINDECA (UNLP-CONICET), Calle 47 No. 257, La Plata C.P. 1900, Argentina
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to the work.
Catalysts 2020, 10(12), 1415; https://doi.org/10.3390/catal10121415
Submission received: 16 November 2020 / Revised: 27 November 2020 / Accepted: 29 November 2020 / Published: 3 December 2020
(This article belongs to the Special Issue New Generation of Eco-Friendly Catalysts for Selective Catalytic Reduction (SCR) of NOx and Related Reactions)
Browse Figures
Versions Notes

Abstract

:
A series of iron functionalized hydroxyapatite (Fe/HAP) samples with different metal loading (2 < wt.% Fe < 13) was prepared by a flash ionic exchange procedure from iron(III) nitrate as precursor and tested in some environmental air-quality protection reactions such as the catalytic reduction of NOx by NH3 (NH3-SCR), catalytic oxidation of NH3 (NH3-SCO) and catalytic N2O decomposition. The catalytic performances of the Fe/HAP catalysts were determined under flow conditions as a function of temperature and using reactant concentrations typical of polluting gaseous emissions from industrial vents. Physico-chemical characterization with various techniques of study (UV-DR and Mössbauer spectroscopies, NH3 titration, N2-physisorption, and XRPD analyses) provided valuable information on Fe-speciation, acidity, morphology, and structure of the samples. In general, highly dispersed Fe3+ centers were the predominant species, irrespective of Fe-loading, while just low percentage (≤15%) of FexOy nanoclusters (2 < size/nm < 4) was detected on the samples. As expected, the differences in iron concentration produced a diversified effect of both catalyst properties and catalytic activity, comprising the conversion and selectivity profiles, different for each reaction considered. The obtained results indicate a good potentiality for the eco-friendly Fe-catalysts for some environmental reactions of air protection.

Graphical Abstract

1. Introduction

The selective catalytic reduction of NOx to harmless N2 in the presence of NH3 as reducing agent (NH3-SCR) is currently the most effective and popular post-combustion technology for the de-nitration of flue gases [1,2]. The ideal SCR catalyst must satisfy some relevant practical requirements: (i) be effective in selectively converting NOx over a wide temperature range [3]; (ii) ensure high thermal stability and long life in the reaction even under harsh operative conditions [4,5]; (iii) cope with poisoning by some upstream components (e.g., water, sulfur, phosphorus, alkaline metals, etc.) [6,7,8].
At the current state, vanadium-based systems (e.g., V2O5/TiO2) [9] and Fe- and Cu-zeolites [10] are the most popular commercial NH3-SCR catalysts for applications to stationary and mobile sources. Despite their successful and widespread use, these catalytic systems suffer from some relevant limitations and, furthermore, they may not live up to the more stringent regulations in a future scenario calling for zero-emissions to be attained. The need to strike a balance between practical constraints, economic forces, and sustainability principles is thus fueling the demand for a new generation of more efficient, flexible to wide operative applications, and environmentally friendly catalysts to maximize NOx removal and further reduce the cost and footprint of SCR process.
Owing to its interesting physical and chemical properties, hydroxyapatite (HAP, Ca10(PO4)6(OH)2) is an attractive candidate as material for environmental remediation [11], already well exploited in biomedical and wastewater treatment [12,13] fields. HAP is a well-known inorganic biomaterial that can be extracted from mineral rocks, biogenic products (e.g., eggshells, mussel shells) and bio-wastes (e.g., fish bones, mammal bones) [14]. Recently, hydroxyapatite-based materials were also obtained as the main products of NOVOSOL® process, a patented procedure developed by Solvay and aimed at treating polluted sediments [15]. Alternatively, HAP can be sourced from synthetic routes, which usually imply wet chemical methods (precipitation, sol-gel technique, hydrolysis, hydrothermal, emulsion method) starting from cheap inorganic precursors (e.g., calcium hydroxide, calcium nitrate, phosphoric acid, ammonium phosphate) [14,16,17].
Besides being easily available from economically viable and safe synthetic or natural approaches, HAP is characterized by remarkable thermal stability, allowing to be processed at very high temperature (up to 800 °C) without significant modifications in composition and textural/morphological properties. These features account for the successful application of HAP as support for metal active phases in some catalytic gas-phase reactions. HAP functionalization with metal species could lead to multifunctional catalysts that would benefit from the combination of the electron transfer capacity and Lewis acidity associated with the metal centers and of the amphoteric surface properties of HAP. Actually, hydroxyapatite surface exposes a large variety of functional groups, acting as acid and basic sites and conferring a peculiar amphoteric character, which can be more or less pronounced depending on the HAP composition, in particular on the Ca/P ratio [18].
Although HAP-based catalysts for environmental protection reactions have not received yet the attention they deserve, in the last years studies on several Me/HAP catalysts (Me = Au, Pd, Rh, Co, Mn, Cu, Fe, etc.) have confirmed their effectiveness in several air pollution control reactions, such as the abatement of volatile organic compounds (de-VOCs) and denitrification (de-NOx) processes. For instance, Chlala et al. demonstrated that palladium [19] and manganese [20] supported on HAP are more active in total oxidation of toluene than the same metal species supported on alumina. Similar evidence was shown by Boukha et al. [21], who compared the catalytic performances of Pd/HAP and Pd/alumina catalysts in methane oxidation. Analogously, highly dispersed cobalt species on HAP showed improved catalytic performances in 1,2-dichloroethane oxidation compared to bulk cobalt oxide [22], while the addition of HAP to ceria support increased gold nanoparticle stability preventing their sintering at high temperature [23]. In all these cases, the observed enhancement in the catalytic performances derived both from a stabilizing effect of the HAP structure, whose surface functional groups act as anchoring sites for metal species, and the direct involvement of surface acid/base sites in the reaction mechanism.
The pioneer works of Kumar et al. [24] and Tounsi et al. [25] highlighted the potential of apatitic materials as supports for the selective catalytic reduction of NOx. Well-dispersed Ag2O and CuO phases on HAP surface proved to be effective in the NOx reduction to N2, also at low temperature, in the SCR process by propene and NH3, respectively.
More recently, our group has investigated the hydroxyapatite functionalization with Cu and Fe species to obtain effective catalysts for NH3-SCR reactions [26,27,28]. The experimental conditions adopted during the functionalization strongly affected the sitting, local environment, and structure of metal phase. In particular, in the case of copper, highly dispersed Cu centers could be allocated on HAP surface up to 6 wt.% metal loading, while higher loading resulted in copper aggregation [28] and/or growth of crystalline libethenite phase (Cu2PO4OH) [25]. In addition, the copper salt used as metal phase precursor (e.g., nitrate, chloride and acetate) played a key role in inducing changes in textural properties and surface composition, which unavoidably influenced the catalytic behavior [28]. In the case of Fe-loaded hydroxyapatite (Fe/HAP), great attention has been devoted to develop a deposition technique able to assure high metal dispersion with controlled nuclearity of iron species and limited aggregation [26]. An innovative flash ion exchange procedure, characterized by an acidic solution containing the Fe-salt and very short contact time with HAP, has demonstrated its effectiveness in highly dispersing and stabilizing iron in the form of isolated or oligonuclear species on the surface. Although Fe/HAP catalysts showed lower activity than Cu/HAP catalysts, the former worked in a broader operating temperature window (275–450 °C) [27]. In addition, the use of iron would result in less expensive and cost-efficient catalysts compared to Cu-based ones.
In this work, we explored in a larger perspective the potential of Fe/HAP catalyst. The preparation of a series of samples with iron loading from 2% to 13% by weight by flash ion exchange was carried out. They were then tested in three distinct air-quality protection reactions: catalytic reduction of NOx by NH3 (NH3-SCR), selective catalytic oxidation of NH3 (NH3-SCO) and catalytic N2O decomposition. The latter two reactions, besides being largely used to control the emissions of the NH3 and N2O polluting species from industrial productions (e.g., NH3 from ammonium phosphate manufacture or N2O from adipic acid synthesis), can be also coupled to NH3-SCR process in cascade to solve the problem of ammonia slipping and unselective reduction of NOx (to N2O). The catalytic behavior of the Fe/HAP catalysts in these reactions will be discussed in relation to the surface acidity and iron dispersion of the catalysts together with other relevant morphological and structural features.

2. Results

Iron phase was supported on hydroxyapatite with concentration in a wide range (2 < wt.% Fe < 13) according to a flash ion exchange procedure, already presented in the literature [26,27]. In this procedure the operative pH (ca. 3) and contact time (15 min) of HAP and Fe-salt precursor have been properly selected with the intent of depositing highly dispersed iron species on HAP, achieving a compromise between the complex iron speciation in aqueous solution (iron tends to precipitate at pH > 3) and the pH-sensitive interfacial properties of HAP [29]. Indeed, hydrated HAP surfaces generate a complex interphase layer whose thickness, composition, and charge distribution depend mainly on pH [30,31,32].
The properties of as-prepared iron-containing samples (labelled as FeX/HAPIE where X is the iron loading as wt.%) are presented in Table 1. The determination of iron content (by atomic absorption spectroscopy) confirmed that iron was quantitatively immobilized on HAP even at relatively high loading (13 wt.%), despite the very short contact time. The latter should permit preserving, largely, the pristine structural and morphological features of HAP, which is known to suffer from acidic environment.
Pristine HAP was a crystalline solid (Figure S1) with moderate surface area value (44 m2·g−1), pore volume of ca. 0.19 cm3·g−1 and mesopores with size distribution centered at around 8.2 nm. The N2-adsorption/desorption isotherm showed the hysteresis loop typical of mesoporous materials with broad pore structure [33]. The mesoporosity of HAP was maintained also after the introduction of iron whatever the content (Figure S1b,c). An interesting trend was detected in the surface area values (S.A., Table 1): a small iron amount produced a significant increase (67 m2·g−1 for Fe2/HAPIE) in S.A. value, which finally almost doubled in the sample containing the highest Fe loading (82 m2·g−1 for Fe13/HAPIE). These morphological changes can be ascribed to surface rearrangement induced by the iron species distributed on HAP surface as nanosized aggregates or amorphous phases.
X-ray powder diffraction (XRPD) patterns of Fe-loaded HAP samples (Figure 1) presented exclusively the typical reflections of crystalline HAP and no additional iron-containing crystal phases can be inferred. Consequently, the formation of separate iron oxide aggregates can be ruled out, thus suggesting that iron was highly dispersed as isolated ions/small-sized nanoclusters on HAP surface as an amorphous phase or as nanocrystalline aggregates below the detection size limit of the XRPD. It is noteworthy that the overall intensity of the XRD peaks of Fe/HAP samples (Figure 1) decreased as the iron concentration increased, and this evidence might suggest that a partial amorphization of the samples occurred.
A further insight on the nature of iron phase can be gained from surface acid site titration by ammonia probe, being Fe species recognized Lewis acid centers. The bare HAP surface possessed a modest number of acid sites (140.5 μmol·g−1, Table 1), which gradually increased with Fe-loading up to a value of 262.4 μmol·g−1 for the sample with the highest Fe-concentration (Figure S2). This suggests that further additions of Fe to HAP surface caused a steady slight increase in the dispersed iron species.

2.1. Catalytic Results

The catalytic performances of Fe/HAP samples were evaluated in three reactions of importance for the abatement of air pollutants: NH3-SCR, NH3-SCO and N2O-decomposition. Each reaction has, individually, its worth, but more importantly the three catalytic reactions can be chained together in a cascade configuration with the aim to attain the goal of zero-emission combustion processes. Indeed, to achieve the desired complete conversion of NOx vented from combustion plants, an excess amount of ammonia could be necessary in the NH3-SCR post-combustion unit. At the outlet of SCR reactor, unreacted ammonia must not be vented in the atmosphere, therefore, a catalytic process is required to abate the unreacted slipped ammonia. The addition of a selective oxidation (SCO) catalyst in cascade could help in solving the problem of ammonia slipping [34,35]. However, in some cases, and specifically at high temperatures, N2O is formed as main undesired by-product in the NH3-SCR and SCO processes. N2O can be, then, catalytically decomposed to harmless N2 and O2 in a third reaction step put in sequence.
In this work, as a preliminary point, the three reactions have been separately studied under typical experimental conditions used in conventionally in the literature to test the performances of Fe/HAP catalysts and individuate the best candidate for a cascade process.

2.1.1. Selective Catalytic Reduction of NO by NH3 (NH3-SCR)

In the standard NH3-SCR, NO is reduced by NH3 with formation of N2 in the 1:1 stoichiometric ratio, according to the following reaction (Equation (1)):
4NO + 4NH3 + O2 → 4N2 + 6H2O
As part of a complete selective process, NH3 is also oxidized to N2. From a kinetic point of view, reaction (1) is in competition with the unselective NH3 oxidation by O2, that produces NO and N2O (Equations (2) and (3)):
4NH3 + 5O2 → 4NO + 6H2O
2NH3 + 2O2 → N2O + 3H2O
In addition, depending on the gaseous mixture composition, the reaction between NH3 and NO can proceed through unselective pathways (Equations (4) and (5)), as detailed below:
4NO + 4NH3 + 3O2 → 4N2O + 6H2O
4NO + 4NH3 + 3O2 → 4N2O + 6H2O
The occurrence of these side-reactions depends on the catalyst, on the temperature and on the feed composition (oxygen concentration, humidity) [36]. In particular, the unselective oxidative pathways are favored at high temperatures (>350 °C). Both activity and selectivity must be met on a high performance SCR catalyst. The SCR activity over the studied Fe/HAP catalysts was investigated in the 120–500 °C temperature interval, by continuously feeding 500 ppm of NO, 500 ppm of NH3, 10,000 ppm of O2 to the reactor at Gas Hourly Space Velocity (GHSV) of 30,000 h−1.

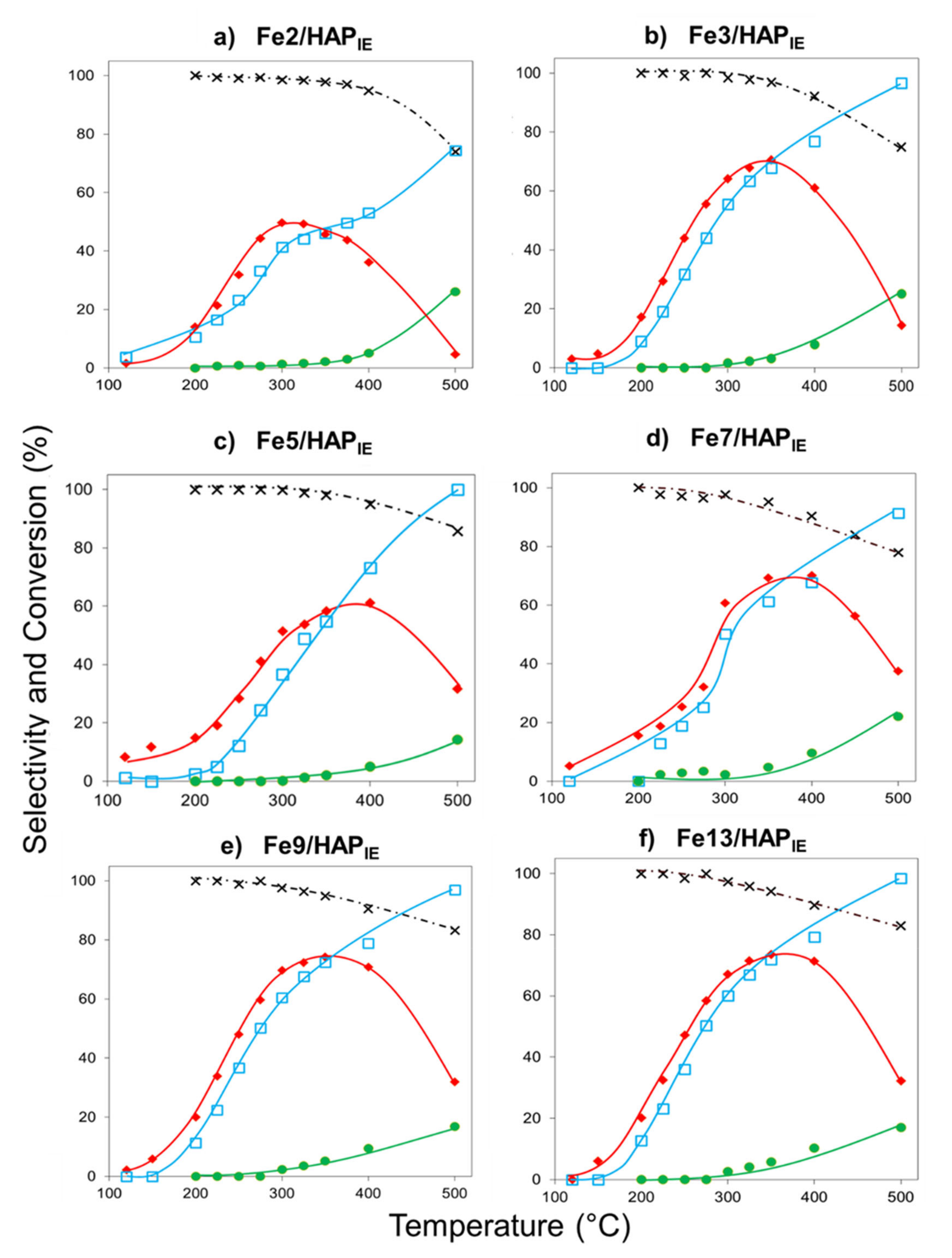

Figure 2 and Figure S3a report the curves of NOx (NO + NO2) and of NH3 conversion and selectivity to N2 and N2O as a function of temperature for all Fe/HAP and bare HAP, respectively. They have been obtained from the experimental profiles of the NO, NO2, NH3, N2 and N2O outlet concentrations at steady state at the tested temperatures (Figure S4). Only low activity was observed over bare hydroxyapatite with NOx conversion reaching a maximum of 20% between 300 and 400 °C (Figure S3a).
The addition of iron, even at concentration as low as 2 wt.%, imparted a sensitive enhancement of the catalytic activity with achievement of maximum of around 50% of NOx conversion at 350 °C (Figure 2a). For higher Fe-concentrations (3–13 wt.%), fine catalytic performances were observed over all the samples with a maximum NOx conversion of about 60–75% at 350 °C, without a clear trend of activity with iron loading. In all cases, NH3 and NOx conversion curves experienced a monotonic increase, proceeding almost in parallel to each other upon temperature raising from 120 to 300 °C. Consequently, the standard SCR reaction can be assumed to preferentially occur in this temperature window. In the higher temperature interval (300–400 °C), NOx conversion values remained constant around a maximum, while above 400 °C NOx conversion dropped, whereas NH3 conversion kept increasing up to 100% at 500 °C. This behavior was consistent with the occurrence of the unselective ammonia oxidation to N2O and NO, as confirmed by the curve of selectivity to N2O, which increased starting from 400 °C, attaining a maximum of 20%. Likely, formation of N2O at temperatures above 400 °C is caused also by ammonium nitrate decomposition. Selectivity to N2 exceeded 90% over all the catalysts in the temperature interval 150–400 °C and decreased down to ca. 80% at temperatures higher than 400 °C.

2.1.2. Selective Catalytic Oxidation of NH3 (NH3-SCO)

Over a suitable catalyst and under certain conditions (e.g., low temperature), NH3 could be selectively oxidized to N2 by oxygen, according to the following reaction (Equation (6)):
4NH3 + 3O2 → 2N2 + 6H2O
Also in this case, the process selectivity can be affected by the NO and N2O formation from parallel oxidation reactions (Equations (2)–(5)).

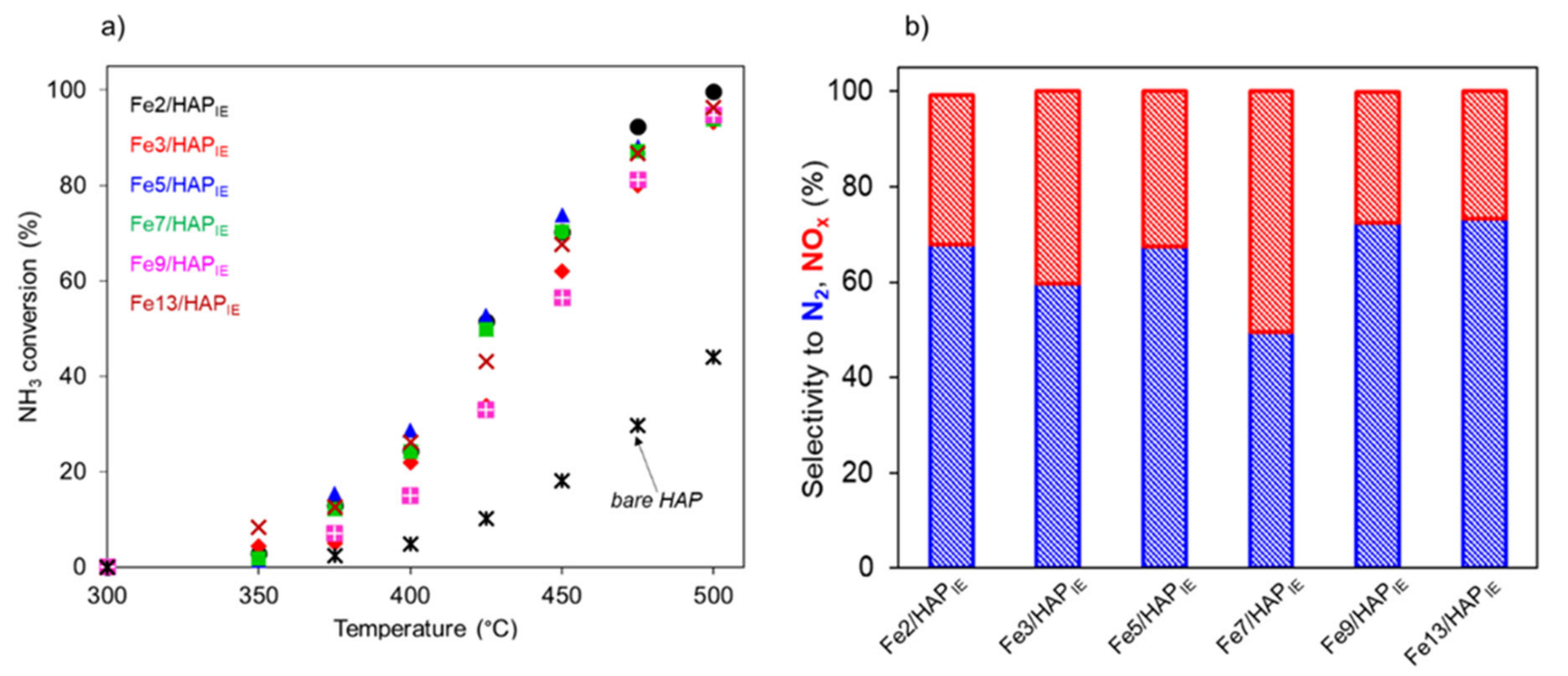

The catalytic performance of the Fe/HAP catalysts and bare HAP has been investigated under the conditions of 500 ppm NH3, 10,000 ppm O2 at GHSV of 30,000 h−1.
As reported in Figure S3b, NH3 conversion over bare HAP was lower than 5% below 375 °C. Over this temperature, NH3 started to be oxidized and conversion increased up to ca. 45% at 500 °C. Selectivity to N2 was low (<40%) over the whole temperature interval.
The HAP functionalization with iron produced effective catalysts able to completely convert ammonia below 500 °C. Actually, as shown in the NH3 conversion profiles of Figure 3a, NH3 conversion started at 350 °C and regularly increased until reaching 100% at 500 °C. No remarkable differences among catalyst activities emerged with iron loading and NH3 conversion profiles vs. temperature almost overlapped.
Concerning selectivity to N2 (Figure 3b), although the addition of iron improved the reaction selectivity in comparison with HAP, the evolution of N2O and NOx formed from overoxidation side reactions, limited the complete selectivity of the SCO process, leading to relatively low values of N2, which did not exceed 70% over all Fe/HAP catalysts.

2.1.3. N2O Decomposition

As known, N2O is an extremely stable species that can be decomposed to N2 and O2 at very high temperature (>800 °C) following the simple reaction (Equation (7)):
2N2O → 2N2 + O2
When the reaction is performed over a suitable catalyst, it can proceed at relatively lower temperature.
N2O decomposition tests were carried out on all the Fe/HAP samples using low initial N2O concentration (ca. 150 ppm) in highly oxidant environment (ca. 6000 ppm) at GHSV = 30,000 h−1.

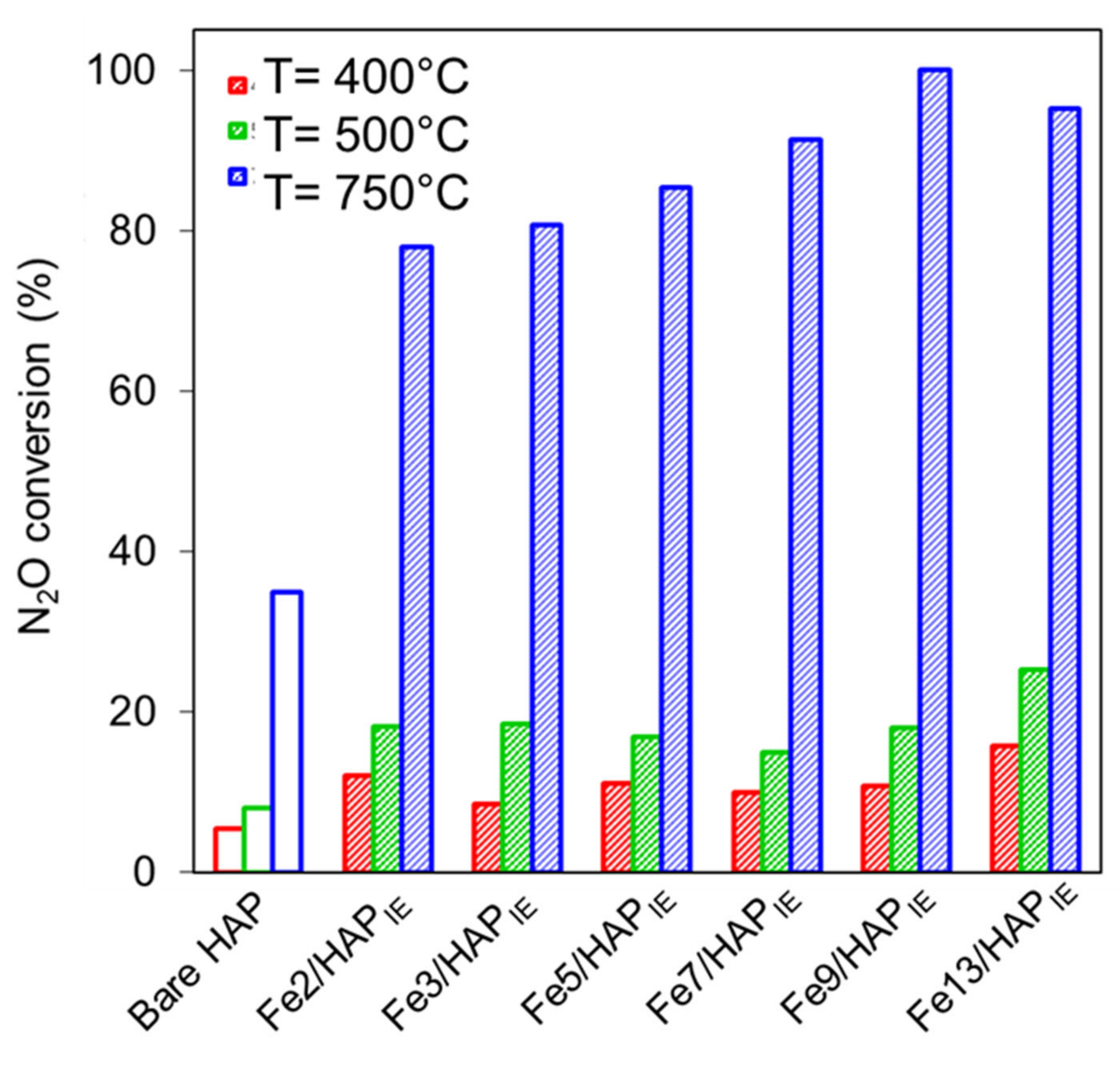

Figure 4 reports some catalytic activity results in terms of N2O conversion at different selected temperatures (400, 500 and 750 °C). As a general trend, all the Fe/HAP samples were active in the N2O decomposition, up to 80–100% N2O conversion achieved at 750 °C. In particular, the presence of just 2 wt.% of Fe on HAP (Fe2/HAPIE) conferred an increase of activity in comparison with the almost inactive HAP, which gave rise ca. 35% of N2O conversion at 750 °C (Figure S3c). In any case, the most interesting activities on the Fe/HAP samples were observed at reaction temperatures higher than 500 °C. Low values of N2O conversion (up to a maximum of ca. 25%) were detected at temperatures lower than 500 °C, independently from Fe loading (Figure 4). At higher temperatures, the catalytic activity was found to increase with the Fe loading; the presence of high Fe-amount on HAP (ca. 9–13 wt.%) guaranteed almost total N2O conversion at 750 °C. In addition, Fe loading influenced also the operating temperature window of Fe/HAP catalysts, since catalysts with higher Fe content (9–13 wt.%) converted N2O in a lower temperature interval than those at lower Fe content (2–7 wt.%).

2.2. Catalyst Characterization

A critical rationalizing of catalytic results cannot prescind from a targeted investigation on the nuclearity (e.g., isolated centers, dimers, oligomers, clusters, etc.) and nature of the iron phase onto HAP.
According to current knowledge [37,38], iron can be deposited on hydroxyapatite in the form of isolated paramagnetic Fe3+ ions even at iron loadings as high as 20 wt.%. However, the underlying mechanisms for iron uptake from HAP are widely debated. Indeed, whilst there is overall agreement to consider a pure and stoichiometric exchange process between Ca2+ and Fe3+ implausible for charge imbalance reasons, on the other hand the identification of iron species formed after deposition still remains a controversial issue. In particular, Li et al. [37] hypothesized that the exchange between Ca2+ and Fe3+ was accompanied by the formation of vacancies on the calcium positions of the HAP lattice for compensating charge imbalance. On the basis of in situ FT-IR measurements, Kandori et al. [39] envisaged that Fe(III) would be incorporated into the HAP framework as hydroxyl ions—bivalent Fe(OH)2+ or monovalent Fe(OH)2+ ions—keeping the charge balance. A similar view has been proposed by Kachani et al. [38]: at pH = 2.3 Fe3+ species would replace calcium ions as Fe(OH)(H2O)52+ species. Subsequent calcination of the catalysts resulted in the formation of isolated paramagnetic Fe3+ entities accompanied, as shown by InfraRed spectroscopy, by the removal of protons of the OH hydroxyls hosted by the apatite tunnels. These Fe3+ ions are allocated at the catalyst surface or in its proximity (as suggested by X-ray Photoelectron Spectroscopy, XPS) and occupy two types of sites, which were identified as distorted octahedra or sites with lower coordination.
In order to investigate the nature of iron species in the studied Fe/HAP samples, UV-Diffuse Reflectance (UV-DR) spectra were collected at room temperature in the 200–1200 nm range; they are reported in Figure 5 (left) with specific focus on the 200–800 nm region and compared with that of bare HAP (dotted black line). All the Fe/HAP spectra were characterized by typical absorption bands of iron species, ascribable to ligand-to metal charge transfer (CT) excitations from the O(2p) nonbonding valence bands to Fe (3d) ligand field orbitals (O2−→Fe3+) and d-d (ligand field) transitions. However, the overlapping of different absorption signals required deconvolutions in sub-bands with the final aim to discriminate each contribution (Figure 5, right, for the sample Fe5/HAPIE and Figure S5 for all the Fe/HAP samples).
In all cases, spectra decomposition returned several features: an intense band in the 200–300 nm region caused by CT transitions, corresponding to the presence of isolated Fe3+ species, and a second broader band, in the 460–550 nm interval, typical of d-d transitions from ground state to excited ligand field states (6A1→4T1 or 4T2 or 4E). These latter are spin forbidden and generally characterized by low intensity. However, in the obtained spectra they showed a modest intensity, which demonstrated the presence of iron oxide aggregates when their neighboring iron centers possessing magnetic coupling, as reported in [40]. In addition, a further band at ca. 200 nm was observed in all the Fe/HAP spectra, comprised that of bare HAP (Figure 5, dotted black line): it was assigned to O2−→Ca2+ charge transfer transition of the two non-equivalent Ca2+ sites present in the HAP lattice.

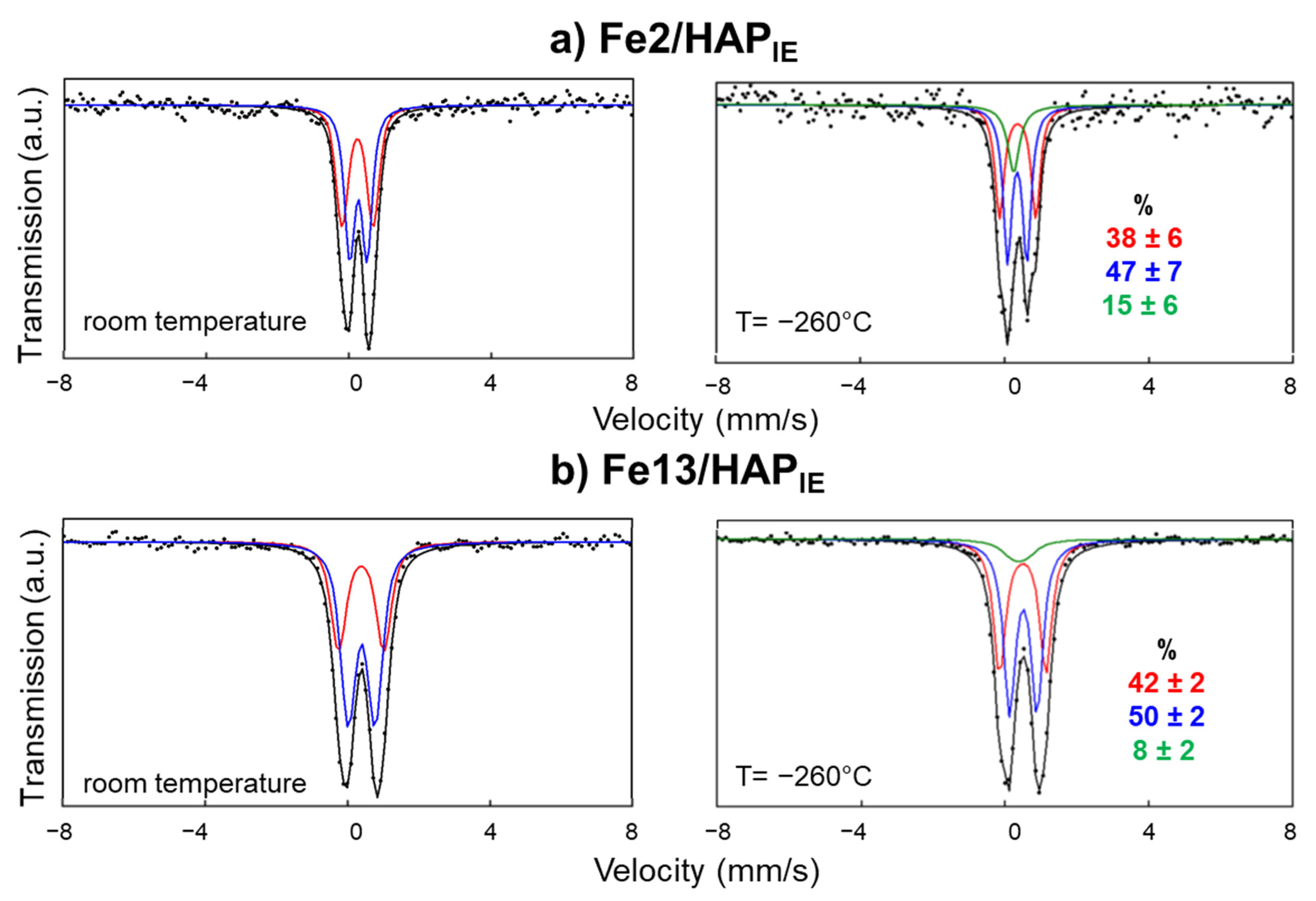

To gain a deeper insight on Fe-coordination at the HAP surface, Mössbauer spectra were collected at room temperature (Figure S6) and at −260 °C (Figure S7) and fitted to compute the hyperfine parameters (Tables S2 and S3). Figure 6 reports the spectra obtained in the case of two Fe/HAP samples, presenting the lowest and highest Fe-loading among the prepared samples, (Fe2/HAPIE, Figure 6a and Fe13/HAPIE, Figure 6b).
In general, all the spectra obtained at room temperature (Figure S6) presented two main peaks, decomposed into two doublets (red and blue lines in Figure S6). However, these measurements did not provide for a unique identification of iron species because at this temperature the doublets could be alternatively associated to the presence of isolated paramagnetic Fe3+ species or to superparamagnetic iron oxide crystallites. In the former case, the fitting with doublets having distinct quadrupole splitting (Δ, Table S2) could be justified invoking an exchange occurring between isolated Fe3+ species and the two non-equivalent Ca2+ sites (Ca(I) and Ca(II)), or a surface complexation by two different HAP functional groups (carbonates, phosphates). On the other hand, in the case of iron oxides the lower values of quadrupole splitting (Δ, Table S2) could be ascribed to iron ions present inside the core of nanoparticles, while the higher values could be typical of iron ions located on the shell (with a highly asymmetric surrounding).
With the final purpose of fully discriminating between the two possible scenarios (isolated Fe3+ species vs. iron oxides), Mössbauer spectra at −260 °C (Figure S7) were measured. Then, the best fitting and the hyperfine parameters of the spectra were evaluated (Table S3). The best fitting procedure assuring the lowest errors on calculation of the hyperfine parameters consisted in a combination of two doublets (red and blue lines, Figure S7) with an additional relaxing sextuplet (green line, Figure S7). At this low temperature, the presence of doublets could exclusively be associated to isolated Fe3+ species, since iron oxides must produce a sextuplet, at least partially blocked. On the other hand, the relaxing sextuplet has hyperfine parameters typical of iron oxides [41,42]. However, the dynamic magnetic behavior, due to the extremely small size of the clusters, hinders determination of presence or not of structural order. For this reason, we refer to them as FexOy. Based on previous considerations extensively reported in [26], the size of FexOy species could be estimated to be around 2–4 nm. A rough quantification of both isolated Fe3+ and FexOy species could be done. Interestingly, the data shown in Table S3 suggested that the relative abundance of FexOy nanoclusters is constant (<15%), independently of the iron loading.

3. Discussion

An important point concerning the Fe/HAP catalysts is related to Fe sitting on HAP that represents a critical issue. The performed flash ion exchange procedure for depositing Fe-phase on HAP occurs at low pH value (ca. 3); under this condition, HAP gave partial dissolution, favoring the Ca-Fe exchange at the solid-liquid interface. In agreement with that, Mössbauer results indicated that isolated Fe-species could be located in the two inequivalent Ca-sites or dispersed by surface complexation. Actually, XPS data on a sample containing ca. 3 wt.% of Fe showed a Ca/P ratio of about 1.11 and a (Ca + Fe)/P ratio of about 1.27, lower than 1.33, the Ca/P value of bare HAP. This low decrease suggested us that Fe could be exchanged with Ca ions in a certain amount, while the remaining part should be adsorbed at the surface by complexation with the HAP functionalities (OH−, PO43−, etc.). Now, the discussion aims at correlating the catalytic performances of Fe/HAP catalysts in the NH3-SCR, NH3-SCO and N2O-decomposition reactions with their structural and surface properties.
The functionalization of hydroxyapatite with iron species produced samples with enhanced acidity as shown by gas-solid phase titration with ammonia probe. The amount of adsorbed ammonia increased along with iron loading in the order: Fe2HAP < Fe3HAP < Fe5HAP < Fe7HAP < Fe9HAP ≅ Fe13/HAP (Table 1 and Figure S2). This is also in agreement with presence of Fe-isolated species at the HAP surface.
Actually, Fe/HAP samples had good catalytic performances in the three studied reactions of selective transformation of N-containing gaseous species (NH3-SCR, NH3-SCO and N2O decomposition).
All the Fe/HAP catalysts were active in NO reduction by NH3 (NH3-SCR) in a relatively low temperature range (between 225 °C and 375 °C). Even if the comparison of our results might be specious, it should be remarked that the catalytic performances of the catalysts are comparable or just slightly lower than those of some conventional Fe-zeolites (Fe-BEA, Fe-ZSM-5, Fe-MOR, Fe-FER, Fe-SSZ-13, Fe-SSZ-37) [43]. The best performing catalysts achieved up to 80% NO conversion at 350 °C; unfortunately, the decrease in NO conversion observed above 350 °C limited the catalyst selectivity.
This evidence is congruent with most of previous literature on iron-based SCR catalysts, and in particular on Fe-zeolite catalysts. On Fe-zeolites high de-NOx activity at low temperature has been associated with mononuclear iron species involved as redox sites in the catalytic cycle [44], while dimeric, oligomeric and partially uncoordinated sites at the surface of FeOx particles have been hypothesized to be active species responsible for SCR activity of Fe-zeolites at high temperatures [45,46]. Therefore, the co-presence of isolated and aggregated iron phases in our samples could justify the observed catalytic behavior. Indeed, the evidence that ammonia continued to be converted with increasing temperature until total conversion (>99%) was achieved, suggests that the decrease in NO conversion observed above of 350 °C is probably due to the non-selective conversion of ammonia. From this point of view, the possibility to study separately three interconnected reactions (SCR, SCO and N2O decomposition) allowed to find proper correlations. Actually, ammonia oxidation in SCO tests started at 350 °C, a temperature value that coincides with the maximum of NO conversion in SCR investigations. The good agreement between the activity in NH3-SCR and NH3-SCO tests confirmed the hypothesis that unselective catalytic oxidation of ammonia caused the decrease in NO conversion at high temperatures in the SCR tests.
It is known that on Fe-based catalysts high activity in SCO is associated with monomeric Fe3+ sites, which simultaneously serve as Lewis acid sites for the adsorption of ammonia and redox centers able to form active oxygen adsorbed species (O2δ− with 1 ≤ δ ≤ 2). At high temperature clustered iron species become active in ammonia oxidation, however their high oxidation potential leads to unselective pathways [47]. Considering that Fe/HAP catalysts started to be active only at high temperature (T > 350 °C) and low selectivity to N2 was observed, we can guess that in this case only aggregated Fe-species are active in the oxidation of ammonia.
The low selectivity to N2 is accompanied with evolution of N2O, which could derive either from ammonium nitrate decomposition or from combination between oxygen and adsorbed NHx species, the latter mechanism being predominant at high temperatures [44].
The stability of formed N2O species under the conditions of SCR and SCO reactions is supported by catalytic N2O decomposition tests, which revealed that N2O started to be significantly dissociated into N2 and O2 only at temperatures higher than 500 °C. An interesting correlation between the number of acid sites of the Fe/HAP sample and N2O decomposition activity has been noted. Figure 7 reports the observed linear trend between N2O conversion (evaluated at 750 °C) and Fe/HAP acidity (expressed as mmolNH3,ads·g-1). The trend suggests that isolated Fe3+ centers could govern the activity of N2O decomposition. Actually, previous DFT studies demonstrated that isolated iron cations and oligonuclear iron species, which are also the main species revealed in Fe/HAP samples, are equally active in N2O dissociation [48,49]. In the former case an Eley−Rideal mechanism is likely active since two N2O molecules are adsorbed on isolated [FeO]+, [Fe(OH)2]+, [FeO2]+, Fe2+, Fe3+ cations and there decomposed in N2 and adsorbed O by NN–O bond cleavage. The O atoms adsorbed on the same site are then recombined to form an O2 molecule. Differently, the cooperation between two vicinal iron sites in multinuclear aggregates favors the occurrence of the Langmuir−Hinshelwood mechanism, consisting in the adsorption and dissociation of N2O onto two distinct iron sites.

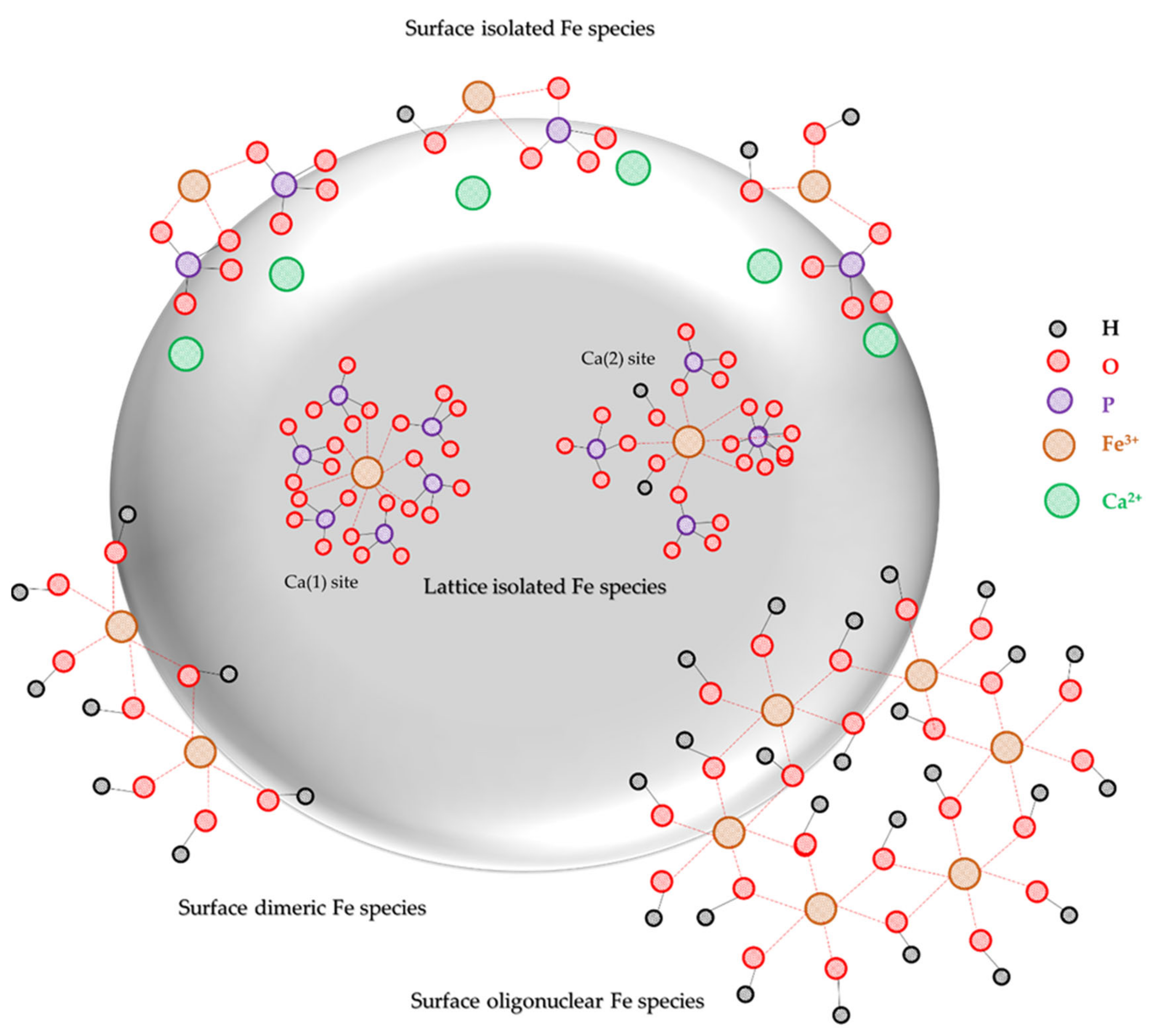

At the end, Scheme 1 depicts the surfaces of Fe/HAP catalysts; the representation highlights the complex situation of the Fe/HAP samples with regard to the clear identification of the active metal species active in the studied reactions.

4. Materials and Methods

4.1. Materials and Catalyst Preparation

Hydroxyapatite (HAP) used in this work was kindly supplied by Soda Ash & Derivatives (Solvay, Brussels, Belgium): Its preparation procedure, composition and main properties were reported in Ref. [28].
Iron functionalized hydroxyapatite samples with different iron loading (2 < wt.%< 13) were prepared from iron(III)nitrate precursor (Fe(NO3)3∙9H2O from Sigma Aldrich, St. Louis, MO, USA) by a modified ion exchange (IE) procedure, called flash ionic exchange due to the short contact time of HAP in the Fe-solution [26,27].
For each preparation, 250 mL of iron(III) nitrate solution (with a concentration in the 0.005–0.06 M range) were thermostated at 40 °C. The pH was adjusted to ca. 3 by HNO3 addition to avoid the hydrolytic polymerisation of iron(III) occurring at higher pH.
HAP powder (typically 6 g, previously dried at 120 °C, overnight) was added to the iron(III) solution and the obtained suspension was vigorously stirred at 40 °C for 15 min. This short contact time assured to preserve both surface and structural properties of HAP, which is sensitive to amorphization or dissolution in an extremely acidic environment [29].
The obtained samples were filtered, thoroughly washed, dried at 120 °C overnight and finally calcined at 500 °C for 1 h under static air at controlled rate (1 °C·min−1).
The collected samples were denoted as (FeX/HAP)IE, where X is the Fe loading (in wt.%). Fe loading for all the catalysts was double-checked by atomic absorption spectroscopy (PinAAcle 900T, S/N PTDS11062202, Perkin Elmer, Waltham, MA, USA) both on the solid after mineralization of a small amount (ca. 50 mg) of samples and on the filtration solutions. In any case, the percentage difference between two measurements was lower than 2%.

4.2. Characterization

4.2.1. N2 Adsorption–Desorption Isotherms at −196 °C

Specific surface area (S.A.) and porosity (pore volume, pore size and pore size distribution) were determined by N2 adsorption/desorption isotherms collected at −196 °C using an automatic analyser of surface area (Sorptomatic 1990, Thermo Scientific Carlo Erba, Milano, Italy).
Prior to the analysis, fresh sample (ca. 0.20 g sieved to have particles in the range of 80–200 mesh) was outgassed at 350 °C for 4 h under vacuum to remove water and other volatile organic compounds adsorbed on the surface. The specific surface area was calculated by means of the Brunauer-Emmet-Teller (BET) equation (2-parameters, p/p° range from 0.05 to 0.3). Pore volume and pore size distribution (PSD) were determined by Barrett-Joyner-Halenda (BJH) model equation from the desorption branch (0.3 < p/p0 <0.95) of the collected isotherms.

4.2.2. X-ray Powder Diffraction (XRPD)

The crystal structures and phase compositions of all the samples were determined by X-ray powder diffraction powder diffractometer consisting of a PW 1830 generator (Philips, Almelo, The Netherlands), monochromator in graphite, copper pipe (Cuα radiation at 40 kV · 40 mA) in the range between 5°–65°(2θ), step of 0.033° 2θ, time for step of 50 s and total acquisition time of 1h 23 min. Before the analyses, powder samples were finely ground and spread on an aluminum flat-plate horizontal sample holder. Patterns were identified by comparison with the Joint Committee on Powder Diffraction Standards (JCPDS) files from International Center for Diffraction Data Powder Diffraction.

4.2.3. NH3 Adsorption

Acidity of bare HAP and Fe/HAP samples was determined by NH3 adsorption under flowing dynamic experiments. The dried sample (ca. 0.2 g, 45–60 mesh) was activated at 120 °C under flowing air for 30 min in a quartz tubular reactor; then, the NH3/N2 mixture (1.00%, NH3 concentration of ca. 500 ppm) flowed at 6 NL·h−1 through the reactor and reached a gas cell (path length 2.4 m multiple reflection gas cell) in the beam of an Fourier Transform InfraRed spectrometer, FT-IR (equipped with a DTGS detector, Bio-Rad, Hercules, CA, USA). The NH3 line (966 cm−1) was monitored as a function of time. On all the samples, NH3 was completely adsorbed, as observed from the shape of the NH3-signal profile, which decreased and remained to zero for a given measured time. When saturation of the acid sites by NH3 was attained, the NH3 signal was restored at the same value of its starting concentration. From the evaluation of the time during which the NH3-signal has remained to zero, the amount of acid sites could be evaluated, according to Equation (8):
m o l e s N H 3 a d s g s a m p l e = N H 3 f e d · F · t · P R T · m s a m p l e
where [NH3]fed is the flowing NH3 concentration, in ppm; F is the total flow rate of the NH3/N2 mixture, in NL·h−1; t is the time during which NH3 was completely adsorbed, in min; P is the pressure, in atm; and msample is the sample mass, in g.
Assuming a 1:1 stoichiometry for the NH3 adsorption on the surface acid site, the amount of acid sites per sample mass (in µmol·g−1) was determined. Measurements were replicated and a percent relative uncertainty lower than 2% was obtained.

4.2.4. UV Diffuse Reflectance Spectroscopy (UV-DRS)

Diffuse reflectance spectra (DRS) were collected through a double beam UV–vis–NIR scanning spectrophotometer (UV-3600 plus, Shimadzu, Kyoto, Japan) equipped with a diffuse reflectance accessory (integrating sphere from BIS-603). Powder samples were finely grinded, uniformly pressed in a circular disk (E.D., ca. 4 cm) and included in the sample-holder. The latter was inserted in a quartz cuvette and put on a window of the integrating sphere for the reflectance measurements. Spectra were measured with ultrafine barium sulfate as reference. The measured reflectance profiles (R∞,%) in the 200–1200 nm range were converted to absorbance (Abs) by Equation (9):
Abs = Log (1/R∞/100)
The as-obtained UV-DR spectra (absorbance vs. wavelength, nm) in the range 200–800 nm were decomposed using the software OriginPro8 (OriginLab Corporation, Northampton, MA, USA, 2018) with a combination of Gaussian functions.

4.2.5. Mössbauer Spectroscopy

Mössbauer spectra were obtained in transmission geometry using a 512-channel constant acceleration spectrometer (WissEl, Starnberg, Germany), provided with a source of 57Co in Rh matrix of nominally 50 mCi. The ideal thickness of the sample was evaluated considering the weight percentages of the different elements of each catalyst (ca. 100 mg of powder was used in a holder with diameter of ca. 1.8 cm). The reference used for the velocity calibration was a 12-μm-thick α-Fe foil. Spectra were collected at −260 and 25 °C. Measurements at low temperatures were performed working with a closed-cycle cryogenic system (Model DE-202, ARS, Macungie, PA, USA). Each spectrum was folded to minimize geometric effects; the experimental data were fitted using Recoil [50], a commercial program with constraints.

4.2.6. Catalytic Tests

Catalytic performances of all the Fe/HAP samples in NH3-SCR, NH3-SCO and N2O decomposition were evaluated using a continuous reaction line equipped with a set of mass flow controllers (Bronkhorst, Hi-Tech Instruments, Nijverheidsstraat, Netherlands), a tubular vertical electric oven (Controller-Programmer type 818, Eurotherm, Guanzate, Como, Italy), a quartz tubular catalytic micro reactor (5 mm i.d.), and an online FT-IR spectrophotometer with a DTGS detector (Bio-Rad, Hercules, CA, USA) for qualitative and quantitative determination of the fed and vented gaseous species.
In a typical experiment, a fixed amount of catalyst sample (ca. 200 mg) was pressed, crushed, sieved to obtain particles in the range 45–60 mesh (0.35–0.25 mm), and dried at 120 °C overnight. Then, catalyst pretreatment was performed in situ under O2/N2 flow (20% v/v) at 120 °C for 30 min.
The catalytic activities were studied as a function of the temperature in the 120–500 °C interval for both NH3-SCR and NH3-SCO, and 300–800 °C for N2O decomposition, keeping constant the concentration of fed gas mixture and using a total flow rate of 6 NL·h−1 (GHSV of ca. 30.000 h−1). Each temperature was maintained for 60 min to guarantee the attainment of the steady-state reaction condition. The temperature was increased at step in aleatory way using a ramp of 10 °C·min−1.
The fed gas mixtures were prepared by mixing 500 ppm of NH3, 500 ppm of NO and 10,000 ppm of O2 for NH3-SCR tests; 500 ppm of NH3 and 10,000 ppm of O2 for NH3-SCO tests; ca. 150 ppm of N2O and 6000 ppm of O2 for N2O decomposition tests. In all cases, nitrogen was used as inert gas.
The effluent gas mixtures from the reactor was monitored by an online FT-IR consisted of a multiple reflection gas cell—with 2.4 m path length; resolution, 2 cm−1; sensibility, 1.5, 92 scans per 180 s—for quantifying the unconverted reagents and/or products.
The total absorbance of all the IR active gaseous species (Gram–Schmidt) vented by the reactor was continuously recorded as a function of time and the reaction temperature was changing. NH3, NO, N2O and NO2 were quantified considering the peak height of a selected absorbance line and the measured calibration factors. Details on calculations for each reaction are reported in the Supplementary Material (Table S1).

5. Conclusions

The results reported in this work, where new Fe-based eco-friendly catalysts were tested in three environmental protection reactions, show that it is possible to overcome the use of more conventional ceramic-based catalysts (alumina, silica, zirconium, etc.) and approach the use of more environmentally friendly and eco-sustainable materials, such as hydroxyapatite. Suitably metal-functionalized, hydroxyapatite can give good catalytic performances in the NOx, N2O and NH3 abatement reactions, which can be exploited for the abatement of gaseous pollutants among the worst of our environment.
Three environmental protection reactions studied (NH3-SCR, NH3-SCO and N2O-decomposition) could also be performed in a single cascade process to achieve the desired zero emissions goal. For the cascade process, the most promising catalyst among those studied is at an average concentration of Fe (about 6–9 wt.%), to guarantee a surface composed of isolated Fe3+ ions or oligonuclear species that ensure good activity with an equally good selectivity.
Much work still needs to be done to understand the performances of these new catalysts with dispersed iron on hydroxyapatite. In particular, the catalytic performances must be tested under real conditions, i.e., in the presence of water vapor, sulfur, alkali, etc. Part of this work is ongoing and the results will be presented shortly in the literature.

Supplementary Materials

The following are available online at https://www.mdpi.com/2073-4344/10/12/1415/s1, Figure S1: N2 adsorption/desorption isotherms at −196 °C of bare HAP calcined at 500 °C (a) and of two Fe/HAP, presenting the lowest and the highest Fe-loading among Fe-loaded samples (Fe2/HAPIE, b, and Fe13/HAPIE, c, respectively). Figure S2: Activity trend (in µmolNH3/g) of Fe/HAP samples as a function of Fe-concentration (expressed in mmolFe/g) with indication of HAP acidity (black marker). Figure S3: Catalytic activity results on bare HAP: (a) NH3-SCR: profiles of conversion of fed species (NH3 and NOx) and formed species (N2 and N2O) as a function of temperature; (b) NH3-SCO: profiles of conversion of fed species (NH3) and formed species (N2 and NOx) as a function of temperature; (c) N2O decomposition: profile of N2O conversion as a function of temperature. Figure S4: NH3-SCR catalytic activity results on Fe/HAP samples: profiles of concentration of fed species (NH3 and NO) and formed species (N2 and N2O, NO2) as a function of temperature. Reaction conditions: [NH3] = [NO] = 500 ppm, [O2] = 10,000 ppm; GHSV = 30,000 h−1. Figure S5: UV-vis DR spectra (black curves) of Fe/HAP samples (a-e): total calculated curves (red lines) and decomposed curves (dotted black lines) with the related peak centers are also reported. Figure S6 Mössbauer spectra of Fe/HAP samples (a-d) collected at room temperature. Figure S7: Mössbauer spectra of Fe/HAP samples (a–d) collected at −260 °C. Table S1: Symbols and calculations for computing catalytic parameters. Table S2: Mössbauer parameters of all the Fe/HAP samples at room temperature. Table S3: Mössbauer parameters of all the Fe/HAP samples collected at −260 °C.

Author Contributions

Conceptualization and design of the work, S.C. and A.G.; writing, M.G.G., S.C. and S.G.M.; main investigation of catalyst properties, realization of catalytic tests and data curation, M.G.G.; catalyst preparation, Atomic Absorption Spectroscopy and XRPD analyses, and critical revision, S.C.; Mössbauer analyses and interpretation, S.G.M.; supervision, A.G. All authors have read and agreed to the submitted version of the manuscript.

Funding

This research received no external funding.

Acknowledgments

Solvay: Soda Ash and Derivatives (Bruxelles, Belgium) is gratefully acknowledged for supplying hydroxyapatite, in particular Thierry Deplanche, Capterall® Technology Manager. The use of instrumentation purchased through the SmartMatLab Project of Dipartimento di Chimica (Cariplo Foundation, project 2013-1776) is gratefully acknowledged and also Daniele Marinotto of Consiglio Nazionale delle Ricerche (CNR), Istituto di Scienze e Tecnologie Molecolari (ISTM). Iolanda Biraghi of Università degli Studi di Milano is acknowledged for her experimental support.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Liu, Y.; Zhao, J.; Lee, J.-M. Conventional and New Materials for Selective Catalytic Reduction (SCR) of NOx. ChemCatChem 2018, 10, 1499–1511. [Google Scholar] [CrossRef]
  2. Bosch, H.; Janssen, F. Catalytic Reduction of Nitrogen Oxides: A Review on the Fundamentals and Technology; Elsevier: Amsterdam, The Netherlands, 1988; Volume 7. [Google Scholar]
  3. Damma, D.; Ettireddy, P.; Reddy, B.; Smirniotis, P. A Review of Low Temperature NH3-SCR for Removal of NOx. Catalysts 2019, 9, 349. [Google Scholar] [CrossRef] [Green Version]
  4. Yan, Z.; Shan, W.; Shi, X.; He, G.; Lian, Z.; Yu, Y.; Shan, Y.; Liu, J.; He, H. The way to enhance the thermal stability of V2O5-based catalysts for NH3-SCR. Catal. Today 2019. [Google Scholar] [CrossRef]
  5. Li, J.; Chang, H.; Ma, L.; Hao, J.; Yang, R.T. Low-temperature selective catalytic reduction of NOx with NH3 over metal oxide and zeolite catalysts—A review. Catal. Today 2011, 175, 147–156. [Google Scholar] [CrossRef]
  6. Ye, Q.; Wang, L.; Yang, R.T. Activity, propene poisoning resistance and hydrothermal stability of copper exchanged chabazite-like zeolite catalysts for SCR of NO with ammonia in comparison to Cu/ZSM-5. Appl. Catal. A Gen. 2012, 427–428, 24–34. [Google Scholar] [CrossRef]
  7. Klimczak, M.; Kern, P.; Heinzelmann, T.; Lucas, M.; Claus, P. High-throughput study of the effects of inorganic additives and poisons on NH3-SCR catalysts-Part I: V2O5-WO3/TiO2 catalysts. Appl. Catal. B Environ. 2010, 95, 39–47. [Google Scholar] [CrossRef]
  8. Kern, P.; Klimczak, M.; Heinzelmann, T.; Lucas, M.; Claus, P. High-throughput study of the effects of inorganic additives and poisons on NH3-SCR catalysts. Part II: Fe–zeolite catalysts. Appl. Catal. B Environ. 2010, 95, 48–56. [Google Scholar] [CrossRef]
  9. Lai, J.K.; Wachs, I.E. A Perspective on the Selective Catalytic Reduction (SCR) of NO with NH3 by Supported V2O5-WO3/TiO2 Catalysts. ACS Catal. 2018, 8, 6537–6551. [Google Scholar] [CrossRef]
  10. Brandenberger, S.; Kröcher, O.; Tissler, A.; Althoff, R. The State of the Art in Selective Catalytic Reduction of NOx by ammonia Using Metal-Exchanged Zeolite Catalysts. Catal. Rev. 2008, 50, 492–531. [Google Scholar] [CrossRef]
  11. Ibrahim, M.; Labaki, M.; Giraudon, J.-M.; Lamonier, J.-F. Hydroxyapatite, a multifunctional material for air, water and soil pollution control: A review. J. Hazard. Mater. 2020, 383, 121139. [Google Scholar] [CrossRef]
  12. Campisi, S.; Evangelisti, C.; Postole, G.; Gervasini, A. Combination of interfacial reduction of hexavalent chromium and trivalent chromium immobilization on tin-functionalized hydroxyapatite materials. Appl. Surf. Sci. 2021, 539, 148227. [Google Scholar] [CrossRef]
  13. Campisi, S.; Castellano, C.; Gervasini, A. Tailoring the structural and morphological properties of hydroxyapatite materials to enhance the capture efficiency towards copper(II) and lead(II) ions. New J. Chem. 2018, 42, 4520–4530. [Google Scholar] [CrossRef]
  14. Agbeboh, N.I.; Oladele, I.O.; Daramola, O.O.; Adediran, A.A.; Olasukanmi, O.O.; Tanimola, M.O. Environmentally sustainable processes for the synthesis of hydroxyapatite. Heliyon 2020, 6, e03765. [Google Scholar] [CrossRef] [PubMed]
  15. Zoubeir, L.; Adeline, S.; Laurent, C.S.; Yoann, C.; Truc, H.T.; Benoît, L.G.; Federico, A. The use of the Novosol process for the treatment of polluted marine sediment. J. Hazard. Mater. 2007, 148, 606–612. [Google Scholar] [CrossRef]
  16. Pretto, M.; Costa, A.L.; Landi, E.; Tampieri, A.; Galassi, C. Dispersing behavior of hydroxyapatite powders produced by wet-chemical synthesis. J. Am. Ceram. Soc. 2003, 86, 1534–1539. [Google Scholar] [CrossRef]
  17. Landi, E.; Tampieri, A.; Celotti, G.C.; Mattioli-Belmonte, M.; Logroscino, G. Synthetic Biomimetic Nanostructured Hydroxyapatite. Key Eng. Mater. 2005, 284–286, 949–952. [Google Scholar] [CrossRef]
  18. Silvester, L.; Lamonier, J.-F.; Vannier, R.-N.; Lamonier, C.; Capron, M.; Mamede, A.-S.; Pourpoint, F.; Gervasini, A.; Dumeignil, F. Structural, textural and acid–base properties of carbonate-containing hydroxyapatites. J. Mater. Chem. A 2014, 2, 11073–11090. [Google Scholar] [CrossRef] [Green Version]
  19. Chlala, D.; Labaki, M.; Giraudon, J.-M.; Gardoll, O.; Denicourt-Nowicki, A.; Roucoux, A.; Lamonier, J.-F. Toluene total oxidation over Pd and Au nanoparticles supported on hydroxyapatite. Comptes Rendus Chim. 2016, 19, 525–537. [Google Scholar] [CrossRef]
  20. Chlala, D.; Giraudon, J.-M.; Nuns, N.; Lancelot, C.; Vannier, R.-N.; Labaki, M.; Lamonier, J.-F. Active Mn species well dispersed on Ca2+ enriched apatite for total oxidation of toluene. Appl. Catal. B Environ. 2016, 184, 87–95. [Google Scholar] [CrossRef]
  21. Boukha, Z.; Kacimi, M.; Ziyad, M.; Ensuque, A.; Bozon-Verduraz, F. Comparative study of catalytic activity of Pd loaded hydroxyapatite and fluoroapatite in butan-2-ol conversion and methane oxidation. J. Mol. Catal. A Chem. 2007, 270, 205–213. [Google Scholar] [CrossRef]
  22. Boukha, Z.; González-Prior, J.; de Rivas, B.; González-Velasco, J.R.; López-Fonseca, R.; Gutiérrez-Ortiz, J.I. Synthesis, characterisation and behaviour of Co/hydroxyapatite catalysts in the oxidation of 1,2-dichloroethane. Appl. Catal. B Environ. 2016, 190, 125–136. [Google Scholar] [CrossRef]
  23. Wang, Y.; Chen, B.; Crocker, M.; Zhang, Y.; Zhu, X.; Shi, C. Understanding on the origins of hydroxyapatite stabilized gold nanoparticles as high-efficiency catalysts for formaldehyde and benzene oxidation. Catal. Commun. 2015, 59, 195–200. [Google Scholar] [CrossRef]
  24. Kumar, P.A.; Reddy, M.P.; Ju, L.K.; Phil, H.H. Novel Silver Loaded Hydroxyapatite Catalyst for the Selective Catalytic Reduction of NOx by Propene. Catal. Lett. 2008, 126, 78–83. [Google Scholar] [CrossRef]
  25. Tounsi, H.; Djemal, S.; Petitto, C.; Delahay, G. Copper loaded hydroxyapatite catalyst for selective catalytic reduction of nitric oxide with ammonia. Appl. Catal. B Environ. 2011, 107, 158–163. [Google Scholar] [CrossRef]
  26. Campisi, S.; Galloni, M.G.; Marchetti, S.G.; Auroux, A.; Postole, G.; Gervasini, A. Functionalized Iron Hydroxyapatite as Eco-friendly Catalyst for NH3-SCR Reaction: Activity and Role of Iron Speciation on the Surface. ChemCatChem 2020, 12, 1676–1690. [Google Scholar] [CrossRef]
  27. Campisi, S.; Galloni, M.G.; Bossola, F.; Gervasini, A. Comparative performance of copper and iron functionalized hydroxyapatite catalysts in NH3-SCR. Catal. Commun. 2019, 123, 79–85. [Google Scholar] [CrossRef]
  28. Schiavoni, M.; Campisi, S.; Carniti, P.; Gervasini, A.; Delplanche, T. Focus on the catalytic performances of Cu-functionalized hydroxyapatites in NH3-SCR reaction. Appl. Catal. A Gen. 2018, 563, 43–53. [Google Scholar] [CrossRef]
  29. Ferri, M.; Campisi, S.; Scavini, M.; Evangelisti, C.; Carniti, P.; Gervasini, A. In-depth study of the mechanism of heavy metal trapping on the surface of hydroxyapatite. Appl. Surf. Sci. 2019, 475, 397–409. [Google Scholar] [CrossRef]
  30. Sakhno, Y.; Bertinetti, L.; Iafisco, M.; Tampieri, A.; Roveri, N.; Martra, G. Surface hydration and cationic sites of nanohydroxyapatites with amorphous or crystalline surfaces: A comparative study. J. Phys. Chem. C 2010, 114, 16640–16648. [Google Scholar] [CrossRef]
  31. Nikolenko, N.V.; Esajenko, E.E. Surface properties of synthetic calcium hydroxyapatite. Adsorpt. Sci. Technol. 2005, 23, 543–553. [Google Scholar] [CrossRef] [Green Version]
  32. Misra, D.N. Adsorption on hydroxyapatite: Role of hydrogen bonding and interphase coupling. Langmuir 1988, 4, 953–958. [Google Scholar] [CrossRef]
  33. Sotomayor, F.J.; Cychosz, K.A.; Thommes, M. Characterization of Micro/Mesoporous Materials by Physisorption: Concepts and Case Studies. Acc. Mater. Surf. Res. 2018, 3, 34–50. [Google Scholar]
  34. Schiavoni, M.; Campisi, S.; Gervasini, A. Effect of Cu deposition method on silico aluminophosphate catalysts in NH3-SCR and NH3-SCO reactions. Appl. Catal. A Gen. 2017, 543, 162–172. [Google Scholar] [CrossRef]
  35. Campisi, S.; Palliggiano, S.; Gervasini, A.; Evangelisti, C. Finely Iron-Dispersed Particles on β Zeolite from Solvated Iron Atoms: Promising Catalysts for NH3-SCO. J. Phys. Chem. C 2019, 123, 11723–11733. [Google Scholar] [CrossRef]
  36. Madia, G.; Koebel, M.; Elsener, M.; Wokaun, A. Side Reactions in the Selective Catalytic Reduction of NOx with Various NO2 Fractions. Ind. Eng. Chem. Res. 2002, 41, 4008–4015. [Google Scholar] [CrossRef]
  37. Li, Y.; TeckNam, C.; PingOoi, C. Iron(III) and manganese(II) substituted hydroxyapatite nanoparticles: Characterization and cytotoxicity analysis. J. Phys. Conf. Ser. 2009, 187. [Google Scholar] [CrossRef]
  38. Khachani, M.; Kacimi, M.; Ensuque, A.; Piquemal, J.-Y.; Connan, C.; Bozon-Verduraz, F.; Ziyad, M. Iron–calcium–hydroxyapatite catalysts: Iron speciation and comparative performances in butan-2-ol conversion and propane oxidative dehydrogenation. Appl. Catal. A Gen. 2010, 388, 113–123. [Google Scholar] [CrossRef]
  39. Kandori, K.; Toshima, S.; Wakamura, M.; Fukusumi, M.; Morisada, Y. Effects of Modification of Calcium Hydroxyapatites by Trivalent Metal Ions on the Protein Adsorption Behavior. J. Phys. Chem. B 2010, 114, 2399–2404. [Google Scholar] [CrossRef]
  40. Cornell, R.M.; Schwertmann, U. Chapter 7 Characterization. In The Iron Oxides: Structure, Properties, Reactions, Occurrences, and Uses; Cornell, R.M., Schwertmann, U., Eds.; Wiley-VCH Verlag GmbH & Co. KGaA: Weinheim, Germany, 1996; pp. 139–183. [Google Scholar]
  41. Long, G.J.; Grandjean, F. Mössbauer Spectroscopy Applied to Inorganic Chemistry; Modern Inorganic Chemistry; Springer: New York, NY, USA, 2013; ISBN 9781489922892. [Google Scholar]
  42. Long, G.J.; Grandjean, F. Mössbauer Spectroscopy Applied to Magnetism and Materials Science; Modern Inorganic Chemistry; Springer: New York, NY, USA, 2013; ISBN 9781489924094. [Google Scholar]
  43. Han, L.; Cai, S.; Gao, M.; Hasegawa, J.Y.; Wang, P.; Zhang, J.; Shi, L.; Zhang, D. Selective Catalytic Reduction of NOx with NH3 by Using Novel Catalysts: State of the Art and Future Prospects. Chem. Rev. 2019, 119, 10916–10976. [Google Scholar] [CrossRef]
  44. Zhang, R.; Liu, N.; Lei, Z.; Chen, B. Selective Transformation of Various Nitrogen-Containing Exhaust Gases toward N2 over Zeolite Catalysts. Chem. Rev. 2016, 116, 3658–3721. [Google Scholar] [CrossRef]
  45. Kröcher, O.; Brandenberger, S. Active sites, deactivation and stabilization of Fe-ZSM-5 for the selective catalytic reduction (SCR) of NO with NH3. Chimia 2012, 66, 687–693. [Google Scholar] [CrossRef] [PubMed]
  46. Brandenberger, S.; Kröcher, O.; Tissler, A.; Althoff, R. The determination of the activities of different iron species in Fe-ZSM-5 for SCR of NO by NH3. Appl. Catal. B Environ. 2010, 95, 348–357. [Google Scholar] [CrossRef]
  47. Chmielarz, L.; Jabłońska, M. Advances in selective catalytic oxidation of ammonia to dinitrogen: A review. RSC Adv. 2015, 5, 43408–43431. [Google Scholar] [CrossRef]
  48. Heyden, A.; Hansen, N.; Bell, A.T.; Keil, F.J. Nitrous oxide decomposition over Fe-ZSM-5 in the presence of nitric oxide: A comprehensive DFT study. J. Phys. Chem. B 2006, 110, 17096–17114. [Google Scholar] [CrossRef] [PubMed]
  49. Heyden, A.; Peters, B.; Bell, A.T.; Keil, F.J. Comprehensive DFT study of nitrous oxide decomposition over Fe-ZSM-5. J. Phys. Chem. B 2005, 109, 1857–1873. [Google Scholar] [CrossRef]
  50. Lagarec, K.; Rancourt, D.G. Recoil-Mössbauer Spectral Analysis Software for Windows; University of Ottawa: Ottawa, ON, Canada, 1998. [Google Scholar]
Catalysts 10 01415 g001 550
Figure 1. XRPD patterns of all the Fe/HAP samples prepared by flash ionic exchange (a). The diffraction patterns of hydroxyapatite (b), and iron oxide phases (c): Fe(OH)3, bernalite, JCPDS 00-046-1436, blue; Fe3O4, magnetite, JCPDS 00-019-0629, red; ɣ-FeO(OH), lepidocrocite, JCPDS 00-044-1415, green; Fe2O3, hematite, JCPDS 00-033-0664, grey) are reported as reference.
Figure 1. XRPD patterns of all the Fe/HAP samples prepared by flash ionic exchange (a). The diffraction patterns of hydroxyapatite (b), and iron oxide phases (c): Fe(OH)3, bernalite, JCPDS 00-046-1436, blue; Fe3O4, magnetite, JCPDS 00-019-0629, red; ɣ-FeO(OH), lepidocrocite, JCPDS 00-044-1415, green; Fe2O3, hematite, JCPDS 00-033-0664, grey) are reported as reference.
Catalysts 10 01415 g001
Catalysts 10 01415 g002 550
Figure 2. NH3-SCR catalytic activity results on Fe/HAP samples (a–f): profiles of conversion of the fed species (NH3, light blue and NO, red) and of selectivity of formed species (N2, black and N2O, green) as a function of temperature. Reaction conditions: [NH3] = [NO] = 500 ppm, [O2] = 10,000 ppm; GHSV = 30,000 h−1.
Figure 2. NH3-SCR catalytic activity results on Fe/HAP samples (a–f): profiles of conversion of the fed species (NH3, light blue and NO, red) and of selectivity of formed species (N2, black and N2O, green) as a function of temperature. Reaction conditions: [NH3] = [NO] = 500 ppm, [O2] = 10,000 ppm; GHSV = 30,000 h−1.
Catalysts 10 01415 g002
Catalysts 10 01415 g003 550
Figure 3. NH3-SCO catalytic activity results on Fe/HAP samples: (a) profiles of NH3 conversion as a function of temperature. (b) Selectivity to N2 (blue bars) and to NOx (red bars) at 50% of NH3 conversion. Reaction conditions: [NH3] = 500 ppm, [O2] = 10,000 ppm; GHSV = 30,000 h−1.
Figure 3. NH3-SCO catalytic activity results on Fe/HAP samples: (a) profiles of NH3 conversion as a function of temperature. (b) Selectivity to N2 (blue bars) and to NOx (red bars) at 50% of NH3 conversion. Reaction conditions: [NH3] = 500 ppm, [O2] = 10,000 ppm; GHSV = 30,000 h−1.
Catalysts 10 01415 g003
Catalysts 10 01415 g004 550
Figure 4. N2O decomposition catalytic activity results on Fe/HAP samples: N2O conversion at different temperatures (400, 500, 750 °C). Reaction conditions: [N2O] = 150 ppm, [O2] = 6000 ppm; GHSV = 30,000 h−1.
Figure 4. N2O decomposition catalytic activity results on Fe/HAP samples: N2O conversion at different temperatures (400, 500, 750 °C). Reaction conditions: [N2O] = 150 ppm, [O2] = 6000 ppm; GHSV = 30,000 h−1.
Catalysts 10 01415 g004
Catalysts 10 01415 g005 550
Figure 5. UV-vis DR spectra of Fe/HAP samples and bare HAP (left); deconvoluted spectrum of Fe5/HAPIE (right): calculated curve, red line, and decomposed curves, dotted black line with the related peak centers), chosen as an example.
Figure 5. UV-vis DR spectra of Fe/HAP samples and bare HAP (left); deconvoluted spectrum of Fe5/HAPIE (right): calculated curve, red line, and decomposed curves, dotted black line with the related peak centers), chosen as an example.
Catalysts 10 01415 g005
Catalysts 10 01415 g006 550
Figure 6. Mössbauer spectra of two Fe/HAP samples, presenting the lowest and the highest Fe-loading among Fe-loaded samples (Fe2/HAPIE, (a), and Fe13/HAPIE, (b), respectively), chosen as representative sample, collected at room temperature (left) and at −260 °C (right). Percentage values indicate the normalized population of Fe3+ centers.
Figure 6. Mössbauer spectra of two Fe/HAP samples, presenting the lowest and the highest Fe-loading among Fe-loaded samples (Fe2/HAPIE, (a), and Fe13/HAPIE, (b), respectively), chosen as representative sample, collected at room temperature (left) and at −260 °C (right). Percentage values indicate the normalized population of Fe3+ centers.
Catalysts 10 01415 g006
Catalysts 10 01415 g007 550

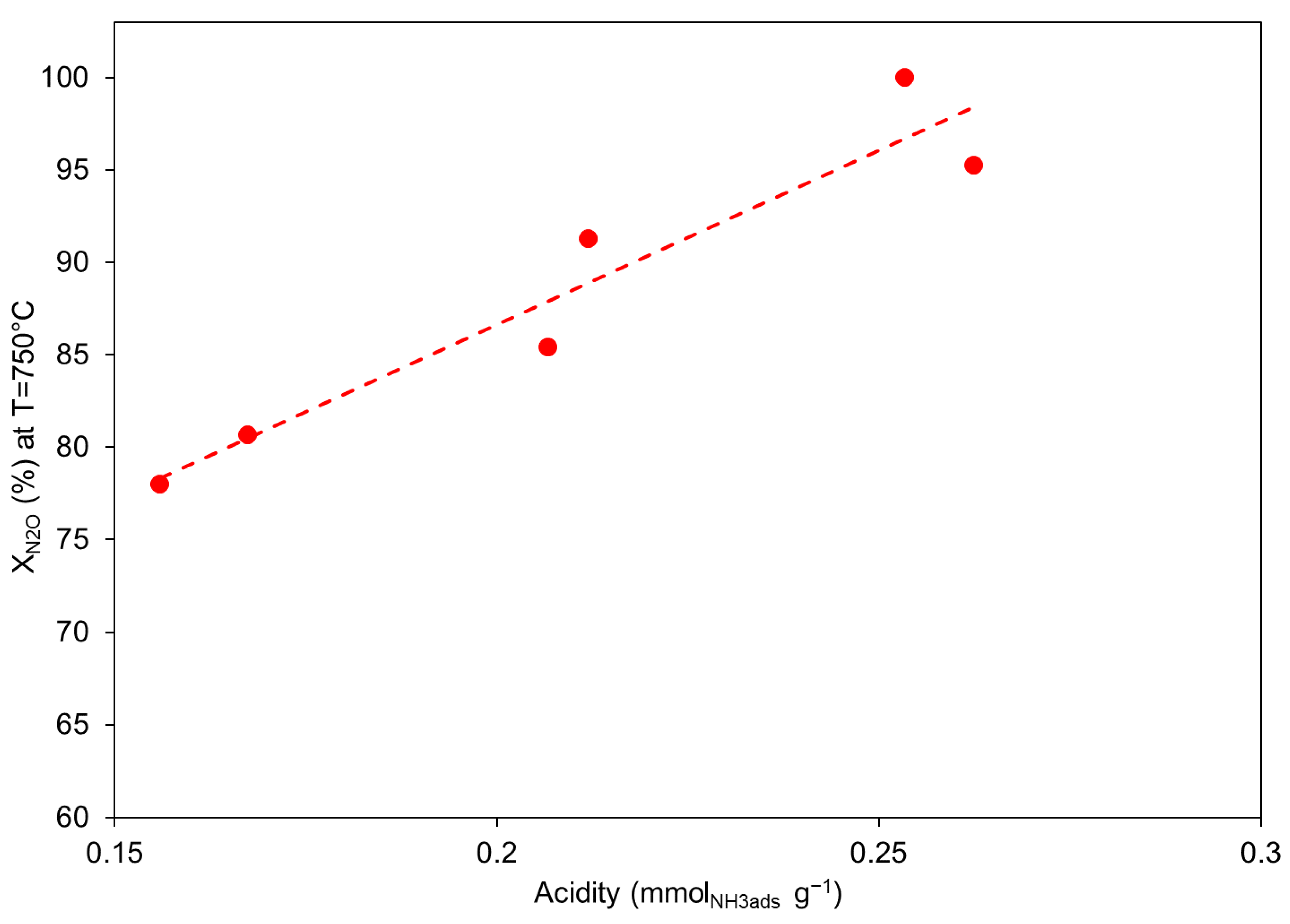

Figure 7. N2O conversion values (at fixed temperature, 750 °C) as a function of acidity (expressed in mmolNH3,ads·g−1) of Fe/HAP catalysts.
Figure 7. N2O conversion values (at fixed temperature, 750 °C) as a function of acidity (expressed in mmolNH3,ads·g−1) of Fe/HAP catalysts.
Catalysts 10 01415 g007
Catalysts 10 01415 sch001 550
Scheme 1. Schematic view of iron species at the surface HAP grain.
Scheme 1. Schematic view of iron species at the surface HAP grain.
Catalysts 10 01415 sch001
Table
Table 1. Main morphological and surface properties of all the Fe/HAP samples compared with those of bare HAP calcined at 500 °C.
Table 1. Main morphological and surface properties of all the Fe/HAP samples compared with those of bare HAP calcined at 500 °C.
CodeFe Loading a
(wt.%)		S.A. b
(m2·g−1)		Pore Volume c
(cm3·g−1)		Mean Pore
Radius d (nm)		Acidity
(μmolNH3(ads)·g−1)		Acidity Ratio e
HAP/500 f-440.198.2140.5 -
Fe2/HAPIE2.07670.216.9155.9 ± 2.31.11
Fe3/HAPIE3.02640.227.4167.4 ± 121.19
Fe5/HAPIE4.77660.206.4206.7 ± 7.31.47
Fe7/HAPIE6.83760.246.4212.0 ± 6.91.51
Fe9/HAPIE8.62780.256.1253.4 ± 0.41.80
Fe13/HAPIE12.93820.305.6262.4 ± 7.31.87
a obtained by atomic absorption on solid after mineralization (see Experimental section); b Surface Area (S.A.) determined by BET equation (2-parameters); c at p/p0 = 0.95; d determined by Barrett-Joyner-Halenda (BJH) model from desorption branch of the isotherm (0.3 < p/p0 < 0.95); e sample acidity ratio compared with that of bare HAP; f bare HAP calcined at 500 °C for 1 h.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Galloni, M.G.; Campisi, S.; Marchetti, S.G.; Gervasini, A. Environmental Reactions of Air-Quality Protection on Eco-Friendly Iron-Based Catalysts. Catalysts 2020, 10, 1415. https://doi.org/10.3390/catal10121415

AMA Style

Galloni MG, Campisi S, Marchetti SG, Gervasini A. Environmental Reactions of Air-Quality Protection on Eco-Friendly Iron-Based Catalysts. Catalysts. 2020; 10(12):1415. https://doi.org/10.3390/catal10121415

Chicago/Turabian Style

Galloni, Melissa Greta, Sebastiano Campisi, Sergio Gustavo Marchetti, and Antonella Gervasini. 2020. "Environmental Reactions of Air-Quality Protection on Eco-Friendly Iron-Based Catalysts" Catalysts 10, no. 12: 1415. https://doi.org/10.3390/catal10121415

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
