High Resistance of SO2 and H2O over Monolithic Mn-Fe-Ce-Al-O Catalyst for Low Temperature NH3-SCR
1
Jiangsu Key Laboratory of Vehicle Emissions Control, School of the Environment, Nanjing University, Nanjing 210093, China
2
College of Chemistry, Chemical Engineering and Materials Science, Shandong Normal University, Jinan 250014, China
3
School of Environment, Nanjing Normal University, Nanjing 210093, China
*
Authors to whom correspondence should be addressed.
Catalysts 2020, 10(11), 1329; https://doi.org/10.3390/catal10111329
Submission received: 10 October 2020
/
Revised: 4 November 2020
/
Accepted: 12 November 2020
/
Published: 16 November 2020
(This article belongs to the Special Issue Selective Catalytic Reduction of NOx by NH3)
Abstract
:Monolithic Mn-Fe-Ce-Al-O catalyst with honeycomb cordierite ceramic as a carrier was reported for the first time for low temperature deNOx application. In the reaction of selective catalytic reduction (SCR) of NO with NH3, a NO conversion of above 80% at 100 °C was obtained. Notably, the catalyst also showed excellent resistance against SO2 and H2O. About 60% NO conversion was maintained after successive operation in the mixed stream of SO2 and H2O for 168 h. The Brunner−Emmet−Teller (BET) measurement, SEM, EDS, thermogravimetric analysis (TG), FT-IR, and XPS results of the used catalysts indicated that certain amounts of ammonium sulfate was formed on the surface of the catalyst. XPS results revealed that partial of Fe2+ was oxidized to Fe3+ during the reaction process, and Fe2+ species have strong redox ability, which can explain the decrease in activity after reaction. In addition, SO2 and H2O induced a transformation of Ce from Ce4+ to Ce3+ on the surface of the catalyst, which increased the amount of chemisorbed oxygen. Owing to these factors, the addition of Ce and Fe species contributes to excellent resistance of the catalyst to SO2 and H2O.
1. Introduction
As global air pollutants, nitrogen oxides (NOx) emitted due to high-temperature combustion processes have caused diverse environment problems such as photochemical smog and ozone [1,2,3]. Generally, NOx emission contains two parts, i.e., stationary and mobile sources. Compared with mobile sources, the control of NOx emission from stationary sources is still a big challenge, particularly for non-electric fields including steel, cement, coking, glass, and other industries.
Selective catalytic reduction (SCR) in NOx with NH3 is currently the main applied method for treatment of NOx from stationary sources. The compositions of commercial SCR catalysts are V2O5-WO3/TiO2 or V2O5-MoO3/TiO2, and the reaction temperature ranges from 290 to 380 °C [4], which adapts to the flue gas conditions of the power plant. However, for other industries like steel, etc., the temperature is usually lower than 250 °C, and the application of commercial SCR catalysts has been limited. On the other hand, the spent catalyst containing V2O5 is regarded as a hazardous waste, which makes the treatment of spent catalyst difficult. As such, the development of novel vanadium-free catalysts with high efficiency at low temperatures has become very urgent.
As a typical candidate for SCR, MnOx-based catalysts have been widely investigated due to their superior low temperature activity. Tang et al. [5] prepared three unsupported MnOx catalysts with amorphous phase and found that the excellent catalytic activity was mainly due to their amorphous phase and high specific areas. Although MnOx-based catalysts show excellent catalytic activity at low temperatures, their resistance to SO2 and H2O deactivation still needs to improve. To address this point, adding new component is a widely used strategy. For example, Qi et al. [6,7] explored Mn-Ce and Mn-Fe/TiO2 catalysts and found that the addition of iron oxide not only increased the NO conversion but also the resistance ability to H2O and SO2. Dong et al. [8,9,10,11] synthesized a Mn-Ce/Al2O3 catalyst showing excellent NH3-SCR performance at 100 °C. However, the catalyst in the above research was in powder state, which was much different to the monolithic catalyst used for practical production.
In our previous study, a recipe of Mn-Fe-Ce-Al-O was found to obtain good NO conversion efficiency. In this research, the monolithic catalyst was prepared by impregnation method with cordierite honeycomb carrier to verify their application potential. All the experiments were conducted on the denitration platform with a gas flow rate of 10 m3/h. The NO conversion and H2O/SO2 resistance were investigated at 100 °C. According to the requirement of industrial catalyst testing, the continuous performance measurement lasted 168 h. The catalyst used for 168 h was thoroughly analyzed by a series of characterizations such as SEM, EDS, BET to know more details about the monolithic catalyst.
2. Results and Discussion
2.1. DeNOx Activity of Mn-Fe-Ce-Al-O Catalyst at Low Temperatures
In order to evaluate the catalytic performance of the monolithic Mn-Fe-Ce-Al-O catalyst at low temperatures, the testing temperature is confined to 80–130 °C. Figure 1a shows the activity test results. As well, the photos of reaction setup and honeycomb cordierite catalyst are provided in Figure 1b,c, respectively. It is found the NO conversion initially increases with reaction temperature and maintains above 80% in the temperature range of 100–130 °C. Particularly, more than 70% NO conversion can be achieved at the low temperature of 80 °C. The performance of monolithic catalyst is comparable to MnOx-based catalyst in powder state. Hence, it is obvious that the monolithic Mn-Fe-Ce-Al-O catalyst exhibits excellent deNOx performance in the low-temperature region.
2.2. Resistance of Mn-Fe-Ce-Al-O Catalyst to SO2 and H2O
2.2.1. Resistance of Catalyst to SO2
The reaction temperature was set at 100 °C and SO2 concentration was controlled (50, 100, 200 ppm) to investigate the effect of SO2 on the catalytic performance of Mn-Fe-Ce-Al-O catalyst. As shown in Figure 2, the NO conversion of Mn-Fe-Ce-Al-O catalyst decreases slightly after introduction of SO2 with low concentration (50 and 100 ppm) and is maintained above 75% at 100 °C. The NO conversion of catalyst decreases obviously and finally stabilizes at 70% in the presence of 200 ppm SO2. In comparison with the power MnOx-based catalyst, it is found the NO conversion is similar, but the SO2 resistance is much improved. The result suggests there may be some difference in the anti-SO2 performance between power and monolithic catalyst. After removal of SO2, the NO conversion is almost recovered to its initial level, indicating strong resistance ability to SO2 of Mn-Fe-Ce-Al-O catalyst.
2.2.2. Resistance of Catalyst to H2O
The effect of different concentrations (4, 7, 10, 13 vol%) of H2O on NO conversion over Mn-Fe-Ce-Al-O catalyst were monitored at 100 °C, and the result was shown in Figure 3. The NO conversion of Mn-Fe-Ce-Al-O catalyst decreases after the addition of H2O. With the increase in H2O (from 4 to 13 vol%), the denitration efficiency decreases gradually. When 4 vol% H2O was introduced into the reactor, the NO conversion decreases from 80 to 70%, and it only obtains 45% when 13 vol% H2O is introduced. After H2O was shut off, NO conversion could be recovered. The results indicate that H2O deactivation is reversible, which could be caused by the competitive adsorption between H2O and NH3/NO [12].
2.2.3. Resistance of the Catalyst against SO2 and H2O for 168 h
An investigation on the stability of the Mn-Fe-Ce-Al-O catalyst in the presence of both H2O and SO2 is presented in Figure 4. Under the employed reaction conditions (100 °C, without H2O and SO2), 83% NO conversion is obtained. However, the NO conversion suffers from a small decline to 78% after adding 100 ppm SO2 only and from 78 to 65% when 4 vol% H2O is also fed. It shows a decline trend gradually in the first 40 h. Then, the NO conversion maintains at about 60% for the next 120 h. After H2O shuts off, the NO conversion increases to 70%. Furthermore, the denitration efficiency is not changed after SO2 removal. The results indicate that the inhibition effect is more obvious when the SO2 and H2O coexists in the NH3-SCR reaction. The NO conversion of the catalyst cannot recover to its initial level in the presence of SO2 and H2O due to irreversible deactivation. It is reported that SO2 can react with NH3 to form sulfate species during the reaction in the atmosphere of O2 and H2O [13]. To explore the deactivation mechanism of H2O and SO2 on Mn-Fe-Ce-Al-O monolithic catalyst, the characterization of fresh and spent catalyst after 168 h reaction was carried out. For simplicity, the fresh catalyst is denoted as Z-Mn-Fe-Ce-Al-O, while the catalyst after 168 h reaction is marked as C-Mn-Fe-Ce-Al-O.
2.3. Physiochemical Characterization of Monolithic Mn-Fe-Ce-Al-O Catalyst before and after Reaction
2.3.1. XRD, BET, SEM, and EDS
Figure 5 shows the result of XRD patterns for catalyst before and after 168 h resistance test. The diffraction peaks at 28.95, 33.29, 47.49, 57.16, and 76.71° characteristic of CeO2 (PDF# 34-0394) were obvious, suggesting that active substance mainly existed in the form of cubic fluorite type CeO2 [9]. The typical peaks attributed to MnOx did not appear, indicating the crystallinity of MnOx was very low or in amorphous forms. There was no significant change in XRD patterns before and after the catalytic reaction, revealing that no crystal sulfate phase was formed or the particle size of surface sulfate was beyond the detection limit of XRD.
The BET surface, pore volume, and pore size of Z-Mn-Fe-Ce-Al-O and C-Mn-Fe-Ce-Al-O catalysts are summarized in Table 1. The BET surface area and pore volume of the Z-Mn-Fe-Ce-Al-O catalyst are 77.90 m2 g−1 and 0.19 cm3 g−1, respectively. The values decreased to 52.34 m2 g−1 and 0.15 cm3 g−1 after the reaction. This indicates some surface species may be formed and cover on the surface of the catalyst, resulting in the pore blockage [14].
Surface morphologies of Z-Mn-Fe-Ce-Al-O and C-Mn-Fe-Ce-Al-O catalyst are displayed in Figure 6. As can be seen, the surface of Z-Mn-Fe-Ce-Al-O catalyst is uniform. Comparatively, some aggregation and deposition can be observed on C-Mn-Fe-Ce-Al-O catalyst, which can reasonably explain the decrease in surface area of the catalyst. In addition, compositions of Z-Mn-Fe-Ce-Al-O and C-Mn-Fe-Ce-Al-O catalysts are further investigated by EDS analysis, and the results demonstrate that the main element of the particles on the surface of Z-Mn-Fe-Ce-Al-O catalyst is Mn, Ce, Fe, Al, O, C, as shown in Table 2. However, the S signal is detected on C-Mn-Fe-Ce-Al-O catalyst, suggesting some sulfate species are probably deposited on catalyst surface.
2.3.2. TG Analysis
Z-Mn-Fe-Ce-Al-O and C-Mn-Fe-Ce-Al-O catalysts were measured by TG to explore the thermal stability of sulfate species formed during the sulfation process. As shown in Figure 7, the weight losses of Z-Mn-Fe-Ce-Al-O and C-Mn-Fe-Ce-Al-O catalysts can be divided into three steps. Step 1 (25–200 °C) can be mainly assigned to the desorption of absorbed water on the catalysts [15], and C-Mn-Fe-Ce-Al-O catalyst shows much higher weight loss than Z-Mn-Fe-Ce-Al-O catalyst after being tested in presence of H2O and SO2. Step 2 (200–400 °C) is mainly attributed to the decomposition of (NH4)2SO4 (280 °C) and NH4HSO4 (390 °C) formed on the surface of catalysts [16]. The Z-Mn-Fe-Ce-Al-O catalyst shows no obvious decomposition or deposition behavior in the range of 200–400 °C. Furthermore, it can be seen that the C-Mn-Fe-Ce-Al-O catalyst displays further weight losses in step 3 (600–800 °C) and no similar phenomenon can be observed for the Z-Mn-Fe-Ce-Al-O catalyst. As reported elsewhere, the decomposition temperature of Ce(SO4)2 and Ce2(SO4)3 was higher than 600 °C [17,18]. No obvious decomposition behavior of Z-Mn-Fe-Ce-Al-O and C-Mn-Fe-Ce-Al-O catalyst can be observed above 800 °C, indicating that no MnSO4 (880 °C) species form in the catalyst [19].
2.3.3. XPS Analysis
Surface compositions of the fresh and spent catalysts are identified by XPS, and the results are shown in Figure 8 and Table 3. From Figure 8a,b, an obvious peak at 169 eV can be found for S 2p spectra of C-Mn-Fe-Ce-Al-O catalyst, which is identified as the characteristic peak of S6+ state of SO42-. No S 2p spectra can be observed for the Z-Mn-Fe-Ce-Al-O catalyst. It verifies that some sulfate species were formed on the surface of catalysts after SO2 and H2O tolerance test [20].
Two main peaks due to Fe 2p1/2 and Fe 2p3/2 were shown in Figure 8c. The Fe 2p region consists of Fe 2p1/2 with a binding energy of about 725 eV and Fe 2p3/2 with a binding energy of about 711 eV. The Fe 2p3/2 peak was characteristic of a mixed valence iron system (Fe3+ and Fe2+). As shown in Figure 8c and Table 3, the ratio of Fe2+/Fe3+ of Z-Mn-Fe-Ce-Al-O catalyst (2.26) was higher than C-Mn-Fe-Ce-Al-O catalyst (0.56), which indicated that a part of Fe2+ was oxidized to Fe3+ during the reaction process [21,22,23].
As shown in Figure 8d, the Mn 2p region consisted of spin-orbit doublet with Mn 2p1/2 having a peak at 651–655 eV and Mn 2p3/2 with a peak at 640–644 eV. The Mn 2p3/2 peak was fitted into two peaks referred to the Mn4+ about 642 eV and the Mn3+ about 641 eV [24]. To better understand the surface MnOx phases and their relative intensities, deconvolution of Mn 2p was conducted. Compared with Z-Mn-Fe-Ce-Al-O catalyst, the ratio of Mn4+/(Mn4+ + Mn3+) of C-Mn-Fe-Ce-Al-O catalyst decreased by 6%. Kapteijn et al. [25] reported that Mn4+ had better redox ability than Mn2+ and Mn3+ of manganese oxide catalysts. Therefore, the NO conversion of catalyst decreased in the presence of H2O and SO2.
The convoluted Ce 3d XPS spectra of Z-Mn-Fe-Ce-Al-O and C-Mn-Fe-Ce-Al-O catalyst are shown in Figure 8f. The Ce 3d peak was fitted into three peaks, which are denoted as U, U2, U3 and V, V2, V3, were attributed to Ce4+ species, while U1, V1 were assigned to Ce3+ species [26]. The intensities of Ce3+ peaks increased after tested for 168 h, and the value of Ce3+/Ce4+ was increased from 0.22 to 0.27, which may suggest the occurrence of following reaction: 2CeO2 + 3SO2 + O2 → Ce2(SO4)3 [27]. The SO2 may preferentially react with CeO2, then the formation of the manganese sulfate can be greatly avoided. Similar phenomenon can also be found for other rare earth catalyst [28]. Therefore, the synergistic effect of Ce contributed to the excellent SO2 and H2O resistance of the catalyst.
Figure 8g shows the O 1s XPS spectra of Z-Mn-Fe-Ce-Al-O and C-Mn-Fe-Ce-Al-O catalysts. The O 1s peaks could be fitted into two peaks referred to the chemisorbed oxygen at 538.5 eV (denoted as Oα) and the lattice oxygen at 540.3 eV (denoted as Oβ). The ratio of Oβ/(Oα + Oβ) over C-Mn-Fe-Ce-Al-O catalyst (0.39) was higher than Z-Mn-Fe-Ce-Al-O catalyst (0.19), which was related to sulfate species formed during the SCR reaction for 168 h [29].
2.3.4. FT-IR Analysis
The FT-IR spectra of Z-Mn-Fe-Ce-Al-O and C-Mn-Fe-Ce-Al-O catalyst are shown in Figure 9. Both catalysts exhibit vibrations centered at 1638 and 3423 cm−1. The band at 1638 cm−1 features metal oxides [30], and the band at 3423 cm−1 is due to the stretching vibration of surface O-H [31]. However, there are some new bands appearing at 1563, 1411, 1067, 1384, 1139 cm−1 for the C-Mn-Fe-Ce-Al-O catalyst. The bands at 1563, 1411, and 1067 cm−1 are from NH3 adsorption on catalyst surface. The bands located at 1384 and 1139 cm−1 could be ascribed to nitrate species and sulfate species [32], respectively. The results of FT-IR further confirm the appearance of sulfate, ammonium, and nitrate species on the surface of catalyst after 168 h test in the presence of H2O and SO2.
3. Materials and Methods
3.1. Catalyst Preparation
The Mn-Fe-Ce-Al-O powder was prepared by co-precipitation method. Aqueous solutions of Al(NO3)3·9H2O (Aladdin, Shanghai, China), Ce(NO3)3·6H2O and Mn(NO3)2·4H2O (Aladdin, Shanghai, China) were pre-mixed, and Fe(NO3)3·9H2O (Aladdin, Shanghai, China) was added to the mixed solution. Then, ammonia solution (30 wt.%) was continuously added to the mixed solution with stirring until pH = 10. The precipitates were collected and washed with distilled water until pH = 7. The resulting mixture was dried at 110 °C for 12 h and calcined at 550 °C for 5 h. Finally, the catalysts were crushed and sieved to 150 mesh.
The monolithic Mn-Fe-Ce-Al-O catalyst was prepared by impregnation method with cordierite honeycomb as a carrier (100 mm × 100 mm × 150 mm). Firstly, the cordierite honeycomb was pre-treated by soaking in hydrogen peroxide (15 wt.%) for 6 h and dried at 120 °C for 10 h, and then calcined at 400 °C for 5 h. The honeycomb support has a channel density of 160 cells per square inch and a wall thickness of about 0.5 mm. Secondly, Polyvinyl alcohol (GRACE, Tianjin, China), Emulsifier (OP-10) (Aladdin, Shanghai, China) and sodium silicate (Aladdin, Shanghai, China) were dissolved in distilled water to form a solution and stirred for 1 h. Then, the prepared catalyst powder was slowly added into the solution with stirring for 30 min and wash-coated on the honeycomb with 10 wt.% loading. Finally, the pretreated carrier was soaked in the mixed solution for 10 min. After impregnation, the monolithic catalyst was dried at 110 °C for 10 h and air calcined at 450 °C for 2 h.
3.2. Catalytic Activity Test
The denitration activity test was carried out on a self-designed reactor, consisting mainly of a gas distribution system, a catalytic reaction system, and a gas analysis system, as shown in Figure 10. The premixed simulated gases (200 ppm NO, 200 ppm NH3, SO2 (when used) and H2O (when used)) with the balance air were introduced into the reactor with a gas flow rate of 10 m3/h, which heated by an air heater, and the gas space velocity was controlled at 1667 h−1. The concentration of NO was measured using a flue gas analyzer (Testo-350, Lenzkirch, Germany).
3.3. Catalyst Characterization
The X-ray diffraction (XRD) experiments were operated to determine the crystal phase structure (Rigaku5D/MAX RA, Tokyo, Japan). Cu Kα radiation was employed, and the X-ray tube was operated at 40kV and 100 mA. The XRD spectra were recorded in the range of 10° < 2θ <80° at 0.02° intervals. The BET-specific surface area of catalysts was determined by N2 adsorption at 77 K using an automated gas sorption system (Micromeritics ASAP 2020 instrument, Shanghai, China). Prior to each analysis, the sample was degassed under vacuum at 300 °C for 4 h. Surface microstructure of the catalysts was analyzed by scanning electron microscopy (SEM, HITACHI SU8010 Tokyo, Japan). The X-ray photoelectron spectroscopy (XPS) experiments were carried out using ESCALAB 250Xi Thermol scientific X-ray photoelectron spectrometer system (Waltham, MA, USA) equipped with a monochromatic Al Kα (hv = 1486.6 eV). An X-ray energy dispersive spectrometer (EDS, INCAOXFORD, Oberkochen, Germany) was used to analyze the surface element contents of catalysts. The energy resolution of the spectrum was 130 eV and the detection range of the elements was B~U. The thermogravimetric analysis (TG) was conducted using the thermal analyzer (SHIMADZU TA-60WS, New Castle County, DE, USA) to increase the temperature to 1000 °C under the inert gas condition. Fourier transform infrared (FT-IR) analysis was performed on a crushed scrap from the monolithic catalyst by using a Fourier transform infrared spectrometer (Nicolet iz10, in10, Thermol scientific, Waltham, MA, USA).
4. Conclusions
Monolithic Mn-Fe-Ce-Al-O catalyst was explored for the first time as an efficient catalyst for deNOx at low temperature. The NO conversion of the catalyst obtains more than 80% at the reaction temperature of 100 °C without SO2 and H2O. It also exhibits excellent resistance against SO2, and the NO conversion can maintain at about 70% in the presence of 200 ppm SO2 at 100 °C. The decreased activity caused by H2O is reversible, and higher H2O content induced a more obvious inhibition effect on the catalyst. It is worth noting that the catalyst can still obtain a NO conversion of 60% after 168 h resistance test against SO2 and H2O, indicating the excellent SO2 and H2O resistance of monolithic Mn-Fe-Ce-Al-O catalyst.
The characterization of BET, SEM, EDS, TG, FT-IR, and XPS indicated that ammonium sulfate was formed on the surface of catalyst after a 168 h resistance test against SO2 and H2O, which can explain the decrease in activity after reaction. In addition, the ratio of Mn4+/(Mn4+ + Mn3+) of Mn-Fe-Ce-Al-O catalyst decreased after reaction, which is also one of the reasons for the decrease in activity. SO2 and H2O may induce a transformation of Ce from Ce4+ to Ce3+ on catalyst, indicating that SO2 may preferentially react with CeO2. Consequently, the formation of the manganese sulfate can be greatly avoided.
Author Contributions
J.S. and C.T. directed the research projects and supervised the work; S.H. conducted the experiments and summarized the data; C.S. and L.D. performed the refinement; Y.C. polished the English and provided the useful discussion. All authors discussed the results and contributed to the paper. All authors have read and agreed to the published version of the manuscript.
Funding
This work was financially supported by the National Natural Science Foundation of China (21707066, 21773106, 21976081, 21806077) and the National High Technology Research and Development Program of China (2015AA03A401).
Conflicts of Interest
The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.
References
- Liu, Z.; Yi, Y.; Zhang, S.; Zhu, T.; Zhu, J.; Wang, J. Selective catalytic reduction of NOx with NH3 over Mn-Ce mixed oxide catalyst at low temperatures. Catal. Today 2013, 216, 76–81. [Google Scholar] [CrossRef]
- Zhang, J.; Qu, H. Low-temperature selective catalytic reduction of NOx with NH3 over Fe–Cu mixed oxide/ZSM-5 catalysts containing Fe2CuO4 phase. Res. Chem. Intermed. 2014, 41, 4961–4975. [Google Scholar] [CrossRef]
- Boningari, T.; Smirniotis, P.G. Impact of nitrogen oxides on the environment and human health: Mn-based materials for the NOx abatement. Curr. Opin. Chem. Eng. 2016, 13, 133–141. [Google Scholar] [CrossRef]
- Yao, X.; Ma, K.; Zou, W.; He, S.; An, J.; Yang, F.; Dong, L. Influence of preparation methods on the physicochemical properties and catalytic performance of MnOx-CeO2 catalysts for NH3-SCR at low temperature. Chin. J. Catal. 2017, 38, 146–159. [Google Scholar] [CrossRef]
- Tang, X.; Hao, J.; Xu, W.; Li, J. Low temperature selective catalytic reduction of NOx with NH3 over amorphous MnOx catalysts prepared by three methods. Catal. Commun. 2007, 8, 329–334. [Google Scholar] [CrossRef]
- Qi, G.; Yang, R.T.; Chang, R. MnOx-CeO2 mixed oxides prepared by co-precipitation for selective catalytic reduction of NO with NH3 at low temperatures. Appl. Catal. B Environ. 2004, 51, 93–106. [Google Scholar] [CrossRef]
- Qi, G.; Yang, R.T. Low-temperature selective catalytic reduction of NO with NH3 over iron and manganese oxides supported on titania. Appl. Catal. B Environ. 2003, 44, 217–225. [Google Scholar] [CrossRef]
- Tang, C.; Zhang, H.; Dong, L. Ceria-based catalysts for low-temperature selective catalytic reduction of NO with NH3. Catal. Sci. Technol. 2016, 6, 1248–1264. [Google Scholar] [CrossRef]
- Xiong, Y.; Tang, C.; Yao, X.; Zhang, L.; Li, L.; Wang, X.; Deng, Y.; Gao, F.; Dong, L. Effect of metal ions doping (M = Ti4+, Sn4+) on the catalytic performance of MnOx/CeO2 catalyst for low temperature selective catalytic reduction of NO with NH3. Appl. Catal. A Gen. 2015, 495, 206–216. [Google Scholar] [CrossRef]
- Yao, X.; Li, L.; Zou, W.; Yu, S.; An, J.; Li, H.; Yang, F.; Dong, L. Preparation, characterization, and catalytic performance of high efficient CeO2-MnOx-Al2O3 catalysts for NO elimination. Chin. J. Catal. 2016, 37, 1369–1380. [Google Scholar] [CrossRef]
- Zhang, L.; Zou, W.; Ma, K.; Cao, Y.; Xiong, Y.; Wu, S.; Tang, C.; Gao, B.; Dong, L. Sulfated Temperature Effects on the Catalytic Activity of CeO2 in NH3-Selective Catalytic Reduction Conditions. J. Phys. Chem. C 2015, 119, 1155–1163. [Google Scholar] [CrossRef]
- Zhang, F.; Tian, G.; Wang, H.; Wang, H.; Zhang, C.; Cui, Y.; Huang, J.; Shu, Y. CeO2/TiO2 Monolith catalyst for the selective catalytic reduction of NOx with NH3: influence of H2O and SO2. Chem. Res. Chin. Univ. 2015, 32, 461–467. [Google Scholar] [CrossRef]
- Wang, C.; Zhang, C.; Zhao, Y.; Yan, X.; Cao, P. Poisoning Effect of SO2 on Honeycomb Cordierite-Based Mn–Ce/Al2O3Catalysts for NO Reduction with NH3 at Low Temperature. Appl. Sci. 2018, 8, 95. [Google Scholar] [CrossRef] [Green Version]
- Xiao, X.; Xiong, S.; Shi, Y.; Shan, W.; Yang, S. Effect of H2O and SO2 on the Selective Catalytic Reduction of NO with NH3 Over Ce/TiO2 Catalyst: Mechanism and Kinetic Study. J. Phys. Chem. C 2016, 120, 1066–1076. [Google Scholar] [CrossRef]
- Ma, K.; Guo, K.; Li, L.; Zou, W.; Tang, C.; Dong, L. Cavity size dependent SO2 resistance for NH3-SCR of hollow structured CeO2-TiO2 catalysts. Catal. Commun. 2019, 128, 105719–105723. [Google Scholar] [CrossRef]
- Huang, J.; Tong, Z.; Huang, Y.; Zhang, J. Selective catalytic reduction of NO with NH3 at low temperatures over iron and manganese oxides supported on mesoporous silica. Appl. Catal. B Environ. 2008, 78, 309–314. [Google Scholar] [CrossRef]
- Chen, L.; Li, J.; Ge, M. DRIFT study on cerium−tungsten/titanium catalyst for selective catalytic reduction of NOx with NH3. Environ. Sci. Technol. 2010, 44, 9590–9596. [Google Scholar] [CrossRef]
- Guan, B.; Lin, H.; Zhu, L.; Huang, Z. Selective catalytic reduction of NOx with NH3 over Mn, Ce substitution Ti0.9V0.1O2-δ nanocomposites catalysts prepared by self-propagating high-temperature synthesis method. J. Phys. Chem. C 2011, 115, 12850–12863. [Google Scholar] [CrossRef]
- Chang, H.; Chen, X.; Li, J.; Ma, L.; Wang, C.; Liu, C.; Schwank, J.W.; Hao, J. Improvement of Activity and SO2 Tolerance of Sn-Modified MnOx–CeO2 Catalysts for NH3-SCR at Low Temperatures. Environ. Sci. Technol. 2013, 47, 5294–5301. [Google Scholar] [CrossRef]
- Zhang, B.; Liebau, M.; Suprun, W.; Liu, B.; Zhang, S.; Gläser, R. Suppression of N2O formation by H2O and SO2 in the selective catalytic reduction of NO with NH3 over a Mn/Ti–Si catalyst. Catal. Sci. Technol. 2019, 9, 4759–4770. [Google Scholar] [CrossRef]
- Krishna, K.; Seijger, G.B.F.; Bleek, C.M.V.D.; Makkee, M.; Mul, G.; Calis, H.P.A. Selective Catalytic Reduction of NO with NH3 over Fe-ZSM-5 Catalysts Prepared by Sublimation of FeCl3 at Different Temperatures. Catal. Lett. 2003, 86, 121–132. [Google Scholar] [CrossRef]
- Yu, Y.; Tan, W.; An, D.; Wang, X.; Liu, A.; Zou, W.; Tang, C.; Ge, C.; Tong, Q.; Sun, J.; et al. Insight into the SO2 resistance mechanism on γ-Fe2O3 catalyst in NH3-SCR reaction: A collaborated experimental and DFT study. Appl. Catal. B Environ. 2021, 281, 119544. [Google Scholar] [CrossRef]
- Li, L.; Wu, Y.; Hou, X.; Chu, B.; Nan, B.; Qin, Q.; Fan, M.; Sun, C.-Z.; Li, B.; Dong, L.; et al. Investigation of Two-Phase Intergrowth and Coexistence in Mn–Ce–Ti–O Catalysts for the Selective Catalytic Reduction of NO with NH3: Structure–Activity Relationship and Reaction Mechanism. Ind. Eng. Chem. Res. 2019, 58, 849–862. [Google Scholar] [CrossRef]
- Geng, Y.; Shan, W.; Yang, S.; Liu, F. W-Modified Mn–Ti Mixed Oxide Catalyst for the Selective Catalytic Reduction of NO with NH3. Ind. Eng. Chem. Res. 2018, 57, 9112–9119. [Google Scholar] [CrossRef]
- Yang, S.; Zhu, W.; Jiang, Z.; Chen, Z.; Wang, J. The surface properties and the activities in catalytic wet air oxidation over CeO2–TiO2 catalysts. Appl. Surf. Sci. 2006, 252, 8499–8505. [Google Scholar] [CrossRef]
- Zhang, L.; Li, L.; Ge, C.; Li, T.; Li, C.; Li, S.; Xiong, F.; Dong, L. Promoting N2 Selectivity of CeMnOx Catalyst by Supporting TiO2 in NH3-SCR Reaction. Ind. Eng. Chem. Res. 2019, 58, 6325–6332. [Google Scholar] [CrossRef]
- Meng, D.; Zhan, W.; Guo, Y.; Guo, Y.; Wang, L.; Lu, G. A Highly Effective Catalyst of Sm-MnOx for the NH3-SCR of NOx at Low Temperature: Promotional Role of Sm and Its Catalytic Performance. ACS Catal. 2015, 5, 5973–5983. [Google Scholar] [CrossRef]
- Zhang, L.; Li, L.; Cao, Y.; Yao, X.; Ge, C.; Gao, F.; Deng, Y.; Tang, C.; Dong, L. Getting insight into the influence of SO2 on TiO2/CeO2 for the selective catalytic reduction of NO by NH3. Appl. Catal. B Environ. 2015, 165, 589–598. [Google Scholar] [CrossRef]
- Yu, J.; Guo, F.; Wang, Y.; Zhu, J.; Liu, Y.; Su, F.; Gao, S.; Xu, G. Sulfur poisoing resistant mesoporous Mn-base catalyst for low temperature SCR of NO with NH3. Appl. Catal. B Environ. 2010, 95, 160–168. [Google Scholar] [CrossRef]
- Brandenberger, S.; Kröcher, O.; Tissler, A.; Althoff, R. The determination of the activities of different iron species in Fe-ZSM-5 for SCR of NO by NH3. Appl. Catal. B Environ. 2010, 95, 348–357. [Google Scholar] [CrossRef]
- Wang, J.; Yan, Z.; Liu, L.; Chen, Y.; Zhang, Z.; Wang, X. In situ DRIFTS investigation on the SCR of NO with NH3 over V2O5 catalyst supported by activated semi-coke. Appl. Surf. Sci. 2014, 313, 660–669. [Google Scholar] [CrossRef]
- Yao, X.; Chen, L.; Cao, J.; Chen, Y.; Tian, M.; Yang, F.; Sun, J.; Tang, C.; Dong, L. Enhancing the deNO performance of MnO/CeO2-ZrO2 nanorod catalyst for low-temperature NH3-SCR by TiO2 modification. Chem. Eng. J. 2019, 369, 46–56. [Google Scholar] [CrossRef]
Figure 1.
(a) The catalytic activity of monolithic Mn-Fe-Ce-Al-O catalyst as a function of reaction temperature. The photos of (b) reaction setup and (c) monolithic Mn-Fe-Ce-Al-O catalyst. Reaction conditions: 200 ppm NO, 200 ppm NH3, air balance, gas hour space velocity (GHSV) = 1667 h−1.
Figure 1.
(a) The catalytic activity of monolithic Mn-Fe-Ce-Al-O catalyst as a function of reaction temperature. The photos of (b) reaction setup and (c) monolithic Mn-Fe-Ce-Al-O catalyst. Reaction conditions: 200 ppm NO, 200 ppm NH3, air balance, gas hour space velocity (GHSV) = 1667 h−1.

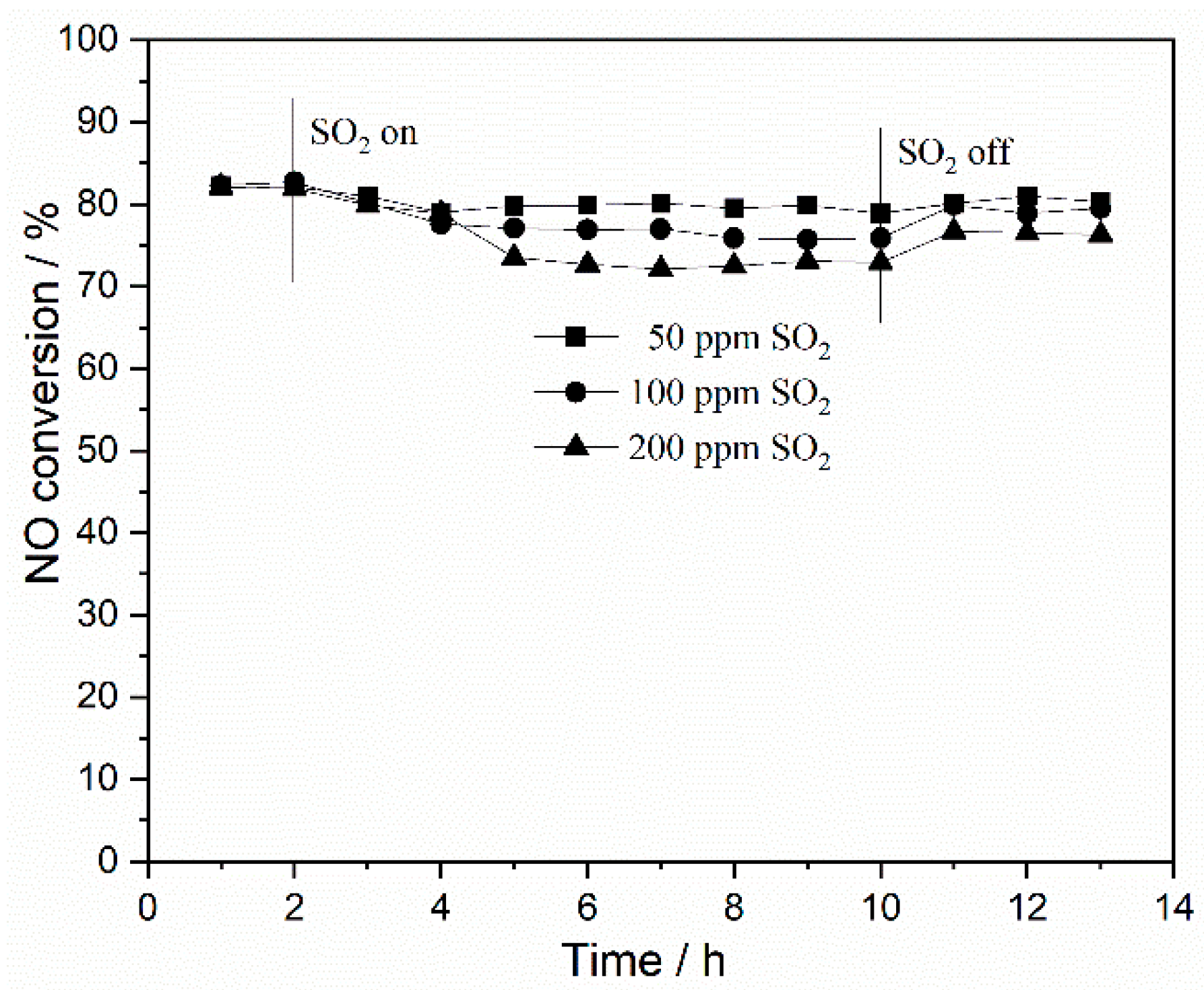

Figure 2.
Effect of different concentration of SO2 on the catalytic performance over Mn-Fe-Ce-Al-O catalyst at 100 °C. Reaction conditions: 200 ppm NO, 200 ppm NH3, air balance, gas hour space velocity (GHSV) = 1667 h−1.
Figure 2.
Effect of different concentration of SO2 on the catalytic performance over Mn-Fe-Ce-Al-O catalyst at 100 °C. Reaction conditions: 200 ppm NO, 200 ppm NH3, air balance, gas hour space velocity (GHSV) = 1667 h−1.

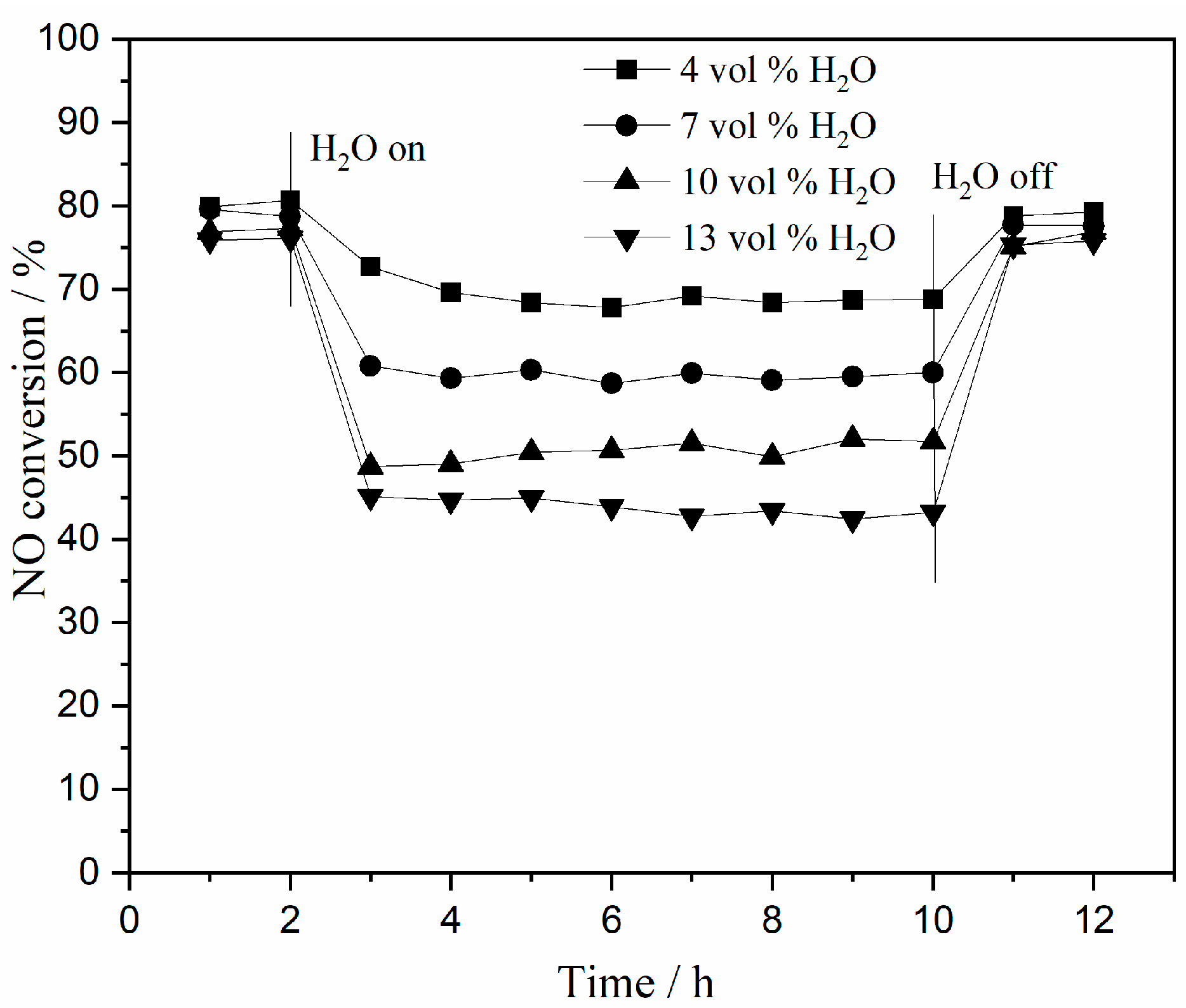

Figure 3.
Effect of H2O concentration on deNOx performance over Mn-Fe-Ce-Al-O catalyst at 100 °C. Reaction conditions: 200 ppm NO, 200 ppm NH3, air balance, gas hour space velocity (GHSV) = 1667 h−1.
Figure 3.
Effect of H2O concentration on deNOx performance over Mn-Fe-Ce-Al-O catalyst at 100 °C. Reaction conditions: 200 ppm NO, 200 ppm NH3, air balance, gas hour space velocity (GHSV) = 1667 h−1.
Figure 4.
The long term resistance of Mn-Fe-Ce-Al-O catalyst against SO2 and H2O at 100 °C. Reaction conditions: 200 ppm NO, 200 ppm NH3, air balance, gas hour space velocity (GHSV) = 1667 h−1.
Figure 4.
The long term resistance of Mn-Fe-Ce-Al-O catalyst against SO2 and H2O at 100 °C. Reaction conditions: 200 ppm NO, 200 ppm NH3, air balance, gas hour space velocity (GHSV) = 1667 h−1.

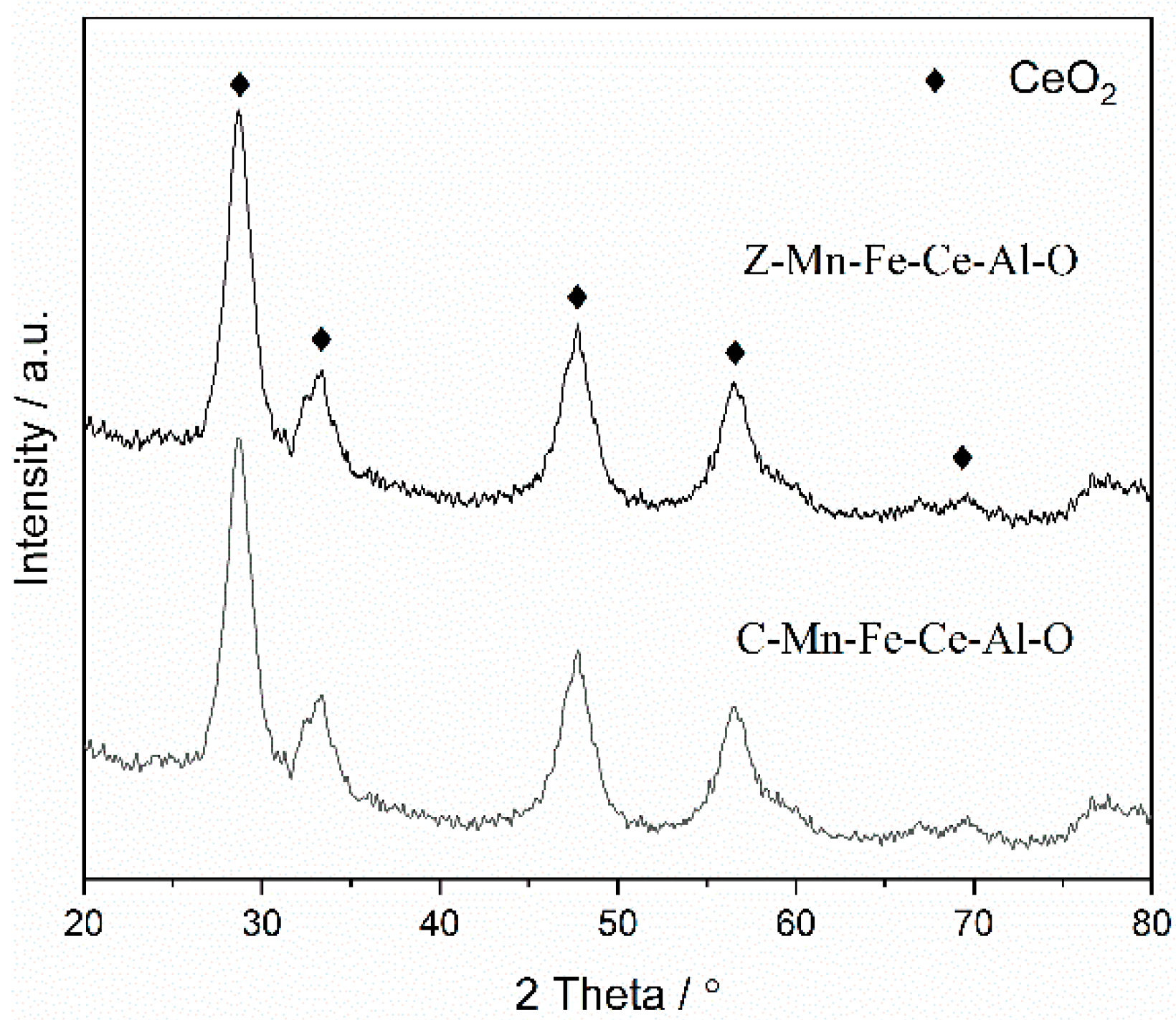

Figure 5.
The XRD patterns of Mn-Fe-Ce-Al-O catalyst before and after 168 h resistance test.

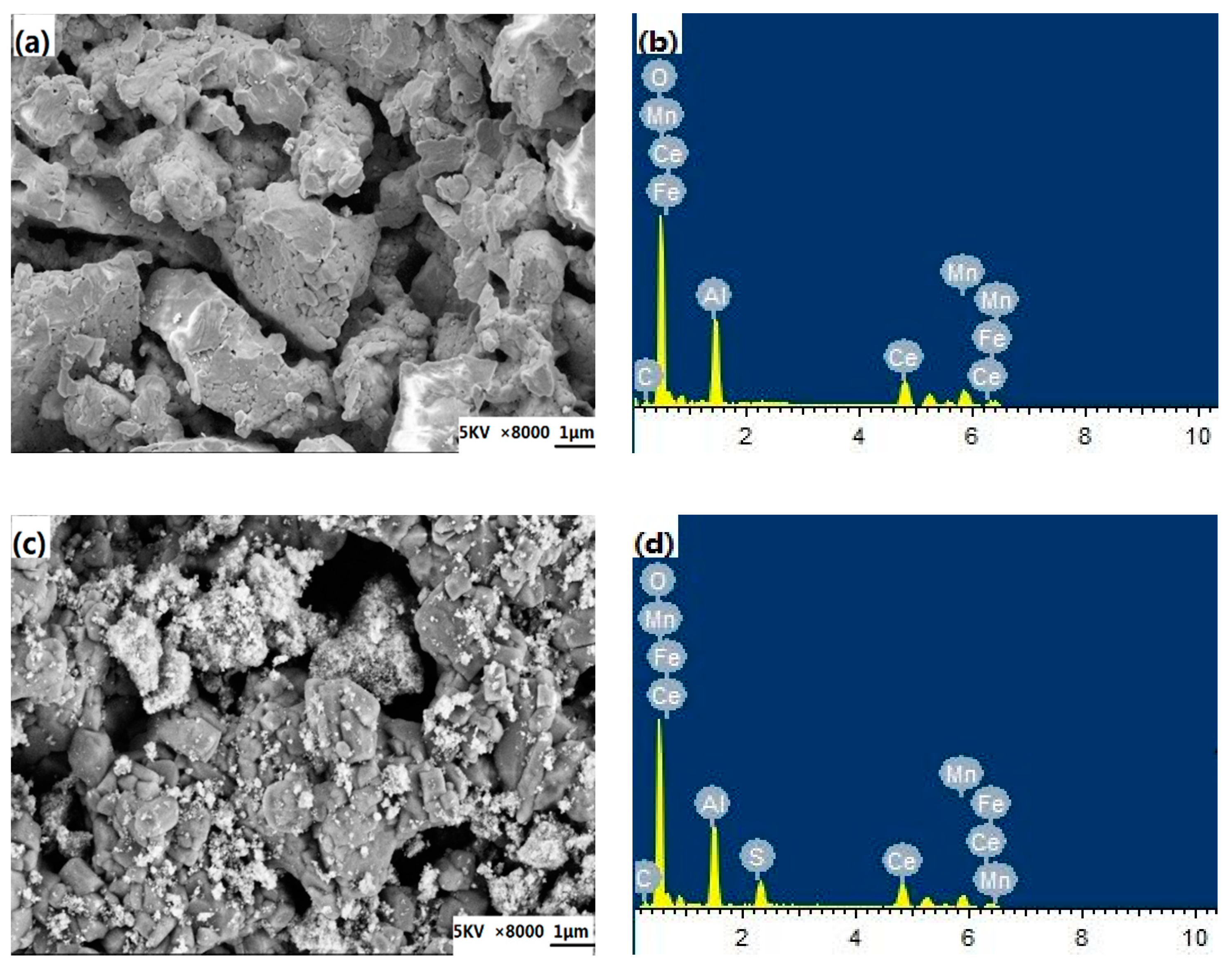

Figure 6.
SEM photographs and EDS patterns of the catalysts before and after 168 h resistance test: (a) SEM of Z-Mn-Fe-Ce-Al-O, (b) EDS of Z-Mn-Fe-Ce-Al-O, (c) SEM of C-Mn-Fe-Ce-Al-O, (d) EDS of C-Mn-Fe-Ce-Al-O.
Figure 6.
SEM photographs and EDS patterns of the catalysts before and after 168 h resistance test: (a) SEM of Z-Mn-Fe-Ce-Al-O, (b) EDS of Z-Mn-Fe-Ce-Al-O, (c) SEM of C-Mn-Fe-Ce-Al-O, (d) EDS of C-Mn-Fe-Ce-Al-O.

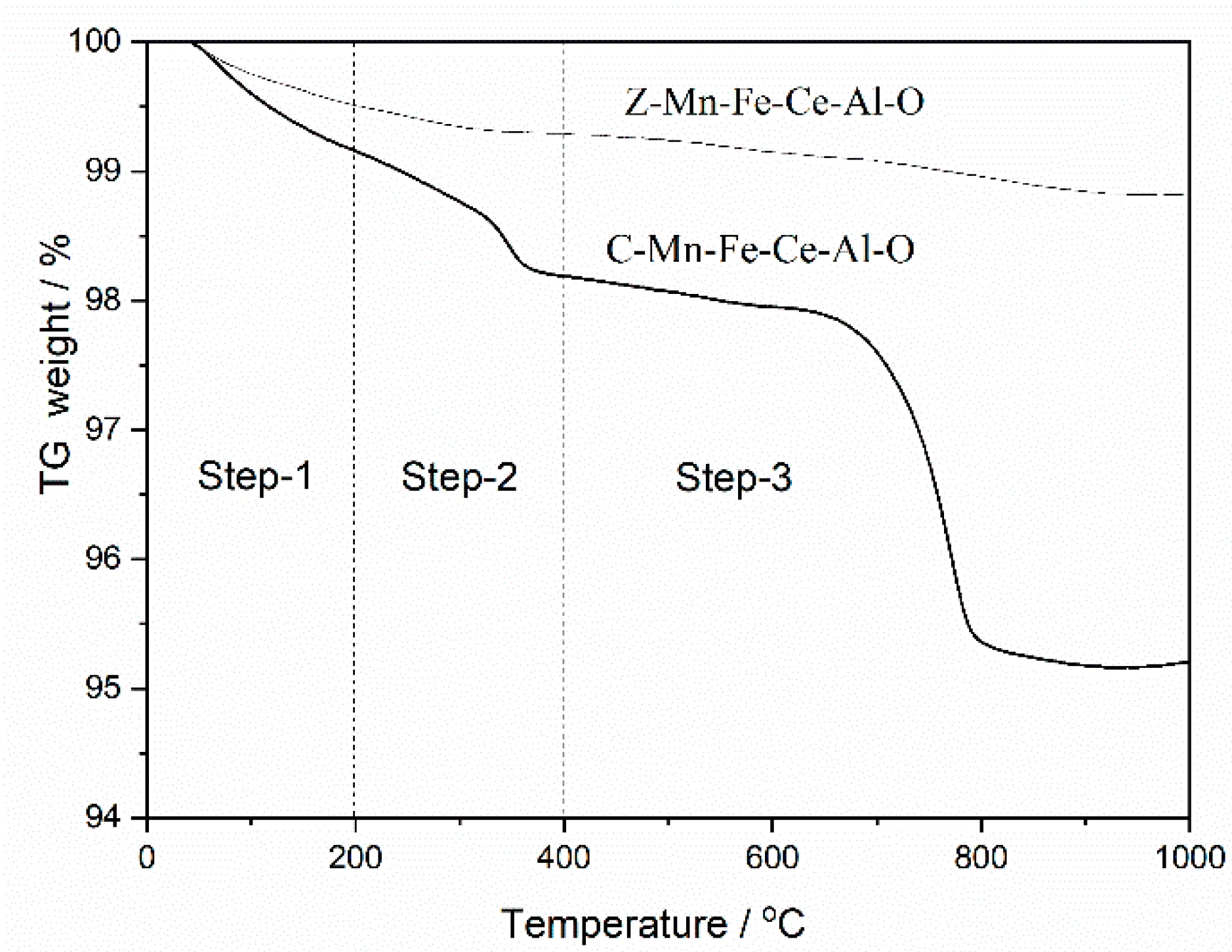

Figure 7.
Thermogravimetric analysis (TG) curves of the Mn-Fe-Ce-Al-O catalysts before and 168 h resistance test.
Figure 7.
Thermogravimetric analysis (TG) curves of the Mn-Fe-Ce-Al-O catalysts before and 168 h resistance test.

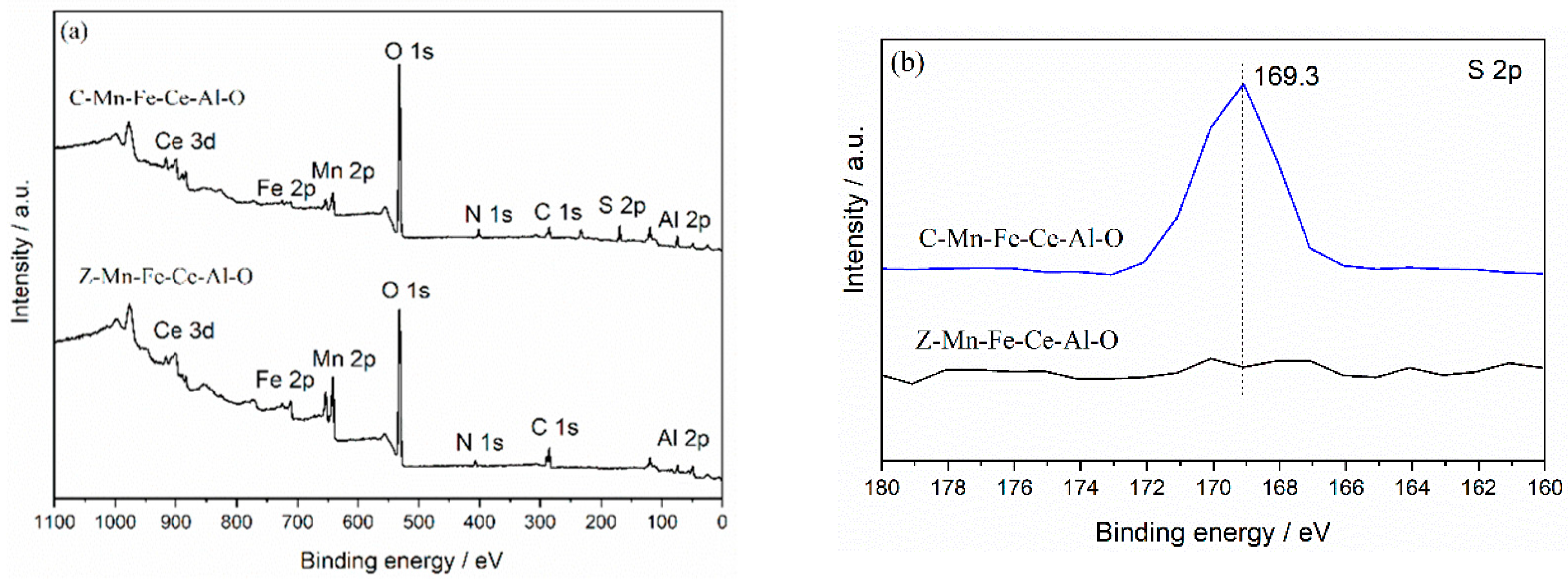

Figure 8.
XPS spectra of the Mn-Fe-Ce-Al-O catalysts before and 168 h resistance test: (a) survey spectra, (b) S 2p, (c) Fe 2p, (d) Mn 2p, (e) Ce 3d, (f) O 1s.

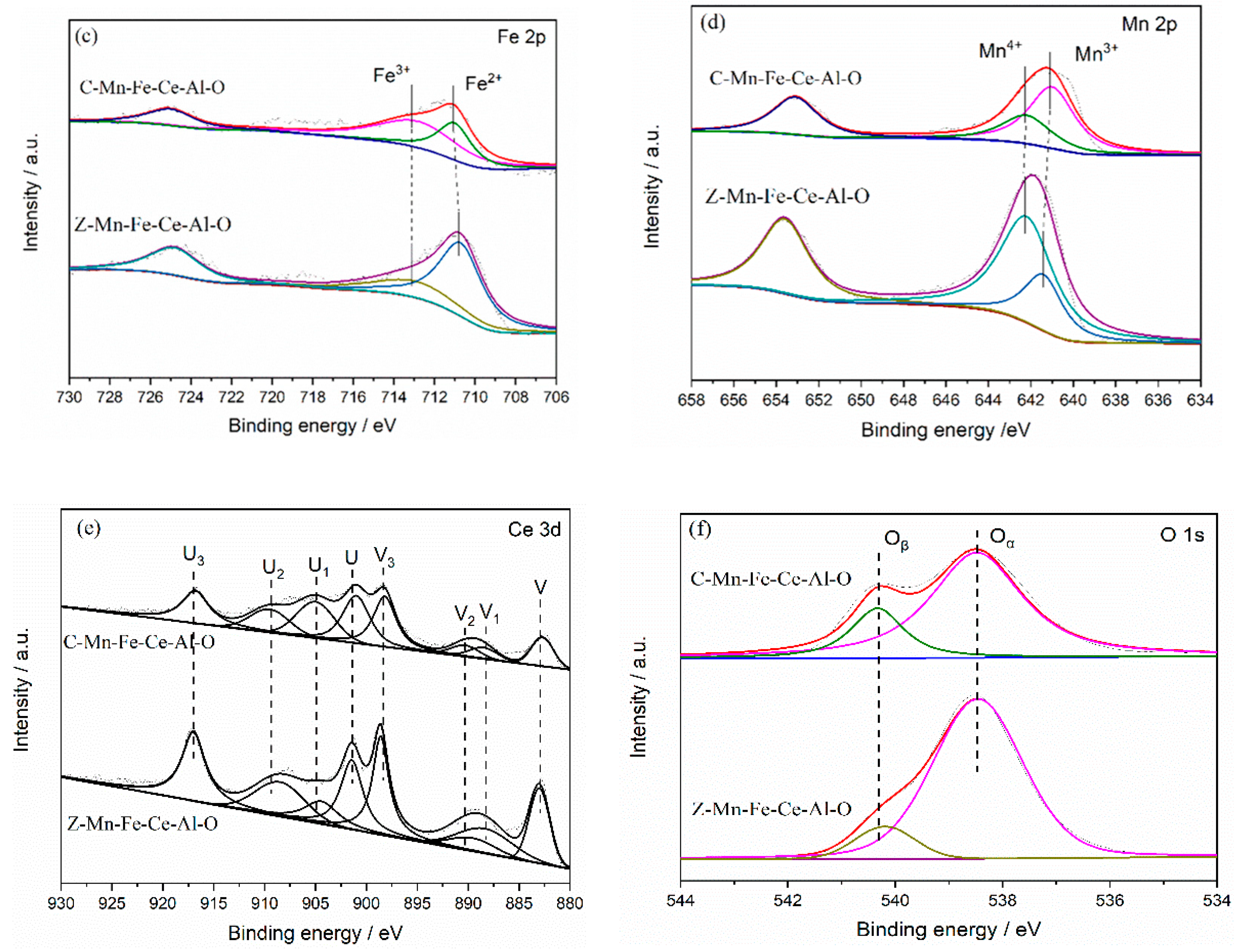

Figure 8.
XPS spectra of the Mn-Fe-Ce-Al-O catalysts before and 168 h resistance test: (a) survey spectra, (b) S 2p, (c) Fe 2p, (d) Mn 2p, (e) Ce 3d, (f) O 1s.

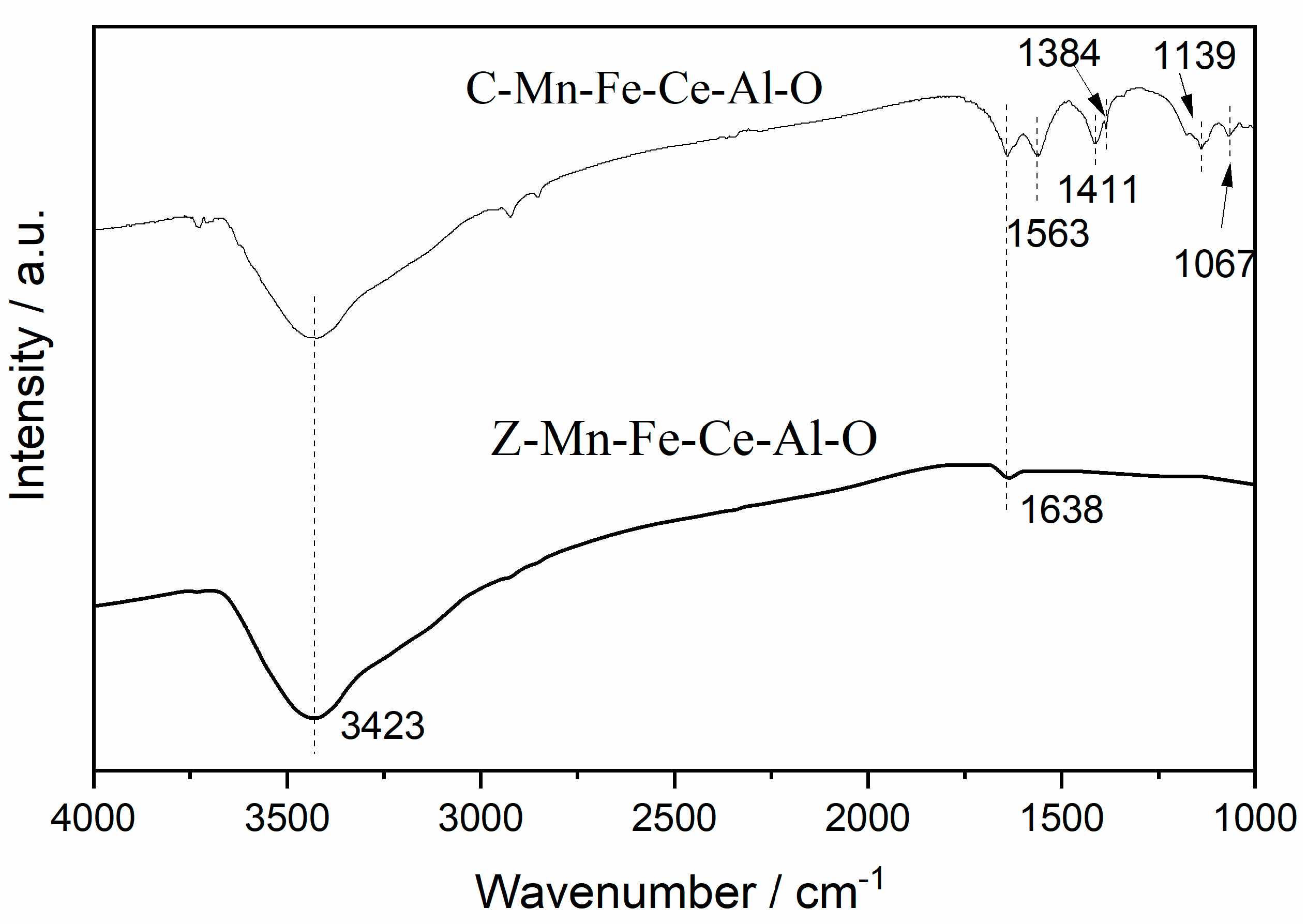

Figure 9.
FT-IR spectra of the Mn-Fe-Ce-Al-O catalysts before and after 168 h resistance test.

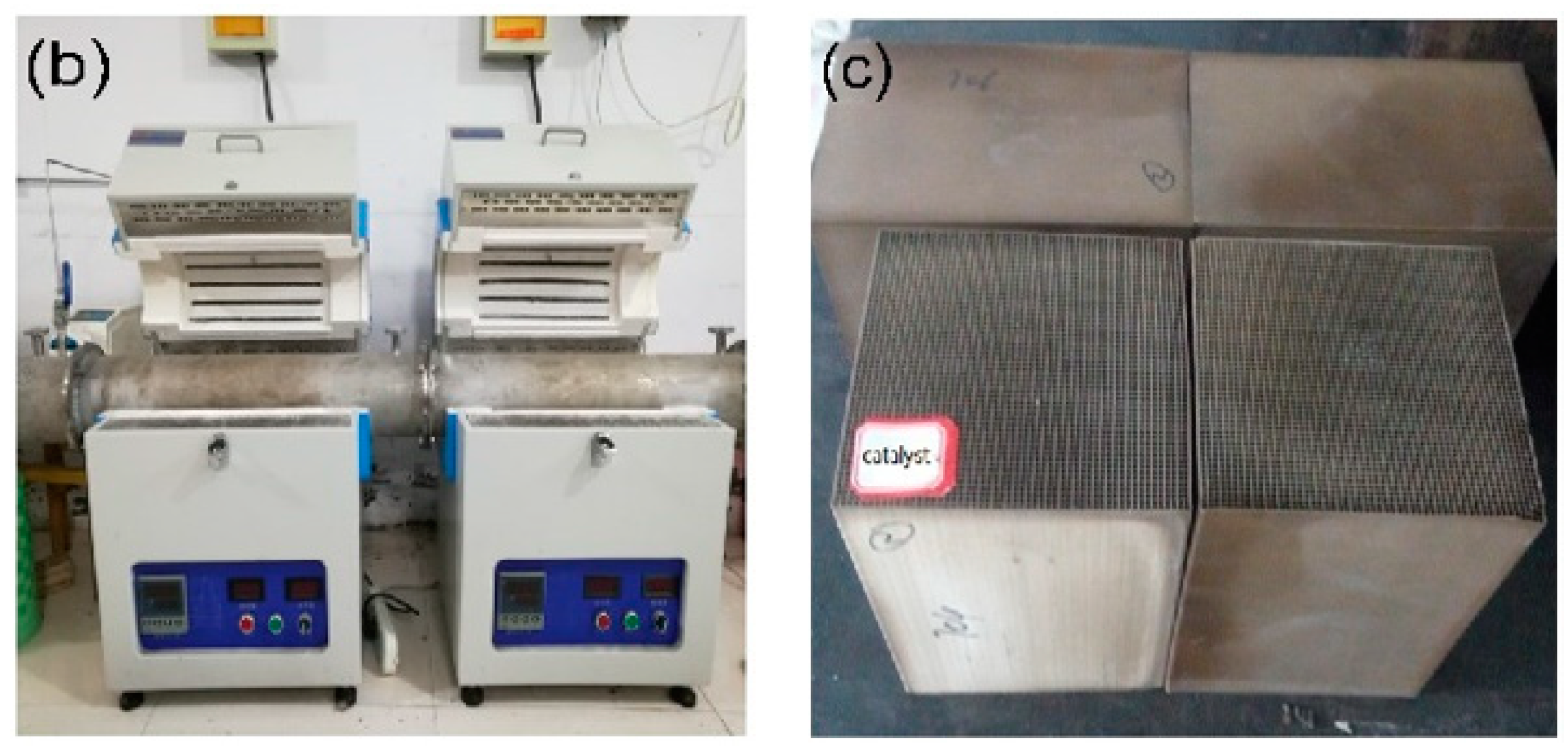

Figure 10.
Schematic illustration of the activity evaluation system. 1—NO, 2—SO2, 3—N2, 4—NH3, 5—vapor generator, 6—mass flowmeter, 7—air, 8—static mixer, 9—air heater, 10—sampling port, 11—temperature controller, 12—silica wool, 13—gas analyzer, 14—tail gas, 15—catalyst.
Figure 10.
Schematic illustration of the activity evaluation system. 1—NO, 2—SO2, 3—N2, 4—NH3, 5—vapor generator, 6—mass flowmeter, 7—air, 8—static mixer, 9—air heater, 10—sampling port, 11—temperature controller, 12—silica wool, 13—gas analyzer, 14—tail gas, 15—catalyst.
Table 1.
The surface area and pore characterization of the catalysts before and after resistance test.
Table 1.
The surface area and pore characterization of the catalysts before and after resistance test.
| Catalyst | SBET (m2 g−1) | Pore Volume (cm3 g−1) | Average Pore Diameter (nm) |
|---|---|---|---|
| Z-Mn-Fe-Ce-Al-O | 77.90 | 0.19 | 9.59 |
| C-Mn-Fe-Ce-Al-O | 52.34 | 0.15 | 11.21 |
Table 2.
Surface atomic content of the catalysts before and after 168 h resistance test (at%).
| Catalyst | O | C | Al | Mn | Ce | Fe | S |
|---|---|---|---|---|---|---|---|
| Z-Mn-Fe-Ce-Al-O | 64.55 | 9.11 | 12.44 | 5.98 | 6.18 | 1.73 | - |
| C-Mn-Fe-Ce-Al-O | 64.38 | 9.11 | 11.13 | 4.97 | 5.26 | 1.87 | 3.27 |
Table 3.
Surface atomic ratio of Ce3+/Ce4+, Fe2+/Fe3+, Oβ/(Oα + Oβ), Mn4+/Mn4+ + Mn3+ for Z-Mn-Fe-Ce-Al-O, and C-Mn- Fe-Ce-Al-O catalyst.
Table 3.
Surface atomic ratio of Ce3+/Ce4+, Fe2+/Fe3+, Oβ/(Oα + Oβ), Mn4+/Mn4+ + Mn3+ for Z-Mn-Fe-Ce-Al-O, and C-Mn- Fe-Ce-Al-O catalyst.
| Catalyst | Ce3+/Ce4+ | Fe2+/Fe3+ | Oβ/(Oα + Oβ) | Mn4+/(Mn4+ + Mn3+) |
|---|---|---|---|---|
| Z-Mn-Fe-Ce-Al-O | 0.22 | 2.26 | 0.19 | 0.72 |
| C-Mn-Fe-Ce-Al-O | 0.27 | 0.56 | 0.39 | 0.66 |
