Radiological Underestimation of Tumor Size as a Relevant Risk Factor for Positive Margin Rate in Breast-Conserving Therapy of Pure Ductal Carcinoma In Situ (DCIS)

by
Gesche Schultek
*,
Bernd Gerber
,
Toralf Reimer
,
Johannes Stubert
,
Steffi Hartmann
,
Annett Martin
and
Angrit Stachs
Department of Obstetrics and Gynecology, University of Rostock, 18059 Rostock, Germany
*
Author to whom correspondence should be addressed.
Cancers 2022, 14(10), 2367; https://doi.org/10.3390/cancers14102367
Submission received: 24 February 2022 / Revised: 3 May 2022 / Accepted: 8 May 2022 / Published: 11 May 2022
Browse Figures
Versions Notes

Abstract

:

Simple Summary

Negative margins are the most important prognostic factor in breast-conserving therapy (BCT) of ductal carcinoma in situ (DCIS). The impact of radiological underestimation ≥10 mm (defined as mammographic minus histological tumor size in millimeters) has not been further examined. The purpose was to verify the radiological underestimation of DCIS size as a risk factor for positive margins. A pooled analysis of two trials was performed. Inclusion criteria were patients receiving BCT in DCIS. The results show a clinically relevant radiological underestimation in 37% of patients. Radiological underestimation is an independent risk factor for positive margins in BCT of DCIS with microcalcifications. Furthermore, the influencing factors of radiological underestimation were analysed. In multivariate logistic regression, only a mammographic tumor size ≤20 mm was an independent risk factor associated with radiological underestimation. When planning and executing BCT, it has to be considered that a relevant radiological underestimation is significantly higher in mammographic DCIS sizes ≤20 mm.

Abstract

Background: Radiological underestimation of the actual tumor size is a relevant problem in reaching negative margins in ductal carcinoma in situ (DCIS) associated with microcalcifications in breast-conserving therapy (BCT). The aim of this study is to evaluate whether the radiological underestimation of tumor size has an influence on the histopathological margin status. Methods: Patients who underwent BCT with preoperatively diagnosed pure DCIS were included (pooled analysis of two trials). Multiple factors were analysed regarding radiological underestimation ≥10 mm. Radiological underestimation was defined as mammographic minus histological tumor size in mm. Results: Positive margins occurred in 75 of 189 patients. Radiological underestimation ≥10 mm was an independent influencing factor (OR 5.80; 95%CI 2.55–13.17; p < 0.001). A radiological underestimation was seen in 70 patients. The following parameters were statistically significant associated with underestimation: pleomorphic microcalcifications (OR 3.77; 95%CI 1.27–11.18), clustered distribution patterns (OR 4.26; 95%CI 2.25–8.07), and mammographic tumor sizes ≤20 mm (OR 7.47; 95%CI 3.49–15.99). Only a mammographic tumor size ≤20 mm was an independent risk factor (OR 6.49; 95%CI 2.30–18.26; p < 0.001). Grading, estrogen receptor status, and comedo necrosis did not influence the size estimation. Conclusion: Radiological underestimation is an independent risk factor for positive margins in BCT of DCIS associated with microcalcifications predominantly occurring in mammographic small tumors.

1. Introduction

Sixty to ninety percent of noninvasive ductal carcinoma in situ (DCIS) is associated with microcalcifications [1]. Since the introduction of widely spread screening programs, DCIS has been frequently diagnosed. Thus, 20–25% of all breast cancer diagnoses are DCIS [2,3,4,5]. Untreated DCIS may progress to invasive breast cancer (IBC) in up to 30–50% of patients over a period of 10 years [6,7,8]. The disease-specific mortality in DCIS is low [9], but the local recurrence rate is, on average 30% [10,11], and up to 50% of recurrences are invasive [12,13]. The standard therapy includes surgery, and in high-risk cases, radiotherapy as well as endocrine therapy. Even though wire-guided breast-conserving surgery (BCS) is the most commonly used surgery in both invasive breast cancer and DCIS, positive margins are more often seen in DCIS than in IBC [5,14,15,16]. Therefore, re-operations are four times as likely for cases of pure DCIS versus those containing an IBC component [17,18,19,20,21]. Other studies revealed re-operation rates between 14 and 78% [2,22,23,24,25,26].
Recent studies involving DCIS investigated the issue of local recurrences and the definition of negative margins (negative margin of 2 mm in only DCIS, in combination with invasive disease and no ink on tumor). Positive margins increase the risk of in-breast recurrence (IBR) [27,28]. The margin status remains an important risk factor in local recurrence [29]. Achieving negative margins in the initial surgery of a DCIS is more difficult compared to invasive breast cancer. Positive margins depend on many factors; for example, comedo necrosis, radiological margins <10 mm [30,31], negative progesterone receptor (PR), tumor grade, and larger DCIS size [20,31,32]. Intraoperative margin assessment is challenging in pure DCIS. However, evidence concerning the prevention of positive margins is low. A recent review did not support the use of intraoperative specimen radiography for the reduction in positive margins [15]. One of the limitations could be radiological over- and underestimations of the actual DCIS size, which could influence the margin status.
The primary aim of this study was to evaluate whether the radiological underestimation of tumor size has an influence on the histopathological margin status. The secondary aim was to analyze preoperatively known variables that are potentially associated with radiological underestimation.

2. Materials and Methods

Two trials were part of the pooled analysis: a retrospective trial from 2011 (PMID: 27017245) and a current prospective validation study concerning specimen radiography (DRKS00011527). The study was approved by the local ethics committee of the University of Rostock, Germany. Patients with the diagnosis of DCIS (preoperatively diagnosed with a core needle biopsy or vacuum suction biopsy) associated with microcalcifications who underwent BCS at the Breast Unit of the Clinic of Obstetrics and Gynecology at the University of Rostock were included. Preoperative mammograms had to be available in DICOM format. Exclusion criteria were patients with a planned mastectomy, prior breast surgery, as well as DCIS without microcalcification. Radiological underestimation was defined as the mammographic minus histological tumor size in mm. We considered a size difference of ≥10 mm as clinically relevant.
A preoperative wire localization (Somatex Medical Technologies GmbH, Berlin, Germany) of the suspicious microcalcifications under mammographic guidance was performed by an experienced breast radiologist (A.S.). Adapted on the size of the area of microcalcifications, flanking wire localization was performed if necessary. The surgery was executed by experienced breast surgeons (B.G., T.R., J.S., A.S., S.H., and A.M.). After the BCS, the orientation was given by sutures on the specimen or by using a radiopaque tissue transfer and X-ray system (KlinitrayRM, Klinika medical GmbH, Usingen, Germany).
Intraoperative specimen radiography was used to evaluate the margins. Radiologically positive margins resolved in an intraoperative re-excision. After surgery, the histological specimen was worked up and underwent histological examination. The largest histopathological tumor diameter was determined as a reference standard. Histopathological negative margins were defined as ≥2 mm, or if skin and/or fascia were on the margin.
The collected data included multiple histological features (tumor size, comedo necrosis, estrogen receptor status, and margins) and radiological information (mammographic tumor size, multifocality, and radiological margins). All mammograms and specimen radiographs were blind-reviewed by an experienced breast radiologist (A.S.) for mammographic tumor size, distribution pattern, and morphology of microcalcifications. It was also documented whether or not an intraoperative re-excision had been performed.
For statistical analysis, SPSS 27.0 software (IBM, Armonk, New York, NY, USA) was used. Descriptive statistics for nominal (scaled) and quantitative (scaled) variables were computed (percentages, frequencies, mean, standard deviation, median, minimum, and maximum). To test for significant differences, the chi-square test and Fisher’s exact test, as well as the t-test and Mann–Whitney U test, were used whenever appropriate. All p values resulted from two-sided statistical tests, and values of p < 0.05 were regarded to be statistically significant. To describe risk factors for positive margins after the initial BCS, univariate binary and multivariable logistic regression were performed, and crude and adjusted odds ratios (OR) with a 95% confidence interval (CI), as well as p values, were calculated.

3. Results

3.1. Risk Factors Associated with Positive Margins

We analyzed 189 patients with pure DCIS. The median age was 59.7 years (range: 34–84 years). Histologically positive margins were found in 75 (39.7%) patients. The median tumor size differed significantly in patients with positive margins compared to those with negative margins (31.0 mm in patients with positive margins vs. 17.0 mm in patients with negative margins, p < 0.001). There was also a difference in the median mammographic tumor size (22.0 vs. 13.0 mm, p = 0.011) and the frequency of radiological margins <5 mm in specimen radiography (72% vs. 50%, p = 0.004) between patients with histologically involved or not-involved margins. There was a significantly higher percentage of radiological underestimation ≥10 mm in patients with positive margins compared to those with free margins (49.3% vs. 28.9%, p = 0.006). Tumor biological factors such as negative estrogen and progesterone receptor status were associated with positive margins, whereas the grade of differentiation was not (Table 1).
In a univariate analysis, a histological DCIS size >25 mm was associated with a sevenfold increased risk for positive margins (OR 7.36; 95%CI 3.82–14.2). Patients with a mammographic DCIS size >20 mm, a negative estrogen and progesterone receptor, a radiological margin width <5 mm, and mammographic underestimation ≥10 mm were more likely to have positive margins after the initial BCS. For calculation of adjusted odds ratios, histological tumor size was excluded, since this factor was too strong for the assessment of other variables. In multivariable regression analysis, mammographic underestimation was associated with a nearly sixfold increased risk for positive margins (adj. OR 5.81; 95%CI2.39–14.12). Further independent risk factors were specimen sizes <50 mm, mammographic tumor sizes >20 mm, and radiological margins <5 mm (Table 2).

3.2. Mammographic Size Estimation

An underestimation of ≥10 mm was seen in 70 (37%) patients and an overestimation of ≥10 mm was seen in 26 (13.8%) patients, whereas 49.2% of the tumors were radiologically neither under- nor overestimated. The relationship between radiological underestimation and surgical results is demonstrated in Figure 1.
Mammographic underestimation of ≥10 mm was seen in 49.3% of patients with positive margins in contrast to 28.9% of patients with negative margins (p = 0.006; Table 1). The frequency of radiological underestimation differed significantly depending on the morphology of microcalcification. Of 70 patients with clinically relevant underestimation (≥10 mm), microcalcifications were recorded in 5 (7.1%) as linear, in 30 (42.9%) as fine pleomorphic, and in 35 (50.0%) cases as coarse heterogenous (p < 0.001). The distribution pattern of microcalcifications in underestimated DCIS was more frequently clustered in comparison with DCIS without relevant underestimation (71.4% vs. 37.0%; p < 0.001). Relevant underestimation was more frequent in mammographic tumor sizes ≤20 mm (85.7% vs. 44.5%; p < 0.001) (Table 3).
The scatter plot illustrates the relationship between radiological underestimation and mammographic tumor size. Relevant mammographic overestimation (>10 mm) of tumor size was observed in microcalcifications ≥30 mm (Figure 2).
There was a difference in the surgical extent of mammographic tumor sizes ≤20 mm vs. mammographic tumor sizes >20 mm. The median specimen size of mammographic tumor sizes ≤20 mm was 47 mm (range: 23–95 mm). In contrast, the median specimen size in mammographic tumor sizes >20 mm was 60 mm (range: 30–110). The difference was highly significant in the Mann–Whitney U test (p < 0.001).
Univariate regression revealed pleomorphic (including amorphous) microcalcifications (OR 3.77; 95%CI 1.27–11.18), clustered distribution patterns (OR 4.26; 95%CI 2.25–8.07), and mammographic tumor sizes ≤20 mm (OR 7.47; 95%CI 3.49–15.99) to be statistically significant associated with radiological underestimation ≥10 mm. Grading, estrogen receptor status, and comedo necrosis did not have a significant influence on radiological underestimation. After multivariable analysis, only a mammographic tumor size of ≤20 mm was identified as an independent risk factor (OR 6.49; 95%CI 2.30–18.26; p < 0.001; Table 4).

4. Discussion

Tumor size is the most limiting factor in reaching negative margins in breast-conserving surgery of pure DCIS. There is no doubt that margin status remains an important risk factor for local recurrence [29]. Positive margins depend on many factors; for example, comedo necrosis, radiological margins <10 mm [30,31], negative PR, tumor grade, and a larger DCIS size [20,31,32]. In the present study, the positive margin rate (PMR) after the initial surgery was 39.7%. This is in line with the results of systematic reviews, including seven studies with pure DCIS and a PMR ranging from 18 to 63% [15]. Our study has shown that a DCIS size of 25 mm or more was related to a sevenfold increased risk for positive margins. Mammographic size estimation does not always match with histological DCIS size. DCIS size is frequently underestimated by imaging. Recent studies reported mean differences of mammographic versus histological tumor sizes of 12.7 mm [33], 13 mm [34], and 16.5 mm [35].
Our results show a clinically relevant underestimation of ≥10 mm in 37% of patients. The mammographic underestimation of tumor size was an independent risk factor for positive margins in breast-conserving surgery of pure DCIS. These findings have been reported by other authors [15,31,36], but have never been further examined. Therefore, one aim of this retrospective study was to identify preoperatively known factors that are related to the mammographic underestimation of DCIS size. According to morphology and the distribution pattern of microcalcifications, we found that underestimation was significantly more frequent in pleomorphic microcalcifications in comparison to branched microcalcifications, and in clustered vs. ductal distribution patterns. To our knowledge, these results have not been described before. Other authors reported a correlation between underestimation and grading, meaning that high-grade DCIS is more often underestimated than low- and intermediate-grade DCIS [33]. The estrogen receptor <45% seems to be at the highest risk of underestimation independent from the DCIS size [36]. This cannot be supported by the current study.
We confirmed only mammographic sizes ≤20 mm to be independent risk factors of radiological underestimation ≥10 mm. This result is contrary to the results of Layfield et al. [33], which described that the discrepancy between mammographic and histological tumor size became greater with the increasing extent of mammographic DCIS size.
In a retrospective analysis of 34 patients with pure DCIS, radiological underestimation occurred significantly more often in histological DCIS sizes >2 cm [37]. In the current study, we correlate mammographic underestimation with preoperatively assessed mammographic size because the tumor size is not preoperatively known. Our results are meaningful because the planning of surgical management depends on radiological size estimation. Until now, there has been a lack of prospective studies that examine radiological underestimation and its determinants.
The extent of surgical resection was different in mammographic tumor sizes ≤20 mm. The median specimen size was 47 mm vs. 60 mm in mammographic tumor sizes >20 mm (p < 0.001). In anticipation of a mammographically smaller tumor, the surgical extent was less. However, in the knowledge that smaller tumors are more likely to be radiologically underestimated (as we show in our work), there should be an awareness among surgeons to remove a bigger specimen in order to achieve negative margins.
The routine use of preoperative magnetic resonance imaging (MRI) for the size estimation of DCIS is not recommended [2,4,15]. A recent meta-analysis revealed that preoperative MRIs did not have a significant impact on the surgical outcome or local recurrences [2,38]. However, a preoperative MRI increased the odds of having a mastectomy in the first surgery (adjusted OR 1.76, p 0.01) because MRI was more likely to detect a multicentric/multifocal DCIS [38]. Size correlation is more precise with an MRI compared to mammography [2]. Mammography underestimated high-grade DCIS by 10.5 mm compared to the MRI, by only 1 mm [39]. Therefore, patients with high-grade DCIS might be a subgroup that might benefit from further diagnostics [6]. Clustered calcifications seem to be an insufficient indicator in estimating tumor size [40]. Preoperative MRIs could reduce positive margins and re-excisions in patients with histologically proven DCIS without enhancing mastectomy rates [40,41,42]. The role of the preoperative MRIs in DCIS still remains unclear [15] and requires further investigation [4]. Another valuable imaging technique could be digital tomosynthesis, which demonstrated a small but significant benefit compared to mammograms regarding DCIS size estimation [35].
The evidence of cavity shave margins is not well approved. In literature research, there are not many studies concerning the benefit from cavity shave margins in ductal carcinoma in situ. Most studies draw attention to breast-conserving therapy of invasive breast cancer [43]. There are not as many results when searching for cavity shave margins in pure ductal carcinoma in situ. One trial [44] focused on that topic and showed a reduction in the positive margin rate. The influence of cavity shave margins in positive margins could be regarded further. However, evidence for routine use of these new techniques is low.
Our study has some limitations. Because of the pooled analysis, a part of the data is retrospective. Furthermore, there is a time gap between the two trials, so there might be no consistent study collective. A limitation might be that the mammograms and specimen radiographies were interpreted by only one breast radiologist (A.S.), but due to the high experience and the measurability of the lesion, this might not be very important. A strength is the large number of pure DCIS associated with microcalcifications included in this study. Moreover, due to the blind review of mammograms, a detailed analysis of several features of microcalcifications was possible. To our knowledge, this is the first study describing preoperatively known factors associated with the mammographic underestimation of DCIS size.

5. Conclusions

Radiological underestimation is an independent risk factor for positive margins in BCT of DCIS with microcalcifications. While planning and performing BCS, it must be considered that a relevant radiological underestimation is significantly more frequent in clustered DCIS with a mammographic size ≤20 mm.

Author Contributions

Conceptualization: G.S., B.G., T.R., S.H. and A.S.; formal analysis: G.S. and A.S.; investigation: G.S. and A.S.; methodology: G.S. and A.S.; writing—original draft: G.S. and A.S.; writing—review and editing: B.G., T.R., J.S., S.H., A.M. and A.S. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

The study was conducted according to the guidelines of the Declaration of Helsinki and approved by the Institutional Ethics Committee of the University of Rostock, Germany (protocol code DRKS00011527: A2016-0149, date of approval 27 July 2016). PMID: 27017245 did not require ethical approval.

Informed Consent Statement

Informed consent was obtained from all subjects involved in the study.

Data Availability Statement

The data presented in this study are available upon request from the corresponding author.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Rauch, G.M.; Hobbs, B.P.; Kuerer, H.M.; Scoggins, M.E.; Benveniste, A.P.; Park, Y.M.; Caudle, A.S.; Ms, P.S.F.; Smith, B.D.; Adrada, B.E.; et al. Microcalcifications in 1657 Patients with Pure Ductal Carcinoma In Situ of the Breast: Correlation with Clinical, Histopathologic, Biologic Features, and Local Recurrence. Ann. Surg. Oncol. 2015, 23, 482–489. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Canelo-Aybar, C.; Taype-Rondan, A.; Zafra-Tanaka, J.H.; Rigau, D.; Graewingholt, A.; Lebeau, A.; Gómez, E.P.; Rossi, P.G.; Langendam, M.; Posso, M.; et al. Preoperative breast magnetic resonance imaging in patients with ductal carcinoma in situ: A systematic review for the European Commission Initiative on Breast Cancer (ECIBC). Eur. Radiol. 2021, 31, 5880–5893. [Google Scholar] [CrossRef]
  3. Benson, J.R.; Wishart, G.C. Predictors of recurrence for ductal carcinoma in situ after breast-conserving surgery. Lancet Oncol. 2013, 14, e348–e357. [Google Scholar] [CrossRef]
  4. Szucs, Z.; Joseph, J.; Larkin, T.J.; Xie, B.; Bohndiek, S.E.; Brindle, K.M.; Neves, A.A. Multi-modal imaging of high-risk ductal carcinoma in situ of the breast using C2Am: A targeted cell death imaging agent. Breast Cancer Res. 2021, 23, 25. [Google Scholar] [CrossRef] [PubMed]
  5. Yip, C.-H. Difficulty of Achieving Clear Margins in Nonpalpable Ductal Carcinoma of the Breast. JAMA Surg. 2017, 152, 385. [Google Scholar] [CrossRef] [PubMed]
  6. Groen, E.J.; Hudecek, J.; Mulder, L.; van Seijen, M.; Almekinders, M.M.; Alexov, S.; Kovács, A.; Ryska, A.; Varga, Z.; Navarro, F.-J.A.; et al. Prognostic value of histopathological DCIS features in a large-scale international interrater reliability study. Breast Cancer Res. Treat. 2020, 183, 759–770. [Google Scholar] [CrossRef]
  7. Coleman, W.B. Breast Ductal Carcinoma In Situ: Precursor to Invasive Breast Cancer. Am. J. Pathol. 2019, 189, 942–945. [Google Scholar] [CrossRef] [Green Version]
  8. Byng, D.; Retèl, V.P.; Schaapveld, M.; Wesseling, J.; van Harten, W.H. Treating (low-risk) DCIS patients: What can we learn from real-world cancer registry evidence? Breast Cancer Res. Treat. 2021, 187, 187–196. [Google Scholar] [CrossRef]
  9. Mph, M.L.M.; Azizi, L.; Macaskill, P.; Irwig, L.; Morrow, M.; Solin, L.J.; Houssami, N. The Association of Surgical Margins and Local Recurrence in Women with Ductal Carcinoma In Situ Treated with Breast-Conserving Therapy: A Meta-Analysis. Ann. Surg. Oncol. 2016, 23, 3811–3821. [Google Scholar] [CrossRef] [Green Version]
  10. Subhedar, P.; Bs, C.O.; Patil, S.; Morrow, M.; Van Zee, K. Decreasing Recurrence Rates for Ductal Carcinoma In Situ: Analysis of 2996 Women Treated with Breast-Conserving Surgery over 30 Years. Ann. Surg. Oncol. 2015, 22, 3273–3281. [Google Scholar] [CrossRef] [Green Version]
  11. Dick, A.W.; Sorbero, M.S.; Ahrendt, G.M.; Hayman, J.A.; Gold, H.T.; Schiffhauer, L.; Stark, A.; Griggs, J.J. Comparative Effectiveness of Ductal Carcinoma In Situ Management and the Roles of Margins and Surgeons. JNCI J. Natl. Cancer Inst. 2011, 103, 92–104. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  12. Sagara, Y.; Freedman, R.A.; Vaz-Luis, I.; Mallory, M.A.; Wong, S.M.; Aydogan, F.; DeSantis, S.; Barry, W.T.; Golshan, M. Patient Prognostic Score and Associations with Survival Improvement Offered by Radiotherapy after Breast-Conserving Surgery for Ductal Carcinoma In Situ: A Population-Based Longitudinal Cohort Study. J. Clin. Oncol. 2016, 34, 1190–1196. [Google Scholar] [CrossRef] [PubMed]
  13. Tadros, A.B.; Smith, B.D.; Shen, Y.; Lin, H.; Krishnamurthy, S.; Lucci, A.; Barcenas, C.H.; Hwang, R.F.; Rauch, G.; Santiago, L.; et al. Ductal Carcinoma In Situ and Margins < 2 mm: Contemporary Outcomes with Breast Conservation. Ann. Surg. 2019, 269, 150–157. [Google Scholar] [CrossRef] [PubMed]
  14. Jones, V.; Linebarger, J.; Pérez, S.; Gabram, S.; Okoli, J.; Bumpers, H.; Burns, B.; Mosunjac, M.; Rizzo, M. Excising Additional Margins at Initial Breast-Conserving Surgery (BCS) Reduces the Need for Re-excision in a Predominantly African American Population: A Report of a Randomized Prospective Study in a Public Hospital. Ann. Surg. Oncol. 2015, 23, 456–464. [Google Scholar] [CrossRef] [PubMed]
  15. Versteegden, D.P.A.; Keizer, L.G.G.; Schlooz-Vries, M.S.; Duijm, L.E.M.; Wauters, C.A.P.; Strobbe, L.J.A. Performance characteristics of specimen radiography for margin assessment for ductal carcinoma in situ: A systematic review. Breast Cancer Res. Treat. 2017, 166, 669–679. [Google Scholar] [CrossRef]
  16. Koopmansch, C.; Noël, J.-C.; Maris, C.; Simon, P.; Sy, M.; Catteau, X. Intraoperative Evaluation of Resection Margins in Breast-Conserving Surgery for In Situ and Invasive Breast Carcinoma. Breast Cancer Basic Clin. Res. 2021, 15, 1178223421993459. [Google Scholar] [CrossRef]
  17. Shin, H.-C.; Han, W.; Moon, H.-G.; Cho, N.; Moon, W.K.; Park, I.-A.; Park, S.J.; Noh, D.-Y. Nomogram for predicting positive resection margins after breast-conserving surgery. Breast Cancer Res. Treat. 2012, 134, 1115–1123. [Google Scholar] [CrossRef]
  18. Murphy, B.L.; Boughey, J.C.; Keeney, M.G.; Glasgow, A.E.; Racz, J.M.; Keeney, G.L.; Habermann, E.B. Factors Associated with Positive Margins in Women Undergoing Breast Conservation Surgery. Mayo Clin. Proc. 2018, 93, 429–435. [Google Scholar] [CrossRef]
  19. Philpott, A.; Wong, J.; Elder, K.; Gorelik, A.; Mann, G.B.; Skandarajah, A. Factors influencing reoperation following breast-conserving surgery. ANZ J. Surg. 2018, 88, 922–927. [Google Scholar] [CrossRef]
  20. Houvenaeghel, G.; Lambaudie, E.; Bannier, M.; Rua, S.; Barrou, J.; Heinemann, M.; Buttarelli, M.; Piana, J.T.; Cohen, M. Positive or close margins: Reoperation rate and second conservative resection or total mastectomy? Cancer Manag. Res. 2019, 11, 2507–2516. [Google Scholar] [CrossRef] [Green Version]
  21. Langhans, L.; Jensen, M.-B.; Talman, M.-L.M.; Vejborg, I.; Kroman, N.; Tvedskov, T.F. Reoperation Rates in Ductal Carcinoma In Situ vs Invasive Breast Cancer after Wire-Guided Breast-Conserving Surgery. JAMA Surg. 2017, 152, 378–384. [Google Scholar] [CrossRef] [PubMed]
  22. Barentsz, M.W.; Postma, E.L.; van Dalen, T.; van den Bosch, M.A.A.J.; Miao, H.; Gobardhan, P.D.; van den Hout, L.E.; Pijnappel, R.M.; Witkamp, A.J.; van Diest, P.J.; et al. Prediction of positive resection margins in patients with non-palpable breast cancer. Eur. J. Surg. Oncol. 2015, 41, 106–112. [Google Scholar] [CrossRef] [PubMed]
  23. Lamb, L.R.; Mercaldo, S.; Oseni, T.O.; Bahl, M. Predictors of Reexcision Following Breast-Conserving Surgery for Ductal Carcinoma In Situ. Ann. Surg. Oncol. 2020, 28, 1390–1397. [Google Scholar] [CrossRef] [PubMed]
  24. McClatchy, D.M., 3rd; Zuurbier, R.A.; Wells, W.A.; Paulsen, K.D.; Pogue, B.W. Micro-computed tomography enables rapid surgical margin assessment during breast conserving surgery (BCS): Correlation of whole BCS micro-CT readings to final histopathology. Breast Cancer Res. Treat. 2018, 172, 587–595. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Park, K.U.; Kuerer, H.M.; Rauch, G.M.; Leung, J.W.T.; Sahin, A.A.; Wei, W.; Li, Y.; Black, D.M. Digital Breast Tomosynthesis for Intraoperative Margin Assessment during Breast-Conserving Surgery. Ann. Surg. Oncol. 2019, 26, 1720–1728. [Google Scholar] [CrossRef]
  26. Warren, L.E.G.; Chen, Y.-H.; Halasz, L.M.; Brock, J.E.; Capuco, A.; Punglia, R.S.; Wong, J.S.; Golshan, M.; Bellon, J.R. Long-term outcomes of breast-conserving therapy for women with ductal carcinoma in situ. Breast Cancer Res. Treat. 2019, 178, 607–615. [Google Scholar] [CrossRef]
  27. Wang, S.-Y.; Chu, H.; Shamliyan, T.; Jalal, H.; Kuntz, K.M.; Kane, R.L.; Virnig, B.A. Network Meta-Analysis of Margin Threshold for Women with Ductal Carcinoma In Situ. JNCI J. Natl. Cancer Inst. 2012, 104, 507–516. [Google Scholar] [CrossRef] [Green Version]
  28. Tay, T.H.C.; Ng, W.Y.; Ong, K.W.; Wong, C.Y.; Tan, B.K.T.; Yong, W.S.; Madhukumar, P.; Tan, V.K.M.; Lim, S.Z.; Sim, Y. Impact of hormonal status on ductal carcinoma in situ of the breast: Outcome and prognostic factors. Breast J. 2019, 26, 937–945. [Google Scholar] [CrossRef]
  29. Mele, A.; Mehta, P.; Slanetz, P.J.; Brook, A.; Recht, A.; Sharma, R. Breast-Conserving Surgery Alone for Ductal Carcinoma In Situ: Factors Associated with Increased Risk of Local Recurrence. Ann. Surg. Oncol. 2016, 24, 1221–1226. [Google Scholar] [CrossRef]
  30. Bruenderman, E.H.; Bhutiani, N.; Mercer, M.K.; McMasters, K.M.; Sanders, M.A.G.; Ajkay, N.L. Evaluating the relationship between ductal carcinoma in situ, calcifications, and margin status in patients undergoing breast conserving surgery. J. Surg. Oncol. 2019, 119, 694–699. [Google Scholar] [CrossRef]
  31. Lange, M.; Reimer, T.; Hartmann, S.; Glass, Ä.; Stachs, A. The role of specimen radiography in breast-conserving therapy of ductal carcinoma in situ. Breast Edinb. Scotl. 2016, 26, 73–79. [Google Scholar] [CrossRef] [PubMed]
  32. Laws, A.; Brar, M.S.; Bouchard-Fortier, A.; Leong, B.; Quan, M.L. Does intra-operative margin assessment improve margin status and re-excision rates? A population-based analysis of outcomes in breast-conserving surgery for ductal carcinoma in situ. J. Surg. Oncol. 2018, 118, 1205–1211. [Google Scholar] [CrossRef] [PubMed]
  33. Layfield, D.M.; See, H.; Stahnke, M.; Hayward, L.; Cutress, R.I.; Oeppen, R.S. Radiopathological features predictive of involved margins in ductal carcinoma in situ. Ann. R. Coll. Surg. Engl. 2017, 99, 137–144. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  34. Liu, R.Q.; Que, J.; Chen, L.; Dingee, C.K.; Warburton, R.; McKevitt, E.C.; Kuusk, U.; Pao, J.-S.; Bazzarelli, A. Measurements using mammography and ultrasonography underestimate the size of high-volume ductal carcinoma in situ. Am. J. Surg. 2021, 221, 1167–1171. [Google Scholar] [CrossRef] [PubMed]
  35. Berger, N.; Schwizer, S.D.; Varga, Z.; Rageth, C.; Frauenfelder, T.; Boss, A. Assessment of the extent of microcalcifications to predict the size of a ductal carcinoma in situ: Comparison between tomosynthesis and conventional mammography. Clin. Imaging 2016, 40, 1269–1273. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  36. Vernet-Tomas, M.; Mojal, S.; Gamero, R.; Nicolau, P.; Rodríguez-Arana, A.; Plancarte, F.; Corominas, J.M.; Serrano-Munne, L.; Carreras, R.; Sabadell, D. Mammographic extent of microcalcifications and oestrogen receptor expression affect preoperative breast carcinoma in situ size estimation. Breast Cancer 2016, 24, 466–472. [Google Scholar] [CrossRef]
  37. Eichler, C.; Abrar, S.; Puppe, J.; Arndt, M.; Ohlinger, R.; Hahn, M.; Warm, M. Detection of Ductal Carcinoma In Situ by Ultrasound and Mammography: Size-Dependent Inaccuracy. Anticancer Res. 2017, 37, 5065–5070. [Google Scholar] [CrossRef]
  38. Fancellu, A.; Turner, R.M.; Dixon, J.M.; Pinna, A.; Cottu, P.; Houssami, N. Meta-analysis of the effect of preoperative breast MRI on the surgical management of ductal carcinoma in situ. Br. J. Surg. 2015, 102, 883–893. [Google Scholar] [CrossRef]
  39. Preibsch, H.; Beckmann, J.; Pawlowski, J.; Kloth, C.; Hahn, M.; Staebler, A.; Wietek, B.M.; Nikolaou, K.; Wiesinger, B. Accuracy of Breast Magnetic Resonance Imaging Compared to Mammography in the Preoperative Detection and Measurement of Pure Ductal Carcinoma In Situ: A Retrospective Analysis. Acad. Radiol. 2018, 26, 760–765. [Google Scholar] [CrossRef]
  40. Pinker, K. Preoperative MRI Improves Surgical Planning and Outcomes for Ductal Carcinoma In Situ. Radiology 2020, 295, 304–306. [Google Scholar] [CrossRef]
  41. Yoon, G.Y.; Choi, W.J.; Kim, H.H.; Cha, J.H.; Shin, H.J.; Chae, E.Y. Surgical Outcomes for Ductal Carcinoma In Situ: Impact of Preoperative MRI. Radiology 2020, 295, 296–303. [Google Scholar] [CrossRef] [PubMed]
  42. Lam, D.L.; Smith, J.; Partridge, S.C.; Kim, A.; Javid, S.H.; Hippe, D.S.; Lehman, C.D.; Lee, J.M.; Rahbar, H. The Impact of Preoperative Breast MRI on Surgical Management of Women with Newly Diagnosed Ductal Carcinoma In Situ. Acad. Radiol. 2019, 27, 478–486. [Google Scholar] [CrossRef] [PubMed]
  43. Chagpar, A.B.; Killelea, B.K.; Tsangaris, T.N.; Butler, M.; Stavris, K.; Li, F.; Yao, X.; Bossuyt, V.; Harigopal, M.; Lannin, D.R.; et al. A Randomized, Controlled Trial of Cavity Shave Margins in Breast Cancer. N. Engl. J. Med. 2015, 373, 503–510. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  44. Howard-McNatt, M.; Dupont, E.; Tsangaris, T.; Garcia-Cantu, C.; Chiba, A.; Berger, A.C.; Levine, E.A.; Gass, J.S.; Ollila, D.W.; Chagpar, A.B.; et al. Impact of Cavity Shave Margins on Margin Status in Patients with Pure Ductal Carcinoma In Situ. J. Am. Coll. Surg. 2020, 232, 373–378. [Google Scholar] [CrossRef]
Cancers 14 02367 g001 550

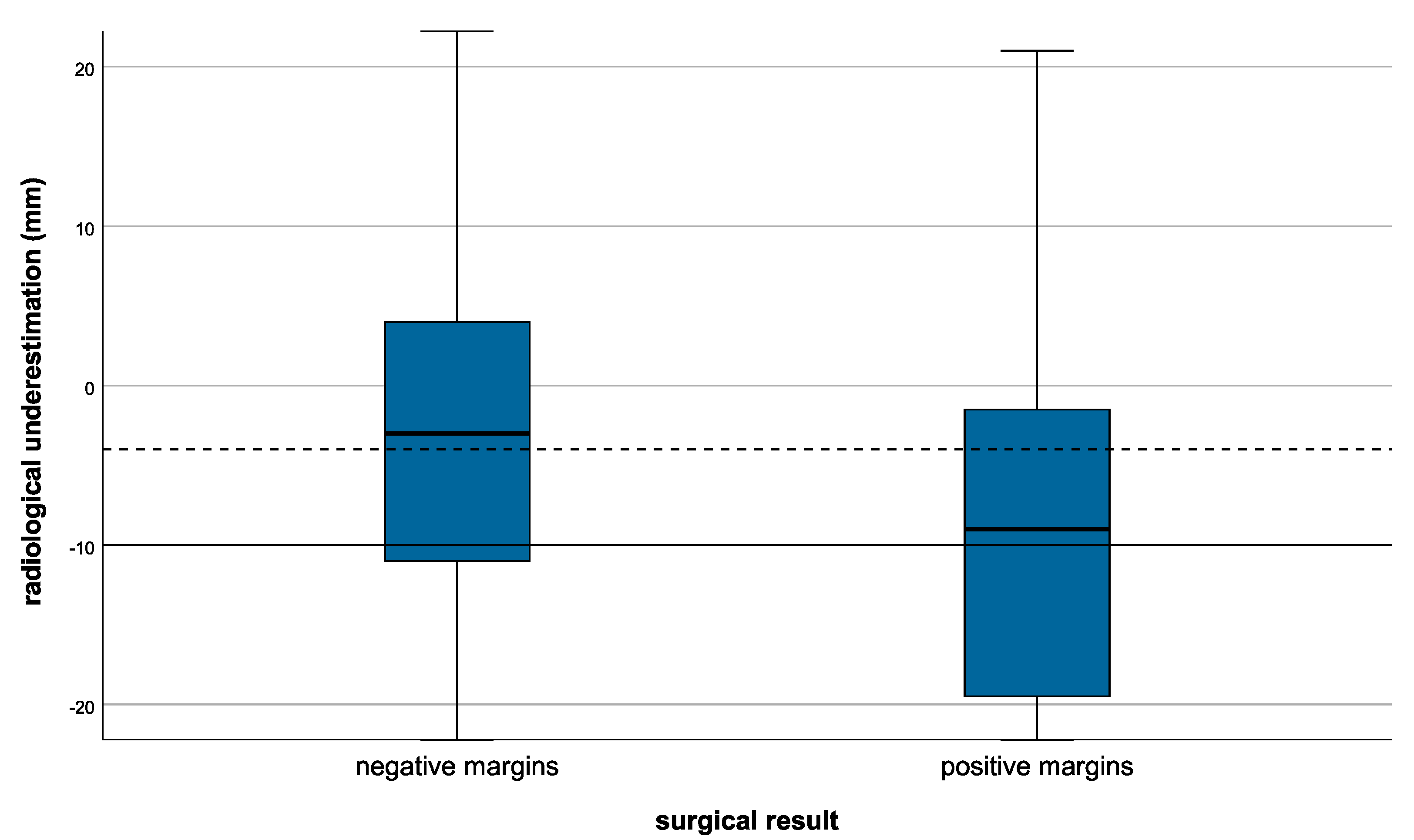

Figure 1. Radiological underestimation influencing the surgical result.
Figure 1. Radiological underestimation influencing the surgical result.
Cancers 14 02367 g001
Cancers 14 02367 g002 550

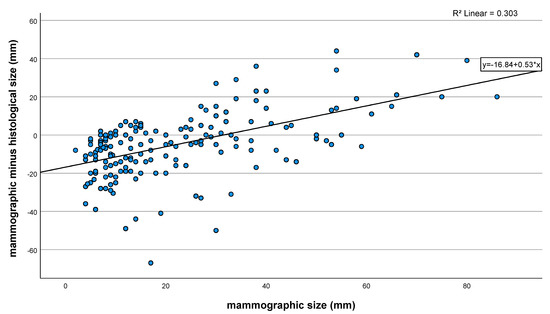

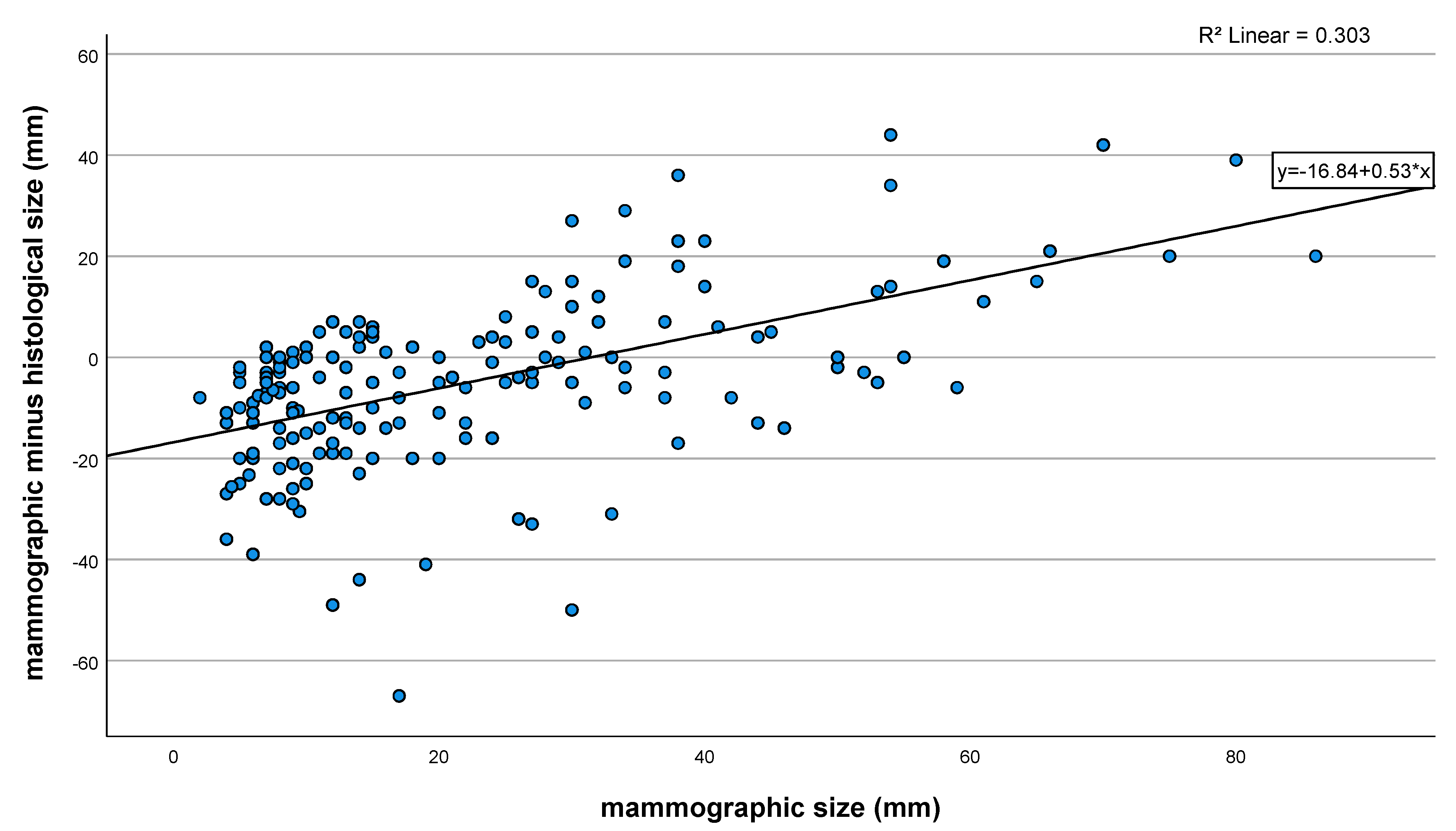

Figure 2. Relationship between mammographic size and radiological underestimation.
Figure 2. Relationship between mammographic size and radiological underestimation.
Cancers 14 02367 g002
Table
Table 1. Patient characteristics.
Table 1. Patient characteristics.
VariablesAll PatientsNegative MarginsPositive Marginsp Value
n = 189n = 114n = 75
Age (years)
Mean (range)59.7 (34–84)59.6 (35–84)60 (34–81)0.73
Specimen size (mm)
Median (range)50.0 (23–110)52.5 (30–110)48.0 (23–95)0.009
Mammographic tumor size (mm)
Median (range)15 (2–86)13 (2–70)22 (2–86)0.011
Histological tumor size (mm)
Median (range)25 (2–84)17 (3–60)31 (2–84)<0.001
Grade of differentiation 0.36
Low grade18 (9.5%)13 (11.4%)5 (6.7%)
Intermediate grade78 (41.3%)49 (43%)29 (38.7%)
High grade93 (49.2%)52 (45.6%)41 (54.7%)
Estrogen receptor 0.039
positive154 (84.2% *)97 (89% *)57 (77% *)
negative29 (15.8% *)12 (11% *)17 (23% *)
Progesteron receptor 0.003
positive120 (71% *)77 (80.2% *)43 (58.9% *)
negative49 (29% *)19 (19.8% *)30 (41.1% *)
Radiological margins 0.004
<5 mm111 (58.7%)57 (50%)54 (72%)
≥5 mm78 (41.3%)57 (50%)21 (28%)
Radiological underestimation 0.006
≥10 mm70 (37.0%)33 (28.9%)37 (49.3%)
<10 mm119 (63.0%)81 (71.1%)38 (50.7%)
Intraoperative re-excision 0.524
yes58 (30.7%)33 (28.9%)25 (33.3%)
no131 (69.3%)81 (71.1%)50 (66.7%)
* Valid percentages (information on n = 5 missing).
Table
Table 2. Factors associated with histologically positive margins on univariate and multivariable regression analysis among all patients undergoing BCS for DCIS with microcalcifications (n = 189).
Table 2. Factors associated with histologically positive margins on univariate and multivariable regression analysis among all patients undergoing BCS for DCIS with microcalcifications (n = 189).
VariableUnivariate Logistic RegressionMultivariable Logistic Regression
Odds Ratio (95% CI)p ValueOdds Ratio (95% CI)p Value
Specimen size
≤50 mm vs. (vs.) >50 mm *1.69 (0.94–3.05)0.0802.51 (1.15–5.49)0.021
Mammographic tumor size
>20 mm vs. ≤20 mm *2.05 (1.13–3.73)0.0185.46 (2.04–14.6)0.001
Histological tumor size **
>25 mm vs. ≤25 mm *7.36 (3.82–14.2)<0.001
Estrogen receptor
Negative vs. positive *2.41 (1.07–5.41)0.0330.75 (0.21–2.64)0.659
Progesteron receptor
Negative vs. positive *2.83 (1.42–5.61)0.0032.13 (0.77–5.90)0.145
Radiological margins
<5 mm vs. ≥5 mm *2.57 (1.38–4.80)0.0032.71 (1.27–5.83)0.010
Mammographic underestimation
≥10 mm vs. <10 mm *2.39 (1.30–4.39)0.0055.81 (2.39–14.12)<0.001
CI—confidence interval; * reference; ** was not included in multivariate regression model. Statistically significant Odds Ratio printed in bold
Table
Table 3. Radiological underestimation of DCIS size dependent on multiple variables.
Table 3. Radiological underestimation of DCIS size dependent on multiple variables.
VariableAll PatientsNo Relevant Underestimationp Value
n = 189 (%)Underestimation≥10 mm
n = 119 (%)n = 70 (%)
Microcalcification 0.013
Fine linear (branched)27 (14.3%)22 (18.5%)5 (7.14%)
Fine pleomorphic57 (30.2%)28 (23.5%)29 (41.4%)
Coarse heterogenous97 (51.3%)62 (52.1%)35 (50%)
amorphous8 (4.2%)7 (5.9%)1 (1.43%)
Distribution pattern of microcalcification <0.001
Ductal/segmental95 (50.3%)75 (63.0%)20 (28.6%)
clustered94 (49.7%)44 (37.0%)50 (71.4%)
Comedo necrosis 0.251
yes153 (81%)93 (78.2%)60 (85.7%)
no36 (19%)26 (21.8%)10 (14.3%)
Grading 0.689
Low grade18 (9.5%)13 (10.9%)5 (7.1%)
Intermediate grade78 (41.3%)48 (42.9%)30 (42.9%)
Hgh grade93 (49.2%)58 (48.7%)35 (50%)
Estrogen receptor 0.402
positive154 (84.2% *)97 (85.1% *)57 (82.6% *)
negative29 (15.8% *)17 (14.9% *)12 (17.4% *)
Progesteron receptor 0.861
Positive120 (71% *)76 (71.7% *)44 (69.8% *)
negative49 (29% *)30 (28.3% *)19 (30.2% *)
Mammographic tumor size <0.001
≤20 mm113 (59.8%)53 (44.5%)60 (85.7%)
>20 mm76 (40.2%)66 (55.5%)10 (14.3%)
* Valid percentages (information on n = 5 missing); Statistically significant Odds Ratio printed in bold.
Table
Table 4. Preoperative known parameter of radiological underestimation ≥10 mm.
Table 4. Preoperative known parameter of radiological underestimation ≥10 mm.
VariableUnivariate Logistic RegressionMultivariable Logistic Regression
Odds Ratio
(95% CI)		p ValueOdds Ratio
(95% CI)		p Value
Microcalcification
Fine linear (branched) *
Fine pleomorphic
heterogeneous

3.77 (1.27–11.18)
2.48 (0.86–7.14)

0.017
0.091

2.87 (0.85–9.69)
1.75 (0.54–5.72)
0.163
0.089
0.354
Distribution pattern of Microcalcification
Ductal * vs. clustered clustered

4.26 (2.25–8.07)

<0.001

0.87 (0.34–2.22)

0.764
Comedo necrosis
no * vs. yes
1.68 (0.76–3.73)
0.204
Grading
G1 * vs. G2 G3		1.63 (0.53–5.02)
1.57 (0.52–4.78)		0.399
0.428
Estrogenreceptor
positive * vs. negative negative
1.20 (0.54–2.69)
0.657
Mammographic DCIS Size
> 20 mm * vs.  ≤ 20 mm
7.47 (3.49–15.99)
<0.001
6.49 (2.30–18.26)
<0.001
* Marks the reference category.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Schultek, G.; Gerber, B.; Reimer, T.; Stubert, J.; Hartmann, S.; Martin, A.; Stachs, A. Radiological Underestimation of Tumor Size as a Relevant Risk Factor for Positive Margin Rate in Breast-Conserving Therapy of Pure Ductal Carcinoma In Situ (DCIS). Cancers 2022, 14, 2367. https://doi.org/10.3390/cancers14102367

AMA Style

Schultek G, Gerber B, Reimer T, Stubert J, Hartmann S, Martin A, Stachs A. Radiological Underestimation of Tumor Size as a Relevant Risk Factor for Positive Margin Rate in Breast-Conserving Therapy of Pure Ductal Carcinoma In Situ (DCIS). Cancers. 2022; 14(10):2367. https://doi.org/10.3390/cancers14102367

Chicago/Turabian Style

Schultek, Gesche, Bernd Gerber, Toralf Reimer, Johannes Stubert, Steffi Hartmann, Annett Martin, and Angrit Stachs. 2022. "Radiological Underestimation of Tumor Size as a Relevant Risk Factor for Positive Margin Rate in Breast-Conserving Therapy of Pure Ductal Carcinoma In Situ (DCIS)" Cancers 14, no. 10: 2367. https://doi.org/10.3390/cancers14102367

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
