Open AccessArticle
Micromachines 2018, 9(6), 259; https://doi.org/10.3390/mi9060259

Development of Multiple Capsule Robots in Pipe

1,2,3
,
1,2,* , 1,2
and
1,2
1
The Institute of Advanced Biomedical Engineering System, School of Life Science, Beijing Institute of Technology, No. 5, Zhongguancun South Street, Haidian District, Beijing 100081, China
2
Key Laboratory of Convergence Medical Engineering System and Healthcare Technology, Ministry of Industry and Information Technology, Beijing Institute of Technology, Beijing 100081, China
3
Intelligent Mechanical Systems Engineering Department, Kagawa University, Takamatsu 761-0396, Japan
*
Author to whom correspondence should be addressed.
Received: 23 March 2018 / Revised: 17 May 2018 / Accepted: 18 May 2018 / Published: 25 May 2018
Full-Text   |   PDF [5750 KB, uploaded 25 May 2018]   |

Abstract

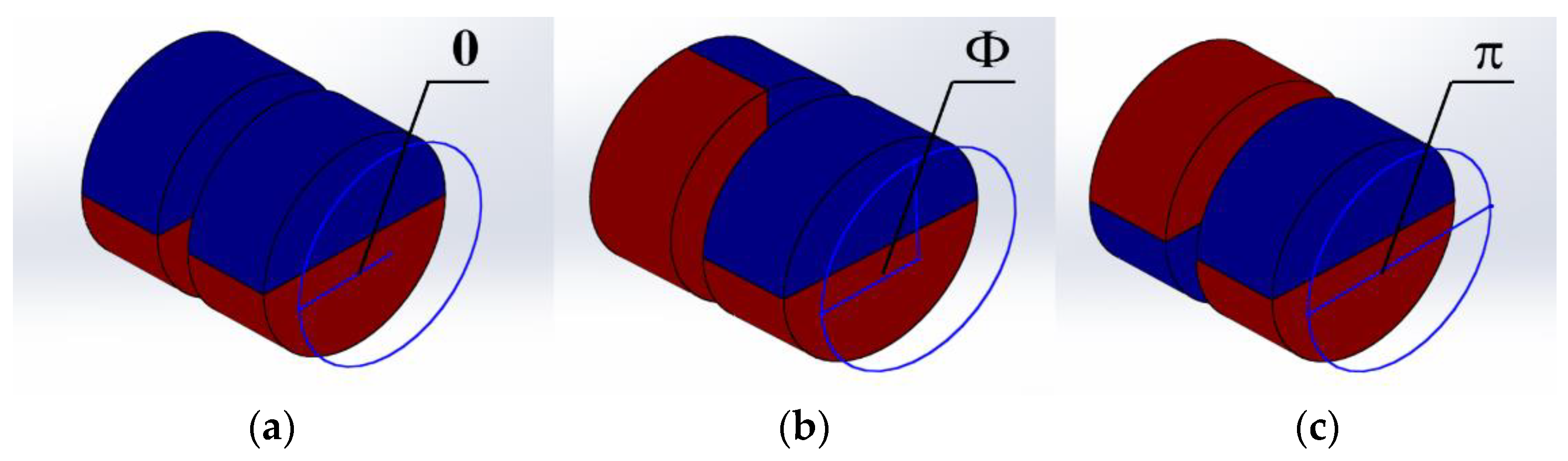

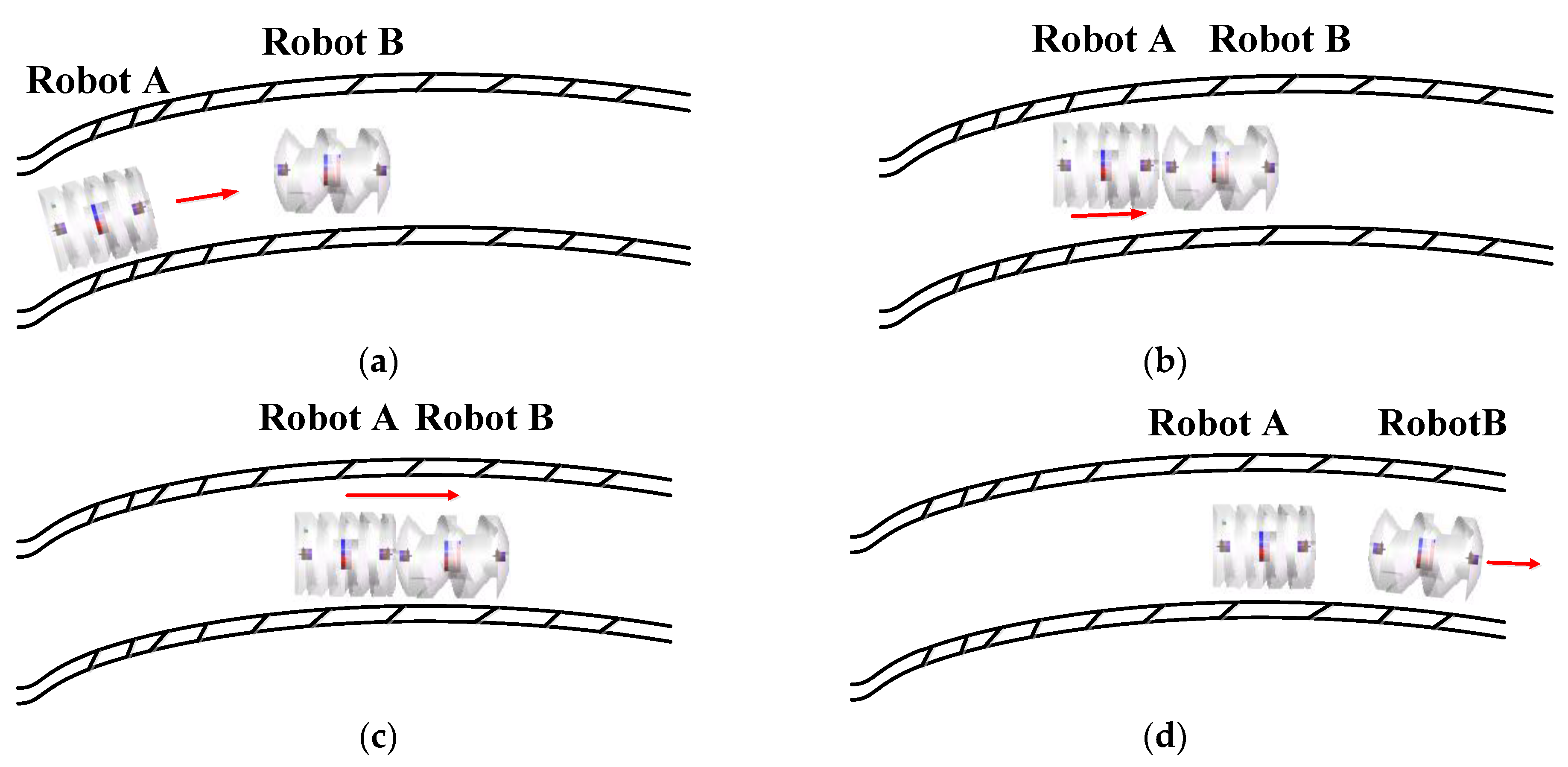

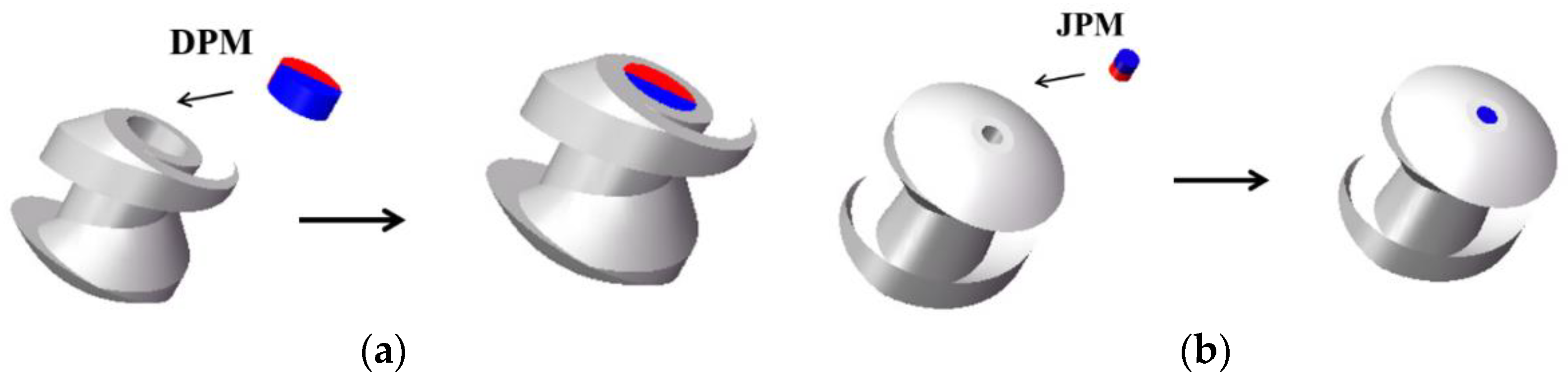

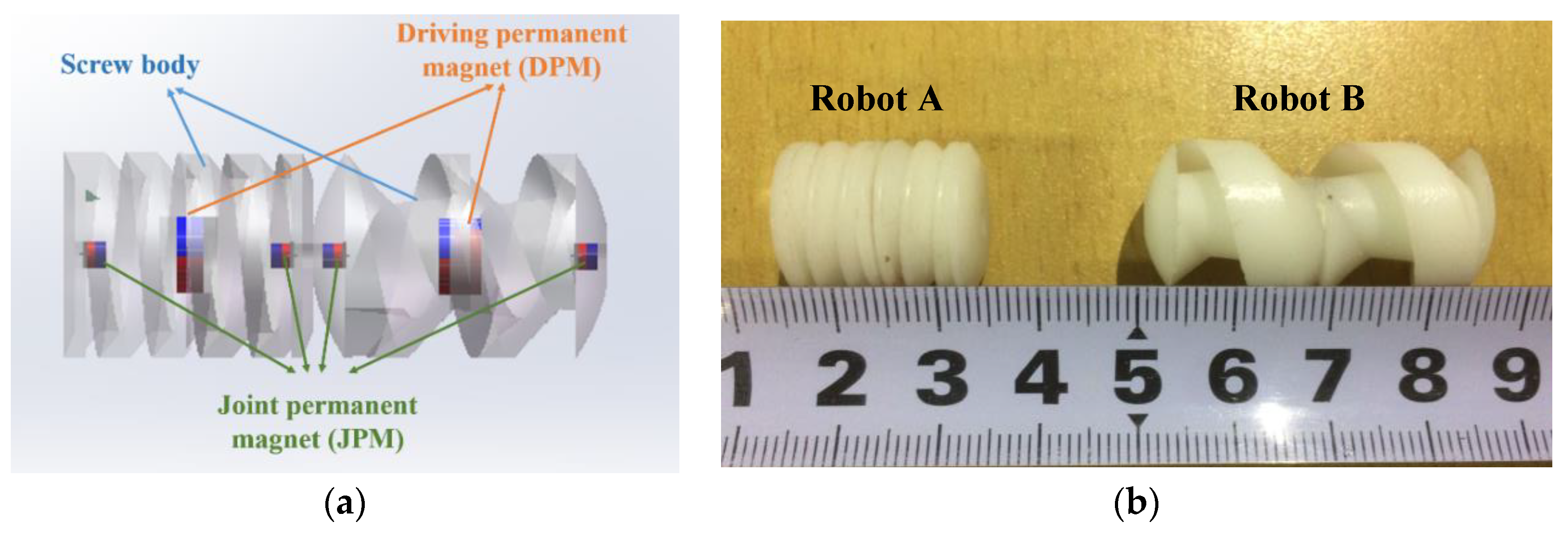

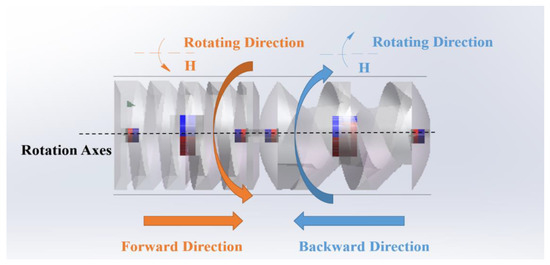

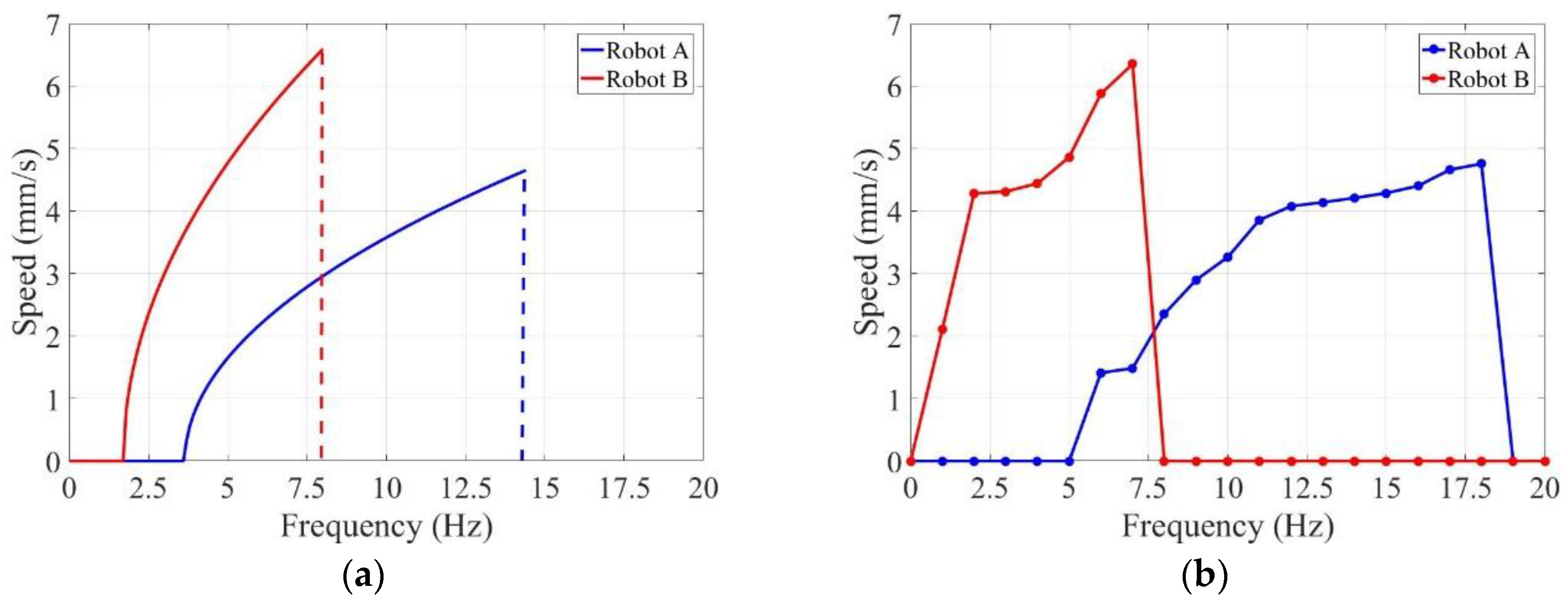

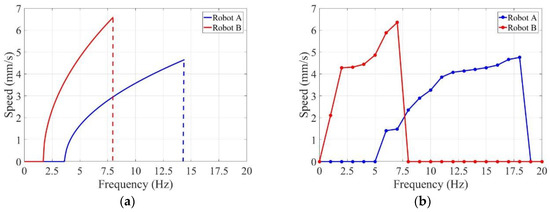

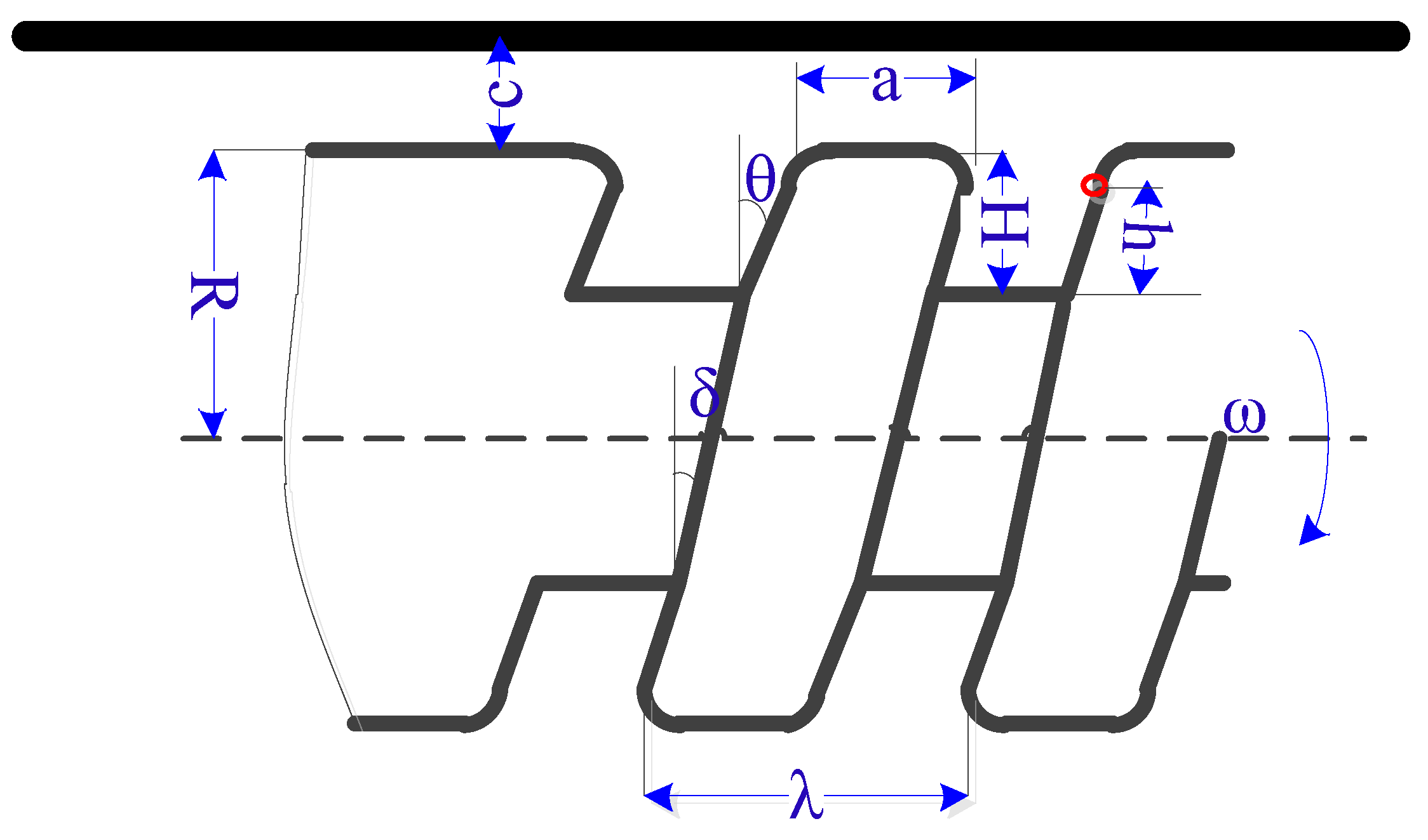

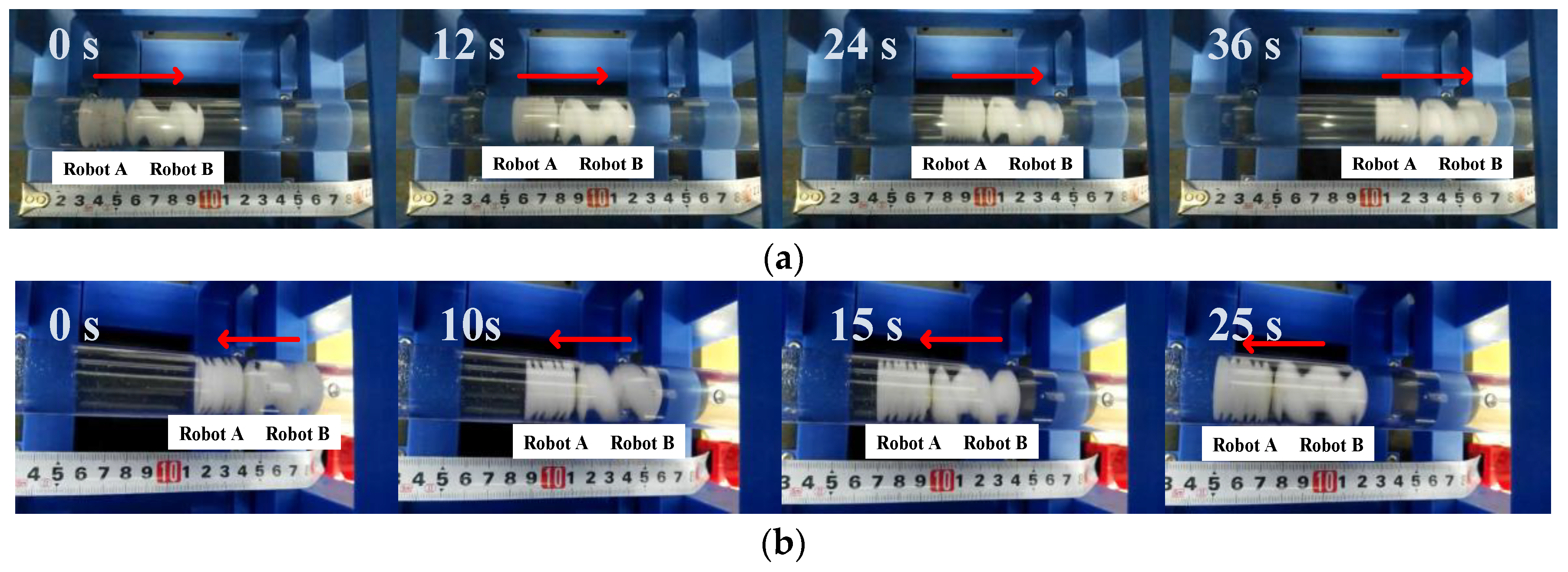

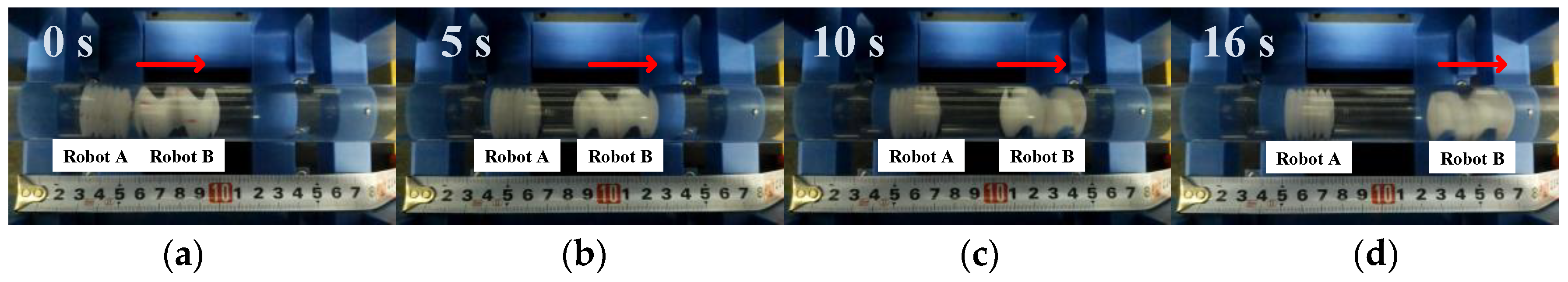

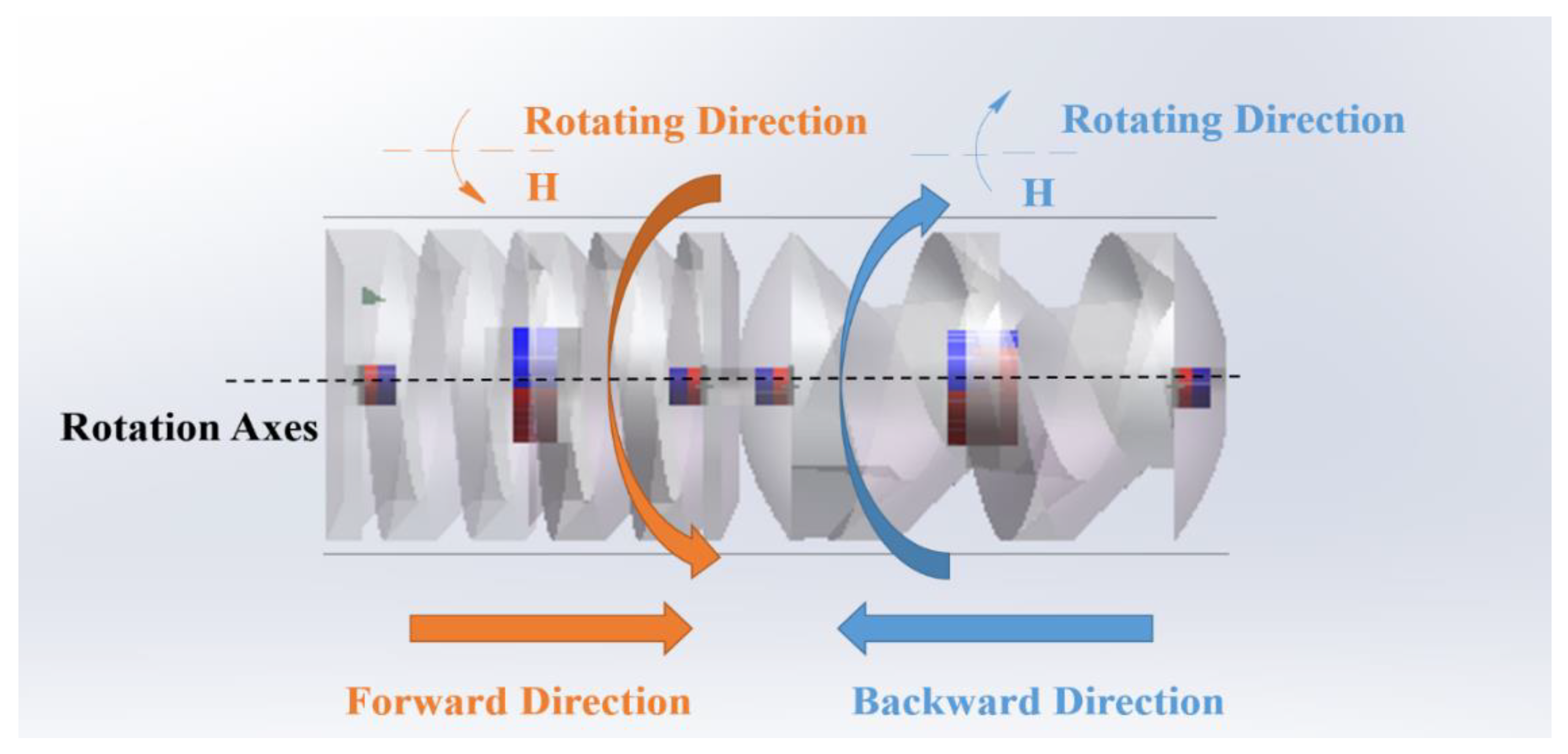

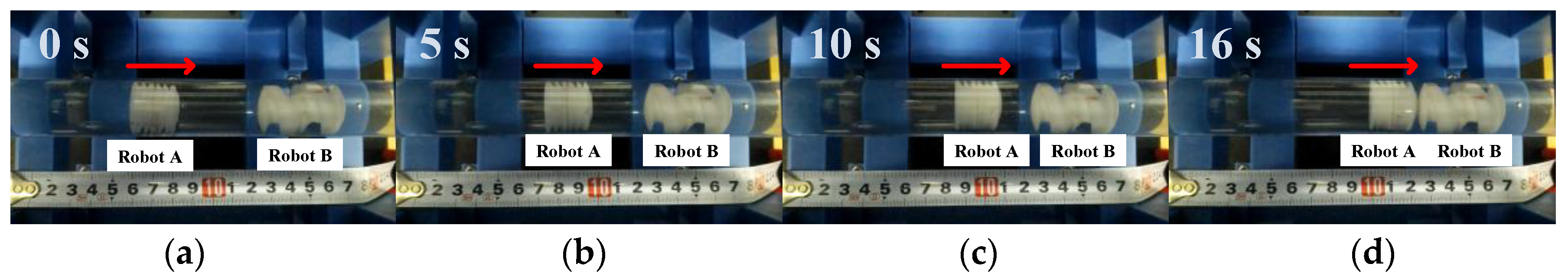

Swallowable capsule robots which travel in body cavities to implement drug delivery, minimally invasive surgery, and diagnosis have provided great potential for medical applications. However, the space constraints of the internal environment and the size limitations of the robots are great challenges to practical application. To address the fundamental challenges of narrow body cavities, a different-frequency driven approach for multiple capsule robots with screw structure manipulated by external electromagnetic field is proposed in this paper. The multiple capsule robots are composed of driven permanent magnets, joint permanent magnets, and a screw body. The screw body generates a propulsive force in a fluidic environment. Moreover, robots can form new constructions via mutual docking and release. To provide manipulation guidelines for active locomotion, a dynamic model of axial propulsion and circumferential torque is established. The multiple start and step-out frequencies for multiple robots are defined theoretically. Moreover, the different-frequency driven approach based on geometrical parameters of screw structure and the overlap angles of magnetic polarities is proposed to drive multiple robots in an identical electromagnetic field. Finally, two capsule robots were prototyped and experiments in a narrow pipe were conducted to verify the different motions such as docking, release, and cooperative locomotion. The experimental results demonstrated the validity of the driven approach for multiple capsule robots in narrow body cavities. View Full-Text
Keywords: multiple capsule robots; rotational electromagnetic field; screw structure; docking and release multiple capsule robots; rotational electromagnetic field; screw structure; docking and release
Figures

Figure 1
