Chronic Stability of Local Field Potentials Using Amorphous Silicon Carbide Microelectrode Arrays Implanted in the Rat Motor Cortex

Department of Bioengineering, The University of Texas at Dallas, 800 W. Campbell Road, Richardson, TX 75080-3021, USA
Department of Materials Science and Engineering, The University of Texas at Dallas, 800 W. Campbell Road, Richardson, TX 75080-3021, USA
Author to whom correspondence should be addressed.
Micromachines 2023, 14(3), 680;
Submission received: 21 February 2023 / Revised: 15 March 2023 / Accepted: 17 March 2023 / Published: 19 March 2023
(This article belongs to the Special Issue Microelectrodes for Biomedical Applications)


Implantable microelectrode arrays (MEAs) enable the recording of electrical activity of cortical neurons, allowing the development of brain-machine interfaces. However, MEAs show reduced recording capabilities under chronic conditions, prompting the development of novel MEAs that can improve long-term performance. Conventional planar, silicon-based devices and ultra-thin amorphous silicon carbide (a-SiC) MEAs were implanted in the motor cortex of female Sprague–Dawley rats, and weekly anesthetized recordings were made for 16 weeks after implantation. The spectral density and bandpower between 1 and 500 Hz of recordings were compared over the implantation period for both device types. Initially, the bandpower of the a-SiC devices and standard MEAs was comparable. However, the standard MEAs showed a consistent decline in both bandpower and power spectral density throughout the 16 weeks post-implantation, whereas the a-SiC MEAs showed substantially more stable performance. These differences in bandpower and spectral density between standard and a-SiC MEAs were statistically significant from week 6 post-implantation until the end of the study at 16 weeks. These results support the use of ultra-thin a-SiC MEAs to develop chronic, reliable brain-machine interfaces.

1. Introduction

Intracortical microelectrode arrays (MEAs) can record the electrical activity of neurons within the cortex, allowing the development of brain-machine interfacing devices [1,2,3,4,5]. However, the functionality of implantable brain-machine interfaces over time faces a significant challenge: the foreign body response in the brain that contributes to failure of the interface. This foreign body response is characterized by the migration of astrocytes, microglia, and macrophages seen as early as minutes following implantation [6,7,8]. As soon as 2 weeks post-implantation, this response has contributed to a significant decline in the detection of units during single unit analysis [3,7,9,10,11]. Local field potentials (LFPs) have been demonstrated as a robust alternative to single-unit analysis for the control of brain-machine interfaces [3,9,10,12,13]. LFPs are obtained by analyzing the lower frequencies of continuous electrophysiological recordings, generally using a low-pass filter below 300–500 Hz [10,14,15,16,17], compared to the frequency band for analyzing single units, which typically spans 300–10,000 Hz [10]. Rather than representing the firing of individual neurons, LFPs represent the overall synaptic activity at the recording site, as well as volume-conducted signals from more distant regions, and may be more stable overtime for analysis than single units [3,9,10,12,13,18,19,20]. LFPs have been used successfully in decoding applications both on their own [21,22] and in conjunction with single-unit analysis [23]. LFP-based decoding of cognitive state and motor intention can show accuracy on par with spike-based decoding [13,17,24]. Furthermore, recent studies have proposed the simultaneous use of LFPs and single units to improve chronic neural decoding performance [25].
Because of this, a major research goal is to design long-lasting MEAs that show reliable chronic LFP recordings [7,26,27]. Large cross-sectional areas of MEAs (>630 µm2) can lead to significant foreign body response and loss of neural recording [28,29,30]. A promising engineering approach to achieve chronic reliability of neural signals has been to reduce the cross-sectional area of implantable MEAs to largely evade the foreign body response [28,29,30]. A second approach to improve MEA reliability has been the use of materials such as amorphous silicon carbide (a-SiC). This is a corrosion-resistant, biocompatible material [31,32] that has been used as an encapsulation layer for the fabrication of MEAs [33,34,35]. Chronic implantation of a-SiC MEAs has been shown to not impact neuronal density, except in the immediate vicinity of the MEA, where the trauma of insertion may cause individual neurons to be displaced or mechanically damaged [32]. Recent studies have shown that a-SiC coating of conventional planar, silicon-based devices can yield significant improvements, including long-term neuronal survivability and high signal-to-noise ratio [36,37]. Furthermore, a-SiC is known to be stable as a dielectric material in a wet environment and resistant to dissolution [32], further supporting its use for the development of intracortical MEAs. In this study, we report on the use of ultra-thin a-SiC MEAs with a cross-sectional area of 160 µm2 to reduce foreign body response and improve chronic reliability of LFPs [38]. Ultra-thin a-SiC MEAs have been shown to successfully record single unit neural activity from the motor cortex in small and large animal models acutely (≤ 5 weeks post implantation) [11,35,39]. Here, we compare LFP recording performance of these devices with conventional MEAs for up to 16 weeks post-implantation. Our results indicate that ultra-thin a-SiC MEAs present a significant improvement to the existing conventional planar MEAs in the recording of LFPs beginning at 6 weeks post-implantation.

2. Materials and Methods

2.1. Devices

Experiments were performed using custom-built, a-SiC devices and compared to conventional planar multi-shank silicon devices. The a-SiC MEAs were fabricated using cleanroom microfabrication techniques as previously described [40] with four colinear shanks and four channels per shank. In brief, a base layer a-SiC was deposited on top of a sacrificial polyimide layer. A Ti/Au/Ti layer was deposited to serve as the underlying metal trace which interconnects between the Omnetics connector and electrode sites. A top layer of a-SiC was deposited. Then, small vias were etched in the top a-SiC layer to access the metal traces. Sputtered iridium oxide film (SIROF) was deposited at the electrode sites as a low impedance, high charge storage and injection capacity coating.
Each of the shanks was 2 mm long and designed to target the L4/L5 layers of the rat motor cortex. The microelectrode sites were spaced 200 µm beginning at 100 µm from the tip, positioned at 0.7, 0.5, 0.3, and 0.1 mm from the tip of each shank (i.e., all four electrode sites in each shank were localized within 700 µm from the tip; spanning 600 µm) with a 200 µm pitch between shanks. The penetrating shanks of the a-SiC devices were 8 µm thick by 20 µm wide, for a shank cross-sectional area of 160 µm2. These devices have been shown to penetrate rat pia mater without the necessity of a structural support or guide [41]. The MEAs were connected by conductive silver epoxy to a 16 channel Omnetics connector through a bond pad region located at the proximal end of the array, which was then encapsulated in medical-grade epoxy (EA M-121HP, Henkel Loctite, Germany). Completed devices were rejuvenated in phosphate buffered saline (PBS; Sigma-Aldrich, Saint Louis, MO, USA) by potential cycling to restore diminished electrochemical properties of the SIROF lost by the final fabrication steps.
Silicon-based conventional devices (A4x4-2mm-200-200-200-CM16LP, NeuroNexus Technologies, Ann Arbor, MI, USA) were custom-built to have a comparable length (2 mm), shank pitch (200 µm) and electrode site spacing (200 µm) to a-SiC MEAs. However, the cross-sectional area was larger at 630 µm2 (42 µm wide and 15 µm thick). The electrode sites of the conventional devices were fabricated with iridium metal and then activated prior to implantation to obtain activated iridium oxide film (AIROF) by a previously established process using a repeated pulsing protocol with alternating positive and negative bias [42].

2.2. Surgical Implantation of Neural Devices

All procedures, handling, and housing were approved by The University of Texas at Dallas Institutional Animal Care and Use Committee. Sixteen female Sprague–Dawley rats (Charles River Laboratories, Wilmington, MA, USA) were randomly assigned to two groups: (1) implanted with a-SiC MEAs (n = 5) and (2) silicon-based, conventional MEAs (n = 9). Implantation was performed following established procedures [43]. Briefly, animals were anesthetized using an intraperitoneal injection of ketamine (65 mg/kg), xylazine (13.33 mg/kg), and acepromazine (1.5 mg/kg) cocktail, followed by an intramuscular injection of atropine sulfate (0.093 mL/kg) (Covetrus, Portland, ME, USA). Ophthalmic ointment was applied to the eyes. The scalp was shaved to expose the skin. Anesthesia was confirmed by toe-pinch and maintained using isoflurane (0.5–1.5%) supplemented with pure O2 (500 mL/min). Anesthetized animals were fixed in a stereotactic frame. The animal’s temperature, respiration, and pulse were monitored throughout surgery. The animal’s scalp was sterilized with alternating 10% povidone-iodine solution and 70% alcohol followed by administration of 0.16 mL of 2% lidocaine (Covetrus Inc., Portland, ME, USA). Following an incision made to expose the skull and tissue resection, 3 anchoring bone screws were placed in the quadrants adjacent to the implant site. Quadrants were defined based on the bregma and suture line. A 2 mm by 2 mm craniotomy was made over the left motor cortex 2 mm anterior from the bregma and lateral to the suture line. The dura mater was resected to allow for implantation. Stainless steel ground and reference wires from the device were wrapped around the anchoring screws. MEAs were implanted using an electronically controlled micro-positioner (NeuralGlider, Actuated Medical, Inc., Ann Arbor, MI, USA) at 100 µm per second with ultrasonic actuation to a relative depth of 1.5 mm from the cortical surface so that all electrode sites were located only in layers L4 and L5 of the primary motor cortex (approximately 75% of electrode sites located within a single layer). A silicone elastomer (Kwik-Sil, World Precision Instruments, Sarasota, FL, USA) was used to fill the craniotomy and allowed to cure over several minutes. Cold-cure dental cement (A-M Systems Inc, Sequim, WA, USA) was applied to the skull to form a headcap, partially encapsulating the MEA site, bone screws, and extracranial ground and reference wires. The incision site was closed with surgical staples. After surgery, animals were injected with 0.05 mL/kg of cefazolin (Covetrus Inc., Portland, ME, USA) and 0.15 mL/kg of sustained-release buprenorphine (Zoopharm, Wedgewood Pharmacy Inc., Laramie, WY, USA). A follow-up buprenorphine injection with the same parameters was administered 72 h after surgery. The animals were allowed to recover for 7 days following surgery before the start of recordings.

2.3. Recording

Data were collected from animals weekly starting approximately one week following surgery and continued for 16 weeks post-surgery. Animals were anesthetized during recording using 2.5% isoflurane supplemented with pure oxygen. After anesthesia depth was confirmed using a toe pinch, the isoflurane level was reduced to 1.5–2.0% and data were then collected using an Omniplex recording system (Plexon Inc., Dallas, TX, USA). Wideband recordings of spontaneous activity in the motor cortex were collected for ten minutes from all 16 electrode channels simultaneously. In a subset of animals (n = 4), we examined the LFP power spectral density (PSD) for awake, freely behaving animals for both MEA types to verify the presence of all power bands 1- and 16-weeks post-implantation.

2.4. Electrochemical Assessment

In this study, the failure mode of interest was the foreign body response. However, it is well known that individual electrode sites on MEAs can experience disconnects after implantation due to mechanical or material failures [44,45]. For example, electrode metals may disconnect over time, interfering with the traces connecting the electrode site to the device back-end connector. Because of this, we used an electrochemical assay to monitor and exclude electrode sites showing signs of disconnections. A three-electrode cyclic voltammetry (CV) was performed as previously described [46] at slow (50 mV/s) and fast (50,000 mV/s) sweep rates. The cathodal charge storage capacities (CSCc) for each sweep rate were calculated as the time integral of the cathodic current in one complete CV cycle. Electrode channels that exhibited a low CSCc, typically less than 0.1 mC/cm2, and a CV shape characteristic of an open circuit were presumed to have broken connector wires and excluded from the study. Electrode channels were otherwise considered functional to the time point at which the two conditions were met but were excluded from analysis thereafter. In cases where an electrode channel appeared to be disconnected one week, but connected in subsequent weeks, the electrode channel was excluded only during the week the disconnection was observed.

2.5. Data Processing

The continuous wideband data from the electrophysiological recordings were analyzed using the chronux MATLAB toolbox as well as custom MATLAB (MATLAB R2021a, Mathworks, Natick, MA, USA) scripts. Continuous data were down-sampled to 2000 Hz by re-sampling the continuous signal at every 20th time stamp, and then processed using a 4-pole, Butterworth bandpass filter with a passband from 1 to 500 Hz. The data were also processed using a notch filter at 60 Hz to remove line-frequency electrical noise [47].
The PSD was calculated in MATLAB in ten-second intervals using a multitaper method from the chronux MATLAB toolbox (mtspectrumc). This method estimates spectral content using non-arbitrary, orthogonal Slepian windowing functions to reduce variance and bias [47,48]. The resulting spectral content was then averaged across all intervals. The PSD for the total LFP band (1–500 Hz) and individual frequency bands were calculated, as defined in Table 1 [47]. For taper parameters, the time-half bandwidth product, which describes the separation between frequency components required to distinguish them, was set to 4 and the number of tapers was 7. The signal was zero-padded to the next highest power of 2 before performing the fast-Fourier transform. Zero-padding is the process of adding zeroes to the end of a signal so that the number of samples is equal to a power of two, allowing more accurate calculation of amplitudes of signal components.

2.6. Statistical Methods

Statistical analysis was performed in RStudio (Version 4.2.2; Boston, MA, USA). All values are expressed as mean ± standard error of the mean. The bandpower was averaged across all electrode channels within a single MEA. Data were analyzed for normality using the Shapiro–Wilk test and visually assessed using quantile-quantile plots. The mean total LFP band power recorded at each time point was compared between conventional and a-SiC devices using a two-way ANOVA followed by a post-hoc Tukey-test (HSD), correcting for multiple comparisons. Then, for each frequency band (e.g., delta, theta, etc.) a one-tailed Wilcoxon rank-sum test as a non-parametric alternative to a one-tailed t-test was conducted to test statistical significance at each discrete timepoint (1-, 8-, and 16-weeks post-implantation). A p-value of less than 0.05 was considered statistically significant. Figures were generated using Neuroexplorer (Nex Technologies, Colorado Springs, CO, USA), OriginLab (Northampton, MA, USA) and MATLAB. Outliers during each timepoint, defined as points distant from the nearest quartile by more than 1.5 times the interquartile range, were excluded from ANOVA analysis.

2.7. Immunohistochemistry

At the end of the 16 weeks of implantation, a pilot a-SiC rat was euthanized using intraperitoneal sodium pentobarbital injection (Virbac Corporation in Westlake, Westlake, TX, USA). Transcranial perfusion was carried out with 350 mL of 1X PBS, followed by 300 mL of 4% paraformaldehyde (PFA) (Sigma-Aldrich, Saint Louis, MO, USA). The MEAs were carefully removed, and the brain was extracted and stored in 4% PFA for 48 h. After the fixation, the tissue was embedded in a 4% agarose gel (Sigma-Aldrich, Saint Louis, MO, USA), and glued to the slicing platform of a vibratome (VT 1000S, Leica vibratome, Wetzlar, Germany) to obtain a 100 μm thick section. The slices were stored in PBS containing 0.01% (w/v) sodium azide (Sigma-Aldrich, St. Louis, MO, USA) at 4 °C overnight. The following day, the slices were treated with sodium borohydride (Sigma-Aldrich, St. Louis, MO, USA) for 30 min and washed with 1x PBS for an hour. Then, the samples were blocked and permeabilized using the blocking buffer containing 4% normal goat serum (Abcam Inc., Cambridge, UK), 0.3% Triton X-100 in 1X PBS with 0.01% sodium azide (Sigma-Aldrich, St. Louise, MO, USA) for an hour. The slices were then washed 3 times in 1x PBS with sodium azide. Three drops of Image-iT were added to the wells and washed after 30 min with 1x PBS and sodium azide. The samples were then treated with primary antibodies reconstituted in the blocking buffer and stored at 4 °C overnight. The following primary antibodies were used: NeuN (Abcam Inc., 1:500) and GFAP (Abcam Inc., 1:500). The next day, samples were washed with 1x PBS, then with 1X PBS containing 0.2% Triton X-100, and another wash with 1X PBS each for 15 min. Afterward, samples were treated with secondary antibodies for 2 h. The following secondary antibodies were used: Goat anti-mouse Alexa Fluor 555 (Abcam Inc., 1:4000) and Goat anti-chicken Alexa Fluor 647 (Abcam Inc., 1:4000). Again, the samples were cycled through the 15-min washes of 1X PBS, 1X PBS + 0.2% Triton X-100, and 1X PBS. Next, the slices were mounted on glass slides using Fluoromount aqueous mounting medium (Sigma-Aldrich, St. Louis, MO, USA) and stored at 4 °C until imaging. Images were taken using confocal microscopy (Eclipse Ti, Nikon, Tokyo, Japan) at 10× magnification.

3. Results

3.1. LFP Recording and Spectrogram

Figure 1 shows a representative a-SiC MEA continuous recording one-week post-implantation. Figure 1a shows raw continuous signal. Figure 1b shows continuous signal after applying the 500 Hz low pass-filter to observe the LFP band. Traces show intermittent 1–2 mV amplitude, multiphasic waveforms lasting less than 1 s (black arrow). As highlighted by comparing Figure 1b,c, multiphasic waveforms were largely coincident with multi-unit bursting (blue horizontal line), which shows the low-pass and band-pass filtered data aligned. In addition, recordings showed lower amplitude oscillations of approximately 20–50 µV peak-to-peak (white arrow).

3.2. Power Spectral Density

Figure 2 shows the PSD of recordings from conventional and a-SiC MEAs, averaged across all functional electrode channels from all animals, on weeks 1, 7, and 16 post-implantation. Two electrode sites on the conventional MEAs out of 144, and one a-SiC electrode site out of 80 were excluded (two electrode sites from week 1 post-implantation to the end of the study, one electrode site from week 4 post-implantation to the end of the study) based on electrochemical analysis described above, as device failure resulting from connection issues was not the failure mode of interest in this study. This resulted in the exclusion of <2% of electrode sites. Both MEA types showed lower power in the alpha, beta, and gamma bands (>10 Hz) compared to delta and theta bands. This may be partially due to the light anesthesia used during recording, as the activity of the higher frequency bands is related to functions such as conscious perception and information processing, which do not occur during anesthesia [49]. Data at 60 Hz were removed by a notch filter as described above and corresponding datapoints were excluded from Figure 2. We observed that 1-week post-implantation, conventional and a-SiC MEAs exhibited comparable spectral content around the delta, theta, and alpha bands with the maximum PSD showing in the delta band at approximately −50 dB. Eight weeks post-implantation, we observed a decline in maximum PSD in the conventional MEAs. The maximum PSD in the delta band was approximately −80 dB. There was no corresponding decline in PSD in a-SiC MEAs, and the maximum PSD remained at approximately −50 dB. Finally, 16 weeks post-implantation we observed a shift of the most prominent frequency band from delta to theta for a-SiC devices; however, the PSD was comparable to 1-week post-implantation (−50 dB). In contrast, conventional devices experienced a marked loss of PSD on all frequency bands (<100 dB), suggesting failure of the neural interface. Finally, electrochemical characterization prior to implantation showed not statistically significant differences (p = 0.12) in 1 kHz impedance between a-SiC (0.58 ± 0.20 MΩ) and conventional devices (0.29 ± 0.03 MΩ).

3.3. Bandpower

Figure 3 shows the average bandpower for the total LFP frequency band each week up to 16 weeks post-implantation. Both MEA types are comparable at the time of implantation (−19.9 ± 2.86 dB for conventional vs. −20.7 ± 3.53 dB for a-SiC MEAs; p = 0.92). Conventional devices experience a rapid decline in PSD as early as 2-weeks post-implantation. By week 8 post-implantation, the power loss experienced by conventional MEAs had progressed by close to −10 dB (−35.71 ± 3.080 dB), while the power remained constant for a-SiC devices (−16.59 ± 0.9593 dB). The power for conventional devices continued to decline to week 16 post-implantation (−46.73 ± 3.48 dB), whereas the a-SiC MEAs maintained a constant power (−17.83 ± 2.17 dB). These differences observed with sustained statistical significance (p ≤ 0.05) at week 6 post-implantation, supporting the use of a-SiC devices for reliable chronic LFP recordings.
The ANOVA analysis and Tukey HSD post-hoc test indicated a statistically significant effect of MEA type on LFP bandpower (p < 0.0001). Twelve data points (approximately 6%) in the total LFP band were identified as outliers and excluded from analysis. All data were normally distributed after outliers were removed.
Table 2 shows the bandpower mean ± SEM obtained with both types of MEAs at weeks 0 (time of implantation), 8, and 16 post-implantation. Statistical significance in all reported bands emerged by week 8 post-implantation.

3.4. Awake LFP Recordings

Figure 4 shows the PSD from a subset of animals recorded while awake and freely exploring a recording cage. At the beginning of the study in week 1, we observed an increase of the alpha (peak at −30 dB) frequency power band in the a-SiC device, which was not present in the anesthetized recordings. For the conventional devices, the alpha band was also more prominent (−80 dB) compared to anesthetized recordings but was approximately 30 dB lower than a-SiC devices. The a-SiC MEAs also demonstrated an increase in the beta (peak at −50 dB) frequency band, which was not present in the anesthetized recordings. In contrast, there was no apparent increase in conventional devices for the beta band compared to anesthetized recordings. After 8 weeks post implantation, the alpha band for both types of devices became less prominent (a-SiC: −50 dB and conventional: −80 dB), while the beta band in a-SiC devices remained largely consistent (−50 dB). These findings are consistent with the overall loss of total LFP bandpower [50].

3.5. Immunohistochemistry

Figure 5 shows the results of a pilot histological analysis of a brain implanted with an a-SiC MEA. A comprehensive analysis of histological response to a-SiC and conventional MEAs is ongoing.

4. Discussion

In this study, we report the PSD of LFPs in the rat motor cortex from ultra-thin a-SiC MEAs compared to silicon-based conventional MEAs. Previous research has explored the design and fabrication of ultra-thin MEAs from materials such as carbon fibers [51,52,53] to reduce foreign body response, with the goal of creating a device capable of stable, long-term neural recordings. These reduced cross-sectional area devices have also shown improvements in the severity of glial scarring and neuronal density compared to conventional devices [50]. While the improved performance of a-SiC MEAs compared to conventional MEAs observed in this study can be attributed, at least in part to the reduced cross-sectional area, other factors likely contribute to the improvement. Ultra-thin a-SiC MEAs are highly flexible due to the small cross-sectional dimensions [41]. An increased degree of flexibility has been shown to promote neuron survival in the vicinity of chronically implanted MEAs [54].
For the conventional MEAs, we observed a sharp decline in total LFP bandpower in the first two weeks of the study (8 dB/week), followed by a slower decline (0–2 dB/week) and eventually reaching as much as 20 dB below the initial bandpower. This bandpower decline appears to correlate temporally with the neuronal loss and tissue encapsulation resulting from both acute injury during device implantation and the foreign body response, as reported elsewhere [6,7,8,27,55]. In contrast, a-SiC MEAs show stable total LFP bandpower over the chronic implantation period with −20.7 ± 3.53 dB at the beginning and −17.8 ± 2.17 dB at the end of the study. This may be explained, at least in part, by the small cross-sectional area of ultra-thin a-SiC MEAs, which can minimize the foreign body response, improving neuronal survivability [29]. Preservation of neuronal cells has a direct effect on the total LFP bandpower because neuronal synaptic activity contributes to the extracellular fields that are recorded within this band [19]; if the synaptic activity decreases due to neuronal loss, the total LFP bandpower also decreases. These findings are consistent with previous literature showing that electrodes with small cross-sectional areas are more capable of long-term stable neural recordings than current silicon-based, planar conventional devices [51]. However, there is an apparent decrease in the total LFP bandpower between weeks 2 and 5 for a-SiC MEAs, which coincides with temporal patterns of oligodendrocyte degeneration, neuronal loss, and wound healing [56,57,58]. This bandpower decrease returns to baseline levels 6 weeks post-implantation. This could be an indication that the neuroinflammation process has largely been resolved but needs to be confirmed in future studies.
We noted that the PSD observed here during anesthetized recordings was most prominent in frequency bands below 10 Hz, corresponding to delta, theta, and low alpha frequency bands. This may be caused by the use of light anesthesia during recordings resulting in the complete suppression of the high alpha, beta, low gamma, and high gamma bands (≥10 Hz). These observations are consistent with findings in the literature because activity of LFP bands above 10 Hz is associated with conscious processes that do not occur during anesthesia [19,49,59,60]. Because of this, we performed recordings in a small subset (n = 2 for each group) of awake, freely behaving animals to confirm the feasibility of recording neural activity associated with these conscious processes at points 1- and 16-weeks post-implantation. During the awake recordings, the animals were freely exploring in a small cage. The presence of the alpha and beta bands became apparent in the a-SiC MEA but there was no prominence of the beta band in conventional MEAs, even 1-week post-implantation. These findings suggest the ability of a-SiC ultra-thin devices to record bands associated with motor planning, further supporting their use for brain-machine interface applications. However, a limitation of this awake study was the small sample size included. This will be addressed in future studies that explore the development of chronic brain-machine interfaces, where a sufficiently powered study will investigate the chronic stability of behaving neural signals using a-SiC devices. Furthermore, a complete histological analysis of the effects of implantation with a-SiC MEAs, as well as single unit analysis are undergoing. Previous work has shown that there is an inverse relationship between LFP power and foreign body response, where glial encapsulation can reduce the LFP power [38]. We expect that the undergoing study will demonstrate that a-SiC devices have a similar or reduced foreign body response compared to conventional devices, which would explain the reduction of LFP power.
The relatively low channel count (16 electrode sites) of the devices used in this study is a limitation for their use in brain-machine interfaces, which benefit from high-channel counts for neuronal decoding [25]. Our group is currently investigating strategies to increase channel density, while maintaining a small cross-sectional dimension, which may include electron beam lithography [61,62] and multilayer metallization [63,64].
In this study, we used multi-shank arrays that have the ability to record from multiple cortical layers and columns simultaneously, which has been suggested as beneficial for achieving high decoding accuracy [21]. However, the quality of neural recordings acquired from multi-shank devices have been previously shown by our group [65] to decline faster than single-shank devices, potentially due to additional mechanical trauma induced during the simultaneous implantation of spatially parallel shanks [41]. The use of ultra-thin a-SiC devices appears to preserve neural signal recordings in the total LFP band beyond 6 weeks, compared to conventional devices. This further supports the use of the a-SiC devices for chronic decoding in brain-machine interfaces.

5. Conclusions

Overall, we have demonstrated the feasibility of ultra-thin a-SiC devices to reliably record LFPs for up to 16 weeks post-implantation in the rat cortex compared to conventional devices. These results support the use of a-SiC MEAs for chronic brain-machine interfaces, where they may provide improved chronic decoding accuracy due to signal quality preservation. However, future work, will focus on analyzing the power of LFPs during a behavioral task to determine whether signals relevant to decoding are also preserved. Furthermore, standalone single unit analysis, in combination with LFPs will be used to determine chronic decoding accuracies with a-SiC MEAs.

Author Contributions

Conceptualization, J.J.P., S.F.C. and A.G.H.-R.; data curation, E.N.J.; formal analysis, E.N.J., J.J.P., S.F.C. and A.G.H.-R.; funding acquisition, J.J.P. and S.F.C.; investigation, E.N.J., J.R.A., J.O.U., Y.W., R.R., B.S.S., S.N., T.T.D.T. and P.H.; methodology, E.N.J., J.R.A., J.O.U., J.J.P., S.F.C. and A.G.H.-R.; project administration, J.J.P. and S.F.C.; software, E.N.J. and J.O.U.; supervision, J.J.P., S.F.C. and A.G.H.-R.; visualization, E.N.J., J.J.P. and A.G.H.-R.; writing—original draft, E.N.J. and J.R.A.; writing—review & editing, E.N.J., J.R.A., J.O.U., Y.W., R.R., B.S.S., S.N., T.T.D.T., J.J.P., S.F.C., A.G.H.-R. and P.H. All authors have read and agreed to the published version of the manuscript.


This research was funded by the National Institutes of Health, grant number R01NS104344 (S.F.C and J.J.P).

Institutional Review Board Statement

All procedures, handling, and housing of animals were approved by The University of Texas at Dallas Institutional Animal Care and Use Committee (IACUC #18-13).

Data Availability Statement

Data available upon request.


The authors would like to thank Thomas J. Smith and Shreya T. Kumara for their assistance with electrophysiological recordings.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Lebedev, M.A.; Nicolelis, M.A. Brain-machine interfaces: Past, present and future. Trends Neurosci. 2006, 29, 536–546. [Google Scholar] [CrossRef]
  2. Schwartz, A.B.; Cui, X.T.; Weber, D.J.; Moran, D.W. Brain-controlled interfaces: Movement restoration with neural prosthetics. Neuron 2006, 52, 205–220. [Google Scholar] [CrossRef] [Green Version]
  3. Andersen, R.A.; Musallam, S.; Pesaran, B. Selecting the signals for a brain-machine interface. Curr. Opin. Neurobiol. 2004, 14, 720–726. [Google Scholar] [CrossRef]
  4. Rapeaux, A.B.; Constandinou, T.G. Implantable brain machine interfaces: First-in-human studies, technology challenges and trends. Curr. Opin. Biotechnol. 2021, 72, 102–111. [Google Scholar] [CrossRef]
  5. Slutzky, M.W. Brain-Machine Interfaces: Powerful Tools for Clinical Treatment and Neuroscientific Investigations. Neuroscientist 2019, 25, 139–154. [Google Scholar] [CrossRef] [PubMed]
  6. Polikov, V.S.; Tresco, P.A.; Reichert, W.M. Response of brain tissue to chronically implanted neural electrodes. J. Neurosci. Methods 2005, 148, 1–18. [Google Scholar] [CrossRef]
  7. Ferguson, M.; Sharma, D.; Ross, D.; Zhao, F. A Critical Review of Microelectrode Arrays and Strategies for Improving Neural Interfaces. Adv. Healthc. Mater. 2019, 8, e1900558. [Google Scholar] [CrossRef] [PubMed]
  8. Kozai, T.D.; Jaquins-Gerstl, A.S.; Vazquez, A.L.; Michael, A.C.; Cui, X.T. Brain tissue responses to neural implants impact signal sensitivity and intervention strategies. ACS Chem. Neurosci. 2015, 6, 48–67. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  9. Freire, M.A.; Morya, E.; Faber, J.; Santos, J.R.; Guimaraes, J.S.; Lemos, N.A.; Sameshima, K.; Pereira, A.; Ribeiro, S.; Nicolelis, M.A. Comprehensive analysis of tissue preservation and recording quality from chronic multielectrode implants. PLoS ONE 2011, 6, e27554. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  10. Luan, L.; Robinson, J.T.; Aazhang, B.; Chi, T.; Yang, K.; Li, X.; Rathore, H.; Singer, A.; Yellapantula, S.; Fan, Y.; et al. Recent Advances in Electrical Neural Interface Engineering: Minimal Invasiveness, Longevity, and Scalability. Neuron 2020, 108, 302–321. [Google Scholar] [CrossRef]
  11. Usoro, J.O.; Sturgill, B.S.; Musselman, K.C.; Capadona, J.R.; Pancrazio, J.J. Intracortical Microelectrode Array Unit Yield under Chronic Conditions: A Comparative Evaluation. Micromachines 2021, 12, 972. [Google Scholar] [CrossRef]
  12. Scheid, M.R.; Flint, R.D.; Wright, Z.A.; Slutzky, M.W. Long-term, stable behavior of local field potentials during brain machine interface use. Annu. Int. Conf. IEEE Eng. Med. Biol. Soc. 2013, 2013, 307–310. [Google Scholar] [CrossRef]
  13. Andersen, R.A.; Hwang, E.J.; Mulliken, G.H. Cognitive neural prosthetics. Annu. Rev. Psychol. 2010, 61, 169–190. [Google Scholar] [CrossRef] [Green Version]
  14. Ray, S. Challenges in the quantification and interpretation of spike-LFP relationships. Curr. Opin. Neurobiol. 2015, 31, 111–118. [Google Scholar] [CrossRef]
  15. Einevoll, G.T.; Kayser, C.; Logothetis, N.K.; Panzeri, S. Modelling and analysis of local field potentials for studying the function of cortical circuits. Nat. Rev. Neurosci. 2013, 14, 770–785. [Google Scholar] [CrossRef] [PubMed]
  16. Waldert, S.; Pistohl, T.; Braun, C.; Ball, T.; Aertsen, A.; Mehring, C. A review on directional information in neural signals for brain-machine interfaces. J. Physiol. Paris. 2009, 103, 244–254. [Google Scholar] [CrossRef] [PubMed]
  17. Prakash, S.S.; Mayo, J.P.; Ray, S. Decoding of attentional state using local field potentials. Curr. Opin. Neurobiol. 2022, 76, 102589. [Google Scholar] [CrossRef] [PubMed]
  18. Kajikawa, Y.; Schroeder, C.E. How local is the local field potential? Neuron 2011, 72, 847–858. [Google Scholar] [CrossRef] [Green Version]
  19. Buzsaki, G.; Anastassiou, C.A.; Koch, C. The origin of extracellular fields and currents--EEG, ECoG, LFP and spikes. Nat. Rev. Neurosci. 2012, 13, 407–420. [Google Scholar] [CrossRef]
  20. Friston, K.J.; Bastos, A.M.; Pinotsis, D.; Litvak, V. LFP and oscillations-what do they tell us? Curr. Opin. Neurobiol. 2015, 31, 1–6. [Google Scholar] [CrossRef] [Green Version]
  21. Abrego, A.M.; Khan, W.; Wright, C.E.; Islam, M.R.; Ghajar, M.H.; Bai, X.; Tandon, N.; Seymour, J.P. Sensing local field potentials with a directional and scalable depth electrode array. J. Neural Eng. 2023, 20, 016041. [Google Scholar] [CrossRef] [PubMed]
  22. Mirfathollahi, A.; Ghodrati, M.T.; Shalchyan, V.; Daliri, M.R. Decoding locomotion speed and slope from local field potentials of rat motor cortex. Comput. Methods Programs Biomed. 2022, 223, 106961. [Google Scholar] [CrossRef]
  23. Huang, Y.; Shen, X.; Zhang, X.; Chen, S.; Wang, Y. Decoding Reward Information from Local Field Potential and Spikes in Medial Prefrontal Cortex of Rats. In Proceedings of the IEEE International Conference on Systems, Man, and Cybernetics, Toronto, ON, Canada, 11–14 October 2020. [Google Scholar]
  24. Perge, J.A.; Zhang, S.; Malik, W.Q.; Homer, M.L.; Cash, S.; Friehs, G.; Eskandar, E.N.; Donoghue, J.P.; Hochberg, L.R. Reliability of directional information in unsorted spikes and local field potentials recorded in human motor cortex. J. Neural Eng. 2014, 11, 046007. [Google Scholar] [CrossRef] [Green Version]
  25. Paulk, A.C.; Kfir, Y.; Khanna, A.R.; Mustroph, M.L.; Trautmann, E.M.; Soper, D.J.; Stavisky, S.D.; Welkenhuysen, M.; Dutta, B.; Shenoy, K.V.; et al. Large-scale neural recordings with single neuron resolution using Neuropixels probes in human cortex. Nat. Neurosci. 2022, 25, 252–263. [Google Scholar] [CrossRef] [PubMed]
  26. Pancrazio, J.J.; Cogan, S.F. Editorial for the Special Issue on Neural Electrodes: Design and Applications. Micromachines 2019, 10, 466. [Google Scholar] [CrossRef] [Green Version]
  27. Gulino, M.; Kim, D.; Pane, S.; Santos, S.D.; Pego, A.P. Tissue Response to Neural Implants: The Use of Model Systems Toward New Design Solutions of Implantable Microelectrodes. Front. Neurosci. 2019, 13, 689. [Google Scholar] [CrossRef] [Green Version]
  28. Seymour, J.P.; Kipke, D.R. Fabrication of polymer neural probes with sub-cellular features for reduced tissue encapsulation. Conf. Proc. IEEE Eng. Med. Biol. Soc. 2006, 2006, 4606–4609. [Google Scholar] [CrossRef]
  29. Skousen, J.L.; Merriam, S.M.; Srivannavit, O.; Perlin, G.; Wise, K.D.; Tresco, P.A. Reducing surface area while maintaining implant penetrating profile lowers the brain foreign body response to chronically implanted planar silicon microelectrode arrays. Prog. Brain Res. 2011, 194, 167–180. [Google Scholar] [CrossRef]
  30. Sommakia, S.; Lee, H.C.; Gaire, J.; Otto, K.J. Materials approaches for modulating neural tissue responses to implanted microelectrodes through mechanical and biochemical means. Curr. Opin. Solid. State Mater. Sci. 2014, 18, 319–328. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  31. Knaack, G.L.; McHail, D.G.; Borda, G.; Koo, B.; Peixoto, N.; Cogan, S.F.; Dumas, T.C.; Pancrazio, J.J. In vivo Characterization of Amorphous Silicon Carbide As a Biomaterial for Chronic Neural Interfaces. Front. Neurosci. 2016, 10, 301. [Google Scholar] [CrossRef] [Green Version]
  32. Cogan, S.F.; Edell, D.J.; Guzelian, A.A.; Liu, Y.P.; Edell, R. Plasma-enhanced chemical vapor deposited silicon carbide as an implantable dielectric coating. J. Biomed. Mater. Res. A 2003, 67, 856–867. [Google Scholar] [CrossRef]
  33. Ghazavi, A.; Gonzalez-Gonzalez, M.A.; Romero-Ortega, M.I.; Cogan, S.F. Intraneural ultramicroelectrode arrays for function-specific interfacing to the vagus nerve. Biosens. Bioelectron. 2020, 170, 112608. [Google Scholar] [CrossRef] [PubMed]
  34. Deku, F. Neural interfaces based on amorphous silicon carbide ultramicroelectrode arrays. Bioelectron. Med. 2018, 1, 185–200. [Google Scholar] [CrossRef]
  35. Deku, F.; Frewin, C.L.; Stiller, A.; Cohen, Y.; Aqeel, S.; Joshi-Imre, A.; Black, B.; Gardner, T.J.; Pancrazio, J.J.; Cogan, S.F. Amorphous Silicon Carbide Platform for Next Generation Penetrating Neural Interface Designs. Micromachines 2018, 9, 480. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  36. Black, B.J.; Kanneganti, A.; Joshi-Imre, A.; Rihani, R.; Chakraborty, B.; Abbott, J.; Pancrazio, J.J.; Cogan, S.F. Chronic recording and electrochemical performance of Utah microelectrode arrays implanted in rat motor cortex. J. Neurophysiol. 2018, 120, 2083–2090. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  37. Joshi-Imre, A.; Black, B.J.; Abbott, J.; Kanneganti, A.; Rihani, R.; Chakraborty, B.; Danda, V.R.; Maeng, J.; Sharma, R.; Rieth, L.; et al. Chronic recording and electrochemical performance of amorphous silicon carbide-coated Utah electrode arrays implanted in rat motor cortex. J. Neural Eng. 2019, 16, 046006. [Google Scholar] [CrossRef]
  38. Huang, S.H.; Shmoel, N.; Jankowski, M.M.; Erez, H.; Sharon, A.; Abu-Salah, W.; Nelken, I.; Weiss, A.; Spira, M.E. Immunohistological and Ultrastructural Study of the Inflammatory Response to Perforated Polyimide Cortical Implants: Mechanisms Underlying Deterioration of Electrophysiological Recording Quality. Front. Neurosci. 2020, 14, 926. [Google Scholar] [CrossRef]
  39. Abbott, J.R.; Geramifard, N.; Hernandez-Reynoso, A.G.; Blum, K.P.; Wu, Y.; Miller, L.E.; Cogan, S.F. Force Insertion and Acute Electrochemical Measurements of Amorphous Silicon Carbide Microelectrode Arrays into Nonhuman Primate Motor Cortex. In Proceedings of the Neuroscience 2022, San Diego, CA, USA, 12–16 November 2022. [Google Scholar]
  40. Deku, F.; Cohen, Y.; Joshi-Imre, A.; Kanneganti, A.; Gardner, T.J.; Cogan, S.F. Amorphous silicon carbide ultramicroelectrode arrays for neural stimulation and recording. J. Neural Eng. 2018, 15, 016007. [Google Scholar] [CrossRef]
  41. Geramifard, N.; Dousti, B.; Nguyen, C.; Abbott, J.; Cogan, S.F.; Varner, V.D. Insertion mechanics of amorphous SiC ultra-micro scale neural probes. J. Neural Eng. 2022, 19, 026033. [Google Scholar] [CrossRef]
  42. Frederick, R.A.; Meliane, I.Y.; Joshi-Imre, A.; Troyk, P.R.; Cogan, S.F. Activated iridium oxide film (AIROF) electrodes for neural tissue stimulation. J. Neural Eng. 2020, 17, 056001. [Google Scholar] [CrossRef]
  43. Stiller, A.M.; Usoro, J.; Frewin, C.L.; Danda, V.R.; Ecker, M.; Joshi-Imre, A.; Musselman, K.C.; Voit, W.; Modi, R.; Pancrazio, J.J.; et al. Chronic Intracortical Recording and Electrochemical Stability of Thiol-ene/Acrylate Shape Memory Polymer Electrode Arrays. Micromachines 2018, 9, 500. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  44. Barrese, J.C.; Aceros, J.; Donoghue, J.P. Scanning electron microscopy of chronically implanted intracortical microelectrode arrays in non-human primates. J. Neural Eng. 2016, 13, 026003. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  45. Barrese, J.C.; Rao, N.; Paroo, K.; Triebwasser, C.; Vargas-Irwin, C.; Franquemont, L.; Donoghue, J.P. Failure mode analysis of silicon-based intracortical microelectrode arrays in non-human primates. J. Neural Eng. 2013, 10, 066014. [Google Scholar] [CrossRef]
  46. Cogan, S.F. Neural Stimulation and Recording Electrodes. Annu. Rev. Biomed. Eng. 2008, 10, 275–309. [Google Scholar] [CrossRef] [Green Version]
  47. Usoro, J.O. Chronic stability of local field potentials from standard and modified Blackrock microelectrode arrays implanted in the rat motor cortex. Biomed. Phys. Eng. Express 2019, 5, 065017. [Google Scholar] [CrossRef]
  48. Bokil, H.; Andrews, P.; Kulkarni, J.E.; Mehta, S.; Mitra, P.P. Chronux: A platform for analyzing neural signals. J. Neurosci. Methods 2010, 192, 146–151. [Google Scholar] [CrossRef]
  49. Aksenov, D.P.; Miller, M.J.; Dixon, C.J.; Wyrwicz, A.M. The effect of sevoflurane and isoflurane anesthesia on single unit and local field potentials. Exp. Brain Res. 2019, 237, 1521–1529. [Google Scholar] [CrossRef]
  50. Priyanka, A.; Abhang, B.W.G.; Suresh, M. Technical Aspects of Brain Rhythms and Speech Parameters. In Introduction to EEG- and Speech-Based Emotion Recognition; Academic Press: Cambridge, MA, USA, 2016; pp. 16–50. [Google Scholar]
  51. Patel, P.R.; Zhang, H.; Robbins, M.T.; Nofar, J.B.; Marshall, S.P.; Kobylarek, M.J.; Kozai, T.D.; Kotov, N.A.; Chestek, C.A. Chronic in vivo stability assessment of carbon fiber microelectrode arrays. J. Neural Eng. 2016, 13, 066002. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  52. Welle, E.J.; Patel, P.R.; Woods, J.E.; Petrossians, A.; Della Valle, E.; Vega-Medina, A.; Richie, J.M.; Cai, D.; Weiland, J.D.; Chestek, C.A. Ultra-small carbon fiber electrode recording site optimization and improved in vivo chronic recording yield. J. Neural Eng. 2020, 17, 026037. [Google Scholar] [CrossRef] [PubMed]
  53. Chiang, C.H.; Won, S.M.; Orsborn, A.L.; Yu, K.J.; Trumpis, M.; Bent, B.; Wang, C.; Xue, Y.; Min, S.; Woods, V.; et al. Development of a neural interface for high-definition, long-term recording in rodents and nonhuman primates. Sci. Transl. Med. 2020, 12, eaay4682. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  54. Stiller, A.M.; Black, B.J.; Kung, C.; Ashok, A.; Cogan, S.F.; Varner, V.D.; Pancrazio, J.J. A Meta-Analysis of Intracortical Device Stiffness and Its Correlation with Histological Outcomes. Micromachines 2018, 9, 443. [Google Scholar] [CrossRef] [Green Version]
  55. Cody, P.A.; Eles, J.R.; Lagenaur, C.F.; Kozai, T.D.Y.; Cui, X.T. Unique electrophysiological and impedance signatures between encapsulation types: An analysis of biological Utah array failure and benefit of a biomimetic coating in a rat model. Biomaterials 2018, 161, 117–128. [Google Scholar] [CrossRef] [PubMed]
  56. Potter, K.A.; Buck, A.C.; Self, W.K.; Capadona, J.R. Stab injury and device implantation within the brain results in inversely multiphasic neuroinflammatory and neurodegenerative responses. J. Neural Eng. 2012, 9, 046020. [Google Scholar] [CrossRef]
  57. Wellman, S.M.; Li, L.; Yaxiaer, Y.; McNamara, I.; Kozai, T.D.Y. Revealing Spatial and Temporal Patterns of Cell Death, Glial Proliferation, and Blood-Brain Barrier Dysfunction Around Implanted Intracortical Neural Interfaces. Front. Neurosci. 2019, 13, 493. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  58. Chen, K.; Wellman, S.M.; Yaxiaer, Y.; Eles, J.R.; Kozai, T.D. In vivo spatiotemporal patterns of oligodendrocyte and myelin damage at the neural electrode interface. Biomaterials 2021, 268, 120526. [Google Scholar] [CrossRef] [PubMed]
  59. Crunelli, V.; Hughes, S.W. The slow (<1 Hz) rhythm of non-REM sleep: A dialogue between three cardinal oscillators. Nat. Neurosci. 2010, 13, 9–17. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  60. Amzica, F.; Steriade, M. The K-complex: Its slow (<1-Hz) rhythmicity and relation to delta waves. Neurology 1997, 49, 952–959. [Google Scholar] [CrossRef]
  61. Wei, X.; Luan, L.; Zhao, Z.; Li, X.; Zhu, H.; Potnis, O.; Xie, C. Nanofabricated Ultraflexible Electrode Arrays for High-Density Intracortical Recording. Adv. Sci. 2018, 5, 1700625. [Google Scholar] [CrossRef]
  62. Tseng, A.A.; Kuan, C.; Chen, C.D.; Ma, K.J. Electron beam lithography in nanoscale fabrication: Recent development. IEEE Trans. Electron. Packag. Manuf. 2003, 26, 141–149. [Google Scholar] [CrossRef] [Green Version]
  63. Yoon, H.-W.; Shin, S.-M.; Kwon, S.-Y.; Cho, H.-M.; Kim, S.-G.; Hong, M.-P. One-Step Etching Characteristics of ITO/Ag/ITO Multilayered Electrode in High-Density and High-Electron-Temperature Plasma. Materials 2021, 14, 2025. [Google Scholar] [CrossRef]
  64. Kishimoto, K.-I.K.; Matsumoto, T.-C.H.; Okada, N.; Sumihiro, N.; Gomi, H. Stability and Application to Multilevel Metallization of Fluorine-Doped Silicon Oxide by High-Density Plasma Chemical Vapor Deposition. Jpn. Journal. Appl. Phys. 2000, 39, 1091. [Google Scholar] [CrossRef]
  65. Usoro, J.O.; Dogra, K.; Abbott, J.R.; Radhakrishna, R.; Cogan, S.F.; Pancrazio, J.J.; Patnaik, S.S. Influence of Implantation Depth on the Performance of Intracortical Probe Recording Sites. Micromachines 2021, 12, 1158. [Google Scholar] [CrossRef] [PubMed]

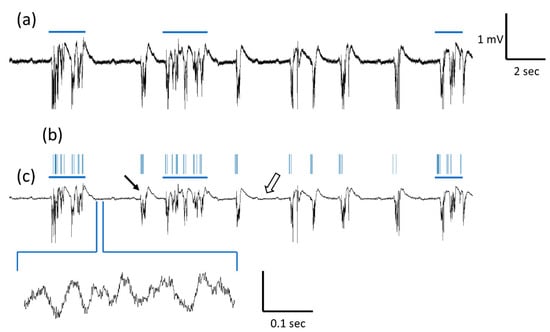

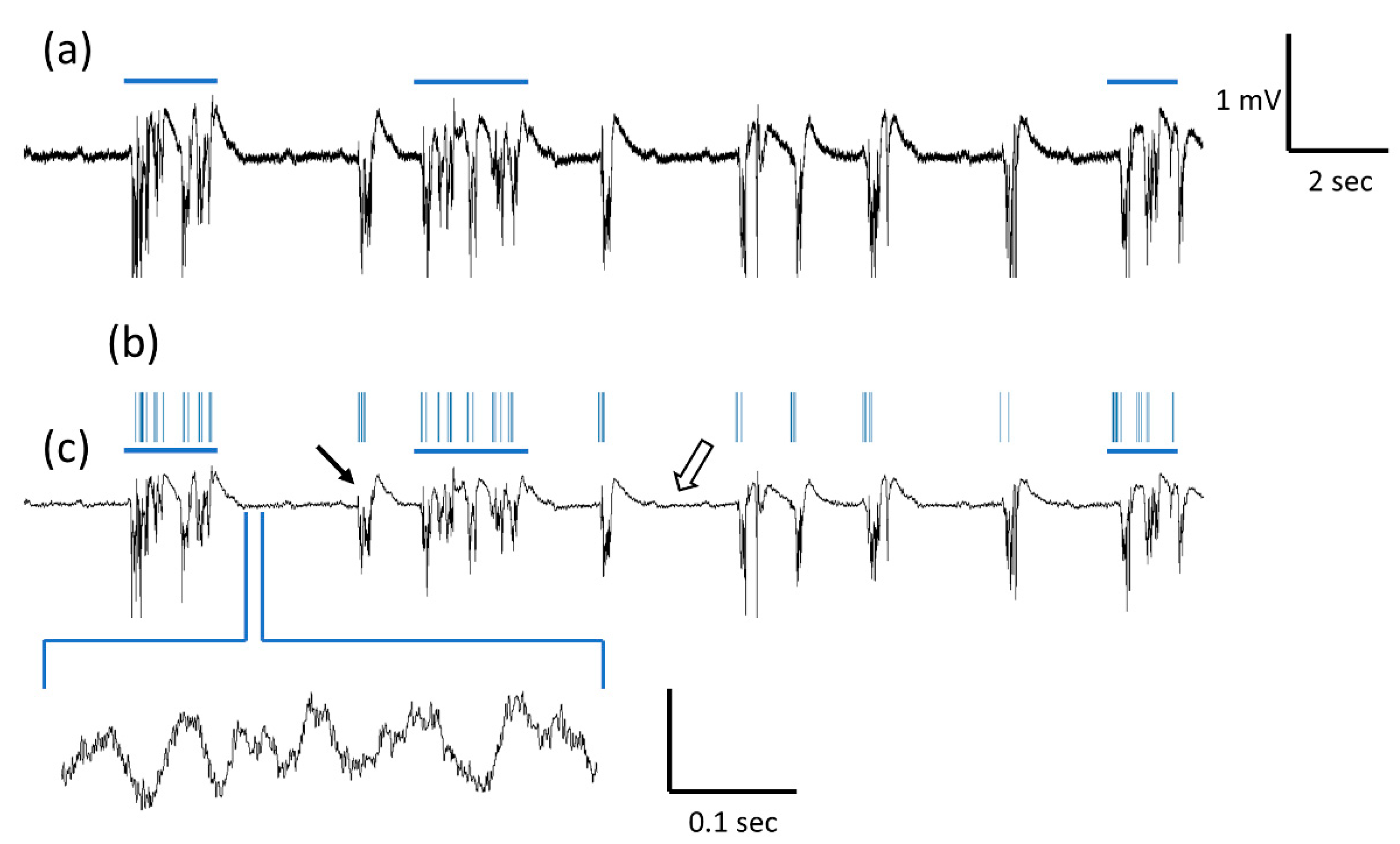

Figure 1. Representative continuous electrophysiological recordings from a-SiC MEAs one-week post-implantation. (a) Raw signal before filters are applied. Blue horizontal line denotes simultaneous single unit activity. (b) Raster plot showing the time of single unit activity. (c) Low-pass (1–500 Hz) filtered data showing the total LFP band. Black arrows point to intermittent multiphasic waveforms. Inset shows a zoomed-in version of representative low amplitude oscillations (white arrow).
Figure 1. Representative continuous electrophysiological recordings from a-SiC MEAs one-week post-implantation. (a) Raw signal before filters are applied. Blue horizontal line denotes simultaneous single unit activity. (b) Raster plot showing the time of single unit activity. (c) Low-pass (1–500 Hz) filtered data showing the total LFP band. Black arrows point to intermittent multiphasic waveforms. Inset shows a zoomed-in version of representative low amplitude oscillations (white arrow).
Micromachines 14 00680 g001

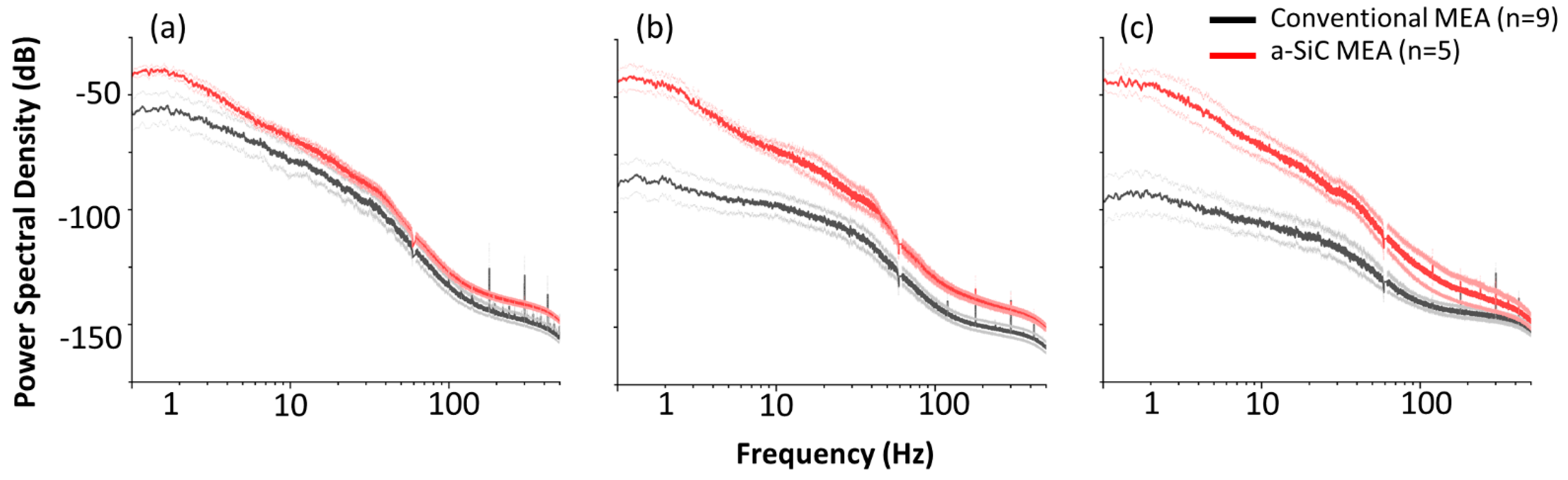

Figure 2. Comparative power spectral densities (PSD) for a-SiC MEAs and conventional planar, silicon-based devices. PSD (a) 1 week, (b) 7 weeks, and (c) 16 weeks post-implantation for conventional and a-SiC MEAs. Bold red (a-SiC) and grey (conventional) traces represent the mean and light traces represent the standard error of the mean.
Figure 2. Comparative power spectral densities (PSD) for a-SiC MEAs and conventional planar, silicon-based devices. PSD (a) 1 week, (b) 7 weeks, and (c) 16 weeks post-implantation for conventional and a-SiC MEAs. Bold red (a-SiC) and grey (conventional) traces represent the mean and light traces represent the standard error of the mean.
Micromachines 14 00680 g002

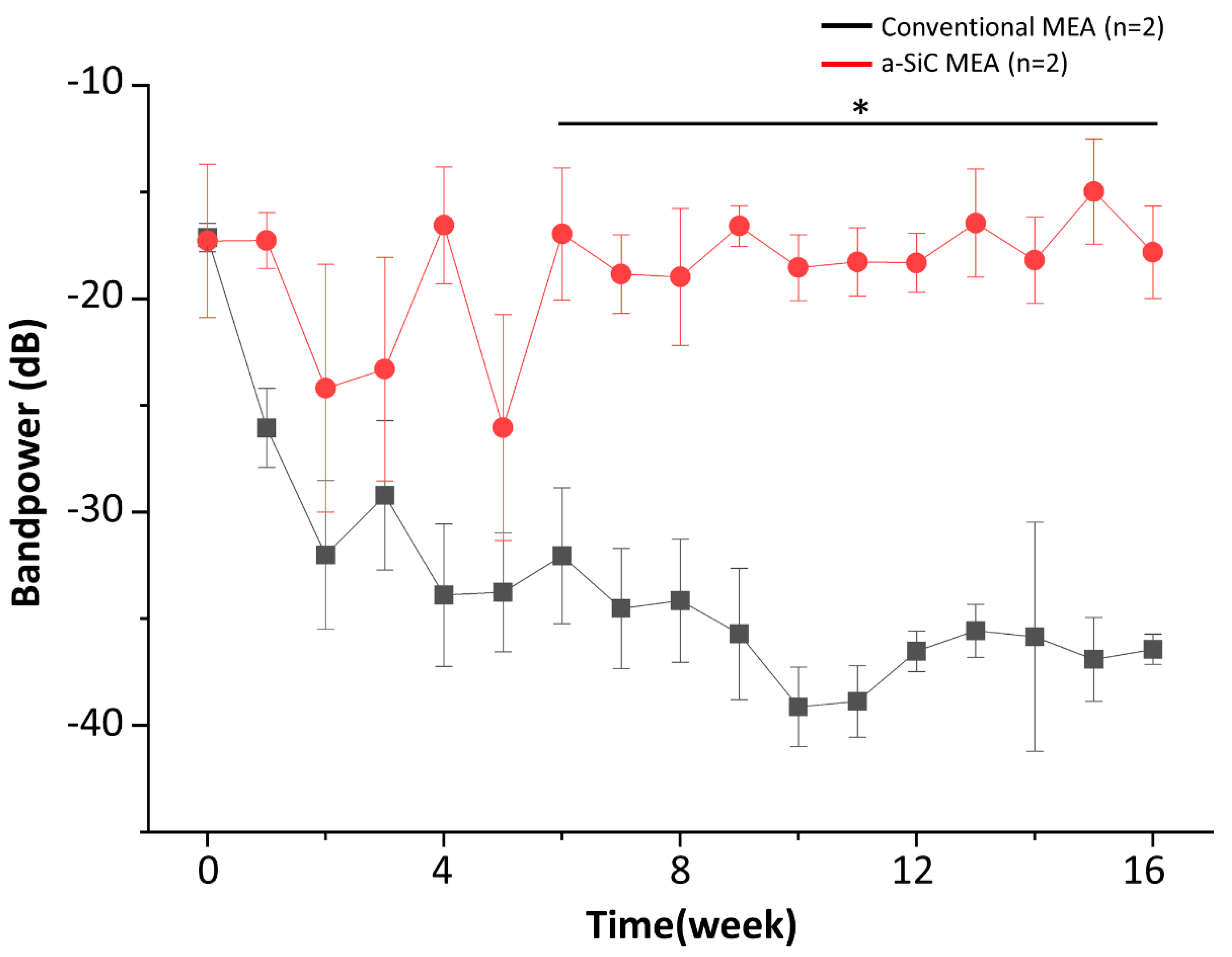

Figure 3. Total LFP bandpower recorded from a-SiC and conventional MEAs for up to 16-weeks post-implantation. The span of the horizontal bar shows that statistical significance between a-SiC and conventional MEAs was achieved at all timepoints under the bar, from week 6 post-implantation to week 16. Data reported as mean ± SEM; statistical significance: * p < 0.05.
Figure 3. Total LFP bandpower recorded from a-SiC and conventional MEAs for up to 16-weeks post-implantation. The span of the horizontal bar shows that statistical significance between a-SiC and conventional MEAs was achieved at all timepoints under the bar, from week 6 post-implantation to week 16. Data reported as mean ± SEM; statistical significance: * p < 0.05.
Micromachines 14 00680 g003

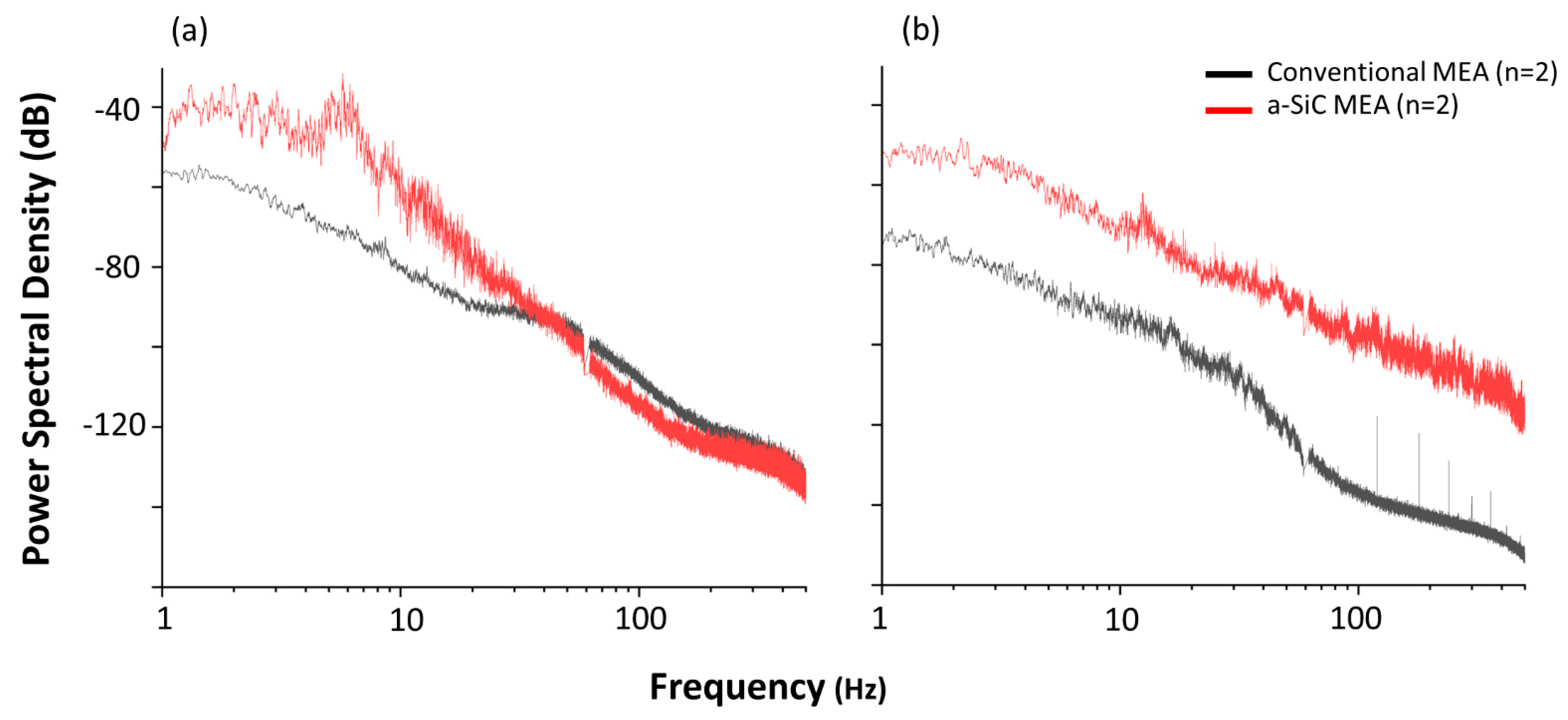

Figure 4. Comparative power spectral densities (PSD) for a-SiC MEAs and conventional devices. In awake, freely moving rats. Average PSD for a-SiC (n = 2) and conventional MEAs (n = 2) at (a) 1 weeks (b) and 16 weeks post-implantation.
Figure 4. Comparative power spectral densities (PSD) for a-SiC MEAs and conventional devices. In awake, freely moving rats. Average PSD for a-SiC (n = 2) and conventional MEAs (n = 2) at (a) 1 weeks (b) and 16 weeks post-implantation.
Micromachines 14 00680 g004
Figure 5. Pilot histological analysis a-SiC MEA (n = 1). Green represents neuronal nuclear antigen (NeuN) and magenta represents glial fibrillary acidic protein (GFAP). The yellow stars represent the putative implant location for each one of the four shanks.
Figure 5. Pilot histological analysis a-SiC MEA (n = 1). Green represents neuronal nuclear antigen (NeuN) and magenta represents glial fibrillary acidic protein (GFAP). The yellow stars represent the putative implant location for each one of the four shanks.
Micromachines 14 00680 g005
Table 1. LFP bandwidths for calculation of PSD.
Table 1. LFP bandwidths for calculation of PSD.
BandFrequencies (Hz)
Total LFP band1–500
Low gamma31–59
High gamma61–100
Table 2. Bandpower for weeks 1, 7, and 16 post-implantation and statistical comparisons between groups. Data reported as mean ± SEM; statistical significance: * p < 0.05.
Table 2. Bandpower for weeks 1, 7, and 16 post-implantation and statistical comparisons between groups. Data reported as mean ± SEM; statistical significance: * p < 0.05.
BandWeek 0Week 7Week 16
Total LFP (dB)−20.7 ± 3.53−19.9 ± 2.86ns−21.1 ± 3.2−34.1 ± 2.89*−17.8 ± 2.17−36.4 ± 0.71*
Delta (dB)−22.1 ± 3.53−22.3 ± 3.82ns−19 ± 2.53−40.7 ± 3.84*−19.9 ± 2.43−43.6 ± 1.58*
Theta−29.2 ± 4.08−28.2 ± 3.08ns−27.7 ± 4.6−43.3 ± 3.84*−25.5 ± 2.15−45.6 ± 1.09*
Alpha (dB)−33.5 ± 4.07−32.3 ± 3.21ns−30.6 ± 5.13−44.2 ± 3.3*−30.3 ± 1.17−46.7 ± 1.22*
Beta (dB)−34.0 ± 3.33−34.9 ± 2.35ns−31.8 ± 2.45−42.4 ± 3.12*−30.3 ± 1.18−45.2 ± 1.4*
Low gamma (dB)−42.2 ± 3.16−38.8 ± 2.11ns−37.6 ± 2.17−46.3 ± 2.59*−36.8 ± 0.7−50.3 ± 1.09*
High gamma (dB)−50.7 ± 2.67−45.6 ± 1.06ns−45.7 ± 1.41−51.9 ± 1.65*−44.7 ± 1.25−54.3 ± 0.76*
