PEI-Functionalized Carbon Nanotube Thin Film Sensor for CO2 Gas Detection at Room Temperature

by
Maeum Han
1,
Soonyoung Jung
1,2,
Yeonsu Lee
1,2,
Daewoong Jung
2,* and
Seong Ho Kong
1,*
1
School of Electronic and Electrical Engineering, Kyungpook National University, Daegu 41566, Korea
2
Advanced Mechatronics R&D Group, Korea Institute of Industrial Technology (KITECH), Yeongcheon 38822, Korea
*
Authors to whom correspondence should be addressed.
Micromachines 2021, 12(9), 1053; https://doi.org/10.3390/mi12091053
Submission received: 21 July 2021 / Revised: 27 August 2021 / Accepted: 30 August 2021 / Published: 30 August 2021
(This article belongs to the Special Issue Nano Korea 2021)
Browse Figures
Versions Notes

Abstract

:
In this study, a polyethyleneimine (PEI)-functionalized carbon nanotube (CNT) sensor was fabricated for carbon dioxide detection at room temperature. Uniform CNT thin films prepared using a filtration method were used as resistive networks. PEI, which contains amino groups, can effectively react with CO2 gas by forming carbamates at room temperatures. The morphology of the sensor was observed, and the properties were analyzed by scanning electron microscope (SEM), Raman spectroscopy, and fourier transform infrared (FT-IR) spectroscopy. When exposed to CO2 gas, the fabricated sensor exhibited better sensitivity than the pristine CNT sensor at room temperature. Both the repeatability and selectivity of the sensor were studied.

1. Introduction

Carbon dioxide is a colorless and odorless gas, contributing to the greenhouse effect; it is a major cause of global warming [1,2,3,4]. Hence, reliable and low-cost CO2 gas sensing is of great significance. Since CO2 is an unreactive gas, operating gas sensors at room temperature is challenging [5,6]. Diverse sensing principles and/or materials for detecting CO2 gas have been reported, including nondispersive infrared (NDIR), metal oxides, polymers, and nanomaterials. Each has their own strengths and weaknesses. Most common sensors are NDIR sensors and metal oxide sensors; however, IR sensors have disadvantages such as bulkiness of transducers and high power consumption during operation [7,8,9,10]. Metal oxide gas sensors typically work at temperatures higher than 200 °C, which increases the difficulty of manufacturing and requires high power consumption [11,12,13]. In contrast, polymer-based sensors do not share these disadvantages. Polymer-based sensors are polymer films that can broadly detect and identify various components in the air to target analyte [14]. A coating of organic detecting layers is easy to synthesize and improves gas detection. In addition, a polymer is easily processable and can be coated using various coating methods such as drop casting and spin coating [15,16,17]. However, polymer receptor layers also are burdened by significant drawbacks, some of which are rapid aging and low resistance to sensor poisoning.
Recently, CNTs have proven to be promising candidates for gas sensitive materials owing to their large effective surface area and abundant sites for adsorbing gas molecules, as well as their hollow geometry, chemical properties, and high aspect ratio. Surface area can promote the physical adsorption or chemical reaction with target gas molecules and efficient and rapid signal conversion [18,19]. The sensing mechanism is based on the transfer of electrons to chemical analytes through charge transfer between the CNTs and gas molecules. As evidenced by experiments involving electron-donating (NH3) and electron-withdrawing molecules (NO2), the sensing mechanism can still operate where electrons are transferred when interacting with different analytes [20,21].
CNT sensors are sensitive to charge donors and acceptors but not to Lewis acids or bases such as CO2 gas [22]. Sensitivity can be improved using a recognition layer that triggers a chemical reaction that alters the properties of the CNT sensor. Although the chemical functionalization of CNTs for the sensor has been explored, the disadvantage of covalent modification is that it destroys the physical properties of CNTs, resulting in a loss of conductance [23,24,25,26]. We performed a noncovalent functionalization of CNTs by applying an amine-rich polyethyleneimine (PEI) polymer. PEI contains primary, secondary, and tertiary amine groups; hence, it can easily adsorb CO2 at room temperature [27]. The fundamental mechanism is the interaction between the amino groups with CO2 at room temperature to form carbamates by physisorption and reversible reaction between CNTs and CO2 gas [28].
CNT sensors can be fabricated using various methods, including direct growth, screen-printing, electrophoresis, and spraying [29,30,31,32]. However, these manufacturing methods are difficult to reproduce, and the sensitivity of the sensors produced will be low. In comparison, CNT thin films prepared using the filtration method can make a dense CNT network. The procedures are simple, including dispersion and filtration of the CNT solution, making them suitable for practical applications. A dense arrangement of CNTs is expected to exhibit higher sensitivity and repeatability. In addition, a CNT thin film with a paper-like appearance is suitable for flexible and conductive applications such as flexible devices [33].
In this study, PEI-functionalized CNT thin film sensors were fabricated for CO2 gas detection at room temperature. A highly uniform CNT thin film was used as a resistive network for gas sensing. PEI functionalization was implemented to enhance the CO2 capture capability of amino groups. The sensor was characterized through SEM, Raman spectroscopy, and FT-IR, and its responses to different concentrations of CO2 gas were studied. In addition, the fabricated sensor was evaluated in terms of its repeatability, selectivity, and flexibility. The results can stimulate research on flexible and wearable gas-sensing systems.

2. Materials and Methods

2.1. Polyethyleneimine (PEI)-Functionalized Carbon Nanotube (CNT) Thin Film Sensor

We fabricated a CNT thin film using MWCNTs (Sigma-Aldrich, St. Louis, MO, USA), the average length and diameter of which were in the ranges of 6–13 nm and 2.5–20 μm, respectively. MWCNTs and methanol were mixed in the ratio of 0.2 g per 100 mL, added with 0.5 wt % PEI (Sigma-Aldrich), and the mixture was stirred for 12 h. Thereafter, the mixture was homogenized for 1h using ultrasonic equipment. After fully dispersed, a vacuum filtration process was conducted with 8 μm filter paper (Whatman, Marlborough, MA, USA). After drying the CNT thin film by heating at 70 °C for 1 h, it was placed on a polyimide substrate to make a silver electrode with a gap of approximately 2 cm at both ends of the sample. Subsequently, the silver electrode was heated at 90 °C for 15 min and dried to fabricate a gas sensor. Figure 1 shows the image of the filtration production system, the fabricated sensor, and the flexibility of the sensor.

2.2. Gas Sensor Measurement

The gas response of the sensor was measured in a gas chamber at room temperature. The CO2 and nitrogen gases (Korea Nano Gas Inc., Hae Song Industry Co., Dongan-gu, Anyang-si, Gyeonggi-do, Korea) were used as target and carrier gases, respectively. During the experiments, the gas concentration was controlled using a mass flow controller (MFC). The total gas flow rate was set to 500 sccm. We used nitrogen gas instead of air as the carrier gas to eliminate the influence of moisture and oxygen in the air. The resistance of the fabricated sensors was sampled while a constant 5 V DC voltage was applied.

3. Results and Discussion

3.1. Morphology of PEI-Functionalized CNT Thin Film

The morphology of the PEI-functionalized CNT film was studied using SEM. A CNT film is essentially a porous structure composed of randomly entangled CNTs. The filtration method can ensure the uniformity of CNT deposition. The CNT film has a relatively smooth surface, and the roughness ranges from a few hundred nanometers to microns [34].
Figure 2 shows the morphologies of the pristine and PEI-functionalized CNTs. The diameters of the pristine and PEI-functionalized CNT films are approximately 10 and 16 nm, respectively. As shown in Figure 2b, individual CNTs were wrapped by penetrated PEI into the CNT film, observing the thicker diameter. In addition, the EDS spectrum of the PEI-functionalized CNT emitters exhibited signatures of nitrogen. Because PEI has one nitrogen in every three atoms in the backbone, nitrogen signatures in the PEI-functionalized CNT emitter signifies the presence of PEI at the surface of the CNT [27]. The SEM image shows that PEI was successfully introduced onto the CNTs.
On the other hand, the thickness of PEI-functionalized CNT film is rather decreased from 60 to 13.5 μm after functionalization of PEI. The outer surface of the CNTs is covered and penetrated by PEI agglomerates because of the viscosity characteristic of the PEI. The PEI and CNT are expected to aggregate and cause a thin thickness of the CNT films.

3.2. Raman Analysis of PEI-Functionalized CNT Thin Film

Raman spectroscopy is an effective method for characterizing carbon-based nanomaterials. The fabricated sensor was characterized under a laser power of 10 mW and laser excitation of 532 nm. The effect before and after PEI functionalization of the CNTs was confirmed through Raman spectral observation. Figure 3 shows the Raman spectra measured on raw and PEI-functionalized CNT films. The peaks centered at 1326 and 1571 cm−1 represent the D and G peaks of the CNTs, respectively. The shape of the D peak is related to the defect structure of the CNT, and the G band corresponds to the graphite in the lattice. The ratio between the intensities of the D and G bands is denoted by ID/IG value and indicates the degree of CNT defect.
As shown in Figure 3, the ID/IG values of pristine CNT and PEI-functionalized CNT are similar, which are about 0.842 and 0.844, respectively. These results indicate that PEI functionalization does not significantly damage the CNT structure. For the pristine CNT, the G band was observed at 1571 cm−1, but for PEI-functionalized CNT, the G-band showed blue shifted to 1574 cm−1. Lu et al. explained that this phenomenon was caused by that the lone pair electrons of N atoms in chains interact π-electrons of CNT. Therefore, the electron density of CNT was strengthened, and polarization of CNT was increased due to the p–π conjugation of the CNT [35,36].

3.3. Fourier Transform Infrared (FT-IR) Analysis of PEI-Functionalized CNT Thin Film

FT-IR analysis was carried out the analysis of PEI-functionalized CNTs in comparison with the pristine CNTs. Figure 4 shows the FT-IR spectra of the pristine and PEI-functionalized CNTs. The organic moieties of PEI clearly appear themselves in the region at 2800–3000 cm−1 (C-H stretching) in contrast with pristine CNTs. In addition, a new band at 3401 cm−1 (N-H stretching) appears, and the band at 1382 cm−1 and 1072 cm−1 also correspond to the C-N stretching vibration due to the PEI [37,38]. From the results, it can be confirmed that the amine group was successfully introduced on the surface of the CNT thin film.

3.4. Sensor Responses

The adsorption/desorption of gas molecules has a significant effect on the electrical properties of CNTs. It has been reported that the CO2 gas sensing of pristine CNTs is low because of the weak interaction between CO2 molecules and the CNT surface [22]. However, it has been found that the sensitivity of CNTs to CO2 gas can be significantly increased through surface functionalization [39,40]. To confirm the CO2 gas-sensing properties of CNTs, both pristine and functionalized CNT sensors were fabricated, and gas-sensing experiments were conducted.
To evaluate its response to CO2 gas, the sensor was placed in a chamber, and the flow rate of the mixed gas was set to 500 sccm. The sensitivity to the CO2 concentration was measured and determined using the following equation:
Response   % = R − R 0 R 0 × 100 ,
where R is the change in the resistance of the sensor after gas injection, and R0 is the resistance of the gas sensor before the reaction. Figure 5 shows the gas-sensing characteristics of the pristine and PEI-functionalized CNT sensors. When the sensor was exposed to CO2 gas, the electrical resistance of the PEI-functionalized CNT sensor increased with the increase in the CO2 gas concentration.
Typically, CO2 is a nonreactive molecule, but it combines with an amine group to form a carbamate. This combination can be explained based on the hard soft acids bases (HSAB) theory. The HSAB theory can explain the direct interaction between the CO2 molecules and the amino group-based polymer. Hard Lewis acids tend to bind hard Lewis bases, and soft Lewis acids tend to bind soft Lewis bases. Since CO2 is a hard acid, it can interact with the primary amines in PEI, which are a hard base. PEI is a highly branched polymer with primary, secondary, and tertiary amino groups. At room temperature, the reaction of an amino group with CO2 is reversible, forming carbonate [41].
According to the HSAB theory, the test results are appropriate. In addition, PEI exhibits n-type properties because of the electron-donating properties of the NH2 group in PEI [5,22]. The reaction between the CO2 molecule and PEI forms carbamates, which reduce the overall electron-donating effect of PEI. Thus, the PEI exhibits properties consistent with electron removal from the sensor. The high density of the amine functional groups in PEI is associated with significant n-doping to the point where there is an adverse effect of p-doping [42]. Therefore, the electrical resistance of the fabricated sensor showed a characteristic that increased with the introduction of CO2 gas. Figure 5 shows the CO2 gas sensitivity, different ratio of PEI, and response time of pure and PEI-functionalized CNTs. The CO2 gas concentration was measured while varying it from 200 to 1000 ppm. As shown in Figure 5a, the reactivity of pure CNTs to CO2 gas at room temperature is low; however, the PEI-functionalized CNT sensor exhibits a greater reactivity to CO2 gas. After the CO2 gas was injected into the chamber, the resistance of the sensor increased rapidly until it stabilized, and the resistance change increased linearly with increasing CO2 gas concentration. When the CO2 gas injection was stopped and only nitrogen was injected into the chamber, the resistance of the sensor returned to its initial value. Moreover, higher sensitivity was observed in the CNT sensor with a large amount of PEI, as shown in Figure 5b. A larger PEI:CNT ratio can provide more active sites for adsorbed CO2 gas. This result was in line with above sensing mechanism. Subsequent experiments were conducted using a sample with 0.5 wt % of PEI.
The response time Ta was defined as the time required for the change in the resistance to reach 90% of the equilibrium value after injecting the target gas, and the recovery time Tb was defined as the time required for the sensor to return to the initial 10%. The sensor was exposed to CO2 gas until near saturation was reached, the CO2 injection was stopped, and the sensor was desorbed by injecting only nitrogen gas until the resistance returned to its initial value. Figure 5c shows that the response and recovery times of the sensor are the same, i.e., approximately 10 min. After adsorbing the CO2 molecules, the PEI acted as a mediator between the CNTs and CO2 gas, facilitating charge transfer. Because of the interaction between PEI and the adsorbed molecules during desorption, electrons can be effectively removed from the CNTs without the use of an external source, such as external heating. Moreover, because of the dense CNT thin film structure, it enables stable electron transport to the electrode when measuring the resistance.
To evaluate the actual ability of the sensor to operate, the comparison experiments were conducted in dry air as carrier gas instead of nitrogen gas and different relative humidity (RH) values. As shown in Figure 6a, the sensitivity of the PEI-functionalized CNT sensor is reduced under dry air environmental conditions. The degraded performance in dry air is due to the fact that a compensation of n-doping effect by reacting oxygen (O2) gas in dry air with PEI on CNT films [42]. On the other hand, upon exposure of the PEI-functionalized CNT sensor in humid nitrogen gas, the sensitivity remarkably increased, reaching an increase of 2 times at 1000 ppm of CO2 in 80% RH, as shown Figure 6b. These results are same as those of previous studies [43,44]. Son et al. reported that the charge transfer between PEI and CNTs plays an important role in the improvement of sensitivity under wet conditions. They proposed that the functionalization of PEI on CNT generated the n-doping effect, which encourages the donation of electrons from the protonated polymer, leaving the water molecules in the humidity to act as a source of protons. Once CO2 gas was introduced to the sensor, the charge movements occurred between the amino group in the PEI and the CO2 gas to result in an acid–base equilibrium state, supporting the formation of carbamates and bicarbonates [43]. Yoon et al. also explained that the exposure to CO2 gas under a humidified atmosphere generates amidinium bicarbonates, which produce an increase in the density of mobile hole carriers in the polymer chain, which in turn increases the overall conductance of the sensor and leads to a response [44].
To confirm the repeatability and stability of the sensor, five CO2 gas response characteristics and long-term experiments were performed. As shown in Figure 7a, a stable and reversible reaction characteristic can be observed in several repeated experiments, with negligible hysteresis. As described above, the CNT thin film prepared using the filtration method is constituted by stacking a large number of dense individual CNTs. Because of the strong van der Waals force and large contact area between the stacked CNTs, the stability was high even after repeated experiments, which prevented damage. In comparison, in the case of printed or spray-based CNT sensors, the low density of individual CNTs and weak interactions result in structural damage after repeated experiments, thereby deteriorating the sensor properties [45]. In terms of repeatability, the experiment was performed five times with a CO2 gas concentration of 600 ppm, a gas adsorption time of 10 min, and a desorption time of 10 min, with all the cycles lasting 20 min. The results showed that the CO2 gas detection characteristics have good reproducibility and stability as shown Figure 7b.
The selectivity of the sensor for a specific gas is an important characteristics of the sensor. Selectivity is the capability of a sensor to measure only one gas species relative to other gases. Typically, CNTs react with other gases such as NH3 and NO2 at room temperature [46,47]. Therefore, it is particularly important to improve the CNT-based CO2 gas selectivity of the sensor for commercialization. Figure 8 shows the sensitivity of the PEI-functionalized CNT gas sensor to different gases. The sensitivity to CO2 gas is highest (4.2%) at 1000 ppm. O2 gas reacted slightly with the sensor, but PEI interacted more strongly with the CO2 gas at room temperature; thus, the reaction value was much lower than that of the CO2 gas.
With the growing demand for wearable and flexible device products, the demand for flexible sensors is increasing. These flexible sensors require properties that are flexible but not volatile with respect to sensitivity and shape. However, in the case of a metal or metal oxide-based sensor, it is difficult to fabricate a flexible sensor, but in the case of a sensor using a CNT thin film, a high flexibility can be obtained [48].
To evaluate the flexibility of the fabricated sensor, the sensor was fabricated on a polyimide film, bent and unfolded several times in a cylinder with a radius of 8 mm, and then the sensitivity characteristics based on the CO2 gas concentration were evaluated. After the bending test, no change in the shape of the sensor was observed, and it was confirmed that the resistance was largely the same. Figure 9 shows the sensitivity results with respect to the CO2 gas concentration before and after bending. The fabricated sensor has structural stability and flexibility owing to the very high density of the CNT film, and its applicability to wearables and portable devices was confirmed.
The Table 1 shows a comparison of the sensing properties of reported CO2 sensors. The PEI-functionalized CNT sensor was successfully created for sensitive, responsive, and flexible measurement of CO2 over a wide concentration range at room temperature.

4. Conclusions

In summary, a PEI-functionalized CNT sensor was fabricated for CO2 gas detection at room temperature. A PEI-functionalized CNT thin film was fabricated using the filtration method. The response performance of the sensor to CO2 gas at room temperature was investigated. The sensor was found to exhibit better sensing characteristics than the pristine CNT sensor because of the acid–base interaction between the amine groups in PEI and CO2 gas molecules. The proposed sensor shows characteristics such as good sensitivity, repeatability, and selectivity. In addition, the sensor exhibits good flexibility owing to the high density of the CNT film. These results confirm its potential for wearable and portable CO2 devices.

Author Contributions

Conceptualization, M.H. and S.J.; software, Y.L. and S.J.; validation, M.H. and S.J.; formal analysis, M.H. and S.H.K.; investigation, Y.L. and S.J.; data curation, M.H. and S.J.; writing—original draft preparation, M.H.; writing—review and editing, D.J. All authors have read and agreed to the published version of the manuscript.

Funding

This study was supported by the BK21 FOUR project funded by the Ministry of Education, Korea (4199990113966). This work was supported by a Korea Innovation Foundation (INNOPOLIS) grant funded by the Korea government (MSIT) (2020-DD-UP-0348). This study was conducted with the support of the Korea Institute of Industrial Technology.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Acknowledgments

We are grateful for technical assistance from the staff members at KNU and KITECH.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Kim, C.; Getz, P.; Kim, M.G.; Brand, O. Room temperature CO2 sensing based on interdigitated capacitors and resonant cantilevers. In Proceedings of the 2017 19th International Conference on Solid-State Sensors, Actuators and Microsystems (TRANSDUCERS), Kaohsiung, Taiwan, 18–22 June 2017; pp. 1532–1535. [Google Scholar]
  2. Wang, H.; Vagin, S.I.; Rieger, B.; Meldrum, A. An ultrasensitive fluorescent paper-based CO2 sensor. ACS Appl. Mater. Interfaces 2020, 12, 20507–20513. [Google Scholar] [CrossRef]
  3. Zhang, J.; Liu, X.; Neri, G.; Pinna, N. Nanostructured materials for room temperature gas sensors. Adv. Mater. 2015, 28, 795–831. [Google Scholar] [CrossRef] [PubMed]
  4. Huang, L.; Zhang, Z.; Li, Z.; Chen, B.; Ma, X.; Dong, I. Multifunctional graphene sensors for magnetic and hydrogen detection. ACS Appl. Mater. Interfaces 2015, 7, 9581–9588. [Google Scholar] [CrossRef]
  5. Zhou, Y.; Jiang, Y.; Xie, G.; Wu, M.; Tai, H. Gas sensors for CO2 detection based on RGO-PEI films at room temperature. Chin. Sci. Bull. 2014, 59, 1999–2005. [Google Scholar] [CrossRef]
  6. Fine, G.F.; Cavanagh, L.M.; Afonja, A.; Binions, R. Metal oxide semi-conductor gas sensors in environmental monitoring. Sensors 2010, 10, 5469–5502. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  7. Smulko, J.M. New approaches for improving selectivity and sensitivity of resistive gas sensors: A review. Sens. Rev. 2015, 35, 340–347. [Google Scholar] [CrossRef]
  8. Ji, H.; Zeng, W.; Li, Y. Gas sening mechanisms of metal oxide semiconductors: A focus review. Nanoscale 2019, 11, 22664–22684. [Google Scholar] [CrossRef]
  9. Hanafi, R.; Mayasari, R.D.; Raharjo, J.; Nuryadi, R. Electrochemical sensor for environmental monitoring system: A review. AIP Conf. Proc. 2019, 2169, 030007. [Google Scholar]
  10. Fang, Q.; Chetwynd, D.G.; Covington, J.A.; Toh, C.S.; Gardner, J.W. Micro-gas-sensor with conducting polymers. Sens. Actuators B Chem. 2002, 84, 66–71. [Google Scholar] [CrossRef]
  11. Shin, W.S.; Young, S.J.; Ji, L.W.; Water, W.; Meen, T.H.; Shiu, H.W. Effect of oxygen plasma treatment on characteristics of TiO2 photodetectors. IEEE Sens. J. 2011, 11, 3031–3035. [Google Scholar]
  12. Young, S.J. Photoconductive gain and noise properties of ZnO nanorods schottky barrier photodiodes. IEEE J. Sel. Top. Quantum Electron. 2014, 20, 3801204. [Google Scholar]
  13. Rout, C.S.; Hegde, M.; Rao, C. H2S sensors based on tungsten oxide nanostructures. Sens. Actuators B Chem. 2008, 128, 488–493. [Google Scholar] [CrossRef]
  14. Reethirajan, S.; Jayas, D.S.; Sadistap, S. Carbon dioxide sensors for the agri-food industry—A review. Food Bioprocess Technol. 2009, 2, 115–121. [Google Scholar] [CrossRef]
  15. Tian, K.; Gerald, F.; Elfed, L.; Wang, X.; Liang, H.; Wang, P. A high sensitivity temperature sensor based on balloon-shaped bent SMF structure with its original polymer coating. Meas. Sci. Technol. 2018, 29, 085104. [Google Scholar] [CrossRef] [Green Version]
  16. Tan, Y.; Peng, H.; Liang, C.; Yao, S. A new assay system for phenacetin using biomimic bulk acoustic wave sensor with a molecularly imprinted polymer coating. Sens. Actuators B Chem. 2001, 73, 179–184. [Google Scholar] [CrossRef]
  17. Zee, F.; Judy, J. Micormachined polymer-based chemical gas sensor array. Sens. Actuators B Chem. 2001, 72, 120–128. [Google Scholar] [CrossRef]
  18. Afrin, R.; Shah, N.A. Room temperature gas sensors based on carboxyl and thiol functionalized carbon nanotubes buckypapers. Diam. Relat. Mater. 2015, 60, 42–49. [Google Scholar] [CrossRef]
  19. DeGraff, J.; Liang, R.; Le, M.Q.; Capsal, J.; Ganet, F.; Cottinet, P. Printable low-cost and flexible carbon nanotube buckypaper motion sensors. Mater. Des. 2017, 133, 47–53. [Google Scholar] [CrossRef]
  20. Misewich, J.A.; Martel, R.; Avouris, P.H.; Tsang, J.C.; Heinze, S.; Tersoff, J. Electrically Induced Optical Emission from a carbon nanotube FET. Science 2003, 300, 783–786. [Google Scholar] [CrossRef] [Green Version]
  21. Kong, J.; Franklin, N.; Zhou, C.; Chapline, M.; Peng, S.; Cho, K.; Dai, H. Nanotube Molecular Wires as Chemical Sensors. Science 2000, 287, 622–625. [Google Scholar] [CrossRef]
  22. Star, A.; Han, T.; Joshi, V.; Gabriel, J.; Gruner, G. Nanoelectronic Carbon Dioxide sensors. Adv. Mater. 2004, 22, 2049–2052. [Google Scholar] [CrossRef]
  23. Hirsch, A. Functionalization of single-walled carbon nanotubes. Angew. Chem. Int. Ed. 2002, 41, 1853–1859. [Google Scholar] [CrossRef]
  24. Sun, Y.-P.; Fu, K.; Lin, Y.; Huang, W. Functionalized carbon nanotubes: Properties and applications. Acc. Chem. Res. 2002, 35, 1096–1104. [Google Scholar] [CrossRef]
  25. Tasis, D.; Tagmatarchis, N.; Georgakilas, V.; Prato, M. Soluble Carbon Nanotubes. Chem. Eur. J. 2003, 9, 4000–4008. [Google Scholar] [CrossRef] [PubMed]
  26. Banerjee, S.; Kahn, M.G.C.; Wong, S.S. Rational Chemical Strategies for Carbon Nanotube Functionalization. Chem. Eur. J. 2003, 9, 1898–1908. [Google Scholar] [CrossRef]
  27. Satyapal, S.; Filburn, T.; Trela, J.; Strange, J. Performance and Properties of a Solid Amine Sorbent for Carbon Dioxide Removal in Space Life Support Applications. Energy Fuels 2001, 15, 250–255. [Google Scholar] [CrossRef]
  28. Dell’Amico, D.B.; Calderaz-zo, F.; Labella, L.; Marchetti, F.; Pampaloni, G. Converting Carbon Dioxide into Carbamato Derivatives. Chem. Rev. 2003, 103, 3857–3898. [Google Scholar] [CrossRef]
  29. Zhanga, H.; Liua, Y.; Kuwataa, M.; Bilottiab, E.; Peijs, T. Improved fracture toughness and integrated damage sensing capability by spray coated CNTs on carbon fibre prepreg. Compos. Part A 2015, 70, 102–110. [Google Scholar] [CrossRef]
  30. Fennimore, A.; Cheng, L.; Roach, D. stable under-gate triode CNT field emitter fabricated via screen printing. Diam. Relat. Mater. 2008, 17, 2005–2009. [Google Scholar] [CrossRef]
  31. Lee, S.; Lee, D.; Yu, H.; Campbell, E.; Park, Y. Production of individual suspended single-walled carbon nanotubes using the ac electrophoresis technique. Appl. Phys. A 2004, 78, 283–286. [Google Scholar] [CrossRef]
  32. Dikonimos Makris, T.; Giorgi, L.; Giorgi, R.; Lisi, N.; Salernitano, E. CNT growth on alumina supported nickel catalyst by thermal CVD. Diam. Relat. Mater. 2005, 14, 815–819. [Google Scholar] [CrossRef]
  33. Lu, S.; Chen, D.; Wang, X.; Shao, J.; Ma, K.; Zhang, L.; Araby, S.; Meng, Q. Real-time cure behaviour monitoring of polymer composites using a highly flexible and sensitive CNT buckypaper sensor. Compos. Sci. Technol. 2017, 152, 181–189. [Google Scholar] [CrossRef]
  34. Rein, M.D.; Breuer, O.; Wagner, H.D. Sensors and sensitivity: Carbon nanotube buckypaper films as strain sensing devices. Colloid Surf. B-Biointerfaces 2017, 160, 493–499. [Google Scholar] [CrossRef]
  35. Lu, H.; Hang, A.; Zhang, Y.; Ding, L.; Zheng, Y. The effect of polymer polarity on the microwave absorbing properties of MWNTs. RSC Adv. 2015, 5, 64925–64931. [Google Scholar] [CrossRef]
  36. Zhao, Q.; Daniel Wagner, H. Raman spectroscopy of carbon–nanotube–based composites. Phil. Trans. R. Soc. Lond. A 2004, 362, 2407–2424. [Google Scholar] [CrossRef]
  37. Zaaeri, F.; Khoobi, M.; Rouini, M.; Akbari Javar, H. pH-responsive polymer in a core–shell magnetic structure as an efficient carrier for delivery of doxorubicin to tumor cells. Int. J. Polym. Mater. Polym. Biomater. 2018, 67, 967–977. [Google Scholar] [CrossRef]
  38. Li, K.; Zhang, C.; Du, Z.; Li, H.; Zou, W. Preparation of humidity-responsive antistatic carbon nanotube/PEI nanocomposites. Synth. Met. 2012, 162, 2010–2015. [Google Scholar] [CrossRef]
  39. Wang, Y.; Zhang, K.; Zou, J.; Wang, X.; Sun, L.; Wang, T.; Zhang, Q. Functionalized horizontally aligned CNT array and random CNT network for CO2 sensing. Carbon 2017, 117, 263–270. [Google Scholar] [CrossRef]
  40. Siefker, Z.A.; Boyina, A.; Braun, J.E.; Zhao, X.; Boudouris, B.W.; Bajaj, N.; Chiu, G.; Rhoads, J. A Chemiresistive CO2 Sensor Based on CNT-Functional Polymer Composite Films. IEEE Sens. 2020. [Google Scholar] [CrossRef]
  41. Sun, B.; Xie, G.; Jiang, Y.; Li, X. Comparative CO2-sensing Characteristic studies of PEI and PEI/Starch Thin Film Sensors. Energy Procedia 2011, 12, 726–732. [Google Scholar] [CrossRef] [Green Version]
  42. Shim, M.; Javey, A.; Wong, N.; Kam, S.; Dai, H. Polymer Functionalization for Air-Stable n-Type Carbon Nanotube Field-Effect Transistors. J. Am. Chem. Soc. 2001, 123, 11512–11513. [Google Scholar] [CrossRef] [PubMed]
  43. Son, M.; Pak, Y.; Chee, S.; Auxilia, F.M.; Kim, K.; Lee, B.; Lee, S.; Kang, S.K.; Lee, C.; Lee, J.S.; et al. Charge transfer in graphene/polymer interfaces for CO2 detection. Nano Res. 2018, 11, 3529–3536. [Google Scholar] [CrossRef]
  44. Yoon, B.; Choi, S.J.; Swager, T.M.; Walsh, G.F. Switchable single-walled carbon nanotube–polymer composites for CO2 sensing. ACS Appl. Mater. Interfaces 2018, 10, 33373–33379. [Google Scholar] [CrossRef]
  45. Han, M.; Kim, J.; Kang, S.; Jung, D. Post-treatment effects on the gas sensing performance of carbon nanotube sheet. Appl. Surf. Sci. 2019, 481, 597–603. [Google Scholar] [CrossRef]
  46. Xial, Z.; Kong, L.B.; Ruan, S.; Li, X.; Yu, S.; Li, X.; Jiang, Y.; Yao, Z.; Ye, S.; Wang, C.; et al. Recent development in nanocarbon materials for gas sensor applications. Sens. Actuator B. Chem. 2018, 274, 235–267. [Google Scholar]
  47. Wang, Y.; Yeow, J.T.W. A review of carbon nanotube-based gas sensor. J. Sens. 2009, 2009, 493904. [Google Scholar] [CrossRef]
  48. Park, S.; Kim, J.; Chu, M.; Khine, M. Highly Flexible Wrinkled Carbon Nanotube Thin Film Strain Sensor to Monitor Human Movement. Adv. Mater. Technol. 2016, 1, 1600053. [Google Scholar] [CrossRef] [Green Version]
  49. Kanaparthi, S.; Singh, S.G. Chemiresistive sensor based on zinc oxide nanoflakes for CO2 detection. ACS Appl. Nano Mater. 2019, 2, 700–706. [Google Scholar] [CrossRef]
  50. Thomas, T.; Kumar, Y.; Ramón, J.A.R.; Agarwal, V.; Guzmán, S.S.; Reshmi, R.; Sanal, K.C. Porous silicon/α-MoO3 nanohybrid based fast and highly sensitive CO2 gas sensors. Vacuum 2021, 184, 109983. [Google Scholar] [CrossRef]
  51. Chiang, C.J.; Tsai, K.T.; Lee, Y.H.; Lin, H.W.; Yang, Y.L.; Shih, C.C.; Dai, C.A. In situ fabrication of conducting polymer composite film as a chemical resistive CO2 gas sensor. Microelectron. Eng. 2013, 111, 409–415. [Google Scholar] [CrossRef]
  52. Willa, C.; Schmid, A.; Briand, D.; Yuan, J.; Koziej, D. Lightweight, Room-Temperature CO2 Gas Sensor Based on Rare-Earth Metal-Free Composites An Impedance Study. ACS Appl. Mater. Interfaces 2017, 9, 25553–25558. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  53. Lin, Z.D.; Young, S.J.; Chang, S.J. CO2 gas sensors based on carbon nanotube thin films using a simple transfer method on flexible substrate. IEEE Sens. J. 2015, 15, 7017–7020. [Google Scholar] [CrossRef]
Micromachines 12 01053 g001 550

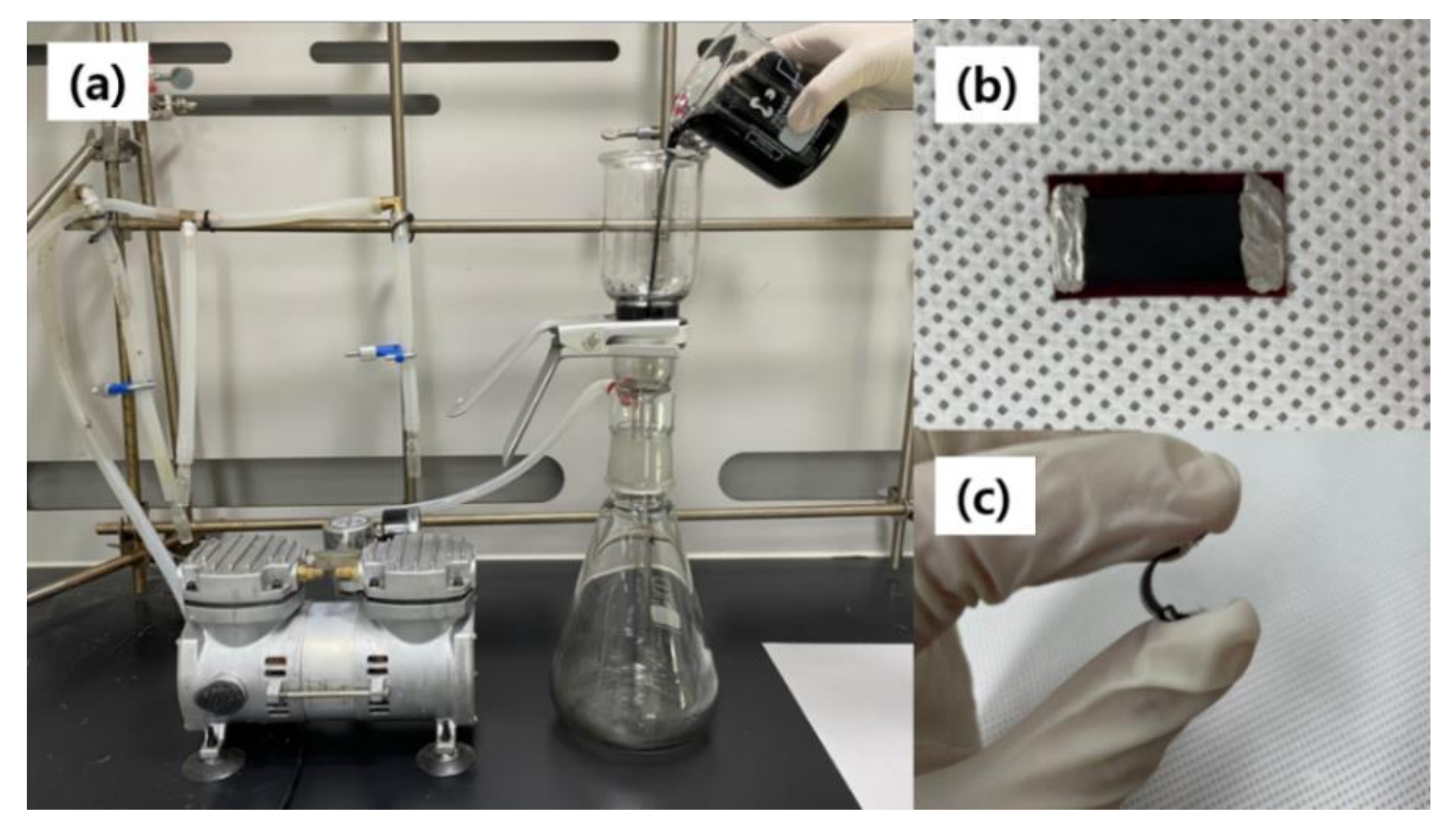

Figure 1. (a) Filtration system; (b) the image of the fabricated sensor; (c) the flexibility of the sensor.
Figure 1. (a) Filtration system; (b) the image of the fabricated sensor; (c) the flexibility of the sensor.
Micromachines 12 01053 g001
Micromachines 12 01053 g002 550

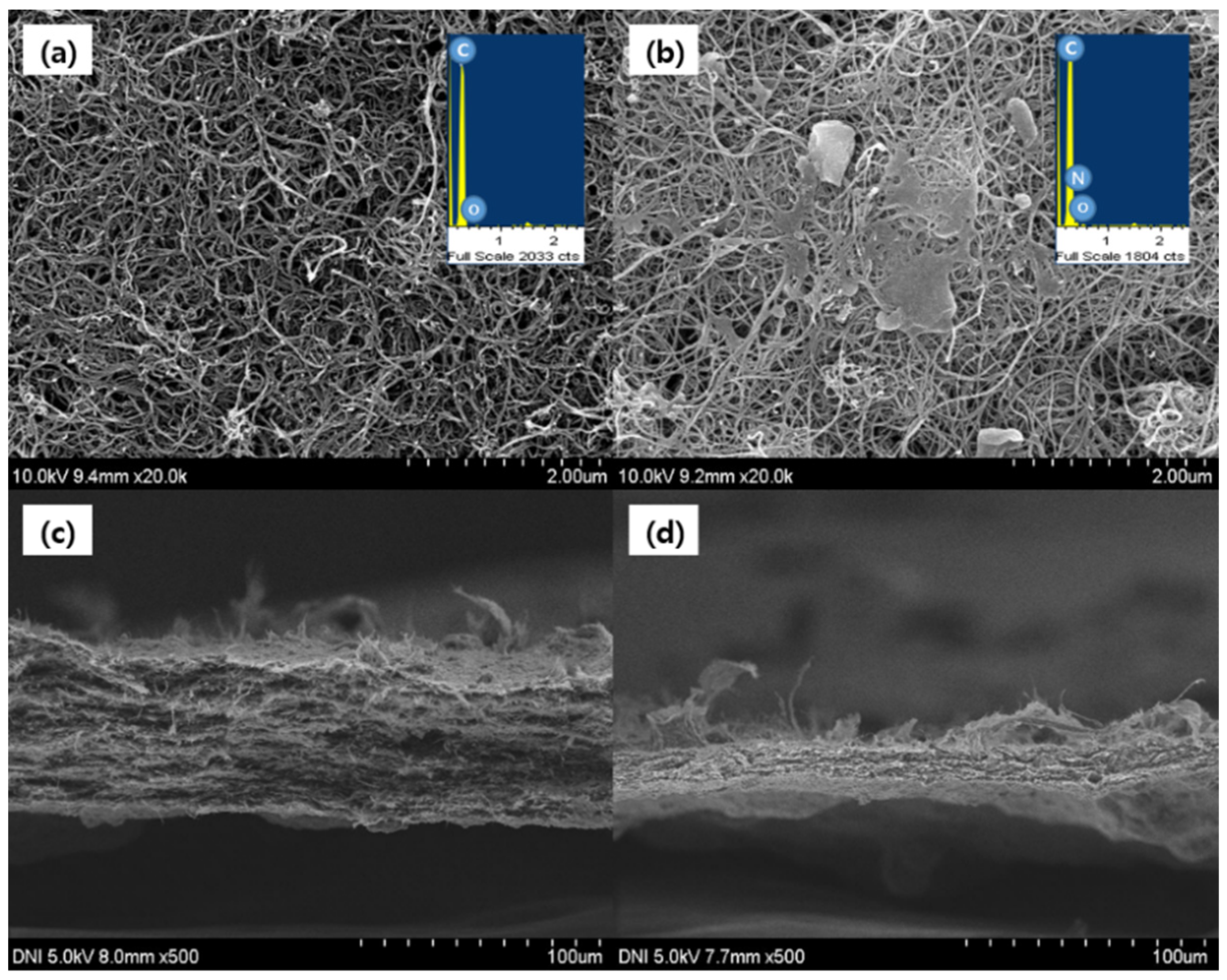

Figure 2. Scanning electron microscope (SEM) images of the top view of (a) pristine carbon nanotube (CNT); (b) polyethyleneimine (PEI)-functionalized CNT; the side view of (c) pristine CNT; (d) PEI-functionalized CNT.
Figure 2. Scanning electron microscope (SEM) images of the top view of (a) pristine carbon nanotube (CNT); (b) polyethyleneimine (PEI)-functionalized CNT; the side view of (c) pristine CNT; (d) PEI-functionalized CNT.
Micromachines 12 01053 g002
Micromachines 12 01053 g003 550

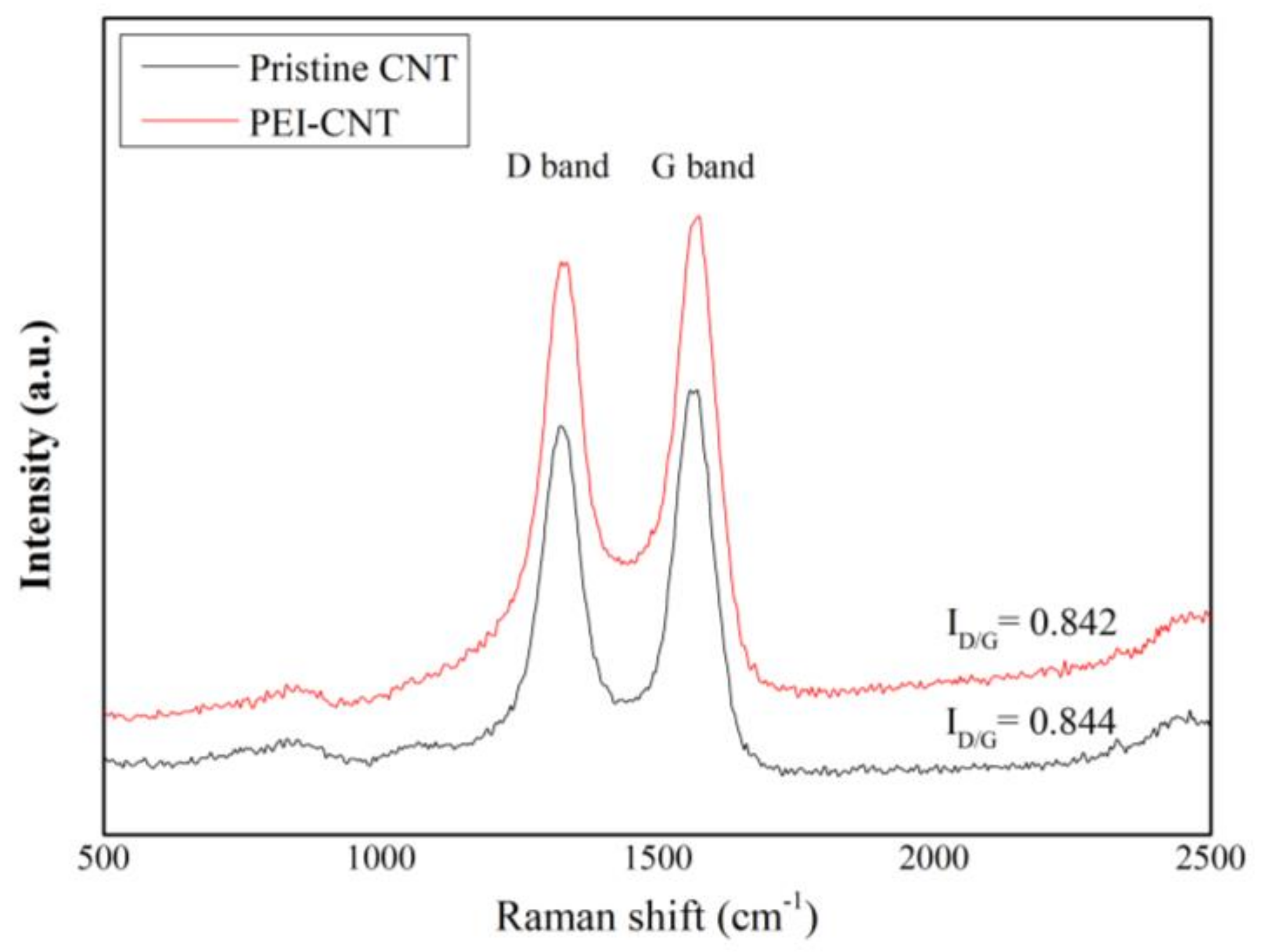

Figure 3. Raman spectroscopy comparison of pristine CNT and PEI-functionalized CNT.
Figure 3. Raman spectroscopy comparison of pristine CNT and PEI-functionalized CNT.
Micromachines 12 01053 g003
Micromachines 12 01053 g004 550

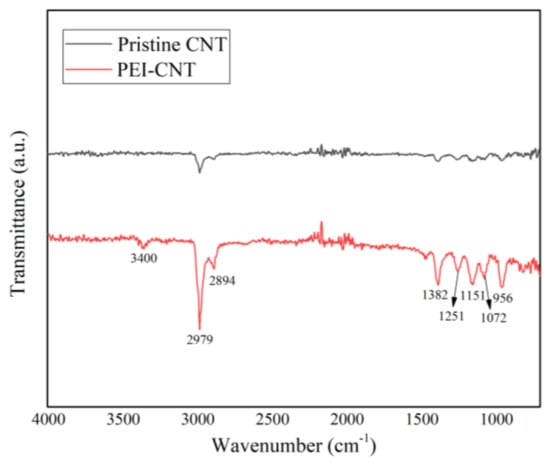

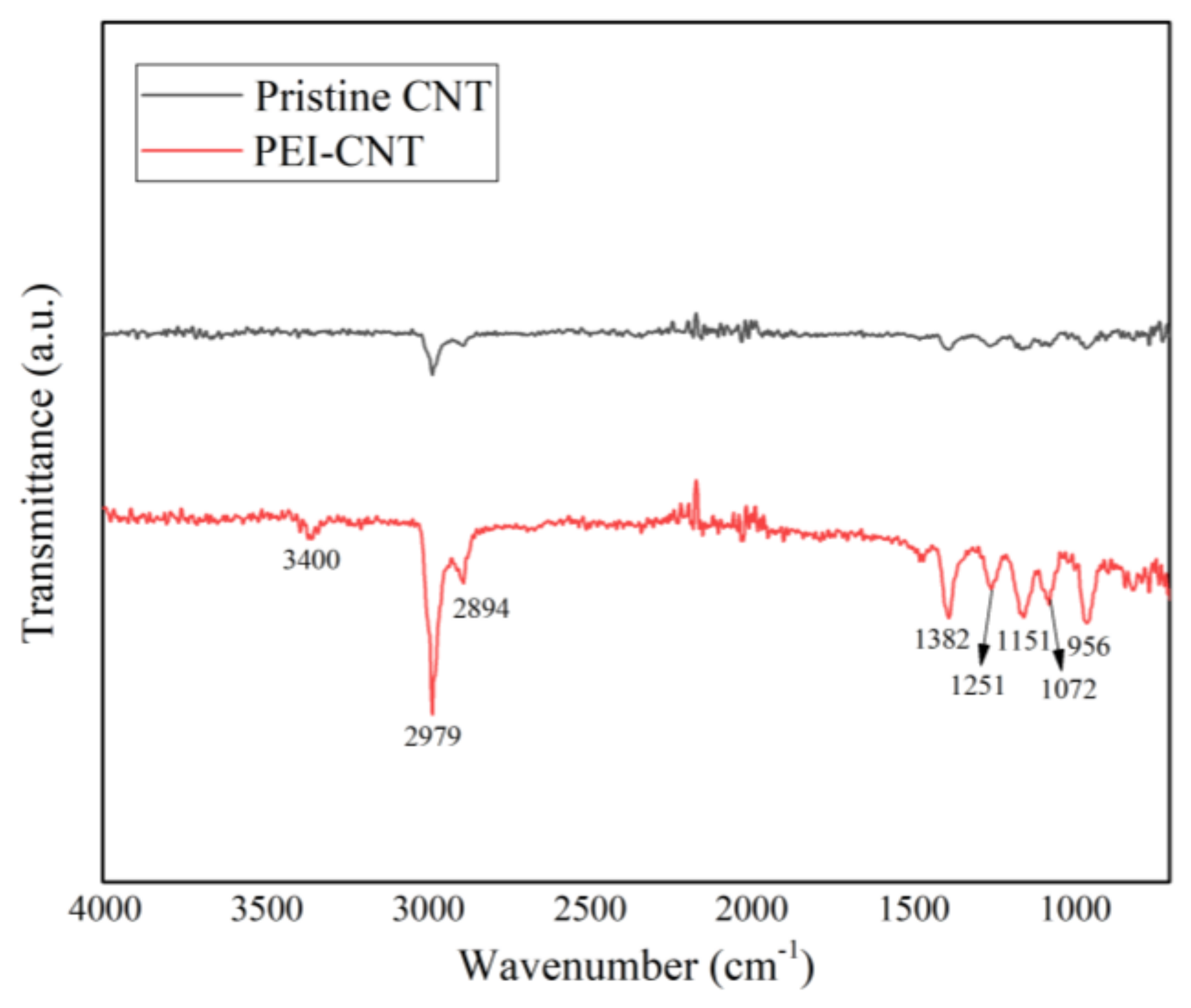

Figure 4. Fourier transform infrared (FT-IR) spectroscopy comparison of pristine CNT and PEI-functionalized CNT.
Figure 4. Fourier transform infrared (FT-IR) spectroscopy comparison of pristine CNT and PEI-functionalized CNT.
Micromachines 12 01053 g004
Micromachines 12 01053 g005 550

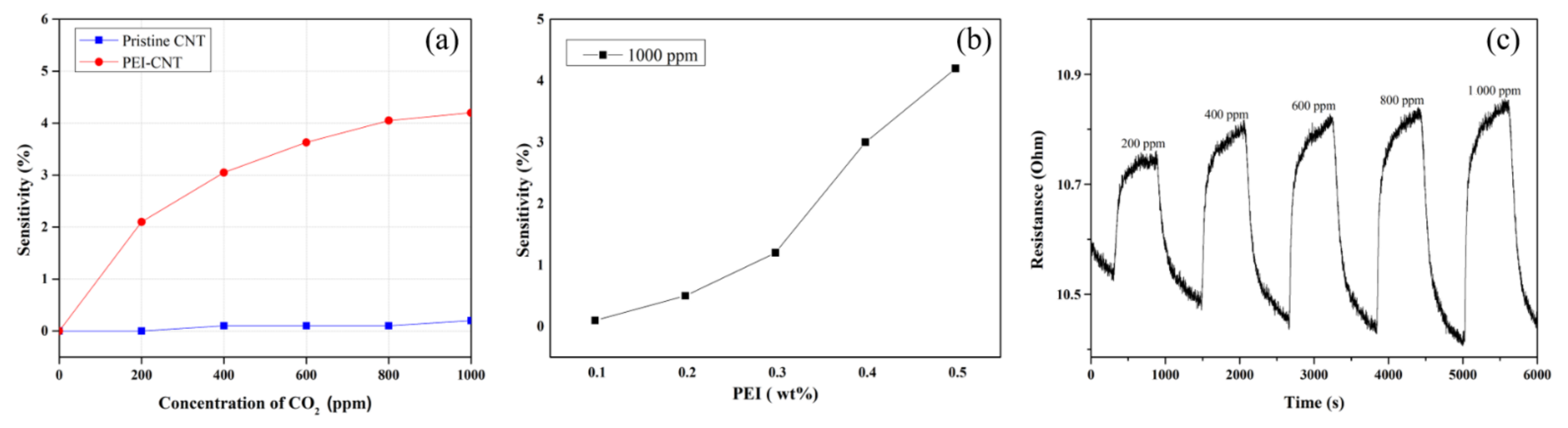

Figure 5. The sensitivities of (a) pristine- and PEI-CNT sensors; (b) different ratio of PEI; (c) the CNT sensor to the concentration of CO2 gas from 200 to 1000 ppm.
Figure 5. The sensitivities of (a) pristine- and PEI-CNT sensors; (b) different ratio of PEI; (c) the CNT sensor to the concentration of CO2 gas from 200 to 1000 ppm.
Micromachines 12 01053 g005
Micromachines 12 01053 g006 550

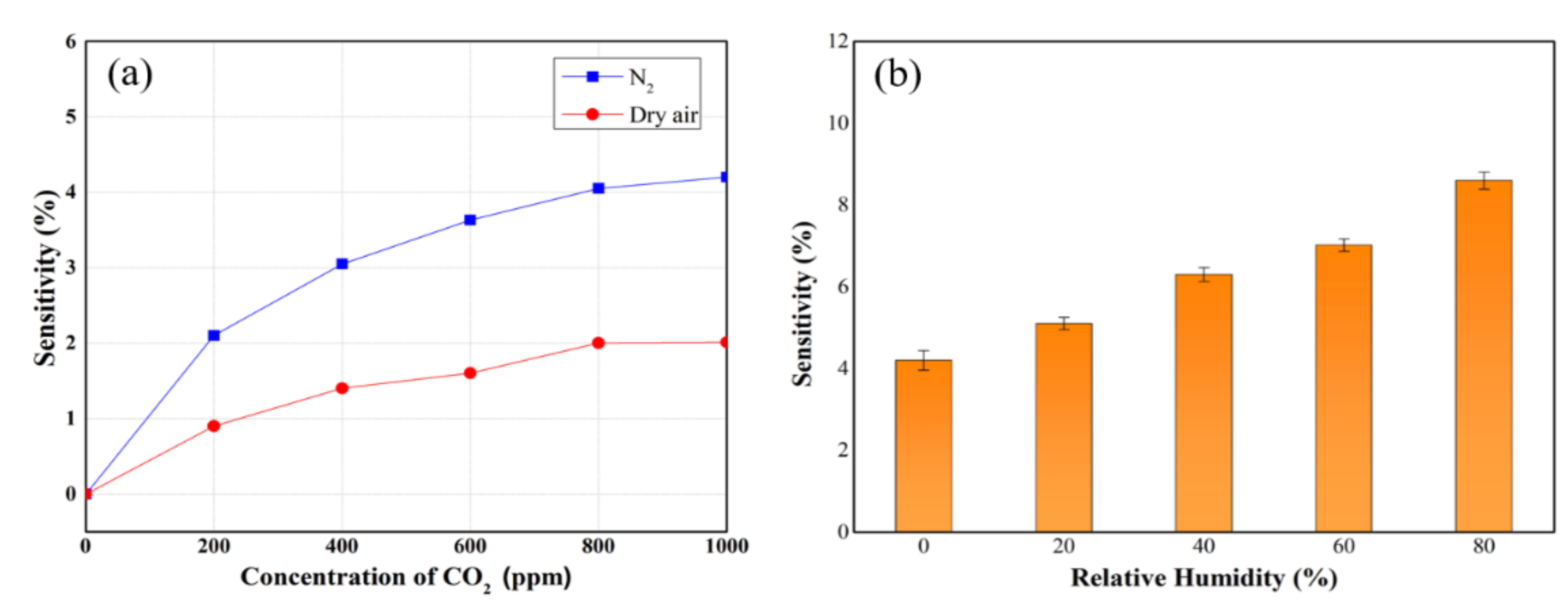

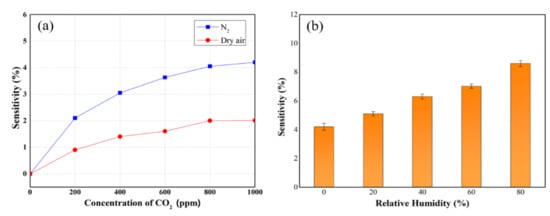

Figure 6. The sensitivities of PEI-functionalized CNT sensors under (a) nitrogen and dry air; (b) different humidity level.
Figure 6. The sensitivities of PEI-functionalized CNT sensors under (a) nitrogen and dry air; (b) different humidity level.
Micromachines 12 01053 g006
Micromachines 12 01053 g007 550

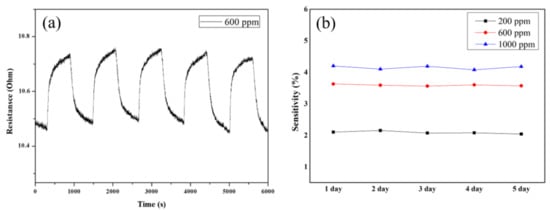

Figure 7. The (a) repeatability and (b) stability of PEI-functionalized CNT sensor.
Figure 7. The (a) repeatability and (b) stability of PEI-functionalized CNT sensor.
Micromachines 12 01053 g007
Micromachines 12 01053 g008 550

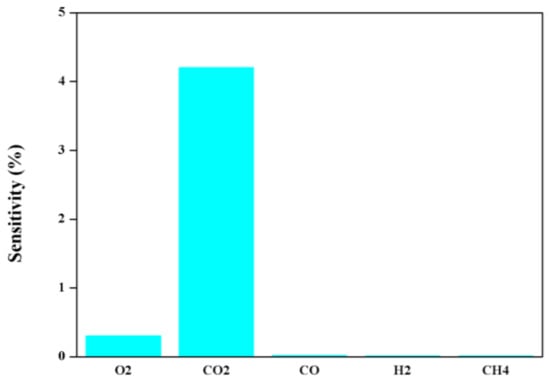

Figure 8. The selectivity of PEI-functionalized CNT toward various gases.
Figure 8. The selectivity of PEI-functionalized CNT toward various gases.
Micromachines 12 01053 g008
Micromachines 12 01053 g009 550

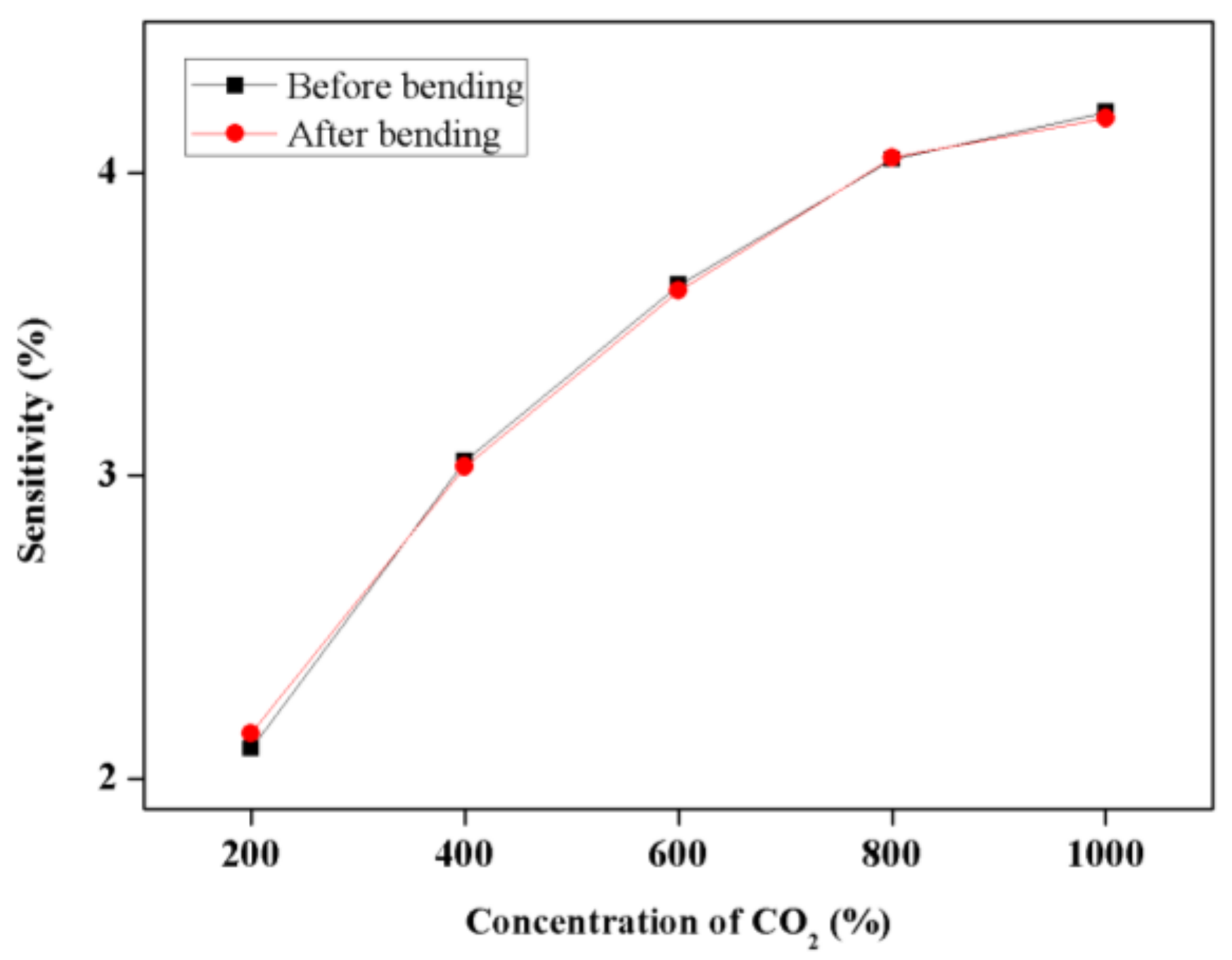

Figure 9. The sensitivity of PEI-functionalized CNT before and after bending tests.
Figure 9. The sensitivity of PEI-functionalized CNT before and after bending tests.
Micromachines 12 01053 g009
Table
Table 1. Comparison of the sensing properties of CO2 sensors.
Table 1. Comparison of the sensing properties of CO2 sensors.
MaterialsType of
Sensor		Gas
Concentration
(ppm)		Sensitivity
(ΔR/R)		Operating
Temperature
(°C)		FlexibilityReference
ZnOChemiresistor200–10252.3250 - [49]
Porous silicon/α-MoO3Chemiresistor50–15015250 - [50]
PEDOT-BPEIChemiresistor 1000 2.7 Room tem. - [51]
PIL-Al2O3Chemiresistor 150–2400 1.7 Room tem. - [52]
CNT Chemiresistor 50–800 2.25 Room tem. Flexible [53]
PEI-CNTChemiresistor 200–1000 4.2 Room tem.Flexible This work
