A Soft Wearable and Fully-Textile Piezoresistive Sensor for Plantar Pressure Capturing

Abstract

The trends of wearable health monitoring systems have led to growing demands for gait-capturing devices. However, comfortability and durability under repeated stress are still challenging to achieve in existing sensor-enabled footwear. Herein, a flexible textile piezoresistive sensor (TPRS) consisting of a reduced graphene oxide (rGO)-cotton) fabric electrode and an Ag fabric circuit electrode is proposed. Based on the mechanical and electrical properties of the two fabric electrodes, the TPRS exhibits superior sensing performance, with a high sensitivity of 3.96 kPa-1 in the lower pressure range of 0–36 kPa, wide force range (0–100 kPa), fast response time (170 ms), remarkable durability stability (1000 cycles) and detection ability in different pressures ranges. For the prac-tical application of capturing plantar pressure, six TPRSs were mounted on a flexible printed circuit board and integrated into an insole. The dynamic plantar pressure distribution during walking was derived in the form of pressure maps. The proposed fully-textile piezoresistive sensor is a strong candidate for next-generation plantar pressure wearable monitoring devices.

1. Introduction

The flexible wearable devices, an unobtrusive sensing interface with the human body, have already become a key tool for capturing human physiological parameters [1,2,3,4]. Recently, developing flexible wearable devices has focused on improving the softness, breathability and stability [5]. Textiles have become an ideal substrate material for flexible wearable devices due to their high extensibility, easy processing, and low cost [6]. Cotton textiles with large contact surfaces and excellent mechanical properties were introduced to designs for flexible sensing systems that are comfortable for the wearer [7]. Their ad-vantages are essential when capturing human information through a fully-wearable monitoring device. Thus, a significant number of flexible textile devices with high sensitivity and biocompatibility with skin have been designed for capturing human movement [8,9,10,11]. Piezoresistive pressure sensors possess tremendous potential for wearable device applications due to their excellent sensitivity, durability and biocompatibility with human skin [12,13,14,15,16,17]. In these sensors, the external pressure stimuli induce a change in resistance, that can be measured and utilized as feedback about the information state of the human body. For instance, an ultrasensitive fiber-based piezoresistive sensor that can be used to observe the walking signal was fabricated [18].

The wearable plantar pressure capturing systems can greatly benefit from the textile piezoresistive pressure sensors. Analysis of dynamic plantar pressure patterns is used for early warning alarm and prevention of foot deformities, or discovery and rehabilitation monitoring in the advanced stages [19,20]. The timely detection of abnormal pressures can prevent the development of diabetes ulcers [21,22]. Additionally, deviations in gait dynamics could indicate the progression of dementia development [23]. Traditional sys-tems for capturing plantar pressure include force plates and pressure sensing walkways [24]. However, the use of these devices is limited to laboratory settings, which makes them unsuitable for continuous monitoring [25,26,27,28]. Hence, active engineering and research ef-forts have been devoted to realizing continuous capture of plantar pressure in natural set-tings. Sensing insoles can detect dynamic pressure patterns under the main weight-bearing locations of the foot [29,30,31,32]. Even though these systems allow sensing with sufficient accuracy, many of them are not biocompatible with the human skin and easily deform under repeated external pressure, which restricts their application in gait monitoring [33,34,35]. Thus, the trends in smart footwear design are to address the aspects of reliability of signal capture, biocompatibility, and comfort of wearing.

In the present work, we aimed to design a flexible, yet mechanically and electrically stable, fully-textile piezoresistive sensing device for integration into a monitoring system to capture plantar pressure. Here, cotton fabric, a basic wearable material characterized by softness, breathability, and high conformability, is designed as the substrate for con-structing the fabric electrode. The reduced graphene oxide (rGO)-cotton fabric electrode and Ag fabric circuit electrode demonstrate a high conductivity of 98.3 kΩ/cm and 0.3 Ω/cm, respectively. Thanks to the use of rGO and Ag, the proposed textile piezoresistive sensor (TPRS) has achieved high flexibility and durability, high sensitivity of 3.96 kPa⁻¹ in the lower pressure range of 0–36 kPa, a wide force range (0–100 kPa), a fast response time (170 ms) and remarkable stability of parameters under repeated stress (1000 cycles). To illustrate the application of TPRS in plantar pressure capture, six TPRSs were mounted on a flexible printed circuit board attached to a textile insole to form a complete sensor device for monitoring plantar information. The device was connected to a custom electronic acquisition module for reflecting plantar pressure. The results of the gait signal capturing and pressure distribution show that the textile flexible piezoresistive sensor has a huge potential for application in sensing footwear.

2. Materials and Methods

2.1. Materials and Reagents

The graphene oxide (GO) was purchased from Suzhou Crystal Silicon Electronic & Technology Co, Ltd., Suzhou, China. The Ag paste and sodium hyposulfite were pur-chased from Aladdin. All reagents were of analytical grade and were used as received without further purification.

2.2. Fabrication of rGO-Cotton Fabric Electrode

First, the cotton fabric was treated with oxygen plasma to enhance the interface adsorption. It was then cleaned with deionized water to remove the impurities; after that, the clean fabric was treated again with oxygen plasma for 5 min. Next, the rGO cotton fabric electrode was prepared by repeated impregnation and reduction. The fabric was immersed in 3 mg/mL GO deionized water solution for 15 min and dried in an oven at 80 °C for 30 min. After repeating this process three times, the GO on the surface of the cotton was reduced to rGO in sodium hyposulfite solution (10 g/L) at 90 °C for 8 h.

2.3. Fabrication of Ag Fabric Circuit Electrode

A mask was formed in the polyimide (PI) tape covering the surface of the cotton fibres using a laser-cutting machine. The unnecessary cut part of the PI tape was removed using tweezers to obtain the fabric electrode circuit. After treatment with oxygen plasma, the circuit surface was coated with silver paste, and the conductive circuit was treated in a vacuum drying oven at 70 °C for 30 min. Then, the PI tape was removed.

2.4. Fabrication of the Textile Piezoresistive Sensor

The TPRS was constructed using the conductive rGO cotton fabric electrode and Ag fabric circuit electrode, where the outer surfaces of both were covered by a polyimide tape substrate. In addition, the Ag fabric circuit electrode was electrically connected with an embedded copper electrode in the role of an interconnector.

2.5. Fabrication of the Sensor Insole

With a limited number of sensors, the proper selection of sensor positions under the foot is essential [36]. Six piezoresistive sensors were mounted under the main weight-bearing positions in the insole, namely the big toe, first and fourth metatarsal heads, the midfoot, and the heel. The sensors were first mechanically fixed to the flexible printed circuit board using thin double-sided adhesive tape, and then were electrically connected. The sensor surface of the sole was covered with a thin transparent plastic sheet layer that was also sewn to the textile base of a commercial insole. Finally, the complete sensor insole was placed into shoes and connected to the electronic acquisition module.

In order to test the accuracy in reflecting the pressure dynamic patterns, two commercial reference sensors have been introduced for comparison with TPRS during walking. Each reference sensor was carefully aligned on the top surface of its corresponding TPRS.

2.6. Characterizations

A scanning electron microscope (SEM) was used to investigate the morphology of the fabric electrode. The swatches were coated with a 5–10 nm Au layer before the SEM imaging. A Keithley 2400 source/meter (4-wire) was employed to measure the resistance of the rGO cotton fabric electrode and Ag fabric circuit electrode. The pressure was applied to the TPRS using a universal testing machine, and the resistance of TPRS was also tested using the Keithley 2400 source/meter (4-wire). Before the pressure testing of TPRS, a cube (10 mm × 10 mm) was placed on the contact area.

3. Results

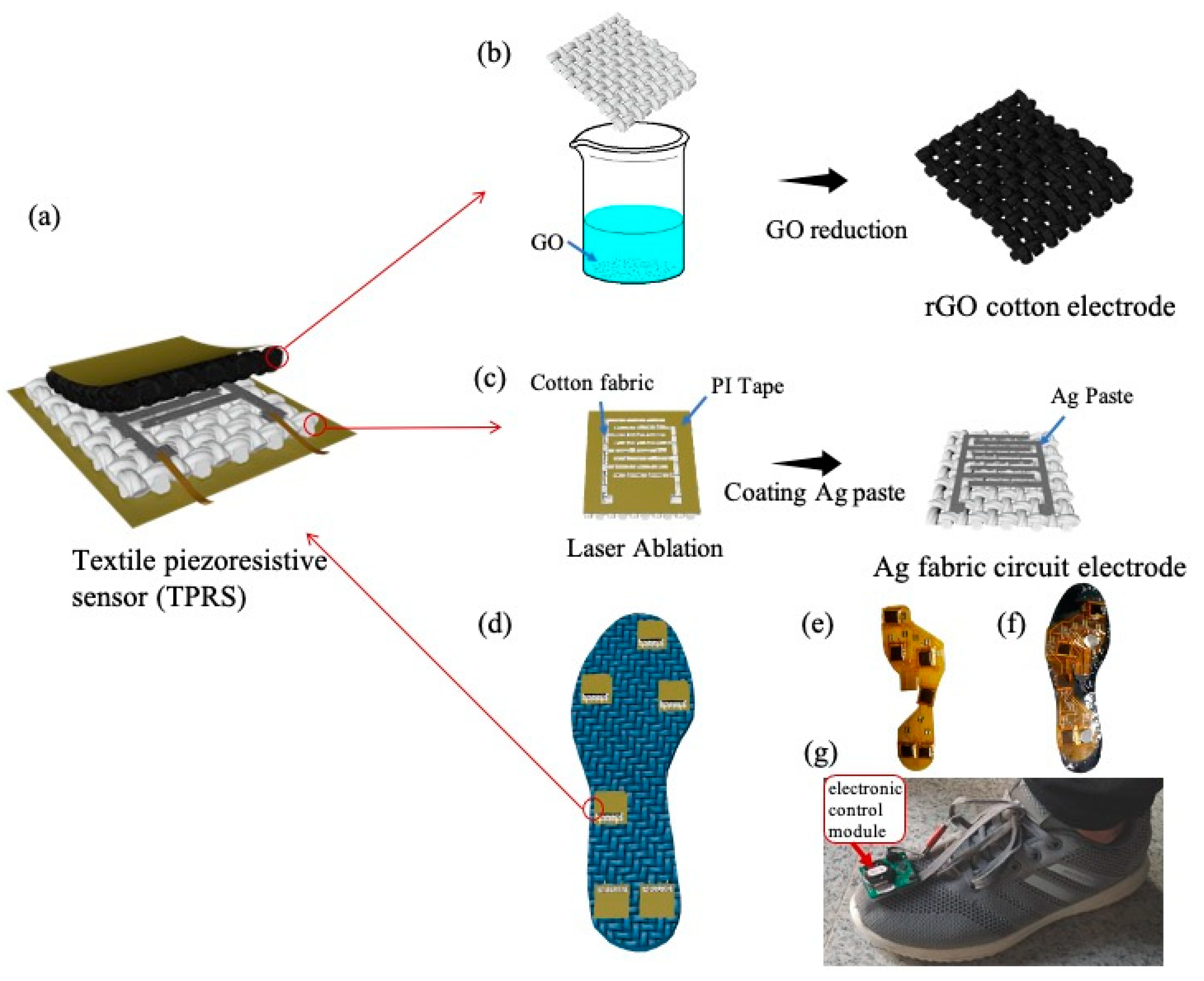

Figure 1 illustrates the fabrication process and structure of TPRS, as explained in the previous section. The TPRS comprises the conductive rGO-cotton fabric electrode (Figure 1b) and the Ag fabric circuit electrode (Figure 1c), in which the outer surfaces of the both were covered by PI tape substrate, as shown in Figure 1a. Further, the TPRSs were affixed in different positions on the insole to monitor the plantar pressure information, as shown in Figure 1d. Figure 1e–g show the flexible printed circuit board with sensors mounted on it, the encapsulated insole, and the complete in-shoe setup.

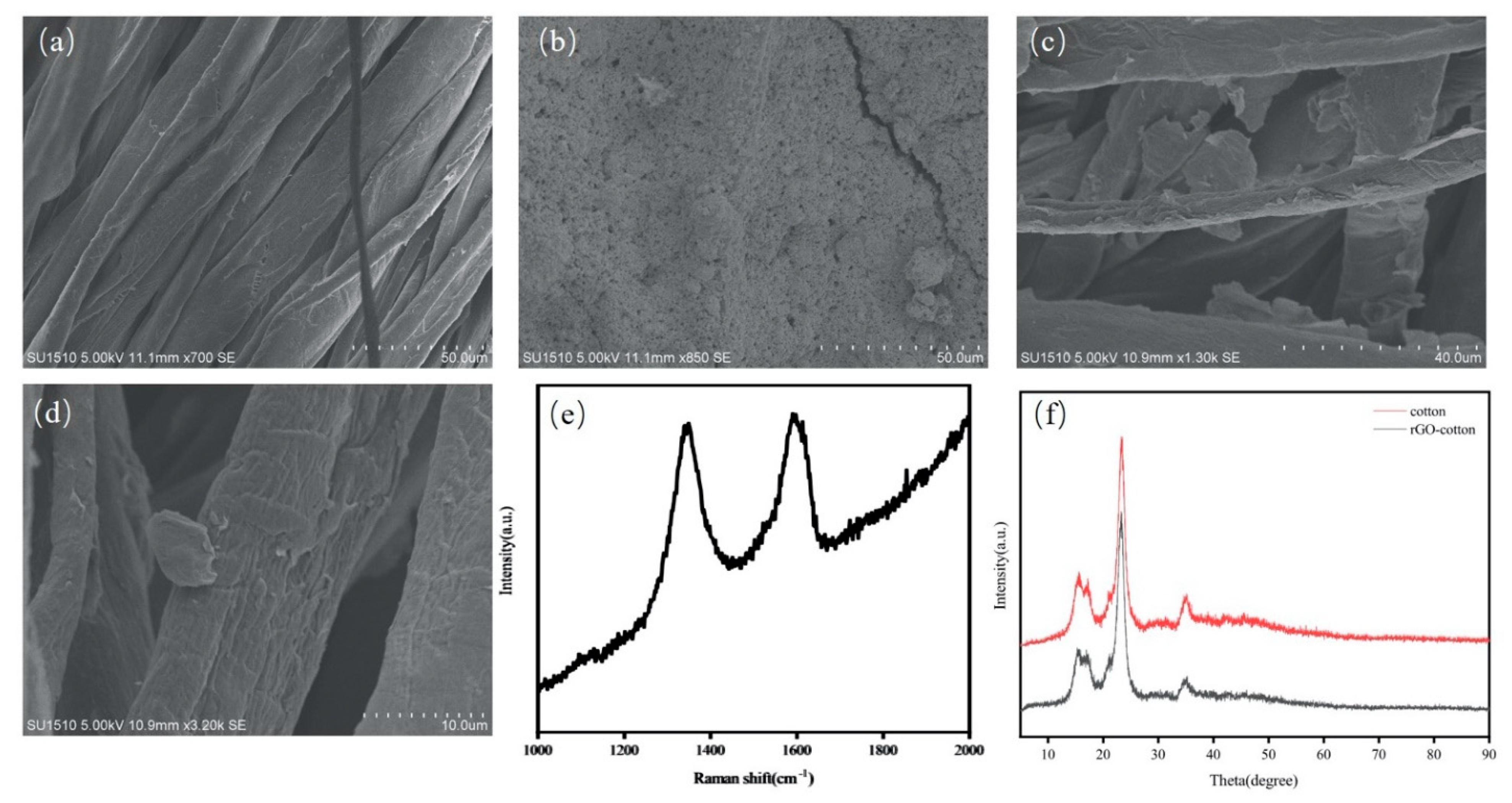

Figure 2 shows the SEM images of the morphology of the rGO-cotton electrode and the Ag fabric circuit electrode. Compared with the control cotton fabric (Figure 2a), a uniform coating layer of silver paste was formed on the surface of the cotton fabric, as shown in Figure 2b. The surface resistance of the Ag fabric circuit electrode was 0.3 Ω/cm (Figure S1a), which can be attributed to the excellent conductivity of the silver paste. Notably, the rGO is wrapped on the surface on the surface of cotton yarns, as shown in Figure 2c-d. The Raman spectroscopy is widely used to exhibit D and G bands from the graphitic structure (Figure 2e). The result shows that the D peak in rGO-cotton appeared at 1350 cm⁻¹, and the G peak appeared at 1593 cm⁻¹. The oxygen-containing groups in GO are effectively removed after reduction. Figure 2f compares the XRD patterns of cotton and rGO-cotton fabric. The X-ray diffraction pattern of rGO-cotton electrode shows a major peak at 23.3° (002). The (001) crystal plane of GO disappears and the characteristic peak in rGO at higher 2θ coincides with that of cotton fabric. This can be explained by the fact that the oxygen functional groups disappear after reduction [37]. The surface resistance of rGO-cotton electrode is 98.3 KΩ/cm (Figure S1b). A uniform rGO is successfully obtained on the surface of cotton fabric.

The sensing mechanism of TPRS is explained by the change in the resistance of the contact between the rGO-cotton electrode and the Ag fabric circuit one upon the application of pressure over the outer sensor surfaces. Increasing pressure leads to the formation of small compressive deformations that enhance the contact between the two conductive fabrics and reduces the interlayer distance between them. Thus, the number of electrical pathways between the two electrodes increases. Upon initial contact between the two electrode parts, the resistance of the sensor decreases rapidly, while this decrease becomes gradual upon reaching full contact between the surfaces of the electrodes. This change in the sensor resistance is explained by the fact that the graphene sheets are stacked together to form a graphite-like bulk body, which accelerates charge hopping between the overlapping graphene islands [38]. When high pressure is applied to the TPRS, charge-hopping occurs between the overlapping graphene islands. After unloading the pressure, the TPRS recovers its initial shape, which results in a decrease in the contact area and fewer electrical pathways. The changes in resistance upon the application of different pressures were also thoroughly tested.

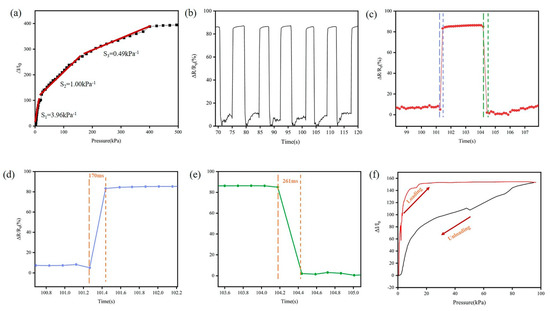

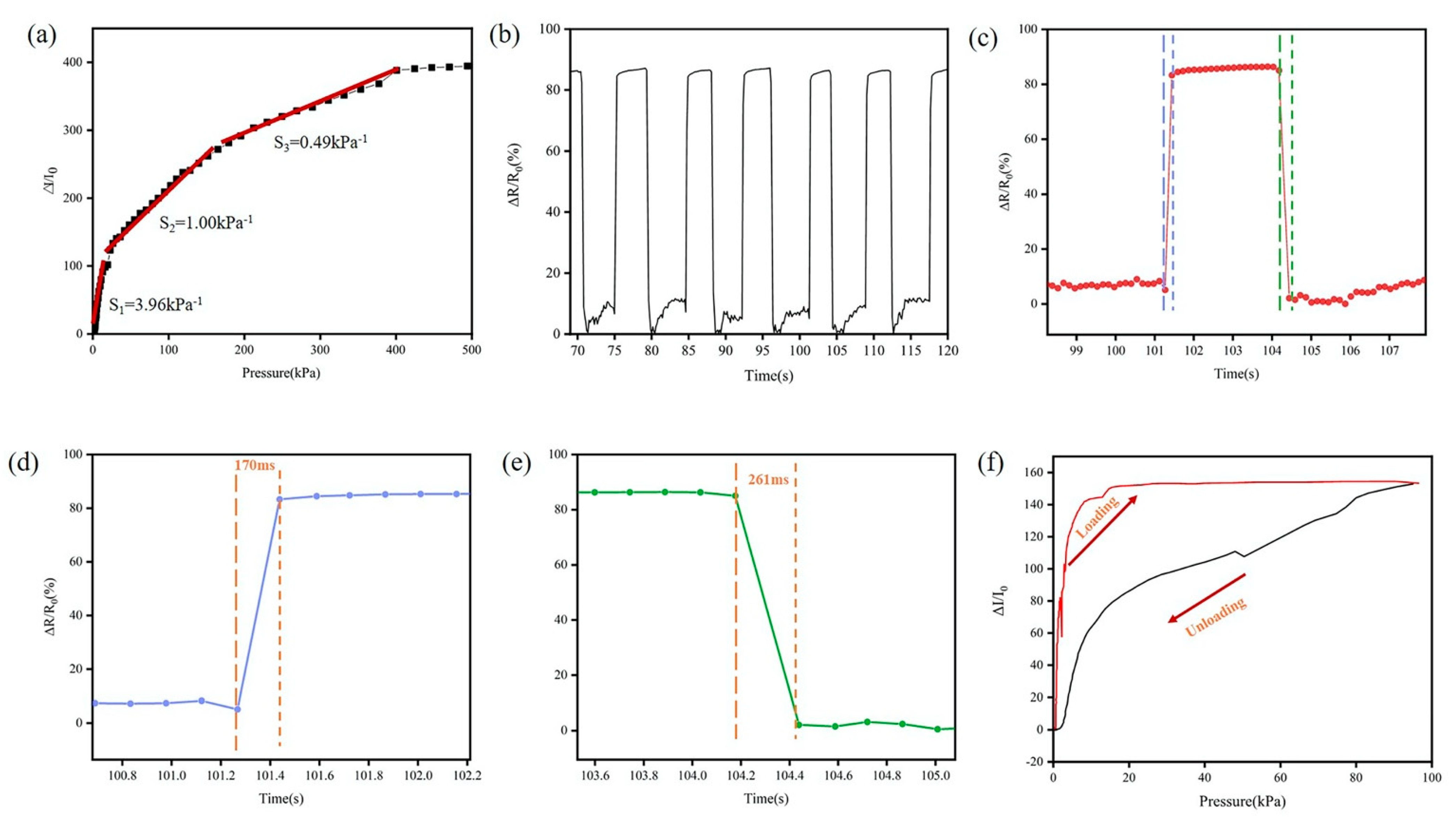

In this study, the sensing performance of the TPRS is assessed in terms of normalized resistance change, response time, high durability and dynamic response. A computer-controlled force gauge platform and an electrical signal analyzer were used to test the dynamic characteristics under different test modes. To investigate the performance of TPFS, the relative current change (ΔI/I₀) versus pressure is shown in Figure 3a. Additionally, the sensitivity of the TPFS is 3.96 kPa⁻¹ in the lower pressure range of 0–36 kPa, while the sensitivity lowers to 0.49 kPa⁻¹ in a higher-pressure range. This performance of TPFS in different pressure ranges is consistent with the results discussed above. Figure 3b shows the relative resistance change in a fully-textile piezoresistive sensor under a pressure of 5 kPa. In this case, the TPFS shows a stable resistance response, excellent repeatability and durability. The response and recovery times of TPRS were 170 and 261 ms, respectively, as shown in Figure 3d,e. Interestingly, the releasing time for higher pressure is much longer. Under a larger force, the rGO cotton fabric electrode and Ag fabric circuit electrode are in close contact, and recovery takes a longer time. Hysteresis is mainly caused by the interaction between the rGO cotton fabric electrode and Ag fabric circuit electrode. A low degree of hysteresis (DH) indicates lower hysteresis of the TPRS. The DH can be calculated by the following formula:

$$DH=\frac{A_L-A_U}{A_L}$$

where A_L and A_U are the areas under the loading and unloading response curves, respectively. The DH value of TPRS is 28.6%.

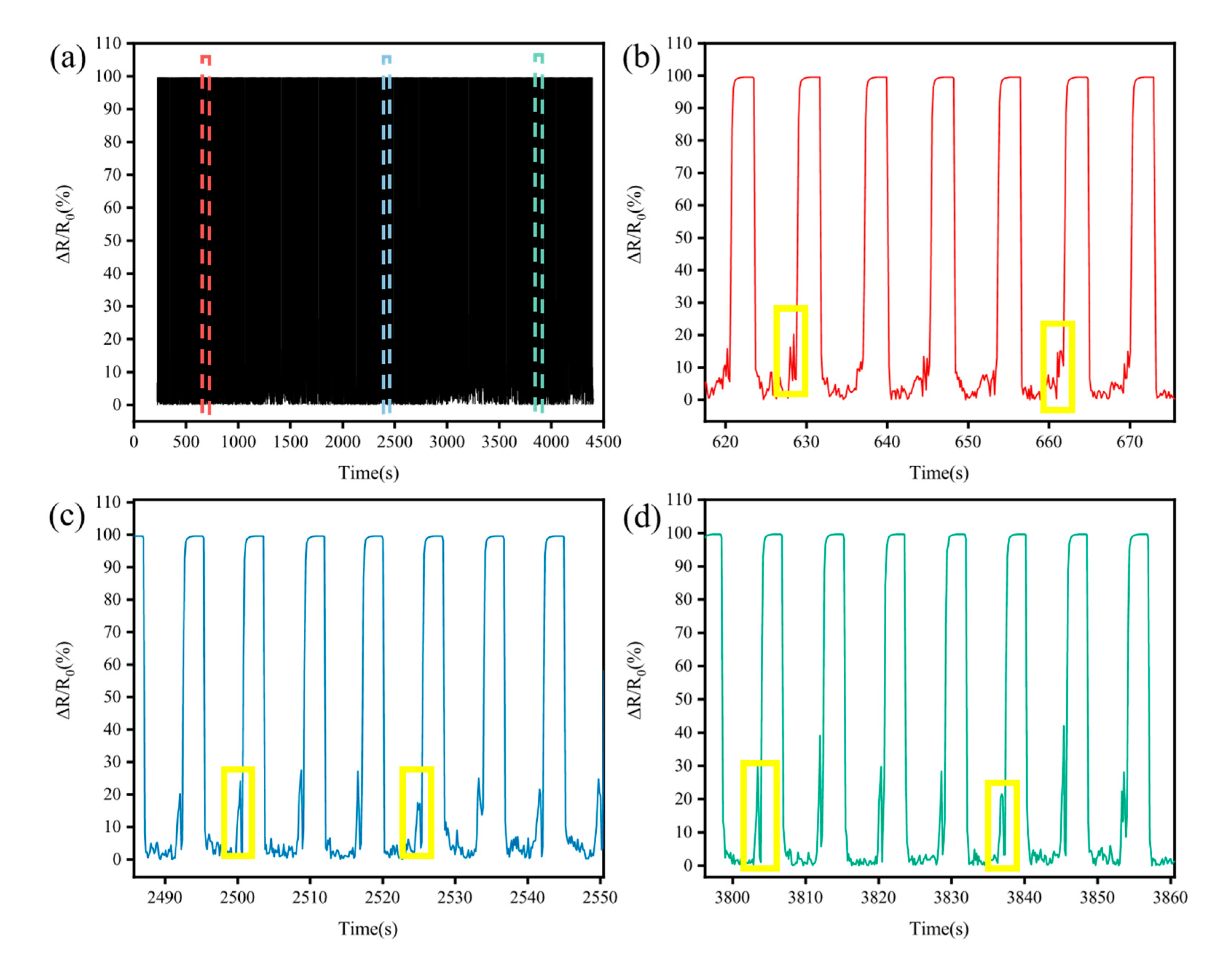

In order to verify the adaptability of TPRS to varying plantar pressure and stability to repeated pressure cycles, cyclic force (including loading and unloading process) between 0 and 80 N at a speed of 20 mm/min with 5 s pause is applied to the TPRS. It is important for the TPRS to have excellent recovery characteristics to ensure a stable performance and a long lifetime. The durability performance along the repeated cycles is illustrated in Figure 4a. Due to the excellent recovery characteristics of the cotton fabric, the TPRS resistance returns to its initial value after unloading the pressure. The phenomena of signal drift and structural damage were not significant during the load/release cycles due to the excellent mechanical and electrical properties of the cotton fabric electrodes. As shown in Figure 4b-d, the resistance of TPFS fluctuated at the moment of loading and releasing the pressure. In the whole cycle, the inherent elasticity of the fabric electrode makes it difficult for the two fabric electrodes to respond quickly to the external pressure, which brings about a delay in resistance variation. Interestingly, we observe that the resistance of the TPFS has a jump, and then changes rapidly as the pressure increases, as shown in the yellow area of Figure 4b-d. This can be explained by the contact resistance changed between the rGO cotton fabric electrode and Ag fabric circuit electrode upon the application of pressure over the outer sensor surfaces. At the beginning, the resistance of the TPRS decreases suddenly when the two fabric electrodes first make contact. The increasing pressure leads to the formation of small compressive deformations that enhance the contact point between the two conductive fabrics and reduce the interlayer distance between them. For capturing plantar pressure, the sensor needs to have a high sensitivity and this ability was also tested, as shown in Figure 5a. It can be seen that the TPRS is more sensitive within a smaller pressure range, but less sensitive to pressure in a larger pressure range. This result is in good agreement with the above sensitivity, indicating that the TPRS is particularly sensitive below 50 kPa pressure. The TPRS is capable of operating up to the pressure of 800 kPa before failure (Figure S2). The results show that the TPRS can quickly feedback the pressure without damage, even under the condition of high pressure.

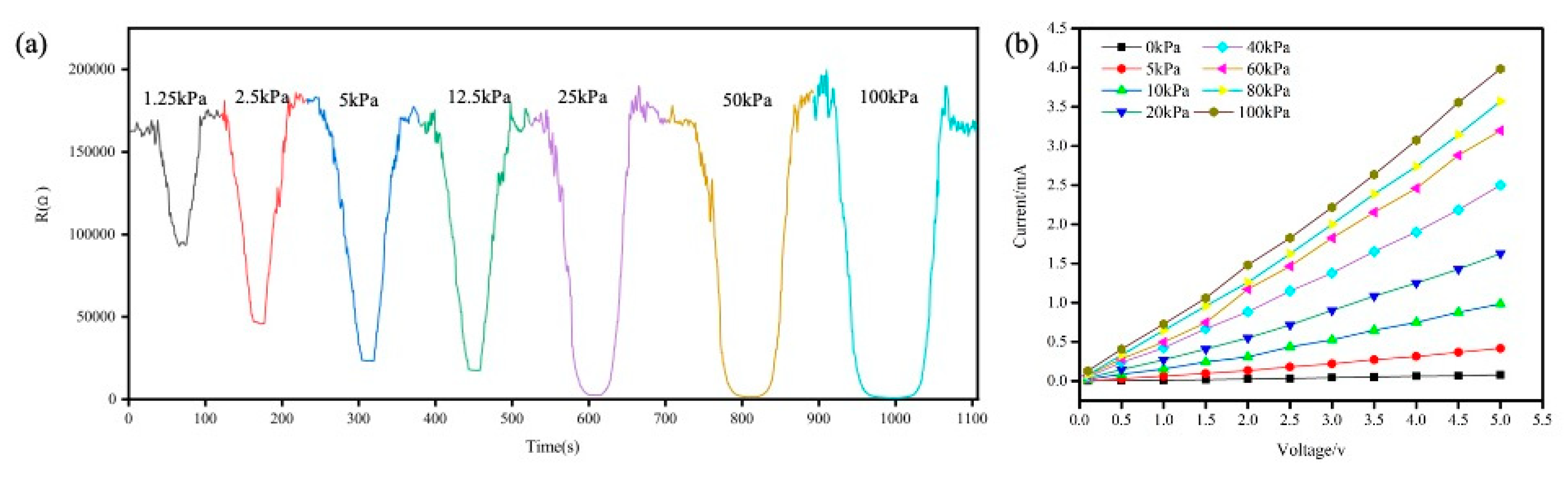

In order to interpret the relationship between current and voltage, pressure and current, and pressure and resistance, a circuit was designed. One of the benefits of the transimpedance amplifier circuit is that it maintains a constant voltage over the sensor, thus avoiding the influence of eventual non-linearities of the voltage-current characteristic of the sensor. As the reciprocal slope of the straight line represents the resistance of the TPFS based on R=V/I, the current and voltage of the sensor are in linear relationship when the resistance is constant. As shown in Figure 5b, the current increased almost linearly with the applied voltage and the slope of the line did not change at the same pressure. When the constant voltage was applied to the TPRS, the current through the sensor increased correspondingly with the pressure increase. The resistance will decrease when pressure is applied, resulting in an increase in the current (I=V/R). The slope of lines (Slope=I/V) will increase with the increase of pressure applied to TPFS. This indicates that the resistance of TPRS decreases with the pressure and that the TPRS exhibits high resistance sensitivity to the pressure.

Different pressure points under the foot can reflect gait information. If the force points of the TPRS are not properly selected, the gait information will not be detected correctly [36]. Here, we demonstrated a wireless wearable plantar pressure capturing device that employed our proposed textile piezoresistive sensor. In the fabrication of the sensor insole, six piezoresistive sensors were mounted at the main weight-bearing positions; in particular, a sensor was placed under the big toe, the first and fourth metatarsals, the midfoot, and two sensors were allocated under the heel. The proposed insole was configured to collect and save the data in real time whilst walking at a comfortable speed. A dedicated electronic control module comprising a microcontroller, an acquisition circuit, and a battery was mounted on the front of the shoe, as shown in Figure 1g. The functional structure of the control module is given in Figure S3. During the walking trials, the captured TPRS data were transferred in real time to a dedicated wireless monitoring system using a Bluetooth Low Energy v. 5 communication channel. The wireless monitoring system allowed remote monitoring of the pressure sensor signals, preventing the use of electrical wires that could restrict natural body movements.

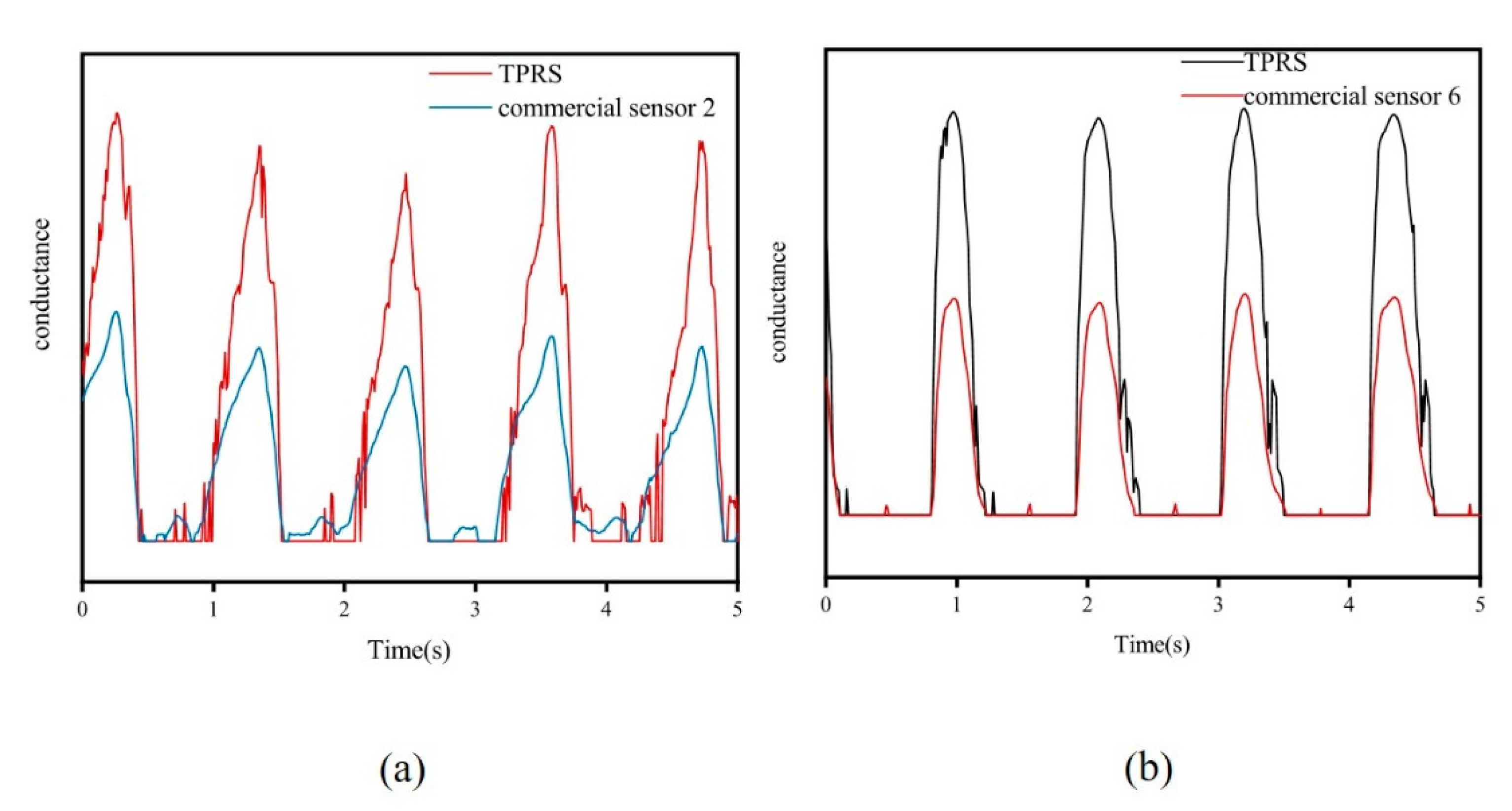

A commercial force sensor has been introduced for comparison with TPRS during walking, as shown in Figure 1f. To ensure the reference sensors and TPRS will be subjected to the same pressure during walking, the two types of sensors were placed at the same point, where the reference sensor was allocated on the upper surface of the TPRS. As shown in Figure 6, the TPRS allowed to accurately reflect the pressure pattern during walking.

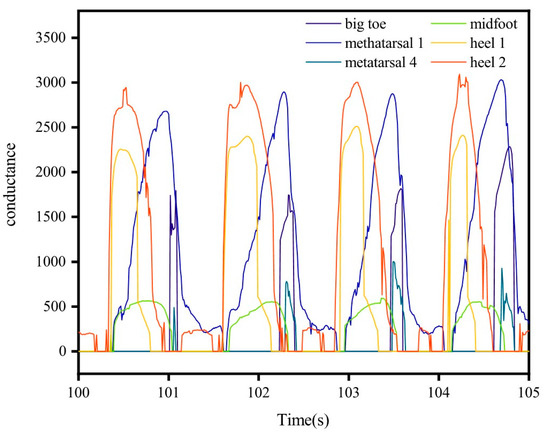

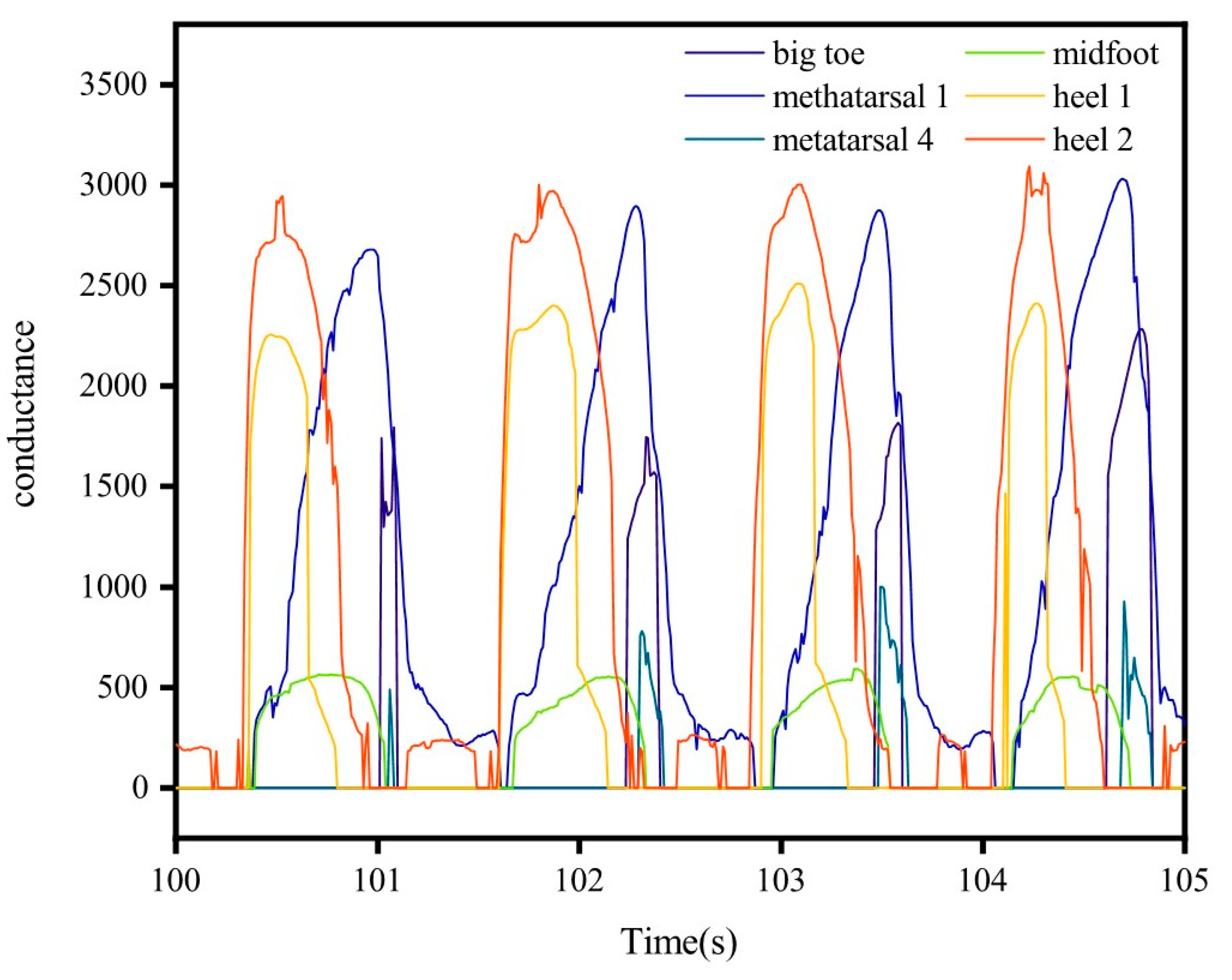

In addition, for verifying the correct response of TPRSs integrated into the smart insole to external pressures, preparatory procedures were carried out (Figure S4, Video S1). Then, to demonstrate the excellent gait pattern recording performance of the smart insole, a healthy adult volunteer with a weight of 60 kg was invited to wear it. The volunteer wore comfortable sportswear and athletic shoes equipped with pressure-sensitive foot insole and was asked to walk over 100 m at a self-selected speed for a few minutes to get familiar with the equipment. The volunteer was then asked to perform five trials of level walking at a self-selected low speed and another five trials at a self-selected normal speed. Plantar pressure data were collected during the trials. Figure 7 shows the synchronous conductance changes of the TPRSs located in the different parts of the insole during subsequent gait cycles.

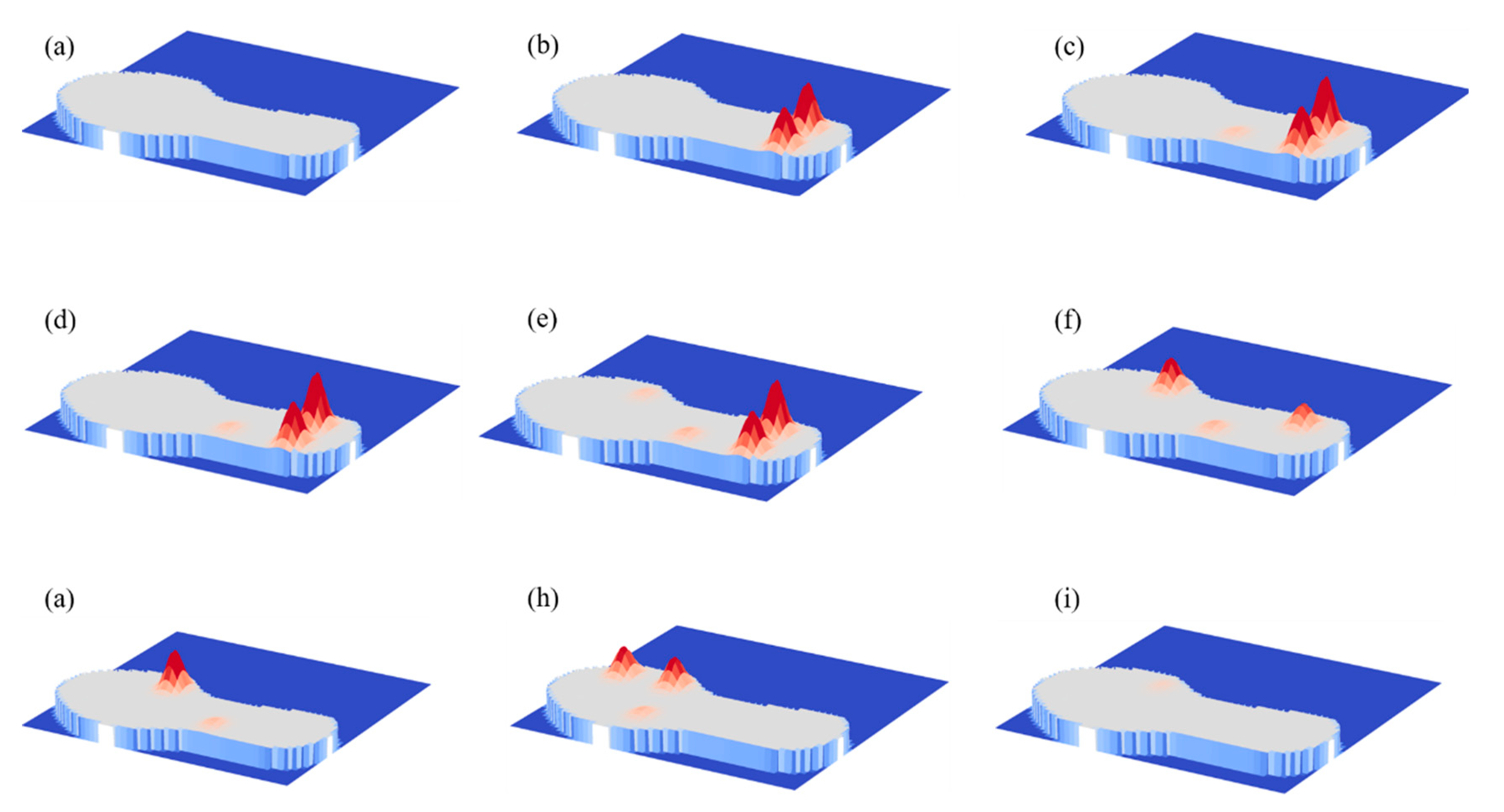

The ground contact is initiated by the heel strike and reflected by the highest amplitude of the heel sensor signals. Then, the foot flat phase is reflected by the relatively low-amplitude signal of the midfoot sensor. Finally, the signals of the metatarsal sensors and the big toe sensor denote the end of the ground contact. Pressure maps are an intuitive way to understand the information of smart insole and how its sensors reflect the phases of gait. These are illustrated in Figure 8a–i (see details in supporting information Video S2). The development of the ground contact starts with the swing (Figure 8a) when pressures on all sensors are close to zero, followed by the heel contact (Figure 8b) when the heel sensor activate, midfoot (Figure 8c), first and fourth metatarsals (Figure 8e–h), toe-off (Figure 8f) and swing (Figure 8i), respectively. Judging from the experimental result, the pressure under the fourth metatarsal was higher than other parts during walking. In contrast, the sensor at the midfoot received pressure with lowest amplitude. The proposed sensor may be employed to feedback gait information and to assess health status for both hemiparetic patients and healthy individuals. These results demonstrated that the proposed insole is suitable for real-time gait monitoring in various environments.

4. Conclusions

In summary, we have designed a novel piezoresistive sensor for pressure measurement in wearable medical devices. It takes advantage of the excellent mechanical and electrical properties of two kinds of fabric electrodes. The proposed TPRS demonstrated a high sensitivity of 3.96 kPa⁻¹ in the lower pressure range of 0–36 kPa, the ability to operate in a wide pressure range (0–100 kPa), an outstanding response to external pressure, high durability (1000 cycles) and a fast response time (170 ms); these qualities confirm its potential for real-time detection of human movement. We demonstrated the application of the sensor in a smart insole for capturing plantar pressure. The insole was prepared by mounting a TPRS into six different points beneath the foot. The developed monitoring insole takes advantage of the proposed sensor device to provide stable signals at different contact pressures. The insole performs fine-synchronized capture of all TPRS sensors, allowing the derivation of time-pressure maps reflecting the gait phases and facilitating further analysis of the collected data. The proposed TPRS can potentially find applications in electronic skins and other wearable sensing applications.
