Review

Bessel Beam: Significance and Applications—A Progressive Review

by
Svetlana Nikolaevna Khonina
1,2,
Nikolay Lvovich Kazanskiy
1,2,
Sergey Vladimirovich Karpeev
1,2 and
Muhammad Ali Butt
1,3,*
1
Department of Technical Cybernetics, Samara National Research University, 443086 Samara, Russia
2
IPSI RAS-Branch of the FSRC “Crystallography and Photonics” RAS, 443001 Samara, Russia
3
Institute of Microelectronics and Optoelectronics, Warsaw University of Technology, Koszykowa 75, 00-662 Warszawa, Poland
*
Author to whom correspondence should be addressed.
Micromachines 2020, 11(11), 997; https://doi.org/10.3390/mi11110997
Submission received: 21 October 2020 / Revised: 7 November 2020 / Accepted: 9 November 2020 / Published: 11 November 2020
(This article belongs to the Special Issue Non-diffractive Beams for the State of the Art Applications)

Abstract

:
Diffraction is a phenomenon related to the wave nature of light and arises when a propagating wave comes across an obstacle. Consequently, the wave can be transformed in amplitude or phase and diffraction occurs. Those parts of the wavefront avoiding an obstacle form a diffraction pattern after interfering with each other. In this review paper, we have discussed the topic of non-diffractive beams, explicitly Bessel beams. Such beams provide some resistance to diffraction and hence are hypothetically a phenomenal alternate to Gaussian beams in several circumstances. Several outstanding applications are coined to Bessel beams and have been employed in commercial applications. We have discussed several hot applications based on these magnificent beams such as optical trapping, material processing, free-space long-distance self-healing beams, optical coherence tomography, superresolution, sharp focusing, polarization transformation, increased depth of focus, birefringence detection based on astigmatic transformed BB and encryption in optical communication. According to our knowledge, each topic presented in this review is justifiably explained.

1. Introduction

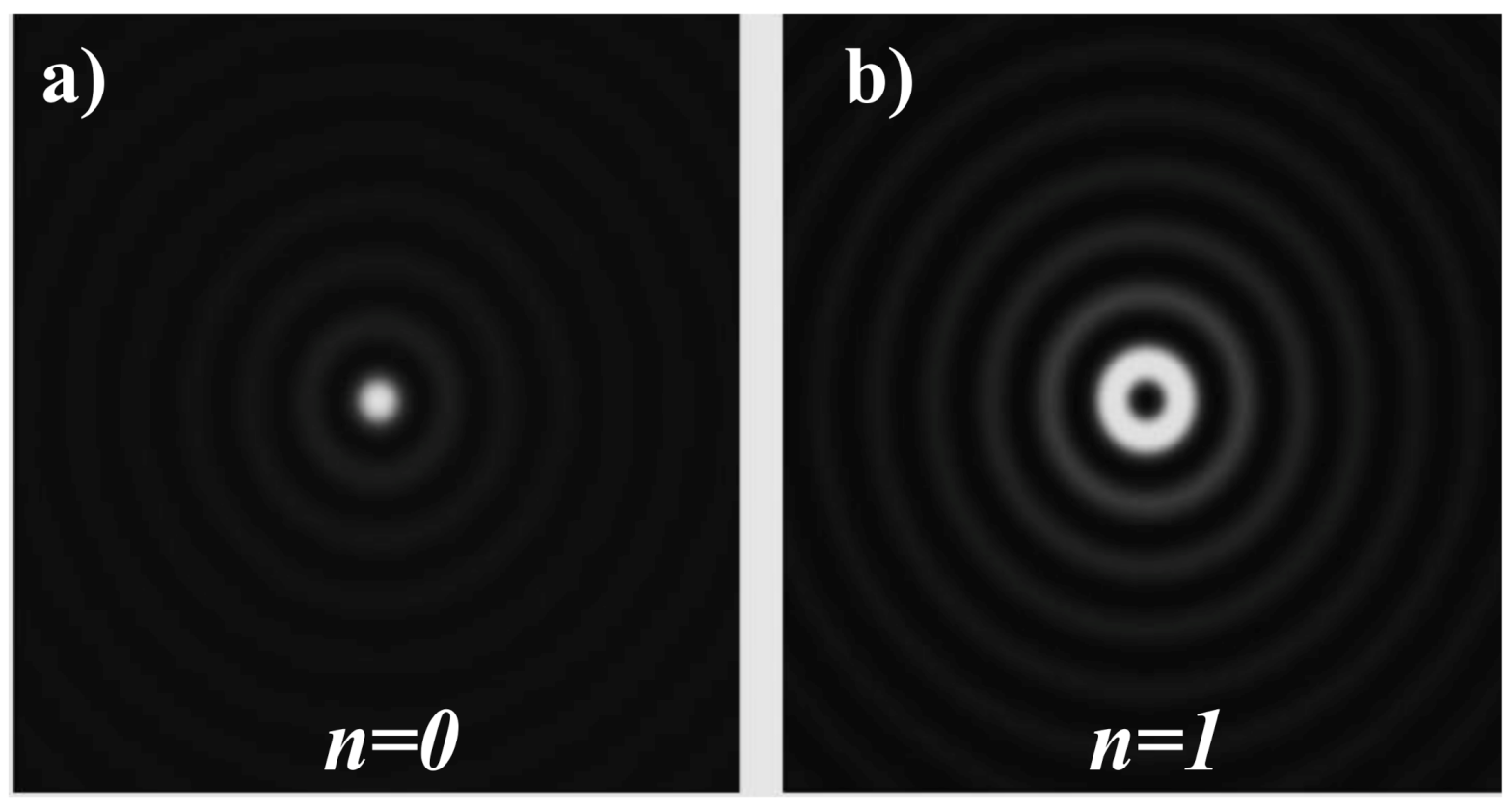

Bessel functions are precise solutions to the Helmholtz equation [1,2], i.e., classic Bessel beams (BB) are diffraction free and offer noteworthy features such as an exceptional depth-of-field (DOF), self-recovery, and beam-width relative to the scattering limit. Moreover, high-order BBs show phase displacements, i.e., they imitate vortex beams and transfer an orbital angular momentum [3]. BB modes are characterized by an integer n, known as the order of the beam. In cylindrical coordinates, the complex amplitude for the nth-order BB can be expressed as:
E n ( r , φ , z ) = A e i k z z J n ( k r r ) e ± i n φ
where A is the complex constant, k z = k cos θ 0 , k r = k sin θ 0 . k = 2 π / λ is the wavenumber and λ is the wavelength of the light radiation, θ 0 is the angle of the conic wave to the z-axis. The function Jn (x) is the nth-order Bessel function of the first kind. The zero-order beam E0 has a maximum intensity on the axis, similar to the Gaussian beam (GB); but, unlike the GB, it also has a collection of circular nodes ringing the axis as seen in Figure 1 [4]. But there is also a minimum on the central axis for n ≥ 1. The on-axis node occurs for the same reason as in the case of Laguerre–Gauss case: the e ± i n φ component means that the beam has orbital angular momentum (OAM) Lz = along the beam axis. As a consequence, the phase is unknown or singular on the axis itself, and thus the intensity must disappear. It is difficult to construct a true BB in the lab because it would have to have infinite reach in the transverse direction, and it would have infinite power. In this respect, it is identical to a true plane wave, which also has an infinite amplitude and thus can never be realized precisely. But as with the plane wave, it is possible to generate very good approximate BBs, which have all the useful properties of the idealized version, at least for some finite area. It can be seen that all bright rings hold the same amount of power; thus, for a beam of finite power, the intensity of each ring must decline as the number of rings increases. The strength of the light in the central core must also reduce as the number of rings increases. The most effective technique for producing an approximation to a zeroth-order BB is utilizing an axicon, both refractive (conically shaped) and diffractive versions of optical elements. When illuminated by a GB with a waist size much smaller than the hard aperture of the axicon, virtually the whole input intensity is converted into a BB. The spacing between the rings of the BB depends on the period of the axicon. Usually, axicons have been used to generate zeroth-order BBs. Higher-order BBs can be directly generated from an illuminating GB by use of axicon-type computer-generated holograms, for example, diffractive spiral axicons [5,6].
In 1987, BBs were first studied by Durnin [1] and have been widely employed in applications related to both optics [7,8] and acoustics [9,10,11]. In acoustics, BBs are generally used in applications such as ultrasound imaging systems [12,13,14]. Their extended DOF and slender beam-width provide a precise scanning of the transmitted beam, whereas their self-recovering properties contribute toward extraordinary robustness to tissue scattering. Moreover, its diffraction-free feature provides a perpetual deep imaging resolution. The diffraction-free self-healing features of the BB permits it to penetrate deep into the volume of a sample, resist against refractions in chaotic environments, and provides an axial resolution as compared to that of GBs. The fields, formed from coherent mixtures of BBs, reveal a more than ten-fold rise in their undistorted penetration to diffraction-limited beams. Recently, vortex beams, to be specific, BBs, have gathered a lot of interest because of their distinctive properties for particle trapping [15,16,17,18], particle handling/rotation applications [19,20,21] or acoustic radiation force strategies in liquids [22]. BBs have also been employed in photopolymerization [23] as well as in material processing [24]. However, their prospects for high-throughput 3D printing have not been effusively investigated.

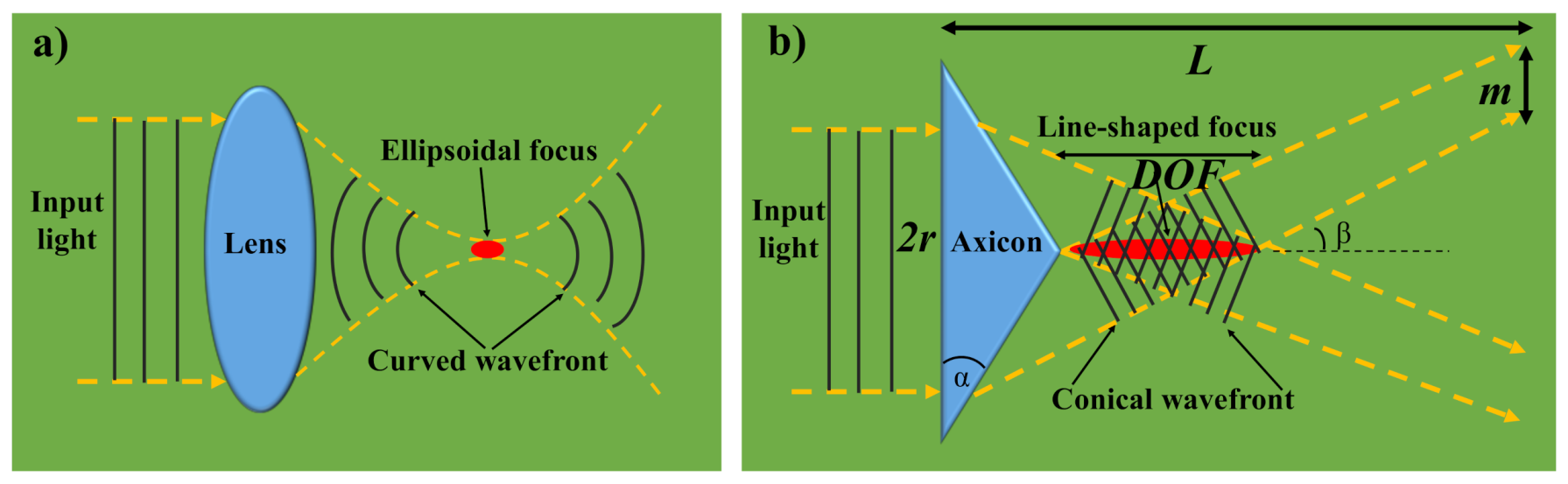

In general, laser beams have a Gaussian profile. When a GB is focused via an optical lens, an ellipsoidal focus is formed as revealed in Figure 2a, which is described by a lateral spot size and a confocal length. A perfect BB is produced by a congregating conical wavefront of an unbounded level. When it congregates to the axis of symmetry and interacts with itself, the slanted conical wavefront creates the distinctive BB shape as displayed in Figure 2b. BBs are expressed as a single-ring pattern emerging from their narrow angular spectrum in the far-field. Although a true BB would involve an infinite amount of energy to create, an axicon produces a close approximation with nearly non-diffracting properties within the Axicon’s depth of focus (DOF). DOF is a function of the radius of the beam entering the axicon (r), the axicon’s index of refraction (n), and the alpha angle (α):
D O F = r 1 n 2 sin 2 α sin α cos α ( n cos α 1 n 2 sin 2 α ) r ( n 1 ) α
The basic equation assumes that the angle of refraction is small and becomes less accurate as α decreases. Beyond the axicon’s DOF, a ring of light is produced. The thickness of the ring (m) remains constant and is comparable to r:
m = r 1 n 2 sin 2 α cos α ( n sin 2 α + cos α 1 n 2 sin 2 α ) r
Along with the numerous benefits of the BBs, they have their drawbacks as well. Firstly, these are energy characteristics: diffraction-free properties are achieved due to the high energy cost. The axial length of the beam is accompanied by a decrease in the amount of energy on the optical axis because only a small part of the incident energy (energy from separate rings) is concentrated in the central spot. Secondly, the presence of peripheral rings: a decrease in the size of the focal spot is accompanied by the growth of side lobes that worsen the image properties [25,26]. Likewise, the high sensitivity of the axicon’s point spread function (PSF) to aberrations of the optical system is known [27,28]. However, in microscopes and scanning optical systems, the side lobes with an intensity smaller than 30% of the main light spot can be efficiently filtered out [29,30]. This possibility is implied in Section 5.
Two-photon microscopy has revolutionized functional cellular imagining in tissue, but the highly confined DOF of standard set up yields great optical sectioning, it also restricts the speed of imagining in volume samples and user-friendliness. Therefore, a basic and overhaul adjustment to the two-photon laser scanning microscope has recently been seen, which expands the DOF by the use of an axicon. Here, three major advantages of this method are demonstrated in [31] using biological samples widely used in the neuroscience field. First, a sample of neurons grown in culture and moved along the z-axis displays that a steady focus is attained without negotiation on the transverse resolution. Secondly, in an acute slice of the living mouse cortex, 3D population dynamics are monitored which demonstrates that faster volumetric scans can be performed. Thirdly, in a fixed sample of mouse cortex, a stereoscopic image of neurons and their dendrites are obtained via two scans instead of the full stack required by the standard systems. These benefits make extended DOF imagining based on BBs highly suitable for the field of microscopy and life sciences in general, together with the ease of incorporation into pre-existing systems.
Non-diffractive beams play a special role in fluorescence microscopy based on light sheets (planar microscopy) [32,33,34,35,36]. Light-sheet fluorescence microscopy (LSFM) provides extremely high image processing speed, good signal-to-noise ratio, a low level of photo-bleaching, and good optical depth of penetration. This unique combination allows you to successfully apply this technology to the study of living microorganisms in real-time. The extremely low toxicity of the system allows the ability to view and differentiate groups of cells without causing damage to the samples. Such a system is specifically designed for research in marine and cellular biology, as well as in plant physiology.
In acoustics, there are several approaches to produce zeroth and high-order BBs, though it is not possible to perfectly generate all of them in reality. Numerous techniques are suggested to create truncated BBs. A straightforward and attractive scheme is to employ a spherical slit at the axis, as a result, BB patterns are produced, in equivalence with the optics [2]. Nevertheless, the tiny opening intensely restricts the transmitted energy. Several works [37,38,39,40] have been published on well-generated BBs employing a periodic arrangement of circular active piezoelectric sources in such a way that every circular active element is fixed conferring to a Bessel function in both phase and amplitude.
There is a striking resemblance between the radial modes of piezoelectric sources and the Bessel function, which is why this phenomenon can be imitated employing simple discs. However, it will not provide a very high radiation efficiency [41]. A little while ago, it was assumed that BBs can only be produced via vastly coherent light sources, for example, solid-state and gas lasers. However, over the last few years, several works have described different techniques to produce BBs employing different light sources such as semiconductor light sources [42], vertical-cavity surface-emitting lasers [43,44], light-emitting diodes [43] and vertical external-cavity surface-emitting lasers [45], among others.

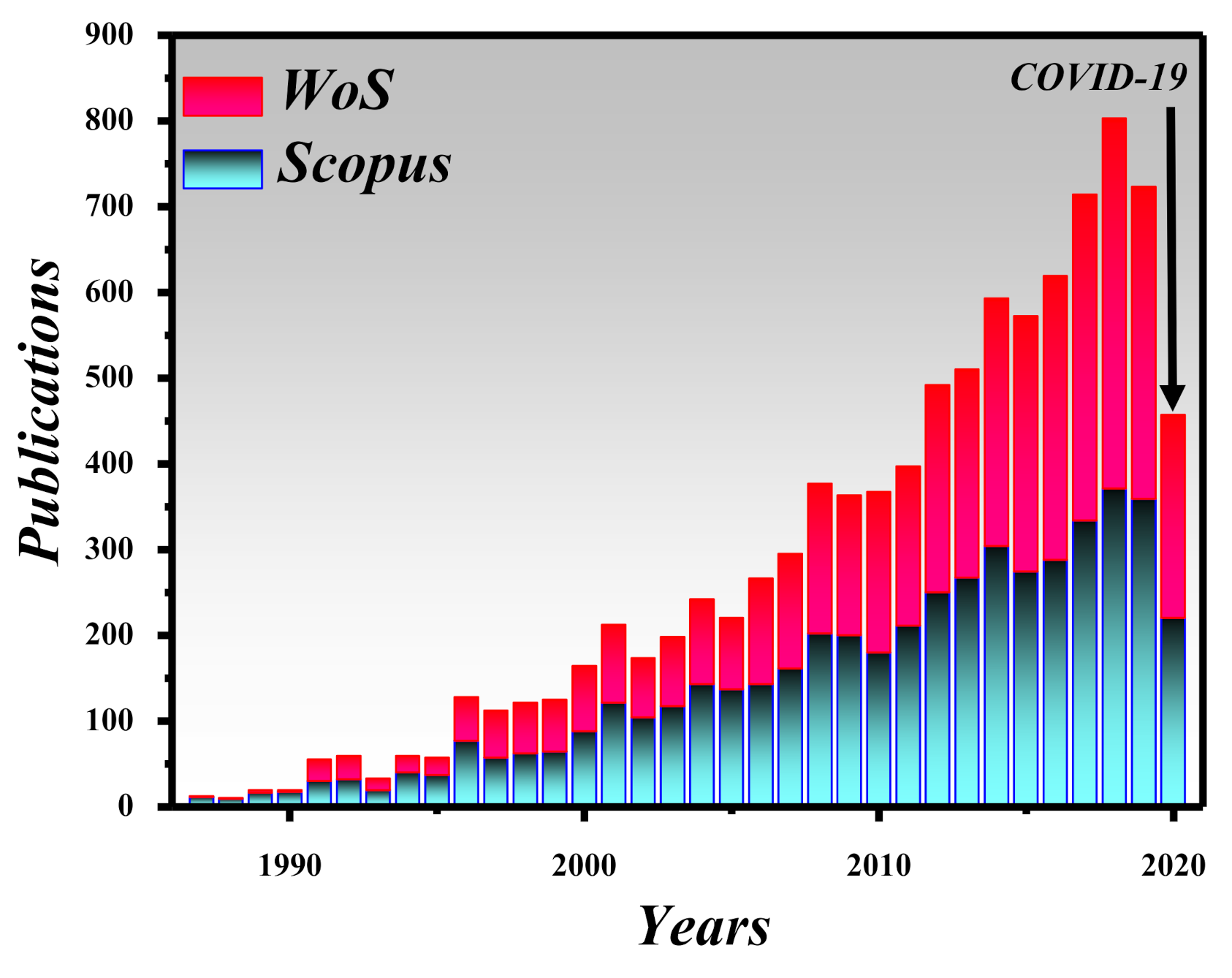

The topic of the BB is very interesting and has been under consideration by several researchers around the world. For instance, the number of publications on the “BB” topic between 1987 and 2020 is depicted in Figure 3. This graph shows the number of papers indexed in the Scopus and Web of Science databases, which are considered to be the most reliable and authentic sources. It can be seen that BB has a constantly increasing trend in the number of articles published each year, similar to other optics or physics-related topics. However, in 2020, we can see fewer publications on BBs, mainly due to COVID-19 which has decelerated research activities around the globe. There are several other indexing systems such as Copernicus, Science Citation Index, Google Scholar and PubMed, among others.
In this review paper, we have briefly explained the methods for the generation of BBs and recent advances in the utilization of these extraordinary beams in several applications such as optical trapping, material processing, self-healing property for underwater optical communication, optical coherence tomography, superresolution, sharp focusing and polarization transformation, increased depth of focus and other related applications. Over the last few years, our research group at the department of Technical Cybernetic, Samara National Research University, Russia has published several papers on the exploration of different applications utilizing BBs, such as optical trapping [46,47,48,49], material processing [50,51,52,53,54], free-space long-distance self-healing [55,56,57,58], astigmatic transformed BBs [59,60,61], encryption in optical communication [62,63,64,65] and sharp focusing [66,67,68,69,70], among others.

2. Optical Trapping with BBs

The techniques of tweezing and optical trapping are established on the forces that emerge as a result of the rule of momentum preservation in the reflection, refraction, and absorption of the laser beam at the particle [71,72]. For effective optical handling, i.e., consistent microparticles trapping, a high gradient of the optical power density is required. For instance, a sharply focused laser light beam is essential to trap the microparticle. This considerably shrinks the working area owing to diffraction, tighter focusing outcomes in faster radiation divergence, and the issue cannot be solved regarding the Gaussian optics. Nevertheless, Durnin [1] has demonstrated in his remarkable work that the diffractive divergence can be practically removed with a special class of non-diffracting light fields known as BBs. Practically speaking, BBs display a limited propagation length, which is dependent on the width of the original collimated beam. As the BBs preserve their focus throughout the way, the placement of the manipulated object can be considerably altered, hence allowing practical flexible micromanipulation systems. Additionally, the employment of BBs unveils novel prospects in micro-fabrication [73], manipulation of micro-machines [74] and numerous “lab-on-a-chip” applications [75].
Optical traps based on focused BBs offer highly superior capabilities for manipulation of individual glass beads in the three spatial directions in comparison with standard optical tweezers based on focused GB [76]. Interesting possibilities for the simultaneous trapping and rotating of various types of dielectric particles (with high and low refractive indexes) provide multi-ringed vortex beams [77]. The angular momentum density of BBs is similar to that of multi-ringed LG beams [78,79]. However, high-order BBs are easier to generate experimentally [46].
The field of optical trapping has grown into an essential phenomenon in the biological examination, cold atom physics, and genetics [80,81]. It has swiftly bee established from its first verification by Ashkin in the 1970s [71]. Regardless of its extensive implementation, the optical trapping of airborne particles employing a single-beam gradient-force was not verified until 1997 [82]. Even nowadays, most of the laser tweezer operations are being used to trap fairly translucent specks in a liquid. A particle trapping via a single laser beam in the air is a more challenging task than in a liquid medium, as the optical trap should be robust to conquer gravity and disruption in the air. Moreover, as opposed to a particle in a liquid medium, a particle in the air has a higher relative refractive index, which induces a sturdy scattering force that tends to disrupt the trap [83]. Nevertheless, for particle delivery strategies, the potentiality to trap airborne particles is essential [84] as well as developing aerosol classification methods that incorporate optical trapping with examination practices, for instance, Raman spectroscopy [83,85].
Consequently, significant attention has been given to develop novel methods to capture airborne particles utilizing either the photophoretic force or the radiative pressure force. In recent times, the photophoretic force has been used to permit optical trapping of airborne particles with absorbing properties. Several beam shapes such as vortex beams [86], bottle beams [87], and hollow cones produced via a single beam [88], tapered rings [89], two counter-propagating beams [90] and optical lattices [91], among others, have been employed. In [86,87,88,89,90], the particles are trapped in the low-intensity area, which is contrasted to laser tweezers where the gradient force traps the particles near a laser beam’s high-intensity focal point. As several photophoretic traps are only successful for particles with a specific geometry [92], the morphology of the absorbing particles poses additional technical hitches. Nevertheless, some applications include the ability to capture the particles irrespective of their construction and absorption.
An interesting method is proposed in [93], where a single formed laser beam is used to form a region of low light intensity for photophoretic trapping of absorbing particles but minimizing the dispersion force near the focal point at the same time. As a result, radiative pressure found that the trapping of translucent particles is facilitated as shown in Figure 4a–d. Besides, this low dispersion force permits airborne particles to be trapped by radiative pressure-based trapping via relatively low numerical aperture optics. A comparable method has lately been demonstrated to allow optical trapping of high relative refractive index non-absorbing particles utilized to trap airborne aerosol droplets [94].
Due to the transfer of momentum from photons to particles, the radiative pressure force, the gradient force and the scattering force produced from a single laser beam emerges. Regardless of the realization of optical tweezers in maneuvering particles in the fluid, optical traps based on radiative pressure utilizing a single laser beam are still not suitable for grabbing airborne particles. Bearing in mind the radiative pressure force as an amalgamation of a gradient force and a scattering force, this problem can be solved. The gradient force drags a particle close to the focus of the laser beam into the high-intensity region at the focus, ensuring the restoring force is mandatory to catch a particle. Instead, the scattering force moves the particle in the direction of the propagation of light and off-limits the reinstating force needed. In general, optical trapping is only probable when the gradient force overpowers the dispersion force [82]. Airborne particle trapping is a challenging task due to the high refractive index of a particle in the air comparative to the ambient medium results in a sturdy scattering force. To form a robust gradient force to trap airborne particles, high numerical aperture optics (typically NA > 0.9) are obligatory [82]. In principle, by utilizing a counter-propagating beam configuration, the scattering force can be concealed [95]. However, an accurate orientation is required, which is practically not possible in many applications. If a laser light falls on absorbing airborne particles, a portion of the light is absorbed and transformed into heat. Consequently, an interplay between a non-uniformly heat-emitting particle and the ambient gas molecules leads to the photophoretic force. As a result, absorbing airborne particles are captured by the photophoretic force. For instance, if an absorbing airborne particle is hit by a light from one side, due to impact with the hot part of the particle, the gas molecules on the elevated temperature side of the particle will have greater velocities, imposing a net force that moves the particle to its cold side. The photophoretic force can be ~5 orders of magnitude more robust than the gradient force for an intensely absorbing particle, usually employed in optical tweezers [96].

3. Material Processing via Ultrafast BBs

These days, micro- and nano-technologies rely on the growth of detailed and manageable manufacturing tools that are capable of structuring materials with full precision and minimum collateral loss. In a range of applications, from entertainment to medicine, lasers have proven to be flexible instruments over the years. The individual usage of this system is dependent on different parameters of the radiation emitted, such as wavelength, energy, and pulse duration. When considering some applications, the beam structure is essential [97,98,99]. A typical GB is appropriate for some of them. The ultra-short laser processing technique has grown into a vital technology capable of delivering fundamental processing skills well into the size of the nanoscale [100,101,102]. This counts on incomparable material processing capabilities through nonlinear excitation and inadequate thermal diffusion, resulting in high-end applications where energy localization in space and time by ultrashort pulses is important. Novel models of laser material processing are developed based on the spatiotemporal design of irradiation rendering to the material response to optimize the structuring process concerning quality and scale [103,104,105]. To synergistically associate irradiation and material reaction to energy load, an advanced processing strategy involves a detailed understanding of the irradiation and material transformation method.
For material processing applications in ultrafast modes, a new class of ultrafast laser beams has recently emerged with the potential to achieve processing precision beyond the diffraction limit, deep into the nanoscale domain. This relies on non-diffractive concepts, especially the Bessel-Gauss beam [106], where non-diffractive propagation can be used to design the multi-dimensional interaction segment. In transparent materials, the ability of these Bessel-Gauss beams is entirely utilizable, with an energy gap larger than photon energy. BBs are helpful in Bragg grating inscription [107], microchannel forming [108] and photopolymerization [109] due to an elongated focal area. BBs have a ring-shaped spatial spectrum. It is conceivable to attain Mathieu beams with elliptical intensity distribution by modifying the phase and amplitude of the BB. For instance, the elliptical beam structure has been shown to cause directional glass cracking. Zeroth and higher-order BBs are among the most distinguished non-diffracting beams and can be comprehended utilizing diffractive holograms or by focusing Laguerre GBs via conical prisms (axicons).
In [110], a novel method is developed for the realization of superimposed complex BB vortices of different orders, single and superimposed Mathieu beams of different topologies, as well as parabolic non-diffracting beams. Furthermore, their amplitudes and phases are controlled in the focal region independently to assist the creation of complex patterns not only in the transverse plane but also along the focal line. The experimental verification using a conical prism together with a geometrical phase element is presented for the transparent materials. In [111] the higher-order vector BBs are produced for transparent material processing applications.
Three-dimensional integrated circuits are an enticing option to replace standard two-dimensional ones as high-efficiency, low power exhaustion and miniaturized foot-print microelectronic devices [112]. One of the primary enduring problems, however, is the processing of high-aspect-ratio through-silicon vias (TSVs), which is a critical technology for the assembly of three-dimensional silicon integrated circuits. As a simple and environmentally friendly substitute with less manufacturing stages due to the exclusion of photolithography, TSV manufacturing through direct laser drilling has been suggested. This has been demonstrated with the production of 20 μm diameter holes in a 250 μm thick silicon substrate employing nanosecond UV laser percussion [113]. However, for the assembly of three-dimensional silicon integrated circuits, the deep drilling of holes smaller than 10 μm in diameter remains a major future challenge. Ultrafast laser treatment has recently been shown to be a desirable method for material processing, as it facilitates sub-diffraction-limit processing with heat-affected zone elimination [114]. High-quality cutting has been successfully checked for planar silicon elements with 780 nm femtosecond lasers [115]. Furthermore, in many important research and engineering applications, fast speed and high aspect ratio drilling of through-holes in different materials utilizing ultrafast laser processing have become an attention-grabbing theme. In different silica glasses, femtosecond BBs have been employed to create microstructures with aspect ratios of up to 102–103, without requiring sample transformation due to the elongated field depth.

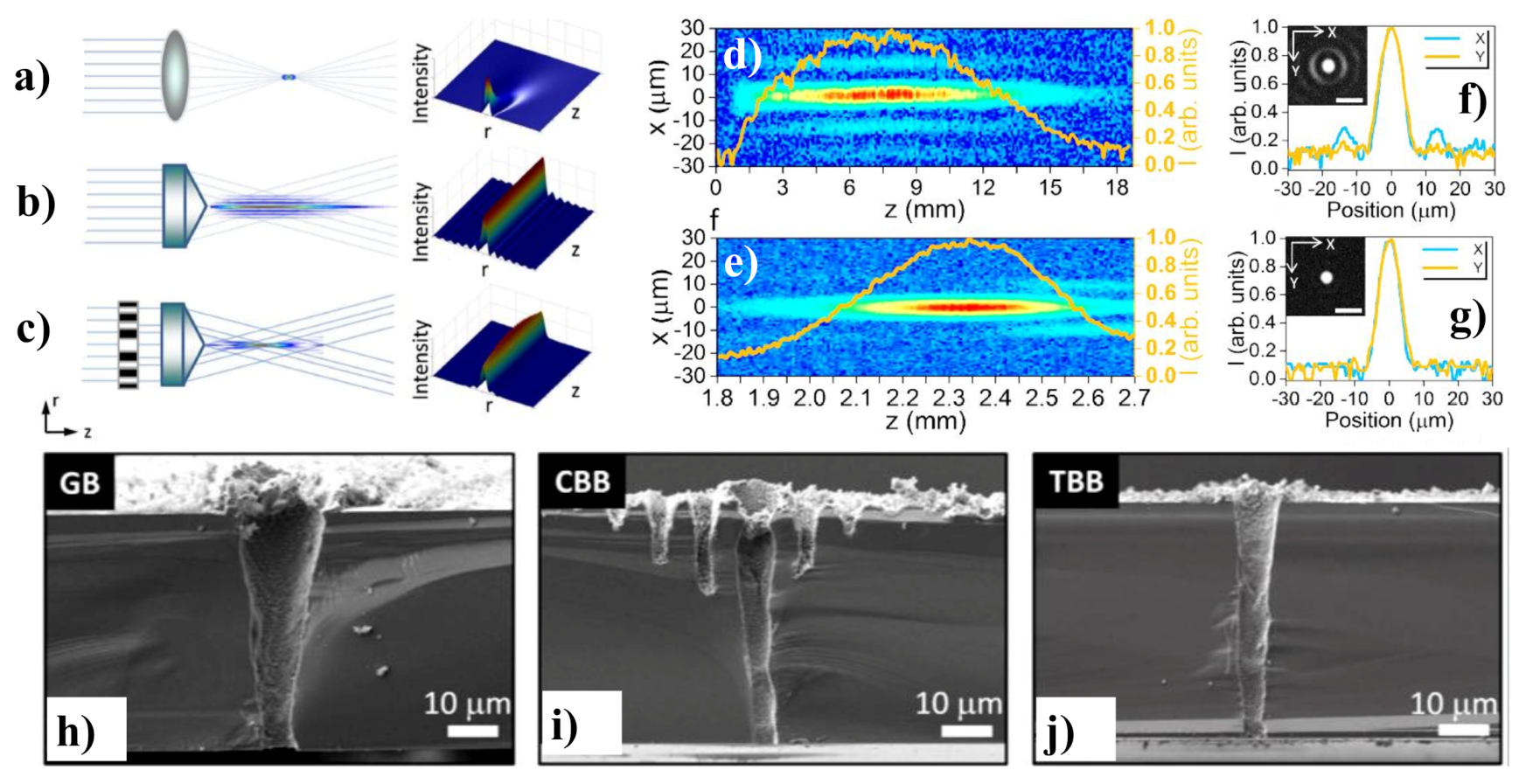

In [116], TSVs are fabricated by using femtosecond BBs with wavelength tuning of 400 nm to 2400 nm. The manufacture of fine TSVs utilizing a 1.5 μm femtosecond BB is demonstrated in [117]. A Bessel femtosecond beam is customized via a specifically fabricated binary phase plate to remove the extreme ablation brought by the sidelobes of a traditional BB. Three separate forms of femtosecond laser beams such as a Gaussian beam (GB), a conventional BB (CBB) and a tailored BB (TBB) were used to determine the theory of the suggested method as shown in Figure 5a–c. It is established that the customized femtosecond BB (without sidelobe destruction) can be employed to form a two-dimensional periodic arrangement of ~10 μm TSVs on a silicon substrate of thickness 100 μm, indicating a possible use in the three-dimensional assembly of three-dimensional silicon integrated circuits. Two-dimensional profiles of CBB and TBB in the x-y plane together with the on-axis intensity distributions (orange curve) are experimentally measured as displayed in Figure 5d,e, respectively. The experimentally obtained transverse intensity distributions of the CBB and TBB at z = zmax are presented in Figure 5f,g, respectively, together with a charged coupled device taken pictures of the particular beams in the insets. Figure 5h–j illustrate the SEM pictures of the TSVs formed in 50 μm thick samples employing the GB, CBB and TBB, respectively.

4. Free-Space Long-Distance Self-Healing BBs

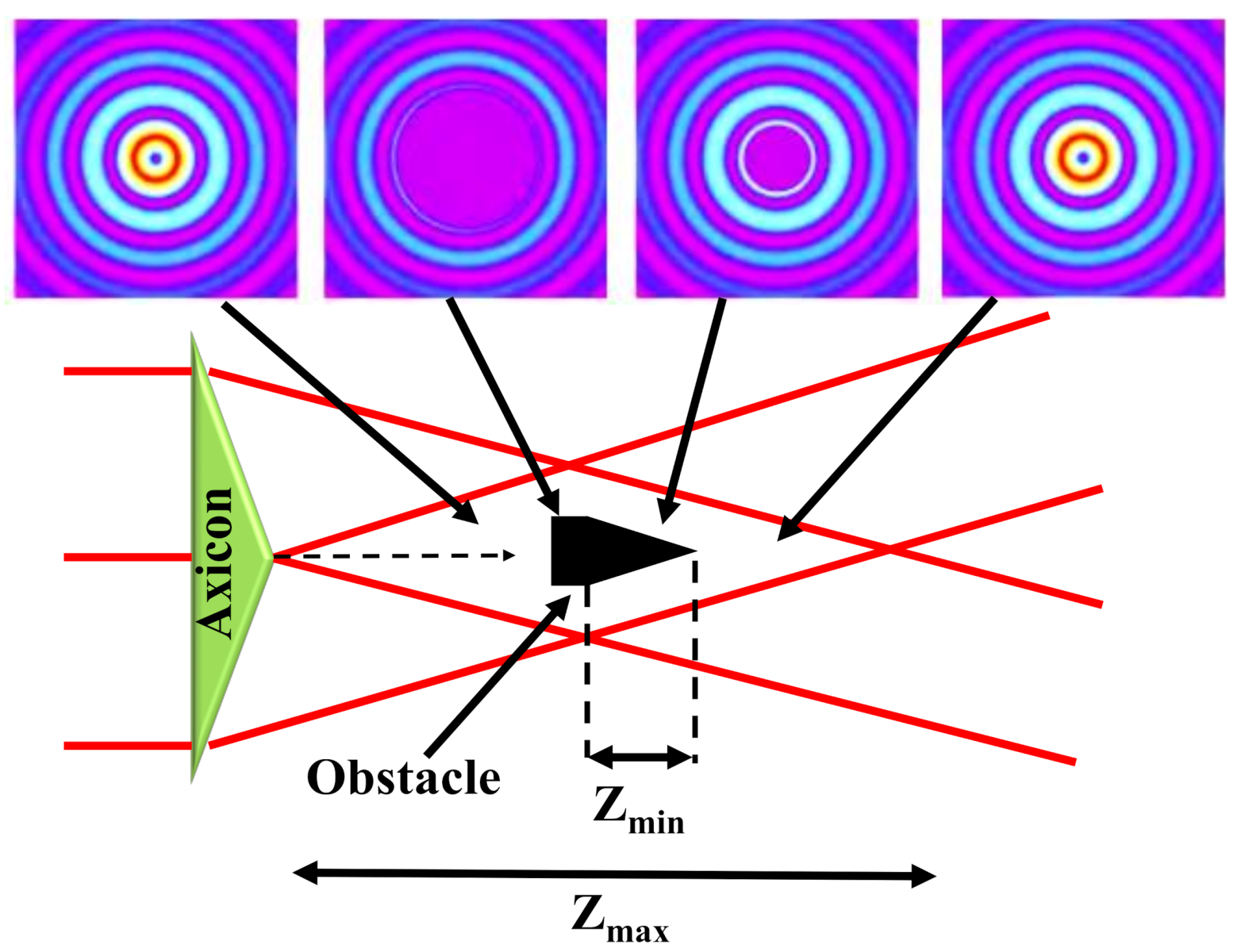

In addition to the non-diffractive feature, BBs are self-healing which means that they have a self-reconstruction ability after a hurdle comes across their transmission path [118]. The intensity arrangement at z and z + δz is formed by different sections of the crossing planar beams as shown in Figure 6. This property comes from the selective constructive interference occurring between multiple coherent plane waves propagating at an equal angle concerning the optical axis. The redevelopment distance of the beam relies on the size of the hurdle and the angle defining the conical superposition of the planar beams. Consequently, BBs are usually more prone to dispersion than most other traditional Gaussian beams. Due to the unusual non-diffractive and self-recovery properties, BBs have gathered particular attention in biomedical physics, laser processing and metrology [119].
A novel method for creating long-distance self-recovering BBs generated by an annular lens and a 4f-configuration spherical lens is stated in [121]. This shows the diffraction-free light evolution of a zeroth-order BBs over several meters and addresses the available scaling prospects that exceed present technologies. Additionally, it has been shown that this setup can be modified to generate BB superpositions, realizing the longest optical conveyor beam and helicon beam. Last but not least, the self-healing properties of the beams are verified concerning robust opaque and transparent scatterers, which underscores the pronounced perspective of this novel approach [121].
Underwater wireless communication is supposed to have high data rates to relay big data over several meters via a proper wavelength. It has already gained more and more recognition with a massive rise in underwater applications, for instance, unmanned underwater vehicles, submarines and sensors in the oceanic environment [122,123,124], among others. The optical turbulence is primarily caused by variations in temperature and salinity in underwater environments, such as in oceans. The standard of communication of the orbital angular momentum (OAM)-based underwater wireless communication system has been seriously impaired by this turbulence [125]. A hypothetical analysis of the effect of temperature and salinity variations on the typical strength of the Gaussian Schell-model vortex beams in the turbulent ocean has shown that partially coherent beams have a more effective resistance to turbulence than full coherent beams [126]. The transmission of partially coherent Laguerre-GBs in the tempestuous ocean is studied in [127,128]. Furthermore, the influence of the ocean instabilities on the oceanic OAM-based underwater wireless communication system’s channel capacity has also been observed in [129]. In [126] the statistical characteristics of the vortex beams such as the power, polarization, and coherence travelling in oceanic turbulence are theoretically studied.
Vortex beams bearing OAM with helical phase fronts have been commonly used as beam sources to mitigate the turbulence effect on any optical vortex [130]. A Bessel-Gaussian (BG) beam is an imperative part of the pseudo-non diffraction vortex beams family. In the case of blockades, BG beams can heal themselves, which is an important feature for optical communications based on the line-of-sight operations [131]. Consequently, for the OAM-based underwater communication systems [132,133], the non-diffraction and self-recovery properties of BG beams make them a valuable commodity. The transmission characteristics of BG beams in the free space environment was explored [134] and the non-obstruction characteristics of BG beams in a free-space optical communication system were studied in [135].
An experimental study of the underwater transmission and self-recovering properties of BG beams has recently been provided in [131]. A GB with a wavelength of 532 nm is transmitted from a laser diode and then a neutral density filter (NDF) is employed to reduce the intensity of the GB. The GB matches its polarization to the optimized working polarization of the selected polarization-sensitive spatial light modulator (SLM) after passing through the polarizer (Pol.) and a half-wave plate (HWP). When the polarized GB is illuminated on an SLM, the desired BG mode is generated, where the special phase hologram grating is revealed on the liquid crystal screen of the SLM. The BG beam carrying the OAM mode is then transferred through a water tank simulating the underwater environment. A rectangular water tank of one meter in length was used to replicate the underwater atmosphere. The temperature variations were regulated by a heater within the container, and salinity variations were accompanied by adding different salt bulks in the water. The experimental setup to analyze the BG beam properties underwater is shown in Figure 7a, whereas the recorded beam profiles at the receiver are shown in Figure 7b. For more detailed information, discuss [131].

5. BB for Optical Coherence Tomography

Optical coherence tomography (OCT) is an imaging process that offers in situ, non-invasive, high resolution, cross-sectional pictures of the biological tissues. Given the depth of penetration of a light beam into biological tissue, endoscopic probes are needed to examine the conditions of wall linings inside the organs such as the liver, stomach, lung, colon and wider arteries within the body. Various types of endoscopic OCT systems have been developed after the first endoscopic applications of OCT in 1996 [136]. Traditional GBs are currently used in endoscopic probes. Some are relocated to the targeted site by moving a wire backwards and forward in and out of the body to steer the catheter. These probe types work at the low numerical aperture and have a lateral resolution of ~20 μm. Some probes use higher numerical aperture optics; nevertheless, they are limited to the smaller DOF. A fine focus modification is needed for these probes which cannot be accomplished by wire adjustment. A gradient index (GRIN) lens rod-based probe was then demonstrated to focus on targeted points in a sample by shifting a stage out of the body [137]. Nevertheless, some endoscopic applications are constrained by the nonflexible rod. The growth of elongated DOF imaging arrangements is therefore an active research area of OCT [138]. Several methods have been applied, such as the Swept-source, time and spectral-domain OCT. Of these methods, the spectral-domain is favored over others, since it is simple to implement and does not require a complex structure. Initially, the OCT system was arranged only in free optics, but the advent of optical fiber improves the versatility of the system and paves the way for a new area of operation [139]. In OCT, the sample beam interferes with the reference beam to produce interference spectra that are further analyzed by the dedicated sample imaging tools. OCT may be achieved by either dual-path or a common-path interferometry techniques. The later methodology can solve the problems of polarization mismatch, group velocity dispersion and ambience vibration. The common path configuration eliminates device and computational complexity since there is no need for extra modules and algorithms to compensate for dispersion.
Imaging based on BB, produced by axicon optics, differs from GB imaging in that it allows the focusing range to be extended without losing resolution [140]. However, the trade-off is a reduction in the illumination and collection efficiency. OCT employing BB has become a trend to benefit from a long DOF and tighter spot size. Bessel beams for illumination/detection were used to break the limit of focus range and transversal resolution given by the GB profile [141,142,143]. The use of axicon optics in time-domain OCT was originally considered by Ding et al. [144] Lately, a non-dual path imaging scheme for imaging of biological samples has been suggested employing Fourier-domain OCT (FD-OCT) [145]. A custom-made micro-optic axicon is used to produce a BB to lighten and image in biological samples using spectral-domain OCT (SD-OCT) [146]. Concerning the GB, BB concurrently produces a high DOF and a tight focus point. It is not possible to produce perfect BB, but the GB can be converted into a BB structure known as a Bessel-Gauss beam and is often referred to as a BB. Several methods are discussed to transform the standard GB to BB. Traditionally, the axicon lens may be the best alternative for the transformation of the beam. A lot of impressive work has been performed on the generation of BB via the axicon lens [147,148]. However, BB axicon lens construction uses free optics, which are not appropriate for applications where there is a need for a small central spot size.
To eliminate group velocity dispersion and polarization incompatibility between the reference and the sample arm, common-path optical coherence tomography (CP-OCT) is used so that both arms share the same physical path. Current CP-OCT implementations usually involve one to incorporate an additional cover glass into the beam path of the sample arm to provide a reference signal. This step is further reduced by making direct use of the back-reflected signal, provided by the conical lens-tip fiber, as a reference signal as shown in Figure 8a [149]. The conical lens, which is directly manufactured by a simple selective-chemical etching process on the optical fiber tip (inset of Figure 8a), performs two functions: (1) it can be used as an imaging lens; (2) as the self-aligning reference plane.
Researchers have been involved in producing such axicon structures within the optical fiber such that they can be used for imaging and sensing applications. Considerable work is being conducted on BB construction using optical fibers and deep-sealed negative axicons (DSNAs) [150,151]. The DSNA is manufactured by standard chemical etching in hydrofluoric acid (HF) at the tip of the single-mode highly doped photosensitive optical fiber and produces BB [152]. A tomography methodology for fluorescence microscopy scanning is introduced in [153], which enables the volume image to be captured in a single frame scan. Volumes are photographed by concurrently recording four independent projections at various angles using temporally multiplexed, tilted BBs.
An FD-OCT method is used to exhibit the effectiveness of this method upon biological tissue. An in-fiber CP-OCT technique can prove to be potentially useful in endoscopic OCT imaging. The usefulness of employing axicon micro-optics has been solely established by imaging a biological sample, precisely an African frog tadpole, at different places attained with an incident power of 25 mW and an irradiation time of 50 μs as shown in Figure 8b The detailed study on SD-OCT can be found here [146].

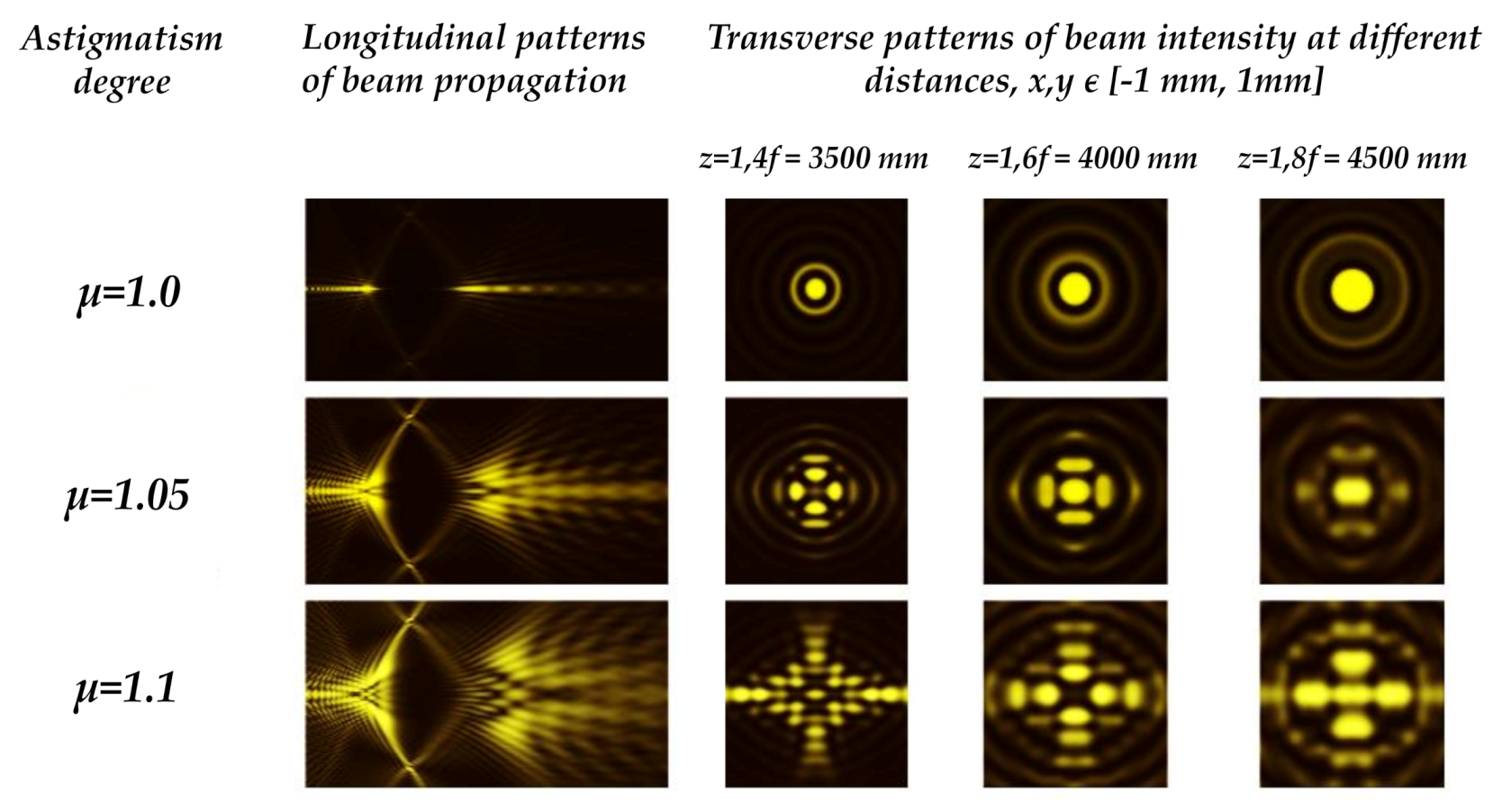

6. Birefringence Detection Based on Astigmatic Transformed BB

One of the difficulties of information-measuring optical fiber networks is the random birefringence of the basic elements, for instance, the birefringence of a single-mode fiber (SMF) due to the ellipticity of the fiber core. Birefringence results in an unregulated change in the polarization of light, the properties of the optical fiber sensors and the values of the measured signals. Birefringence is often intrinsic in the GRIN owing to the residual mechanical stress led by the dopant, which results in a decrease in the performance of the radiation coupling into an optical fiber because of astigmatic misrepresentation and variations in the polarization state of the signal [154,155,156,157]. Birefringence control is therefore an essential practical task which provides a method for enhancing the correctness and consistency of transmitted signals in optic fiber and optoelectronic systems. In [61], Khonina et al. have proposed a mechanism for the detection of birefringence parabolic GRIN lenses by utilizing the astigmatic transformation of the zeroth-order BB as shown in Figure 9 [59,60]. Numerical modelling reveals a distinctly noticeable deformity of the intensity distribution in the transmission of scalable astigmatic BBs. The strength of astigmatism can be calculated by the electric field distribution of the distorted beam. In an experimental analysis of the propagation of a BB utilizing a quarter-pitch GRIN lens, similar patterns are also obtained, which suggests the existence of birefringence of the lens material. The assessment of the experimental and computational results indicates the probability of calculating an optical path difference between the ordinary and extraordinary beams of no worse than 0.05 of the wavelength.
Besides, the possibility of optimizing the method of glass dicing by regulating the axicon-produced BB ellipticity (astigmatic) is proposed in [158]. In Figure 10a–c, the BB generation setup and the generated BB patterns are shown for the axicon tilt angle of 0 and 10 degrees. Intra-volume modifications are created by the astigmatic BB with transverse crack proliferation in the dominant direction. Regarding processing time, glass breaking force and cutting standard, the alignment of these adjustments parallel to the dicing path provides major benefits. A similar approach has also been demonstrated where five BBs of complex amplitudes was fabricated to study the astigmatic BBs. The optical setup and the BB patterns are shown in Figure 10d–g. The detail of this method can be found in [46].

7. Tight or Sharp Focusing and Focal Shaping

7.1. Superresolution

A narrow annular pupil that blocks the light from propagating practically through the entire central part of the lens [70,159,160,161] is a simple, albeit low-efficiency technique to create narrow extended beams in the focal plane. From Figure 11, it can be seen that by establishing the narrow ring the generation of 1.6 times smaller focal spot even at the high numerical aperture is permitted. The detailed analysis of this topic can be found in our previous study [70].
More complex methods for the full-aperture apodization of the pupil’s function that utilizes both purely the phase and amplitude-phase distributions have also been presented [67,162,163]. One method is based on an additional axicon-type binary phase that discards the central rays from the focal plane [164]. This permits the reduction of the spot size in the total intensity with a reasonable loss of energy. However, in all cases, a tighter focal spot is usually attained at expense of the energy redeployment from the central peak to the side lobes.

7.2. Strengthening the Longitudinal Component

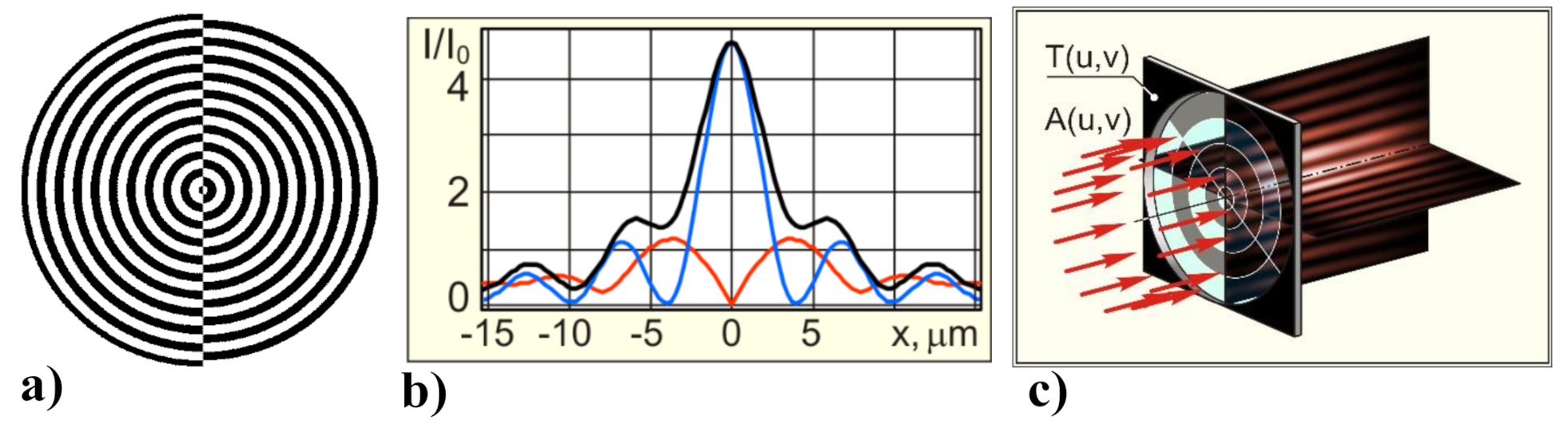

Note that the superresolution is also achieved due to special types of polarization and amplification of the longitudinal component of the electric field [165,166,167,168]. The longitudinal component plays a significant role not only in the reduction of the focal-spot size, but also in other applications, in particular, in the imaging of molecule orientations [169], second-harmonic generation [170], spectroscopy [171] and particle acceleration [172]. To generate and amplify the longitudinal component of the electric field, it is possible to use the optical elements, as well as the specially designed optimized elements that form longitudinally polarized needles as shown in Figure 12 [68,173,174,175,176].

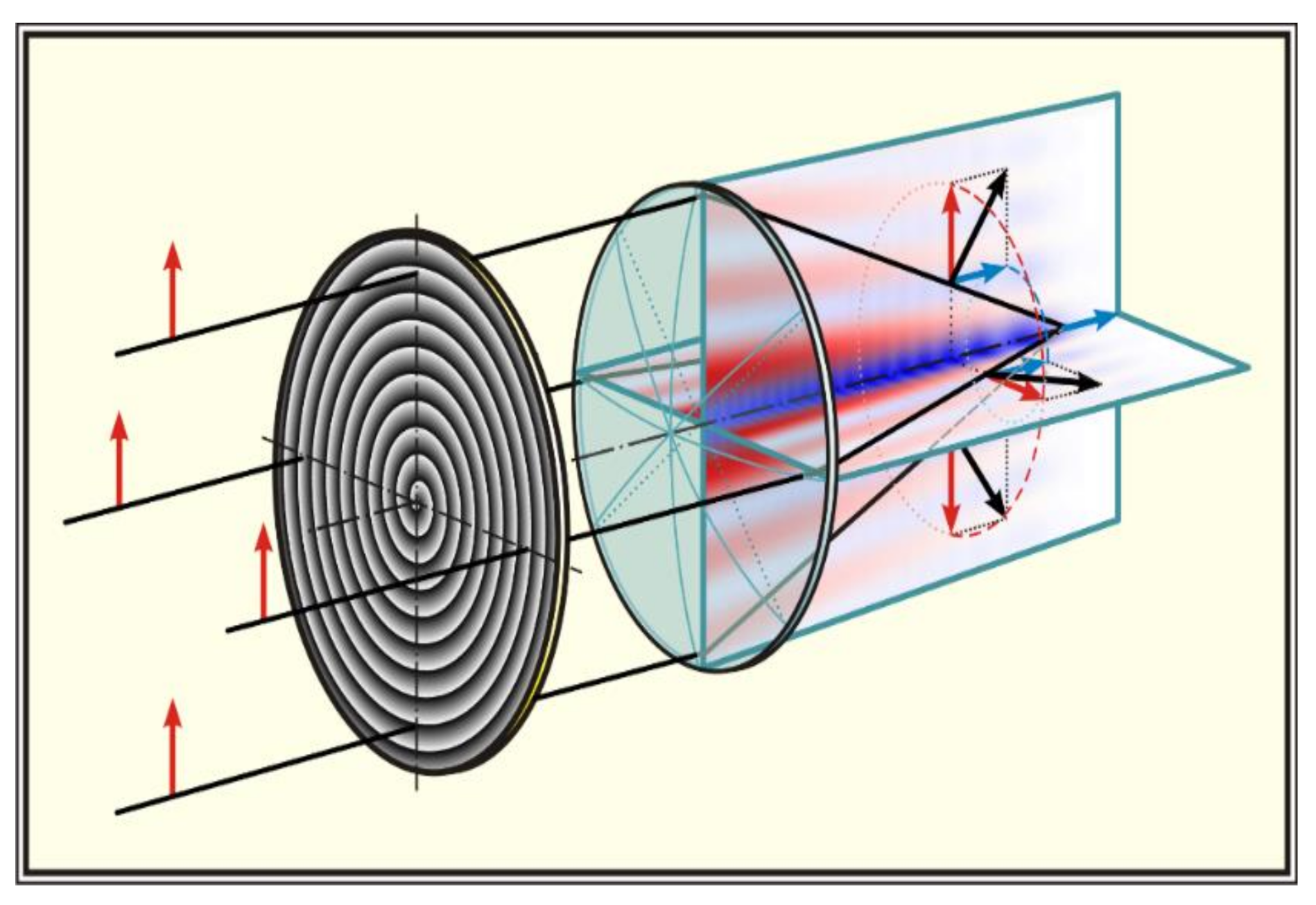

Note that a longitudinally polarized field can be formed immediately near the optical element using a large-aperture axicon [66]. Moreover, the enhancement of the longitudinal component is possible for various types of polarization due to the introduction of asymmetry into the axicon structure [69,177] as shown in Figure 13.

7.3. 3D Focal Shaping

Shaping and transformation of light beams in the focal domain [178,179,180,181,182] is of paramount and growing interest in modern optics, such as in confocal microscopy, stimulated emission depletion, darkfield microscopy as well as in optical tweezers/particle trapping, optical storage, lithography etc. A chain of nearly spherical balls of subwavelength size is easy and can be formed by counter-propagating Bessel beams [183,184]. To form a separate spherical distribution, the interference of tightly focused vortex beams can be applied [185,186].

8. Other Related Applications

A lens is the best-known optical element, an axicon has become well known in optics only since the middle of the past century [140]. By an axicon was understood any axisymmetric optical element which, due to reflection and/or refraction, converts the light of a point source disposed on the optical axis into an axial segment [140]. Later, the term of the classical axicon began to be used to refer to an optical element whose phase function has a linear dependence on the radius—a linear or conical axicon [187,188]. At the same time, various axisymmetric optical elements have been proposed a logarithmic axicon [189,190], a generalized axicon [191], which generates an axial light segment with definite properties.
When an axicon is combined with a spiral phase plate, a spiral or helical axicon can be obtained [192]. For the first time, a diffractive spiral axicon was manufactured using the photolithography technology and was experimentally used to form higher-order BBs [193]. In the binary version, the spiral axicon looks like a spiral ring grating [194]. When an axicon is supplemented with a lens, another interesting optical element is obtained—a lensacon [195,196]—which was suggested to use a corrective element in the optical system of the human eye [197,198]. An artificial eye lens in the form of a thin plate whose surfaces have microrelief in the form of a circular diffraction grating can be implanted through a small incision, which significantly reduces surgery risks. An axicon supplemented by a lens generates a light ring [199,200], which is useful in surgery for smoothing and ablating corneal tissue [201].
Optical communication systems have been a popular tool for transmitting information due to high reliability and high usability. Many applications for personal, commercial and military use have been described. Owing to the high prevalence and diversity of applications, an optical network must be sufficiently protected. The protection applies to all levels of the network. It is also important to have the highest degree of protection on all layers. A very common and dangerous practice is to implement security protocols at higher levels of the network without protecting the lowest levels. To create a complicated solution, the physical layer of an optical system must be secured against different kinds of hazards. The physical layer of an optical fiber network is vulnerable to a range of threats, ranging from threats on physical networks, surveillance and eavesdropping.
Non-diffractive beams are suitable for information encryption in optical communication because the diffraction-free property of the beams does not rely on the distribution of the amplitude, phase or even polarization of the spatial frequency range [62,63,64,202]. In [203], an experimental technique is described for easily generating a non-diffracting range of intensity patterns. It is expected that these patterns might be useful in information encryption or surveillance applications. Polarization state encryption has been shown to offer additional consistency in key encryption architecture, complementing amplitude and phase encryption [65,204,205,206]. Moreover, some recent studies have looked at the use of partially coherent light for optical trapping [207,208] and polarization-multiplexing for optical recording [209], making it feasible for related applications of transversely random polarization non-diffracting beams. Figure 14 presents the intensity, polarization and phase distribution for the constant phase and randomly polarized input beam.
Lately, the researchers are attracted by the “perfect” optical vortices (POV) having ring radius independent of its vortex number [210,211,212,213]. As a rule, the Fourier transformation of BBs or lens-axicon doublets [213,214,215,216] is used to create such optical beams. In reality, these methods can be considered similar, since the axicon is regularly employed to produce BBs [147,217,218]. Besides, the POV can be shaped using a curved fork grating [219,220]. The operation of curved fork gratings are significantly different from classic fork gratings [221,222,223], which are used to generate and also to detect numerous OV beams having different diffraction orders [224]. With the creation of a correlation peak in the focal plane of the lens in the corresponding diffraction order, the existence of a vortex component of a specific order is observed (Figure 15).

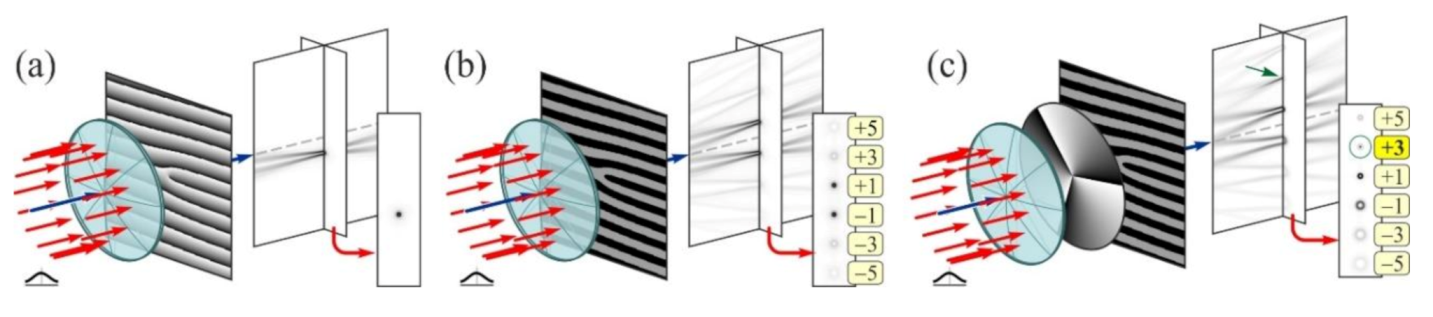

Curved fork gratings generate multiplexed BBs, so annular distributions independent of its vortex number are formed in the focal plane. Hence, the detection of an OV cannot be comprehended in the focal plane, but only at a certain distance from it (see Figure 16). This offers additional security for information transmission.
Furthermore, the generation of a 3-D configuration of ring-shaped OV beams is important for the processing of high-throughput laser material. For example, the shaping of the desired configuration of OV beams enables the processing of a bulk of transparent materials and polymers and the manufacture of 3-D meta-structures using single-shot pulse laser printing [225].

9. Concluding Remarks

The optical beams free of dispersion and diffraction are exceptional cases of optical wave transmission that have gained extensive interest in recent years. The beams that are formed with spatial or temporal invariance involves a detailed knowledge of the physical laws governing their propagation in a given medium. A Bessel beam (BB) gets its name from the narrative of such a beam via a Bessel function, and this results in an anticipated cross-sectional contour of a set of concentric rings. Mathematically the BB contains an endless number of rings, and so over an infinite area would transfer infinite power. Thus the assumption must be that BB cannot be created. However, Durnin et al. demonstrated that an approximation can be made to a BB (quasi-BB) experimentally which retains the properties of the mathematical solution over a limited distance. The diffraction-free character of perfect BBs has initiated massive interest among researchers all over the world. In this review paper, we tried our best to enclose this vast topic so that the readers can find recent developments on BBs in one place. Moreover, we have also included several theoretical and experimental demonstrations of BBs from our research group.

Author Contributions

We declare the equal contribution of all the authors. All authors have read and agreed to the published version of the manuscript.

Funding

This work was financially supported by the Ministry of Science and Higher Education within the State assignment FSRC «Crystallography and Photonics» RAS (No. 007-GZ/Ch3363/26) for numerical calculations and Russian Foundation for Basic Research (No. 18-29-20045, 20-07-00505) for theoretical results.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Durnin, J. Exact solutions for nondiffracting beams. I. The scalar theory. J. Opt. Soc. Am. A 1987, 4, 651–654. [Google Scholar] [CrossRef]
  2. Durnin, J.; Miceli, J.J., Jr.; Eberly, J.H. Diffraction-free beams. Phys. Rev. Lett. 1987, 58, 1499. [Google Scholar] [CrossRef]
  3. Lapointe, M.R. Review on non-diffracting Bessel beam experiments. Opt. Laser Technol. 1992, 24, 315–321. [Google Scholar] [CrossRef]
  4. Sokolovskii, G.; Dudelev, V.; Losev, S.; Soboleva, K.; Deryagin, A.; Fedorova, K.; Kuchinskii, V.; Sibbett, W.; Rafailov, E. Bessel beams from semiconductor light sources. Prog. Quantum Electron. 2014, 38, 157–188. [Google Scholar] [CrossRef]
  5. Khonina, S.N.; Kotlyar, V.V.; Soifer, V.A.; Shinkaryev, M.V.; Uspleniev, G.V. Trochoson. Opt. Commun. 1992, 91, 158–162. [Google Scholar] [CrossRef]
  6. Paterson, C.; Smith, R. Higher-order Bessel waves produced by axicon-type computer-generated holograms. Opt. Commun. 1996, 124, 121–130. [Google Scholar] [CrossRef]
  7. Fahrbach, A.R.F. Propagation stability of self-constructing Bessel beams enables contrast-enhanced imaging in thick media. Nat. Commun. 2011, 3, 632. [Google Scholar] [CrossRef] [PubMed]
  8. Li, Z.; Alici, K.B.; Caglayan, H.; Ozbay, E. Generation of an axially asymmetric Bessel-like beam from a metallic subwavelength aperture. Phys. Rev. Lett. 2009, 102, 143901. [Google Scholar] [CrossRef] [PubMed]
  9. Shi, C.; Dubois, M.; Wang, Y.; Zhang, X. High-speed acoustic communication by multiplexing orbital angular momentum. Proc. Natl. Acad. Sci. USA 2017, 114, 7250–7253. [Google Scholar] [CrossRef] [Green Version]
  10. Jiang, X.; Liang, B.; Cheng, J.C.; Qiu, C.W. Twisted acoustic: Metasurface-enabled multiplexing and demultiplexing. Adv. Mater. 2018, 30, 1800257. [Google Scholar] [CrossRef]
  11. Marston, P. Scattering of a Bessel beam by a sphere. J. Acous. Soc. Am. 2007, 121, 753. [Google Scholar] [CrossRef] [PubMed]
  12. Hsu, D.; Margetan, F.; Thompson, D. Bessel beam ultrasonic transducer: Fabrication method and experimental results. Appl. Phys. Lett. 1989, 55, 2066. [Google Scholar] [CrossRef]
  13. Lu, J.-Y.; Song, T.-K.; Kinnick, R.; Greenleaf, J. In vitro and in vivo real-time imaging with ultrasonic limited diffraction beams. IEEE Trans. Med. Imaging 1993, 12, 819–829. [Google Scholar] [CrossRef]
  14. Lu, J.-Y.; Xu, X.-L.; Zou, H.; Greenleaf, J. Application of Bessel beam for doppler velocity estimation. IEEE Trans. Ultrason. Ferroelectr. Freq. Control 1995, 42, 649–662. [Google Scholar] [CrossRef]
  15. Xu, N.; Liu, G.; Kong, Z.; Tan, Q. Creation of super-resolution hollow beams with long depth of focus using binary optics. Appl. Phys. Express 2019, 13, 012003. [Google Scholar] [CrossRef]
  16. Suarez, R.; Ambrosio, L.; Neves, A.; Zamboni-Rached, M.; Gesualdi, M. Experimental optical trapping with frozen waves. Opt. Lett. 2020, 45, 2514–2517. [Google Scholar] [CrossRef]
  17. Liu, Z.; Tang, X.; Zhang, Y.; Zhang, Y.; Ma, L.; Zhang, M.; Yang, X.; Zhang, J.; Yang, J.; Yuan, L. Simultaneous trapping of low-index and high microparticles using a single optical fiber Bessel beam. Opt. Lasers Eng. 2020, 131, 106119. [Google Scholar] [CrossRef]
  18. Porfirev, A. Realisation of active pulling/pushing laser beams for light-absorbing particles in the air with a pair of diffractive optical elements. Opt. Laser Technol. 2021, 133, 106584. [Google Scholar] [CrossRef]
  19. Ali, R.; Pinheiro, F.; Dutra, R.; Maia Neto, P. Tailoring optical pulling forces with composite microspheres. Phys. Rev. A 2020, 102, 023514. [Google Scholar] [CrossRef]
  20. Voitiv, A.; Andersen, J.; Siemens, M.; Lusk, M. Optical vortex braiding with Bessel beams. Opt. Lett. 2020, 45, 1321. [Google Scholar] [CrossRef]
  21. Qiu, S.; Ren, Y.; Liu, T.; Chen, L.; Wang, C.; Li, Z.; Shao, Q. Spinning object detection based on perfect optical vortex. Opt. Lasers Eng. 2020, 124, 105842. [Google Scholar] [CrossRef]
  22. Riaud, A.; Baudoin, M.; Thomas, J.-L.; Matar, O. Cyclones and attractive streaming generated by acoustical vortices. Phys. Rev. E 2014, 90, 013008. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Arita, Y.; Lee, J.; Kawaguchi, H.; Matsuo, R.; Miyamoto, K.; Dholakia, K.; Omatsu, T. Photopolymerization with high-order Bessel light beams. Opt. Lett. 2020, 45, 4080–4083. [Google Scholar] [CrossRef] [PubMed]
  24. Zannotti, A.; Denz, C.; Alonso, M.; Dennis, M. Shaping caustics into propagation-invariant light. Nat. Commun. 2020, 11, 3597. [Google Scholar] [CrossRef] [PubMed]
  25. Moshfeghi, M. Sidelobe suppression in annular array and axicon imaging systems. J. Acoust. Soc. Am. 1988, 83, 2202–2209. [Google Scholar] [CrossRef]
  26. Mikula, G.; Kolodziejczyk, A.; Makowski, M.; Prokopowicz, C.; Sypek, M. Diffractive elements for imaging with extended depth of focus. Opt. Eng. 2005, 44, 058001. [Google Scholar] [CrossRef]
  27. Arimoto, R.; Saloma, C.; Tanaka, T.; Kawata, S. Imaging properties of axicon in a scanning optical system. Appl. Opt. 1992, 31, 6653–6657. [Google Scholar] [CrossRef]
  28. Burvall, A.; Kolacz, K.; Goncharov, A.; Jaroszewicz, Z.; Dainty, C. Lens axicons in oblique illumination. Appl. Opt. 2007, 46, 312–318. [Google Scholar] [CrossRef]
  29. Sales, T.R.M.; Morris, G.M. Diffractive superresolution elements. J. Opt. Soc. Am. A 1997, 14, 1637–1646. [Google Scholar] [CrossRef]
  30. Bewersdorf, J.; Egner, A.; Hell, S.W. 4pi-confocal microscopy is coming of age. G.I.T. Imaging Microsc. 2004, 4, 24–25. [Google Scholar]
  31. Theriault, G.; Cottet, M.; Castonguay, A.; McCarthy, N.; Koninck, Y.D. Extended two-photon microscopy in live samples with Bessel beams: Steadier focus, faster volume scans, and simpler stereoscopic imaging. Front. Cell. Neurosci. 2014, 8, 139. [Google Scholar] [PubMed] [Green Version]
  32. Huisken, J.; Swoger, J.; Bene, F.D.; Wittbrodt, J.; Stelzer, E.H.K. Optical sectioning deep inside live embryos by selective plane microscopy. Science 2004, 305, 1007–1009. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  33. Tomer, R.; Khairy, K.; Keller, P.J. Shedding light on the system: Studying embryonic development with light sheet microscopy. Curr. Opin. Genet. Dev. 2011, 21, 558–565. [Google Scholar] [CrossRef]
  34. Planchon, T.A.; Gao, L.; Milkie, D.E.; Davidson, M.W.; Galbraith, J.A.; Galbraith, G.A.; Betzig, E. Rapid three-dimensional isotropic imaging of living cells using Bessel beam plane illumination. Nat. Methods 2011, 8, 417–423. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Bassi, A.; Schmid, B.; Huisken, J. Optical tomography complements light sheet microscopy for in toto imaging of zebrafish development. Development 2015, 142, 1016–1020. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  36. Aakhte, M.; Akhlagh, E.A.; Muller, J. SSPIM: A beam shaping toolbox for structured selective plane illumination microscopy. Sci. Rep. 2018, 8, 10067. [Google Scholar] [CrossRef] [Green Version]
  37. Hong, Z.; Zhang, J.; Drinkwater, B. Obervation of orbital angular momentum transfer from Bessel-shaped acoustic vortices to diphasic liquid-microparticle mixtures. Phy. Rev. Lett. 2015, 114, 214301. [Google Scholar] [CrossRef] [Green Version]
  38. Chillara, V.; Davis, E.; Pantea, C.; Sinha, D. Ultrasonic Bessel beam generation from radial modes of piezoelectric discs. Ultrasonics 2019, 96, 140–148. [Google Scholar] [CrossRef]
  39. Fewer, D.; Hewlett, S.; McCabe, E. Laser sources in direct-view-scanning, tandem-scanning, or Nipkow-disk-scanning confocal microscopy. Appl. Opt. 1998, 37, 380–385. [Google Scholar] [CrossRef]
  40. Campbell, J.; Soloway, S. Generation of a nondiffracting beam with frequency-independent beamwidth. J. Acoust. Soc. Am. 1990, 88, 2467–2477. [Google Scholar] [CrossRef]
  41. Chillara, V.; Pantea, C.; Sinha, D. Low-frequency ultrasonic Bessel-like collimated beam generation from radial modes of piezoelectric transducers. Appl. Phys. Lett. 2017, 110, 064101. [Google Scholar] [CrossRef]
  42. Sokolovskii, G.; Dudelev, V.; Losev, S.; Soboleva, K.; Deryagin, A.; Kuchinskii, V.; Sibbett, W.; Rafailov, E. Optical trapping with Bessel beams generated from semiconductor lasers. Phys. Conf. Ser. 2014, 572, 012039. [Google Scholar] [CrossRef] [Green Version]
  43. Sokolovskii, G.; Dudelev, V.; Losev, S.; Zolotovskaya, S.; Deryagin, A.; Kuchinskii, V.; Rafailov, E.; Sibbett, W. Generation of propagation-invariant light beams from semiconductor light sources. Tech. Phys. Lett. 2008, 34, 1075–1078. [Google Scholar] [CrossRef]
  44. Kozawa, Y.; Nara, Y.; Jikutani, N.; Higashi, Y.; Sato, S. Vector beam generation from vertical cavity surface emitting lasers. Opt. Lett. 2018, 43, 5659–5662. [Google Scholar] [CrossRef] [PubMed]
  45. Sokolovskii, G.; Zolotovskaya, S.; Losev, S.; Dudelev, V.; Deryagin, A.; Kuchinskii, V.; Sibbett, W.; Rafailov, E. High power Bessel beams from EP-VECSELs. In Proceedings of the SPIE LASE, 79190J, San Francisco, CA, USA, 21 February 2011. [Google Scholar]
  46. Khonina, S.; Kotlyar, V.; Skidanov, R.; Soifer, V.; Jefimovs, K.; Simonen, J.; Turunen, J. Rotation of microparticles with Bessel beams generated by diffractive elements. J. Mod. Opt. 2004, 51, 2167–2184. [Google Scholar] [CrossRef]
  47. Soifer, V.; Kotlyar, V.; Khonina, S.N. Optical microparticle manipulation: Advances and new possibilitiescreated by diffractive optics. Phys. Part. Nucl. 2004, 35, 733–766. [Google Scholar]
  48. Skidanov, R.; Khonina, S.N.; Porfirev, A.; Pavelyev, V.; Kachalov, D. Three-dimensional laser trapping on the base of binary radial diffractive optical element. J. Mod. Opt. 2015, 62, 1183–1186. [Google Scholar] [CrossRef]
  49. Khonina, S.N.; Kotlyar, V.; Soifer, V.; Lautanen, J.; Honkanen, M.; Turunen, J. Generating a couple of rotating nondiffracting beams using a binary-phase DOE. Optik 1999, 110, 137–144. [Google Scholar]
  50. Kuchmizhak, A.; Porfirev, A.; Syubaev, S.; Danilov, P.; Ionin, A.; Vitrik, O.; Kulchin, Y.; Khonina, S.N.; Kudryashov, S. Multi-beam pulsed-laser patterning of plasmonic films using broadband diffractive optical elements. Opt. Lett. 2017, 42, 2838–2841. [Google Scholar] [CrossRef]
  51. Syubaev, S.; Zhizhchenko, A.; Vitrik, O.; Porfirev, A.; Fomchenkov, S.; Khonina, S.N.; Kudryashov, S.; Kuchmizhak, A. Chirality of laser-printed plasmonic nanoneedles tunable by tailoring spiral shape pulses. Appl. Surf. Sci. 2019, 470, 526–534. [Google Scholar] [CrossRef]
  52. Khonina, S.N.; Golub, I. Tighter focus for ultrashort pulse vector light beams: Change of the relative contribution of different field components to the focal spot upon pulse shortening. J. Opt. Soc. Am. A 2018, 35, 985–991. [Google Scholar] [CrossRef] [PubMed]
  53. Khonina, S.N.; Ustinov, A.; Volotovsky, S. Comparison of focusing of short pulses in the Debye approximation. Comput. Opt. 2018, 42, 432–446. [Google Scholar] [CrossRef]
  54. Khonina, S.N.; Golub, I. Time behavior of focused vector beams. J. Opt. Soc. Am. A 2016, 33, 1948–1954. [Google Scholar] [CrossRef]
  55. Soifer, V.; Korotkova, O.; Khonina, S.N.; Shchepakina, E. Vortex beams in turbulent media. Comput. Opt. 2016, 40, 605–624. [Google Scholar] [CrossRef]
  56. Porfirev, A.; Kirilenko, M.; Khonina, S.; Skidanov, R.; Soifer, V. Study of propagation of vortex beams in aerosol optical medium. Appl. Opt. 2017, 56, E5–E15. [Google Scholar] [CrossRef] [PubMed]
  57. Vasilyev, V.; Kapustin, A.; Skidanov, R.; Podlipnov, V.; Ivliev, N.; Ganchevskaya, S. Experimental investigation of the stability of Bessel beams in the atmosphere. Comput. Opt. 2019, 43, 376–384. [Google Scholar] [CrossRef]
  58. Saadati-Sharafeh, F.; Borhanifar, A.; Porfirev, A.; Amiri, P.; Akhlaghi, E.; Khonina, S.N.; Azizian-Kalandaragh, Y. The superposition of the Bessel and mirrored Bessel beams and investigation of their self-healing characteristics. Optik 2020, 208, 164057. [Google Scholar] [CrossRef]
  59. Khonina, S.N.; Kotlyar, V.; Soifer, V.; Jefimovs, K.; Paakkonen, P.; Turunen, J. Astigmatic Bessel laser beams. J. Mod. Opt. 2004, 51, 677–686. [Google Scholar] [CrossRef]
  60. Khonina, S.N.; Paranin, V.; Ustinov, A.; Krasnov, A. Astigmatic transformation of Bessel beams in a uniaxial crystal. Opt. Appl. 2016, 46, 5–18. [Google Scholar]
  61. Khonina, S.N.; Karpeev, S.; Paranin, V. Birefringence detection of a gradient-index lens based on astigmatic transformation of a Bessel beam. Optik 2018, 164, 679–685. [Google Scholar] [CrossRef]
  62. Khonina, S.N. Simple way for effective formation various nondiffractive laser beams. Comput. Opt. 2009, 33, 70–78. [Google Scholar]
  63. Khonina, S.N.; Ustinov, A.; Chavez-Cerda, S. Generalized parabolic nondiffracting beams of two orders. J. Opt. Soc. Am. A 2018, 35, 1511–1517. [Google Scholar] [CrossRef] [PubMed]
  64. Khonina, S.N.; Ustinov, A.; Porfirev, A. Fractional two-parameter parabolic diffraction-free beams. Opt. Commun. 2019, 450, 103–111. [Google Scholar] [CrossRef]
  65. Khonina, S.N.; Golub, I. Creating order with the help of randomness: Generating transversely random, longitudinally invariant vector optical fields. Opt. Lett. 2015, 40, 4070–4073. [Google Scholar] [CrossRef] [PubMed]
  66. Khonina, S.N.; Degtyarev, S. A longitudinally polarized beam generated by a binary axicon. J. Russ. Laser Res. 2015, 36, 151–161. [Google Scholar] [CrossRef]
  67. Khonina, S.N.; Ustinov, A.; Pelevina, E. Analysis of wave aberration influence on reducing focal spot size in a high aperture focusing system. J. Opt. 2011, 13, 095702. [Google Scholar] [CrossRef]
  68. Khonina, S.N.; Degtyarev, S.A. Analysis of the formation of a longitudinally polarized optical needle by a lens and axicon under tightly focused conditions. J. Opt. Technol. 2016, 83, 197–205. [Google Scholar] [CrossRef]
  69. Khonina, S.N.; Savelyev, D. High-aperture binary axicons for the formation of the longitudinal electric field component on the optical axis for linear and circular polarizations of the illuminating beams. J. Exp. Theor. Phys. 2013, 117, 623–630. [Google Scholar] [CrossRef]
  70. Khonina, S.N.; Ustinov, A. Sharper focal spot for a radially polarized beam using ring aperture with phase jump. J. Eng. 2013, 2013, 512971. [Google Scholar] [CrossRef] [Green Version]
  71. Ashkin, A. Acceleration and trapping of particles by radiation pressure. Phys. Rev. Lett. 1970, 24, 156. [Google Scholar] [CrossRef] [Green Version]
  72. Zemanek, P.; Volpe, G.; Jonas, A.; Brzobohaty, O. Perspective on light-induced transport of particles: From optical forces to phoretic motion. Adv. Opt. Photonics 2019, 11, 577–678. [Google Scholar] [CrossRef]
  73. Amako, J.; Sawaki, D.; Fujii, E. Microstructuring transparent materials by use of nondiffracting ultrashort pulse beams generated by diffractive optics. J. Opt. Soc. Am. B 2003, 20, 2562–2568. [Google Scholar] [CrossRef]
  74. Larsen, A.; Grier, D. Like-charge attractions in metastable colloidal crystallites. Nature 1997, 385, 230–233. [Google Scholar] [CrossRef]
  75. Garces-Chavez, V.; McGloin, D.; Melville, H.; Sibbett, W.; Dholakia, K. Simultaneous micromanipulation in multiple planes using a self-resonstructing light beam. Nature 2002, 419, 145–147. [Google Scholar] [CrossRef] [PubMed]
  76. Ayala, Y.A.; Arzola, A.V.; Volke-Sepúlveda, K. Comparative study of optical levitation traps: Focused Bessel beam versus Gaussian beams. J. Opt. Soc. Am. B 2016, 33, 1060–1067. [Google Scholar] [CrossRef]
  77. Garces-Chavez, V.; McGloin, D.; Padgett, M.J.; Dultz, W.; Schmitzer, H.; Dholakia, K. Observation of the transfer of the local angular momentum density of a multi-ringed light beam to an optically trapped particle. Phys. Rev. Lett. 2003, 91, 093602. [Google Scholar] [CrossRef]
  78. Volke-Sepulveda, K.P.; Garces-Chavez, V.; Chavez-Cerda, S.; Arlt, J.; Dholakia, K. Orbital angular momentum of a high-order Bessel light beam. J. Opt. B Quantum Semiclassical Opt. 2002, 4, S82–S89. [Google Scholar] [CrossRef]
  79. Volke-Sepulveda, K.; Chavez-Cerda, S.; Garces-Chavez, V.; Dholakia, K. Three-dimensional optical forces and transfer of orbital angular momentum from multi-ringed light beams to spherical microparticles. J. Opt. Soc. Am. B 2004, 21, 1749–1757. [Google Scholar] [CrossRef]
  80. Ashkin, A.; Dziedzic, J. Optical trapping and manipulation of viruses and bacteria. Science 1987, 235, 1517–1520. [Google Scholar] [CrossRef]
  81. Neuman, K.; Block, S. Optical Trapping. Rev. Sci. Instrum. 2004, 75, 2787–2809. [Google Scholar] [CrossRef]
  82. Omori, R.; Kobayashi, T.; Suzuki, A. Observation of a single-beam gradient-force optical trap for dielectric particles in air. Opt. Lett. 1997, 22, 816–818. [Google Scholar]
  83. Wills, J.; Knox, K.; Reid, J. Optical control and characterisation of aerosol. Chem. Phys. Lett. 2009, 481, 153–165. [Google Scholar]
  84. Lin, J.; Li, Y.-Q. Optical trapping and rotation of airborne absorbing particles with a single focused laser beam. Appl. Phys. Lett. 2014, 104, 101909. [Google Scholar]
  85. Gong, Z.; Pan, Y.-L.; Wang, C. Optical configurations for photophoretic trap of single particles in air. Rev. Sci. Instrum. 2016, 87, 103104. [Google Scholar] [PubMed]
  86. Desyatnikov, A.; Shvedov, V.; Rode, A.; Krolikowski, W.; Kivshar, Y. Photophoretic manipulation of absorbing aerosol particles with vortex beams: Theory versus experiment. Opt. Express 2009, 17, 8201–8211. [Google Scholar]
  87. Tung, J.; Ma, Y.; Miyamoto, K.; Chen, Y.; Omatsu, T. Bottle beam generation from a frequency-doubled Nd:YVO4 laser. Sci. Rep. 2018, 8, 16576. [Google Scholar]
  88. Spence, J.; Subramanian, G.; Musumeci, P. Hollow cone illumination for fast TEM, and outrunning damage with electrons. J. Phys. B At. Mol. Opt. Phys. 2015, 48, 214003. [Google Scholar]
  89. Liu, F.; Zhang, Z.; Wei, Y.; Zhang, Q.; Cheng, T.; Wu, X. Photophoretic trapping of multiple particles in tapered-ring optical field. Opt. Express 2014, 22, 23716–23723. [Google Scholar]
  90. Karpinski, P.; Jones, S.; Andren, D.; Kall, M. Counter-propagating optical trapping of resonant nanoparticles using a uniaxial crystal. Laser Photonics Rev. 2018, 12, 1800139. [Google Scholar]
  91. Ashkin, A. Optical trapping and manipulation of meutral particles using lasers. Proc. Natl. Acad. Sci. USA 1997, 94, 4853–4860. [Google Scholar]
  92. Redding, B.; Hill, S.; Alexson, D.; Wang, C.; Pan, Y.-L. Photophoretic trapping of airborne particles using ultraviolet illumination. Opt. Express 2015, 23, 3630–3639. [Google Scholar]
  93. Redding, B.; Pan, Y.-L. Optical trap for both transparent and absorbing particles in air using a single shaped laser beam. Opt. Lett. 2015, 40, 2798. [Google Scholar] [CrossRef]
  94. Dear, R.; Burnham, D.; Summers, M.; McGloin, D.; Ritchie, G. Single aerosol trapping with an annular beam improved particle localization. Phys. Chem. Chem. Phys. 2012, 14, 15826–15831. [Google Scholar]
  95. Roosen, G.; Imbert, C. Optical levitation by means of two horizontal laser beams: A theoretical and experimental study. Phys. Lett. A 1976, 59, 6–8. [Google Scholar] [CrossRef]
  96. Lewittes, M.; Arnold, S. Radiometric levitation of micron sized spheres. Appl. Phys. Lett. 1982, 40, 455. [Google Scholar]
  97. Courvoisier, F.; Zhang, J.; Bhuyan, M.K.; Jacquot, M.; Dudley, J.M. Applications of femtosecond Bessel beams to laser ablation. Appl. Phys. A 2013, 112, 29–34. [Google Scholar] [CrossRef]
  98. Duocastella, M.; Arnold, C.B. Bessel and annular beams for material processing. Laser Photonics Rev. 2012, 5, 607–621. [Google Scholar]
  99. Stoian, R.; Bhuyan, M.K.; Zhang, G.; Cheng, G.; Meyer, R.; Courvoisier, F. Ultrafast Bessel beams: Advanced tools for laser materials processing. Adv. Opt. Technol. 2018, 7, 165–174. [Google Scholar]
  100. Merano, M.; Boyer, G.; Trisorio, A.; Cheriaux, G.; Mourou, G. Superresolved femtosecond laser ablation. Opt. Lett. 2007, 32, 2239–2241. [Google Scholar]
  101. Butt, M.A.; Nguyen, H.-D.; Rodenas, A.; Romero, C.; Moreno, P.; De Aldana, J.; Aguilo, M.; Sole, R.; Pujol, M.; Diaz, F. Low-repitition rate femtosecond laser writing of optical waveguides in KTP crystals: Analysis of anisotropic refractive index changes. Opt. Express 2015, 23, 15343–15355. [Google Scholar]
  102. Sugioka, K.; Cheng, Y. Ultrafast lasers-reliable tools for advanced materials processing. Light Sci. Appl. 2014, 3, e149. [Google Scholar] [CrossRef]
  103. Liu, P.; Jiang, L.; Hu, J.; Yan, X.; Xia, B.; Lu, Y. Etching rate enhancement by shaped femtosecond pulse train electron dynamics control for microchannels fabrication in fused silica glass. Opt. Lett. 2013, 38, 4613–4616. [Google Scholar] [CrossRef]
  104. Vishnubhatla, K.; Bellini, N.; Ramponi, R.; Cerullo, G.; Osellame, R. Shape control of microchannels fabricated in fused silica by femtosecond laser irradiated and chemical etching. Opt. Express 2009, 17, 8685–8695. [Google Scholar]
  105. Wang, Z.; Jiang, L.; Li, X.; Wang, A.; Yao, Z.; Zhang, K.; Lu, Y. High-throughput microchannel fabrication in fused silica by temporally shaped femtosecond laser Bessel-beam-assisted chemical etching. Opt. Lett. 2018, 43, 98–101. [Google Scholar] [CrossRef]
  106. Chu, X.; Sun, Q.; Wang, J.; Lu, P.; Xie, W.; Xu, X. Generating a Bessel-Gaussian beam for the application in optical engineering. Sci. Rep. 2016, 5, 18665. [Google Scholar] [CrossRef]
  107. Mikutis, M.; Kudrius, T.; Slekys, G.; Paipulas, D.; Juodkazis, S. High 90% efficiency Bragg gratings formed in fused silica by femtosecond Gauss-Bessel laser beams. Opt. Mater. Express 2013, 3, 1862–1871. [Google Scholar] [CrossRef]
  108. Bhuyan, M.; Courvoisier, F.; Lacourt, P.; Jacquot, M.; Furfaro, L. High aspect ratio taper-free microchannel fabrication using femtosecond Bessel beams. Opt. Express 2010, 18, 566–574. [Google Scholar] [CrossRef]
  109. Yang, L.; El-Tamer, A.; Hinze, U.; Li, J.; Hu, Y.; Huang, W.; Chu, J.; Chichkov, B. Two-photon polymerization of cylinder microstructures by femtosecond Bessel beams. Appl. Phys. Lett. 2014, 105, 041110. [Google Scholar] [CrossRef]
  110. Slevas, P.; Orlov, S.; Nacius, E.; Ulcinas, O.; Gotovski, P.; Baltrukonis, J.; Jukna, V. Laser induced modifications in transparent materials using azimuthally modulated axicon beams. In Proceedings of the SPIE 11267, Laser Applications in Microelectronic and Optoelectronic Manufacturing (LAMOM) XXV, 112670B, San Francisco, CA, USA, 2 March 2020. [Google Scholar]
  111. Baltrukonis, J.; Ulcinas, O.; Gotovski, P.; Orlov, S.; Jukna, V. Realization of higher order vector Bessel beams for transparent material processing applications. In Proceedings of the SPIE 11268, Laser-based Micro- and Nanoprocessing XIV, 112681D, San Francisco, CA, USA, 2 March 2020. [Google Scholar]
  112. Song, C.; Wang, Z.; Chen, Q.; Cai, J.; Liu, L. High aspect ratio copper through-silicon-vias for 3D integration. Microelectron. Eng. 2008, 85, 1952–1956. [Google Scholar] [CrossRef]
  113. Tan, B. Deep micro hole drilling in a silicon substrate using multi-bursts of nanosecond UV laser pulses. J. Micromech. Microeng. 2006, 16, 109–112. [Google Scholar] [CrossRef]
  114. He, F.; Xu, H.; Cheng, Y.; Ni, J.; Xiong, H.; Xu, Z.; Sugioka, K.; Midorikawa, K. Fabrication of microfluidic channels with a circular cross section using spatiotemporally focused femtosecond laser pulses. Opt. Lett. 2010, 35, 1106–1108. [Google Scholar] [CrossRef] [PubMed]
  115. Barsch, N.; Korber, K.; Ostendorf, A.; Tonshoff, K. Ablation and cutting of planar silicon devices using femtosecond laser. Appl. Phys. 2003, 77, 237–242. [Google Scholar] [CrossRef]
  116. He, F.; Yu, J.; Chu, W.; Wang, Z.; Tan, Y.; Cheng, Y.; Sugioka, K. Tailored femtosecond Bessel beams for high-throughput, taper-free through-Silicon vias (TSVs) fabrication. In Proceedings of the SPIE 9735, 973506–1, San Francisco, CA, USA, 14 March 2016. [Google Scholar]
  117. He, F.; Yu, J.; Tan, Y.; Chu, W.; Zhou, C.; Cheng, Y.; Sugioka, K. Tailoring femtosecond 1.5 mm Bessel beams for manufacturing high-aspect-ratio through-silicon vias. Sci. Rep. 2017, 7, 40785. [Google Scholar] [CrossRef] [PubMed]
  118. Li, S.; Wang, J. Adaptive free-space optical communications through turbulence using self-healing Bessel beams. Sci. Rep. 2017, 7, 43233. [Google Scholar] [CrossRef] [PubMed]
  119. Bouchal, Z. Nondiffracting optical beams: Physical properties, experiments, and applications. Czechoslov. J. Phys. 2003, 53, 537–578. [Google Scholar] [CrossRef] [Green Version]
  120. Wiersma, N. Photorefractive Self-Focusing of Airy Beams: Nonlinear Interactions and All-Optical Waveguiding. Ph.D. Thesis, Universite de Lorraine, Nancy, France, 2016. [Google Scholar]
  121. Vetter, C.; Steinkopf, R.; Bergner, K.; Ornigotti, M.; Nolte, S.; Gross, H.; Szameit, A. Realization of Free-space long-distance self-healing Bessel beams. Laser Photonics Rev. 2019, 13, 1900103. [Google Scholar] [CrossRef]
  122. Kaushal, H.; Kaddoum, G. Underwater optical wireless communication. IEEE Access 2016, 4, 1518–1547. [Google Scholar] [CrossRef]
  123. Saeed, N.; Celik, A.; Al-Naffouri, T.Y.; Alouini, M.-S. Underwater optical wireless communications, networking, and localization: A survey. Ad Hoc Netw. 2019, 94, 101935. [Google Scholar] [CrossRef] [Green Version]
  124. Spagnolo, G.S.; Cozzella, L.; Leccese, F. Underwater optical wireless communications: Overview. Sensors 2020, 20, 2261. [Google Scholar] [CrossRef]
  125. Xu, J.; Zhao, D. Propagation of a stochastic electromagnetic vortex beam in the oceanic turbulence. Opt. Laser Technol. 2014, 57, 189–193. [Google Scholar] [CrossRef]
  126. Huang, Y.; Zhang, B.; Gao, Z.; Zhao, G.; Duan, Z. Evolution behavior of gaussian schell-model vortex beams propagation through oceanic turbulence. Opt. Express 2014, 22, 17723–17734. [Google Scholar] [CrossRef] [PubMed]
  127. Xiang, Y.; Zheng, R.; Yue, P.; Ding, W.; Shen, C. Propagation properties of OAM modes carried by partially coherent LG beams in turbulent ocean based on an oceanic power-law spectrum. Opt. Commun. 2019, 443, 238–244. [Google Scholar]
  128. Cheng, M.; Guo, L.; Li, J.; Huang, Q.; Cheng, Q.; Zhang, D. Propagation of an optical vortex carried by a partially coherent Laguerre-Gaussian beam in turbulent ocean. Appl. Opt. 2016, 55, 4642–4648. [Google Scholar] [CrossRef] [PubMed]
  129. Cheng, M.; Guo, L.; Li, J.; Zhang, Y. Channel capacity of the oam-based free-space optical communication links with bessel-gauss beams in turbulent ocean. IEEE Photonics J. 2017, 8, 1–11. [Google Scholar] [CrossRef]
  130. Ou, J.; Jiang, Y.; Zhang, J.; Tang, H.; He, Y.; Wang, S.; Liao, J. Spreading of spiral spectrum of bessel-gaussian beam in non-kolmogorov turbulence. Opt. Commun. 2014, 318, 95–99. [Google Scholar] [CrossRef]
  131. Zhao, S.; Zhang, W.; Wang, L.; Li, W.; Gong, L.; Cheng, W.; Chen, H.; Gruska, J. Propagation and self-healing properties of Bessel-Gaussian beam carrying orbital angular momentum in an underwater environment. Sci. Rep. 2019, 9, 2025. [Google Scholar] [CrossRef] [Green Version]
  132. Willner, A.; Zhao, Z.; Ren, Y.; Li, L.; Xie, G.; Song, H.; Liu, C.; Zhang, R.; Bao, C.; Pang, K. Underwater optical communications using orbital angular momentum-based spatial division multiplexing. Opt. Commun. 2018, 408, 21–25. [Google Scholar] [CrossRef]
  133. Fu, S.; Gao, C. Influence of atmospheric turbulence effetcs on the orbital angular momentum spectra of vortex beams. Photonics Res. 2016, 4, B1. [Google Scholar] [CrossRef] [Green Version]
  134. Zhou, G.; Tang, H.; Zhu, K.; Zheng, X.; Li, X. Propagation of bessel-gaussian beams with optical vortices in turbulent atmosphere. Opt. Express 2008, 16, 21315–21320. [Google Scholar] [CrossRef]
  135. Wang, J.; Du, J. High-dimensional structured light coding/decoding for free-space optical communications free of obstructions. Opt. Lett. 2015, 40, 4827–4830. [Google Scholar]
  136. Fujimoto, J.; Pitris, C.; Boppart, S.; Brezinski, M. Optical coherence tomography: An emerging technology for biomedical imaging and optical biopsy. Neoplasia 2000, 2, 9–25. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  137. Xie, T.; Guo, S.; Chen, Z.; Mukai, D.; Brenner, M. GRIN lens rod based probe for endoscopic spectral domain optical coherence tomography with fast dynamic focus tracking. Opt. Express 2006, 14, 3238–3246. [Google Scholar] [CrossRef] [PubMed]
  138. Murali, S.; Lee, K.; Rolland, J. Invariant resolution dynamic focus OCM based on liquid crystal lens. Opt. Express 2007, 15, 15854–15862. [Google Scholar] [CrossRef] [PubMed]
  139. Asami, T.; Terasaki, H.; Ito, Y.; Sugita, T.; Kaneko, H.; Nishiyama, J.; Namiki, H.; Kobayashi, M.; Nishizawa, N. Development of a Fiber-Optic Optical Coherence Tomography Probe for Intraocular Use. Investig. Ophthalmol. Vis. Sci. 2016, 57, OCT568–OCT574. [Google Scholar] [CrossRef] [Green Version]
  140. McLeod, J. The Axicon: A new type of optical element. J. Opt. Soc. Am. 1954, 44, 592–597. [Google Scholar] [CrossRef]
  141. Lorenser, D.; Singe, C.; Curatolo, A.; Sampson, D. Energy-efficient low-Fresnel-number Bessel beams and their application in optical coherence tomography. Opt. Lett. 2014, 39, 548–551. [Google Scholar] [CrossRef]
  142. Yi, L.; Sun, L.; Ding, W. Multifocal spectral-domain optical coherence tomography based on Bessel beam for extended imaging depth. J. Biomed. Opt. 2017, 22, 106016. [Google Scholar]
  143. Yin, B.; Hyun, C.; Gardecki, J.; Tearney, G. Extended depth of focus for coherence-based cellular imaging. Optica 2017, 4, 959–965. [Google Scholar] [CrossRef] [Green Version]
  144. Ding, Z.; Ren, H.; Zhao, Y.; Nelson, J.; Chen, Z. High-resolution optical coherence tomography over a large depth range with an axicon lens. Opt. Lett. 2002, 27, 243–245. [Google Scholar] [CrossRef]
  145. Leitgeb, R.; Villiger, M.; Bachmann, A.; Steinmann, L.; Lasser, T. Extended focus depth for Fourier domain optical coherence microscopy. Opt. Lett. 2006, 31, 2450–2452. [Google Scholar] [CrossRef] [Green Version]
  146. Lee, K.-S.; Rolland, J. Bessel beam spectral-domain high-resolution optical coherence tomography with micro-optic axicon providing extended focusing range. Opt. Lett. 2008, 33, 1696–1698. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  147. Arlt, J.; Dholakia, K. Generation of high-order Bessel beams by use of an axicon. Opt. Commun. 2000, 177, 297–301. [Google Scholar] [CrossRef]
  148. McGloin, D.; Dholakia, K. Bessel beams: Diffraction in a new light. Contemp. Phys. 2005, 46, 15–28. [Google Scholar] [CrossRef]
  149. Tan, K.; Mazilu, M.; Chow, T.H.; Lee, W.M.; Taguichi, K.; Ng, B.K.; Sibbett, W.; Herrington, C.S.; Brown, C.T.A.; Dholakia, K. In-fiber common-path optical coherence tomography using a conical-tip fiber. Opt. Express 2009, 17, 2375–2384. [Google Scholar] [CrossRef]
  150. Schwarz, S.; Roth, G.-L.; Rung, S.; Esen, C.; Hellmann, R. Fabrication and evaluation of negative axicons for ultrashort pulsed laser applications. Opt. Express 2020, 28, 26207–26217. [Google Scholar] [CrossRef]
  151. Ruan, H.; Wang, L.; Wu, S.; Liu, L.; Zhou, B. Free space vortex light by diffraction of a Bessel Beam from Optical Fiber. IEEE Photonics J. 2017, 9, 1–10. [Google Scholar] [CrossRef]
  152. Vairagi, K.; Minz, R.A.; Kaur, S.; Kumbhakar, D.; Paul, S.; Tiwari, U.; Sinha, R.; Fick, J.; Mondal, S. Deep seated negative axicon in selective optical fiber tip and collimated Bessel beam. IEEE Photonics Technol. Lett. 2017, 29, 786–789. [Google Scholar] [CrossRef]
  153. Stuker, F.; Ripoll, J.; Rudin, M. Fluorescence molecular tomography: Principles and potential for pharmaceutical research. Pharmaceutics 2011, 3, 229–274. [Google Scholar] [CrossRef]
  154. Rouke, J.; Moore, D. Birefringence measurements in gradient-index rod lenses. Appl. Opt. 1999, 38, 6574–6580. [Google Scholar] [CrossRef]
  155. Camacho, J.; Tentori, D. Polarization optics of GRIN lenses. J. Opt. A 2001, 3, 89–95. [Google Scholar] [CrossRef]
  156. Wei, S.; Gilbert, J. Birefringent properties of diametrically loaded gradient-index lenses. Appl. Opt. 1996, 35, 4772–4781. [Google Scholar]
  157. Rouke, J.; Moore, D. Birefringence in gradient-index rod lenses: A direct measurement method and interferometric polarization effects. Appl. Opt. 2001, 40, 4971–4980. [Google Scholar] [CrossRef] [PubMed]
  158. Dudutis, J.; Stonys, R.; Raciukaitis, G.; Gecys, P. Glass dicing with elliptical Bessel beam. Opt. Laser Technol. 2019, 111, 331–337. [Google Scholar] [CrossRef]
  159. Quabis, S.; Dorn, R.; Eberler, M.; Glockl, O.; Leuchs, G. Focusing light to a tighter spot. Opt. Commun. 2000, 179, 1–7. [Google Scholar] [CrossRef]
  160. Dorn, R.; Quabis, S.; Leuchs, G. Sharper focus for a radially polarized light beam. Phys. Rev. Lett. 2003, 91, 2339011–2339014. [Google Scholar] [CrossRef] [PubMed]
  161. Sheppard, C.; Choudhury, A. Annular pupils, radial polarization, and superresolution. Appl. Opt. 2004, 43, 4322–4327. [Google Scholar] [CrossRef]
  162. Pereira, S.; Nes, A.V.D. Superresolution by means of polarisation, phase and amplitude pupil masks. Opt. Commun. 2004, 234, 119–124. [Google Scholar] [CrossRef]
  163. Kozawa, Y.; Sato, S. Sharper focal spot formed by higher order radially polarized laser beams. J. Opt. Soc. Am. A 2007, 24, 1793–1798. [Google Scholar] [CrossRef]
  164. Khonina, S.N. Simple phase optical elements for narrowing of a focal spot in high-numerical-aperture conditions. Opt. Eng. 2013, 52, 091711. [Google Scholar] [CrossRef]
  165. Lerman, G.; Levy, V. Effect of radial polarization and apodization on spot size under tight focusing conditions. Opt. Express 2008, 16, 4567–4581. [Google Scholar] [CrossRef]
  166. Zhan, Q. Cylindrical vector beams: From mathematical concepts to applications. Adv. Opt. Photon. 2009, 1, 1–57. [Google Scholar] [CrossRef]
  167. Chen, Z.; Hua, L.; Pu, J. Tight focusing of light beams: Effect of polarization, phase and coherence. Prog. Opt. 2012, 57, 219–260. [Google Scholar]
  168. Khonina, S.N.; Alferov, S.; Karpeev, S. Strengthening the longitudinal component of the sharply focused electric field by means of higher-order laser beams. Opt. Lett. 2013, 38, 3223–3226. [Google Scholar] [CrossRef] [PubMed]
  169. Novotny, L.; Beversluis, M.; Youngworth, K.; Brown, T. Longitudinal field modes probed by single molecules. Phys. Rev. Lett. 2001, 86, 5251–5254. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  170. Yew, E.; Sheppard, C. Second harmonic generation polarization microscopy with tightly focused linearly and radially polarized beams. Opt. Commun. 2007, 275, 453–457. [Google Scholar] [CrossRef]
  171. Hayazawa, N.; Saito, Y.; Kawata, S. Detection and characterization of longitudinal field for tip-enhanced Raman spectroscopy. Appl. Phys. Lett. 2004, 85, 6239–6241. [Google Scholar] [CrossRef]
  172. Bochkarev, S.; Popov, K.; Bychenkov, V. Vacuum electron acceleration by a tightly focused radially polarized, relativistically strong laser pulse. Plasma Phys. Rep. 2011, 37, 603–614. [Google Scholar] [CrossRef]
  173. Sun, C.; Liu, C. Ultrasmall focusing spot with a long depth of focus based on polarization and phase modulation. Opt. Lett. 2003, 28, 99–101. [Google Scholar] [CrossRef]
  174. Wang, H.; Shi, L.; Lukyanchuk, B.; Sheppard, C.; Chong, C. Creation of a needle of longitudinally polarized light in vacuum using binary optics. Nat. Photonics 2008, 2, 501–505. [Google Scholar] [CrossRef]
  175. Rajesh, K.; Jaroszewicz, Z.; Anbarasan, P. Improvement of lens axicon’s performance for longitudinally polarized beam generation by adding a dedicated phase transmittance. Opt. Express 2010, 18, 26799–26805. [Google Scholar] [CrossRef]
  176. Huang, K.; Shi, P.; Kang, X.; Zhang, X.; Li, Y. Design of DOE for generating a needle of a strong longitudinally polarized light. Opt. Lett. 2010, 35, 965–967. [Google Scholar] [CrossRef] [PubMed]
  177. Khonina, S.N.; Karpeev, S.; Alferov, S.; Savelyev, D.; Laukkanen, J.; Turunen, J. Experimental demonstration of the generation of the longitudinal E-field components on the optical axis with high-numerical-aperture binary axicons illuminated by linearly and circularly polarized beams. J. Opt. 2013, 15, 085704. [Google Scholar] [CrossRef]
  178. Chen, W.; Zhan, Q. Three-dimensional focus shaping with cylindrical vector beams. Opt. Commun. 2006, 265, 411–417. [Google Scholar] [CrossRef]
  179. Bokor, N.; Davidson, N. A three dimensional dark focal spot uniformly surrounded by light. Opt. Commun. 2007, 279, 229–234. [Google Scholar] [CrossRef]
  180. Wang, X.; Ding, J.; Qin, J.; Chen, J.; Fan, Y.; Wang, H. Configurable three-dimensional optical cage generated from cylindrical beams. Opt. Commun. 2009, 282, 3421–3425. [Google Scholar] [CrossRef]
  181. Khonina, S.N.; Golub, I. Ultrafast rotating dipole or propeller-shaped patterns: Subwavelength shaping of a beam of light on a femtosecond time scale. Opt. Lett. 2016, 41, 1605–1607. [Google Scholar] [CrossRef]
  182. Khonina, S.N.; Golub, I. Generation of an optical ball bearing facilitated by coupling between handedness of polarization of light and helicity of its phase. J. Opt. Soc. Am. B 2019, 36, 2087–2091. [Google Scholar] [CrossRef]
  183. Wang, J.; Chen, W.; Zhan, Q. Creation of uniform three-dimensional optical chain through tight focusing of space variant polarized beams. J. Opt. 2012, 14, 055004. [Google Scholar] [CrossRef]
  184. Khonina, S.N.; Ustinov, A.V. Interference analysis of radially polarized laser beams generated by ring optical elements with vortical phases under at sharp focusing. Opt. Mem. Neutral Netw. 2015, 24, 130–144. [Google Scholar] [CrossRef]
  185. Khonina, S.N.; Golub, I. Engineering the smallest 3D symmetrical bright and dark focal spots. J. Opt. Soc. Am. A 2013, 30, 2029–2033. [Google Scholar] [CrossRef]
  186. Khonina, S.N.; Ustinov, A.V.; Volotovsky, S.G. Shaping of spherical light intensity based on the interference of tightly focused beams with different polarizations. Opt. Laser Technol. 2014, 60, 99–106. [Google Scholar] [CrossRef]
  187. Fujiwara, J. Optical Properties of Conic Surfaces. I. Reflecting Cone. J. Opt. Soc. Am. 1962, 52, 287–292. [Google Scholar] [CrossRef]
  188. Soroko, L.M. Axicons and Meso-Optical Imaging Devices. Prog. Opt. 1989, 27, 109–160. [Google Scholar]
  189. Jaroszewicz, Z.; Sochacki, J.; Kolodziejczyk, A.; Staronski, L.R. Apodized Annular-Aperture Logarithmic Axicon: Smoothness and Uniformity of Intensity Distribution. Opt. Lett. 1993, 18, 1893–1895. [Google Scholar] [CrossRef]
  190. Golub, I.; Chebbi, B.; Shaw, D.; Nowacki, D. Characterization of a Refractive Logarithmic Axicon. Opt. Lett. 2010, 35, 2828–2830. [Google Scholar] [CrossRef]
  191. Sochacki, J.; Kolodziejczyk, A.; Jaroszewicz, Z.; Bara, S. Nonparaxial Design of Generalized Axicon. Appl. Opt. 1992, 31, 5326–5330. [Google Scholar] [CrossRef]
  192. Kotylar, V.V.; Kovalev, A.A.; Skidanov, R.V.; Moiseev, O.Y.; Soifer, V.A. Diffraction of a finite radius plane wave and a Guassian beam by a helical axicon and a spiral phase plate. J. Opt. Soc. Am. A. 2007, 24, 1955–1964. [Google Scholar] [CrossRef]
  193. Kazanskiy, N.L. Modeling diffractive optics elements and devices. In Proceedings of the SPIE 10774, 107740O-1, Optical Technologies in Telecommunications, Kazan, Russia, 6 June 2018. [Google Scholar]
  194. Dyson, J. Circular and spiral diffraction gratings. Proc. R. Soc. A 1958, 248, 93–106. [Google Scholar]
  195. Koronkevich, V.P.; Mikhaltsova, I.A.; Churin, E.G.; Yurlov, Y.I. Lensacon. Appl. Opt. 1993, 34, 5761–5772. [Google Scholar] [CrossRef]
  196. Khonina, S.N.; Kazanskiy, N.L.; Ustinov, A.V.; Volotovskiy, S.G. The lensacon: Nonparaxial effects. J. Opt. Technol. 2011, 78, 724–729. [Google Scholar] [CrossRef]
  197. Lenkova, G.A.; Korolkov, V.P.; Koronkevich, V.P.; Nasyrov, R.K.; Gutman, A.S.; Iskakov, I.A.; Treushnikov, V.M. Diffractive-refractive intraocular lenses. Optoelectron. Instrum. Data Process. 2008, 44, 342–352. [Google Scholar] [CrossRef]
  198. Lenkova, G.A. Spatial-energy characteristics of the focal areas of bifocal diffractive-refractive intraocular lenses. Optoelectron. Instrum. Data Process. 2017, 53, 68–76. [Google Scholar] [CrossRef]
  199. Belanger, P.; Rioux, M. Ring pattern of a lens-axicon doublet illuminated by a Guassian beam. Appl. Opt. 1978, 17, 1080–1088. [Google Scholar] [CrossRef] [PubMed]
  200. de Angeles, M.; Cacciapuoti, L.; Pierattini, G.; Tino, G.M. Axially symmetric hollow beams using refractive conical lenses. Opt. Lasers Eng. 2003, 39, 283–291. [Google Scholar] [CrossRef] [Green Version]
  201. Ren, Q.; Birngruber, R. Axicon: A new laser beam delivery system for corneal surgery. IEEE J. Quantum Electron. 1990, 26, 2305–2308. [Google Scholar] [CrossRef]
  202. Anguiano-Morales, M.; Martinez, A.; Iturbe-Castillo, M.; Chavez-Cerda, S. Different field distributions obtained with an axicon and an amplitude mask. Opt. Commun. 2008, 281, 401–407. [Google Scholar] [CrossRef]
  203. Cottrell, D.; Craven, J.; Davis, J. Nondiffracting random intensity patterns. Opt. Lett. 2007, 32, 298–300. [Google Scholar] [CrossRef]
  204. Maluenda, D.; Carnicer, A.; Martinez-Herrero, R.; Juvells, I.; Javidi, B. Optical encryption using photon-counting polarimetric imaging. Opt. Express 2015, 23, 655–666. [Google Scholar] [CrossRef] [Green Version]
  205. Carnicer, A.; Juvells, I.; Javidi, B.; Martinez-Herrero, R. Optical encryption in the longitudinal domain of focused fields. Opt. Express 2016, 24, 6793. [Google Scholar] [CrossRef]
  206. Biener, G.; Niv, A.; Kleiner, V.; Hasman, E. Geometrical phase image encryption obtained with space-variant subwavelength gratings. Opt. Lett. 2005, 30, 1096–1098. [Google Scholar] [CrossRef]
  207. Martinez-Herrero, R.; Juvells, I.; Carnicer, A. Design of highly focused fields that remain unpolarized on axis. Opt. Lett. 2014, 39, 6025–6028. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  208. Liang, C.; Zhao, C.; Zhao, C.; Wang, K.; Cai, Y. Degree of polarization of a tightly focused, partiallycoherent anomalous hollow beam. J. Opt. Soc. Am. A 2014, 31, 2753–2758. [Google Scholar] [CrossRef] [PubMed]
  209. Ren, H.; Li, X.; Gu, M. Polarization-multiplexed multifocal arrays by a π-phase-step-modulated azimuthally polarized beam. Opt. Lett. 2014, 39, 6771–6774. [Google Scholar] [CrossRef] [PubMed]
  210. Ostrovsky, A.; Rickenstorff-Parrao, C.; Arrizon, V. Generation of the “perfect” optical vortex using a liquid-crystal spatial light modulator. Opt. Lett. 2013, 38, 534–536. [Google Scholar] [CrossRef] [PubMed]
  211. Chen, M.; Mazilu, M.; Arita, Y.; Wright, E.; Dholakia, K. Dynamics of micro particles trapped in a perfect vortex beam. Opt. Lett. 2013, 38, 4919–4922. [Google Scholar] [CrossRef]
  212. Rickenstorff, C.; Garcia-Garcia, J.; Sampayo-Martinez, A.; Ostrovsky, A.; Arrizon, A. Generation of the “Perfect” vortex for optical trapping. In Frontiers in Optics; OSA: Orlando, FL, USA, 2013. [Google Scholar]
  213. Vaity, P.; Rusch, L. Perfect vortex beam: Fourier transformation of a Bessel beam. Opt. Lett. 2015, 40, 597–600. [Google Scholar] [CrossRef]
  214. Golub, M.A.; Kazanskiy, N.L.; Sisakyan, I.N.; Soifer, V.A.; Kharitonov, S.I. Diffraction calculation for an optical element which focuses into a ring. Optoelectron. Instrum. Data Process 1987, 23, 7–14. [Google Scholar]
  215. Garcia-Garcia, J.; Rickenstorff-Parrao, C.; Ramos-Garcia, R.; Arrizon, V.; Ostrovsky, A. Simple technique for generating the perfect optical vortex. Opt. Lett. 2014, 39, 5305–5308. [Google Scholar] [CrossRef]
  216. Kotlyar, V.A.; Kovalev, A.; Porfirev, A. Optimal phase element for generating a perfect optical vortex. J. Opt. Soc. Am. A 2016, 33, 2376–2384. [Google Scholar] [CrossRef]
  217. Vasara, A.; Turunen, J.; Friberg, A. Realization of general nondiffracting beams with computer generated holograms. J. Opt. Soc. Am. A 1989, 6, 1748–1754. [Google Scholar] [CrossRef]
  218. Khonina, S.N.; Kotlyar, V.V. Bessel modes formers. In Proceedings of the SPIE 2363 International Workshop on Digital Image Processing and Computer Graphics (DIP-94), Samara, Russia, 19 January 1995. [Google Scholar]
  219. Karahroudi, K.M.; Parmoon, B.; Qasemi, M.; Mobashery, A.; Saghafifar, H. Generation of perfect optical vortices using a Bessel-Guassian beam diffracted beam diffracted by curved fork grating. Appl. Opt. 2017, 56, 5817–5823. [Google Scholar] [CrossRef] [PubMed]
  220. Khonina, S.N.; Ustinov, A.V.; Kirilenko, M.S.; Kuchmizhak, A.A.; Porfirev, A.P. Application of binary curved fork grating for the generation and detection of optical vortices outside the focal plane. J. Opt. Soc. Am. B 2020, 37, 1714–1721. [Google Scholar] [CrossRef]
  221. Bazhenov, V.Y.; Vasnetsov, M.; Soskin, M. Laser beams with screw dislocations in their wavefronts. J. Exp. Theor. Phys. Lett. 1990, 52, 429–431. [Google Scholar]
  222. Heckenberg, N.; Mcduff, L.; Smith, C.P.; Rubinsztein-Dunlop, H.; Wegener, M.J. Laser beams with phase singularities. Opt. Quant. Electron. 1992, 24, S951–S962. [Google Scholar] [CrossRef]
  223. Janicijevic, L.; Topuzoski, S. Fresnel and Fraunhofer diffraction of a Guassian laser beam by fork-shaped gratings. J. Opt. Soc. Am. A 2008, 25, 2659–2669. [Google Scholar] [CrossRef]
  224. Khonina, S.N.; Kotlyar, V.V.; Soifer, V.A.; Pääkkönen, P.; Simonen, J.; Turunen, J. An analysis of the angular momentum of a light field in terms of angular harmonics. J. Mod. Opt. 2001, 48, 1543–1557. [Google Scholar] [CrossRef]
  225. Ni, J.; Wang, C.; Zhang, C.; Hu, Y.; Yang, L.; Lao, Z.; Xu, B.; Li, J.; Wu, D.; Chu, J. Three-dimensional chiral microstructures fabricated by structured optical vortices in isotropic material. Light Sci. Appl. 2017, 6, e17011. [Google Scholar] [CrossRef] [Green Version]
Figure 1. (a) Transverse profile of an ideal BB intensity (square of the zero-order Bessel function), (b) Transverse profile of the intensity of the first-order BB.
Figure 1. (a) Transverse profile of an ideal BB intensity (square of the zero-order Bessel function), (b) Transverse profile of the intensity of the first-order BB.
Micromachines 11 00997 g001
Figure 2. An illustration associating Gaussian and BB; (a) The incoming Gaussian laser beam is focused by a lens to form an ellipsoidal focus by transforming plane waves into a curved wavefront; (b) A BB is generated by an axicon which consists of a conical wavefront and a central lobe creates a focus which resembles a line-shape.
Figure 2. An illustration associating Gaussian and BB; (a) The incoming Gaussian laser beam is focused by a lens to form an ellipsoidal focus by transforming plane waves into a curved wavefront; (b) A BB is generated by an axicon which consists of a conical wavefront and a central lobe creates a focus which resembles a line-shape.
Micromachines 11 00997 g002
Figure 3. Articles related to “BBs” indexed in the Scopus database and Web of Science published during the period 1987–2020.
Figure 3. Articles related to “BBs” indexed in the Scopus database and Web of Science published during the period 1987–2020.
Micromachines 11 00997 g003
Figure 4. (a) Illustration of the optical trapping setup. The diameter of an expanded laser beam is managed with a tunable iris before travelling through the two axicons to form a collimated hollow beam. The aspheric lens creates a hollow conical focus within a glass chamber where airborne particles are trapped, adapted with permission from [93]. (b) Calculated intensity profile near the focal spot, adapted with permission from [93]. (c) Image of the conical focal region produced inside the chamber, adapted with permission from [93]. (d) Image of a spore captured in the air close to the focal point, adapted with permission from [93].
Figure 4. (a) Illustration of the optical trapping setup. The diameter of an expanded laser beam is managed with a tunable iris before travelling through the two axicons to form a collimated hollow beam. The aspheric lens creates a hollow conical focus within a glass chamber where airborne particles are trapped, adapted with permission from [93]. (b) Calculated intensity profile near the focal spot, adapted with permission from [93]. (c) Image of the conical focal region produced inside the chamber, adapted with permission from [93]. (d) Image of a spore captured in the air close to the focal point, adapted with permission from [93].
Micromachines 11 00997 g004
Figure 5. Diagram of the beams generation setup and intensity profiles for, (a) GB, (b) CBB and (c) TBB. Experimentally measured two-dimensional profiles in the x-y plane in cooperation with the on-axis intensity distribution (Orange curve) of, (d) CBB and (e) TBB. Measured transverse intensity distributions at z = zmax along the CCD captured images of (f) CBB and (g) TBB. SEM images of the cross-sectional view of TSVs manufactured silicon substrate using (h) GB, (i) CBB and (j) TBB. Adapted with permission from [117].
Figure 5. Diagram of the beams generation setup and intensity profiles for, (a) GB, (b) CBB and (c) TBB. Experimentally measured two-dimensional profiles in the x-y plane in cooperation with the on-axis intensity distribution (Orange curve) of, (d) CBB and (e) TBB. Measured transverse intensity distributions at z = zmax along the CCD captured images of (f) CBB and (g) TBB. SEM images of the cross-sectional view of TSVs manufactured silicon substrate using (h) GB, (i) CBB and (j) TBB. Adapted with permission from [117].
Micromachines 11 00997 g005
Figure 6. Self-healing features of an axicon-produced BB: an obstacle located in the center of the Bessel region blocks the beam for the smallest distance Zmin, the Bessel field reconstructs after travelling for some distance. The beam profiles before and after the obstacle are also shown. Inspired by [120].
Figure 6. Self-healing features of an axicon-produced BB: an obstacle located in the center of the Bessel region blocks the beam for the smallest distance Zmin, the Bessel field reconstructs after travelling for some distance. The beam profiles before and after the obstacle are also shown. Inspired by [120].
Micromachines 11 00997 g006
Figure 7. (a) The investigational arrangement for examining BG beam properties in the underwater situation. (b) The influence of underwater optical turbulence on the transmission of BG beam versus free space atmosphere. Adapted with permission from [131].
Figure 7. (a) The investigational arrangement for examining BG beam properties in the underwater situation. (b) The influence of underwater optical turbulence on the transmission of BG beam versus free space atmosphere. Adapted with permission from [131].
Micromachines 11 00997 g007
Figure 8. (a) Illustration of a light field travelling from the fiber to the sample and back. The inset displays the SEM image of the fiber probe where the conical microlens can be seen. Adapted with permission from [149], (b) 1 mm × 1 mm SD-OCT images of an African from tadpole located at various d values acquired using a 600 μm effective axicon micro-optic lens (top row) and a 0.037 NA conventional lens (bottom row). Adapted with permission from [146].
Figure 8. (a) Illustration of a light field travelling from the fiber to the sample and back. The inset displays the SEM image of the fiber probe where the conical microlens can be seen. Adapted with permission from [149], (b) 1 mm × 1 mm SD-OCT images of an African from tadpole located at various d values acquired using a 600 μm effective axicon micro-optic lens (top row) and a 0.037 NA conventional lens (bottom row). Adapted with permission from [146].
Micromachines 11 00997 g008
Figure 9. Birefringence detection established on the astigmatic transformation of a BB. Adapted with permission from [61].
Figure 9. Birefringence detection established on the astigmatic transformation of a BB. Adapted with permission from [61].
Micromachines 11 00997 g009
Figure 10. (a) BB generation setup, (b) Axicon generated BB pattern in the XY plane for 0 degrees, (c) Axicon-generated BB patterns in the XY plane for 10 degrees [158]. Optical setup for the generation of BBs at different diffraction orders employing a multi-order DOE under (d) perpendicular and (f) oblique illumination. This results in the intensity distribution for a perpendicular diffraction order under (e) perpendicular and (g) oblique illumination.
Figure 10. (a) BB generation setup, (b) Axicon generated BB pattern in the XY plane for 0 degrees, (c) Axicon-generated BB patterns in the XY plane for 10 degrees [158]. Optical setup for the generation of BBs at different diffraction orders employing a multi-order DOE under (d) perpendicular and (f) oblique illumination. This results in the intensity distribution for a perpendicular diffraction order under (e) perpendicular and (g) oblique illumination.
Micromachines 11 00997 g010
Figure 11. Drawing of the focal spot for the full-aperture radiance by plane wave—classical diffraction limit is 0.51λ and with narrow ring aperture—BB’s diffraction limit is 0.36λ (superresolution). Adapted with permission from [70].
Figure 11. Drawing of the focal spot for the full-aperture radiance by plane wave—classical diffraction limit is 0.51λ and with narrow ring aperture—BB’s diffraction limit is 0.36λ (superresolution). Adapted with permission from [70].
Micromachines 11 00997 g011
Figure 12. Generation a longitudinally polarized needle when a spiral diffractive axicon is added to the objective.
Figure 12. Generation a longitudinally polarized needle when a spiral diffractive axicon is added to the objective.
Micromachines 11 00997 g012
Figure 13. Asymmetric binary axicon (a) for the formation of a longitudinally polarized field, (b) the red line is for transverse components intensity, the blue line is for the longitudinal component intensity, and the black line is for the total (sum) intensity with linear polarization of the incident radiation, (c) Illustration of Scheme.
Figure 13. Asymmetric binary axicon (a) for the formation of a longitudinally polarized field, (b) the red line is for transverse components intensity, the blue line is for the longitudinal component intensity, and the black line is for the total (sum) intensity with linear polarization of the incident radiation, (c) Illustration of Scheme.
Micromachines 11 00997 g013

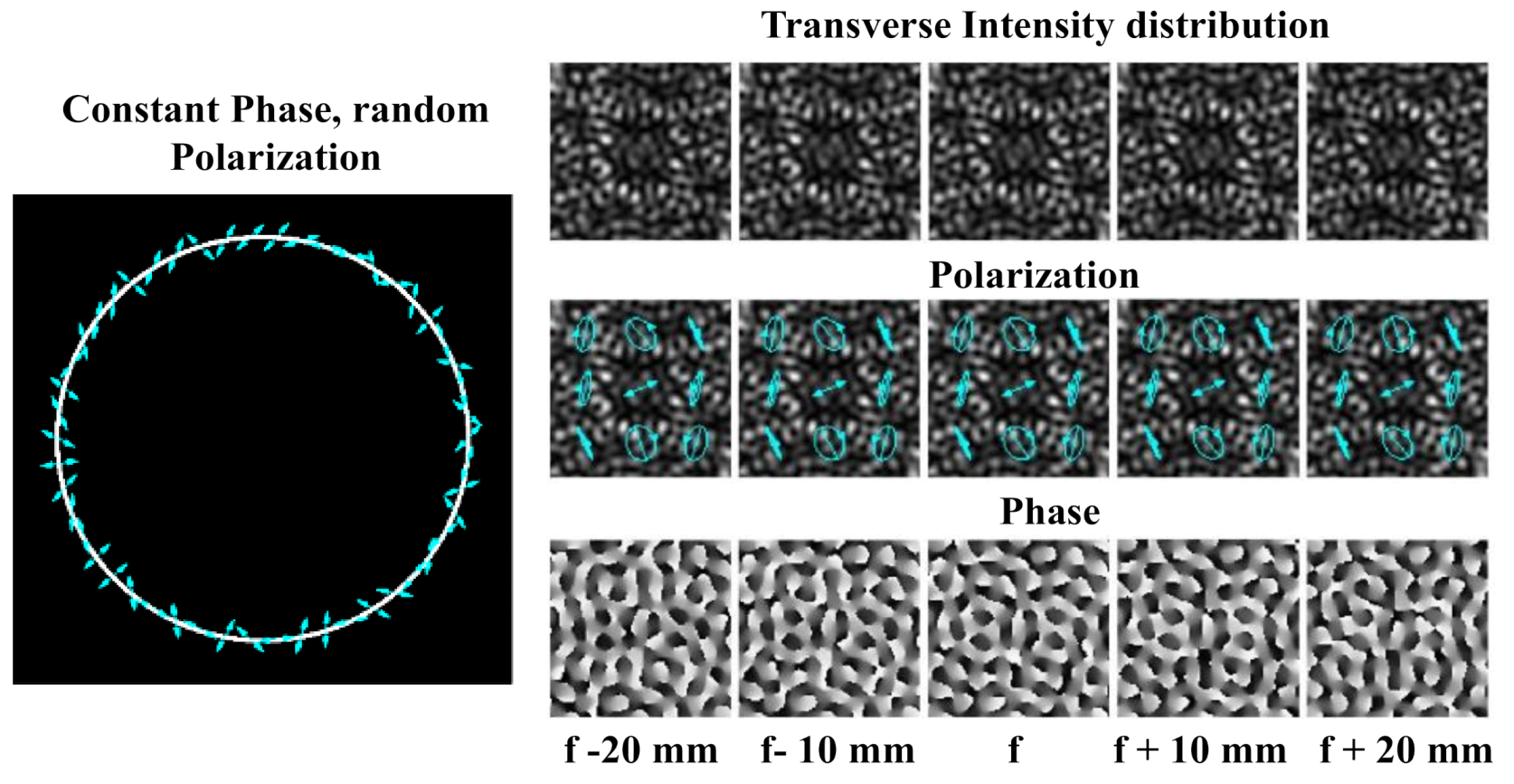

Figure 14. Transverse distributions of intensity, polarization and phase at different positions behind the lens for random polarization state. Adapted with permission from [65].
Figure 14. Transverse distributions of intensity, polarization and phase at different positions behind the lens for random polarization state. Adapted with permission from [65].
Micromachines 11 00997 g014
Figure 15. The action of the conventional fork grating with m = 1: (a) grayscale element, (b) binary element and (c) binary element in the presence of a vortex beam with m0 = 3. The focal plane is separately shown and the numbers in the frame resemble the values (nm), i.e., positive diffraction orders are positioned below. Adapted with permission from [220].
Figure 15. The action of the conventional fork grating with m = 1: (a) grayscale element, (b) binary element and (c) binary element in the presence of a vortex beam with m0 = 3. The focal plane is separately shown and the numbers in the frame resemble the values (nm), i.e., positive diffraction orders are positioned below. Adapted with permission from [220].
Micromachines 11 00997 g015
Figure 16. The action of the curved fork grating with m = 1 (a, b, c are analogical as Figure 15). Adapted with permission from [220].
Figure 16. The action of the curved fork grating with m = 1 (a, b, c are analogical as Figure 15). Adapted with permission from [220].
Micromachines 11 00997 g016
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Khonina, S.N.; Kazanskiy, N.L.; Karpeev, S.V.; Butt, M.A. Bessel Beam: Significance and Applications—A Progressive Review. Micromachines 2020, 11, 997. https://doi.org/10.3390/mi11110997

AMA Style

Khonina SN, Kazanskiy NL, Karpeev SV, Butt MA. Bessel Beam: Significance and Applications—A Progressive Review. Micromachines. 2020; 11(11):997. https://doi.org/10.3390/mi11110997

Chicago/Turabian Style

Khonina, Svetlana Nikolaevna, Nikolay Lvovich Kazanskiy, Sergey Vladimirovich Karpeev, and Muhammad Ali Butt. 2020. "Bessel Beam: Significance and Applications—A Progressive Review" Micromachines 11, no. 11: 997. https://doi.org/10.3390/mi11110997

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
