Open AccessArticle
Remote Sens. 2017, 9(10), 982;

Wuhan Surface Subsidence Analysis in 2015–2016 Based on Sentinel-1A Data by SBAS-InSAR

School of Geodesy and Geomatics, Wuhan University, Wuhan 430079, China
Guangxi Key Laboratory of Spatial Information and Geomatics, Guilin University of Technology, Guilin 541004, China
Key Laboratory for Digital Land and Resources of Jiangxi Province, East China University of Technology, Nanchang 330013, China
Key Laboratory of Precise Engineering and Industry Surveying of National Administration of Surveying, Mapping and Geoinformation, Wuhan University, Wuhan 430079, China
Wuhan Geomatics Institute, Wuhan 430022, China
ChangJiang Wuhan Waterway Bureau, Wuhan 430014, China
State Key Laboratory of Information Engineering in Surveying, Mapping and Remote Sensing, Wuhan 430079, China
Author to whom correspondence should be addressed.
Received: 18 July 2017 / Revised: 11 September 2017 / Accepted: 18 September 2017 / Published: 22 September 2017
Full-Text   |   PDF [28660 KB, uploaded 22 September 2017]   |

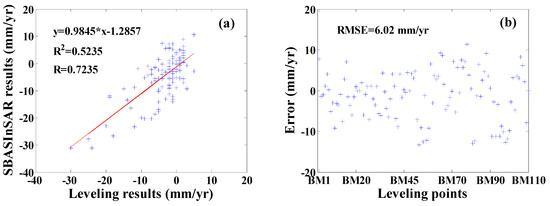

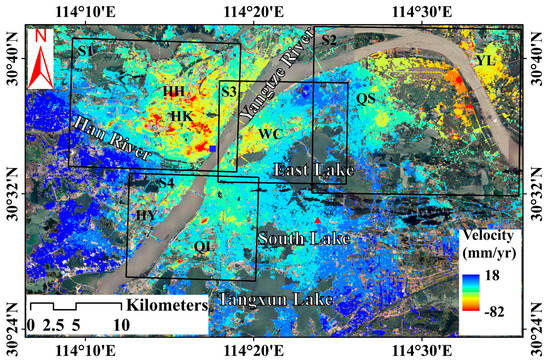

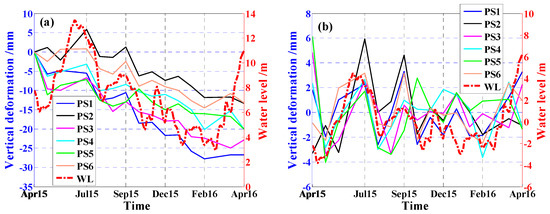

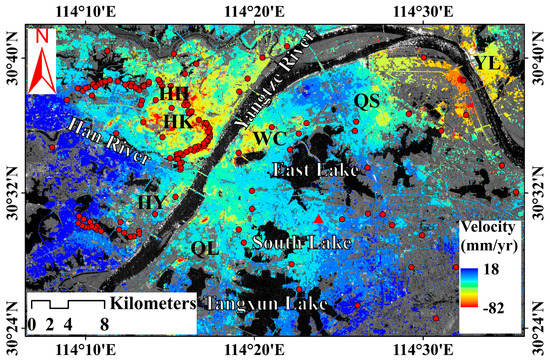

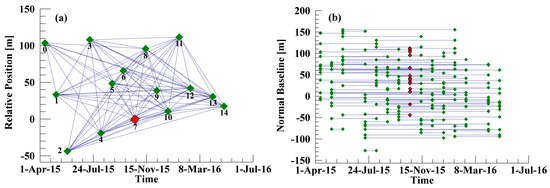

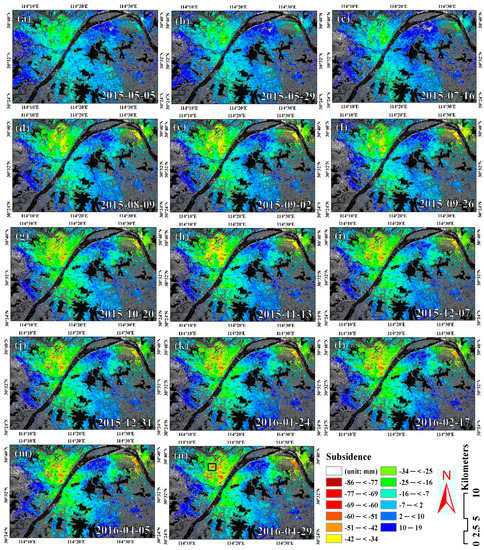

The Terrain Observation with Progressive Scans (TOPS) acquisition mode of Sentinel-1A provides a wide coverage per acquisition and features a repeat cycle of 12 days, making this acquisition mode attractive for surface subsidence monitoring. A few studies have analyzed wide-coverage surface subsidence of Wuhan based on Sentinel-1A data. In this study, we investigated wide-area surface subsidence characteristics in Wuhan using 15 Sentinel-1A TOPS Synthetic Aperture Radar (SAR) images acquired from 11 April 2015 to 29 April 2016 with the Small Baseline Subset Interferometric SAR (SBAS InSAR) technique. The Sentinel-1A SBAS InSAR results were validated by 110 leveling points at an accuracy of 6 mm/year. Based on the verified SBAS InSAR results, prominent uneven subsidence patterns were identified in Wuhan. Specifically, annual average subsidence rates ranged from −82 mm/year to 18 mm/year in Wuhan, and maximum subsidence rate was detected in Houhu areas. Surface subsidence time series presented nonlinear subsidence with pronounced seasonal variations. Comparative analysis of surface subsidence and influencing factors (i.e., urban construction, precipitation, industrial development, carbonate karstification and water level changes in Yangtze River) indicated a relatively high spatial correlation between locations of subsidence bowl and those of engineering construction and industrial areas. Seasonal variations in subsidence were correlated with water level changes and precipitation. Surface subsidence in Wuhan was mainly attributed to anthropogenic activities, compressibility of soil layer, carbonate karstification, and groundwater overexploitation. Finally, the spatial-temporal characteristics of wide-area surface subsidence and the relationship between surface subsidence and influencing factors in Wuhan were determined. View Full-Text

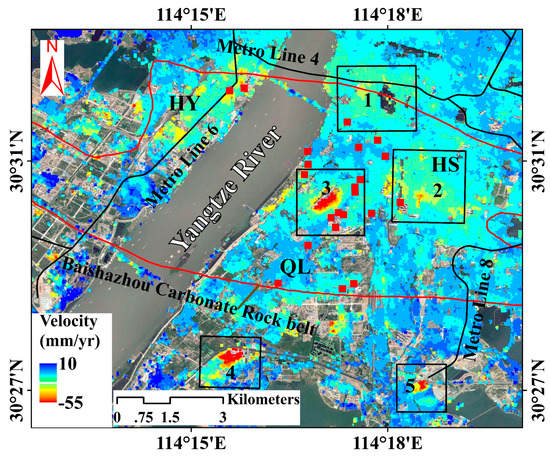

Keywords: SBAS-InSAR; surface subsidence; Sentinel-1A; Wuhan; engineering construction; carbonate karstification; water level changes SBAS-InSAR; surface subsidence; Sentinel-1A; Wuhan; engineering construction; carbonate karstification; water level changes

Graphical abstract

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
