Identification of Structurally Damaged Areas in Airborne Oblique Images Using a Visual-Bag-of-Words Approach

Faculty of Geo-Information Science and Earth Observation (ITC), University of Twente, Enschede 7500 AE, The Netherlands
*
Author to whom correspondence should be addressed.
Remote Sens. 2016, 8(3), 231; https://doi.org/10.3390/rs8030231
Received: 22 December 2015 / Revised: 19 February 2016 / Accepted: 4 March 2016 / Published: 11 March 2016
(This article belongs to the Special Issue Earth Observations for Geohazards)

Abstract

:
Automatic post-disaster mapping of building damage using remote sensing images is an important and time-critical element of disaster management. The characteristics of remote sensing images available immediately after the disaster are not certain, since they may vary in terms of capturing platform, sensor-view, image scale, and scene complexity. Therefore, a generalized method for damage detection that is impervious to the mentioned image characteristics is desirable. This study aims to develop a method to perform grid-level damage classification of remote sensing images by detecting the damage corresponding to debris, rubble piles, and heavy spalling within a defined grid, regardless of the aforementioned image characteristics. The Visual-Bag-of-Words (BoW) is one of the most widely used and proven frameworks for image classification in the field of computer vision. The framework adopts a kind of feature representation strategy that has been shown to be more efficient for image classification—regardless of the scale and clutter—than conventional global feature representations. In this study supervised models using various radiometric descriptors (histogram of gradient orientations (HoG) and Gabor wavelets) and classifiers (SVM, Random Forests, and Adaboost) were developed for damage classification based on both BoW and conventional global feature representations, and tested with four datasets. Those vary according to the aforementioned image characteristics. The BoW framework outperformed conventional global feature representation approaches in all scenarios (i.e., for all combinations of feature descriptors, classifiers, and datasets), and produced an average accuracy of approximately 90%. Particularly encouraging was an accuracy improvement by 14% (from 77% to 91%) produced by BoW over global representation for the most complex dataset, which was used to test the generalization capability.

Graphical Abstract

1. Introduction

Rapid damage assessment after a disaster event such as an earthquake is critical for efficient response and recovery actions. Direct manual field inspection is labor intensive, time consuming, and cannot assess the damages in inaccessible areas. Remote sensing technology is the most predominant and early source to provide data for performing such assessments, either manually or using automated image analysis procedures [1,2]. Various kinds of remote sensing data such as optical, synthetic aperture radar (SAR), and LiDAR are being used for the damage assessment process [1]. However, optical data are often preferred as they are relatively easy to interpret [1]. Moreover, optical remote sensing provides very high resolution images ranging from the decimeter to the centimeter scale through various platforms such as satellites, manned aircrafts, and unmanned aerial vehicles (UAVs) [3,4,5]. This allows for performing comprehensive damage assessment through identifying different levels of damage evidence, ranging from complete collapse to cracks on the building roof or façades, by choosing images at appropriate scales. Particularly oblique airborne images are recognized as the most suitable source, as they facilitate the damage assessment on both roofs and lateral elements [6,7]. For example, even extensive building damage such as inter-story collapse or pancake collapse can be identified reliably only with oblique view images, while conventional nadir views at best provide damage proxies such as external debris [1,7,8]. Although current remote sensing yields images at a vast range of views and scales, automatic recognition of even heavy damages to buildings is still challenging [1]. This is due to various reasons such as the complexity of the scene, uncertain characteristics of damage patterns, and the varying scale problem in oblique view images.
Generally, the regions corresponding to heavy damage are determined through the identification of damage patterns corresponding to rubbles piles, debris, and spalling in an image region (refer to Figure 1) [8]. Those damage evidences have a specific meaning and play a major role in damage classification. For example, the presence of significant amounts of debris/rubble piles around the building is the strong indication of (partial) building collapse. Spalling is an indicator of minor damage or partially broken structural elements. The recognition process of those damage patterns can be performed by analyzing features extracted either at the pixel or the region level [1,9,10]. However, the pixel level analysis is not meaningful for very high spatial resolution images, particularly in the context of damage assessment, as the evidences are identified based on the characteristics of their radiometric distribution pattern, which can be captured more precisely at a region level. However, in region-level classification the critical step is to define the region that is appropriate to identify the specific damage patterns. Generally, image regions are obtained either through a gridding approach or though image segmentation [11]. The most simple, efficient, and straightforward strategy is the gridding approach, where the image is split into uniform rectangular cells. However, the regions derived from gridding are often cluttered, as they may comprise different kinds of objects. For example, a single cell may contain trees, building elements, cars, road sections, debris, etc. Moreover, oblique images are more complex compared to nadir images, since they also capture façades that frequently comprise various elements, such as windows, balconies, staircases, etc. They generally also look more cluttered than nadir images containing largely roofs, and reveal façade information only at the image border, depending on the lens opening angle. It is quite challenging to identify the damage patterns in such a cluttered region. This can be alleviated by using a segmentation approach, which segments the damaged portions and other objects in the scene as separate regions. However, the selection of appropriate features and a segmentation algorithm that is suitable for a given damaged and cluttered environment is a challenging problem, one that requires substantial semantic analysis. Apart from clutter, the regions obtained from oblique images vary in scale. Nevertheless, the identification of damage patterns regardless of image scale is an important prerequisite in damage assessment. For example, damage at a building level such as inter-story collapse can be captured better at coarser scales (e.g., 100 × 100 pixel region in an image of the decimeter scale), while minor damages such as spalling at a building element level require finer scales (e.g., 100 × 100 pixel region in an image of the centimeter scale). Therefore, a robust method is required to recognize the damage pattern in a defined region irrespective of the scale and clutter. This is an analogue of the human visual pattern recognition system, which is extremely proficient at identifying the damage patterns regardless of the scale and complexity of the scene.
In the field of computer vision, various methods have been reported for pattern recognition tasks in various applications, such as object categorization, face recognition, and natural scene classification [12,13,14]. These methods are mostly based on supervised learning approaches, which work well for conventional image classification applications. However, the overall performance of the learning approach completely depends on the discriminative power of the image descriptors (features) considered for the classification [15]. Generally, images are described through either global (e.g., textures) or local features, like point descriptors such as Scale Invariant Feature Transform (SIFT) [13,16]. However, most global features are very sensitive to scale and clutter [17]. In contrast, the local descriptors are robust to clutter but cannot capture the global characteristics of the image [18,19]. An alternate feature representation strategy, such as Visual-Bag-of-Words (BoW), captures the global characteristics of the image through encoding a set of local features, which makes them robust to scale and clutter [20,21]. For example, in texture-based classification, the global texture pattern of the image is captured by the frequencies of the co-occurrence of the local texture patterns. This kind of feature representation outperforms the conventional global feature representation approaches in image classification [22]. Apart from general image classification, the Bag-of-Words framework has been demonstrated as a potential approach in many image-based domain specific applications including image retrieval [23], human action and facial expression recognition [24,25], image quality assessment [26], and medical image annotation [27]. Conceptually, thus, the BoW approach seems to be appropriate for identifying the damaged regions in airborne oblique images, which generally look cluttered and vary in scale.
Pattern recognition methods including BoW are based on a supervised learning approach that attempts to learn the underlying relationship between the image-derived features and the pattern of a specific category, in this case the damage pattern. Therefore, apart from a feature representation strategy, the choice of features that best discriminate the damaged and non-damaged regions is also a key element. Numerous studies reported that textures are the most influential feature for damage pattern recognition, as the damaged regions tend to show uneven and peculiar texture patterns, in contrast to non-damaged regions [28,29,30]. Many damage classification studies used statistical textures such as grey level co-occurrence matrix (GLCM)-based features for the damage pattern recognition [10,31,32]. However, other texture measures such as wavelets have been recognized as superior to GLCM in many pattern recognition problems, including land cover classification [33]. Particularly for region-level pattern classification problems, descriptors such as Histogram of Gradient Orientation (HoG), Gabor wavelets, SIFT and Speeded-Up Robust Features (SURF) have led to good results [34,35,36]. All these features describe the pattern of the given region in a unique way, based on the magnitude of gradient along various orientations and scales. Vetrivel et al. [37] demonstrated the potential of HoG and Gabor features to classify the damaged regions in very high resolution UAV images. However, they found limitations with the conventional global representation of HoG and Gabor features, especially with respect to generalization. So far, however, to our knowledge no work exists that combines the named features in a BoW fashion for damage mapping.
The objective of this paper is thus to develop a robust method based on the BoW approach that is suitable especially (but not only) for oblique images to identify the damage patterns related to rubble piles, debris, and spalling, regardless of the scale and the clutter of the defined region in an image. Following the above argumentation, a grid-based region definition is pursued. The robustness of the developed method based on this BoW approach is analyzed by comparing the performance of various learning algorithms and image descriptors (Gabor and HoG) under both the conventional and the BoW approach. Also, the generalization capability of the developed method is analyzed, by testing it on a variety of images corresponding to various scales, camera views, capturing platforms, and levels of scene complexity.

2. Methods

For the identification of damaged regions in an image, as a preparation step we provide reference data. That is, the given image is split into M × N regions, which are termed image patches. The image patches are manually labeled as damaged if any kind of damage pattern related to debris, spalling, and rubble piles is observed in them. The automatic detection of those damage patterns within the patches is carried out using two different feature representation approaches: global and BoW representation. The feature descriptors and learning algorithms considered for both the global and BoW-based damage classification process are described in the respective sub-sections.

2.1. Damage Classification Based on Global Representation of Features

This process includes two steps: (1) extraction of image descriptors that provide the global description of the given image patch; and (2) classification of the given image patch as damaged or non-damaged, based on the extracted feature descriptors using a supervised learning algorithm.

2.1.1. Extraction of Feature Descriptors

The HoG and Gabor wavelets-based feature descriptors are considered for the global feature representation-based damage classification process.
(a)
Histogram of Gradient Orientation (HoG)
The standard approach is used to extract the HoG features (e.g., Dalal Triggs [38]), where the given image patch is split into a number of overlapping blocks, and histograms of gradient orientation derived for each block are concatenated to form a feature vector. This gives the global representation of the image patch.
Procedure:
(1)
Derive gradient magnitude and its orientation for each pixel in the image patch.
(2)
Split the gradient image into A × B cells.
(3)
Again split the gradient image into a number of overlapping blocks, where each block contains C × D cells with 50% of overlapping cells between the blocks.
(4)
Define the bin size for the histogram of gradient orientation, where each bin corresponds to a specific orientation (the bin size remains fixed for all experiments later).
(5)
For each cell, compute the histogram of gradient orientation by adding the magnitude of the gradient to its corresponding orientation bin. Therefore, the size of the feature description of each cell is equal to the number of bins.
(6)
Concatenate the histograms of gradient orientation of all cells within each block to get the block level description. Normalize the histograms’ magnitude within the block to compensate for the local illumination variations [39].
(7)
Concatenate all block level descriptors to form the global descriptor of the patch.
(b)
Gabor wavelets descriptors
The Gabor wavelets descriptors are obtained by convolving the image with a set of Gabor wavelet filters. These filters are derived by appropriate rotation and scaling of the mother Gabor wavelet function, where each filter is tuned to capture the pixel information at a specific orientation and frequency. The detailed procedure for Gabor wavelets filter generation can be found in Arivazhagan et al. [40]. After obtaining the Gabor filter responses for each pixel in the image patch, the region-level Gabor wavelet descriptor is represented by the histogram of magnitude of filter responses for all combinations of orientations and frequencies (cf. Jun Fei [41]). This histogram is computed for three consecutive pyramid levels of image patches, in order to capture the variation across scales, in addition to the variation across frequencies and orientations. The procedure used for extracting the global Gabor feature descriptors for an image patch is described below.
Procedure:
(1)
Generate I × J number of 2D Gabor wavelet filters, where I and J are the number of frequencies and number of orientations used to generate the Gabor wavelet filters, respectively.
(2)
Convolve the image patch with the generated filter banks, which results in I × J number of feature images.
(3)
Normalize each feature image using l2 normalization.
(4)
Compute the histogram of Gabor filter responses, where each histogram bin corresponds to a specific frequency and orientation. Therefore, the number of histogram bins is equal to I × J, which is the size of the final feature vector.
(5)
Also, extract the Gabor wavelet features for the other two pyramid levels of the image patch, by subsampling it to ½ and ¼ of the image patch size.
(6)
Feature vectors derived at different scales are concatenated to form the final feature vector. Therefore, this final feature vector will comprise features extracted at multiple scales, multiple frequencies, and multiple orientations.

2.1.2. Damage Classification Using the Derived Global Feature Descriptors

Supervised learning approaches are adopted to classify the given image patch as damaged or non-damaged, based on the global feature descriptors. Three state-of-the-art and widely used supervised learning algorithms, Support Vector Machines (SVM) [42], Random Forests (RF) [43], and Adaboost [44], are considered for the damage classification process. These learning algorithms belong to the families of different learning paradigms, which learn the underlying relationship between the input features and the output label in a unique way. Three different learning paradigms are considered in order to analyze whether the considered feature descriptors are independent of the supervised algorithm, i.e., how the classification task is solved independently of the applied learning strategy. Also, each learning algorithm has a number of tunable parameters, referred to as hyper-parameters, which have a significant impact on the performance of the learning model [45]. Therefore, the hyper-parameters are tuned for the best model by searching the parameter space using the grid space search approach [46]. This approach constructs a number of learning models for different settings of the hyper-parameters, using the training set. The performance of each model is assessed using a cross-validation procedure. The best performing model is selected as the final model with tuned hyper-parameters, and then evaluated using the testing set.

2.2. Damage Detection Using Visual-Bag-of-Words

The standard BoW framework is adopted for the damage classification process. The BoW framework comprises different components, such as feature point detection, feature descriptors, visual word dictionary, and a classifier. The algorithms used for each component and the overall procedure are described below.
Overall, the BoW-based damage classification process is carried out in two stages: (1) construction of visual word dictionary; and (2) representation of the image in terms of BoW (histogram of visual words), and training the classifier based on them.
Stage 1:
(a) Feature point detection
The basic idea behind this step is that an image can be described by a small number of significant pixels (salient points). For example, pixels corresponding to edges and corners contain the most significant information compared to pixels of homogenous regions. Salient point descriptors that are invariant to scale and orientation are most appropriate to build an image classification model that is robust to scale and rotation. Numerous such salient point detection methods are available, with SIFT and SURF commonly being used in the BoW context [19]. In this study, SURF was used since it is faster than SIFT and its descriptor is suitable to be used as the feature in the BoW framework, as discussed in the following sub-section. A description of the SURF points detection process can be found in Bay et al. [47].
(b) Feature extraction
The purpose of this step is to extract the local feature descriptor for each salient point in the given image patch. The feature descriptors HoG and Gabor wavelets, which are used in the global representation-based damage classification, are also considered here for the local description of salient points in the BoW-based damage classification. This allows us to compare the potential of BoW and global feature representation irrespective of the features. In the BoW approach the SURF descriptor is additionally used to describe the salient points. This is because SURF is a well-proven point descriptor (local descriptor), widely used in BoW-based image classification processes [48]. Furthermore, SURF descriptors are based on wavelet responses, which also describe the image region in terms of textures, similar to HOG and Gabor feature descriptors. Therefore, the three feature descriptors HoG, Gabor wavelets, and SURF are used independently to describe each salient point in the given image patch for the BoW-based damage classification. The local pattern description for each salient point is derived by considering a local neighborhood of P × Q pixels around the salient point. The same procedure as described in Section 2.1.1 is followed to extract the Gabor and HoG features. The standard procedure is used to extract the SURF feature descriptor (cf. Bay et al. [47]).
(c) Visual words dictionary construction
The feature descriptors of salient points from all image patches (regardless of their class) are concatenated into a single feature vector. Numerous feature encoding methods have been reported for visual word dictionary construction [49]. We adopted the most commonly used iterative k-means clustering algorithm [48]. The obtained feature vector is clustered into k clusters using the iterative k-means clustering [50]. Each cluster center is considered as the visual word, and the cluster centers are collectively referred to as a visual word dictionary.
Stage 2:
(a) Image description based on visual words
To represent the given image patch in terms of BoW (histogram of visual words), the salient points in the image patch are detected and feature descriptors are obtained for each point. The detected points in the image are assigned to their closest visual word in the dictionary. Subsequently, the frequency of occurrence of the visual words in the image is represented as a single histogram, which is referred to as the BoW representation of the image, which will be fed into the classifier in the next step.
(b) Classification of visual words using machine learning algorithms
Again, the three learning algorithms SVM, RF, and Adaboost are used as classifiers for classifying the damage and non-damaged image patches based on BoW. The procedure described in Section 2.1.2 is followed to develop the supervised learning models based on the BoW features.
The overall workflow of BoW-based damage classification process is depicted in Figure 2.

3. Experiments and Results

The damage classification method was evaluated using four different datasets, with each differing in its image characteristics such as scale, camera view, capturing platform, and scene complexity. Each data set was independently analyzed for the damage classification process based on the three feature descriptors HoG, Gabor wavelets, and SURF. The performances of HoG and Gabor wavelets for damage classification were analyzed by representing them in both a conventional and BoW framework. Also the potential of the SURF descriptor was analyzed for damage classification by representing it in a BoW framework and comparing it with BoW-based Gabor and HoG.
Three supervised learning algorithms, SVM, RF, and Adaboost, were used for analyzing the performance of the feature descriptors. Therefore, each dataset was tested with different combinations of feature descriptors and supervised learning algorithms, as depicted in Figure 3.
The conducted experiments for the damage classification process include a number of algorithms, and each algorithm was associated with a number of parameters. The values used for the parameters of the algorithm are shown in Table 1. The hyper-parameters considered for tuning the learning algorithms (cf. Section 2.1.2) are described in Table 2.

3.1. Dataset 1: UAV Images

UAV images captured over two different areas were considered: (1) a small region around a church (“Church of Saint Paul”) in Mirabello, Italy, damaged by a 2012 earthquake; (2) a small region around a partly demolished industrial facility in Gronau, Germany. Both regions possess similar characteristics, and they contain only a few buildings that are largely disconnected. One building in each region was partially collapsed and produced a significant quantity of debris and rubble piles (cf. top left image in Figure 4—UAV image-subset of the Mirabello church). The UAV images were captured at different heights, positions, and views (nadir and oblique) with a spatial resolution of 1–2 cm. The images of both regions corresponding to various orientations and heights were split into 100 × 100 pixel rectangular image patches for framing of the training and testing datasets for the damage classification process. The patches are labeled as damage if at least 25% of their area represents damage evidences (debris/rubble or spalling) that are unambiguously recognizable by human analyst. For example, the samples of damaged and undamaged image patches of each dataset are shown to provide better insights (refer to Section 3.1, Section 3.2 and Section 3.3). Since the image resolution is very high, the defined rectangular patches cover only a small region (approximately 1 m2) and, therefore, most of them contain only either damage evidences or single homogenous object, i.e., the defined regions are mostly uncluttered; refer to the image training samples in Figure 4. In total 966 samples (482 damaged, 484 non-damaged) each of size 100 × 100 pixels, were considered. The dataset was constructed by selecting the specific samples across different regions within the scene that highly vary in their characteristics to avoid a large number of repetitive samples. The damage classification was performed for this dataset based on different combinations of feature descriptors and learning algorithm as described above, and the results are reported in Table 3.

3.2. Dataset 2: Oblique View Manned Aircraft Images

The airborne oblique images (Pictometry) with a Ground Sampling Distance (GSD) between 10 cm (foreground) and 16 cm (background) captured over Port-au-Prince after the 2010 Haiti earthquake were considered. The images cover almost the entire city, and contain numerous buildings ranging from simple to complex. Most of the buildings are densely clustered in such a way that it is difficult to differentiate each building even visually from the images. Numerous buildings are partially covered with densely leafed tall trees, adding to the clutter of the scene. A significant number of buildings are damaged, ranging from complete/partial collapse to heavy spalling on the intact elements of the building (cf. Figure 5). The images are split into 100 × 100 pixel images/patches to frame the training and testing datasets for the damage classification process. The defined image patches are highly cluttered as they cover a large area (at least 10 m2) and comprise different kinds of objects, such as trees, building elements, cars, road sections, and debris (cf. Figure 5). The dataset was constructed by selecting the specific samples across different regions within the city that vary highly in terms of their characteristics. Again, the selection of samples was driven by the idea of covering different damage characteristics rather than piling up redundant information. In total 1256 samples (698 damaged, 558 non-damaged) were selected and tested for the damage classification based on the developed approach. The patches cover an area of approximately 13,000 m2. The results are reported in Table 4.

3.3. Dataset 3: Street View Images

Street view close-range images of damaged buildings captured by hand-held cameras after earthquakes in different geographic locations were used. These images were collected from two sources: (1) Governmental organization: the German Federal Agency for Technical Relief, THW; (http://www.thw.de); and (2) the Internet (various websites). The collected images vary in scale; however, the actual scale is unknown. Therefore, the 100 × 100 pixel patches generated from those images may cover small areas (e.g., an element of the building) or large areas (e.g., entire or major portion of the building). The collected images contain buildings with various kinds of damages, such as complete collapse, partial collapse, inter-story collapse, and heavy spalling. In total 887 samples (384 damaged, 503 non-damaged) were considered to construct and evaluate the supervised model for the damage classification. Sample image patches used for the training and testing of the supervised model are depicted in Figure 6. The results are reported in Table 5.

3.4. Dataset 4: Datasets 1, 2, and 3 Are Combined

The samples from datasets 1, 2, and 3, which vary in scale, camera view, and platform and scene complexity, were combined into a single dataset in order to assess the generalization capability of the damage classification methods. In total 3109 samples (1564 damaged, 1545 non-damaged; subsequently termed COM3109) were used to develop and test the supervised models for damage classification. The results are reported in Table 6. For visual analysis, an UAV image of dataset 1 and a Pictometry image of dataset 2 were classified for the damage detection using the best performing model (BoW-Gabor with SVM). The classified images are depicted in Figure 7. The classification is quite accurate, showing only very few false positives and false negatives, which are also highlighted in the classified images (cf. Figure 7). The false positives and negatives are the examples where our assumption fails: i.e., a surface with unusual radiometric characteristics is assumed to be damaged, while manmade objects are assumed to have a regular shape and uniform radiometric characteristics. For example, in Figure 7b the leaf-off tree was misdetected as damage, since it shows a strong irregular texture pattern. Similarly, the damaged regions are not detected as they show smooth texture.

4. Observations and Analysis

For convenient analysis of the results, datasets 1 and 3, which were not cluttered and less affected by shadows and trees, are referred to as non-complex datasets, while datasets 2 and 4, where the image patches were mostly cluttered and severely affected by shadows and trees, are referred to as complex datasets. Also for convenience, the datasets are named based on the image characteristics and number of samples as described in Table 7.

4.1. Global Representation of HoG and Gabor Wavelet for Damage Classification

The results show that the global representations of HoG and Gabor wavelet feature descriptors have great potential to identify the damaged regions in the image, if the defined image patches are non-complex. For example, the supervised models constructed for UAV966 (non-complex) based on the global representation of Gabor wavelet and HoG features resulted in accuracies of 95% and 93%, respectively (Table 3). However, the same feature descriptors Gabor and HoG produced accuracies of 82% and 72%, respectively for PIC1256 (Table 4), where the defined image patches were mostly complex. Moreover, the same features Gabor and HoG produced highly inferior results for COM3109, which was more complex than the other datasets (Table 6). This clearly indicates that the robustness of the global representation of HoG and Gabor features declines with an increase in image patch complexity. This is because in the global representation the radiometric characteristics of the complex region (e.g., clutter, shadows, and trees) resemble the radiometric characteristics of damaged regions, which are generally more non-uniform than radiometric patterns of non-damaged regions (cf. Figure 8). Consider an image patch that contains different objects with different dominant orientations. The global description of this image patch based on gradient orientation is the aggregation of all gradient orientation information within this patch. In such a case the image patch would seem to possess gradient orientations in many directions, which resembles the radiometric characteristics of damaged regions. For example, consider Figure 8a as an image patch that contains four different objects (annotated as A, B, C, and D) with different gradient orientation patterns. The gradient pattern derived locally for each object was overlaid on the corresponding object with a black background. These local patterns show that each object possesses dominant orientations that were more uniform. However, the global gradient pattern derived for the whole image patch was non-uniform and resembles the characteristics of damaged regions (cf. Figure 8a). Thus, it is difficult to classify an image patch based on global features in case it is cluttered. Also, trees and shadows possess irregular shapes and non-uniform gradient orientations, which also resemble the radiometric characteristics of the damaged regions. Hence, global feature descriptors-based damage classification did not efficiently classify the image patches that were strongly affected by trees and shadow.

4.2. BoW-Based Feature Representation for Damage Classification

The Gabor and HoG features produced superior results for all datasets when represented in a BoW framework than represented in conventional global scale for damage classification. Although the BoW approach produced superior results to the conventional approach, there was no significant difference in the performance between them when the considered image regions were not complex, e.g., UAV966 (cf. Table 3). However, in complex image regions there was a significant performance difference between the BoW and conventional feature representation. This is evident from the results for PIC1256, where the BoW-based Gabor and HoG produced maximum accuracies of 88% and 91%, respectively, which are 9% and 19% higher than the accuracies obtained by those features when represented at a global scale (cf. Table 4). This shows that BoW-based Gabor and HoG features are more robust to clutter, trees and shadows than when they are represented at a global scale. The following characteristics made the BoW approach more robust compared to the global representation:
(1) Unlike the global representation, the BoW approach does not aggregate the radiometric patterns within the image patch. Instead, it describes the image patch based on the number of salient points, where each point is described by the local radiometric pattern derived from its neighborhood. Therefore, in case of no damage, the image patch will be represented by points with a uniform radiometric pattern (gradient orientation), even if the image patch contains objects with different dominant orientations. On the other hand, if the image patch contains damage it will be represented by the points with non-uniform gradient orientations. The final damage classification is performed by analyzing the pattern of the occurrences of local radiometric patterns within the image patch. This eliminates the ambiguity caused by mixed radiometric pattern typical for the global representation, making the BoW comparatively more robust.
(2) The BoW approach considers only the salient points as representatives to describe the image patch. The salient point selection method based on SURF mostly did not consider the pixels of shadows and trees as salient points. Figure 9a,b show the strongest 300 SURF points in the image, where most of the detected points are not corresponding to trees and shadows. Thus, the BoW approach largely eliminates the shadows and trees in the damage classification process, which was one of the major problems in the global descriptors-based damage classification. Moreover, the pixels corresponding to the damaged regions were often detected as salient points, as they show a stronger gradient than other objects (cf. Figure 9a). This ensures that the number of points corresponding to the damaged portion will always be proportional to the number of points corresponding to the non-damaged objects, even if only a small portion of the image patch is damaged (cf. Figure 9a,b). This specific characteristic of the SURF points made the BoW-based damage classification approach invariant to scale, clutter, and scene complexity.

4.3. Impact of Choice of Learning Algorithm

The results show that the choice of learning algorithm has a significant impact on damage classification performance, since the feature descriptors performed differently for different datasets when associated with different learning algorithms. The accuracies produced by SVM, RF, and Adaboost for all datasets when they were associated with different feature descriptors are depicted in Figure 10. The plot shows that (1) SVM and RF mostly outperformed Adaboost; (2) using the global feature descriptors the performances of RF and SVM varied with the datasets: RF produced superior results compared to SVM for UAV966 and SVI887, whereas it produced inferior results than SVM for PIC1256 and COM3109. This shows that the performance of the learning algorithm is highly dependent on the characteristics of the datasets, with SVM performing well for complex datasets and RF performing well for non-complex dataset. However, using the BoW approach the SVM mostly outperformed RF in the classification for all datasets, irrespective of the feature descriptors (cf. Figure 10). One overall conclusion from this is that the SVM-based, supervised models were more reliable and mostly showed better generalization performance than RF, particularly for the complex datasets.

5. Discussion

The primary objective of this paper was to develop a damage classification method that classifies a given image patch as damaged or non-damaged, irrespective of scale, image characteristics, and scene complexity. The damage classification method was developed by considering various feature descriptors (HoG, Gabor, and SURF), different feature descriptor representations (Global and BoW), different learning algorithms (SVM, RF, and Adaboost) and image datasets with different levels of scale and scene complexity. It was shown that the feature representation has a significant impact on the performance of the damage classification compared to other components such as features descriptors and learning algorithms. For all datasets, the BoW-based damage classification models performed well for all combinations of feature descriptors and learning algorithms, compared to the models developed based on global representation. Particularly, concerning COM3109 (the comprehensive dataset), the accuracy obtained with the best-performing feature descriptor (Gabor) and learning algorithm (SVM) with the global representation improved by 14% (from 77% to 91%), when tested with the BoW representation (cf. Table 6). The choice of learning algorithm was found to be the second significant factor in the performance of the damage classification model: the SVM produced significantly better results than RF and Adaboost for all feature descriptors in the BoW representation (cf. Table 6). The considered feature descriptors performed equally well and, hence, the choice of feature descriptor was found to have least impact on the performance of the model. The Gabor features led to a 3% and 4% improvement in accuracy compared to HoG and SURF, respectively, when the image patches were classified with SVM in the BoW framework. This small improvement also may be due to the additional information that Gabor features possess compared to HoG. For example, in Gabor, the gradient orientations information is extracted based on five different frequency scales, whereas in HoG the gradient orientation information is extracted at only one frequency scale (cf. Section 2.1.1). However, these improvements are significantly more modest when compared to the 14% improvement in accuracy between BoW and global representation (cf. Table 6). This highlights the importance of feature representation, regardless of the potential of features. Overall, SVM associated with Gabor feature descriptors in the BoW framework was found to produce the most robust and generalized damage classification model. Even visually, the damage classification was found to be more accurate when the images of different scales, camera views, and capturing platforms, and different levels of scene complexity, were classified by the best performing model (cf. Figure 7). Shadowed areas continue to pose a major problem in damage classification. Since the damaged regions covered by shadows show low contrast, they were not detected by our BoW-based approach (no SURF points in those areas). However, it is important to identify the damages in low-contrast regions as well; therefore, further tuning of the methods or identifying the optimal strategy that can make our approach work even in low contrast regions is required to increase the robustness of the model.
The BoW framework consists of various components such as feature descriptors, learning algorithms, and the visual word dictionary construction. The algorithms used for each component are associated with a number of parameters (cf. Table 1). The performance of the BoW-based damage classification model might be further improved by tuning the parameters of the algorithm or modifying/replacing the algorithm of the specific component. For example, the iterative k-means clustering was used to construct the visual word dictionary, whereas other feature encoding methods such as auto-encoders (e.g., Vincent et al. [51]), which encode the features differently compared to k-means, may produce a better visual word dictionary and thereby can potentially improve the performance of the model as well. Concerning the feature descriptors, all three-feature descriptors were used independently to construct the damage classification models, whereas the combined use of feature descriptors may also improve the performance of our model. Similarly, concerning the learning algorithm we used a single kernel-based SVM for constructing the damage classification model, whereas the multiple-kernel (e.g., Bucak et al. [52]) based learning may improve the performance of the model as well. We did not attempt to fine-tune the model by exploring all those possible approaches, because the principal focus of this paper was to analyze the potential of the BoW framework in damage classification.
The developed method can identify the damages related to debris/rubble piles that are strong indicators of building collapse or severe structural damage, which would be very useful for first responders involved in disaster response, but also other stakeholders such as governmental agencies assessing post-disaster construction needs, or insurance companies. However, for detailed building level damage assessment, this evidence alone is not sufficient to infer the complete damage state of the building, nor the total damage cost, as the latter also depends on internal (invisible) damage, and on building functions being affected, which is not always visible. However, along with other damage evidences such as cracks, inclined elements, etc., this evidence is also important in the damage classification process. From a practical point of view, especially, the observations we made using the combined dataset 4 (COM3109) are very interesting. Although the used patches vary significantly in terms of scale and complexity, an overall accuracy of around 90% was reached (cf. Table 6). Transferred to an actual disaster scenario, where quick interpretation of image data is needed, this would mean that an already existing database can be used to train a model and new images can be readily classified, and a similar overall accuracy might be expected. Hence, at least for a first damage assessment, the tedious manual referencing might not be necessary.

6. Conclusions and Outlook

A damage classification based on BoW was developed to classify a given image patch as damaged or non-damaged, irrespective of scale, image characteristics, and scene complexity. Various combinations of image features (Gabor wavelets, HoG, and SURF) and supervised classifiers (SVM, RF, and Adaboost) are tested in both the BoW framework and conventional global feature representation approach using four different datasets. The BoW framework outperformed conventional global feature representation approaches in all scenarios (i.e., for all combinations of feature descriptors, classifiers, and datasets) and produced an average accuracy of approximately 90%. Although the developed model can identify the damaged regions in the images well, it cannot classify the detected damaged regions into specific types, such as debris, rubble piles, spalling, and inter-story collapse. We need contextual information and 3D geometric features such as shape, location, characteristics of the neighboring elements, and local height variation of the damaged region to identify the actual category of damage. For example, the damage patterns on large intact planar elements could be classified as spalling, whereas the damage pattern on the ground with large local height variations and no large 3D segments could be classified as debris. Therefore, the potential extension of this work will be the development of methods for classification of the detected damaged regions into actual damage categories.
As stated earlier, the feature descriptor component in the BoW framework has a significant impact on the performance of the model. Here, the texture features are chosen to examine our BoW framework as their potential in damage detection has been demonstrated well by previous studies, as highlighted in the Introduction. However, recent studies report that supervised feature learning methods such as convolutional neural networks (CNN) could learn the feature and its representation directly from the image pixel values chosen for a specific application [53]. Hence, these features are referred to as data-adaptive features and are found to be superior to well-proven handcrafted features such as Gabor and HoG for many computer vison applications including image classification [54,55]. Therefore, we intend to explore the potential of CNNs for damage classification in the future.

Acknowledgments

This work was funded by the EU-FP7 project RECONASS (Reconstruction and Recovery Planning: Rapid and Continuously Updated Construction Damage and Related Needs Assessment; grant no 312718). We thank Pictometry, Inc. for providing the imagery used in this study.

Author Contributions

Anand Vetrivel and Markus Gerke conceived the design and implementation of the method and wrote the manuscript. Norman Kerle and George Vosselman helped to improve the method and experiments, and also reviewed and improved the manuscript structure and writing.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Dong, L.; Shan, J. A comprehensive review of earthquake-induced building damage detection with remote sensing techniques. ISPRS J. Photogramm. Remote Sens. 2013, 84, 85–99. [Google Scholar] [CrossRef]
  2. Dell’Acqua, F.; Gamba, P. Remote sensing and earthquake damage assessment: Experiences, limits, and perspectives. IEEE Proc. 2012, 100, 2876–2890. [Google Scholar] [CrossRef]
  3. Adams, S.M.; Levitan, M.L.; Friedland, C.J. High resolution imagery collection utilizing unmanned aerial vehicles (UAVs) for post-disaster studies. Adv. Hurric. Eng. 2012. [Google Scholar] [CrossRef]
  4. Gerke, M.; Kerle, N. Automatic structural seismic damage assessment with airborne oblique pictometry imagery. Photogramm. Eng. Remote Sens. 2011, 77, 885–898. [Google Scholar] [CrossRef]
  5. Li, P.; Xu, H.; Guo, J. Urban building damage detection from very high resolution imagery using OCSVM and spatial features. Int. J. Remote Sens. 2010, 31, 3393–3409. [Google Scholar] [CrossRef]
  6. Gerke, M. Supervised classification of multiple view images in object space for seismic damage assessment. In Photosgrammetric Image Analysis; Springer: Berlin, Germany, 2011; pp. 221–232. [Google Scholar]
  7. Fernandez Galarreta, J.; Kerle, N.; Gerke, M. UAV-based urban structural damage assessment using object-based image analysis and semantic reasoning. Nat. Hazards Earth Syst. Sci. 2015, 15, 1087–1101. [Google Scholar] [CrossRef]
  8. Kerle, N.; Hoffman, R.R. Collaborative damage mapping for emergency response: The role of Cognitive Systems Engineering. Nat. Hazards Earth Syst. Sci. 2013, 13, 97–113. [Google Scholar] [CrossRef]
  9. Kaya, G.T.; Ersoy, O.K.; Kamasak, M.E. Spectral and spatial classification of earthquake images by support vector selection and adaptation. In Proceedings of the 2010 International Conference of Soft Computing and Pattern Recsognition (SoCPaR), Paris, France, 7–10 December 2010; pp. 194–197.
  10. Miura, H.; Midorikawa, S.; Kerle, N. Detection of building damage areas of the 2006 Central Java, Indonesia, earthquake through digital analysis of optical satellite images. Earthq. Spectra 2013, 29, 453–473. [Google Scholar] [CrossRef]
  11. Xiaoshuang, M.; Huanfeng, S.; Jie, Y.; Liangpei, Z.; Pingxiang, L. Polarimetric-spatial classification of SAR images based on the fusion of multiple classifiers. IEEE J. Sel. Top. Appl. Earth Obs. Remote Sens. 2014, 7, 961–971. [Google Scholar] [CrossRef]
  12. Jin, Y.; Ruan, Q.Q. Face recognition using Gabor-based improved supervised locality preserving projections. Comput. Inf. 2012, 28, 81–95. [Google Scholar]
  13. Zhang, J.; Marszałek, M.; Lazebnik, S.; Schmid, C. Local features and kernels for classification of texture and object categories: A comprehensive study. Int. J. Comput. Vis. 2007, 73, 213–238. [Google Scholar] [CrossRef]
  14. Yang, J.; Yu, K.; Gong, Y.; Huang, T. Linear spatial pyramid matching using sparse coding for image classification. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition (CVPR), Miami, FL, USA, 20–26 June 2009; pp. 1794–1801.
  15. Di, H.; Chao, Z.; Yunhong, W.; Liming, C. HSOG: A novel local image descriptor based on histograms of the second-order gradients. IEEE Trans. Image Process. 2014, 23, 4680–4695. [Google Scholar]
  16. Oliva, A.; Torralba, A. Building the gist of a scene: The role of global image features in recognition. Prog. Brain Res. 2006, 155, 23–36. [Google Scholar] [PubMed]
  17. Carneiro, G.; Jepson, A.D. The quantitative characterization of the distinctiveness and robustness of local image descriptors. Image Vis. Comput. 2009, 27, 1143–1156. [Google Scholar] [CrossRef]
  18. Zuo, Y.; Zhang, B. Robust hierarchical framework for image classification via sparse representation. Tsinghua Sci. Technol. 2011, 16, 13–21. [Google Scholar] [CrossRef]
  19. Lou, X.; Huang, D.; Fan, L.; Xu, A. An image classification algorithm based on bag of visual words and multi-kernel learning. J. Multimed. 2014, 9, 269–277. [Google Scholar] [CrossRef]
  20. Ferraz, C.T.; Pereira, O.; Rosa, M.V.; Gonzaga, A. Object recognition based on bag of features and a new local pattern descriptor. Int. J. Pattern Recognit. Artif. Intell. 2014, 28, 1–32. [Google Scholar] [CrossRef]
  21. Lu, Z.; Wang, L. Learning descriptive visual representation for image classification and annotation. Pattern Recognit. 2015, 48, 498–508. [Google Scholar] [CrossRef]
  22. Zhuang, X.; Wu, S.; Natarajan, P. Compact bag-of-words visual representation for effective linear classification. In Proceedings of the 21st ACM International Conference on Multimedia, Barcelona, Spain, 21–25 October 2013; pp. 521–524.
  23. Wu, Z.; Ke, Q.; Sun, J.; Shum, H.Y. A multi-sample, multi-tree approach to bag-of-words image representation for image retrieval. In Proceedings of the 12th IEEE International Conference on Computer Vision, Kyoto, Japan, 29 September–2 October 2009; pp. 1992–1999.
  24. Wang, Y.; Mori, G. Human action recognition by semilatent topic models. IEEE Trans. Pattern Anal. Mach. Intell. 2009, 31, 1762–1774. [Google Scholar] [CrossRef] [PubMed]
  25. Zisheng, L.; Imai, J.; Kaneko, M. Face and expression recognition based on bag of words method considering holistic and local image features. In Proceedings of the International Symposium on Communications and Information Technologies (ISCIT), Tokyo, Japan, 26–29 October 2010; pp. 1–6.
  26. Peng, Y.; Doermann, D. No-reference image quality assessment using visual codebooks. IEEE Trans. Image Process. 2012, 21, 3129–3138. [Google Scholar] [CrossRef] [PubMed]
  27. Bouslimi, R.; Messaoudi, A.; Akaichi, J. Using a bag of words for automatic medical image annotation with a latent semantic. Int. J. Artif. Intel. Appl. 2013, 4, 51–61. [Google Scholar] [CrossRef]
  28. Ma, J.; Qin, S. Automatic depicting algorithm of earthquake collapsed buildings with airborne high resolution image. In Proceedings of the IEEE Geoscience and Remote Sensing Symposium (IGARSS), Munich, Germany, 22–27 July 2012; pp. 939–942.
  29. Radhika, S.; Tamura, Y.; Matsui, M. Use of post-storm images for automated tornado-borne debris path identification using texture-wavelet analysis. J. Wind Eng. Ind. Aerodyn. 2012, 107, 202–213. [Google Scholar] [CrossRef]
  30. Yamazaki, F.; Matsuoka, M. Remote sensing technologies in post-disaster damage assessment. J. Earthq. Tsunami 2007, 1, 193–210. [Google Scholar] [CrossRef]
  31. Reinartz, P.; Jiaojiao, T.; Nielsen, A.A. Building damage assessment after the earthquake in Haiti using two post-event satellite stereo imagery and DSMs. In Proceedings of the 2013 Joint Urban Remote Sensing Event (JURSE), Sao Paulo, Brazil, 21–23 April 2013; pp. 57–60.
  32. Sui, H.; Tu, J.; Song, Z.; Li, Q. A novel 3D building damage detection method using multiple overlapping UAV images. ISPRS-Int. Arch. Photogramm. Remote Sens. Spat. Inf. Sci. 2014, 40, 173–179. [Google Scholar] [CrossRef]
  33. Stavrakoudis, D.; Theocharis, J.; Zalidis, G. A boosted genetic fuzzy classifier for land cover classification of remote sensing imagery. ISPRS J. Photogramm. Remote Sens. 2011, 66, 529–544. [Google Scholar] [CrossRef]
  34. Conde, C.; Moctezuma, D.; Martín De Diego, I.; Cabello, E. HoGG: Gabor and HoG-based human detection for surveillance in non-controlled environments. Neurocomputing 2013, 100, 19–30. [Google Scholar] [CrossRef]
  35. Yuanqing, L.; Fengjun, L.; Shenghuo, Z.; Ming, Y.; Cour, T.; Kai, Y.; Liangliang, C.; Huang, T. Large-scale image classification: Fast feature extraction and SVM training. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition (CVPR), Providence, RI, USA, 20–25 June 2011; pp. 1689–1696.
  36. Khan, N.Y.; McCane, B.; Wyvill, G. SIFT and SURF performance evaluation against various image deformations on benchmark dataset. In Proceedings of the International Conference on Digital Image Computing Techniques and Applications (DICTA), Noosa, QLD, Australia, 6–8 December 2011; pp. 501–506.
  37. Vetrivel, A.; Gerke, M.; Kerle, N.; Vosselman, G. Identification of damage in buildings based on gaps in 3D point clouds from very high resolution oblique airborne images. ISPRS J. Photogramm. Remote Sens. 2015, 105, 61–78. [Google Scholar] [CrossRef]
  38. Dalal, N.; Triggs, B. Histograms of oriented gradients for human detection. In Proceedings of the IEEE Computer Society Conference on Computer Vision and Pattern Recognition (CVPR), San Diego, CA, USA, 25–25 June 2005; 2005; pp. 886–893. [Google Scholar]
  39. Déniz, O.; Bueno, G.; Salido, J.; De la Torre, F. Face recognition using histograms of oriented gradients. Pattern Recognit. Lett. 2011, 32, 1598–1603. [Google Scholar] [CrossRef]
  40. Arivazhagan, S.; Ganesan, L.; Priyal, S.P. Texture classification using Gabor wavelets based rotation invariant features. Pattern Recognit. Lett. 2006, 27, 1976–1982. [Google Scholar] [CrossRef]
  41. Jun, Y.; Fei, S. Histogram of log-gabor magnitude patterns for face recognition. In Proceedings of the IEEE International Conference on Acoustics, Speech and Signal Processing (ICASSP), Florence, Italy, 4–9 May 2014; pp. 519–523.
  42. Schölkopf, B.; Smola, A.J. Learning with Kernels: Support Vector Machines, Regularization, Optimization, and Beyond (Adaptive Computation and Machine Learning); MIT Press: Cambridge, MA, USA, 2001. [Google Scholar]
  43. Breiman, L. Random forests. Mach. Learn. 2001, 45, 5–32. [Google Scholar] [CrossRef]
  44. Rätsch, G.; Onoda, T.; Müller, K.R. Soft margins for AdaBoost. Mach. Learn. 2001, 42, 287–320. [Google Scholar] [CrossRef]
  45. Bergstra, J.; Bengio, Y. Random search for hyper-parameter optimization. J. Mach. Learn. Res. 2012, 13, 281–305. [Google Scholar]
  46. Bergstra, J.; Bardenet, R.; Bengio, Y.; Kégl, B. Algorithms for Hyper-Parameter Optimization. Available online: http://papers.nips.cc/paper/4443-algorithms-for-hyper-parameter-optimization.pdf (accessed on 22 December 2015).
  47. Bay, H.; Tuytelaars, T.; Van Gool, L. Surf: Speeded up robust features. In Computer Vision—ECCV 2006; Springer: Berlin, Germany, 2006; pp. 404–417. [Google Scholar]
  48. Tsai, C.-F. Bag-of-words representation in image annotation: A review. ISRN Artif. Intell. 2012, 2012. [Google Scholar] [CrossRef]
  49. Peng, X.; Peng, Q.; Qiao, Y.; Chen, J.; Afzal, M. A Study on Unsupervised Dictionary Learning and Feature Encoding for Action Classification. Available online: http://arxiv.org/abs/1309.0309 (accessed on 22 December 2015).
  50. Vattani, A. K-means requires exponentially many iterations even in the plane. Discrete Comput. Geom. 2011, 45, 596–616. [Google Scholar] [CrossRef]
  51. Vincent, P.; Larochelle, H.; Lajoie, I.; Bengio, Y.; Manzagol, P.-A. Stacked denoising autoencoders: Learning useful representations in a deep network with a local denoising criterion. J. Mach. Learn. Res. 2010, 11, 3371–3408. [Google Scholar]
  52. Bucak, S.S.; Jin, R.; Jain, A.K. Multiple kernel learning for visual object recognition: A review. IEEE Trans. Pattern Anal. Mach. Intell. 2014, 36, 1354–1369. [Google Scholar] [PubMed]
  53. Szegedy, C.; Liu, W.; Jia, Y.; Sermanet, P.; Reed, S.; Anguelov, D.; Erhan, D.; Vanhoucke, V.; Rabinovich, A. Going deeper with convolutions. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, Boston, MA, USA, 8–10 June 2015; pp. 1–9.
  54. Karpathy, A.; Toderici, G.; Shetty, S.; Leung, T.; Sukthankar, R.; Fei-Fei, L. Large-scale video classification with convolutional neural networks. In Proceedings of the 2014 IEEE Conference on Computer Vision and Pattern Recognition, Columbus, OH, USA, 23–28 June 2014; pp. 1725–1732.
  55. Zuo, Z.; Wang, G.; Shuai, B.; Zhao, L.; Yang, Q.; Jiang, X. Learning discriminative and shareable features for scene classification. In Computer Vision–ECCV 2014; Springer: Berlin, Germany, 2014; pp. 552–568. [Google Scholar]
Figure 1. An example of debris, rubble piles, and spalling.
Figure 1. An example of debris, rubble piles, and spalling.
Remotesensing 08 00231 g001

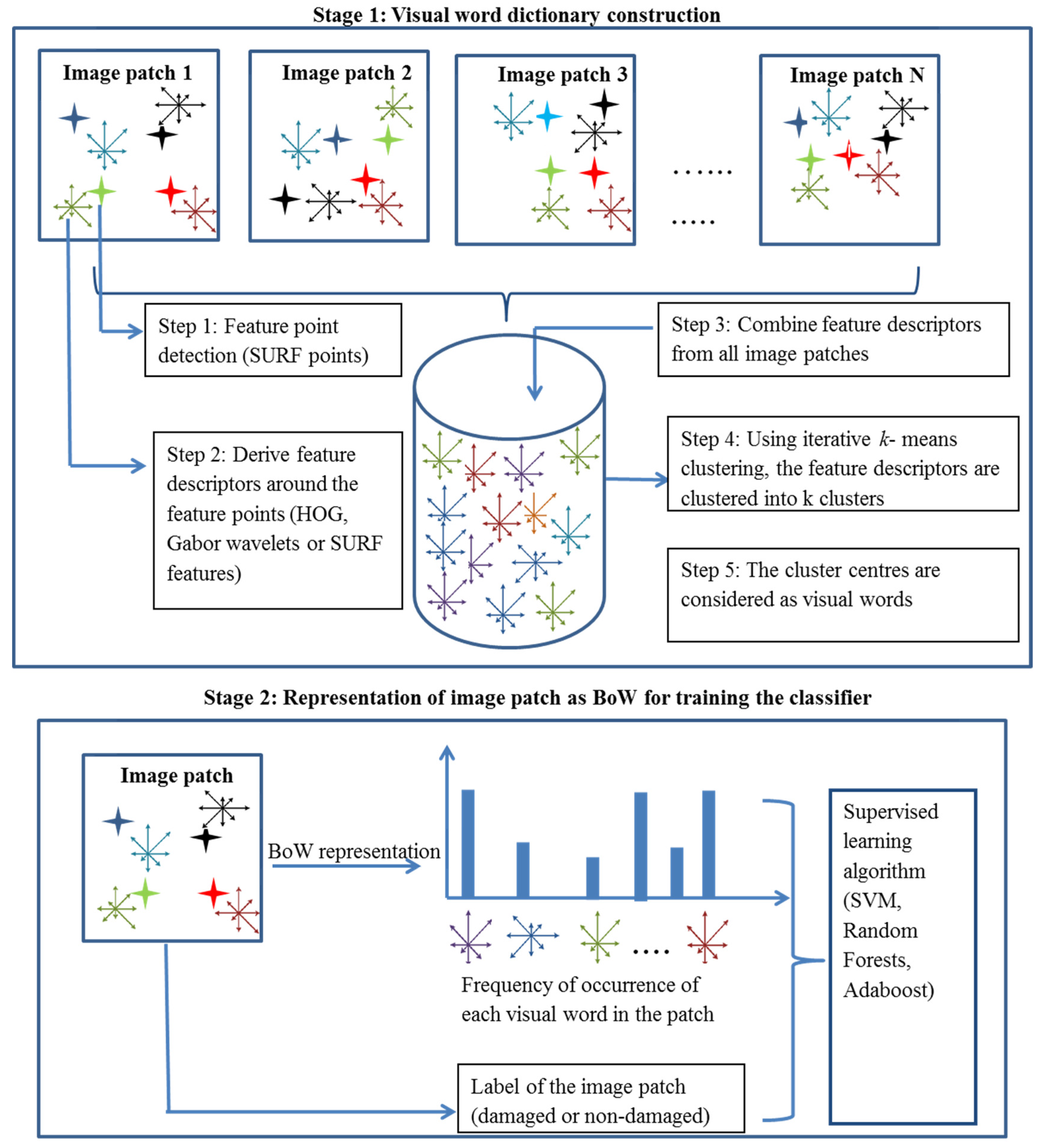

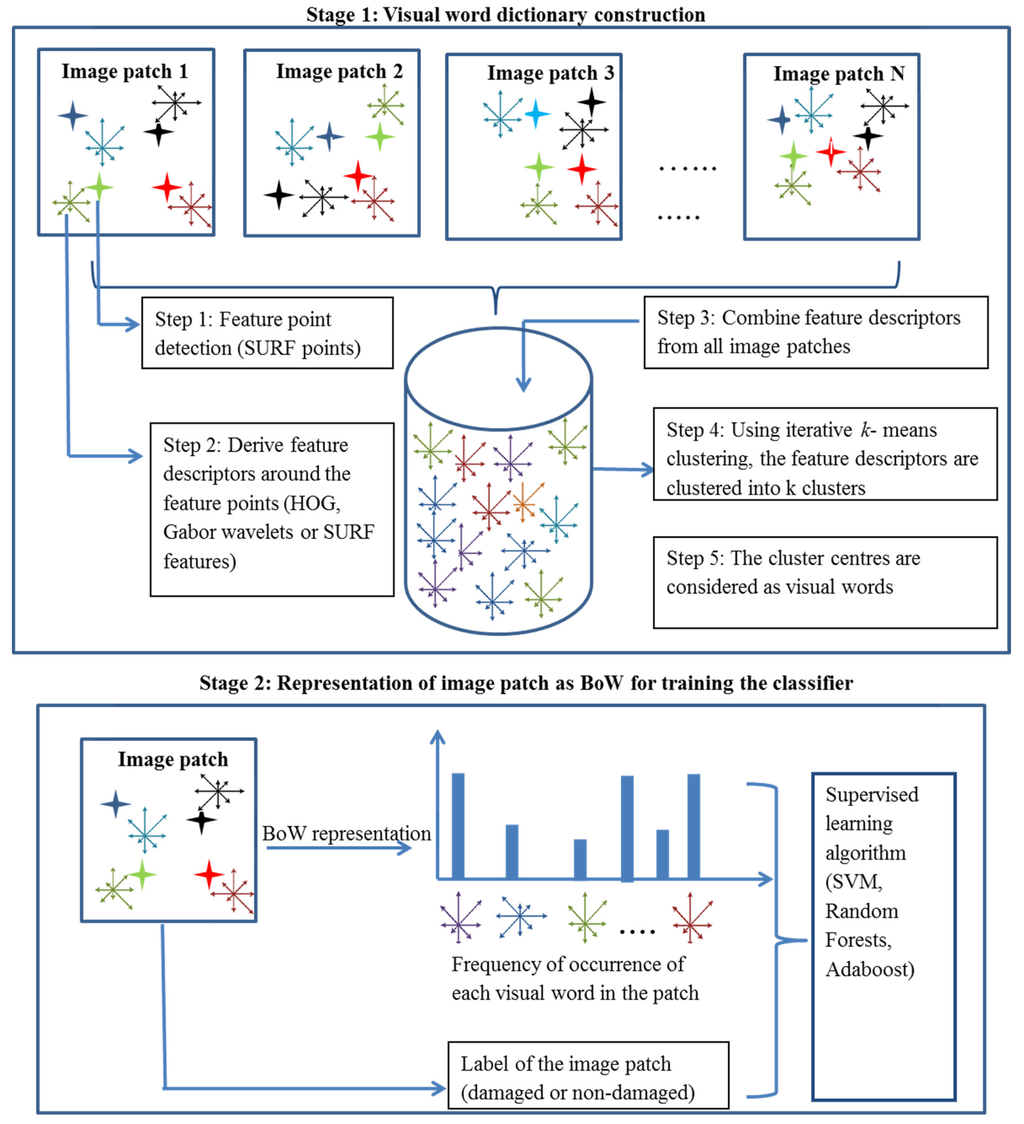

Figure 2. Overall process of the BoW-based damage classification.
Figure 2. Overall process of the BoW-based damage classification.
Remotesensing 08 00231 g002

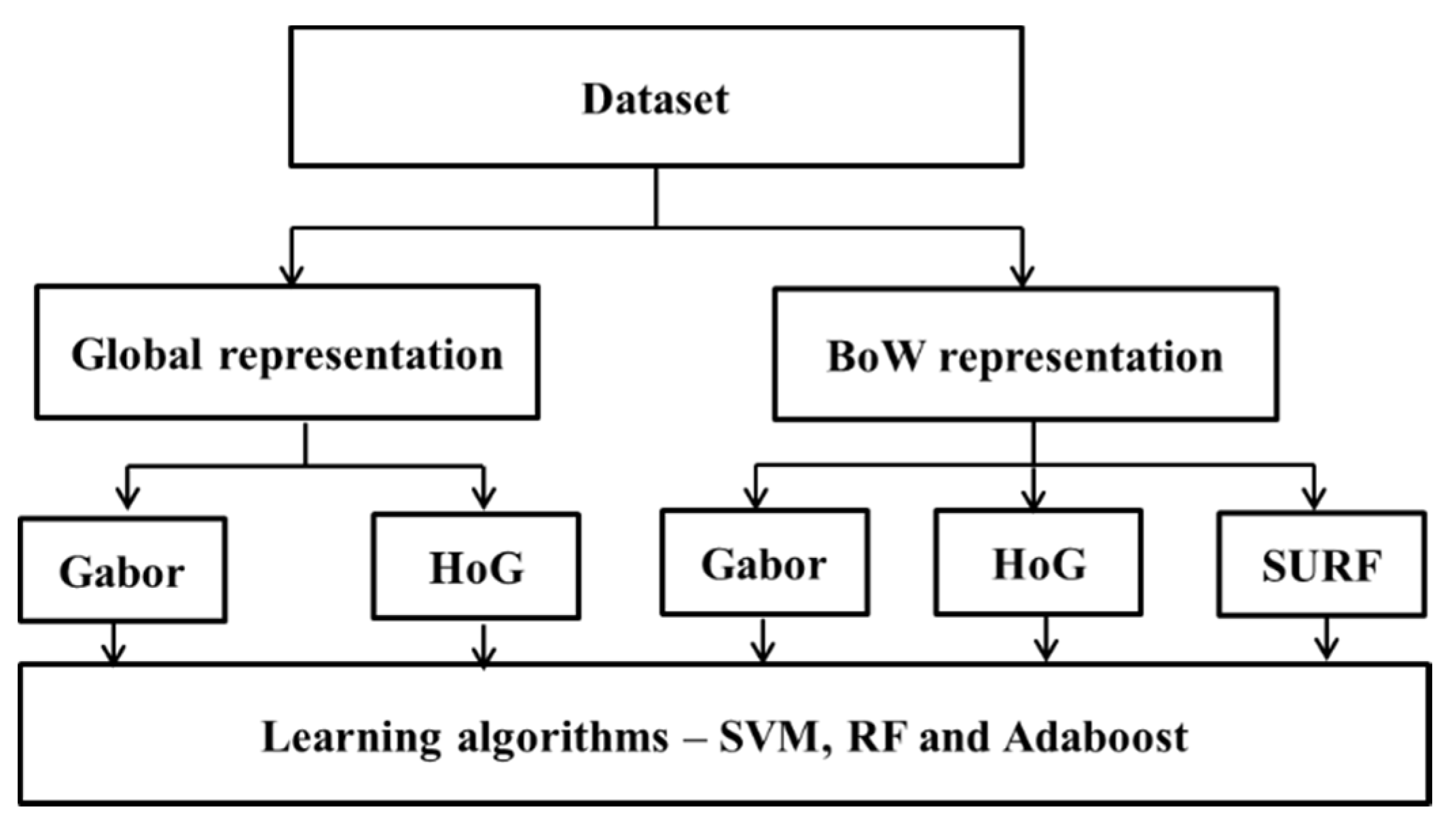

Figure 3. Combinations of feature descriptors and learning algorithms tested for each dataset.
Figure 3. Combinations of feature descriptors and learning algorithms tested for each dataset.
Remotesensing 08 00231 g003
Figure 4. Samples of image patches in dataset 1—UAV images.
Figure 4. Samples of image patches in dataset 1—UAV images.
Remotesensing 08 00231 g004
Figure 5. Samples of image patches in dataset 2, images © Pictometry.
Figure 5. Samples of image patches in dataset 2, images © Pictometry.
Remotesensing 08 00231 g005
Figure 6. Samples of image patches in dataset 3: street view images.
Figure 6. Samples of image patches in dataset 3: street view images.
Remotesensing 08 00231 g006
Figure 7. Damage classification of images based on best performing supervised model: (a) UAV image of dataset 1 (left); detected damaged regions are highlighted in red, and the false positives are highlighted using yellow circles (right); (b) Subset of Pictometry image of dataset 2 (left); detected damaged regions are highlighted in red, and the false positives and false negatives are highlighted using yellow and green circles, respectively (right). Images © Pictometry; (c) Street view image of dataset 3 (left); detected damaged regions are highlighted in red, and the false positives and false negatives are highlighted using yellow and green circles, respectively (right).
Figure 7. Damage classification of images based on best performing supervised model: (a) UAV image of dataset 1 (left); detected damaged regions are highlighted in red, and the false positives are highlighted using yellow circles (right); (b) Subset of Pictometry image of dataset 2 (left); detected damaged regions are highlighted in red, and the false positives and false negatives are highlighted using yellow and green circles, respectively (right). Images © Pictometry; (c) Street view image of dataset 3 (left); detected damaged regions are highlighted in red, and the false positives and false negatives are highlighted using yellow and green circles, respectively (right).
Remotesensing 08 00231 g007

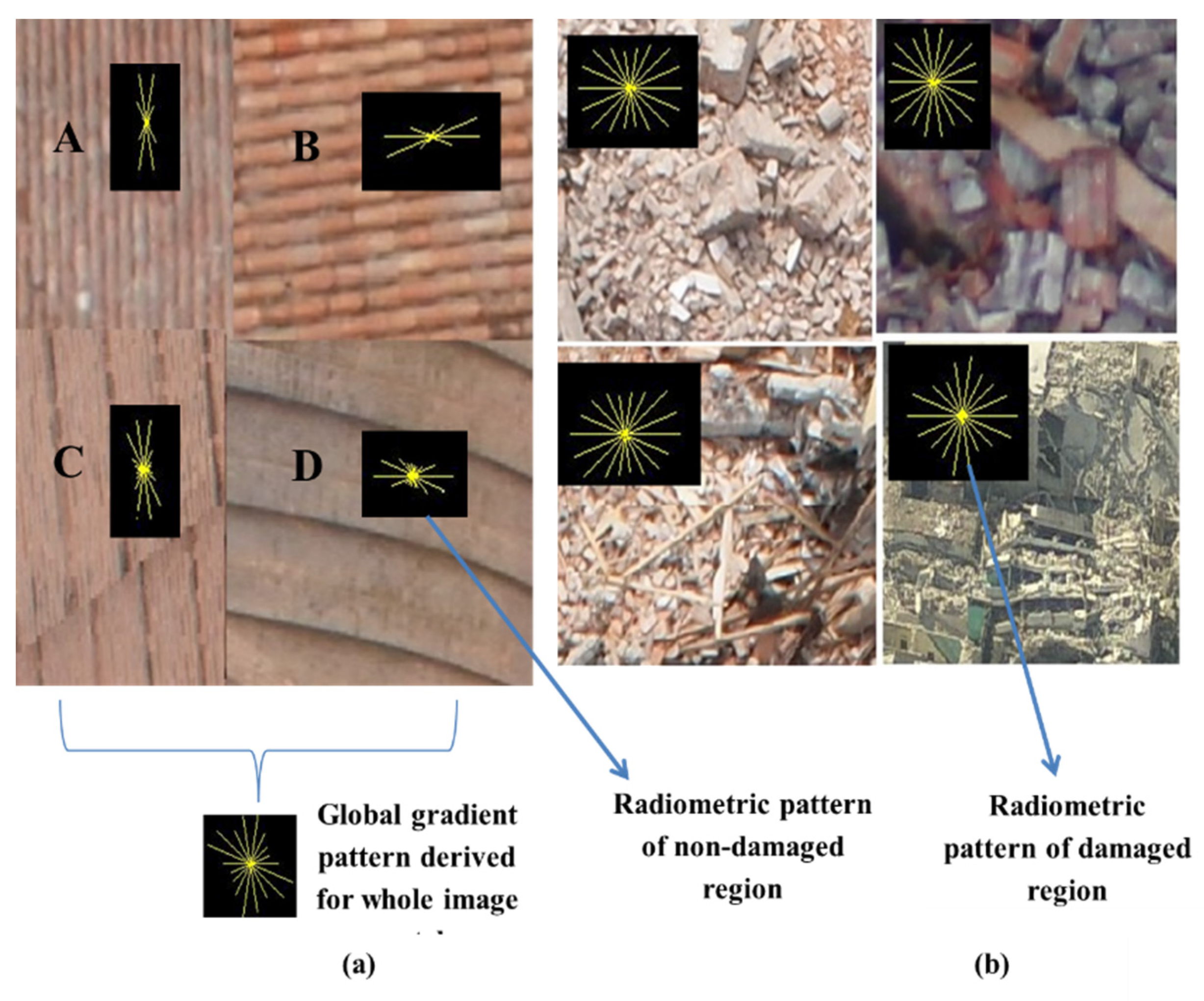

Figure 8. (a) Local and global gradient pattern of an image patch that contains four objects with different dominant orientations; (b) gradient pattern of damaged regions.
Figure 8. (a) Local and global gradient pattern of an image patch that contains four objects with different dominant orientations; (b) gradient pattern of damaged regions.
Remotesensing 08 00231 g008
Figure 9. Detected SURF points are plotted on the image. (a) Strongest 300 SURF points among 4032 × 3024 pixels; (b) strongest 300 SURF points among 977 × 835 pixels. Images © Pictometry.
Figure 9. Detected SURF points are plotted on the image. (a) Strongest 300 SURF points among 4032 × 3024 pixels; (b) strongest 300 SURF points among 977 × 835 pixels. Images © Pictometry.
Remotesensing 08 00231 g009

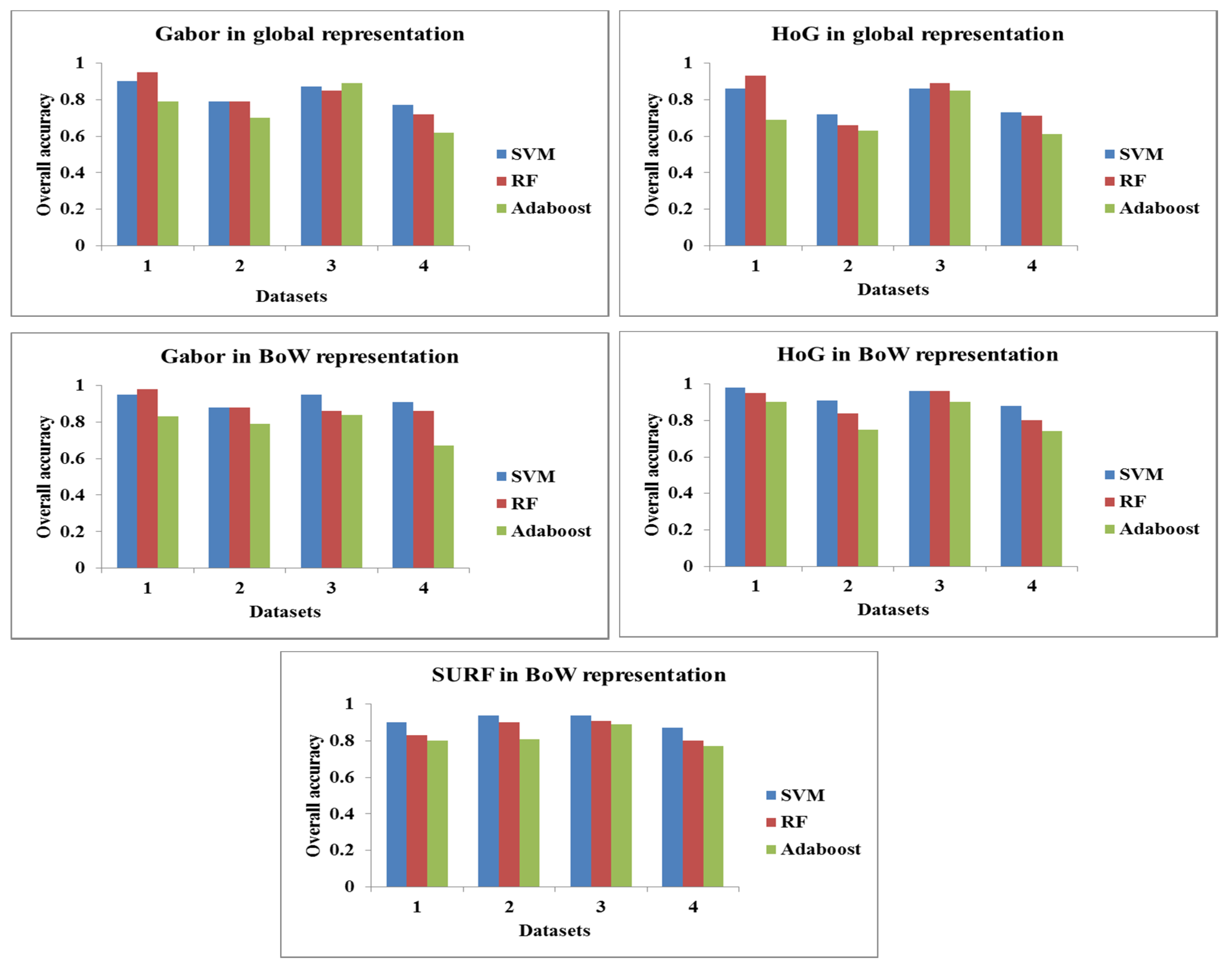

Figure 10. The accuracy produced by the feature descriptors for each dataset when associated with different classifiers.
Figure 10. The accuracy produced by the feature descriptors for each dataset when associated with different classifiers.
Remotesensing 08 00231 g010
Table 1. Definition of parameters associated with each algorithm/method used in the experiment.
Table 1. Definition of parameters associated with each algorithm/method used in the experiment.
Algorithm/MethodParameter ValuesDescriptionReference
Image patch generationM = 100; N = 100To generate 100 × 100 image patchesSection 2
HoG procedureA = 25; B = 25Cell size A × B–25 × 25 pixelsSection 2.1.1
C = 4; D = 4Block size C × D–4 × 4 cells
bin size = 9Bin size of histogram of the gradient orientations
Gabor wavelet descriptorI = 5; J = 8I, J are the number of frequencies and orientations respectively to generate the Gabor wavelet filtersSection 2.1.1
Feature extractionP = 10; Q = 1010 × 10 local neighborhood is considered for deriving descriptor for each salient pointSection 2.2
Visual word dictionary constructionk = 500k value for k-means clusteringSection 2.2
Supervised model for damage classification10-fold cross validationCross-validation to identify the optimal hyper-parameters for a learning model based on the grid search approachSection 2.1.2
The dataset is split into 70% and 30% for training and testing, respectivelyTraining set is used to train the model and also for cross-validation for tuning the hyper-parameters. Testing set is used for evaluating the trained model.
Table 2. Definition of grid search space for tuning the hyper-parameters of the classifiers.
Table 2. Definition of grid search space for tuning the hyper-parameters of the classifiers.
Supervised ClassifierHyper-ParameterGrid Search SpaceDescription
SVMC0.001 to 100, step size—multiples of 10Regularization parameter which has a significant effect on the generalization performance of the classifier.
KernelLinear, radial basis function (RBF) and histogram intersectionThe function used to compute the kernel matrix for classification.
gamma0.0001 to 1.0, step size—multiples of 10Regularization parameter used in RBF kernel (Gaussian kernel function) which has significant impact in the performance of the kernel.
RFN_estimators3 to 20, step size 2Number of trees in the forest.
Max_depth1 to 5, step size 1Maximum depth of the tree.
Min_samples_split1 to 4, step size 1Minimum number of samples required to split a node.
Min_samples_leaf1 to 3, step size 1Minimum number of samples required in newly created leaf after the split.
AdaboostN_estimators100 to 1000, step size 100The maximum number of estimators that can be used to build the ensemble learning model.
Learning rate0.01 to 0.1, step size 0.01Regularization parameter that scales the contribution of each weak estimator.
Table 3. Performance of feature descriptors when associated with different learning algorithms for dataset 1 comprising patches from the UAV images (training samples = 676, testing samples = 290)—bold numbers indicate best performance per indicator.
Table 3. Performance of feature descriptors when associated with different learning algorithms for dataset 1 comprising patches from the UAV images (training samples = 676, testing samples = 290)—bold numbers indicate best performance per indicator.
Dataset1SVMRFAdaboost
PrecisionRecallAccuracyPrecisionRecallAccuracyPrecisionRecallAccuracy
Gabor0.910.870.900.990.920.950.810.760.79
HoG0.870.860.860.940.930.930.710.670.69
BoW-Gabor0.960.930.950.990.980.980.960.710.83
BoW-HOG0.980.970.980.970.950.950.950.870.90
BoW-SURF0.970.920.940.900.880.900.800.810.81
Table 4. Performance of feature descriptors when associated with different learning algorithms for dataset 2, comprising patches from Pictometry images (training samples = 879, testing samples = 377).
Table 4. Performance of feature descriptors when associated with different learning algorithms for dataset 2, comprising patches from Pictometry images (training samples = 879, testing samples = 377).
Dataset2SVMRFAdaboost
PrecisionRecallAccuracyPrecisionRecallAccuracyPrecisionRecallAccuracy
Gabor0.810.760.790.820.760.790.780.610.72
HoG0.780.610.720.670.610.660.620.580.63
BoW-Gabor0.890.860.880.880.880.880.800.790.79
BoW-HOG0.930.890.910.850.830.840.800.690.75
BoW-SURF0.910.890.900.840.820.830.800.780.80
Table 5. Performance of feature descriptors when associated with different learning algorithms for dataset 3, comprising patches from street view images (training samples = 620, testing samples = 267).
Table 5. Performance of feature descriptors when associated with different learning algorithms for dataset 3, comprising patches from street view images (training samples = 620, testing samples = 267).
Dataset 3SVMRFAdaboost
PrecisionRecallAccuracyPrecisionRecallAccuracyPrecisionRecallAccuracy
Gabor0.890.850.870.880.800.850.910.850.89
HoG0.950.740.860.940.810.890.840.840.85
BoW-Gabor0.990.910.950.920.770.860.920.720.84
BoW-HOG1.00.930.960.980.940.960.980.820.90
BoW-SURF0.990.890.940.980.820.910.980.770.89
Table 6. Performance of feature descriptors when associated with different learning algorithms for dataset 4 (COM3109) comprising patches from UAV, Pictometry, and street-view images (training samples = 2176, testing samples = 933).
Table 6. Performance of feature descriptors when associated with different learning algorithms for dataset 4 (COM3109) comprising patches from UAV, Pictometry, and street-view images (training samples = 2176, testing samples = 933).
Dataset 4SVMRFAdaboost
PrecisionRecallAccuracyPrecisionRecallAccuracyPrecisionRecallAccuracy
Gabor0.790.750.770.760.640.720.620.580.62
HoG0.810.620.730.790.640.710.710.570.61
BoW-Gabor0.950.880.910.930.790.860.640.680.67
BoW-HOG0.890.870.880.830.760.800.800.640.74
BoW-SURF0.900.840.870.830.770.800.790.750.77
Table 7. Naming of datasets based on the image characteristics and number of samples.
Table 7. Naming of datasets based on the image characteristics and number of samples.
DatasetNameDescriptionScene Complexity
Dataset 1UAV966966 image patches generated from UAV images.Non-complex
Dataset 2PIC12561256 image patches generated from Pictometry images.Complex
Dataset 3SVI887887 image patches generated from street view images.Non-complex
Dataset 4COM3109Comprehensive dataset, where datasets 1, 2 & 3 are combined, containing 3109 image patches.Complex

Share and Cite

MDPI and ACS Style

Vetrivel, A.; Gerke, M.; Kerle, N.; Vosselman, G. Identification of Structurally Damaged Areas in Airborne Oblique Images Using a Visual-Bag-of-Words Approach. Remote Sens. 2016, 8, 231. https://doi.org/10.3390/rs8030231

AMA Style

Vetrivel A, Gerke M, Kerle N, Vosselman G. Identification of Structurally Damaged Areas in Airborne Oblique Images Using a Visual-Bag-of-Words Approach. Remote Sensing. 2016; 8(3):231. https://doi.org/10.3390/rs8030231

Chicago/Turabian Style

Vetrivel, Anand, Markus Gerke, Norman Kerle, and George Vosselman. 2016. "Identification of Structurally Damaged Areas in Airborne Oblique Images Using a Visual-Bag-of-Words Approach" Remote Sensing 8, no. 3: 231. https://doi.org/10.3390/rs8030231

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
