An Approach to Mapping Forest Growth Stages in Queensland, Australia through Integration of ALOS PALSAR and Landsat Sensor Data
Abstract
:1. Introduction
- In addition to early-stage regrowth, remnant (mature) and intermediate stages with brigalow as a component could be differentiated using ALOS PALSAR data in combination with Landsat-derived FPC.
- Acceptable accuracies for mapping regrowth extent and progressive stages of structural development could be achieved, with potential application across the entire BBB.

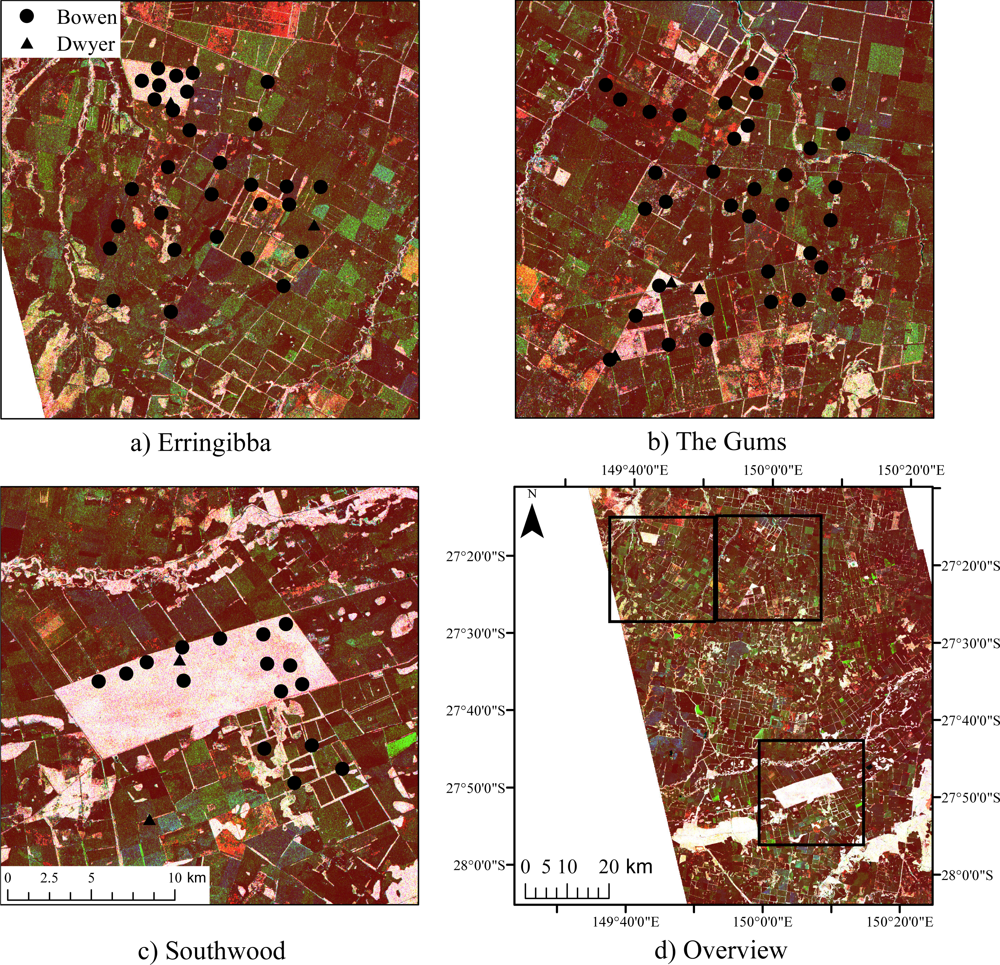

2. Study Site
3. Available Data
3.1. Field Data
3.2. Remote Sensing Data
4. Methods

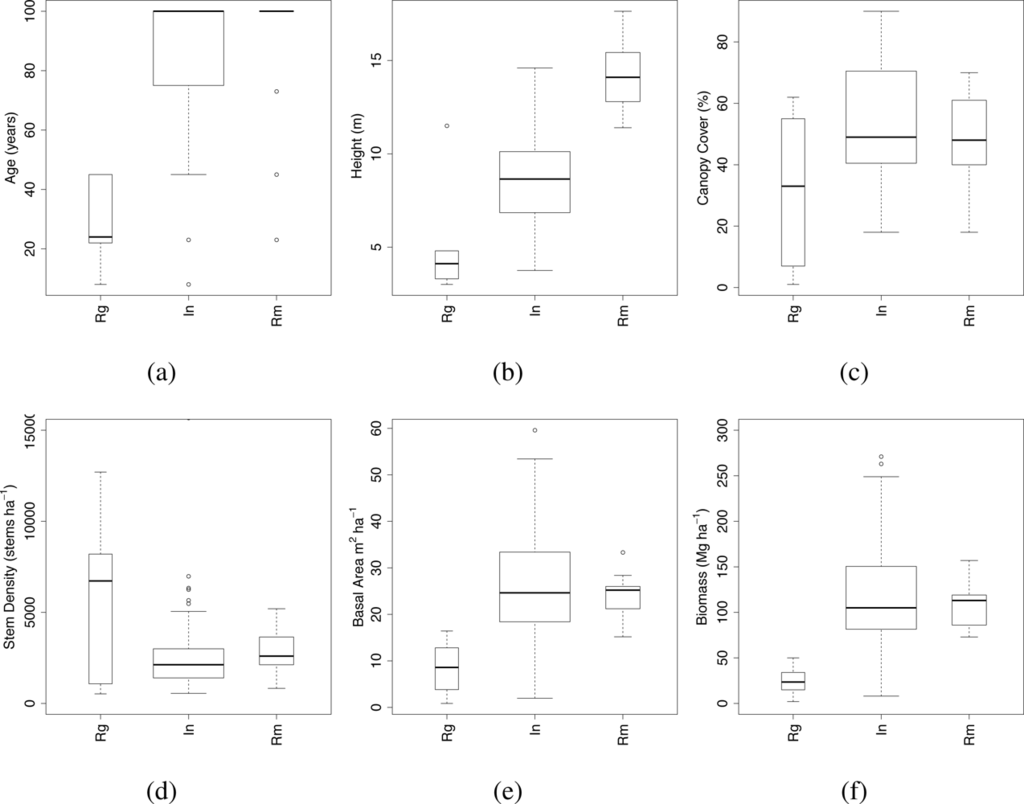

4.1. Structural Characteristics of Regrowth Stages
4.2. Characterising Regrowth from Remote Sensing Data
4.3. Approach to Regrowth Mapping

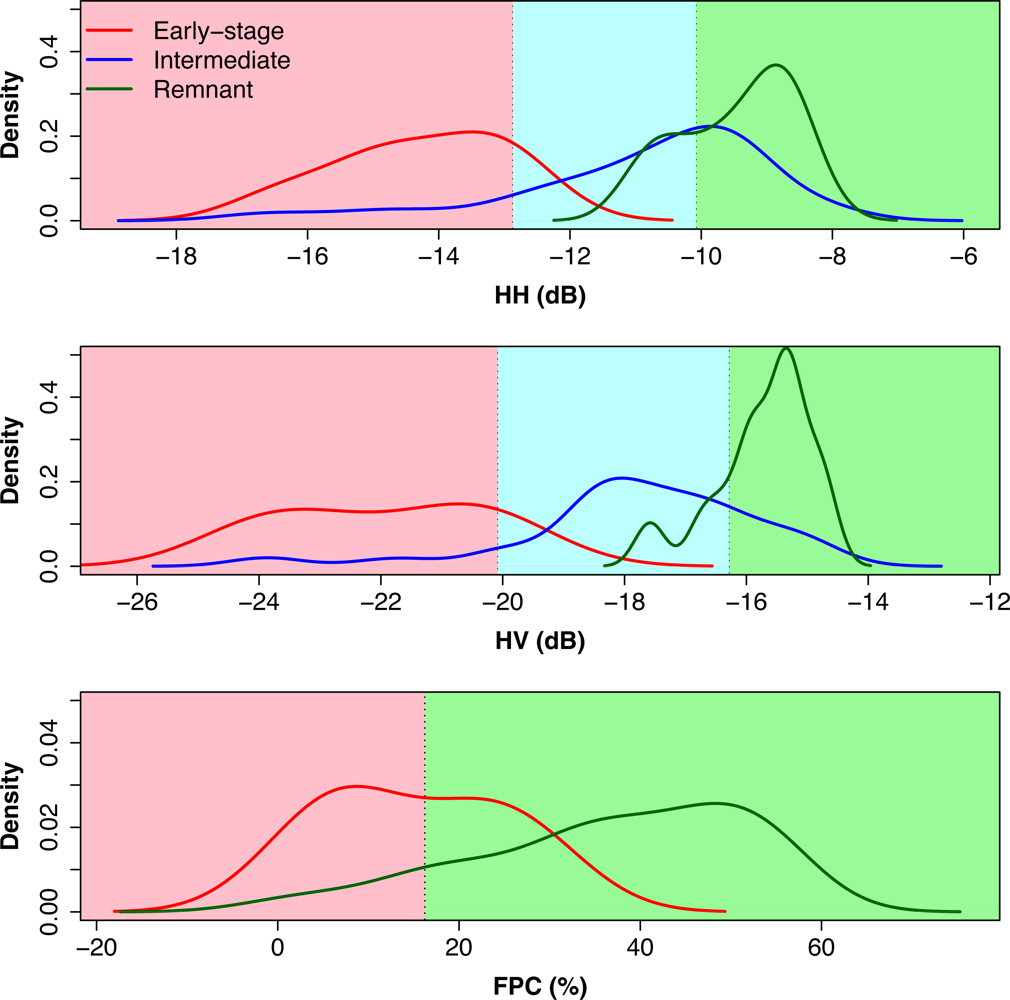

- Early-stage The backscatter of the object was not significantly greater than that of early-stage regrowth at HH- and HV-polarisation (zRg,HH < 2∩zRg,HV < 2), with this corresponding to the area shaded red in Figure 3.
- Remnant The backscatter of the object was not significantly less than that of remnant vegetation at HH- and HV-polarisation (zRm,HH > −2 ∩ zRm,HV > −2), with this corresponding to the area shaded green in Figure 3.
- Intermediate Assigned to all objects not classified as regrowth or remnant, with this corresponding to the area shaded blue in Figure 3.
5. Results
5.1. Validation
6. Discussion
- Regenerating forests may remain “locked-up” for many decades before events (e.g., fire or thinning) allow structural development to occur; hence, older forests may have similar characteristics as young regrowth which leads to age being an unreliable indicator of growth stage.
- Reference distributions for each channel can be adapted depending on the users definition of growth stage.
- The thresholds chosen for the z-scores can be varied to reduce commission or omission errors, based on mapping requirements. Whilst the same is true of backscatter thresholds, the use of z-scores considers the probability that the object is part of the same reference distribution.
7. Summary and Conclusions
Acknowledgments
References
- Accad, A.; Nelder, V.; Wilson, B.; Niehus, R.E. Remnant Vegetation in Queensland: Analysis of Remnant Vegetation 1997–1999–2000–2001–2003–2005, Including Regional Ecosystem Information; Technical Report; Queensland Herbarium: Brisbane, QLD, Australia, 2008. [Google Scholar]
- VMA. Vegetation Management and Other Legislation Amendment Act; The Office of the Queensland Parliamentary Counsel: Brisbane, QLD, Australia, 2004; pp. 1–67. [Google Scholar]
- Chandler, T.; Buckley, Y.; Dwyer, J. Restoration potential of Brigalow regrowth: Insights from a cross-sectional study in southern Queensland. Ecol. Manag. Restor 2007, 8, 218–221. [Google Scholar]
- Fensham, R.; Guymer, G. Carbon accumulation through ecosystem recovery. Environ. Sci. Policy 2009, 12, 367–372. [Google Scholar]
- Dwyer, J.; Fensham, R.; Buckley, Y.M. Restoration thinning accelerates structural development and carbon sequestration in an endangered Australian ecosystem. J. Appl. Ecol 2010, 47, 681–691. [Google Scholar]
- Bowen, M.E.; McAlpine, C.; Seabrook, L.; House, A.; Smith, G. The age and amount of regrowth forest in fragmented brigalow landscapes are both important for woodland dependent birds. Biol. Conserv 2009, 142, 3051–3059. [Google Scholar]
- Dwyer, J.; Fensham, R.; Butler, D. Carbon for conservation: Assessing the potential for win–win investment in an extensive Australian regrowth ecosystem. Agr. Ecosyst. Environ 2009, 134, 1–7. [Google Scholar]
- Butler, D.W. Planning iterative investment for landscape restoration: Choice of biodiversity indicator makes a difference. Biol. Conserv 2009, 142, 2202–2216. [Google Scholar]
- Prates-Clark, C.; Lucas, R.M.; dos Santos, J.R. Implications of land-use history for forest regeneration in the Brazilian Amazon. Can. J. Remote Sens 2009, 35, 534–553. [Google Scholar]
- Armston, J.D.; Denham, R.J.; Danaher, T.J.; Scarth, P.F.; Moffiet, T.N. Prediction and validation of foliage projective cover from Landsat-5 TM and Landsat-7 ETM+ imagery. J. Appl. Remote Sens 2009, 3, 1–28. [Google Scholar]
- Tanase, M.; de la Riva, J.; Santoro, M.; Pérez-Cabello, F.; Kasischke, E. Sensitivity of SAR data to post-fire forest regrowth in Mediterranean and boreal forests. Remote Sens. Environ 2011, 115, 2075–2085. [Google Scholar]
- Lucas, R.M.; Cronin, N.; Moghaddam, M.; Lee, A.; Armston, J.D.; Bunting, P.J.; Witte, C. Integration of radar and Landsat-derived foliage projected cover for woody regrowth mapping, Queensland, Australia. Remote Sens. Environ 2006, 100, 388–406. [Google Scholar]
- Naesset, E.; Bjerknes, K. Estimating tree heights and number of stems in young forest stands using airborne laser scanner data. Remote Sens. Environ 2001, 78, 328–340. [Google Scholar]
- Magnussen, S.; Wulder, M.A. Post-fire canopy height recovery in Canada’s boreal forests using Airborne Laser Scanner (ALS). Remote Sens 2012, 4, 1600–1616. [Google Scholar]
- Treuhaft, R.; Siqueira, P.R. Vertical structure of vegetated land surfaces from interferometric and polarimetric radar. Radio Sci 2000, 35, 141–177. [Google Scholar]
- Perko, R.; Raggam, H.; Deutscher, J.; Gutjahr, K.; Schardt, M. Forest assessment using high resolution SAR data in X-band. Remote Sens 2011, 3, 792–815. [Google Scholar]
- Carreiras, J.; Vasconcelos, M. Understanding the relationship between aboveground biomass and ALOS PALSAR data in the forests of Guinea-Bissau (West Africa). Remote Sens. Environ 2012, 121, 426–442. [Google Scholar]
- Lucas, R.M.; Cronin, N.; Lee, A.; Moghaddam, M.; Witte, C.; Tickle, P. Empirical relationships between AIRSAR backscatter and LiDAR-derived forest biomass, Queensland, Australia. Remote Sens. Environ 2006, 100, 407–425. [Google Scholar]
- Gama, F.F.; dos Santos, J.R.; Mura, J.C. Eucalyptus biomass and volume estimation using interferometric and polarimetric SAR data. Remote Sens 2010, 2, 939–956. [Google Scholar]
- Accad, A.; Lucas, R.M.; Pollock, A.; Armston, J.D.; Bowen, M.E.; McAlpine, C.; Dwyer, J. Mapping the Extent and Growth Stage of Woody Regrowth Following Clearing Through Integration of ALOS PALSAR and Landsat-Derived Foliage Projected Cover. Proceedings of 15th Australasian Remote Sensing and Photogrammetry Conference (ARSPC), Alice Springs, Australia, 13–17 September 2010.
- Shimada, M.; Ohtaki, T. Generating large-scale high-quality SAR mosaic datasets: Application to PALSAR data for global monitoring. IEEE J. Sel. Top. Appl. Earth Obs 2010, 3, 637–656. [Google Scholar]
- Lehmann, E.; Caccetta, P.; Zhou, Z. Forest Discrimination Analysis of Combined Landsat and ALOS-PALSAR Data. Proceedings of International Symposium on Remote Sensing of Environment, Sydney, Australia, 10–15 April 2011.
- Queensland Herbarium. Regional Ecosystem Description Database (REDD). A Database Describing Regional Ecosystems; Environmental Protection Agency: Brisbane, Australia, 2011. Available online: http://www.derm.qld.gov.au/redd (accessed on 4 January 2012).
- Wegmuller, U.; Werner, C.; Strozzi, T. SAR Interferometric and Differential Interferometric Processing Chain. Proceedings of 1998 IEEE International Geoscience and Remote Sensing Symposium, Seattle, WA, USA, 6–10 July 1998; 2, pp. 1106–1108.
- Wegmuller, U. Automated Terrain Corrected SAR Geocoding. Proceedings of IEEE 1999 International Geoscience and Remote Sensing Symposium, Hamburg, Germany, 28 June–2 July 1999; pp. 1712–1714.
- Armston, J.D.; Carreiras, J.; Lucas, R.M.; Shimada, M. ALOS PALSAR Backscatter Mosaics for Queensland Australia: The Impact of Surface Moisture and Incidence Angle. Proceedings of 15th Australasian Remote Sensing and Photogrammetry Conference (ARSPC), Alice Springs, Australia, 13–17 September 2010; pp. 1–15.
- Geoscience Australia (GA). 1 Second SRTM Derived Digital Elevation Model (DEM) Version 1.0.; GA: Canberra, ACT, Australia, 2009. [Google Scholar]
- Castel, T.; Beaudoin, A.; Stach, N.; Stussi, N.; Le Toan, T.; Durand, P. Sensitivity of space-borne SAR data to forest parameters over sloping terrain. Theory and experiment. Int. J. Remote Sens 2001, 22, 2351–2376. [Google Scholar]
- Danaher, T.; Scarth, P.; Armston, J.; Collett, L.; Kitchen, J.; Gillingham, S. Remote Sensing of Tree-Grass Systems—The Eastern Australian Woodlands. In Ecosystem Function in Savannas: Measurement and Modeling at Landscape to Global Scales; Hill, M., Hanan, N., Eds.; CRC Press: Boca Raton, FL, USA, 2010; pp. 175–194. [Google Scholar]
- Neldner, V.; Wilson, B.; Thompson, E.; Dillewaard, H. Methodology for Survey and Mapping of Regional Ecosystems and Vegetation Communities in Queensland; Technical Report; Queensland Herbarium, Environmental Protection Agency: Brisbane, QLD, Australia, 2005. [Google Scholar]
- Eyre, T.; Kelly, A.; Neldner, V. Methodology for the Establishment and Survey of Reference Sites for BioCondition (Version 2); Technical Report; Biodiversity and Ecological Sciences Unit, Department of Environment and Resource Management (DERM): Brisbane, QLD, Australia, 2011. [Google Scholar]
- Welch, B. The generalization of students problem when several different population variances are involved. Biometrika 1947, 34, 28–35. [Google Scholar]
- R Core Development Team. R: A Language and Environment for Statistical Computing; R Team: Vienna, Austria, 2011. [Google Scholar]
- Trimble. eCognition Developer 8. Available online: http://www.ecognition.com/ (accessed on 28 January 2012).
- Lee, J. Digital image-enhancement and noise filtering by use of local statistics. IEEE Trans. Pattern Anal. Machine Intell 1980, 2, 165–168. [Google Scholar]
- Richards, J.; Jia, X. Remote Sensing Digital Image Analysis: An Introduction; Springer: Berlin/Heidelberg, Germany, 2006. [Google Scholar]
- The National Committee on Soil and Terrain. Australian Soil and Land Survey Field Handbook, 3rd ed; CSIRO Publishing: Collingwood, VIC, Australia, 2009. [Google Scholar]
RE | Description |
---|---|
11.4.3 | A. harpophylla and/or C. cristata shrubby open-forest on Cainozoic clay plains |
11.4.7 | Eucalyptus populnea with A. harpophylla and/or C. cristata open-forest to woodland on Cainozoic clay plains |
11.4.10 | E. populnea or E. woollsiana, A. harpophylla, C. cristata open-forest to woodland on margins of Cainozoic clay plains |
11.3.1 | A. harpophylla and/or C. cristata open-forest on alluvial plains |
11.9.5 | A. harpophylla and/or C. cristata open-forest on fine-grained sedimentary rocks |
(a) Maximum-likelihood classification | ||||
Age Class | ||||
Classification | 0–15 years | 16–60 years | >60 years | User |
Regrowth | 7.6 | 5.1 | 1.5 | 53.3% |
Intermediate | 1.4 | 13.3 | 15.6 | 43.8% |
Remnant | 0.0 | 2.8 | 52.5 | 94.9% |
Producer | 83.7% | 62.8% | 75.4% | 73.4% |
(b) Significance-based classification | ||||
Age Class | ||||
Classification | 0–15 years | 16–60 years | >60 years | User |
Regrowth | 7.8 | 5.8 | 2.0 | 50.3% |
Intermediate | 1.2 | 12.3 | 16.1 | 41.6% |
Remnant | 0.1 | 3.1 | 51.7 | 94.3% |
Producer | 86.0% | 58.2% | 74.1% | 71.8% |
