Remote Sens. 2011, 3(6), 1104-1138; doi:10.3390/rs3061104

Article
Heritage Recording and 3D Modeling with Photogrammetry and 3D Scanning
3D Optical Metrology (3DOM) Research Unit, Bruno Kessler Foundation (FBK), 38122 Trento, Italy
Received: 7 April 2011; in revised form: 16 May 2011 / Accepted: 17 May 2011 / Published: 30 May 2011

Abstract

:
The importance of landscape and heritage recording and documentation with optical remote sensing sensors is well recognized at international level. The continuous development of new sensors, data capture methodologies and multi-resolution 3D representations, contributes significantly to the digital 3D documentation, mapping, conservation and representation of landscapes and heritages and to the growth of research in this field. This article reviews the actual optical 3D measurement sensors and 3D modeling techniques, with their limitations and potentialities, requirements and specifications. Examples of 3D surveying and modeling of heritage sites and objects are also shown throughout the paper.
Keywords:
surveying; sensors; 3D modeling; photogrammetry; remote sensing; laser scanning; Cultural Heritage

1. Introduction

The creation of 3D models of heritage and archaeological objects and sites in their current state requires a powerful methodology able to capture and digitally model the fine geometric and appearance details of such sites. Digital recording, documentation and preservation are demanded as our heritages (natural, cultural or mixed) suffer from on-going attritions and wars, natural disasters, climate changes and human negligence. In particular the built environment and natural heritage have received a lot of attention and benefits from the recent advances of range sensors and imaging devices [1,2]. Nowadays 3D data are a critical component to permanently record the form of important objects and sites so that, in digital form at least, they might be passed down to future generations. This has generated in the last decade a large number of projects, mainly led by research groups, which have realized very good quality and complete digital models [3,4,5,6,7,8,9]. Indeed remote sensing technologies and methodologies for Cultural Heritage 3D documentation and modeling [10] allow the generation of very realistic 3D results (in terms of geometric and radiometric accuracy) that can be used for many purposes, such as historical documentation [11,12], digital preservation and conservation [13,14], cross-comparisons, monitoring of shape and colors, simulation of aging and deterioration, virtual reality/computer graphics applications [15,16], 3D repositories and catalogues [17], web-based geographic systems, computer-aided restoration [18], multimedia museum exhibitions [19], visualization and so on. However, despite all these potential applications and the constant pressure of international heritage organizations, a systematic and targeted use of 3D surveying and modeling in the Cultural Heritage field is still not yet employed as a default approach and when a 3D model is generated, it is often subsampled or reduced to a 2D drawing due to a lack of software or knowledge in properly handling 3D data by non-expert. However, the availability and use of 3D data opens a wide spectrum of further applications and allows new analyses, studies, interpretations, conservation policies or digital restoration. Thus 3D virtual heritages should be more frequently used due to the great advantages that remote sensing technologies and the third dimension offer to the heritage world and to recognize the digital documentation and preservation needs stated in numerous international charters and resolutions. Unfortunately, there are still some difficulties of communications between the geomatics people and the heritage community. New technologies and new hardware are increasing the quality of 3D models with the purpose of attracting new people into the 3D world. Many companies entered inside this market developing and employing software and survey systems with good potentialities and often with very impressive results. Thus the number of 3D products is huge and if, on one hand, the cost of these technologies is slowly reducing, on the other hand it is difficult, in particular for non-specialists, to select the right product due to a lack of standard terminologies, specifications and performance benchmarking. Furthermore, new technologies can be a powerful tool to improve the classical standard of heritage recording and documentation and create a new methodology. However caution must be used and the new recording technologies have to be further studied and customized to be fully effective and useful, since even the standard bi-dimensional representations are still not problem-free.
Although digitally recorded and modeled, our heritages require also more international collaboration and information sharing to make them accessible in all the possible forms and to all the possible users and clients. Nowadays, the digital documentation and 3D modeling of Cultural Heritage should always consist of [20]:
Recording and processing of a large amount of 3D (possibly 4D) multi-source, multi-resolution, and multi-content information;
Management and conservation of the achieved 3D (4D) models for further applications;
Visualization and presentation of the results to distribute the information to other users allowing data retrieval through the Internet or advanced online databases;
Digital inventories and sharing for education, research, conservation, entertainment, walkthrough, or tourism purposes.
In the following sections, optical sensors for reality-based recording and modeling of large sites and complex objects are reported. The actual problems and open issues in the entire 3D modeling pipeline are also summarized. Since a large body of work on 3D recording and modeling with photogrammetry and 3D scanning exists, the paper mainly focuses on the most accepted and practically tested sensors, recording and 3D modeling approaches. Despite the fact that sensor’s technology is developing very fast and that very few standards are available for the sensor specifications, some summarizing tables of the existing active and passive sensors are also reported with their main performance parameters.

2. Recording Optical Sensors and Platforms

Today a large number of remote sensing sensors and data are available for mapping purposes and digital recording of visual Cultural Heritage. Generally non-invasive optical recording sensors are divided in passive and active systems. Passive sensors (e.g., digital cameras) deliver image data which are then processed with some mathematical formulations to infer 3D information from the 2D image measurements. On the other hand, active sensors (e.g., laser scanner or radar) can provide data directly for 3D information or ranges. Terrestrial active and passive sensors employed to derive 3D shapes are often referred to 3D imaging techniques [21].
Synthetic Aperture Radar (SAR) systems (Table 1) are not considered as optical sensors, although their use for mapping and monitoring purposes is increasing in recent years with really impressive and interesting results [22,23,24]. Radar sensors are weather independent although the interpretation of radar images is more complicated if compared to optical images.
Reality-based 3D surveying and modeling is meant as the digital recording and 3D reconstruction of visual and existing scenes using active sensors and range data (Section 2.1), passive sensors and image data (Section 2.2), classical surveying (e.g., total stations or GNSS), 2D maps [25] or an integration of the aforementioned methods (Section 2.3). The choice or integration depends on the required accuracy, object dimensions, location constraints, instrument’s portability and usability, surface characteristics, working team experience, project budget, final goal of the survey, and so on. On the other hand, non-real 3D modeling approaches are based on computer graphics software (e.g., 3D Studio Max, Maya, Sketchup, Blender, etc.) or procedural modeling approaches [26,27,28] allowing the generation of really remarkable 3D data without any particular survey or knowledge of a site and with generally no metrical results.

2.1. Active Optical Sensors

Optical range sensors [29,30,31] like pulsed (Time-of-Flight), phase-shift and triangulation-based (light sheet or pattern projection) instruments have received much attention in recent years, also from non-experts, for 3D surveying and modeling purposes. Range sensors directly record the 3D geometry of surfaces, producing quantitative 3D digital representations (point clouds or range maps) in a given field of view with a defined measurement uncertainty. Range sensors are getting quite common in the mapping community and heritage field, despite their high costs, weight and the usual lack of good texture. Interferometry-based systems (not covered here) can also be used to capture accurate high resolution 3D data of Cultural Heritage [32,33,34].
Terrestrial range sensors (Table 2 and Table 3) work from very short ranges (few centimeters up to a few kilometers) in accordance with surface proprieties and environment characteristics, delivering 3D data with accuracy from some microns up to some millimeters.
Table 1. SAR missions and sensors (VV = Vertical transmit and Vertical receive polarizations; HH = Horizontal transmit and Horizontal receive; HV = Horizontal transmit and Vertical receive).
Table 1. SAR missions and sensors (VV = Vertical transmit and Vertical receive polarizations; HH = Horizontal transmit and Horizontal receive; HV = Horizontal transmit and Vertical receive).
Mission/SensorAgencyFrequencyPolarizationGround resol. (m)Acquisition modeSwath (km)Repeated cycle
ERS-1/-2ESAC-bandVV25 mStripmap10035 days
JERS-1JAXAL-bandHH20 mStripmap7044 days
RADARSAT-1CSAC-bandHH10–100Stripmap, ScanSAR50–10024 days
SRTMNASA/JPL & DARA/ASIX-/C-bandVV20–30Stripmap30–35011 days
ENVISAT ASARESAC-bandHH, VV, HH/HV, VV/VH15–1,000Stripmap, ScanSAR, AP100–40535 days
ALOS PALSAR-1JAXAL-bandsingle, dual, full pol7–100Stripmap, ScanSAR20–35046 days
TerraSAR-X-1/-2 (TanDEM-X)Astrium/Infoterra, DLRX-bandsingle, dual, full pol1–16Stripmap, ScanSAR, Spotlight15–6011 days
RADARSAT-2CSA & MDAC-bandsingle, dual, full pol3–100Stripmap, ScanSAR50–50024 days
COSMO Skymed-1/-2/-3/-4ASIX-bandSingle pol (HH or HV)1–15Stripmap, ScanSAR, Spotlight5–10015 days
RISAT-1ISROC-bandSingle, dual, full pol2–50Stripmap, ScanSAR, Spotlight10–24012 days
Table 2. Most common close-range terrestrial range sensors (LL = Laser light; TR = Triangulation-based systems; SL = Structured light systems).
Table 2. Most common close-range terrestrial range sensors (LL = Laser light; TR = Triangulation-based systems; SL = Structured light systems).
Meas. principleLateral res (mm)Range (cm)Accuracy (μm)CameraWeight (kg)Acquisition
Breuckmann stereoSCANSL0.02–0.86–1505–1002 b/w or color (1.4–5 Mpx)~6~1 s
Breuckmann smartSCAN3D-HESL0.01–0.83–1505–1202 b/w or color (1.4–5 Mpx)~4~1 s
ShapeGrabberLL-TR0.0221, 29, 63, 12028, 38, 87, 2751 (1.3 Mpx)>14>18K pts/s
Gom ATOS IIISL0.01–0.6--2 (8 Mpx)--
NextengineLL-TR-16–4540–1002 (3 Mpx)3.2120 s
Creaform EXAscanLL-TR0.05 4021.2525 K pts/s
PolhemusFastSCANLL-TR0.5@200 mm<751301 or 2
Kreon SOLANOLL-TR >10401<0.440 K pts/s
Artec MHT 3DLL-TR0.540–1001001 (1.3 Mpx)1.6500 K pts/s
Minolta Range7LL-TR0.08, 0.14, 0.16, 0.2854, 97, 109, 194401 (1.3 Mpx)6.7-
VialuxSL0.1304012.30.04 s; 7M pts/s
Terrestrial range sensors generally use a pre-defined wavelength although multispectral laser scanning systems would allow the identification of surface’s material, humidity, moisture, etc. [35].
According to [36], the 3D scanning results are a function of:
Intrinsic characteristics of the instrument (system calibration, measurement principle, etc.);
Characteristics of the scanned material and scene, in terms of reflection, light diffusion and absorption (amplitude response);
Characteristics of the working environment;
Coherence of the backscattered light (phase randomization);
Dependence from the chromatic content of the scanned material (frequency response).
Table 3. Most common long-range terrestrial laser scanners (TOF = Time-of-Flight; PS = Phase Shift; λ = wavelength in nm; 1 80% reflectivity).
Table 3. Most common long-range terrestrial laser scanners (TOF = Time-of-Flight; PS = Phase Shift; λ = wavelength in nm; 1 80% reflectivity).
Measur. principleSensor weightMax FOVMin/max range1Angular accuracyRange accuracyλCamera
Leica Scanstation2TOF18.5 kg270 × 3600.3–3000.003°4 mm @ 50 m532integrated, 1 Megapx
Leica C10TOF13 kg270 × 3600.3–3000.006°4 mm @ 50 m532integrated, 4 Megapx
Leica HDS6200PS14 kg310 × 3600.4–790.007°3mm @ 50 m670add-on optional
Riegl VZ- 1000TOF9.8 kg100 × 3602.5–1,3500.0005°8 mm @ 100 mNIRadd-on optional
Riegl VZ-400TOF9.8 kg100 × 3601.5–350/6000.0005°5 mm @ 100 mNIRadd-on optional
Optech ILRIS HD-ERTOF14 kg40 × 40(360 × 360)3–2,0000.003°7 mm @ 100 m1535integrated, 3.1 Mpx
Optech ILRIS HD-LRTOF14 kg40 × 40(360 × 360)3–3,0000.004°7 mm @ 100 m1064integrated, 3.1 Mpx
Topcon GLS-1500TOF17.6 kg360 × 701–3300.006°4 mm @ 150 mNIRintegrated, 2 Mpx
Maptek I-Site 8800TOF14 kg360 × 802.5–1,4000.01°10 mmNIRintegrated, 70 Mpx
Trimble GX 3DTOF13 kg360 × 60<350-7 mm @ 100 m532integrated videocam
Trimble CXTOF & PS12 kg360 × 3001–800.004°2 mm @ 30 m660integrated
Faro Photon 120PS14.5 kg320 × 3600.6–120-2 mm @ 10 m785integrated
Faro Focus3DPS5 kg305 × 3600.6–20/120-0.6 mm @ 10 m, 0.95 mm @ 25 m905integrated, 70 Mpx
Z+F IMAGER 5006PS13.2 kg310 × 3600.4–79-0.7 mm @ 25 mVISadd-on optional
Basis Surphaser 25HSXPS11 kg270 × 3600.2–700.01°1 mm @ 15 m690add-on optional
Laser scanners (only pulsed Time-of-Flight measurement systems) can also be used on airborne platforms (helicopter or fixed wing aircraft) and are generally called LiDAR but preferably Airborne Laser Scanning (ALS, Table 4). ALS is coupled with GNSS/INS sensors to accurately measure the position and orientation of the system for Digital Surface Models (DSM) generation, city modeling, forestry applications, corridor mapping, structural monitoring and change detection, just to mention some applications. The range digitization of actual commercial airborne laser scanners is realized using the discrete echo (multiple returns) or the full waveform principle. Range acquisition from satellite platforms is also under evaluation at NASA [37] and ESA where different mechanisms for coverage (diffractive optical elements (DOE), multiple lasers, etc.) are investigated.
Table 4. Most common Airborne Laser Scanners (MR = Multiple return; FW = Full waveform; λ = Wavelength in nm).
Table 4. Most common Airborne Laser Scanners (MR = Multiple return; FW = Full waveform; λ = Wavelength in nm).
Range accuracyOperating h AGLFOV Range digitizationλBeam deflectionTypical platform
Optech ALTM Gemini5–35 cm<4,000 m50°MR (up to 4) FW as opt1,060 nmoscillating mirrorairplane
Optech ALTM Orion5–15 cm<2,500 m50°MR ( up to 4)1,064 nmoscillating mirrorboth
Leica ALS602 cm<5,000 m75°MR (up to 4) FW as opt1,064 nmoscillating mirrorboth
Riegl VQ5802.5 cm<750 m60°FWNIRrotating multi-facet mirrorboth
Riegl LMS-Q680i2 cm<1,600 m60°FWNIRrotating multi-facet mirrorboth
Riegl LMS-Q240i2 cm<350 m80°MR (up to 4)NIRrotating multi-facet mirrorhelicopter
IGI LM68002 cm<2,000 m-FW1,550 nmrotating polygon mirrorboth
Toposys FalconIII1 cm<2,500 m28°MR (up to 9) FW as opt1,550 nmfiber opticsboth
Fugro FLI-MAP 4001 cm<400 m60°MR (up to 4)1,550 nmrotating mirrorhelicopter
Blom/TopEye MkII3.5 cm<750 m20°FW1,064 nmpalmer scanninghelicopter
Airborne and terrestrial laser scanning are generally treated separately as they differ in terms of employed sensors (the former on a moving platform, the latter at fixed positions, thus influencing the initial processing of the delivered range data), project sizes, scanning mechanisms and achievable accuracy or resolutions. Due to the more frequent use of mobile platforms (see Section 2.3) on the ground (e.g., van, ships, etc.) another coherent distinction could be dynamic vs. static scanning [38].
Range sensors are nowadays employed for large area topographic mapping, DSM/DTM generation (Figure 1), heritage documentation (Figure 2), modeling fluvial environments and geological structures [39], studies on biomass and vegetation information [40,41,42], archaeological applications [43], landslide and glacier monitoring, power line and corridor mapping, detection and vectorialization of man-made structures [44,45,46,47] just to mention few possible applications.
Figure 1. 3D surveying and modeling of the Three Peaks in the Dolomites area, Italy (ca. 2 × 0.8 km), based on oblique airborne laser scanning [47]. The acquired point cloud (a) is rendered in a photo-realistic mode (b) using terrestrial images projected onto the acquired 3D data. (c) A closer view of the 3D geometric model with an average resolution of 5 cm.
Figure 1. 3D surveying and modeling of the Three Peaks in the Dolomites area, Italy (ca. 2 × 0.8 km), based on oblique airborne laser scanning [47]. The acquired point cloud (a) is rendered in a photo-realistic mode (b) using terrestrial images projected onto the acquired 3D data. (c) A closer view of the 3D geometric model with an average resolution of 5 cm.
Remotesensing 03 01104 g001
Figure 2. 3D surveying and modeling of frescoed underground Etruscan tombs for documentation, conservation, fruition and valorization purposes. (a) The “Hanting and Fish” tomb in Tarquinia, Italy. (b) The “Relief” tomb in Cerveteri, Italy.
Figure 2. 3D surveying and modeling of frescoed underground Etruscan tombs for documentation, conservation, fruition and valorization purposes. (a) The “Hanting and Fish” tomb in Tarquinia, Italy. (b) The “Relief” tomb in Cerveteri, Italy.
Remotesensing 03 01104 g002

2.2. Imaging Sensors

Image data require a mathematical formulation to transform the 2D image measurements into 3D information. Normally at least two images are required and 3D data can be derived using perspective or projective geometry formulations [48,49]. Image-based modeling techniques [50], mainly photogrammetry and computer vision, are generally preferred in case of lost objects, monuments or simple architectures with regular geometric shapes, small objects with free-form shape, point-based deformation analyses, low budget terrestrial projects, good experience of the working team and time or location constraints for the data acquisition.
Photogrammetry [51,52] is considered the best technique for the processing of image data, being able to deliver at any scale of application accurate, metric and detailed 3D information with estimates of precision and reliability of the unknown parameters from the measured image correspondences (tie points). Images can be acquired using satellite, aerial or terrestrial sensors (Table 5, Table 6 and Table 7) and then processed following the typical photogrammetric pipeline based on sensor calibration, image orientation, surface measurement, feature extraction and orthophoto generation. Photogrammetry finds its primary fields of applications in cartography and mapping, precise 3D documentation of Cultural Heritage [5,12], reverse engineering, monitoring and deformation analyses of structures [53], human movement analyses [54], industrial measurements [55], urban planning, forensic [56], navigation, heating dispersion, telecommunications, etc. With respect to range sensors, the photogrammetric processing might be still seen as tedious and not appropriate or reserved only to expert users although for different applications both recording methods are able to deliver the same 3D geometric results. There is awareness of the potential of the image-based approach with its automated and dense image matching methods [57,58,59] (Figure 3), but beside a lack of reliable commercial packages, its application by non-experts is not often an easy task and the reliability of the optical active sensor workflow (with related range-based modeling software) is still much higher for many practical projects, although time consuming and expensive.
Beside photogrammetry, computer vision is receiving great interest for 3D reconstruction applications and is having an increasing influence, especially in automatic object recognition and extraction. Even if accuracy is not the primary goal, computer vision approaches are retrieving interesting results for visualization, object-based navigation, location based services, robot control, shape recognition, augmented reality, annotation transfer or image browsing purposes.
Figure 3. Automated DSM generation (25 cm geometric resolution) from aerial images acquired with a SLR camera from a helicopter (10 cm GSC).
Figure 3. Automated DSM generation (25 cm geometric resolution) from aerial images acquired with a SLR camera from a helicopter (10 cm GSC).
Remotesensing 03 01104 g003
Terrestrial digital cameras (Table 5) come in many different forms and format: single CCD/CMOS sensor, frame, linear, multiple heads, SLR-type, industrial, off-the-shelf, high-speed, panoramic head, still-video, etc. [60]. Common terrestrial cameras have at least 10–12 Megapixels at very low price while high-end digital back cameras feature more than 40 Megapixel sensors. Mobile phone cameras have up to 5 Megapixels and they could be even used for photogrammetric purposes [61]. Panoramic linear array cameras are able to deliver very high resolution images with great metric performances [62,63,64,65]. The high cost of these sensors is limiting their market and thus panoramic images are also generated stitching together a set of partly overlapped images acquired from a unique point of view with a consumer or SLR digital camera which is rotated around its perspective centre. This easy and low-cost solution allows to acquire almost Gigapixel images with great potential not only for visual needs (e.g., Google Street View, 1001 Wonders, etc.), but also for metric applications and 3D modeling purpose [66,67].
Table 5. Most common terrestrial digital cameras (1weight without lens).
Table 5. Most common terrestrial digital cameras (1weight without lens).
NameTypeSensor type/ resolutionSensor size [mm]Pixel size [µm]Weight [kg] 1RAW fileFrame rateShutter speed
Hasselblad H4D-60Medium Format DSLRCCD / 60 Mpx53.7 × 40.261.816-bit0.7 fps1/800
Pentax 645 DMedium Format DSLRCCD /40 Mpx44 × 3361.4814-bit1.1 fps1/4,000
Mamiya DM33Medium Format DSLRCCD / 33 Mpx48 × 3671.6316-bit1.1 fps-
Canon EOS-1Ds Mark III35 mm full frame format DSLRCMOS / 22 Mpx36 × 246.41.38514-bit5 fps1/8,000
Nikon D3X35 mm full frame format DSLRCMOS / 24.5 Mpx35.9 × 245.951.26014-bit5 fps1/8,000
Sony α90035 mm full frame format DSLRCMOS/ 24.6 Mpx35.9 × 245.90.89512-bit5 fps1/8,000
Sony αNEX-5APS CCMOS / 14 Mpx23.5 × 15.75.10.28712 bit2.3 fps1/4,000
Olympus E-PL2Micro four Thirds systemLive MOS / 12.3 Mp17.3 × 134.30.31712-bit3 fps1/4,000
Panasonic Lumix DMC-GH2Micro four Thirds systemLive MOS / 16.1 Mpx18.9 × 14.54.10.39412-bit5 fps1/4,000
Almost ten years after the introduction into the market of the first digital large format aerial camera, nowadays we have a great variety of aerial digital sensors (Table 6) which are generally classified as small, medium and large format cameras [68]. The different systems feature frame sensors or pushbroom line scanners (linear arrays), achieving color images with the Bayer filter option or using multiple cameras/lines, each recording a single spectral band and then registering and superimposing the separated images (generally RGB + NIR). Between the available aerial acquisition platforms, particular interest has been devoted to the UAVs, (Unmanned Aerial Vehicles) like low-altitude model helicopters which can fly in an autonomous mode, using integrated GNSS/INS, stabilizer platform and digital cameras (or even a small laser scanner) and which can be used to get data from otherwise hardly accessible areas [69]. In particular, High Altitude Long Endurance (HALE) UAV platforms are covering the gap between space and airborne systems and could be a useful geomatics platform.
Table 6. Primary airborne digital cameras and systems.
Table 6. Primary airborne digital cameras and systems.
FormatSystemSensor typeNo. frames/linesSpectral BandsGeometric resolutionPixel size [μm]
SMALL FORMATMosaicMill / EnsoMosaicFrame1RGB21 Mpx (Canon Eos 1DS Mark III)6.4
GeonissFrame1RGB24 Mpx(Nikon D3X)6
Vision Map A3Frame2PAN, RGB, NIR11 Mpx per frame9
VisionMap MISTFrame1RGB11 Mpx9
Tiltan System Eng. AMUFrame2RGB11 Mpx per frame9
Track’Air MIDISFrame5, 9RGB21 Mpx per frame (Canon Eos 1DS Mark III)6.4
MEDIUM FORMATWehrli 3-DAS-1Linear3RGB8,023 px per line9
Trimble DSS WideangleFrame1RGB6,732 × 8,924 px (60 Mpx)6.8
Trimble DSS DualcamFrame2RGB, NIR5,412 × 7,216 px per frame6.8
Trimble Aerial CameraFrame1RGB, NIR22, 39 or 60 Mpx9, 6.8, 6
Trimble Aerial Camera X4Frame4RGB39 or 60 Mpx per frame (135 or 210 Mpx composite)6.8, 6
Optech / DIMAC wideFrame2RGB13,000 × 8,900 px composite6
Optech / DIMAC lightFrame1RGB8,984 × 6,732 px6
IGI DigiCAMFrame1,RGB, NIR60, 50, 39 Mpx6, 6, 6.8
2,118, 98, 76 Mpx
3,175, 145, 112 Mpx
4,235, 191, 145 Mpx
5,60, 50, 39 Mpx
LARGE FORMATZ/I Imaging DMC II 250Frame4 PANPAN, RGB, NIRPAN: 250 Mpx (17,216 × 14,656 px)5.6
4 MSMS: 4 × 42 Mpx (6,846 × 6,096 px)7.2
Microsoft/Vexcel UltraCam XpFrame9 PANPAN, RGB, NIRPAN: 196 Mpx (17,310 × 11,310 px)6
4 MSMS: 22 Mpx (5,770 × 3,770 px)6
Leica ADS-80Linear4 PANPAN, RGB, NIR12,000 px per line6.5
4 MS
The number of existing and planned high and very high resolution imaging satellite sensors (Table 7) is growing with very interesting prospective for the near future. Optical satellite imaging still depends on cloud coverage but large archives are available, often with stereo-pairs for geomatics applications thus bringing photogrammetric methodologies more close to traditional remote sensing.
Furthermore satellite platforms have a frequent revisit time and they can easily access remote heritage or restricted areas, constituting an interesting tool for DTM/DSM generation (Figure 4), topographic mapping at medium and small scale or identification of archaeological sites [70,71,72]. Since some years, an innovative solution and cheaper alternative to standard and large satellite systems is represented by the small satellites, lighter systems designed inside smaller volumes and generally orbiting in constellations.
Table 7. High resolution (<15 m) optical satellite sensors (AL = along-track; AC = across-track).
Table 7. High resolution (<15 m) optical satellite sensors (AL = along-track; AC = across-track).
SensorNo. sensorsFocal length [mm]StereoIncidence angles (°)ChannelsGround resolution (GSD)[m]Swath width [km]No. pixels/line
GEOEYE-1113,300ALup to ±60PAN0.4115.230,000
RGB, NIR1.64
WORLDVIEW-118,800ALup to ±45PAN0.5017.635,000
WORLDVIEW-2113,300ALup to ±45PAN0.4616.431,000
RGB, NIR1, NIR2, COASTAL, YELLOW, RED EDGES1.80
QUICKBIRD-218,800ALup to ±30PAN0.616.527,000
RGB, NIR2.4
IKONOS-2110,000ALup to ±60PAN11113,500
RGB, NIR4
EROS-A113,500AL/ACup to ±45PAN1.8147,800
CARTOSAT-221,945AL26, -5PAN2.53012,288
ALOS-PRISM32,000AL0PAN2.57028,000
±243514,000
RAPIDEYE1633AC±254 VIS, NIR6.57812,000
SPOT-5/HRG21,082ACup to ±27PAN5 (2.5)6024,000
RG, NIR106,000
SPOT-5/HRS2580AL±20PAN1012012,000
ASTER-VNIR2329AL0RG15605,000
0, −27NIR
Figure 4. DSM generation from SPOT-5 HRG (left) and textured digital model with a PAN IKONOS image mosaic (right) over the Bamiyan area, Afghanistan [70].
Figure 4. DSM generation from SPOT-5 HRG (left) and textured digital model with a PAN IKONOS image mosaic (right) over the Bamiyan area, Afghanistan [70].
Remotesensing 03 01104 g004

2.3. Sensors and Data Integration

Nowadays there is still great discussion on which 3D recording and measurement approach or technique is better in which surveying situation. So far the best answer to this question is given by the market which is generally more in favor of range sensors, in particular for heritage sites. However, in many research projects the combination and integration of different sensors and techniques is the ideal solution, in particular to survey large and complex sites and improve the extraction of features [73,74,75,76,77,78,79,80].
Indeed the generation of digital 3D models of large sites for documentation and conservation purposes requires a technique with the following properties:
accuracy: precision and reliability are two important factors of the surveying work, unless the work is done for simple and quick visualization;
portability: a technique, in particular for terrestrial acquisitions, should be portable due to issues of accessibility for many heritage sites, absence of electricity, location constraints, etc.;
low cost: most archaeological and documentation missions have limited budgets and cannot afford expensive surveying instruments;
fast acquisition: most sites and excavation areas have limited time for documentation so as not to disturb works or visitors;
flexibility: due to the great variety and dimensions of sites and objects, the surveying technique should allow for different scales and it should be applicable in any possible condition.
As all these properties are not often found in a single technique, most of the surveying projects related to large and complex sites integrate and combine multiple sensors and techniques in order to achieve more accurate and complete 3D surveying and modeling results (Figure 5).
The integration is generally done at sensor or data level. Data fusion is a standard framework for combining data coming from different sources. Examples are given by optical satellite data combined with radar images, panchromatic with multi-spectral images, aerial images with LiDAR data or terrestrial scanning with photogrammetric data. On the other hand, Mobile Mapping (MM) systems are the best example of sensor integration and cost-effective acquisition of geo-referenced spatial data, with a combination of digital imaging devices, long-range laser scanners and GNSS/IMU positioning sensors [81]. MM systems (Table 8) have developed from a typical academic research to commercially operating systems used for topographic surveying, 3D mapping of traffic arteries, city planning, visual street-level image and vector data acquisitions, visualization, etc. The accuracy requirements for the data that has to be acquired is substantially different in each application, with cartographic mapping and road or rail infrastructure surveying being much more demanding in this particular respect.
Figure 5. 3D modeling results of the complex archaeological site of the forum in Pompeii (Italy) performed integrating terrestrial images, long-range TOF scanning and aerial images [79].
Figure 5. 3D modeling results of the complex archaeological site of the forum in Pompeii (Italy) performed integrating terrestrial images, long-range TOF scanning and aerial images [79].
Remotesensing 03 01104 g005
Table 8. Most common Mobile Mapping system suppliers and related components (1 Reflectivity of 80%; 2 Vehicle positional accuracy).
Table 8. Most common Mobile Mapping system suppliers and related components (1 Reflectivity of 80%; 2 Vehicle positional accuracy).
SupplierNameScanner(s)Range1FrequencyAbs. acc.Pos. acc. 2Camera(s)
TOPCONIP-S23<80 m-<10 cm-Optional (360 spherical)
RIEGLVMX-2502<300 m<300 K pts/s±1 cm-optional
3D Laser MappingStreetMapper2-4<300 m<300 K pts/s±2 cm<2 cm2 (12 Mpx each)
OPTECHLynx2<200 m<400 K pts/s 2
MITSUBISHIMMS-X6404<300 m-<10 cm<6 cm6 (5 Mpx each)
MDLDynascan1,2,3 heads<500 m<36 K pts/s/head±5 cm--
TRIMBLECougar2<150 m<10 K pts/s--2
Another interesting sensor fusion and integration is given by the Range Imaging (RIM) cameras (Table 9), which integrate distance measurements and imaging aspects. RIM sensors consist of an illumination unit (pulsed, modulated or structured light), an optics, an image sensor (CCD, CMOS or APD), some driver electronics and a computation unit. The distance measurement (and so the 3D shape of the scene) is based on:
the estimation of the travel time of the electromagnetic wave sent to the scene by the illumination unit and reflected back. The time estimation is performed by:
(i)
the indirect time measurement using the phase-shift principle;
(ii)
the direct time measurement using a laser pulse;
the triangulation measurement principle.
Beside the generally short ranges, the actual main problems in the RIM cameras are related to systematic and non-systematic errors (low signal-to-noise ratio, scattering and reflections, thermal effects, motion artefact, lens distortion, etc.) which should be compensated with accurate calibration procedures [82,83,84].
Table 9. Most common commercial Range Imaging (RIM) cameras (PS = Phase-Shift; DTOF = Direct Time-of-Flight; Triang. = Triangulation; λ = wavelength in nm).
Table 9. Most common commercial Range Imaging (RIM) cameras (PS = Phase-Shift; DTOF = Direct Time-of-Flight; Triang. = Triangulation; λ = wavelength in nm).
NameMeas. princ.Sensor resol. [px]Max range [m]Max framerateMod. freq.λAccuracy / repeatability
3DV SystemZCamIIDTOF320 × 24010----
ASC Inc.DragonEyeDTOF128 × 128150010 fps-1,570±15 cm
CANESTA/MicrosoftCobra-320 × 200----millimetric
FOTONICB70PS160 × 1207.075 fps44808±1.5 cm at 3–7 m (accuracy); ±3 cm at 3–7 m (uncertainty)
MESASR-400PS176 × 1445–1054 fps30–15 MHz850±1–1.5 cm
OPTRIMADS10K-APS120 × 9010.050 fps-870noise level < 3 cm at 3.5 m
PANASONICD-ImagerPS160 × 1209.030 fps-870±4 cm
PMD Tech.CamCubePS200 × 2007.515 fps21870±3 cm
STANLEY El.P-300PS128 × 1281530 fps10850repeatability 1% of the range (at 3 m)
PrimeSense / MicrosoftKinectTriang.640 × 480530 fps-IR±2 mm horiz.

3. Actual Problems and Bottlenecks in the 3D Modeling Pipeline

The actual problems and main challenges in 3D surveying and modeling of large sites or complex objects arise in every phase, from the data acquisition to the visualization of the achieved 3D results.
3D modeling should be intended as the generation of structured 3D data from the surveyed unstructured data and it consists of geometric and appearance modeling. Geometric modeling deals with the data registration and processing (editing, cleaning, meshing), while appearance modeling deals with texturing, blending, rendering simplification and LOD. The entire 3D modeling pipeline is generally a chain of lossy procedures and data transformations performed to derive new products thus the operator and employed algorithms must assure the lossy procedure is as late as possible in the processing chain.
The term “3D modeling” is more common in case of terrestrial applications while in the aerial domain it is more frequently used the term “mapping”. As nowadays there is a clear convergence of photogrammetric methodologies into the typical remote sensing domain and the new data processing algorithms are delivering really remarkable 3D models, the “3D mapping” concept should also stressed in order to move from the traditional 2D and 2.5D mapping to fully 3D products even at topographic and urban level. The BIM (Building Information Modeling) concept is going in this direction trying to manage building data integrating geometries, spatial relationships, geographic information, quantities and further geometric or semantic properties [85].
Despite all the available remote sensing technologies and potentialities, the 3D modeling pipeline has still some problems and challenges in:
(i)
selecting the appropriate methodology (sensor, hardware, software) and data processing procedure;
(ii)
designing the proper production workflow, guaranteeing that the final result is in accordance with all the given technical specifications;
(iii)
speeding up the data processing time with as much automation as possible but always with the accuracy as primary goal;
(iv)
being able to fluently display and interact with the achieved 3D model.

3.1. Data Acquisition

3.1.1. Digital Images

Optical remote sensing images have a limited availability given by weather conditions and, specifically for aerial images, restrictions on flights. The satellite imaging quality is often affected by sensor viewing angle, sun acquisition angles, atmospheric conditions, saturation problems and other anomalies (Figure 6). The image acquisition geometry is not very flexible and the radiometric resolution is generally too low. These issues can be slightly corrected with some radiometric analyses, filtering and masking but they can significantly affect the performances of automated feature extraction algorithms [86]. Last but not least, although they have a larger terrain coverage, the costs of satellite imagery are often too high when compared to aerial images. So the large variety and number of frame or pushbroom aerial sensors is still very attractive with a wide variety of possible geometric resolutions, very flexible acquisition geometries and camera configurations. The announced new satellite missions with 0.3 m or even less GSD (Cartosat-3, GeoEye-2, etc.) and better radiometric properties will in any case bring the two technologies closer, in particular for mapping applications and the selection decision between them will probably be based only on economic aspects and availability of images. Optical space sensors acquiring across-track stereo images have a reduced imaging capacity and a lesser image quality while along-track acquisitions might produce scale differences (Figure 6(c)). For all these reasons, only a limited number of high-resolution stereo images are available in provider archives for fully automated and accurate DSM generation or feature extraction.
In terrestrial acquisitions, occlusions given by natural and man-made structures can cause a delay in the data capturing or missing details and can force acquisitions with unfavorable baselines and network geometry.

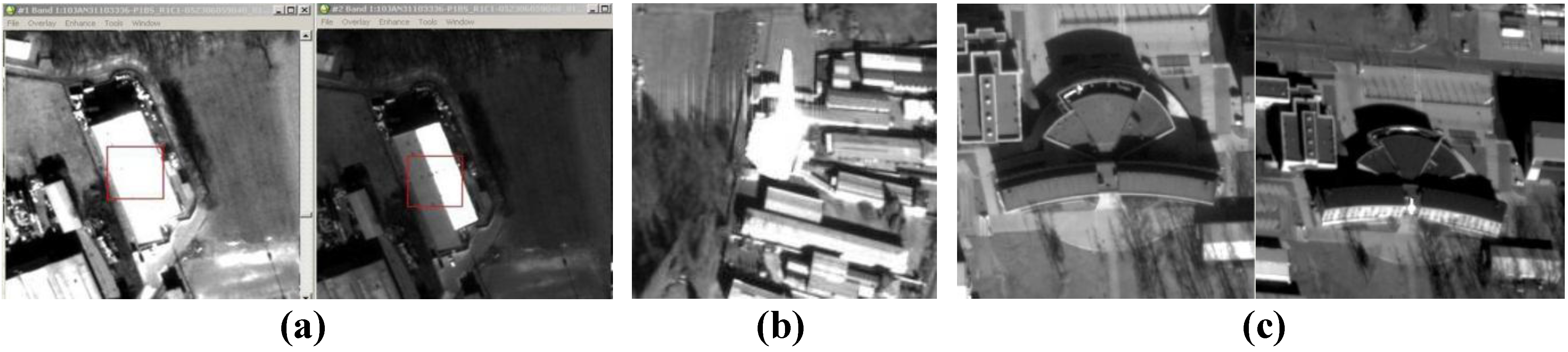

Figure 6. Typical artefacts and problems in satellite imagery (here a WorldView-2 stereo-pair): saturation (a), spilling (b) and scale (c).
Figure 6. Typical artefacts and problems in satellite imagery (here a WorldView-2 stereo-pair): saturation (a), spilling (b) and scale (c).
Remotesensing 03 01104 g006

3.1.2. Range Data

Airborne laser scanning (ALS) is composed of different components which contribute to the final accuracy of the range data. All the components should be accurately calibrated and integrated. Discrete echo laser scanners, using analogue detectors, record in real time a significant trigger signal for the multiple echoes. On the other hand full-waveform scanners digitize the time-dependent variation of the received echo for each emitted laser pulse. Thus they have both advantages and disadvantages and they are suited for different applications. ALS acquisitions are partly weather-dependent (fog, wetness, etc.) but they can also be done at night.
In terrestrial scanning, the size and location and the surface (geometry and material) of the surveyed object can create several problems. Furthermore obstructions, rough or sloped surfaces, unfavorable weather conditions, excessive ambient light, etc. can cause wrong measurements, acquisition delays or enforce acquisitions from inadequate positions. The complexity of some parts can create self-occlusions or holes in the surveying coverage, in addition to the occlusions from plants, trees, restoration scaffolds or tourists. The absence of high platforms for a higher location of the data acquisition might cause missing parts, e.g., for the roofs or upper parts of a monument. The object’s material (e.g., marble) has often an important influence on the acquired range data since it can cause penetration [87,88,89] or bad reflection effects. Moreover, transportability and usability problems arise in certain field campaigns located in remote areas. Scene discontinuities and surface edges can also create artefacts and blunders when surveyed with TOF laser scanners.
In order to compensate for any systematic errors, terrestrial range sensors need to be accurately calibrated [90,91,92] following acceptance procedures for testing the accuracy and repeatability of the measuring systems.
For both aerial and terrestrial acquisitions, the used sampled distance in scanning is rarely optimal for the entire site or object, producing under sampled regions where edges and high curvature surfaces are present and over-sampled regions where flat areas are. These problems affect the successive modeling phase and the quality of the final 3D results.

3.2. Data Processing, Feature Extraction and Point Cloud Generation

3.2.1. Digital Images

The sensor’s geometry of aerial and satellite imagery are generally recovered using the calibration protocols, GNSS/INS observations or the Rational Polynomial Coefficients (RPCs). RPCs usually provide for good relative orientation, while the absolute orientation has generally some systematic errors represented by a shift in coordinates which need to be corrected. The collinearity model is valid for frame cameras while for linear array sensors a different mathematical formulation should be employed. Empirical models based on affine, projective or DLT transformation were proposed, finding their main application in the processing of high resolution satellite imagery [93,94]. Using the RPCs or precise GNSS/INS data, the sensor orientation and image triangulation can be done in a fully automated way (direct geo-referencing). A bottleneck is the requirement and measurement of Ground Control Points (GCPs) in order to increase the absolute geo-referencing accuracy.
As far as terrestrial images is concerning, digital cameras must be accurately calibrated, preferably in a controlled lab environment, with a 3D testfield and a bundle adjustment solution with additional parameters to fully compensate for systematic errors [95]. Generally a target-based approach is used, in order to automatically identify and precisely measure the homologues points.
The image orientation phase in terrestrial applications is still highly interactive if targets cannot be used as no commercial procedure is actually available for automated markerless tie point extraction from convergent images. Recent developments in markerless automated orientation are promising with reliable and precise results (Figure 7) from different kind of block configurations [96,97,98,99].
Figure 7. Automated recovery of camera poses and sparse point cloud for a long terrestrial image sequence [97].
Figure 7. Automated recovery of camera poses and sparse point cloud for a long terrestrial image sequence [97].
Remotesensing 03 01104 g007
For complex architectural scenes, man-made objects, detailed city modeling and cartographic applications at large scale, surface measurement and feature extraction are mainly based on manual or semi-automated approaches as still much more reliable and precise (Figure 8). On the other hand, small free-form objects, ornaments rich of details or small/medium scale DSM can be automatically reconstructed (Figure 9) using area- or feature-based matching techniques to produce dense 3D point clouds [58,100,101,102,103]. Recently, semi global matching approaches demonstrated their high versatility and potentialities in the generation of high quality DSM of complex scenes [57,59,104,105]. Fully automated methods based on “structure from motion” approaches [106,107,108] are getting quite common in the 3D heritage community, although mainly useful for visualization, object-based navigation, annotation transfer or image browsing purposes as not suitable for metric and accurate 3D reconstructions and documentations. In all 3D reconstruction applications based on dense image matching, it is always better to separate the calibration, orientation and dense matching steps. Commercial image matching procedures are generally tailored for vertical acquisitions therefore convergent terrestrial images with large scale difference are still problematic.

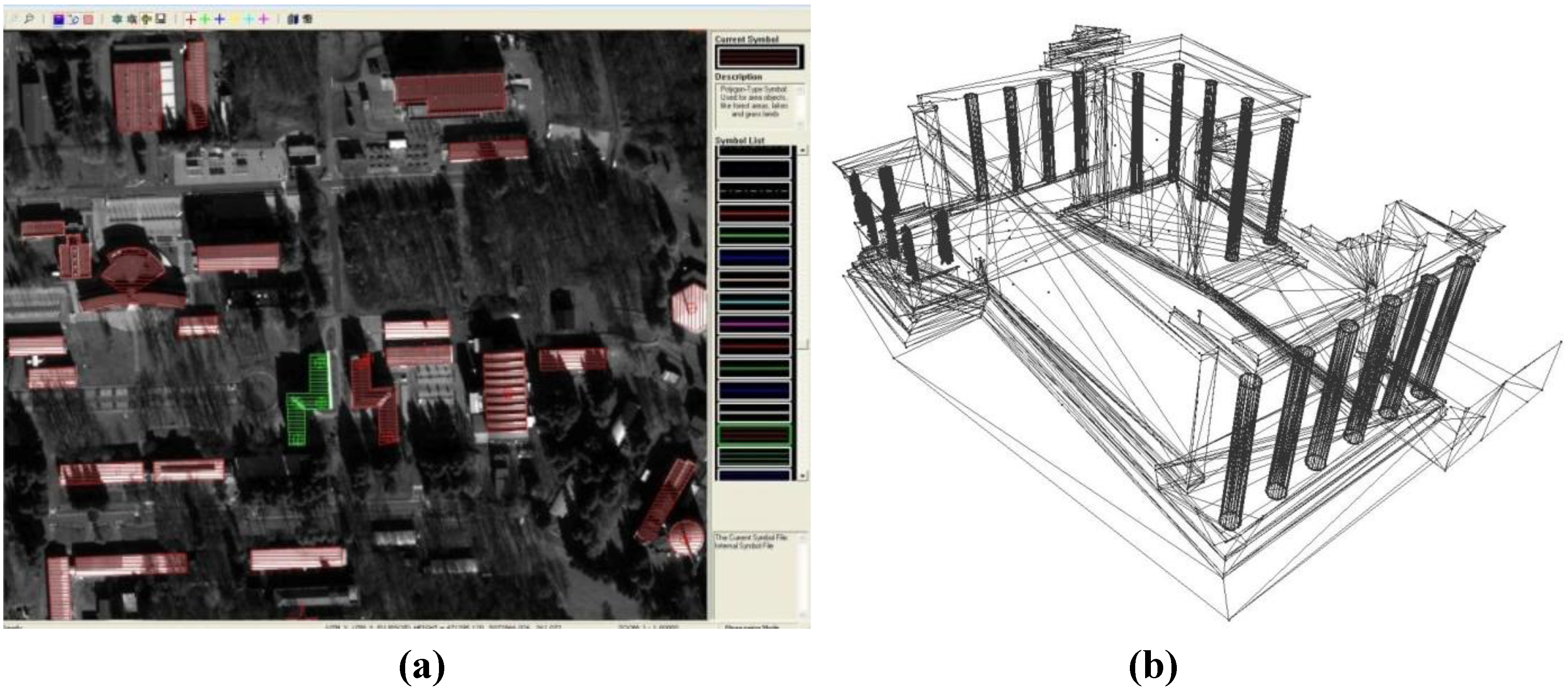

Figure 8. Extraction of man-made structures from satellite images (a) and reconstruction of complex architectural objects from terrestrial images (b) using interactive measurements in order to achieve accurate and detailed results.
Figure 8. Extraction of man-made structures from satellite images (a) and reconstruction of complex architectural objects from terrestrial images (b) using interactive measurements in order to achieve accurate and detailed results.
Remotesensing 03 01104 g008
Figure 9. Automated 3D reconstruction with dense image matching: a small free-form object modeled from terrestrial images (a) and a landscape modeled using a WorldView-2 stereo-pair (b).
Figure 9. Automated 3D reconstruction with dense image matching: a small free-form object modeled from terrestrial images (a) and a landscape modeled using a WorldView-2 stereo-pair (b).
Remotesensing 03 01104 g009

3.2.2. Range Data

ALS is based on direct geo-referencing [109] but due to system dynamics, errors and instabilities a strip adjustment similar to the photogrammetric bundle block adjustment is needed, possibly using GCPs. Different approaches are available [110,111] in order to achieve an accuracy of the final point cloud in the order of the ranging precision of the scanning sensor.
Terrestrial laser scanning instruments should be placed in different locations or the object needs to be moved in a way that the instrument can see it under different viewpoints. Successively an alignment or registration of the data into a unique reference system is required in order to produce a single point cloud of the surveyed scene or object (Figure 10). The scans registration is generally done in two steps: (a) a pair-wise manual or automatic coarse alignment using targets or few homologues features and (b) final global alignment based on iterative closest points [112] or least squares method procedures [113]. The automated pair-wise coarse registration is normally performed using feature-based approaches [114,115,116,117] but in practical projects involving large and complex datasets, the coarse registration is still a manually driven procedure. After the global alignment, redundant points and possible blunders should be removed. The aligned point cloud can be directly used for orthophoto generation or map production (Figure 11).
Figure 10. Different point clouds, acquired with a TOF laser scanner, are aligned (a), converted into a polygonal mesh (b) and textured (c) for photo-realistic visualizations.
Figure 10. Different point clouds, acquired with a TOF laser scanner, are aligned (a), converted into a polygonal mesh (b) and textured (c) for photo-realistic visualizations.
Remotesensing 03 01104 g010
Figure 11. Range-based surveying of a medieval castle with TOF terrestrial laser scanning for detailed map production.
Figure 11. Range-based surveying of a medieval castle with TOF terrestrial laser scanning for detailed map production.
Remotesensing 03 01104 g011
3.3. 3D Modeling and Texture Mapping
Once a point cloud (i.e., unstructured data) is available, a polygonal model (i.e., structured data) is normally generated [118] in order to produce the best digital representation of the surveyed object or scene and for applications like physical replicas, conservation, virtual restoration, rendering, etc. (Figure 12).
For architectural scenes and structures generally described with sparse point clouds and polylines, a segmentation and structuring phase is necessary before producing a surface model. On the other hand, dense point clouds derived with automated image matching methods or captured with range sensors can be directly converted into polygonal model, after some possible editing and cleaning. The produced polygonal model (mesh or TIN) demands often some time-consuming repairing to close holes, fix incorrect faces or non-manifold parts. Those errors, visually unpleasant, might cause lighting blemishes due to the incorrect normal and the 3D computer model will also be unsuitable for reverse engineering, photo-realistic visualization or physical replicas. Moreover, over-sampled areas should be simplified while under-sampled regions should be subdivided. All these procedures are still manually driven as fully automated editing procedures are not yet reliable, in particular for complex terrestrial 3D models.
Figure 12. Different renderings (wireframe, shaded and textured mode) of a surveyed and modeled underground church.
Figure 12. Different renderings (wireframe, shaded and textured mode) of a surveyed and modeled underground church.
Remotesensing 03 01104 g012
Finally, photo-realism, defined as having no difference between a view rendered from the model and a photograph taken from the same viewpoint, is generally required and achieved with the texture mapping phase, e.g., projecting one or more images (or orthophotos) onto the 3D geometry. In this phase, problems might rise from the time-consuming image-to-geometry registration (in particular for range data) or because of occlusions, surface specularity, variations in lighting and camera settings. Indeed images are often exposed with the illumination at imaging time, but it may need to be replaced by illumination consistent with the rendering point of view and the reflectance properties (bidirectional reflectance distribution function) of the object [119]. High dynamic range (HDR) images might also be acquired to recover all scene details [120] while color discontinuities and aliasing effects must be removed [121]. Methods for occlusions removal are primarily based on background learning and subtraction, visibility analyses, image rectification and estimation of not-occluded pixels or manual retouch [122,123,124,125].
For mapping application, the texture mapping phase is limited to an orthophoto creation, using the DTM or DSM (true-orthophoto). The generation of orthophotos is at the end of the entire surveying and mapping chain, therefore its quality is strictly related to the quality of the previous procedures.

3.4. Realistic Visualization and 3D Repositories

The ability to easily interact with a huge 3D model is a continuing and increasing problem, in particular with the new demand of sharing and offering online reality-based 3D contents with real-time visualizations. Indeed, model sizes (both in geometry and texture) are increasing at faster rate than computer hardware and software advances and this limits the possibilities for interactive and real-time visualization of detailed reality-based 3D results, possibly online. Due to the generally large amount of data and its complexity, the rendering of large 3D models is done with a multi-resolution approach, displaying large textured meshes with different levels of detail and simplification approaches [126,127].
Nowadays there is also a growing need of using reality-based 3D models as graphical interfaces or containers for different kinds of information, usually organized and collected in 2D databases. For such applications, 3D models need to be semantically segmented in order to assign to each sub-element some characteristics or information which need to be represented, organized, managed, visualized and queried using advanced repository of geometric and appearance components. These would be the typical functions of GIS packages which are no more sufficient when dealing with detailed and complex 3D data. To be considered a “3D repository”, a system must be capable of:
handle geographical features (e.g., landscapes) as well as data more complex than a 2.5D surface (e.g., architectural or archaeological 3D models);
allow queries and spatial data analyses, possibly via web;
support multi-users access and interaction, multi-resolution data (LOD) and multi-representation.
Despite the immense research work in this sector [128,129,130,131,132,133,134,135], no powerful, reliable and flexible commercial package with all the aforementioned capabilities is nowadays available. Geospatial web-services (e.g., Google Earth, MS Bing, NASA World Wind—Figure 13) are going in this direction but with very limited capabilities in handling complex 3D data. In the video-games domain some development tools are present and adaptable to 3D geo-data, query functionalities and web-based applications (Unity3D, OSG, OGRE3D, OpenSG, 3DVIA Virtools, etc.) but with limited capabilities in loading and displaying large geometric 3D models.

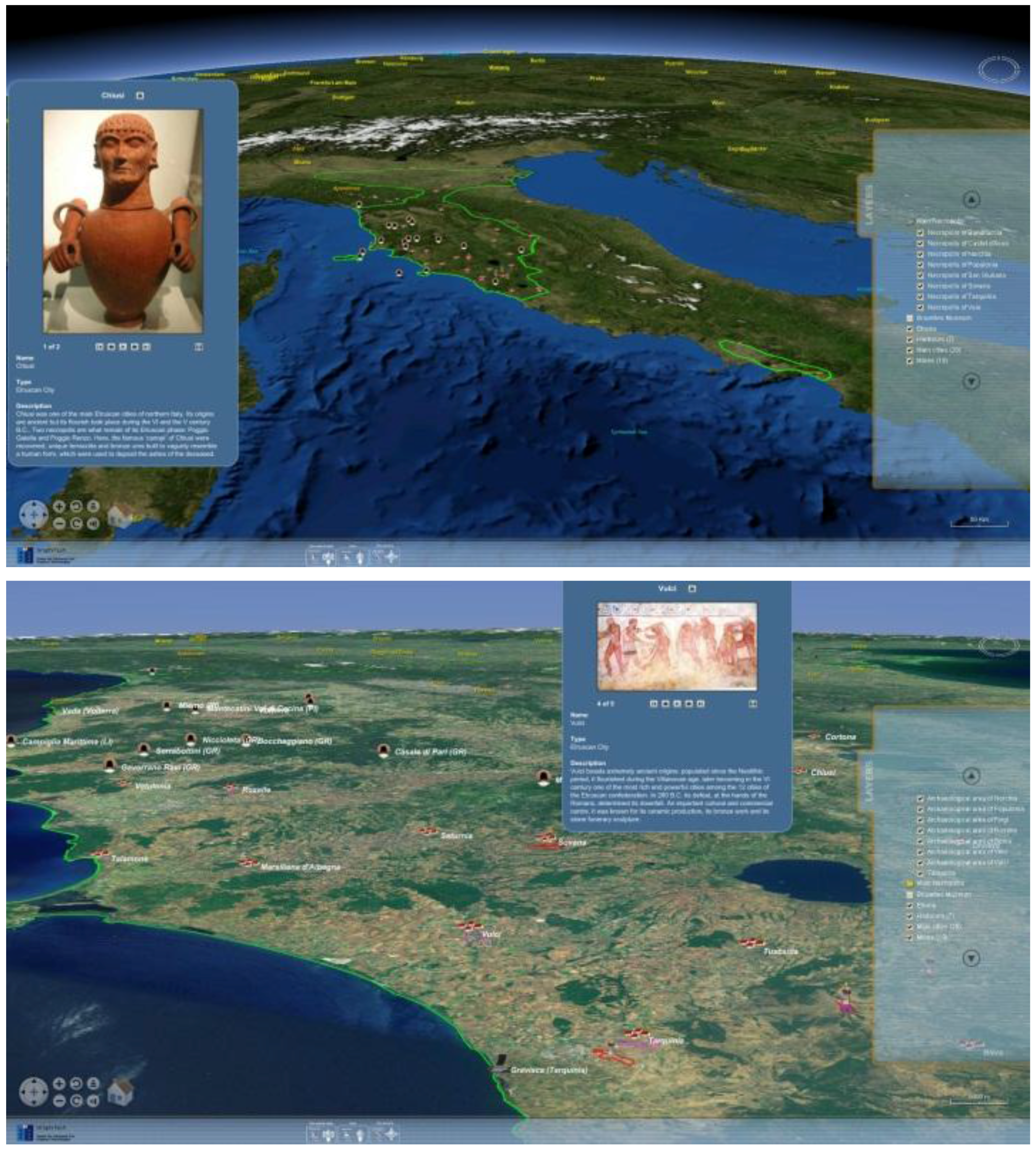

Figure 13. A geo-browser tool for landscape visualization and data queries [19].
Figure 13. A geo-browser tool for landscape visualization and data queries [19].
Remotesensing 03 01104 g013
In the context of 3D city models, the City Geography Markup Language (CityGML), a concept for the modeling, visualization and exchange of 3D city and landscape models, has become a common geo-information language and it has been quickly adopted on an international level [136]. Nowadays various cities and communities use 3D city models as valuable source and instrument for a sustainable management, planning and conservation of rural and urban resources [137]. Unfortunately CityGML seems to be at the moment unable to support high-resolution architectural and archaeological 3D models as the supported geometric entities are still limited to more simple and standard representations but some Application Domain Extensions (ADE) are available or under development.

3.5. Standards

The tables reported in the previous sections with the sensor characteristics are probably incomplete and soon out-of-date. However, the main problem when collecting and searching for this information is the lack of standards and a common terminology, in particular in the range sensors community. Many new users are approaching these methodologies while other not really familiar with them require clear statements and information about an optical 3D measurement system before investing. Thus technical standards, like those available for the traditional surveying or CMM field, must be created and adopted, in particular by all vendors. Indeed most of the specifications of commercial sensors contain parameters internally defined by the companies. Apart from standards, comparative data and best practices are also needed, to show not only advantages but also limitations of systems and software.
All the optical 3D measuring systems need to be independently certified using acceptance procedures for testing the accuracy and repeatability of the acquisition and measuring systems. Standard quality parameters like flatness measurement error, sphere diameter, spacing error, traceability of data products, etc. should be used to verify whether or not a measuring system complies with the required technical specifications.
The ISO/TC 211 “Geographic information/Geomatics” has launched the project ISO 19159 “Calibration and Validation of remote sensing imagery sensors and data” [138].
The German VDI/VDE 2634 contains acceptance testing and monitoring procedures for evaluating the accuracy of close-range optical 3D measuring systems. The American Society for Testing and Materials (ASTM) with its E57 standards committee has also developed standards for 3D imaging systems for applications like surveying, preservation, construction, etc.

4. Main Research Issues

Despite the great availability of active and passive remote sensing sensors and the large use in the daily 3D documentation and mapping work, many key issues and challenges arise from:
New sensors and platforms: new digital sensors and technologies are frequently coming on the market but the software to process the acquired data is generally coming much later. Furthermore there are very few packages able to simultaneously deal with different sensors (and data). The development and use of new sensors requires the study and test of innovative sensor models and the investigation of the related network structures and accuracy performance. UAV platforms need some improvements for more reliable and fast acquisition procedures.
Integration of sensors and data: there is an increasing use of hybrid sensors and platforms, in order to collect as many different features as possible. The combination of different data sources allows the creation of different geometric levels of detail (LoD) and the exploitation of the intrinsic advantages of each sensor. The integration so far is mainly done at model-level (i.e., at the end of the modeling pipeline) while it should be exploited also at data-level to overcome the weakness of each data source.
Automated processing: automation in 3D data processing is one of the most important issues when it comes to efficiency or costs at production level. At the moment, different research solution and commercial packages have turned towards semi-automated approaches, where the human capacity in data interpretation is paired with the speed and precision of computer algorithms. Indeed the success of fully automation in image understanding or point clouds processing depends on many factors and is still a hot topic of research. The progress is promising but the acceptance of fully automated procedures, judged in terms of handled datasets and accuracy of the final 3D results, depends on the quality specifications of the user and final use of the produced 3D model.
On-line and real-time processing: in some applications there is a need for very fast processing thus requiring new algorithmic implementation, sequential estimation, GPU and multi-core processing. Internet is also helping a great deal in this sector and web-based processing tools for image analysis and 3D model generation are available although limited to specific tasks and not ideal to collect CAD data, metric information and accurate 3D models.
Feature extraction: the extraction and derivation of geometric structures and semantic information is a fundamental task in geomatics. The existing procedures require some improvements in order to speed up the entire 3D restitution pipeline from images or range data. Images theoretically allow an easier interpretation and extraction with respect to range data. An ideal solution should be able to produce truly 3D geometries with attributes and topologies and it should have an internal quality control procedure. A true sensor and data integration at an earlier point of the processing chain would help the information extraction to be more reliable, precise and effective. However, it is not only software that is missing, but also algorithms and methodologies.
Improvement of geospatial data and content: users are more and more demanding data completeness (in terms of coverage, quality, etc.) and a better accessibility (search, acquisition information, metadata, etc.).
Developments of new tools for non-expert users: although heritage 3D recording and documentation should be an interdisciplinary task, clear protocols and user-friendly packages should be released to facilitate the use of data processing techniques to non-technical users.
– Increase adoption of standard for data storage and exchange as well as sensor characterization.

5. Conclusions

This article affords an overview of the actual optical 3D measurements sensors and techniques used for surveying, mapping, digital documentation and 3D modeling applications in the heritage field. The actual problems in the reality-based 3D modeling pipeline as well as the main research issues in photogrammetry and laser scanning were also reported. Examples, primarily from heritage sites and objects, were also presented.
The continuous development of new sensors, data capture methodologies, multi-resolution 3D representations and the improvement of existing 3D recording methods significantly contribute to the documentation, conservation and presentation of heritage information and to the growth of research in the heritage field. In case of heritage sites and objects, photogrammetry provides accurate 3D reconstructions at different scales and for hybrid 3D models (e.g., terrain model plus archaeological or building structures). 3D scanners have become a standard source for 3D data in many application areas and are often preferred, although not optimal. Originally developed as a major source of elevation data, they are nowadays a very powerful source of 3D information and features. However, for large sites’ 3D modeling, the best solution is the integration of image and range data.
Despite the fact that the 3D documentation is not yet the state-of-the-art in the heritage field, the reported examples show the potentialities of the modern surveying technologies to digitally document and preserve our landscape and heritage as well as share and manage them. Beside heritage documentation, remote sensing technologies play a very important role for urban planning and 3D city modeling, topographic mapping, natural hazard monitoring and analyses, geo-data visualization, car navigation, virtual tourism, location-based services, industrial inspections, etc.
It is clear that the image-based 3D documentation approach, together with range sensors, geo-spatial information systems, 3D modeling procedures, visualization and animation software are always in a dynamic state of development, with even better application prospects for the near future. There is certainly a geospatial convergence of technologies and needs with the availability and request of geospatial contents in a large variety of formats and accessible through open development standards and tools. The wider access to remote sensing and geospatial contents is creating a breed of non-expert consumers who are using geospatial data in their daily life and for more effective decisions. The same should apply for the entire heritage community who approach these technologies more frequently in order to access a wider spectrum of applications and resources.
Conscious that new hardware and algorithm improvements are coming in the short period, the impacts of all the reported developments and potentialities anyway pose some questions:
– How do we handle the increasing availability of images and range data? From a research point of view this can only be seen as positive in photogrammetry and 3D scanning.
– How do we store and preserve geomatics data for the future? Existing data storage could be unreadable in some years. Certainly some new technologies are being developed to accomplish higher capacities per disk and higher data transfer rates.
– How do we share 3D information with non-expert communities demanding geomatics data? Lack of appropriate software and education is often the source of misunderstandings and incorrect use of sensors and 3D data thus the users’ needs (in particular archaeologists, conservators, heritage managers, etc.) should always be taken into consideration.
– How do we store and share 3D models? The new development of web protocols, communication systems and data sharing techniques are promising, but regulation and specifications are still missing.
– How do we critically compare optical 3D measurement techniques without a common terminology for the sensors specifications?
– How do we cope with the competition from neighboring disciplines and communities which are not really dealing with metrology and reality-based surveying? Hopefully our skills, flexibilities and attitudes will help geomatics to survive and continue to be a beacon for many reality-based surveying and 3D modeling issues.

Acknowledgements

The author would like to acknowledge the valuable support and feedbacks of Dario Conforti (Optech Inc.), Gabriele Guidi (Politecnico of Milano, Italy), Armin Gruen (ETH Zurich, Switzerland), Francesco Holecz (Sarmap SA), Thomas Kersten (HCU Hamburg, Germany), Thomas Luhmann (Jade Univ. of Applied Sciences, Germany), Dario Piatti (Politecnico of Torino, Italy), Daniela Poli (JRC Ispra, Italy), Fulvio Rinaudo (Politecnico of Torino, Italy) and the entire 3DOM research unit of FBK Trento, Italy.

References and Notes

  1. Li, Z.; Chen, J.; Baltsavias, E. Advances in Photogrammetry, Remote Sensing and Spatial Information Sciences; ISPRS Congress Book 2008; Taylor & Francis Group: London, UK, 2008; p. 527. [Google Scholar]
  2. Li, D.; Shan, J.; Gong, J. Geospatial Technology for Earth Observation; Springer: New York, NY, USA, 2009; p. 558. [Google Scholar]
  3. Levoy, M.; Pulli, K.; Curless, B.; Rusinkiewicz, S.; Koller, D.; Pereira, L.; Ginzton, M.; Anderson, S.; Davis, J.; Ginsberg, J.; Shade, J.; Fulk, D. The Digital Michelangelo Project: 3D Scanning of Large Statues. In Proceedings of SIGGRAPH ’00, The 27th Internationl Conference on Computer Graphics and Interactive Techniques Conference, New Orleans, LA, USA, 23–28 July 2000; pp. 131–144.
  4. Bernardini, F.; Rushmeier, H.; Martin, I.M.; Mittleman, J.; Taubin, G. Building a digital model of Michelangelo’s Florentine Pieta. IEEE Comput. Graph. Appl. 2002, 22, 59–67. [Google Scholar] [CrossRef]
  5. Gruen, A.; Remondino, F.; Zhang, L. Photogrammetric reconstruction of the Great Buddha of Bamiyan. The Photogrammetric Record 2004, 19, 177–199. [Google Scholar] [CrossRef]
  6. Guidi, G.; Beraldin, J.A.; Atzeni, C. High accuracy 3D modelling of cultural heritage: The digitizing of Donatello. IEEE Trans. Image Process. 2004, 13, 370–380. [Google Scholar] [CrossRef] [PubMed]
  7. El-Hakim, S.; Beraldin, J.; Remondino, F.; Picard, M.; Cournoyer, L.; Baltsavias, E. Using Terrestrial Laser Scanning and Digital Images for the 3D Modelling of the Erechteion, Acropolis of Athens. In Proceedings of DMACH Conference on Digital Media and its Applications in Cultural Heritage, Amman, Jordan, 3–6 November 2008; pp. 3–16.
  8. Remondino, F.; El-Hakim, S.; Girardi, S.; Rizzi, A.; Benedetti, S.; Gonzo, L. 3D Virtual Reconstruction and Visualization of Complex Architectures—The 3D-ARCH Project. In Proceedings of ISPRS International Workshop 3D-ARCH 2009 “3D Virtual Reconstruction and Visualization of Complex Architectures”, Trento, Italy, 25–28 February 2009; Volume 38. Part 5/W10.
  9. Landrieu, J.; Père, C.; Rollier, J.; Castandet, S.; Schotte, G. Digital Rebirth of the Greatest Church of Cluny maior Ecclesia: From Optronic Surveys to Real Time Use of the Digital Model. In Proceedings of 4th ISPRS International Workshop 3D-ARCH 2011 “3D Virtual Reconstruction and Visualization of Complex Architectures”, Trento, Italy, 2–4 March 2011; Volume 38. Part 5/W16.
  10. Cowley, D.C. Remote Sensing for Archaeological Heritage Management; EAC Occasional Paper No. 5; Occasional Publication of the Aerial Archaeology Research Group No. 3; Europae Archaeologiae Consilium: Budapest, Hungary, 2011; p. 307. [Google Scholar]
  11. Doneus, M.; Neubauer, W. 3D Laser Scanners on Archaeological Excavations. In Proceedings of CIPA 2005 XX International Symposium, Torino, Italy, 26 September–1 October 2005; Volume 34(5/C34/1), pp. 226–231.
  12. El-Hakim, S.; Gonzo, L.; Voltolini, F.; Girardi, S.; Rizzi, A.; Remondino, F.; Whiting, E. Detailed 3D modelling of castles. Int. J. Architect. Comput. 2007, 5, 199–220. [Google Scholar] [CrossRef]
  13. Akca, D.; Remondino, F.; Novak, D.; Hanusch, T.; Schrotter, G.; Gruen, A. Recording and Modelling of Cultural Heritage Objects with Coded Structured Light Projection Systems. In Proceedings of 2nd International Conference on “Remote Sensing in Archaeology”, Rome, Italy, 4–7 December 2006; pp. 375–382.
  14. Remondino, F.; Rizzi, A.; Girardi, S.; Petti, F.; Avanzini, M. 3D ichnology—Recovering digital 3D models of dinosaur footprints. The Photogrammetric Record 2010, 25, 266–282. [Google Scholar] [CrossRef]
  15. Barcelo, A.; Forte, M.; Sanders, D.H. Virtual Reality in Archaeology; BAR International Series 843; Archeopress: Oxford, UK, 2000. [Google Scholar]
  16. Bruno, F.; Bruno, S.; De Sensi, G.; Luchi, M.L.; Mancuso, S.; Muzzupappa, M. From 3D reconstruction to virtual reality: A complete methodology for digital archaeological exhibition. J. Cult. Herit. 2010, 11, 42–49. [Google Scholar] [CrossRef]
  17. Manferdini, A.M.; Remondino, F. Reality-Based 3D Modelling, Degmentation and Web-Based Visualization. In Proceedings of EuroMed’10 the Third International Conference on Digital Heritage, Lemessos, Cyprus, 8–13 November 2010; pp. 110–124.
  18. Fowles, P.S.; Larson, J.H.; Dean, C.; Solajic, M. The laser recording and virtual restoration of a wooden sculpture of Buddha. J. Cult. Herit. 2003, 4, 367–371. [Google Scholar] [CrossRef]
  19. Remondino, F.; Rizzi, A.; Agugiaro, G.; Girardi, S.; De Amicis, R.; Magliocchetti, D.; Girardi, G.; Baratti, G. Geomatics and Geoinformatics for Digital 3D Documentation, Fruition and Valorization of Cultural Heritage. In Proceedings of EUROMED 2010 Workshop “Museum Futures: Emerging Technological and Social Paradigms”, Lemessos, Cyprus, 8–13 November 2010.
  20. Patias, P. Cultural heritage documentation. In Application of 3D Measurement from Images; Fryer, J., Mitchell, H., Chandler, J., Eds.; Whittles: Dunbeath, UK, 2007; Volume 59, pp. 225–257. [Google Scholar]
  21. Sansoni, G.; Trebeschi, M.; Docchio, F. State-of-the-art and applications of 3D imaging sensors in industry, cultural heritage, medicine, and criminal investigation. Sensors 2009, 9, 568–601. [Google Scholar] [CrossRef] [PubMed]
  22. Rosen, P.A.; Hensley, S.; Joughin, I.R.; Li, F.K.; Madsen, S.N.; Rodriguez, E.; Goldstein, R.M. Synthetic aperture radar interferometry. Proc. IEEE 2000, 88, 333–382. [Google Scholar] [CrossRef]
  23. Crosetto, M.; Crippa, B.; Biescas, E.; Monserrat, O.; Agudo, M.; Fernández, P. Land deformation monitoring using SAR interferometry: State-of-the-art. Photogrammetrie, Fernerkundung, Geoinformation 2005, 6, 497–510. [Google Scholar]
  24. Crosetto, M.; Monserrat, O.; Herrera, G. Urban applications of persistent scatterer interferometry. In Radar Remote Sensing on Urban Areas; Remote Sensing and Digital Image Processing Series; Soergel, U., Ed.; Springer Science+Business Media B.V.: Berlin, Germany, 2010; Volume 15, pp. 233–246. [Google Scholar]
  25. Yin, X.; Wonka, P.; Razdan, A. Generating 3D building models from architectural drawings. IEEE Comput. Graph. Appl. 2009, 29, 20–30. [Google Scholar] [CrossRef] [PubMed]
  26. Mueller, P.; Wonka, P.; Haegler, S.; Ulmer, A.; Van Gool, L. Procedural modelling of buildings. ACM SIGGRAPH Trans. Graph. 2006, 25, 614–623. [Google Scholar] [CrossRef]
  27. Haegler, S.; Mueller, P.; Van Gool, L. Procedural modelling for digital Cultural Heritage. EURASIP J. Image Video Process. 2009. [Google Scholar] [CrossRef]
  28. Vanegas, C.; Aliaga, D.; Benes, B. Building Reconstruction Using Manhattan-World Grammars. In Proceedings of 23rd IEEE Conference on Computer Vision and Pattern Recognition 2010, San Francisco, CA, USA, 13–18 June 2010; pp. 358–365.
  29. Blais, F. A review of 20 years of range sensors development. J. Electron. Imag. 2004, 13, 231–240. [Google Scholar] [CrossRef]
  30. Shan, J.; Toth, C. Topographic Laser Ranging and Scanning: Principles and Processing; CRC: Boca Raton, FL, USA, 2008; p. 590. [Google Scholar]
  31. Vosselman, G.; Maas, H.-G. Airborne and Terrestrial Laser Scanning; CRC: Boca Raton, FL, USA, 2010; p. 318. [Google Scholar]
  32. Asmus, J.F. Holograph Interferometry of Painted Surface. In Proceedings of International Congress on ‘Conservation of Wood, in Painting and the Decorative Arts’, Oxford, UK, 17–23 September 1978; Volume IIC, pp. 141–144.
  33. Boone, P.M. Diagnostic of Cultural Heritage by Holographic Interferometry. In Proceeings of 7th European Conference on Non-Destructive Testing, Copenhagen, Denmark, 26–29 May 1998.
  34. Fontana, R.; Gambino, M.C.; Greco, M.; Marras, L.; Materazzi, M.; Pampaloni, E.; Pelagotti, A.; Pezzati, L.; Poggi, P. 2D imaging and 3D sensing data acquisition and mutual registration for painting conservation. Proc. SPIE 2005, 5665, 51–58. [Google Scholar]
  35. Wehr, A.; Hemmleb, M.; Thomas, M.; Maierhofer, C. Moisture Detection on Building Surfaces by Multi-Spectral Laser Scanning. In Proceedings of 8th Conference Optical 3-D Measurements Techniques, Zurich, Switzerland, 9–12 July 2007.
  36. Beraldin, A.; Rioux, M.; Cournoyer, L.; Blais, F.; Picard, M.; Pekelsky, J. Traceable 3D imaging metrology. Proc. SPIE 2007, 6491, B.1–B–11. [Google Scholar]
  37. Yu, A.W.; Krainak, M.A.; Harding, D.J.; Abshire, J.B.; Sun, X. A spaceborne lidar for high-resolution topographic mapping of the earth’s surface. SPIE Newsroom 2010. [Google Scholar] [CrossRef]
  38. Pfeifer, N.; Briese, C. Geometric Aspect of Airborne Laser Scanning and Terrestrial Laser Scanning. In Proceedings of ISPRS Workshop on Laser Scanning 2007 and SilviLaser 2007, Espoo, Finland, 12–14 September 2007; Volume 36. Part 3/W52.
  39. Mason, D.C.; Scott, T.R.; Wang, H.J. Extraction of tidal channel networks from airborne scanning laser altimetry. ISPRS J. Photogramm. Remote Sens. 2006, 61, 67–83. [Google Scholar] [CrossRef]
  40. Dubayah, R.O.; Drake, J.B. Lidar remote sensing for forestry. J. Forest. 2000, 98, 44–46. [Google Scholar]
  41. Nelson, R.; Parker, G.; Hom, M. A portable airborne laser system for forest inventory. Photogramm. Eng. Remote Sensing 2003, 69, 267–273. [Google Scholar] [CrossRef]
  42. Chauve, A.; Vega, C.; Bretar, F.; Durrieu, S.; Allouis, T.; Pierrot-Deseilligny, M.; Puech, W. Processing full-waveform LiDAR data in an alpine coniferous forest: Assessing terrain and tree height quality. Int. J. Remote Sens. 2009, 30, 5211–5228. [Google Scholar] [CrossRef]
  43. Doneus, M.; Briese, C. Airborne laser scanning in forested areas—Potential and limitations of an archaeological prospection technique. In EAC Remote Sensing for Archaeological Heritage Management; Cowley, D., Ed.; EAC: Budapest, Hungary, 2011; pp. 59–76. [Google Scholar]
  44. Brenner, C. Building reconstruction from images and laser scanning. Int. J. Appl. Earth Obs. Geoinf. 2005, 6, 187–198. [Google Scholar] [CrossRef]
  45. Clode, S.; Rottensteiner, F. Detection and vectorization of roads from LiDAR data. Photogramm. Eng. Remote Sensing 2007, 73, 517–536. [Google Scholar] [CrossRef]
  46. Dorninger, P.; Pfeifer, N. A Comprehensive automated 3D approach for building extraction, reconstruction and regularization from airborne laser scanning point clouds. Sensors 2008, 8, 7323–7343. [Google Scholar] [CrossRef]
  47. Remondino, F.; Zucca, F.; Agugiaro, G.; Rizzi, A.; Plos, D.; Sgrenzaroli, M. Mapping Vertical Cliffs—Experiences from the Dolomites Mountains. In Proceedings of European Lidar Mapping Forum, The Hague, The Netherlands, 30 November–1 December 2010.
  48. Gruen, A.; Huang, T.S. Calibration and Orientation of Cameras in Computer Vision; Springer: Berlin/Heidelberg, Germany, 2001; p. 239. [Google Scholar]
  49. Sturm, P.; Ramalingam, S.; Tardif, J.-P.; Gasparini, S.; Barreto, J. Camera models and fundamental concepts used in geometric Computer Vision. Found. Trend. Comput. Graph. Vis. 2011, 6, 1–183. [Google Scholar] [CrossRef]
  50. Remondino, F.; El-Hakim, S. Image-based 3D modelling: A review. The Photogrammetric Record 2006, 21, 269–291. [Google Scholar] [CrossRef]
  51. Mikhail, E.; Bethel, J.; McGlone, J.C. Introduction to Modern Photogrammetry; Wiley: New York, NY, USA, 2001; p. 496. [Google Scholar]
  52. Luhmann, T.; Robson, S.; Kyle, S.; Hartley, I. Close Range Photogrammetry: Principles, Techniques and Applications; Whittles: Dunbeath, UK, 2007; p. 528. [Google Scholar]
  53. Hampel, U.; Maas, H.-G. Application of Digital Photogrammetry for Measuring Deformation and Cracks during Load Tests in Civil Engineering Material Testing. In Proceedings of 6th Conference on Optical 3D Measurement Techniques, Zurich, Switzerland, 22–25 September 2003; Volume II, pp. 80–88.
  54. D’Apuzzo, N. Surface Measurement and Tracking of Human Body Parts from Multi Station Video Sequences. Ph.D. Thesis, Institute of Geodesy and Photogrammetry, ETH Zurich, Zurich, Switzerland, 2003. [Google Scholar]
  55. Luhmann, Th. Close range photogrammetry for industrial applications. ISPRS J. Photogramm. Remote Sens. 2010, 65, 558–569. [Google Scholar] [CrossRef]
  56. Gonzalez-Aguilera, D.; Gomez-Lahoz, J. Forensic terrestrial photogrammetry from a single image. J. Forensic Sci. 2009, 54, 1376–1387. [Google Scholar] [CrossRef] [PubMed]
  57. Hirschmuller, H. Stereo processing by semi-global matching and mutual information. IEEE Trans. Patt. Anal. Mach. Intell. 2008, 30, 328–341. [Google Scholar] [CrossRef] [PubMed]
  58. Remondino, F.; El-Hakim, S.; Gruen, A.; Zhang, L. Turning images into 3D models—Development and performance analysis of image matching for detailed surface reconstruction of heritage objects. IEEE Sig. Process. Mag. 2008, 25, 55–65. [Google Scholar] [CrossRef]
  59. Vu, H.H.; Keriven, R.; Labatut, P.; Pons, J.-P. Towards High-Resolution Large-Scale Multi-View Stereo. In Proceedings of Computer Vision & Pattern Recognition 2009, Miami Beach, FL, USA, 20–25 June 2009.
  60. Maas, H.-G. Close-range photogrammetry sensors. In Advances in Photogrammetry, Remote Sensing and Spatial Information Science: 2008 ISPRS Congress Book; CRC Press: Boca Raton, FL, USA, 2008; pp. 63–72. [Google Scholar]
  61. Akca, D.; Gruen, A. Comparative geometric and radiometric evaluation of mobile phone and still video cameras. The Photogrammetric Record 2009, 24, 217–245. [Google Scholar] [CrossRef]
  62. Luhmann, T. A Historical Review on Panorama Imagery. In Proceedings of ISPRS Workshop on Panorama Photogrammetry, Dresden, Germany, 19–22 February 2004; Volume 34. Part 5/W16.
  63. Luhmann, T.; Tecklenburg, W. 3-D Object Reconstruction from Multiple-Station Panorama Imagery. In Proceedings of ISPRS Workshop on Panorama Photogrammetry, Dresden, Germany, 19–22 February 2004; Volume 34. Part 5/W16.
  64. Parian, J.A.; Gruen, A. An Advanced Sensor Model for Panoramic Cameras. In Proceedings of XXth ISPRS Congress, Istanbul, Turkey, 12–23 July 2004; Volume 35, Part 5. pp. 24–29.
  65. Schneider, D.; Maas, H.-G. Application and Accuracy Potential of a Strict Geometrical Model for Rotating Line Cameras. In Proceedings of ISPRS Workshop on Panorama Photogrammetry, Dresden, Germany, 19–22 February 2004; Volume 34. Part 5/W16.
  66. Fangi, G. The Multi-Image Spherical Panoramas as a Tool for Architectural Survey. In Proceedings of the XXI International CIPA Symposium, Athens, Greece, 1–6 October 2007; Volume 36. Part 5/C53.
  67. Barazzetti, L.; Fangi, G.; Remondino, F.; Scaioni, M. Automation in Multi-Image Spherical Photogrammetry for 3D Architectural Reconstructions. In Proceedings of the 11th International Symposium on Virtual Reality, Archaeology and Cultural Heritage (VAST), Paris, France, 21–24 September 2010.
  68. Sandau, R. Digital Airborne Camera: Introduction and Technology; Springer: Berlin/Heidelberg, Germany, 2009; p. 338. [Google Scholar]
  69. Eisenbeiss, H. UAV Photogrammetry. Ph.D. Thesis, Institute of Geodesy and Photogrammetry, ETH Zurich, Zurich, Switzerland, 2009; p. 235. [Google Scholar]
  70. Gruen, A.; Remondino, F.; Zhang, L. The Bamiyan project: Multi-resolution image-based modeling. In Recording, Modeling and Visualization of Cultural Heritage; Baltsavias, M., Gruen, A., van Gool, L., Pateraki, M., Eds.; Taylor & Francis: London, UK, 2005; pp. 45–54. [Google Scholar]
  71. Lasaponara, R.; Masini, N. On the potential of QuickBird data for archaeological prospection. Int. J. Remote Sens. 2006, 27, 3607–3614. [Google Scholar] [CrossRef]
  72. Galiatsatos, N.; Donoghue, D.N.M.; Philip, G. High resolution elevation data derived from stereoscopic CORONA imagery with minimal ground control: An approach using IKONOS and SRTM data. Photogramm. Eng. Remote Sensing 2008, 74, 1093–1106. [Google Scholar] [CrossRef]
  73. Gamba, P.; Dell’Acqua, F.; Houshmand, B. Comparison and fusion of LIDAR and InSAR Digital Elevation Models over urban areas. Int. J. Remote Sens. 2003, 24, 4289–4300. [Google Scholar] [CrossRef]
  74. Stumpfel, J.; Tchou, C.; Yun, N.; Martinez, P.; Hawkins, T.; Jones, A.; Emerson, B.; Debevec, P. Digital reunification of the Parthenon and its sculptures. In Proceedings of the 4th International Symposium on Virtual Reality, Archaeology and Intelligent Cultural Heritage (VAST), Brighton, UK, November 2003; pp. 41–50.
  75. Lisini, G.; Tison, C.; Tupin, F.; Gamba, P. Feature fusion to improve road network extraction in high-resolution SAR images. IEEE Geosci. Remote Sens. Lett. 2006, 3, 217–221. [Google Scholar] [CrossRef]
  76. Teo, T.-A.; Rau, J.-Y.; Chen, L.-C.; Liu, J.-K.; Hsu, W.-C. Reconstruction of complex buildings using LIDAR and 2D maps. In Innovations in 3D Geo Information Systems; Lecture Notes in Geoinformation and Cartography; Springer: Berlin/Heidelberg, Germany, 2006; Part 5; pp. 345–354. [Google Scholar]
  77. Roenholm, P.; Honkavaara, E.; Litkey, P.; Hyyppä, H.; Hyyppä, J. Integration of Laser Scanning and Photogrammetry. In Proceedings of ISPRS Workshop on Laser Scanning 2007 and SilviLaser 2007, Espoo, Finland, 12–14 September 2007; Volume 36, pp. 355–362.
  78. Stamos, I.; Liu, L.; Chen, C.; Wolberg, G.; Yu, G.; Zokai, S. Integrating automated range registration with multiview geometry for the photorealistic modelling of large-scale scenes. Int. J. Comput. Vis. 2008, 78, 237–260. [Google Scholar] [CrossRef]
  79. Guidi, G.; Remondino, F.; Russo, M.; Menna, F.; Rizzi, A.; Ercoli, S. A multi-resolution methodology for the 3D modelling of large and complex archaeological areas. Int. J. Architect. Comput. 2009, 7, 40–55. [Google Scholar]
  80. Gonzalez-Aguilera, D.; Muñoz-Nieto, A.; Rodriguez-Gonzalvez, P.; Menéndez, M. New tools for rock art modelling: automated sensor integration in Pindal Cave. J. Archaeol. Sci. 2011, 38, 120–128. [Google Scholar] [CrossRef]
  81. Tao, V.; Li, J. Advances in Mobile Mapping Technology; ISPRS Book Series No. 4; Taylor & Francis: London, UK, 2007. [Google Scholar]
  82. Kahlmann, T.; Remondino, F.; Ingensand, H. Calibration for Increased Accuracy of the Range Imaging Camera SwissRanger. In Proceedings of ISPRS Commission V Symposium ‘Image Engineering and Vision Metrology’, Dresden, Germany, 25–27 September 2006; Volume 36, pp. 136–141.
  83. Lichti, D. Self Calibration of 3D Range Camera. In Proceedings of ISPRS Congress 2008, Beijing, China, 3–11 July 2008; Volume 37, pp. 927–932.
  84. Chiabrando, F.; Filiberto, R.; Piatti, D.; Rinaudo, F. Sensors for 3D imaging-metric evaluation and calibration of a CCD/CMOS time-of-flight camera. Sensors 2009, 9, 80–96. [Google Scholar] [CrossRef] [PubMed]
  85. Smith, D.; Tardif, M. Building Information Modelling: A Strategic Implementation Guide for Architects, Engineers, Constructors, and Real Estate Asset Managers; Wiley: New York, NY, USA, 2009. [Google Scholar]
  86. Poli, D.; Angiuli, E.; Remondino, F. Radiometric and Geometric Analysis of Worldview-2 Stereo Scenes. In Proceedings of ISPRS Commission I Mid-Term Symposium ‘Image Data Acquisition—Sensors & Platforms’, Calgary, Canada, 15–18 June 2010; Volume 38.
  87. Godin, G.; Rioux, M.; Beraldin, J.; Levoy, M.; Cournoyer, L. An Assessment of Laser Range Measurement of Marble Surfaces. In Proceedings of The 5th Conference on Optical 3-D Measurement Techniques, Vienna, Austria, 1–4 October 2001; pp. 49–56.
  88. Lichti, D.D.; Harvey, B.R. The Effects of Reflecting Surface Material Properties on Time-Of-Flight Laser Scanner Measurements. In Proceedings of ISPRS Commission IV Symposium 2002 on Geospatial Theory, Processing and Applications, Ottawa, Canada, 9–12 July 2002; Volume 34.
  89. Guidi, G.; Remondino, F.; Russo, M.; Spinetti, A. Range sensors on marble surfaces: Quantitative evaluation of artefacts. Proc. SPIE 2009, 7447. [Google Scholar] [CrossRef]
  90. Lichti, D. Error modelling, calibration and analysis of an AM-CW terrestrial laser scanner system. ISPRS J. Photogramm. Remote Sens. 2007, 61, 307–324. [Google Scholar] [CrossRef]
  91. Kersten, T.; Mechelke, K.; Lindstaedt, M.; Sternberg, H. Methods for geometric accuracy investigations of terrestrial laser scanning systems. Photogrammetrie-Fernerkundung-Geoinformation 2009, 2009, 301–315. [Google Scholar] [CrossRef] [PubMed]
  92. González-Aguilera, D.; Rodríguez-Gonzálvez, P.; Armesto, J.; Arias, P. Trimble GX200 and Riegl LMS-Z390i sensor self-calibration. Opt. Express 2011, 19, 2676–2693. [Google Scholar] [CrossRef] [PubMed]
  93. Toutin, T. Geometric processing of remote sensing images: Models, algorithms and methods. Int. J. Remote Sens. 2004, 25, 1893–1924. [Google Scholar] [CrossRef]
  94. Poli, P. Modelling of Spaceborne Linear Array Sensors. Ph.D. Thesis, Institute of Geodesy and Photogrammetry, ETH Zurich, Zurich, Switzerland, 2005. [Google Scholar]
  95. Remondino, F.; Fraser, C. Digital Camera Calibration Methods: Considerations and Comparisons. In ISPRS Commission V Symposium ‘Image Engineering and Vision Metrology’, Dresden, Germany, 25–27 September 2006; Volume 36, pp. 266–272.
  96. Barazzetti, L.; Scaioni, M.; Remondino, F. Orientation and 3D modelling from markerless terrestrial images: Combining accuracy with automation. The Photogrammetric Record 2010, 25, 356–381. [Google Scholar] [CrossRef]
  97. Barazzetti, L.; Remondino, F.; Scaioni, M. Automated and Accurate Orientation of Complex Image Sequences. In Proceedings of the 4th ISPRS International Workshop 3D-ARCH 2011: “3D Virtual Reconstruction and Visualization of Complex Architectures”, Trento, Italy, 2–4 March 2011; Volume 38. Part 5/W16.
  98. Del Pizzo, S.; Troisi, S. Automatic Orientation of Image Sequences in Cultural Heritage. In Proceedings of the 4th ISPRS International Workshop 3D-ARCH 2011: “3D Virtual Reconstruction and Visualization of Complex Architectures”, Trento, Italy, 2–4 March 2011; Volume 38. Part 5/W16.
  99. Roncella, R.; Re, C.; Forlani, G. Performance Evaluation of a Structure and Motion Strategy in Architecture and Cultural Heritage. In Proceedings of the 4th ISPRS International Workshop 3D-ARCH 2011: “3D Virtual Reconstruction and Visualization of Complex Architectures”, Trento, Italy, 2–4 March 2011; Volume 38. Part 5/W16.
  100. Pierrot-Deseilligny, M.; Clery, I. APERO, An Open Source Bundle Adjustment Software for Automatic Calibration and Orientation of Set of Images. In Proceedings of the 4th ISPRS International Workshop 3D-ARCH 2011: “3D Virtual Reconstruction and Visualization of Complex Architectures”, Trento, Italy, 2–4 March 2011; Volume 38. Part 5/W16.
  101. Zhang, L. Automatic Digital Surface Model (DSM) Generation from Linear Array Images. Ph.D. Thesis, Institute of Geodesy and Photogrammetry, ETH Zurich, Zurich, Switzerland, 2005. [Google Scholar]
  102. Pierrot-Deseilligny, M.; Paparoditis, N. A Multiresolution and Optimization-Based Image Matching Approach: An Application to Surface Reconstruction from SPOT5-HRS Stereo Imagery. In Proceedings of ISPRS Ankara Workshop 2006 “Topographic Mapping from Space”, Ankara, Turkey, 14–16 February 2006; Volume 36. Part 1/W41.
  103. Furukawa, Y.; Ponce, J. Accurate, dense and robust multiview stereopsis. IEEE Trans. Patt. Anal. Mach. Intell. 2010, 32, 1362–1376. [Google Scholar] [CrossRef] [PubMed]
  104. Kraus, T.; Lehner, M.; Reinartz, P. Generation of Coarse 3D Model of Urban Areas from High Resolution Stereo Satellite Images. In Proceedings of ISPRS Congress 2008, Beijing, China, 3–11 July 2008; Volume 37, pp. 1091–1098.
  105. Gehrke, S.; Morin, K.; Downey, M.; Boehrer, N.; Fuchs, T. Semi-Global Matching: An Alternative to LiDAR for DSM generation? In Proceedings of ISPRS Congress 2008, Beijing, China, 3–11 July 2008.
  106. Vergauwen, M.; Van Gool, L. Web-based 3D reconstruction service. J. Mach. Vis. Appl. 2006, 17, 411–426. [Google Scholar] [CrossRef]
  107. Snavely, N.; Seitz, S.; Szeliski, R. Modelling the world from internet photo collections. Int. J. Comput. Vis. 2008, 80, 189–210. [Google Scholar] [CrossRef]
  108. Agarwal, S.; Snavely, N.; Simon, I.; Seitz, S.; Szelinski, R. Building Rome in a Day. In Proceedings of the IEEE 12th International. Conference on Computer Vision (ICCV 2009), Kyoto, Japan, 27 September–4 October 2009.
  109. Skaloud, J. Reliability of direct georeferencing-beyond the Achilles’ heel of modern airborne mapping. In Photogrammetric Week; Fritsch, D., Ed.; Stuttgart, Germary, 2007; pp. 227–241. [Google Scholar]
  110. Filin, S. Recovery of systematic biases in laser altimetry data using natural surfaces. Photogramm. Eng. Remote Sensing 2003, 69, 1235–1242. [Google Scholar] [CrossRef]
  111. Skaloud, J.; Lichti, D. Rigorous approach to bore-sight self-calibration in airborne laser scanning. ISPRS J. Photogramm. Remote Sens. 2006, 61, 47–59. [Google Scholar] [CrossRef]
  112. Salvi, J.; Matabosch, C.; Fofi, D.; Forest, J. A review of recent range image registration methods with accuracy evaluation. J. Image Vis. Comput. 2007, 25, 578–596. [Google Scholar] [CrossRef]
  113. Gruen, A.; Akca, D. Least squares 3D surface and curve matching. ISPRS J. Photogramm. Remote Sens. 2005, 59, 151–174. [Google Scholar] [CrossRef]
  114. Bendels, G.H.; Degener, P.; Wahl, R.; Körtgen, M.; Klein, R. Image-Based Registration of 3D-Range Data Using Feature Surface Elements. In Proceedings of the 5th International Symposium on Virtual Reality, Archaeology and Cultural Heritage (VAST), Brussels, Belgium, 7–10 December 2004; pp. 115–124.
  115. Makadia, A.; Patterson, A.; Daniilidis, K. Fully Automatic Registration of 3D Point Clouds. In Proceedings of the 2006 IEEE Computer Society Conference on Computer Vision and Pattern Recognition (CVPR’06), New York, NY, USA, 17–22 June 2006; Volume 1, pp. 1297–1304.
  116. Boehm, J.; Becker, S. Automatic Marker-free Registration of Terrestrial Laser Scans using Reflectance Features. In Proceedings of the 8th Conference Optical 3-D Measurement Techniques, ETH Zurich, Switzerland, 9–12 July 2007; Volume I, pp. 338–343.
  117. Barnea, S.; Filin, S. Keypoint based autonomous registration of terrestrial laser point-clouds. ISPRS J. Photogramm. Remote Sens. 2008, 63, 19–35. [Google Scholar] [CrossRef]
  118. Remondino, F. From Point Cloud to Surface: The Modelling and Visualization Problem. In International Workshop on Visualization and Animation of Reality-based 3D Models, Tarasp-Vulpera, Switzerland, 24–28 February 2003; Volume 34. Part 5/W10.
  119. Lensch, H.P.A.; Kautz, J.; Goesele, M.; Heidrich, W.; Seidel, H.P. Image-based reconstruction of spatial appearance and geometric detail. ACM Trans. Graph. 2003, 22, 234–257. [Google Scholar] [CrossRef]
  120. Reinhard, E.; Ward, G.; Pattanaik, S.; Debevec, P. High Dynamic Range Imaging: Acquisition, Display and Image-Based Lighting; Morgan Kaufmann: San Francisco, CA, USA, 2005. [Google Scholar]
  121. Callieri, M.; Cignoni, P.; Corsini, M.; Scopigno, R. Masked photo blending: Mapping dense photographic dataset on high-resolution sampled 3D models. J. Comput. Graph. 2008, 32, 464–473. [Google Scholar] [CrossRef]
  122. Boehm, J. Multi-image Fusion for Occlusion-Free Façade Texturing. In Proceedings of XXth ISPRS Congress, Istanbul, Turkey, 12–23 July 2004; Volume 35, pp. 867–872.
  123. Ortin, D.; Remondino, F. Occlusion-Free Image Generation for Realistic Texture Mapping. In Proceedings of the ISPRS Working Group V/4 Workshop 3D-ARCH 2005: “Virtual Reconstruction and Visualization of Complex Architectures”, Mestre-Venice, Italy, 22–24 August 2005; Volume 36. Part 5/W17.
  124. Herley, C. Automatic Occlusion Removal from Minimum Number of Images. In Proceedings of the IEEE International Conference on Image Processing (ICIP 2005), Genoa, Italy, 11–14 September 2005; pp. 1046–1049.
  125. Hanusch, T. A New Texture Mapping Algorithm for Photorealistic Reconstruction of 3D Objects. In Proceedings of XXIth ISPRS Congress, Beijing, China, 7–11 July 2008; Volume 37.
  126. Luebke, D.; Reddy, M.; Cohne, J.; Varshney, A.; Watson, B.; Huebner, R. Level of Detail for 3D Graphics; Morgan Kaufmann: San Francisco, CA, USA, 2002. [Google Scholar]
  127. Dietrich, A.; Gobbetti, E.; Yoon, S.E. Massive-model rendering techniques: A tutorial. J. Comput. Graph. Appl. 2007, 27, 20–34. [Google Scholar] [CrossRef]
  128. Shi, W.Z.; Yang, B.S.; Li, Q.Q. An object-oriented data model for complex objects in three-dimensional Geographic Information Systems. Int. J. Geograph. Inform. Sci. 2003, 17, 411–430. [Google Scholar] [CrossRef]
  129. Khuan, T.C.; Abdul-Rahman, A.; Zlatanova, S. 3D Spatial Operations in Geo DBMS Environment for 3D GIS. In Computational Science and Its Applications-ICCSA 2007; Gervasi, O., Gavrilova, M., Eds.; LNCS 4705, Part I; Springer: Berlin/Heidelberg, Germany, 2007; pp. 151–163. [Google Scholar]
  130. Manferdini, A.M.; Remondino, F.; Baldissini, S.; Gaiani, M.; Benedetti, B. 3D Modelling and Semantic Classification of Archaeological Finds for Management and Visualization in 3D Archaeological Databases. In Proceedings of the 14th VSMM: International Conference on Virtual Systems and MultiMedia, Limassol, Cyprus, 20–25 October 2008; pp. 221–228.
  131. Kibria, M.S.; Zlatanova, S.; Itard, L.; Van Dorst, M. GeoVEs as tools to communicate in urban projects: Requirements for functionality and visualisation. In 3D Geo-Information Sciences; Springer-Verlag: New York, NY, USA, 2009; pp. 379–395. [Google Scholar]
  132. Apollonio, F.I.; Corsi, C.; Gaiani, M.; Baldissini, S. An integrated 3D geodatabase for Palladio’s work. Int. J. Architect. Comput. 2010, 8, 111–133. [Google Scholar] [CrossRef]
  133. Agugiaro, G.; Remondino, F.; Girardi, G.; Von Schwerin, J.; Richards-Rissetto, H.; De Amicis, R. A Web-Based Interactive Tool for Multi-Resolution 3D Models of a Maya Archaeological Site. In 4th International Workshop “3D-ARCH 2011: Virtual Reconstruction and Visualization of Complex Architectures”, Trento, Italy, 2–5 March 2011; Volume 38. Part 5/W16.
  134. De Amicis, R.; Conti, G.; Girardi, G.; Andreolli, M. 3D WebGIS and Visualization Issues for Architectures and Large Sites. In 4th International Workshop “3D-ARCH 2011: Virtual Reconstruction and Visualization of Complex Architectures”, Trento, Italy, 2–5 March 2011; Volume 38. Part 5/W16.
  135. De Luca, L.; Bussayarat, C.; Stefani, C.; Véron, P.; Florenzano, M. A semantic-based platform for the digital analysis of architectural heritage. J. Comput. Graph. 2011, 35, 227–241. [Google Scholar] [CrossRef]
  136. Kolbe, T.H. Representing and exchanging 3D city models with CityGML. In 3D Geo-Information Sciences; Springer-Verlag: New York, NY, USA, 2009. [Google Scholar]
  137. Kolbe, T.; Koenig, G.; Nagel, C. Advances in 3D Geo-Information Sciences; Springer-Verlag: New York, NY, USA, 2011; p. 294. [Google Scholar]
  138. Kresse, W. Development of an international standard for calibration and validation of remote sensing imagery sensors and data. Int. Arch. Photogram. Rem. Sens. Spatial Inf. Sci. 2008, 38. part 1/03/. [Google Scholar]
Remote Sens. EISSN 2072-4292 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
