MERIS Retrieval of Water Quality Components in the Turbid Albemarle-Pamlico Sound Estuary, USA

^{1}

National Exposure Research Laboratory, US Environmental Protection Agency, National Research Council, 109 TW Alexander Dr., Research Triangle Park, NC 27711, USA

^{2}

National Exposure Research Laboratory, US Environmental Protection Agency, 109 TW Alexander Dr., Research Triangle Park, NC 27711, USA

^{3}

Institute of Marine Sciences, University of North Carolina at Chapel Hill, Morehead City, NC 28557, USA

*

Author to whom correspondence should be addressed; Tel.: +1-919-541-4256.

^{†}

Present Affiliation: Department of Life Sciences, Texas A&M University-Corpus Christi, Corpus Christi, TX 78412, USA.

Received: 1 February 2011; in revised form: 14 March 2011 / Accepted: 18 March 2011 / Published: 1 April 2011

## Abstract

**:**

Two remote-sensing optical algorithms for the retrieval of the water quality components (WQCs) in the Albemarle-Pamlico Estuarine System (APES) were developed and validated for chlorophyll a (Chl). Both algorithms were semi-empirical because they incorporated some elements of optical processes in the atmosphere, water, and air/water interface. One incorporated a very simple atmospheric correction and modified quasi-single-scattering approximation (QSSA) for estimating the spectral Gordon’s parameter, and the second estimated WQCs directly from the top of atmosphere satellite radiance without atmospheric corrections. A modified version of the Global Meteorological Database for Solar Energy and Applied Meteorology (METEONORM) was used to estimate directional atmospheric transmittances. The study incorporated in situ Chl data from the Ferry-Based Monitoring (FerryMon) program collected in the Neuse River Estuary (n = 633) and Pamlico Sound (n = 362), along with Medium Resolution Imaging Spectrometer (MERIS) satellite imagery collected (2006–2009) across the APES; providing quasi-coinciding samples for Chl algorithm development and validation. Results indicated a coefficient of determination (R

^{2}) of 0.70 and mean-normalized root-mean-squares errors (NRMSE) of 52% in the Neuse River Estuary and R^{2}= 0.44 (NRMSE = 75 %) in the Pamlico Sound—without atmospheric corrections. The simple atmospheric correction tested provided on performance improvements. Algorithm performance demonstrated the potential for supporting long-term operational WQCs satellite monitoring in the APES.Keywords:

water quality; optical retrieval algorithms; MERIS imagery; estuary system## 1. Introduction

Ocean color was first measured from space in 1979 and has since provided a synoptic view of near-surface water quality components (WQCs) like chlorophyll a (Chl), volatile suspended solids (VSS), fixed suspended solids (FSS), total suspended solids (TSS), and absorption of chromophoric dissolved organic matter (a

_{CDOM}). Subsequently, a number of ocean color satellite missions have been used to monitor phytoplankton biomass and other biogeochemical variables across temporal (daily to annual) and spatial (kilometers to ocean basin) scales [1]. Numerous satellite remote-sensing empirical and semi-empirical algorithms for water color retrieval (especially for oceanic phytoplankton) have been created during this time [2,3,4].An extensive list of remote sensing methods for estimation of inherent optical properties (IOPs) including absorption (a) and backscattering (b

_{b}) coefficients have been reported by the International Ocean-Colour Coordinating Group [5]. However, to date, most methods have been developed for Case 1 waters, where upwelling radiance is mostly associated with phytoplankton pigments. In turbid Case 2 waters, the upwelling signal is frequently associated with multiple constituents (including TSS and CDOM) and is substantially complicated due to lack of significant correlation among WQCs.Attempts to develop remote sensing algorithms for water quality assessment in the NRE (Neuse River Estuary) and Pamlico Sound (PS) began in the mid-1980s. The Multispectral Scanner (MSS) carried by Landsats 1–5 was the first satellite sensor used to assess NRE WQCs including salinity, Chl, turbidity and TSS [6]. The authors noted that the NRE “began to exhibit symptoms of degradation similar to those seen in other estuaries.” An important study contribution was the determination of NRE bottom reflectance impacts on modeling feasibility. Khorram and Cheshire [6] concluded that bottom reflectance was significant at depths Z < 3 m and remote sensing-derived WQCs were well correlated with in situ measurements for the depths Z > 3 m. For example, the coefficient of determination (R

^{2}) was 0.70 and 0.76 for Chl and turbidity (n = 17), respectively; 0.82 for salinity and 0.64 for TSS (n = 45). However, these models were completely empirical and had a high probability for substantial error propagation.Woodruff et al. [7] measured mean diffuse attenuation coefficients in the visible region K

_{d}(PAR) ranging 0.7–2.9 (mean 1.3) m^{−1}in the NRE and ranging from 0.5 to 2.7 (mean 1.0) m^{−1}in the PS. Woodruff et al. [7] estimated K_{d}(PAR) and TSS in PS using a simplified modification [8] of the quasi-single-scattering approximation (QSSA) [9]. According to the model described in [7], the irradiance reflectance was only a function of the Gordon’s parameter G = b_{b}/(b_{b}+ a). No scattering phase function or geometry of illumination and observation were taken into account. However, as shown by Haltrin and Gallegos [10] and Sokoletsky [11], neglecting these factors may lead to large errors. Additionally, it was assumed [7] that the specific absorption and backscattering coefficients for PS were constants. This assumption is probably not valid for the NRE and PS area of interest due to the large variability of dissolved and suspended matter in the water resulting in different optical responses [12,13,14]. Nevertheless, the relationship between reflectance in the red region (580–680 nm) and K_{d}(PAR) in PS was fairly robust (R^{2}= 0.72; n = 61) under a variety of environmental conditions [8].Karaska et al. [15] mapped WQCs (Chl, TSM, CDOM and total attenuation) in the NRE using the photobathymetry and water quality software presented by Huguenin et al. [16]. The software was based on a four-dimensional look-up-table (LUT) representing irradiance reflectance as a function of wavelength, depth, and concentrations of Chl, TSM and CDOM using the Morel and Prieur [17] model modified for shallow (finite) layers. Both [15] and [16] did not account for the important impacts of scattering phase function, illumination and observation geometry and variability of the specific absorption and backscattering coefficients. The results for the Advanced Visible-Infrared Imaging Spectrometer (AVIRIS) derived Chl using the above-mentioned approach for eight southeastern Massachusetts lakes was a R

^{2}= 0.89, while the relative errors varied from −64% to 207%; with a mean-normalized root-mean-squares error (NRMSE) of 74% [16]. Improved results were achieved by this approach for Chl retrieval along three NRE transects when the elapsed time Δt between the field data and the AVIRIS data collection was within one hour (R^{2}= 0.67, 0.76 and 0.90); at Δt > 2 h results were not acceptable [15].The application of spectral radiance ratios or spectral reflectance ratios largely removes angular scattering features, geometrical factors and bottom influence effects from the solution, and flattens the non-linear behavior of reflectance as a function of Gordon’s parameter G [3,4,18,19,20,21,22,23], thus improving IOPs retrievals and WQCs estimates. Several authors have modified a spectral reflectance ratio empirical method for development of various variants of adaptive optical algorithms for IOPs and WQCs estimation [4,24,25,26,27,28,29,30]. Like the reflectance ratio approach, adaptive optical algorithms can overcome ambiguousness of IOPs estimations from known reflectance [31].

Lunetta et al. [32] were able to estimate Chl, CDOM, TSS and FSS for the NRE and PS using atmospherically corrected (radiative transfer model) narrow band (9.5 nm) surface reflectance R(λ) or R(λ) ratios to estimate WQCs. The spectral bands and ratios represented a subset of AVIRIS bands that were selected to simulate both the Moderate Resolution Imaging Spectroradiometer (MODIS) and Medium Resolution Imaging Spectrometer (MERIS) sensors. Atmospheric correction used LUTs generated using the MODerate resolution atmospheric TRANsmission (MODTRAN) radiative transfer model for calculation of upwelling spectral radiances corresponding to the range of surface reflectances, atmospheric aerosol loadings and water vapor that would anticipate the range of observed radiances in the study region [33]. The MODTRAN code uses a discrete ordinate method for solution of the radiative transfer equation [34]. The best surface reflectance indices were found as follows (sample size n = 13): R(693)/R(673) for Chl (R

^{2}= 0.98); R(470)/R(555) for CDOM (R^{2}= 0.90); and R(620–670) for TSS (R^{2}= 0.55) and FSS (R^{2}= 0.64). Thus, the significance levels (p) for all above-mentioned WQCs were p < 0.003 and results considered statistically significant. A quantification of VSS did not produce acceptable results.Sokoletsky et al. [30] developed a semi-empirical underwater optical algorithm for WQCs in NRE and PS using Gordon’s parameter spectral ratios instead of reflectance spectral ratios. The authors used G(665)/G(560) spectral ratios for a

_{CDOM}(412.5) estimation and G(709)/G(665) for Chl, a_{TSS}(665), TSS, VSS and FSS retrievals. Determination coefficients between the algorithm-derived and in situ measured WQCs were 0.88 (n = 79) for Chl, 0.59 (n = 79) for a_{CDOM}(412.5), 0.51 (n = 68) for TSS, 0.78 (n = 68) for VSS, and 0.00 (n = 68) for FSS; demonstrating highly significant results for all WQCs investigated, excluding FSS. This was similar to results by Khorram and Cheshire [6], Karaska et al. [15] for Chl estimation and Lunetta et al. [32] for Chl, CDOM and TSS. However, the different results obtained for VSS and FSS in [30] and [32] can be attributed to the distinctive seasonal data. For example, all measurements used for WQCs retrieval in [32] were limited to one day and small sample size (n = 13); while the results reported in [30] were based on nine observation dates (n = 79).#### 1.1. Study Area

The NRE is the largest tributary of the North Carolina’s Albemarle-Pamlico Estuarine System (APES) which is the second largest estuarine complex in the USA. This complex is representative of shallow, periodically stratified, semi-lagoonal estuaries, found along the Mid-Atlantic. The NRE drains some of North Carolina’s most productive agricultural land and rapidly expanding urban areas. The NRE originates in the piedmont of North Carolina, near Durham, flows through Raleigh and empties into the PS beyond New Bern (Figure 1). The NRE is approximately 325 km in length, with depths between 2 and 7 m, averaging approximately 7.5 m in the Northern Pamlico basin. The Neuse River is among the widest in the USA; ranging from 2 km at New Bern to 12 km at the PS confluence [35,36,37]. The APES supports approximately 80% of commercially and recreationally-caught coastal fisheries species in the Southeastern Atlantic Region [38]. Over the past several decades, this system has been adversely affected by human activities (i.e., changes in nutrient loadings and habitat degradation) and climatic perturbations, including a recent increase in tropical cyclones [35,36]. These factors have led to degradation of water/habitat quality, and have caused declines of fisheries resources and of overall ecological condition [35,36,39,40].

The NRE is an example of a water body belonging to the intermediate water case with: (a) significant quantities of Chl, organic and inorganic matter; (b) predictable relationships between Chl, VSS and TSS; and (c) no strong correlations between Chl, FSS and CDOM [30]. Diffuse attenuation coefficients across the visible range, K

_{d}(PAR), typically range from 1.0 m^{−1}to 2.5 m^{−1}in the NRE-PS region [7]; therefore, the diffuse attenuation optical depth τ_{k}(PAR) = ZK_{d}(PAR) ranges from 2 to 18.**Figure 1.**The Neuse River-Pamlico Sound Estuarine System including ModMon stations and FerryMon routes.

## 2. Methods

In this study we developed two different variants for WQCs retrieval in the NRE and PS. One algorithm used a very simplistic atmospheric correction to derive spectral values of surface reflectance and surface Gordon’s parameter G(λ, 0−) at λ = 665 and 709 nm; while the second algorithm did not incorporate any atmospheric correction and was based on the top of atmosphere (TOA) radiance values measured at sensor (Figure 2). Both algorithms were developed for NRE and validated for the NRE (n = 633) and PS (n = 362) areas. For assessment of TSS, VSS, FSS and CDOM WQCs, the Neuse River Estuary Modeling and Monitoring Project (ModMon) data collection also was exploited [30].

#### 2.1. Radiometric Measurements

Radiometric data collections using a Satlantic Hyper Pro profiling instrument were performed in conjunction with the NRE Modeling and Monitoring Project (ModMon) [41]. The modified ModMon protocols were used to collect radiometric data as well as turbidity, Chl, CDOM, VSS, FSS.

**Figure 2.**Flow chart illustrating the algorithm development approach and validation procedures used in support of the study. Abbreviations: WQCs, water quality components; NRE, Neuse River Estuary; PS, Pamlico Sound, TOA, top of atmosphere.

TSS, diffuse attenuation coefficient, temperature and salinity data at 10 stations for nine dates within the 2006–2009 study duration (Figure 1). All radiometric measurements were acquired during morning hours, at zero nadir viewing angles. These measurements included spectra from 350 to 800 nm with a mean band width of 3.3 nm. Both downwelling irradiance just above the water E

_{d}(λ, 0+) and underwater upwelling radiance L_{u}(λ, z) at depth z were collected. Measurements were made in the vertical plane normal to the Sun’s azimuthal plane to minimize the contribution effects of sun glitter and of ship shadowing [42].The photosynthetically available radiation K

_{d}(PAR) and the corresponding diffuse attenuation optical depth τ_{k}(PAR) were averaged from the surface to the bottom depth. K_{d}(PAR) was calculated from PAR measured in the i^{th}layer (n = 547). The ranges of K_{d}(PAR) and τ_{k}(PAR) were estimated at [0.5;3.3] m−1 and [2.5;10.5] with a mean of 1.6 (±0.5) m^{−1}and 6.0 (±1.5), respectively, for all NRE stations. Accounting for a “semi-infinite” layer at τ_{k}(PAR) > 2.5 − 3 [43], we ignored the bottom’s influence on the optical surface measurements in the APES. Note, the similarity of the K_{d}(PAR) data in this study to that reported in [7].#### 2.2. Water Quality Measurements

Relevant parameters determined as part of ModMon included vertical profiles of PAR, temperature, salinity, Chl fluorescence, and turbidity at 0.5 m depth intervals for each sampling location. Discrete samples for VSS (n = 68), FSS (n = 68), TSS (n = 68), Chl (n = 79), and a

_{CDOM}(λ) (n = 79) were also collected at near-surface and bottom at each site. To support underwater optical model development, only subsurface values of WQCs were used. Experimental methods of WQCs determination used in the study are described in [30].An additional dataset of near-surface Chl measurements was obtained through the North Carolina Ferry-Based Monitoring (FerryMon) Program; which consisted of two NC Department of Transportation ferries, traversing both the NRE and PS. The NRE ferry completed 40 crossings daily between Cherry Point and Minnesott Beach, while the PS ferry completed four daily crossings between Cedar Island and Ocracoke Island (Figure 1). The FerryMon database included 142,265 NRE and 173,918 PS Chl measurement observations from 2006 to 2009. Ferries were equipped with automated water quality monitoring systems, including a flow-through YSI 6600 sondes that measured Chl fluorescence, conductivity, turbidity, temperature, salinity, dissolved oxygen and pH [41,44]. In vivo fluorescence was converted to Chl concentrations according to calibration equations relating fluorescence to various concentrations of extracted Chl. The random error associated with the fluorometric Chl determinations for both the ModMon and FerryMon programs was estimated using parallel laboratory measurement protocols. A systematic error of approximately 2.0% associated with the ferry-based estimates was minimized by regular calibrations.

#### 2.3. Satellite Imagery

We used the Medium Resolution Imaging Spectrometer (MERIS) for its relatively high spatial resolution and spectral bands optimized for estimating WQCs. In particular, the 704–713 nm band was previously determined to be extremely important for APES water quality monitoring [32,45]. MERIS was designed by the European Space Agency (ESA) for ocean and coastal water remote sensing applications. The MERIS design features include a spatial resolution of 300 m (high resolution mode) together with a revisit period of 2–3 days (latitude dependent), 15 narrow spectral bands in the 400–900 nm spectral range with a relatively high signal to noise ratio, high radiometric sensitivity and stability, and radiometric errors < 2% [45]. MERIS was launched into a sun synchronous polar orbit onboard the ESA’s Environmental Satellite 1 (EnviSat-1) on 1 March 2002. It was deployed as a research instrument with an initial mission cycle scheduled through 2010; which has subsequently been extended through 2013. A follow-on instrument is scheduled for deployment 2013 onboard ESA’s Sentinel-2.

To achieve correspondence between the MERIS Chl retrievals and the FerryMon measurements, only those data aligned in both time (Δt ≤ 4 h) and space (Δd ≤ 150 m) were used for algorithm validation. The numerical test did not reveal any statistically significant differences between the radiance signals detected by the sensor at selected and diminished times and distances.

#### 2.4. Water Quality Retrieval Algorithms

The MERIS upwelling TOA spectral radiance L

_{u}(TOA, λ) and FerryMon data from the NRE was used to support algorithm development (n = 633). Auxiliary data such as nadir viewing angle of satellite’s sensor, wind speed, atmospheric pressure, relative humidity, and ozone density (in Dobson units) were derived from the MERIS L1b images (N1 format) by the open-source toolbox BEAM-VISAT (version 4.5.2). The spectral scaling factors needed for conversion from the spectral TOA digital numbers to the spectral TOA upwelling radiance also were extracted using the toolbox. Detailed information about BEAM toolbox may be found at http://www.brockmann-consult.de/cms/web/beam/welcome.Our modeling efforts revealed large uncertainties primarily attributed to the lack of aerosol properties information. Without additional information the development of a substantially complete version of atmospheric correction sub-algorithm was not possible [46,47,48,49]. Therefore, two approaches, one that incorporated a very simple atmospheric correction and one without any atmospheric correction were developed and tested. The flow chart for the development of algorithms used in the study is shown in Figure 2. Both algorithms incorporated NRE reflectance r
This equation closely resembles that used in [30]. The function F was used to provide a more robust approach, compared to simple reflectance ratios or Gordon’s parameter ratios.

_{rs}(λ) values across three spectral regions corresponding to the minimum value at 650−676 nm (red) and two maximum values at 569−600 nm (green) and 683−710 nm (NIR) [30]. CDOM absorption was closely related to the green to red reflectance ratio, while Chl, VSS, and TSS concentrations were strongly influenced by the NIR to red reflectance ratio. The following equation for Chl (mg m^{−3}) algorithm with atmospheric correction was derived from the NRE FerryMon and MERIS data:
$$\mathrm{Chl}=20.28{F}^{3.854},\hspace{1em}F=\frac{1/G(665)-1}{1/G(709)-1}$$

Next, we incorporated an approximation equation relating G(λ) with the surface spectral reflectance r
where μ

_{rs}(λ) = L_{u}(λ, 0−)/E_{d}(λ, 0−) (L_{u}(λ, 0−) and E_{d}(λ, 0−) that represents spectral upwelling radiance and downwelling irradiance, respectively:
$${r}_{\text{rs}}(\lambda )=0.2049G(\lambda )[1+0.2821G(\lambda )-1.019{\mu}_{1}+0.4561{\mu}_{1}^{2}](1+0.4021/{\mu}_{2})$$

_{1}is the cosine of the subsurface solar zenith angle and μ_{2}is the cosine of the subsurface nadir viewing angle. Equation (2) was derived based on results in [30] for the relationship between r_{rs}, and G and µ_{1}incorporating r_{rs}(µ_{2}) relationship according to Albert and Gege [50]. The numerical calculations documented by [30] and [50] were based on the precise invariant imbedding method (IIM); however, basic assumptions used for r_{rs}model development were different. Details of our IIM computations are outlined in [51,52,53,54]. The following assumptions were incorporated for derivation of Equation (2): (1) the strongly forward-peaked Fournier-Forand-Mobley (FFM) particulate scattering phase function; (2) solar zenith angles θ_{0}$\in $ [0°;61.7°]; (3) nadir viewing angle θ_{2}= 0°; (4) wavelengths λ = {560 nm, 665 nm, 709 nm}; and (5) single-scattering albedo ω_{0}$\in $ [0.1;0.99]. The FFM p(θ) was selected because it reproduces scattering conditions pertaining to different natural waters [55,56,57]. Equation (2) was then inverted as follows:
$$G(\lambda )=1.773\left(\sqrt{{F}_{1}^{2}+{F}_{2}(\lambda )}-{F}_{1}\right),\hspace{0.17em}{F}_{1}=1-1.019{\mu}_{1}+0.4561{\mu}_{1}^{2},\hspace{0.17em}{F}_{2}(\lambda )=\frac{5.505{r}_{\mathrm{rs}}(\lambda )}{1+0.4021/{\mu}_{2}}$$

The atmospheric correction algorithm for conversion from the TOA spectral radiances to the above-water remote-sensing reflectance spectra R

_{rs}(λ) = L_{w}(λ)/E_{d}(λ, 0+) (L_{w}is the water-leaving radiance), was based on the knowledge of seasonal atmospheric transmittance over the APES and applying the reciprocity principle for atmospheric transmittance along the target to satellite as presented in Appendix A. Further conversion from the R_{rs}(λ) to the under-water remote-sensing reflectance spectra r_{rs}(λ) was performed using the equation by Craig et al. [29] derived from the radiative transfer simulations:
$${r}_{\mathrm{rs}}(\lambda )=\frac{{R}_{\mathrm{rs}}(\lambda )}{0.52+1.7{R}_{\mathrm{rs}}(\lambda )}$$

The TSS absorption coefficient at 665 nm a

_{TSS}(665), VSS, FSS and CDOM were then estimated by the semi-empirical underwater optical algorithm derived from the ModMon measurements [30]:
$${a}_{\text{TSS}}(665)=0.01649\mathrm{Chl}$$

$$\text{VSS}=8.300{[{a}_{\text{TSS}}(665)]}^{0.8672}$$

$$\text{TSS}=13.68{[{a}_{\text{TSS}}(665)]}^{0.5041}$$

$$\mathrm{FSS}=\mathrm{TSS}-\mathrm{VSS}$$

$${a}_{\text{CDOM}}(412.5)=4.791{[G(665)/G(560)]}^{1.218}$$

The non-atmospherically corrected algorithm was derived from the same database as the corrected version; without implementing the conversion from TOA radiance to Gordon’s parameter G. Accordingly, the Chl concentration was directly related to the spectral TOA bidirectional reflectance [58] r(λ, TOA) = L

_{u}(λ, TOA)/E_{0}(λ) (L_{u}(λ, TOA) is the spectral upwelling radiance at the TOA and E_{0}(λ) is the spectral extraterrestrial irradiance normal to the solar beam at the mean solar distance:
$$\mathrm{Chl}=20.59{[r(709,\hspace{0.17em}\mathrm{TOA})/r(665,\hspace{0.17em}\mathrm{TOA})]}^{4.055}$$

The a

_{TSS}(665), VSS, TSS, and FSS were estimated by Equations (5–8), respectively, while the a_{CDOM}(412.5) was estimated from the following equation:
$${a}_{\text{CDOM}}(412.5)=6.489{[r(665,\hspace{0.17em}\mathrm{TOA})/r(560,\hspace{0.17em}\mathrm{TOA})]}^{1.424}$$

Equation (11) was derived from the ModMon measured and modeling data assuming spectral reflectance ratios equality:
where R

$$r(665,\hspace{0.17em}\mathrm{TOA})/r(560,\hspace{0.17em}\mathrm{TOA})={R}_{\mathrm{trs}}(665,\hspace{0.17em}0+)/{R}_{\mathrm{trs}}(560,\hspace{0.17em}0+)$$

_{trs}(λ, 0+) = L_{u}(λ, 0+)/E_{d}(λ, 0+) is the total above-water reflectance. Equation (12) assumes that reflectance is unchanged throughout the atmosphere. Extensive observational evidences support the above assumption [13,59].## 3. Results and Discussion

#### 3.1. Validation of r_{rs} Approximations

Figure 3 shows the plot of relative errors for individual values of G at λ = 665 nm and μ

_{2}= 1 associated with the approximation for r_{rs}described by Equation (2) yielding R^{2}= 0.99 and NRMSE = 2.1% compared to the IIM computations. Errors were between −6% and 9%, increasing nearly monotonically with μ_{1}and decreasing in absolute value with G; at G = 0.56 all errors are zero. It is important to note that using the spectral G-ratios for WQCs retrievals significantly decreases errors relating to the unknown scattering phase function p(θ). For the NRE, inaccuracies associated with the p(θ) were estimated within ±1% [30].**Figure 3.**Relative errors of approximate values of r

_{rs}calculated relative to r

_{rs}computed by the invariant imbedding method (IIM). Calculations are shown for λ = 665 nm and μ

_{2}= 1.

#### 3.2. Validation of WQC Algorithms

The scatter plots comparing Chl predicted from the MERIS data with Chl measured during FerryMon trips are shown on Figure 4. Both the atmospherically corrected (Figure 4(a)) and uncorrected (Figure 4(b)) algorithms were used for Chl computations. Results demonstrated relatively good correlation and accuracy between predicted and measured values for the both the NRE and PS. Although the obtained NRMSE errors (52–75%) were greater than the suggested threshold of 35% (0.05 to 50.0 mg m

^{−3}) for satellite sensors [60,61], these values may be considered as acceptable taking into account the complexity of waters under consideration and the great daily and seasonal WQCs variability. Figure 4 illustrates that the results obtained by both remote sensing algorithms are better for Chl values >10 mg m^{−3}. This result is especially important for the purpose of detecting dates and locations of Chl exceeding 40 mg m^{−3}. The 40 mg m^{−3}value is the basis for the Total Maximum Daily Load (TMDL) nitrogen non-point source loading reductions established for the NRE [62].**Figure 4.**Scatter plot for NRE (Neuse River Estuary) and Pamlico Sound (PS) Chl values comparing MERIS retrieval estimates to FerryMon measured values for both with

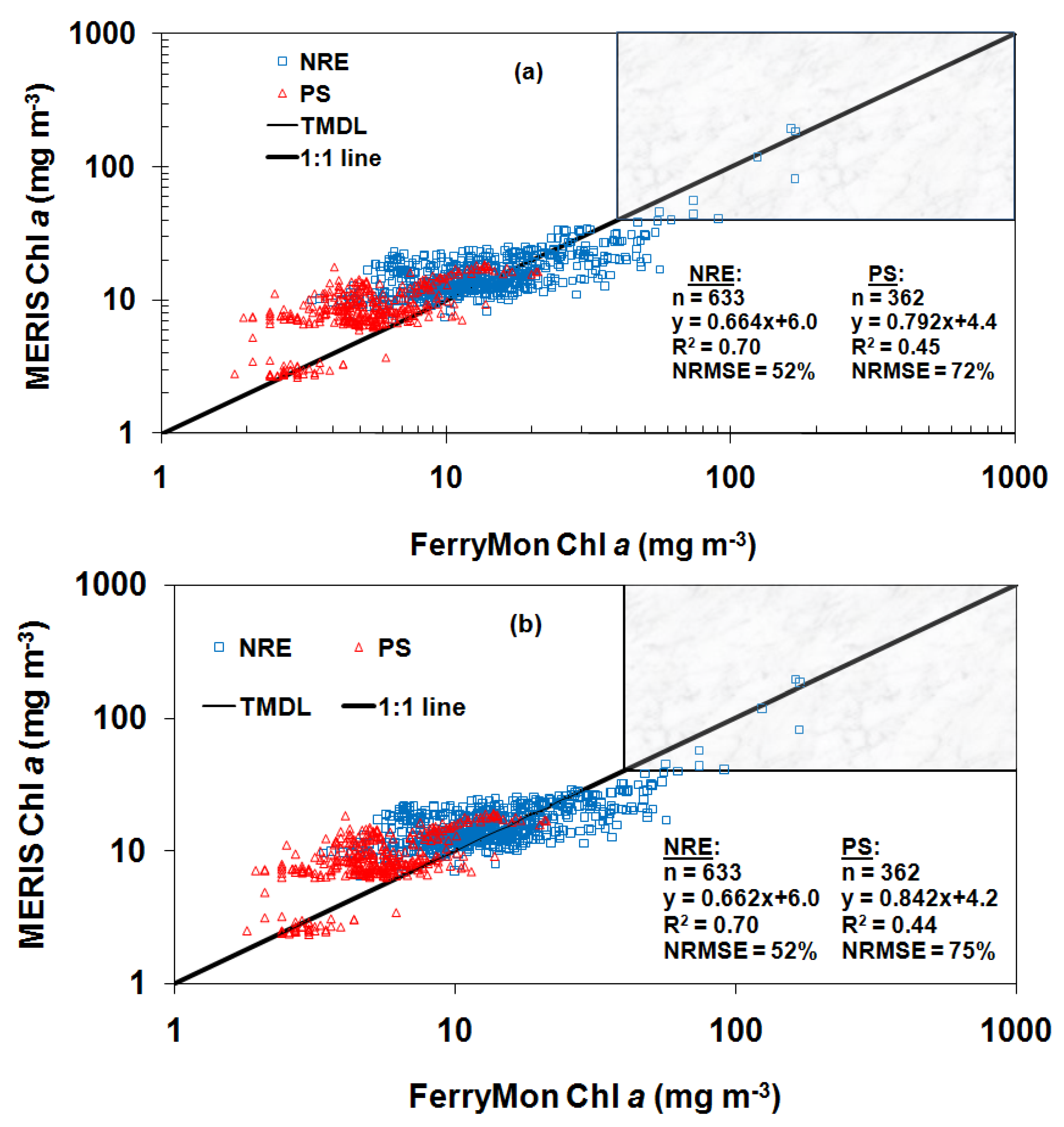

**(a)**and without

**(b)**atmospheric correction. The Chl values exceeding Total Maximum Daily Load (TMDL) values (40 mg m

^{−3}) are illustrated in the upper right rectangle.

Two opposing effects had a substantial impact across the study area. First, Chl variability in the PS (52%) was significantly lower than in the NRE (94%). Second, Chl concentrations in PS were typically much lower than in the NRE (Table 1). Accordingly, results varied between systems (Figure 4). The NRMSE, R

^{2}and significance level (p), were better for NRE than for PS (Table 1).It was not surprising that the Chl retrieval accuracies were similar for the both algorithms. Moreover, any attempts to apply more realistic atmospheric correction schemes, including the direct and diffuse light fluxes and aerosol light scattering simulations [46,47,48,49], resulted in even poorer results. The additional complexity associated with the atmospheric correction applied in this study, likely did not adequately represent atmospheric optical processes to the extent necessary to result in a measurable improvement in WQCs retrievals. Thus, the future investigation of real atmospheres over the NRE and PS, especially for aerosol properties, may substantially improve the atmospheric models and subsequent WQCs retrieval results for the APES.

A direct comparison between the ModMon measurements and MERIS predictions of WQCs was possible only on 14 October 2008, when ModMon and MERIS were temporally (Δt = 0.75 h) and spatially (Δd = 76 m) aligned. Table 2 contains the results derived for both remote-sensing algorithms. The errors for all WQCs (excluding FSS) closely approximated those obtained from the in situ water quality algorithm [30].

**Table 1.**Validation results of predicted (MERIS) versus measured (FerryMon) Chl concentrations for the Neuse River Estuary and Pamlico Sound both with (upper rows) and without (lower rows) atmospheric correction. The columns from the left to the right mean the sample size (n), measured mean, standard deviation (SD), coefficient of variation (CV), normalized mean biased error (NMBE), normalized root-mean-squares error (NRMSE), determination coefficient (R

^{2}), significance level (p), intercept and slope.

n | Mean (mg m^{−3}) | SD (mg m^{−3}) | CV (%) | NMBE (%) | NRMSE (%) | R^{2} | p | Intercept (mg m^{−3}) | Slope |
---|---|---|---|---|---|---|---|---|---|

Neuse River Estuary | |||||||||

633 | 17.7 | 12.6 | 71 | 2.7 | 52 | 0.70 | 3 × 10^{−165} | 6.0 | 0.66 |

633 | 17.8 | 12.4 | 70 | 2.8 | 52 | 0.70 | 6 × 10^{−165} | 6.0 | 0.66 |

Pamlico Sound | |||||||||

362 | 9.1 | 3.5 | 38 | 55 | 72 | 0.45 | 3 × 10^{−49} | 4.4 | 0.79 |

362 | 9.2 | 3.8 | 41 | 56 | 75 | 0.44 | 2 × 10^{−47} | 4.2 | 0.84 |

**Table 2.**Results comparing predicted (MERIS) versus measured (ModMon) WQCs values for NRE station #120 both with (upper row) and without (lower row) atmospheric correction. ModMon data were collected on 14 October 2008 at 09:40 AM EST and the MERIS overpass occurred at 10:25 AM EST. The numbers in parentheses are the MERIS WQCs errors relative to the ModMon data.

Chl (mg m^{−3}) | VSS(g m^{−3}) | FSS(g m^{−3}) | TSS(g m^{−3}) | a_{CDOM}(412.5)(m^{−1}) | |
---|---|---|---|---|---|

ModMon | 15.5 | 2.4 | 1.5 | 3.9 | 4.1 |

MERIS (with atm. correction) | 11.2(−28%) | 1.9(−22%) | 3.9(161%) | 5.8(48%) | 2.8(−32%) |

MERIS (without atm. correction) | 10.9(−30%) | 1.8(−23%) | 3.9(159%) | 5.7(46%) | 3.2(−21%) |

#### 3.3. WQC Dynamics

Figure 5 illustrates the seasonal dynamics of WQCs in the NRE derived from the ModMon, FerryMon and MERIS datasets (2006–2009). Only MERIS pixels located within a radius of 150 m from FerryMon sampling locations for the NRE and PS routes were selected for analysis. The ModMon observations correspond to station 120. The distances between this station and selected MERIS pixels ranged between 76 and 1,546 m. Only the results of the atmospheric correction algorithm for MERIS WQCs estimates are shown in Figure 5. The non-correction algorithm had very similar results (not presented). WQCs using the algorithm described in [30] are also presented in Figure 5.

**Figure 5.**Seasonal dynamics of daily-averaged WQCs in NRE (2006–2009) for Chl

**(a)**, VSS

**(b)**, FSS

**(c)**, TSS

**(d)**and a

_{CDOM}(412.5)

**(e)**. FerryMon data and TMDL line are shown only for Chl, but measured and predicted ModMon and MERIS values are shown for all WQCs.

ModMon and FerryMon measurement data closely correspond with MERIS-derived observations for Chl, VSS, TSS, and a

_{CDOM}(412.5), but values for FSS were less encouraging (Figure 5). Figure 5 was used to identify the stable versus unstable water quality conditions in the NRE during different time periods. System instability is expressed by long duration (>10-day) periods of high concentrations of VSS (>6 g m^{−3}) and TSS (>11 g m^{−3}), compared to the lower background WQC values [63]. These periods were observed twice during the approximately four year study duration (2006–2009); occurring in January 2006 and February–April 2007. Less pronounced, shorter duration periods of high WQCs concentrations were also observed in July 2006 and January and March 2008. Chl peaks correspond with seasonal NRE phytoplankton blooms [64]. Due to limited collection days for ModMon and MERIS, only the February–April 2007 VSS (Figure 5(b)) and TSS (Figure 5(d)) peaks were detectable.**Figure 6.**Daily-averaged values for volatile suspended solids (VSS)

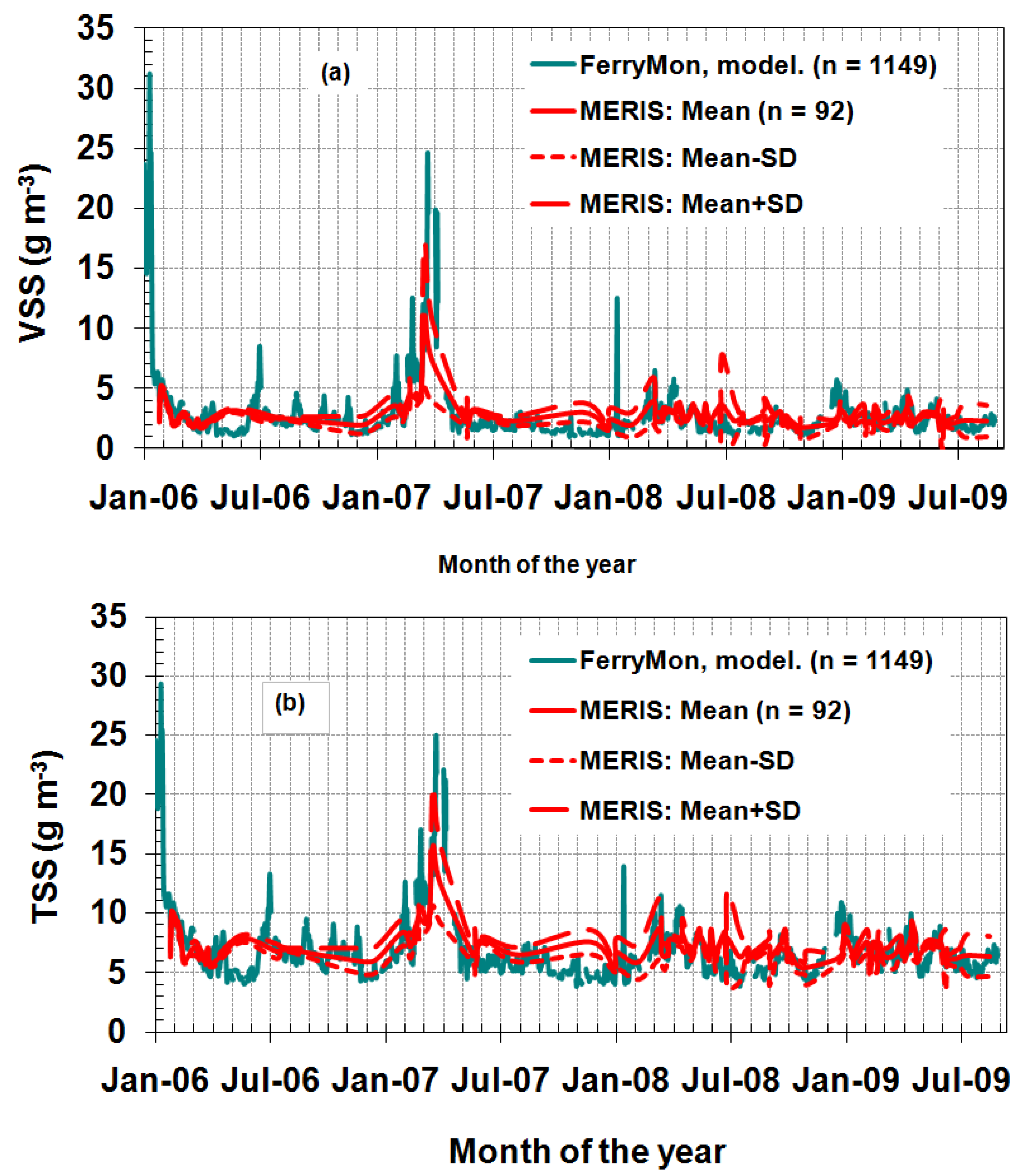

**(a)**and total suspended solids (TSS)

**(b)**predicted from FerryMon and MERIS for the NRE (2006−2009).

Nevertheless, the less stable VSS (Figure 6(a)) and TSS (Figure 6(b)) peaks may be discerned from the FerryMon Chl data based on relationships between Chl and particulate matter characteristic for NRE (Equations (5–7)). The VSS and TSS peaks are also evident in the MERIS-derived estimates presented in Figure 6(a,b), respectively. A simple atmospheric correction was used for these estimates (Appendix A). Figure 5 and Figure 6 illustrate the seasonal variability and unstable nature of the NRE WQCs.

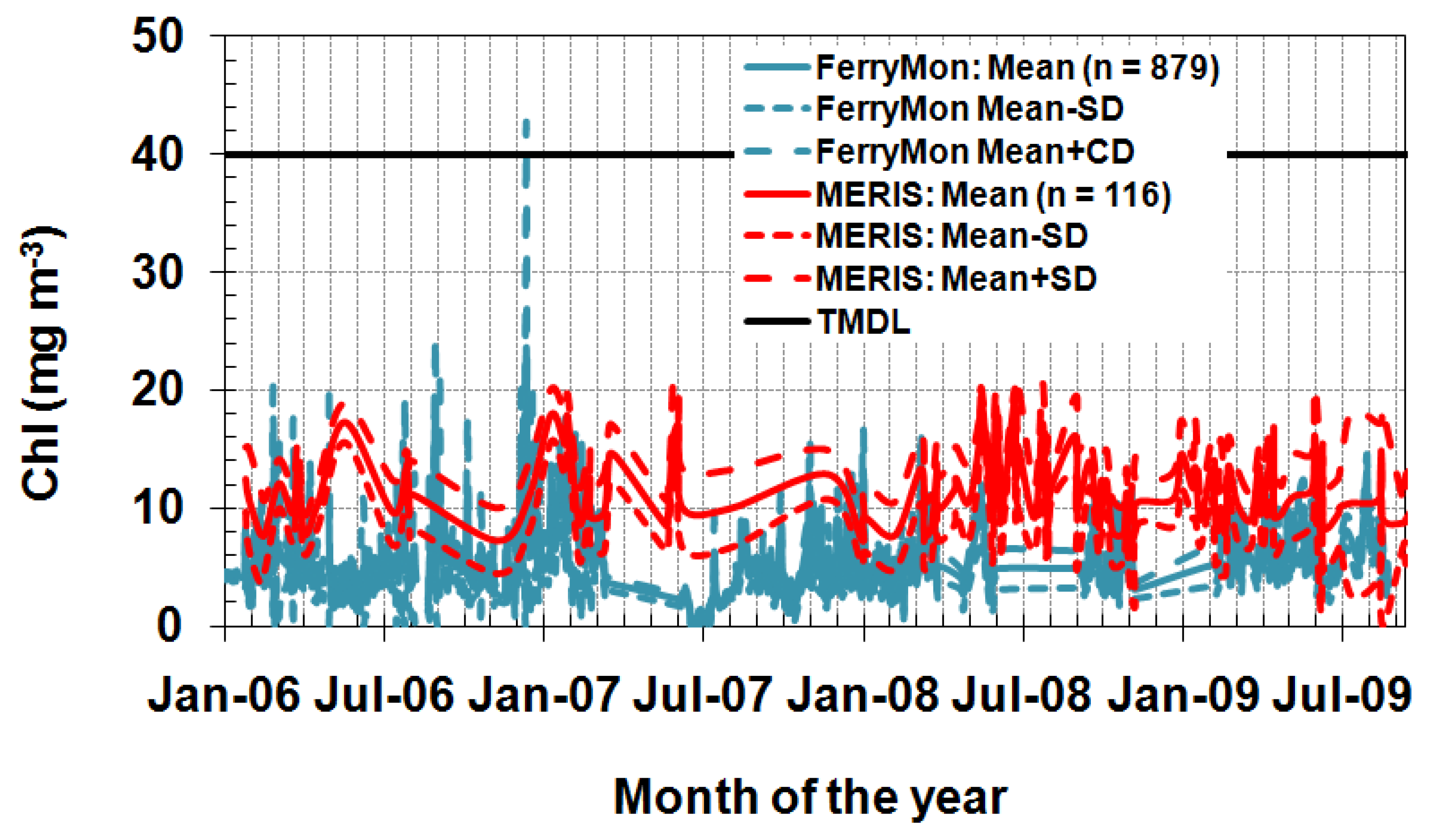

Measured FerryMon and modeled MERIS Chl dynamics (non-atmospherically corrected) were compared for the PS area exhibited several seasonal peaks and depressions (Figure 7). The most prominent and prolonged peaks with Chl > 10 mg m

^{−3}, occurred in February–March 2006, July–August 2006, and January–February 2007. Only one Chl peak, with concentrations exceeding TMDL value of 40 mg m^{−3}, was measured by FerryMon in December 2006. The dates of these peaks are very close to those observed for the NRE. Similar peaks and depressions may be expected for VSS and TSS based on the direct relationships between WQCs (Equations (5–7)).**Figure 7.**The seasonal dynamics (2006–2009) of the measured FerryMon and predicted MERIS daily-averaged Chl for the PS.

## 4. Conclusions

Two semi-empirical remote-sensing optical algorithms for the retrieval of WQCs in the APES were developed and validated for potential operational monitoring to complement existing in situ monitoring programs (ModMon and FerryMon). NRE in situ Chl data collected by FerryMon and remote sensing MERIS radiance data were used to develop relationships to support MERIS Chl retrieval results. The ModMon Chl, CDOM, VSS, FSS and TSS data collected in the NRE were used to develop algorithms for estimation other WQCs.

One Chl algorithm incorporated a very simple atmospheric correction based on the knowledge of seasonal atmospheric transmittance over the APES and applying the reciprocity principle for atmospheric transmittance along the target to satellite path using a modified quasi-single-scattering approximation (QSSA) for estimating the spectral Gordon’s parameter and WQCs. The second algorithm estimated WQCs directly from TOA satellite spectral radiance data. Both algorithms performed similarly in the NRE (R

^{2}= 0.70; NRMSE = 52%) and PS (R^{2}= 0.45; NRMSE = 72%). Both algorithms facilitated a discernment of stable and unstable WQC time periods in the APES (Figure 6 and Figure 7).The implementation of a robust atmospheric radiative transfer model to more accurately represent the optical properties of atmospheric aerosols would be expected to significantly enhance WQCs retrieval accuracies. However, the results reported from this study indicate that reasonably good results for Chl, VSS, TSS, and a

_{CDOM}(412.5) retrieval can be obtained using even uncorrected MERIS imagery data. This result is particularly important due to resource limitations frequently encountered with long-term operational monitoring programs.WQC products derived from MERIS imagery for the NRE-PS area based on algorithms presented here are available from the US Environmental Protection Agency web site for further use by environmental decision makers. Data products are available for both visualization and direct download at http://maps6.epa.gov/aptw/viewer.htm.
