Lunar Terrestrial Analog Experiment on the Spectral Interpretations of Rocks Observed by the Yutu-2 Rover

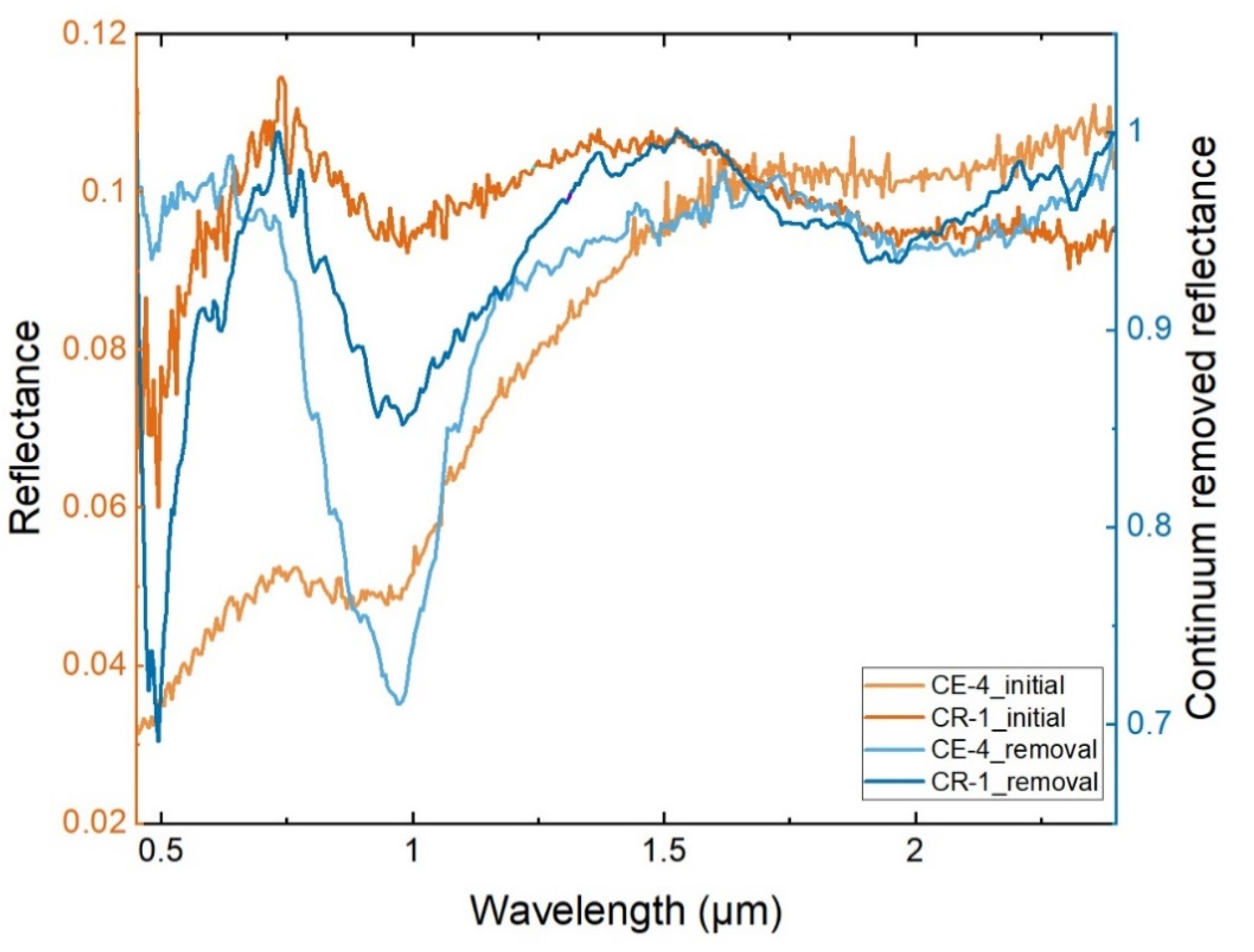

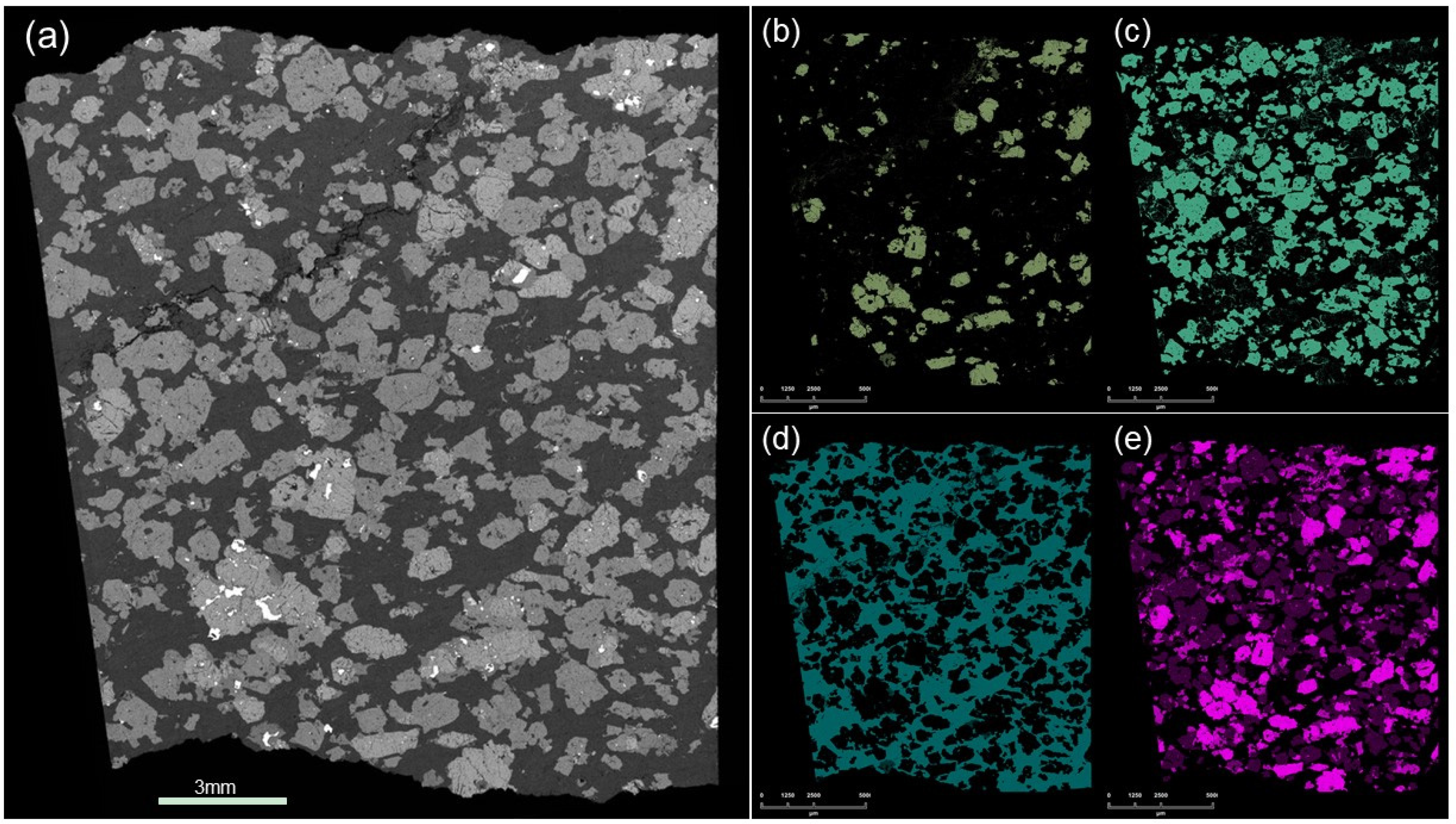

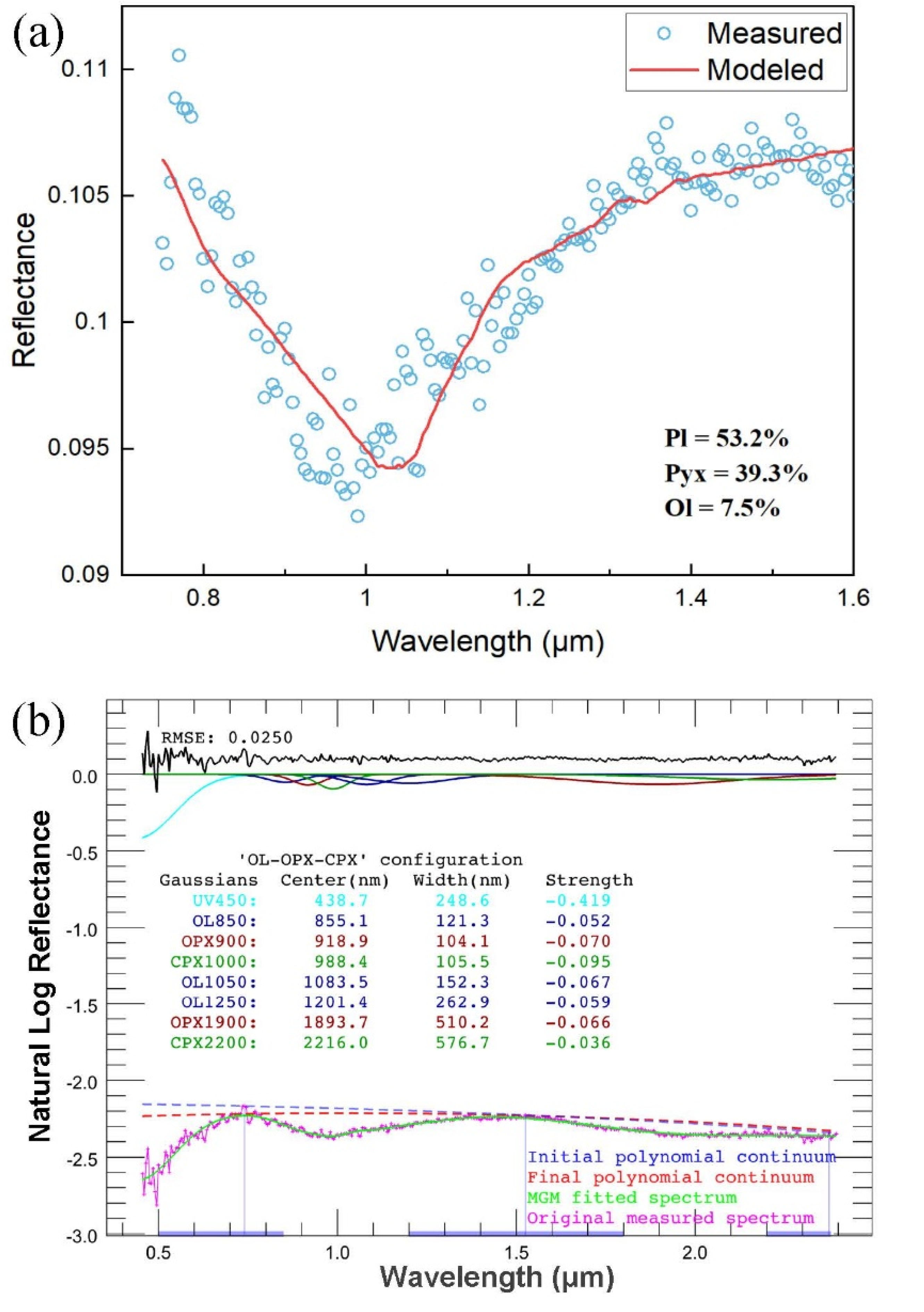

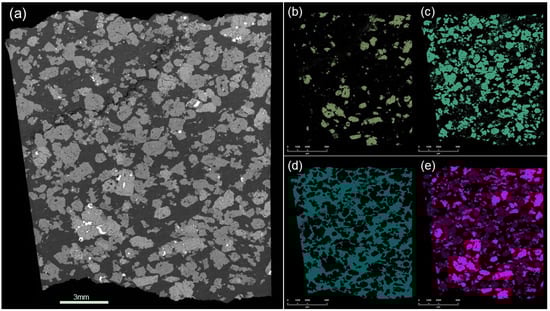

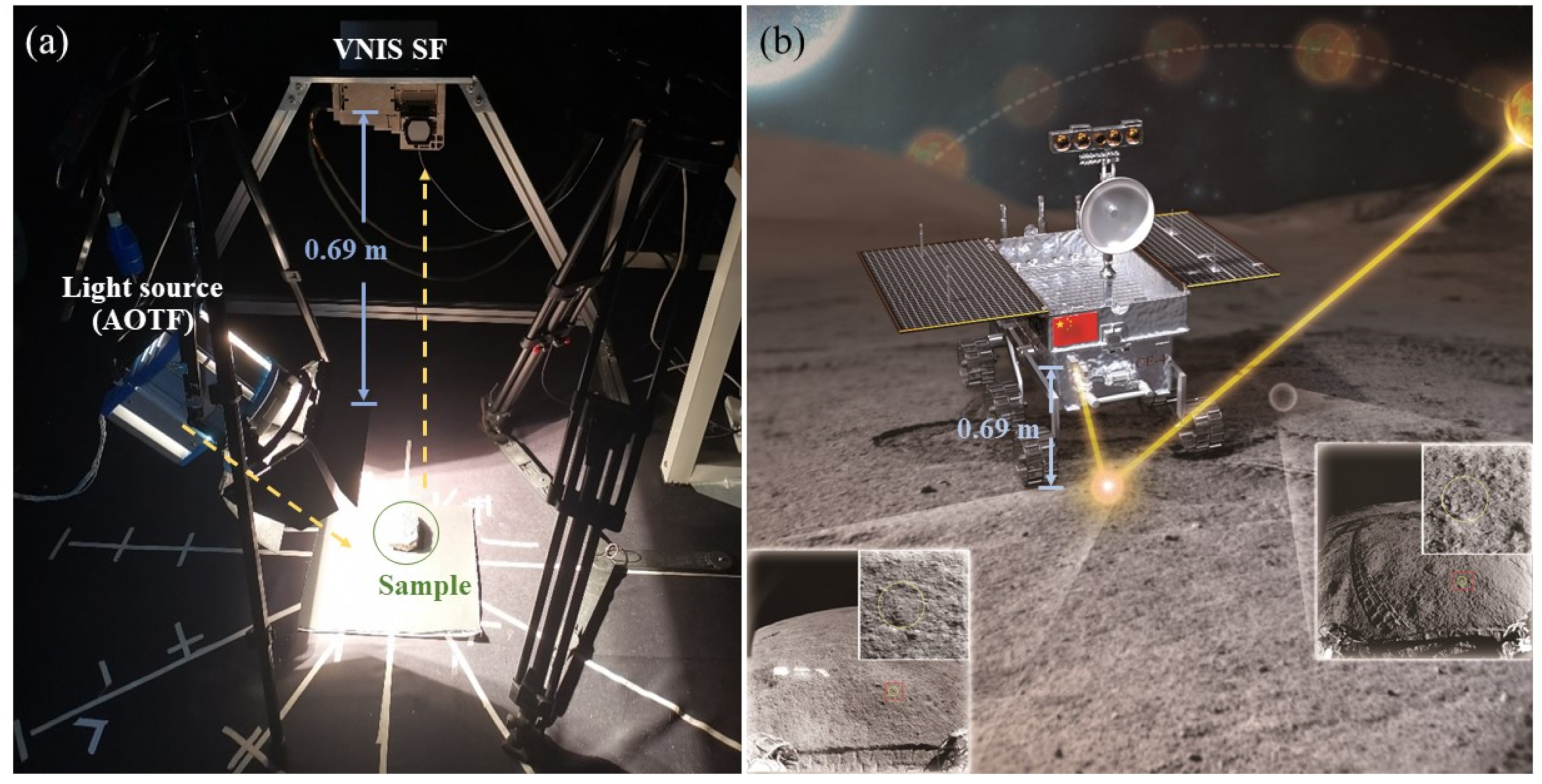

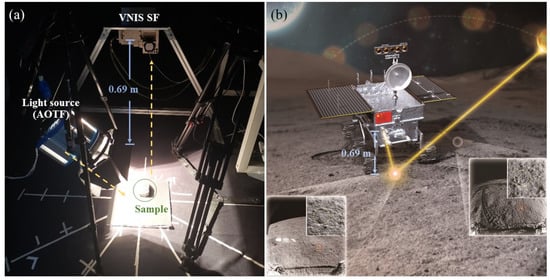

A visible and near-infrared imaging spectrometer (VNIS) loaded by the Chang’e-4 rover is the primary method for detecting the mineral composition of the lunar surface in the landing region. However, different data processing methods yield inconsistent mineral modes in measured lunar soil and rocks. To better constrain the mineral modes of the soil and rocks measured by Chang’e-4 VNIS, a noritic-gabbroic rock with a mineral composition similar to that of the lunar highland rocks is measured by scanning electron microscopy (SEM), the spare flight model of Chang’e-4 VNIS and TerraSpec-4 of ASD. Backscattered electron and energy dispersive spectrometry show that olivine, pyroxene, and plagioclase modal mineral abundances are 12.9, 35.0, and 52.2%, respectively. The estimated results of the spectrum by the Hapke radiative transfer model are 7.5, 39.3, and 53.2% for olivine, pyroxene, and plagioclase, respectively, which is consistent with to those of SEM mapping within error. In contrast, the estimated results of the modified Gaussian model are 29 and 71% for olivine and pyroxene, respectively, indicating the absence of plagioclase. Based on our implemented Hapke model, we decode the data of the two rocks detected by the rover on the 3rd and 26th lunar days of mission operations. The obtained results suggest that both rocks are norite or gabbro with noticeable differences. The first rock, with more olivine and pyroxene, may have been excavated from the Finsen crater. The second rock, with more plagioclase, may have been ejected from the southwestern edge of the Von Kármán crater, indicating the initial lunar crust.
