Seasonal Variability of Diffuse Attenuation Coefficient in the Pearl River Estuary from Long-Term Remote Sensing Imagery

Abstract

We evaluated six empirical and semianalytical models of the diffuse attenuation coefficient at 490 nm (K_d(490)) using an in situ dataset collected in the Pearl River estuary (PRE). A combined model with the most accurate performance (correlation coefficient, R² = 0.92) was selected and applied for long-term estimation from 2003 to 2017. Physical and biological processes in the PRE over the 14-year period were investigated by applying satellite observations (MODIS/Aqua data) and season-reliant empirical orthogonal function analysis (S-EOF). In winter, the average K_d(490) was significantly higher than in the other three seasons. A slight increasing trend was observed in spring and summer, whereas a decreasing trend was observed in winter. In summer, a tongue with a relatively high K_d(490) was found in southeastern Lingdingyang Bay. In Eastern Guangdong province (GDP), the relatively higher K_d(490) value was found in autumn and winter. Based on the second mode of S-EOF, we found that the higher values in the eastern GDP extended westward and formed a distinguishable tongue in winter. The grey relational analysis revealed that chlorophyll-a concentration (C_chla) and total suspended sediment concentration (C_tsm) were two dominant contributors determining the magnitude of K_d(490) values. The C_tsm-dominated waters were generally located in coastal and estuarine turbid waters; the C_chla-dominated waters were observed in open clear ocean. The distribution of constituents-dominated area was different in the four seasons, which was affected by physical forces, including wind field, river runoff, and sea surface temperature.

1. Introduction

The light diffuse attenuation coefficient (K_d(λ)) in aquatic systems is defined by the exponential decrease in the irradiance with depth [1,2]. K_d(λ) is an ecologically important water property that provides an estimate of the availability of light to underwater communities, which influences ecological processes and biogeochemical cycles in natural waters [3,4]. The estimation of K_d(λ) is also critical for understanding physical processes such as sediment resuspension and heat transfer in the upper layer of the ocean [5,6,7].

The in situ K_d(λ) is traditionally measured by the ocean color scientific community at 490 nm, K_d(490), following the primary studies in the 1970s [8]. Traditional field measurement of K_d(λ) is costly and time consuming, but recent advances in satellite sensors have provided synoptic and frequent measurements of various bio-optical products on large scales, considerably improving spatial and temporal resolution compared to in situ data [9]. Today, several empirical and semianalytical models of K_d(490) are commonly used to derive the K_d(490) maps from satellite sensors such as the Sea-Viewing Wide Field-of-View Sensor (SeaWiFS) [10,11], Moderate Resolution Imaging Spectroradiometer (MODIS) [4,12], and the Medium Resolution Imaging Spectrometer (MERIS) [6,13].

However, no K_d model can be applied globally. For example, no model developed for Case 1 open ocean waters can be used in turbid coastal environment [2,11,13].

The Pearl River is well known for its complex river networks, low lying terrain, and intense rainfall events. The water composition varies widely both spatially and temporally in the Pearl River estuary (PRE). Given the need to understand the light environment in the PRE waters, we aimed to evaluate the accuracy of six total empirical or semianalytical models for K_d(490) retrieval. Brief descriptions of the models are given in Section 2.2.4. The model that performed best was selected to construct K_d(490) maps in PRE based on long-term MODIS/Aqua imagery. Seasonal variability and spatial distribution of K_d(490) were analyzed by applying season-reliant empirical orthogonal function (S-EOF) analysis. The dominant water constituents in different regions were determined using grey relational analysis (GRA). The influences of physical factors on the K_d(490) were also discussed.

2. Materials and Methods

2.1. Study Area

The PRE is located in the northern South China Sea (NSCS), known as a subtropical and high biological productivity estuary. The PRE is characterized by a complicated hydrodynamic system regulated by many physical factors, including bottom topography, river discharge, wind field, and a coastal current [14]. The PRE is influenced by the East Asia monsoon system, characterized by prevailing northeasterly and southwesterly winds in winter and summer, respectively [15,16]. In this study, season refers to those for the northern hemisphere, for example, summer refers to June, July, and August. As China’s third largest river, the Pearl River flows into the PRE through eight main outlets [17], carrying a large amount of organic and inorganic suspended matter, with an annual average discharge of 10⁵ m³·s⁻¹ [18]. With increasing human activity, the PRE is contaminated by industrial pollution, agricultural runoff, and domestic sewage [19,20].

2.2. Data Sources and Processing

2.2.1. In Situ Measurements

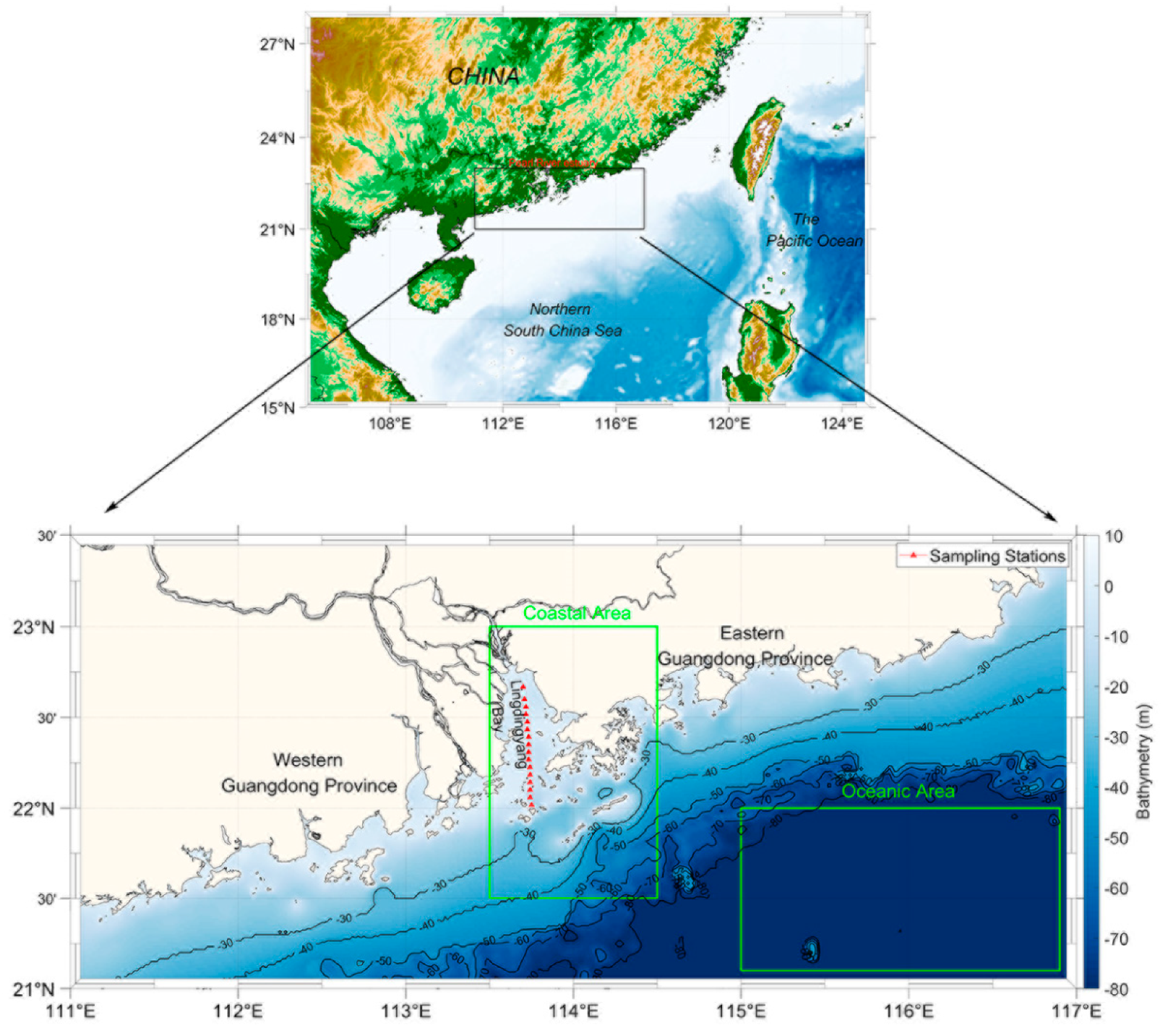

A cruise was conducted on 5 June 2012 to collect water samples and the water spectrum. Positions for all sampling stations are plotted in Figure 1. The field spectral measurements were composed of two parts: the above-water remote sensing reflectance (R_rs) and the downwelling irradiance within the water column. To obtain the background water column conditions, water samples from the 15 sampling stations were used for measurement of chlorophyll-a (C_chla), total suspended sediment (C_tsm), absorption coefficient for phytoplankton (a_p(λ)), and colored dissolved organic matter (CDOM, a_g(λ)) (

Table 1. Background Pearl River estuary (PRE) water column conditions from field measurements. The level of absorption coefficients in the PRE are represented by a_p(443) and a_g(443).

Period	n	ap(443) (m−1)	ag(443) (m−1)	Ctsm (g˖m−3)	Cchla (mg˖m−3)
5 June 2012	15	0.31–1.61	0.12–0.58	4.16–25.70	1.52–9.67

).

The above-water R_rs was measured using a spectroradiometer (USB4000, Ocean Optics, Inc., Dunedin, FL, USA) following the National Aeronautics and Space Administration (NASA) ocean-optics standard protocol [21]. The upward radiance (L_u), downward sky radiance (L_sky), and radiance from standard spectra on a reference plaque (L_pla) were measured, and R_rs was calculated using the following equation:

$$R_{rs}\left(\lambda \right)={\rho }_{pla}\left(\lambda \right)\lfloor L_u\left(\lambda \right)-{\rho }_f\left(\lambda \right)L_{sky}\left(\lambda \right)\rfloor /\lfloor \pi L_{pla}\left(\lambda \right)\rfloor$$

(1)

where λ is the wavelength, ρ_pla is the reflectance of the plaque provided by the manufacturer (Ocean Optics, Inc., Dunedin, FL, USA), ρ_f is the water surface Fresnel reflectance, where a value of 0.028 was taken for wind speeds of less than 5 m·s⁻¹.

To evaluate the MODIS-based K_d(490) retrieval models, in situ R_rs was aggregated to simulate MODIS/Aqua R_rs according to the following equation [22,23,24]:

$$R_{rs}\left(Bi\right)=\frac{{\displaystyle {\int }_{{\lambda }_m}^{{\lambda }_n}RSR\left(\lambda \right)}\ast R_{rs\_meas}\left(\lambda \right)d\lambda }{{\displaystyle {\int }_{{\lambda }_m}^{{\lambda }_n}RSR\left(\lambda \right)}d\lambda }$$

(2)

where R_rs(Bi) denotes the simulated R_rs for the ith band of MODIS/Aqua, with integration from λ_m to λ_n; R_{rs_meas}(λ) denotes the field-measured R_rs(λ); and RSR(λ) denotes the MODIS/Aqua spectral response function.

Downwelling irradiance within the water column was measured with a TriOS-RAMES hyperspectral spectroradiometer (TriOS GmbH, Oldenburg, Germany). The spectroradiometer recorded irradiance signal in the range of 320 to 950 nm with a wavelength resolution of 3.3 nm. The TriOS-RAMES instrument was slowly hand-lowered at a stable speed from the surface to a water depth of about 5 m and set to a sampling rate of one sample every five seconds. Meanwhile, a pressure sensor recorded the corresponding depth of water. By releasing the TriOS-RAMES instrument (TriOS GmbH, Oldenburg, Germany) into water twice, two profiles of the downwelling irradiance were collected. The two profiles were averaged to minimize the effect of near-surface wave focusing. The natural logarithm of the measured irradiance was plotted against depth, and an estimate of K_d(λ) was acquired from the resulting slope [25]:

$$K_d\left(\lambda ,z\right)=\ln \left[E_d\left(\lambda ,z\right)/E_d\left(\lambda ,z+\mathsf{\Delta }z\right)\right]/\mathsf{\Delta }z$$

(3)

where λ is the wavelength, E_d(z) is the downwelling irradiance at depth z, and Δz is the infinitesimal thickness at depth z.

2.2.2. MODIS/Aqua Imagery

The Level-1B MODIS/Aqua ocean color dataset and the geolocation dataset from 2003 to 2017 were obtained from the Level-1 and Atmosphere Archive and Distribution System (LAADS) Distributed Active Archive Center (DAAC). Imagery was preprocessed using the SeaWiFS data analysis system (SeaDAS, version 7.5.1). The Management Unit of the North Seas Mathematical Models (MUMM)-based atmospheric correction [26] and an iterative f/Q Bidirectional Reflectance Distribution Function (BRDF) correction [27,28,29,30] were used to acquire accurate R_rs values. Flags were used to mask contamination from land, clouds, sun glint, and other potential disturbances to the radiance signal.

2.2.3. Ancillary Data

The wind field dataset was obtained from the National Centers for Environmental Prediction (NCEP) Climate Forecast System Version 2 (CFSv2). The model is fully coupled, representing the Earth’s atmosphere, oceans, land, and sea ice [31]. The mixed layer depth (MLD), defined as the depth where the density is equal to the sea surface density plus an increase in density equivalent to 0.8 °C, was acquired from the global ocean Argo gridded dataset (BOA_Argo, provided by the China Argo Real-time Data Center, ftp://data.argo.org.cn/pub/ARGO/BOA_Argo/) [32]. The monthly river runoff was acquired from the Chinese River Sediment Bulletin. The Level-3 MODIS/Aqua sea surface temperature (SST) dataset was obtained from the Ocean Color Website (https://oceancolor.gsfc.nasa.gov/l3/), a website that provides the derived geophysical variables that have been aggregated/projected onto a well-defined spatial grid during a well-defined time period.

2.2.4. Models for K_d(490) Retrieval

At present, the standard methods for K_d(490) estimation are roughly classified into three types: (1) empirical relationship between K_d(490) and apparent optical properties (AOP), including water-leaving radiance or reflectance [11,33,34]; (2) empirical relationship between K_d(490) and chlorophyll-a based on regression analyses [35]; and (3) semianalytical approaches based on radiative transfer models [1,36]. These three types of models, six models in total (

Table 2. Description of different algorithms for K_d(490) retrieval, where nL_w denotes normalized water-leaving radiance, θ_a denotes above surface solar zenith angle, a denotes absorption coefficient, b_b denotes backscattering coefficient, K_d^clear(490) denotes the model for open clear water, and K_d^turbid(490) denotes the model for coastal turbid water (AOP refers to apparent optical properties).

Type	Form of Algorithm	Reference
Empirical model with AOP	$K_d\left(490\right)=0.016+0.15645{\left[n{L}_w\left(490\right)/n{L}_w\left(555\right)\right]}^{-1.5401}$	Mueller, 2000
Empirical model with Cchla	$K_d\left(490\right)=0.01666+0.0773C_{chla}{}^{0.6715}$	Morel et al., 2001
Semianalytical model	$K_d\left(490\right)=\left(1+0.005{\theta }_a\right)a\left(490\right)+4.18\left(1-0.52e^{-10.8a\left(490\right)}\right)b_b\left(490\right)$	Lee et al., 2005
Empirical model with AOP	$\begin{array}{l}IF{R}_{rs}\left(490\right)/R_{rs}\left(555\right)\ge 0.85K_d\left(490\right)={10}^{\left(-0.843-1.459X-0.101X^2-0.811X^3\right)}\\ \begin{array}{cc}with& X={\log }_{10}\left[R_{rs}\left(490\right)/R_{rs}\left(555\right)\right]\end{array}\\ \begin{array}{cc}\begin{array}{cc}ELSEIF& R_{rs}\left(490\right)/R_{rs}\left(555\right)\end{array}<0.85& K_d\left(490\right)={10}^{\left(0.094-1.302X+0.247X^2-0.021X^3\right)}\end{array}\\ \begin{array}{cc}with& X={\log }_{10}\end{array}\left[R_{rs}\left(490\right)/R_{rs}\left(665\right)\right]\end{array}$	Zhang and Fell, 2007
Semianalytical model	$\begin{array}{c}{K}_d\left(490\right)=\left(1-W\right)K_d{}^{Clear}\left(490\right)+W{K}_d{}^{Turbid}\left(490\right)\\ \begin{array}{cc}with& W=-1.175+4.512R_{rs}\left(670\right)/R_{rs}\left(490\right)\end{array}\end{array}$	Wang et al., 2009
Empirical model with AOP	$K_d\left(490\right)=0.011405+0.92\left[R_{rs}\left(670\right)/R_{rs}\left(490\right)\right]$	Tiwari et al., 2014

), were evaluated in the PRE waters using the in situ dataset.

2.2.5. S-EOF and Grey Relational Analyses

The S-EOF analysis, proposed by Wang and An (2005) [37], was applied here to detect the spatial patterns and temporal variability of K_d(490) in different seasons. The processing steps of S-EOF analysis are as follows: Firstly, the time series of seasonal K_d(490) anomaly was calculated. Secondly, the EOF was analyzed based on the matrix composed of the four seasons. Finally, each S-EOF mode containing four spatial modes, which represented the spatial patterns of K_d(490) in the four seasons, and a corresponding principal component time series were obtained.

GRA is an important part of grey system theory, which is used to determine the relational degree among factors according to the similarities in their geometry [38]. The GRA was applied here to identify the dominant water constituents (total suspended matter, phytoplankton, and dissolved matter) affecting the spatial distribution and temporal variation of K_d(490). In GRA, the reference series of K_d(490) and comparison sequences (water constituents, including C_tsm, C_chla, and a_dg(443)) were constructed in advance to calculate the grey relational grade (GRG), which is a measure of similarity between the reference sequence and comparison sequences. Details about the calculation of GRG were described by Liu and Lin (2005) [39] and Wan et al. (2019) [40].

2.2.6. Performance Assessment

To compare the performance of different K_d(490) retrieval models, several statistical parameters were used: the determination coefficient (R²), root mean square error (RMSE), mean absolute difference (MAD), and mean absolute percentage difference (MAPD), which are calculated as:

$$R^2=1-\frac{{\displaystyle {\sum }_{t=1}^N{\left(x_{mt}-x_{pt}\right)}^2}}{{\displaystyle {\sum }_{t=1}^N{\left(x_{mt}-\overline{x_m}\right)}^2}},$$

(4)

$$RMSE=\sqrt{\frac{1}{N}{\displaystyle \sum _{t=1}^N{\left(x_{mt}-x_{pt}\right)}^2}},$$

(5)

$$MAD=\frac{{\displaystyle {\sum }_{t=1}^N\left|x_{mt}-x_{pt}\right|}}{N},$$

(6)

$$MAPD(\%)=\frac{100}{N}{\displaystyle {\sum }_{t=1}^N\left|\frac{x_{mt}-x_{pt}}{x_{mt}}\right|},$$

(7)

where x_m and x_p denote the measured and predicted samples, respectively; $\overline{x_m}$ denotes the mean value of the measured samples; and N is the number of samples.

3. Results

3.1. Model Performance

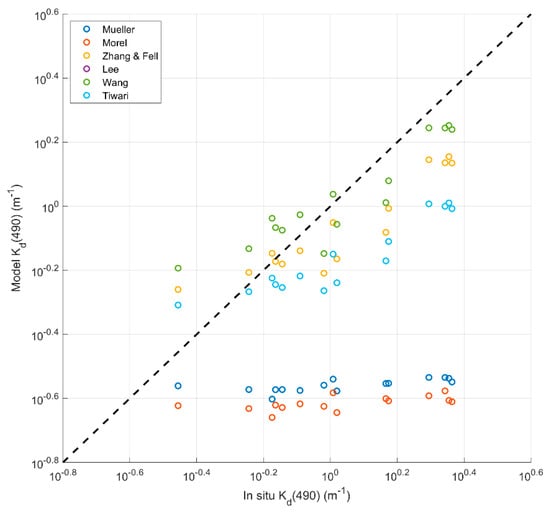

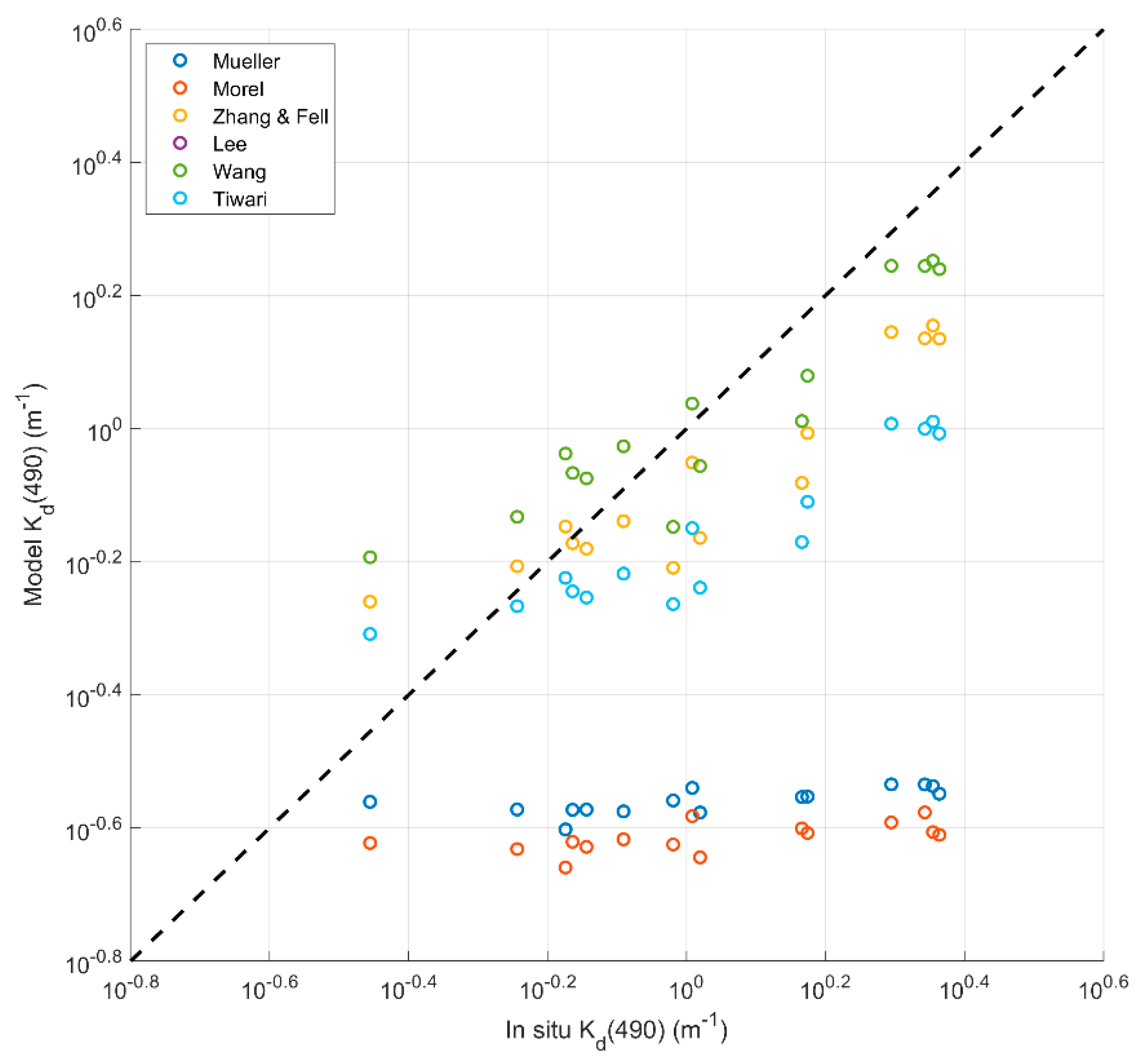

We evaluated the six different models with MODIS/Aqua spectral bands or C_chla. The evaluation was based on the comparison of the model-derived K_d(490) with in situ measured K_d(490) collected from the PRE on 5 June 2012. Figure 2 shows scatterplots between the in situ measured and different models’ K_d(490) retrievals, and

Table 3. Statistical parameters between the in situ measured and different model-retrieved K_d(490); models with best performing values are in bold.

Algorithm	Slope	Intercept	R2	RMSE	MAD	MAPD (%)
Mueller	0.01	0.26	0.56	1.15	0.96	70.32
Morel	0.01	0.23	0.38	1.18	0.99	73.90
Zhang	0.47	0.33	0.92	0.49	0.37	26.52
Lee	0.60	0.39	0.91	0.31	0.27	25.51
Wang	0.60	0.39	0.91	0.31	0.27	25.51
Tiwari	0.28	0.36	0.92	0.70	0.54	37.10

lists the statistical parameters. The results provided by both Mueller’s and Morel’s models constantly underestimated the K_d(490) compared with the in situ dataset for the PRE, with RMSEs higher than 1.1 m⁻¹, MADs close to 1.0 m⁻¹, and MAPDs up to 70%. The Morel (empirical model with C_chla) and Mueller (empirical model with water-leaving radiance) models not only underestimated the in situ values of the PRE, they had little to no sensitivity along a broad gradient of in situ values.

By comparison, the other four models appeared to be more effective when applied in the PRE waters. These four models performed well with R² values higher than 0.9, RMSEs ranging from 0.31 to 0.70 m⁻¹, MADs ranging from 0.27 to 0.54 m⁻¹, and MAPDs ranging between 25.51% and 37.10%. We found that Wang’s model, combining Lee’s algorithm for turbid waters and Mueller’s algorithm for clear waters, was a better choice for K_d(490) retrieval in the PRE waters. Comparison of Wang’s model to the other models showed that Wang’s model had considerably lower RMSE and MAD values and outperformed the other models, especially at relatively higher K_d(490) levels.

3.2. Spatial Distribution and Temporal Variation

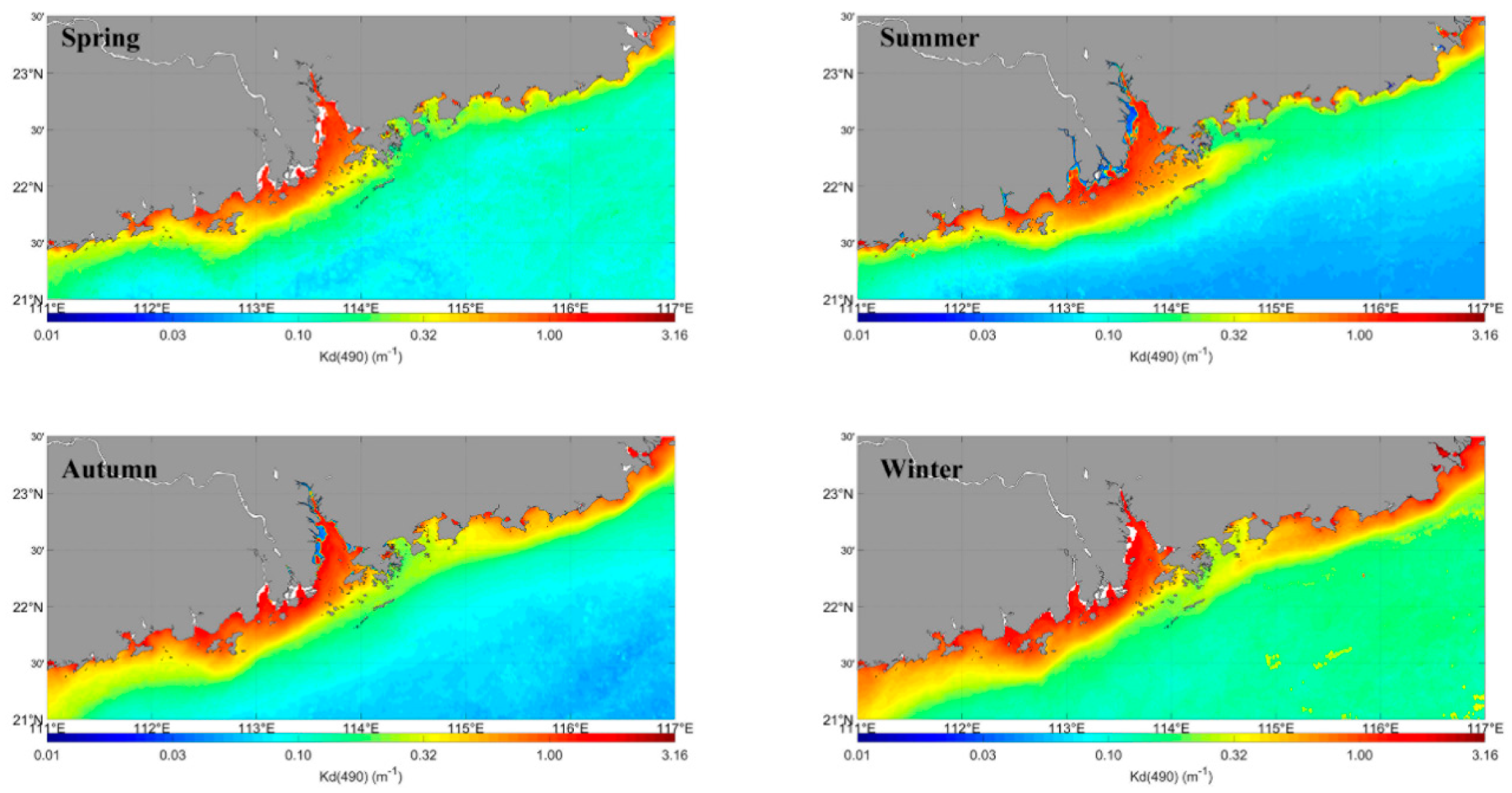

Given its superior performance of the six considered models, the long-term MODIS K_d(490) products were derived based on Wang’s model. Significant seasonal variation was identified over the entire study area from 2003 to 2017 (Figure 3). The mean values for the entire study area were 0.13 m⁻¹ in spring, 0.12 m⁻¹ in summer, 0.14 m⁻¹ in autumn, and 0.21 m⁻¹ in winter. In the coastal area, the relatively high K_d(490) was observed in Lingdingyang Bay (LB) and western Guangdong Province (GDP), where the highest value exceeded 4.0 m⁻¹. In summer, the river plume extends from LB southeastward into the coastal region, resulting in a wider distribution of high-value K_d(490). The plume waters formed a tongue along the eastern GDP (located 113–115°E, 22–22.5°N) in some specific years, though this feature was not so remarkable in the seasonal climatological imagery due to long-term average smoothing. The influence of the terrestrial input of nutrients from the Pearl River is highest in summer. In addition, a southeast wind prevails and rainfall mainly occurs in summer. The winds blow from PRE to the middle shelf. The winds control the spatial pattern of K_d(490) distribution in the PRE. In the eastern GDP, relatively higher K_d(490) values were found in autumn and winter, whereas lower values were observed in spring and summer. This phenomenon is closely correlated with the coastal upwelling along the eastern GDP coast [41,42]. Chen et al. (1982) [43] reported that a radiating current could generate an upwelling in winter near the Jieshi Bay in the eastern GDP. In open ocean areas, the average K_d(490) values in winter and spring were higher than that in summer and autumn. The prevailing northeasterly monsoon is stronger in the northern South China Sea in winter, so the MLD was deeper. The mixing effects are relatively stronger in winter. Figure 3 shows that the distribution of K_d(490) reveals the significant seasonal variation over the entire study area during 2003 to 2017.

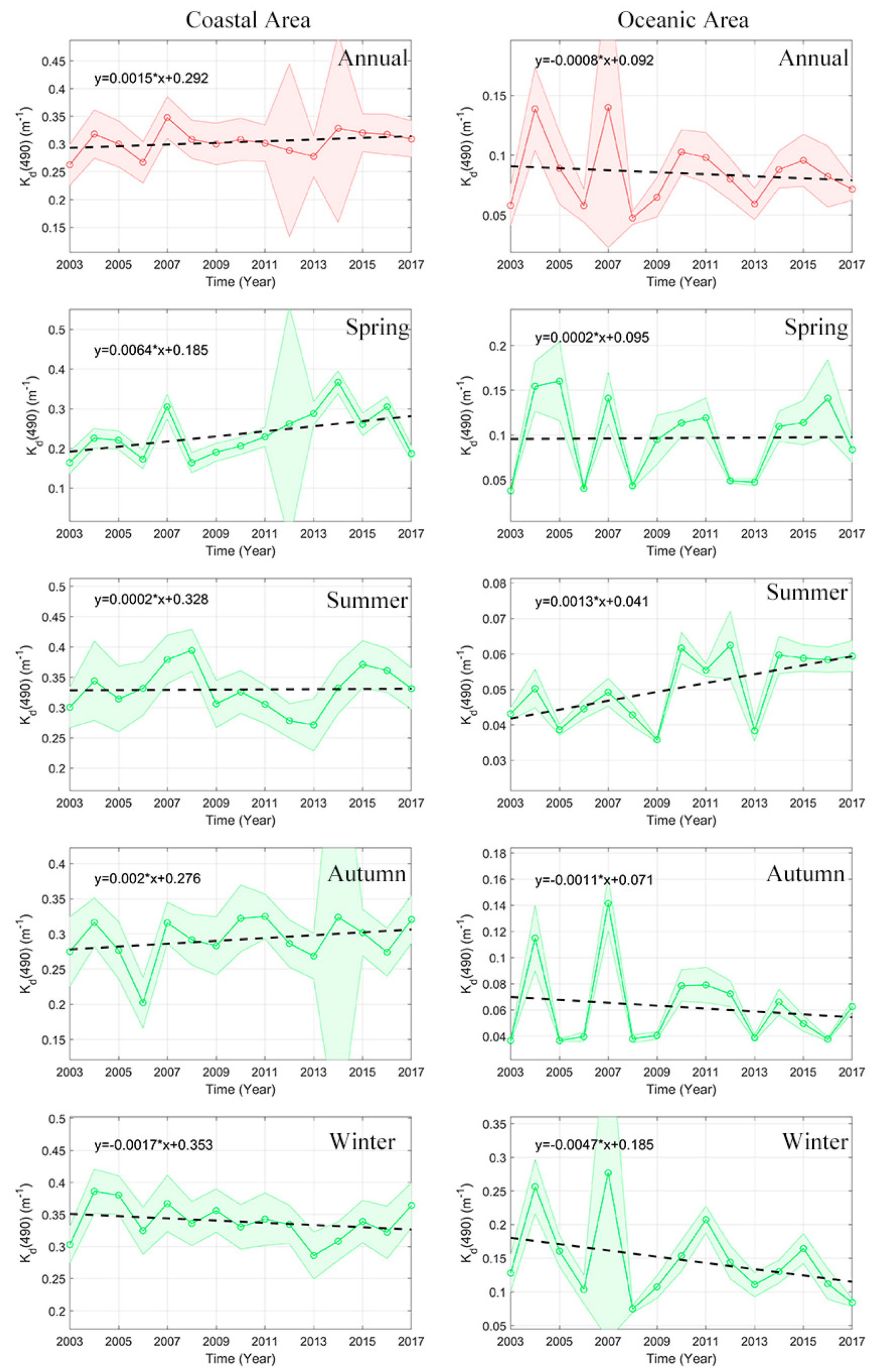

Due to the different physical factors affecting the variability of K_d(490) in nearshore and offshore regions, we separated the two regions and analyzed the separate regions’ trends rather than averaging the entire region for time series analysis (Figure 4). Two subregions, representing the turbid coastal waters and the clear open ocean waters, were chosen (marked in Figure 1 by green boxes). During the period from 2003 to 2017, the trend lines of the annual average in coastal and oceanic areas were around 0.3 and 0.1 m⁻¹, respectively. No significant increasing or decreasing trend was observed. However, in terms of seasonal variability, the average nearshore and offshore K_d(490) showed some differences. The average K_d(490) in the coastal area was constantly high in the four seasons, with values ranging between 0.2 and 0.4 m⁻¹. An increasing trend was observed in spring, with a slope of approximately 0.006 m⁻¹ per year. Compared to the coastal region, significant seasonal variability was observed in the open ocean region. Average K_d(490) values during spring and winter were found to be higher than during summer and autumn. Trend lines of spring and winter ranged from 0.1 to 0.2 m⁻¹, whereas those in summer and autumn ranged from 0.04 to 0.08 m⁻¹. In winter, the average showed a significant decreasing trend, with a slope of approximately −0.005 m⁻¹ per year.

3.3. GRG of Water Constituents

The optical properties were determined using the absorption or backscattering of different water constituents. Here, three types of water constituents were considered; the monthly average C_tsm, C_chla, and a_dg(443) were obtained based on the same atmospheric-corrected MODIS/Aqua R_rs dataset that was used for K_d(490) retrieval. A band ratio algorithm was adopted for C_tsm retrieval [17]. The OC3M algorithm was used for C_chla retrieval [44]. The generalized inherent optical property (GIOP) model was applied for a_dg(443) retrieval [45,46]. The GRGs, which can be used to measure the relationships between the K_d(490) and the three water constituents, were calculated pixel by pixel for the four seasons (Figure 5).

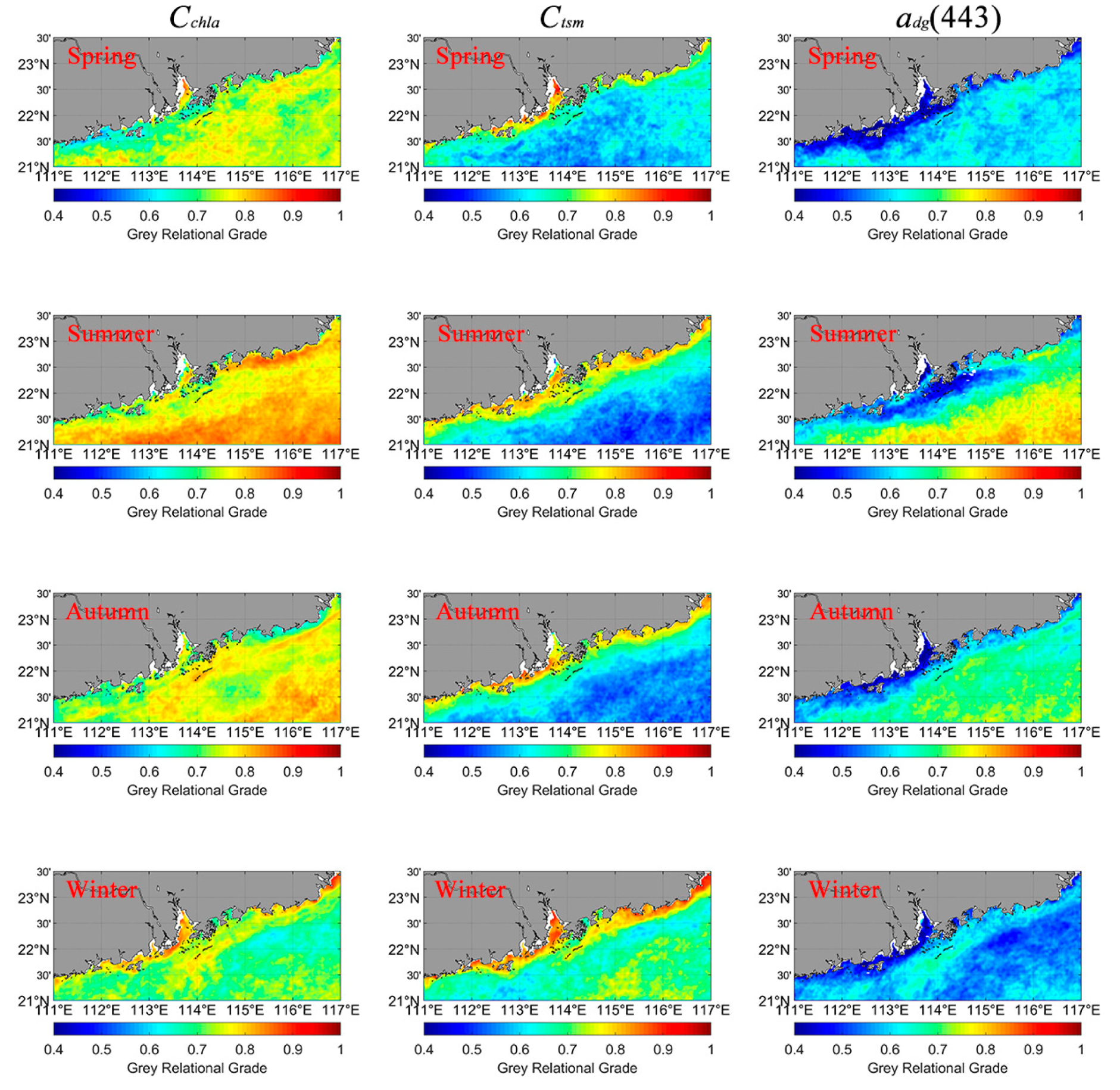

Spatially, GRGs between K_d(490) and C_chla or a_dg(443) were higher in the clear open ocean region than in the coastal region, but the values contrasted between K_d(490) and C_tsm. The GRGs gradually decreased from nearshore to offshore, similar to the distribution of C_tsm. Seasonally, the GRG was higher in summer and autumn than in spring and winter between K_d(490) and C_chla, with most of the pixels’ values being above 0.8. Similar phenomena were observed in the GRGs between K_d(490) and a_dg(443), although the average value was lower than between K_d(490) and C_chla.

3.4. S-EOF Analysis

An S-EOF analysis was performed after subtracting the long-term monthly climatological average K_d(490). The first two modes and the corresponding principal components (PC) were separated, which accounted for approximately 81.16% of the total variance (

Table 4. Variance of the first three season-reliant empirical orthogonal function (S-EOF).

S-EOF Mode	Single Contribution Rate	Cumulative Contribution Rate
1	56.67	56.67
2	24.49	81.16

).

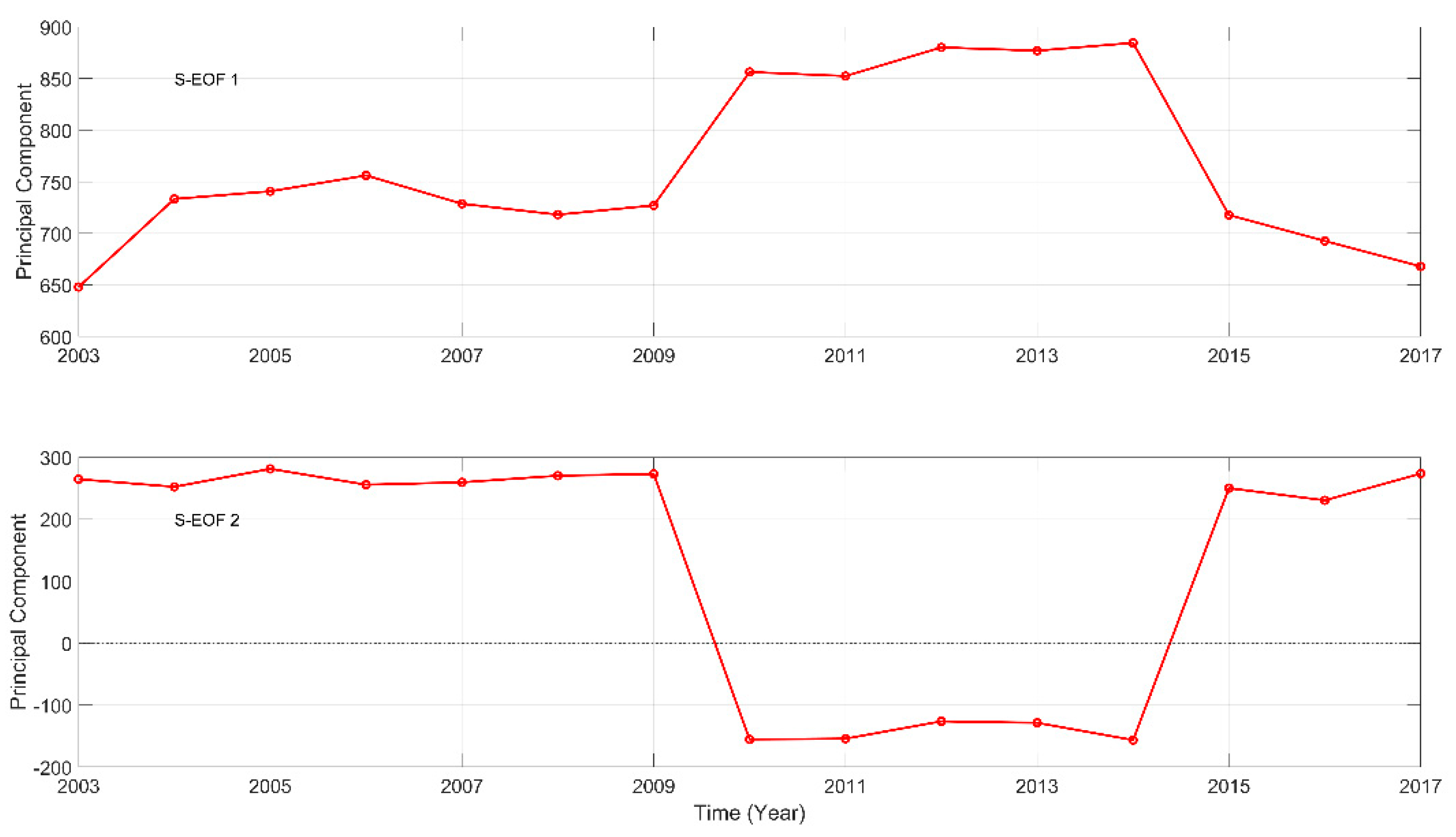

Figure 6 shows the PC time series of the first two S-EOF modes. All the values of PC1 were positive, indicating that the seasonal fluctuation was stable. The strength of fluctuation was related to the magnitude of the positive values. We observed a significant increasing trend during 2003 to 2006, whereas a slight decline was observed during 2007 to 2009. From the beginning of 2010 to 2014, PC1 reached its highest value. After that, the values began to decline again. PC2 was characterized by negative values during 2010 to 2014 and positive values in other years.

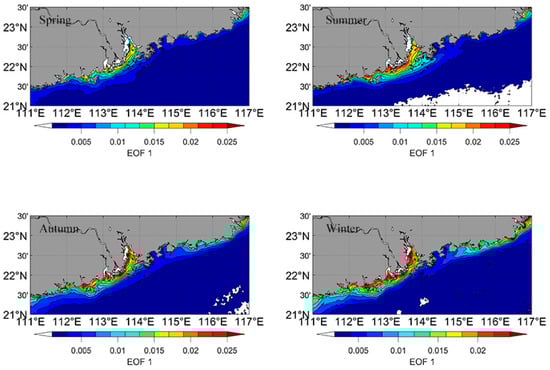

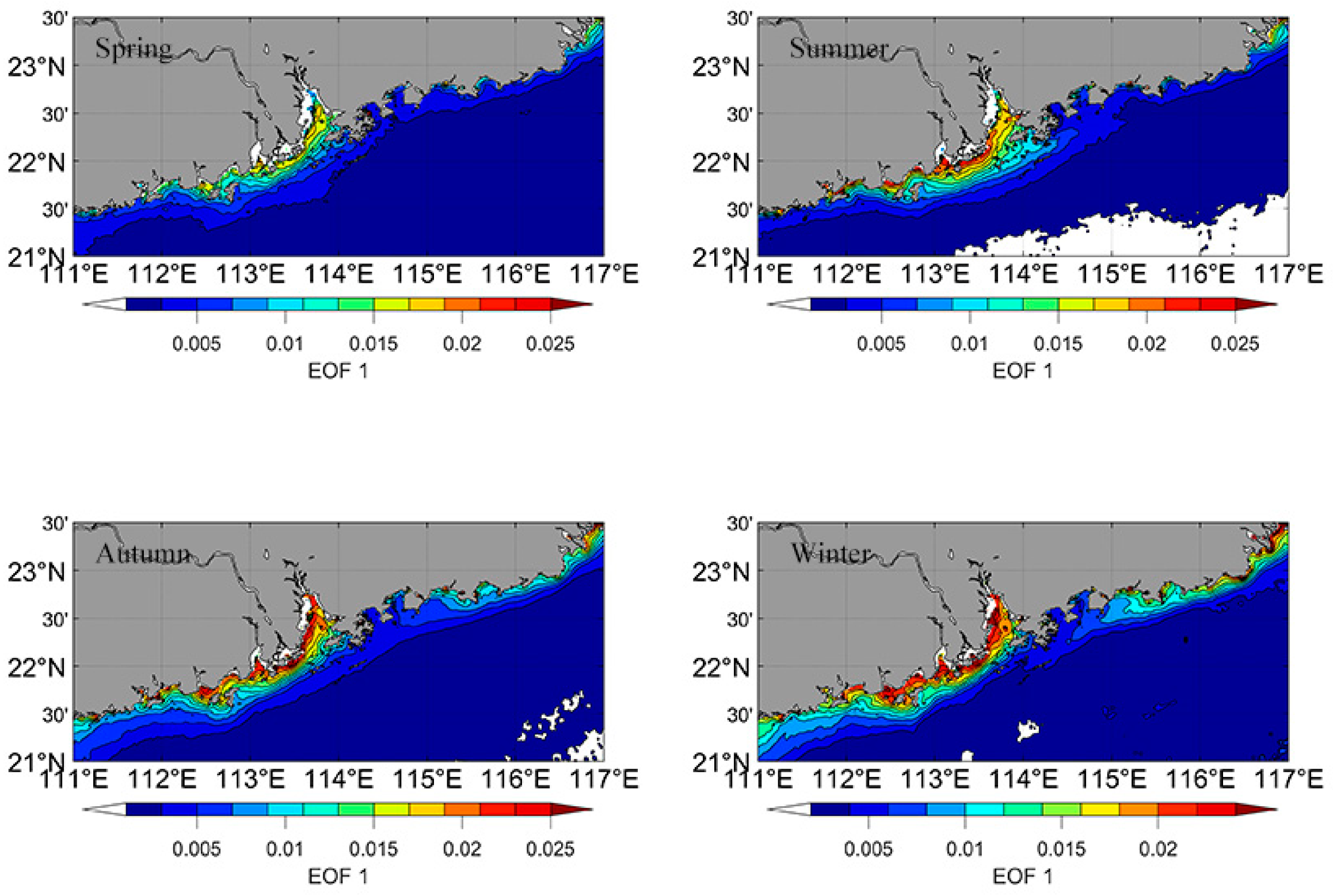

Figure 7 shows the spatial distribution of the first mode of S-EOF, which explained approximately 56.7% of the total variance. Relatively high values were observed in LB and the western coast of GDP in the four seasons, and the average values for spring were significantly lower than in the other seasons. In summer, the high value area tended to expand to the southeastern LB. From autumn to winter, we observed a high value area along the east coast of the GDP, whereas this high value area disappeared in spring and summer.

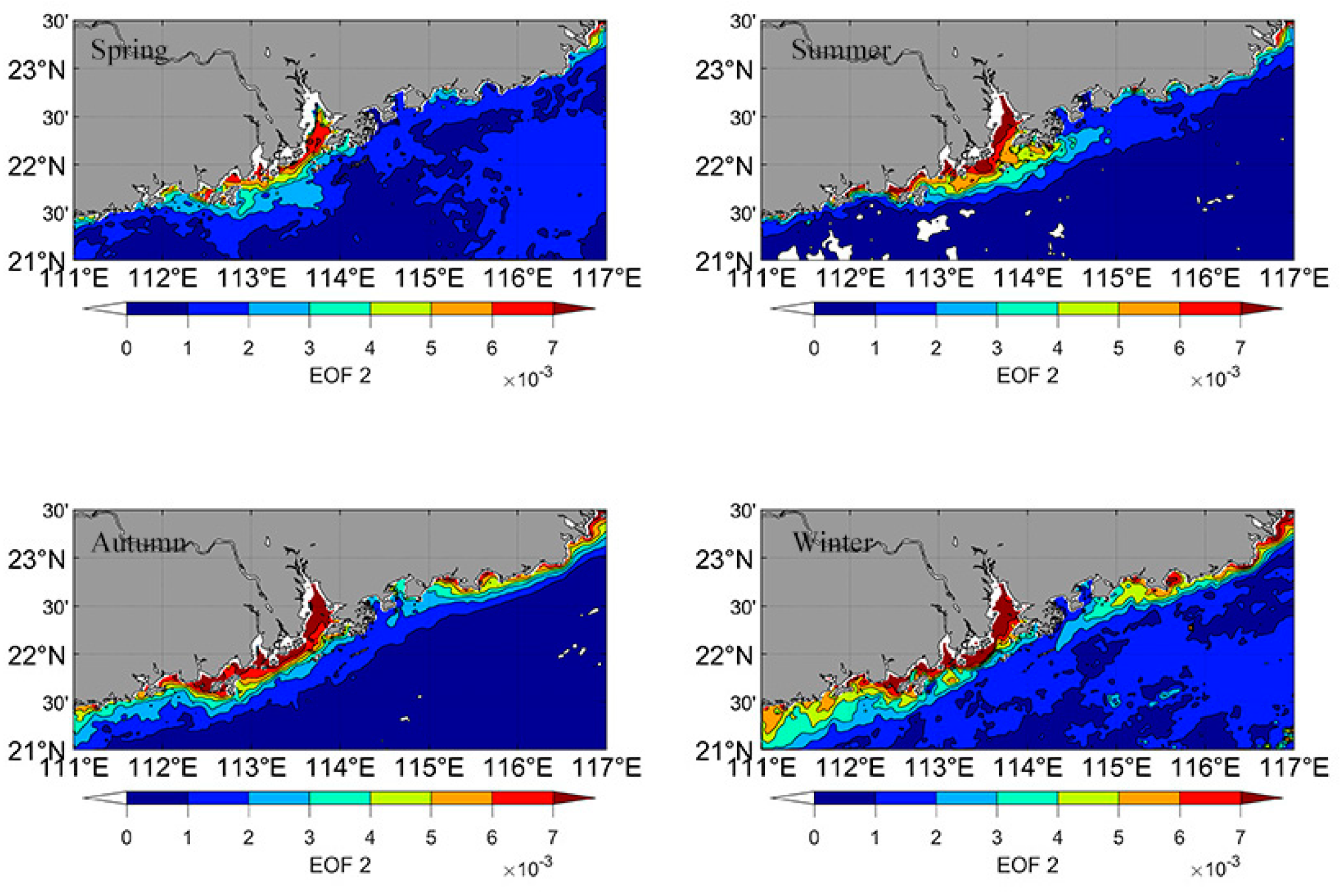

The second mode of S-EOF explained 24.5% of the total variance. A relatively higher value area was observed in LB during the four seasons (Figure 8). In summer, the high value area extended eastward and formed a distinguishable tongue. Compared with spring and summer, higher values were observed along the whole coastal zone of the PRE. Based on the second mode of S-EOF, we found that the higher values in the eastern GDP extended westward and formed a distinguishable tongue in winter.

4. Discussion

4.1. Evaluation of K_d(490) Models

Both Mueller and Morel’s models were unsuitable for the PRE waters because these two models were established for clear waters and only use the spectral information from the blue and green bands. For clear waters where the downwelling attenuation is mainly determined by phytoplankton, the blue–green band ratio is sensitive to the variability of the C_chla, resulting in a high accuracy for K_d(490) retrieval. However, for turbid waters where the optical properties are more complex, the blue–green band ratio demonstrates a lower sensitivity to the variability in K_d(490). The strong absorption of phytoplankton and CDOM could lead to relatively smaller R_rs in the blue and green bands [47,48]. In the PRE, the water constituents are from river inputs and coastal erosion. The C_chla, CDOM, and C_tsm are very high, which may result in both Mueller and Morel’s models being inapplicable in the PRE.

Tiwari’s model uses the reflectance ratio at 490 and 670 nm, R_rs(490)/R_rs(670), to derive K_d(490). Zhang’s model is composed of two independent algorithms: one based on the ratio R_rs(490)/R_rs(555) for clear waters and another based on the ratio R_rs(490)/R_rs(665) for turbid waters. When tested with the independent PRE dataset, the predictions of these two models were statistically better compared to both Mueller’s and Morel’s models. However, the two models also showed a pronounced underestimation for higher K_d(490) values (>1.0 m⁻¹), which might be due to the strong backscattering of suspended sediments in the more turbid waters in the PRE. Lee’s model produced a suitable estimation, which uses a relationship relating the backscattering coefficient at 490 nm to the irradiance reflectance just beneath the surface within the red band. The performance of Wang’s model was the same as Lee’s, which was attributed to the same approach used in both models for highly turbid waters. In Wang’s model, the retrieval method switched to Mueller’s in clear waters, and the bridging of the two types of models is based on a certain weighting function (W). The spectral information within the red band cannot be ignored when retrieving K_d(490) for turbid waters. However the values of R_rs(670)/R_rs(490) tended to be very low and, therefore, values of K_d(490) for clear waters were inaccurate. Therefore, Wang’s model, which uses a combination of different algorithms for clear and turbid waters, is a better choice for K_d(490) retrieval in the PRE waters.

4.2. Dominant Contributor to K_d(490) of Water Constituents

Attenuation of light in water depends on concentrations of particulate matter and dissolved matter, which can be expressed by C_tsm, C_chla, and the absorption coefficient of CDOM [7,49]. The contribution of these constituents varies for different types of water and within the same water body in different seasons [50,51,52]. Since the calculated GRGs between K_d(490) and a_dg(443) were significantly lower than the other two water constituents, only the GRGs of C_tsm and C_chla were considered. Figure 9 depicts the subtraction of both GRGs. Positive values indicate the GRGs of C_tsm were higher than those of C_chla, which means that C_tsm played a dominant role in K_d(490) variability. In contrast, negative values indicate that the C_chla had a greater influence. The C_tsm-dominated were waters generally located in coastal and estuarine turbid areas, whereas the C_chla-dominated waters were observed in open clear ocean. Notably, waters dominated by a_dg(443) were rare. The strong absorption of CDOM in the blue bands influenced the variability of K_d(490), particularly in waters with high CDOM concentrations. The major sources of CDOM in the PRE were the river water and the human and industrial sewage [53,54]. However, in coastal or estuarine areas with highly turbid waters, C_tsm can reach over 100 g˖m⁻³. During the survey conducted on 5 June 2012, the range of measured a_g(443) was 0.12 to 0.58 and the range of measured a_p(443) was 0.31 to 1.61. The latter was approximately three orders higher than the former, indicating that the influence of total suspended sediments on K_d(490) was far greater than that of CDOM.

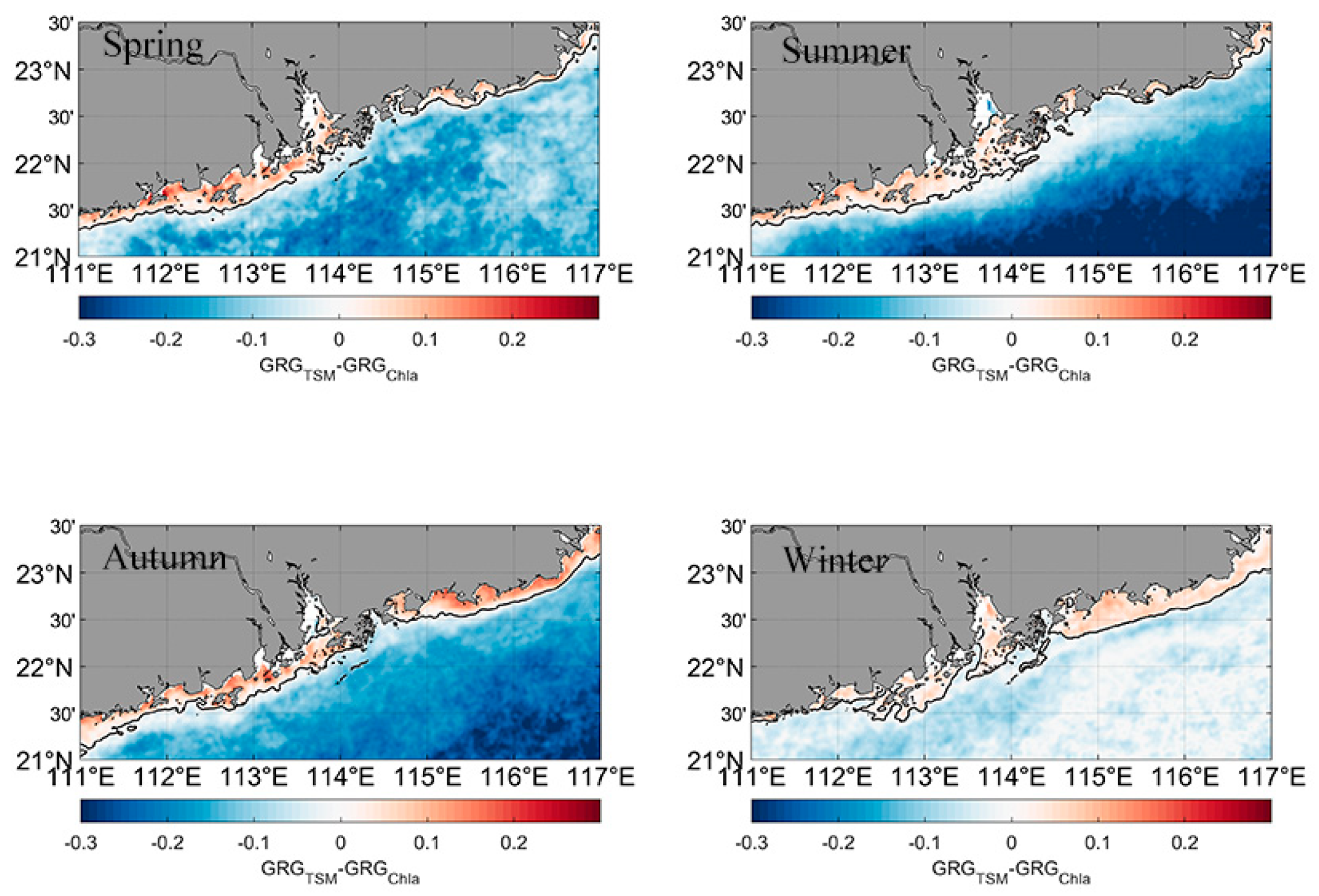

The distribution of dominant constituents showed some seasonality. In spring and summer, the C_tsm-dominated waters were mainly distributed in LB and the western GDP. The C_tsm-dominated area was confined close to the nearshore areas in the eastern GDP, indicating the impact of C_chla can extend from offshore to nearshore regions. Compared with other seasons, the most significant feature in summer was the southward extension of C_tsm from LB to the open ocean, which can probably be attributed to the increase in river runoff. In autumn and winter, the C_tsm-dominated area was wider in the eastern GDP than in spring and summer. The underlying reason for the change in area still requires future research. Currently, the change in area in the eastern GDP during autumn and winter might be indirectly caused by the decrease in C_chla rather than the variability of C_tsm. In autumn and winter, the entire eastern GDP is influenced by monsoons. The northeasterly wind-induced downwelling appears to decrease the amount of resuspension, resulting in the slight decrease in surface C_tsm, which seems to contradict the expansion of the C_tsm-dominated area. However, the downwelling also inhibits the growth of phytoplankton. The decrease in surface C_chla may prevent it from becoming the primary factor affecting the variability of K_d(490).

4.3. Influence of Physical Factors on K_d(490) Variability

Figure 3 shows that the K_d(490) values in the PRE waters were markedly different in different regions and in different seasons, and Figure 9 shows that the spatial variations can be attributed to the changes in C_chla and C_tsm.

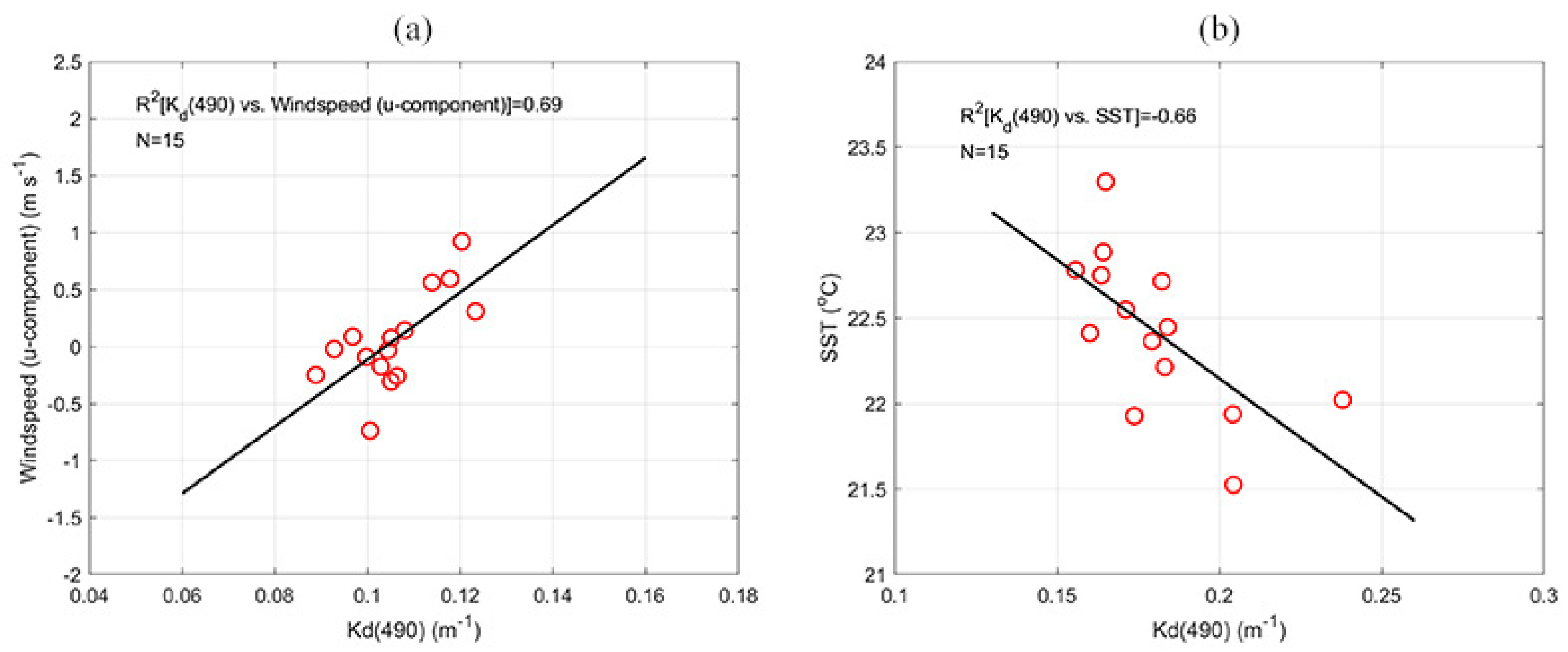

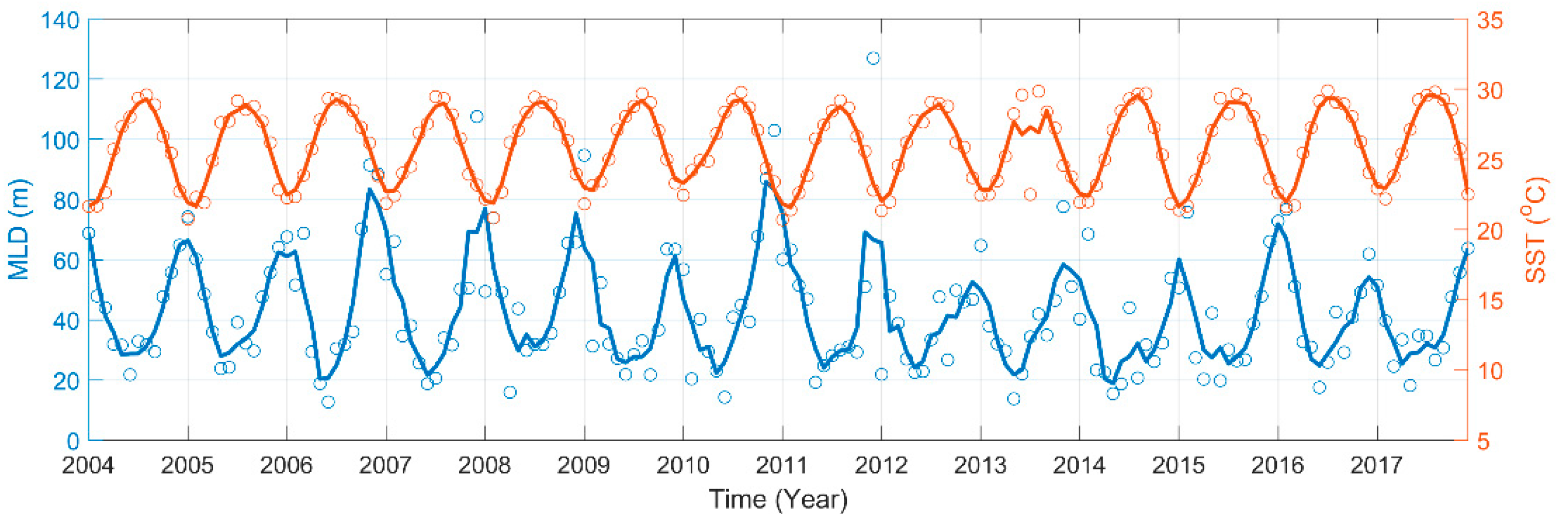

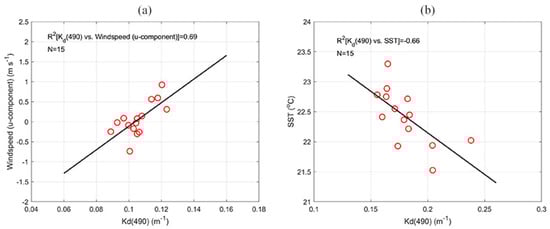

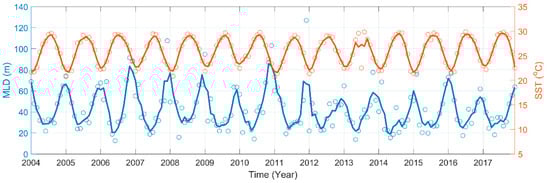

To understand the mechanism through which the seasonal K_d(490) varies, correlation analysis was performed between several types of physical factors, including wind field, river runoff, MLD, SST, and seasonal average K_d(490). The results showed that the average K_d(490) was highly correlated with the wind speed (u-component) in summer, with an R² of about 0.69. During winter, we found a significant negative correlation between K_d(490) and SST, with an R² of –0.66 (Figure 10). Seasonal anomalies were also obtained by subtracting the seasonal climatological average. In 2007 and 2015, when the wind speed anomaly (u-component) reached its peak, a distinguishing tongue of K_d(490) anomaly was observed near the southeastern LB (Figure 11). Inside this tongue region, the K_d(490) anomaly in the west was higher than in the east, indicating that the variability can be attributed to the high turbid river plume waters in the surface layer, which are driven by the intense eastward wind.

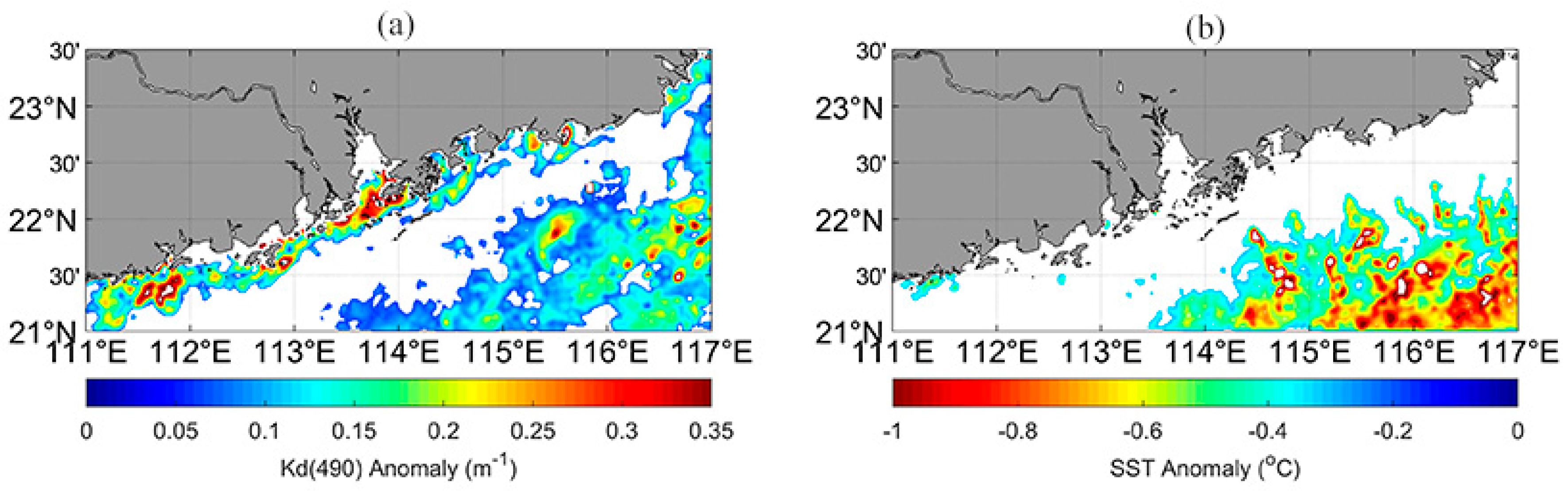

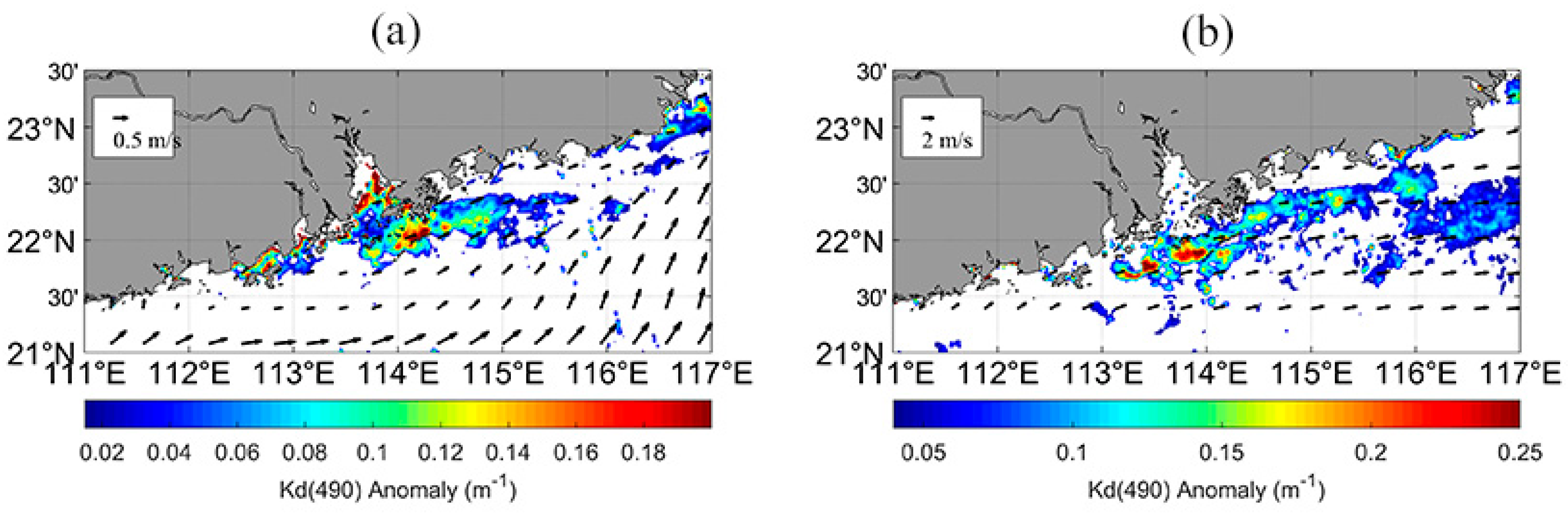

The winter SST cooling in 2004 was the most significant during the whole study period, and was located in the southeastern PRE, which was about 0.4 °C cooler than the winter climatological average. Within these cooling regions, K_d(490) values higher than the average values were observed, with anomalies ranging approximately from 0.1 to 0.35 m⁻¹. The observed winter variations in K_d(490) in the southeastern PRE were strongly consistent with the changes in SST anomalies, and higher values coincided with lower SST (Figure 12).

The variability of K_d(490) in the southeastern PRE was mainly determined by C_chla. The average values of K_d(490) were higher in winter than in summer. This seasonal variability might be attributed to the deepening of MLD in winter. In marine systems, MLD is generally deeper in winter than in summer [55]. Nutrients are brought from the bottom of the ocean to the surface or subsurface, which may enhance phytoplankton growth. The strong mixing in winter was demonstrated by the deepening of MLD, and a significant relationship between SST and MLD provided evidence that nutrients were supplied from the bottom waters (Figure 13).

5. Conclusions

Accurate estimation of K_d(490) using ocean color remote sensing imagery is challenging in turbid coastal waters due to the optical complexity of the water. Several approaches, including empirical and semianalytical models, were applied to retrieve the K_d(490) in PRE water. The results showed that Wang’s model was more accurate and is most suitable for PRE water, which uses a combination of different algorithms for clear and turbid waters. Hence, Wang’s model was selected for deriving K_d(490) products from long-term MODIS/Aqua imagery.

Derived from long-term MODIS/Aqua imagery, the temporal variability and spatial distribution of K_d(490) were tracked using S-EOF analysis. The results of GRA showed that both phytoplankton and suspended sediments were the two dominant contributors to the variability in K_d(490). The C_tsm-dominated waters were generally located in coastal and estuarine turbid area, whereas the C_chla-dominated waters were observed in clear open ocean. The influence of wind field on the variability of K_d(490) was significant near the coastal and estuarine regions in summer. With the strengthening of the eastward wind, a water tongue of relatively higher K_d(490) values formed in the southeastern PRE. In winter, the location of the negative SST anomaly and positive K_d(490) anomaly was strongly consistent, indicating that the sea surface cooling was related to the positive K_d(490) anomaly. The winter variability might be attributed to the strong mixing, which brought nutrients from the bottom layer to the surface to enhance phytoplankton growth.

Estuarine and coastal regions are complex ecosystems. To better examine the biogeochemical responses to physical events, a combination of remote sensing and coupled hydrodynamic–biological models should be applied in future research.
