To Blend or Not to Blend? A Framework for Nationwide Landsat–MODIS Data Selection for Crop Yield Prediction

by
Yang Chen
1,*,
Tim R. McVicar
2,
Randall J. Donohue
2,
Nikhil Garg
1,
François Waldner
3,
Noboru Ota
4,
Lingtao Li
2 and
Roger Lawes
4
1
CSIRO Data61, Goods Shed North, 34 Village St, Docklands, VIC 3008, Australia
2
CSIRO Land and Water, GPO Box 1700, Canberra, ACT 2061, Australia
3
CSIRO Agriculture and Food, 306 Carmody Rd, St Lucia, QLD 4067, Australia
4
CSIRO Agriculture and Food, 147 Underwood Ave, Floreat, WA 6014, Australia
*
Author to whom correspondence should be addressed.
Remote Sens. 2020, 12(10), 1653; https://doi.org/10.3390/rs12101653
Submission received: 1 May 2020 / Revised: 19 May 2020 / Accepted: 19 May 2020 / Published: 21 May 2020
(This article belongs to the Special Issue Remote Sensing in Agriculture: State-of-the-Art)
Browse Figures
Versions Notes

Abstract

:
The onus for monitoring crop growth from space is its ability to be applied anytime and anywhere, to produce crop yield estimates that are consistent at both the subfield scale for farming management strategies and the country level for national crop yield assessment. Historically, the requirements for satellites to successfully monitor crop growth and yield differed depending on the extent of the area being monitored. Diverging imaging capabilities can be reconciled by blending images from high-temporal-frequency (HTF) and high-spatial-resolution (HSR) sensors to produce images that possess both HTF and HSR characteristics across large areas. We evaluated the relative performance of Moderate Resolution Imaging Spectroradiometer (MODIS), Landsat, and blended imagery for crop yield estimates (2009–2015) using a carbon-turnover yield model deployed across the Australian cropping area. Based on the fraction of missing Landsat observations, we further developed a parsimonious framework to inform when and where blending is beneficial for nationwide crop yield prediction at a finer scale (i.e., the 25-m pixel resolution). Landsat provided the best yield predictions when no observations were missing, which occurred in 17% of the cropping area of Australia. Blending was preferred when <42% of Landsat observations were missing, which occurred in 33% of the cropping area of Australia. MODIS produced a lower prediction error when ≥42% of the Landsat images were missing (~50% of the cropping area). By identifying when and where blending outperforms predictions from either Landsat or MODIS, the proposed framework enables more accurate monitoring of biophysical processes and yields, while keeping computational costs low.

Graphical Abstract

1. Introduction

The world’s human population is projected to increase by more than 35% by 2050 [1]. To contribute to improved global food security, the next generation of crop models and agricultural decision support tools needs to efficiently and consistently operate across various scales [2]. Accurate nationwide crop yield forecasts may ensure food security to the citizens. More accurate crop yield prediction at the subfield scale can provide farmers with more detailed information for guiding, within the growing season, in-field variable rate applications of fertilizer, herbicides, and pesticides. An efficient approach to monitor crop growth uses satellite observations providing repeated synoptic regional assessments [3,4,5,6]. High-temporal-frequency (HTF) observations are required to accurately track crop development [7] and predict yield [8], and high-spatial-resolution (HSR) observations are necessary to capture within-field heterogeneity [9].
There is a trade-off between temporal frequency and spatial resolution [10,11,12] as no single sensor can regularly image vast areas of the Earth used for nation-wide dryland cropping at a high spatial resolution. Commercial options of products combine HTF and HSR images achieved by increasing the number of satellites in orbit, such as PlanetScope; however, such commercial options are not affordable for national-scale monitoring, especially in a country as large as Australia (7.7 million km2), with the southern Australian cereal-based agricultural system notionally covering 530,000 km2 [13]. The Moderate Resolution Imaging Spectroradiometer (MODIS) provides complete coverage of the globe every day at a 250-m spatial resolution from red and near-infrared bands. This resolution constrains the capacity of describing cropping systems, crop growth, and field heterogeneities, especially when fields are small-to-moderate sized and landscapes are fragmented [14,15]. Sensors with higher spatial resolution, such as Sentinel-2 or Landsat, are more suitable for these smaller fields/management units, but their lower temporal frequencies limit their ability to capture rapidly evolving crop processes, especially when factoring in the potential clouds [16]. Lobell et al. [17] used valid Landsat observations (cloud cover <10%) during the growing season to generate optical-based vegetation indices (Vis) and then fitted a multilinear regression between these VIs and a large number of Agricultural Production Systems Simulator (APSIM) simulations for yield prediction. In a country like Australia, most of the arable non-irrigated land grows winter wheat, barley, oats, and canola, and their growth depends on the in-season rainfall; therefore, totally cloud-free time-series observations for their entire growing season are infrequent.
To overcome these challenges, various methods for spatial filtering [18], temporal gap-filling [19,20,21], and data fusion [22,23,24] were devised with a varying degree of success. As spatial filtering and temporal gap-filling disregard the spatial and temporal correlation of a pixel, they are highly sensitive to the choice of size/length of the spatial/temporal window [20,25]. Data fusion techniques, on which this article focuses, were shown to improve the temporal resolution of fine-spatial-resolution data by blending observations from sensors with different spatial and temporal characteristics. Prominent examples are the Spatial and Temporal Adaptive Reflectance Fusion Model (STARFM; Gao et al. [12]) and the Enhanced STARFM (ESTARFM; Zhu et al. [11]). However, blending is no “silver bullet”, as it often introduces unforeseen spatial and temporal variances [10]. Therefore, it is critical to systematically evaluate the benefits of blending and identify where and when blending helps to improve monitoring.
Blending satellite data with complementary frequency and spatial resolution characteristics, such as MODIS (herein considered as an HTF and low-spatial-resolution (LSR) sensor) and Landsat (herein considered as a low-temporal-frequency (LTF) and HSR sensor), provides a solution of synthetic imagery that is both HTF and HSR [26]. Current literature such as Dong et al. [27] found that using Landsat images provides a higher crop yield prediction accuracy for field scales over MODIS images, and a further improvement can be achieved by combining Landsat and MODIS (L–M) blended data with the incomplete Landsat series. To date, the utility of blended output is not yet tested for regional and national crop yield mapping [28,29,30,31,32,33,34,35] (Table 1); this study fills that niche.
This study quantifies and evaluates the benefits of blending satellite data of different temporal frequencies and spatial resolutions for crop yield prediction. The specific objectives of this study are to (i) estimate yields using MODIS, Landsat, and L–M blended data and then compare the yield prediction at both pixel and field scales, (ii) identify the fraction of missing Landsat data during a growing season considering the 16-day acquisition cycle to determine a threshold where the blended data can improve the prediction, and (iii) quantify the improvements in the yield prediction accuracy based on the threshold.

2. Study Area and Data

2.1. Study Area

The southern Australian agricultural system is dominated by dryland agriculture where cereals (e.g., wheat, barley, and oats), oilseeds (e.g., canola), and legumes (e.g., lupins, chickpeas, field peas, and soybeans) are planted, often in rotation with annual pastures and fallows. Australian wheatbelt (Figure 1) spans an extremely variable agroecological environment with respect to the climate across the continent, leading to the high spatial variability in Australian grain production. The precipitation varies enormously across the country (Figure S1, Supplementary Materials); winter (June–August) precipitations are dominant in Western Australia and South Australia, while summer (December–February) precipitations are dominant in Queensland and northern New South Wales. In southern New South Wales and Victoria, total precipitation is more uniformly distributed throughout the seasons where summer precipitation is more intense indicating that winter precipitation is more frequent [36]. Long-term average monthly accumulated precipitation records strongly correlate with the average number of rainy days (Figure S1, Supplementary Materials).

2.2. Data

2.2.1. Satellite Images and L–M Blended Data

Time series of Landsat-5 Thematic Mapper (TM), Landsat-7 Enhanced Thematic Mapper (ETM)+, and Landsat-8 Operational Land Imager (OLI) and Thermal Infrared Sensor (TIRS) standardized surface reflectance data are sourced from Geoscience Australia (http://geoscienceaustralia.github.io/digitalearthau/index.html), which contains 239 scenes covering the Australian wheatbelt across seven years (2009–2015). These images are nadir-corrected, adjusted for bidirectional reflectance distribution function, and topographically corrected followed by Li et al.’s methods [38], resulting in a 25-m pixel resolution. This is as, in Geoscience Australia’s processing stream, they oversample the Landsat imagery to 25 m to allow easier integration with other remote sensing data sources. Time series of normalized difference vegetation index (NDVI) are then computed using the red and near-infrared bands [39]. The 16-day composite of MODIS NDVI (MOD13Q1 v006) data are used due to the low clouds, low view angle, and the highest NDVI value at 250-m spatial resolution. The MODIS data are sourced from United States Geological Survey for the corresponding periods and area (16 tiles) and are then downscaled to 25 m by 25 m spatial resolution using nearest neighbor interpolation [40] for input to the blending algorithm and for consistency to enable further analysis.

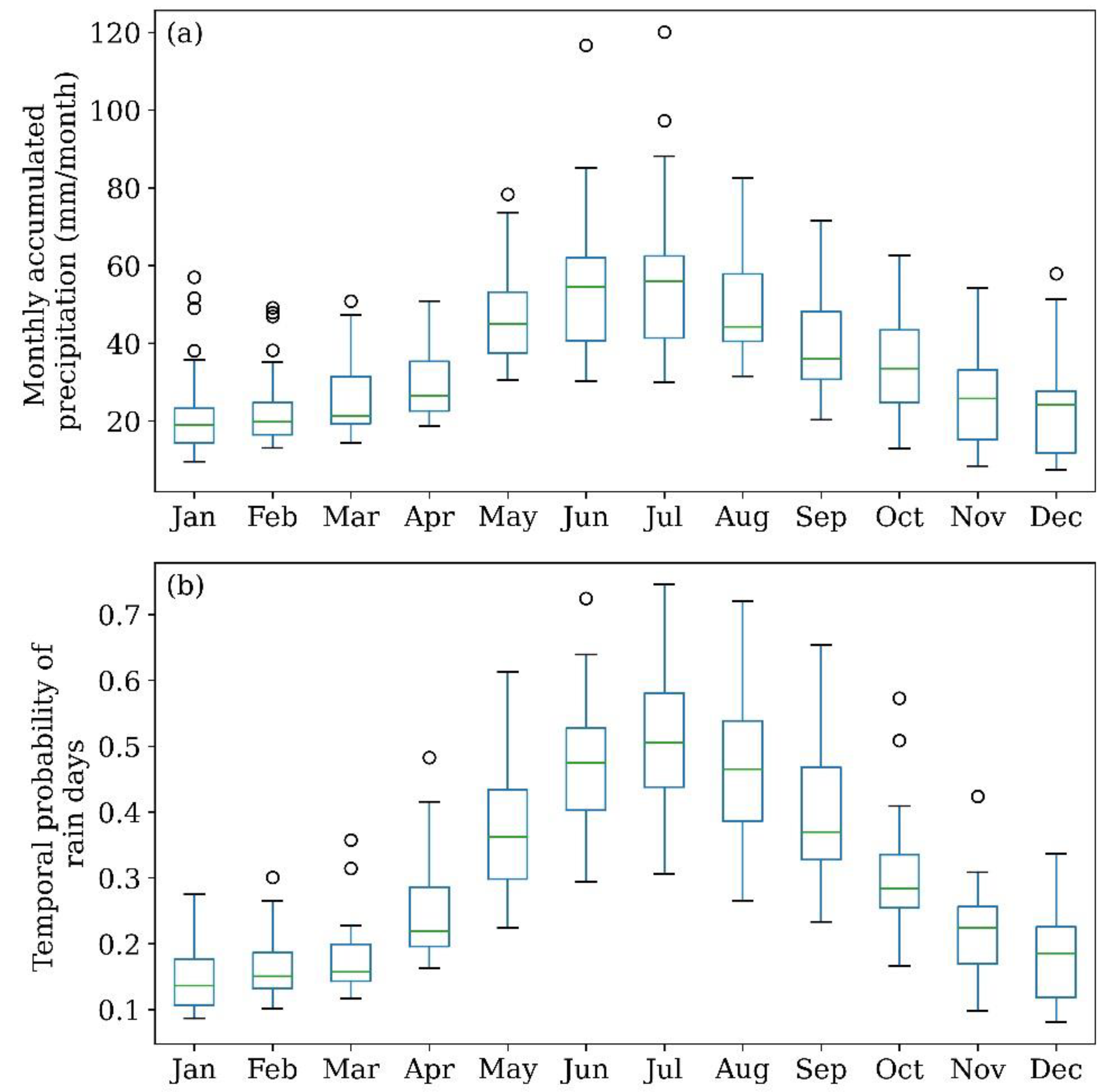

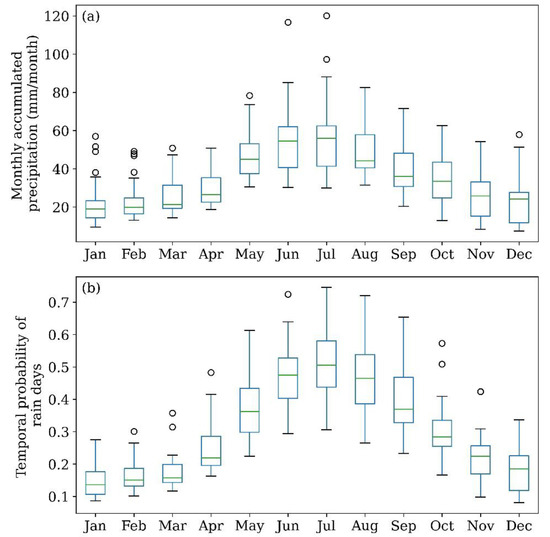

The inter-annual variability of precipitation (Figure 2b) illustrates that the probability of rain days is higher during June–August (i.e., tillering to flowering phase), which is a critical period for crop yield prediction [41,42]. Figure 2b also shows the value of 0.58 in July at the 75th quartile, which indicates that the probability of cloud-free Landsat images could be lower than 42% in most areas. Here, 75% of field-scale Landsat missing data occur during the growing season (i.e., 113–289 days of the year (DOY)), and only 25% of the Landsat data are complete sequences (Figure 3).
To blend MODIS and Landsat NDVI data and create the 16-day time series of gap-filled Landsat-like images, we applied ESTARFM [11], which is superior when the spatial variance is dominant [10]. We follow Jarihani et al.’s [22] recommendation to “index then blend”, as it yields more accurate results and provides higher computational efficiency than the “blend then index” approach. Figure S2 (Supplementary Materials) illustrates the blending process and the resulting Landsat-like image. As a result of data blending, each pixel is described by 22 observations across the calendar year. For more details about ESTARFM see [11,43].

2.2.2. Yield Data

Australia’s major dryland crops are selected for yield estimates and validation, including 35 fields of canola, 123 fields of wheat, and 52 fields of barley (Table S1, Supplementary Materials). The average area of these fields is ~112 ha with a standard deviation of ~69 ha. Using various yield monitoring systems mounted on grain harvesters operated by farmers, these observed data were collected at these sites across the country from 2009 to 2015 (Figure 1). The data obtained by these commercially available yield monitors were used to construct a yield data image at 5-m resolution [44], which was upscaled to 25 m and 250 m to match the Landsat and MODIS resolutions, respectively.

2.2.3. Climate Data

Climate data were sourced from Science Information for Land Owners (SILO) which provides nationwide meteorological variables (e.g., maximum and minimum air temperature, and precipitation) at daily temporal frequencies by interpolating observations made by the Australian Bureau of Meteorology onto a 0.05° by 0.05° grid [37].

3. Methods

3.1. Yield Prediction

We use a semi-empirical model [C-Crop; 6]) because of its low data requirements for calibration across large areas. C-Crop correlates actual grain weight (t/ha) to end-of-season above-ground plant carbon mass (C), and the estimation of C is based on biophysical principles of plant photosynthesis [6]. C i is estimated using the carbon mass ( C i − 1 ) from the previous time step and the current period’s allocated net assimilation flux N i (gCm−2) minus the dead biomass that enters the litter store, and i (1–22) is the model time step (every 16 days in a calendar year).
C i = ( 1 − ρ ) ( C i − 1 + N i )
where ρ (periods−1) is the reciprocal of carbon longevity (i.e., the turn-over rate of plant live carbon into senesced tissue per time step i).

3.1.1. Net Primary Productivity

Net primary productivity (NPP) is the rate of carbon assimilation from atmospheric CO2 to organic material (biomass) for a given area while accounting for the energy loss due to autotrophic respiration [6,45].
N i = 0.75 ( G i f P A R i 0.95 − 16 r 10 C i − 1 c n σ i )
where f P A R i 0.95 is the fraction of total assimilation flux G i allocated to the above-ground plant biomass (gCm−2) at time step i. The plant maintenance respiration is calculated as a function of leaf nitrogen, air temperature, and previous biomass C i − 1 . r 10 is the plant tissue respiration rate at 10 °C; cn stands for plant carbon-to-nitrogen ratio; σ i is a scalar that modifies the respiration rate according to the daily air temperature [46].

3.1.2. Gross Primary Productivity

The total assimilation flux G i , = also known as the gross primary productivity (GPP) (gCm−2∙day−1), can be calculated using the remote sensing-based plant light use efficiency (LUE) approach. The chloroplasts use incoming solar radiation with a spectral range between 400 nm and 700 nm in photosynthesis [47].
G i = P A R i × f P A R i × R U E i
P A R = 2.3 ( R O × τ ∂ ) ρ s w
where ( R O × τ ∂ ) ρ s w represents the shortwave irradiance (Rs), R O is daily top-of-atmosphere shortwave irradiance (J/m2/day) [48,49], τ ∂ is atmospheric transmissivity calculated using the Bristow–Campbell relationship [50,51] calibrated for Australia, and ρ s w is the ratio of shortwave irradiance at a sloping surface to that at a horizontal surface [52].
fPAR is the portion of PAR that is absorbed by a photosynthetic organism, and it is estimated using a linear relation between fPAR and rescaled NDVI by thresholds (i.e., local minimum and crop-specific maximum NDVIs) [53,54]. LUE is highly linearly related to a diffuse fraction (fD) and photosynthetic carbon flux [55].
L U E i = 0.024 × f D i + 0.00061 A x
where A x is the maximum photosynthetic capacity (μmolCm−2∙s−1), which is a crop-specific parameter; is 23, 40, and 45 for barley [56], canola [57], and wheat [57], respectively; f D is the ratio of diffused to total solar irradiance varying from 0.2 (under clear skies) to 1.0 (under overcast skies) [48]. For a full description of C-Crop, see Donohue et al. [6].

3.2. Validation

Two sets of data are used for validation and further analysis, depending on the pixel-level completeness of time-series Landsat NDVIs at 25-m pixel resolution across the growing season (i: 8–19) between April (DOY 113) and October (DOY 304) (Figure S3, Supplementary Materials). Firstly, the coordinates of complete time-series Landsat pixels are used to obtain the resampled MODIS, L–M blended, and observed yield data for validation at the 25-m resolution as the first dataset. Secondly, these complete time-series Landsat pixels are upscaled at 250 m pixel size to extract the MODIS and the L–M blended data with the same pixel size for the validation at the moderate resolution. Thirdly, the pixel-level yield predictions are aggregated for each respective field by averaging the yield values of the pixels within, for field-level validation. Fourthly, and finally, the predicted yields are evaluated using the model coefficient of determination (R2), the root-mean-square error (RMSE), and the mean bias error (MBE). The R2 describes the proportion of the response variable that can be explained by the model. RMSE gives more weight to the largest errors, and the MBE indicates the systematic error of the model to under or overestimate. These procedures are then repeated for the second dataset created according to the coordinates of incomplete time-series Landsat NDVIs at the 25-m pixel resolution. As C-Crop requires a time series of NDVI, the results are assessed without the incomplete time-series pixels of Landsat.

3.3. Identification of Threshold for When to Blend

The incomplete time-series pixels of Landsat are gap-filled with the L–M blended pixels (LLM). The threshold to indicate when blending is beneficial is identified by quantifying the impact of the fraction of missing data on the prediction accuracy at 25 m. Firstly, we group MODIS and LLM time series in eight groups, based on the fraction of Landsat missing data (<10%, 10–20%, 20–30%, 30–40%, 40–50%, 50–60%, 60–70%, and 70–80%). Then, the accuracy of each group is analyzed by calculating the R2 and the RMSE. The performance of C-Crop using MODIS and LLM is compared by the fraction of missing data in Landsat across time. The threshold can be identified, when the model provides the same R2 and RMSE using LLM as with MODIS (Figure S3, Supplementary Materials). This threshold determines when, where, or how much L–M blended data improves crop yield prediction when the fraction of missing data in Landsat is lower than the identified threshold.

3.4. Evaluation of the Improvement in Yield Prediction Accuracy

The improvement in prediction accuracy using the identified threshold for multiple spatio-temporal data selection is statistically quantified. More specifically, the threshold is applied to the Landsat observations (2000–2018). Firstly, we compute the temporal probability of optimally using MODIS, Landsat, and LLM images for nationwide crop yield predictions during the past two decades, and then map the results to illustrate the spatial variability of multi-sensor data selection for 25-m pixel-level yield prediction across the wheatbelt. We then evaluate the area percentage of the data sources on a yearly basis and analyze their potential correlation to the annual precipitation (mm/year). Finally, the improvement in the accuracy of predicted yields is evaluated on the field level using MODIS and LLM for Western and eastern Australia, against the reported data [58]. The growing season of 2015 is selected due to the availability of a larger quantity of observed yield data. The incomplete 2015 Landsat series are gap-filled with the blended values corresponding to the threshold value.

4. Results

4.1. Yield Prediction

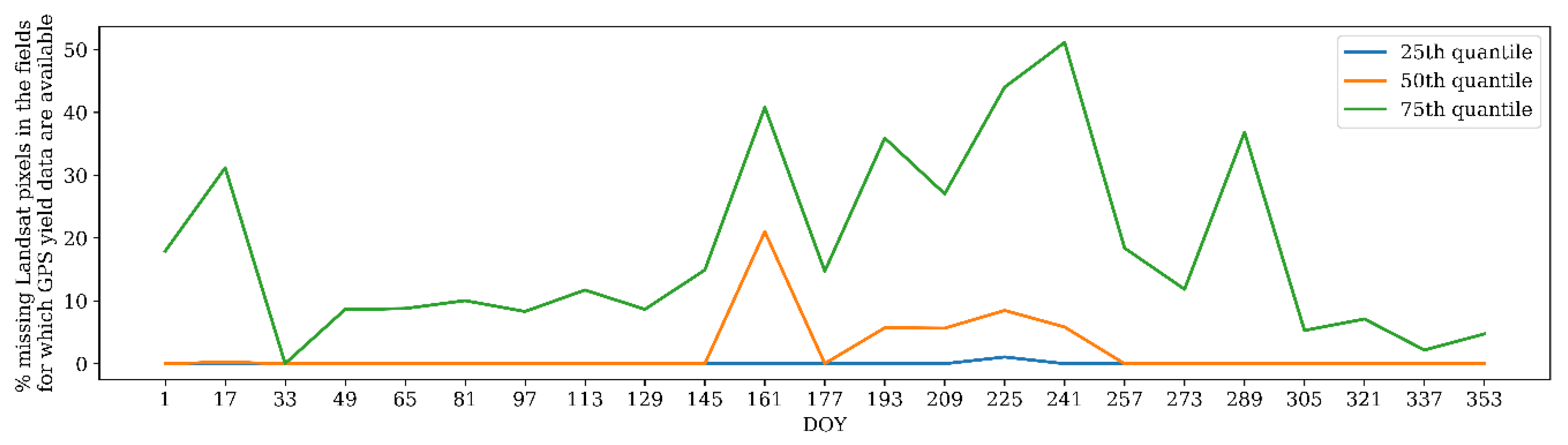

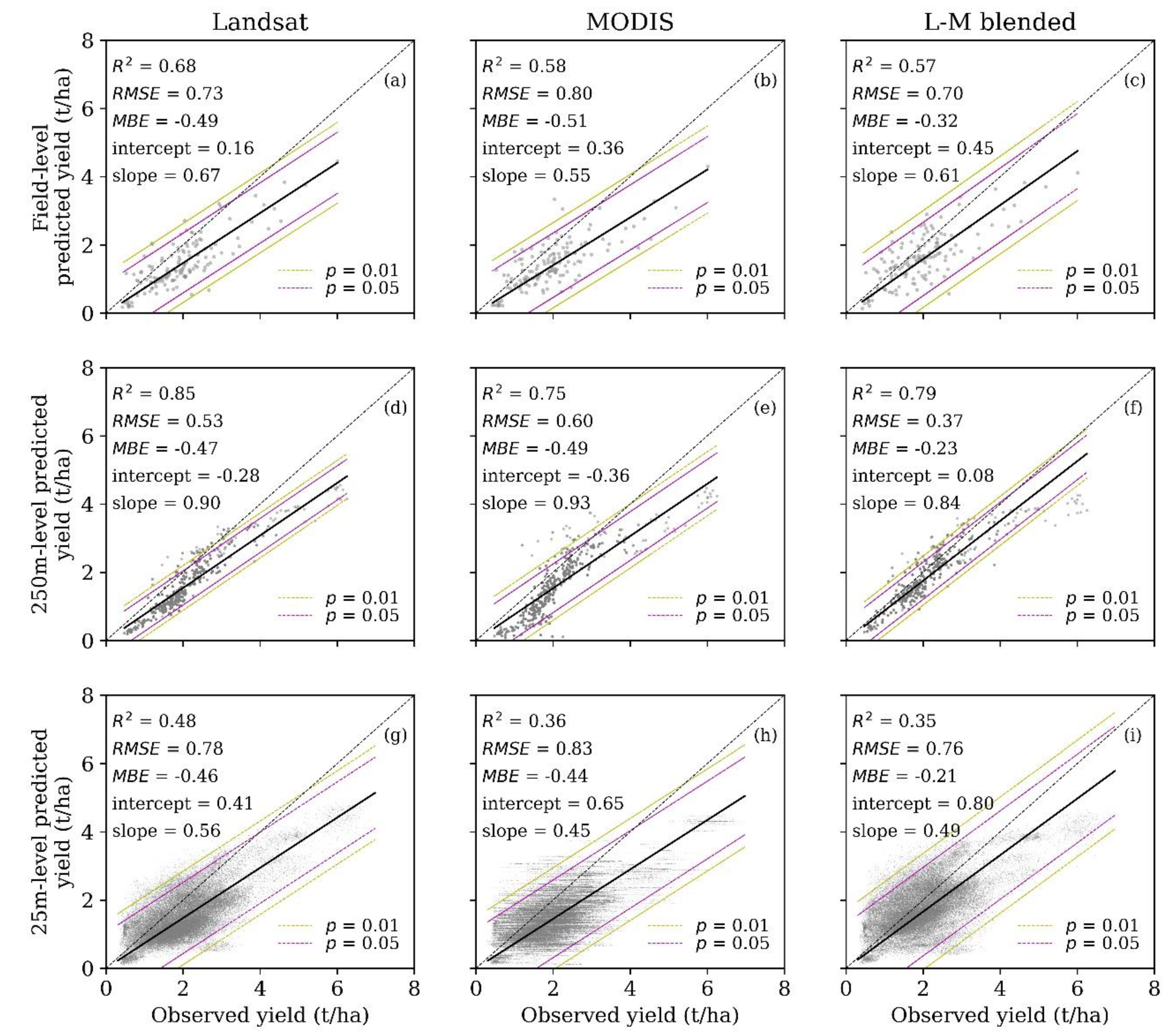

Exactly 66% of the observed fields have a complete time series of Landsat NDVIs at the pixel level across the growing season. For this dataset, C-Crop performs the best with Landsat images at field (R2 = 0.68; Figure 4a), 250-m (R2 = 0.85; Figure 4d), and 25-m (R2 = 0.48; Figure 4g) pixel resolutions for yield prediction pooled for wheat, barley, and canola. MODIS-based model yields were at least 10% less in terms of the R2 than when using complete time-series Landsat data. The model performs almost identically when using MODIS and L–M blended data for the predictions at both field and pixel scales. However, it produces the lowest bias for field (MBE = −0.32 t/ha; Figure 4c), 250-m (MBE = −0.23; Figure 4f), and 25-m (MBE = −0.21; Figure 4i) pixels when using the L–M blended data.

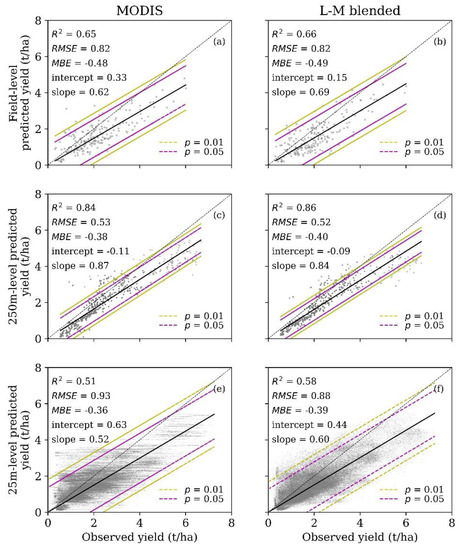

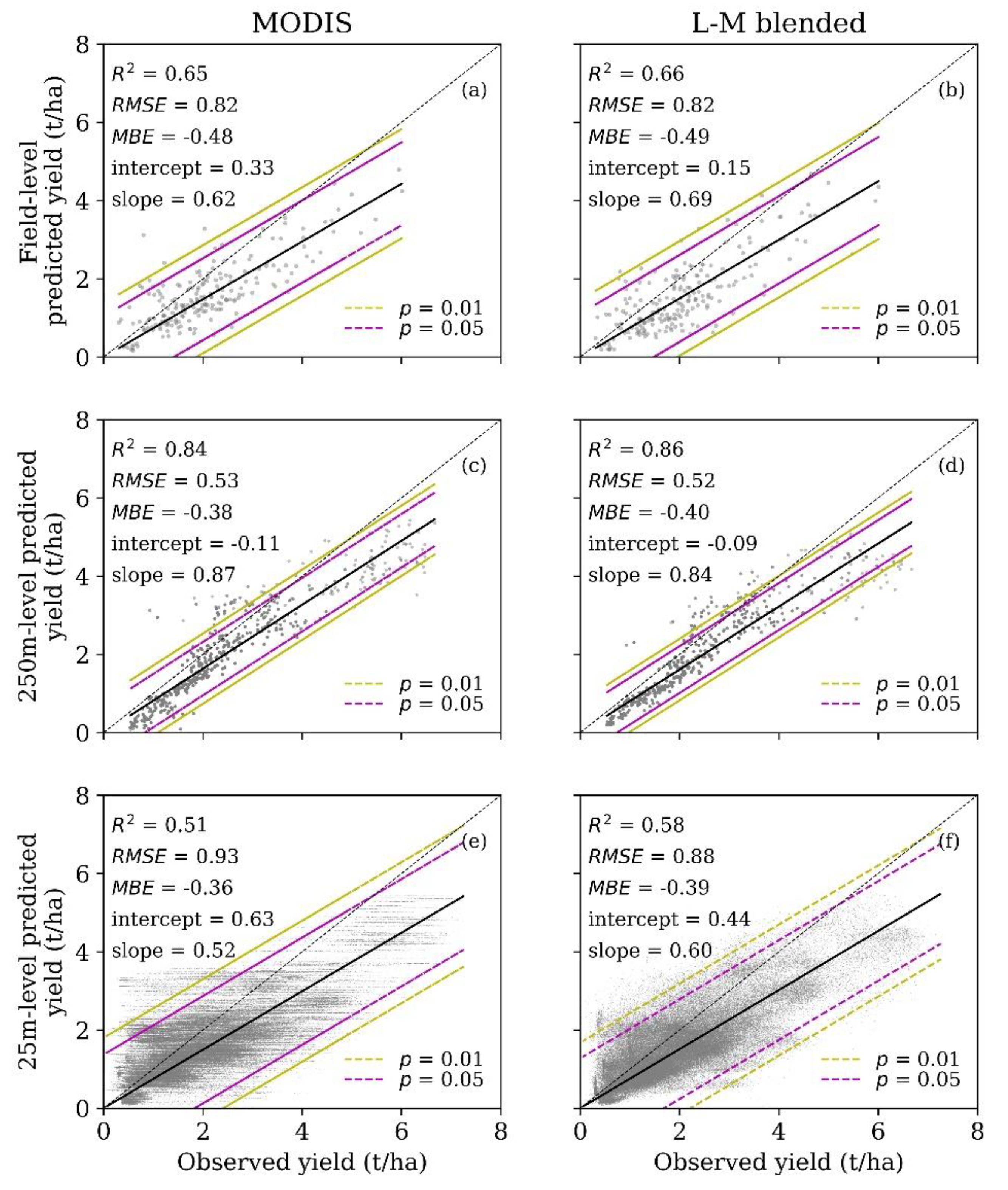

Figure 5 shows that 210 fields have incomplete time-series Landsat pixels during the growing season. These series are incomplete due to clouds in some of the Landsat images acquired in the specific growing season when the yield data are observed. Using this set of data, the L–M blended data-based model performs the same as the MODIS-based model when aggregating to 250-m (R2 = 0.86, RMSE = 0.52 t/ha, MBE = −0.40 t/ha; Figure 5c,d) and field (R2 = 0.66, RMSE = 0.82 t/ha, MBE = −0.49 t/ha; Figure 5a,b) scales. The L–M blended data-based model shows its advantages at the 25-m pixel level, which explains an extra 7% of the variability in the observed yields when the Landsat time-series pixels are incomplete (Figure 5e,f).

4.2. Identification of the Threshold

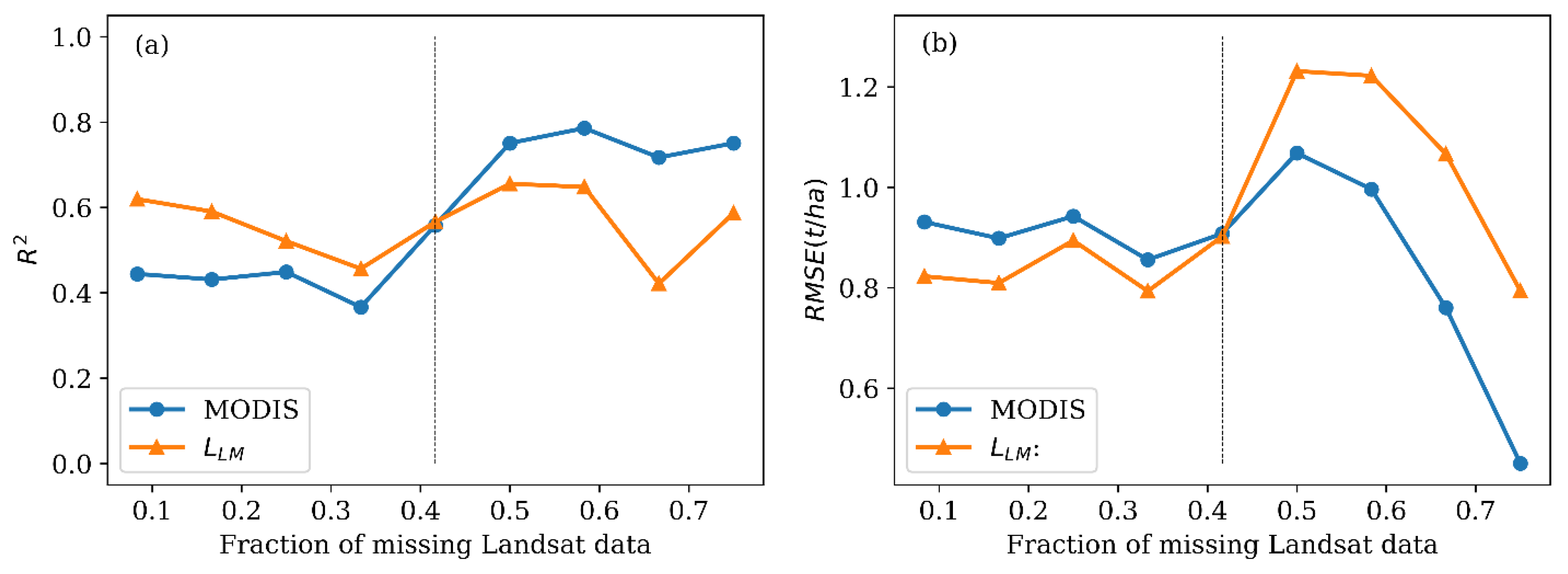

Figure 6a shows that the 25-m pixel-level yield prediction accuracy fluctuates between 0.35 and 0.75 using MODIS and LLM data in time and space, where time-series Landsat observations are incomplete. The R2 derived from MODIS is steady (between 0.4 and 0.5) where the fraction of missing Landsat data ranged between 0.05 and 0.42, which is lower than the R2 (0.62–0.5) derived from LLM data. The RMSE derived from both data sources remains approximately 0.9 t/ha for the same fraction of missing Landsat data (Figure 6b). When more incomplete time-series Landsat data are observed (from 0.42 to 0.75 on both Figure 6a,b), the R2 based on MODIS increases to around 0.7 and the RMSE decreases to 0.4 t/ha (as MODIS is not as cloud-affected as Landsat due to imagery being acquired on more days), whereas the R2 derived from the LLM fluctuates between 0.6 and 0.4 and the RMSE changes between 1.3 and 0.8 t/ha (Figure 6). Given this, up to 42% of missing Landsat data in the growing season is defined as the threshold for when L–M blending is optimal to implement. That is, the 25-m pixel-level yield prediction accuracy can be improved using LLM when the fraction of missing Landsat data at the coordinates is below this threshold. For instance, the LLM-based model increases R2 by up to 20% when the fraction of the missing Landsat data is below 42% (Figure 6a).

4.3. Evaluation of the Improvement in Yield Prediction Accuracy

Given the availability of cloud-free Landsat and MODIS data across the wheatbelt (2000–2018), in concert with the previously determined threshold (Figure 6) and finding (Figure 5), we can demonstrate which imagery (i.e., either MODIS, Landsat, and LLM) is best suitable for 25-m pixel-level crop yield prediction (Figure 7). Figure 7 shows the selection when using multiple satellite products for crop yield estimates across the wheatbelt over the past two decades. For the wheatbelt north of 35° south (S), there is a higher probability of obtaining complete cloud-free Landsat observations over the growing season in the east–west overlapping areas of adjacent Landsat Path-Rows, whilst LLM is optimal elsewhere north of 35° S. South of 35° S, MODIS is optimal, with LLM being optimal in the east–west overlapping areas of adjacent Landsat Path-Rows (in Figure 7).
For 25-m pixel-level yield prediction, blended data should be preferred on average for 33% of the Australian wheatbelt area (Figure 8a). MODIS and Landsat data remain the preferred data sources in 50% and 17% of cases, respectively. Figure 8b shows that the area percentage is positively correlated with annual precipitation for MODIS and negatively correlated for Landsat and the L-M blended data. MODIS has a larger scatter when annual precipitation is greater than 400 mm/year.

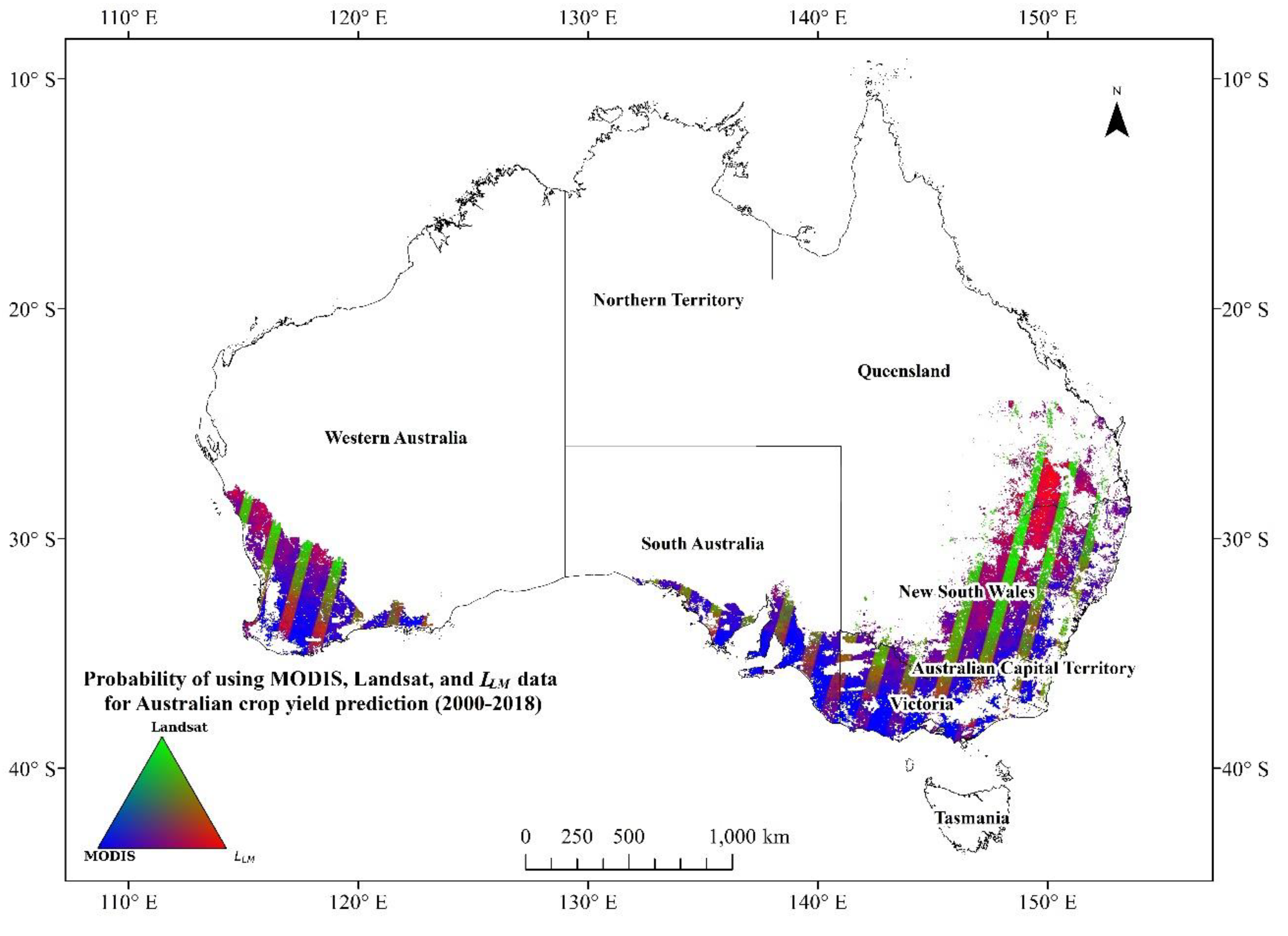

Of the 53-million-ha Australia wheatbelt, complete Landsat time series were suitable for 28.6% of that area, MODIS for 31.5%, and LLM for 39.9% during the 2015 growing season (Figure 8a). In this season, there are 104 fields available for assessing the accuracy improvement in yield prediction accuracy for nationwide crop yield prediction (Table S1, Supplementary Materials). Within these observed yield data, 69 fields are located where L–M blended images can improve the prediction accuracy according to the previously defined (see Figure 6) 42% Landsat missing data threshold. Figure 9 shows the predicted yields against the observed values for 63 fields in Western Australia (i.e., WA), and six fields in eastern Australia (i.e., Queensland (QLD), New south Wales (NSW), Victoria (VIC), and South Australia (SA)).

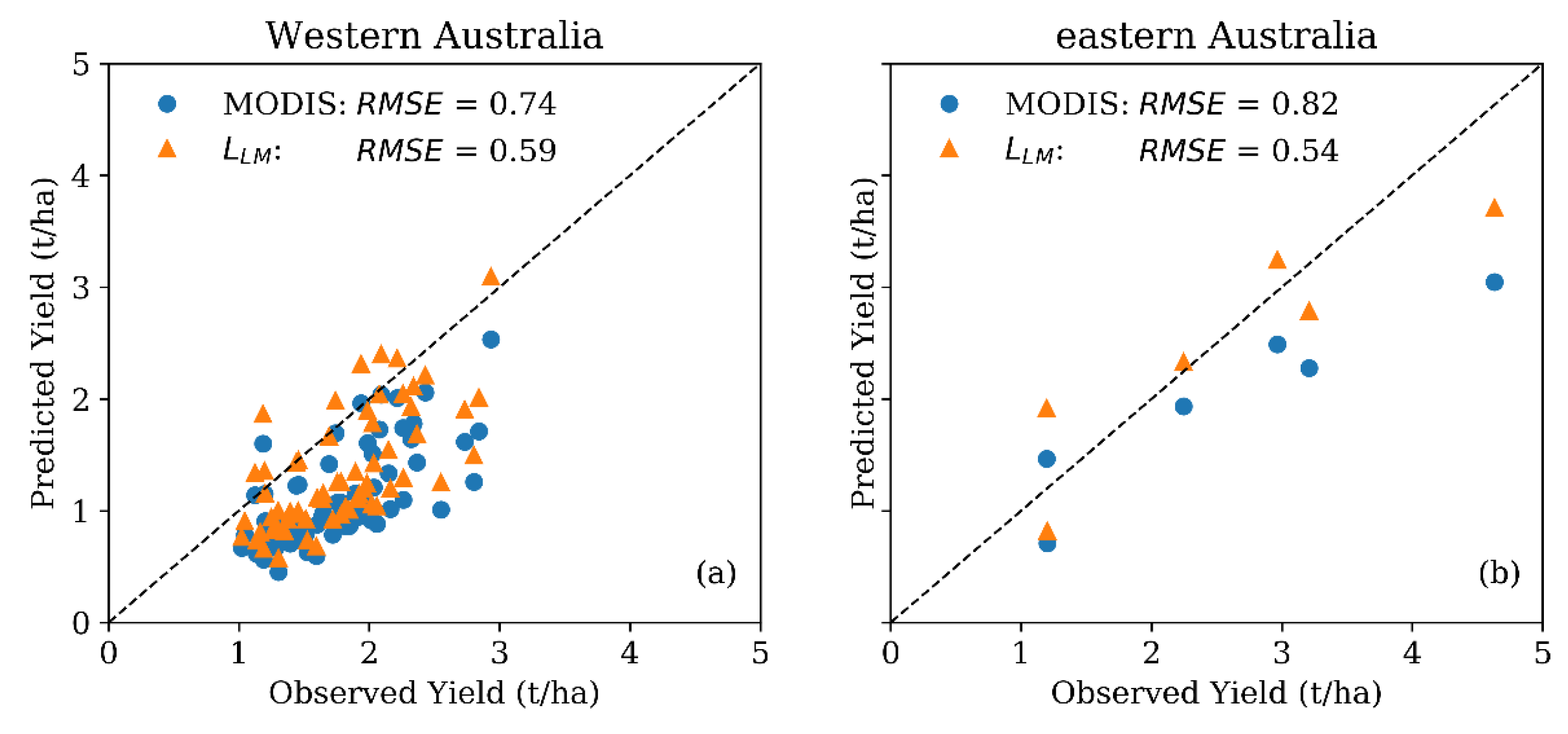

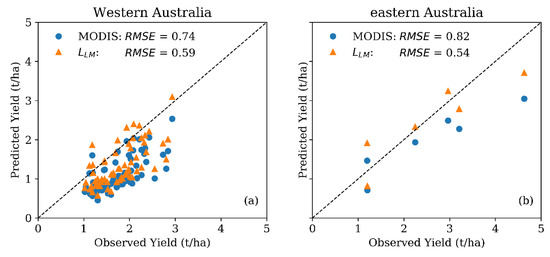

In these areas (see Figure 9), when the fraction of incomplete Landsat series across the growing season of 2015 falls below 42%, using LLM reduced the field-level yield prediction errors by 0.15 t/ha for Western Australia and 0.28 t/ha for eastern Australia. More specifically, the bias of 598 kilotons in grain production over the cropping area of 39,882 km2 in Western Australia and of 1672 kilotons in grain production over the cropping area of 59,716 km2 in eastern Australia can be decreased when using the threshold determined herein to decide the areas where the blended data can improve the prediction accuracy.

5. Discussion

Globally, wheat-growing regions are distributed within areas that experience a relatively high frequency of clouds [59]. Persistent cloud cover limits the use of HSR sensors over large spatial extents due to the low frequency of the observations, whereas the other sensors that have HTF are constrained by the LSR. Although blending improves the monitoring of rapidly changing processes such as crop growth, it may introduce unforeseen spatial and temporal variances in the blended images when images are often not observed concurrently [10], and implementing the current suite of algorithms across large areas is currently computationally expensive. Therefore, it is important to systematically quantify and evaluate the utility of blending imagery across time and space before embarking on the development of nationwide blending capabilities.
This study developed a parsimonious approach to identify when and where blending is beneficial for crop yield prediction at the 25-m pixel resolution. When incomplete Landsat series falls below 42% of the possible imagery in the growing season, blending is recommended because it improves the accuracy of the yield estimates. When incomplete Landsat series exceeds 42% of data, the use of HTF LSR data (e.g., MODIS) for the 25-m pixel-level yield prediction is recommended, reducing the computational need for blending. LTF HSR data show benefits, for example, in providing detailed information on plant photosynthesis across space; thus, they should be solely used for crop yield prediction when enough cloud-free images are available throughout the growing season.

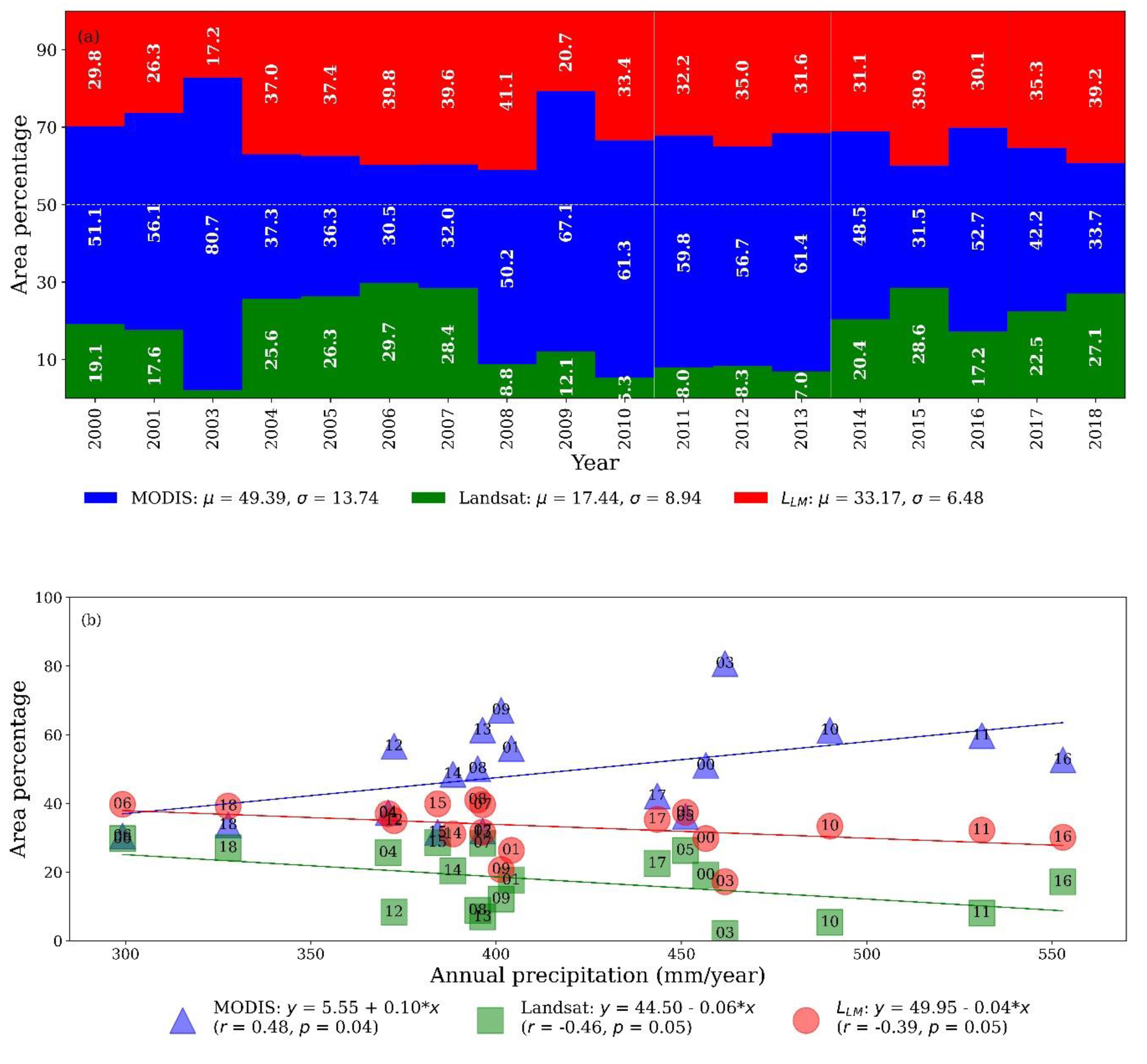

Annual precipitation, which is strongly associated with cloudiness [60,61] and, thus, partly governs the amount of missing Landsat data, indicates which data sources should be preferably used (Figure 8). For instance, MODIS should be used for the prediction for greater than 50% of the wheatbelt during wet years (e.g., 2003, 2010, 2011, and 2016). During dry years (e.g., 2006 and 2018), the proportion of the wheatbelt where Landsat is suitable for yield prediction increases by >10% compared to the average proportion (17%). For crop yield prediction, blended data can be optimally applied across approximately 33% of the wheatbelt during dry to normal years.
Crop production fluctuates from year to year due to the rapidly changing patterns of precipitation and temperature [42,62,63]. Over the last 50 years, the amount of precipitation received by the Australian wheatbelt declined [64]. Based on model projections, it was also suggested that the changing climatic conditions will affect both the frequency and intensity of the extreme events such as floods, heatwaves, and droughts, which will impact agricultural production [65,66]. Within the context of the present study, an increase in the number of clear sky days can be beneficial for the use of RS in crop yield forecasting. Moreover, a decline in the number of rain days in recent decades within the wheatbelt area can also be noted (see Figure S4, Supplementary Materials). Here, this decline in the number of rain days is assumed to correlate with the increase in the number of days with clear skies. However, a decrease in the number of rain days does not necessarily imply an absence of clouds, as there could be non-precipitating clouds. However, studies such as Norris et al. [67], using observations and Coupled Model Intercomparison Project Phase 5 (CMIP5) model outputs, showed that, on average, there is a decline in cloud amount across the region from 60° S–60° north (N). This decline was attributed to the poleward shift of mid-latitude storm tracks, among others.
The potential influence of climate change on grain production suggests a decline in world food supply [68] and an increase in the level of exposure of the global population to the risk of hunger [69]. It is, therefore, important to ensure the accuracy and efficiency of yield prediction at anytime, anywhere, and at any scale. A more precise description of grain weight patterns in time and space provides more accurate information for precision agriculture to improve its production and sustainability. The semi-empirical carbon turn-over model used for crop yield prediction is based on historical yield data, and, in the future, relevant drivers (e.g., precipitation and temperature) and their interactions may change under climate change, thus requiring model re-calibration [4,6,70,71]. Our approach was tested with C-Crop but could be extended to other semi-empirical models [72] and models based on machine learning [73].
Development of a national-scale yield prediction system requires time series of HSR and HTF imagery to describe the crop growth; therefore, next-generation HSR and HTF satellite data like Sentinel-2 [74,75] should be tested for nationwide yield estimates post the growing season of 2015. Harmonized Landsat and Sentinel-2 surface reflectance products should be tested for national-scale crop yield prediction [76] when observed yield data for more recent years are available. However, spatio-temporal fusion of MODIS and Landsat data is still necessary for long-term studies that involve historical satellite images collected before 2015 (back to the year 2000, when MODIS was launched). Future studies should also focus on using active RS technologies, such as radio detecting and ranging (Radar) [77,78] and light detection and ranging (LiDAR) [79], for a national yield estimation because of their ability to penetrate clouds and detect a plant’s three-dimensional structural characteristics. Data blending between HSR optical imagery and active RS data (e.g., Radar and LiDAR) [80] warrants further study.

6. Conclusions

Sparse time series of satellite remote sensing, due to LTF and/or cloud contamination, represent one of the main barriers limiting accurate crop yield estimation at regional to national scales. Blending of HSR but LTF images with LSR but HTF images was proposed to increase the temporal resolution and maintain spatial details. In this study, the benefits of blending were tested for crop yield prediction across the Australian wheatbelt. We found that, when time series are gap-free, yield prediction from Landsat is the most accurate on both field and pixel scales. When Landsat time series contain <42% missing values during the growing season, blending is recommended for nationwide crop yield prediction at the 25-m pixel resolution. When Landsat time series contain ≥42% missing observations, MODIS outperforms blending. Across Australia, these recommendations would improve yield estimates by 0.15 t/ha for Western Australia and 0.28 t/ha for eastern Australia on average. By identifying where and when to blend, this work paves the way to more accurate monitoring of biophysical processes and yields, while keeping computational costs low.
