Cohesion Intensive Deep Hashing for Remote Sensing Image Retrieval

Abstract

Recently, the demand for remote sensing image retrieval is growing and attracting the interest of many researchers because of the increasing number of remote sensing images. Hashing, as a method of retrieving images, has been widely applied to remote sensing image retrieval. In order to improve hashing performance, we develop a cohesion intensive deep hashing model for remote sensing image retrieval. The underlying architecture of our deep model is motivated by the state-of-the-art residual net. Residual nets aim at avoiding gradient vanishing and gradient explosion when the net reaches a certain depth. However, different from the residual net which outputs multiple class-labels, we present a residual hash net that is terminated by a Heaviside-like function for binarizing remote sensing images. In this scenario, the representational power of the residual net architecture is exploited to establish an end-to-end deep hashing model. The residual hash net is trained subject to a weighted loss strategy that intensifies the cohesiveness of image hash codes within one class. This effectively addresses the data imbalance problem normally arising in remote sensing image retrieval tasks. Furthermore, we adopted a gradualness optimization method for obtaining optimal model parameters in order to favor accurate binary codes with little quantization error. We conduct comparative experiments on large-scale remote sensing data sets such as UCMerced and AID. The experimental results validate the hypothesis that our method improves the performance of current remote sensing image retrieval.

1. Introduction

1.1. Background

The data set volume of remote sensing images has been expanding rapidly [1,2,3]. Remote sensing images have a wide range of applications including remote sensing scene classification [4] and scene-driven object detection [5]. It is difficult to efficiently find one image with specific content in an extremely large data set. Therefore, effective retrieval based on content has become one important problem in the literature of remote sensing. Content-based image retrieval (CBIR) extracts the content information of images and retrieves them by matching the content information between images. CBIR reduces the process of manual annotation and improves the retrieval efficiency. It has been widely applied in disaster prevention, soil erosion monitoring [6], etc.

As one class of CBIR, hashing is a family of quantization techniques and enables efficient and effective retrieval of target remote sensing images [7]. It quantizes remote sensing images into fixed-length binary codes, which are referred to as hash codes. In hash-code-based retrieval operations, the hash codes are used for efficiently measuring the distance between images, and the images having small distance with the inquiry image are returned as retrieval results. Benefiting from the binary representations, hashing-based image retrieval renders a fast retrieval speed with simple operations. Conventional hashing methods such as locality sensitive hashing (LSH) [8], spectral hashing (SH) [9], and iterative quantization (ITQ) [10] have been applied to various tasks including image retrieval. Luka et al. [11] were among the first to introduce hashing into remote sensing image retrieval by proposing an improved LSH-based image hashing method. Demir et al. [12] developed a kernelized locality sensitive hashing (KLSH) and a supervised hashing model with kernels (KSH) for retrieving remote sensing images. Li et al. [13] proposed an unsupervised partial randomness hashing (PRH) method. Li et al. [14] developed an online hash algorithm which is capable of processing continuously updated image data.

Most of the conventional hashing methods rely on the hand-crafted image features. The hand-craft image features refer to those extracted by hand-craft feature extraction algorithm such as scale-invariant feature transform (SIFT) [15] and GIST [16]. Hand-craft image features are extracted based on image contents, not for a specific task. Hand-crafted image-feature-based image hashing methods hardly satisfy requirements of image retrieval tasks because such features have limited representation capability. Differently from conventional hashing methods, deep-learning-based hashing methods learn hash codes from image deep features, which are extracted by neural networks without human interaction and are, thus, more representative. Recently, researchers have applied deep learning methods to remote sensing field and achieved good performance [17,18]. Specifically, convolutional neural network (CNN)-based hashing schemes [19,20] have been widely used in remote sensing image retrieval.

1.2. Motivation

Straightforwardly applying existing deep learning models to hash code generation cannot sufficiently characterize the sophisticated data metrics concerning large-scale remote sensing data sets. The reasons for this limitation are two-fold. Firstly, data imbalance arises in remote sensing image retrieval. In deep hashing task, the loss is computed with respect to pairs of images. In the training process, each image in the data set is compared with other images to compute the loss. This leads to a problem that the number of image pairs from one common class is far less than those from different classes. This is the data imbalance problem investigated in our work. In this scenario, it is unreasonable to treat images from one common class and those from different class images equally in the loss function. Secondly, the activation functions in most deep neural network models generate continuous outputs and are not suitable to produce hashing codes, which are discrete in nature. The continuous activation induces unexpected error to the final binarization for hashing.

1.3. Contribution

In order to address the above limitations, we develop a cohesion intensive deep hashing (CIDH) model for remote sensing image retrieval. Specifically, we make three contributions. Firstly, we exploit the architecture of the state-of-the-art residual net for developing a novel residual hash net which has effective representational power. Secondly, in order to address the data imbalance problem, we develop a cohesion intensive loss function, which intensifies the intraclass cohesion of hash codes, for effectively training the residual hash net. Specifically, the cohesion intensive loss function makes the hash codes generated by one common class remote sensing images have short Hamming distance. Last but not least, we replace the continuous activation functions by a Heaviside-like function, which outputs binary values and is capable of eliminating the error caused by continuous activation function. Experimental results validate the effectiveness of our CIDH model.

2. Cohesion Intensive Deep Hashing

Let $\left\{(I_i,J_i)\right|i=1,2,\dots ,N\}$ denote a set of remote sensing images, where $J_i$ represents the class label of the remote sensing image $I_i$. These labels are provided by professional organizations. N is the number of images in the data set. We will present a cohesion intensive deep hashing model for converting the remote sensing images into K bit binary codes $\mathit{B}=\left\{b_1,b_{2,}\dots ,b_N\right\}$, where $b_i\in {\{-1,1\}}^K$ is the hash code for the ith remote sensing image.

2.1. Residual Hash Net

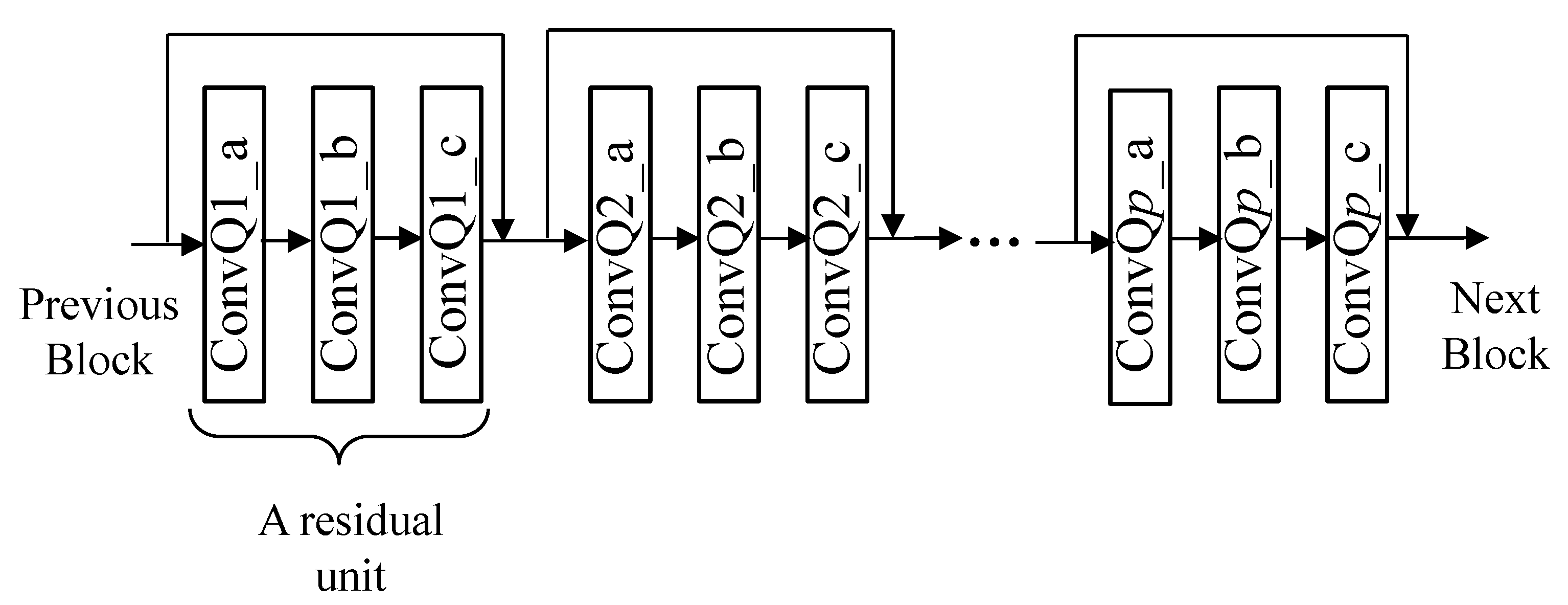

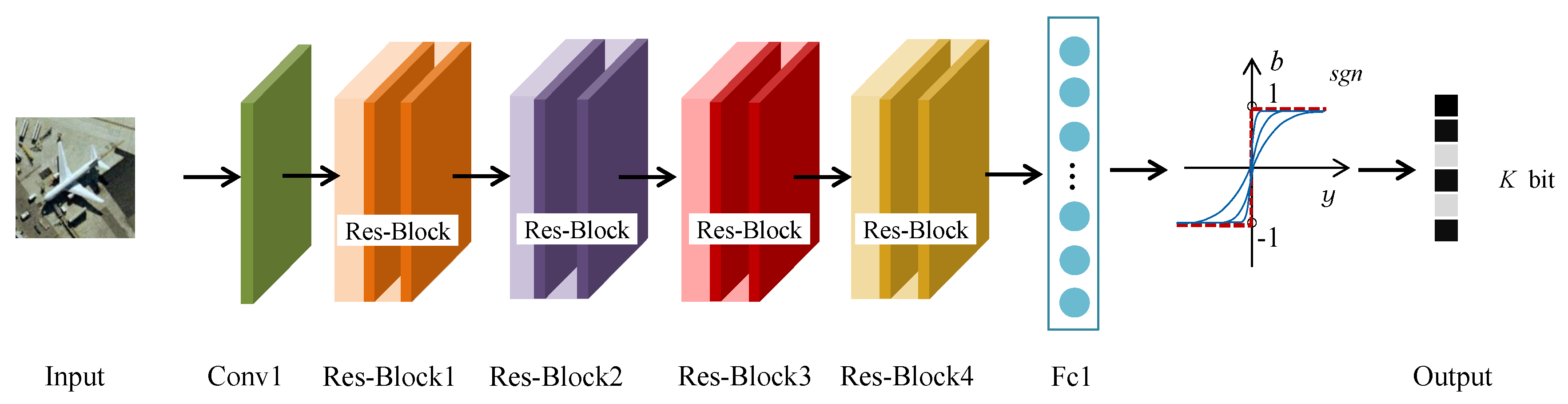

We present a deep net architecture for generating remote sensing image hash codes. Though a deep net tends to lead to a great representational power, gradient vanishing or gradient explosion becomes severe when the net reaches a certain depth. Once the performance on the training set saturates, the net suffers from degradation problems. Residual nets [21] have been proposed to overcome the defects of net deepening by allowing the original output information transmitted directly to immediate layers. In this scenario, the residual net exhibits greater representational power than existing deep nets and achieves state-of-the-art performance for image classification.

However, it is inappropriate to straightforwardly apply the residual net to hashing, because the outputs of the residual net are not binary codes but multiple class labels. For binarizing remote sensing images, we improve the residual net architecture and present a residual hash net whose outputs are binary codes, as shown in Figure 1. Similar to the residual net, our residual hash net consists of a convolutional layer (Conv1), four residual blocks (Res-Block1, Res-Block2, Res-Block3, Res-Block4), and a fully connected layer (Fc1). One residual block has a unique internal structure with several residual units and one residual unit has a certain number of convolutional layers, as shown in Figure 2. Different from the residual net, the fully connected layer of our residual hash net is activated by a Heaviside-like function and outputs K-bit binary codes for hashing. The architecture configuration of the residual hash net is specified in

Table 1. Residual hash net configuration.

Layer	Configuration
Conv1	$\mathbf{7}\times \mathbf{7}$, 64, Stride 2
Res-Block1	$\left[\begin{array}{c}1\times 1,64\\ 3\times 3,64\\ 1\times 1,256\end{array}\right]\times 3,3\times 3max\mathrm{pooling}$
Res-Block2	$\left[\begin{array}{c}1\times 1,128\\ 3\times 3,128\\ 1\times 1,512\end{array}\right]\times 4,3\times 3max\mathrm{pooling}$
Res-Block3	$\left[\begin{array}{c}1\times 1,256\\ 3\times 3,256\\ 1\times 1,1024\end{array}\right]\times 6,3\times 3max\mathrm{pooling}$
Res-Block4	$\left[\begin{array}{c}1\times 1,512\\ 3\times 3,512\\ 1\times 1,2048\end{array}\right]\times 3,3\times 3max\mathrm{pooling}$
Fc1	$\mathrm{K}\mathrm{dimensions},\mathrm{average}\mathrm{pooling}$

. The residual hash net comprehensively exploits the representational power of the residual net for the purpose of hashing remote sensing images.

Most existing deep hashing models use sigmoid as the activation function of the final fully connected layer, and are thus unable to output exact binary codes. Replacing the sigmoid by the Heaviside function is one approach to binary code generation.

However, the Heaviside function is nonlinear and nonconvex, which may cause gradient vanishing in training the net with back propagation. To address this deficiency, we do not simply use the Heaviside function but exploit a Heaviside-like function. The gradualness optimization method [22] is used for approximating the Heaviside function. Specifically, we use the continuous function tanh($\tau y$) with a positive scaling parameter $\tau$ and the Fc1 output y for Heaviside approximation. As $\tau$ increases, tanh($\tau y$) gradually approaches sgn(y), as shown in Figure 3. The approximation is formulated as follows:

$$\underset{\tau \to \infty }{lim}tanh\left(\tau y\right)=\mathrm{sgn}\left(y\right)=\left\{{}_{-1,y<0.}^{+1,y\ge 0;}\right.$$

(1)

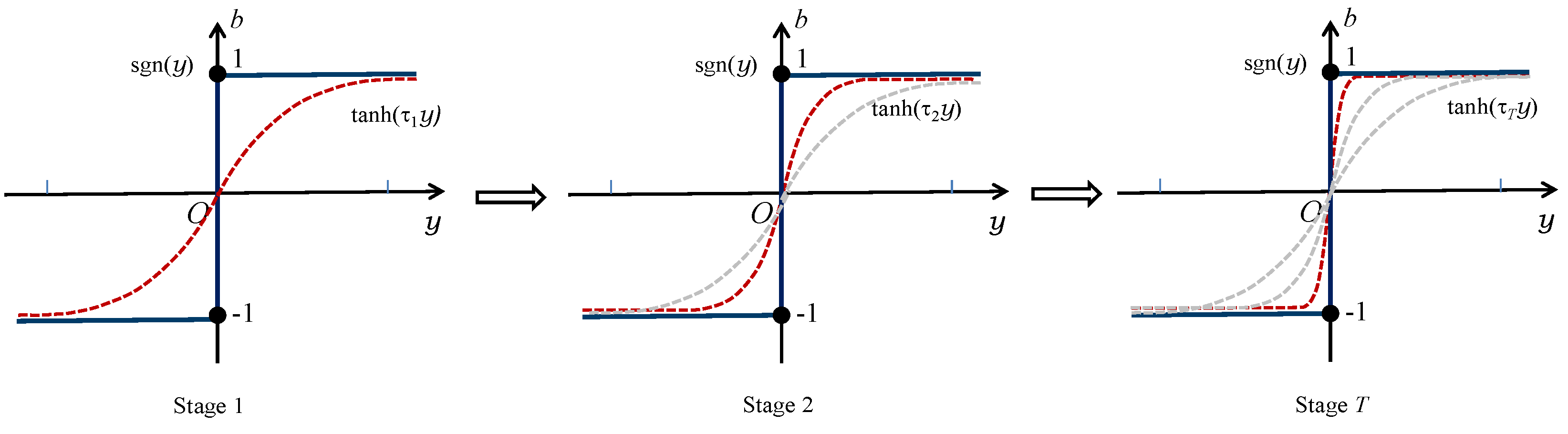

We commence the training procedure of the residual hash net by setting ${\tau }_1=1$ and training the network up to convergence. This accomplishes stage 1 in Figure 3. We then repetitively train the net up to convergence with respect to an increasing $\tau$. This drives the Heaviside-like function to vary from stage 2 to stage T in Figure 3. Consequently, the residual hash net outputs accurate K bit hash codes of an image with little quantization error. We refer to the residual hash net along with the training strategy subject to the cohesion intensive loss function as the cohesion intensive deep hashing model.

2.2. Cohesion Intensive Loss Function

We describe how to develop loss functions for training the residual hash net presented in Section 2.1. For the image data set $\left\{(I_i,J_i)\right|i=1,2,\dots ,N\}$, we define $\mathit{C}={\left\{c_{ij}\right\}}^{N\times N}$ as a common class indicator matrix. Specifically, for the ith and jth images, if $J_i=J_j$, $c_{ij}$ is 1 and 0 otherwise. The inner product ${b_i}^T{b}_j$ is related to the Hamming distance. A big ${b_i}^T{b}_j$ value reflects a small Hamming distance. The conditional $P\left(c_{ij}\right|b_i,b_j)$ of the common class indicator $c_{ij}$ given the hash code pair $\{b_i,b_j\}$ is modeled in terms of multinomial logistic regression as follows:

$$\begin{array}{c}\hfill P\left(c_{ij}\right|b_i,b_j)=\frac{{\left(e^{\lambda {b_i}^T{b}_j}\right)}^{c_{ij}}}{1+e^{\lambda {b_i}^T{b}_j}},c_{ij}\in \{0,1\}.\end{array}$$

(2)

The parameter $\lambda$ is a normalized parameter to control the inner product value of $b_i$ and $b_j$ in the interval (−1, 1) when generating different length hash codes. In experiments, lambda is empirically set to be 1/K, where K is the length of hash codes. It does not affect the weight between different image pairs. When $I_i$ and $I_j$ are similar, a large value of ${b_i}^T{b}_j$ is obtained, which leads to a large value of $P(c_{ij}=1|b_i,b_j)$ and vice versa.

Motivated by the continuation setting [22] for enhancing the intraclass similarity, we introduce a weight $m_{ij}$ for a pair of remote sensing images $I_i$ and $I_j$. Suppose that there are totally $N_i$ images belonging to the class $J_i$, where the image $I_i$ is from. The weight $m_{ij}$ between $I_i$ and $I_j$ is given as follows:

$$\begin{array}{c}\hfill m_{ij}=\left\{{}_{N/(N-N_i),I_j\notin J_i.}^{N/N_i,I_j\in J_i;}\right.\end{array}$$

(3)

We formulate a weighted likelihood function $lnP\left(C\right|B)$ as follows:

$$lnP\left(C\right|B)=\sum _{i=1}^N\sum _{j=1}^N{m}_{ij}lnP\left(c_{ij}\right|b_i,b_j).$$

(4)

Based on (2) and (4), we have the loss function for training the residual hash net as follows:

$$\underset{\Omega }{min}\sum _{i=1}^N\sum _{j=1}^N{m}_{ij}(log(1+e^{\lambda \left({b_i}^T{b}_j\right)})-\lambda c_{ij}\left({b_i}^T{b}_j\right)),$$

(5)

where $\Omega$ represents parameters of the residual hash net. The residual hash net is trained subject to minimizing (5) by updating $\Omega$. The weighting scheme enables the image similarities within one common class to play a more dominant role than those from different classes in the loss function. Specifically, the weight $m_{ij}$ in (5) increases the loss for intraclass similar images. We refer to the loss function (5) as a cohesion intensive loss function. In a remote sensing data set, it is very common that the target image belongs to a class which only has a small proportion of images in the data set. This requires a retrieval algorithm to look for similar images from a big amount of almost irrelevant images. The data imbalance poses a big challenge for remote sensing image retrieval. The cohesion intensive loss function in turn neutralizes the data imbalance problem in terms of enhancing intraclass similarities.

3. Experimental Results

3.1. Experimental Setup

Land cover refers to the observed biological or physical cover on the earth’s surface (http://www.fao.org/3/x0596e/X0596e01e.htm). Strictly speaking, land cover should be limited to describing vegetation and manufactured cover. For example, Copernicus CORINE (https://land.copernicus.eu/pan-european/corine-land-cover) consists of an inventory of land cover in 44 classes. It has a wide variety of applications in many domains such as environment, agriculture, transport, and spatial planning. We use the two land-cover benchmark data sets, i.e., UCMerced and AID, in our work for experimental comparison. As commonly used remote sensing data sets for experimental evaluation, these two data sets comprise a number of geographic categories including natural and man-made land-cover. Experiments on these two data sets validate the effectiveness of the proposed CIDH in distinguishing a variety of geographical categories.

The UCMerced [23] data set was produced by the University of California. The data are images manually extracted from the US national maps of city areas, which were made by the US Geological Survey. It contains 21 land-cover classes and each land-cover class includes 100 images. Each image has 256×256 pixels. The image has a pixel resolution of one foot. In order to augment the UCMerced data set for extensive experimental evaluations, we rotate the original image by ${90}^{\circ }$, ${180}^{\circ }$, and ${270}^{\circ }$, separately. The size of the UCMerced data set is then increased to 8400 images. We use 7400 images as training data and 1000 images as inquiry data. The data augmentation (e.g., rotation and flip) is very useful to explore the representational power of deep models for remote sensing image processing. It has been widely accepted that a deep model trained by an augmented training data set outperforms that by the original training data set for general remote sensing image analysis tasks [17].

The AID [24] data set is a large-scale remote sensing image data set produced by Wuhan University in 2017. Images are collected from the Google Earth imagery, and labeled by specialists in the field of remote sensing image interpretation. Each image has 600×600 pixels. It has 30 classes of high-resolution images, and 200∼400 images for each class. We use 8000 images as training data and 2000 images as test data. Some examples of UCMerced and AID are shown in Figure 4.

Our CIDH model is implemented based on the open-source caffe framework (http://caffe.berkeleyvision.org/). We employ the residual net architecture [21], fine-tune a pretrained residual net model, and train a new layer Fc1 to produce hash codes. The metrics for evaluating retrieval accuracy are the mean average precision (MAP), the precision-recall (P-R) curve, and t-distributed Stochastic Neighbor Embedding (t-SNE) [25].

3.2. Results and Analysis

We compare the retrieval performance of CIDH with several shallow hashing methods, i.e., partial randomness hashing (PRH) [13], kernel-based supervised hashing (KSH) [12], supervised discrete hashing (SDH) [26], and column sampling-based discrete supervised hashing (COSDISH) [27]. The above methods are based on GIST features. In order to illustrate the advantages of the proposed CIDH model, we also compare it with the existing deep neural network models, including deep hashing network (DHN) [28], deep supervised hashing (DSH) [29], and deep hashing neural networks (DHNNs) [19]. The comparison deep hashing methods except DHNNs are reimplemented with open source code provided by the authors. All the parameter values are set to be those optimized by the original authors, resulting in favorable results expected by the authors. Additionally, we make comparison with the experimental results of DHNNs reported in the original paper. In order to make fair comparison, we follow the experimental settings of DHNNs. Especially, we set our data augmentation configuration to be the same with the state-of-the-art DHNNs, and the common experimental setting guarantees a fair comparison. The results are shown in

Table 2. Mean average precision (MAP) and average retrieval time (s) of comparison methods on UCMerced data set.

Method	GIST		PRH		KSH	COSDISH	SDH	DSH	DHN	DHNNs	CIDH
Bits	mAP	Time	mAP	Time	mAP	mAP	mAP	mAP	mAP	mAP	mAP
K = 32	0.4672	0.022907	0.3361	0.000846	0.4609	0.3235	0.5943	0.6327	0.6768	0.9396	0.9846
K = 64	0.4672	0.022907	0.3667	0.000927	0.5049	0.3631	0.6551	0.6831	0.7423	0.9718	0.9853
K = 96	0.4672	0.022907	0.4015	0.000971	0.5114	0.3840	0.6809	0.7342	0.7867	0.9762	0.9858

.

In order to validate the gain of hashing methods in retrieval time, we have compared the efficiency of hashing-based retrieval and a hand-craft feature-based retrieval method. We use GIST [16] as the comparison hand-craft feature-based method. The GIST feature for one image is a 512-dimensional float value vector. In addition, we extract the GIST features and generate hash codes for each image in the database, separately. We measure the time of computing the distance between pairs of images, in terms of GIST features and hash codes, separately. The retrieval based on GIST features requires Euclidean distance with float value manipulations and that, based on hash codes, requires Hamming distance with binary operations. The retrieval time is shown in Table 2, where Time represents average retrieval time of one image. We observe that about 100 × Time is reduced by hashing retrieval instead of float value retrieval. The experiments validate the gain of hashing methods over feature-based retrieval methods in retrieval time.

PRH, KSH, SDH, and COSDISH are hash algorithms based on hand-craft features, and the others are hash algorithms based on deep neural networks. We observe in Table 2 that the performance of the hash algorithms based on deep neural networks is far superior to those based on hand-craft features, and our CIDH achieves the best performance. This is because the deep hash algorithms couple the feature extraction and hashing, encouraging these two processes to adapt to each other. As the latest remote sensing image retrieval hashing method, DHNNs use the uniform loss weights and thus does not address the data-imbalance problem. Our CIDH exploits a specific weighting strategy to balance the loss of different image pairs. The specific weights make the image loss of the common class larger than that of different classes. Therefore, the hash codes generated by the common class of images are encouraged to be closer. This enables our model to outperform DHNNs.

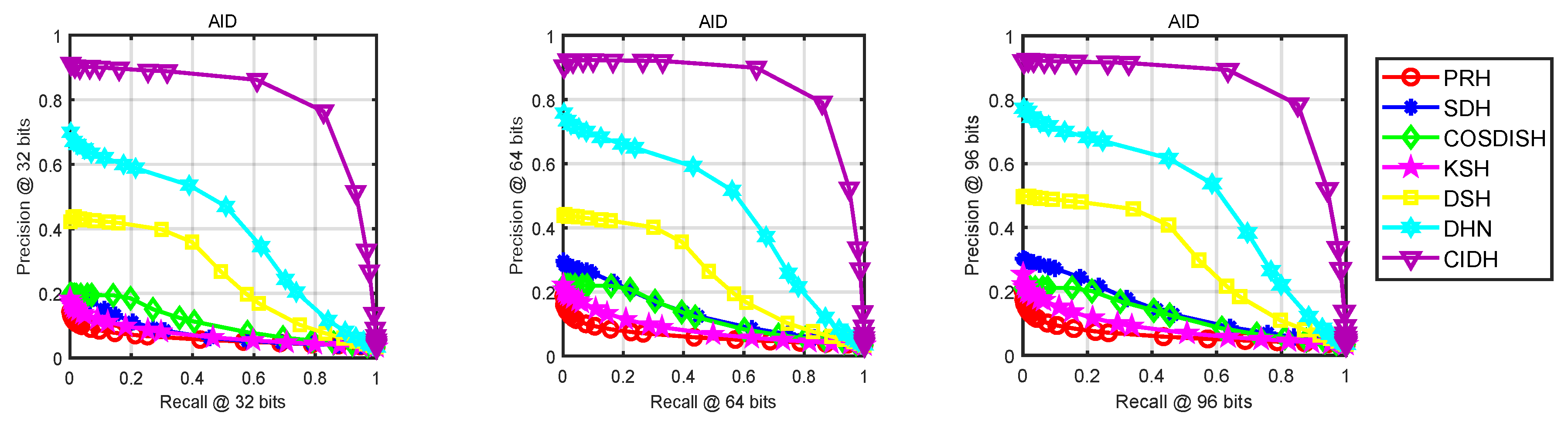

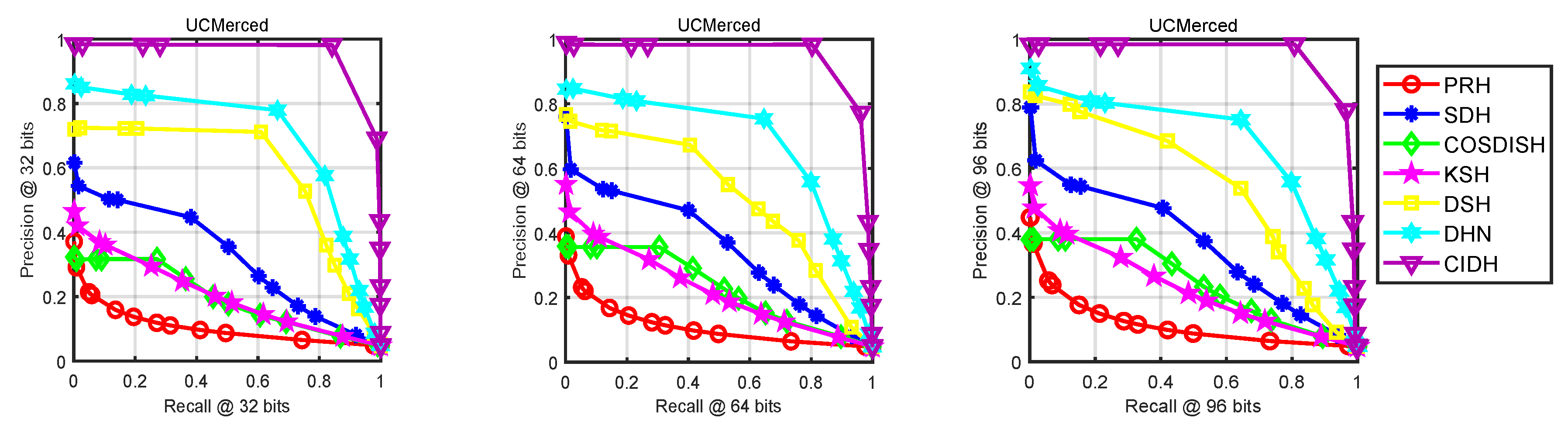

In order to further illustrate the performance results of remote sensing image retrieval, we draw the P-R curves of CIDH and competing deep neural network approaches. Here, both the coverage of retrieval results and the ordering of retrieval results are considered. Figure 5 shows the P-R curves of the methods based on different hash code lengths. At the same recall rate, the accuracy of our method is significantly higher than the three competitor methods. Similarly, the recall rate of our method is significantly higher than the other methods at the same accuracy rate. As shown in Figure 5, CIDH is superior to other methods in terms of both accuracy and recall.

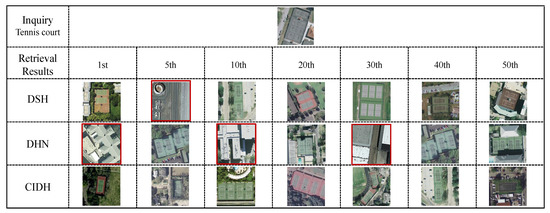

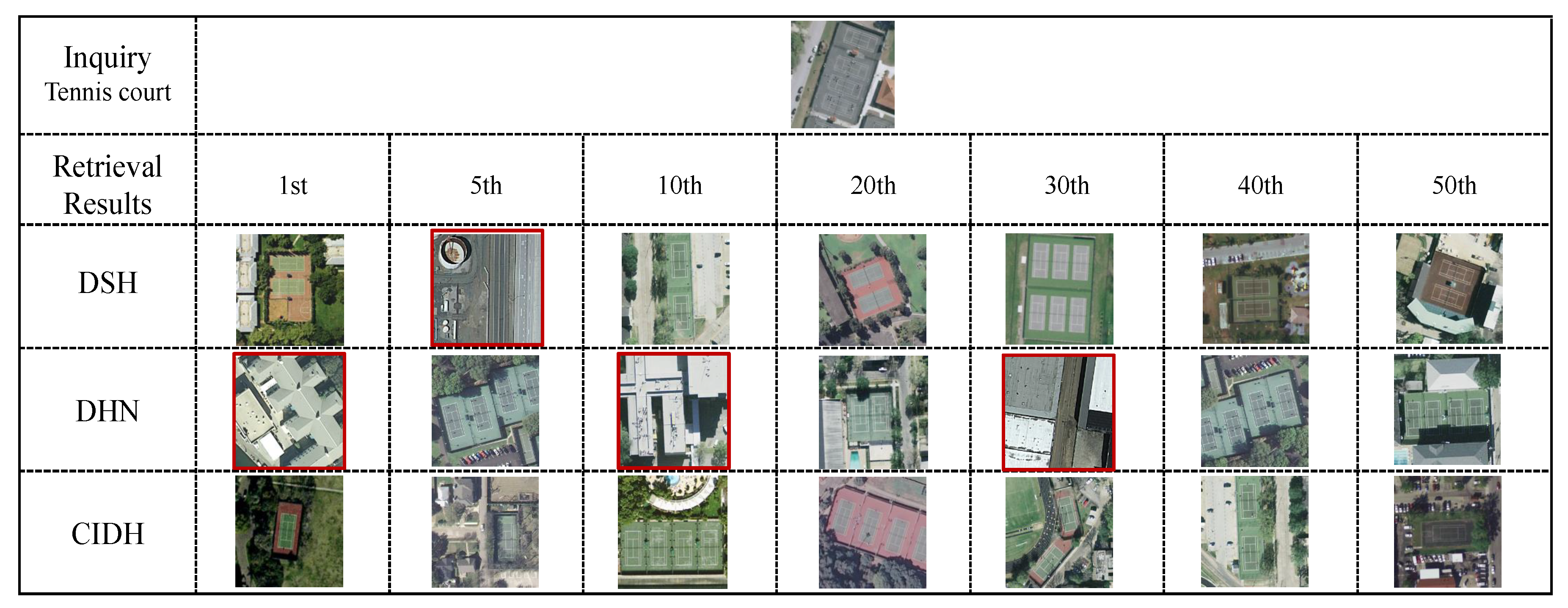

In addition, we present a visual comparison of deep hashing methods in Figure 6—the 1st, 5th, 10th, 20th, 30th, 40th, and 50th retrieval results are shown. In order to demonstrate the cohesion intensive properties of CIDH, a tennis court image is used as the inquiry image. The appearance of such images is very similar to other classes (such as buildings), and it is easy for retrieval algorithms to fail. It is observed that DHN and DSH retrieve several false images. On the other hand, our cohesion intensive loss function ensures that the hash codes of different images within one class are as similar as possible. In addition, the tennis court images with different rotations are correctly retrieved by our CIDH. This validates again that the retrieval result of CIDH is significantly better than other methods.

We also perform experiments on the AID data set.

Table 3. MAP and average retrieval time (s) of comparison methods on AID data set.

Method	GIST		PRH		KSH	COSDISH	SDH	DSH	DHN	DHNNs	CIDH
Bits	mAP	Time	mAP	Time	mAP	mAP	mAP	mAP	mAP	mAP	mAP
K = 32	0.2439	0.040966	0.1816	0.000801	0.2164	0.1988	0.2444	0.4191	0.6953	-	0.8780
K = 64	0.2439	0.040966	0.2051	0.000872	0.2492	0.2245	0.3285	0.4585	0.7464	-	0.9043
K = 96	0.2439	0.040966	0.2199	0.000946	0.2599	0.2158	0.2599	0.4636	0.7682	-	0.9245

shows the results on AID with different hash code lengths. The number of images in each class in the AID data set is different from one another. Our cohesion intensive loss addresses this variability, and our CIDH performs the best on AID data set. The P-R curves on AID (shown in Figure 7) validate that our method achieves superior performance.

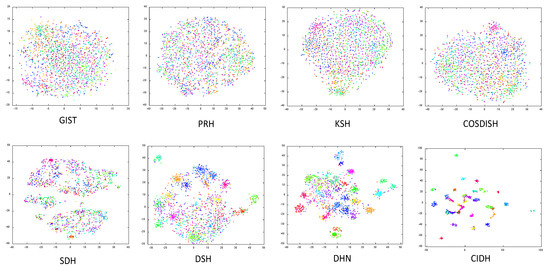

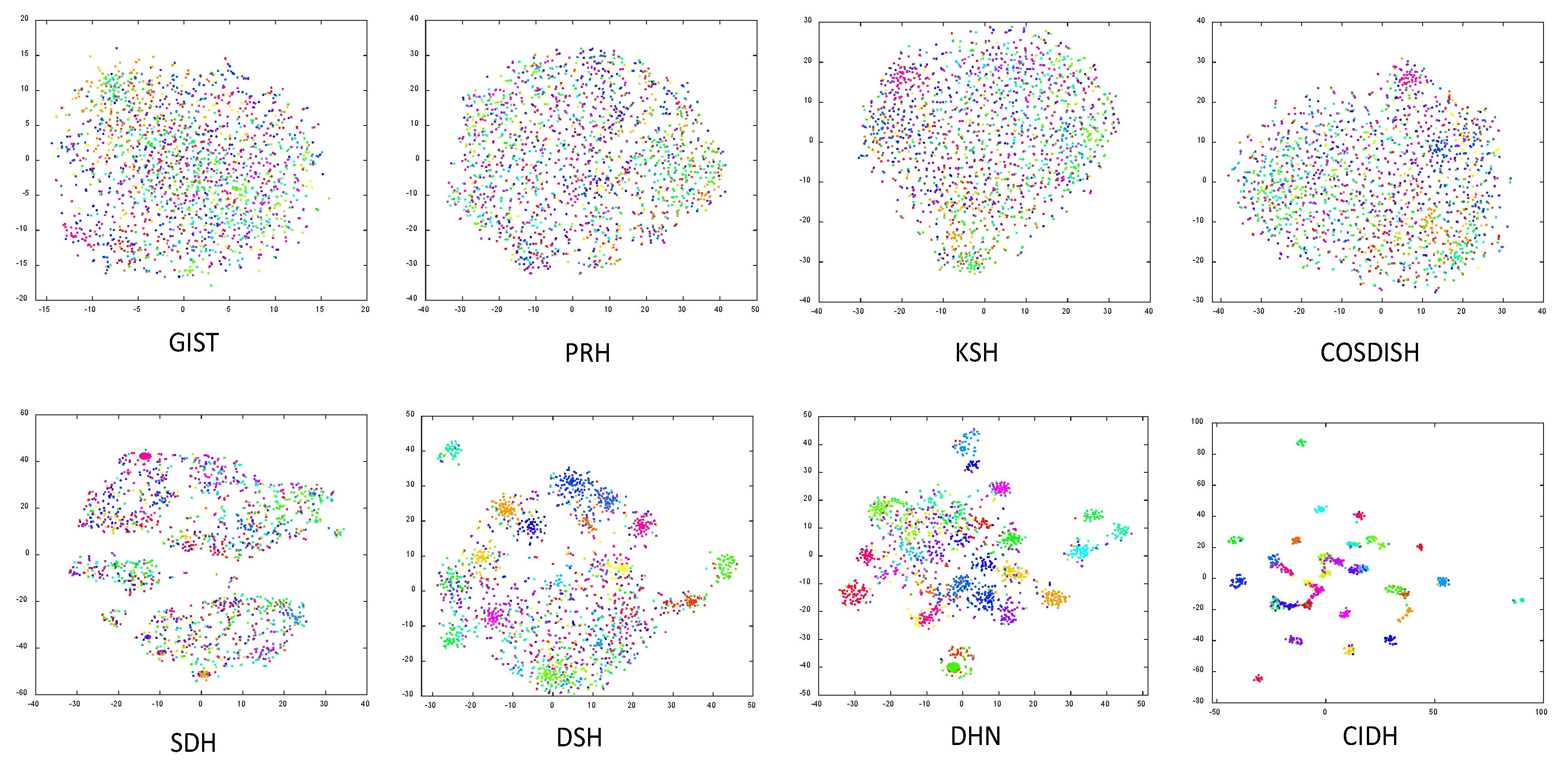

In addition, in order to demonstrate the cohesion enhancement proposed by CIDH, we visualize the t-SNE of the hash codes generated by comparison methods on the AID data set in Figure 8. As we have described above, the AID data set not only contains more geographical categories than the UCMerced data set, but also each category includes a different number of images. Thus, it is challenging to cohere hash codes from the same class of images. According to Figure 8, we observe that the hash codes learning by CIDH has discriminative distribution, and each category is well separated. However, the hash codes learning by comparison methods do not have such discriminative distribution and a considerable number of different category hash codes are mixed up. The t-SNE results suggest that our CIDH better brings together hash codes generated by the same category images than comparison methods.

The above experimental results verify that our method has superior performance on large-scale remote sensing data sets.

We have released our code for public evaluation (https://github.com/lrhan/CIDH-caffe).

4. Conclusions

We have developed a cohesion intensive deep hashing model for remote sensing image retrieval. We have initially developed a residual hash net for binarizing remote sensing images. The proposed residual hash net learns accurate binary hash codes by optimizing a novel cohesion intensive loss function. This ensures that the hash codes of different images within one class are as similar as possible. The residual hash net is then effectively trained, subject to gradualness optimization, which favors accurate binary codes with little quantization error. We have conducted comparative experiments on extensively large remote sensing data sets such as UCMerced and AID. The experiments clearly show the effectiveness of the proposed model compared with other state-of-the-art models.

The visual features for remote sensing images from different categories are quite different. For example, the urban views have rich visual features while the rural landscapes have rare visual features. Most deep learning models address these differences in an indiscriminative manner. It is worth improving the CIDH by considering different visual features from different categories.
