# Improving the Performance of Galileo Uncombined Precise Point Positioning Ambiguity Resolution Using Triple-Frequency Observations

^{1}

^{2}

^{3}

^{4}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Methods

#### 2.1. UDUC-PPP Observation Equation

#### 2.2. Extra-Wide-Lane Ambiguity Resolution

#### 2.3. Wide-Lane Ambiguity Resolution

#### 2.4. Narrow-Lane Ambiguity Resolution

#### 2.5. Comparison of Dual- and Triple-Frequency UDUC-PPP AR

## 3. Experiment and Results

#### 3.1. Data Processing Strategy and Original UPD Estimation

#### 3.2. Performance Comparison of Dual- and Triple-Frequency Float PPP

#### 3.3. Performance Comparison of Dual- and Triple-Frequency PPP AR

## 4. Discussion

## 5. Conclusions

## Author Contributions

## Funding

## Acknowledgments

## Conflicts of Interest

## Appendix A. Linear Combinations of the Original Measurements Theory

## References

- Bisnath, S.; Gao, Y. Current State of Precise Point Positioning and Future Prospects and Limitations. Int. Assoc. Geod. Symp.
**2008**, 133, 615–623. [Google Scholar] - Ge, M.; Gendt, G.; Rothacher, M.; Shi, C.; Liu, J. Resolution of GPS carrier-phase ambiguities in Precise Point Positioning (PPP) with daily observations. J. Geod.
**2008**, 82, 389–399. [Google Scholar] [CrossRef] - Collins, P.; Bisnath, S.; Lahaye, F.; Héroux, P. Undifferenced GPS Ambiguity Resolution Using the Decoupled Clock Model and Ambiguity Datum Fixing. J. Inst. Navig.
**2010**, 57, 123–135. [Google Scholar] [CrossRef] - Laurichesse, D.; Mercier, F.; Berthias, J.-P.; Broca, P.; Cerri, L. Integer Ambiguity Resolution on Undifferenced GPS Phase Measurements and Its Application to PPP and Satellite Precise Orbit Determination. J. Inst. Navig.
**2009**, 56, 135–149. [Google Scholar] [CrossRef] - Li, X.; Ge, M.; Dousa, J.; Wickert, J. Real-time precise point positioning regional augmentation for large GPS reference networks. GPS Solut.
**2013**, 18, 61–71. [Google Scholar] [CrossRef] - Forssell, B.; Martin-Neira, M.; Harrisz, R.A. Carrier phase ambiguity resolution in GNSS-2. In Proceedings of the 10th International Technical Meeting of the Satellite Division of the Institute of Navigation (ION GPS 1997), Kansas, MO, USA, 16–19 September 1997; pp. 1727–1736. [Google Scholar]
- Vollath, U.; Birnbach, S.; Landau, H.; Fraile-Ordoñez, J.M.; Martin-Neira, M. Analysis of Three-Carrier Ambiguity Resolution (TCAR) Technique for Precise Relative Positioning in GNSS-2. In Proceedings of the 11th International Technical Meeting of the Satellite Division of The Institute of Navigation (ION GPS 1998), Nashville, TN, USA, 15–18 September 1998; pp. 417–426. [Google Scholar]
- De Jonge, P.; Teunissen, P.; Jonkman, N.; Joosten, P. The distributional dependence of the range on triple frequency GPS ambiguity resolution. In Proceedings of the National Technical Meeting of The Institute of Navigation, Anaheim, CA, USA, 26–28 January 2000; Volume 5, pp. 605–612. [Google Scholar]
- Hatch, R.; Jung, J.; Enge, P.; Pervan, B. Civilian GPS: The Benefits of Three Frequencies. GPS Solut.
**2000**, 3, 1–9. [Google Scholar] [CrossRef] - Werner, W.; Winkel, J. TCAR and MCAR options with Galileo and GPS. In Proceedings of the 16th International Technical Meeting of the Satellite Division of The Institute of Navigation (ION GPS/GNSS), Portland, OR, USA, 9–12 September 2003; pp. 790–800. [Google Scholar]
- Feng, Y. GNSS three carrier ambiguity resolution using ionosphere-reduced virtual signals. J. Geod.
**2008**, 82, 847–862. [Google Scholar] [CrossRef] - Li, B.; Feng, Y.; Shen, Y. Three carrier ambiguity resolution: distance-independent performance demonstrated using semi-generated triple frequency GPS signals. GPS Solut.
**2009**, 14, 177–184. [Google Scholar] [CrossRef] - Tang, W.; Deng, C.; Shi, C.; Liu, J. Triple-frequency carrier ambiguity resolution for Beidou navigation satellite system. GPS Solut.
**2013**, 18, 335–344. [Google Scholar] [CrossRef] - Zhao, Q.; Dai, Z.; Hu, Z.; Sun, B.; Shi, C.; Liu, J. Three-carrier ambiguity resolution using the modified TCAR method. GPS Solut.
**2014**, 19, 589–599. [Google Scholar] [CrossRef] - Zhang, X.; He, X. Performance analysis of triple-frequency ambiguity resolution with BeiDou observations. GPS Solut.
**2015**, 20, 269–281. [Google Scholar] [CrossRef] - Geng, J.; Bock, Y. Triple-frequency GPS precise point positioning with rapid ambiguity resolution. J. Geod.
**2013**, 87, 449–460. [Google Scholar] [CrossRef] - Liu, T.; Wang, N.; Tan, B.; Chen, Y.; Yuan, Y.; Zhang, B. Multi-GNSS precise point positioning (MGPPP) using raw observations. J. Geod.
**2016**, 91, 253–268. [Google Scholar] [CrossRef] - Wang, K.; Khodabandeh, A.; Teunissen, P.J.G. Five-frequency Galileo long-baseline ambiguity resolution with multipath mitigation. GPS Solut.
**2018**, 22, 75. [Google Scholar] [CrossRef] - Odijk, D.; Zhang, B.; Khodabandeh, A.; Odolinski, R.; Teunissen, P.J.G. On the estimability of parameters in undifferenced, uncombined GNSS network and PPP-RTK user models by means of S-system theory. J. Geod.
**2016**, 90, 15–44. [Google Scholar] [CrossRef] - Gu, S.; Lou, Y.; Shi, C.; Liu, J. BeiDou phase bias estimation and its application in precise point positioning with triple-frequency observable. J. Geod.
**2015**, 89, 979–992. [Google Scholar] [CrossRef] - Li, P.; Zhang, X.; Ge, M.; Schuh, H. Three-frequency BDS precise point positioning ambiguity resolution based on raw observables. J. Geod.
**2018**, 92, 1357–1369. [Google Scholar] [CrossRef] - Teunissen, P.J.G. The least-squares ambiguity decorrelation adjustment: a method for fast GPS integer ambiguity estimation. J. Geod.
**1995**, 70, 65–82. [Google Scholar] [CrossRef] - Zhang, B.; Chen, Y.; Yuan, Y. PPP-RTK based on undifferenced and uncombined observations: theoretical and practical aspects. J. Geod.
**2018**, 1–14. [Google Scholar] [CrossRef] - Teunissen, P.J.G.; Joosten, P.; Tiberius, C. A comparison of TCAR, CIR and LAMBDA GNSS ambiguity resolution. In Proceedings of the 15th International Technical Meeting of the Satellite Division of the Institute of Navigation (ION GPS 2002), Portland, OR, USA, 24–27 September 2002; pp. 2799–2808. [Google Scholar]
- Guo, F.; Zhang, X.; Wang, J.; Ren, X. Modeling and assessment of triple-frequency BDS precise point positioning. J. Geod.
**2016**, 90, 1223–1235. [Google Scholar] [CrossRef] - Hatch, R. The synergism of GPS code and carrier measurement. In Proceedings of the Third International Geodetic Symposium Satellite Doppler Positioning, La Cruces, NM, USA, 8–12 February 1982; pp. 1213–1232. [Google Scholar]
- Melbourne, W.G. The Case for Ranging in GPS-based Geodetic Systems. In Proceedings of the 1st International Symposium on Precise Positioning with the Global Positioning System, Rockville, MD, USA, 15–19 April 1985; pp. 373–386. [Google Scholar]
- Wübbena, G. Software Developments for Geodetic Positioning with GPS using TI-4100 Code and Carrier Measurements. In Proceedings of the 1st International Symposium on Precise Positioning with the Global Positioning System, Rockville, MD, USA, 15–19 April 1985; pp. 403–412. [Google Scholar]
- Innovation: Instantaneous Centimeter-Level Multi-Frequency Precise Point Positioning. Available online: https://www.gpsworld.com/innovation-instantaneous-centimeter-level-multi-frequency-precise-point-positioning/ (accessed on 6 February 2019).
- Saastamoinen, J. Contributions to the theory of atmospheric refraction – Part II. Refraction corrections in satellite geodesy. Bull. Géod.
**1973**, 47, 13–34. [Google Scholar] [CrossRef] - Petit, G.; Luzum, B. IERS Conventions (2010); IERS technical note No. 36; Publisher of the Federal Agency for Cartography and Geodesy: Frankfurt am Main, Germany, 2010; p. 179. [Google Scholar]
- Wu, J.T.; Wu, S.C.; Hajj, G.A.; Bertiger, W.I.; Lichten, S.M. Effects of antenna orientation on GPS carrier phase. Manuscr. Geod.
**1993**, 18, 91–98. [Google Scholar] - Wang, J.; Feng, Y. Reliability of partial ambiguity fixing with multiple GNSS constellations. J. Geod.
**2012**, 87, 1–14. [Google Scholar] [CrossRef] - Li, P.; Zhang, X. Precise Point Positioning with Partial Ambiguity Fixing. Sensors
**2015**, 15, 13627–13643. [Google Scholar] [CrossRef] [PubMed]

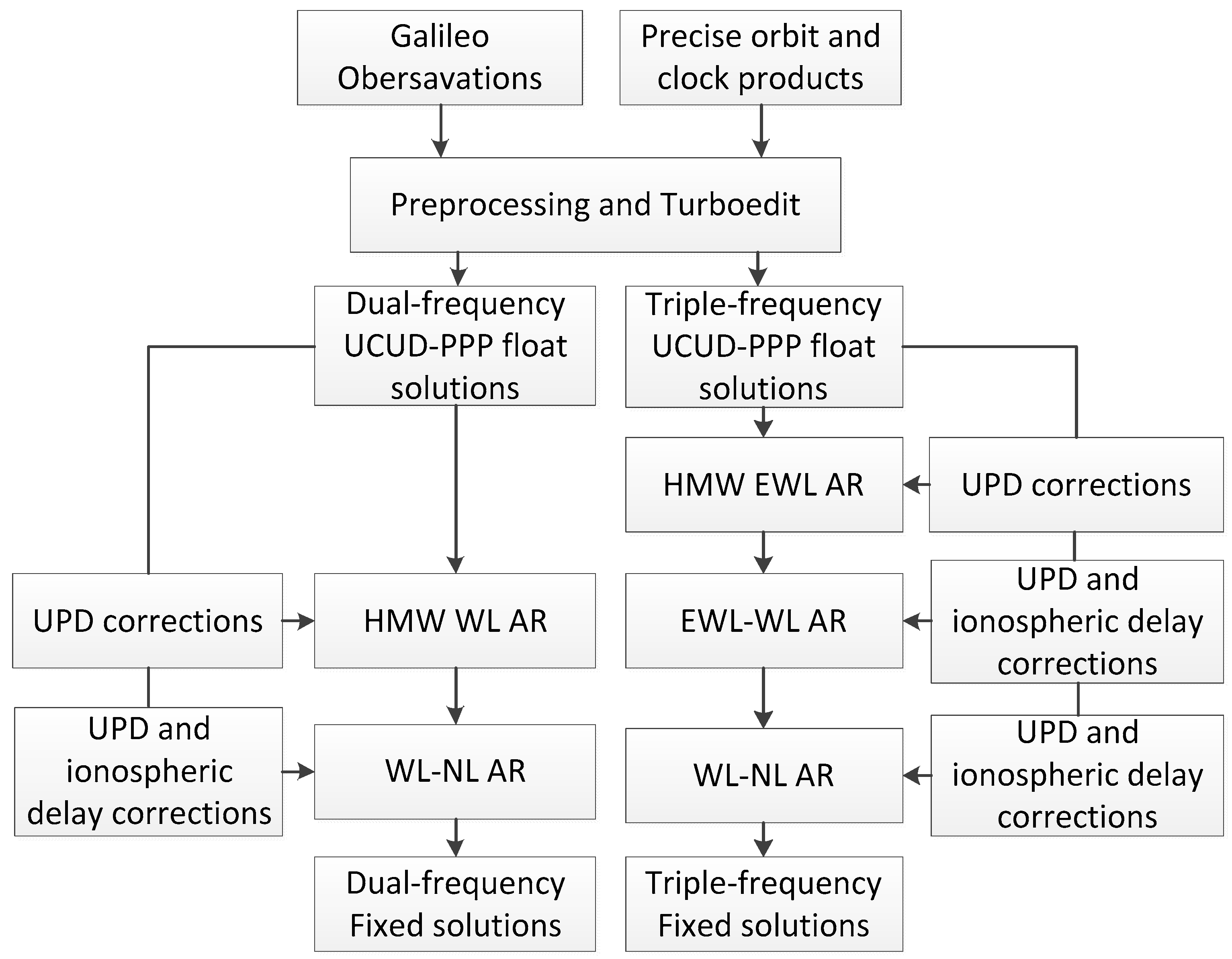

**Figure 1.**A flowchart of the dual- and triple-frequency un-differenced and uncombined precise point positioning (UCUD-PPP) ambiguity resolution.

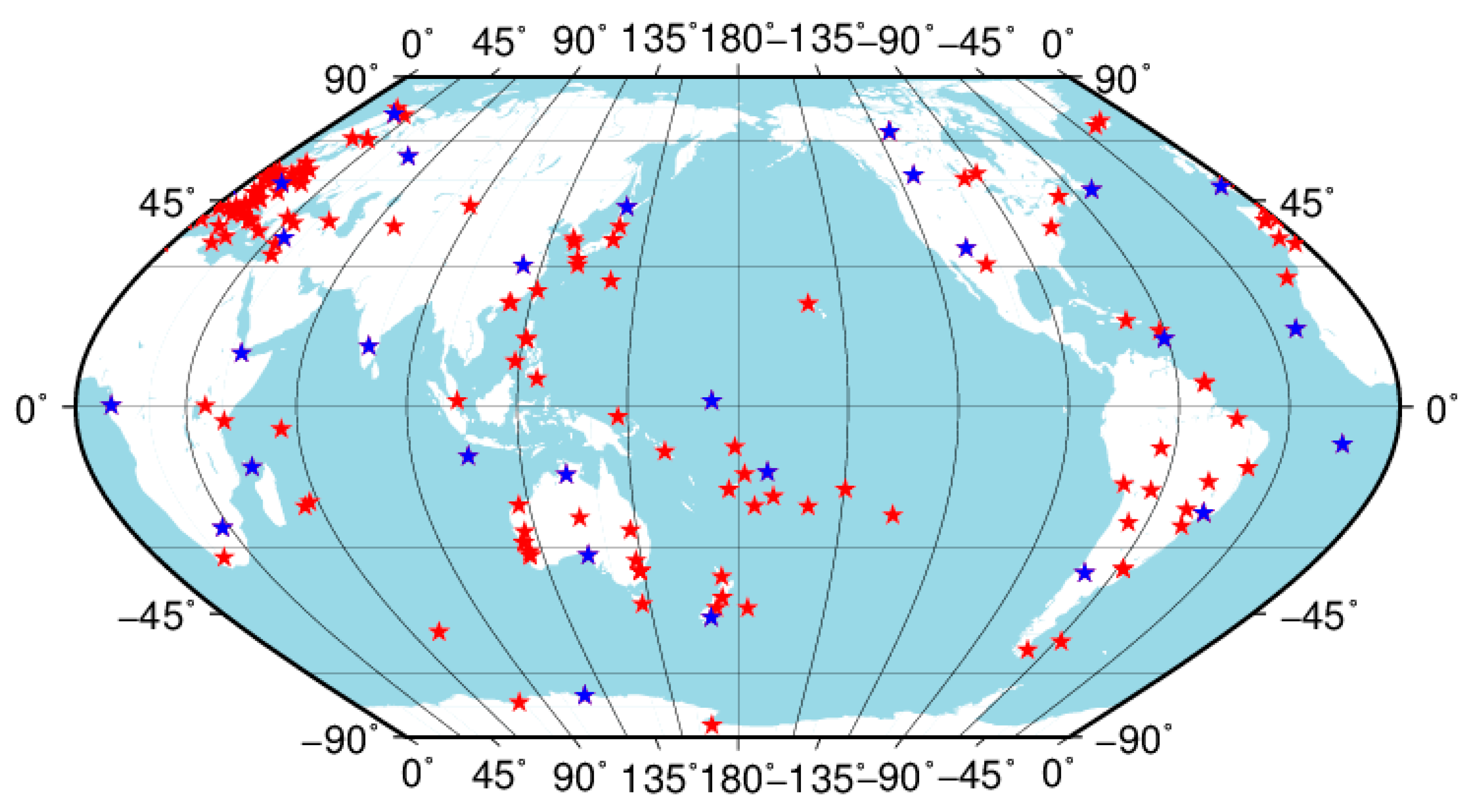

**Figure 2.**The distribution of the Galileo reference network and user stations. The red stars denote the reference stations for estimating the uncalibrated phase delays (UPDs); the blue stars denote the user stations for testing the performance of PPP.

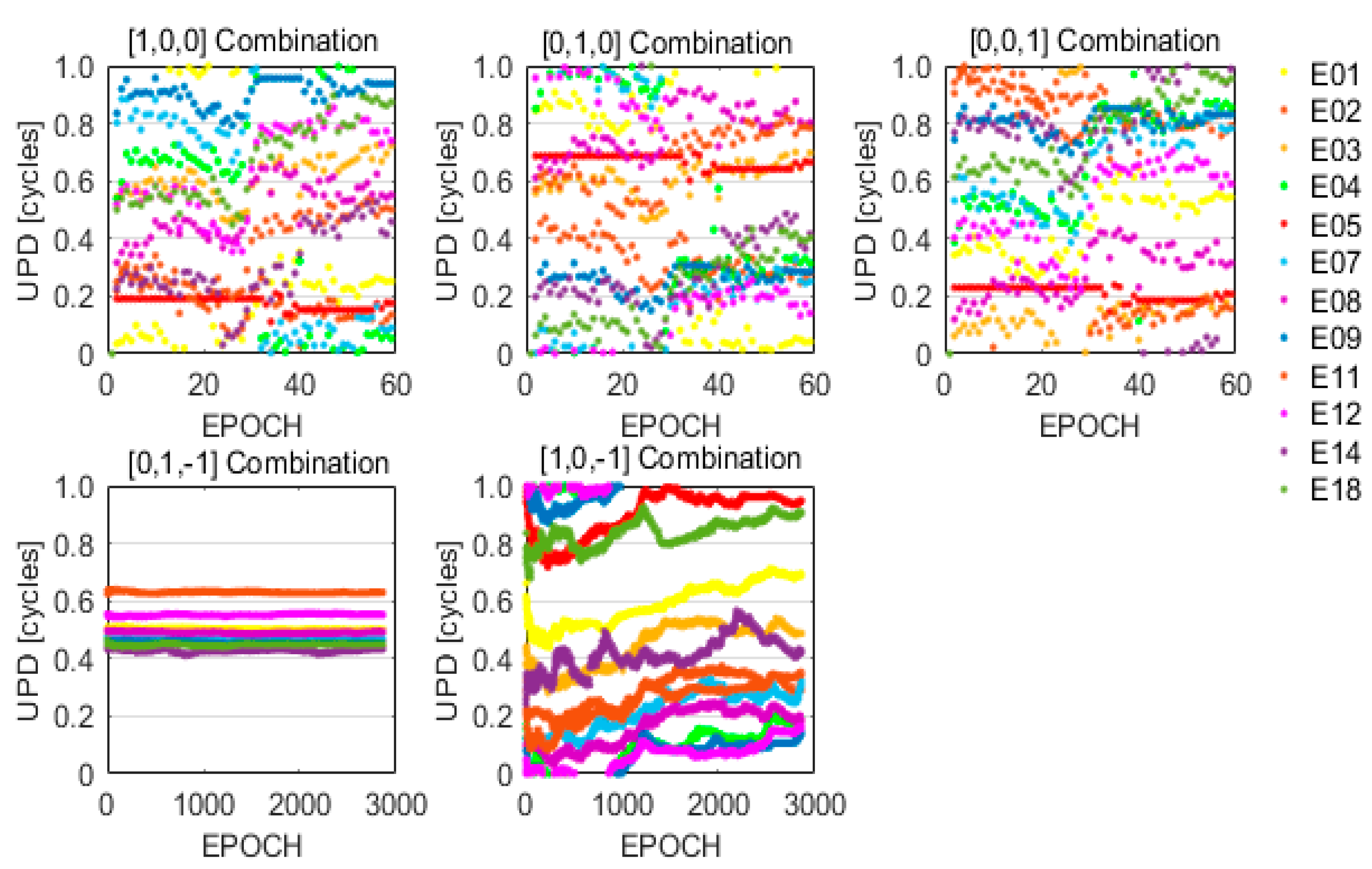

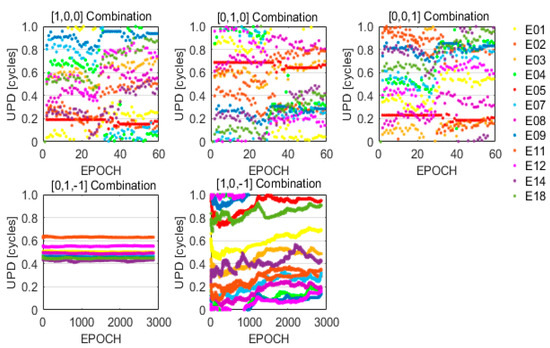

**Figure 3.**The time series of UPDs for each epoch on day of year (DOY) 201, 2018. (1, 0, 0), (0, 1, 0) and (0, 0, 1) UPD denote the original UPDs of Galileo E1, E5a and E5b signals, respectively. (0, 1, −1) and (1, 0, −1) denote Galileo EWL and WL UPDs.

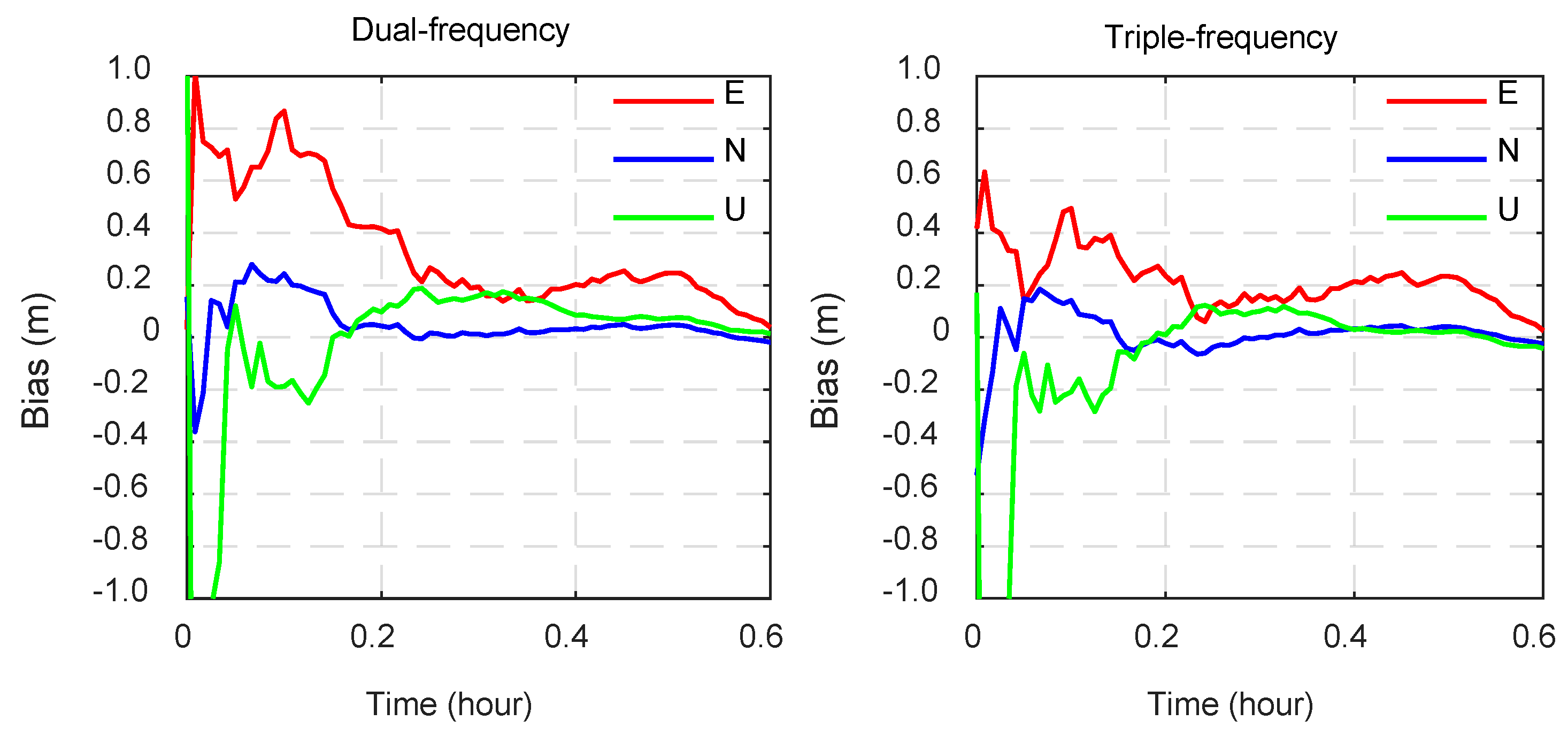

**Figure 4.**The time series of the position differences for the dual-frequency and triple-frequency float solutions with 0.6-h observations at CPVG station on DOY 201, 2018.

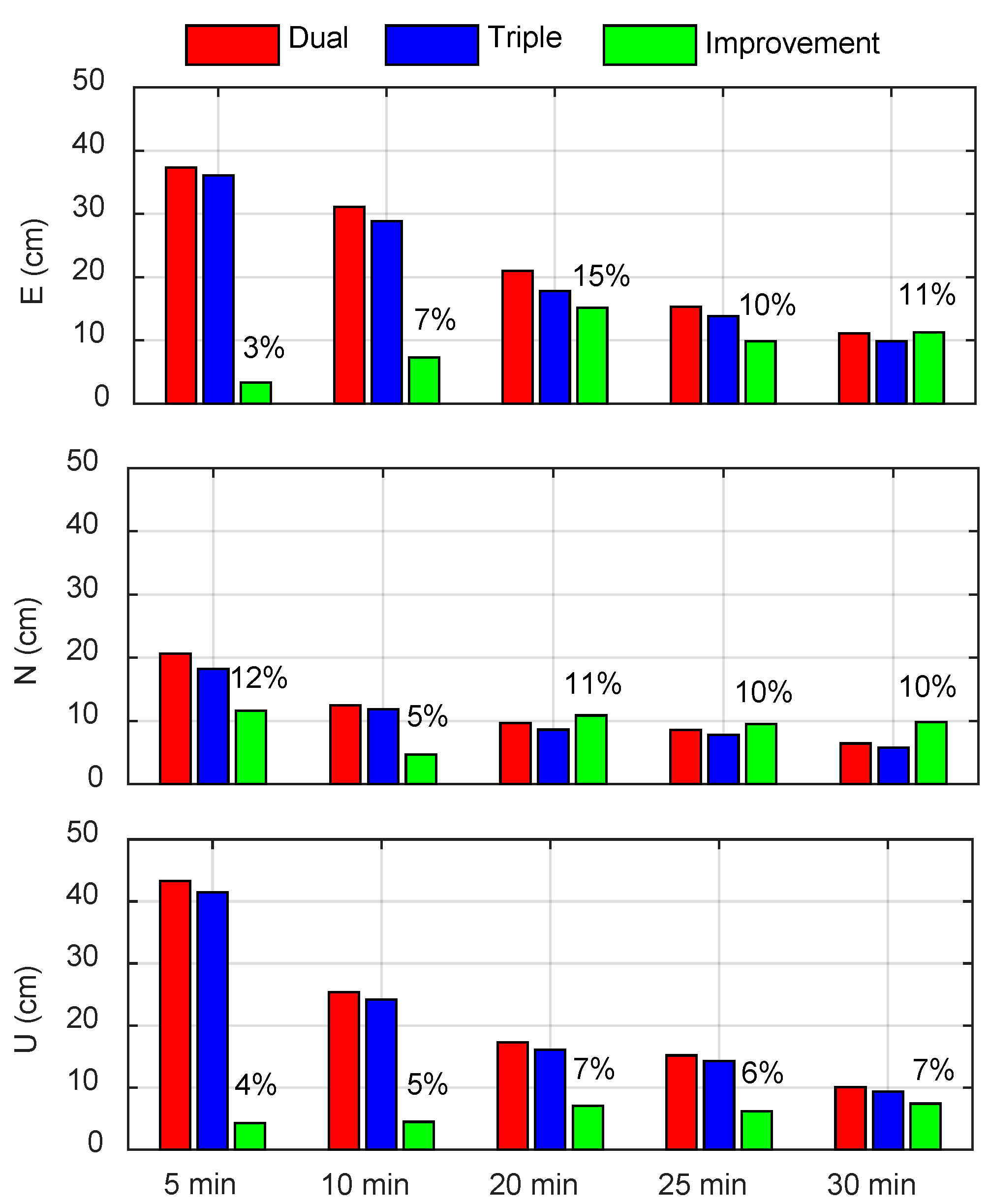

**Figure 5.**The averaged positioning errors of all the test stations in the east, north and up components for dual-frequency and triple-frequency float solutions during the initialization on DOY 201, 2018.

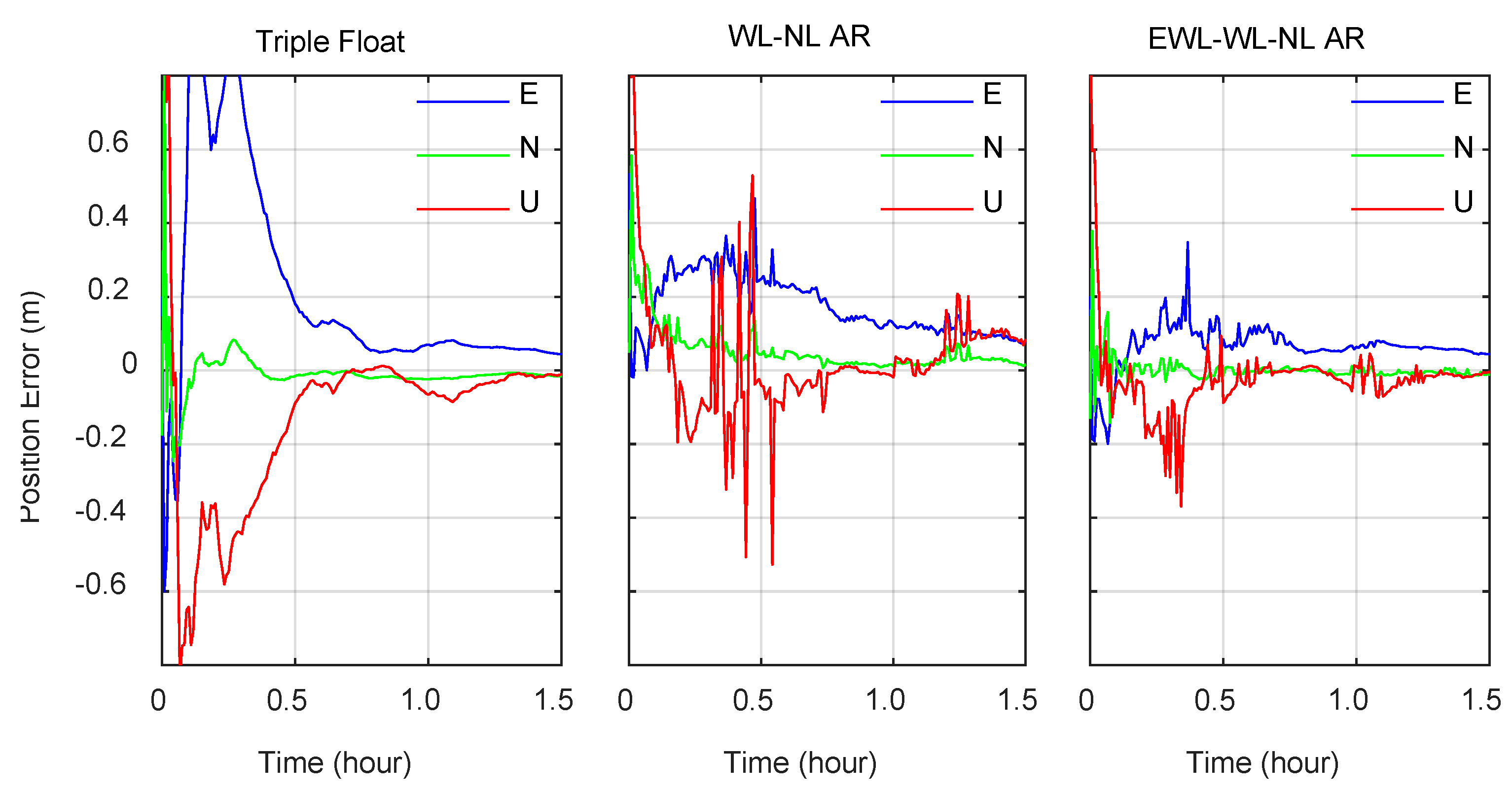

**Figure 6.**The time series of the position differences for the triple-frequency float solutions, dual-frequency WL-NL AR and triple-frequency EWL-WL-NL AR with 1.5-h observations at ASCG station on DOY 201, 2018.

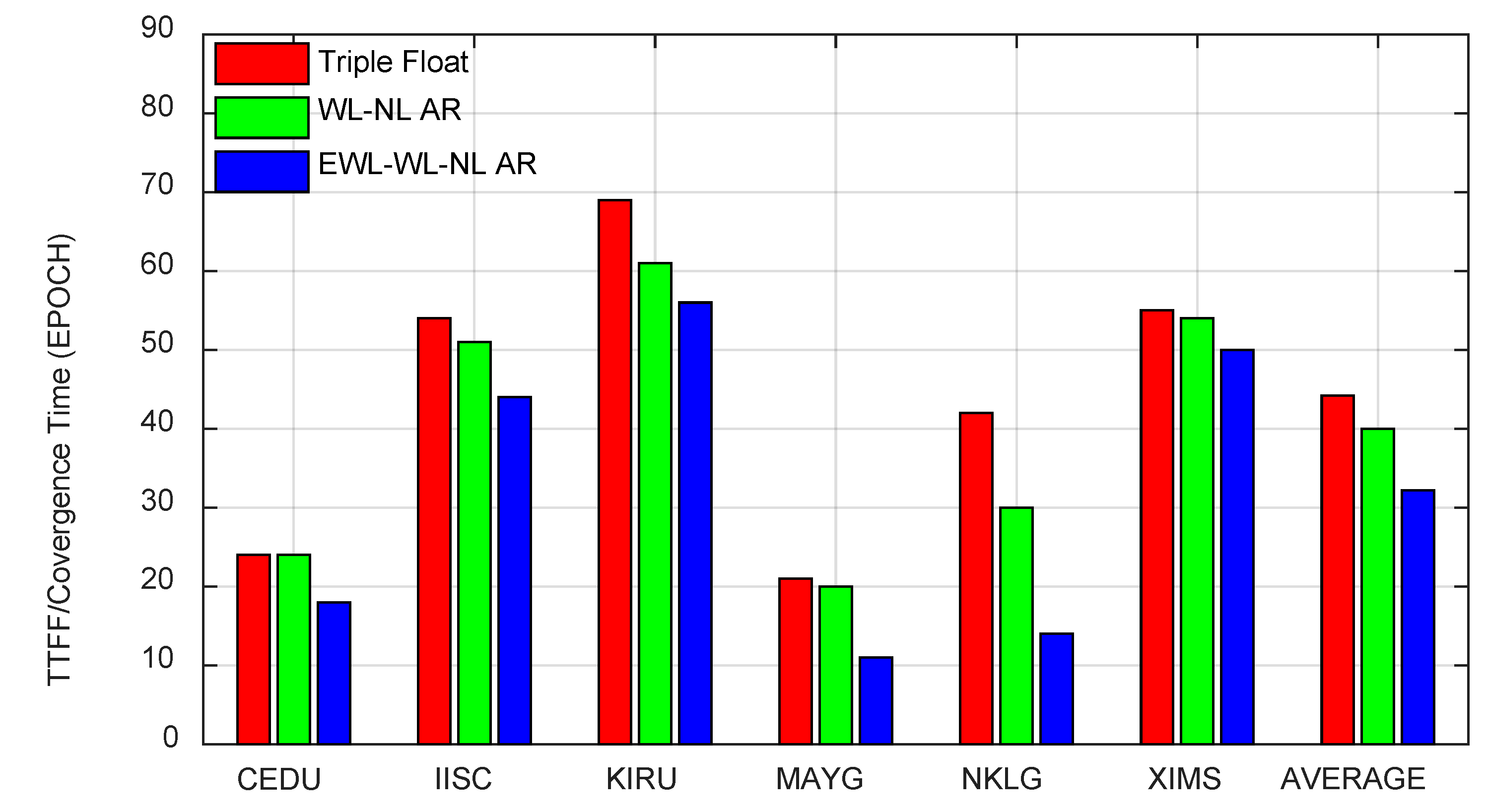

**Figure 7.**The time-to-first-fix (TTFF) of the dual-frequency AR and triple-frequency AR, as well as the convergence time of the triple-frequency float solutions at the user stations on DOY 201, 2018.

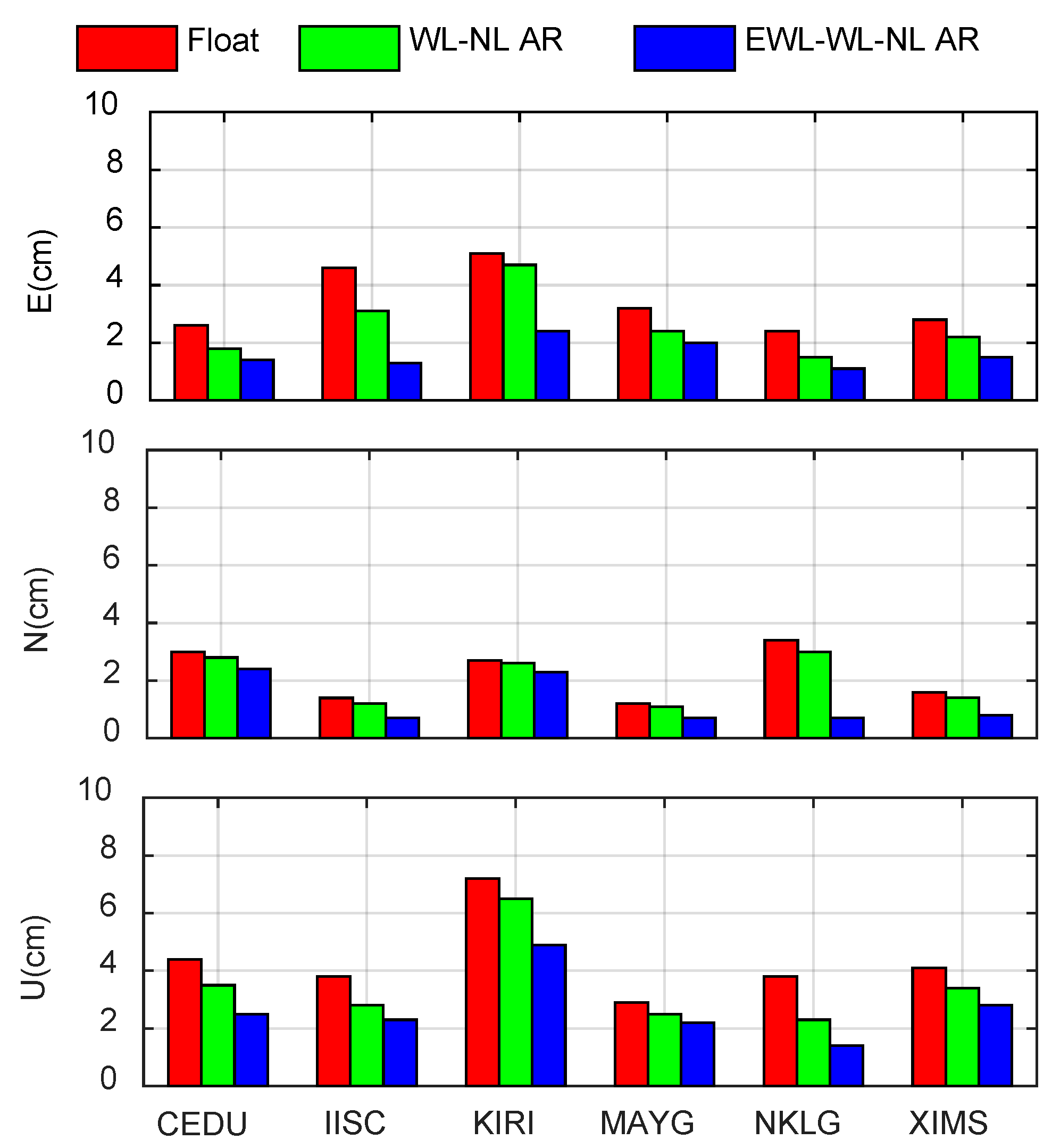

**Figure 8.**The RMS of the positioning errors with a 2-h observation for the dual-frequency and triple-frequency AR, as well as the triple-frequency float solutions (unit: cm).

GNSS System | Frequency (MHz) | Carrier Phase | Pseudo Range |
---|---|---|---|

E1/1575.42 | L1C/L1X | C1C/C1X | |

E5a/1176.45 | L5X/L5Q | C5X/C5Q | |

Galileo | E5b/1207.140 | L7X/L7Q | C7X/C7Q |

E5/1191.795 | L8X/L8Q | C8X/C8Q | |

E6/1278.75 | L6C/L6X | C6C/C6X |

Item | Strategies |
---|---|

Estimator | Sequential least square estimator |

Observations | Original triple-frequency carrier-phase and pseudo-range observations |

Signal selection | Galileo: E1/E5a/E5b |

Sampling rate | 30 s |

Elevation cutoff | 15° |

Observations weight | Elevation-dependent weight |

Ionospheric delay | Estimated as random-walk process |

Tropospheric delay | Dry component: corrected with the Saastamoinen) model [30] |

Wet component: estimated as a random-walk process, a Global Mapping Function (GMF) mapping function | |

Receiver clock | Estimated as white noise |

Station displacement | Corrected by IERS Convention 2010, including Solid Earth tide, |

pole tide and ocean tide loading [31] | |

Satellite PCO/PCV | Corrected using an IGS14 ANTEX file |

Receiver PCO/PCV | Corrected using GPS values |

Phase-windup effect | Corrected [32] |

Relativistic effect | Applied |

Station coordinate | Estimated as constants (Static PPP), a white noise (kinematic PPP) |

**Table 3.**The RMS of the positioning errors for three groups of PPP solutions with 2-h observations for all test stations (unit: cm).

Triple Float | WL-NL AR | EWL-WL-NL AR | |
---|---|---|---|

E | 0.36 | 0.28 | 0.17 |

N | 0.24 | 0.21 | 0.15 |

U | 0.46 | 0.38 | 0.29 |
