Open AccessArticle
Remote Sens. 2018, 10(9), 1400; https://doi.org/10.3390/rs10091400

Source Model and Stress Disturbance of the 2017 Jiuzhaigou Mw 6.5 Earthquake Constrained by InSAR and GPS Measurements

1
Institute of Earthquake Forecasting, China Earthquake Administration, 63 Fuxing Road, Beijing 100036, China
2
Key Laboratory of Crustal Dynamics, Institute of Crustal Dynamics, China Earthquake Administration, 1 Anning Zhuang Road, Beijing 100085, China
3
Chongqing University, 174 Sha Zheng Street, Chongqing 400044, China
4
Beijing University of Civil Engineering and Architecture, 1 Exhibition road, Beijing 100044, China
*
Author to whom correspondence should be addressed.
Received: 22 July 2018 / Revised: 27 August 2018 / Accepted: 30 August 2018 / Published: 3 September 2018
(This article belongs to the Special Issue Radar Interferometry for Geohazards)
Full-Text   |   PDF [8058 KB, uploaded 3 September 2018]   |

Abstract

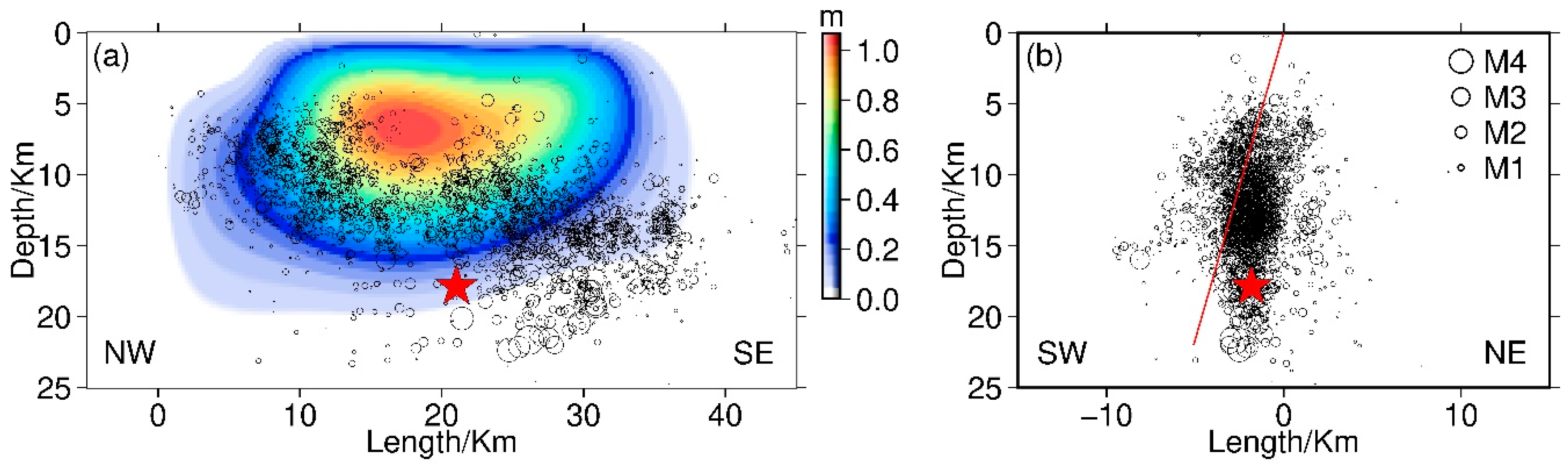

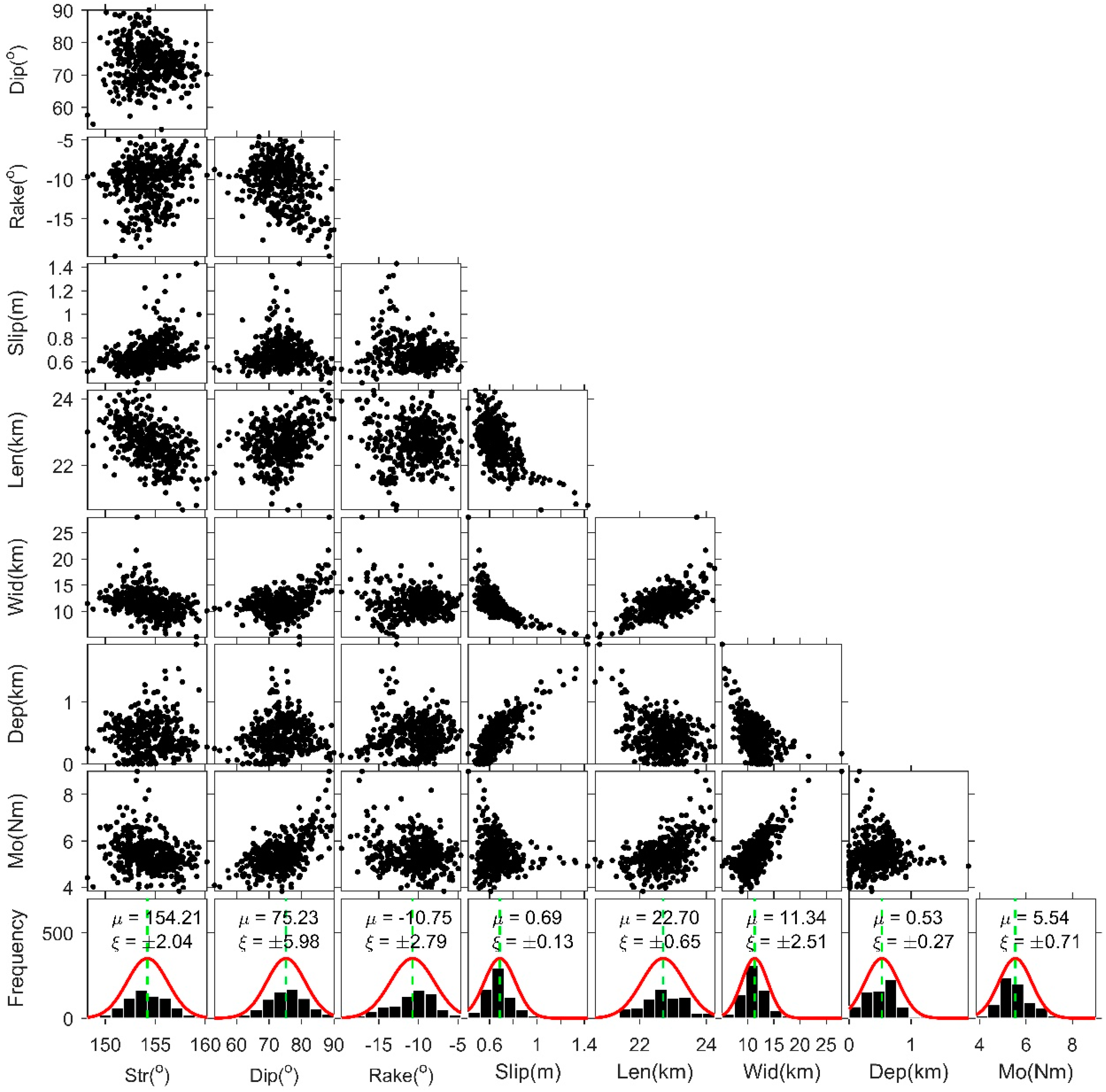

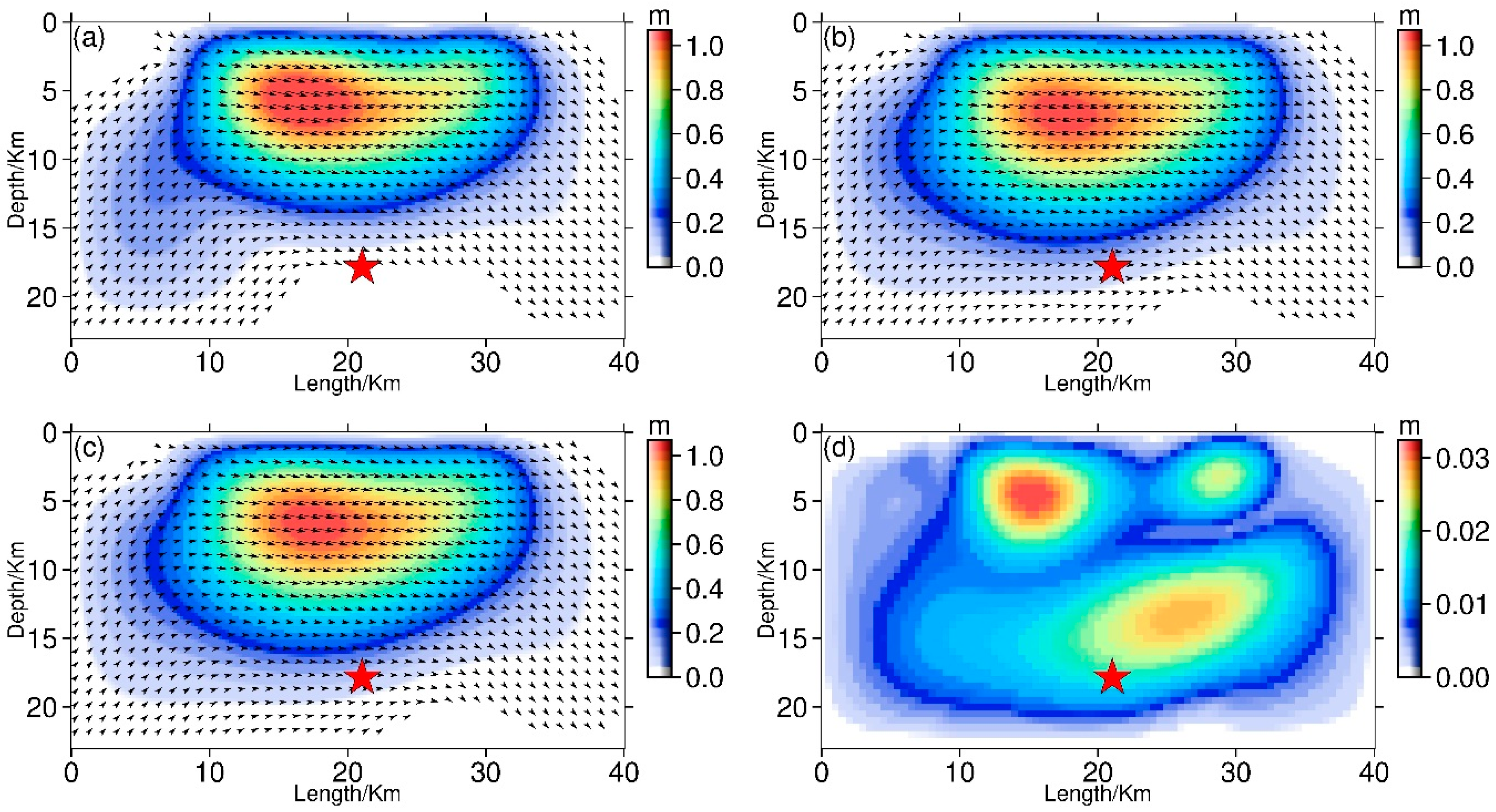

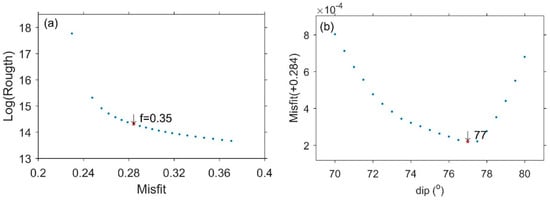

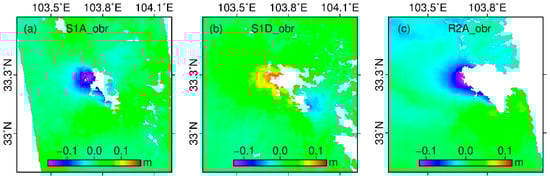

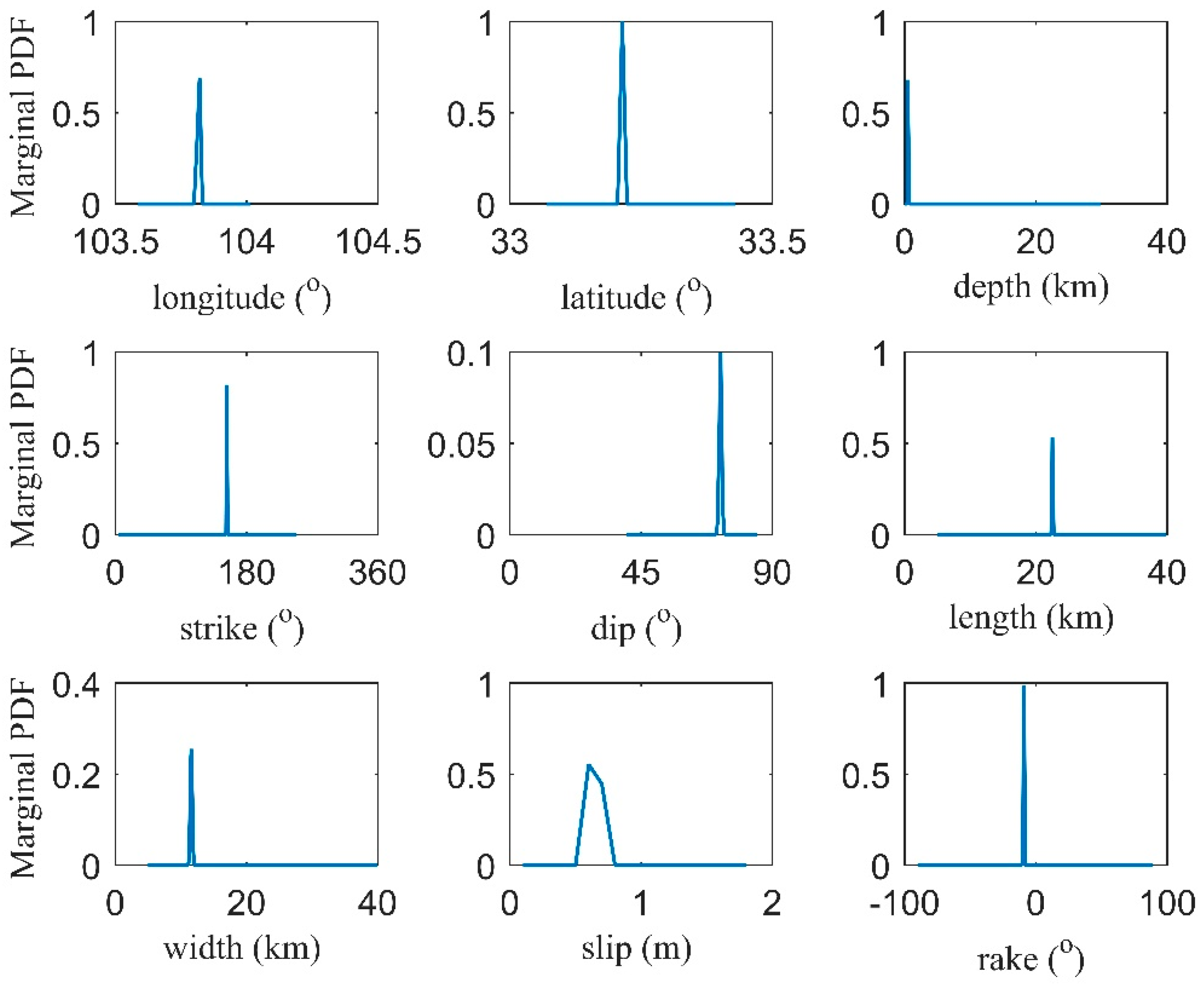

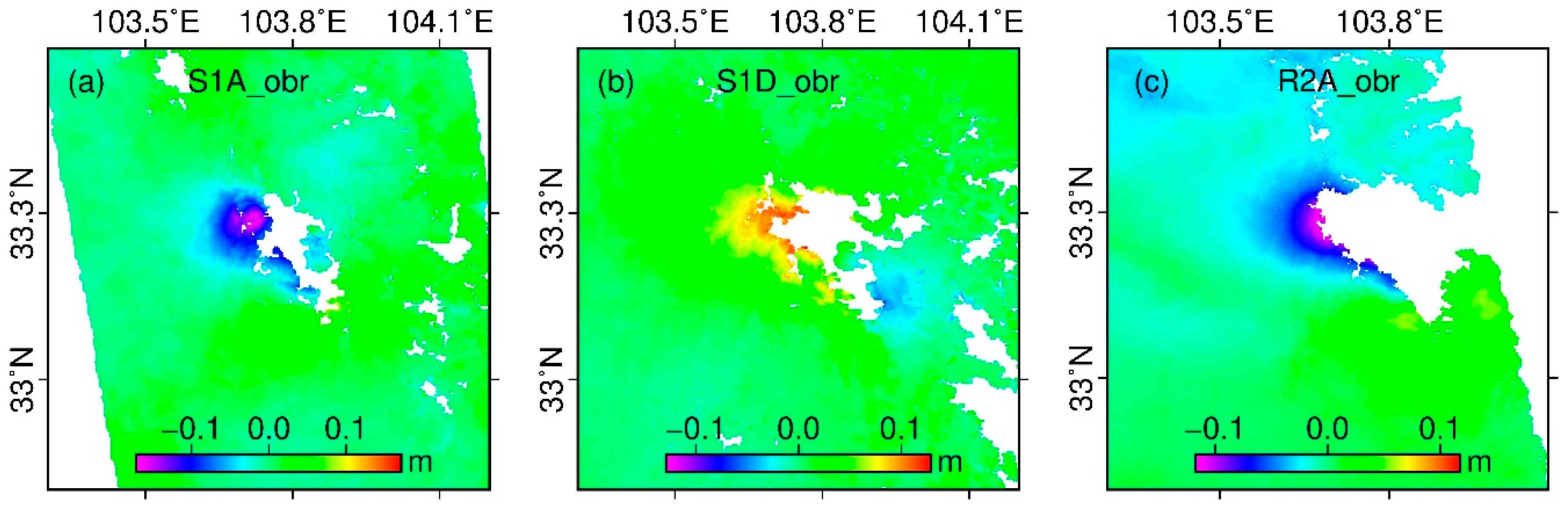

Seismogenic fault geometry, especially for a blind fault, is usually difficult to derive, based only on the distribution of aftershocks and interference fringes of Interferometric Synthetic Aperture Radar (InSAR). To better constrain the fault geometry of the 2017 Jiuzhaigou Mw 6.5 earthquake, we first carried out a nonlinear inversion for a single fault source using multi-peak particle swarm optimization (MPSO), Monte Carlo (MC), and Markov Chain Monte Carlo (MCMC) algorithms, respectively, with constraints of InSAR data in multiple SAR viewing geometries. The fault geometry models retrieved with different methods were highly consistent and mutually verifiable, showing that a blind faulting with a strike of ~154° and a dip angle of ~77° was responsible for the Jiuzhaigou earthquake. Based on the optimal fault geometry model, the fault slip distribution jointly inverted from the InSAR and Global Positioning System (GPS) data by the steepest descent method (SDM) and the MC method showed that the slip was mainly concentrated at the depth of 1–15 km, and only one slip center appeared at the depth of 5–9 km with a maximum slip of about 1.06 m, some different from previous studies. Taking the shear modulus of μ = 32 GPa, the seismic moment derived from the distributed slip model was about 7.85 × 1018 Nm, equivalent to Mw 6.54, which was slightly larger than that from the focal mechanism solutions. The fault spatial geometry and slip distribution could be further validated with the spatial patterns of the immediate aftershocks. Most of the off-fault aftershocks with the magnitude > M2 within one year after the mainshock occurred in the stress positive stress change area, which coincided with the stress triggering theory. The static Coulomb stress, triggered by the mainshock, significantly increased at the Tazang fault (northwest to the epicenter), and at the hidden North Huya fault, and partial segments of the Minjiang fault (west of the epicenter). View Full-Text
Keywords: Jiuzhaigou earthquake; Interferometric Synthetic Aperture Radar; fault geometry; slip distribution; static Coulomb stress Jiuzhaigou earthquake; Interferometric Synthetic Aperture Radar; fault geometry; slip distribution; static Coulomb stress
Figures

Graphical abstract

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
