Open AccessArticle
Remote Sens. 2018, 10(5), 660;

Estimation of Above Ground Biomass in a Tropical Mountain Forest in Southern Ecuador Using Airborne LiDAR Data

Departamento de Geología y Minas e Ingeniería Civil (DGMIC), Grupo de trabajo de Hidrología y Climatología, Universidad Técnica Particular de Loja, San Cayetano Alto, 1101608 Loja, Ecuador
Laboratory for Climatology and Remote Sensing (LCRS), Faculty of Geography, University of Marburg, Deutschhausstr. 10, 35032 Marburg, Germany
Plant Ecology and Ecosystems Research, Georg-August-University Goettingen, Untere Karspüle 2, 37073 Goettingen, Germany
Dirección de Materiales y Recursos Educativos, Universidad Técnica Particular de Loja, San Cayetano Alto, 1101608 Loja, Ecuador
Author to whom correspondence should be addressed.
Received: 19 March 2018 / Revised: 15 April 2018 / Accepted: 20 April 2018 / Published: 24 April 2018
(This article belongs to the Special Issue Biomass Remote Sensing in Forest Landscapes)
Full-Text   |   PDF [26470 KB, uploaded 3 May 2018]   |

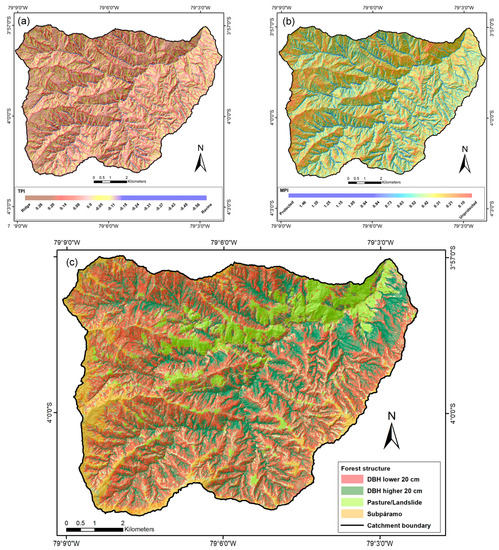

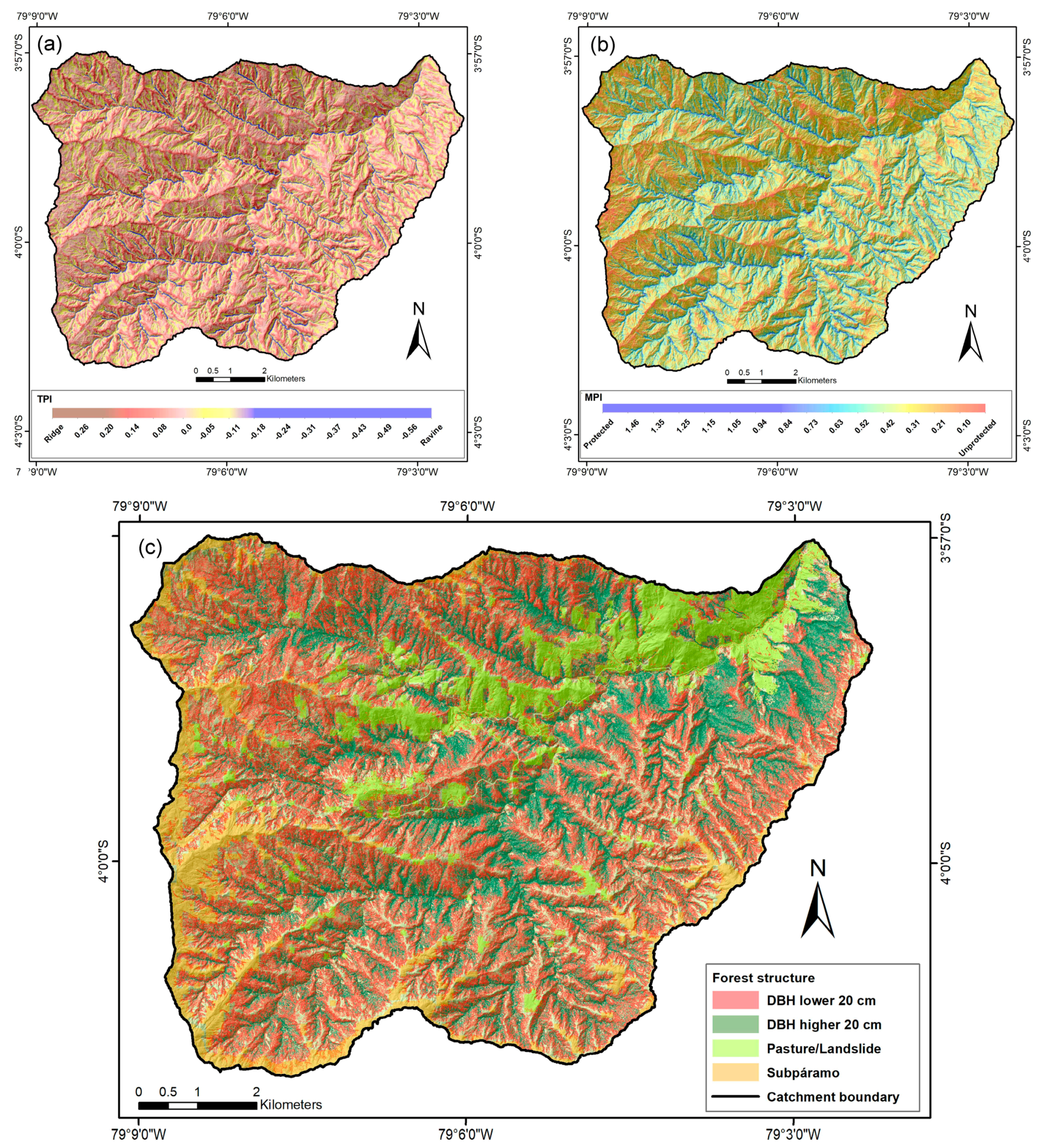

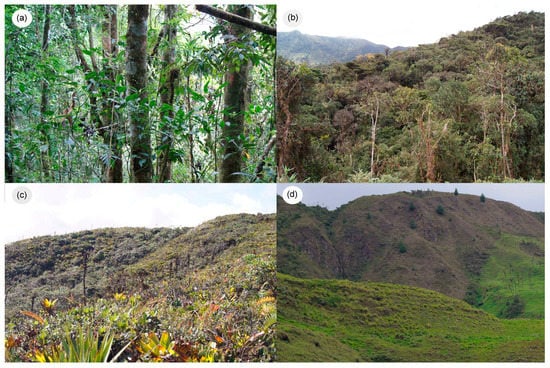

A reliable estimation of Above Ground Biomass (AGB) in Tropical Mountain Forest (TMF) is still complicated, due to fast-changing climate and topographic conditions, which modifies the forest structure within fine scales. The variations in vertical and horizontal forest structure are hardly detectable by small field plots, especially in natural TMF due to the high tree diversity and the inaccessibility of remote areas. Therefore, the present approach used remotely sensed data from a Light Detection and Ranging (LiDAR) sensor in combination with field measurements to estimate AGB accurately for a catchment in the Andes of south-eastern Ecuador. From the LiDAR data, information about horizontal and vertical structure of the TMF could be derived and the vegetation at tree level classified, differentiated between the prevailing forest types (ravine forest, ridge forest and Elfin Forest). Furthermore, topographical variables (Topographic Position Index, TPI; Morphometric Protection Index, MPI) were calculated by means of the high-resolution LiDAR data to analyse the AGB distribution within the catchment. The field measurements included different tree parameters of the species present in the plots, which were used to determine the local mean Wood Density (WD) as well as the specific height-diameter relationship to calculate AGB, applying regional scale modelling at tree level. The results confirmed that field plot measurements alone cannot capture completely the forest structure in TMF but in combination with high resolution LiDAR data, applying a classification at tree level, the AGB amount (Mg ha−1) and its distribution in the entire catchment could be estimated adequately (model accuracy at tree level: R2 > 0.91). It was found that the AGB distribution is strongly related to ridges and depressions (TPI) and to the protection of the site (MPI), because high AGB was also detected at higher elevations (up to 196.6 Mg ha−1, above 2700 m), if the site is situated in depressions (ravine forest) and protected by the surrounding terrain. In general, highest AGB is stored in the protected ravine TMF parts, also at higher elevations, which could only be detected by means of the remote sensed data in high resolution, because most of these areas are inaccessible. Other vegetation units, present in the study catchment (pasture and subpáramo) do not contain large AGB stocks, which underlines the importance of intact natural forest stands. View Full-Text
Keywords: AGB estimation; Tropical Mountain Forest; LiDAR; forest structure AGB estimation; Tropical Mountain Forest; LiDAR; forest structure
