Simulation and Analysis of the Topographic Effects on Snow-Free Albedo over Rugged Terrain

1
State Key Laboratory of Remote Sensing Science, Institute of Remote Sensing and Digital Earth, Chinese Academy of Sciences, Beijing 100101, China
2
University of Chinese Academy of Sciences, Beijing 100049, China
3
Joint Center for Global Change Studies (JCGCS), Beijing 100875, China
*
Author to whom correspondence should be addressed.
Remote Sens. 2018, 10(2), 278; https://doi.org/10.3390/rs10020278
Received: 30 November 2017 / Revised: 26 January 2018 / Accepted: 8 February 2018 / Published: 11 February 2018
  |
PDF [7741 KB, uploaded 13 February 2018]
  |

Abstract

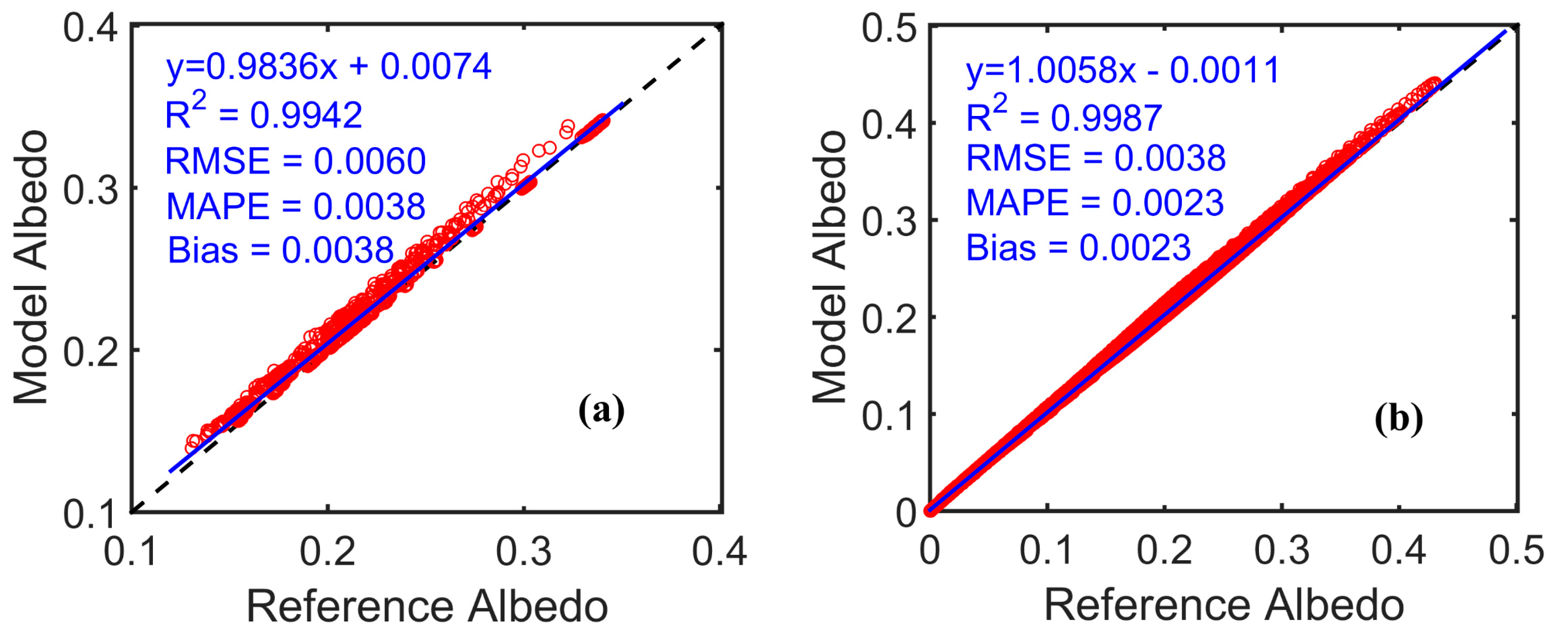

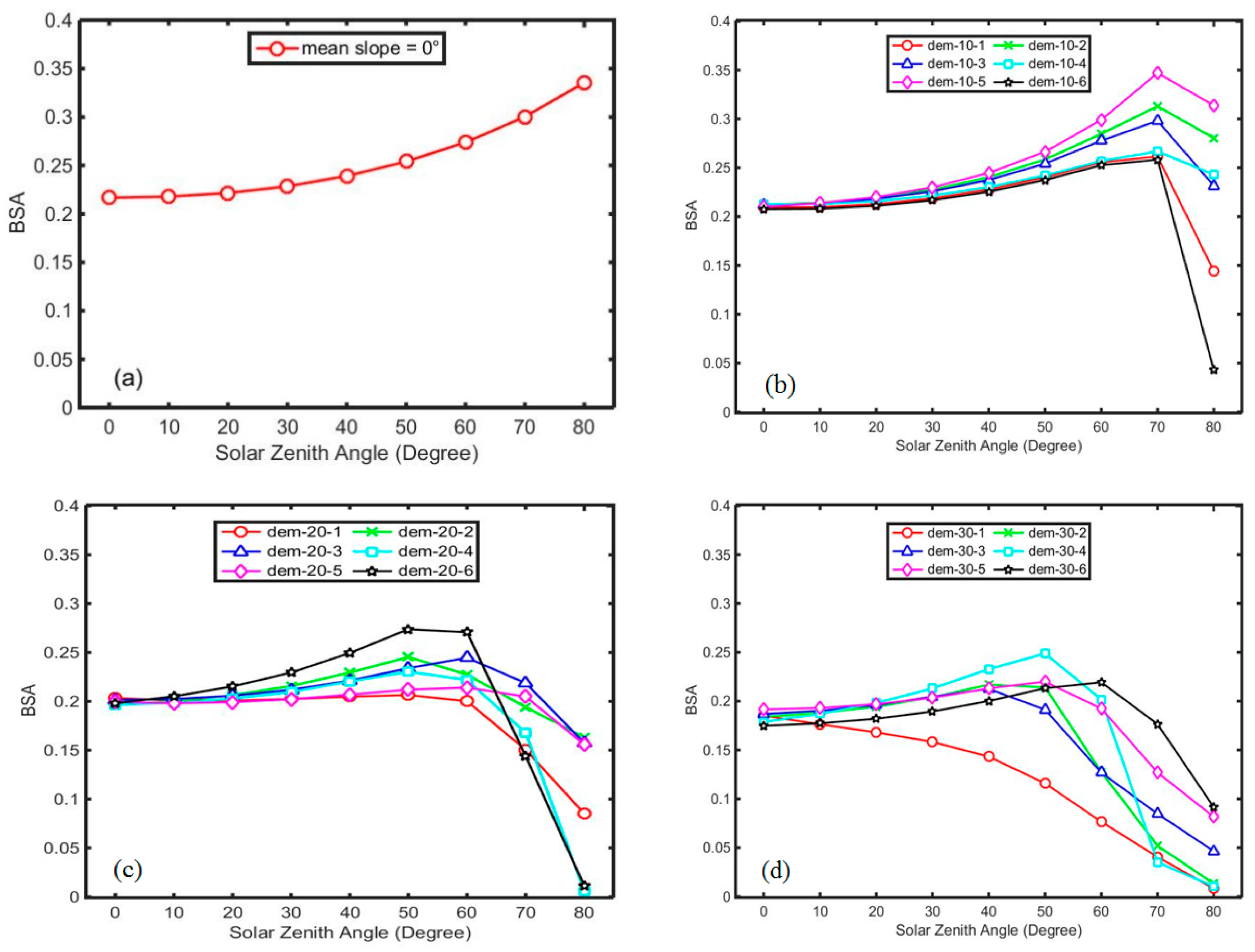

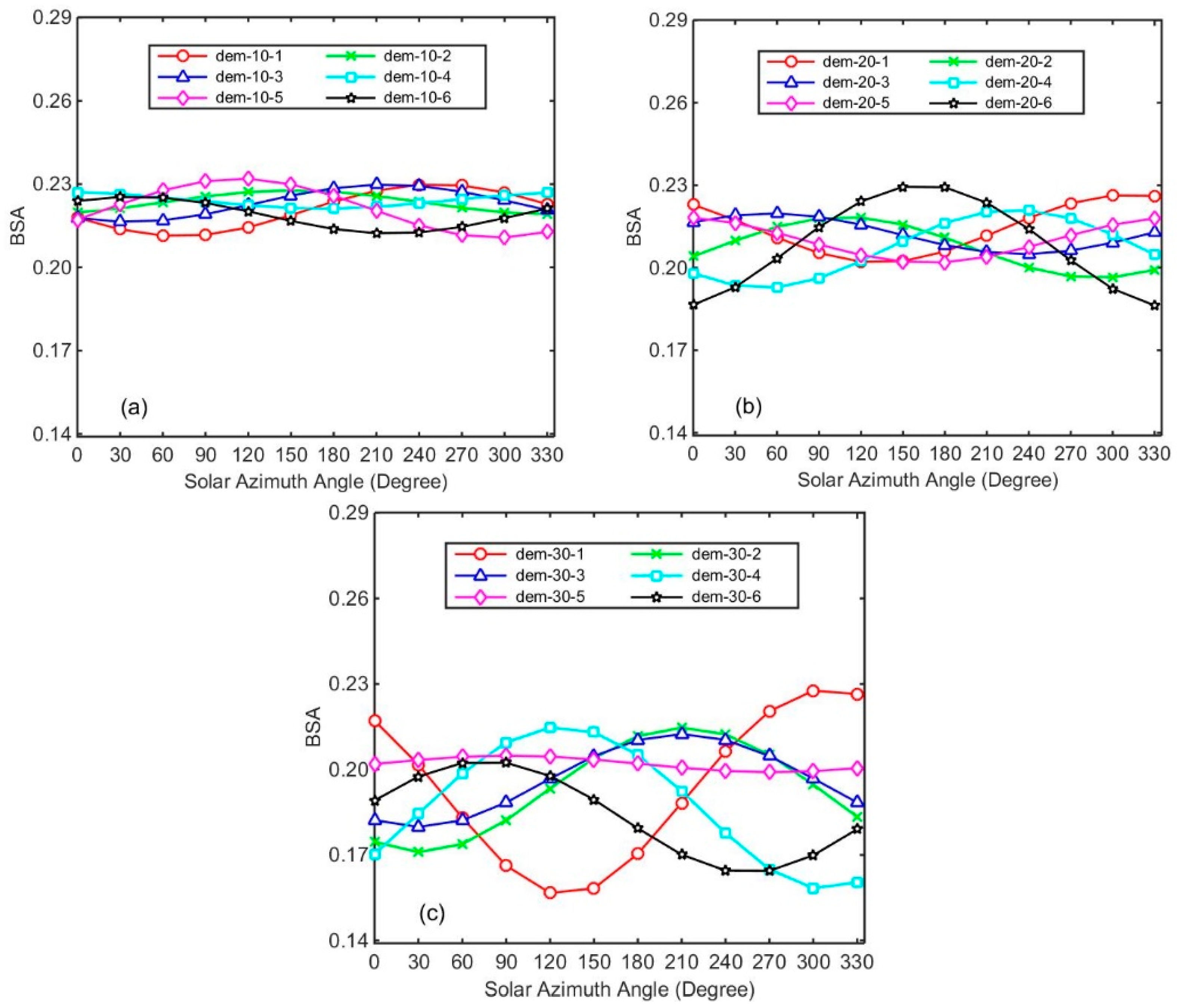

Topography complicates the modeling and retrieval of land surface albedo due to shadow effects and the redistribution of incident radiation. Neglecting topographic effects may lead to a significant bias when estimating land surface albedo over a single slope. However, for rugged terrain, a comprehensive and systematic investigation of topographic effects on land surface albedo is currently ongoing. Accurately estimating topographic effects on land surface albedo over a rugged terrain presents a challenge in remote sensing modeling and applications. In this paper, we focused on the development of a simplified estimation method for snow-free albedo over a rugged terrain at a 1-km scale based on a 30-m fine-scale digital elevation model (DEM). The proposed method was compared with the radiosity approach based on simulated and real DEMs. The results of the comparison showed that the proposed method provided adequate computational efficiency and satisfactory accuracy simultaneously. Then, the topographic effects on snow-free albedo were quantitatively investigated and interpreted by considering the mean slope, subpixel aspect distribution, solar zenith angle, and solar azimuth angle. The results showed that the more rugged the terrain and the larger the solar illumination angle, the more intense the topographic effects were on black-sky albedo (BSA). The maximum absolute deviation (MAD) and the maximum relative deviation (MRD) of the BSA over a rugged terrain reached 0.28 and 85%, respectively, when the SZA was 60° for different terrains. Topographic effects varied with the mean slope, subpixel aspect distribution, SZA and SAA, which should not be neglected when modeling albedo. View Full-Text
Keywords: land surface albedo; snow-free albedo; rugged terrain; topographic effects; black-sky albedo (BSA) land surface albedo; snow-free albedo; rugged terrain; topographic effects; black-sky albedo (BSA)
Figures

Graphical abstract

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
