Inversion of Nearshore X-Band Radar Images to Sea Surface Elevation Maps

Abstract

A new method to invert X-band radar images for linear shoaling conditions is proposed. The commonly used approach for this type of inverse problems is the Fourier transform. Unlike in deep water conditions, in the shoaling region, waves are modulated both in terms of wavelength and amplitude. However, Fourier analysis assumes spacial and temporal periodicity, and homogeneity limiting its applicability to this region. In order to overcome these limitations, a wavelet based technique is developed. The proposed technique treats every spatial radar image within the time sequence individually, so no information on the dispersion relation is required. For validation purposes, surface elevation range-time shoaling realizations based on the mild slope equation are prepared. A radar imaging model including tilt and shadowing modulations, speckle noise, and the radar equation is applied to these realizations to provide modeled grazing incidence radar images. The inversion process starts with the application of the continuous wavelet transform independently for each spacial image. The procedure continues with employing a successive range independent modulation transfer function to the wavelet spectra in the wavenumber domain. Then, after a phase shift correction, an inverse continuous wavelet transform is applied. The procedure is finalized by a calibration of the retrieved maps. After the calibration, a thorough comparison between the original and the reconstructed surface elevations is performed. It shows high efficiency of the proposed method in treating wave number and amplitude modulated signals, as well as in addressing local phase shifts due to tilt modulation and noise contamination. The new inversion method is proven to have high accuracy in inhomogeneous conditions. It shows high potential to be implemented for individual wave reconstruction using real aperture radars.

1. Introduction

Incoherent nautical X-band radars have been increasingly used for oceanographic measurements in the last decades. They have several advantages with respect to other measurement tools. First, their use is not limited by daylight conditions, as the use of some optical remote sensing instruments is. Second, radar measurement costs are generally lower than in-situ measurement ones. Finally, nautical radars are multipurpose tools that can be used simultaneously for navigational needs and for the determination of sea state parameters. As remote sensing tools, radar images provide significant coverage. Their ability to probe continuously in time enables the study of both the spatial and temporal evolution of the sea surface elevation with reasonably good resolution.

Historically, navigational radars were constructed to detect solid objects whilst the signals from the sea surface were just attributed to the sea clutter and hence, considered to be noise. Later, it was understood that this clutter contains useful information, and the related signals can be interpreted to retrieve sea state parameters, such as directional wave spectra [1,2], currents [3], and local bathymetry [4], as well as some meteorologic conditions, such as rain intensity [5], and sea surface winds [6].

By following a two-scale model of the radar backscatter [7,8], long energy-carrying waves become distinguishable on the radar images due to the hydrodynamical and geometrical modulations of the radar signal caused by the rough sea surface. Shadowing and tilt geometrical modulations are considered to be the main imaging mechanisms for grazing incidence [9,10]. Shadowing manifests as a partial occultation in long wave profiles. Tilt modulation arises as a result of changes in the local effective incidence angle, whilst hydrodynamic modulation is due to an uneven distribution of the resonating ripples density along the long wave profiles.

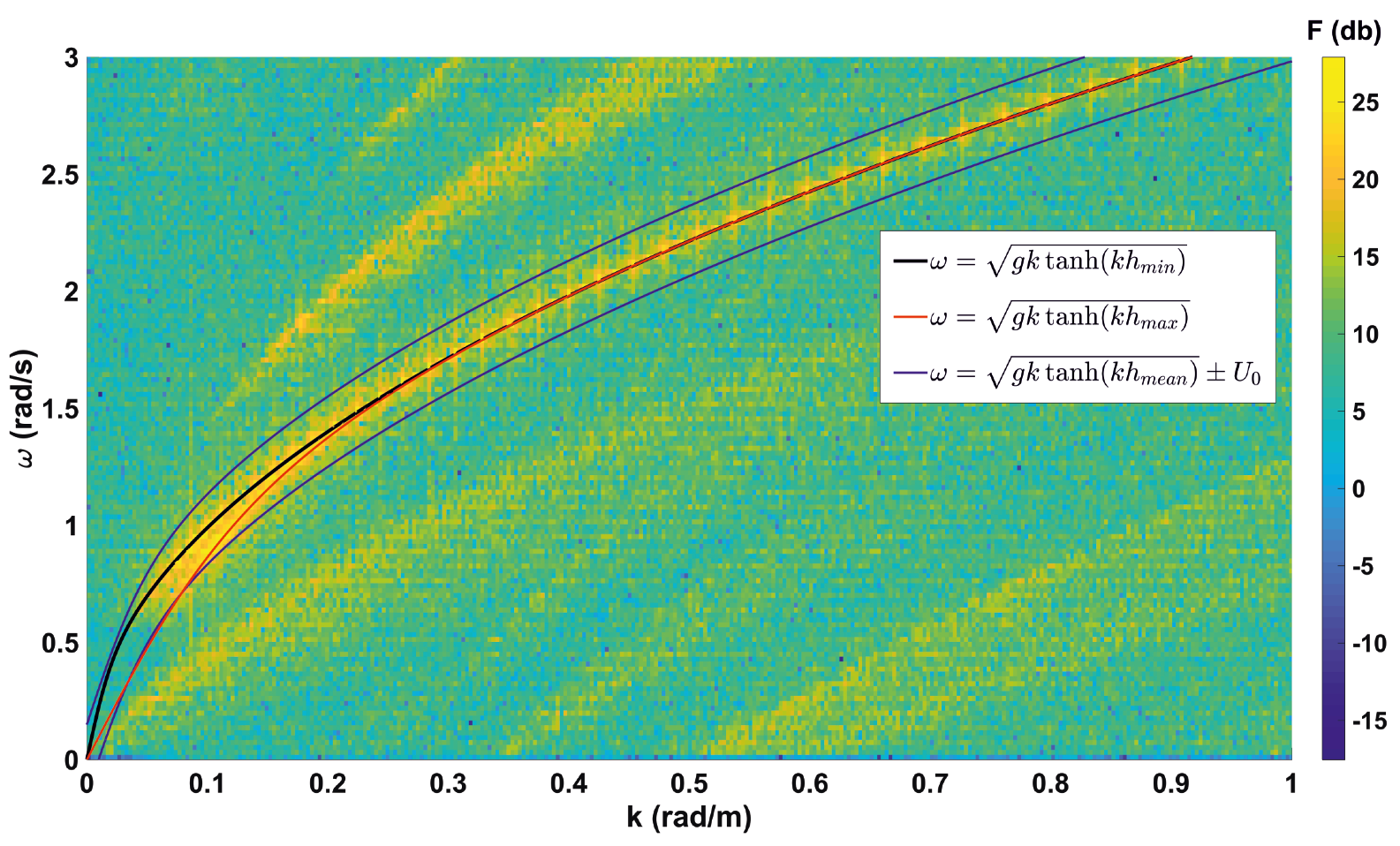

Due to the above mechanisms, a reconstruction procedure is required to obtain the original surface elevation from a radar image. Surface elevation maps are commonly inverted from radar image sequences using the technique proposed in [9]. In this paper, we refer to this work as the conventional method of radar image inversion. Their main idea was to use a dispersion relation shell filter in a 3D Fourier space and to subsequently apply an empirical modulation transfer function in order to fit the spectrum of modulations to the actual wave spectrum. In addition, imaging mechanisms shift the measured sea wave phases. For the abovementioned geometric modulations, the phase shift between the original surface elevation and its radar image is constant and equal to $\pi /2$ [11]. In [12], the accuracy of the method for 2D radar images was analyzed and found to be approximately 15 % of the significant wave height for a wide range of wind sea states. In [13], a novel successive cancellation based method was proposed to avoid leakage in the spectral domain. It was also pointed out there that, due to the uniform sampling of the sea surface in radar images, the correspondent components in a wave number-frequency domain cannot always strictly satisfy the dispersion relation, which results in inaccurate wave retrieval.

As for the signal processing approach for non-stationary or non-homogeneous data, several methods have been developed in the past few decades, such as the windowed Fourier transform and, more recently, the wavelet transform [14]. The latter enables localization in the space or time-frequency domain through translation and dilation of the so-called mother wavelet. It is recognized as a powerful tool for non-homogeneous signal and image processing. Lately, it has been used for accurate local directional spectra estimation in the transition from deep to intermediate waters (e.g., [15,16,17,18]). However, although a number of attempts to improve the performance of the conventional method have been done (see e.g., [19]), little attention has been paid to the validation and cross-verification of the method in inhomogeneous nearshore environments.

The focus of this paper is to give an alternative to the existing inversion techniques in order to account for the inhomogeneity of the wavefield nearshore, in particular, due to wave shoaling effects and shadowing, and to validate its quality by means of stochastic simulations. Here, only linear shoaling, which results in wavelength shortening and amplitude modulation, is considered. The new technique can increase the quality of radar-derived surface elevations in comparison to in-situ point measurements, both for mean parameters and for individual waves. Among the advantages of the new method, is its ability to treat the whole image of the nearshore area as is, without the need to apply windowing or a dispersion relation shell filter. To simplify the validation and visualization purposes, only 1D spatial cases are presented. Additionally, considering that all of the inhomogeneous properties, both of wavefields and radar imaging, are much stronger in range than in azimuth, it is important to start from 1D cases and investigate them separately. It is also important to notice that the conventional method’s performance in 1D has not been attentively investigated so far. Some considerations about this topic, together with adaptation of the algorithm to 1D shoaling cases, are given in Appendix B.

The paper is organized as follows: Section 2 describes the realization of a wavy surface for linear shoaling conditions, both for monochromatic waves and for a JONSWAP (JOint North Sea WAve Project) spectra. Section 3 introduces the wavelet analysis used in the work. Section 4 briefly describes imaging mechanisms that are important for nearshore X-band radar imaging, including tilt and shadowing modulation, radar equations, and speckle noise, while, in Section 5, the application of those imaging mechanisms to simulated data is presented. The novel inversion procedure is given in Section 6. An error analysis depending on the shadowing probability and noise levels is performed in Section 7. The paper is finalized by some conclusions and future improvements of the proposed inversion technique in Section 8.

2. Inhomogeneous Sea Surface Simulation

In this section, simulations of the sea surface are described, and the information regarding bathymetry and initial conditions for every simulation is presented. First, it is necessary to discretize the wavefield into a number of bins, set the initial amplitude values, and define the bathymetry used in the simulation. It is also necessary to specify the discretization in space and time, $\Delta x$ and $\Delta t$, to define the sea surface elevation. All of the simulation parameters are summarized in

Table 1. JONSWAP (JOint North Sea WAve Project) spectrum parameters used for surface modeling in the paper.

Parameter	Value
fetch (F)	500 (km)
wind speed (U)	3.2, 9.2, 15.7 (m/s)
peak period ($T_p$)	7, 10, 12 s
initial significant wave height ($H_{s_0}$)	1.76, 4.53, 7.33 (m)
time step ($\Delta t$)	2 (s)
spatial step ($\Delta x$)	2 m
spectral resolution ($\Delta \omega$)	0.031 (rad/s)
number of harmonics (N)	100
number of time samples ($N_t$)	151
number of range samples ($N_x$)	1001

. The 1D sea surface for linear shoaling conditions can be expressed as a function of time and space in the following manner:

$$\zeta \left(x,t\right)=\Re \left[\sum _{j=1}^N{a}_j\left(x\right)e^{i\left({\omega }_{j}t-{\int }_0^x{k}_j\left(\xi \right)d\xi +{\phi }_j\right)}\right],$$

(1)

where $\zeta (x,t)$ is the surface elevation, $a_j$ is the amplitude of the wave component with angular frequency ${\omega }_j$ and wave number $k_j$ that is uniformly distributed over $[0,2\pi )$ initial random phase ${\phi }_j$. Throughout the paper, the units for the angular frequency and the wave number are fixed to $rad/s$ and $rad/m$, respectively, unless otherwise stated. The angular frequency and wave number satisfy the dispersion relation

$${\omega }_j^2=g{k}_j\left(x\right)tanh\left(k_j\left(x\right)h\left(x\right)\right),$$

(2)

which is used to define the wave number $k_j\left(x\right)$ as a solution of Equation (2) at every point in the spatial domain. It is important to notice that, within the linear theory framework, the angular frequency of a monochromatic wave remains constant in space by virtue of the wave conservation law [20].

In order to describe linear shoaling of the wave field, the one dimensional mild slope equation [21] is used:

$$\frac{a_j^{\prime }\left(x\right)}{a_j\left(x\right)}=\frac{-C_{g,j}^{\prime }\left(x\right)}{2C_{g,j}\left(x\right)},$$

(3)

where $C_{g,j}$ is the corresponding group velocity, which, in linear theory, is expressed as

$$C_{g,j}\left(x\right)=\frac{1}{2}{C}_j\left(x\right)\left(1+\frac{2k_j\left(x\right)h\left(x\right)}{sinh\left(2k_j\left(x\right)h\left(x\right)\right)}\right)$$

(4)

with $C_j\left(x\right)={\omega }_j/k_j\left(x\right)$ describing the phase velocity. Equation (3) can be solved for the wave amplitude

$$a_j\left(x\right)=a_j\left(0\right)\sqrt{\frac{C_{g,j}\left(0\right)}{C_{g,j}\left(x\right)}},$$

(5)

where $a_j\left(0\right)={\left(2{\int }_{{\omega }_j-1/2\Delta \omega }^{{\omega }_j+1/2\Delta \omega }S\left(\omega \right)d\omega \right)}^{1/2}$ is the initial value of the amplitude for a JONSWAP spectrum [22] or just a fixed value of the monochromatic wave amplitude. Equation (5) is a direct consequence of the energy flux conservation.

Wolfram Mathematica software was used to simulate the sea surface as a function of space and time. Wave number values for certain depths were obtained using Equation (2). Integrals of the wave number in space ${\int }_0^x{k}_j\left(\xi \right)d\xi$ were obtained numerically. Examples of sea surface elevation realizations both for monochromatic wave and JONSWAP spectrum are shown in Figure 1.

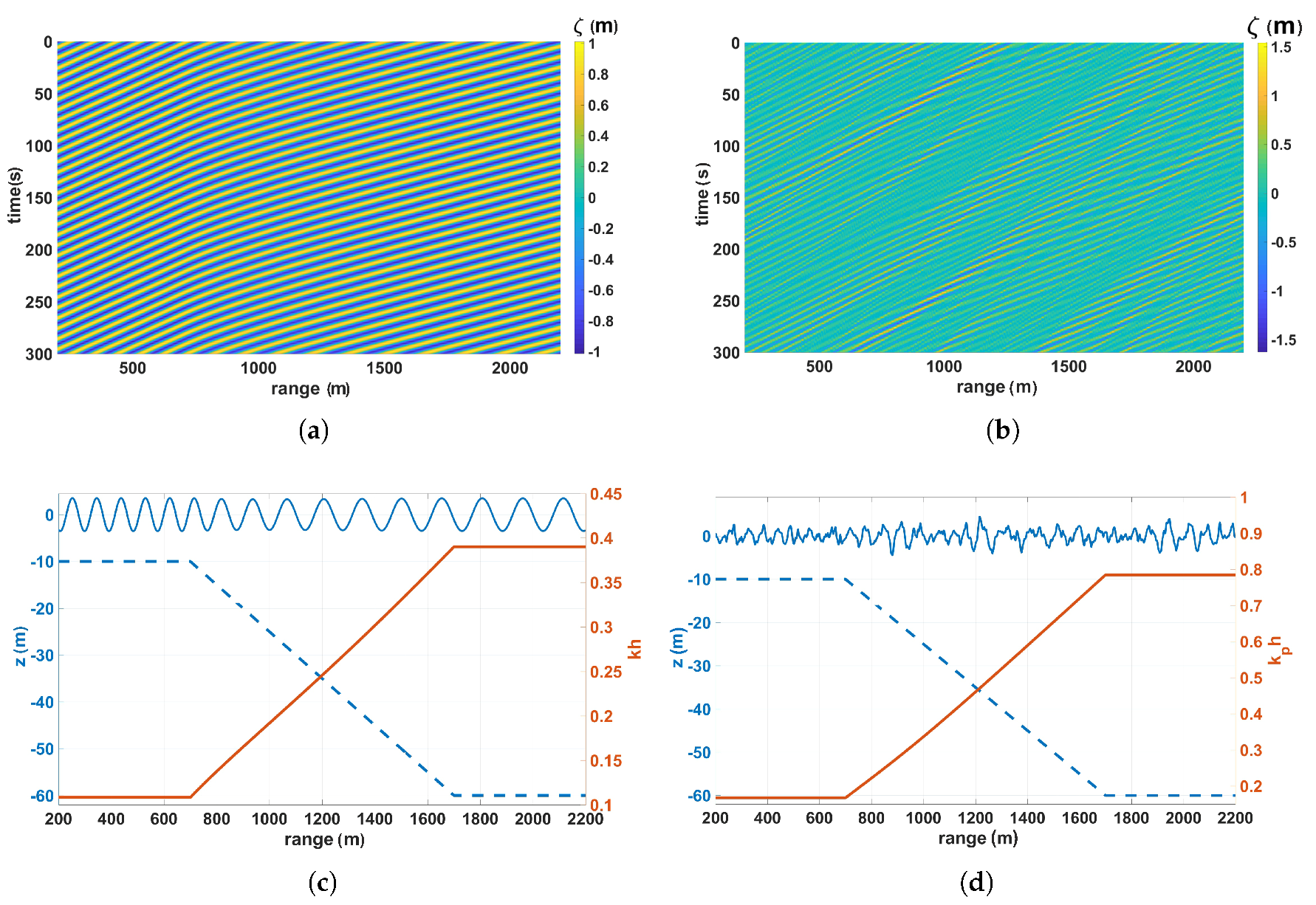

For shoaling waves simulations, it is convenient to define the origin of the spatial coordinates in deep water at sea level. For radar image simulations, it is more common to work with the range coordinates, which correspond to the distance between the radar antenna projection to the plane $z=0$ and a point of interest on the sea level. This distance is denoted as “range” in the figures below, whilst in formulas, the standard notation of x-coordinate is employed.

Linear Shoaling for Monochromatic Waves and Spectra

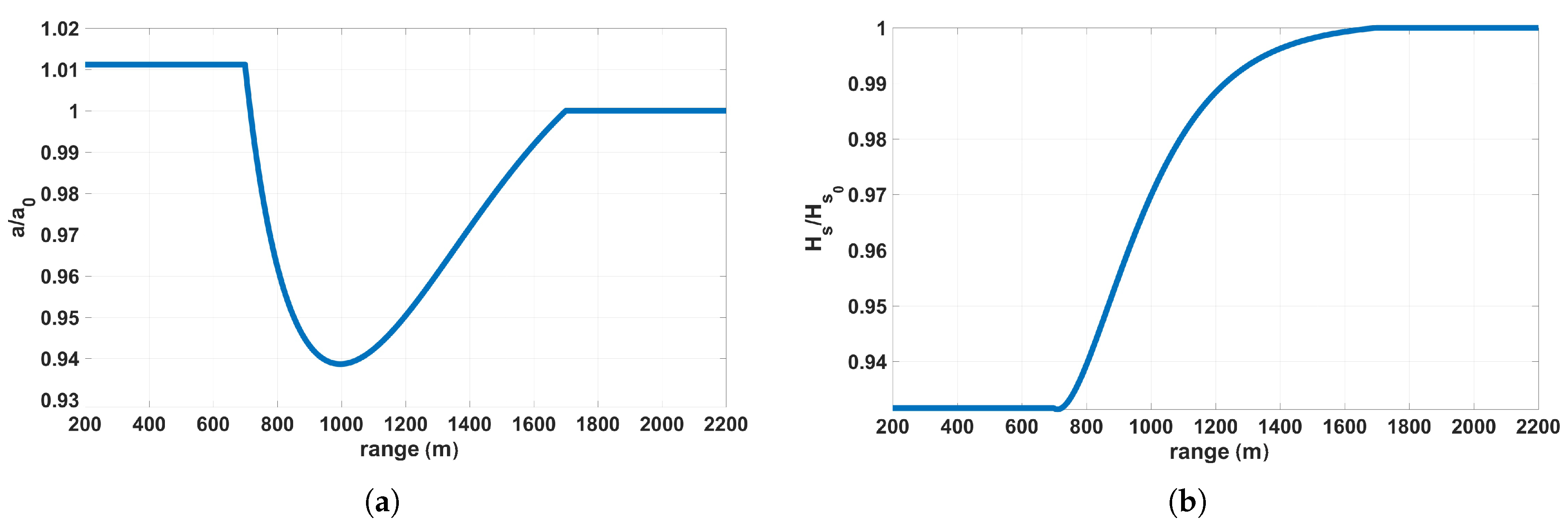

In the shoaling region, as a first approximation, the energy flux in the direction of the wave propagation $E{C}_g$ is conserved with the wave energy $E\sim a^2$. When the wave field propagates into intermediate waters, wavelengths start shortening, the group velocity changes, and therefore, the wave amplitude evolves in order to conserve the energy flux (see Figure 2). It can be seen that the monochromatic wave amplitude (Figure 2a) initially decreases as a consequence of the increase in group velocity in intermediate waters before entering shallower waters. The significant wave height depends on the wave amplitudes at all frequencies, which start shoaling in different depths; therefore, the peak wave amplitude and $H_s$ behave differently (Figure 2b).

3. Wavelet Analysis of the Simulated Data

The continuous wavelet transform (CWT) can represent a signal, not only in frequency/wave number but also in the time/space domain. The CWT is defined as follows [23]:

$$W[f\left(x\right),\psi \left(x\right)](a,b)=a^{-1/2}\underset{\mathbb{R}}{\int }f\left(x\right){\psi }^{*}\left(\frac{x-b}{a}\right)dx.$$

(6)

Here, $f\left(x\right)\in L_2\left(\mathbb{R}\right)$ is an initial signal, $\psi$ is the mother wavelet, b is a coordinate shift, a is a scaling factor ($a>0$), and the asterisk denotes the complex conjugate. The mother wavelet is defined by assuming that $\psi \in L_2\left(\mathbb{R}\right)$ and that the admissibility condition is satisfied:

$$2\pi \underset{\mathbb{R}}{\int }{\left|\xi \right|}^{-1}|\widehat{\psi }\left(\xi \right)|d\xi <\infty ,$$

(7)

or, equivalently, ${\int }_{\mathbb{R}}\psi \left(\xi \right)d\xi =0$. To generate doubly indexed families of wavelets from the mother wavelet $\psi$, dilations and translations are added:

$${\psi }^{a,b}\left(x\right)=a^{-1/2}\psi \left(\frac{x-b}{a}\right).$$

The normalization of the wavelet is chosen so that $\parallel {\psi }^{a,b}{\parallel }_{L_2\left(\mathbb{R}\right)}={\parallel \psi \parallel }_{L_2\left(\mathbb{R}\right)}=1$ for all a and b.

In the water wave applications, the Morlet mother wavelet $\psi \left(x\right)={\pi }^{-1/4}\left(e^{-i{\xi }_{0}x}-e^{-{\xi }_0^2/2}\right)e^{-x^2/2}$ is usually used. The constant ${\xi }_0$ is chosen so that the ratio of the highest to the second highest maximum of $\psi$ is approximately $1/2$, i.e., ${\xi }_0=\pi {[2/ln2]}^{1/2}\approx 5.3364$; in practice, ${\xi }_0=5$ is often taken. In other words, the Morlet wavelet is a complex wavelet whose real part is simply the harmonic function $cos\left(5x\right)$ with a Gaussian envelope.

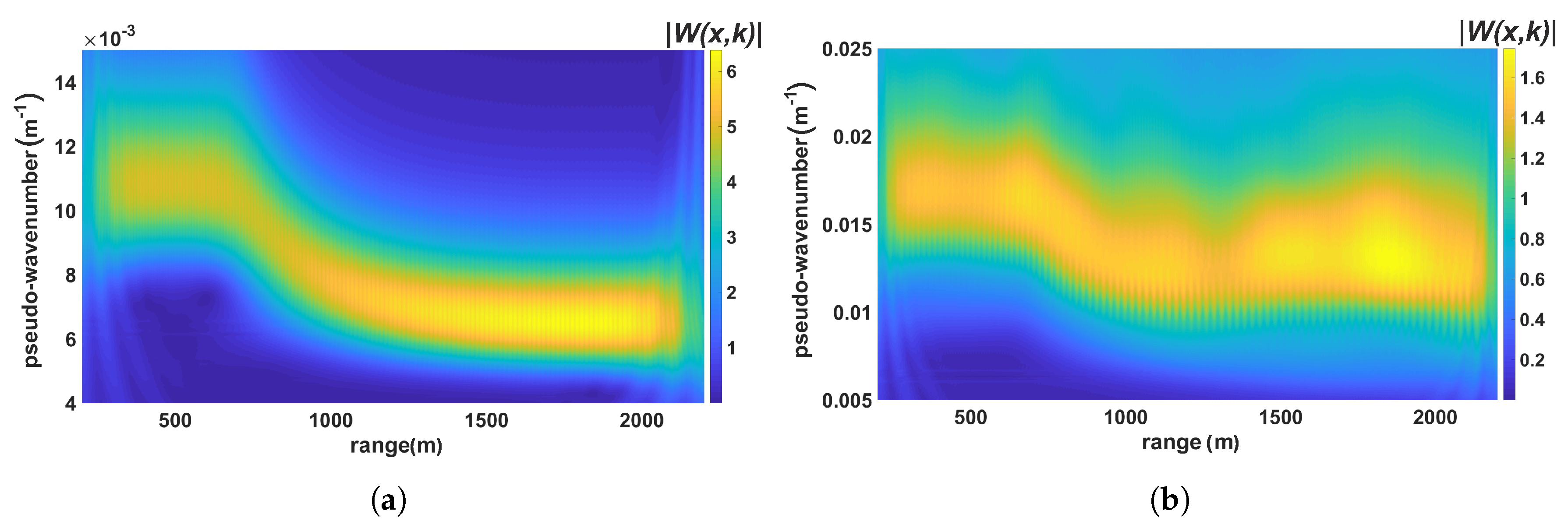

Traditionally, wavelet spectra are plotted as functions of the scaling factor a. For the following analysis, a definition of the pseudo wave number is needed. So, if $K_c$ is the central wave number of the mother wavelet, then the pseudo-wave number is defined as

$$K_a=\frac{K_c}{a·\Delta x}.$$

(8)

Here, $K_c={\xi }_0\approx 5$. To reduce the computational costs, the traditional definition of the CWT is slightly changed to rewrite Equation (6) using the identity $W(a,b)={\mathcal{F}}^{-1}\left\{\mathcal{F}\left\{W\right(a,b\left)\right\}\right\}$ ($\mathcal{F}$ is a Fourier transform), which results in the following:

$$W[f\left(x\right),\psi \left(x\right)](a,b)=\frac{\sqrt{a}}{2\pi }\underset{\mathbb{R}}{\int }\widehat{f}\left(\omega \right){\left(\widehat{\psi }\right)}^{*}\left(a\omega \right)e^{i\omega b}d\omega .$$

(9)

Formula (9) is widely used in different types of software and is called the Continuous Wavelet Transform with Fourier Transform (CWTFT) and is the one used in this paper. The results of the CWTFT application to the original images in Figure 1 are given in Figure 3.

4. Basic Imaging Mechanisms—A Literature Summary

As mentioned in the introduction, geometrical modulations are considered to be dominant in incoherent X-band radar imaging. For the grazing incidence, some additional imaging mechanisms start to be important. For nearshore radars, the local incident angle $\psi$ also changes from a fairly small angle to almost $\pi /2$, adding significant inhomogeneity to the resulting image due to the radar equation and a range-dependent shadowing effect.

The hydrodynamic modulation is weaker than the other two [7,24]; therefore, it is not considered in this work.

4.1. The Radar Equation

The classical form of the radar equation (see, e.g., [25]) gives the received power $P_r$ as

$$P_r=\frac{P_t{G}_t{A}_e\sigma }{16{\pi }^2{R}^4},$$

(10)

where $P_t$ is the transmitted power (W), $G_t$ is the antenna gain coefficient, R is the distance (m), $A_e$ is the antenna effective aperture area (m²), and $\sigma$ is the target cross-section (m²).

When the same antenna is used to both transmit and receive, the transmitting gain $G_t$ and the effective receiving aperture $A_e$ are related by $G_t=4\pi A_e/{\lambda }_{em}^2$, where ${\lambda }_{em}$ is the length of the radar electromagnetic wave. Hence, everything on the right-hand-side of the Equation (10), except for $\sigma$ and $R^{-4}$, can be included as a constant.

For our purposes, Equation (10) is represented in terms of the intensity $I\left(r\right)\propto I_0/R^3$ (here, $I_0$ is a reference intensity), since the pixel size is equal to $R\Delta r\Delta \varphi$ and grows with R ($\Delta r$ and $\Delta \varphi$ are the range and the azimuthal resolution, respectively). However, for the 1D case the range dependence on the pixel size can be disregarded.

4.2. Shadowing

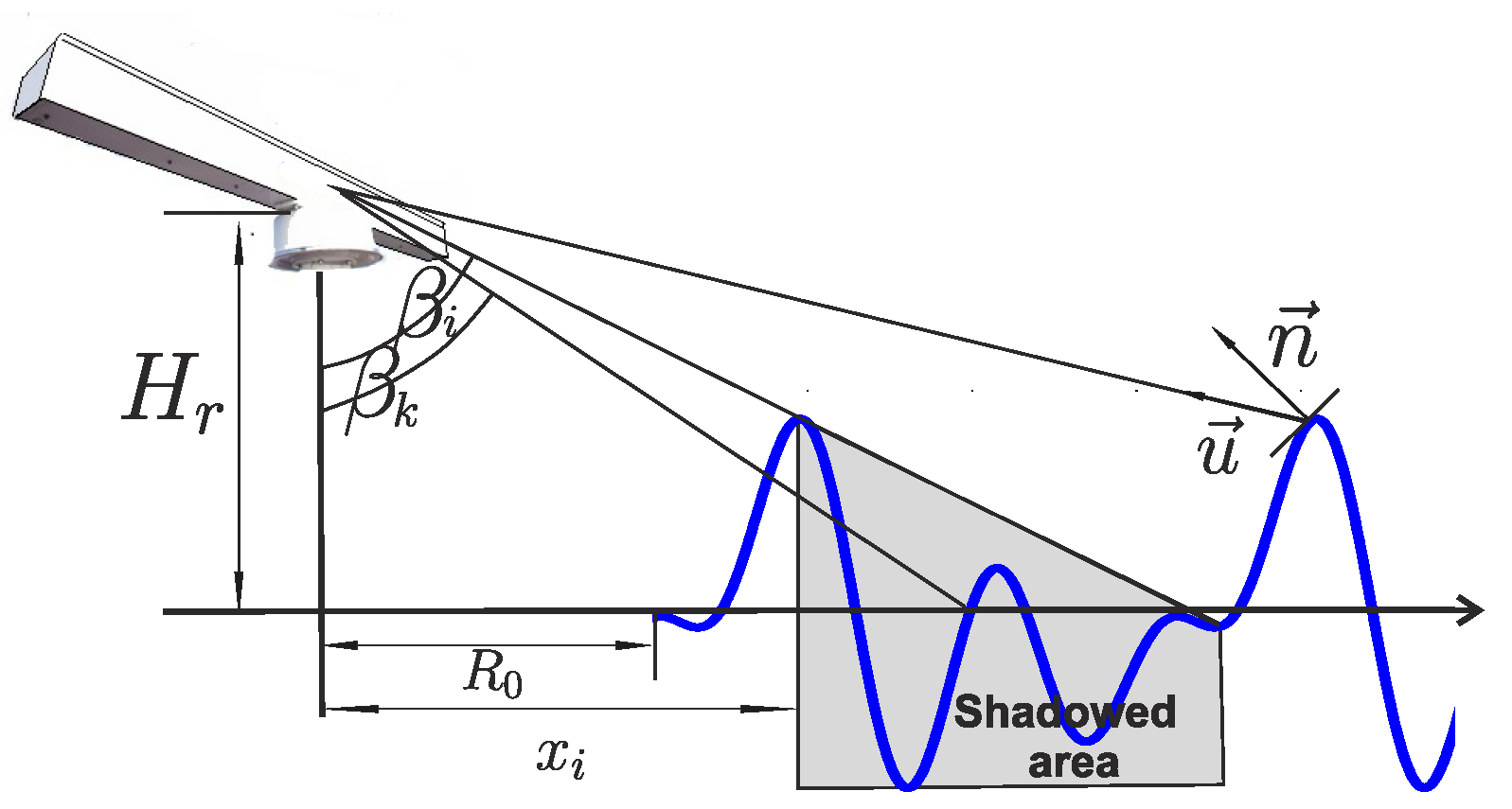

Shadowing modulation is a partial occultation in long wave profiles. This is due to the fact that the tangent electromagnetic rays cannot penetrate significantly into the area of a long wave profile situated under the ray between the tangent point and next intersection points (Figure 4). Generally speaking, shadowing can not be considered a purely geometrical effect, especially for the vertical polarization of electromagnetic signals [26]. For horizontal ones, geometric shadowing is assumed to be a rather good approximation.

There are several ways to calculate the shadowing mask for a given realization of the surface elevation and probing geometry. For a discretized sea surface, an approach based on the comparison of the local incidence angles is employed. For a given realization of the surface elevation $\zeta (x,t)$, the local incidence angles are defined as $\beta (x,t)=arctan\left[\frac{x}{H_r-\zeta (x,t)}\right]$, where $H_r$ is the radar installation height. Then, for a fixed time instance $t^{\prime }$, the shadowing condition depicted in Figure 4 is applied to each range point $x_i:\beta (x_k,t^{\prime })\le \beta (x_i,t^{\prime }),\forall k:i<k\le N_x$. If, for any point $x_k$, the condition is satisfied, the corresponding surface point $\zeta (x_k,t^{\prime })$ is marked as shadowed using an indicator (shadowing mask):

$$\chi (x,t^{\prime })=\left\{\begin{array}{c}\begin{array}{cc}1,& \mathrm{if}\zeta (x,t^{\prime })\mathrm{is}\mathrm{shadowed},\\ 0,& \mathrm{otherwise}.\end{array}\hfill \end{array}\right.$$

(11)

The shadowing probability (shadowing frequency) can be estimated empirically as

$$P_{sh}\left(x\right)=\frac{1}{N_t}\left(\sum _{i=1}^{N_t}\chi (x,t_i)\right),$$

(12)

where $N_t$ is the number of successive time steps in the realization; the actual value used in the simulation is given in Table 1. The shadowing probability may be estimated more rigorously for a random function $z=\zeta \left(x\right)$ with a known joint probability density function of heights and slopes $w(\zeta ,{\zeta }_x)$ (see Appendix A).

For an incoherent X-band radar at the grazing incidence, the shadowed area and its spatial distribution are the only values that are directly related to the wave height field. Due to the fact that such radars are uncalibrated—there is no direct relation between measured intensity and wave heights—shadowing mask retrieval is one of the methods used for radar calibration either in the framework of individual wave inversion [27] or for significant wave heights estimation [28].

4.3. Speckle Noise

Speckle noise is a granular noise that is inherently present in images and degrades their quality. Rough surface images obtained by coherent systems such as lasers, SAR (Synthetic Aperture Radar), or ultrasound are affected by speckle noise. Due to the finite resolution, signal forms are received as reflections from scatterers within a resolution cell. These scattered signals sum coherently, depending on the relative phase of each scattered waveform [29]. The noise resulting from these patterns of constructive and destructive interference manifests as bright and dark dots in the image; hence, they are sometimes called “salt and pepper” patterns or speckle noise.

If the radar antenna with the biggest overall dimension D is assumed to be in the far (Fraunhofer) zone with respect to the current resolution cell of the radar (the correspondent range is defined by inequality $r\ge 2D^2/{\lambda }_{em}$), the complete spatio-temporal auto-correlation function of the backscattered radar signal intensity can be defined as

$$C(\rho ,\tau )=〈I(x,t)·I(x+\rho ,t+\tau )〉,$$

(13)

where $\rho$ and $\tau$ are the range and time lag respectively, and the angular brackets denote the ensemble averaging.

In [7] it was shown that, assuming statistical independence of the resonating ripples and the long waves, $C(\rho ,\tau )$ can be decomposed into the sum of two terms, $C(\rho ,\tau )=C_1(\rho ,\tau )+C_2(\rho ,\tau )$, corresponding to the slow and fast fluctuations of the backscattered signal, respectively. The slow fluctuations describe the mild changes in the radar’s cross-section due to tilt and hydrodynamic modulations, and the fast fluctuations appear due to speckle noise. The peculiarity of this noise is that it has a multiplicative nature. This is due to the fact that the signal backscattered from different parts of the long wave within the resolution cell arrives at the antenna having already been modulated by the corresponding orbital velocities.

By denoting the effective signal as I, the speckle-noise affected signal can be modeled as

$$I_{sn}=(I+c)·(1+G),$$

(14)

where G is a realization of the 2D Gaussian noise. A positive offset value c is added to account for the speckle, not only in the signal but also in shadowed areas, which originally have zero intensity ($c=0.2$ was used in this paper). This offset can be used as an additional parameter to control the signal-to-noise ratio.

5. Simulation of the Sea Clutter Images and Their Wavelet Analysis

The creation of modeled radar images from original surface elevation maps requires several steps. First, a shadowing mask is applied to define the shadowing modulation: $I_{sh}(x,t)=\zeta (x,t)·\kappa (x,t)$. The function $\kappa =1-\chi$ is an indicator of the illuminated (not shadowed) area with $\chi$, as defined in Equation (11). Second, the tilt modulation should be introduced. For this purpose, the surface elevation slope ${\zeta }_x$ is required. It can be defined either analytically or with finite differences from Equation (1). The joint tilt and shadowing modulation are calculated as follows:

$$I_{tilt+sh}=\left\{\begin{array}{c}\begin{array}{cc}(\overrightarrow{n}·\overrightarrow{u}),& \mathrm{if}(\overrightarrow{n}·\overrightarrow{u})>0\mathrm{and}\kappa =1,\\ 0,& \mathrm{otherwise}.\end{array}\hfill \end{array}\right.$$

(15)

Here, $\overrightarrow{u}$ is the unitary vector starting at point $\zeta (x,t)$ and pointing to the radar (see Figure 4), $(·)$ is the scalar product in a 2D Euclidean space, and $\overrightarrow{n}$ is the external unitary normal vector to the surface point $\zeta (x,t)$. It is calculated as $\overrightarrow{n}=\overrightarrow{{\rho }_x}\times \overrightarrow{{\rho }_z}/|\overrightarrow{{\rho }_x}\times \overrightarrow{{\rho }_z}|$, where only the first two components of the resulting vector are considered, $\overrightarrow{{\rho }_x}=(1,{\zeta }_x,0)$, and $\overrightarrow{{\rho }_z}=(0,0,1)$.

Third, the speckle noise model presented by Equation (14) is applied using a realization of the random 2D Gaussian noise with zero mean and dispersion $nl$ ($0\le nl<1$). For convenience, the noise level is given as a percentage.

It is important to note that all imaging mechanisms are range dependent as they use the local incident angle in their definitions. In coastal probing, this angle changes significantly within the radar footprint. To ensure the requirement of working in the far zone in the modeled sea clutter image, a constant range offset of $R_0=200$ m is added. Finally, the range trend due to the radar equation is added using Equation (10).

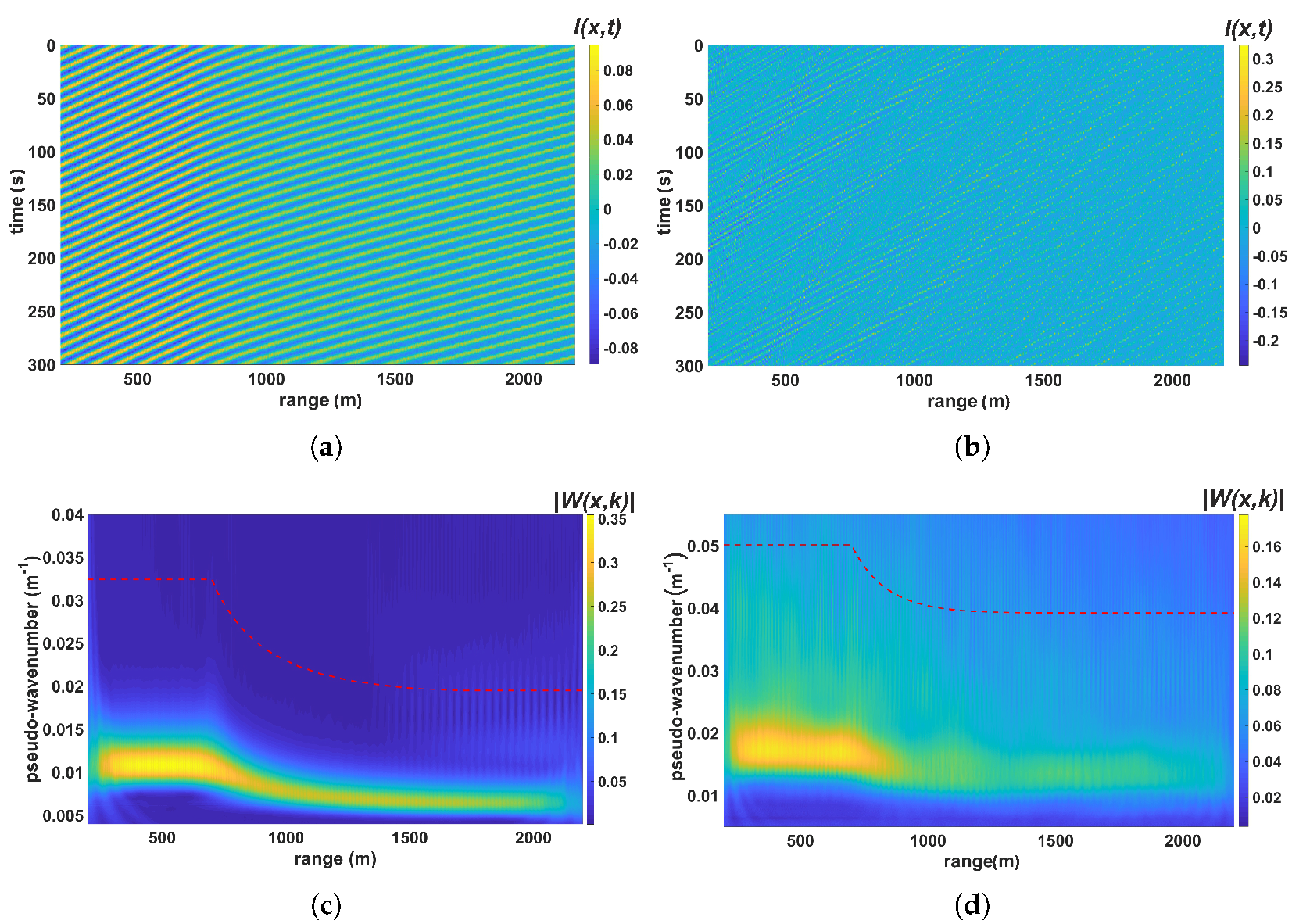

To start working with simulated images constructed using the above procedure or a real X-band radar image, the time-averaged range trend first needs to be subtracted using the radar equation. In real radars, the backscattered signal is further amplified, usually with a logarithmic amplifier. This amplification trend should also be treated before applying the inversion procedure. Implementation examples of the described technique for a monochromatic wave and for a JONSWAP spectrum together with their corresponding wavelet spectra are given in Figure 5.

6. Inversion of the Simulated Radar Images into Surface Elevations (Wavelet Analysis)

In this section, a wavelet method for radar image inversion to surface elevation maps is introduced. One of the strengths of the proposed approach is that the procedure is applied to each time instant independently. This allows to the inversion to be performed without information on the dispersion relation. Normally, filters are applied to account for the dispersion relation information. In case of shoaling over a sloping bottom, the dispersion relation can only be defined locally as a function of depth. Here, since it is not possible to account for dispersion relation information in a global image, a higher harmonic filtration is performed in the wave number domain only by means of a special low-pass (LP) filter. In order to avoid the limitations of the conventional method while working with spatially inhomogeneous data, the CWTFT is used as a basis for a new radar image processing method.

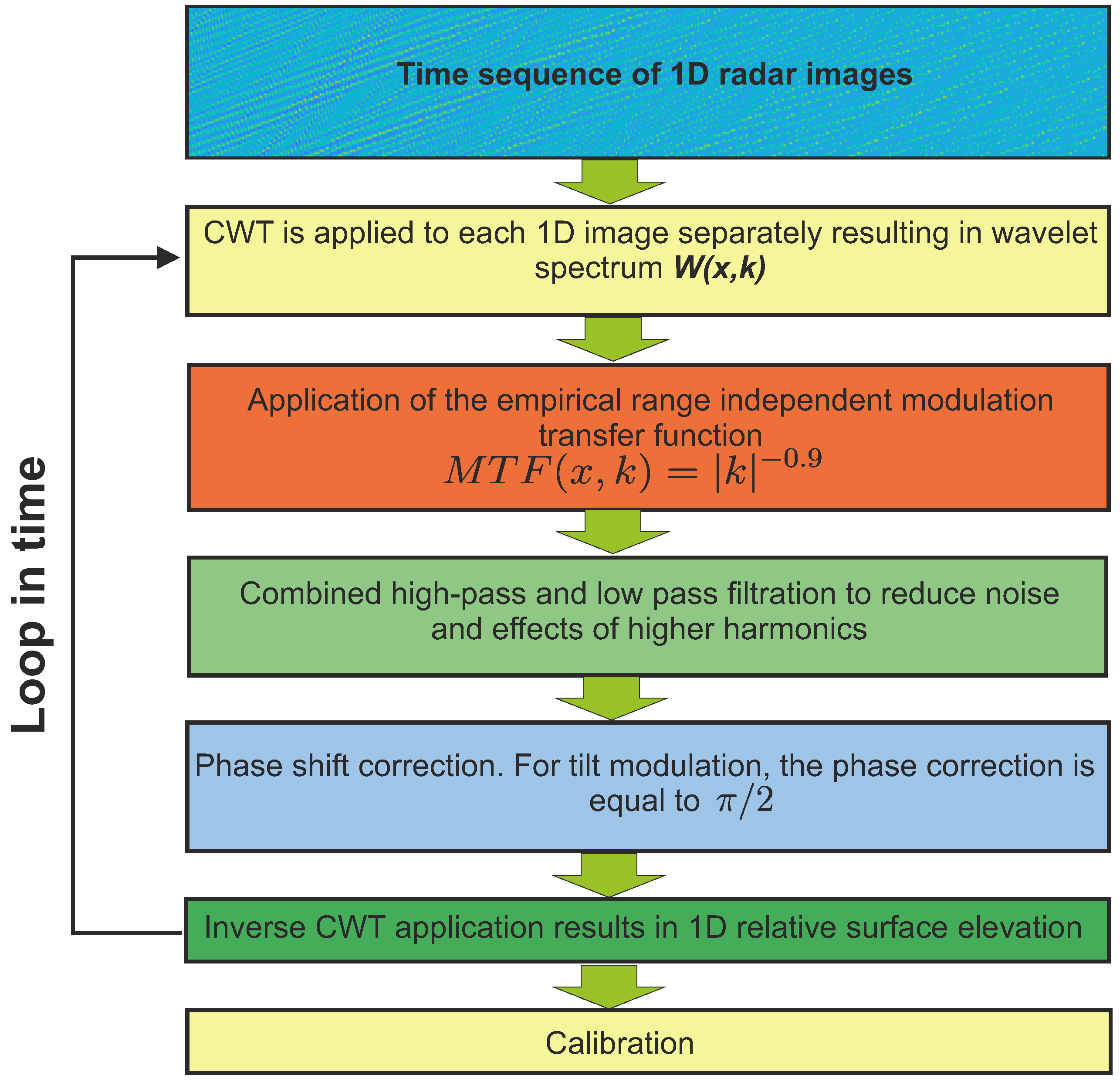

The new image inversion method consists of the following procedure (also see the block diagram in Figure 6):

• Estimation of the CWTFT coefficients of a radar image $W[I(x,t_i),\psi \left(x\right)](x,k)$ at a fixed time instance $t_i$ and calculation of the correspondent pseudo-wave numbers.
• Application of the empirical Modulation-Transfer Function (MTF) in a wave number-coordinate domain $\mathrm{MTF}(x,k)={\left|k\right|}^{-\beta }$. The empirical power $\beta$ is set to 0.9 for all applications. The wavelet-based technique allows the $\beta$ to vary with the range; nevertheless, a range independent MTF is employed as a first approximation. The details of the MTF’s choice are discussed in Appendix C.
• Use of combined high-pass (HP) and LP filters F to reduce noise and influence of higher harmonics. The corresponding filter in the wave number-coordinate domain is defined as $F(x,k)=X\left(\left\{(x,k)\right|k_0<k<l{k}_p\left(x\right),x_{min}\le x\le x_{max}\}\right)$, where X denotes a characteristic function of a set of points, $k_0$ is constant in space (0.001 $m^{-1}$ used in this paper), $k_p\left(x\right)$ is the line of maximum energy in a wavelet spectral domain as a function of space, and l is an empirical constant. Here, the value $l=3$ is used for both monochromatic wave and spectrum cases. The filtered wavelet spectrum is further defined as $W_F[I(x,t_i),\psi \left(x\right)](x,k)=W[I(x,t_i),\psi \left(x\right)](x,k)·F(x,k)$.
• Phase shift correction: As geometrical mechanisms are used, a phase shift equal to $\pi /2$ is applied to every complex spectral wavelet component.
• Calculation of the inverse CWTFT and calibration: Denoting the ICWTFT as $\breve{\zeta }$, the calibrated surface elevation is defined as $\tilde{\zeta }=\breve{\zeta }{\sigma }_{all}\left[\zeta \right]/{\sigma }_{all}\left[\breve{\zeta }\right]$, where ${\sigma }_{all}$ is the time averaged standard deviation of a 2D array denoted as A in the range defined in Equation (16).

  $${\sigma }_{all}\left[A\right]=\frac{1}{N_t}\sum _{i=1}^{N_t}{\left(\frac{1}{N_x-1}\sum _{j=1}^{N_x}{\left|A(x_j,t_i)-\frac{1}{N_x}\sum _{j=1}^{N_x}A(x_j,t_i)\right|}^2\right)}^{1/2}.$$

  (16)

In order to analyze the obtained results, the absolute error of the reconstruction ${\Delta }_a(x,t)=|\zeta (x,t)-\tilde{\zeta }(x,t)|$ is calculated. Together with Equation (16), some other statistics are useful for the error analysis. To estimate the error on specific time sections, its standard deviation and mean value are introduced by Equations (17) and (19) respectively. To estimate the overall mean value of the error, expression (18) is used, whilst, for a time averaged absolute value as a function of range, Equation (20) is employed.

$$\begin{array}{cc}& {\sigma }_{sec}^{t_0}\left[A\right]={\left(\frac{1}{N_x-1}\sum _{j=1}^{N_x}{\left|A(x_j,t_0)-\frac{1}{N_x}\sum _{j=1}^{N_x}A(x_j,t_0)\right|}^2\right)}^{1/2},\end{array}$$

(17)

$$\begin{array}{cc}& M_{all}\left[A\right]=\frac{1}{N_x{N}_t}\sum _{i=1}^{N_t}\sum _{j=1}^{N_x}A(x_j,t_i),\end{array}$$

(18)

$$\begin{array}{cc}& M_{sec}^{t_0}\left[A\right]=\frac{1}{N_x}\sum _{i=1}^{N_x}A(x_i,t_0),\end{array}$$

(19)

$$\begin{array}{cc}& M_t\left[A\right]\left(x\right)=\frac{1}{N_t}\sum _{i=1}^{N_t}A(x,t_i).\end{array}$$

(20)

The cross-correlation coefficient is defined by the following equation

$$C_{sec}^{t_0}[A,B]=\frac{1}{(N_x-1){\sigma }_{sec}^{t_0}\left[B\right]{\sigma }_{sec}^{t_0}\left[A\right]}\sum _{i=1}^{N_x}\left|A(x_i,t_0)-M_{sec}^{t_0}\left[A\right]\right|\left|B(x_i,t_0)-M_{sec}^{t_0}\left[B\right]\right|.$$

(21)

In Equations (16)–(21), letters A and B denote 2D arrays of equal sizes, for which the corresponding statistics are calculated. In the cases mentioned hereafter, A and B are substituted with specific notations of the array they are applied to (e.g., $\zeta ,\breve{\zeta },\tilde{\zeta },\Delta$, or ${\Delta }_a$). For brevity, the correlation coefficient notation $C_{\zeta ,\tilde{\zeta }}$ might be used instead of $C_{sec}^{t_0}[\zeta ,\tilde{\zeta }]$ when it is clear which cross-section is taken.

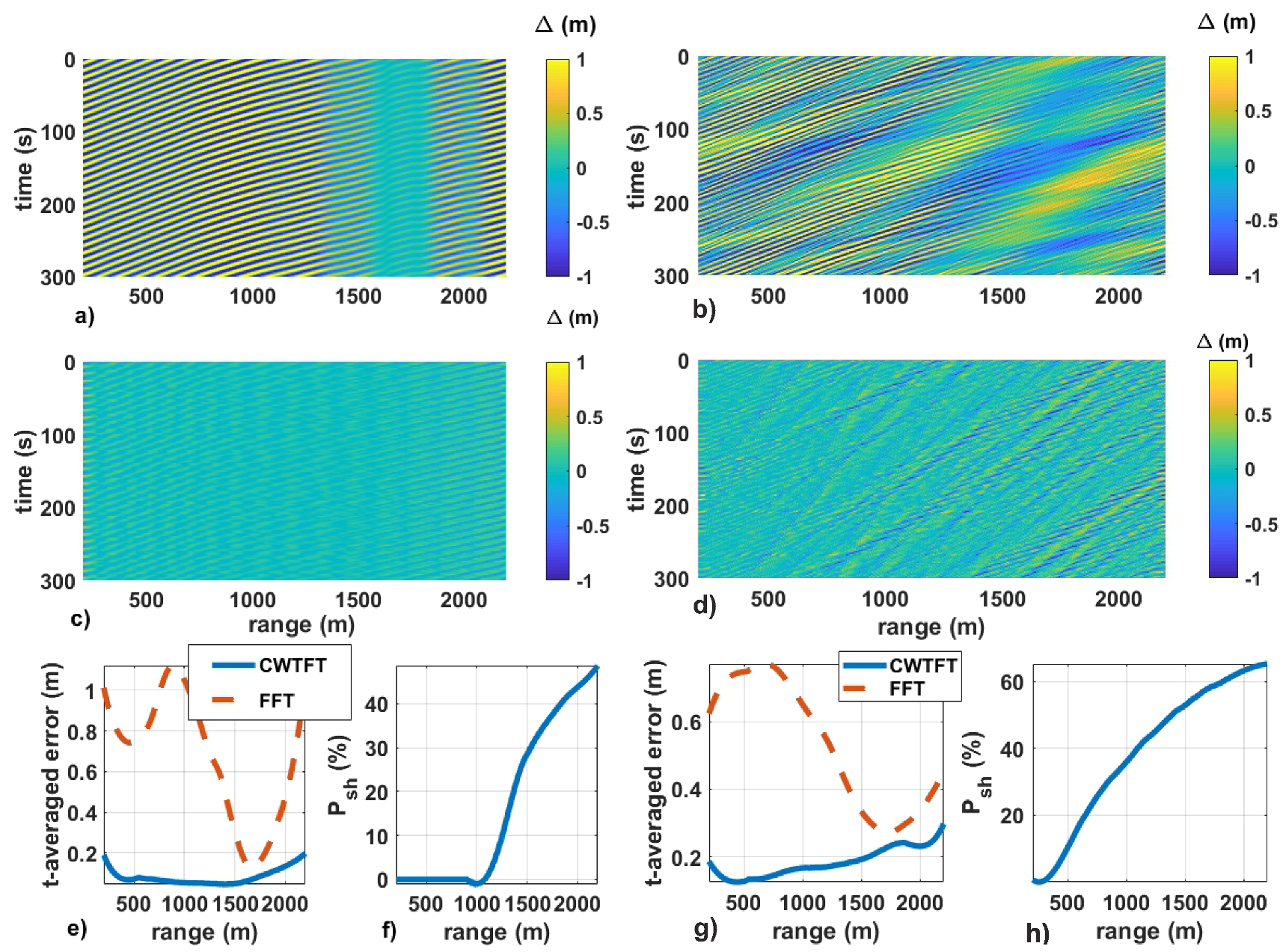

In Figure 7 the range–time diagram of the original reconstructed map difference $\Delta =\zeta (x,t)-\tilde{\zeta }(x,t)$ for the monochromatic wave and the JONSWAP spectrum together with $M_t\left[{\Delta }_a\right]\left(x\right)$ values and the corresponding shadowing probability (refer to the Equation (12)) are given both for the conventional method and for the new one.

From the difference maps, it is clear that the new method shows much better performance in the reconstruction of the surface elevation. Some local extreme values of the corresponding differences for the new method appear only in strongly shadowed troughs.

Since the Fourier transform based CWT is used, the first and last 200 m in the reconstructed image are not taken into account in the estimation of the error statistics (summarized in

Table 2. Absolute error ${\Delta }_a$ statistics for the new CWTFT-based method for the monochromatic wave and JONSWAP spectrum examples given in Figure 1, Figure 2, Figure 3, Figure 4 and Figure 5, Figure 7 and Figure 8. Here mean $P_{sh}=M_{all}\left[\chi \right]$, where $\chi (x,t)$ is the shadowing mask (see Equation (11)), and the other columns to the right side are defined by Equations (16)–(19) and (21) respectively.

Case	${\mathit{H}}_{\mathit{r}}$ (m)	Mean ${\mathit{P}}_{\mathit{sh}}(\%)$	${\mathit{M}}_{\mathit{all}}\left[{\Delta }_{\mathit{a}}\right]$ (m)	${\mathit{\sigma }}_{\mathit{all}}\left[{\Delta }_{\mathit{a}}\right]$ (m)	${\mathit{M}}_{\mathit{sec}}^{{\mathit{t}}_0}\left[{\Delta }_{\mathit{a}}\right]$ (m)	${\mathit{\sigma }}_{\mathit{sec}}^{{\mathit{t}}_0}\left[{\Delta }_{\mathit{a}}\right]$ (m)	${\mathit{C}}_{\mathit{\zeta },\tilde{\mathit{\zeta }}}$
monochromatic wave	50	16	0.067	0.051	0.071	0.063	0.991
spectrum	50	39	0.164	0.147	0.169	0.142	0.872

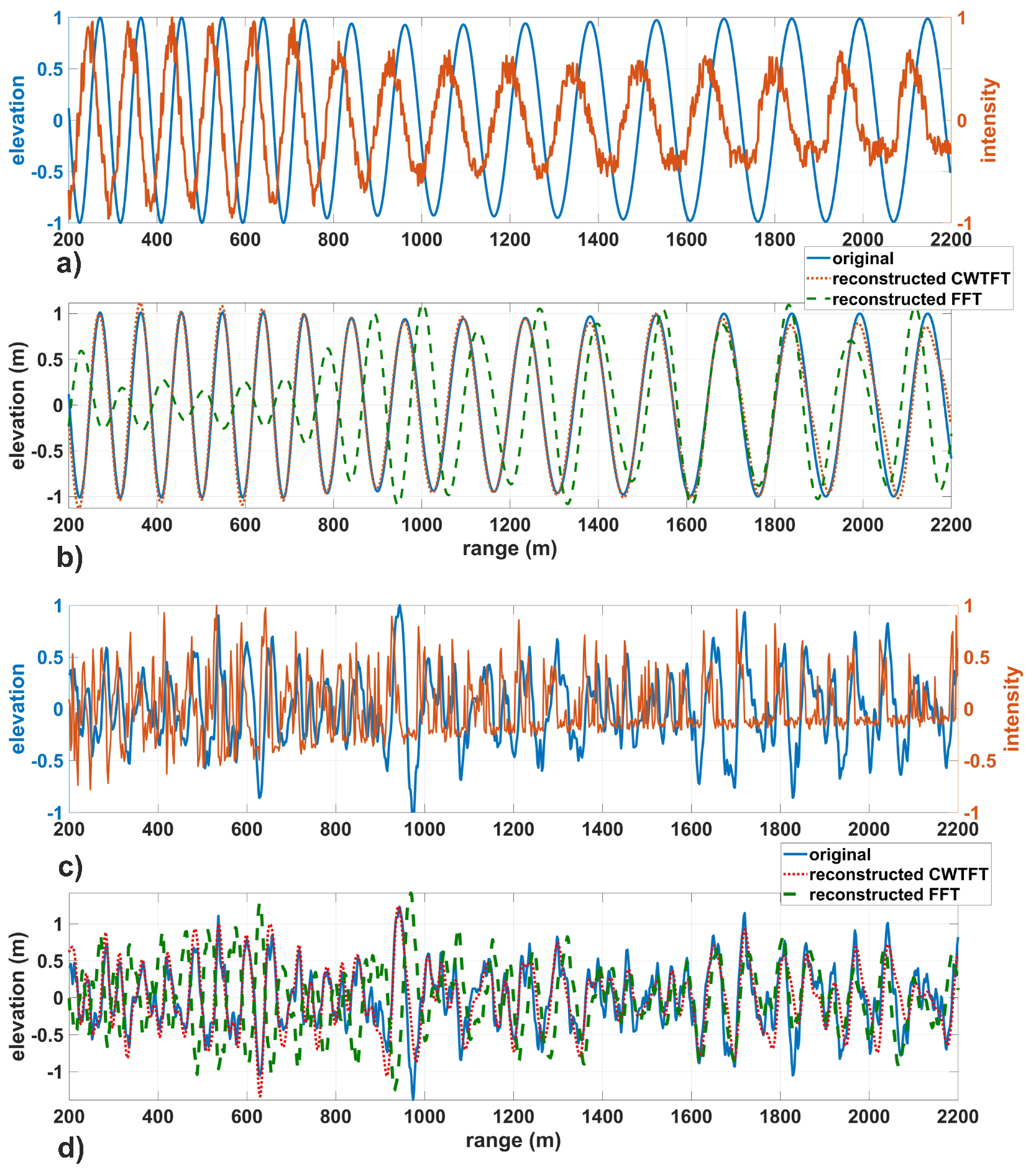

) in order to disregard edge effects. A comparison between the original and reconstructed instantaneous surface elevation profiles is presented in Figure 8. The corresponding statistical parameters are given in the last three columns of Table 2, showing a high correlation between the original and reconstructed signals on the section with a comparatively small mean error and dispersion. Unlike the conventional method, the results of the present method demonstrate a very high correlation between the original and reconstructed surface elevations. The speckle noise, which is clearly seen, especially in the shadowed troughs on the cross-section of the corresponding radar images (orange curves in Figure 8a,c), is filtered out in the resulting image due to the use of the corresponding LP filter in the wave number-coordinate domain. The present method also grasps the individual wave heights and crest/trough locations significantly better.

7. Analysis of the Results

In this section, the accuracy of the new wavelet based method is evaluated extensively with respect to various geometric (antenna height), environmental (bathymetry and speckle-noise level), and sea state parameters. The shadowing probability is a function of several parameters, e.g., the incident angle and variation of the surface slopes ${\epsilon }_{RMS}$, which are functions of the range (for details refer to Appendix A). For simplification, the mean amount of shadowing is controlled solely using the radar installation height $H_r$. In Figure 9a, the error (${\Delta }_a(x,t)$) mean value and its standard deviation averaged over time and space are given using Equations (16) and (18), respectively. They are given as functions of the radar installation height $H_r$ both for the entire range–time map and an arbitrarily chosen cross-section. The dependence of the cross-correlation coefficient (Equation (21)) of the original and reconstructed surface elevations is also presented with respect to $H_r$. The results are averaged over the nine bathymetry profiles given in Appendix B and three JONSWAP spectra (for simulation parameters details, refer to Table 1).

In Figure 9a, it can be clearly seen that as the shadowing probability increases (antenna height decreases), the accuracy of the inversion method decreases. This behavior is expected as the shadowed patches contain no backscatter information from the surface elevation for the inversion procedure. The calculated values relate to an averaging over the complete image with respect to $H_r$; nevertheless, the argument $H_r$ does not necessarily relate to the actual antenna height but serves as a measure of shadowing. Parts of the image area can have a local shadowing probability which corresponds to very high antenna installations, and other parts of the image correspond to very low antenna installations. This implies that there is quite a high accuracy level as long as the shadowing probability is low at a certain range.

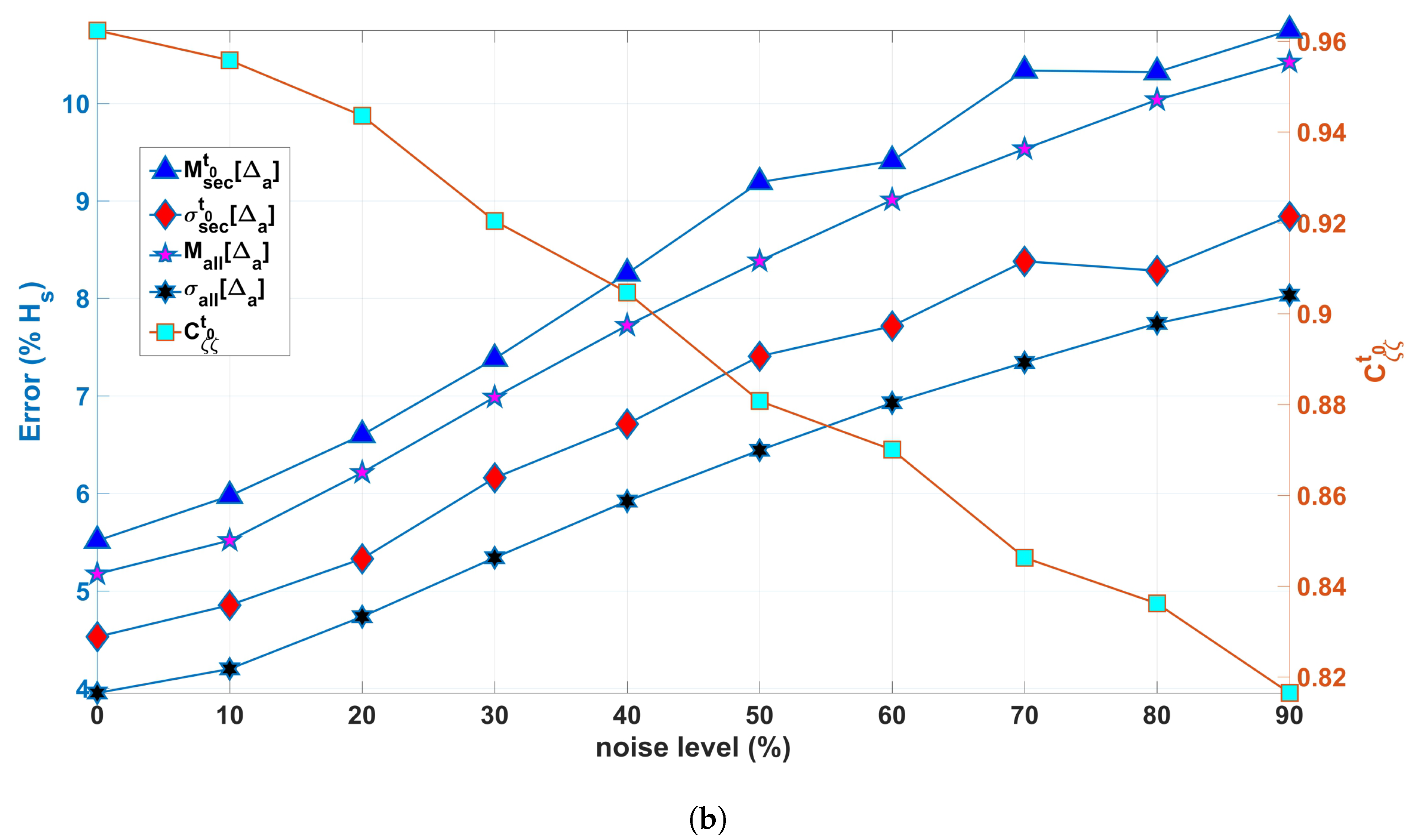

Figure 9b shows the influence of the speckle noise level on the accuracy of the inversion procedure. As expected, a higher noise percentage reduces the accuracy. Still, typical speckle noise contamination values (≈10%) do not affect the inversion significantly.

8. Conclusions

A new wavelet-based algorithm for the inversion of inhomogeneous radar images was presented. It enables a thorough analysis of shoaling processes, including wave amplitude and length changes, taking the whole image in space as is. The proposed method shows high efficiency in filtering speckle noise and in treating local wave phase shifts due to tilt effects. For the grazing incidence ($H_r\approx 20$ m), the new method indicates the same level of accuracy for inhomogeneous shoaling conditions as the conventional one in homogeneous sea states (compare [12]). Despite the fact that 1D and 2D cases are compared, the lack of a broader accuracy analysis of the conventional method performance in 1D makes it possible to use this result as reference. As the probability of shadowing decreases ($H_r$ increases), the corresponding accuracy of the new method improves significantly.

The new method addresses the intrinsic limitation of conventional FFT-based methods of accounting for the inhomogeneous conditions common to wave shoaling. In such cases, the conventional method cannot apply the phase shift correctly which can be easily overcome by the localized wavelet-based technique. In this paper, the effect of linear shoaling was taken into account. This kind of process deals with a significant wave number modulation and mild amplitude changes. In cases with strong amplitude modulations, such as in wave grouping and rogue waves, additional investigation of the method performance is needed.

The range resolution used in this paper is finer than that provided by typical nautical radars and ensures a sufficient sampling rate, accounting for wavelength shortening. When working with a typical nautical radar’s range resolution of 4.5–10 m, it is important to limit the analysis to a certain wavelength range, remembering the limitation of 10 sample points per peak wavelength. This can be checked directly with the CWT spectrum analysis.

There are various possible extensions to the described wavelet approach. The new model could be extended to include more advanced adaptive HP and LP filters in the pseudo-wavenumber coordinate domain by choosing the corresponding band-pass in accordance with the spectral width to allow more efficient filtration of the higher harmonics. Without significant changes to the algorithm, the wavelet method could also be extended to 2D spatial cases. Additionally, a localized (coordinate dependent) MTF could be derived to improve the inversion performance in a global nearshore image. It is important to stress that with minor changes to the MTF, the same model could be used for moderate incidences, which are common for airborne and spaceborne radars. In cases where it is impossible to obtain a temporal sequence of the same area (required for the conventional method), the ability of the wavelet method to treat individual spatial images could make it the prominent approach for moving platforms.
