Article

Using BP Neural Networks to Prioritize Risk Management Approaches for China’s Unconventional Shale Gas Industry

1
School of Business Administration, China University of Petroleum (Beijing), Beijing 102249, China
2
Alberta School of Business, University of Alberta, Edmonton AB T6G 2R6, Canada
3
Faculty of Engineering, Engineering Safety and Risk Management, University of Alberta, Edmonton AB T6G 2R3, Canada
*
Author to whom correspondence should be addressed.
Sustainability 2017, 9(6), 979; https://doi.org/10.3390/su9060979
Submission received: 15 March 2017 / Revised: 31 May 2017 / Accepted: 1 June 2017 / Published: 7 June 2017
(This article belongs to the Special Issue Energy Security and Sustainability)

Abstract

:
This article is motivated by a conundrum: How can shale gas development be encouraged and managed without complete knowledge of the associated risks? To answer this question, we used back propagation (BP) neural networks and expert scoring to quantify the relative risks of shale gas development across 12 provinces in China. The results show that the model performs well with high predictive accuracy. Shale gas development risks in the provinces of Sichuan, Chongqing, Shaanxi, Hubei, and Jiangsu are relatively high (0.4~0.6), while risks in the provinces of Xinjiang, Guizhou, Yunnan, Anhui, Hunan, Inner Mongolia, and Shanxi are even higher (0.6~1). We make several recommendations based on our findings. First, the Chinese government should promote shale gas development in Sichuan, Chongqing, Shaanxi, Hubei, and Jiangsu Provinces, while considering environmental, health, and safety risks by using demonstration zones to test new technologies and tailor China’s regulatory structures to each province. Second, China’s extremely complex geological conditions and resource depths prevent direct application of North American technologies and techniques. We recommend using a risk analysis prioritization method, such as BP neural networks, so that policymakers can quantify the relative risks posed by shale gas development to optimize the allocation of resources, technology and infrastructure development to minimize resource, economic, technical, and environmental risks. Third, other shale gas industry developments emphasize the challenges of including the many parties with different, often conflicting expectations. Government and enterprises must collaboratively collect and share information, develop risk assessments, and consider risk management alternatives to support science-based decision-making with the diverse parties.

1. Introduction

China has become the top energy consumer in the world [1]. At the same time, China is facing intense international and domestic pressure to reduce the greenhouse gas and other emissions resulting from its primarily coal-based energy system [2,3,4]. Given these twin pressures of increasing energy demand while controlling emissions, the development of China’s shale gas industry has emerged as a strategic national priority [5]. In Table 1, we compare the shale gas reserves, resource potential, and status of industry development in China, the United States, and Canada.
Shale gas development in China can be divided into two main phases: the benchmarking phase (1990–2005), which involved observing, summarizing and evaluating shale gas industry development in North America; and the local study phase (2006–present), which involves preliminary assessments of shale gas resource potential and the identification of favorable development areas, applying internationally developed technologies for tight gas exploration, characterization, modeling, and exploitation in the Chinese context [10]. As a result, substantial exploration and production breakthroughs have been made in the Chinese shale gas industry since 2009 [11].

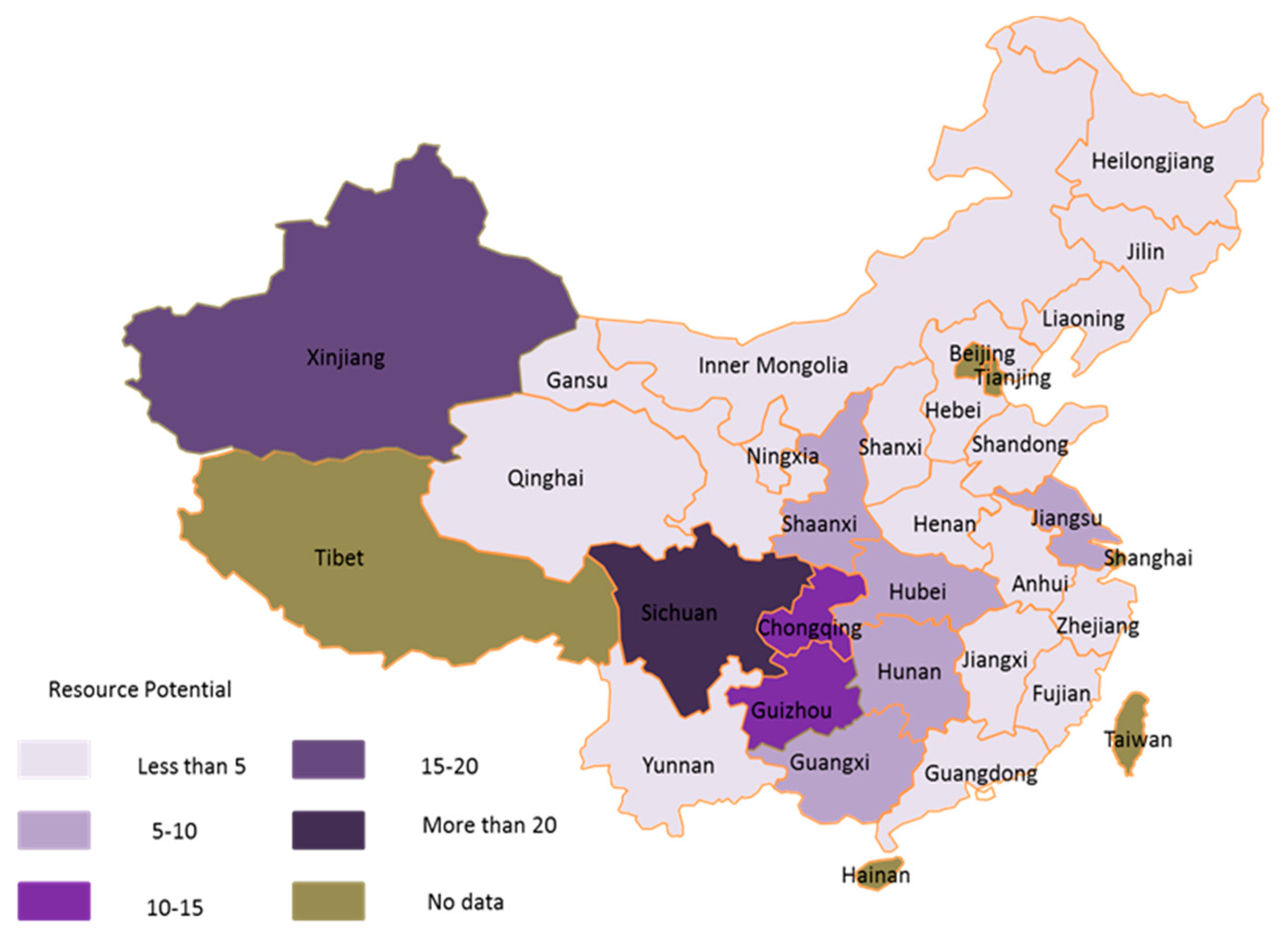

According to China’s Shale Gas Resources Report issued in May 2015, China’s shale gas geological resource potential is 134.4 trillion m3, which is almost twice the amount of conventional natural gas resources in China; recoverable reserves are estimated at 25.1 trillion m3 (excluding those in the Qinghai-Tibet) [11]. The shale gas resource distribution in China is illustrated in Figure 1. Seven provinces—Sichuan, Xinjiang, Chongqing, Guizhou, Hunan, Hubei and Shanxi—account for 68.9% of the nation’s total reserves [12].
Although developing China’s shale gas resources could help address the growing need for cleaner energy, production trails other countries (Table 1). To catalyze this process, in its 12th Five-Year Plan issued in March 2012, China articulated its first national development plan for shale gas, including priorities and objectives for 2011–2015, and an outlook to 2020. The plan called for the completion of basic research and an assessment of China’s shale gas resource potential and its distribution, a selection of a batch of shale gas prospect areas (about 30–50) and favorable target areas (about 50–80), implementation of several shale gas exploration and development areas, development of exploration technology and equipment suited to China’s geological conditions, and initial achievement of scale production by 2015. Shale gas production goals were 6.5 billion m3 in 2015 and 60–100 billion m3 by 2020. To attract foreign investment, in December 2011, the Foreign Investment Industry Guidance Catalogue reclassified foreign investments in shale gas exploration and development in the form of joint ventures with Chinese partners as “encouraged”, thereby providing foreign investors some tax and administrative benefits. Additionally, Sichuan, Chongqing, Guizhou, Hunan, Hubei, Yunnan, Jiangxi, Anhui, Jiangsu, Shannxi, Henan, Liaoning, and Xinjiang were defined as key provinces, without providing detailed instructions as to how this development was to occur. In terms of environmental issues, the plan only required the supervision and control of vegetation destruction, water pollution, and the recycling of fracturing fluid.
Given the complex geological conditions [6] and limited experience with relevant shale gas exploration and production technologies, the industry struggled to achieve the shale gas targets set out in the 12th Five-Year Plan [14]. First, shale gas had not been well characterized and proven; only a few blocks within the Sichuan Province basin had proven reserves [11]. By the end of 2014, only 21,818 km of 2D seismic and 2134 km2 of 3D seismic tests had been completed, mainly in the Fuling block (in Chongqing Province) and Changning-Weiyuan blocks (in Sichuan Province) [11]. By contrast, no 2D seismic exploration had been performed in provinces such as Shaanxi. Second, the costs of exploration and production proved much higher than anticipated; as a result, some state-owned oil companies, such as China Petrochemical Corporation (Sinopec) and China National Petroleum Corporation (CNPC), managed to produce a small amount of shale gas, but with huge deficits. For instance, by the end of 2013, Sinopec and CNPC reported the total investment of $370 million and $640 million, respectively, but produced only 2.58 billion cubic feet and 2.47 billion cubic feet, respectively, resulting in short-term losses of about $1 billion on their shale gas projects [15]. Third, some bid-winning non-oil-and-gas enterprises, such as Chongqing Energy Investment Group Limited Corporation, struggled to meet their shale gas exploration and production targets because they lacked the necessary expertise and investments in reservoir characterization [12,13]. Fourth, some international oil companies have divested their shale gas assets in China (e.g., Shell and ConocoPhillips) [16]. As a result, shale gas development is mainly being left to the state-owned oil and gas companies. Further, by regulation, produced shale gas cannot be sold freely in the Chinese energy market and its price remains uncompetitive with conventional gas. The Chinese government provides subsidies to companies that produce shale gas, but the margins are still tight. Thus, international oil companies are choosing other, more profitable projects.
Taking these issues into consideration, the national energy administration of China has modified the shale gas production target for 2020 from 60–100 billion m3 to 30 billion m3, and the Ministry of Land and Resources has repeatedly postponed the third round of bidding for shale gas prospecting rights [14,17]. This suggests that China’s production targets have not reflected the operating and regulatory environment, and that the policies made by the Chinese government have not catalyzed the desired development. Underlying this is insufficient characterization of shale gas resources and the risk associated with their development.
We make three contributions to the extant literature. First, we extend and deepen the risk assessment system for China’s provincial shale gas industry by considering resource, economic, technical, environmental, and social and policy risks (with 16 subordinated tertiary indicators). Second, we leverage experts’ evaluations of shale gas development risks for 12 different provinces in China. Third, we extend the use of BP neural networks by demonstrating that this approach can be used to quantitatively estimate the risks associated with shale gas development in different regions of China.
The rest of this paper is organized as follows. In Section 2, we review prior research and describe how we identified and selected risk indicators and developed our risk assessment system for China’s provincial shale gas industry. In Section 3, we introduce our methodology and data. In Section 4, we present and discuss our results before making some policy suggestions in Section 5.

2. Developing the Risk Assessment System

While research on the risks associated with conventional energy and renewable energy in China has been comprehensive, risks associated with shale gas development were not considered until 2012 when production began. Previous work on shale gas has identified the risks associated with geological conditions [18,19], technology [20,21], yield prediction [22,23,24], and strategic and government policy [6,25,26,27], yet less attention has been paid to overall industry development risks [5,28,29,30]. Processing of minerals is associated with a number of development risks, including various economic, environmental and social issues [31]. These risks have prompted members of the shale gas industry to engage in the sustainability debate. The ideal way to deal with these potential risks generally is through a combination of enhanced socioeconomic growth and development, and improved environmental protection and pollution prevention [32]. This indicates insufficient breadth in the research on shale gas development risk; scholars typically focus on one or two specific industry risks [33,34,35,36,37,38,39,40,41,42], rather than engaging in a comprehensive analysis of all risks. It also indicates an insufficient depth of analysis, with most risks being assessed qualitatively rather than quantitatively [33,34,35,36,37,38,39,40,41]; quantitative analysis supports more complex assessment [43] and evaluative tradeoffs amongst a range of diverse risks [44]. Quantitative evaluations of China’s shale gas industry development risks are scarce and province-scale analysis is absent, yet necessary to analyze site-specific information (e.g., local environmental conditions or community characteristics) [5]. The most recent research summarizes scientific activities in terms of who is engaged in research and what they are researching [45,46], but does not provide a comprehensive analysis of development risks. For instance, according to Feng [47] (p. 23):
“Currently, environmental supervision regarding shale gas development in China mainly references the regulations and technical guidelines developed for conventional resources…These policies do not fully consider the specific environmental issues brought by this new mineral resource. [Further], the authorities have yet to consider environmental protection, ecological and human health impacts when selecting sites for shale development, and no research has been conducted on pollution levels from China’s shale developments.”
To address this gap, we analyze the resource, economic, technical, and environmental risks associated with China’s provincial shale gas development, using back propagation (BP) neural network modeling. Neural network analysis is used for “categorization and…prediction problems, particularly when there are a large number of inputs which are related in nonlinear ways” [48]. Indeed, neural networks outperform traditional statistical methods, especially for problems with incomplete data, when inputs and constraints are related in complex, nonlinear ways [49,50]. Feed-forward back-propagation is a well-known learning algorithm for training neural networks, which can supplement existing theoretical analyses and decision-making processes.
The risks discussed in this paper are on an industry level and are not specific to a particular shale gas project. The risks can be divided into internal industry risks (i.e., resource potential, economic, technical and environmental) and external socio-political risks such as China’s domestic policy system and international geopolitical factors. The shale gas industry in China is in an early stage, so data are relatively scarce. However, since the shale gas and conventional oil and gas industries share many characteristics in terms of exploration and production, transportation and downstream markets, we consulted experts (see Figure 2) to identify risks. Figure 2 illustrates how we developed a neural network-based risk assessment system for shale gas development in China. We discuss the preparation of our training data, development of our neural network, and the simulation of the relative risks in the next section.
The advantage of expert-based models is that they do not require inventory data for model training; however, the disadvantage is the subjectivity of experts’ judgments about the importance of conditional factors. To improve the reliability of our model, we selected a committee of 12 experts in the shale gas field. Since state-owned oil companies are currently engaged in shale gas exploration and development [15], we selected one expert from each of the research institutions of five state-owned petroleum enterprises, namely Sinopec (China Petrochemical Corporation) Exploration and Development Research Institute, Sinopec Economic and Technology Research Institute, China National Petroleum Corporation (CNPC) Exploration and Development Research Institute, CNPC Economic and Technology Research Institute, and China National Offshore Oil Corporation (CNOOC) Energy Economic Research Institute. We also selected an expert from a foreign-funded enterprise (i.e., Schlumberger) and an expert from a private enterprise (i.e., Anton Oilfield Services Group) because these two companies play an important role in providing the engineering and technical services for China’s shale gas industry [51]. Since scholars from China University of Petroleum (Beijing), Southwest Petroleum University and Yangtze University have published many papers about shale gas [10], we chose experts from each of these three universities. Finally, we selected one expert from each of the two research institutions engaged in long-term research on China’s shale gas industry: Oil and Gas Resources Research Center of China Geological Survey and China Energy Website [51].
A comprehensive risk evaluation system is key to ensuring that the evaluation results are practical and reliable. Therefore, system development should not only follow general principles such as being scientific, comprehensive, quantitative and feasible, but also include research findings related to industrial risk index systems in China and elsewhere. While considering inter-industry differences, we primarily focused on the research findings of energy-related risk index systems and the feasibility of their application in the shale gas industry (see Table 2). Since our focus is on the risks associated with shale gas industry development, we focused first on three representative studies on this topic: Guo et al. [52], Yu [53] and Krupnick et al. [5]. Second, we considered studies related to coal, the dominant source of conventional fuel energy in China. However, since coal is abundant, the technology is mature, the market is completely competitive, and the regulatory system is established, the risks related to the industry are less applicable. Third, we reviewed literature related to the development of the renewable energy industry (i.e., biomass and solar) because there are similarities in terms of national policy support, market competition, environmental impacts, and technical requirements for industry development. Importantly, we did not consider literature related to the nuclear industry because it is completely different in terms of developmental stage, technology, regulation, and long-term, immeasurable risks [54].
Drawing on our experts’ suggestions and findings in the literature, we identified representative and quantifiable indicators of risks associated with shale gas development. For example, production cost, which is a type of economic risk, is taken directly from Guo et al. [52]. However, we identified price competitiveness as a sole indicator of market risk, while Hou [55] also considered market demand. In China, unconventional shale gas directly competes with conventional gas. Since there is no significant difference in terms of production quality, consumers only care about price, not the origins of the gas. As shown in Table 3, our risk assessment system includes five types of secondary indicators, namely resource risk, economic risk, technical risk, environmental risk, social and policy risk (with 16 subordinated tertiary indicators).

3. Methodology and Data

3.1. BP Neural Network

There are several different risk evaluation methods, among which the analytic hierarchy process (AHP), grey system evaluation method, data envelopment analysis (DEA), fuzzy mathematics comprehensive evaluation method, the multi-objective decision and expert evaluation method [58,59,60,61,62,63,64,65] are relatively mature. BP neural networks are one of the most commonly used and most mature artificial neural network methods [66,67,68,69,70,71]. Information processing is divided into forward data calculation and back learning (namely the back propagation of error signals and correction of relative values) to approximate a given expected output. A trained network can be used to predict the target variable. This method is believed to be most applicable to simulation of the correlation of inputs and outputs [72]. Funahashi [73] proved that the three-layer network with just one hidden layer is sufficient to express any continuous function with any required accuracy, assuming an adequate number of hidden layer nodes. The artificial neural network can estimate any function in a broad category and reveal the nonlinear relationship that exists in the data sample [74,75]. BP neural networks are widely used in risk assessment and security pre-warning systems in various industries [72,76,77,78,79]. The basic mechanism is shown in Figure 3.

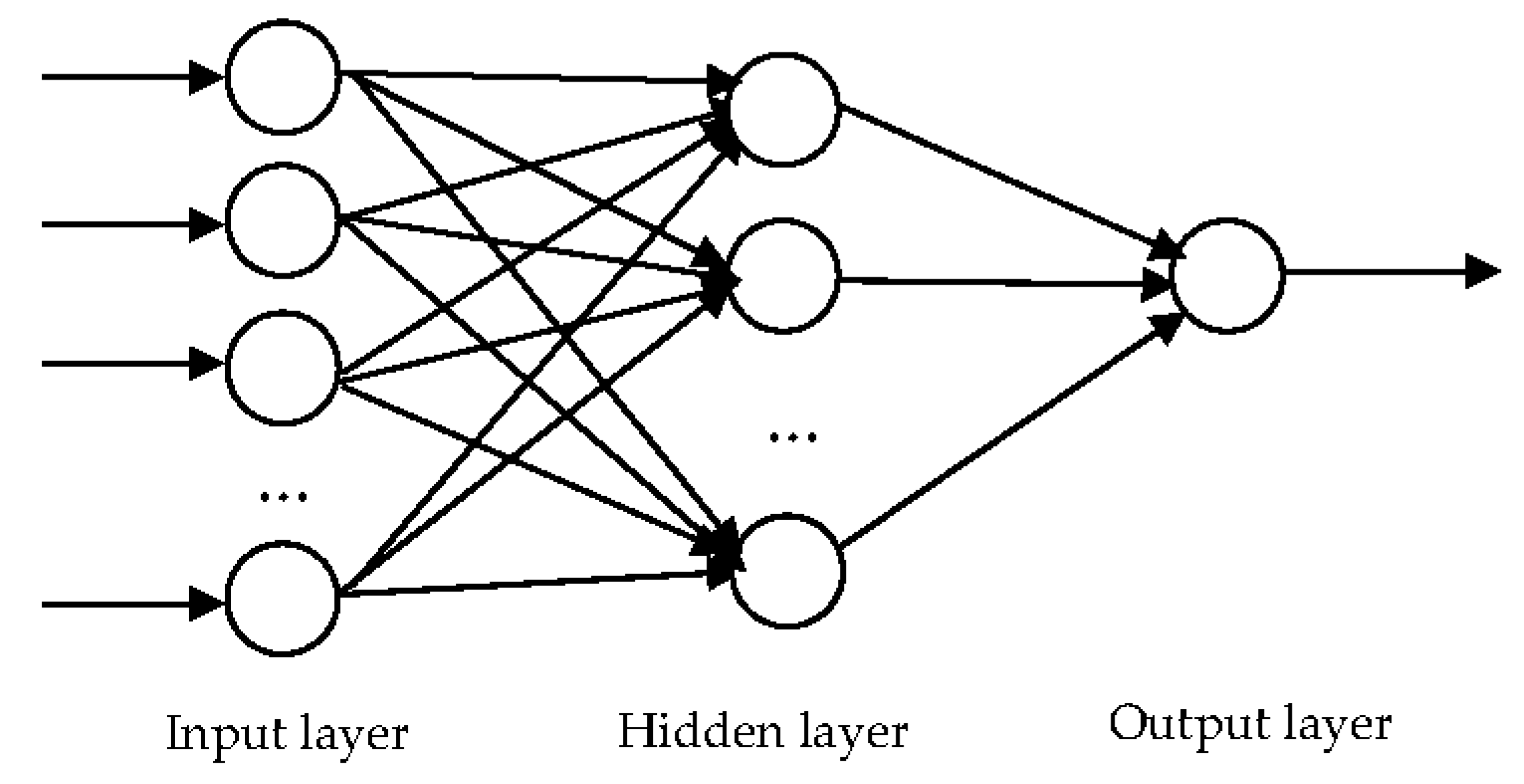

Figure 3 illustrates the three layers of a BP neural network: the input layer, the hidden layer, and the output layer. Two nodes of each adjacent layer are directly connected via a link. Each link has a weighted value representing the degree of relationship between two nodes [80]. Suppose that the number of input layer neurons is n, the number of hidden layer neurons is p, and the number of output layer neurons is m. We can infer a training process described by the following equations to update these weighted values, which can be divided into two steps:
Step 1: Hidden layer stage. The output of the hidden layer neurons can be calculated as follows:
x i 1 = f ( j = 1 n w i j 0 x j + w i 0 0 ) ,   i = 1 , 2 , , p
where j = 1 n w i j 0 x j + w i 0 0 represents the weighted sum of n input layer neurons; w i j 0 is the weight coefficient reflecting the influence level of the input layer neuron j on the hidden layer neuron i;   w i 0 0 is the threshold value of the hidden layer neurons i; and f(x) is a non-memory nonlinear excitation function used to change the output of neurons.
Step 2: Output layer stage. Similarly, the output of the output layer neurons is:
y k = f ( j = 1 p w j k 1 x j 1 + w k 0 0 ) ,   k = 1 , 2 , , m
Moreover, the error function of neurons in the output layer is defined as:
E = 1 2 k ( d k y k )
where d k is the target value. The error value at every node in the former layer is calculated layer-by-layer using back propagation and corrected using the following weighted correction formula:
Δ w i j m = η δ j m y i m 1
where η is the learning rate and δ j m is the error signal.
Prior to following these steps, data should be normalized to overcome problems arising from the different physical significances and dimensions of the input and output data. Since we used a Tanh activation function, we chose an interval of (−1, 1) for normalization purposes. The following formula is commonly used:
P i = 2 × I i I m i n I m a x I m i n 1
where I i represents the input or output data, and I m i n and I m a x   are the minimum and maximum values of input or output data, respectively.
Thus, in this paper: (a) the input layer neurons correspond to the 16 risk evaluation indicators, that is, n = 16; (b) in the output layer, one neuron reflects the risk level, (i.e., m = 1); and (c) the number of hidden layer neurons, p, is usually determined from experience, by the convergence speed and error optimization during the training process, or by the following two formulas [67]:
k   < i = 0 n C p i ,   if   i   >   p ,   C p i   =   0
p   =   n   +   m   +   a
where k represents the sample number and a is an integer of the interval (1,10). Based on Formula (6), 4 ≤ p. Moreover, based on Formula (7), 6 ≤ p ≤ 14. Different precision results are shown in Table 4.
As shown in Table 4, the R-values for the training, validation and testing samples are all greater than 0.9 as the number of neurons in the hidden layer changes from 6 to 14 after the network training process, which indicates that the network output is strongly associated with the target expectation. Meanwhile, MSE does not decrease significantly as the number of neurons in the hidden layer increases. Since the precision of the model is satisfactory, having six hidden layer nodes reduces the complexity of the network.
We trained the constructed risk assessment BP network model using the MATLAB neural network toolbox. Taking early stopping into consideration, we randomly divided the samples into training (50%), validation (25%), and testing (25%) subsamples. The target error requirements are satisfied in these different situations through the MATLAB simulation. The BP algorithm has a reliable basis, discrete derivation, high accuracy and universality. We adopted the improved Levenberg–Marquardt (L-M) algorithm, which combines the gradient descent method and the Gauss-Newton algorithm, where the “tansig” function is used as the transfer function, and the “train lm” function is used as the training function. We used a 1000-cycle training process with a 5% learning rate and target error of 1   ×   e 3 .

3.2. Input and Output Data

To assess risks associated with shale gas exploration and development in China, we used data from the 12 Chinese provinces where relevant activities are under way. We used actual or virtual values as inputs for risk indicators in accordance with the practical shale gas conditions of each province (e.g., 1 = existing; 0 = not existing).
For each province, we determined the values for: (a) resource prospects based on the amount of proven recoverable reserves; (b) geological conditions based on the area of the favorable shale gas play (104 km2) [12]; and (c) resource reserves based on the amount of technical recoverable reserves. Since data related to production costs are lacking, we used interval scales (i.e., >3.1, 2.8~3.1, 2.5~2.8, 2.2~2.5, and <2.2) to reflect relative costs in China [81]. Using an average value of about 2.49 RMB/m3, the corresponding values for each interval are 1, 0.9, 0.8, 0.7 and 0.6, respectively; the accuracy of production cost values were verified by the expert committee. We determined the values for capital risk based on the cumulative capital investment made by each province. Market risk values reflect the value of the natural gas price divided by the shale gas price, based on the provincial gate station price of natural gas inventory and the tax-included factory price at the break-even point based on data from the National Development and Reform Commission [17,82]. We determined technology and equipment values based on the number of shale gas technical patents from the Patent Search and Analysis of State Intellectual Property Office (SIPO) [83]. Infrastructure values are based on pipeline network density (km/km2), and water consumption values are based on data from the Aqueduct Water Risk Atlas issued by the World Resources Institute [84]. We used virtual values for water pollution, air pollution, greenhouse gas emissions, and other damages (noise pollution and earthquake risk), preferential policies and long-term planning based on the data from each province’s department of environmental protection. We determined values for industrial standards based on the number of oil and gas inspectors from the Ministry of Land and Resources in each province [85]. We present the input source data in Table 5.
As for the output layer, the risk values were determined by expert scoring, considering 16 input layer C indices at the same time. Here, we divided shale gas industry development risks into four levels, low risk, relatively low risk, relatively high risk and high risk, respectively, corresponding to the intervals of (0, 0.2), (0.2, 0.4), (0.4, 0.6), and (0.6, 1). The output source data can be seen in Table 5. The normalized processing results for the data in Table 5 are shown in Table A1 in Appendix A.

4. Results and Discussion

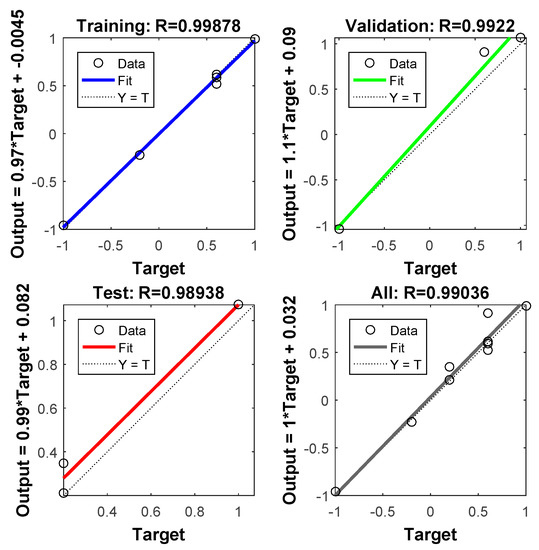

The results of one trained neural network are shown in Figure 4. The correlation coefficient between the output and target values for the training sample is 0.99878, which indicates the BP neural network training grid is satisfactory. The correlation coefficients for the validation and testing samples are 0.9922 and 0.98938, respectively, which shows that the trained BP neural network grid and prediction accuracy of the neural network on the sample are both satisfactory, and overfitting phenomenon did not happen [72].

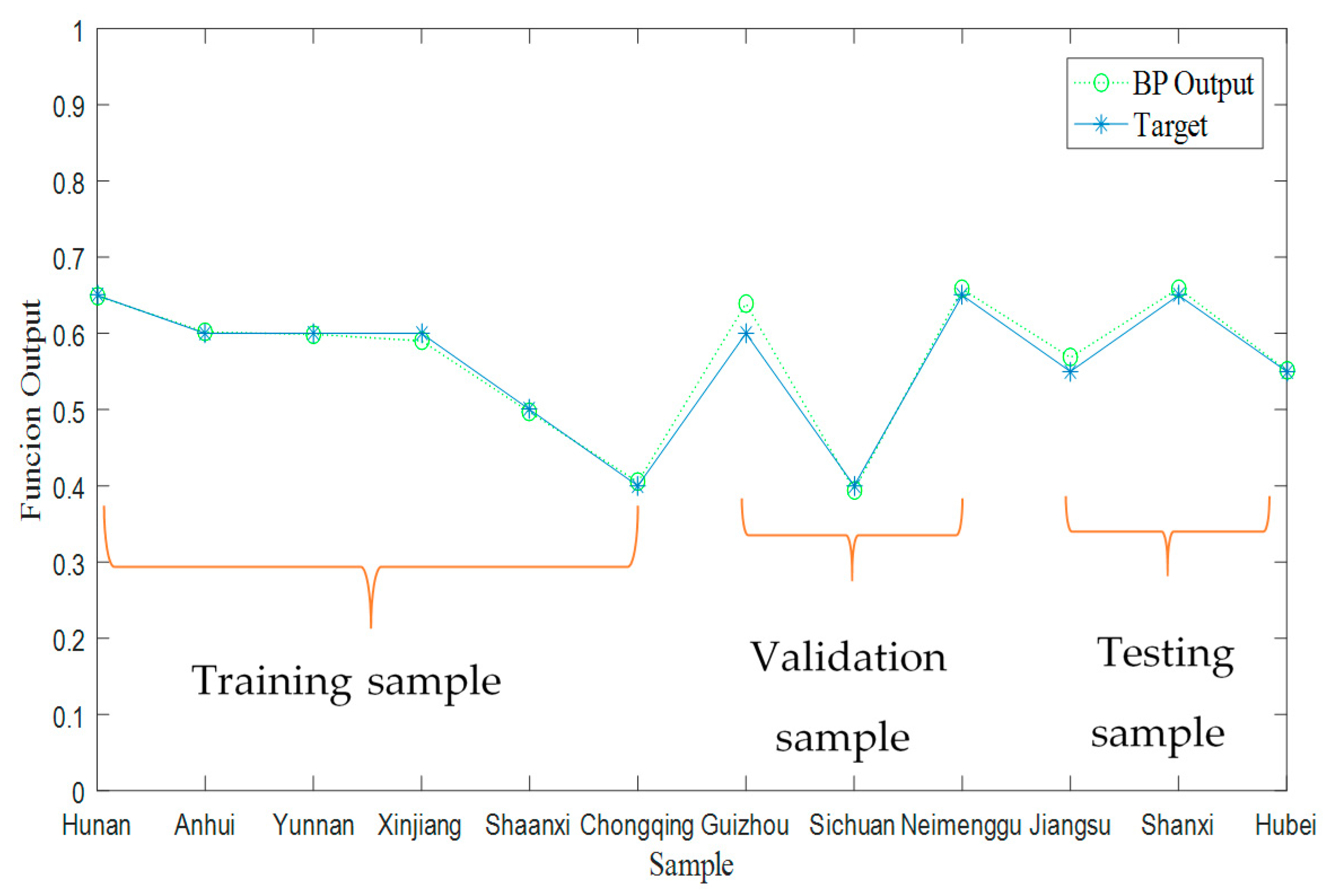

The above neural network has been trained, which means it has already satisfied the target error of 1 × e 3 mentioned in Section 3.1. As shown in Figure 5, for the whole sample, the error between the prediction output values and the target values are small. The error is minimal in the training sample, and a little bit larger in the validation and testing samples, but still well below the accepted threshold of 10% [86]. The figure represents a visual representation of the degree of membership associated with the shale gas industry development risk level.

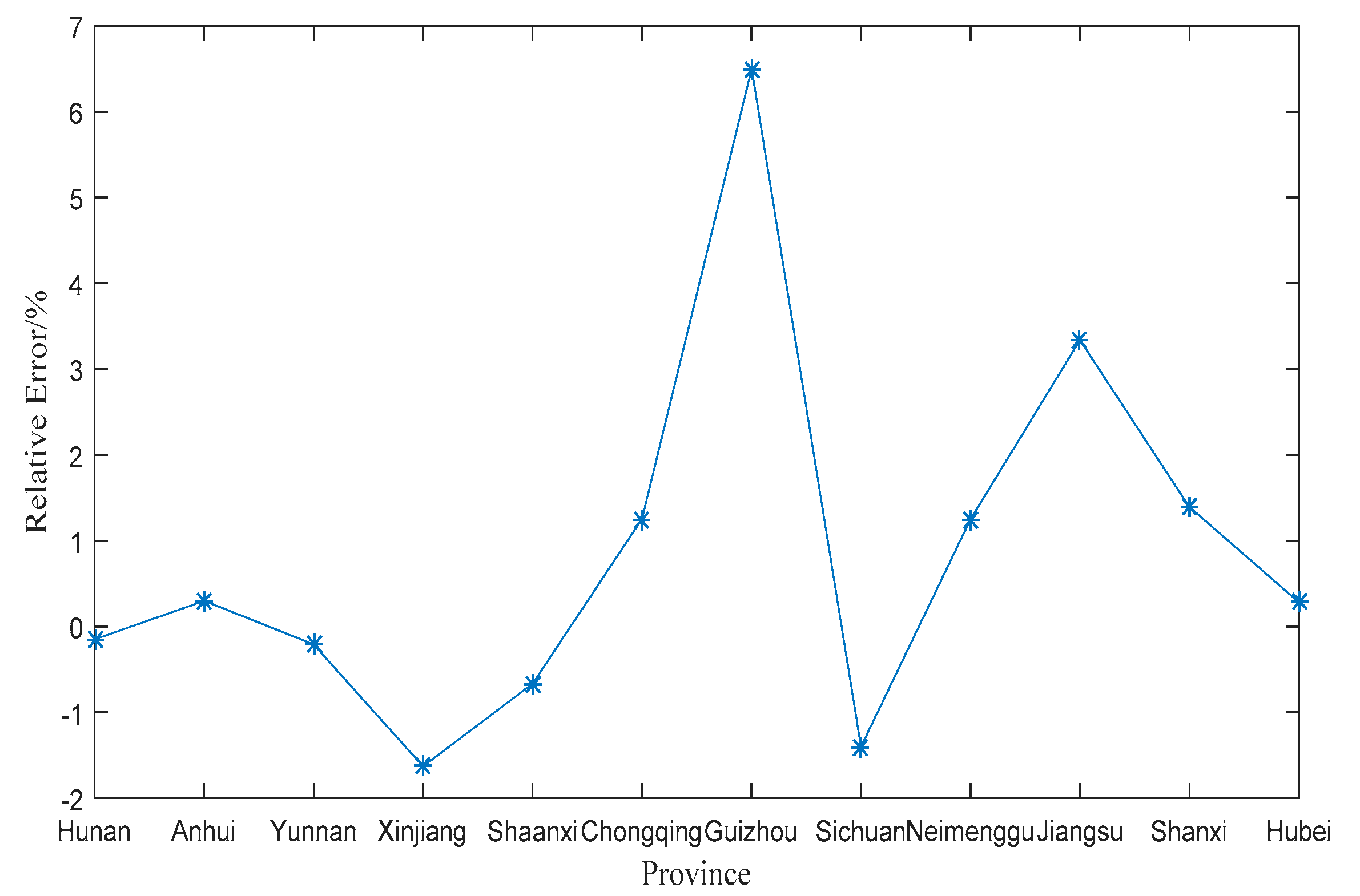

Figure 6 is a more intuitive expression of the prior figure. The relative error between the predicted output value of the BP neural network and the target value can be seen clearly. Although the curve has higher amplitude fluctuation, the value of the fluctuation is small. It reveals that the error between network output and target value is small (less than 7%).
We present detailed results for the provinces comprising our validation and testing samples in Table 6 and Table 7, respectively. Relative to the four risk levels mentioned before (see Section 3.2), the model results correspond closely with the expected results, indicating that the trained network has excellent generalization capacities [72], and hence, can be used to monitor and evaluate risks of shale gas development in China at the provincial-level.
After the network model is trained, the prediction process is simplified, requiring only monitoring data for the risk assessment target sample to produce results. After building this system model based on the corresponding provincial risk index data, the overall risks of the shale gas industry can then be assessed. Although the BP neural network method has some challenges (primarily related to small sample size), it is a novel research approach that can be used to design a risk assessment system for the emerging shale gas industry in China. In the future, researchers can build on this study and others to improve the method and the risk assessment system.

5. Policy Recommendations for China’s Provincial Shale Gas Industry Development

Our efforts have yielded several findings. First, shale gas development in China is associated with high levels of risk, due to delayed exploration and production efforts and immature market and regulatory structures. Some provinces have relatively high levels of risk (Sichuan, Chongqing, Shaanxi, Hubei, and Jiangsu), while other provinces have even higher levels of risk (Xinjiang, Guizhou, Yunnan, Anhui, Hunan, Inner Mongolia, and Shanxi) based on varying levels of regulatory support at the provincial level. We recommend that more attention be paid to environmental, health, and safety issues. In the provinces with highest levels of risk, demonstration zones can be used to test new technologies in China’s complex geological conditions, and China’s regulatory structures can be adapted to ensure that risk management is tailored to each province [13]. For example, since water is more limited in Chongqing than in Sichuan [84], fiscal policies related to water pricing require greater attention in Chongqing.
Second, the differences between China and other shale gas producing countries such as the United States and Canada should be noted. Such differences include China’s extremely complex geological conditions and resource depths that prevent direct application of North American technologies and techniques. Thus, technology research and development and resource exploration and production should be expanded to improve risk management and environmental protection. BP neural networks can be used to quantify the relative risks posed by shale gas development, and hence, risk management priorities. Our approach could be used to optimize the allocation of resources, technology and infrastructure in shale gas development to minimize resource, economic, technical, and environmental risks in China.
Finally, development of the shale gas industry involves many parties [87] with different and sometimes conflicting expectations [54,88], thus, broad-based risk management efforts are required. The government should strengthen the supervision of resources, market and environmental protection to ensure that risks are minimized. Oil and gas companies should enhance research and development activities and improve their identification, assessment, and risk management options. Implementing these recommendations will support collective contributions to data collection and sharing, as well as risk assessment and management activities to support for science-based decision-making.

Acknowledgments

Financial support was provided by the National Natural Science Foundation of China (#71273277), Philosophy and Social Science Major Issue Research Project of China (#11JZD048), and Social Sciences and Humanities Research Council of Canada (#435-2015-0502). We thank the editor and the anonymous reviewers for their helpful comments and suggestions and Kara Stephenson Gehman for her editorial assistance.

Author Contributions

Authors are listed alphabetically. Cong Dong designed the research. Cong Dong and Xiucheng Dong collected and analyzed the data. Cong Dong, Joel Gehman, and Lianne Lefsrud wrote the paper.

Conflicts of Interest

The authors declare no conflict of interest.

Appendix A

Table A1. Normalized processing results.
Table A1. Normalized processing results.
ProvinceSichuanXinjiangChongqingGuizhouHubeiHunanShaanxiJiangsuInner MongoliaYunnanShanxiAnhui
Resource prospects−1−1−1−1−1−1−1−1−1−1−11
Geological conditions−0.8940−0.9421−1−0.9727−0.6360−0.9259−0.8064−0.5393−0.8166−0.76751−0.6522
Resource reserves−0.9984−0.4429−1−0.9984−0.4200−0.9078−0.3412−0.60210.0946−0.74701−0.1623
Production cost−0.33330.33330.333310.33330.3333−0.3333−0.33330.33330.3333−1−1
Capital risk−0.8014−0.9731−0.9847−0.9740−0.9837−1−0.9511−0.8900−1−1−0.15971
Market risk0.10530.57890.84210.47370.5789−0.63160.1053−0.6316−11−2.22 × 10−16−2.22 × 10−16
Technology equipment−1−1−1−0.920.2−1−11−10.281−0.04
Infrastructure−0.9747−0.9241−0.7215−0.2405−0.6962−1−0.8734−0.3924−0.8987−0.1139−0.36711
Water consumption−0.9914−0.9741−0.9948−0.6190−11−0.9828−0.70170.88975−0.9948−0.9362−1
Water pollution111111111111
Air pollution111111111111
CO2/CH4 emissions−1−1−1−111−11−11−1−1
Other damage111111111111
Industrial standards−10.0667−0.46670.73333−0.066710.066710.60.60.33330.06667
Preferential policies111111111111
Long-term planning−1−1−1−111−111−111
Risk score0.610.610.210.6−0.20.60.2−1−1

References

  1. BP Statistical Review of World Energy 2016. Available online: http://www.bp.com/statisticalreview (accessed on 20 June 2016).
  2. Du, K.; Xie, C.; Ouyang, X. A comparison of carbon dioxide (CO2) emission trends among provinces in China. Renew. Sustain. Energ. Rev. 2017, 73, 19–25. [Google Scholar] [CrossRef]
  3. Li, A.; Zhang, A.; Zhou, Y.; Yao, X. Decomposition analysis of factors affecting carbon dioxide emissions across provinces in China. J. Clean. Prod. 2017, 141, 1428–1444. [Google Scholar] [CrossRef]
  4. Mi, Z.; Wei, Y.M.; Wang, B.; Meng, J.; Liu, Z.; Shan, Y.; Liu, J.; Guan, D. Socioeconomic impact assessment of China’s CO2 emissions peak prior to 2030. J. Clean. Prod. 2017, 142, 2227–2236. [Google Scholar] [CrossRef]
  5. Krupnick, A.; Wang, Z.; Wang, Y. Environmental risks of shale gas development in China. Energy Policy 2014, 75, 117–125. [Google Scholar] [CrossRef]
  6. Zhao, X.; Kang, J.; Bei, L. Focus on the development of shale gas in China—Based on SWOT analysis. Renew. Sustain. Energy Rev. 2013, 21, 603–613. [Google Scholar]
  7. Sun, X.S.; Qian, X.K.; Jiang, X.F. Domestic and Overseas Oil and Gas Industry Development Report 2015; Petroleum Industry Press: Beijing, China, 2016. (In Chinese) [Google Scholar]
  8. World Shale Gas and Shale Oil Resource Assessment. Available online: https://www.eia.gov/analysis/studies/worldshalegas/pdf/chaptersi_iii.pdf (accessed on 13 May 2017).
  9. Canada Shale: Challenges in the Low Commodity Environment. Available online: http://www.ogfj.com/articles/print/volume-13/issue-4/features/canada-shale.html (accessed on 22 April 2016).
  10. Wang, Q.N.; Wang, S.L.; Zhang, W.; Wang, H.H.; Sun, Z.T.; Wu, X.S. An analysis of the development process and tendency of China’s shale gas industry based on document database resources. Geol. Bull. China 2014, 33, 1454–1462. [Google Scholar]
  11. China Geological Survey. Research Report on the Shale Gas Resources Survey in China. Available online: http://www.ngac.cn/GTInfoShow.aspx?InfoID=5126&ModuleID=73&PageID=1 (accessed on 11 June 2015).
  12. Zhang, D.W. The current state in China of shale gas exploration and development, and of external cooperation. Int. Pet. Econ. 2013, 21, 47–52. (In Chinese) [Google Scholar]
  13. Pi, G.; Dong, X.; Dong, C.; Guo, J.; Ma, Z. The status, obstacles and policy recommendations of shale gas development in China. Sustainability 2015, 7, 2353–2372. [Google Scholar] [CrossRef]
  14. Wang, G.Q. The provinces “background” in the shale gas development boom. J. Earth 2014, 9, 33–36. (In Chinese) [Google Scholar]
  15. Wang, Z. The Uncertain Future of China’s Shale Gas Boom. Available online: http://opinion.caixin.com/2015-03-13/100790956.html (accessed on 13 March 2015).
  16. Wang, H. Foreign Capital Withdrew from China’s Shale Gas Market. Available online: http://money.163.com/15/0723/01/AV60JM4S00253B0H.html (accessed on 23 July 2015).
  17. Wang, L.N. It’s Difficult to Achieve the Goal of Shale Gas Development in 12th Five-Year and There Is Little Chance of a Merger of the Pipelines. Available online: http://www.cb.com.cn/economy/2015_1107/1152619.html (accessed on7 November 2015). (In Chinese).
  18. Zou, C.N.; Dong, D.Z.; Wang, S.J.; Li, J.Z.; LI, X.J.; Wang, Y.M.; Li, D.H.; Cheng, K.M. Geological characteristics, formation mechanism and resource potential of shale gas in China. Pet. Explor. Dev. 2010, 37, 641–653. (In Chinese) [Google Scholar] [CrossRef]
  19. Xu, C.C. Research progress in shale gas geological theory in China. Spec. Oil Gas Reserv. 2012, 19, 9–16. (In Chinese) [Google Scholar]
  20. Chen, Z.; Xue, C.J.; Jiang, T.X.; Qing, Y.M. Proposals for the application of fracturing by stimulated reservoir volume (SRV) in shale gas wells in China. Nat. Gas Ind. 2010, 30, 30–32. (In Chinese) [Google Scholar]
  21. Wang, Z. The progress of the exploitation technology of shale gas in China. Sino-Glob. Energy 2013, 2, 23–32. (In Chinese) [Google Scholar]
  22. Wang, T.; Lin, B. Impacts of unconventional gas development on China׳s natural gas production and import. Renew. Sustain. Energy Rev. 2014, 39, 546–554. [Google Scholar] [CrossRef]
  23. P altsev, S.; O’Sullivan, F.; Ejaz, Q. Shale gas in China: Can we expect a “revolution”? In Proceedings of the GTAP 16th Annual Conference on Global Economic Analysis, Shanghai, China, 12–14 June 2013. GTAP Paper 4223. [Google Scholar]
  24. Chang, Y.; Huang, R.; Masanet, E. The energy, water, and air pollution implications of tapping China’s shale gas reserves. Resour. Conserv. Recycl. 2014, 91, 100–108. [Google Scholar] [CrossRef]
  25. Hu, D.; Xu, S. Opportunity, challenges and policy choices for China on the development of shale gas. Energy Policy 2013, 60, 21–26. [Google Scholar] [CrossRef]
  26. Zhai, G.M.; He, W.Y.; Wang, S.H. A few issues to be highlighted in the industrialization of shale gas in China. Nat. Gas Ind. 2012, 32, 1–10. (In Chinese) [Google Scholar]
  27. Zeng, S.J.; Yang, L.; Zeng, K.C. Status, problems and solutions to China’s shale gas development. China Popul. Resour. Environ. 2013, 23, 33–38. (In Chinese) [Google Scholar]
  28. Wan, Z.; Huang, T.; Craig, B. Barriers to the development of China’s shale gas industry. J. Clean. Prod. 2014, 84, 818–823. [Google Scholar] [CrossRef]
  29. Zhang, K. Lessons for shale oil & gas development from that of tight oil & gas and coalbed methane gas in China. Nat. Gas Ind. 2013, 33, 18–25. (In Chinese) [Google Scholar]
  30. Wang, D.; Gao, S.; Dong, D.; Huang, X.; Wang, Y.; Huang, J.; Wang, S.; Pu, B. A primary discussion on challenges for exploration and development of shale gas resources in China. Nat. Gas Ind. 2013, 33, 8–17. (In Chinese) [Google Scholar]
  31. Azapagic, A. Developing a framework for sustainable development indicators for the mining and minerals industry. J. Clean. Prod. 2004, 12, 639–662. [Google Scholar] [CrossRef]
  32. Hilson, G.; Murck, B. Sustainable development in the mining industry: Clarifying the corporate perspective. Resour. Policy 2000, 26, 227–238. [Google Scholar] [CrossRef]
  33. Kai, A.S.; Borlu, Y.; Glenna, L. The relationship between marcellus shale gas development in Pennsylvania and local perceptions of risk and opportunity. Rural Sociol. 2013, 78, 143–166. [Google Scholar]
  34. Olmstead, S.M.; Richardson, N.D. Managing the Risks of Shale Gas Development Using Innovative Legal and Regulatory Approaches; Resources for the Future: Washington, DC, USA, 2014. [Google Scholar]
  35. Sojoianu, T. Shale Gas and Hydraulic Fracturing: Risk and Opportunity Analysis for Oil and Gas Companies, Investors and the Future Energy Sector-Lessons from the US. Master’s Thesis, The University of Edingburgh, Edinburgh, UK, 14 January 2014. [Google Scholar]
  36. Vengosh, A.; Jackson, R.B.; Warner, N.; Darrah, T.H.; Kondash, A. A critical review of the risks to water resources from unconventional shale gas development and hydraulic fracturing in the United States. Environ. Sci. Technol. 2014, 48, 8334–8348. [Google Scholar] [CrossRef] [PubMed]
  37. Bădileanu, M.; Bulearcă, M.F.R.; Russu, C.; Muscalu, M.S.; Neagu, C.; Bozga, R.; Sima, C.; Georgescu, L.I.; Băleanu, D.N. Shale gas exploitation—Economic effects and risks. Procedia Econ. Financ. 2015, 22, 95–104. [Google Scholar] [CrossRef]
  38. Ethridge, S.; Bredfeldt, T.; Sheedy, K.; Shirley, S.; Lopez, G.; Honeycutt, M. The barnett shale: From problem formulation to risk management. J. Unconv. Oil Gas Resour. 2015, 11, 95–110. [Google Scholar] [CrossRef]
  39. Zhang, D.; Yang, T. Environmental impacts of hydraulic fracturing in shale gas development in the United States. Pet. Explor. Dev. 2015, 42, 876–883. [Google Scholar] [CrossRef]
  40. Rahm, B.G.; Vedachalam, S.; Bertoia, L.R.; Mehta, D.; Vanka, V.S.; Riha, S.J. Shale gas operator violations in the marcellus and what they tell us about water resource risks. Energy Policy 2015, 82, 1–11. [Google Scholar] [CrossRef]
  41. Chen, Y.; He, L.; Guan, Y.; Lu, H.; Li, J. Life cycle assessment of greenhouse gas emissions and water-energy optimization for shale gas supply chain planning based on multi-level approach: Case study in barnett, marcellus, fayetteville, and haynesville shales. Energy Convers. Manag. 2017, 134, 382–398. [Google Scholar] [CrossRef]
  42. Wang, J.; Liu, M.; McLellan, B.C.; Tang, X.; Feng, L. Environmental impacts of shale gas development in China: A hybrid life cycle analysis. Resour. Conserv. Recycl. 2017, 120, 38–45. [Google Scholar] [CrossRef]
  43. Villa, V.; Paltrinieri, N.; Khan, F.; Cozzani, V. Towards dynamic risk analysis: A review of the risk assessment approach and its limitations in the chemical process industry. Saf. Sci. 2016, 89, 77–93. [Google Scholar] [CrossRef]
  44. Buncefield Major Investigation Board. The Buncefield Incident 11 December 2005. The final Report of the Major Incident Investigation Board; HSE Books: Sudbury, UK, 2006. [Google Scholar]
  45. Wang, Q.; Li, R. Research status of shale gas: A review. Renew. Sustain. Energy Rev. 2017, 74, 715–720. [Google Scholar] [CrossRef]
  46. Ma, Z.; Pi, G.; Dong, X.; Chen, C. The situation analysis of shale gas development in China-Based on structural equation modeling. Renew. Sustain. Energy Rev. 2017, 67, 1300–1307. [Google Scholar] [CrossRef]
  47. Feng, B. China backpedals on shale gas. Chem. Eng. News 2015, 93, 22–23. [Google Scholar]
  48. Garson, G.D. Neural networks : An introductory guide for social scientists. Br. J. Math. Stat. Psychol. 1998, 52, 321–322. [Google Scholar]
  49. Gorsevski, P.V.; Brown, M.K.; Panter, K.; Onasch, C.M.; Simic, A.; Snyder, J. Landslide detection and susceptibility mapping using lidar and an artificial neural network approach: A case study in the Cuyahoga valley national park, Ohio. Landslides 2016, 13, 467–484. [Google Scholar] [CrossRef]
  50. Yesilnacar, E.; Topal, T. Landslide susceptibility mapping: A comparison of logistic regression and neural networks methods in a medium scale study, Hendek region (Turkey). Eng. Geol. 2005, 79, 251–266. [Google Scholar] [CrossRef]
  51. Li, H.; Sun, R.; Lee, W.; Dong, K.; Guo, R. Assessing risk in chinese shale gas investments abroad: Modelling and policy recommendations. Sustainability 2016, 8, 708. [Google Scholar] [CrossRef]
  52. Guo, Q.; Wang, F.; Shi, H. Discussion on risk evaluation of shale gas industry based on analytic hierarchy process. Min. Saf. Environ. Prot. 2015, 42, 112–115. (In Chinese) [Google Scholar]
  53. Yu, S. Evaluation of socioeconomic impacts on and risks for shale gas exploration in China. Energy Strategy Rev. 2015, 6, 30–38. [Google Scholar] [CrossRef]
  54. Gehman, J.; Lefsrud, L.M.; Lounsbury, M.; Lu, C. Perspectives on energy and environment risks: With implications for canadian energy development. Bull. Can. Pet. Geol. 2014, 64, 1–5. [Google Scholar] [CrossRef]
  55. Hou, G. Research on China biomass energy risk assessment and management; Northwest A&F University: Xi’an, China, 2009. (In Chinese) [Google Scholar]
  56. Zhang, L.C.; Fang, J.M.; Tang, Q.N. Research on the risk identification in early warning of the industry competitive intelligence–example of photovoltaic industry in China. Inf. Stud. Theory Appl. 2011, 52–55. (In Chinese) [Google Scholar]
  57. Chi, M. Investment Risk Evaluation System of Solar Photovoltaic Industry in China; Harbin University of Science and Technology: Harbin, China, 2014. (In Chinese) [Google Scholar]
  58. Raviv, G.; Shapira, A.; Fishbain, B. Ahp-based analysis of the risk potential of safety incidents: Case study of cranes in the construction industry. Saf. Sci. 2017, 91, 298–309. [Google Scholar] [CrossRef]
  59. Garbuzova-Schlifter, M.; Madlener, R. Ahp-based risk analysis of energy performance contracting projects in russia. Energy Policy 2016, 97, 559–581. [Google Scholar] [CrossRef]
  60. Jane, C.J. A hybrid analytic network process with grey fuzzy model for large-scale project risk analysis. J. Grey Syst. 2016, 19, 73–82. [Google Scholar]
  61. Park, K.J. A grey-based risk selection model using fuzzy information of a supply chain. Multimed. Tools Appl. 2016, 1–15. [Google Scholar] [CrossRef]
  62. Kresta, A.; Tichý, T. Selection of efficient market risk models: Backtesting results evaluation with dea approach. Comput. Ind. Eng. 2016, 102, 331–339. [Google Scholar] [CrossRef]
  63. Hatefi, M.; Fasanghari, M. A dea-based approach for information technology risk assessment through risk information technology framework. J. Inf. Technol. 2016, 13, 51–58. [Google Scholar]
  64. Kumar, R.S.; Choudhary, A.; Babu, S.A.K.I.; Kumar, S.K.; Goswami, A.; Tiwari, M.K. Designing multi-period supply chain network considering risk and emission: A multi-objective approach. Ann. Oper. Res. 2017, 250, 427–461. [Google Scholar] [CrossRef]
  65. Li, Y.Z.; Li, K.C.; Wang, P.; Liu, Y.; Gooi, H.B.; Li, G.F.; Cai, D.L.; Luo, Y. Risk constrained economic dispatch with integration of wind power by multi-objective optimization approach. Energy 2017, 126, 810–820. [Google Scholar] [CrossRef]
  66. Bode, J. Neural networks for cost estimation: Simulations and pilot application. Int. J. Prod. Res. 2000, 38, 1231–1254. [Google Scholar] [CrossRef]
  67. Zhu, Q.M. A back propagation algorithm to estimate the parameters of non-linear dynamic rational models. Appl. Math. Model. 2003, 27, 169–187. [Google Scholar] [CrossRef]
  68. Olabi, A.G.; Casalino, G.; Benyounis, K.Y.; Hashmi, M.S.J. An ann and taguchi algorithms integrated approach to the optimization of co laser welding. Adv. Eng. Softw. 2006, 37, 643–648. [Google Scholar] [CrossRef]
  69. Yu, S.; Zhu, K.; Diao, F. A dynamic all parameters adaptive bp neural networks model and its application on oil reservoir prediction. Appl. Math. Comput. 2008, 195, 66–75. [Google Scholar] [CrossRef]
  70. Saljooghi, B.S.; Hezarkhani, A. A new approach to improve permeability prediction of petroleum reservoirs using neural network adaptive wavelet (wavenet). J. Pet. Sci. Eng. 2015, 133, 851–861. [Google Scholar] [CrossRef]
  71. Sun, W.; Xu, Y. Using a back propagation neural network based on improved particle swarm optimization to study the influential factors of carbon dioxide emissions in hebei province, China. J. Clean. Prod. 2016, 112, 1282–1291. [Google Scholar] [CrossRef]
  72. Fan, Q.F. Research on China oil security pre-warning based on bp neural networks. Oper. Res. Manag. Sci. 2007, 16, 100–105. (In Chinese) [Google Scholar]
  73. Funahashi, K. On the approximate realization of continuous mappings by neural networks. Neural Netw. 1989, 2, 183–192. [Google Scholar] [CrossRef]
  74. Hornik, K.; Stinchcombe, M.; White, H. Universal approximation of an unknown mapping and its derivatives using multilayer feedforward networks. Neural Netw. 1990, 3, 551–560. [Google Scholar] [CrossRef]
  75. Zhang, Y.; Wu, L. Stock market prediction of s&p 500 via combination of improved bco approach and bp neural network. Expert Syst. Appl. 2009, 36, 8849–8854. [Google Scholar]
  76. Jin, C.X.; Yu, T.T. Research on monitoring and early warning of our manufacturing industrial security based on bp neural network. J. BeiJing Univ. Technol. (Soc. Sci. Ed.) 2010, 10, 8–16. (In Chinese) [Google Scholar]
  77. Cao, L. The Insurance Industry Security Warning Study Based on BP Neural Network; Beijing Jiaotong University: Beijing, China, 2011. (In Chinese) [Google Scholar]
  78. Chen, Y.R. Empirical Study on Banking Securing Warning Based On BP-Neural Networks; Central South University: Changsha, China, 2008. [Google Scholar]
  79. Wu, Q.; Gao, F.; FEng, Z.C. Study on the risk early-warning in rapeseed industry of China-based on bp neural network. J. Huazhong Agric. Univ. (Soc. Sci. Ed.) 2010, 18, 29–33. (In Chinese) [Google Scholar]
  80. Basma, A.A.; Kallas, N. Modeling soil collapse by artificial neural networks. Geotech. Geol. Eng. 2004, 22, 427–438. [Google Scholar] [CrossRef]
  81. Yang, Y.; Wang, L.M.; Fang, Y.B. Feasibility evaluation for exploitation and utilization of China shale gas resources. J. Nat. Res. 2014, 29, 2127–2136. (In Chinese) [Google Scholar]
  82. National Development and Reform Commission. Available online: http://www.sdpc.gov.cn/zcfb/zcfbtz/201502/t20150228_665694.html (accessed on 26 November 2016).
  83. State Intellectual Property of the P.R.C. Available online: http://www.pss-system.gov.cn/sipopublicsearch/portal/index.shtml?params=991CFE73D4DF553253D44E119219BF31366856FF4B15222634FE161157CF765B (accessed on 25 November 2016).
  84. World Resources Institute. Available online: http://www.wri.org/applications/Maps/aqueduct-atlas/#x=-58.16&y=-1.55&s=ws!20!28!c&t=waterrisk&w=og&g=0&i=BWS-4!WSV-2!SV-2!HFO-2!DRO-4!STOR-4!GW-16! (accessed on 23 December 2016).
  85. Ministry of Land and Resource of the People’s Republic of China. Available online: http://www.mlr.gov.cn/zwgk/zytz/201312/t20131205_1295247.html (accessed on 26 December 2016).
  86. Du, D.; Pang, Q.; Wu, Y. Modern Comprehensive Evaluation Method and Case Selection; Tsinghua University Press: Beijing, China, 2008. (In Chinese) [Google Scholar]
  87. Hu, W.R.; Bao, J.W. To explore the way of chinese-style shale gas development. Nat. Gas Ind. 2013, 33, 1–7. [Google Scholar]
  88. Gehman, J.; Thompson, Y.; Alessi, D.; Allen, D.; Goss, G. Comparative analysis of hydraulic fracturing wastewater practices in unconventional shale development: Newspaper coverage of stakeholder concerns and social license to operate. Sustainability 2016, 8, 912. [Google Scholar] [CrossRef]
Figure 1. Shale gas resource potential in China’s provinces (trillions of m3) [12,13].
Figure 1. Shale gas resource potential in China’s provinces (trillions of m3) [12,13].
Sustainability 09 00979 g001

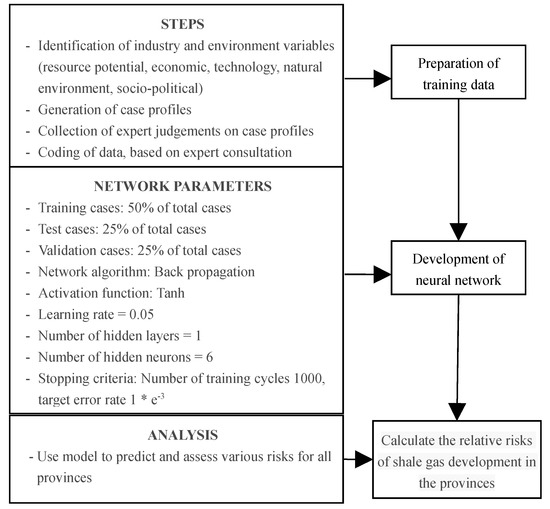

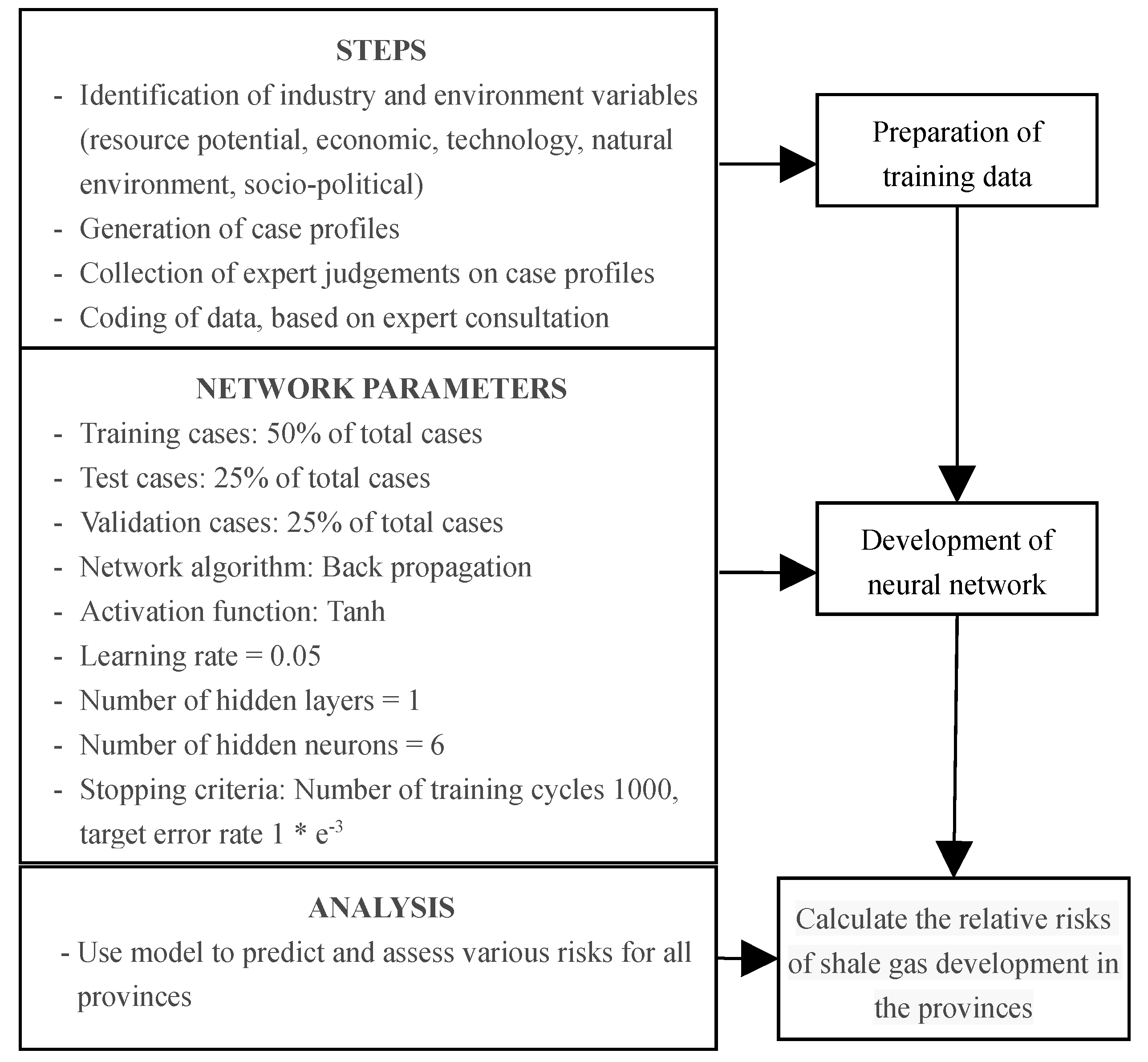

Figure 2. Development process for the neural network-based risk assessment system.
Figure 2. Development process for the neural network-based risk assessment system.
Sustainability 09 00979 g002
Figure 3. Three layers of a BP neural network.
Figure 3. Three layers of a BP neural network.
Sustainability 09 00979 g003
Figure 4. Training, validation, testing, and full sample regression curves.
Figure 4. Training, validation, testing, and full sample regression curves.
Sustainability 09 00979 g004
Figure 5. BP network predicted output and expected output.
Figure 5. BP network predicted output and expected output.
Sustainability 09 00979 g005
Figure 6. Relative error of BP neural network output and expected output.
Figure 6. Relative error of BP neural network output and expected output.
Sustainability 09 00979 g006
Table 1. Comparison of shale gas development in China, the United States, and Canada.
Table 1. Comparison of shale gas development in China, the United States, and Canada.
ChinaUnited StatesCanada
Depths of shale gas deposits3000–8000 mA few hundred to 3000 m1000–5000 m
Resource potential (reserves)134.4 trillion m3 1141.6–169.9 trillion m368.3 trillion m3 2
Recoverable resource potential25.1 trillion m3 124.4 trillion m316.2 trillion m3
History of the developmentSince 2009More than 80 yearsA few decades, behind only the United States
Market conditionsTransition from monopoly to competitionRobust competitionEmergence of market competition
Investment (through 2014)$3.76 billionUnknownUnknown
Volumes produced in 20155.2 billion m3432.3 billion m368.2 billion m3
Source: Adapted from Zhao et al. [6], Sun [7], EIA [8] and Mlada [9]. 1 Excluding Qinghai-Tibet; 2 Western Canada only.
Table 2. Representative risk index system of energy industry.
Table 2. Representative risk index system of energy industry.
ResearcherTarget IndustryIndex SystemIndexes Relevant to the Shale Gas Industry
Hou [55]BiomassSupply abundance, supply stability, technical maturity of energy conversion technologies, update rate of relevant equipment, technical maturity of energy storage technologies, market demand, public awareness, price competitiveness, legislation, tax preference, subsidies, industrial development management, natural disasters and environmental changes Technical maturity of energy conversion technologies, technical maturity of energy storage technologies, market demand, price competitiveness, legislation, etc.
Zhang et al. [56]Photovoltaic power generationIndustry scale, supply and demand, revenue capability, technical R&D, cost structure, policy system, concentration level, resource potential, cost comparison, manufacturing energy consumption, electricity price change, competition pattern, external dependence, macro economy, financial market, product structure, technology tendency Supply and demand, technical R&D, resource potential, electricity price change, etc.
Chi [57]Solar photovoltaicTechnical maturity, technical level, independent R&D capacity, raw material supply, product supply and demand, market competition, industrial policies, industrial standards Technical maturity, raw material supply, industrial standards, etc.
Guo et al. [52]Shale gasGeological condition, recoverable reserves, resource prospect, international collaboration, independent R&D, talent team, technology & equipment, production cost, environment rehabilitation cost, operation revenue, pipeline construction, environment deterioration, ecological balance, environmental evaluation system, industry standards, preferential policies Geological condition, recoverable reserves, technology & equipment, production cost, pipeline construction
Yu [53]Shale gasResource risk, technical risk, water consumption risk, environmental risk, capital investment riskResource risk, technical risk, water consumption risk, environmental risk, capital investment risk
Krupnick et al. [5]Shale gasLack of water resources, water pollution, air pollution, soil pollution, community disruption, earthquake, lack of legislation, insufficient regulationLack of water resources, water pollution, air pollution, soil pollution, lack of legislation, insufficient regulation
Table 3. Indicators of the provincial shale gas development risks.
Table 3. Indicators of the provincial shale gas development risks.
Target Layer ACriterion Layer BIndex Layer C
Comprehensive evaluation of shale gas industry development risks (A)Resource risks (B1)Resource prospects (C11)
Geological conditions (C12)
Resource reserves (C13)
Economic risks (B2)Production costs (C21)
Capital risk (C22)
Market risk (C23)
Technical risks (B3)Technology equipment (C31)
Infrastructure (C32)
Environmental risks (B4)Water consumption (C41)
Water pollution (C42)
Air pollution (C43)
CO2/CH4 emissions (C44)
Other damage (C45)
Social-policy risks (B5)Industrial standards (C51)
Preferential policies (C52)
Long-term planning (C53)
Table 4. Different precision results for different numbers of neurons in the hidden layer.
Table 4. Different precision results for different numbers of neurons in the hidden layer.
NetworkNumber of Neurons in the Hidden LayerTraining AlgorithmsTrainingValidationTesting
RMSERMSERMSE
16LM0.9960.0040.9800.0730.9800.034
27LM0.9730.0660.9480.0990.9970.191
38LM0.9890.0441.0000.2420.9800.071
49LM0.9990.0080.9990.2690.9390.214
510LM0.9730.0780.9950.1180.9950.064
611LM0.9880.0561.0000.0050.9740.127
712LM0.9490.0460.9970.1680.9350.170
813LM0.9670.0290.9860.1030.9940.256
914LM0.9860.0231.0000.0911.0000.240
Note: R measures the correlation between the output and target values. A value close to 1 indicates a close relationship; 0 represents a random relationship. MSE is the mean squared error, which is the average squared difference between output and target. Lower values are better; 0 indicates no error.
Table 5. Shale gas development risk indicators and their values of different provinces.
Table 5. Shale gas development risk indicators and their values of different provinces.
ProvinceSichuanXinjiangChongqingGuizhouHubeiHunanShaanxiJiangsuInner MongoliaYunnanShanxiAnhui
Resource prospects/(109 m3)00134.74000000000
Geological conditions/(104 km2)43.244.017.564.237.911.3010.005.071.652.340.640.05
Resource reserves/(1012 m3)27.5016.0112.7510.489.489.197.175.333.292.142.142.12
Production cost0.60.80.60.70.80.80.70.80.80.70.90.8
Capital risk/(108 RMB)55.00130.903.201.071.767.200013.001.701.00
Market risk0.870.680.870.890.980.980.751.060.750.890.961.03
Technology equipment/(ea) 25012015025160010
Infrastructure/(km/km2)0.0270.0060.0810.0070.0140.0050.026.0370.0020.0030.0320.013
Water consumption0.3810.970.010.110.010.161.740.0411.610.062.220.04
Water pollution111111111111
Air pollution111111111111
CO2/CH4 emissions000010111000
Other damage111111111111
Industrial standards/(ea)1315111110111815183167
Preferential policies111111111111
Long-term planning111010101000
Risk score0.400.600.400.600.550.650.500.550.650.600.650.60
Normalized risk score0.610.610.210.6−0.20.60.2−1−1
Table 6. Results for validation sample.
Table 6. Results for validation sample.
ProvinceGuizhouSichuanInner Mongolia
Expected risk value0.600.400.65
Model risk value0.63900.39440.6581
Table 7. Results for testing sample.
Table 7. Results for testing sample.
ProvinceJiangsuShanxiAnhui
Expected risk value0.550.650.55
Model risk value0.56840.65190.5516

Share and Cite

MDPI and ACS Style

Dong, C.; Dong, X.; Gehman, J.; Lefsrud, L. Using BP Neural Networks to Prioritize Risk Management Approaches for China’s Unconventional Shale Gas Industry. Sustainability 2017, 9, 979. https://doi.org/10.3390/su9060979

AMA Style

Dong C, Dong X, Gehman J, Lefsrud L. Using BP Neural Networks to Prioritize Risk Management Approaches for China’s Unconventional Shale Gas Industry. Sustainability. 2017; 9(6):979. https://doi.org/10.3390/su9060979

Chicago/Turabian Style

Dong, Cong, Xiucheng Dong, Joel Gehman, and Lianne Lefsrud. 2017. "Using BP Neural Networks to Prioritize Risk Management Approaches for China’s Unconventional Shale Gas Industry" Sustainability 9, no. 6: 979. https://doi.org/10.3390/su9060979

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
