A Benchmarking System for Domestic Water Use
- <80 L/person/day for Levels 5 and 6 (the best performing benchmarks);
- <105 L/person/day for Levels 3 and 4 (mid-range benchmark);
- <125 L/person/day for Levels 1 and 2 (lowest performing benchmarks).
- 8 min in a highly water efficient shower;
- 4 min in a standard shower;
- 2 min in a power shower;
- 30 min in a quarter filled 230 L bath.
- Step 1: Define a benchmarking system (using a band rating approach) for domestic mains water use performance of an individual (Section 2.1);
- Step 2: Five design cases (high to low water use) are developed for an “individuals” domestic demand (Section 2.2):
- The role of “Technological efficiency” and “User behaviour” is identified;
- The respective performance of an individual is plotted within the proposed band rating system and used as the baseline against which the sensitivity analysis (Step 3) is performed.
- Step 3: Sensitivity analysis (Results in Section 3):
- By using the five design cases, the influence on mains water demand and water band rating from using mains, Grey water (GW) and Rainwater harvesting RWH (in isolation and combination) is assessed;
- This includes investigating the influence of changes to:
- Rainfall in 3 Geographical locations (Midlands, South East, North West);
- Roof size (12.5 to 100 m2);
- Occupancy rates (1 to 4);
- Garden size (25 to 100 m2).
- Step 4: Discussion in light of results (Section 4).The following additional assumptions are made for the domestic property (unless stated otherwise):
- Internal demands only are included;
- 2.4 occupants per household ;
- Potable demands are met through mains water alone;
- Non-potable demands (including gardening) can be met in four different ways as listed below:
- Option 1—Mains only supply, for all non-potable needs (i.e., no RWH and/or no GW);
- Option 2—GW for WC flushing, first rinse on washing machine and gardening;
- Option 3—RWH for WC flushing, washing machine and gardening;
- Option 4—GW for WC flushing & RWH for washing machine and gardening.
- A pitched roof for rainwater collection with a 90% runoff coefficient ;
- Tank(s) are sized according to British Standard BS 8515, 2009 —this uses the lesser of 5% annual rainfall and non-potable demands. It is assumed that an empty tank is installed in January, it has been in operation for at least 12 months, and is filled/emptied assuming a “yield before spillage” approach [19,20,21];
- Rainfall and Temperature data are taken directly from the UK met-office  and use average monthly values of rainfall over 25 years (up to 2012) to calculate a daily average supply of rainwater. (n.b. stored water dictates available supply whilst spare capacity dictates flash flood protection, the influences of which can are reported by Hunt et al. [23,24] Consideration of the RWH supplies in July is adopted—this being the driest average month within the UK;
- Garden watering demand is based upon a generic model developed by Food and Agriculture Organization (FAO)  by which monthly climatic data are translated into a soil water balance for a given month [26,27]. The availability of water for any given plant type (assumed here to be grassland, flowers and shrubs) is a function of available soil water (root zone for grass is relatively shallow, i.e., <50 mm), rainfall and evapo-transpiration (ET) for each plant type (calculated according to Blaney Criddle method, see Doorenbos and Pruit . ET is influenced by temperature which is, as rainfall, location specific.

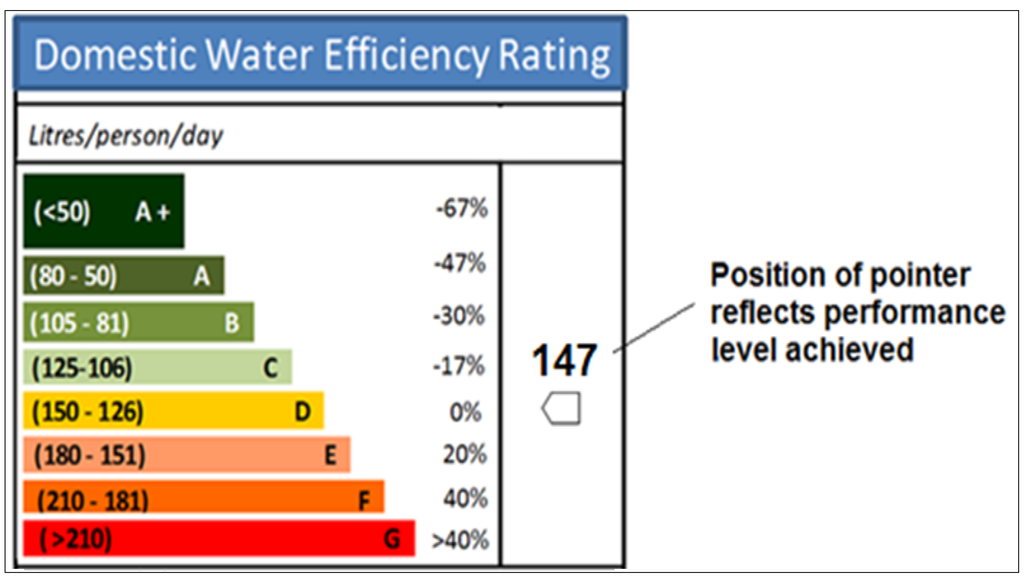

2.1. Step 1: Define a Benchmarking System (Using a Band Rating Approach)

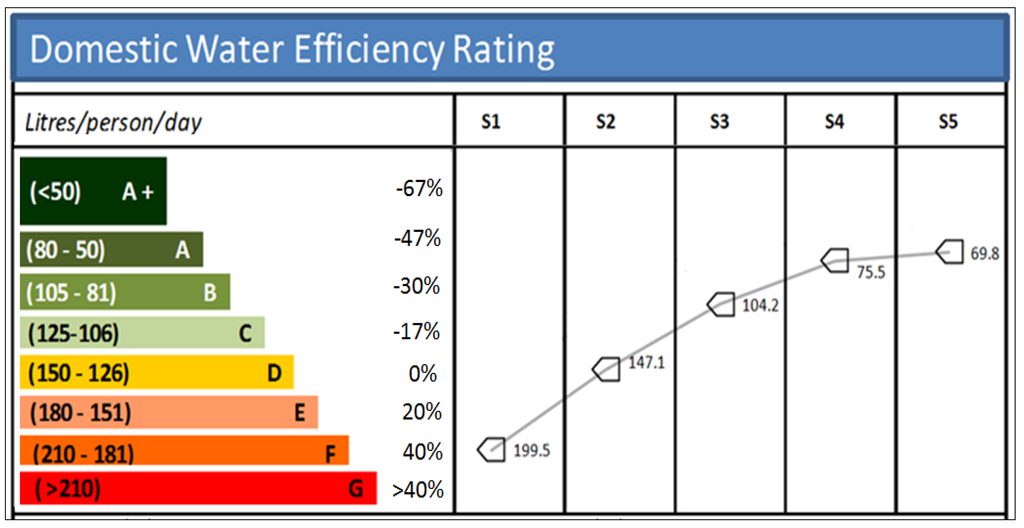

2.2. Step 2: Development of Five Design Cases for Domestic Demand
|End Use||Units (L—Litres)||Design Case|
|WC a,b||L/flush||6 (0)||6 (0)||4.5 (−25)||2.6 (−57)||2.6 (−57)|
|Shower a,b||L/minute||24 (+100)||12 (0)||8 (−33)||6 (−50)||6 (−50)|
|Bath a,b||L||230 (0)||230 (0)||116(−50)||97 (−58)||None (−100)|
|Dishwasher b||L/setting||1 (0)||1 (0)||0.67 (−33)||0.67 (−33)||None (−100)|
|L/kg||13 (0)||13 (0)||10 (−23)||6.1 (−53)||6.1 (−53)|
|Sink a *||L/day||10.4 (0)||10.4 (0)||10.4 (0)||10.4 (0)||10.4 (0)|
|Basin a *||L/day||1.7 (0)||1.7 (0)||1.7 (0)||1.7 (0)||1.7 (0)|
|S1u||S2 u||S3 u||S4 u||S5 u|
|WC||Flushes/p/day||4.42 (0)||4.42 (0)||3.31 (−25)||1.90 (−57)||1.90 (−57)|
|Shower||Minutes/p/day||8.74 a (+100)||4.37 b (0)||2.93 c(−33||2.19 d(−50)||2.5 (−50)|
|Bath||Capacity/p/day||0.11e (0)||0.11 (0)||0.06 (−50)||0.05 (−58)||None (−100)|
|Dishwasher||Use/ps/p/day f||3.6 (0)||3.6 (0)||2.4 (33)||2.4 (33)||None (100)|
|Washing machine||Use/p/day f||2.1(0)||2.1 (0)||1.6 (−23)||0.99 (−53)||0.99 (−53)|
2.2.1. User Technologies
2.2.2. User Behaviour
3.1. Influence of Supply

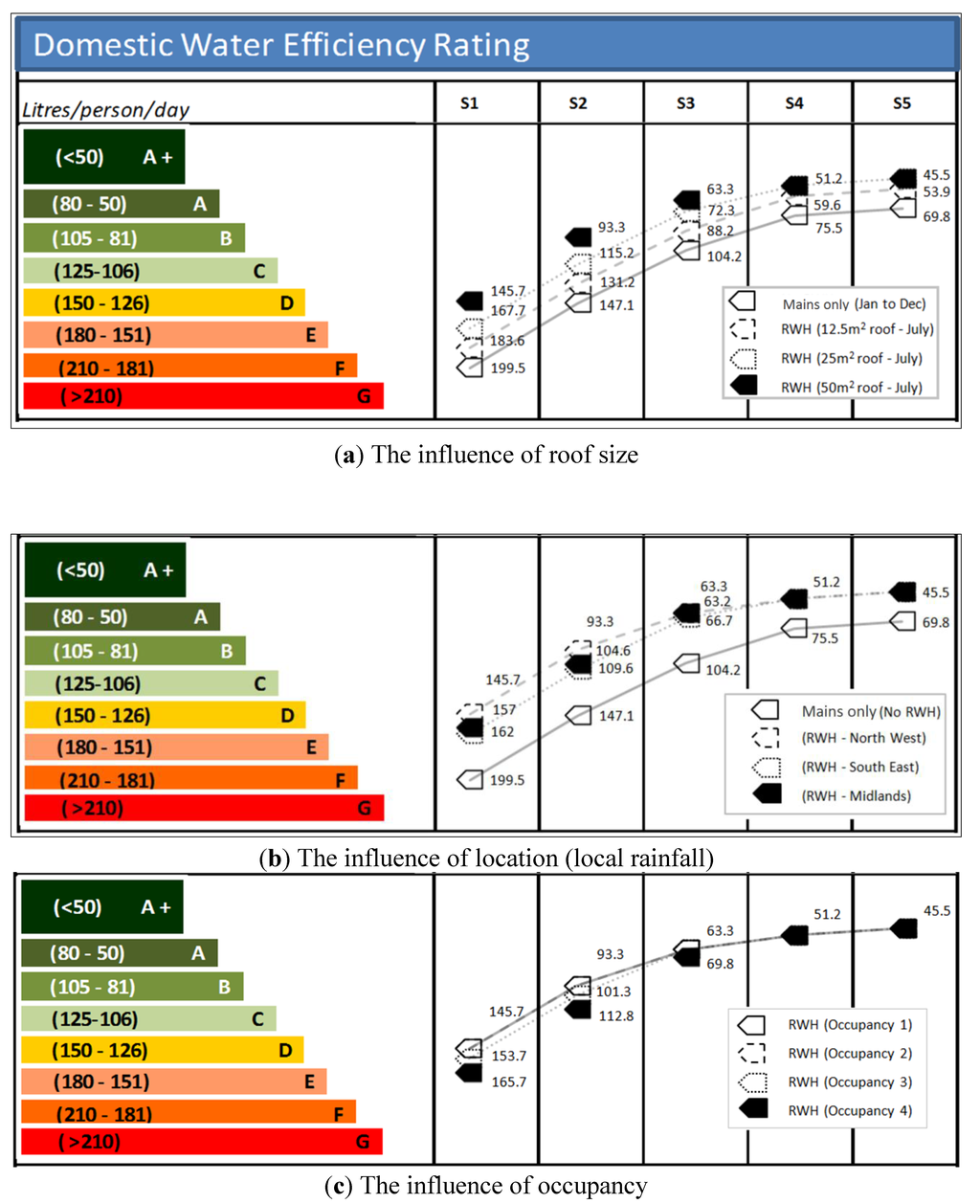

3.2. Influence of Roof Size
3.3. Influence of Geographical Location: Rainfall
3.4. Influence of Occupancy Rates
3.5. Inclusion of External (Gardening) Demands

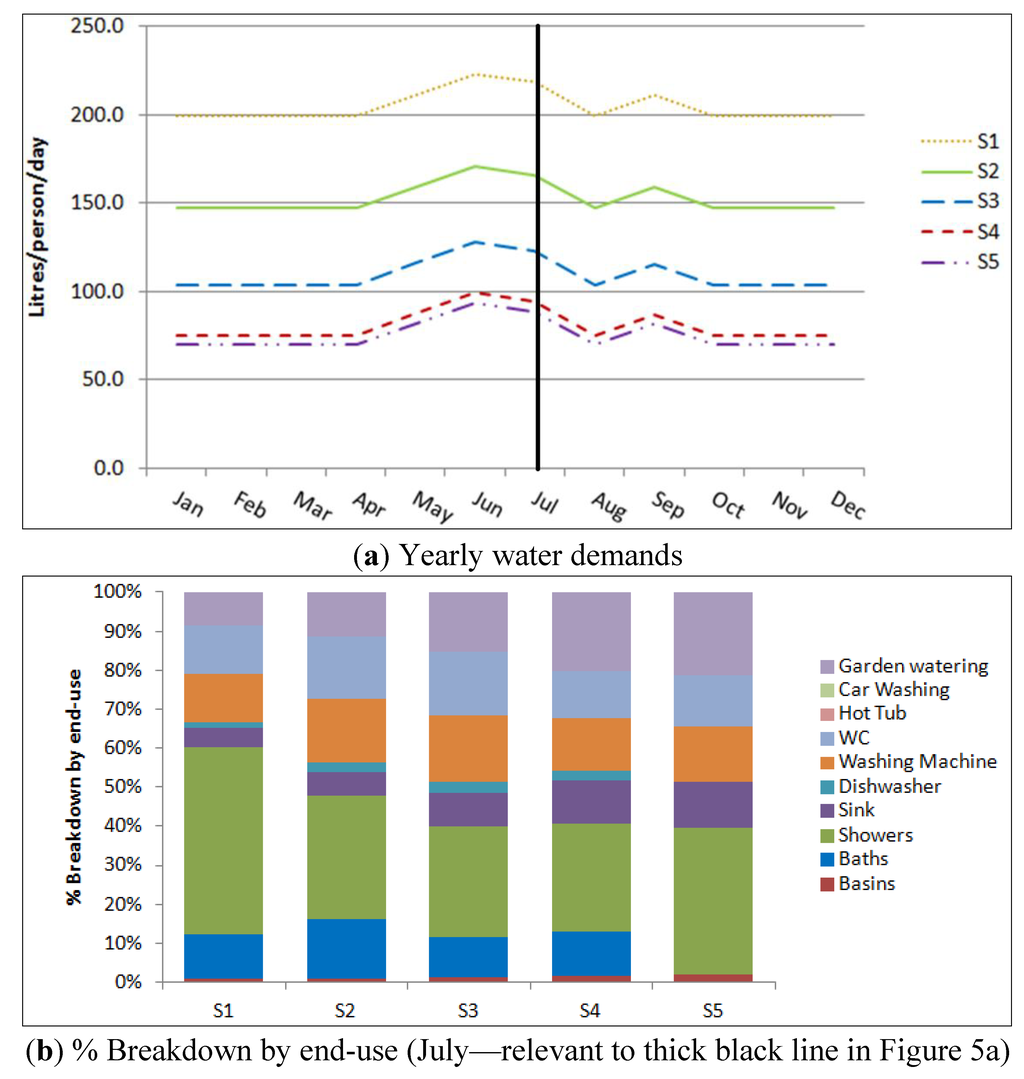

3.5.1. Influence of Time of Year

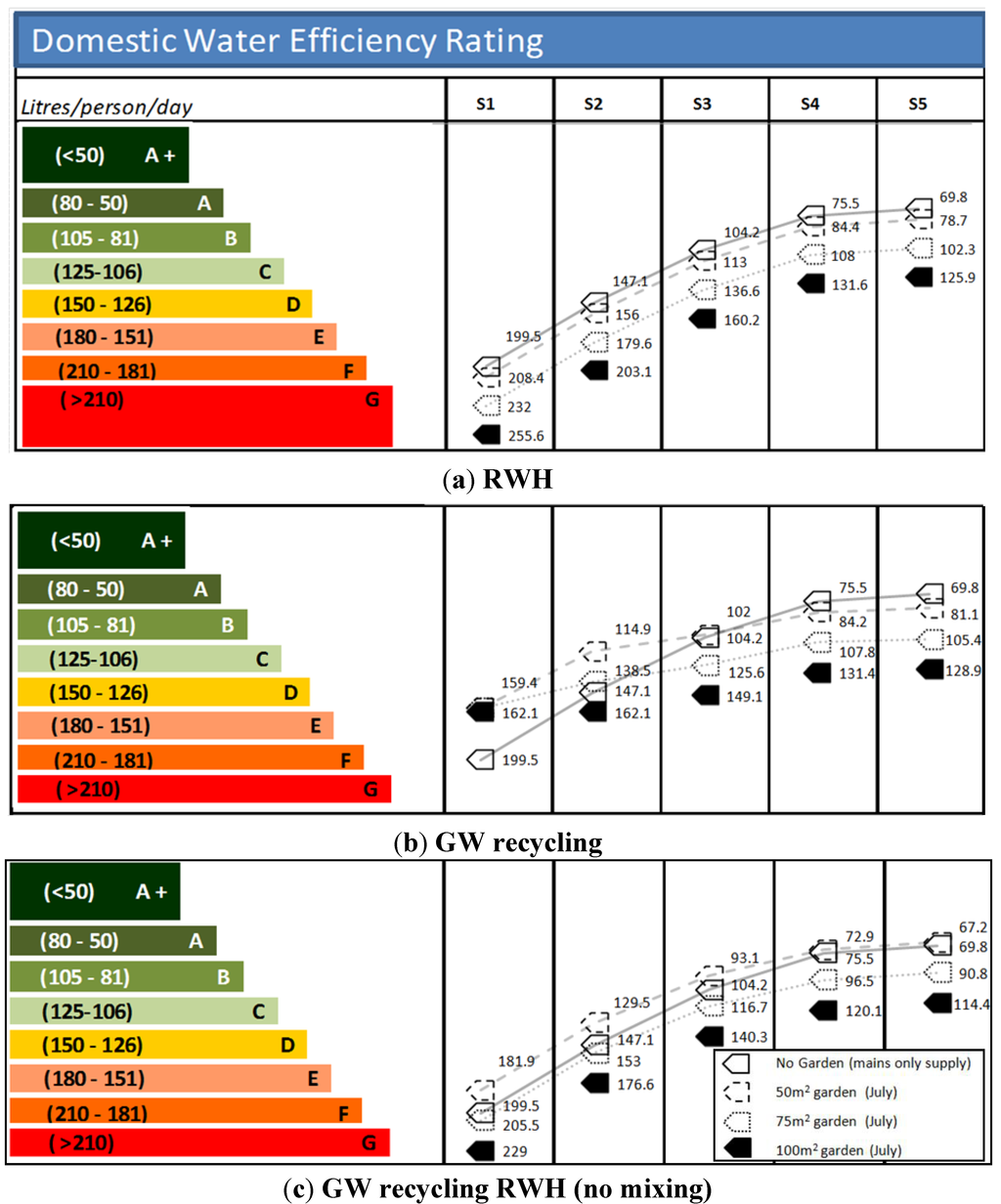

3.5.2. Influence of Garden Size (and Location)

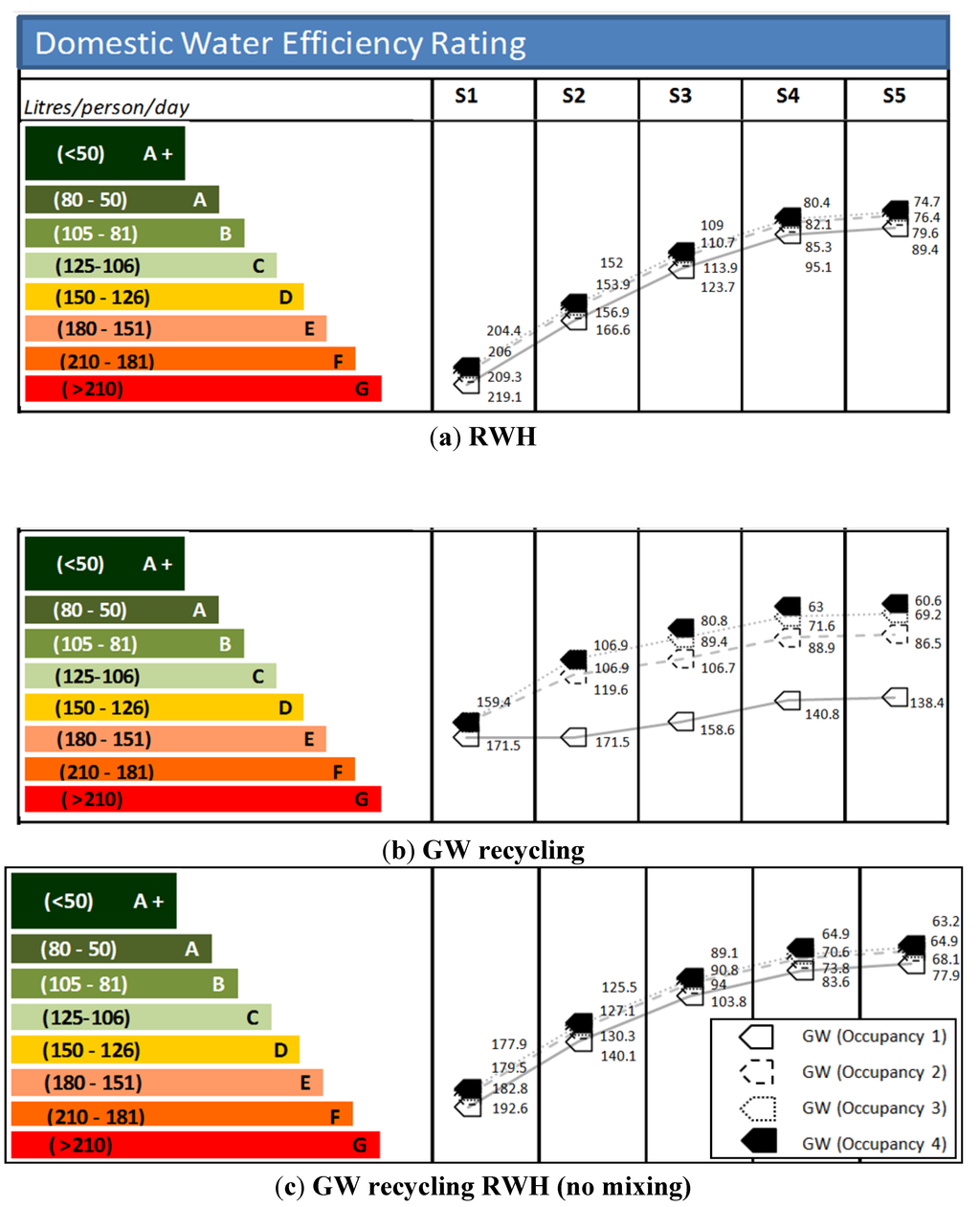

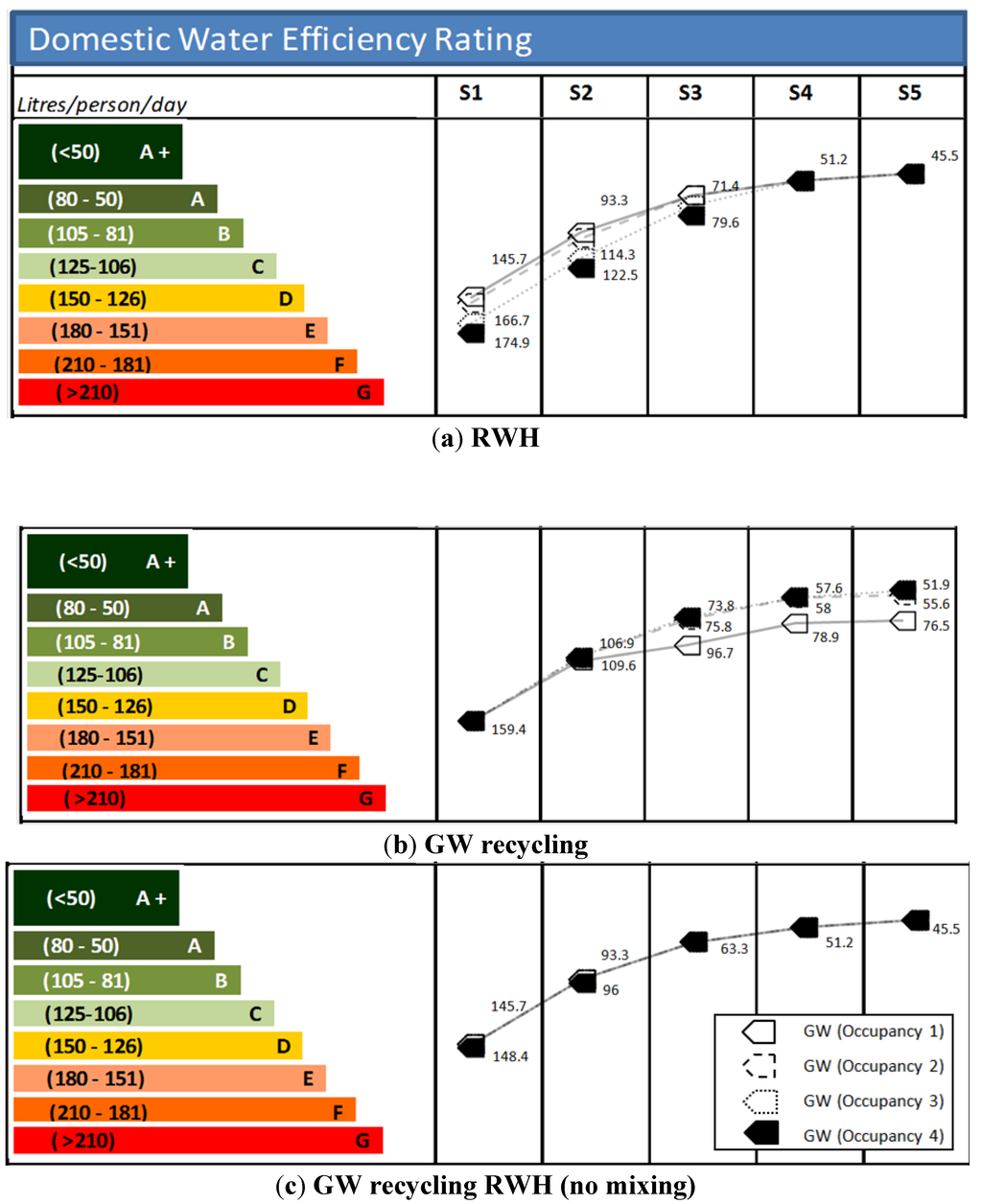

3.5.3. Influence of Occupancy (and Location)

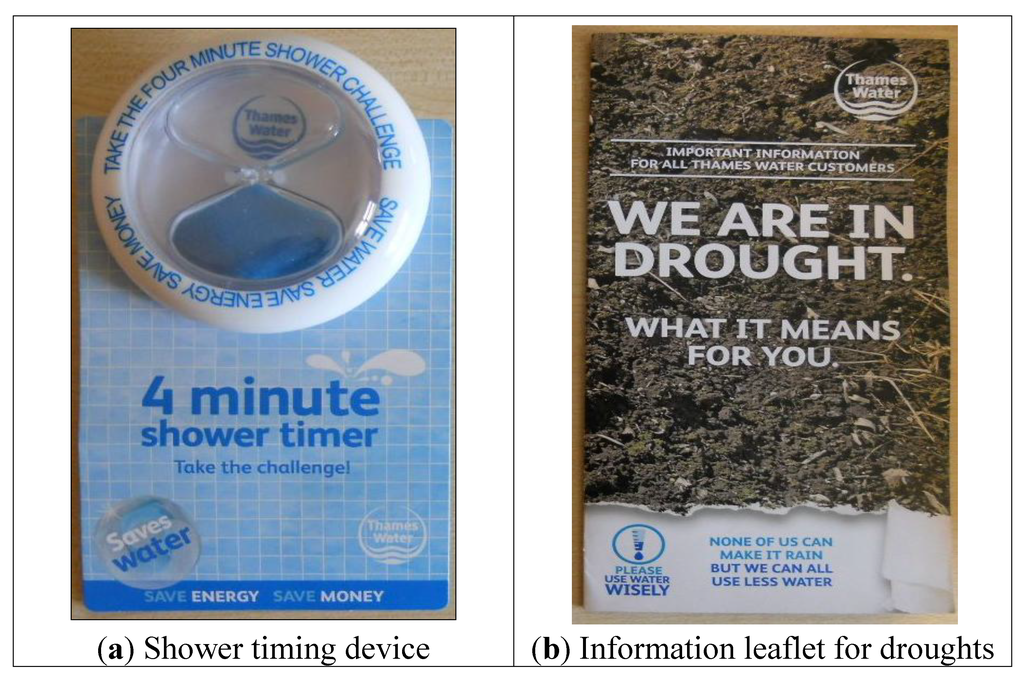

4.1. Technology and User Behaviour
- What is the lower limit to a showers flow rate, has it been reached?
- Can a very low flow rate shower (i.e., < 6 L/min) deliver the same shower experience as a 12 L/min or even a 24 L/min power shower? If not, then would acceptability and widespread adoption be inhibited?
- Is a (re)design (e.g., aeration technology) possible to deliver the same user-experience and function (i.e., personal washing and relaxation)?
4.4. Feasibility and Acceptability of a Benchmarking Approach (Using Band Ratings)
Conflicts of Interest
References and Notes
- World Economic Forum. Insight Report—Global Risks 2014, 9th ed.; World Economic Forum: Geneva, Switzerland, 2014; pp. 12–26. [Google Scholar]
- Office for National Statistics. National Population Projections, 2010-Based Statistical Bulletin. Available online: http://www.ons.gov.uk/ons/rel/npp/national-population-projections/2010-based-projections/stb-2010-based-npp-principal-and-key-variants.html (accessed on 6 March 2014).
- Department for Environment, Food and Rural Affairs. Future Water: The Government’s Water Strategy for England; Defra: London, UK, 2008. [Google Scholar]
- Department for Communities and Local Government (DCLG). Code for Sustainable Homes: Technical Guide. Department for Communities and Local Government: London, UK, 2010; pp. 82–91. [Google Scholar]
- Walton, J.S.; El-Haram, M.; Castillo, N.H.; Horner, R.M.W.; Price, A.D.F.; Hardcastle, C. Integrated assessment of urban sustainability. Eng. Sustain. 2005, 158, 57–65. [Google Scholar] [CrossRef]
- Hunt, D.V.L.; Lombardi, D.R.; Rogers, C.D.F.; Jefferson, I. Application of Sustainability Indicators in Decision-Making Processes for Urban Regeneration Projects. Eng. Sustain. 2008, 161, 77–92. [Google Scholar] [CrossRef]
- Hunt, D.V.L.; Jefferson, I.; Gaterell, M.; Rogers, C.D.F. Planning for sustainable utility infrastructure. Urban Des. Plan. 2009, 162, 187–201. [Google Scholar] [CrossRef]
- Hunt, D.V.L.; Rogers, C.D.F.; Jefferson, I. Scenarios analysis through a future performance framework. Eng. Sustain. 2013, 166, 258–271. [Google Scholar] [CrossRef]
- Nolde, E. Possibilities of rainwater utilisation in densely populated areas including precipitation runoffs from traffic surfaces. Desalination 2007, 215, 1–11. [Google Scholar] [CrossRef]
- Eriksson, E.; Auffarth, K.; Henze, M.; Ledin, A. Characteristics of grey wastewater. Urban Water 2002, 4, 85–104. [Google Scholar] [CrossRef]
- Leggett, D.J.; Brown, R.; Brewer, D.; Stanfield, G.; Holliday, E. Rainwater and Grey Water Use in Buildings; The Construction Industry Research and Information Association (CIRIA): London, UK, 2001. [Google Scholar]
- Kingspan. Lighthouse: Level 6 Net-Zero Carbon House (Fact File). Kingspan: County Cavan, Ireland, 2009. [Google Scholar]
- Syme, G.J.; Nancarrow, B.E.; Seligman, C. The evaluation of information campaigns to promote voluntary household water conservation. Eval. Rev. 2000, 24, 539–578. [Google Scholar] [CrossRef]
- EUR-Lex. Council Directive 92/75/EEC of 22 September 1992 on the indication by labelling and standard product information of the consumption of energy and other resources by household appliances. Available online: http://eur-lex.europa.eu/legal-content/EN/TXT/?uri=CELEX:31992L0075 (accessed on 6 March 2014).
- Buzek, J.; Lopez Garrido, D. Directive 2010/30/EU of the European Parliament and of the Council of 19 May 2010 on the indication by labelling and standard product information of the consumption of energy and other resources by energy-related products. Available online: http://eur-lex.europa.eu/LexUriServ/LexUriServ.do?uri=OJ:L:2010:153:0001:0012:en:PDF (accessed on 6 March 2014).
- Gov.UK. Buying or selling your home. Available online: https://www.gov.uk/buy-sell-your-home/energy-performance-certificates (accessed on 8 March 2014).
- Macrory, I. Measuring National Well-being—Households and families; Office for National Statistics: London, UK, 2012. Available online: http://www.ons.gov.uk/ons/dcp171766_259965.pdf (accessed on 1 March 2014).
- British Standards Institution (BSI). BS 8515:2009 Rainwater Harvesting Systems—Code of Practice; British Standards Institution: London, UK, 2009. [Google Scholar]
- Mitchell, G. Aquacycle—A Daily Urban Water Balance Model; Cooperative Research Centre (CRC) for Catchment Hydrology: Victoria, Australia, 2005. [Google Scholar]
- Mitchell, V.G.; McMahon, T.A.; Mein, R.G. Components of the Total Water Balance of an Urban Catchment. Environ. Manag. 2003, 32, 735–746. [Google Scholar] [CrossRef]
- Ward, S.; Memon, F.A.; Butler, D. Rainwater Harvesting: Model-Based Design Evaluation. Water Sci. Technol. 2010, 61, 85–96. [Google Scholar] [CrossRef]
- Met Office. Regional mapped climate averages. Available online: http://www.metoffice.gov.uk/climate/uk/averages/regmapavge.html (accessed on 11 March 2014).
- Hunt, D.V.L.; Jefferson, I.; Rogers, C.D.F. Testing the Resilience of Underground Infrastructure Solutions through an Urban Futures Methodology. Available online: http://programm.corp.at/cdrom2012/papers2012/CORP2012_97.pdf (accessed on 3 March 2014).
- Hunt, D.V.L.; Lombardi, D.R.; Farmani, R.; Jefferson, I.; Memon, F.A.; Butler, D.; Rogers, C.D.F. Urban Futures and the Code for Sustainable Homes. Eng. Sustain. 2012, 165, 37–58. [Google Scholar] [CrossRef]
- Food and Agriculture Organization (FAO). Yield Response to Water; Food and Agriculture Organization: Rome, Italy, 1986. [Google Scholar]
- Downing, T.E.; Butterfield, R.E.; Edmonds, B.; Knox, J.W.; Moss, S.; Piper, B.S.; Weatherhead, E.K. Climate Change and Demand for Water; Stockholm Environment Institute Oxford Office: Oxford, UK, 2003. [Google Scholar]
- Roebuck, R.M. A Whole Life Costing Approach for Rainwater Harvesting Systems. Ph.D. Thesis, University of Bradford, Bradford, UK, 17 July 2007. [Google Scholar]
- Doorenbos, J.; Pruitt, W.O. Guidelines for Predicting Crop Water Requirements; Food and Agriculture Organization: Rome, Italy, 1992. [Google Scholar]
- UN. Water for People Water for Life—The United Nations World Water Development Report. Available online: http://unesdoc.unesco.org/images/0012/001295/129556e.pdf (accessed on 12 January 2014).
- Zadeh, S.M.; Hunt, D.V.L.; Lombardi, D.R.; Rogers, C.D.F. Shared Urban Grey water Recycling Systems: Water Resource Savings and Economic Investment. Sustainability 2013, 5, 2887–2912. [Google Scholar] [CrossRef]
- Zadeh, S.M.; Hunt, D.V.L.; Rogers, C.D.F. Future Water Demands: The Role of Technology and User Behavior. Available online: http://www.sciforum.net/conference/wsf3/paper/2167/download/pdf&sa=U&ei=BppsU4CFJtTh8AWXm4KQCQ&ved=0CB4QFjAA&usg=AFQjCNGJpoME5LbpjB2_5zyGbi0DUHX2dw (accessed on 6 January 2014).
- Spehr, K.; Curnow, R. Behaviour Change Framework for Our Water Our Future; Our Water Our Future (OWOF) Behaviour Change Framework: Victoria, Australia, 2007. [Google Scholar]
- Mangan, L. Peeing in the shower—The rules. The Guardian. 6 August 2009. Available online: http://www.theguardian.com/lifeandstyle/2009/aug/06/peeing-in-shower-rules (accessed 31 January 2014).
- Green idea reviews. If It’s Yellow, Let It Mellow Review—Does it Work? Available online: http://www.greenideareviews.com/2012/04/18/if-its-yellow-let-it-mellow-review-does-it-work/ (accessed on 8 February 2014).
- Ieropouolos, I.; Greenman, J.; Melhuish, C. Urine utilisation by microbial fuel cells; energy fuel for the future. Phys. Chem. Chem. Phys. 2012, 14, 94–98. [Google Scholar] [CrossRef]
- Nicholl, A.; Perry, M. Smart Home Systems and the Code for Sustainable Homes; IHS Building Research Establishment (BRE) Press: Bracknel, UK, 2009. [Google Scholar]
- Lombardi, D.R.; Leach, J.M.; Rogers, C.D.F.; Aston, R.; Barber, A.R.G.; Boyko, C.; Brown, J.; Bryson, J.R.; Butler, D.; Caputo, S.; et al. Designing Resilient Cities: A Guide To Good Practice; IHS Building Research Establishment (BRE) Press: Bracknell, UK, 2012; Volume 103. [Google Scholar]
- Zadeh, S.M.; Hunt, D.V.L.; Lombardi, D.R.; Rogers, C.D.F. Carbon Costing for Mixed-Use Greywater Recycling Systems. Water Manag. 2013, 16, 1–15. [Google Scholar]
- Wong, S.T. Model on Municipal Water Demand: A Case Study of North Eastern Illinois. Land Econ. 1972, 48, 34–44. [Google Scholar] [CrossRef]
- Nieswiadomy, M.L.; Molina, D.J. Comparing Residential Water Demand Estimates Under Decreasing and Increasing Block Rates Using Household Demand Data. Land Econ. 1989, 65, 280–289. [Google Scholar] [CrossRef]
- Dandy, G.; Nguyen, T.; Davies, C. Estimating Residential Water Demand in the Presence of Free Allowances. Land Econ. 1997, 73, 125–139. [Google Scholar] [CrossRef]
- Pint, M.E. Household Responses to Increased Water Rates during the California Drought. Land Econ. 1999, 75, 246–266. [Google Scholar] [CrossRef]
- Gaudin, S. Effect of Price Information on Residential Water Demand. Appl. Econ. 2006, 38, 383–393. [Google Scholar] [CrossRef]
- Mazzanti, M.; Montini, A. The Determinants of Residential Water Demand: Empirical Evidence for a Panel of Italian Municipalities. Appl. Econ. Lett. 2006, 13, 107–111. [Google Scholar] [CrossRef]
- Renwick, E.M.; Archibald, S.O. Demand Side Management Policies for Residential Water Use: Who Bears the Conservation Burden. Land Econ. 1998, 74, 343–359. [Google Scholar] [CrossRef]
- Strand, J.; Walker, I. Water Markets and Demand in Central American Cities. Environ. Dev. Econ. 2005, 10, 313–335. [Google Scholar] [CrossRef]
- Espiñeira, R.M.; Nauges, C. Is All Domestic Water Consumption Sensitive to Price Control? Appl. Econ. 2004, 36, 1697–1703. [Google Scholar] [CrossRef]
- Espiñeira, R.M. Residential Water Demand in the Northwest of Spain. Environ. Resour. Econ. 2002, 21, 161–187. [Google Scholar] [CrossRef]
