# Effects of Roof Pitch on Air Flow and Heating Load of Sealed and Vented Attics for Gable-Roof Residential Buildings

^{*}

## Abstract

**:**

## Nomenclature

c_{p} | specific heat, J kg ^{−1} K^{−1} |

f | elliptic relaxation function |

g | gravitational acceleration, m s ^{−2} |

h | heat transfer coefficient, W m ^{−2} K^{−1} |

H | attic height, m |

k | turbulence kinetic energy, m ^{2} s^{−2} |

L | turbulence length scale, m |

Nu | Nusselt number |

p | pressure, Pa |

p_{atm} | atmospheric pressure, Pa |

q | heat flux, Wm ^{−2} |

Q | heat transfer rate, W/m |

R | thermal resistance, K m ^{2}/W |

Ra | Rayleigh number |

S | strain rate, s ^{−1} |

t_{c} | ceiling thickness, m |

T | temperature, K |

T_{0} | reference temperature, K |

T_{in} | inlet air temperature, K |

u | velocity component, m/s |

turbulence velocity variance scale, m ^{2} s^{−2} | |

W | half width of attic, m |

x,y | coordinates, m |

#### Greek symbols

β | thermal expansion coefficient, K ^{−1} |

ε | turbulence dissipation rate, m ^{2} s^{−3} |

λ | thermal conductivity, W m ^{−1} K^{−1} |

λ_{c} | ceiling thermal conductivity, W m ^{−1} K^{−1} |

µ | molecular viscosity, kg m ^{−1} s^{−1} |

µ_{t} | eddy viscosity, kg m ^{−1} s^{−1} |

ρ | density, kg m ^{−3} |

σ_{k} | effective turbulence Prandtl number for k |

σ_{ε} | effective turbulence Prandtl number for ε |

σ_{T} | effective turbulence Prandtl number for T |

τ | turbulence time scale, s |

#### Subscripts

a | air |

c | ceiling |

cb | ceiling-bottom |

ct | ceiling-top |

r | roof |

rb | roof-bottom |

rt | roof-top |

t | total |

## 1. Introduction

## 2. Numerical Model

_{0}, that is specified to the outside ambient air temperature to correctly calculate the buoyancy effects. In all the cases reported in this study, T

_{0}= 267 K is assumed. In order to correctly account for the thermal resistances of the ceiling and roofs, which are excluded from the computational domain, convection-type boundary conditions are applied to both the ceiling and roof boundaries. For example, energy balance across the ceiling thickness gives

_{c}and λ

_{c}are the thickness and thermal conductivity of the ceiling; T

_{ct}and T

_{cb}are the temperatures at the ceiling-top and ceiling-bottom, respectively; and the heat transfer coefficient h

_{c}is the reciprocal of the ceiling thermal resistance.

**Figure 1.**Schematic of the computational domain and boundary conditions for (

**a**) sealed attics and (

**b**) vented attics.

_{cb}= 293 K, while a heat transfer coefficient of h

_{c}= 0.284 W/m

^{2}K is adopted to approximate a ceiling insulation level of R-20 (simulating the thermal resistance of a layer of 15 cm thick glass fiber; in this paper, the R-value is used according to the U.S. convention, i.e., R-1 = 1 h·ft²·°F/Btu = 0.176110 Km

^{2}/W). Similarly, a roof-top temperature of T

_{rt}= 273 K and a heat transfer coefficient of h

_{r}= 4.73 W/m

^{2}K (equivalent to an insulation level of R-1.2) are specified to the roof boundaries to simulate a typical condition of a 2 cm plywood roof covered by snow. It is obvious that the assumption of uniform ceiling-bottom and roof-top temperatures is an ideal simplification to the real thermal conditions of the modeled attics. However, for typical conditions when the indoor temperature only slightly varies along the ceiling-bottom and the roof-top is covered by snow, the simplified situation considered here still provides good approximation to the reality.

_{atm}. Therefore, the obtained air flow is purely driven by the thermally induced buoyancy forces, i.e., the stack effect. At the soffit vents, the inlet air is assumed to enter at the ambient temperature of 267 K with a turbulent intensity of 1%.

_{p}, λ, β, σ

_{T}, S

_{ij}are air density, viscosity, specific heat, thermal conductivity, thermal expansion coefficient, Prandtl number, and strain rate, respectively. The unsteady terms in the above equations account for all unsteadiness that does not belong to the turbulence, i.e., the unsteadiness that is not represented by the turbulence model [30].

_{t}, is defined by

_{µ}is a constant. The eddy viscosity is determined from the following unsteady transport equations for the turbulence kinetic energy k, dissipation rate ε, velocity variance scale , and elliptic relaxation function f:

^{+}value for the first grid close to the walls is everywhere less than 1.

## 3. Results and Discussion

#### 3.1. Sealed Attics

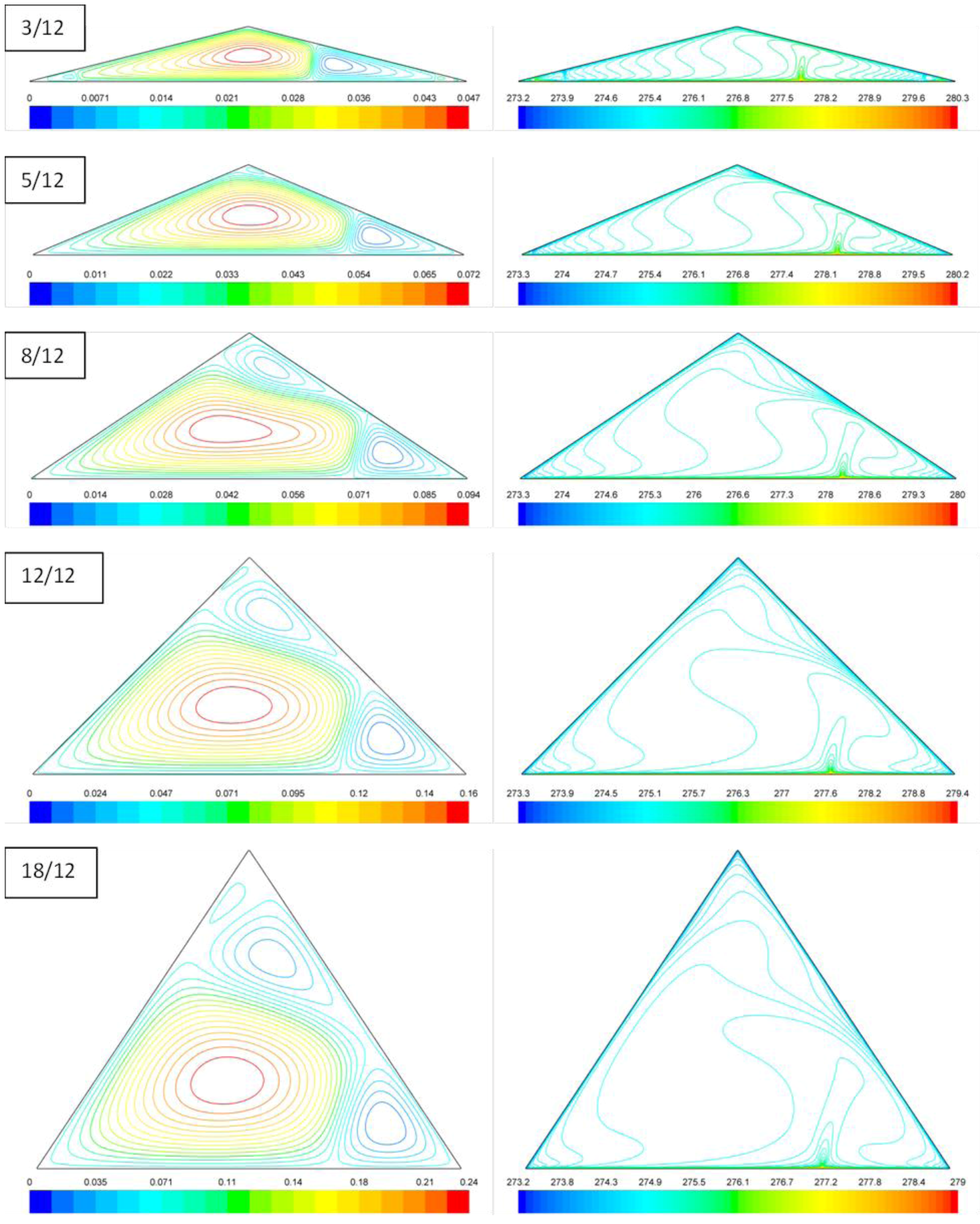

**Figure 2.**Predicted (

**left**) steady streamlines (in kg/m s) and (

**right**) isotherms (in K) in sealed attics with roof pitches of 3/12, 5/12, 8/12, 12/12, and 18/12, respectively.

**Figure 3.**Predicted steady profiles of (

**a**) horizontal velocity and (

**b**) temperature along the central vertical line x = 0 for sealed attics with different roof pitches.

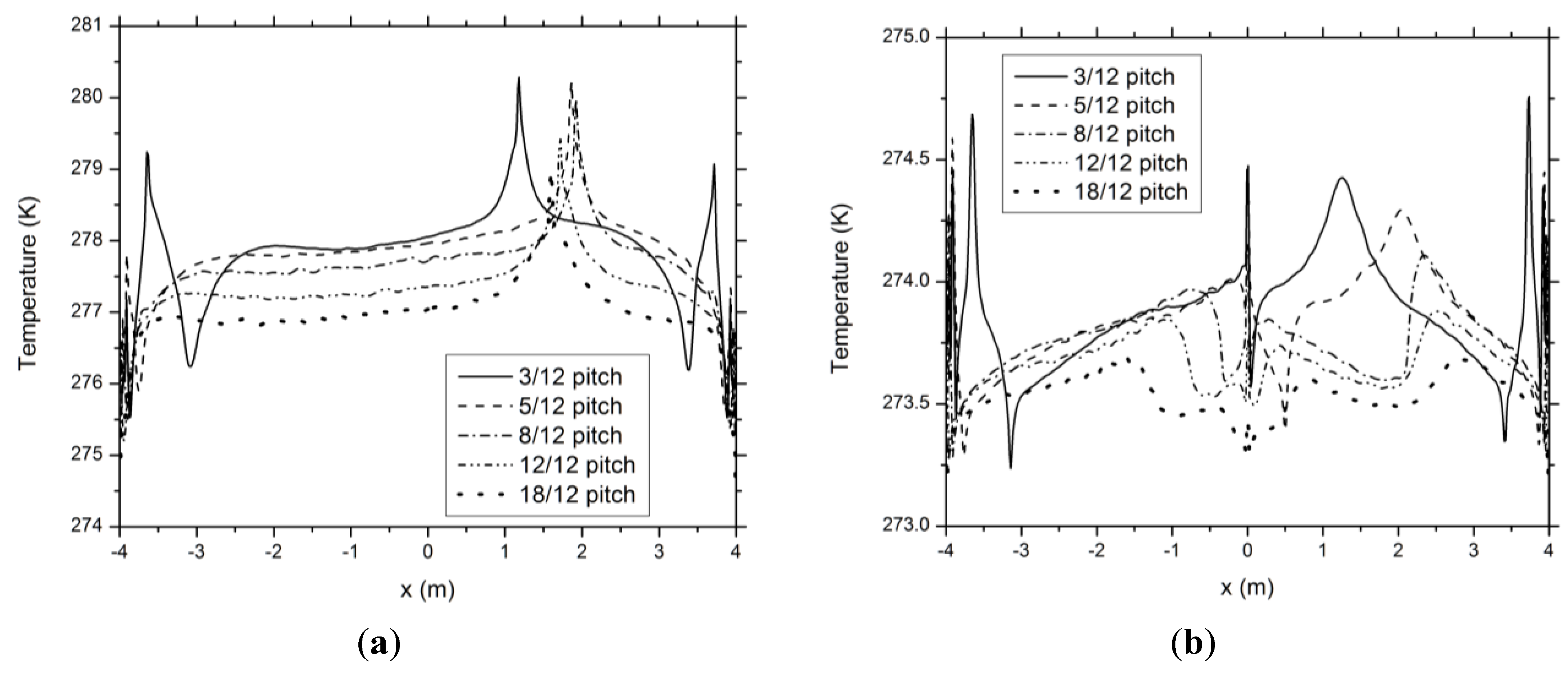

**Figure 4.**Predicted steady temperatures at the ceiling (

**a**) and roof (

**b**) boundaries for sealed attics with different roof pitches.

**Table 1.**Predicted heat transfer through the ceiling and roof boundaries for sealed attics with different roof pitches.

Pitch | Heat Gain from Left Ceiling (W/m) | Heat Gain from Right Ceiling (W/m) | Heat Loss from Left Roof (W/m) | Heat Loss from Right Roof (W/m) | Q_{t} (W/m) |
---|---|---|---|---|---|

3/12 | 17.21 | 16.79 | 15.78 | 18.21 | 34.00 |

5/12 | 17.33 | 16.87 | 15.98 | 18.22 | 34.20 |

8/12 | 17.57 | 17.15 | 17.31 | 17.41 | 34.72 |

12/12 | 17.98 | 17.60 | 17.71 | 17.86 | 35.58 |

18/12 | 18.30 | 17.93 | 17.99 | 18.24 | 36.23 |

_{ct}− T

_{rb}. Although it is possible to obtain this temperature difference by subtracting a curve in Figure 4a by the one corresponding to the same roof pitch in Figure 4b and then taking average over the ceiling range, we prefer an alternative approach, i.e., evaluating T

_{ct}− T

_{rb}by the classical method of thermal resistance analysis. An advantage of the thermal resistance approach is that the thermal resistance of attic air flow can be obtained as well, which itself is also of engineering significance.

_{t}, equals the sum of the thermal resistances of the sub-systems

_{t}is the total heat transfer rate, as listed in the last column of Table 1. Since the ceiling and roof insulations are specified to be R-20 and R-1.2, respectively, Equations (15,16) can be used to obtain all the thermal resistances, and the obtained results are listed in Table 2. It should be noted that the R

_{r}column in Table 2 is obtained by scaling R-1.2 by the roof-ceiling area ratio, (W

^{2}+ H

^{2})

^{1/2}/W, so that all the resistances are defined based on unit ceiling area. Table 2 shows that the thermal resistance of the attic air is around R-5 level and decreases about 31% from the 3/12 pitched attic to the 18/12 pitched attic.

**Table 2.**Thermal resistances, in R-value (R-1 = 0.17611 Km

^{2}/W), for sealed attics with different roof pitches.

Pitch | R_{t} (Total) | R_{c} (Ceiling) | R_{r} (Roof) | R_{a} (Air) |
---|---|---|---|---|

3/12 | 26.721 | 20 | 1.164 | 5.556 |

5/12 | 26.565 | 20 | 1.108 | 5.457 |

8/12 | 26.167 | 20 | 0.998 | 5.179 |

12/12 | 25.535 | 20 | 0.849 | 4.686 |

18/12 | 25.077 | 20 | 0.666 | 4.411 |

**Table 3.**Representative ceiling-top and roof-bottom temperatures together with derived Nusselt and Rayleigh numbers for sealed attics with different roof pitches.

Pitch | T_{ct} (K) | T_{rb} (K) | Nu =
HQ_{t}/2W(T_{ct} − T_{rb})λ | Ra =
ρ^{2}c_{p}gβH^{3}(T_{ct} − T_{rb})/λµ |
---|---|---|---|---|

3/12 | 278.03 | 273.87 | 42.57 | 6.14 × 10^{8} |

5/12 | 277.94 | 273.83 | 72.23 | 2.81 × 10^{9} |

8/12 | 277.71 | 273.76 | 122.08 | 1.11 × 10^{10} |

12/12 | 277.34 | 273.66 | 201.43 | 3.47 × 10^{10} |

18/12 | 277.05 | 273.53 | 321.64 | 1.12 × 10^{11} |

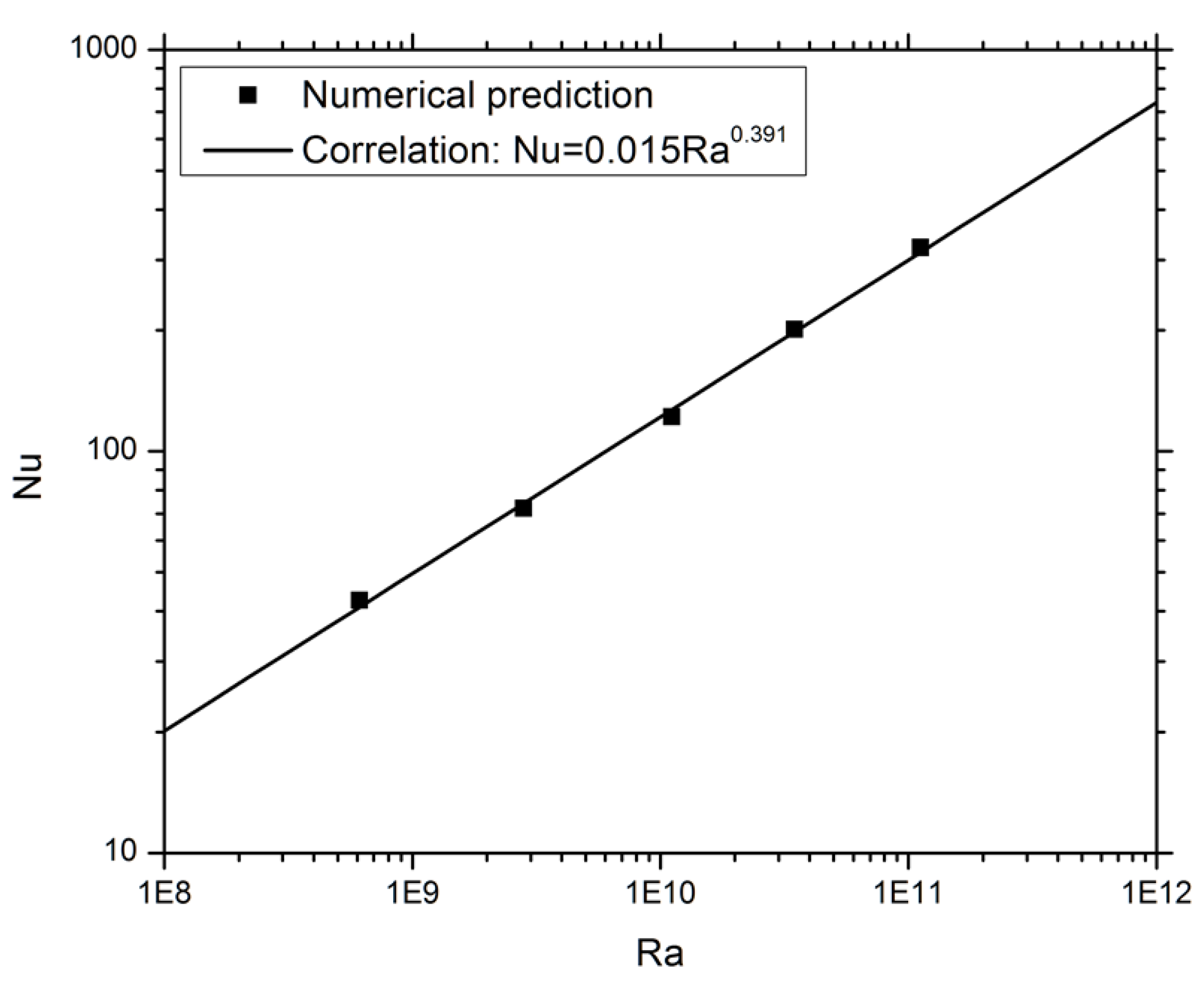

**Figure 6.**Correlation for heat transfer in sealed attics developed based on the numerical predictions.

#### 3.2. Vented Attics

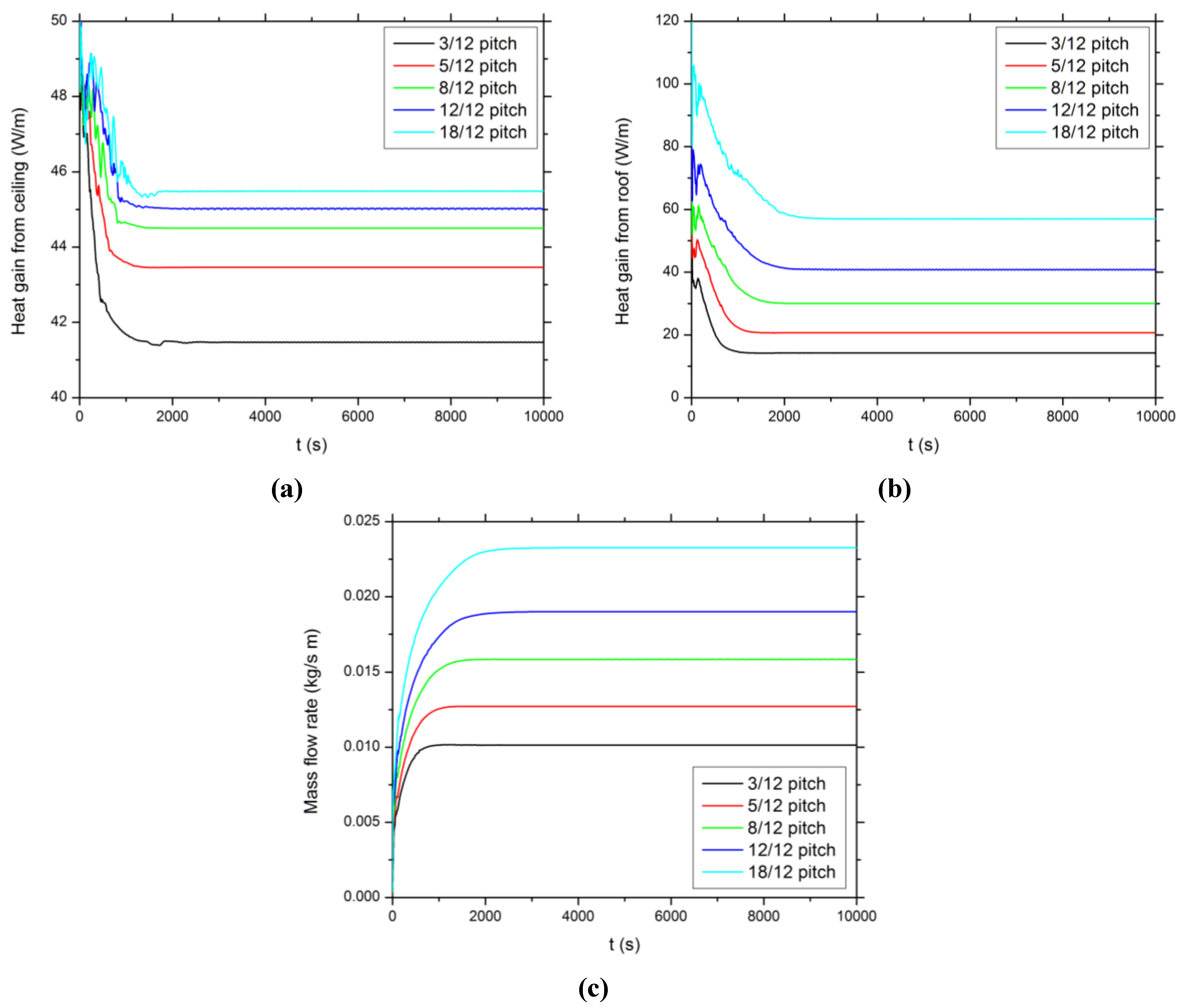

**Figure 7.**Temporal evolution of (

**a**) heat gain from the ceiling boundary; (

**b**) heat gain from the roof boundaries; and (

**c**) mass flow rate across the attic space for vented attics with different roof pitches.

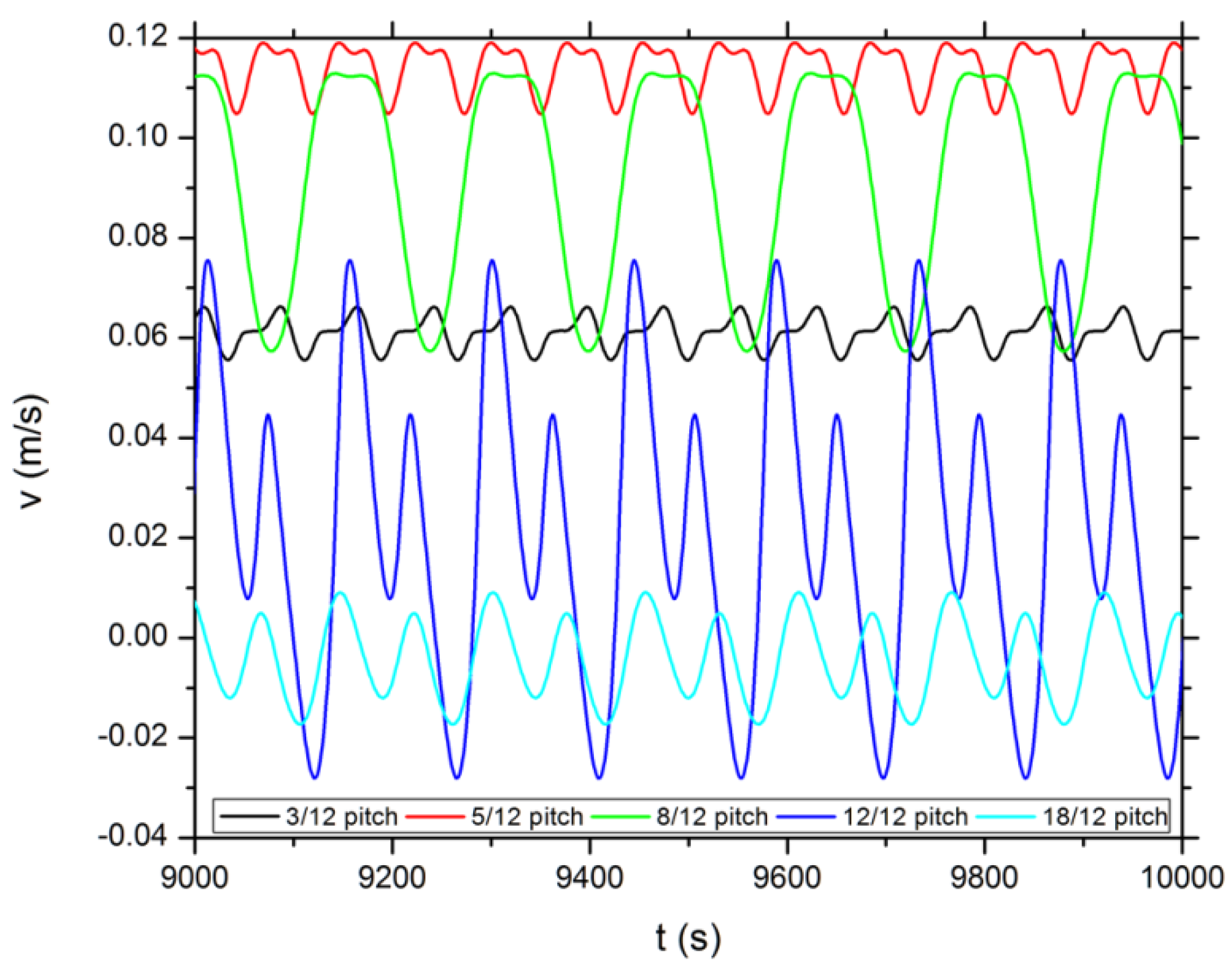

**Figure 8.**Periodical oscillation in vertical velocity at the location of x = 0 and y = H/2 for vented attics with different roof pitches.

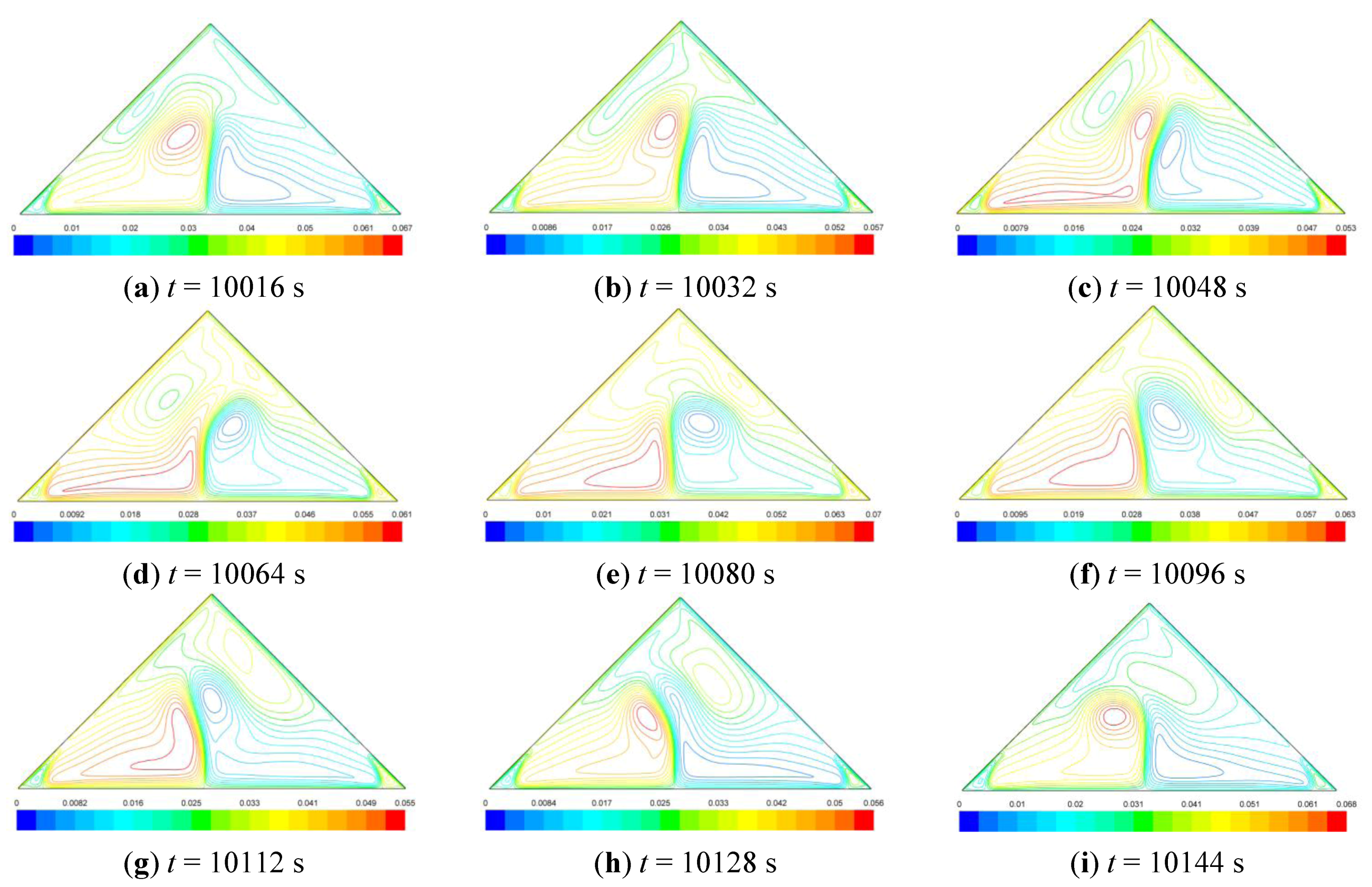

**Figure 9.**Snapshots of predicted streamlines (in kg/m s) at various times in the vented attic with a 12/12 pitch.

**Figure 10.**Snapshots of predicted isotherms (in K) at various times in the vented attic with a 12/12 pitch.

**Figure 11.**Predicted (

**left**) streamlines (in kg/m s) and (

**right**) isotherms (in K) at t = 10,000 s in vented attics with roof pitches of 3/12, 5/12, 8/12, 12/12, and 18/12, respectively.

**Figure 12.**Predicted temperatures at the ceiling (

**a**) and roof (

**b**) boundaries at t = 10,000 s in vented attics with different roof pitches.

**Table 4.**Thermal resistances, in R-value (R-1 = 0.17611 Km

^{2}/W), for vented attics with different roof pitches.

Pitch | R_{t,c} (Ceiling-Side Total) | R_{a,c} (Ceiling-Side Air) | R_{t,r} (Roof-Side Total) | R_{a,r} (Roof-Side Air) |
---|---|---|---|---|

3/12 | 28.480 | 8.480 | 19.127 | 17.963 |

5/12 | 27.176 | 7.176 | 13.148 | 12.040 |

8/12 | 26.541 | 6.541 | 9.070 | 8.072 |

12/12 | 26.229 | 6.229 | 6.693 | 5.844 |

18/12 | 25.964 | 5.964 | 4.784 | 4.118 |

**Table 5.**Representative ceiling-top and roof-bottom temperatures together with derived Nusselt and Rayleigh numbers for vented attics with different roof pitches.

Pitch | T_{ct} (K) | Nu = HQ_{c}/2W(T_{ct}− T_{in})λ | Ra = ρ^{2}c_{p}gβH^{3}(T_{ct}− T_{in})/λµ | T_{rb} (K) | Nu = HQ_{r}/2W(T_{rb}− T_{in})λ | Ra =
ρ^{2}c_{p}gβH^{3}(T_{rb} − T_{in})/λµ |
---|---|---|---|---|---|---|

3/12 | 274.74 | 27.91 | 1.14 × 10^{9} | 272.63 | 13.18 | 8.29 × 10^{8} |

5/12 | 273.87 | 54.91 | 4.69 × 10^{9} | 272.49 | 32.78 | 3.75 × 10^{9} |

8/12 | 273.41 | 96.42 | 1.79 × 10^{10} | 272.34 | 78.16 | 1.49 × 10^{10} |

12/12 | 273.17 | 152.05 | 5.83 × 10^{10} | 272.24 | 162.05 | 4.95 × 10^{10} |

18/12 | 272.97 | 238.12 | 1.90 × 10^{11} | 272.16 | 345.02 | 1.64 × 10^{11} |

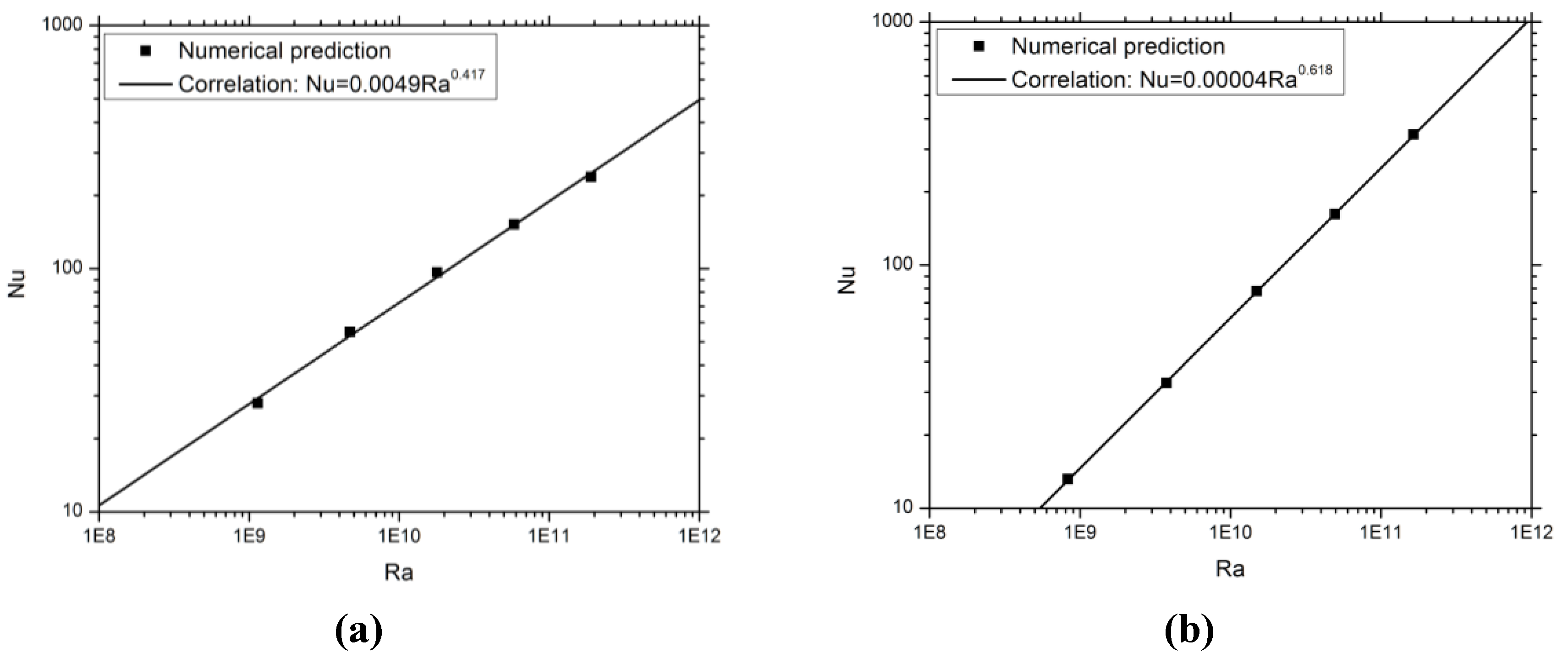

**Figure 14.**Correlations for heat transfer on (

**a**) the ceiling side and (

**b**) the roof side within vented attics developed based on numerical predictions.

## 4. Conclusions

- (1) all the investigated roof pitches, air flow in the sealed attics is steady and asymmetric, while that in the vented attics tend to be an essentially symmetric base flow superimposed by a periodical oscillation.
- (2) both the sealed and vented attics, the heating load monotonically increases with the roof pitch. As the roof pitch increases from 3/12 to 5/12, 8/12, 12/12, and 18/12, the attic heating load is predicted to increase by 0.6%, 2.1%, 4.6%, 6.6%, respectively, for the sealed attics and to increase by 4.8%, 7.3%, 8.6%, and 10%, respectively, for the vented attics.
- (3) mass flow rate of the ventilating air through the vented attics increases monotonically with the roof pitch.As the roof pitch increases from 3/12 to 5/12, 8/12, 12/12, and 18/12, the mass flow rate of the ventilating air is predicted to increase by 23%, 53%, 83%, and 124%, respectively.
- (4) heat transfer of turbulent air flow in both the sealed and vented attics can be satisfactorily correlated by a simple relationship between appropriately defined Nusselt number and Rayleigh number.

- (1) Investigating wind effects. The air flows presented in this study are purely driven by buoyancy. Such buoyancy-driven cases are corresponding to a worst-case scenario, because real attic ventilation is generally enhanced by winds.
- (2) Including moisture transfer. The contribution of the latent heat associated with moisture transfer may be significant for the energy performance of attics in humid climates, especially in summer times.

## Acknowledgments

## References

- Federal Housing Administration (FHA), Property Standards and Minimum Construction Requirements for Dwellings; FHA: Washington, DC, USA, 1942.
- Rose, W.B.; TenWolde, A. Venting of attics and cathedral ceilings. ASHRAE J.
**2002**, 44, 26–33. [Google Scholar] - Hutchings, J.I. National Codes Handbook; McGraw Hill: Columbus, OH, USA, 1998. [Google Scholar]
- Rudd, A.F.; Lstiburek, J.W. Vented and sealed attics in hot climates. ASHRAE Trans.
**1998**, 104, 1199–1210. [Google Scholar] - Kamiyo, O.M.; Angeli, D.; Barozzi, G.S.; Collins, M.W.; Olunloyo, V.O.S.; Talabi, S.O. A comprehensive review of natural convection in triangular enclosures. ASME Appl. Mech. Rev.
**2010**, 63, 1–13. [Google Scholar] - Saha, S.C.; Khan, M.M.K. A review of natural convection and heat transfer in attic-shaped space. Energy Build.
**2011**, 43, 2564–2571. [Google Scholar] [CrossRef] [Green Version] - Flack, R.D.; Witt, C.L. Velocity measurements in two natural convection air flows using a laser velocimeter. ASME J. Heat Transf.
**1979**, 101, 256–260. [Google Scholar] [CrossRef] - Flack, R.D. The experiment al measurement of natural convection heat transfer in triangular enclosures heated or cooled from below. ASME J. Heat Transf.
**1980**, 102, 770–772. [Google Scholar] [CrossRef] - Poulikakos, D.; Bejan, A. Natural convection experiments in a triangular enclosure. ASME J. Heat Transf.
**1983**, 105, 652–655. [Google Scholar] [CrossRef] - Holtzman, G.A.; Hill, R.W.; Ball, K.S. Laminar natural convection in isosceles triangular enclosures heated from below and symmetrically cooled from above. ASME J. Heat Transf.
**2000**, 122, 485–491. [Google Scholar] [CrossRef] - Asan, H.; Namli, L. Laminar natural convection in a pitched roof of triangular cross-section: Summer day boundary conditions. Energy Build.
**2000**, 33, 69–73. [Google Scholar] [CrossRef] - Ridouane, E.H.; Campo, A.; McGarry, M. Numerical computation of buoyant airflows confined to attic spaces under opposing hot and cold wall conditions. Int. J. Therm. Sci.
**2005**, 44, 944–952. [Google Scholar] - Lei, C.; Armfield, S.W.; Patterson, J.C. Unsteady natural convection in a water-filled isosceles triangular enclosure heated from below. Int. J. Heat Mass Transf.
**2008**, 51, 2637–2650. [Google Scholar] [CrossRef] - Kent, E.F. Numerical analysis of laminar natural convection in isosceles triangular enclosures. J. Mech. Eng. Sci.
**2009**, 223, 1157–1169. [Google Scholar] [CrossRef] - Saha, S.C.; Patterson, J.C.; Lei, C. Natural convection and heat transfer in attics subject to periodic thermal forcing. Int. J. Therm. Sci.
**2010**, 49, 1899–1910. [Google Scholar] [CrossRef] [Green Version] - Saha, S.C. Unsteady natural convection in a triangular enclosure under isothermal heating. Energy Build.
**2011**, 43, 695–703. [Google Scholar] [CrossRef] [Green Version] - Ridouane, E.H.; Campo, A.; Hasnaoui, M. Turbulent natural convection in an air-filled isosceles triangular enclosure. Int. J. Heat Fluid Flow
**2006**, 27, 476–489. [Google Scholar] [CrossRef] - Talabi, S.O.; Olunloyo, V.O.S.; Kamiyo, O.M.; Collins, M.W.; Karayiannis, T.G. Flow field and reynolds stress distribution in low turbulence natural convection in a triangular cavity. Int. Cent. Heat Mass Transf.
**2006**, 10, 511–514. [Google Scholar] - Medina, M.A.; O’Neal, D.L.; Turner, W.D. A transient heat and mass transfer model of residential attics used to simulate radiant barrier retrofits, Part I: Development. ASME J. Sol. Energy Eng.
**1998**, 120, 32–38. [Google Scholar] [CrossRef] - Medina, M.A.; O’Neal, D.L.; Turner, W.D. A transient heat and mass transfer model of residential attics used to simulate radiant barrier retrofits, Part II: Validation and simulations. ASME J. Sol. Energy Eng.
**1998**, 120, 39–44. [Google Scholar] [CrossRef] - Moujaes, S.F.; Alsaiegh, N.T. Numerical heat transfer attic model using a radiant barrier system. J. Energy Eng.
**2000**, 126, 32–51. [Google Scholar] [CrossRef] - Wang, S.; Shen, Z.; Gu, L. Numerical simulation of buoyancy-driven turbulent ventilation in attic space under winter conditions. Energy Build.
**2010**, 47, 360–368. [Google Scholar] - Durbin, P.A. Separated flow computations with the k-ε-v2 model. AIAA J.
**1995**, 33, 659–664. [Google Scholar] [CrossRef] - Behnia, M.; Parneix, S.; Shabany, Y.; Durbin, P.A. Numerical study of turbulent heat transfer in confined and unconfined impinging jets. Int. J. Heat Fluid Flow
**1999**, 20, 1–9. [Google Scholar] [CrossRef] - Parneix, S.; Durbin, P.A.; Behnia, M. Computation of a 3D turbulent boundary layer using the V2F model. Flow Turbul. Combust.
**1998**, 10, 19–46. [Google Scholar] - Heschl, C.H.; Sanz, W.; Klanatsky, P.; Madou, F. Comparison of Different Turbulence Models to Compute Wall Affected Room Airflows. In CFD Forum; Bad Nauheim, Wetteraukreis, Germany, 19 October 2005.
- Zhang, Z.; Zhang, W.; Zhai, Z.; Chen, Q. Evaluation of various turbulence models in predicting airflow and turbulence in enclosed environments by CFD: Part 2—Comparison with experimental data from literature. HVAC&R Res.
**2007**, 13, 871–886. [Google Scholar] - El-Behery, S.M.; Hamed, M.H. A comparative study of turbulence models performance for turbulent flow in a planar asymmetric diffuser. World Acad. Sci. Eng. Technol.
**2009**, 53, 769–780. [Google Scholar] - Ozoe, H.; Mouri, A.; Ohmuro, M.; Churchill, S.W.; Lior, N. Numerical calculations of laminar and turbulent natural convection in water in rectangular channels heated and cooled isothermally on the opposing vertical walls. Int. J. Heat Mass Transf.
**1985**, 28, 125–138. [Google Scholar] [CrossRef] - Henkes, R.A.W.M.; van der Vlugt, F.F.; Hoogendoorn, C.J. Natural-convection flow in a square cavity calculated with low-Reynolds-number turbulence models. Int. J. Heat Mass Transfer
**1991**, 34, 377–388. [Google Scholar] [CrossRef] - Henkes, R.A.W.M.; Hoogendoorn, C.J. Scaling of the turbulent natural convection flow in a heated square cavity. ASME J. Heat Transf.
**1994**, 116, 400–408. [Google Scholar] [CrossRef] - Hsieh, K.J.; Lien, F.S. Numerical modeling of buoyancy-driven turbulent flows in enclosures. Int. J. Heat Fluid Flow
**2004**, 25, 659–670. [Google Scholar] [CrossRef] - ANSYS FLUENT 13.0. ANSYS, Inc.: Canonsburg, PA, USA, 2011.
