Soil Indicators of Terroir and Their Importance for Adaptive and Sustainable Viticulture

Abstract

The comparison of equally important prerequisites for viticulture development (climatope and edaphotope) in two historical regions has shown that both in the historical era and the present day, the less favorable conditions of a temperate climate (riskier in terms of frost danger) and poorer biogeochemical properties of soils and rocks in the steppe region compared to the conditions of the Sub-Mediterranean region have had a decisive influence on the volume and quality of wine products. This is supported by historical data on the local consumption of produced wine and imports of higher-quality wine from Sub-Mediterranean vineyards (Tauric Chersonesos). Both regions of Western Crimea are characterized by the active bioaccumulation of iron, copper, and manganese in the humus horizon of soils, which creates a specific regional geochemical background with the potential to approach the ecological threshold of danger during long-term viticulture. The specific features of modern agricultural technology in viticulture lead to high concentrations of elements such as Cu, V, Cr, and Ni, which can exceed the MPC levels 20–25 years after the vineyard is planted, earlier than other elements. This makes it possible to identify this list of heavy metals as a priority in agroecological monitoring systems for vineyard lands and set the task of adjusting current agricultural technologies for sustainable viticultural practices in specific soil and climatic conditions. The authors see prospects for further studies both on improving methods for assessing components of a wine terroir, especially biogeochemical indicators of soils for a specific geographic region, as well as improving technology for obtaining conjugate assessments of viticulture products and wine materials connected with a given edaphotope.

1. Introduction

Modern sustainable viticulture, in addition to the main economic goal of obtaining a stable crop with high-quality conditions, focuses on environmental and resource-saving imperatives [1,2,3]. In order to optimize agricultural environmental management, the soil fertility and productivity of farming ecosystems are efficiently regulated when implementing adaptive landscape farming systems based on the principle of eliminating limiting conditions or adapting to them [4,5,6]. The adaptive landscape orientation of advanced farming systems has shown its efficiency in practice [7,8,9] due to the adaptability of crop production to the morphological structure of the agricultural landscape, forms of management, levels of availability of material and energy resources, and market conditions. According to some researchers [10], when compared with other cropping systems, viticulture (winegrowing) is more conservative in terms of innovation due to its traditional focus on terroir. An important component of modern agriculture is its adaptability—that is, the consideration of the specific needs of physiologically similar cultivated plants in relation to a certain group of environmental factors. When creating an adaptive plant-growing system, it is possible to ensure the maintenance of ecological balance in agroecosystems with a variety of parcel units of agricultural landscapes. The adaptive plant-growing intensification strategy assumes a more differentiated use of natural, biological, technological, and labor resources in order to ensure the growth of agricultural production, as well as a number of functions (resource conservation, energy efficiency, and environmental protection) [11]. The ampelo-ecological approach to assessing the landscape and its surrounding natural environment is used in order to determine a regional type of vineyard terroir and ensure sustainable viticulture, which includes microclimatic characteristics [12,13]; geological conditions [14]; specific relief and hydrogeological conditions [15]; soil properties [16,17], including the essential nutrients and trace elements contents [18]; and integral assessments of natural resources and conditions [19,20]. Thus, the planning structure of future winegrowing plantations should be organically linked to the justification of external boundaries of the viticultural terroir zone [21,22,23,24]. Upon the selection of a location for a winegrowing plantation, adaptation and resistance are already correlated with a certain variety (its reaction to the content of active carbonates, short-term waterlogging, drought, phylloxera, and other local stress factors [25]). Both the plant itself and its individual varieties selectively extract specific assemblages of chemical elements from soils, and their parent and underlying rocks form a number of unique quality traits in wine, which indicate the geographical area, the location, and its natural resources within the terroir concept [26,27,28,29]. The soil and climate component of terroir and cultivation technology is important for adaptability and high productivity; however, factors such as the age of the plantation; features of the root system; and variety of physiology, which determines the peculiarities of fertilization, should be taken into consideration [30]. The relevance of this study and the choice of the appropriate subject for the study are determined by two main circumstances. First, the adoption of the Federal Law on Viticulture and Wine-Making in 2019 (effective since 2023) stimulated the development of studies to assess the potential of the industry through the identification of a group of key factors (economic, soil–climatic, anthropogenic) and also legislated for the protection of geographical names of wine production sites [31,32]. Since the law obligates producers to assign wine products to the geographical area of their production, this requires the parameterization of natural features for the 13 previously identified viticulture areas, and diagnostics of their uniqueness can provide some protection of the originality of products against counterfeits. Second, the economic dimension is crucial when establishing new winegrowing plantations with high productivity for several decades, which increases the role of the responsible selection of location. The area of industrial use of the vineyard and the selection of its varietal composition primarily determine specific conditions of the area (geological–geomorphological, lithological–soil, soil–ecological, and microclimatic-specific features). This determines the need for a comprehensive analysis of specific characteristics of geographical areas of viticulture, using criteria according to the concept of terroir in viticulture [33,34,35,36]. The concept of wine terroir is based on the requirement for comprehensive consideration of individual combinations of key factors such as topsoil climatic features, relief, and the overall landscape of the area [16,27,33]. This concept also includes the quality of the wine, its specificity, and its uniqueness to a particular geographical area. The biogeocoenosis of vineyards includes mesofauna and soil microbial communities [37], which, along with abiotic components of the soil, should provide a more holistic idea of the interaction between the climatope and edaphotope in the development of regional viticulture. Microbiological processes in soils are important in the cycle of nutrients and the decomposition of pollutants, which affects the growth functions of the grape plant and is vital for soil health, but the microbiota associated with the main product (berries) has differences in geographical origin and genetic characteristics [38], largely determining the specificity of a given terroir.

Ampelocoenosis, which relates to a perennial crop, changes the edaphotope more significantly than field crops since it has beneficial effects on soil, water, biodiversity, and climate, i.e., it has signs of regenerative agriculture [39].

In the future, the country has every opportunity to produce 70–85% of wine for its market from grapes grown on lands of its southern regions. One of these regions is the Crimean Peninsula, landscapes of which, along with significant soil and climatic diversity, have prospects of forming a wide range of terroir in five geographical areas to produce wine products with a strong individuality [40]. In addition, the high differentiation of environmental conditions at the mesoscale and microscale makes it possible to select an optimum terroir for the formation of necessary grape conditions for particular purposes of use and contributes to the cultivation of vine plants from very early to late varieties [41]. The area of grape plantings in the Republic of Crimea has already reached 20% of the area of vineyards in the country, or 21.7 thou ha, 83% of which are fruiting with an average yield of 6.4 t ha⁻¹.

The forecast for improvement in ampelo-ecological conditions in the region also contributes to the intention to increase the area of vineyards. The simulation results for the entire area of Crimea have shown prospects for an increase in summer temperature from ~6 to 2.5 °C by the late XXI century with a decrease in precipitation [42]. The age-old types of historical activities, which include cattle grazing, deforestation, etc., and especially the formation of a root layer from soils and a lithogenic base for vineyards, should be regarded as a prehistory of transformation of soil genesis in landscapes of long-term agricultural use [43]. The result of the use of previous viticulture practices, represented in soils left from antique times with relict evidence of agropedogenesis, as well as those re-involved in modern ampelocenoses, is interesting. The modern experience of ampelo-ecological studies in viticulture shows that, along with the terrain conditions (exposure, slope steepness, geomorphological niche, etc.) and microclimatic specific features of the area, the consideration of soil and environmental parameters is of great importance. New knowledge may be gained by taking into consideration the fact that the age-old practice of viticulture on the Crimean Peninsula, associated with the colonization of the region’s lands since antique times and the transfer of industry traditions from the Mediterranean, became undoubtedly more and more adaptable to local soil and climatic conditions and their changes. Tauric Chersonesos is a unique monument that is a guide to scientific and practical achievements of the antique world and Byzantium, an example of skillful practices of adaptive nature management. One of such achievements is the creation of the Chersonesos land boundary system, a typically Hellenic phenomenon, a result of the democratic structure of the ancient Greek polis, citizens of which received equal land plots. The land division has completely changed the natural and demographic shape of the Herakleian Peninsula (the southwestern tip of the Crimean Peninsula). In addition to the transformation of components of the natural environment, a cultural landscape has been formed here. It is presented today as a post-agrogenic archaeological landscape [44]. The cultural landscape, as a result of the interaction of the changing natural environment and the socio-economic development of societies, forms a holistic vision of natural and cultural heritage [45]. The knowledge gained about historical and modern geographical areas of viticulture can serve as a fundamental basis for the application of the “terroir” concept, which should be followed to obtain unique wine materials for the geographical expansion of the industry in the future. Thus, modern sustainable viticulture is a method of farming that uses the resource potential of the edaphotope to the maximum, creates and maintains climate-adaptable agro-ecosystems, and ensures the environmental safety of land use and final products.

The hypothesis of the study was the following question: could the conditions of the edaphotope (the biogeochemical properties of soils and rocks), in addition to climate, contribute to the more successful development of viticulture in the Sub-Mediterranean region compared to the expansion of the industry in the ancient era in a region with conditions of temperate climate?

The aims of the study were (1) to conduct a comparative analysis of the differences between two historical regions of viticulture in a wide range of soil genetic indicators with the establishment of their specific features; (2) to establish, through a comparison of vineyard terroirs, the reasons for the differences in the role of viticulture and winemaking in the economy of the two compared regions, which are known from ancient sources; (3) to substantiate a list of diagnostic soil terroir indicators for temperate climate conditions and the Sub-Mediterranean region for sustainable viticulture practices.

2. Materials and Methods

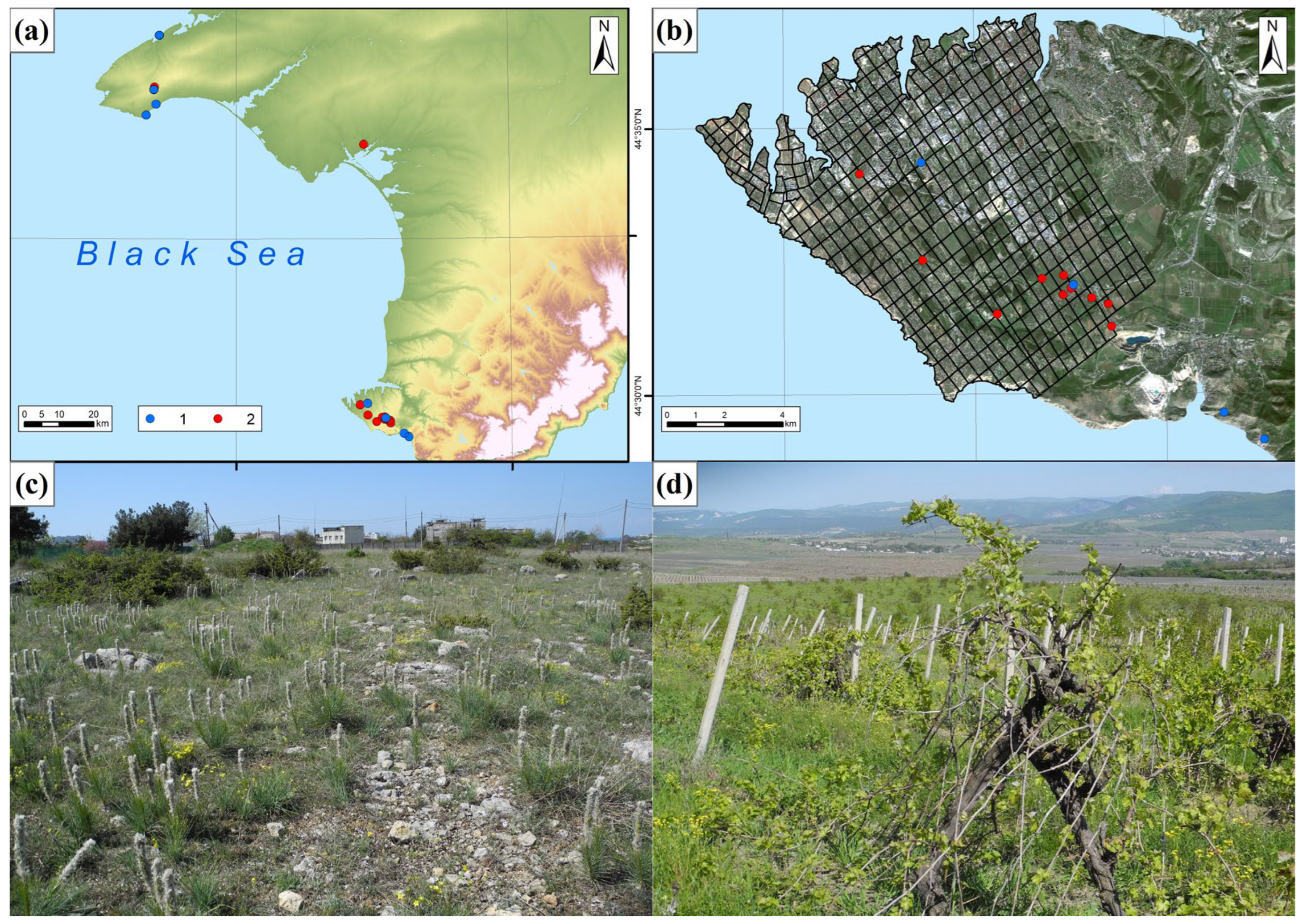

2.1. Study Area Characterization

The territory of the Crimean Peninsula, although relatively small (26,100 km²), has both high bioclimatic diversity (20 agroclimatic regions from steppe to subtropical landscapes) [46] and soil diversity (42 soil species [47]), which is reflected in the wide range of values of climatic costs of energy on soil formation from 800 to 1200 MJ m⁻² [48]. According to long-term data, four large regions of the entire territory of the Crimean Peninsula have significant agroclimatic differences [46,49] (

Table 1. Main agroclimatic parameters of the regions comprising the Crimean Peninsula.

Climate Parameters	Regions
	Northwest	Southwest	East	South Coast of Crimea
Average t (I), °C a	+0.3 ÷ −1.8	+1.6	+0.3 ÷ −1.5	+1.8 ÷ +4.0
Date of Frosts (last of spring)	15–20.04	25.03	10.04	15–25.03
Frost-free period, days	186–223	240	214–220	237–259
Precipitation for the period from t > 10 °C, mm	190–216	177	195–220	195–260
Huglin index [49]	2403	2502	2571	2546
Q b (MJ m−2 yr−1)	900–1000	900–1100	900	1200–1400

^a Average January temperature, °C (with significant variation in the region and its range). ^b Q is annual energy costs for pedogenesis [48].

). This provided a natural basis for formation of a long history of viticulture (beginning with the Greek colonization of the coastal areas in 6 century BC) in a variety of natural and climatic conditions.

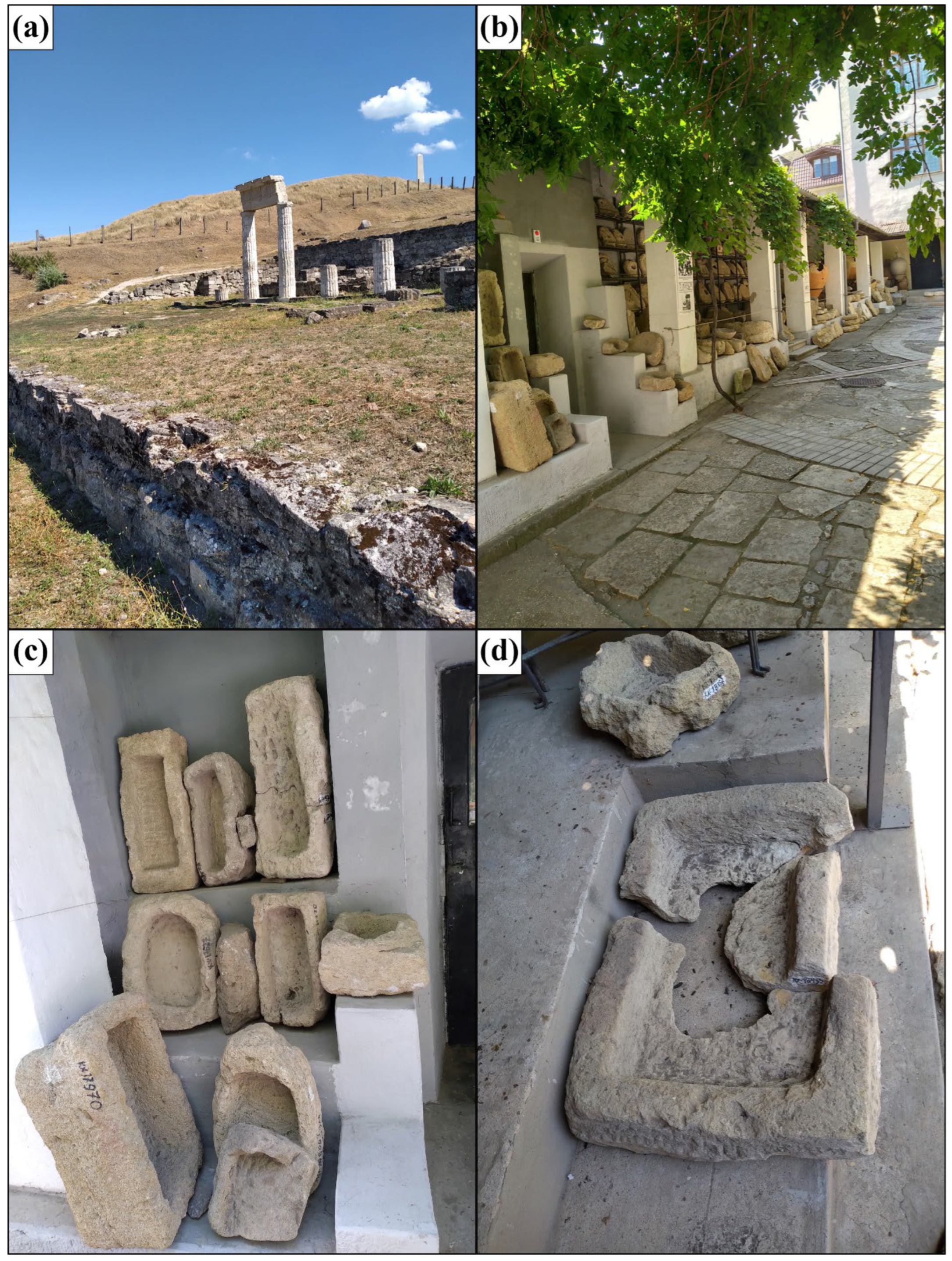

The results of long-term archaeological research on the peninsula have shown the widespread development of ancient viticulture and wine-making (Figure 1), in particular in the southwestern part, known as the Chora of Tauric Chersonesos (on an area of over 10,000 ha [50,51]); in the northwestern part (near 8 estates [52,53]); and in the east [54], p. 54. However, the South Coast, which has a subtropical climate and is home to lands that are most involved in viticulture today, was not agriculturally developed by the Greeks in ancient times due to confrontation with the peoples of the mountainous peninsula. This study has been focused on age-old (historical and modern) areas of viticulture. In view of the fact that the area of the South Coast (east of the Herakleian Peninsula) was not developed by the Greeks to grow this crop, and there are very few plantings in the east (Kerch Peninsula) now (only 6 land users were employed in this industry in 2024), this study focused on the southwestern part (Herakleian Peninsula) and the historically related northwestern part (Tarkhankut Peninsula) of Western Crimea.

By the second half of the 4th century BC, Tauric Chersonesos had involved a huge land stock in the Southwestern Crimea (Herakleian Peninsula) in economic turnover; and viticulture in the near agricultural district (chora) and the far chora was designed for production of red and white wines, including for export to the near regions of the antique and barbarian world, but it became gradually inferior to other branches of the agricultural sector at the turn of the century. European Bosporos (Kerch Peninsula) measures its viticultural history from the 5th century BC, and especially the 4th–3rd centuries BC, when special wineries with surrounding vineyards appeared, and up to the 3rd century AD [55] (Figure 2). Antique viticulture in Eastern Crimea was developed in the area of small towns of the Bosporos Kingdom, as evidenced by artifacts from archaeological excavations (grape knives; press-beds (Figure 2)) and by results of studying the land division for vineyards at the Greek antique estate [56]. Modern viticulture is not a significant industry in the European part of the antique Bosporos Kingdom, unlike its Asian part, which corresponds to the west of the Krasnodar Territory with a total vineyard area of 30,000 ha.

2.2. Ancient Viticulture Regions in Western Crimea

The largest center of ancient viticulture and winemaking in the Northern Black Sea region was Tauric Chersonesos, and wine was the main export commodity of this Greek city in the 4th–3rd centuries BC. The agricultural district of the Herakleian Peninsula functioned from the period of the foundation of Greek estates (5th century BC) until the beginning of the 1st century AD. The large-scale expansion of the rural district of Chersonesos in the 4th century BC on the Herakleian Peninsula (12,000 ha) allowed the demarcation of 10,000 ha of land into more than 430 large plots. In the first centuries AD, about 6000 ha were occupied by vineyards in the near chora of Tauric Chersonesos [57], p. 12.

On those land plots of the Herakleian Peninsula, where continuous ditching was used for vineyards, a trench 70–80 cm deep was created, with extraction of stones for construction of ditch walls, with a width of about 2 m between them. As a result of such ditching, the agricultural soils inherited the geochemical features of eluvium of dense carbonate rocks. It was Tauric Chersonesos (with its success in agricultural technology) that, in antique times, acted as a constant donor of spread of traditionally southern crops as the western outpost of the Crimean South Coast—sub-Mediterranean area, suitable for introduction of crops from the Mediterranean regions useful to humans. The period of creation of perennial plantations in the rural area of Northwestern Crimea was conditioned by inclusion of this region into the Chersonesos State by the turn of the 4th–3rd centuries BC. Traces of the ancient land division for horticulture and viticulture were found in eight places in Northwestern Crimea, including in the vicinity of the town of Kalos Limen on the Tarkhankut Peninsula [58]. The assessment of the volume of wine production in the Kalos Limen district allows us to judge its purpose to a certain extent: for local consumption. In addition, according to ethnographic data from later times, wine from the steppe regions was inferior to those varieties that were cultivated in the sub-Mediterranean conditions. In antique times, Greeks liked strong, sweet wines [55], but the specific conditions of Northwestern Crimea apparently did not provide favorable conditions for that, as evidenced indirectly by supply of wines from Chersonesos to that territory.

2.3. Field Stage of Soil Study

Before conducting field research, territories with signs of ancient land use and suitable for soil sampling were identified on the base of high-resolution satellite images, geomagnetic survey data, and a soil map. The boundaries of nature reserves were determined based on the database of specially protected areas.

The geographic coordinates of soil sections were determined using the WAAS GPS receiver. The classification status of soils was determined by ranges of large-scale soil maps and descriptions of soil sections using the International soil classification system [59]. The main soil sections are located in two areas of Western Crimea: on the Tarkhankut Peninsula (different-time post-agrogenic soils after vineyards and their virgin analogues in the steppe zone (6 sections)) and the same sites on the Herakleian Peninsula in the sub-Mediterranean conditions (4 sections, including virgin steppe and primary forest) (Figure 1). The total number of soil sampling points was 23, including 15 in the southwestern part and 8 in the northwestern part of Western Crimea. In accordance with the instructions for conducting a soil survey, within the identified genetic horizons, a sample was taken in the most typical place in a layer 10 cm in height, in virgin soils in the sod horizon (Ad) and separately in the A horizon, and in post-agrogenic soils below the sod horizon. The main horizon of the field study was the humus-accumulative horizon (horizon A), from which a sample below the sod-forming horizon (on average 3.5 ± 0.3 (1.5–4.7) cm) to the lower boundary of horizon A (on average 20.4 ± 1.8 (16 ÷ 33) cm) was taken for the chemical analysis. Air-dried soil samples were subjected to sample preparation to obtain a sample after sieving through a 0.25 mm diameter sieve (to determine total nitrogen and labile humus, as well as for Corg with subsequent selection of roots with an ebonite stick) and through a 1 mm diameter sieve (for other chemical analyses). Taking soil samples for the agrophysical analysis included removal of undisturbed volume for subsequent sieving of air-dried soil into structural units. The bulk density was determined using the cutting-ring method, followed by drying the soil at 105 °C in a thermostat for 6 h. The authors used numbering of land plots of the antique Chersonesos according to the plan of land division [60], which obtained an accurate geographical reference based on various aerial photographs and satellite images [61].

The large-scale modern development of the territory, which corresponds to the former rural district of Chersonesos, does not allow for exploring a significant number of ancient land plots. The detailed analysis of satellite images showed that only 21 blocks of antique Chersonesos land plots out of their total (430) had been preserved, by as many as half, by 2010 [61]. Therefore, in 2022, in 11 of the best-preserved land plots in the chora of Chersonesos, soil samples were taken in post-agrogenic horizons at a depth of 19.4 (14.5 ÷ 21) cm for geochemical analysis. Typical parent rocks were taken from a depth of 123 cm (loess-like loam) and 64 cm (limestone eluvium on a monolithic platform).

The type of phytocoenosis was determined via botanical determination of dominant and sub-dominant species using standard plots measuring 1 m × 1 m. The standard table for visual estimation of ground cover in increments of 10% was used to determine the projective coverage of aboveground phytomass (plant cover). The degree of rockiness of the soil surface (coverage, %) was determined in a square of 1 m × 1 m using the sum of measurements of the length and width of stones > 5 cm in size.

The annual energy inputs for pedogenesis (Q, MJ m⁻²) in the viticulture regions were calculated using the Volobuev formula [62], which takes into account the differentiated contribution of heat resources (through the radiation balance) and moisture (through the sum of precipitation). The Huglin Heliothermic Index (HI), specialized for the needs of viticulture, was used for key weather stations in the winegrowing regions [63], which characterizes the level of heat supply and determines the sorting of vineyards and the specialization of the wine industry. The adaptive potential of a region for cultivating various grape varieties can be estimated by calculating the HI, which integrally takes into account the average daily and maximum air temperatures and the average length of the day during the growing season [64]. The values of the HI were taken from [49], in which they were calculated for basic weather stations in each of the four regions of the Crimean Peninsula.

2.4. Physical Indicators of Soils

The estimation of rockiness in the soil profile was obtained by sieving the soil mass from a prism with sides of 10 cm and a depth of 30 cm, from which crushed stone ranging in size from 2 to 10 mm, 1–5 cm, and >5 cm was extracted through a sieve column, and the mass of the fractions was weighed in the field using the Techno TS electronic scale (with the accuracy of up to 1 g). The stone mass fraction was calculated by taking into consideration differences in the density of soil layers in horizon A. Structural units in the soil were differentiated using a set of sieves from the Analysette 22 MicroTec laser light scattering particle size analyzer kit (Fritsch GmbH, Idar-Oberstein, Germany). The analysis of waterproofness of macroaggregates using gradations of diameters 1–2, 2–3.15, and 3.15–5 mm was performed by estimating the decay rate of aggregates (n = 50) on moistened filter paper in a Petri dish according to the time recommended in the method [65].

The soil, ground with a rubber pestle and spread on a light brown substrate, was given a color code in daylight, first in a moist condition, and then after drying in a dry condition using the Munsell System [66].

2.5. Specific Magnetic Susceptibility of Soils

The values of the specific magnetic susceptibility (χ, 10⁻⁸ m³/kg) were calculated based on measurements using the Kappabridge KLY-2 instrument. The sieved soil was weighed, and the volume magnetic susceptibility was measured in three repetitions. The indicator χ was calculated using the formula χ = χv/m, where χv is the volume magnetic susceptibility, and m is the mass of the sample [67].

2.6. Agrochemical Indicators of Soils

Physical/chemical analysis of soils was carried out in the laboratory accredited according to international standards, the regulations of which require conducting analysis to an acceptable degree of accuracy of discrepancies between repetitions. Using state standards, the cation exchange capacity (CEC), mass fractions of mobile phosphorus and potassium, mobile compounds of copper, boron, molybdenum, and pH of the aqueous extract were determined. Soil organic carbon (SOC) concentrations were determined using Tyurin’s method (via oxidation of the organic substance with a solution K₂Cr₂O₇ in sulphuric acid); the mobile organic matter content was determined using Egorov’s method; soil total nitrogen (TN) concentrations were determined using the Kjeldahl method; and alkaline-hydrolysable nitrogen in soil was determined using the Kornfield method [68]. To assess the soil organic matter (SOM) reserve during the formation of humus, soil with roots was removed from the sod-forming horizon (Ad), and, in laboratory conditions, a mass of detritus was extracted by flotation in hot water, the proportion of which was determined from the air-dried mass of the soil (without stones). The chemical composition data of soils were determined with acceptable errors using the approaches adopted in such instances [69].

2.7. Geochemical Composition and Indicators of Soils

Wavelength-dispersion X-ray fluorescence spectrometer (Spectroscan Max-GV, “SPECTRON”, Ltd., Saint Petersburg, Russia) was used to determine the concentration of 10 macronutrients in the form of oxides (Fe₂O₃, Al₂O₃, TiO₂, CaO, SiO₂, MgO, MnO, P₂O₅, K₂O, and Na₂O) and 12 microelements (As, Ba, Co, Cr, Cu, Ni, Pb, Rb, Sr, Zn, Zr, and V) in powdered soil samples. The geochemical composition in each soil sample was determined in two repetitions. The quantitative calibration was made using a set of state standard samples of soil composition. If there were unacceptable discrepancies between the results of the first and second replications, which were detected in the spectrometer software, subsequent repetitions were performed until an acceptable result was achieved. This methodology is approved for the purposes of state environmental control and monitoring.

The data on the reference section (virgin protected steppe), which represented the chemical element content of structural units > 1 mm, <1 mm, <0.5 mm, and <0.25 mm in size, allowed for calculating the coefficients of enrichment and depletion of chemical elements in the natural trend of pedogenesis. The geochemical composition was also determined for typical parent rocks in two areas of the study: 1) loess-like loams (northwestern area) and 2) limestone eluvium (both areas). Based on the classification [70], a list of 12 macro- and microelements useful for plants in post-agrogenic soils and their virgin analogues was used (Ca, Si, Fe, Mg, Mn, K, P, S, Cl, Ni, Cu, and Zn). Some of the remaining chemical elements (Al, Ti, Na, V, Cr, As, Rb, Sr, Zr, Ba, and Pb) were used to assess the level of pollution by heavy metals and to calculate the most informative geochemical indicators reflecting the main processes of pedogenesis. Since the national standards of maximum permissible concentration (MPC) for soils do not take into consideration genetic characteristics of soils in local conditions of pedogenesis [71]—and, in our case, significantly exceed the average content of heavy metals and metalloids (HMM) from local standards (soils of protected areas) for Mn by 25 times and for Sr, Zn, V, Cr, Ni, and As by 4–2 times—the authors used the values of the regional geochemical background (RGB) for the two studied areas to assess the soil pollution (sections 30 and 43). The assessment of the pollution of fallow soils using 11 HMM (As, Ba, Cr, Cu, Fe, Mn, Ni, Pb, Sr, V, and Zn) was calculated as the average value of the coefficients of excess concentrations over the values of the regional geochemical background. The wide range of geochemical coefficients, already successfully used to diagnose many soil processes [72], was adapted by us to the specific bioclimatic situation of the study area [73]. The coefficient of biological accumulation in relation to the parent rock was determined using an assemblage of elements (K, P, Ca, Mg, Mn, Fe, Ni, and Zn) according to [70], excluding copper, the content of which in vineyards depends much on the role of modern agrotechnical practices. To assess chemical weathering in soils, two basic oxides (SiO₂ and Al₂O₃) were used in this type of assessment, with the eluviation coefficient in the numerator, while the denominator was the sum of alkaline oxides (CaO, MgO, MnO, K₂O, and Na₂O).

The gross composition data for chemical elements and oxides were converted through conversion coefficients into element concentration values, eliminating the different contributions of oxygen atoms in oxides (the conversion coefficients ranged from 0.44 to 0.83). Therefore, we obtained the integral soil quality (SQ) estimate after preliminary recalculation of the element content from the values of oxides. The integral soil quality (SQ) score was obtained using the Storie index of soil rating [74], which takes into account the contribution of limiting factors when calculating the geometric mean, and was successfully applied to soil rating [75].

3. Results and Discussion

3.1. Climatotops of Two Regions of Western Crimea

In the ampelo-ecological classification of lands [76], it is the climate and its limiting factor (the minimum air temperature with the repeatability of 10% or more) that determine the highest level of a taxon. For the special conditions of the northern zone of industrial viticulture, this determines not only the durability of plantings but also grape and wine taste scores [77]. The soil amelioration state of the land, the nature of the terrain, the sum of active temperatures, and the genetic parameters of the soil consistently form taxons at lower levels.

The long history of grape breeding, adapted to local conditions, began in the 6th–5th centuries BC (Bosporos and Tauric Chersonesos), having gone from the local wild grape variety of Vitis sylvestris to its domesticated form known as Vitis vinifera [78], p. 127. In addition, the dynamics of the period of antique agriculture were largely determined by climatic rhythmicity since, after the end of the relatively wet climatic period by the 4th century BC, a hot, dry climate with a strongly pronounced continental appearance established in the 3rd century BC, and the arid epoch did not end until the second half of the 1st century BC [79]. The Hellenistic period (4th–2nd centuries BC)—during which processes such as intensive multi-profile crop production, regulated by land division systems (field and perennial plantations); the introduction of Mediterranean crops; and the formation of commodity sectors in agrarian production were clearly manifested—occupies a special place in regional historical and geographical periodization.

The role of the climatic factor is also revealed in the regular cyclicality of soil’s freezing–thawing, which changes the function of the soil in connection with the transformation of the physical organization of the soil matrix, the structural state, and biogeochemical processes [80,81]. A rather long frost-free period, reaching 220–250 days, is typical for Northwestern Crimea. Frosts stop in spring in the third decade of April. Frosts can be very significant in winter, and with strong winds, the low-power snow cover is blown away. The optimum moisture balance during the growing season and the provision of heat correlate with the geographical localization of today’s world-renowned wines. The Herakleian Peninsula, which is 120 km south of the Tarkhankut Peninsula, has a climate with a higher mean annual temperature (by 1.8 °C), with a sum of temperatures > 10 °C (by 145–210 °C), which is cumulatively represented in a 100 MJ m⁻² yr⁻¹ excess in climatic energy inputs for pedogenesis (Table 1). This expands the range of suitable grape varieties and makes viticulture in Southwestern Crimea more resistant to stress. Southwestern Crimea (Herakleian Peninsula) is a very distinctive region in natural and climatic terms and belongs to the western foothill agroclimatic region, only in the east of which the South Coast sub-Mediterranean area region begins. One of the most important indicators of stable soil climatic conditions, which represents the northern border of the sub-Mediterranean area, is the area representative of the Balkans, but it rarely provides suitable conditions for Crimean trees such as Pistacia (Pistacia mutica Fisch. et C. A. Mey.). Since Pistacia grows in Crimea at mountain heights up to 400–440 m a.s.l. and withstands frosts up to −30 °C, and the age of century-old trees here reaches 900–1500 years [82], this is indicative of the significant ecological plasticity of this species. This species is widespread not only along the South Coast of Crimea for 200 km and on dry slopes on cinnamonic brown soils but also in the western part of the foothills (from Sevastopol to Bakhchisarai). The results of geobotanical surveys record 17 Pistacia habitats directly on the Herakleian Peninsula. Since this species is contiguous with the brown soil habitat and its life span is 200–300 years and sometimes reaches 1000 years [83], it diagnoses the stable bioclimatic potential of the mentioned areas as bordering on the climate conditions of temperate latitudes to the sub-Mediterranean. It is noteworthy that pollen and soil stratigraphic sequences showed the appearance of Pistacia until around 7 ka due to the formation of favorable (warmer) conditions for it [84]. The key agro-climatic parameter (average temperature in January) makes it possible to determine possibilities of cultivating groups of grape varieties in terms of frost resistance, the widest range of which can be used in the South Coast of Crimea and Greater Sevastopol (Herakleian Peninsula). Judging by the length of the frost-free period, late varieties can be successfully cultivated in these regions. The threats of the latest spring frosts limit the possibilities of early varieties in Eastern Crimea, especially in Northwestern Crimea, where waves of cold air often come from the north. This is also represented in the lowest values of the Huglin index for the entire territory of Northwestern Crimea. If in the sub-Mediterranean zone of the Crimean Peninsula, the average absolute minimum temperatures range from −7 °C to −10 °C, then on the steppe plains (the Northwest and East of the Peninsula), the range of these values is more significant (from −15 °C to −23 °C). The energy potential of pedogenesis, which is estimated using basic climatic parameters, is the highest for the sub-Mediterranean zone of the Crimean Peninsula, and its significant values characterize the area of brown soils in Southwestern Crimea. If we compare the climate of the winegrowing regions of Crimea with the countries of the Mediterranean Europe, then even the South Coast of Crimea (SCC), which is protected by mountains in a narrow strip up to 15 km wide, has a cooler climate (with the average temperature of the coldest month +2.9 ÷ 4.1 °C (II), and the territory is classified as subtropical if the range of this parameter is from 0 to +5 °C, although the heat resources are less than the sum of temperatures (4600 °C) of the threshold value for classification as a true subtropical climate).

The special challenge of terroir parameterization arises when moving from vineyards on flat surfaces to their placement on slopes. In terms of energy resources, the southern slopes are the most valuable, while the northern, northwestern, and northeastern ones, with a decrease in the radiation balance to 10% relative to flat areas, are classified as cold slopes. And in hilly areas, open valleys from 5 to 100 m deep have a frost-free period 16–25 days shorter, and spring frosts occur 6–10 days later [85].

GIS technologies allow for the creation of digital raster maps of climate indices that reflect geographic differences in the provision of territory with heat and moisture. For this, data obtained from geographic information databases of global climate data (such as Worldclim) and weather station data are used. On the base of these data, indices are calculated, and the values of these indices are interpolated for a certain territory using GIS. The background estimations of the spatial distribution of energy consumption for soil formation obtained for the region can be differentiated for the low-mountain landscape level using adapted methods for calculating the heat and moisture distribution for terrain mesoforms using GIS technologies.

3.2. The Role of Selection for Climate Adaptation in the Formation of Wine Terroir

Ancient winegrowers faced the task of using the knowledge of that time and empirical experience of variety testing to select grape varieties adapted to local soil and climatic conditions. This task could be performed either by using varieties of local origin (indigenous varieties) or by using them as rootstocks. The results of palaeobotanical studies [86] have determined that, in Crimea, Greek antique viticulture began with the adaptation of wild vines, and only later were imported vines from the Mediterranean introduced. On the Herakleian Peninsula, the local wild grape variety was initiated for breeding work. Grape forest (Vitis sylvestris C.C.Gmel.), as an indigenous species, is found in Crimea on the northern slope of the mountains in oak forests, and its berries usually have a diameter of 7–8 mm; however, in a small area of the foothill, there is one form (f. macrocarpa) with large fruits and seeds (10–11 mm long and 7–8 mm wide) [82].

The study of the origin of endemic and relict grape forms, as well as the creation of an ampelographic collection (as at the Magarach Institute, consisting of 80 indigenous Crimean grape varieties), proves that a number of indigenous varieties are truly autochthonous, which belong to species Vitis vinifera and various eco-geographical groups of Eurasia [87]. In northern viticulture, the adaptive potential of grapes in the conditions of stressful winter temperatures is assessed using the abilities of native varieties of native varieties as sources of high adaptive ability to negative temperatures [88].

Taking into consideration the fact that the southern coast of the Crimean Peninsula is located on the northern border of the subtropical zone, and South Crimea currently comprises a sub-Mediterranean landscape, ancient farmers were forced to form an agrotechnology of viticulture adapted to both the peculiar climatic conditions and the biogeochemical characteristics of local soils. In the course of breeding, it was important to use native varieties that provide the “descendants” with a greater degree of adaptation to frost while maintaining the ability, despite climatic differences, to accumulate, for example, a similar anthocyanin complex [89,90]. The history of ancient winegrowing was often investigated using the remains that were adsorbed on the walls of amphorae, but a unique opportunity was provided by the discovery of 2000-year-old wine in the liquid state with its composition of polyphenols and the mineral salt profile [91]. Consequently, the development of reliable methods for classifying grapes and wine materials [92,93,94] and detecting adulteration is becoming an important analytical task, and it involves the identification of terroir in the soil geochemical aspect.

Geochemical features of translocation of elements in the “soil-plant” system based on results of studying the geographical regions of Crimean viticulture [95] have shown that the content of macro- and microelements that can accumulate in vine plants, including berries, plays an important role in the formation of taste parameters of wines. Establishing a link between the geochemical properties of the soil and the taste of wine will help find criteria for identifying geographical areas.

3.3. Anthrosols of Ancient Viticulture

The ancient system of land division, which has often been preserved in the modern landscape, especially when they are identified using remote sensing, has been described in terms of planning structure [96,97,98,99]; however, agro-soils in isolated plots of land have been scarcely studied using modern methods of soil science [100,101]. Given the differences between physiologically heterogeneous crop production, including perennial plantings (orchards and vineyards), as well as their requirements for soil fertility resources, human activities lead to the formation of a special group of agrogenic soils with a defined range of properties—Anthrosols [102] or, in another way, Anthroposols, anthropogenic, or man-made soils [103]. Man-made transformed (deep-plowed) soils occupy a special position (in genetic, classification, and evolutionary relations).

Soils formed on the eluvium of carbonate rocks are widely represented in Northwestern Crimea (56% of the area). These are Haplic Chernozems and Calcaric Chernic Rendzic Phaeozems, which are underlain by a limestone slab from 40 to 55 cm. In Northwestern Crimea, several areas with preserved antique land management have been discovered since ancient farmers used ditching for perennial plantings due to their proximity to the surface of the bedrock. Thus, antique vineyards of good preservation were found 1.2 km northeast of the antique center of Kalos Limen (early 4th century BC—early 2nd century AD and near the estates of Oirat and Mamai-Tyup (second half of the 4th–3rd centuries BC).

The most extensive transformation of soils by ancient farmers, taking into account the entire territory of the Crimean Peninsula, was carried out precisely on the lands of the Herakleian Peninsula. The weathering products of carbonate rocks act as parent rock for Cinnamonic soils (Cambisols Calcic, according to the World Reference Base (WRB)), which were formed on the lower floor of the Sub-Mediterranean Low-Mountain Landscapes with dry forests and shrubs [104]. These soils are most suitable for growing grapes and essential oil crops, and the lower coastal areas of South Crimea are predominantly occupied by agricultural lands featuring vineyards and cultivated fields [105]. Because of the fact that bioclimatic changes in the landscape of the sub-Mediterranean type were in the invariant zone, starting from the Pliocene and throughout the Holocene, the ancient and modern processes of pedogenesis proceeded syngenetically [106]. The South-Cost soils, which were shielded by the Main Ridge of the Crimean Mountains during the Ice Age, like other Mediterranean landscapes of low mountains [107], were formed continuously and have a long-standing zero moment of pedogenesis. The landscape in the regions of centuries-old agriculture, especially where ditching was used for perennial plantings, has heterochrony, i.e., it has not one reference point (zero moment) of the formation of its current state but several such zero moments [108].

The ancient land managers and agricultural technicians of the Chersonesos land division system not only built dividing walls for the individualization and identification of land plots as a territorial basis for the exercise of the rights of land users and landowners in rural areas but actually created a completely new natural and economic territorial system in which, first of all, a special soil profile, adapted to the cultivation of perennial plantations, was transformed, or rather created. The main transformations concerned the ditching transformation of the natural dominant soils of grass–steppes and forest–steppes on elevated outwash plains and in the draw network and the creation of a new type of soil profile at a depth of 60–80 cm adapted for growing vine plants and fruit crops. In fact, antique farmers formed a new type of soil in some land plots, which can be called agrogenically transformed soils with turbation features in the agroheterogeneous horizon.

3.4. Agrophysical Characteristics of Wine Soils

The phenomenon of secondary (restored) steppe successions in postantique landscapes lies in their most adequate representation of the bioclimatic potential of the area during the period of the restoration conditions [109,110,111,112]. However, the delay in the regenerative evolution of post-agrogenic soils in comparison with the restoration of phytocoenosis [113,114] is represented, for example, in the fact that the total projective coverage on fallows is 10–30% lower than that of virgin steppes (

Table 2. Main objects of study in Northwest and Southwest Crimea.

Section No.	Coordinates		Location	Agricultural Land	Phytocoenosis a	GPC b %	Soil c
	Latitude	Longitude
Tarkhankut Peninsula
29	45.529166	32.715770	Rural area of ancient Kalos Limen	Post-antique fallow land (vineyard, plantation plowing)	H+F	80	LPk
30	45.529300	32.715475	Coastal area near section No. 29	Virgin land (steppe)	H+Sc	95	CHk
31	45.246011	33.467303	Antique land plot (near of Mamai-Tyup)	Post-antique fallow land (vineyard, plantation plowing)	H+Sc	80	LPk
32	45.322236	32.668159	Antique land plot (near of Oirat)	Post-antique fallow land (vineyard, plantation plowing)	Sc+H	90	LPk
33	45.388269	32.695604	“Krasnoselskaya steppe” nature reserve	Virgin land (steppe)	Sc+H	90	CHk
34	45.350074	32.703932	2.5 km east of section No. 32	Abandoned cropland since 1980s (vineyard)	H+(Sc+Sl)	80	CHk
Herakleian Peninsula
35	44.485509	33.625644	2.5 km east of Balaklava Bay	Sub-Mediterranean forest	PJ+H	40	CMu
36	44.572428	33.476739	Antique land plot No. 153	Post-antique fallow land (vineyard, plantation plowing)	H+Sc	80	CMc
37	44.534027	33.542985	Antique land plot No. 378	Modern fallow land (vineyard, antique plantation plowing)	H	60	CMc
43	44.493874	33.608177	0.9 km east of Balaklava Bay	Virgin land (steppe)	Sl+F	90	CMc

^a Phytocoenosis type (dominant + sub-dominant): Pinus brutia Ten, Juniperus excelsa M.Bieb. (PJ+H); Stipa capillata L. (Sc); Stipa lessingiana Trin. & Rupr. (Sl); Festuca valesiaca subsp. valesiaca Gaudin (F); herbs (H); ^b general projective cover; ^c soils: chernozem calcic (CHk), leptosol rendzic (LPk), cambisol calcaric (CMc), and cambisol humic (CMu).

). The bulk density below the sod-forming horizon is set at 1 g/cm³, regardless of the type of land (

Table 3. Density of soil aggregates and water resistance.

Section No.	BD (g cm−3)	Water Resistance (%) of Soil Aggregates with Diameter, mm			Average (%)
		1–2	2–3.15	3.15–5
29	0.96	84.5	92.1	94.7	90.4
30	0.98	71.8	74.3	87.2	77.7
31	0.89	84.6	87.3	91.7	87.8
32	0.95	83.2	87.2	88.1	86.2
33	0.97	75.1	77.2	80.4	77.5
34	0.92	69.0	70.1	79.0	72.7
35	1.24	91.2	94.8	96.4	94.1
36	0.99	61.9	67.0	67.5	65.4
37	1.08	85.9	90.1	92.4	89.4

BD = bulk density.

). Our field measurements have shown that the proportion of submerged stones, which were originally on the arable surface, was 72–79% by volume over the 21st–23rd centuries of the fallow conditions, whereas no gravels are observed in the virgin steppe (

Table 4. Indicators of surface, organogenic horizons, and humus state of horizon A of post-agrogenic soils and their zonal analogues.

Section No.	GPC a (Stones)%	MS (1–50) b %	MS (>50) b %	Horizon Ad mm	Detritus Mass (Horizon Ad) %	Depth of Selection from Horizon A cm	Munsell Color (Horizon A) Moist Dry		SOM %	TN %	Labile Humus %	C/N Ratio
29	2.0	22	28	30	1.31	3–16.5	10YR 4/3	10YR 5/4	3.27	0.24	0.01	7.9
30	0	1	0	45	8.90	4.5–16.5	10YR 4/4	10YR 5/5	3.63	0.28	0.05	7.5
31	1.9	31	47	25	6.62	2.5–27	10YR 4/3	10YR 5/4	3.51	0.23	0.05	8.9
32	2.7	21	32	37	0.75	3.7–16	10YR 4/3	10YR 5/4	4.18	0.27	0.06	9.0
33	0.1	4	0	47	0.25	4.7–17	7.5YR 3/3	7.5YR 3/4	3.64	0.25	0.04	8.4
34	1.3	25	0	40	0.26	4–33	10YR 4/4	10YR 5/4	2.20	0.16	0.04	8.0
35	9.7	6	0	36	44.85	3.6–19.5	10YR 4/3.5	10YR 6/4	4.91	0.27	0.05	10.5
36	4.8	31	26	35	1.46	3.5–20.5	7.5YR 3/4	7.5YR 4/4	4.41	0.32	0.05	8.0
37	3.5	55	17	40	0.84	4–21	7.5YR 3/4	7.5YR 4/6	4.20	0.24	0.06	10.2
43	0	-	-	15	2.99	1.5–17	7.5YR 3/4	10YR 5/5	3.02	0.22	0.05	8.0

^a General projective cover; ^b MS (1–50) and MS (>50) proportions of the mass of stones measuring 1–50 mm and >5 cm, respectively, in a 30 cm soil layer.

). Most of the soils in the study area are gravelly to one degree or another, especially those selected for viticulture. These are Neogene limestones different in density and coloration. On fallows, the projective coverage of stones is estimated on average as 3% (from 1% to 5%), whereas, on the mountain slope under the forest of sub-Mediterranean appearance, this indicator reaches 10% (Table 4). According to the regional scale, all sites are categorized as surface weakly stony (less than 10% coverage with stones of at least 5 cm in size) according to the degree of rockiness of the soil surface (coverage, %). On the modern surface of the post-antique fallow at Kalos Limen, there are, on average, 46 limestone fragments with diameters greater than 3 cm (gravels) per 1 m². When studying vineyards in areas with stony soils, it has been noted ([115], p. 300) that the presence of skeletal debris on the surface has a particularly positive effect since stony mulch accumulates solar heat and, reflecting it, irradiates grape berries. It is known that, in perennial plantations (orchards and vineyards), due to the peculiarities of agricultural techniques, soil erosion processes are actively developing. It is important to note that the effects of rock fragment cover on soil erosion were only effectively reduced with a fragment size < 12 cm [116]. In terms of the mass of stones contained in a 30 cm thick soil layer and categorized as small stones (5–10 cm), sections 31, 32, 29, 26, and 37 stand out, all of which characterize ditched soils in antique land plots. According to the rockiness classification, soils of sections 31 (47%), 32 (32%), 29 (28%), 36 (26%), and 34, 37 are classified as highly stony (with a >10% share of the diam. >3 mm fraction). Among the five stone fractions obtained (2 to 50 mm or more), gravels (1–5 cm), >5 cm, and 5–10 mm contribute the most mass in the studied soils (Table 4). As shown by our measurements, in the studied fallows, the shares of stone mass in the 30 cm soil layer with sizes of 1–50 mm and 5 cm are 43% and 22%, respectively (Table 4). It is important to note that if the skeleton (>1 mm particles) content of the root layer is 10 to 50%, the fertility of soils for grapes does not decrease, and with a >50% share of the skeleton, the fertility level may decrease from zero to 30% of the fertility of fine-grained soils with a >1 mm particles content of <10%.

The difference in soil density along the profile, as well as the presence of capillary and non-capillary pores in it, causes non-uniform water movement and different depths of wetting [117,118]. The value of the soil moisture capacity mainly depends on its granulometric composition and structure. Soils that were originally rocky or subjected to plantation cultivation contain more than 10% of the skeleton (angular fragments of rocks with a diameter of 0.1–1 cm), have special water–physical and thermal properties, low moisture capacity, and are well-drained. Wine plantings on weak-skeletal and medium-skeletal soils (with a content of particles larger than 3 mm from 1 to 30%) are durable and give a large harvest of good quality.

It is obvious that there is a close relationship between natural or anthropogenic enrichment of soil with crushed stones and carbonate fraction. The cinnamonic soils of this region are always characterized by boiling from HCl; however, the formation of a carbonate-accumulative diagnostic horizon with carbonate neoformations is only noted occasionally [119]. Carbonate black soils usually contain at least 23% CaCO₃ in horizon A (

Table 5. Agrochemical indicators of post-agrogenic soils and their zonal analogues.

Section No.	CEC	pH H2O	CO2	P(mob.)	K(mob.)	Cu(mob.)	B(mob.)	Mb(mob.)	SQ(8)
	cmol+ kg−1		%	mg kg−1
29	24.6	8.1	16.38	6	435	0.115	1.78	0.11	0.074
30	26.6	8.1	15.34	7	785	0.116	2.56	0.13	0.079
31	20.8	8.2	9.77	9	380	0.099	2.00	0.11	0.069
32	24.4	8.0	16.50	5	301	0.106	2.48	0.12	0.074
33	32.6	8.1	24.13	5	242	0.092	1.67	0.13	0.062
34	25.2	8.2	11.26	6	209	0.148	1.51	0.14	0.064
35	29.2	8.1	4.93	8	346	0.123	4.04	0.11	0.060
36	36.8	8.1	9.76	5	401	0.115	3.07	0.12	0.063
37	33.4	8.1	11.46	5	321	2.240	2.10	0.13	0.100

). In modern perennial plantings of Crimea (orchards and vineyards), where ditching is always carried out to the depth of 50–60 cm, the carbonate content in the upper horizon is 3–8%, and it reaches 16–19% in the carbonate–illuvial horizon [120]. The CaCO₃ content in horizon A of post-agrogenic soils in Northwestern Crimea averages 26.70 ± 2.62% (

Table 6. Content (%) useful regarding plants’ macro- and microelements in horizon A of post-agrogenic soils and virgin analogues (Northwest Crimea).

Section No.	Ca	Si	Fe	Mg	Mn	K	P	S	Cl	Ni	Cu	Zn	SQ (7)	SQ (12)
	%							mg kg−1
29	16.80	17.42	1.89	0.96	0.06	1.33	0.09	877.35	98.6	27.37	22.95	52.99	1.21	0.15
30	15.59	18.12	1.96	1.03	0.06	1.41	0.09	874.35	156.1	30.14	21.97	54.50	1.23	0.16
31	9.01	21.62	3.15	0.96	0.07	1.49	0.09	681.13	48.7	47.77	17.88	69.10	1.28	0.15
32	16.95	17.51	1.82	0.90	0.05	1.25	0.09	975.69	81.0	27.36	27.29	54.46	1.15	0.15
33	25.95	10.51	1.19	0.72	0.04	0.91	0.04	691.50	95.4	15.02	43.07	43.02	0.86	0.12
34	10.80	22.09	2.52	1.03	0.08	1.33	0.09	526.00	25.2	38.63	28.57	62.70	1.29	0.14
39	8.75	23.22	2.73	1.00	0.07	1.49	0.08	586.34	16.4	41.15	25.69	63.40	1.24	0.13
40	5.75	25.11	3.00	1.01	0.09	1.41	0.07	539.45	6.1	47.01	14.49	65.81	1.21	0.11
$\overline{X}\pm t_{05}\cdot S_{\overline{x}}$	11.34 ± 4.81	21.16 ± 3.26	2.52 ± 0.59	0.98 ± 0.05	0.07 ± 0.01	1.38 ± 0.10	0.09 ± 0.01	697.66 ± 197.27	–	38.22 ± 9.53	22.81 ± 5.84	61.41 ± 6.69	–	–

), and in Chersonesos, it averages 29.71 ± 4.33% but may reach 43–49% (

Table 7. Content useful regarding plants’ macro- and microelements in horizon A of post-agrogenic soils and virgin analogues on the Chersonesean chora.

Section No.	Land a	Plot b No.	Depth cm	Munsell Color (Dry)	Ca	Si	Fe	Mg	Mn	K	P	S	Cl	Ni	Cu	Zn	SQ (7)	SQ (12)
					%							mg kg−1
35	V (forest)	-	3.6–19.5	10YR 6/4	4.60	53.90	5.30	1.70	0.06	2.60	0.10	545.5	107.3	62.00	19.70	97.30	0.15	1.05
43	V (steppe)	-	1.5–17	10YR 5/5	0.60	73.40	3.50	0.90	0.04	1.20	0.10	565.9	56.0	28.30	39.30	52.20	0.09	0.59
36	PA-F	153	3.5–20.5	7.5YR 4/4	12.6	44.80	4.90	1.50	0.10	2.10	0.20	737.0	20.1	58.50	13.20	87.30	0.14	1.32
37	PA-F + VY(MF)	378	4–21	7.5YR 4/6	15.4	43.50	4.30	1.10	0.08	1.40	0.20	654.8	65.5	43.80	306.40	90.40	0.18	1.16
41	PA-F	175	0–21	7.5YR 5/4	20.04	37.39	3.75	1.34	0.08	1.71	0.15	805.6	32.7	44.84	28.25	75.66	0.14	1.17
42	PA-F	131	0–18	10YR 5/4	27.04	30.28	2.96	1.38	0.08	1.65	0.16	871.7	47.9	34.38	8.25	66.59	0.13	1.16
44	PA-F	360	3–17.5	10YR 4/3	19.62	37.72	4.14	1.21	0.07	1.46	0.16	715.2	16	42.83	19.09	83.21	0.13	1.13
45	PA-F + VY(MF)	365	2–14.5	10YR 5/4	22.90	36.42	3.81	1.17	0.08	1.54	0.08	332.8	LOD	36.73	56.60	72.70	0.18	1.05
46	PA-F + VY(MF)	366	2–17.5	10YR 5/3	4.53	55.29	5.40	1.27	0.15	1.79	0.12	369.8	LOD	62.41	138.96	93.93	0.22	1.12
47	PA-F + VY(MF)	380	1.5–20	10YR 4/4	7.69	53.17	4.82	1.27	0.10	1.55	0.14	461.0	LOD	50.66	178.74	92.30	0.23	1.12
48	PA-F + MF	379	1.5–21	7.5YR 4/3	2.69	59.68	5.36	1.21	0.13	1.79	0.10	349.4	LOD	58.95	98.69	83.12	0.20	0.99
49	PA-F + VY	403	0–21	7.5YR 4/2	2.15	58.76	5.39	1.49	0.11	1.68	0.13	307.8	LOD	51.78	34.12	78.81	0.17	0.99
50	PA-F + VY	403б	0–20	10YR 5/4	16.68	46.40	3.54	1.45	0.10	1.48	0.23	374.4	5.7	25.82	98.76	68.33	0.13	1.27
51	PA-F + VY(MF)	404	0–21	10YR 5/4	5.84	56.04	4.95	1.88	0.12	1.22	0.17	294.1	9.2	20.59	40.29	80.75	0.12	1.17
52	PA-F	268	2.5–19.5	10YR 4/3	10.60	49.11	4.63	1.55	0.10	1.96	0.21	802.0	6.1	50.24	16.65	89.47	0.13	1.29
	$\overline{X}\pm t_{05}\cdot S_{\overline{x}}$				12.91 ± 4.90	46.81 ± 5.73	4.46 ± 0.47	1.37 ± 0.13	0.10 ± 0.01	1.64 ± 0.14	0.16 ± 0.03	544.2 ± 133.84	–	44.73 ± 7.68	79.85 ± 52.19	81.74 ± 5.43	–	–

^a MF = modern fallow land; PA-F = post-antique fallow land; VY = vineyard; V = virgin land (steppe). ^b Plot numbering by [60,61]. The characteristics of soil and rock formation up to 1–2 m are important when growing field crops, taking into consideration the rooting depth, while the ampelo-ecological assessment may not be limited to this since grape roots can penetrate to the depth of up to 6 m, including through cracks in dense rocks. To evaluate the land plots of wineries within the terroir concept, the use of parametric methods has shown the need to evaluate not only the surface horizons of the soil but also deeper layers [121]. The viticulture practice shows the positive role of the soil skeleton, which promotes aeration and provides good water permeability. On loamy rocks, in addition to the surface zone of the rhizosphere, the maximum total number of roots is at the depth of 100–140 cm and 160–200 cm for absorbing roots. It has been previously noted ([115], p. 301) that the special flavors of wines depend on the content of rare dispersed elements in them, some of which can be extracted by vine plants from the underlying rocks. The introduction of rocks in the course of ditching may also lead to biogeochemical enrichment of the root layer.

).

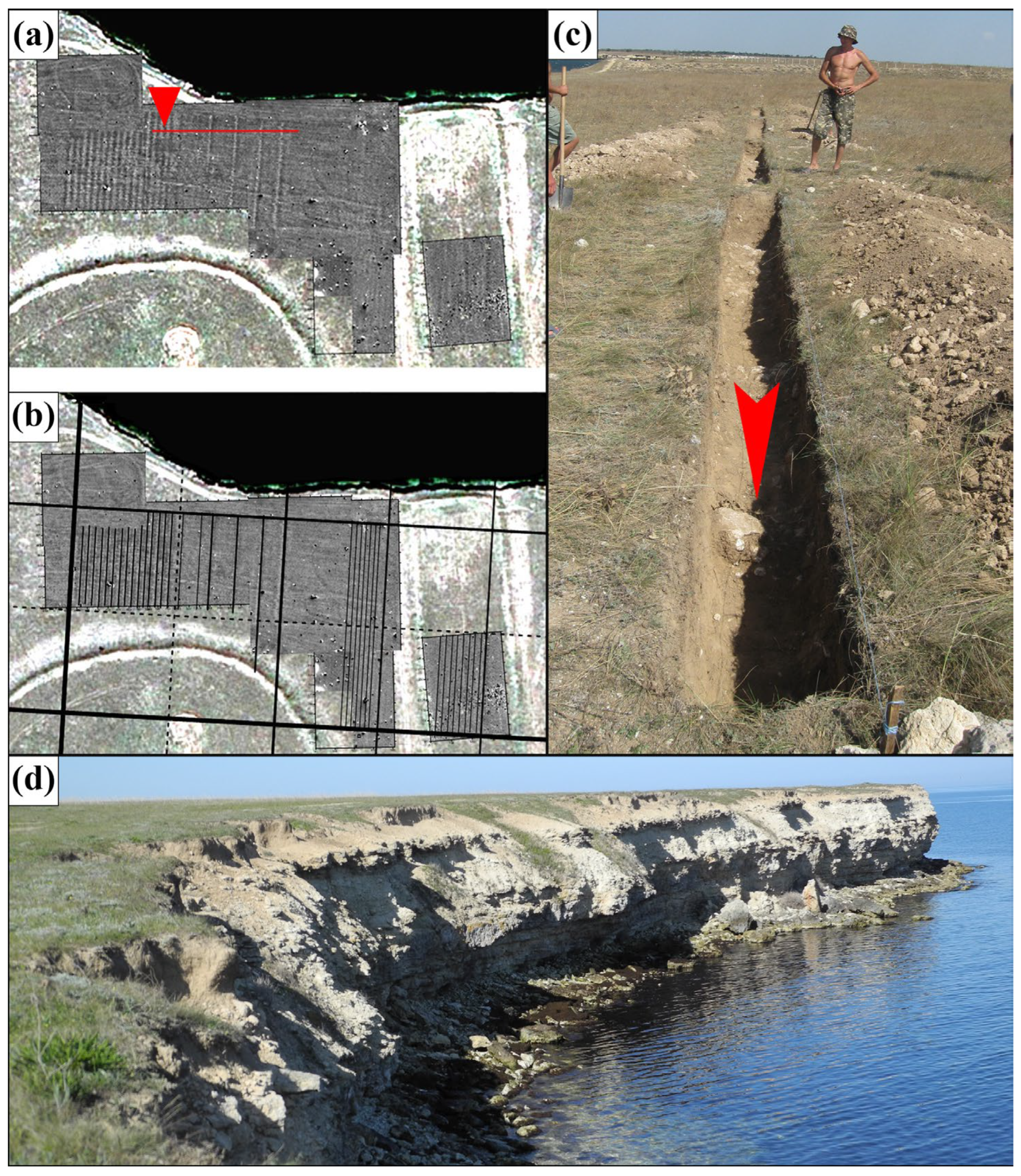

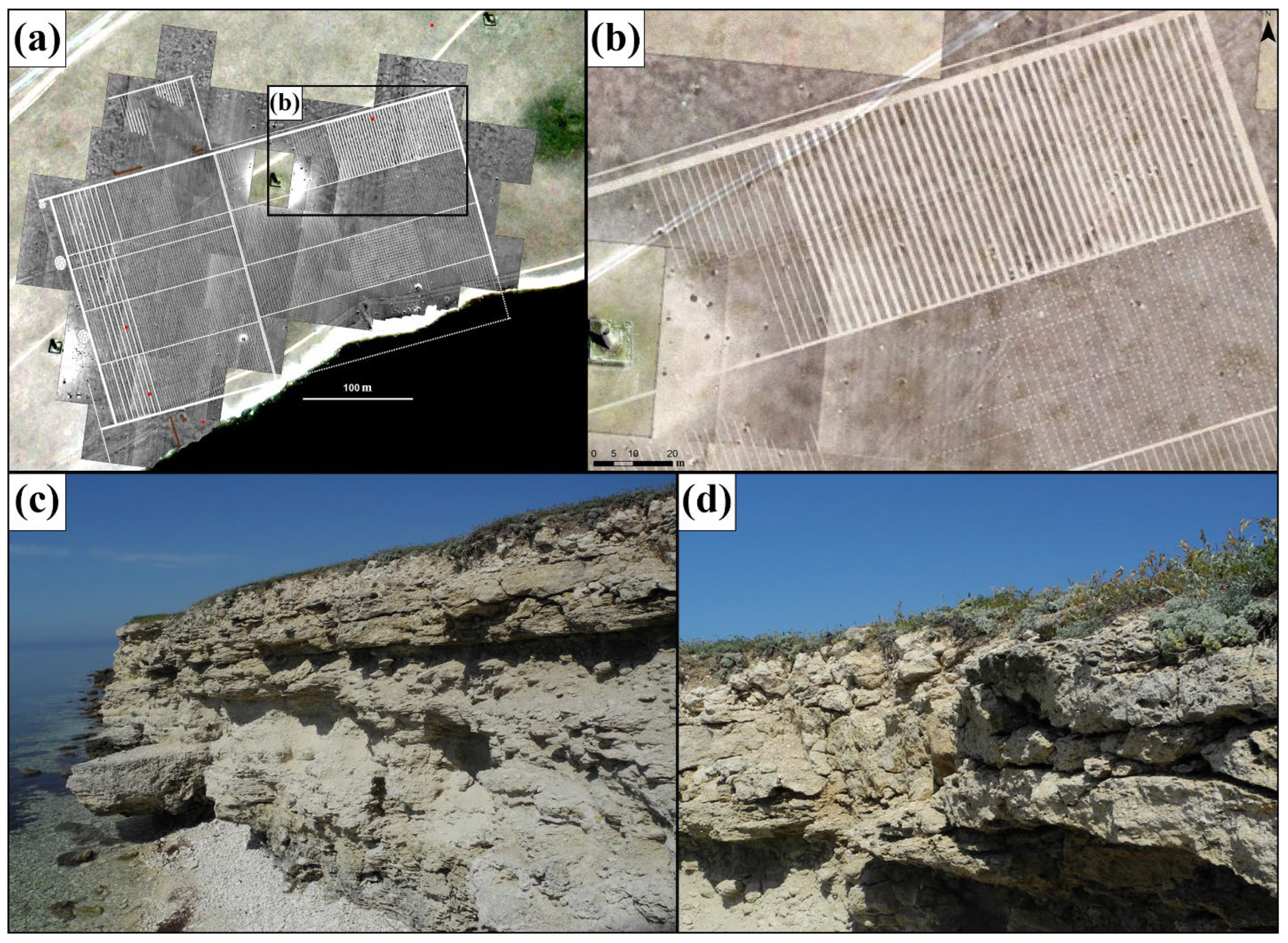

The 4500 m² site, recently discovered during a geomagnetic survey in Northwestern Crimea near the town of Kalos Limen, provides great informational opportunities for understanding the agrotechnology of antique viticulture [58]. As can be seen in Figure 3, one part of the land site is occupied by wide plots (10 m on average), and another part is occupied by narrow plots (1.5 to 2.2 m). Such differences are explained by the fact that, in the antique era, lands for perennial plantings (orchards and vineyards) were created using ditching for two types of plantings: vinea (the vine was reinforced on stakes and trellises) and arbustum (the vine was wound along fruit trees), with the distance between the walls of 2 and 5 m, respectively [53,58]. N.I. Vavilov, a researcher of wild and cultural flora, noted that in the 1920s, in some areas of viticulture in Western Afghanistan, vines were on trees, and grapes wrapped around fruit trees in the form of liana ([122], p. 469). Based on the soil and climate-specific features of the region near Kalos Limen, one of the most commonly adapted trees was most likely the almond tree (Prunus dulcis), which was cultivated by Greek colonists. It is noteworthy that almonds appear in modern abandoned vineyards.

Here, the underlying rock of the soil profile is Upper Sarmatian limestone, which is found on the cliff as early as 0.7–1 m (Figure 3c). Interestingly, 22 m from the 70 m long trench in the vineyard (Figure 3b), a section of virgin soil has shown that this is carbonate medium-loamy crushed black soil on the eluvium of dense carbonate rocks. Limestone fragments up to 2 cm in size are found in the profile from 65 cm, and their greatest frequency of occurrence is at a depth of 102 cm. Below is a heavy loamy rock, unchanged by soil formation, with abundant limestone crushed stone (up to 5 cm in size and angular in shape). In the narrow (2 m wide) rows of the vineyard (Figure 3a), crushed stone with a diameter of >3 mm, weighing 448 g/m² (4.5 t/ha), was selected using a sieve method of rock fragments of various sizes and shapes lying on the surface and partially immersed in the soil (up to 4 cm). Soils ditched in the antique era were classified as low-stone in terms of stone content (the proportion of stones was 2.9% by weight and 4.7% by volume). Regarding rockiness, which is characterized by the total volume of stones (more than 5 cm in diameter), the soils are classified as low-stone since they contain 2 m³ ha⁻¹ stones; however, this assessment is only applicable to the 0–5 cm layer of fallow soil. By sampling the upper layer of the rock, antique vine growers formed a trough-shaped trench, which was filled with loose soils and fine rock. The soil profile between the plantation walls had a crushed stone layer at a depth of 31–43 (up to 57) cm, with stones ranging in diameter from 3 to 13 cm. There is a crushed stone layer in the soil profile between the ditch walls at a depth of 31–43 (up to 57) cm. It should be noted that it was important for vine growers to leave a moderate amount of stones in the root layer under the rows of vine plants. According to modern scales for assessing soil quality by the amount of skeleton [123], it is assumed that groups of soils such as gravelly stony soils (50–70% of the skeleton volume) are characterized by a decrease in productivity by 30–50%. As we can see from the above data, by ditching the soil, antique vine growers managed to achieve a certain optimum in terms of rockiness in the root layer.

Ancient vine growers with a low-yield soil layer were forced to carry out the ditching of selected land plots, removing the largest stones. In their study, for the first time, the authors obtained empirical data on the differentiated metric parameters of stones that were either left between the ditch walls or extracted from the root layer created. At the border of the divided land plot at Cape Oirat (Figure 4), three round piles of stones, which were obviously extracted from the root layer for rows of vine plants to be created or collected to form ditch walls, have been preserved to this day. Stones were more often rectangular in shape with dimensions of 17.7 ± 0.7 cm × 13.1 ± 0.4 cm (n = 31) and a corresponding mean unit surface area of 239 ± 16 cm² (n = 31). Considering this, we may conclude that smaller stones remained in the root layer. This is confirmed by the data that were directly obtained in the gap between the ditch walls, where the size of the stones in the soil profile (down to the depth of 45–60 cm) did not exceed 13 cm in length. In addition, the largest stones, 20 × 20 cm in size, were used in the ditch walls themselves, with the participation of small ones in the range of 5–6 cm or more (as supports and to fill voids).

Traditionally, it is considered that, according to agronomic criteria, the valuable fraction of the soil structure covers sizes from 0.2 mm to 10 mm, and its optimum content is 70–80% of the total mass of structural units [124]. When analyzing the evolution of a soil structure, the most important characteristic of its macroaggregate level is the resistance of macroaggregates to destruction since a true aggregate must first be water-resistant. Since the water resistance of aggregates is mainly determined by the ratio of sandy-dusty and clay particles, it depends on the total content of humus, the amount of hydrocarbons, the ratio of fractions of humic substances, the participation of Fe and Al compounds, and the amount of cementing substances (one and a half oxides and their compounds with humus, calcium, and magnesium carbonates) [125]. The average weighted diameter of the waterproof aggregates is considered to be one of the most integral indicators of the waterproofness of a structure. In our study, as the data from Table 3 show, the water resistance (%) of soil aggregates in the fallow soils decreases from aggregates with a diameter of 3–5 mm down to 1–2 mm (from 87% to 84%). However, when analyzing the relationship between the water resistance of soil mesoaggregates of three main dimensions (Table 3) and the content of organic matter (Table 4), the relationship with the humus content of aggregates with a diameter of 1 to 2 mm shows the best approximation accuracy. With an increase in the organic matter content from 2 to 5%, the water resistance of aggregates of all three dimensions increases naturally in the diameter range of 1 to 5 mm, but the aggregating efficiency of humus is highest for aggregates with a diameter of 2 to 3 mm; aggregates with a diameter of 1 to 2 mm and 3 to 5 mm are inferior in aggregating efficiency to the water resistance. The thickness of the soil profile, which agronomically determines the thickness of the rhizosphere zone, is largely determined by the granulometric composition of the parent rock and soil in addition to the bioclimatic potential of the territory [126]. Background soils, as a rule, in terms of granulometric composition in Northwestern Crimea, are clay (the <2 µm content is 75–80%), and in Southwestern Crimea, they are gravelly, but the <2 mm fraction (limestone eluvium) is clay [127]. The characteristic regional feature of soil profiles is a higher concentration of clay in comparison with their parent rocks.

3.5. Magnetic Susceptibility of Soils

Magnetic susceptibility is a physical indicator used for the assessment of the quantity of paramagnetic substances, which is widely used to characterize the pedogenic processes and inherited lithogenic features, but besides that, it is attractive due to its complexity in reflecting the specific physical, chemical, and mineralogical properties of soils. According to data in

Table A1. Specific magnetic susceptibility (χ) values and related soil parameters.

Field No.	Object Type	Munsell Color		CaO	Rb	Fe	Ni	Co	∑ (Fe, Ni, Co)	χ
		Moist	Dry	%	mg kg−1					10−8 m3/kg
29	PLFL, Kalos Limen	10YR 4/3	10YR 5/4	23.53	45.52	1.85	27.37	LOD	29.22	47.46
30	virgin steppe, Kalos Limen	10YR 4/4	10YR 5/5	21.83	48.71	1.98	30.14	LOD	32.12	53.79
33	virgin steppe, NW	7.5YR 3/3	7.5YR 3/4	36.34	27.38	1.22	15.02	LOD	16.24	30.10
34	fallow land in the modern era, NW	10YR 4/4	10YR 5/4	15.07	68.82	2.52	38.63	5.33	46.48	48.06
36	PLFL, land plot No. 153	7.5YR 3/4	7.5YR 4/4	12.59	102.58	3.42	58.54	6.22	68.18	51.46
37	PLFL, land plot No. 34	7.5YR 3/4	7.5YR 4/6	15.41	71.90	2.99	43.77	2.81	49.57	68.59
43	virgin steppe, SW	7.5YR 3/4	7.5YR 5/4	0.60	40.60	2.45	28.33	28.93	59.71	32.10
49	Modern vineyard, SW	7.5YR 4/2	7.5YR 4/4	5.05	93.57	3.77	51.78	10.96	66.51	224.53
40	fallow land in the modern era, SW	10YR 3/2.5	10YR 4/3	8.04	81.39	3.00	47.01	10.13	60.14	67.24
42	PLFL, land plot No. 131	7.5R 4/2	7.5YR 5/4	27.04	58.71	2.07	34.38	LOD	36.45	44.00
44	PLFL, land plot No. 360	7.5YR 4/4	7.5YR 5/4	19.62	69.06	2.89	42.83	LOD	45.72	51.17
2	PR, eluvium limestone	10YR 8/3	10YR 8/3	38.99	18.25	0.89	10.98	LOD	11.87	8.84
4	PR, loess-like loam	10YR 5/4	10YR 7/4	13.68	75.42	2.79	39.91	LOD	42.70	35.06

PLFL = post-antique long-term fallow land; PR = parent rock.

, the Fe₂O₃ content of the studied soils is 3.66 ± 0.31%, while parent rock has great differences (loess-like loams are 3.1 times more enriched in it than limestone eluvium). The formation of finely dispersed hematite (red-colored iron oxide) during intra-soil weathering leads to the appearance of red tones in the coloring of the mineral mass of soils, i.e., the process of rubification is observed [128]. The soils of the Herakleian Peninsula have a higher iron content compared to other areas of antique viticulture. A number of authors noted in the 1930s that terra rossa was formed in the west of the Herakleian Peninsula. Indeed, the Fe₂O₃ content of parent rock is 13.42%, whereas in the soils of ancient allotments, its average concentration is 4.06 ± 0.22%, with a range of values of 2.6% to 5.4% (n= 22). According to data in A2, the equation was obtained for the relationship of the specific magnetic susceptibility index (χ) with the sum of the elements that largely determine it: χ = 0.5829 (∑ Fe, Ni, Co) + 20.614 (R = 0.61). Judging by the value of the coefficient of determination, the contribution of the sum of three metals with pronounced magnetic properties (Fe, Ni, and Co) to the magnetic susceptibility of the soil is about 37%. In terms of its magnetic properties, rubidium can be classified as paramagnetic, i.e., it has a weak ability to magnetize from an external field, and the correlation of its content with magnetic susceptibility (χ) is medium (R = 0.56). The relationship between the iron content of soils and the wine terroir was established earlier. The specific features of the parent rocks and the processes of intra-soil weathering in hot climate conditions cause the enrichment of subtropical soils with iron oxides, which give an intense color to red wines and golden tones and beautiful iridescent shades in the light to some white wines [115]. In addition, a large amount of iron is contained both in the leaves (187 mg kg⁻¹) and in the trunk and perennial shoots of vine plants (141–116 mg kg⁻¹ ([129], p. 38)). With the annual fall of foliage and its mineralization on the soil surface and during plowing in the course of row-to-row cultivation, iron can be fixed in the organic–mineral compounds of the soil.

3.6. Agrochemical Indicators of Post-Agrogenic and Virgin Soils

The main physical and chemical characteristics determine the potential fertility resources of soils, while mobile forms of nutrients (N, P, and K) and essential microelements characterize the effective fertility of soils. The most significant agrogenic transformations of soil chemistry covered the upper part of horizon A (in carbonate black soils, its total thickness is 30–36 cm), despite the fact that the depth of soil cultivation (including cultivation in vineyard row-spacing) did not exceed 15–16 cm in ancient times [100]. When comparing agrochemical parameters of soils, it is advisable to use local reference soils, which have maximum similarity both geographically and in their initial genesis. This shows comparisons of virgin soils in the north (Section 30) and in the south (Section 33) of the Tarkhankut Peninsula, which have the same soil organic matter (SOM) content but differ in the enrichment of humus with nitrogen (high and medium degrees, respectively). The soils that were ditched in antique times for perennial plantings, even over a long period of fallow conditions, did not reach the degree of humus content of their zonal comparable (SOM content = 100%): in Northwestern Crimea, 90% (sections 29 and 30) and up to 100% (sections 32 and 33); 88% in Southwestern Crimea (sections 36, 37, and 35). For example, new age fallows in Northwestern Crimea have lost 40% SOM compared to their virgin comparable (sections 34 and 33).

In the virgin steppe, there is a significant proportion of detritus in horizon Ad (about 10%, but under the forest in the sub-Mediterranean, this value is more than 4 times higher (Table 4), and the same is true for a number of moving elements: K, P, B, and Cu (Table 5). With the exception of these sites, as a rule, when the thickness of horizon Ad increases from 30 to 47 mm, the relative share of mortar weight in this horizon decreases by 2% and less. The increase in the total SOM content in horizon A (from 2% to 5%) is facilitated by the reserve of mortar weight contained in the sod horizon with the increase in its thickness from 15 to 47 mm, which shows a linear regression relationship at R = 0.547, which (taking into consideration the differences in bioclimatic conditions for the studied soils) may be considered as a trend. In black soils, which form a number of agrogenic transformations, the dependence of the Corg content in the horizon on the mass of detritus in the sod horizon has a weakly pronounced negative trend (R = 0.643), which is less pronounced when only post-antique fallows in land plots with ditching in both studied regions remain as units of analysis (R = 0.478). This is explained by the fact that post-antique fallows, having a ditched profile with an average thickness of 33 mm of the sod horizon, which is 10 mm less than the standards, are still in a state of disequilibrium when mineralization processes prevail over humus accumulation in this horizon. The content of the share of labile humus (LH) in horizon A increases with an increase in the total SOM content from 2% to 5%, which is most adequately represented by the following power dependence: LH = 0.0292 × SOM^0.4007 (R² = 0.403). The exclusion from the analysis of virgin soils in Northwestern Crimea, which have obviously reached equilibrium in the humus state, increases the closeness of the relationship indicated above. As shown by the results of the multivariate analysis of the key soil quality factors in relation to the Mediterranean agroecosystems [130], which are also presented in our study—indicators such as TN and C/N, although these are simplified—effective means of assessing soil resource sustainability may be used. Nitrogen enrichment of humus (in terms of C/N, according to the evaluation scale [131]) is high in virgin soils (8), low in soil under the indigenous forest (11), and medium in fallow soils (9). The total nitrogen (TN) content in horizon A increases with an increase in the SOM content from 2% to 5%, which is most adequately represented by the following logarithmic relationship: TN = 0.1571 × ln(SOM) + 0.046 (R² = 0.695).

All studied post-agrogenic soils and their zonal comparable are medium-alkaline soils (pH is 8–8.5) based on the pH value of the water extract. They have a high supply of mobile phosphate and high or very high levels of exchangeable potassium. Post-antique fallow soils on the territory of the Herakleian Peninsula are characterized by the highest indicators of cation-exchange capacity. The virgin soils, in comparison with fallow soils, have no advantages in mobile compound Cu, B, and Mb contents, which is generally represented in close evaluations of soil quality (SQ(8), except for the recent fallow under the vineyard (Section 37) due to the increased copper content (Table 5)).

3.7. Biogeochemical Features of Post-Agrogenic Soils and Their Virgin Analogues

The geochemical features of soils, which are determined by the content of an assemblage of macronutrients and trace elements, characterize a genetic type of soil formed in certain bioclimatic conditions and may also represent some stable results of agrogenic transformations of both relict nature and modern agricultural loads. At the same time, from the general list of determined macronutrients and trace elements, a diagnostic assemblage of elements, which represents most sensitively the processes under study, may be justified.

The geographical factor (the genetic type of soil formed in certain bioclimatic conditions) is the strongest criterion for grouping a series of agrogenic transformations of soils based on their biogeochemical characteristics.

3.7.1. Biogeochemical Features of Soils of Northwestern Crimea

The region-specific features of soil geochemistry and, in particular, the background content of heavy metals, some of which relate to trace elements useful for plants, depend much on the genetic characteristics of soils (mineralogical and granulometric composition, quantity and quality of organic matter, pH and ox–redox potential, and soil climate). The assessment of soil fertility resources, integrally expressed through the soil quality index (SQ), taking into consideration the content of macronutrients and trace elements useful for plants, represents the result of the most conservative component of the process of natural and anthropogenic soil development: biogeochemical. Since the steppe reference soils of Northwestern Crimea were formed in different bioclimatic conditions, in the coastal zone (Section 30) and in a more arid upland area (Section 33), it has been found that post-agrogenic soils (horizon A), according to the integral assessment of the content of macronutrients useful for plants, SQ(7) = 1.23 ± 0.02 (n = 6), are closer to the first standard (SQ(7) = 1.23) than to the second one (SQ(7) = 0.86), and, based on the total content of useful macronutrients and trace elements (SQ(7) = 0.14 ± 0.005), the abandoned soils occupy an intermediate position between the standards, for which the values of SQ(7) are 0.16 and 0.1, respectively (Table 6).

Understanding the processes of accumulation and migration of the assemblage of heavy metals (HM) in arid climatic conditions is associated with an assessment of the role of pedogeochemical barriers for heavy metal migration, both in terms of the soil profile and in landscape–geochemical cascade systems [132,133]. In this region, the main pedogeochemical barrier is the calcium barrier, which arises from a number of insoluble calcium compounds. In addition to limestone eluvium as the parent rock, which is widely represented in Western Crimea, black soils on loess-like loams have formed in the northwest. This is a geochemically richer rock than limestone eluvium (

Table A2. Gross composition of post-agrogenic soils and their zonal analogues (horizon A).

Field No.	Al2O3	TiO2	Na2O	V	Cr	As	Rb	Sr	Zr	Ba	Pb
	%			mg kg−1
Temperate climate
29	8.7	0.5	3.0	51.5	55.8	7.0	45.5	239.8	187.3	374.5	16.8
30	9.1	0.5	2.7	53.8	59.1	7.5	48.7	248.0	198.2	384.3	19.6
31	13.1	0.7	1.5	84.9	87.6	9.5	82.5	139.5	205.9	418.2	17.6
32	8.6	0.5	2.1	52.0	60.1	4.5	46.0	191.5	169.0	322.0	17.5
33	6.3	0.3	2.8	33.6	44.7	4.7	27.4	281.5	74.8	226.4	14.6
34	10.9	0.7	2.5	74.0	73.0	7.9	68.8	189.2	258.5	437.9	22.9
39	11.7	0.7	2.2	79.4	76.7	8.0	75.2	173.1	274.6	433.8	20.6
40	12.3	0.8	1.7	85.0	80.0	11.7	81.4	108.1	272.6	476.5	18.9
Average	10.1	0.6	2.3	64.3	67.1	7.6	59.4	196.3	205.1	384.2	18.6
PR	4.9	0.2	4.1	43.1	26.2	5.5	18.2	549.5	94.0	318.4	13.0
Sub-Mediterranean
35	18.8	0.7	2.2	111.6	95.8	13.4	131.3	227.1	159.6	328.7	29.3
36	14.8	0.6	2.1	79.6	86.3	9.6	102.6	149.9	150.2	401.1	23.8
37	13.4	0.6	2.7	79.2	76.8	9.0	71.9	77.6	132.7	301.5	24.6
41	12.5	0.5	2.6	65.5	71.1	7.4	75.8	176.4	113.2	358.5	20.1
42	10.0	0.4	2.8	48.4	56.8	6.2	58.7	156.9	86.7	307.1	19.2
43	8.3	0.4	1.9	49.1	32.8	9.7	40.6	47.6	116.7	180.5	75.8
44	13.1	0.5	2.7	75.3	71.9	5.1	69.1	97.5	96.0	258.9	22.7
45	11.6	0.5	2.3	74.7	66.0	8.4	70.0	103.7	96.1	284.6	17.2
46	15.6	0.7	2.0	104.9	81.9	10.6	103.7	78.5	181.7	460.7	26.9
47	14.2	0.7	2.0	90.5	81.0	10.4	85.8	68.8	216.2	386.6	22.0
48	15.2	0.8	1.9	91.5	82.7	9.5	105.7	63.3	213.0	393.8	26.7
49	15.2	0.8	2.0	103.9	84.2	9.2	93.6	88.5	233.2	451.7	22.3
50	11.4	0.5	2.2	66.2	38.9	3.0	45.3	186.8	112.6	534.3	14.5
51	14.3	0.6	2.4	99.0	20.4	3.6	43.3	479.5	124.7	561.3	14.6
52	13.3	0.7	1.8	89.3	86.7	11.8	86.3	112.8	200.8	402.6	30.8
Average	13.4	0.6	2.2	81.9	68.9	8.5	78.9	141.0	148.9	374.1	26.0
PR	8.9	3.0	2.4	62.7	71.3	6.5	56.3	161.0	119.4	318.0	19.5

), which is represented in a series of decreases in excess concentration coefficients: Mn, Ni, Rb (≥4) >Si, K, Cr, Fe, Cu, Zr, Ti (≥3) > Al, V, Zn, and As (≥2). These rocks are inferior to limestone eluvium only in the content of calcium and associated strontium. In Northwestern Crimea, virgin steppe soils, formed on limestone eluvium, in horizon A have a higher content of six HMs (out of 11): Mn, Ni (≥3) > Cu, Cr, Pb, and Fe (≥2). Soils of post-antique fallows, in comparison with limestone eluvium, form an ordered series in HM enrichment: Mn (≥4) > Cr, Fe, Ni (≥ 3) > Cu (≥2). And the differences in soils of long-term fallows from virgin comparable were noted only by a certain excess of the content of only 2 of the 11 HMs (iron and vanadium by 1.2 times). Thus, under indigenous and post-agrogenic grass–forb steppe vegetation, the biological accumulation of such beneficial trace elements for plants as Mn, Fe, Cu, and Ni occurs in the humus horizon of soils that form a regional geochemical background (RGB) with the prospect of approaching the ecological threshold of danger in the instance of long-term viticulture. In Northwestern Crimea, the average value of the coefficients of excess concentrations of 11 HMs over the values of the RGB is 1.10 for fallow soils, but in 4 out of 6 soils, it is ≥1.20. The main HMs form an ordered series: V, Fe, Ni (1.3) > Cr, and Mn (1.2).

3.7.2. Biogeochemical Features of Soils in Southwestern Crimea

The characterization of the composition of virgin and old fallow soils in the rural district of Chersonesos has shown that the geochemistry of soils in the sub-Mediterranean conditions has more complex regional specific features. Within the Herakleian Peninsula, the marking feature that distinguishes brown mountainous carbonate crushed stone soils (Cambisols) from Rendzina, also characteristic of Northwestern Crimea, is the soil color on the Munsell scale: 7.5YR4/4 (the boundary color between brown and dark brown). In addition, Cambisols have a slightly higher aluminum and iron oxide content. The forest type of pedogenesis was represented on the lands of the Herakleian Peninsula, where even nowadays, the share of forests and shrubs is 12.5%, but it is obvious that by the period of active agrarian development of lands in the antique epoch, the area of forests had been larger. In the conditions of the sub-Mediterranean indigenous forest, Fe, K, K, Ni, Ni, Zn, and Cu out of nine elements of biological accumulation (K, P, Ca, Mg, Mn, Fe, Ni, Zn, and Cu) accumulated most actively in horizon A of the soil (0–21 cm) relative to the local parent rocks (n = 9). Having chosen the soil formed by a typical forest community as a reference (Section 35), postantique and polygenetic fallows differ from the reference soil by a lower content of the assemblage of essential elements, which is represented by a decreasing series: Cl > K > Ni, Si > Fe, and Mg > Zn. The results of the analysis of the gross composition of post-agrogenic soils and their zonal comparable on the Herakleian Peninsula enabled the determination of the most informative elements, for which generalized estimates of soil quality were obtained (SQ). Using the coefficient of variation >20% (strong variation) as a criterion, it was found that, for the entire soil sample (n = 23), the biogeochemical soil quality (SQ) is determined by the association of 10 chemical elements (out of 12): Ca, Si, Fe, Mn, P, S, Cl, Ni, Cu, and Zn, and for a sample without reference soils (n = 19), this association loses (in addition to Mg and K) Si and Zn. Thus, the results of the complex history of agrogenic transformations and soil renaturation are consistently represented by eight biophilic elements (Ca, Fe, Mn, P, S, Cl, Ni, and Cu). In this instance, the range of SQ values for the soils under study becomes even narrower: 0.056 ± 0.004 (n = 23), but by increasing the coefficient of variation from 21% to 32%, it is possible to show the differences between the sites more expressively. Elements such as Si, Mg, K, and Zn, on the one hand, acted as limiting factors in the integrated assessment of soil quality in terms of the content of macro- and trace elements useful for plants and, on the other hand, make a significant contribution to grouping of soils with different histories of agrogenic transformations during the hierarchical classification of sites.

The post-agrogenic soils (horizon A) in land plots of Chersonesos, based on the integral assessment of the content of an association of seven macronutrients useful for plants (Ca, Si, Fe, Mg, Mn, K, and P), i.e., SQ(7) = 1.15 ± 0.03 (n = 13), are closer to the sub-Mediterranean indigenous forest (1.05) than to the virgin steppe (0.59) (Table 7). At the same time, fallow soils after modern vineyards practically do not differ in the useful macronutrient content (SQ(7) = 1.13) from post-antique fallow soils (SQ(7) = 1.18). If, in addition to macronutrients, trace elements useful for plants are also taken into consideration, then the noted soil differences remain: for all fallow soils, the value of SQ(12) is 0.16 ± 0.01 (n = 13), which is comparable to the estimate for the indigenous forest (0.15) but differs greatly from the estimated value for the steppe standard (0.09).

The diagnostic indicators of anthropogenic effects on soils are the phosphorus content (various waste products that are often included in fertilizers), as well as the heavy metal and metalloid (HMM) content. The biogenic phosphorus content varies from 0.1 to 0.2%, with a value of ≥0.2% in 57% of cases (Table 7). Previous pedoarchaeological studies have shown that values > 0.1% indicate anthropogenic influence [134], but, in this instance, this is also explained by geochemical differences between the two regions studied by us (in Northwestern Crimea, the phosphorus content is within the range of 0.04–0.09% (Table 6)).

Because of sea breezes, aerial transport can introduce heavy metals such as Ni, Co, and Cu to coastal lands (up to 30 km from the coast), as shown by dust analysis on igneous rocks [135]. Therefore, the geochemical specificity of soils and rocks, as well as the coastal location, create the initial background for the rapid (in a few decades) achievement of the lower limit of ecological norms in vineyard soils. The abandoned soils are characterized by the average coefficient of excess of 11 HMM concentrations over the geochemical background of 1.72, but if these lands are used for vineyards in modern times, the value of this reaches 1.83. At the same time, the following ordered series is determined for values of the greatest excess of HMM concentrations over the background (from 3.0 to 1.2): Sr > Cu > Mn > Ba > Cr > V > Zn > Ni > Fe. The accumulation of copper is noted in the fallow soils of modern times and in modern vineyards, where its content exceeds 34 mg kg⁻¹ (sections 45–50). This is due to the contamination of soils with copper as a result of the cumulative use of Bordeaux mixture (copper sulfate and calcium hydroxide) and other copper-containing fungicides in modern viticulture. The increase in the copper concentration in the soil causes metabolic disorders, inhibits growth functions, and has an adverse effect on the generative functions of plants and, as a result, on the yield. Previously, it has been found that soils in intensive vineyards contain copper in a range from 80 to 486 mg kg⁻¹ [136]. The long-used vineyards of Greater Sevastopol also accumulated copper-containing preparations. For example, as a result of the analysis of topsoil (in the row and row spacing) on the vineyard abandoned 20 years ago (that had been cultivated for about 60 years) and located in land plot No. 378 (N 44 32.048 E 33 32.586), the maximum copper content of 306 mg kg⁻¹ was found (Table 7). In the same land plot, a higher content of cobalt and zinc was noted than in the soil between the ditch walls (post-antique fallows; land plot No. 153 (

Table A3. Agrochemical parameters of old arable and fallow soils in the zone of ancient agriculture.

Parameters	Plowland in the Ancient Period and Under Vineyard Since 1945 (in Fallow for 20 Years)	Post-Antique Fallow Land (Vineyard Plowing Plantation)
No. land plot [59]	378	153
Layer, cm	0–18	0–12
Munsell color (dry)	10YR 5/4	7.5YR 4/4
Corg, %	4.72	3.95
pH (H2O)	7.97	7.93
СаСО3, %	24.40	20.49
P2O5 tot., %	0.24	0.16
K2O tot., %	1.60	2.13
Zn, mg kg−1	146	102
Co, mg kg−1	15	10
Cu tot., mg kg−1	306.4	13.2
Cu mov., mg kg−1	2.24	0.12
P2O5 mov., mg kg−1	21	10
K2O mov., mg kg−1	550	491

). With national standards of Cu and Cr 40 and 80 mg kg⁻¹, the values of the regional geochemical background (virgin soil conditions) are Cu 19 (forest) and 39 mg kg⁻¹ (steppe) and Cr 97 (forest) and 33 mg kg⁻¹ (steppe), respectively. The content of elements such as Cu, Ni, and Cr in the soil already at this stage begins to exceed the permissible environmental standards, and these elements are the priorities in the agroecological monitoring system, because their concentrations may exceed the MPC levels earlier than others (20–25 years after planting the vineyard). The summarization of vanadium data has shown that the carbonate soil variants have concentrations of 90 ± 2.4 mg kg⁻¹ (n = 60), and the leached variants reach 126 ± 8 mg kg⁻¹ (n = 11), while the MPC level is 150 mg kg⁻¹. Thus, if we take into consideration the concentrations of HMMs in the soil, which are considered to be threshold ones for phytotoxicity, then the greatest threats of soil contamination under Crimean vineyards are associated with the accumulation of V (>100–150 mg kg⁻¹), Cr, and Cu (>100 mg kg⁻¹).

The intensity of biological removal in the soil under the indigenous forest was most strongly manifested in relation to Ca and Mg; in long-term fallows in terms of Mn and P; and in the soils of recently abandoned follows in terms of Ca, Mg, Mn, and P. These specific features are confirmed by a comparison of the values of the eluviation coefficients, which were 2.4 times higher (relative to SiO₂) and 2 times higher (relative to Al₂O₃) in land plots with a combined centuries-old prehistory and modern duration of viticulture than in soils of post-antique fallows and also comparable to the conditions of the sub-Mediterranean indigenous forest. The results of the long-term transformation of the mineralogical composition of the agrogenic range of soils are informatively diagnosed using the Rb/Sr ratio. The soils in post-antique fallows and under indigenous forests have shown almost identical values of this ratio (0.59 and 0.58), while the most carbonate soils of long-term agrogenesis (ditched in ancient times and mixed (deep plowing) in modern times), where the Rb/Sr is 0.90, is close to the soil of the virgin steppe (Rb/Sr is 0.85). As shown earlier [137], the Rb/Sr ratio represents a different resistance of minerals to weathering, in particular, micas and potassium spars (Rb is associated therewith) and carbonates, with which Sr is closely related.

In the course of the practice of viticulture, it has been long noticed that particularly outstanding wines are obtained on low-yielding skeletal soils and where rocks lie close. This suggests that the quality of wines is affected not so much by the physical properties of soils as by mineral nutrition due to parent rock. Certain chemical elements that are extracted by grape roots from rock weathering products, where there are more dispersed elements than in soils, are additionally concentrated in juice and then in wines and give them specific features that differ from wines obtained next to soils with other rocks. However, in addition to the special geochemical features of rocks, an increase in the concentration of rare earth elements in vineyard soils can be influenced by the use of fungicides and fertilizers [138]. The flavor properties of wine materials are mainly determined by components such as nitrogenous substances, calcium, magnesium, potassium, phosphorus, silica, sulfur, iron, manganese, and others [115], p. 297.

3.7.3. Comparison of Biogeochemical Features of Soils from Two Historical Regions of Western Crimea

The mean values for the 95% confidence interval, which in Table 6 and Table 7 are calculated only for grape soils, were subsequently used to determine the classification similarity of objects according to soil biogeochemistry and to assess the contribution of such a key terroir factor as the geographic location.

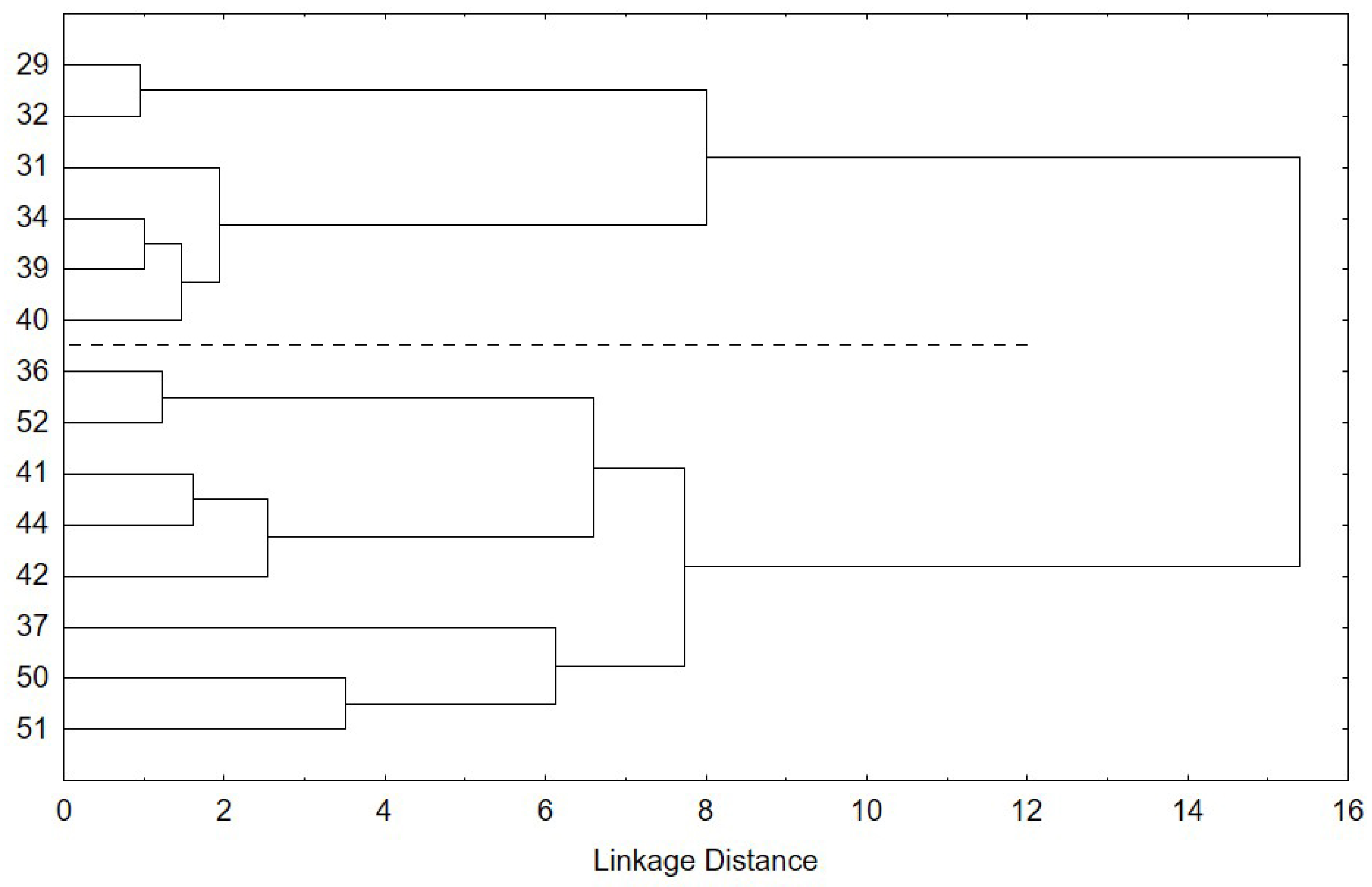

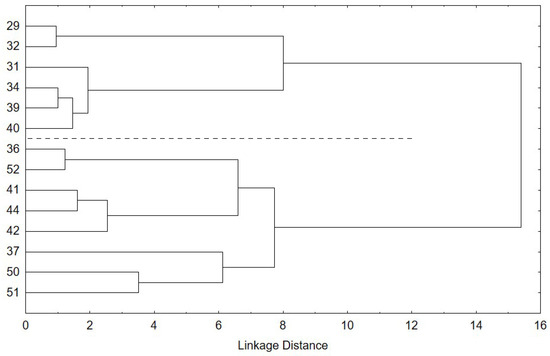

The results of the hierarchical classification (Figure 5), taking into account the biogeochemical specificity of grape soils determined by the concentration of 11 chemical elements (excluding chlorine due to values LOD), allow us to clearly divide the investigated objects by the factor of geographical localization. The first cluster includes all objects from the northwestern part of Western Crimea (sections 29–32, 34, 39, and 40), while all objects from the southwestern part of the region form (with a threshold distance of about 16) the second combined cluster. Grape soils of the second cluster, in comparison with the soils of the first cluster, by the value of excess of average concentrations by more than 1.2 times, are characterized by biogeochemical specificity, which is demonstrated by the following ranked descending series: Cu > Si > P > Fe > (Mg, Mn) > Zn > (Ni, K).

Non-parametric multivariate analysis of variance (NP MANOVA), which was performed according to Anderson’s method [139] using Mahalanobis distance and 999 permutations, showed that grape soils of two regions of Western Crimea statistically differ in the concentration of macronutrients and trace elements. Statistically significant differences (p < 0.05), which were substantiated using Mann–Whitney test, allowed us to establish that grape soils of two regions of Western Crimea differ in the content of 11 chemical elements by an ensemble of seven elements (Si, Fe, Mg, Mn, K, P, and Zn), and exceptions were found for the content of Ca, Ni, and S. A special place in this analysis is occupied by an assessment of the concentration of Cu, which varies in the range of 14–29 mg kg⁻¹ in soils in the northwestern part of the region with a significantly greater range of values (from 8 to 306 mg kg⁻¹) in the southwestern part, where sampling mostly included contemporary vineyards).

The soils in the plots of Chersonesos differ from other regions of antique Crimean viticulture [140], with a higher content of elements that affect the taste of wines (Fe, Rb, Si, Mn, and K). In particular, the soils of the two regions studied by us show an excess of concentrations of Fe and Rb by 2.0–2.3 times and Si, Mn, and K by 1.60–1.65 times in Southwestern Crimea relative to Northwestern Crimea. Thus, the previously predicted importance of the problem of terroir sustainability, development of climate-adaptable viticultural agro-ecosystems, and implementation of efficient strategies in the industry on the multi-scale level remains [141].

4. Conclusions

Ensuring a protected geographical indication for wine-making products relies heavily on a multifactorial analysis of the ampelopedological parameters of vine-growing sites. Two centuries-old (historical and modern) viticulture regions, which were formed in the conditions of the sub-Mediterranean and temperate climate, were compared using physical, chemical, and biogeochemical parameters in abandoned land and in their virgin counterparts to determine their ampelopedological portraits as part of the wine terroir. The two compared historical regions of viticulture, both in ancient times and now, differed in the probability of frost danger, but as we have established, the biogeochemical properties of soils and rocks determined the differences in the volume and quality of wine products, which are known from historical sources and have been preserved to this day. The sub-Mediterranean soils, compared with the steppe region, have a higher content of elements that affect the taste of wines (more than 2 times for Fe and Rb and 1.6 times for Si, Mn, and K). Based on the geochemical specific features of the studied regions, the list of heavy metals (Cu, V, Cr, and Ni), the concentrations of which may exceed the maximum permissible concentration in the near future with modern agricultural technology of viticulture, was determined. This list of pollutants in these soil and climatic conditions is recommended as a priority when performing agroecological monitoring of lands under vineyards and determines the targeted adjustment of the agrotechnological techniques used for sustainable viticultural practices.

The stability and maximum productivity of vineyards are largely ensured by the emergent combination of inanimate factors that characterize the ampeloecotope. This includes a set of climate-specific features (climatope) and those of the land cover (edaphotope). The placement of vineyards in optimal environmental conditions enables us to avoid problems such as reduced longevity of plantations, denudation, reduced yields, and deterioration in product quality, which leads to economic loss. All this forms a wide range of scientific and applied tasks in an industry such as viticulture (winegrowing) for continuous improvement in the conceptual foundations of wine terroir. The substantiation of the ampelopedological prerequisites for the formation of specific taste qualities of wines depending on the geochemistry of soil and parent rock in the places where the vine grows enables the identification of viticulture areas (geographical “fingerprint” of wine), providing a protected geographical indication of wine products. Upon the selection of the location of a winegrowing plantation, the adaptation and sustainability are already correlated with a certain set of the most adapted grape varieties. The representation of translocation processes of selective use of the biogeochemical composition of soils and rocks of a particular area in the peculiarities of grape berry composition creates the second block of terroir identification.
