Supply Chain Ecosystem for Smart Sustainable City Multifloor Manufacturing Cluster: Knowledge Management Based on Open Innovation and Energy Conservation Policies

Abstract

City manufacturing (CM) is a key concept in smart sustainable cities. City multifloor manufacturing clusters (CMFMCs) are an integral part of large urban areas. Although smart sustainable CMFMCs attract growing attention, a major research gap remains. It concerns how different actors drive innovation within their supply chain ecosystems (SCEs). To address this gap, this paper examines the SCE of a CMFMC and knowledge management (KM) mechanisms of open innovation (OI), considering energy conservation (EC) policies. This qualitative study expands the understanding of the spatial configuration and key actors of the SCE of a CMFMC. It also analyses the role of the University Centre for Projects and Innovation (UCPI) as a physical orchestrator. The UCPI fosters innovation activity through KM based on OI and EC. Our findings contribute to the SCE literature by emphasizing the potential of its key actors. We show that an integrated approach to KM based on OI and EC enhances innovation in CMFMCs. This supports the sustainable development of smart cities.

1. Introduction

The long-term growth in the number of building stories in urban development is determined by limited land resources and transport infrastructure. The placement of multifloor manufacturing and logistics facilities in the residential area of a smart sustainable city is associated with the development of innovative, green technologies and products [1,2]. City multifloor manufacturing clusters (CMFMCs) and their supply chain ecosystems (SCEs) are developing actors of the smart sustainable city, which uses information and communications technologies (ICTs) and human–cyber–physical systems to co-create value [3,4]. A CMFMC includes a group of multi-storey buildings and a city logistics node (CLN) located in the residential area of a smart sustainable city. The CLN is the lead service provider of its CMFMC. The variety of sizes, forms, and types of CMFMC enterprises and the balance of production and pricing policy are defined by competitive conditions and the capacity of the smart sustainable city market [4,5]. City manufacturing is a broader term that includes both traditional production (mass, craft, and mass-customized) in residential areas and urban manufacturing with modern forms such as personalized, social, and shared production. Traditional productions do not just exist within the urban manufacturing environment, but also develop and interact with them, utilizing a shared production capacity within smart sustainable CMFMCs [6,7]. The integration of city manufacturing into the urban environment has been made possible by their modern transformation, with an emphasis on sustainability and the use of Industry 4.0 (I4.0) technologies [8,9]. Energy sources, manufacturing, products, transport, and information support in CMFMCs must meet smart sustainable city criteria and serve the needs of residents and enterprises with innovative goods [1,10]. Depending on the current and future consumer demand, a CMFMC uses various types of production process organizations and their corresponding modular lightweight equipment that implement additive and traditional manufacturing technologies [11,12].

A freight transport service (FTS) provides the delivery and shipment of cargo and finished products within the CMFMC [13,14]. Intra-cluster cargo transportation is carried out mainly through the CLN, which implements a set of logistics operations (including fulfilment service operations) for the further shipment of goods to consumers both within and outside the CMFMC [4]. The loading–unloading and sorting of cargo operations in the CMFMC and transported cargo location are carried out using the Internet of Things (IoT), Blockchain technology, Global Positioning System (GPS), and wireless fidelity [15,16]. The SCE of the smart sustainable CMFMC is based on a platform approach to create innovative products as well as provide suppliers and customers with various services that fulfil their needs. The platform service supply chain (PSSC) strategy within SCEs aims to equip its users with cloud-based technologies that foster their innovative relationships along with providing various services [17,18].

The main actors in the CMFMC are small and medium-sized enterprises (SMEs) that are embedded in an “open collective innovation system” with the consideration of energy conservation (EC) policies within the framework of an SCE for the purpose of knowledge management (KM) in the market conditions of a smart sustainable city [10,19]. The transfer of knowledge and innovative technologies is a key aspect of the sustainable development of SMEs within CMFMCs [20]. A key actor in the SCE is its orchestrator, who manages knowledge flows in open innovation (OI) among all stakeholders both inside and outside the CMFMC [21,22]. Usually, the orchestrator of the SCE is a university innovation centre, which has a different name depending on the country and even the university [23,24]. For example, at the Maritime University in Szczecin (Poland) it is the University Centre for Projects and Innovation. In the same city at the West Pomeranian University of Technology in Szczecin (Poland) it is the Regional Centre for Innovation and Technology Transfer. In this study, to clearly identify such an SCE orchestrator, we will refer to them as the University Centre for Projects and Innovation (UCPI).

The purpose of this paper is to develop a conceptual framework for KM based on OI with a consideration of EC policies within an SCE of a smart sustainable CMFMC. To achieve the objective, this paper suggested four specific research questions:

RQ1: What are the spatial configuration and key actors of an SCE of a CMFMC for KM based on OI and EC?

RQ2: What role does the UCPI play in OI-based KM within the SCE of a CMFMC in bolstering innovation?

RQ3: What role can the UCPI play in boosting innovation activities in the SCE of a CMFMC under KM based on OI and EC?

RQ4: What role does UCPI play in overcoming barriers related to CMFMC organization in large cities and in KM based on OI and EC?

To achieve the research objective and answer the research questions, a case study method using qualitative studies was utilised and to carry out research based on “how” and “why” questions was adopted. This paper provides information on how an SCE can play a role in smart sustainable CMFMC startup development by analyzing the KM based on OI and EC perspectives.

This paper is structured as follows: Section 2 present the theoretical background relative to the current literature on SCE and KM based on OI and EC for city manufacturing. Section 3 presents a conceptual model of the spatial configuration of an SCE of a CMFMC for KM based on OI and EC. Section 4 provides the methodology of our research. Section 5 presents the results of this study. Section 6 discusses the research findings and managerial implications. Section 7 details the conclusions, research limitations, and future research issues.

2. Literature Review

2.1. Supply Chain Ecosystem for City Manufacturing

A SCE is defined as a dynamic network of interdependent actors and processes that collectively create, deliver, and capture value as a innovative product or service from order receipt to its implementation [25,26,27]. Building on this foundation, we distinguish two modalities particularly relevant to CMFMCs: the physical SCE as a service, which emphasizes tangible infrastructures and shared facilities, and the digital SCE as a PSSC, which highlights knowledge flows, digital collaboration, and innovation brokerage (Figure 1).

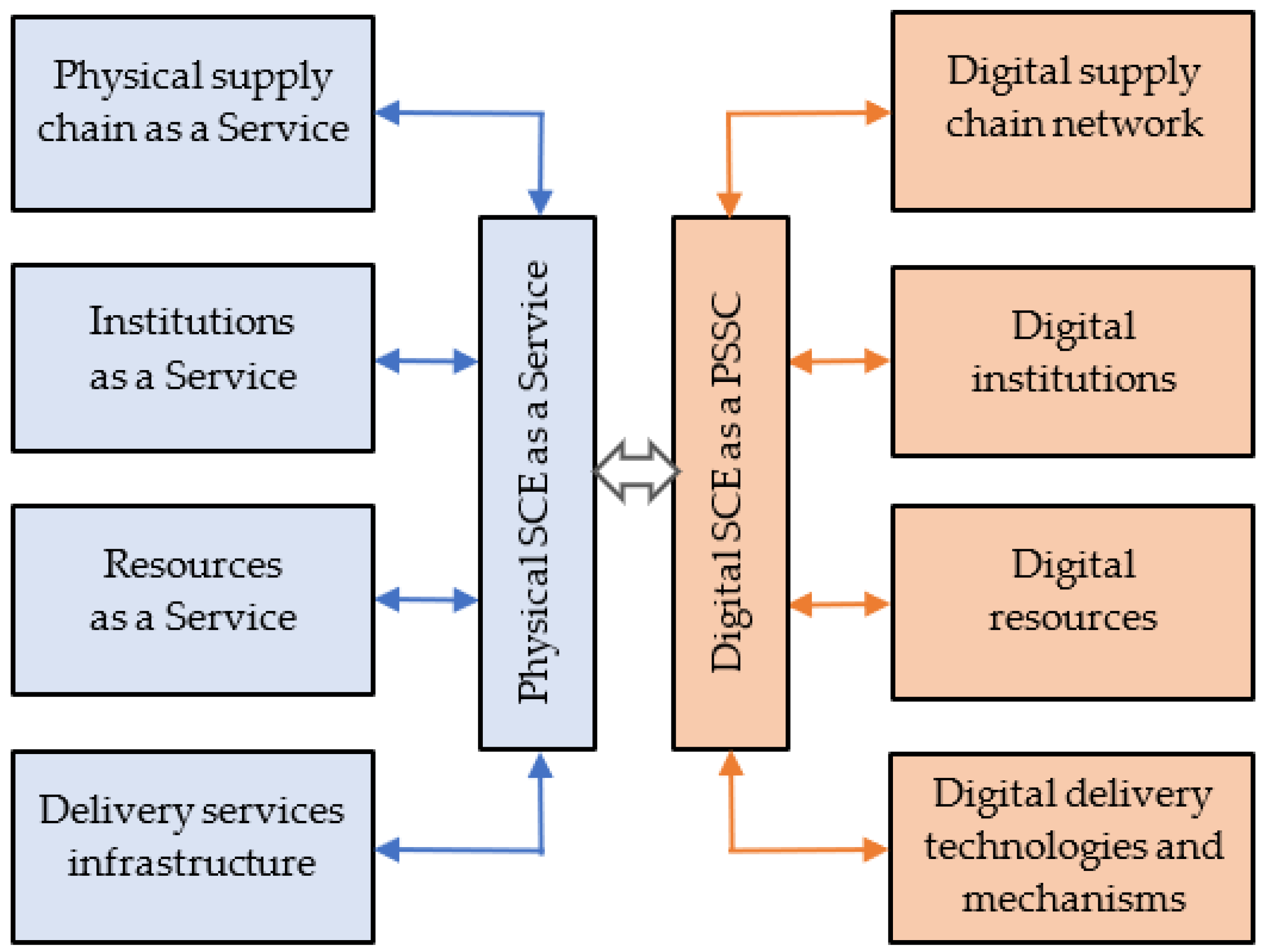

A physical SCE as a service consists of four subsystems: (1) physical supply chain as a service; (2) institutions as a service: governmental and social; (3) resources as a service including human, natural, financial, and CMFMC; (4) delivery services infrastructure [3,16]. A digital SCE as a PSSC also consists of four subsystems: (1) digital supply chain network; (2) digital institutions: governmental and social; (3) digital resources including customer integration, smart sustainable CMFMC, payments and financial flows, dynamic service composition, and fulfilment coordination; (4) digital delivery technologies and mechanisms [16,28]. Thus, the SCE includes physical and digital assets, the integration of which is aimed at making mechanisms and processes for creating innovative products and services within the cloud supply chain approach [16,28]. Some researchers distinguish the following main contributors in the SCE framework: the ecosystem orchestrator, complementors, users, and external actors of the ecosystem that contribute to its development and legitimacy [22,29]. The difference in approaches to the SCE framework emphasizes the need for its further study within the CMFMC in terms of innovation orientation.

The key network instrument of the SCE is the PSSC, which is usually owned by the focal firm [18,30]. The purpose of the focal firm is to form a digital SCE of the CMFMC by creating a PSSC, constantly expanding the range of its users and services provided, creating conditions for innovation and the prudent use of the available resources of the cluster [30]. The PSSC within the CMFMC integrates the processes of digital production and logistics, and the creative interaction of all stakeholders in order to maintain a balance of their interests under a competitive environment and the sustainable development of the SCE [18,21]. The SCE activation within the GMFMC is based on a platform-based approach and is aimed at increasing innovation capability in stakeholder relations in the creation of products and services [17,31]. The UCPI is the orchestrator of knowledge flow in the OI environment and the formation of partnership creative relations between individual coalitions of SCE participants at all stages of innovation and service delivery, and the PSSC is the communication tool. Thus, one of the main tasks of the UCPI within the SCE of the CMFMC is to provide innovative services and create innovative value using a PSSC. The development of interactions within the formed virtual coalitions is not limited to the SCE, as a result of which innovations are created and realized both inside and outside of it [18]. Such interaction of SCE participants extends to all aspects of their activities and is aimed at successful innovative solutions to economic, social, and environmental issues at various levels within the CMFMC. It is obvious that the communication of stakeholders within the SCE both through the PSSC and directly requires appropriate competencies not only in the field of ICT, but also in the field of professional competencies, continuous training and self-education, and the development of the creative potential of its participants [27]. The formation of innovations is based on new knowledge that is created in the process of creative communication and the continuous self-education of all stakeholders [18,25]. Training, self-education, creativity, and a focus on success are the main components of successful renewal processes within a CMFMC and its SCE [4]. Obviously, the use of a PSSC for the provision of educational services is also a key element in accelerating innovation within the framework of the SCE of the CMFMC.

One of the key tasks of the CNFNC SCE is to create OIs and transfer knowledge and technologies in the field of logistics services aimed at increasing the sustainability and mobility of urban freight transportation. This is due to the commonality of logistics services for all participants in the SCE, regardless of their main activity, and the uncertainty of supply–delivery realization, considering the intensity of urban traffic and restrictions imposed on cargo transportation [4]. This explains the emergence of innovative logistics solutions in large cities related to the location of logistics facilities directly in the urban environment, the use of intelligent and sustainable vehicles and equipment, and various digital logistics platforms [4,30]. The cloud supply chain is a new service-oriented networked business model that includes physical and digital assets for supply chain implementation and is based on the “supply chain as a service” paradigm using the human–cyber–physical system, cloud-based design, manufacturing and materials handling systems, cloud computing, 5G, IoT, Blockchain, artificial intelligence, digital twins, big data, and augmented reality [16]. The proposed business model is based on I4.0 technologies, a platform approach within the digital ecosystem and is aimed at shaping the “supply chain as a service”. It integrates all the processes and stakeholders involved in manufacturing and logistics based on the material, financial, and information flows of service supply chains [30]. A cloud supply chain based on a platform approach allows the system to dynamically manage the physical supply chain in real time, focusing on customer needs [16] and can be considered as one of the important subsystems of the SCE for city manufacturing.

2.2. Knowledge Management Based on OI and EC Through a Platform Service Supply Chain

Knowledge management based on OI and EC is one of the key aspects of the sustainable development of the SCE of a CMFMC within a large city.

Sá et al. [32] defined the OI as “an innovation strategy in which organizations use internal and external knowledge to leverage their business value, thus maintaining a sustainable competitive advantage”. The development of the SCE of smart sustainable cities is accelerating as all aspects of the life of individuals and legal entities are covered by digital platform support. The active involvement of the population of a smart sustainable city in innovative processes in the SCE of CMFMCs is based on openness and mutual trust and is associated with a personal interest in products and services that meet their needs [33]. Therefore, deliberate inflows and outflows of useful knowledge in the CMFMC become the property of society, which excludes the monopoly of knowledge and innovation of the SCE actors [34,35]. Thus, the paradigm of OI in SCEs of CMFMCs is becoming a generally accepted model of entrepreneurship and city manufacturing development in smart sustainable cities, and the socialization of its population [13,34].

A key role in the selection of OI products is played by the limitations of energy and resource consumption in each SME of the CMFMC, which are determined by the smart contrast with their suppliers within the large city [9,10]. Obviously, the energy and resource consumption of new technologies and products being introduced by enterprises should not exceed the established limits of energy and resource consumption. Nevertheless, within each production building of the CMFMC, SMEs can redistribute electricity consumption by mutual agreement within the limits allocated to the building, taking into account current production plans [10].

The spatial proximity of all participants in the SCE of a CMFMC contributes to the collective OI activity, which is a continuous and dynamic flow of knowledge through the PSSC [7,35]. The effective management of the knowledge flow in OI is an important aspect of the successful development of CMFMCs and the key tasks of SCEs orchestrator and the focal firms (owners of the PSSCs) [30,36].

The orchestrator of a digital SCE is the focal firm, the owner of the PSSC. The role of the orchestrator of the physical SCE as a service as a knowledge broker, its legitimacy, and its place in the spatial configuration have not been sufficiently studied. It is unclear whether the orchestrator of the physical SCE as a service belongs to the government or university or cluster structures, what tasks and mechanisms of their resolution are in the scope of its activities, and how interaction with the main actors of the SCE, including the focal firm (owner of the PSSC), is carried out. These issues are important from the point of view of organizing an effective centralized innovation environment, in which the role of the orchestrator of the physical SCE as a service is to organize the flow of knowledge in the SCE, and the role of the orchestrator of the digital SCE is to ensure the knowledge flow through the PSSC for all stakeholders.

Digital platforms are the most important online resource that determine the economic, social, and environmental aspects of human activity in a smart sustainable city [28,37]. In logistics, at the initial stage of development, digital platforms were used by service providers to demand logistics services under uncertainty with the ability to visualize supply processes for all stakeholders [38,39]. The further development of high-tech I4.0 has led to the emergence of PSSCs with a significant expansion of the range of opportunities provided to their customers [40]. According to Lin et al., 2021 [30], the PSSC is ‘a service supply chain with a platform providing not only logistics services as core offerings, but also other value-added services that support logistics services’. The owner of the PSSC using digital transformation and internet technologies provides a software resource for information support and meeting the needs of suppliers and customers with service supply chains without physical participation in their implementation [16,30]. The main service provided by PSSCs within the CMFMCs is the logistics service related to the cargo delivery from suppliers to customers [30]. The logistics service includes a supply chain of sub-services such as the selection of rational transportation routes, vehicles, loading–unloading, warehousing and distribution operations in CLNs, and the real-time monitoring of the transported cargo [41,42]. The supply chain of ancillary services through PSSCs in KM based on OI and EC is aimed at ensuring the implementation of the main service in the shortest possible time and is associated with the provision of services such as banking, accounting, tax, innovation, education, services, etc. [13,18]. The PSSC is a digital platform with an open architecture, which is based on cloud and network (IoT, Blockchain) technologies and has the ability to integrate with other platforms of services of various orientation, ownership forms, and consumer coverage levels (from local to transnational) in case of the need of interested actors. The involvement of a large number of service providers within the PSSC based on the balance of supply and demand contributes to the innovative development of a CMFMC based on its SCE [4,18].

Cooperation based on a platform-based approach is especially important in crisis situations, e.g., during the COVID-19 pandemic, as it allows you to quickly respond to emerging challenges and effectively manage innovation processes under uncertainty [37]. The PSSC integration with Not-for-Profit Entities (NFPEs) applications, e.g., crowdsourcing applications, facilitates the involvement of a large number of people in an innovative approach to solving various environmental, social, and ecological problems of a CMFMC. Participation in crowdsourcing allows all stakeholders to attract innovation providers both inside the CMFMC (spawned startups) and outside it (university spin-offs) and thereby improve the cluster’s infrastructure and more effectively reconfigure its supply chain of products and services, including educational services [43,44].

Lin et al. 2021 [30] proposed ‘a conceptual structure of a PSSC’, which highlights a triadic relationship among suppliers, customers, and the focal firm. According to this simplified approach, all participants in a digital SCE formed by a focal firm through a PSSC can be classified as either service providers or clients, and the roles of service provider and client can change dynamically [16,30]. The triadic structure of the PSSC platform does not distinguish between suppliers of innovative services, which makes it difficult to understand the importance and role of startups in the development of the SCE of a CMFMC. Therefore, the allocation of the ecosystem orchestrator as a conductor of startups and accelerators of their implementation in the structure of the PSSC is justified. The PSSC could also focus on innovation processes related to improving production, products, and services [18,30]. Thus, the PSSC structure and its innovative orientation is not sufficiently studied, including within the SCE of a CMFMC, considering the actors operating in it. The following section presents a conceptual framework for KM based on OI and EC in the SCE of a CMFMC to effectively create collective knowledge flow.

3. A Conceptual Model of Spatial Configuration of the SCE Within CMFMC for KM Based on OI and EC

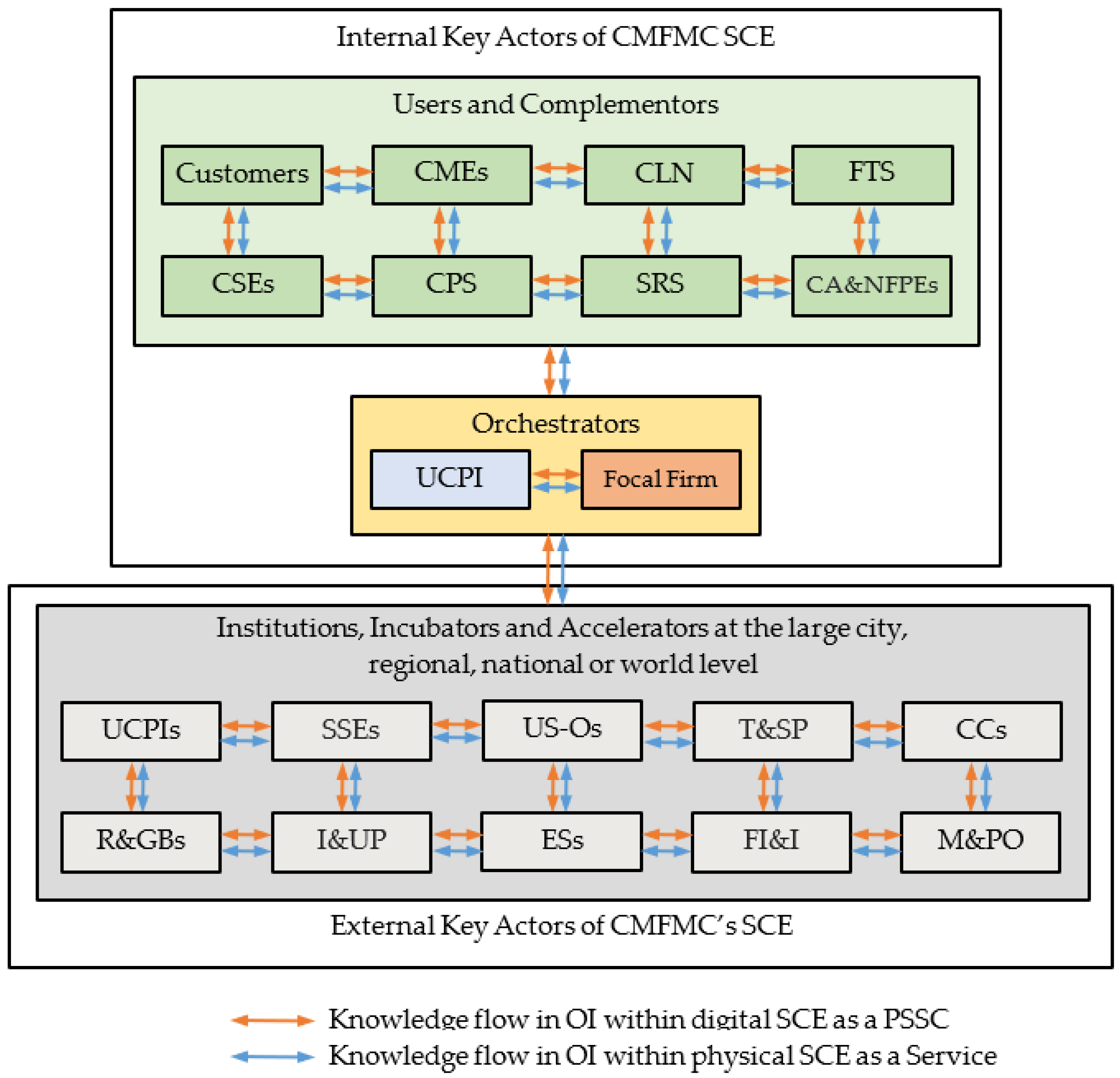

The spatial configuration and key actors of the SCE within a CMFMC for KM based on OI and EC are shown in Figure 2. The SCE is represented by internal and external key actors of the CMFMC. The internal key actors of the SCE of a CMFMC are users, complementors, and orchestrators that are directly involved in the supply chain, and the external key actors that are not directly involved in the supply chain but influence it by contributing to its legitimacy and sustainability [22,29]. It is rather difficult to unambiguously identify the key actors of the SCE of a CMFMC and to which of the presented groups they belong due to the fact that the same actors can change their affiliation to a particular group of actors or even represent them simultaneously [22,45]. Nevertheless, the differentiation of key actors into four groups is necessary for a better understanding of their role in innovation processes and KM based on OI and EC within the CMFMC.

Users are the main actors in the SCE of a CMFMC as their beneficiaries or end consumers who are directly involved in the innovation processes of creating products and services within the KM based on OI and EC. They include the following:

• Customers: CMFMC residents (individuals and legal entities) who use its products, services, and the PSSC, participate in their improvement, and benefit from smart mobility, clean energy, sustainable products, circular economy practices, etc.; non-residents of the CMFMC within the larger city (municipal entities who apply cluster-tested innovations to urban infrastructure and services related to public transport, renewable energy sources, municipal and industrial waste, hospitals, and public engagement [2,46]; Advanced Technology and Educational Parks (ATEPs) who use the SCE for applied research and development (R&D), training, prototyping, and engage with case studies to test and refine innovations; and industrial and technology parks who apply cluster-tested innovations to improve its efficiency [4,47].
• Cluster manufacturing enterprises (CMEs) who adopt innovations for smart sustainable product and service development, serving as testbeds or scale partners for city manufacturing technology using a PSSC [7].
• Cluster startup enterprises (CSEs) who use shared CM spaces (e.g., FabLabs, coworking and other collaborative spaces) and digital tools (artificial intelligence, computer-aided technology, 3D printing, IoT, Blockchain, PSSC, etc.) to create innovative products and services [27,48].

Complementors as supplementary actors are not part of the main supply chain of innovation, but ensure its operation by providing additional products and services, such as the following:

• A cluster procurement service (CPS) is a network of enterprises providing services in the field of the procurement of raw materials and components for the cluster’s needs [7,16].
• A sales and return service (SRS) is a smart sustainable channel for the distribution of cluster products to users (e.g., cluster shopping centres, parcel lockers, and delivery, couriers, moving, and crowdshipping services for last mile delivery, etc.), their after-sales service, return, reuse, and recycling [13,49].
• A CLN is a logistics facility within the CMFMC (usually located near the shopping centre), which serves as a lead sustainability and smart service provider. It receives, sorts, temporarily stores, and ships cargo to users, CPS, and SRS with the provision of fulfilment services and using the PSSC [4].
• The FTS of a CMFMC includes delivery, couriers, moving, and crowdshipping services using enterprises and public and individual vehicles such as intelligent reconfigurable trollies, autonomous mobile robots, freight elevators, light e-trucks, buses, trams, trolleybuses, subways, pickups, cars, light commercial vehicles, motorcycles, bicycles, and drones [13,50].
• Cluster associations and NFPEs (CA&NFPEs) promote equal access to manufacturing careers, ethical practices, sustainability and compliance, maker spaces and cooperatives, reducing barriers to innovators [13,29].

The external actors of the SCE within a CMFMC are divided into two categories, one of which is involved in the innovation supply chain and KM based on OI and EC, and the other has an impact but is not directly involved in the innovation supply chain. The first category of external actors of the SCE includes the following:

• UCPIs of other CMFMCS in the larger city [13].
• Spawned startup enterprises (SSEs) [18].
• University spin-offs (US-Os) are enterprises that use the know-how based on university scientific and applied research, knowledge, and technology to accelerate the creation of innovative products and service using leveraged capital and entrepreneurial talent [51,52].
• Technology and startup providers (T&SPs) offer innovation designs, technologies, equipment, software, services, and innovation hubs for CM (e.g., 3D printing, computer-aided technology, manufacturing execution system, enterprise resource planning, cloud-based design, manufacturing and materials handling systems, cloud computing, 5G, IoT, Blockchain, artificial intelligence, digital twins, big data, FabLabs, shared factories, coworking, makerspaces, PSSC, etc.) [16,48].

The second category of external actors of the SCE includes the following:

• Regulators and government bodies (R&GBs) are the regulators of trade policies, environmental laws, labour standards, certification, and ESG (Environmental, Social, and Governance) initiatives, and provide preferences for smart sustainable innovative technologies within the city manufacturing development strategy [3].
• Municipal infrastructure and utility providers (I&UPs) offer renewable energy and natural resources, communications, public transport, and green technologies including facility and waste management, and support the physical and digital basis of CM using the PSSC [9,53]. The I&UP set and regulate utility resource consumption limits, including electricity, for each production building in the CMFMC [10].
• External suppliers (ESs) of raw materials, components, services.
• Financial institutions and investors (FI&Is) provide financing, subsidies and grants, venture capital, crowdfunding and crowdlending, public–private partnerships, financial analysts, and insurance services to fund pilot projects, scale innovations, and support risk-taking and experimentation.
• Media and public opinion (M&PO) as actors shape consumer perceptions and CMFMC reputation.
• Cluster competitors (CCs): other CMFMCs in the same city that influence the supply chain innovation strategy and market conditions [7,22].

The two orchestrators of the cluster’s SCE are the UCPI and the focal firm, the owner of the PSSC, which, respectively, coordinate innovation activities as a physical SCE as a service and digital SCE as a PSSC [7,21].

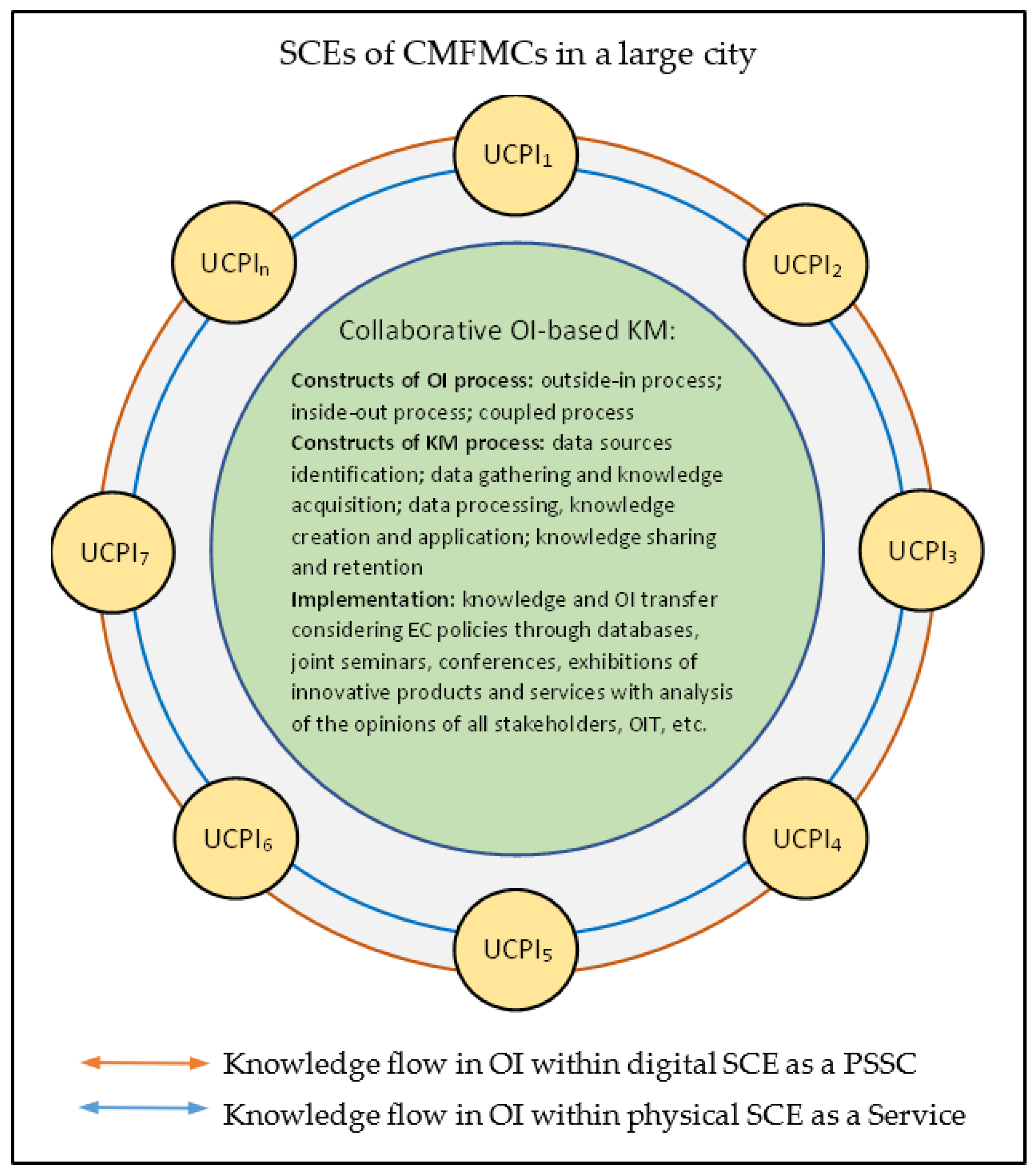

Knowledge flow in OI within a physical SCE as a service and a digital SCE as a PSSC encompasses all its key actors and flows through the orchestrators of the SCE of a CMFMC. The nineteen key actors in the SCE go through UCPI, three OI process (outside-in process, inside-out process, coupled process), and four KM processes (data source identification; data gathering and knowledge acquisition; data processing, knowledge creation, and application; and knowledge sharing and retention) [36,42]. The KM based on OI and EC, the knowledge flows through the UCPI to all actors in the SCE of a CMFMC, and the UCPI’s role as the SCE’s orchestrator are the subject of our study, which is presented in the following sections.

4. Methodology

4.1. Methodological Approach

This paper presents the concept of spatial configuration and key actors of the SCE of a CMFMC for KM based on OI and EC, among which the role of the orchestrator of the physical SCE as a service is assigned to the UCPI. In accordance with the purpose of this research, the UCPI is considered as a driver of OI in the SCE and an orchestrator implementing KM in it. Based on this concept, we adopted a qualitative approach to explore in depth the role of the UCPI in KM based on OI and EC within the SCE of a CMFMC. The case study is effective in situations where not enough is known about the object of study or the phenomenon under consideration [54]. The data collection and data analysis using the case study method allows us to form an understanding of the phenomena occurring in the studied object of a complex system, which can be attributed to the UCPI as the orchestrator of the SCE of a CMFMC implementing KM based on OI and EC. The case study method is useful both at the initial stage of studying an object in an unformed theory, and in an in-depth study of already-formed theoretical concepts [4,55]. Following this methodological approach, we carried out this study by setting up a seven-stage research framework including concepts (nineteen UCPI activities, OI processes, and KM processes) and its constructs as shown in Figure 3 [36,42].

A total of 108 respondents participated in this study. The qualitative analysis required that participants possess relevant experience in the research area to provide informed and contextually grounded responses [55]. The authors of this paper had experience of participating in research and projects related to the theme of CM, which determined the involvement of experts with academic and project experience in this field as interviewees. Experts with academic and design experience in the field of CM are also regional consultants on the selection and implementation of new smart sustainable solutions in the urban environment, which was an important reason for their involvement in the survey [42]. As the next group of interviewees, we involved in the survey specialists from entities from Szczecin (Poland), who can be classified among the nineteen key actors from among those proposed by us in the spatial configuration of the SCE of a CMFMC. Several boundary conditions were applied when selecting enterprises and organizations from Szczecin and interviewed specialists. This study considered only specialists of enterprises located in the residential area of the city, including both traditional CMEs and new-generation enterprises from among SMEs, FabLabs, SSEs, etc., and using 3D printers and coworking and other collaborative spaces to organize and stimulate innovation activities. The number of personnel at such enterprises (including urban divisions of major production and logistics operators) in the vast majority of cases did not exceed 100 employees. Each interviewee had the opportunity to participate in the survey both as an employee of the Szczecin entity and as a consumer of city products and services. As representatives of UCIPs and their managers, the UCIP of the Maritime University in Szczecin and the Regional Centre for Innovation and Technology Transfer of the West Pomeranian University of Technology in Szczecin were considered.

4.2. Data Collection Procedures

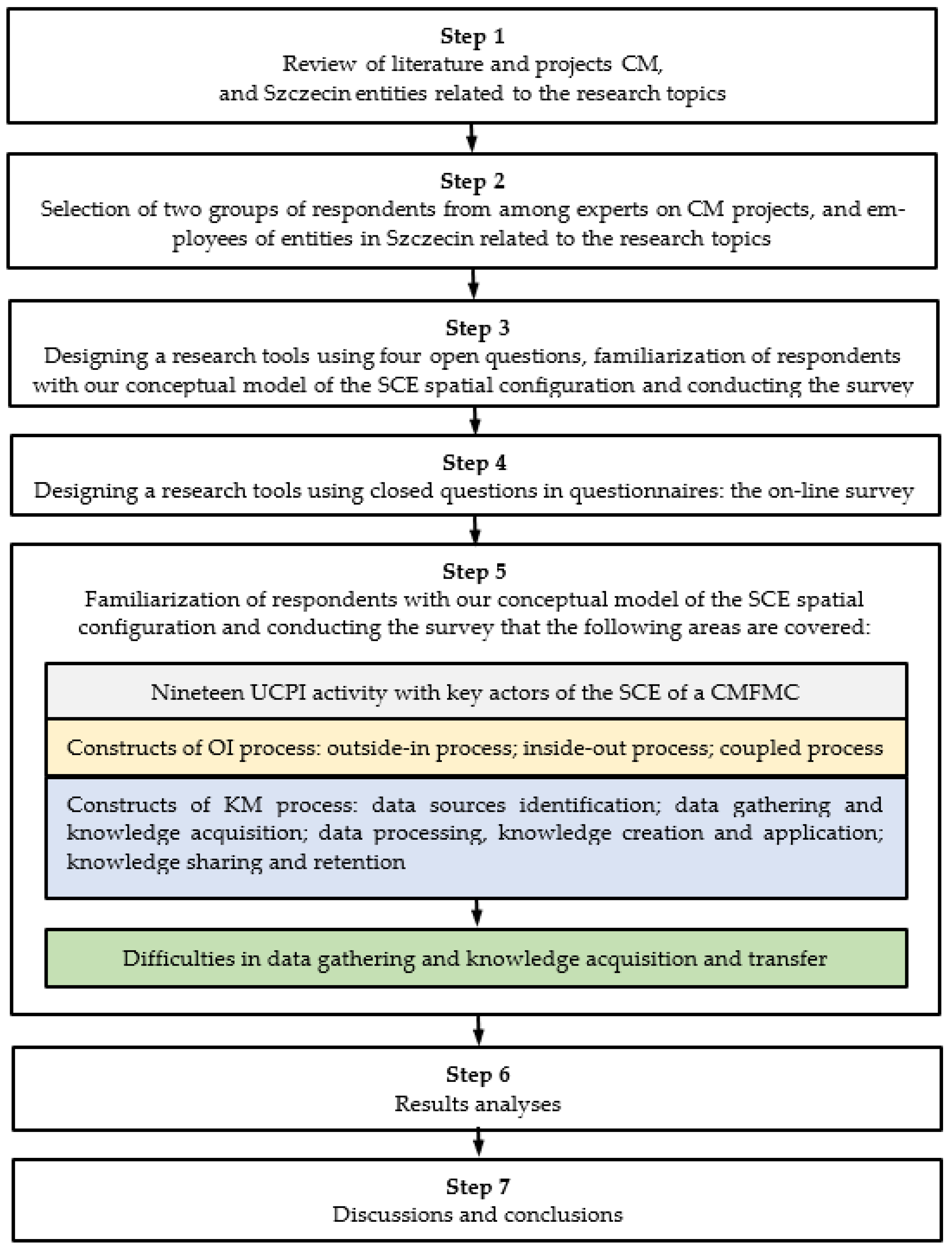

The preliminary literature review formulated four specific research questions that became the starting point of the present study. To uncover the role and nature of the UCPI’s capabilities and linkages as an orchestrator of the SCE of a CMFMC with its nineteen key actors’ activities, we applied a case study and qualitative analysis methodology [55,56]. This study involved two distinct respondent groups. The first group comprised 32 academic experts, while the second group included 76 professionals—engineers, managers, investors, journalists, and government officials—representing both commercial and non-commercial entities in Szczecin, Poland. These participants were selected based on their affiliation with key actors identified in the literature review phase of the CMFMC SCE.

This approach was supported by two interviews with two groups of survey participants. The first survey was conducted face-to-face and online using four open-ended questions formulated as the specific research questions of this study, supplemented by an indication of the OI and KM process constructs. The questions were supported by references to publications on the theme of this study. The first face-to-face surveys with the second group of interviewees were conducted for at least 40 min with leading questions and transcripts with the promise that they would be used only for this study. The purpose of such approach was to minimize the difference in professional background and perception bias of the second group interviewers and to broaden and deepen the analysis to overcome the lack of qualitative methodology [35]. Face-to-face surveys of participants in the second group of interviewees with leading questions facilitated the qualitative construction of inductive concepts and factors that could explain a UCPI’s ability to overcome barriers related to organizing a CMFMC in large cities and KM based on OI and EC. After categorizing the responses, a questionnaire with fifteen closed-ended questions was developed using a computer-assisted web interview to conduct an online survey of participants from the first and second survey groups who participated in the first interview. Participants in the two survey groups were interviewed in 2025 with their written consent. At the final stage of the survey, the number of participants in the first and second groups of interviewees was 32 and 56 people, respectively. The characteristics of the participants of the two groups of interviewees are presented in

Table 1. Characteristics of interviewees and years of experience in the first research step.

Qualification	Experience in Years	Frequency (N = 108)	Percentage of Total Interviewees
Researcher	<5	4	3.7%
	≥5	28	25.9%
Engineer	<5	9	8.3%
	≥5	26	24.1%
Manager	<5	8	7.4%
	≥5	22	20.4%
Investor	<5	2	1.9%
	≥5	4	3.7%
Government official	<5	3	2.7%
	≥5	2	1.9%

and

Table 2. Entities in Szczecin (Poland) represented by the interviewees.

Maritime University in Szczecin	Universities and Education
West Pomeranian University of Technology in Szczecin
Digital Draft	Enterprises (business, IT, manufacturing, services)
Bitemedia
IFox
Bardins Sp. z o.o.
SIMLOCK Szczecin
3D Szczecin
3DProdruk
3D Printing—Digital Craftsmanship
Plastipol Poland Sp. z o.o.
FabLab Szczecin
Getsix Szczecin Sp. z o.o
Galaxy—Shopping and Entertainment Centre
Red Sky
3DStart
Mabo
DPD Polska Sp. z o.o. Szczecin Branch
Kurier BPS
Tania Paczka
ENEA Operator Sp. z o.o. Distribution branch in Szczecin
Ecoinnovazione
Combinat Coworking	Incubators, Technology Parks, Coworking Spaces
Technopark Pomerania
Invest in West Pomerania
Szczecin Spatial Planning Office City	Government/Municipal Bodies
Głos Szczeciński	Mass Media
Radio Szczecin

.

The 5-year threshold was chosen based on established practice in qualitative research for distinguishing between “early-career” and “experienced” professionals [42].

4.3. Data Analysis

The theoretical understanding of KM based on OI and EC within the SCE of a CMFMC was based on a three-level abstraction using an inductive approach [56,57]. Initially, we analyzed the responses of all participants in the first survey of the third stage of the research (see Figure 2). We analyzed key words, text fragments, ideas, and categories contained in the transcripts and answers of interviewed respondents and related them to the research theme. As a result of coding and sorting the responses, we identified 15 topics that illustrated the type of problem, the spatial configuration, and key actors of the SCE of a CMFMC; the operational aspects of KM based on OI and EC within it; and the role of the UCPI in OI-based KM to bolstering and boosting innovation and startups, and to overcoming the barriers associated with the CMFMCs organization in large cities. Aspects related to the concepts of KM based on OI and EC, and their constructs, were taken into account. The identification of patterns in the categories of the third stage made it possible to identify 15 topics and accompanying thoughts and ideas. The fifth stage of this study was conducted according to a structured three-stage procedure:

• Familiarization: Respondents were first presented with the conceptual model of the SCE of the CMFMC and 15 topics with one common question: “How do you rate the importance of the topic for the development of the SCE CMFMC on the 5-point Likert scale?”. This step ensured a uniform understanding of key concepts, reducing cognitive bias.
• Clarification Questions: Participants were allowed to answer open-ended questions and seek clarifications, minimizing misinterpretation and increasing response accuracy.
• Structured Evaluation: Respondents completed a standardized questionnaire consisting of 15 items measured on a 5-point Likert scale. The tabular format (see

  Table 3. Survey results on the importance of identified topics for key actors in the CMFMC SCE.

  No of Topics	Keys Actors of the SCE of a CMFMC for KM Based on OI and EC by the UCPI *																			Average	SD	Median	Mode
  	CUST	CMEs	CLN	FTS	CSEs	CPS	SRS	CA-Es	FF	UCPIs	SSEs	US-Os	T&SP	CCs	R&GBs	I&UP	ESs	FI&I	M&PO
  1	3.91	4.47	3.88	3.91	4.34	3.13	4.03	4.41	4.50	4.47	4.53	4.06	3.09	3.91	4.0	3.13	2.63	4.13	2.84	3.86	1.13	4	5
  2	3.69	4.44	3.91	3.69	4.59	3.28	4.09	4.03	4.47	4.50	4.25	4.56	4.19	3.72	3.38	3.06	4.06	3.44	3.47	3.94	1.06	4	5
  3	3.88	4.19	4.0	3.59	4.22	3.63	4.06	4.0	4.06	4.34	4.13	4.0	4.25	3.97	3.97	3.19	3.69	4.06	3.5	3.93	1.03	4	4
  4	3.91	4.13	3.63	3.47	4.50	3.69	4.06	3.84	4.44	4.50	3.81	3.84	4.0	3.84	3.34	3.50	3.25	4.13	3.47	3.86	0.92	4	4
  5	4.22	4.31	4.22	4.03	4.38	3.78	4.16	4.19	4.34	4.32	3.53	3.88	4.19	4.22	4.13	3.81	3.22	3.84	3.44	4.0	0.95	4	4
  6	3.59	4.09	3.94	3.66	4.25	3.53	3.69	3.91	4.06	4.34	3.69	4.06	3.41	4.19	4.09	3.56	2.97	3.72	3.88	3.82	0.91	4	4
  7	3.34	4.09	3.75	3.69	4.31	3.63	3.94	3.97	4.38	4.19	4.41	4.22	4.13	3.97	4.19	3.38	3.06	3.69	3.84	3.90	0.95	4	4
  8	2.97	3.63	3.38	3.28	4.03	2.97	3.44	3.69	4.34	4.19	4.17	4.13	3.53	3.88	3.56	3.34	3.47	3.59	3.72	3.65	0.97	4	4
  9	3.43	4.03	3.41	3.44	4.31	3.72	3.38	4.03	3.97	4.03	4.16	4.13	3.78	4.06	3.97	3.75	3.72	3.59	3.63	3.81	0.93	4	4
  10	4.06	4.13	3.47	3.50	4.13	4.09	3.75	3.28	3.53	3.72	3.81	3.78	3.66	3.34	4.19	3.44	2.94	3.84	3.31	3.68	0.97	4	4
  11	2.66	3.75	2.81	3.09	3.38	3.22	3.72	2.31	3.34	3.13	3.88	3.78	3.21	3.53	3.41	2.65	2.06	3.44	2.47	3.15	1.04	3	3
  12	3.22	3.81	3.47	3.57	4.12	2.69	3.35	3.51	3.78	3.87	3.34	3.25	2.78	3.94	3.98	3.03	2.97	3.22	3.40	3.44	1.02	3	3
  13	3.63	3.65	3.56	3.31	3.94	3.43	3.06	3.78	4.03	4.06	3.88	3.44	3.59	4.03	3.94	3.34	3.28	3.06	4.19	3.64	1.03	4	4
  14	3.59	3.91	3.66	3.06	4.28	4.09	4.47	3.88	3.91	4.03	3.56	3.34	3.25	3.84	3.13	3.56	3.44	3.47	4.09	3.66	1.10	4	4
  15	3.97	4.25	3.91	3.94	4.0	3.97	3.56	4.19	4.34	4.44	4.38	3.34	3.66	3.5	3.03	2.91	4.13	3.81	4.13	3.87	1.04	4	4

  * CUST—customers, CA-Es—CA&NFPEs, SD—standard deviation.

  ) facilitated consistent input and reduced data entry errors.

This design reinforced internal reliability, as all participants engaged with the same conceptual framework and followed identical procedures. The post-survey analysis included testing the agreement of mean scores between the key actor of the SCE using Pearson’s correlation.

The fifth and sixth stages of research were aimed at identifying patterns at a higher level, which made it possible to identify the main difficulties in data gathering and knowledge acquisition and transfer and to substantiate theoretically the ways of overcoming them, as well as their theoretical implications. A critical view of the performed research was supported by discussions of the obtained theoretical and practical results, including answers to four specific research questions. As a last step we substantiated theoretical and practical conclusions, limitations, and future research directions.

5. Results

A joint analysis with respondents of the answers to open-ended questions in the third stage of the study revealed two groups of suggestions. The suggestions common to both groups are the understanding that the UCPI acts as a knowledge broker, its custodian, provider, and evaluator, and an orchestrater, connecting innovation processes and the SCE of a CMFMC [52,58].

The first group of interviewees’ suggestions is related to improving the current activities of the UCPI and includes traditional aspects such as promoting the scientific activities of the university in accordance with its profile; supporting research by scientists and students (e.g., in scientific circles); registration, the submission of applications, monitoring the implementation of projects, R&D, patents, and reporting documents; the development of scientific and technical cooperation with regional, national, and transnational stakeholders; the preparation and holding of scientific and educational events (conferences, seminars, courses, etc.); the provision of databases of digital platforms (including PSSC) of legal, commercial, marketing, and patent information related to innovation activities; the advertising of innovative achievements, prototypes at exhibitions and fairs to attract US-Os, CMEs, investors, etc. [4,47,59].

The second group of interviewees’ suggestions identified the following 15 topics for bolstering and boosting innovation that significantly expand the capabilities of the UCPI as an orchestrator of the SCE of a CMFMC:

• The formation of the spatial configuration and key actors of the SCE of a CMFMC for KM based on OI and EC, one of the main prerogatives of the SCE orchestrator.
• Involving students in the innovation process based on OI-based KM through the creation of FabLabs, coworking spaces in the university environment equipped with smart sustainable technological equipment for the development of innovative products and services.
• The organization of training for young people from lyceums and technical schools with the involvement of students from among those who have mastered smart sustainable technological equipment (primarily 3D printers) to train young people living in the CMFMC area.
• The formation of databases of 3D projects of innovative products of the CMFMC: the creation of an innovative product within the SCE for OI-based KM implies free access to its detail design via the PSSC.
• The organization of associations that promote the smart sustainable development of the SCE of a CMFMC: training, retraining, monitoring compliance with ethical standards, and the certification of members of various associations.
• The creation of an advisory council at the UCPI: the formation of a strategy for the smart sustainable development of the SCE of a CMFMC for OI-based KM by involving scientists, innovators, students, associations heads of the SCE entities, etc., in its activity.
• Attracting investors to innovative projects of the CMFMC: participation in the creation and advisory support of crowdfunding and crowdlending associations of the SCE, attracting domestic and foreign investments to support startups, US-Os and business incubators.
• The formation of a student design association and bureau: the development of student design groups and bureaus, providing training in design using advanced computer-aided design software and product scanning.
• The creation of a register of the technological equipment of enterprises with an indication of existing limitations on the consumption of utility resources, including electricity, and the throughput capacity of freight elevators in the production buildings of the CMFMC: the formation of the structure of the smart sustainable technological equipment fleet and its rational grouping in the buildings using a PSSC to organize the network production of innovative products and services.
• Performing marketing research in the CMFMC contributes to the expansion of the range of manufactured products, the flexibility of production services, and allows us to forecast the needs for technological equipment.
• Adherence to priorities of digital knowledge transfer and open innovation; it is more sustainable for digital transfer knowledge and OI than transporting finished innovative goods from other regions, countries, and continents.
• Organizing knowledge transfer through OI tourism (OIT): attracting mature startups with good scalability to the OIT contributes to the rapid development of CM and filling the local market with innovative products and services.
• The familiarization of OIT representatives with the cultural values of the city: immersion in a new cultural environment contributes to the generation of new ideas and the formation of new knowledge and innovative solutions.
• Interethnic communication within the framework of OIT enriches knowledge and creates opportunities for generating new ideas due to immersion in another ethnic and cultural environment and familiarization with local traditions, folklore, cuisine, and everyday life.
• The familiarization of OIT representatives with local businesses products and services broadens the horizons and knowledge of stakeholders, which contributes to a boost in innovation activities.

Table 3 presents the results of the fifth stage of this research (see Figure 3).

The results summarized in Table 3 form the empirical basis for the discussion in Section 6, where each topic is analyzed in relation to the four research questions.

The mean values of the questionnaire results presented in the columns of Table 3 with the heading “Keys Actors of the SCE within a CMFMC for KM based on OI and EC by the UCPI” are obtained from the survey of representatives of Szczecin entities. The remaining columns show the integrated statistical results of the survey of all interviewees, including both project experts and interviewed representatives of Szczecin entities.

The Pearson correlation analysis showed a high degree of agreement between the ratings of several actors. The strongest relationships were observed within the internal key actors of the CMFMC SCE, e.g., between CMEs and SSEs (r = 0.82), CLN and FTS (r = 0.80), and CMEs and CLN (r = 0.72). High coefficients were also recorded for the pairs CLN and CA&NFPEs (r = 0.91), customers and CLN (r = 0.79), and CSEs and CA&NFPEs (r = 0.77). At the same time, some actors exhibited low or negative correlations. For example, CMEs and CCs (r = −0.26), customers and CCs (r = −0.12), and FTS and CCs (r = −0.05) showed a lack of agreement. Relatively weak relationships were also found for the pairs CESs and CPS (r = 0.23) and FTS and SRS (r = 0.31). Thus, while most actors show a moderate to high degree of agreement, CCs noticeably stands out from the overall pattern, demonstrating weak or negative correlations with other participants.

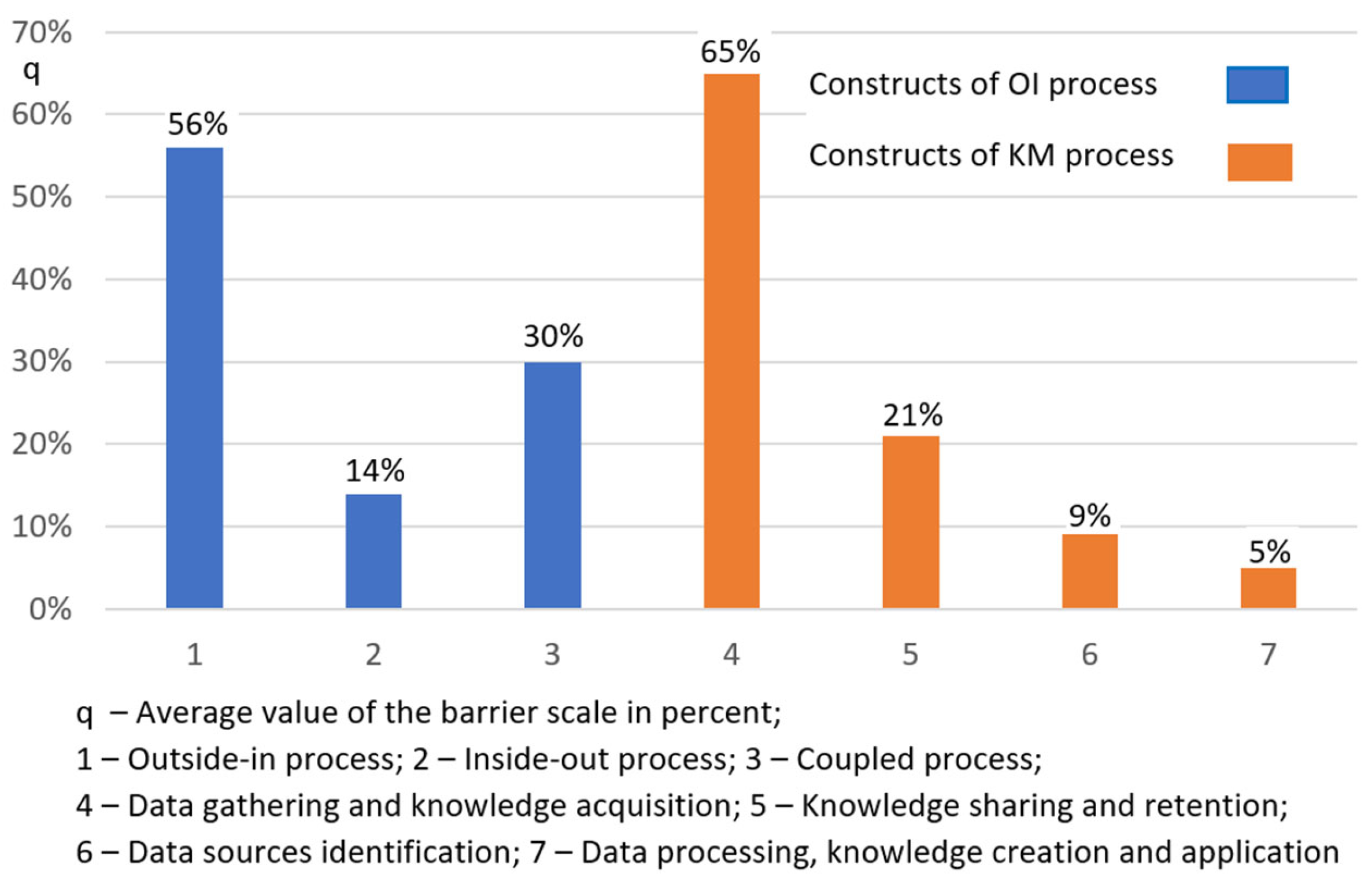

The second survey of two representative groups of interviewees revealed barriers in the implementation of OI and KM process constructs for key actors in the SCE (see Figure 4). The greatest challenges for key actors in the SCE of a CMFMC are the outside-in process in OI and the data gathering and knowledge acquisition in KM, which is consistent with findings from other studies [36,42].

6. Discussion

The discussion is structured to directly address the four research questions posed in the Section 1. Based on the obtained results, the research questions posed can be answered as follows:

(1)

RQ1: As shown in Table 3 (themes 1, 4, and 6), the spatial configuration and actor interactions emphasize collaboration hubs, shared facilities, and resource mapping. Our findings confirm that the SCE of a CMFMC consists of 19 key actors grouped into internal and external categories. The spatial configuration reflects both physical infrastructures (e.g., CMEs, CLN, etc.) and digital platforms (knowledge databases, registries). Respondents emphasized that orchestrators such as the UCPI are central in coordinating flows across these actors. This expands earlier conceptualizations of SCE by highlighting the dual modality: physical SCE as a service and digital SCE as a PSSC.

(2)

RQ2: Table 3 highlights the UCPI’s role across several topics (e.g., 1, 11, and 12), confirming its position as an orchestrator and knowledge broker. Evidence shows that the UCPI acts as a knowledge broker, evaluator, and orchestrator. Participants repeatedly stressed the UCPI’s legitimizing function in promoting innovation initiatives and ensuring alignment with energy conservation policies. The UCPI’s dual role—academic and practical—creates a bridge between policy frameworks and business practice, confirming its unique position in the SCE.

(3)

RQ3: Evidence from Table 3 (themes 2, 3, and 4) indicates that open databases, student involvement, and FabLabs are central mechanisms through which the UCPI boosts innovation. The survey and interview data indicate that the UCPI contributes by creating databases of designs, organizing FabLabs, involving students, and fostering open innovation practices. These initiatives reduce barriers for SMEs and startups and stimulate cross-sectoral collaboration. The concept of OIT, emerging from respondents’ suggestions, illustrates UCPI’s ability to attract and integrate external ideas and actors into the CMFMC.

(4)

RQ4: Several barriers listed in Table 3 (themes 5, 7, 8, 14, and 15) directly correspond to the challenges discussed here, including infrastructural limits, policy constraints, and the need for investment. The key barriers identified were limited data availability, challenges of outside-in OI, and infrastructural/energy constraints. The UCPI mitigates these barriers by serving as a central repository for data, facilitating resource mapping, and lobbying for improved infrastructure and policy support. While not all barriers can be resolved directly, the UCPI reduces their impact by coordinating stakeholders and advocating for systemic solutions.

According to the overwhelming majority of interviewees (89%), the SCE of a CMFMC self-organizes as the population and SMEs (including family enterprises) accumulate technological equipment and, above all, 3D printers, as they understand that value for themselves can be created jointly within the framework of network production and KM based on OI and EC [10,22,35]. The organization of network production begins with small steps, which, in the context of market relations, develop into a well-structured and balanced SCE of a CMFMC [7,60]. At the stage of SCE emergence, it is important for its orchestrators to be recognized as a conductor of innovations and an effective broker of knowledge and technology. It is important to understand that in the context of the self-organization of the ecosystem, the role of the UCPI in making innovative decisions is limited and cannot be ultimatum-like, but only advisory. The final decision is made by the users of the SCE of a CMFMC, taking into account the recommendations received, the experience of other users, and the market situation. Therefore, the orchestrator can only partially manage knowledge flows and technology transfer, which is also confirmed by previous studies. However, some of the interviewees from among the expert researchers emphasized the importance of the organizing role of the UCPI in the formation and legitimization of the SCE of a CMFMC [22].

The conceptual model of spatial configuration and key actors of the SCE of a CMFMC for KM based on OI and EC that we proposed was generally positively assessed by the interviewees. Most respondents believe that it is important to continue research on this theme and to refine the results obtained as CM develops in large cities. The strategic role of the UCPI in the legitimization of the new economic logic and the sustainable development of the SCE largely depends on the breadth of its range of actions, effective bolstering and boosting the innovative activity of the key actors of the CMFMC. It is important not only to lead the innovative component of the development of the SCE of a CMFMC, but also to maintain the position of its orchestrator, making effective decisions on KM based on OI and EC [22].

The use of OI in the SCE of a CMFMC is widespread and therefore is a priority condition for its sustainable development. However, based on the understanding that the concept of CM is broader than urban manufacturing and logistics due to the fact that it covers both traditional and network (and individual) production, closed innovations can also be implemented in the CMFMC (e.g., in CMEs with traditional production). At the same time, these same CMEs can also utilize OI. Thus, there are two types of innovations in the SCE of a CMFMC-OI and closed innovations, which are also supported by the UCPI. According to the interviewees, as the clustering of CM in large cities deepens, the share of closed innovation will decrease and can lose its importance as society socializes, giving way to OI. Such a phenomenon is also characteristic of smart sustainable megacities [35].

The implementation of OI based on the use of energy-consuming and high-performance technologies is limited by the established bounds of utility resource consumption, including electricity, and the throughput capacity of freight elevators in the production buildings of the CMFMC. Additive technologies are energy-intensive technologies with a relatively low performance. Therefore, the limiting parameter for the application of additive technologies in CMFMC enterprises is the restrictions on electricity consumption set by energy supply providers [7]. The use of automatic lines for the implementation of OI is limited by the established bounds on utility resource consumption (primarily electricity) and the throughput capacity of freight elevators in the production buildings of the CMFMC [2,10].

Some respondents noted the potential for a synergistic effect resulting from the joint KM based on OI and EC processes carried out by all orchestrators of the SCE of CMFMCs of a large city as a unified team. Figure 5 shows how the interaction of UCPIs through knowledge transfer and implemented OIs engages representatives of SCE key actors from all CMFMCs of the large city in a continuous collective innovation process.

In the opinion of the interviewees, the implementation of constructing OI processes as inside-out and coupled does not contain significant barriers to innovation. Nevertheless, the innovative activity of these processes is insufficient. The bolstering and boosting of innovation processes is associated with the creation of a favourable university environment for KM based on OI and EC through specialized laboratories with modern technological equipment and the involvement of students and young people in scientific and innovative activities. This is an important aspect of the policy of each university and their UCPIs. The acquisition of skills in operating smart sustainable technological equipment and, in particular, 3D printers by students is an important aspect in involving the youth in the CMFMC’s business activities. At the same time, the motto of the training is as follows: learn yourself, teach all family members, including grandparents. This approach promotes the development of family businesses within the framework of a smart sustainable approach to CMFMC development [61].

The establishment of student design bureaus and the identification and involvement of the work of talented young people from among students and pupils of lyceums participating in competitions to solve design and graphic problems using modern computer-aided design software products is one of the priority conditions for the development of the SCE of a CMFMC. Conducting marketing research is an integral part of creating innovative products and services. Three-dimensional models and prototypes of innovative items can be presented at local exhibitions and fairs and through media channels. An OI is considered implemented when its detailed design is included in the UCPI’s database and is freely accessible for use by key actors within the SCE of a CMFMC via the PSSC. When developing manufacturing technologies for innovative products and establishing a production network for their creation, respondents emphasized the importance of creating a registry of the CMFMC’s technological equipment and tracking its real-time utilization status. The presence of such a registry allows for the effective management of the equipment’s structure, composition, and location, as well as for forecasting the need for its modernization [7].

An advisory board can play a significant role in the development strategy of the SCE of a CMFMC for KM based on OI and EC. Although its recommendations are not mandatory for the leadership of entities of the CMFMC, the knowledge, experience, and competencies of advisory board members across a wide range of issues can contribute to the smart sustainable development of the SCE. The role of the advisory board is especially important in the creation of CA&NFPEs, which help enhance the overall efficiency of the CMFMC. This includes the establishment of associations such as an association of owners of CMEs; associations crowdsourcing for OI [62]; association for crowdshipping networks to engage the public in the last mile delivery of finished products to consumers within the CMFMCs and the surrounding area of same large city [13]; association for crowdfunding or crowdlending to support innovative projects; investment associations to attract domestic and foreign investments in support of startups, US-Os, and business incubators [63,64]; and other associations.

The barriers identified by this study in implementing the constructs of OI and KM processes in the SCE of a CMFMC have shown the need to improve outside-in and data gathering and knowledge acquisition processes while prioritizing digital knowledge transfer and OI, strategies, and business models [65]. On the other hand, it is known that the collaboration of key actors in the SCE with external actors has a positive impact on the effectiveness of OI creation and KM [66,67]. In this regard, it is important to organize OIT as another effective mechanism for the transfer of knowledge, technology, and OI. The analysis of the survey results (topics 11–15, see Table 3) showed that OIT is, in the opinion of interviewees, one of the most promising areas of KM, providing support and the stimulation of knowledge transfer and OI.

The OIT provides for the temporary departure of OI representatives from their place of permanent residence at the invitation of the SCE entities (including the UCPI) to combine the exchange and transfer of OI and technology, professional knowledge, skills, and competencies with tourism purposes at the expense of the host party and without receiving income. The OIT is not limited to the exchange or transfer of knowledge, technologies, and OI. It is primarily aimed at the generation of new ideas, mutual enrichment with new knowledge and competencies, and being beneficial to all stakeholders. The consequence of such communication is not only the exchange of OI tourist practices, but also the involvement of the host party in the processes related to OIT in other regions. The invitation to colleagues in the framework of OIT is aimed at attracting mature startups with good scalability and begins with the search for innovative products and services, and enterprises that provide them on various information platforms. The selection of mature startups helps to reduce barriers to their implementation, and establish the use of proven practices, methods, techniques, and tools for KM based on OI and EC [68]. The OIT implies expanding the boundaries of innovative cooperation, involving representatives of different countries and nationalities without any restrictions within the legal framework of the host country. The successful inflow and implementation of knowledge into the SCE of a CMFMC as a result of OIT requires certain abilities and skills of international communication from its recipients [69]. Cross-national communication as an element of OIT contributes to the creation of multinational enterprises in CMFMCs, increasing the absorptive capacity of people to perceive and use new knowledge from their environment [70]. In this sense, KM based on OI and EC in the SCE provides opportunities for mutual learning and enrichment with new knowledge for all stakeholders as a result of OIT implementation, while at the same time allowing them to focus their activities primarily on creating truly new value both within and outside the CMFMC [27].

7. Conclusions

The SCE of the CM system is a new paradigm of the innovative development of a smart sustainable city. CM clustering in large cities is a consequence of its smart sustainable development within the framework of I4.0 technologies and is aimed at rapidly meeting the needs of their residents in products and services and reducing both urban and global traffic [4,13]. The increase in the share of urban manufacturing in the total volume of CM due to the development of SMEs has led to the reengineering of traditional city manufacturing and the prevalence of the OI as a new approach to the creation of innovative products and services [35]. The SCE of each CMFMC is an integral part of smart sustainable cities and aims to ensure effective innovation activities based on OI-based KM in order to meet the local market needs for new products and services [7,18,36]. This study aimed to develop a conceptual model of the SCE of a smart sustainable CMFMC for KM based on OI and EC and to answer the four research questions posed. As a result of the qualitative study, we derive a new model of the spatial configuration and key actors of an SCE of a CMFMC for KM based on OI and EC. The place and role of the UCPI as a physical orchestrator as a service of the SCE in bolstering and boosting the innovative activity of the CMFMC through KM based on OI and EC are shown. The barriers to the implementation of the constructs of OI and KM processes for the key actors of the SCEs of CMFMCs are identified and the role of the UCPIs in overcoming them is considered. Theoretical and practical implications are provided to enhance the understanding of the SCE of a CMFMC and the UCPI role as its physical orchestrator in bolstering and boosting innovation activities under OI-based KM, and in overcoming barriers in the implementation of OI and KM processes constructs. Finally, important limitations are identified to motivate the future research of KM based on OI and EC within the SCE of a CMFMC.

These findings, derived from the 15 topics summarized in Table 3, were systematically discussed in relation to the research questions. This study addressed four research questions concerning the SCE of CMFMCs. The results clarified the spatial configuration and actor structure (RQ1), the role of UCPI in knowledge management and policy (RQ2), its contribution to fostering innovation (RQ3), and its role in overcoming organizational, infrastructural, and energy-related barriers (RQ4).

7.1. Theoretical Implications

The theory of the ecosystem of smart sustainable CM has been further developed. First, we clarified that the term SCE of CM is a broader concept in comparison with the SCE of urban manufacturing and logistics due to the fact that it covers all types of production, from traditional mass and serial production to urban network and individual manufacturing within the residential area of a smart sustainable city [6,7]. Next, we extend previous studies that have shown that ecosystems can self-organize, but also have emphasized the role of the orchestrator in accelerating this process [22,29]. Here we have found out the conditions for the self-organization of the SCEs of CMFMCs, which are associated with the mass training of the population in the skills of working with modern technological equipment, primarily on 3D printers, and on this basis, the formation of the need for their purchase. We also found that this initial process of forming the SCE of a CMFMC is positively influenced by the creation of professional and technical associations of 3D printer users and heads of CMEs, primarily from among SMEs. Next, we found out that as the city’s population accumulates 3D printers and creates their registry based on a platform approach, conditions are created for organizing individual and network production within the framework of the created SCE associations. At this stage of the clustering of CM, the size of its SCE has not yet been fully formed and will be clarified as it develops. We also found out that involving users in the creation of innovative products and services is another important component of SCE development. At the same time, as a continuation of previous studies [35,36], we found out that OI will be in demand in the cluster ecosystem, while closed innovation and, partially, OI will prevail in traditional manufacturing enterprises. Secondly, as a continuation of ecosystem research [3,22,29], including CM ecosystems [16], we proposed a conceptual model of the spatial configuration of a CMFMC’s SCE, and identified its key actors from among users, complementors, orchestrators, and external actors, and channels of material, knowledge, information, etc., flows. Here we also reveal the role and functions of the key actors of the SCE of a CMFMC in its innovation activities. The theory of the ecosystem of CM has been further developed in the form of its physical and digital model, covering all entities of its key actors, and all operational processes, material, information, and financial flows [16]. We hereby expand prior studies by proposing in the SCE of a CMFMC two orchestrators responsible for the physical and digital supply chain of knowledge, technology, products, and services within the constructs of OI and KM processes. We further specify that the orchestrators of the SCE of a CMFMC are the UCPI and the focal firm that owns the PSSC, which, respectively, perform the roles of the physical orchestrator as a service and the digital orchestrator as a PSSC. Thirdly, we specify the role of the UCPI as a physical orchestrator in bolstering and boosting innovation activities in the CMFMC through KM based on OI and EC. We found that issues related to the role of the digital orchestrator of the ecosystem represented by the focal firm as the owner of the PSSC have been studied quite well [30]. However, very little attention has been paid in the scientific literature to the role of the UCPI as a physical orchestrator of the SCE of a CMFMC. We have tried to eliminate this gap in the present study. In addition to the traditional role of the UCPI as an orchestrator of the SCE within the constructs of OI and KM process, we have identified 15 topics, the development of which helps for bolstering and boosting OI in the CMFMC. We theoretically justified such approaches and tools within the framework of OI and KM as the formation of the spatial configuration of the SCE by the UCPI and the selection of its key actors, training the population in the use of 3D printers and involving them in the innovation process; the formation of databases of 3D projects of innovative products; the organization of separate professorial and technical associations within the CMFMC; the creation of an advisory council to identify promising areas of innovative development; the attraction of investors to innovative projects, creating and consulting crowdfunding and crowdlending associations, and the attraction of domestic and foreign investments to support startups, US-Os, and business incubators; the formation of student design bureaus; the creation of a technological equipment register in the CMFMC; the conduction of marketing research; following the priorities of digital knowledge transfer and OI; organizing international knowledge transfer through the OIT in order to immersing its participants in a new environment of communication; and acquaintance with the products and services of local businesses. Fourth, we expand prior studies related to barriers in constructs of OI and KM processes and overcoming them [35,36,42]. Our research confirmed that the main barriers in the implementation of OI and KM processes constructs for key actors in the SCE are the outside-in of the OI process and the data gathering and knowledge acquisition of the KM process. We associate the overcoming of these barriers with our proposed approach to the use of external resource provision by entities of the SCE of a CMFMC in the form of OIT, which is an extension of the theory of external resource provision for SMEs in the context of the limitations in the conditions of limited internal innovation resources [20,67]. We have shown that OIT reduces these barriers and promotes knowledge transfer and attracts mature startups with good scalability and the rapid development of CM, filling the local market with innovative products and services. An important feature of OIT is the possibility of the international participation of representatives of different countries in it, which contributes to the generation of new ideas and the formation of new knowledge and innovative solutions through immersion in a different ethnic and cultural environment; acquaintance with local traditions, folklore, cuisine, and everyday life; and products and services of local businesses. Fifth, we expand prior studies related to the external innovative resource provision of SMEs at the regional level [67]. Here we clarified the understanding that the mutual resource provision of the SCE entities in the form of knowledge, technology, and OI transfer through UCPIs is possible within a large city. The involvement of all SCEs of a large city and their UCPIs in a continuous collective OI process helps for boosting innovation in each CMFMC.

7.2. Practical Implications

Our research has some practical implications for managers of entities representing key actors in the SCE of a CMFMC within the smart sustainable city concept. First, we have proposed a spatial configuration of the SCE and identified its key actors, which allows us to outline the range of stakeholders in the CMFMC’s innovation activities. Managers can use our research to better understand the roles of key actors of an SCE and its physical and digital orchestrators in enhancing innovation activities in the CMFMC and specify the functions of the UCPI as a physical orchestrator to ensure effective KM based on OI and EC. Secondly, we found out that at the initial stage of SCE development, the main role in the formation of their spatial configuration and key actors are played by managers of the UCPIs, to whom we offered a comprehensive approach for involving the population (primarily students and youth of lyceums and technical schools) in individual and network production through the following: training in advanced technologies in university laboratories; coworking spaces; creating associations of 3D printer users for the mutual exchange of knowledge and skills; involvement in innovative activities within the framework of university scientific circles; the creation of databases of projects of OI products and services and a register of technological equipment of the cluster; and the exchange of experience and best practices of SMEs of CMFMCs of a large city. Thirdly, our findings show that the managers of the UCPI, in order to bolster and boost innovative activities in the SCE of a CMFMC within the framework of the constructs of OI and KM processes, can use a set of practical recommendations from among 15 topics identified as a result of the survey and related to the involvement of students in the innovation process based on OI-based KM as follows: professional and technical training and the certification of the population and members of their associations from among users and complementors; the use of the scientific and professional potential of the advisory board at the UCPI to identify areas of innovative development; attracting investors to innovative projects; using the potential of the student design bureaus; conducting marketing research; and adhering to the priorities of digital knowledge transfer and OI. Fourth, our findings show how managers from among the entities of users, complementors, and orchestrators of the SCE of a CMFMC can overcome existing barriers in the constructs of OI and KM processes. In particular, to overcome barriers in the outside-in process in OI and the data gathering and knowledge acquisition in KM, it is advisable to use OIT with the involvement of mature startups with good scalability from different countries of the world. Multiculturalism, interethnic communication, and immersion in a new cultural environment contribute to the generation of new ideas, as well as the formation of new knowledge and innovative solutions. Fifth, our findings provide managers of the UCPIs of a large city with tools for the legalization of a continuous collective innovation process by knowledge and OI transfer through PSSC, databases, joint seminars, conferences, courses, exhibitions of prototypes of innovative products and services with the analysis of the opinions of all stakeholders, etc. The collection, analysis, and implementation of the best OI-based KM practices by UCPIs managers is one of the factors of successful innovation activities in the SCEs of CMFMCs of a large city [42].

7.3. Limitations and Future Research

This study expands the understanding of the SCE of a CMFMC and its physical orchestrator as a service represented by the UCPI implementing KM based on OI and EC. However, as with any study, some limitations should be highlighted, which can be overcome in future research. The first limitation is related to the choice of Szczecin as the object of research of key actors of the SCE of a CMFMC. While Szczecin is a major city in Poland, it does not belong to the category of large European megapolises such as Warsaw or Berlin, and even less so to the group of densely populated megacities in Asia. In addition, Szczecin is at an early stage of clustering in terms of CM. This limitation was partially mitigated by the participation of project experts from various large cities across the European Union. Nevertheless, this research is still at a relatively early stage, and the applicability of its findings to megapolises with well-developed CM systems requires further verification in future studies. The participation of the authors in such studies, in collaboration with researchers representing such megapolises, would be of great interest. Another limitation is related to the use of a qualitative research methodology, which although reflects representative opinions of project experts from different countries of the European Union and interviewed stakeholders from Szczecin entities, does not allow for the generalization of the findings to other large cities or megapolises with their own historical, cultural, and national characteristics. Another limitation lies in the assessment of OIT as an effective tool for knowledge and technology transfer, and a generator of new business ideas and a multidimensional approach to mutual knowledge enrichment at different levels, ranging from professional to cultural and language exchange. Although the idea of such OIT seems intuitive, and we conducted a survey among entrepreneurs from Szczecin who travelled to other regions of Poland and the European Union with this mission, the evaluation of its possible international nature and effectiveness as an OI-based KM tool within the SCE of a CMFMC requires further research.
