The Effect of Initial Carbon to Nitrogen Ratio on Kitchen Waste Composting Maturity

Faculty of Integrated Technologies, Universiti Brunei Darussalam, Gadong BE1410, Brunei
Author to whom correspondence should be addressed.
Sustainability 2023, 15(7), 6191;
Submission received: 30 January 2023 / Revised: 29 March 2023 / Accepted: 30 March 2023 / Published: 4 April 2023
(This article belongs to the Special Issue Sustainable Waste Management and Utilization)


A home electrical composter has arisen as a popular tool to expedite the lengthy composting process. It has been conveniently selected as a compost producer in kitchen households and is especially favoured in urbanized settings. The generated composts from the electrical composter, however, are still found to be immature and would require additional curing. The quality of the compost can be improved by investigating the initial carbon-to-nitrogen ratio (C/N ratio) of kitchen waste. It is, therefore, the aim of this paper to determine the optimum initial C/N ratio by preparing two primary samples: with and without soil. Samples of 10:1, 15:1, 20:1, 25:1, 30:1, and 35:1 C/N ratios were fed into the electrical composter and allowed to cure for 4 weeks. The six main samples were further divided into sub-samples for replications. The phytotoxicity levels and maturity of the produced compost were assessed in terms of the germination index (GI), using a seed germination test. In addition, statistical analyses using box plots and T-distributed Stochastic Neighbour Embedding (T-SNE) were carried out to observe the root growths’ variability and to deduce any significant clusters amongst the samples. The results have shown that samples with and without soil performed better with C/N ratios of 10:1 and 25:1 and with GI values of 16.2 and 31.8, respectively. The results also indicate the presence of a substantial level of phytotoxins within the samples, even after four weeks of curing.

1. Introduction

Organic waste management is a major global challenge. The total amount of municipal solid waste (MSW) produced worldwide is estimated to be over 1.3 billion metric tons. It has also been estimated that 1.1 billion metric tons of food, which is about one-third of all food produced, are lost each year, with residential homes being the primary source of food loss in the food supply chain [1]. In Asia, about 26.2–43.5% of the total MSW consists of food waste [2]. MSW is frequently disposed of in landfills, where it undergoes aerobic and anaerobic processes that release harmful methane gas into the atmosphere. Methane gas is 23 times more potent and contributes more to global warming than carbon dioxide [3]. The collection, transportation, and disposal of a significant amount of MSW in landfills are also serious environmental concerns as these facilities are often located far from urban areas or waste-producing locations.
Incineration is another method of managing waste [4]. Electricity can be generated through the incineration of waste, thereby recycling the waste for useful purposes. Despite having the potential for reducing carbon dioxide emissions by about 2 million tons annually in comparison to electricity generation from coal, waste incineration still poses a negative impact on the ecosystem [5]. Naturally, the negative consequences of MSW and the absence of effective waste management strategies are limiting the potential growth of urban cities [6].
Composting and recycling are deemed effective methods of managing waste. They impact the environment less as they emit less greenhouse gas emissions than conventional waste management methods, including landfilling and incineration, and are therefore considered sustainable waste management methods [7]. Verma et al. [8] state that recycling and composting generate net greenhouse gas emissions of −1917.18 kg CO2.eq/t and −781.05 kg CO2.eq/t, respectively, with the negative value indicating net savings of emissions. In contrast, incineration and landfilling produced net greenhouse gas emissions of about 696.14 kg CO2.eq/t, which is considerably greater than both recycling and composting.
Indeed, as one of the Sustainable Development Goals (SDG), responsible consumption and production has included reducing waste production through recycling and composting of biodegradable organic waste [9] as one of its strategies. Recycling and composting have emerged as economical and effective waste management techniques. In the literature, researchers have designed devices to effectively identify wastes, including glass, cardboard, paper, and plastics, for segregation and further recycling [10]. However, not all waste can be recycled, and this includes food waste, which comprises 50% of the global MSW [11]. On the other hand, composting can be used as a management technique for food waste and can be seen as an effective waste management method, with the least detrimental impact on the environment and human health.
To shorten the composting process, improve compost quality and minimize effort, different methods of composting have been proposed. Some common conventional composting methods include windrow, bin, and in-vessel composting. Windrow composting stacks different types of compost in long, narrow piles or windrows and requires frequent manual stirring to re-establish porosity and aerate air into the pile. With the various types of composting material and turning equipment that may be used, the size and shape of a windrow composter may differ. Generally, windrow composting takes between 3 and 9 weeks to complete, depending on the compost material, turning intervals, and intended use of the compost. Another popular method for composting is by using a bin composter. It is an easy-to-use, low-maintenance technology that may be carried out with commonly available equipment, including wooden bins, used storage bins, or any other appropriate containers. Bin composting which relies only on natural aeration may be slow; as such, forced aeration is frequently introduced to the composting process. Commonly, bin composting may be completed in 6 to 8 weeks, with regular shovel turns and frequent watering to ensure that the compost material has an adequate moisture content. In-vessel composting is yet another method of composting, intended to shorten the composting process as well as minimise manual labour. Shredded organic wastes are mixed inside a container or vessel—commonly, a rotating drum to facilitate the mixing and aeration of the composting materials [12,13]. Using the rotating drum, in-vessel composting is able to create a warm, humid environment with a high concentration of oxygen and plenty of organic material that can promote the growth of aerobic microorganisms and increases the rate of composting of organic waste [14]. It is more space-efficient, provides better control, and has a faster process as compared to windrow and bin composting [15].
As the world has shifted towards a more modernized urban setting with increased awareness of the importance of composting for greater sustainability, consumers have demanded a more efficient and effective manner of composting their organic wastes. This emanates in demand for a shorter composting period, minimal human interventions, and smaller-sized composting devices to fit into the demand and space requirements of an urban setting. Electrical composting has been suggested as an alternative by replicating the composting process that would have occurred naturally but with a faster completion time. This is made possible by accelerating the mesophilic and thermophilic phases of the composting process. Typically, an electrical composter employs a three-phase cycle including drying, grinding, and cooling. The organic wastes are first dried to reduce moisture content. They are then broken down into smaller powder-sized particles to increase their surface area, followed by turning and aerating the ground organic wastes to provide optimum conditions for the mesophilic and thermophilic phases to take place. The processed organic wastes are then cooled to give a semi-cured compost. However, compost products from an electrical composter may not be mature enough to be immediately used as a soil fertilizer. Irrespective, the manufacturer-claimed faster composting time has generated a lot of public interest.
Composting may be categorised into anaerobic and aerobic composting. Anaerobic composting occurs in the absence of oxygen, whereas aerobic composting requires the presence of oxygen, with both composting techniques involving the breakdown of organic material. The end-product of anaerobic composting is biogas, a mixture of gases primarily made of methane and carbon dioxide, as well as a non-stabilized digestate. Due to the plentiful emission of methane as one of its products, anaerobic composting is deemed less effective than aerobic composting. On the other hand, the end-product of aerobic composting is compost, an organic soil fertilizer enriched with soil nutrients [16]. When performed correctly, aerobic composting is faster than anaerobic composting and has a relatively less negative impact on the environment.
In aerobic composting, the composting pile undergoes three different phases: the mesophilic, thermophilic, and maturation phases [17] as shown in Figure 1. During the mesophilic phase, which occurs at room temperature of below 40 °C, microorganisms present in the organic waste break down the amino acids for growth and reproduction, causing an increase in temperature above their survival range. They are then replaced by thermophiles in the thermophilic phase. During this phase, the temperature in the pile can rise up to 70 °C [18], potentially destroying pathogens and weeds and sanitizing the organic waste pile. To ensure optimum aerobic conditions, the compost pile needs to be regularly turned and aerated, to ensure the balance of oxygen and moisture within the compost pile. However, after a period of time during the decomposition process, the resources within the compost pile are reduced, causing a drop in temperature [19]. At this point, mesophiles again become more prominent within the composting pile over the thermophiles. This is when the maturation phase occurs [9], eventually turning the compost pile into matured compost used for soil applications. Collectively, the mesophilic and thermophilic phases are referred to as the active stage, whilst the maturation phase is referred to as the curing stage.
The fundamental elements of an aerobic composting process are the existence of microbes and nutrients, as well as the presence of favourable environmental conditions for microbial activities. Important parameters for an optimum composting process include pH, temperature, particle size, oxygen concentration, moisture of the compost pile, and the initial carbon-to-nitrogen ratio content of the organic waste [20].
Composting is essentially a biodegradation process, and the aerobes thrive in surroundings with a pH of between moderate and semi-high; therefore, the concentration of hydrogen ions in the compost has an impact on the composting process [21]. The generation and breakdown of acid during composting, which produces carbon dioxide and heat, determine the pH of the finished product. When the rates of acid generation and acid breakdown are identical, the pH is at its lowest [22]. The presence of organic acid in compost, which comes from the deterioration of organic materials, including monosaccharides and starch, is what causes the modest pH reduction in the mesophilic phase. In the meantime, the thermophile microorganisms in the thermophilic phase break down proteins, which release ammonia, thereby raising the pH. When the composting phase switches from the mesophilic to the thermophilic phase, the pH of the compost will rise and become more alkaline. The ideal pH range is between 5.5 and 8, as bacteria grow more quickly at neutral pH levels, whereas fungi grow more quickly at slightly acidic pH levels. However, excessively acidic or alkaline pH conditions may have an impact on the breakdown process [23].
Temperature between 45 and 55 °C promotes the fastest rate of organic matter decomposition [21]. As the temperature fluctuates during the composting process, mesophiles and thermophiles interchangeably dominate. Mesophiles take over the decomposition at the start of the composting process. After some time, the compost pile increases in temperature due to the aerobic respiration of the microbes which can reach up to 70 °C. The population of thermophiles increases and mesophiles decrease with an increase in the temperature of the composting pile. At higher temperatures, sterilization occurs where the temperature is capable of killing unwanted pathogens and weeds. There are numerous ways of keeping the compost from heating up excessively during the composting process. Regulating the size of the compost particle and turning the compost for aeration can be performed to attain the correct temperature range. When the organic particles are decomposed completely, the temperature of the pile will slowly decrease and eventually reaches room temperature during curing, indicating the compost is stabilizing and maturing.
The majority of aerobic decomposition occurs on the topmost layer of biodegradable material, where aerobic microorganisms consume a thin oxygen film that is present on the surface of the organic particles for aerobic decomposition, leaving the inside of the particles in anaerobic conditions. Waste material size of approximately 1 to 2 inches in diameter is ideal for compost particle size. Since this particle size offers a better surface-to-volume ratio where microorganisms can obtain enough oxygen, it can accelerate decomposition and increase microbial activity. Although the rate of compost decomposition will increase as particle size decreases, very small particles may impede oxygen movement within the pile, resulting in a reduction in the rate of decomposition. Additionally, the small particle size will retain too much moisture, reducing the air-filled pore space and possibly slowing the decomposition rate [24]. On the other hand, although large particle sizes can provide enough oxygen for composting, there is less surface area for microbial activity. The ideal porosity range for composting heaps is between 35% and 50%, which allows air to pass through the hydrophilic layer and into the porous compost pile, giving the microorganisms on the particle surface access to air [25,26]. Porosity less than 35% may lead to anaerobic composting with the formation of disagreeable odours, while porosity greater than 50% will result in energy loss, hence slowing down the composting process.
The pore space between the organic particles in the compost pile serves as the medium via which microorganisms in the pile decompose organic matter. To keep the compost pile in an aerobic state, there must be a minimum of 5% oxygen in the pore space [27]. As the activity of the microbes in the compost pile grows, more oxygen will be consumed. Composting materials need to maintain a moisture level of between 40% and 60% for proper decomposition. High levels of moisture will cause the pore spaces to fill with water, lowering the oxygen content and restricting oxygen transport, which will lead to anaerobic growth and an unpleasant odour [27]. Low moisture content, on the other hand, results in a slowdown and eventual hibernation of microbial activity [28]. Because of this, composting is normally carried out at moisture percentages between 50% and 55% [19]. The moisture content of the compost reduces as the composting process goes on. Turning the compost pile is the most typical way to aerate the pile and control moisture.
One of the key parameters influencing the composting process is the ratio of carbon-to-nitrogen (C/N). The microbial community uses carbon as an energy source, while nitrogen is necessary for synthesizing proteins, amino acids, and nucleic acids [29]. Aerobes require a higher C/N ratio because more energy is required for their higher rate of decomposition. Anaerobic digestion only requires a C/N ratio of 20 to 30, but a greater C/N ratio of 25 to 35 is normally required for aerobic composting [30]. In the majority of situations, the optimal C/N ratio for the oxidation of carbon and the growth of microorganisms is 30:1. Higher C/N ratios, starting from 40:1, cause slower degradation as the excessive carbon and insufficient nitrogen result in slower growth of aerobic microbes. On the other hand, C/N ratios below the recommended level result in under-utilisation of nitrogen, with the extra nitrogen released into the environment as ammonia or nitrous oxide, which can cause odour issues. In more recent research, composting with a low C/N ratio of 15 was carried out satisfactorily. However, a bulking agent may be needed to modify the initial C/N ratio when decomposing a pile with a lower C/N ratio [31].
The C/N ratio often increases throughout the thermophilic phase before progressively declining [32]. The degree of disintegration affects the final C/N ratio of a compost pile; a lower degree of disintegration yields a higher final C/N ratio value, which may result in the presence of aromatic carbon in the compost pile. On the other hand, a higher degree of disintegration due to microorganisms consuming the organic compounds will result in a lower final C/N ratio, with two-thirds of the total carbon content being released as carbon dioxide. To evaluate the stability and maturity of the final compost, either the increase in total nitrogen content or reduction in total carbon content should be analysed over the composting process. The C/N ratio can give an overview of compost stability [33]. A C/N ratio close to 12 is frequently regarded to indicate a fully mature compost, whereas a final C/N ratio of less than 20 indicates compost with acceptable maturity. Researchers have found that balancing the initial C/N ratio to produce good-quality compost is still a big challenge in the field. Consequently, this study focuses on and investigates the effect of the C/N ratio specifically for kitchen waste that has been processed using a commercial electrical composter.
Table 1 shows the summary of the recommended range of the individual composting parameters in different composting phases.
Conventional and electrical methods of composting differ and may require different optimum C/N ratios of kitchen waste to produce optimum compost. Analysis of the quality of compost produced using conventional composting methods is prevalent in the literature. However, limited studies have been conducted on composting using home electrical composters, which has been gaining popularity, especially in urban areas. This is despite the limited amount of scientific literature on the topic. Mortula et al. [6] investigate suitable C/N ratios of organic wastes whilst Vóbérková et al. [34] investigate the compost maturity of food wastes through the pH, conductivity, and C/N ratio of the compost from electrical composters. None has addressed the specific quality of compost, particularly in terms of its suitability for planting. As such, this work aims to investigate the quality of compost products produced by a commercial electrical composter by varying the initial C/N ratios. This is to determine the most appropriate proportions for composting using an electrical composter. It is envisaged that the findings from this paper would assist in producing a more ready-to-be-used compost from an electrical composter.
The outline of the paper is as follows. The methodology of the studies is given in Section 3, with results and discussions given in Section 4. Section 5 concludes the paper.

2. Methodology

This paper studies the effectiveness of compost products from a commercially off-the-shelf electrical composter in terms of seed germination. The methodology adopted in this paper comprises five main steps: sample preparation, processing samples in an electric composter, curing, compost maturity test via seed germination, and, finally, analysis of results, as depicted in Figure 2 below.

2.1. Preparation of Samples

In the first step, the samples were prepared using a mixture of carbon-rich and nitrogen-rich kitchen wastes in six different initial C/N ratios: 10:1, 15:1, 20:1, 25:1, 30:1, and 35:1. Three types of carbon-rich kitchen waste were utilized in this study: cereals, bread, and raw noodles, whereas spinach was chosen as the nitrogen-rich kitchen waste. The selection of carbon-rich and nitrogen-rich kitchen waste types employed in this study is based on the most commonly found food waste in kitchen households. It is imperative to carefully carry out the selection of the kitchen waste types used in this study in order to resemble the actual composition of food wastes generated from households. In addition, this study employed more carbon-rich than nitrogen-rich food types due to the initial C/N ratio requirement, which requires a higher carbon proportion.
The selected kitchen wastes were then mixed according to the calculated proportion to achieve different initial C/N ratios for each mixture. The initial C/N ratio can be obtained by dividing the total carbon content by the total nitrogen content, with 100 g used as its basis for the selected kitchen waste. Table 2 shows the percentage of carbon and nitrogen contents of each kitchen waste used in the experiment. The carbon and nitrogen contents of the selected kitchen waste are obtained from the packaging of the food sample used shown in Table 2. These different wastes are used to prepare six different waste mixtures with different initial C/N ratios following Equation (1) based on Mortula et al. [6]. Table 3 shows the summary of the cumulative C/N ratio for cereals, noodles, bread, and spinach waste used in this experiment.
I n i t i a l   C / N   r a t i o = R C C × P C + R C N × P N + R C B × P B + R C S × P S R N C × P C + R N N × P N + R N B × P B + R N S × P S
The initial C/N ratio is calculated by dividing the total carbon contents by the total nitrogen contents for each kitchen waste type. RXY represents the percentage content of X in food wastes Y, where subscript X can either be carbon (C) or nitrogen (N), and subscript Y can either be Cereals (C), Noodles (N), Bread (B), or Spinach (S). PY represents the proportion of each type of kitchen waste used.

2.2. Composting Setup

Upon mixing, the mixture of wastes was fed and processed by the commercially off-the-shelf electrical composter, Zero Waste Eco Bin shown in Figure 3, to produce an end-product which is referred to as processed kitchen waste. This composter was chosen due to its simple, easy-to-use, and safe operations. From a single chamber, the composter is able to process the kitchen waste in a relatively short time, with up to 2 litres of samples by volume. This is made possible due to the accelerated thermophilic and mesophilic phases. The composting mixture is subjected to a three-phase cycle; drying, grinding and cooling, after which it undergoes sterilization with the aid of ultraviolet-c to kill unwanted pathogens. The composter maintains a temperature below 70 °C while continuously aerating the composting material during drying and grinding. The cooling mode returns the composting material to room temperature for safe handling. This is all performed with just a click of a button. In addition, the interior design of the composter prevents the possibility of material build-up and from sticking to the surface of the chamber. The composter is also equipped with an activated carbon filter to remove unwanted odours. The cycle also conveniently ends automatically once the process has been completed.
The mixture was first crushed into smaller pieces prior to loading into the composter to enable a more effective and efficient process of drying, grinding, cooling, and sterilizing the mixture of kitchen waste. Upon the completion of this procedure, a total of 6 samples of processed kitchen waste were produced and labelled, with initial C/N ratios of 10, 15, 20, 25, 30, and 35. This paper implicitly refers to some parts of the experiment from Mortula et al. [6] on the different proportions of waste.
Every C/N ratio sample was then divided into two equal parts of 65 g each, with one part mixed with 10 parts of loamy soil by volume and the other part left on its own (without the addition of loamy soil). In total, there were 12 sub-samples: 2 sub-samples (with and without soil) for every C/N ratio. The 12 sub-samples were then allowed to cure for a period of 30 days, which were 3 extra days from the 4 weeks minimum, as per instruction in the manual of the electrical composter. This requirement for a curing period is a limitation of the electrical composter, whereby the composting products are not fully matured yet and still require an additional period of curing to be ready for use.
During the curing period, temperature and pH readings of the sub-samples were recorded every 2 days using DS18B20 Temperature Sensor and JXCT Soil Integrated Sensor, respectively, with the sub-samples turned once every week for aeration. The moisture of the samples was measured using a moisture sensor to confirm a moisture level of between 40% to 60%. Two cured sub-samples (with and without soil) for each of the 6 different C/N ratios, giving a total of 12 cured sub-samples, were produced from this step.

2.3. Compost Maturity Test

The fourth step involves using the two types of cured sub-samples of the six different C/N ratios from the previous step for seed germination purposes. Mung beans were used for the seed germination test as they can be easily procured and have a relatively fast germination rate. Cured sub-samples that had been mixed with loamy soil were used directly for seed germination. On the other hand, cured sub-samples without soil were pre-processed further before being used for seed germination purposes. Each of the cured sub-samples without soils was mixed with deionized water in a ratio of 1:2.5 (w/v) and then shaken well using a lab shaker for 1 h to allow proper mixing. The mixtures were then centrifuged at 10,000 revolutions per minute, twice for 15 min and 5 min, respectively, to collect the supernatant. The collected supernatants of compost extracts were then used for seed germination purposes. These procedures are referred from the studies by Milon et al. [35] and Barral et al. [36].
Each of the sub-samples with soils was spread out thinly on 3 Petri dishes before arranging 20 mung beans on each of the Petri dishes to allow germination. For sub-samples without soil, the collected compost extracts for the different C/N ratios were poured on 3 Petri dishes, lined with filter paper, before the 20 mung beans were arranged on each of the Petri dishes to allow germination. Each sub-sample was replicated 3 times to reduce possible errors in the experiment. Seed germination was allowed for a total of 9 days. During the germination period, each Petri dish was regularly moistened with deionized water as necessary.

2.4. Procedures for Results Analyses

After a nine-day period of seed germination, the seeds were taken out from each Petri dish. Deionized water was added to the control setup experiment for seed germination. This is applicable to both samples with and without soil. The grown roots from each seed and the number of germinated seeds for the different sub-samples were recorded for further analysis. The length of the root was measured using a digital Vernier Caliper between the end of the shoot and the root in millimetres. Seed germination (SG) expresses the percentage of germinated seeds for each sub-sample to the total number of seeds, as given in Equation (2). This is further normalized with respect to the number of seeds germinated in the control experiment, using Equation (3) to give Relative Seed Germination (RSG). To quantify the root length growth, the mean root length of all sub-samples was calculated and normalized against the mean root length in the control experiment using Equation (4).
Seed   Germination ,   SG   ( % ) = N u m b e r   o f   g e r m i n a t e d   s e e d s N u m b e r   o f   t o t a l   s e e d s × 100 %
Relative   Seed   Germination ,   RSG   ( % ) = N u m b e r   o f   s e e d s   g e r m i n a t e d   i n   c o m p o s t N u m b e r   o f   s e e d s   g e r m i n a t e d   i n   c o n t r o l × 100 %
Relative   Root   Growth ,   RRG   ( % ) = M e a n   r o o t   l e n g t h   i n   c o m p o s t M e a n   r o o t   l e n g t h   i n   c o n t r o l × 100 %
A good performance measure must consider both the number of germinated seeds as well as the growth of the roots. Germination index (GI), which considers both seed germination and the elongation of the seedlings’ roots, is a more practical and stronger indicator for evaluating the maturity of a compost via seed and seedling development [37]. GI for each sub-sample can be calculated as follows.
Germination   Index ,   GI   ( % ) = R S G × R R G 100
The calculated values of SG, RSG, RRG, and GI were plotted for both samples, with and without soil for direct comparison. Additionally, the collected data was further analysed by considering the six variables including the C/N ratio, day of curing, pH, the temperature of the samples, and the calculated GI and RG. The data included GI and RG as strong indicators for evaluating compost maturity.
Analysis was performed using Python libraries to run statistical tests and to better visualize the outputs from the experiment. Two statistical methods were considered: box plot and T-distributed Stochastic Neighbour Embedding (T-SNE). Box plot [38] shows the summaries of root growth for each C/N ratio in terms of its minimum/maximum values, lower quartile, upper quartile, interquartile, and median value. On the other hand, T-SNE assists in visualizing multi-dimensional data to find meaningful patterns and clusters [39].

3. Results and Discussion

A total of 12 sub-samples from 6 different C/N ratios were obtained from the pre-processing step. Figure 4 shows the mixed raw materials in the electrical composter. Six of the sub-samples contained processed kitchen waste of different C/N ratios mixed with loamy soil, and another 6 sub-samples contained unmixed processed kitchen waste of different C/N ratios. These 12 sub-samples were left to cure for a total of 30 days to satisfy the minimum recommended curing period by the manufacturer of the electrical composter.
Prior to curing, the kitchen waste was fed into the electrical composter and subjected to the three-phase cycles including drying, grinding, and cooling. The kitchen waste underwent thermophilic and mesophilic phases in these cycles. The processed kitchen waste was then left to cure for a period of 30 days, with pH and temperature readings monitored regularly.
After curing, both sub-samples with and without soil were used for seed germination. Sub-samples with soil were used directly for germination. On the other hand, compost extracts were obtained by centrifugation from sub-samples without soil before being used for seed germination. The number of germinated seeds and root growth were measured after nine days of germination.

3.1. Temperature and pH Changes during Curing

The pH and temperature readings were taken every 2 days during the curing stage for a period of 30 days. Moisture contents of the compost sub-samples were kept at optimal range to ensure an ideal composting process, with the sub-samples turned every other day. Figure 5 and Figure 6 show the variation of pH and temperature, respectively, during the duration of the 30-day curing period for sub-samples with and without soil with different C/N ratios before being subjected to seed germination test to determine their phytotoxicity levels. Only results for 10:1 and 35:1 C/N ratios were plotted for clarity purposes.
As seen in Figure 5, the pH value decreases significantly on day 17 and day 21 for sub-samples with and without soil from 6.9 to 6.2. This can be attributed to the production of organic acid during the decomposition of the organic matter by the mesophiles which actively broke down organic matter from the start of the curing period up until days 17 and 21. This period is referred to as the mesophilic phase. After day 21, the pH value started to increase, indicating the breakdown of proteins which led to the release of ammonia. The apparent fluctuations of the pH value during the mesophilic phase may be due to the frequency of turning of the samples during the curing period. The pH values from day 1 until day 30 of curing were within the ideal pH range of between 6.2 to 6.9. This is in line with the results reported by Hubbe et al. [40].
In contrast to the pH value, there are no significant changes to the temperature range during the curing period. The temperature stabilized at the range of 20 °C to 24 °C. A similar finding has been reported by Mortula et al. [6], where the temperature profile stabilized within the range of 35 °C to 45 °C. It must be noted that Mortula et al. used an electrical composter that had adopted the curing phase within the composter itself. In contrast, the curing phase of the current study was conducted outside of the composter and occurred at room temperature. The fluctuations in the temperature range, as seen in Figure 6, may be due to the turning of the samples which can affect the oxygen supply in the compost medium.

3.2. Root Growth Distribution

Figure 7 and Figure 8 show the development of the root length for the selected C/N ratio for samples with and without soil.
The box plots of root length for cured samples with soil for the six different C/N ratios are depicted in Figure 9. For the germination test, the root length spans from 0 to 20 millimetres. It can be seen that the root length varies with different C/N ratios. The C/N ratio of 35:1 has the best root growth, with longer minimum and median root lengths. It also has a relatively small box, which shows that the data fluctuates around the median. The ratio 35:1 exhibits no outliers when compared to other ratios, suggesting that it may be the optimal ratio from the germination test. On the other hand, the C/N ratio of 10:1 has a significantly larger box, indicating that the data are broadly distributed with 4 outliers present.
Figure 10 shows box plots or root lengths for cured samples with compost extract. It can be seen that the C/N ratio of 25:1 has a comparatively larger box compared to the other C/N ratios, which suggests that the data are widely scattered from the median. The C/N ratio of 20:1 shows the best results, despite the presence of outliers, as it has the highest minimum and median values and an average distribution of data centred around the median. It can be concluded that the C/N ratio of 20:1 is the ideal C/N ratio for the compost extract test.
It must be noted that the box plot does not account for the quantity of successfully germinated seeds. Rather, it merely considers the root growth of the seeds after nine days of germination. Germination Index (GI) considers both quantity and root length, and, hence, is a more accurate measure of performance.

3.3. Germination Index

Figure 11 shows a bar graph comparing the SG, RSG, RRG, and GI for the six different C/N ratios for samples cured with soil. It can be seen that the C/N ratio of 20:1 gives the highest seed germination rate of about 81.7%. This is in contrast to the result in terms of root length from Figure 9 above, where the best C/N ratio is 35:1. However, GI is the stronger indicator of phytotoxicity level as the germination index takes both the number of seeds that germinated and the length of root growth into account, as seen in Equation (4). Therefore, it can be concluded that a C/N ratio of 10:1 is the most ideal ratio for the method with soil, with RRG of 21.61% and GI of 16.2 and 75% for both SG and RSG.
Figure 12 shows a bar graph comparing the SG, RSG, RRG, and GI for the six different C/N ratios for samples cured without soil (with compost extract only). It can be seen that samples with C/N ratios of 15:1, 20:1, and 25:1 germinate well. Although the C/N ratios of 20:1 and 25:1 are nearly identical considering all germination indicators for each ratio, the C/N ratio of 25:1 is the best ratio for the compost extract test, as it has the highest SG of 90%, RSG of 91.5%, RRG of 34.80%, and GI of 31.8.
Bazrafshan et al. [41] indicate that GI of above 50 exhibits low phytotoxins level and, therefore, is safe for direct application. As the germination indices for samples with soil and compost extract for all C/N ratios are less than 50, it can be concluded that all composts generally exhibit strong phytotoxicity, indicating that the composts are still immature. The seed germination results obtained from this study indicate that the processed kitchen waste from the commercial electrical composter, despite allowing the samples to be cured for at least 30 days, as per manufacturer recommendation, is still not fully matured yet, and should therefore not be used as a soil fertilizer at its current stage.

3.4. T-Distributed Stochastic Neighbour Embedding (T-SNE)

The T-SNE algorithm may be used to visualize high-dimensional data by optimizing the similarity measures between different parameters through the conversion of distances between the parameters in the original space into probabilities. It can handle outliers by producing potentially meaningful clusters [39]. Since the dimensionality reduction is nonlinear, it is well-suited for the visualization of low-dimensional sub-spaces, and in this study, the original spaces were reduced to 2-dimensional sub-spaces to facilitate visualization. Parameters considered were curing days, pH, and temperature during the curing days, GI, RSG, and RRG. These parameters were reduced into 2-dimensional space: comp1 and comp2 for visualization and clustering in determining whether there are potential clusters between the different C/N ratios tested.
Figure 13 shows the 2 components of T-SNE projection colour-scaled by the C/N ratios for compost with soil. Samples with a resulting GI of less than 10, i.e., samples with C/N ratios of 15:1 and 25:1, form a clear group enclosed in the grey outline in Figure 13, while the rest are outside of the group. As previously mentioned, the C/N ratio of 10:1 has the highest GI, and it is clustered in the middle, together with the next best C/N ratios: 20:1, 30:1, and 35:1 surrounding the 10:1 cluster and overlapping each other.
Figure 14 shows the 2 components of T-SNE projection colour-scaled by the C/N ratios for compost extract only for seed germination test. It can be seen clearly that C/N ratios of 20:1 and 25:1 are overlapping and centred enclosed in the grey outline. The other C/N ratios are scattered around the 20:1 and 25:1 cluster outside the outline. T-SNE was able to produce clusters between the different C/N ratios despite the non-linear relationship between the parameters.

4. Conclusions

The results from the seed germination have shown that phytotoxins were still present in all samples, even after allowing the samples to be cured for 30 days. This indicates that the samples are still immature, rendering them unsuitable for direct application. Consequently, this also resulted in low GI of all the samples, with the highest being 16.2 and the lowest being 4.6 for C/N ratios of 10:1 and 15:1, respectively, for samples with soil. Meanwhile, for samples without soil, the highest recorded GI was found to be 31.8, while the lowest value was found to be 0.9 for C/N ratios of 25:1 and 10:1, respectively. In addition, statistical analysis using T-SNE has been performed to conclude potential meaningful clusters between the different ratios of C/N based on different parameters. It was clear that there are clusters separating the best and the least performing C/N ratios, indicating that the relationships between the parameters may be non-linear. Based on the findings from this paper, it can be concluded that the compost products from the electrical composter require a longer curing period than what has been recommended by the manufacturer. The faster composting process by the electrical composter whereby the thermophilic and mesophilic phases have been accelerated has left the compost products to be relatively dry. It is still necessary to further cure the dry compost products for a period of time to turn them into fully matured composts that are ready for use. Over-optimism by the manufacturers and efforts to tempt consumers to purchase their products may have led to the short-stated curing period. Naturally, the need for further curing to arrive at fully ready and matured composts raises the question of the appropriateness of labelling an electrical composter as a composter.

5. Future Work

In the future, the curing time of the generated compost from the electrical composter should be extended beyond four weeks to further improve the quality of the compost. The outcome of this paper also serves as foundation research for more thorough and detailed experiments on the suitable C/N ratio, specifically, and other composting parameters. Further experiments need to be conducted on moisture content, particle size, and electrical conductivity to evaluate the compost quality as well as to subject both samples, with and without soil, to centrifugation and compare the experimental outcomes. In addition, the maturity of the compost also needs to be assessed using Solvita’s Compost Maturity kit prior to performing the seed germination experiments and evaluating the final C/N ratio at the end of the experiment. This can potentially improve the existing results reported in this study.

Author Contributions

Conceptualization, F.A.A. and M.C.; methodology, F.A.A. and M.C.; analysis, F.A.A. and M.C.; writing—original draft preparation, F.A.A. and M.C.; writing—review and editing, H.S. and P.E.A.; visualization, F.A.A. and M.C.; supervision, H.S. and P.E.A.; funding acquisition, H.S. All authors have read and agreed to the published version of the manuscript.


This research and the APC were funded by Universiti Brunei Darussalam Research Grant No: UBD/RSCH/1.3/FICBF(b)/2020/012.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Schanes, K.; Dobernig, K.; Gözet, B. Food waste matters-A systematic review of household food waste practices and their policy implications. J. Clean. Prod. 2018, 182, 978–991. [Google Scholar] [CrossRef]
  2. Eggleston, H.S.; Buendia, L.; Miwa, K.; Ngara, T.; Tanabe, K. IPCC Guidelines for National Greenhouse Gas Inventories; Institute for Global Environmental Strategies (IGES): Kanagawa, Japan, 2006. [Google Scholar]
  3. Pereira, J.C.; Bolin, J.L. Composting: Processing, Materials and Approaches; Nova Science Publishers: Hauppauge, NY, USA, 2009. [Google Scholar]
  4. Ayilara, M.S.; Olanrewaju, O.S.; Babalola, O.O.; Odeyemi, O. Waste management through composting: Challenges and potentials. Sustainability 2020, 12, 4456. [Google Scholar] [CrossRef]
  5. Jeswani, H.K.; Azapagic, A. Assessing the environmental sustainability of energy recovery from municipal solid waste in the UK. Waste Manag. 2016, 50, 346–363. [Google Scholar] [CrossRef] [PubMed]
  6. Mortula, M.M.; Ahmed, A.; Fattah, K.P.; Zannerni, G.; Shah, S.A.; Sharaby, A.M. Sustainable management of organic wastes in sharjah, UAE through co-Composting. Methods Protoc. 2020, 3, 76. [Google Scholar] [CrossRef] [PubMed]
  7. Farrell, M.; Jones, D.L. Critical evaluation of municipal solid waste composting and potential compost markets. Bioresour. Technol. 2009, 100, 4301–4310. [Google Scholar] [CrossRef]
  8. Verma, R.L.; Borongan, G. Emissions of greenhouse gases from municipal solid waste management system in ho chi minh city of vietnam. Urban Sci. 2022, 6, 78. [Google Scholar] [CrossRef]
  9. Palaniveloo, K.; Amran, M.A.; Norhashim, N.A.; Mohamad-Fauzi, N.; Peng-Hui, F.; Hui-Wen, L.; Kai-Lin, Y.; Jiale, L.; Chian-Yee, M.G.; Jing-Yi, L.; et al. Food waste composting and microbial community structure profiling. Processes 2020, 8, 723. [Google Scholar] [CrossRef]
  10. Azis, F.A.; Suhaimi, H.; Abas, P.E. Waste Classification using Convolutional Neural Network. In Proceedings of the 2020 2nd International Conference on Information Technology and Computer Communications, Kuala Lumpur, Malaysia, 12–14 August 2020. [Google Scholar] [CrossRef]
  11. Abdullah, N.; Al-Wesabi, O.A.; Mohammed, B.A.; Al-Mekhlafi, Z.G.; Alazmi, M.; Alsaffar, M.; Anbar, M.; Sumari, P. Integrated approach to achieve a sustainable organic waste management system in saudi arabia. Foods 2022, 11, 1214. [Google Scholar] [CrossRef]
  12. Michel, F.; O’Neill, T.; Rynk, R.; Bryant-Brown, M.; Calvez, V.; Li, J.; Paul, J. Chapter 7-Contained and In-Vessel Composting Methods and Methods Summary. In The Composting Handbook; Rynk, R., Ed.; Elsevier: Amsterdam, The Netherlands, 2022; pp. 271–305. [Google Scholar] [CrossRef]
  13. Sharma, D.; Yadav, K.D. Application of rotary in-Vessel composting and analytical hierarchy process for the selection of a suitable combination of flower waste. Geol. Ecol. Landsc. 2018, 2, 137–147. [Google Scholar] [CrossRef]
  14. Kalamdhad, A.S.; Kazmi, A.A. Rotary drum composting of different organic waste mixtures. Waste Manag. Res. J. Sustain. Circ. Econ. 2009, 27, 129–137. [Google Scholar] [CrossRef]
  15. el Zein, A.; Seif, H.; Gooda, E. Moisture content and thermal balance during composting of fish, banana mulch & municipal solid wastes. Eur. Sci. J. Febr. 2015, 11, 169–187. [Google Scholar]
  16. Cerda, A.; Artola, A.; Font, X.; Barrena, R.; Gea, T.; Sánchez, A. Composting of food wastes: Status and challenges. Bioresour. Technol. 2018, 248, 57–67. [Google Scholar] [CrossRef] [Green Version]
  17. Vázquez, M.A.; Plana, R.; Pérez, C.; Soto, M. Development of technologies for local composting of food waste from universities. Int. J. Environ. Res. Public Health 2020, 17, 3153. [Google Scholar] [CrossRef]
  18. Chang, H.-Q.; Zhu, X.-H.; Wu, J.; Guo, D.-Y.; Zhang, L.-H.; Feng, Y. Dynamics of microbial diversity during the composting of agricultural straw. J. Integr. Agric. 2021, 20, 1121–1136. [Google Scholar] [CrossRef]
  19. Meena, A.L.; Karwal, M.; Dutta, D.; Mishra, R.P. Composting: Phases and factors responsible for efficient and improved composting. Agric. Food 2021, 1, 85–90. [Google Scholar] [CrossRef]
  20. Azis, F.A.; Rijal, M.; Suhaimi, H.; Abas, P.E. Patent landscape of composting technology: A review. Inventions 2022, 7, 38. [Google Scholar] [CrossRef]
  21. Kumar, S. Composting of municipal solid waste. Crit. Rev. Biotechnol. 2011, 31, 112–136. [Google Scholar] [CrossRef]
  22. Chang, J.I.; Hsu, T.-E. Effects of compositions on food waste composting. Bioresour. Technol. 2008, 99, 8068–8074. [Google Scholar] [CrossRef]
  23. Sundberg, C.; Yu, D.; Franke-Whittle, I.; Kauppi, S.; Smårs, S.; Insam, H.; Romantschuk, M.; Jönsson, H. Effects of pH and microbial composition on odour in food waste composting. Waste Manag. 2013, 33, 204–211. [Google Scholar] [CrossRef] [Green Version]
  24. Zhao, G.-H.; Yu, Y.-L.; Zhou, X.-T.; Lu, B.-Y.; Li, Z.-M.; Feng, Y.-J. Effects of drying pretreatment and particle size adjustment on the composting process of discarded flue-cured tobacco leaves. Waste Manag. Res. J. Sustain. Circ. Econ. 2017, 35, 534–540. [Google Scholar] [CrossRef]
  25. Assandri, D.; Pampuro, N.; Zara, G.; Cavallo, E.; Budroni, M. Suitability of composting process for the disposal and valorization of brewer’s spent grain. Agriculture 2021, 11, 2. [Google Scholar] [CrossRef]
  26. Coker, C. Aerobic composting and anaerobic digestion. Biocycle 2014, 55, 32–35. [Google Scholar]
  27. Vigneswaran, S.; Kandasamy, J.; Johir, M.A.H. Sustainable operation of composting in solid waste management. Procedia Environ. Sci. 2016, 35, 408–415. [Google Scholar] [CrossRef]
  28. Ganti, S. Vermicomposting. Int. J. Waste Resour. 2018, 08, 3. [Google Scholar] [CrossRef]
  29. Azim, K.; Soudi, B.; Boukhari, S.; Perissol, C.; Roussos, S.; Alami, I.T. Composting parameters and compost quality: A literature review. Org. Agric. 2017, 8, 141–158. [Google Scholar] [CrossRef]
  30. Torres-Climent, A.; Martin-Mata, J.; Marhuenda-Egea, F.C.; Moral, R.; Barber, X.; Murcia, M.D.P.; Paredes, C. Composting of the solid phase of digestate from biogas production: Optimization of the moisture, C/N Ratio, and pH Conditions. Commun. Soil Sci. Plant Anal. 2015, 46, 197–207. [Google Scholar] [CrossRef]
  31. Kumar, M.; Ou, Y.L.; Lin, J.G. Co-Composting of green waste and food waste at low C/N ratio. Waste Manag. 2010, 30, 602–609. [Google Scholar] [CrossRef]
  32. Khan, N.; Clark, I.; Sánchez-Monedero, M.A.; Shea, S.; Meier, S.; Bolan, N. Maturity indices in co-Composting of chicken manure and sawdust with biochar. Bioresour. Technol. 2014, 168, 245–251. [Google Scholar] [CrossRef]
  33. Mahapatra, S.; Ali, M.H.; Samal, K. Assessment of compost maturity-Stability indices and recent development of composting bin. Energy Nexus 2022, 6, 100062. [Google Scholar] [CrossRef]
  34. Voběrková, S.; Maxianová, A.; Schlosserová, N.; Adamcová, D.; Vršanská, M.; Richtera, L.; Gagić, M.; Zloch, J.; Vaverková, M.D. Food waste composting-Is it really so simple as stated in scientific literature?—A case study. Sci. Total. Environ. 2020, 723, 138202. [Google Scholar] [CrossRef]
  35. Milon, A.R.; Chang, S.W.; Ravindran, B. Biochar amended compost maturity evaluation using commercial vegetable crops seedlings through phytotoxicity germination bioassay. J. King Saud Univ. Sci. 2022, 34, 101770. [Google Scholar] [CrossRef]
  36. Núñez, P.P.; Barral, M.T. A review on the use of phytotoxicity as a compost quality indicator. Dyn. Soil Dyn. Plan 2011, 5, 36–44. Available online: (accessed on 2 December 2022).
  37. Emino, E.R.; Warman, P.R. Biological assay for compost quality. Compos. Sci. Util. 2004, 12, 342–348. [Google Scholar] [CrossRef]
  38. Dziergowska, K.; Wełna, M.; Szymczycha-Madeja, A.; Chęcmanowski, J.; Michalak, I. Valorization of Cladophora glomerata biomass and obtained bioproducts into biostimulants of plant growth and as sorbents (biosorbents) of metal ions. Molecules 2021, 26, 6917. [Google Scholar] [CrossRef]
  39. Moon, T.; Choi, W.-J.; Jang, S.-H.; Choi, D.-S.; Oh, M.-M. Growth analysis of plant factory-Grown lettuce by deep neural networks based on automated feature extraction. Horticulturae 2022, 8, 1124. [Google Scholar] [CrossRef]
  40. Hubbe, M.; Nazhad, M.; Sanchez, C. Composting as a way to convert cellulosic biomass and organic waste into high-value soil amendments: A review. Bioresources 2010, 5, 2808–2854. [Google Scholar] [CrossRef]
  41. Bazrafshan, E.; Zarei, A.; Mostafapour, K.K.; Poormollae, N.; Mahmoodi, S.; Zazouli, M.A. Maturity and stability evaluation of composted municipal solid wastes. Health Scope 2016, 5, e33202. [Google Scholar] [CrossRef] [Green Version]

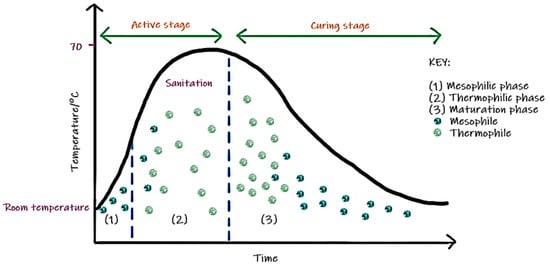

Figure 1. Aerobic composting phases.
Figure 1. Aerobic composting phases.
Sustainability 15 06191 g001

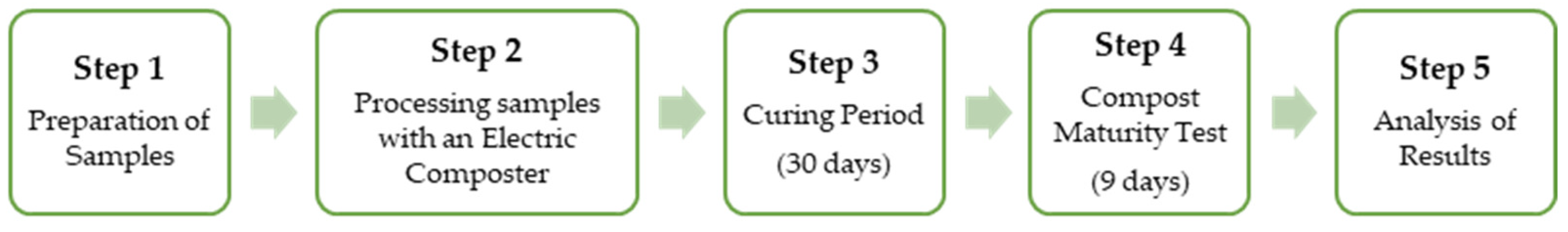

Figure 2. Steps of the experimental methodology.
Figure 2. Steps of the experimental methodology.
Sustainability 15 06191 g002

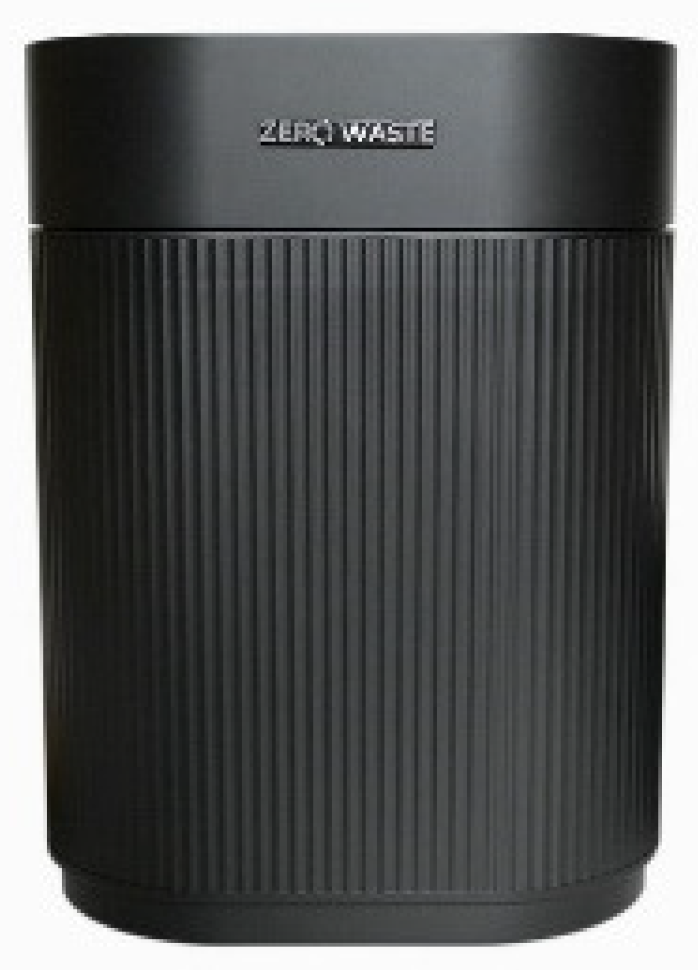

Figure 3. Commercial Zero Waste Eco Bin.
Figure 3. Commercial Zero Waste Eco Bin.
Sustainability 15 06191 g003
Figure 4. The mixture of bread, cereals, noodles, and spinach.
Figure 4. The mixture of bread, cereals, noodles, and spinach.
Sustainability 15 06191 g004

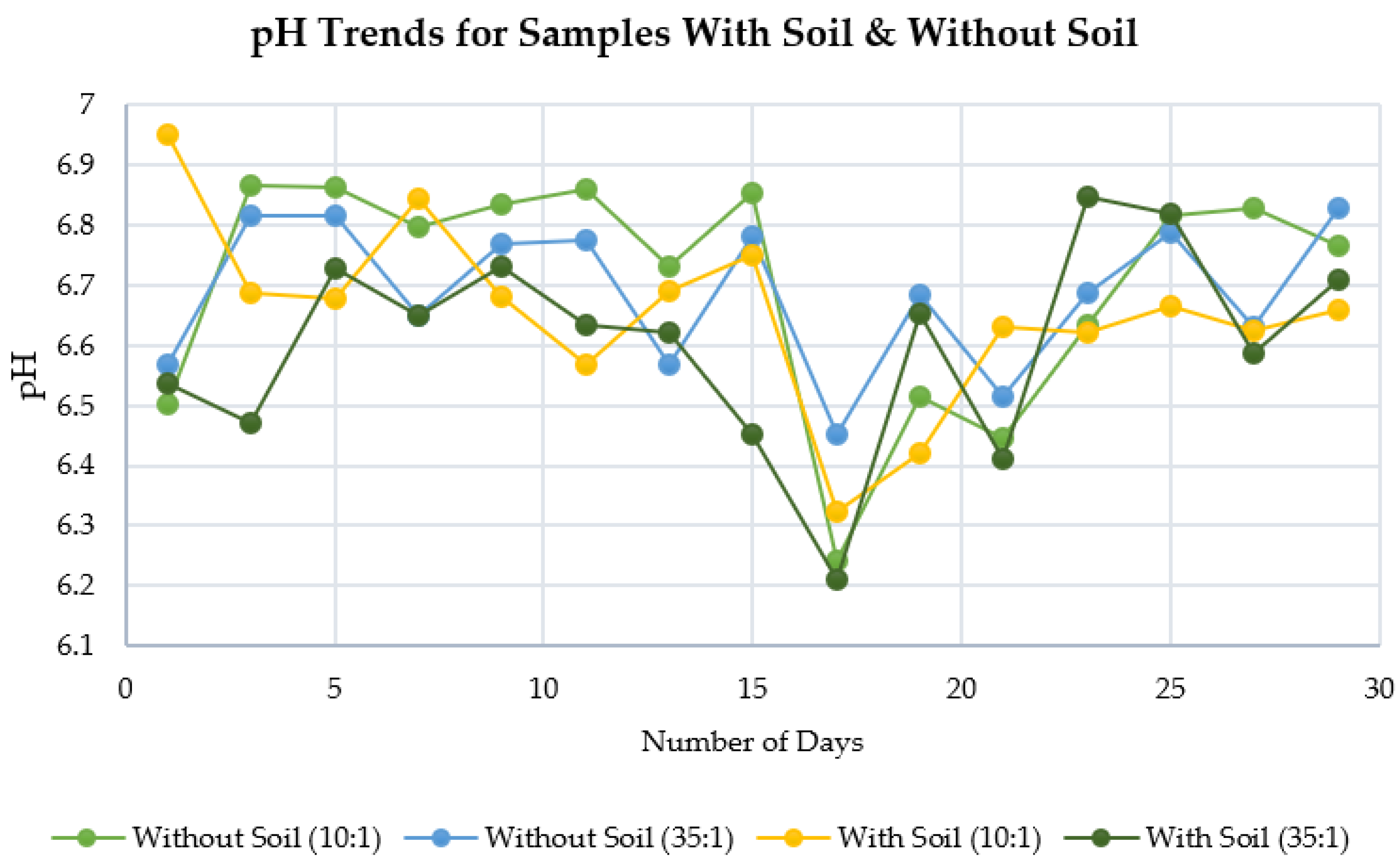

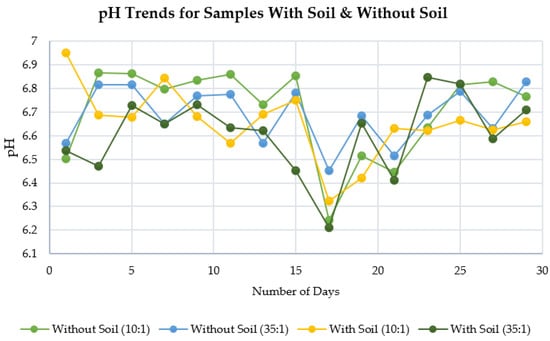

Figure 5. Graph of pH against the curing days for samples with and without soil.
Figure 5. Graph of pH against the curing days for samples with and without soil.
Sustainability 15 06191 g005

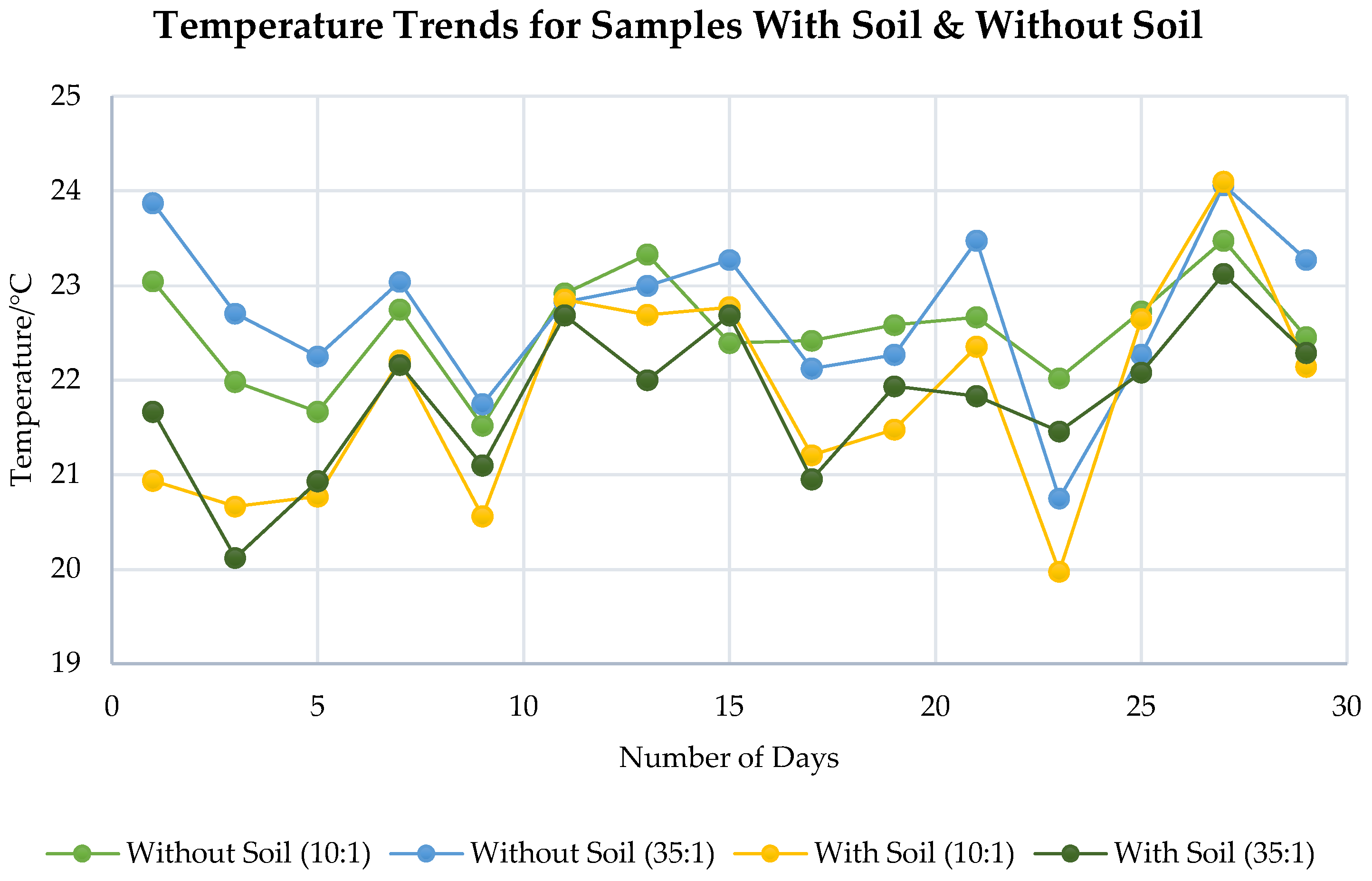

Figure 6. Graph of temperature against curing days for samples with and without soil.
Figure 6. Graph of temperature against curing days for samples with and without soil.
Sustainability 15 06191 g006
Figure 7. Seed germination with soil.
Figure 7. Seed germination with soil.
Sustainability 15 06191 g007
Figure 8. Seed germination with compost extract (without soil).
Figure 8. Seed germination with compost extract (without soil).
Sustainability 15 06191 g008

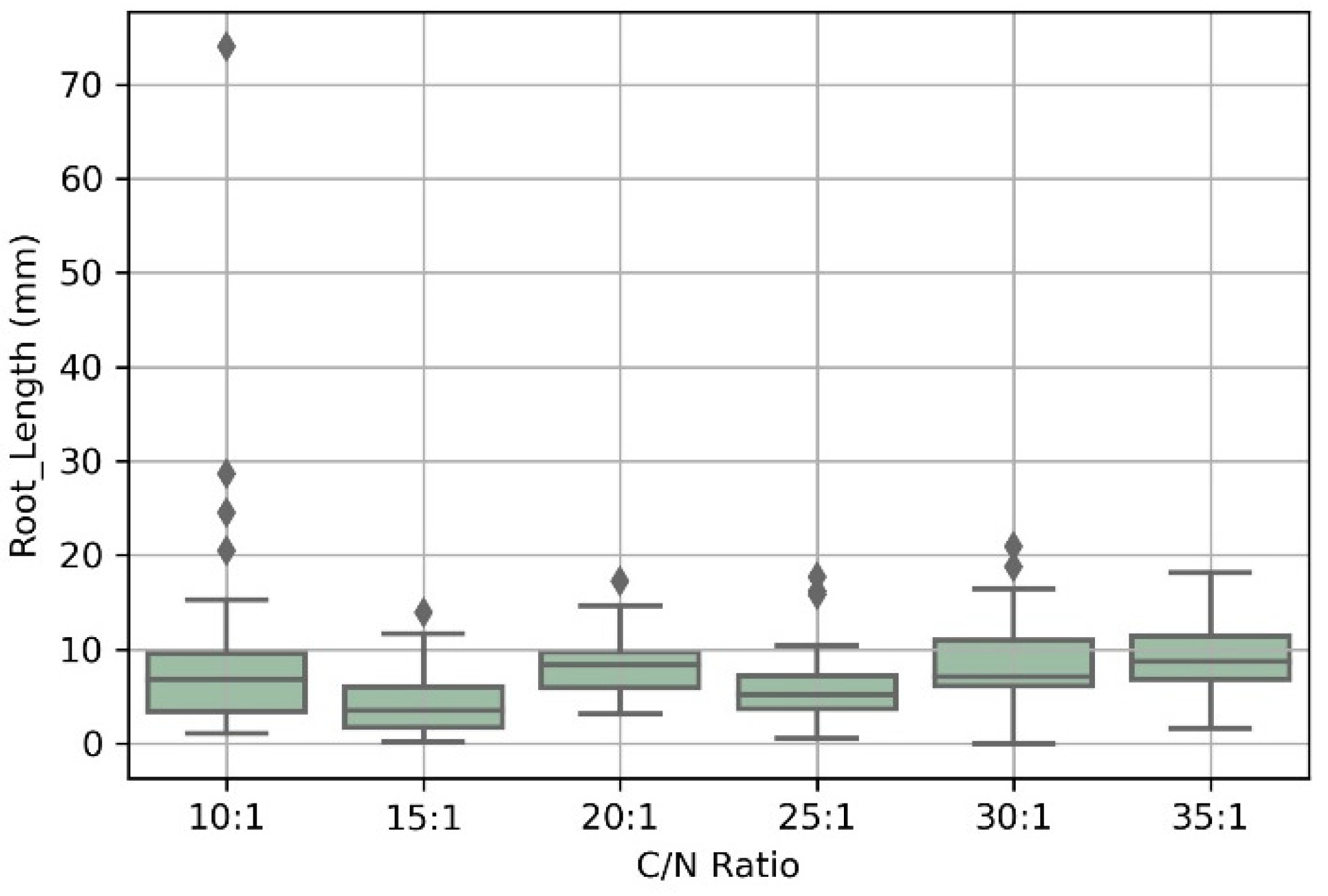

Figure 9. Box plots for cured samples with soil.
Figure 9. Box plots for cured samples with soil.
Sustainability 15 06191 g009

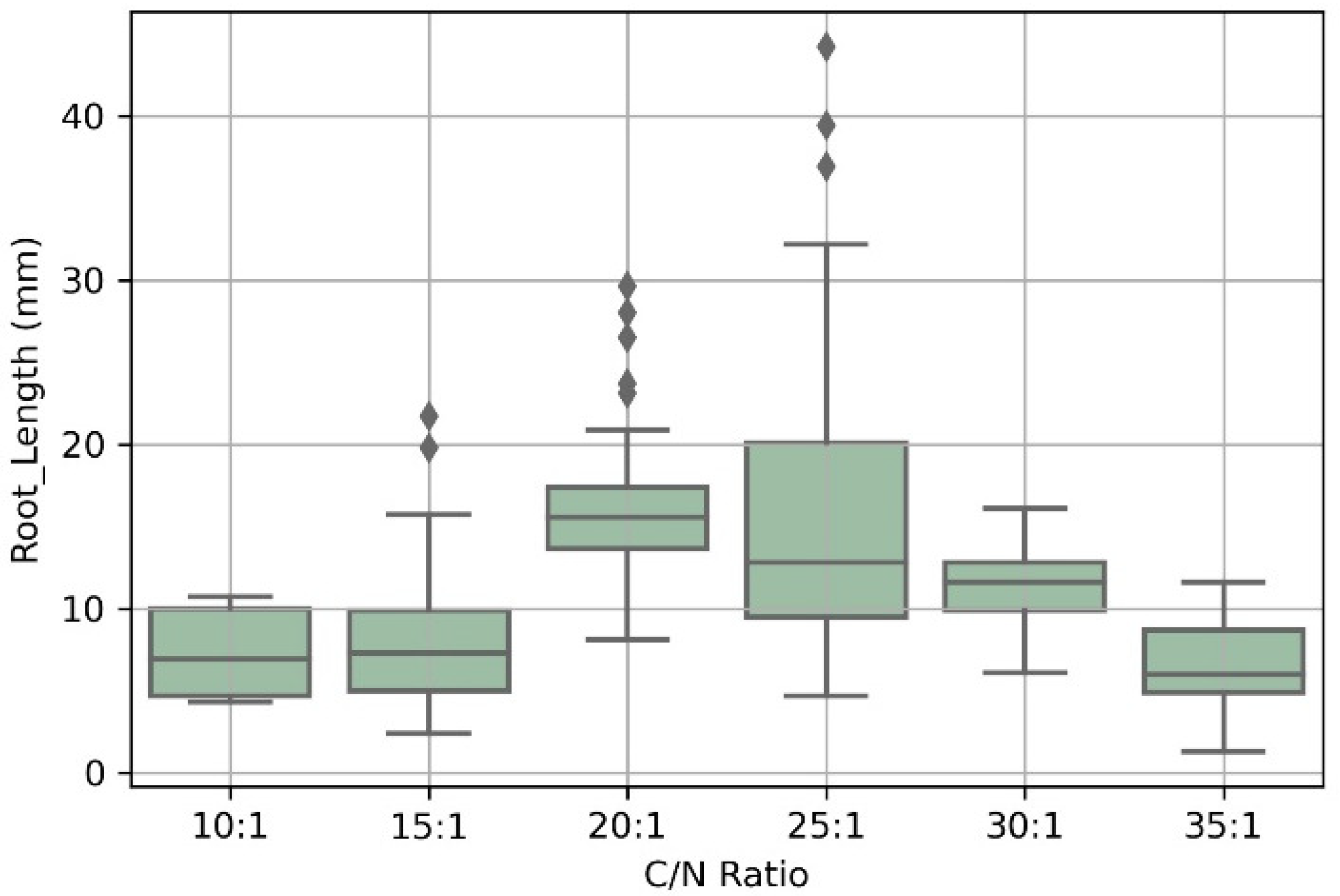

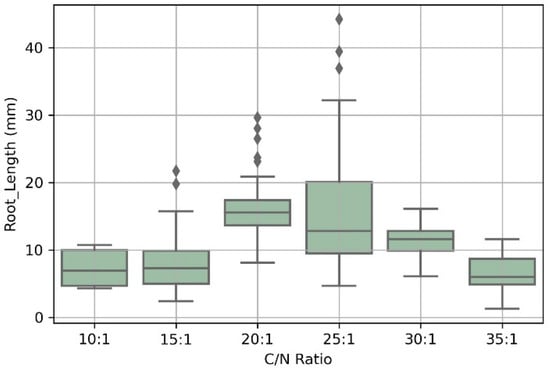

Figure 10. Box plot for cured samples with compost extract (without soil).
Figure 10. Box plot for cured samples with compost extract (without soil).
Sustainability 15 06191 g010

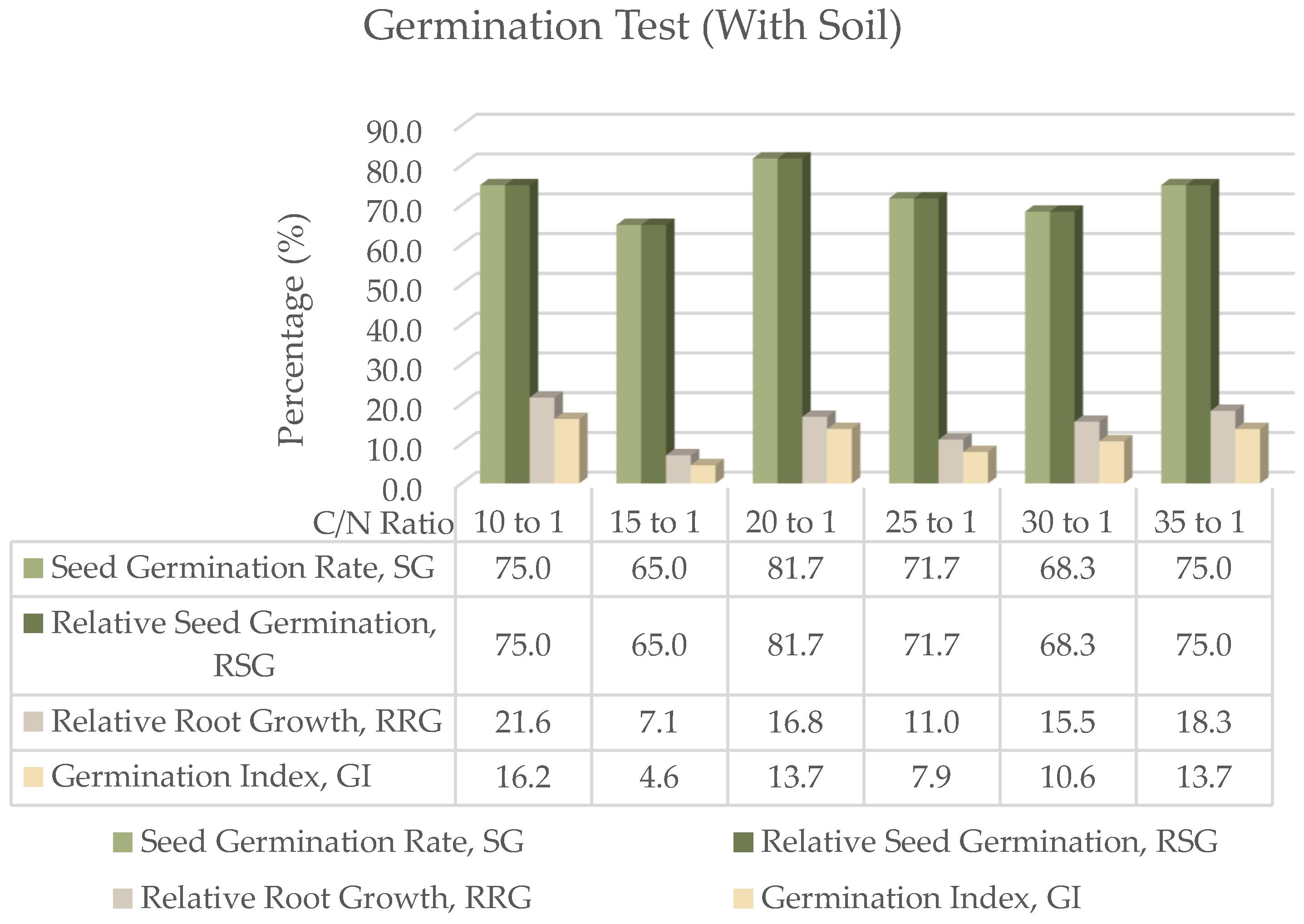

Figure 11. Comparison of SG, RSG, RRG, and GI of different C/N ratios for cured samples with soil.
Figure 11. Comparison of SG, RSG, RRG, and GI of different C/N ratios for cured samples with soil.
Sustainability 15 06191 g011

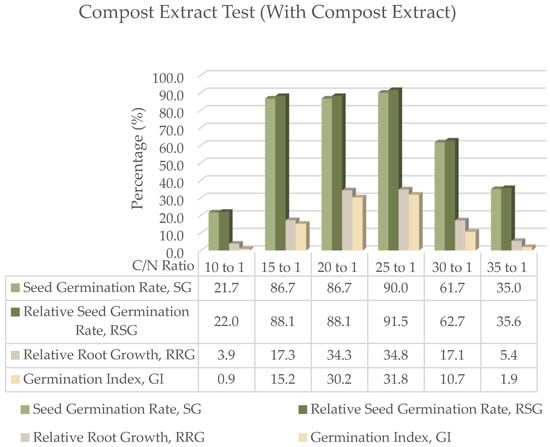

Figure 12. Comparison of SG, RSG, RRG, and GI of different C/N ratios for cured samples with compost extract.
Figure 12. Comparison of SG, RSG, RRG, and GI of different C/N ratios for cured samples with compost extract.
Sustainability 15 06191 g012

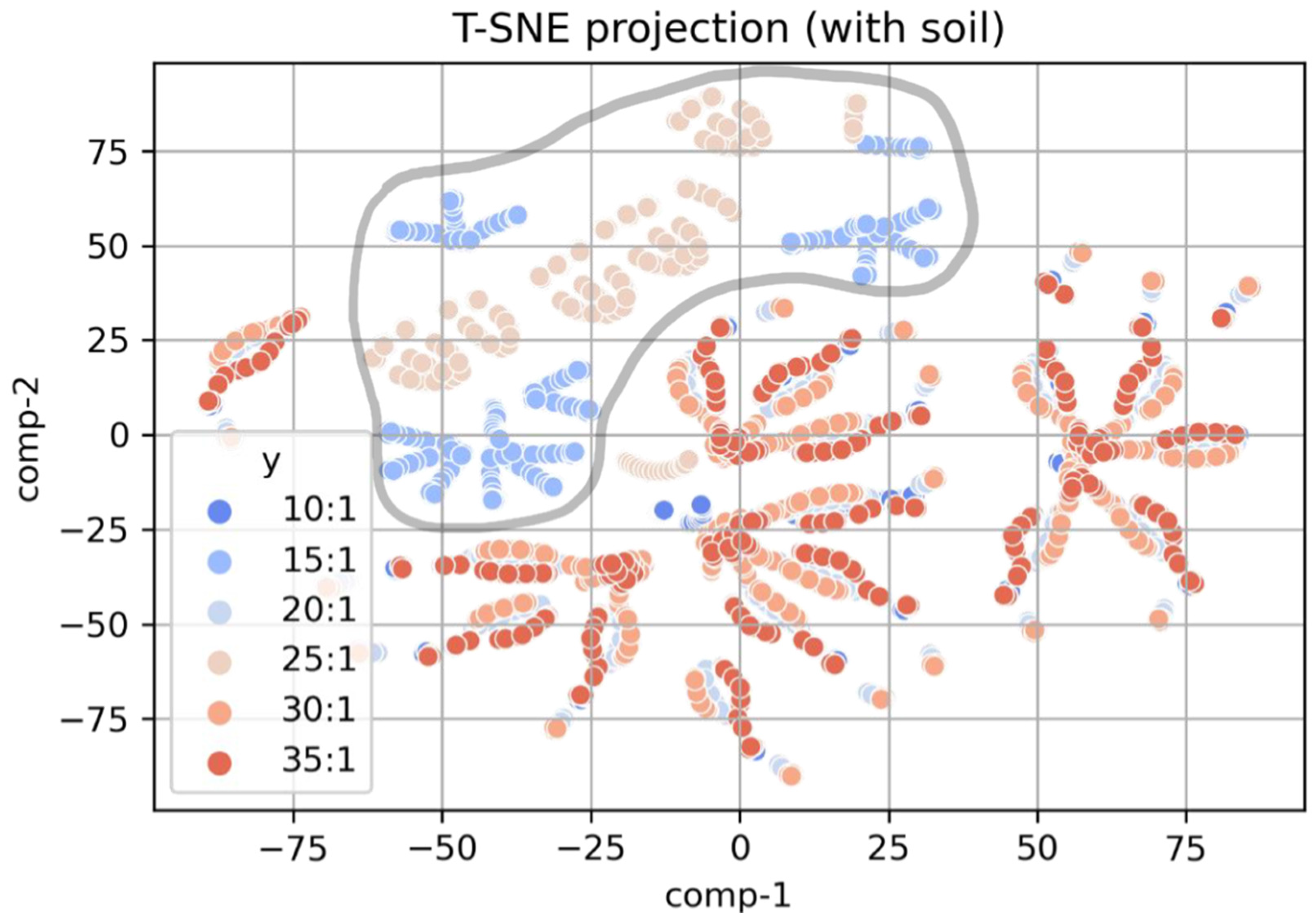

Figure 13. T-SNE projection compost with soil.
Figure 13. T-SNE projection compost with soil.
Sustainability 15 06191 g013

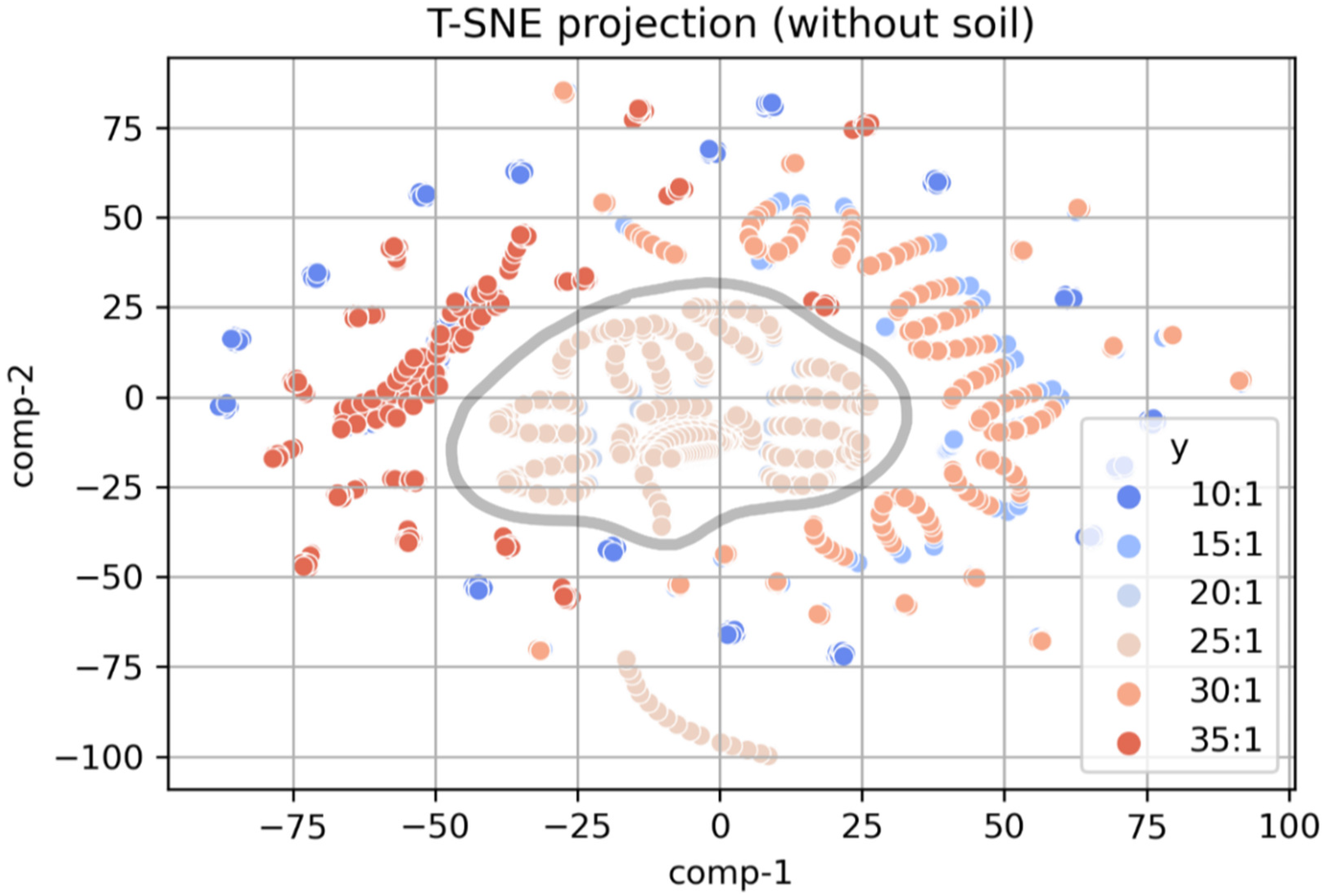

Figure 14. T-SNE projection for compost without soil.
Figure 14. T-SNE projection for compost without soil.
Sustainability 15 06191 g014
Table 1. Summary of the recommended range of the individual composting parameters in different composting phases.
Table 1. Summary of the recommended range of the individual composting parameters in different composting phases.
ParameterMesophilic PhaseThermophilic PhaseMaturation Phase
pH5 to 7
Decreasing then increasing pH trend
5.5 to 7
Increasing pH trend
5.5 to 8
TemperatureRoom temperature to 45 °C45 °C to 70 °CRoom temperature
Particle Size1 to 2 inches
Oxygen Concentration>5%
Moisture40% to 60%
C/N Ratio30:112:1
Table 2. Percentage of Carbon and Nitrogen contents in the selected kitchen waste.
Table 2. Percentage of Carbon and Nitrogen contents in the selected kitchen waste.
Carbon–Nitrogen Contents (%)CerealsNoodleBreadSpinachTotal
Carbon Content87.7585.349.43.8226.25
Nitrogen Content6.152.59.1320.75
Table 3. Summary of C/N ratio for cereals, noodles, bread, and spinach waste and total weight in grams.
Table 3. Summary of C/N ratio for cereals, noodles, bread, and spinach waste and total weight in grams.
MixtureCerealsNoodleBreadSpinachTotal WeightC/N Ratio
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Azis, F.A.; Choo, M.; Suhaimi, H.; Abas, P.E. The Effect of Initial Carbon to Nitrogen Ratio on Kitchen Waste Composting Maturity. Sustainability 2023, 15, 6191.

AMA Style

Azis FA, Choo M, Suhaimi H, Abas PE. The Effect of Initial Carbon to Nitrogen Ratio on Kitchen Waste Composting Maturity. Sustainability. 2023; 15(7):6191.

Chicago/Turabian Style

Azis, Fatin Amanina, Melanie Choo, Hazwani Suhaimi, and Pg Emeroylariffion Abas. 2023. "The Effect of Initial Carbon to Nitrogen Ratio on Kitchen Waste Composting Maturity" Sustainability 15, no. 7: 6191.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
