# Stability Assessment of Microalgal Photobioreactors for Carbon Dioxide Capture under Dilution Rate Constraints

## Abstract

**:**

## 1. Introduction

- The uniqueness of the equilibrium point of the closed-loop nonlinear system is proved in the presence of dilution rate saturation constraints and a proportional–integral (PI) tracking controller.
- Bounds on the saturation levels of the dilution rate are derived such that a reference microalgal concentration can be achieved. These bounds have never been reported in the literature so far and hence clearly show the novelty of the current research. Moreover, numerical simulations reveal that such bounds are tight.

## 2. Carbon Dioxide Fixation by Microalgae PBRs

#### 2.1. Underlying Chemical Reactions

#### 2.2. Mathematical Model

#### 2.3. Carbon Dioxide Fixation Capability

## 3. PBR Stability under Dilution Rate Constraint

#### 3.1. Control Problem

**Control problem:**Given a fixed CO${}_{2}$ flow rate, a given reference ${X}^{r}>0$ for the microalgal concentration and a saturated interval $[\u03f5,\overline{D}]$ for the PBR dilution rate, find conditions for the achievable tracking and stability of the PBR in the presence of a PI controller for the microalgal concentration.

#### 3.2. Controller Design

#### 3.3. Closed-Loop System Stability Analysis

**Theorem 1.**

**Proof.**

**Remark 1.**

## 4. Numerical Example

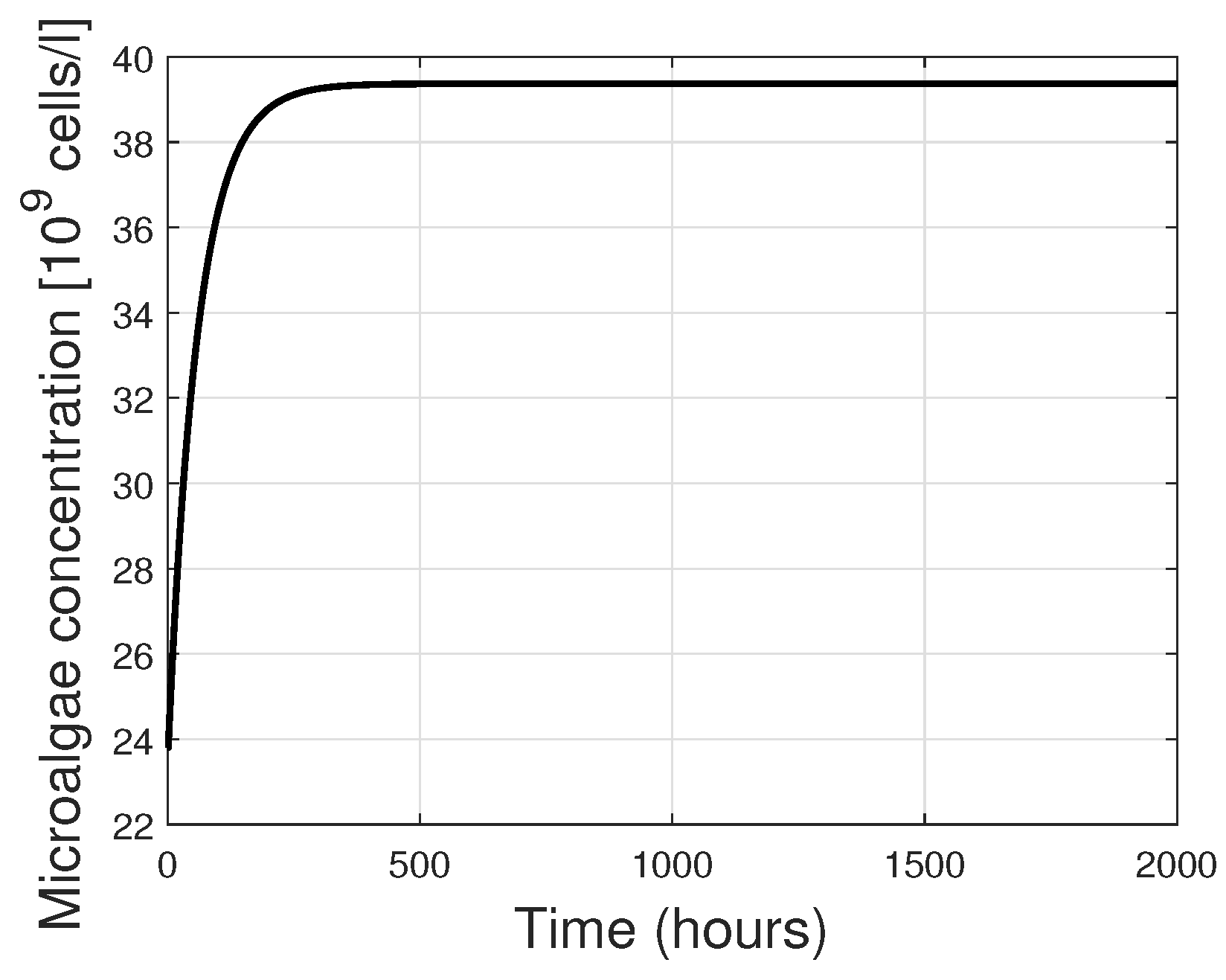

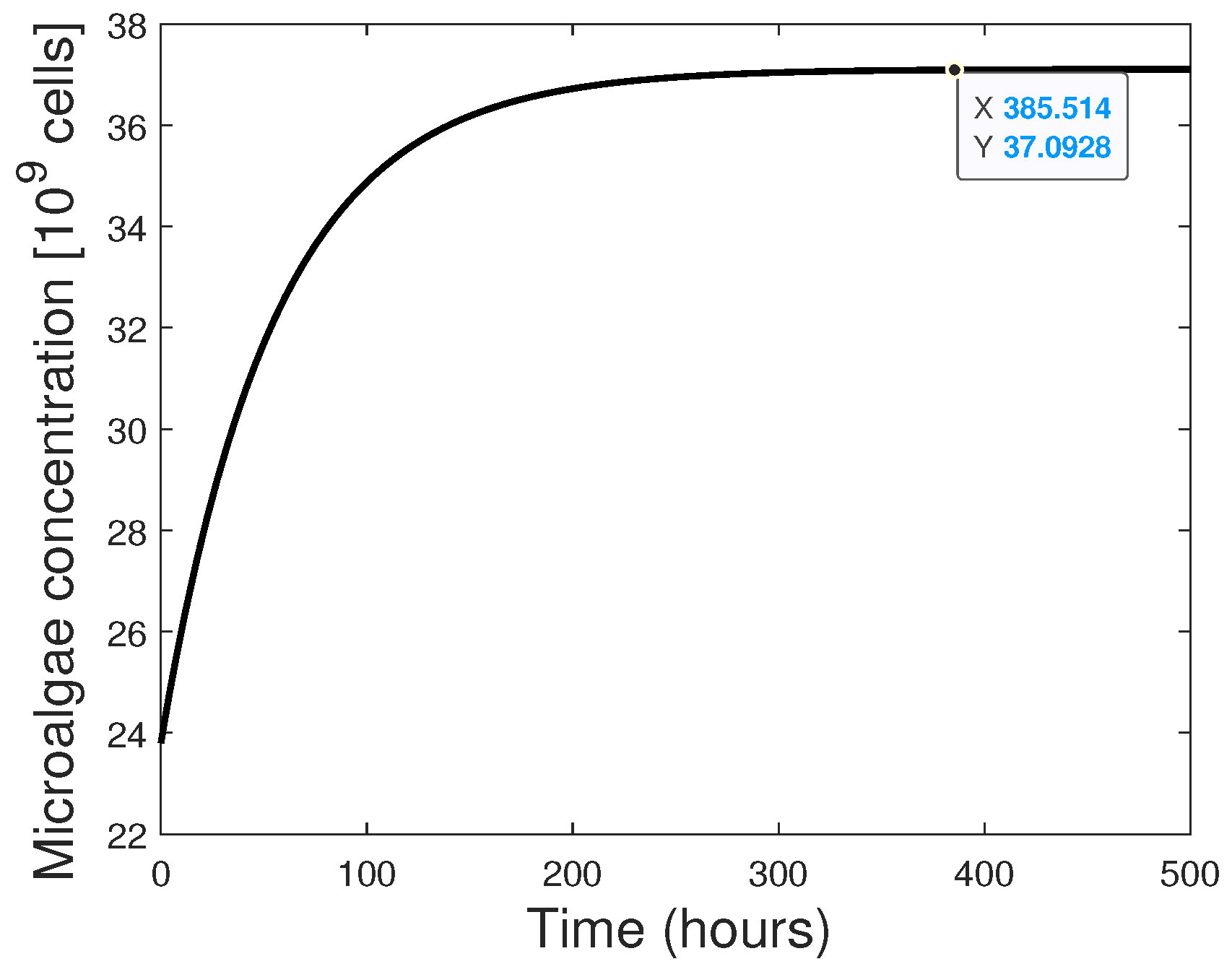

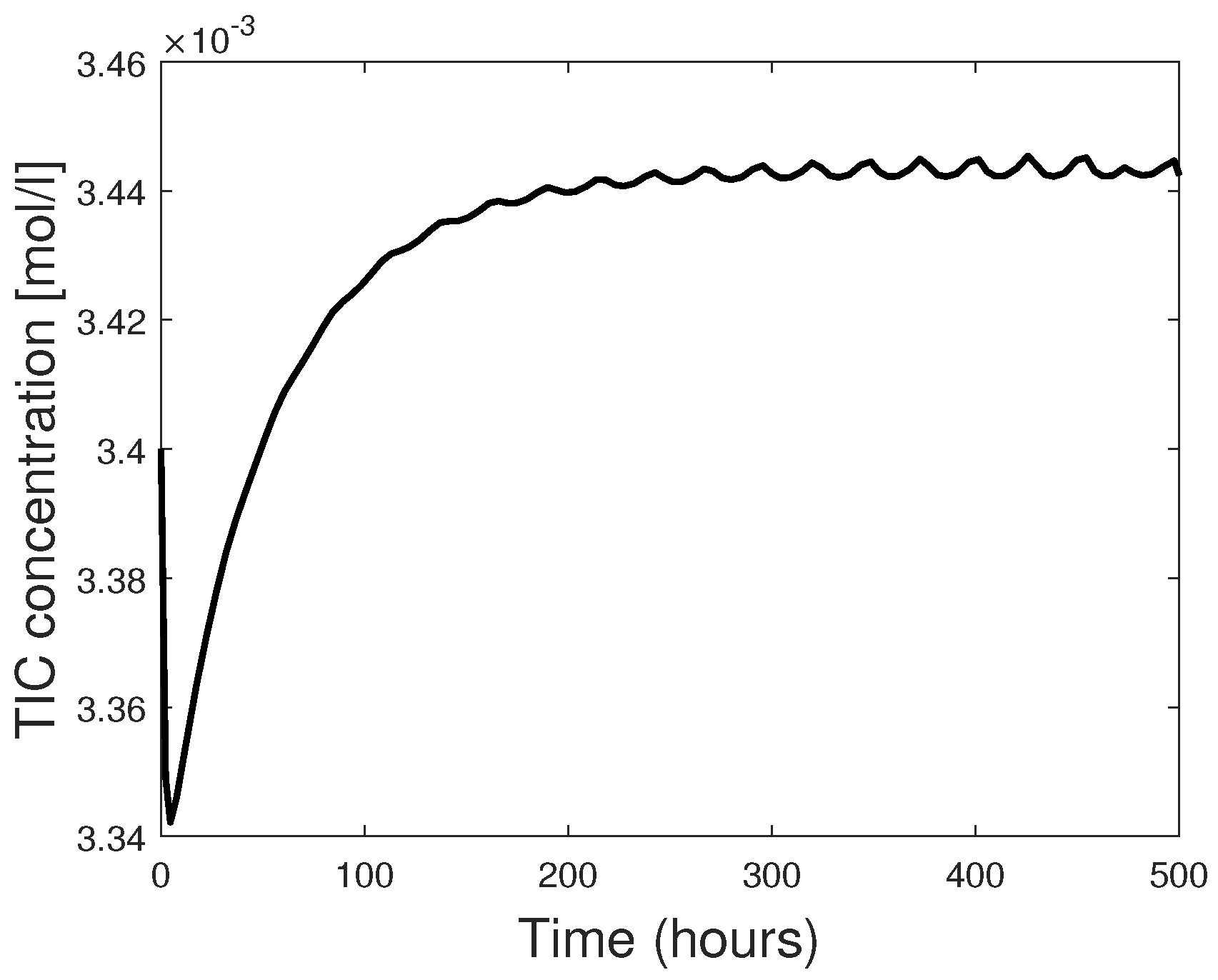

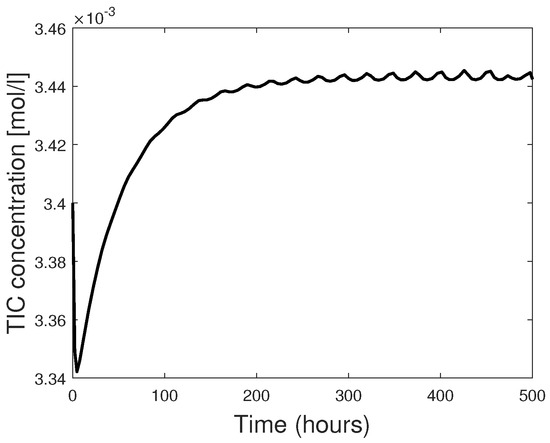

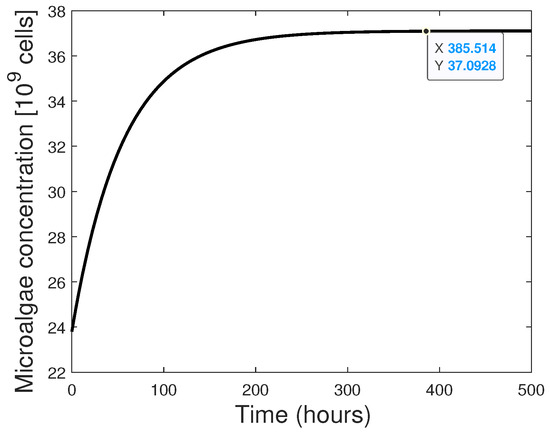

#### 4.1. System Responses without Control Actions

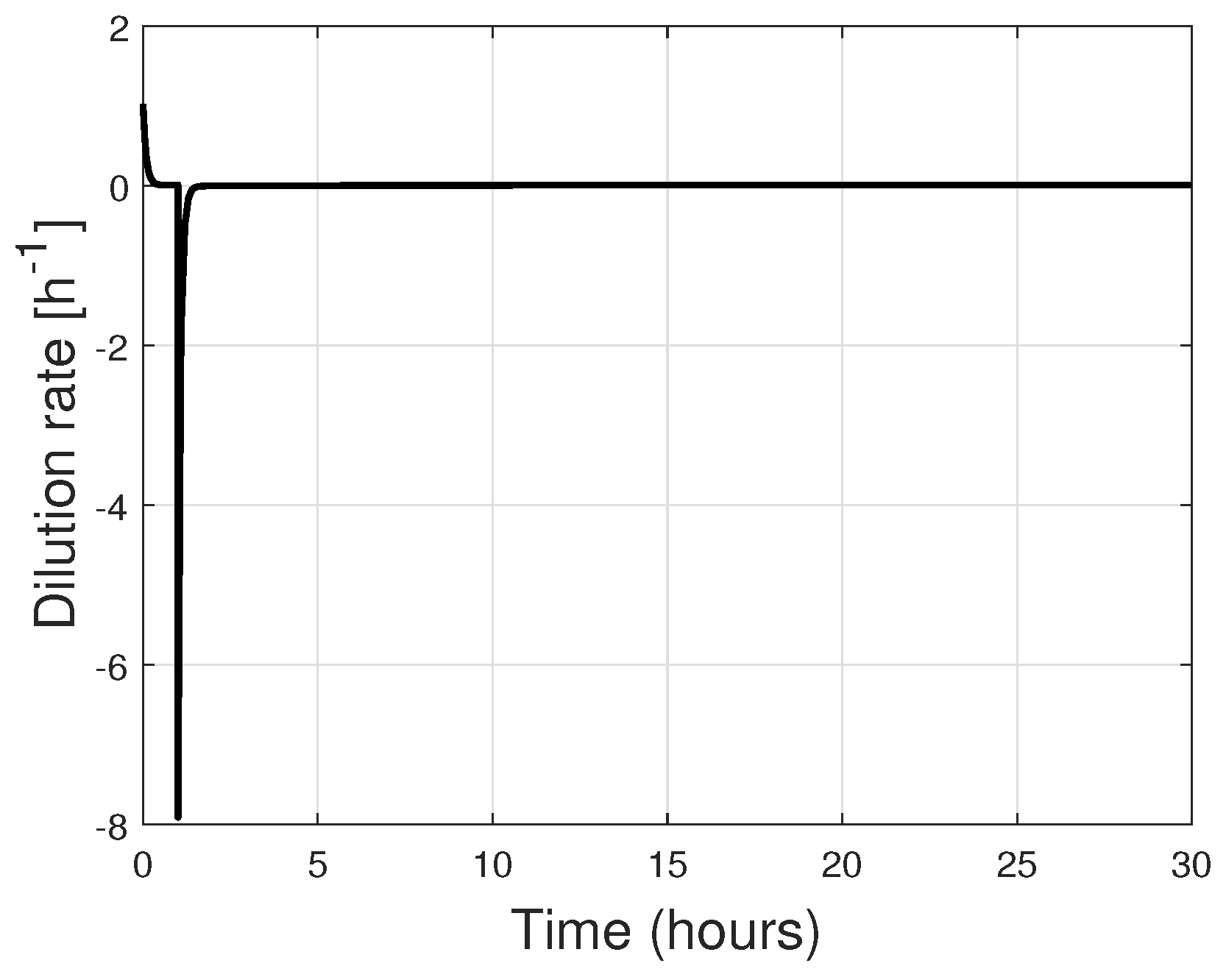

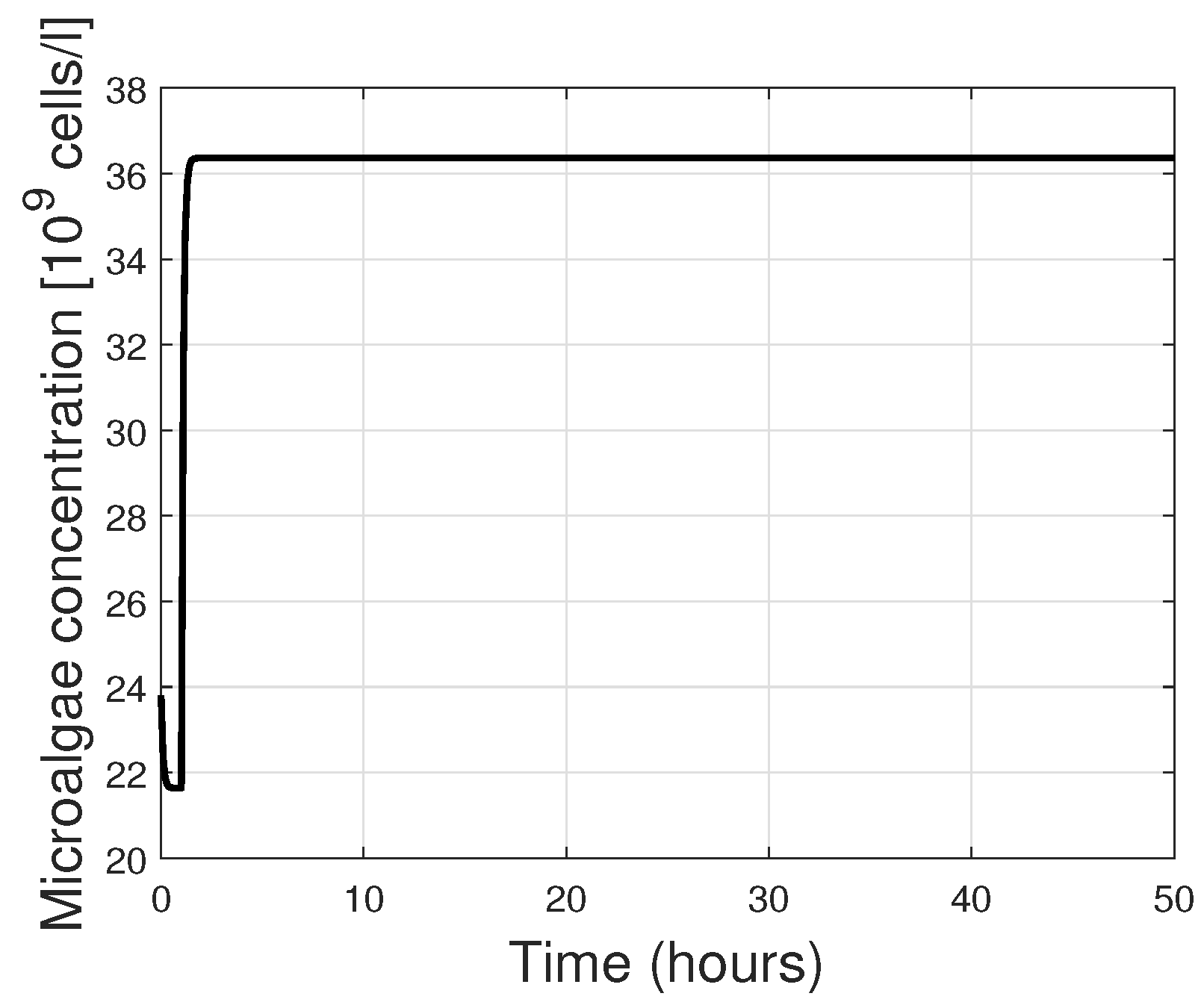

#### 4.2. Controlled PBR without Input Constraint

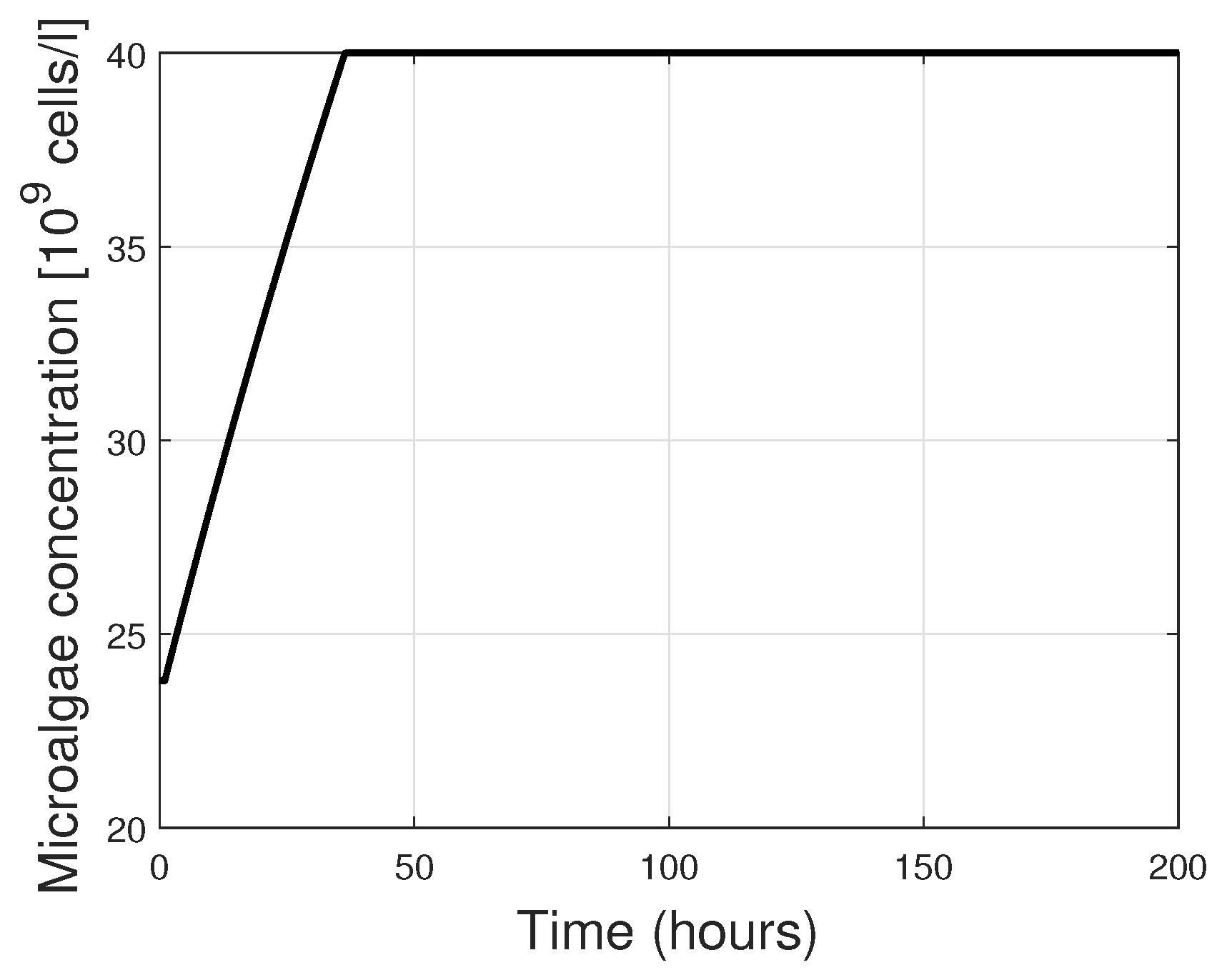

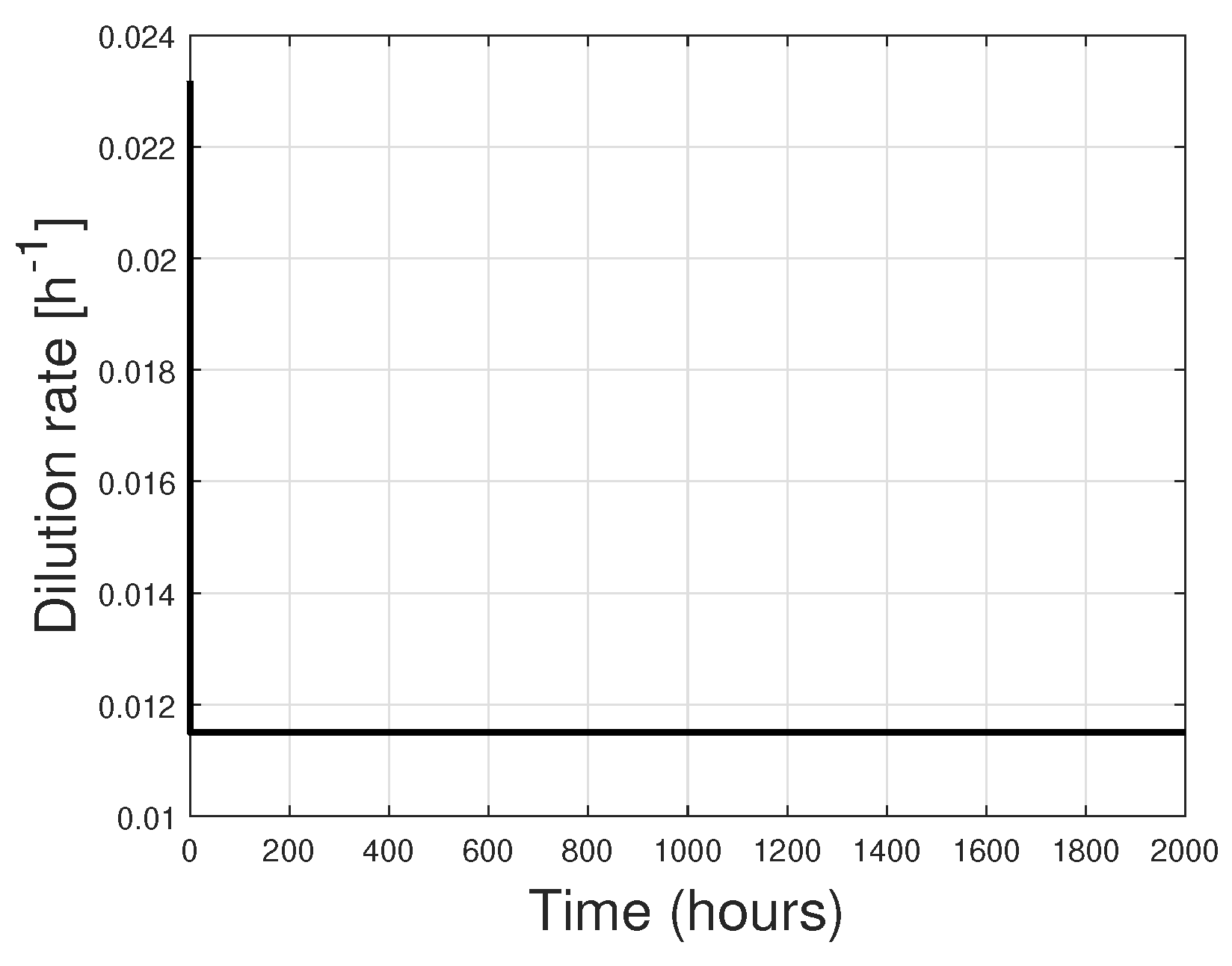

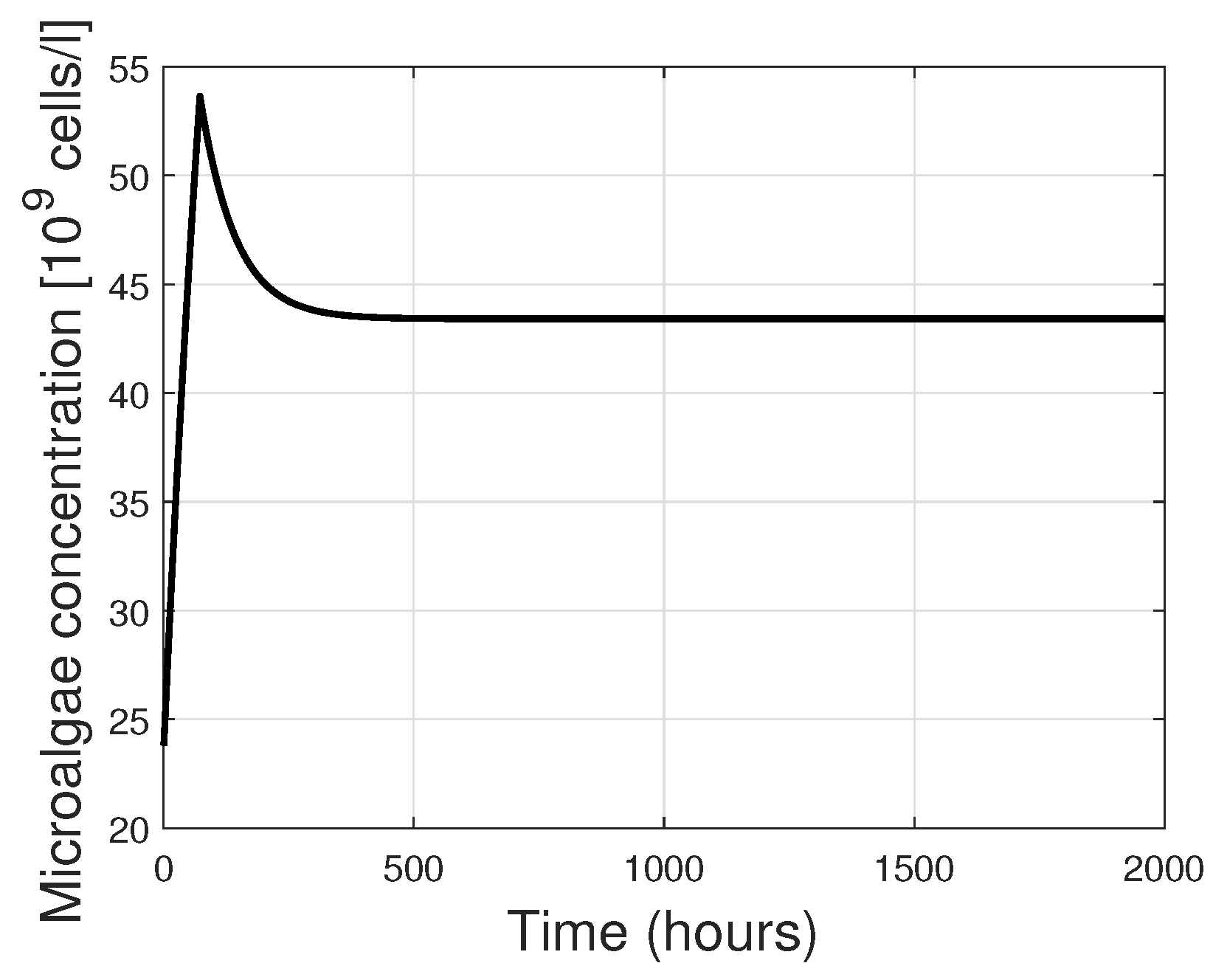

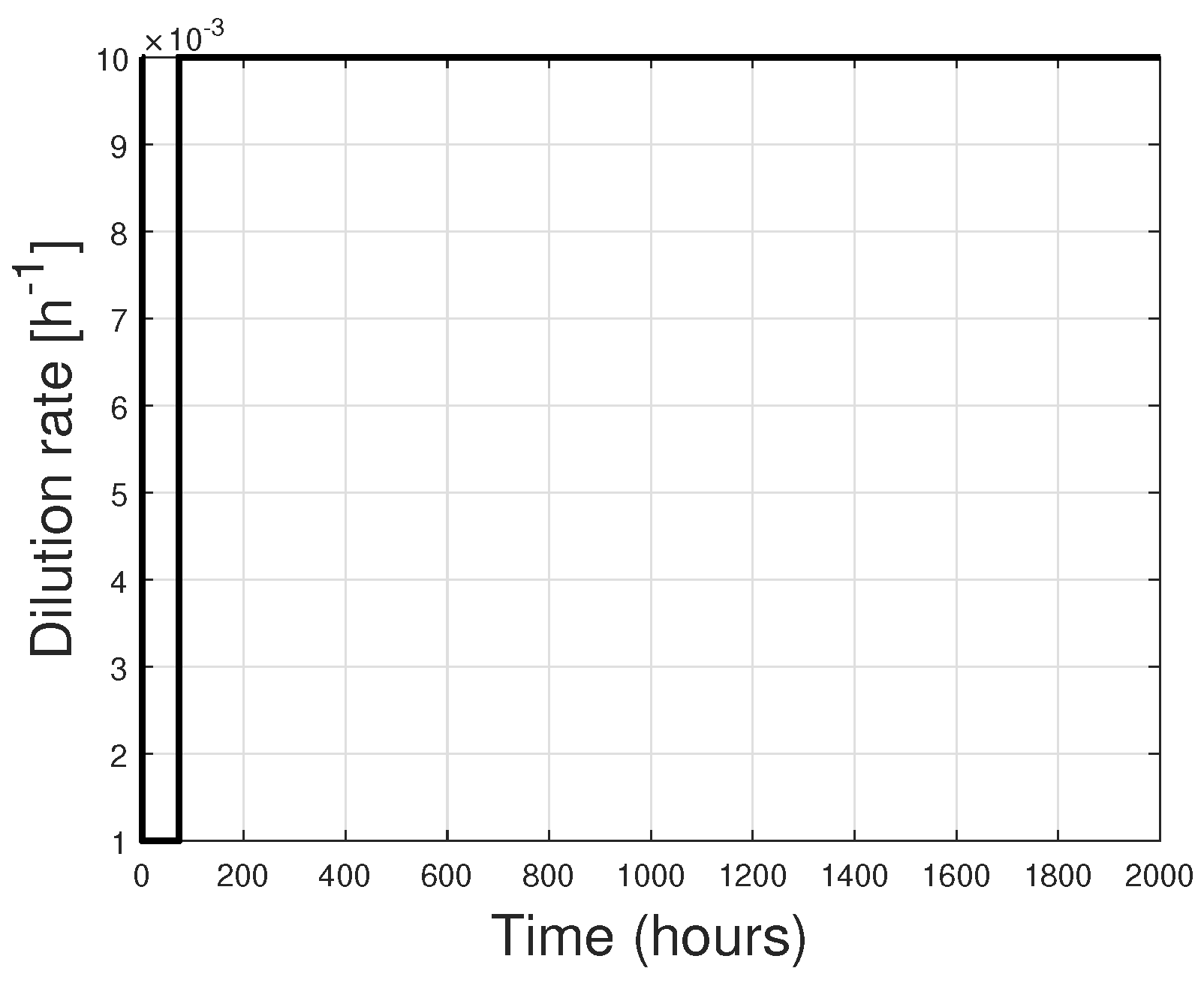

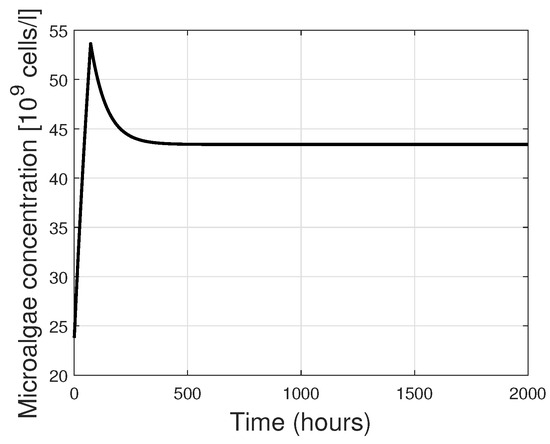

#### 4.3. Controlled PBR without Model Mismatch But with Input Constraint

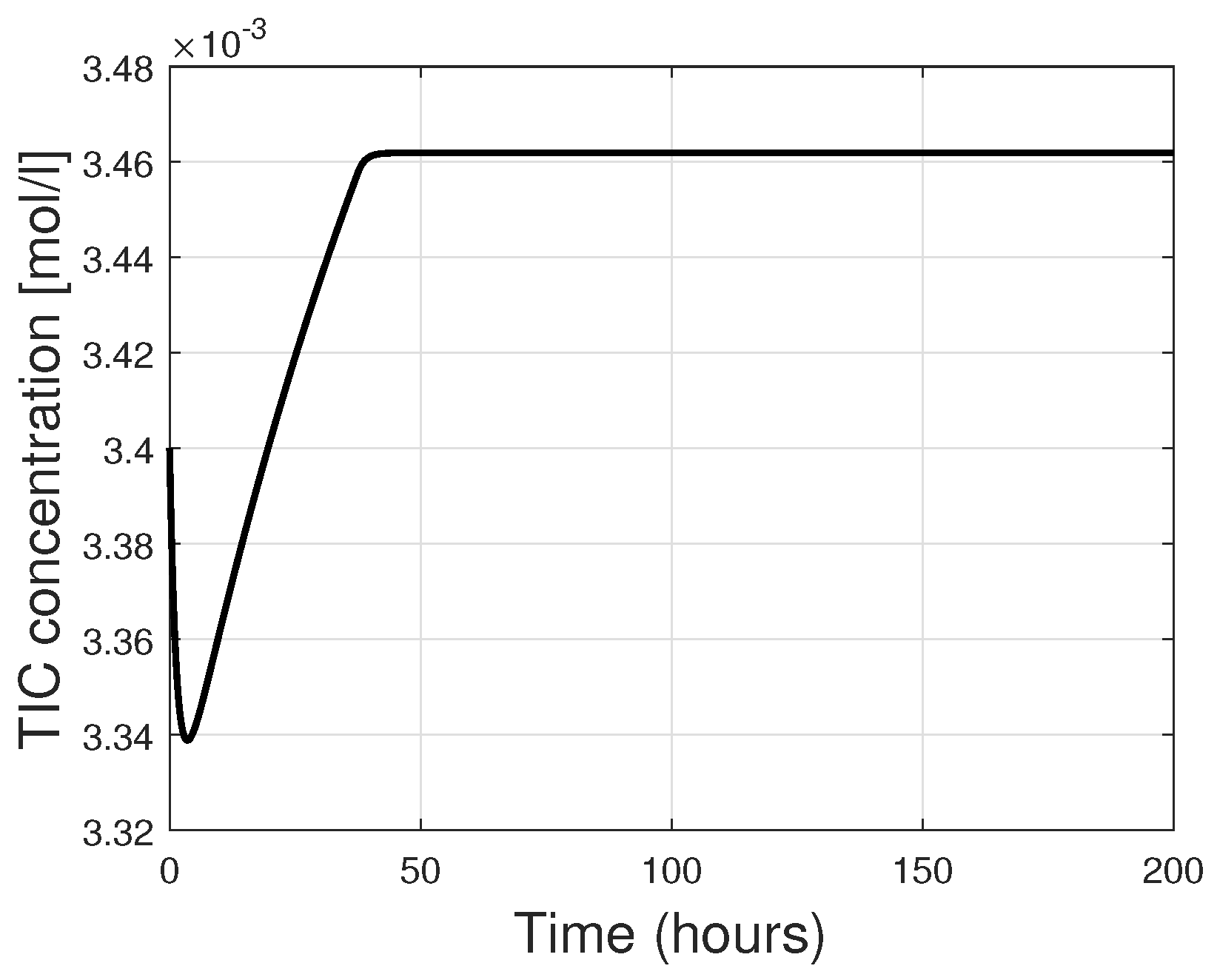

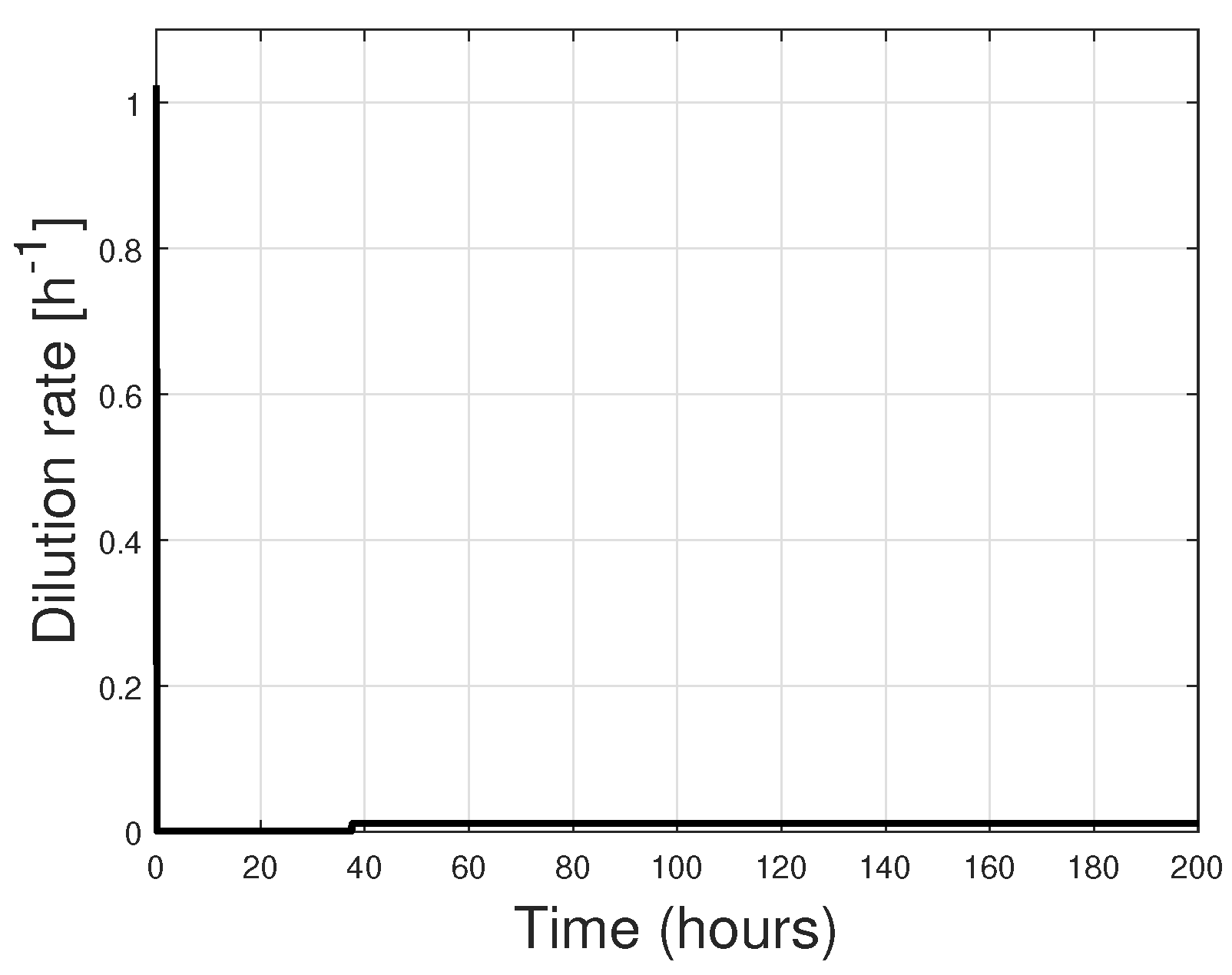

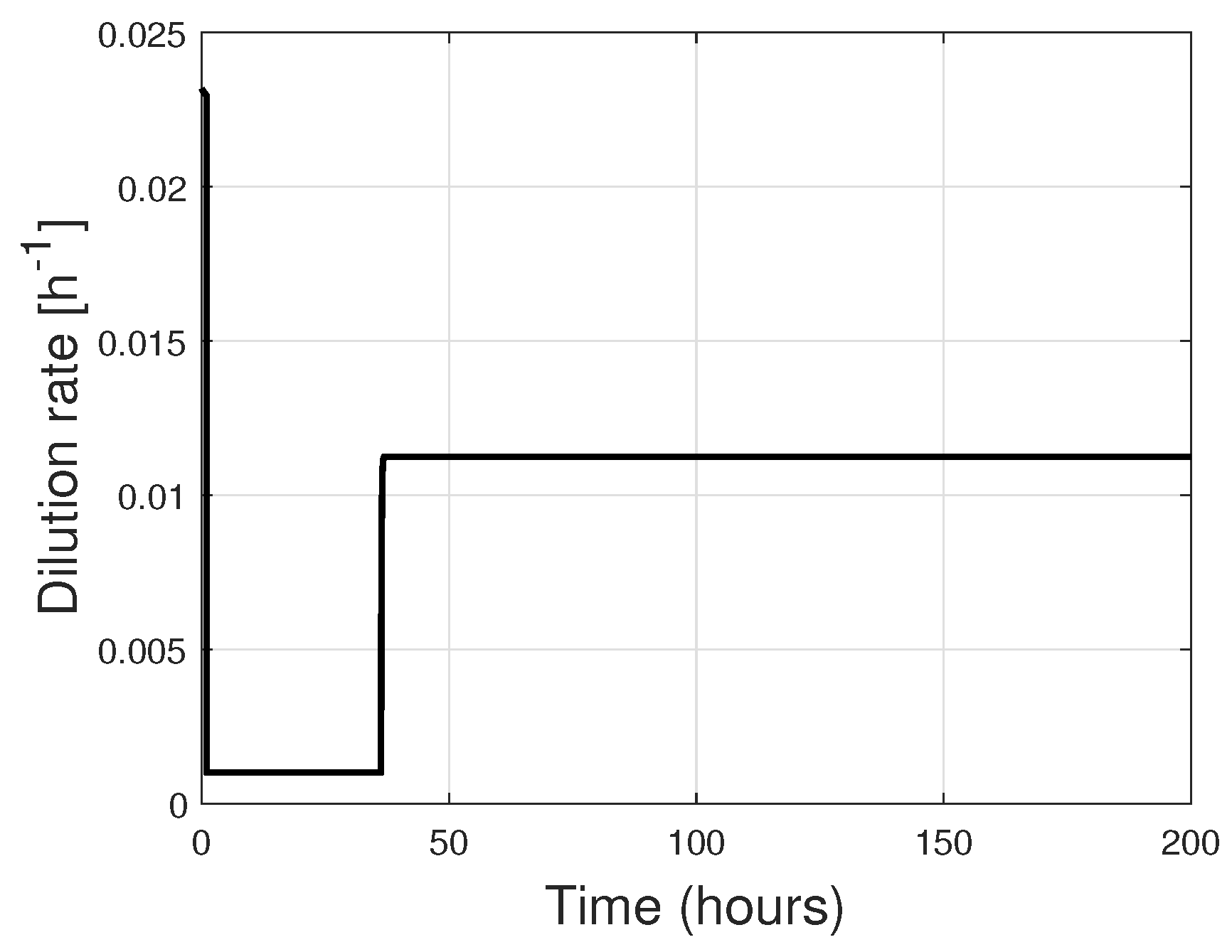

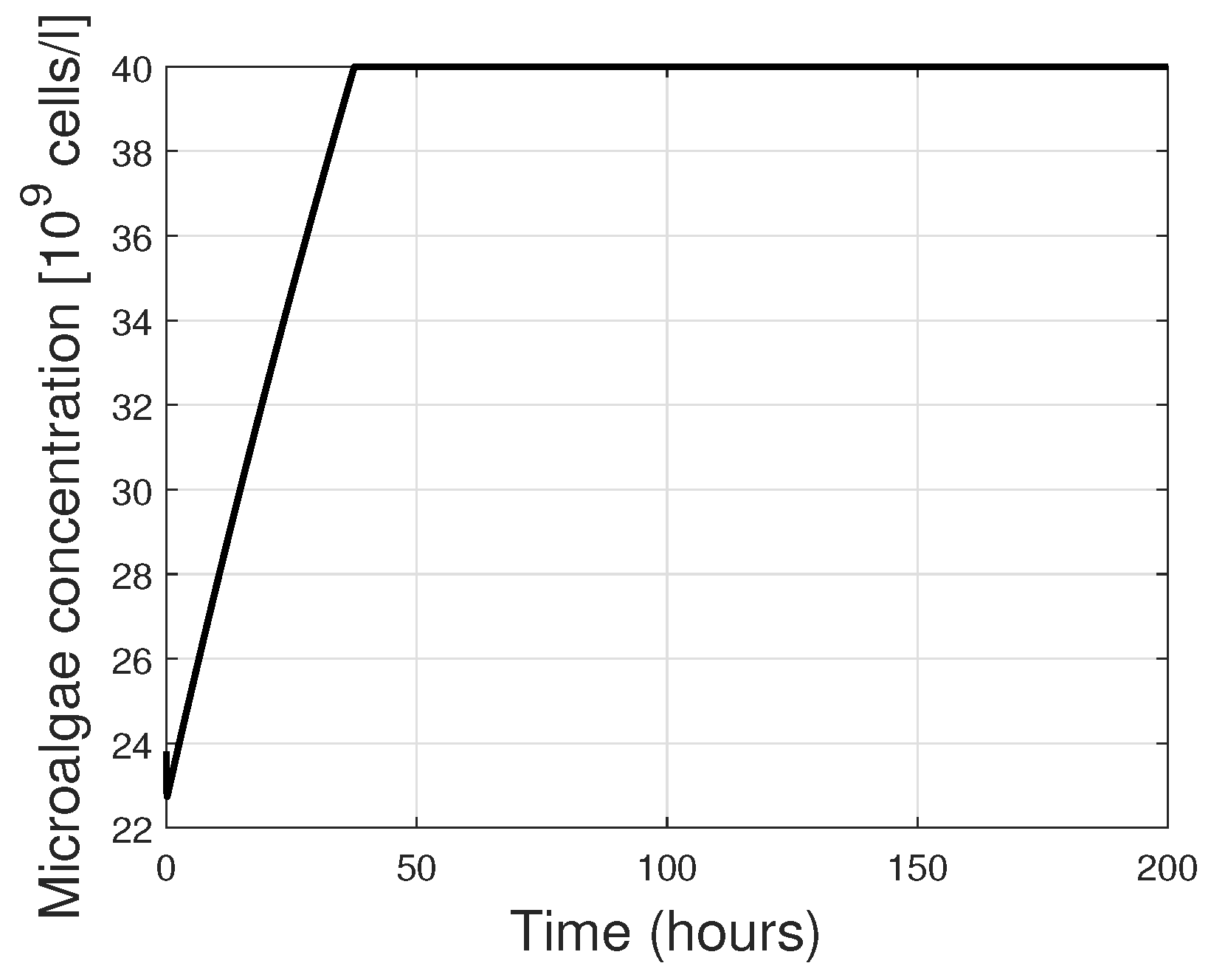

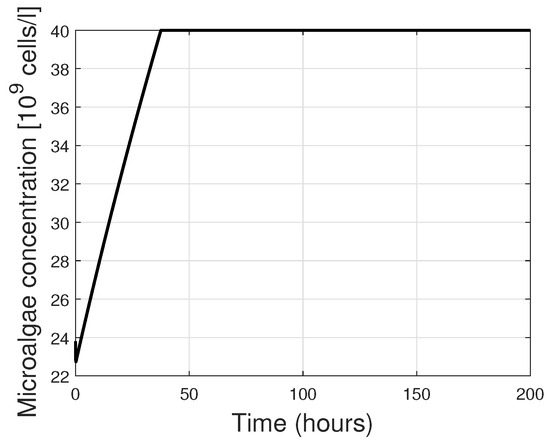

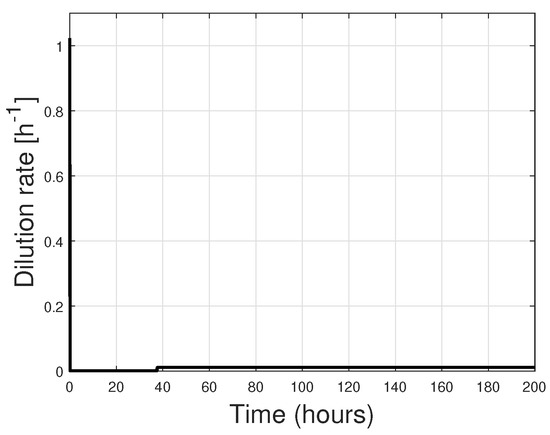

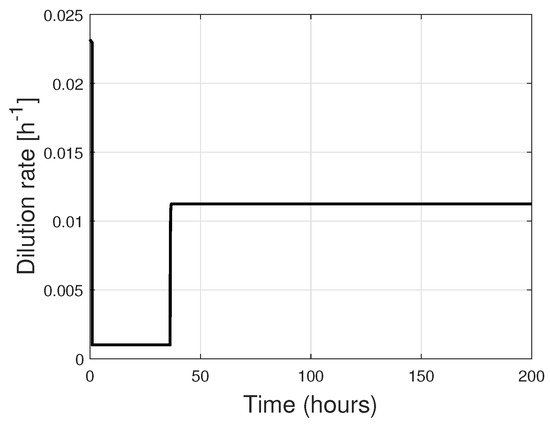

#### 4.4. Controlled PBR under Model Mismatch and Input Constraint

#### 4.5. Controlled PBR under Model Mismatch, Input Constraint, and Light Disturbance

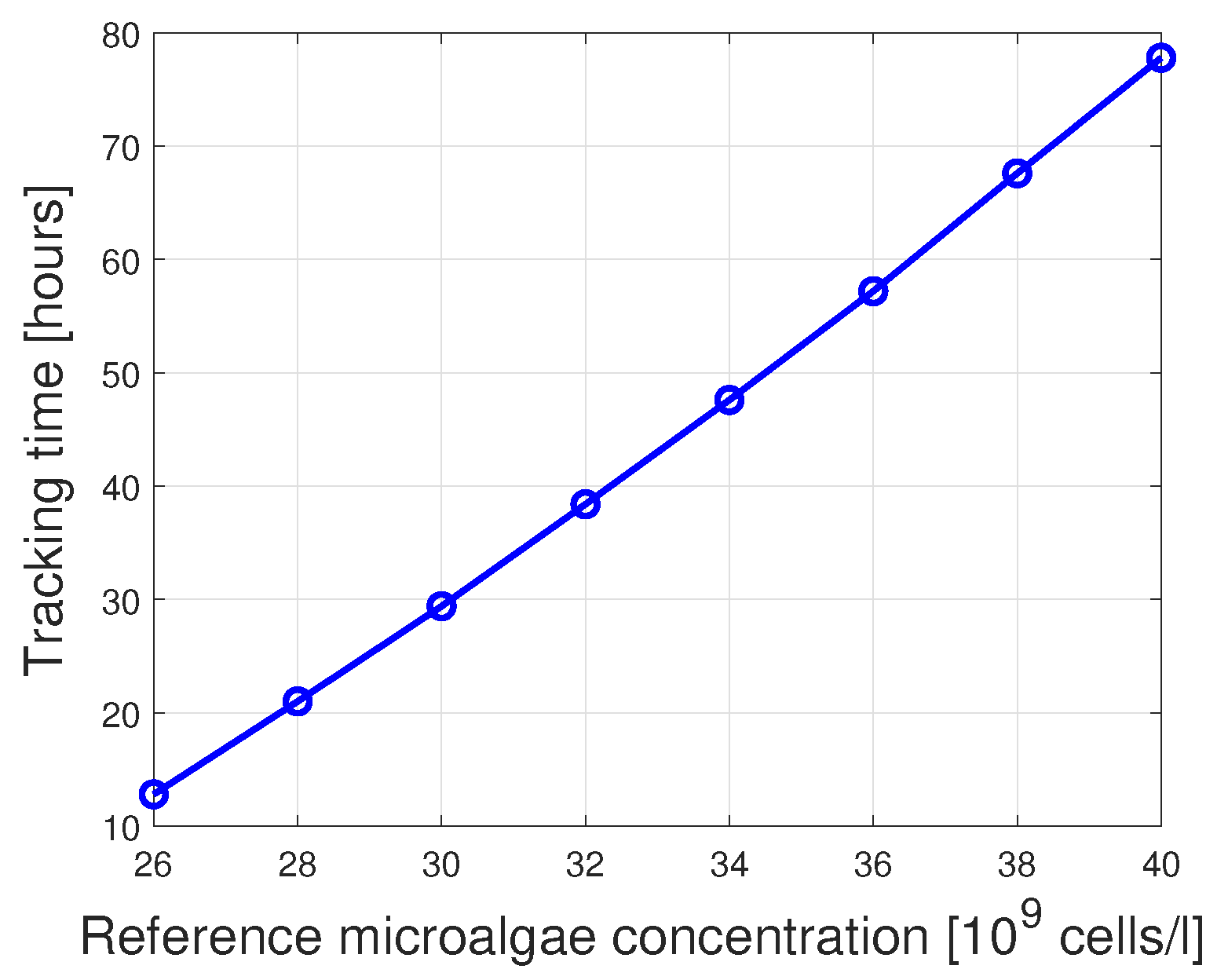

#### 4.6. Proportionality of Tracking Time to the Reference Value

## 5. Conclusions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Conflicts of Interest

## References

- Liu, H.; Yan, N.; Bai, H.; Kwok, R.T.K.; Tang, B.Z. Aggregation-induced emission luminogens for augmented photosynthesis. Exploration
**2022**, 2, 20210053. [Google Scholar] [CrossRef] [PubMed] - Yamada, H. Amine-based capture of CO
_{2}for utilization and storagee. Polym. J.**2021**, 53, 93–102. [Google Scholar] [CrossRef] - Buvik, V.; Høisæter, K.K.; Vevelstad, S.J.; Knuutila, H.K. A review of degradation and emissions in post-combustion CO
_{2}capture pilot plants. Int. J. Greenh. Gas Control**2021**, 106, 103246. [Google Scholar] [CrossRef] - Fujikawa, S.; Selyanchyn, R.; Kunitake, T. A new strategy for membrane-based direct air capture. Polym. J.
**2021**, 53, 111–119. [Google Scholar] [CrossRef] - Tahmasebpoor, M.; Iranvandi, M.; Heidari, M.; Azimi, B.; Pevida, C. Development of novel waste tea-derived activated carbon promoted with SiO
_{2}nanoparticles as highly robust and easily fluidizable sorbent for low-temperature CO_{2}capture. J. Environ. Chem. Eng.**2023**, 11, 110437. [Google Scholar] [CrossRef] - Heidari, M.; Borhan Mousavi, S.; Rahmani, F.; Clough, P.T.; Ozmen, S. The novel Carbon Nanotube-assisted development of highly porous CaZrO
_{3}-CaO xerogel with boosted sorption activity towards high-temperature cyclic CO_{2}capture. Energy Convers. Manag.**2022**, 274, 116461. [Google Scholar] [CrossRef] - Iranvandi, M.; Tahmasebpoor, M.; Azimi, B.; Heidari, M.; Pevida, C. The novel SiO
_{2}-decorated highly robust waste-derived activated carbon with homogeneous fluidity for the CO_{2}capture process. Sep. Purif. Technol.**2023**, 306, 122625. [Google Scholar] [CrossRef] - Nguyen, D.H.; Chapman, A.; Tsuji, T. Assessing the Optimal Contributions of Renewables and Carbon Capture and Storage toward Carbon Neutrality by 2050. Sustainability
**2023**, 15, 13447. [Google Scholar] [CrossRef] - Tebbani, S.; Filali, R.; Lopes, F.; Dumur, D.; Pareau, D. CO
_{2}Biofixation by Microalgae: Modeling, Estimation and Control; John Wiley & Sons: Hoboken, NJ, USA, 2014. [Google Scholar] - Ji, X.; Verspagen, J.M.H.; Stomp, M.; Huisman, J. Competition between cyanobacteria and green algae at low versus elevated CO
_{2}: Who will win, and why? J. Exp. Bot.**2017**, 68, 3815–3828. [Google Scholar] [CrossRef] - Prasad, R.; Gupta, S.K.; Shabnam, N.; Oliveira, C.Y.B.; Nema, A.K.; Ansari, F.A.; Bux, F. Role of Microalgae in Global CO
_{2}Sequestration: Physiological Mechanism, Recent Development, Challenges, and Future Prospective. Sustainability**2021**, 13, 13061. [Google Scholar] [CrossRef] - Bernard, O. Hurdles and challenges for modelling and control of microalgae for CO
_{2}mitigation and biofuel production. J. Process Control**2011**, 21, 1378–1389. [Google Scholar] [CrossRef] - Singh, H.M.; Kothari, R.; Gupta, R.; Tyagi, V. Bio-fixation of flue gas from thermal power plants with algal biomass: Overview and research perspectives. J. Environ. Manag.
**2019**, 245, 519–539. [Google Scholar] [CrossRef] - Rezvani, S.; Moheimani, N.; Bahri, P. Techno-economic assessment of CO
_{2}bio-fixation using microalgae in connection with three different state-of-the-art power plants. Comput. Chem. Eng.**2016**, 84, 290–301. [Google Scholar] [CrossRef] - Valdovinos-García, E.M.; Barajas-Fernández, J.; Olán-Acosta, M.d.l.Á.; Petriz-Prieto, M.A.; Guzmán-López, A.; Bravo-Sánchez, M.G. Techno-Economic Study of CO
_{2}Capture of a Thermoelectric Plant Using Microalgae (Chlorella vulgaris) for Production of Feedstock for Bioenergy. Energies**2020**, 13, 413. [Google Scholar] [CrossRef] - Leflay, H.; Pandhal, J.; Brown, S. Direct measurements of CO
_{2}capture are essential to assess the technical and economic potential of algal-CCUS. J. CO_{2}Util.**2021**, 52, 101657. [Google Scholar] [CrossRef] - Behera, B.; Paramasivan, B. Uncertainty analysis and stochastic studies of techno-economics of algal carbon sequestration at Indian coal powered plants. Environ. Technol. Innov.
**2021**, 24, 101897. [Google Scholar] [CrossRef] - Marxsen, B. Techno-Economic Analysis of Microalgal CO
_{2}-Bioremediation from a West Australian Coal-Fired Power Station’s Flue-Gas. Master’s Thesis, Murdoch University, Perth, Australia, 2020. [Google Scholar] - Nurariffudin, M.; Hashim, H.; Lim, J.; Ho, C. Economic Assessment of Microalgae-Based CO
_{2}Utilization in Power Plant Sector in Malaysia. Chem. Eng. Trans.**2017**, 56, 643–648. [Google Scholar] - López-Pacheco, I.Y.; Rodas-Zuluaga, L.I.; Fuentes-Tristan, S.; Castillo-Zacarías, C.; Sosa-Hernández, J.E.; Barceló, D.; Iqbal, H.M.; Parra-Saldívar, R. Phycocapture of CO
_{2}as an option to reduce greenhouse gases in cities: Carbon sinks in urban spaces. J. CO_{2}Util.**2021**, 53, 101704. [Google Scholar] [CrossRef] - Kroumov, A.D.; Módenes, A.N.; Trigueros, D.E.G.; Espinoza-Quiñones, F.R.; Borba, C.E.; Scheufele, F.B.; Hinterholz, C.L. A systems approach for CO
_{2}fixation from flue gas by microalgae—Theory review. Process Biochem.**2016**, 51, 1817–1832. [Google Scholar] [CrossRef] - Malek, A.; Zullo, L.C.; Daoutidis, P. Modeling and Dynamic Optimization of Microalgae Cultivation in Outdoor Open Ponds. Ind. Eng. Chem. Res.
**2016**, 55, 3327–3337. [Google Scholar] [CrossRef] - Jayaraman, S.K.; Rhinehart, R.R. Modeling and Optimization of Algae Growth. Ind. Eng. Chem. Res.
**2015**, 54, 8063–8071. [Google Scholar] [CrossRef] - Lim, Y.A.; Chong, M.N.; Foo, S.C.; Ilankoon, I. Analysis of direct and indirect quantification methods of CO
_{2}fixation via microalgae cultivation in photobioreactors: A critical review. Renew. Sustain. Energy Rev.**2021**, 137, 110579. [Google Scholar] [CrossRef] - Vo, H.N.P.; Ngo, H.H.; Guo, W.; Nguyen, T.M.H.; Liu, Y.; Liu, Y.; Nguyen, D.D.; Chang, S.W. A critical review on designs and applications of microalgae-based photobioreactors for pollutants treatment. Sci. Total Environ.
**2019**, 651, 1549–1568. [Google Scholar] [CrossRef] [PubMed] - Losa, J.P.; Santos, F.M.; Alvim-Ferraz, M.C.; Martins, F.G.; Pires, J.C. Dynamic Modeling of Microalgal Growth. In Encyclopedia of Marine Biotechnology; John Wiley & Sons: Hoboken, NJ, USA, 2020; Chapter 18; pp. 547–567. [Google Scholar]
- Monod, J. The growth of bacterial cultures. Annu. Rev. Microbiol.
**1949**, 3, 371–394. [Google Scholar] [CrossRef] - Droop, M.R. Vitamin B12 and Marine Ecology. IV. The Kinetics of Uptake, Growth and Inhibition in Monochrysis Lutheri. J. Mar. Biol. Assoc. UK
**1968**, 48, 689–733. [Google Scholar] [CrossRef] - Richards, F.J. A Flexible Growth Function for Empirical Use. J. Exp. Bot.
**1959**, 10, 290–300. [Google Scholar] [CrossRef] - Al Ketife, A.M.; Judd, S.; Znad, H. A mathematical model for carbon fixation and nutrient removal by an algal photobioreactor. Chem. Eng. Sci.
**2016**, 153, 354–362. [Google Scholar] [CrossRef] - Shene, C.; Chisti, Y.; Bustamante, M.; Rubilar, M. Effect of CO
_{2}in the aeration gas on cultivation of the microalga Nannochloropsis oculata: Experimental study and mathematical modeling of CO_{2}assimilation. Algal Res.**2016**, 13, 16–29. [Google Scholar] [CrossRef] - Bradford, E.; Schweidtmann, A.M.; Zhang, D.; Jing, K.; del Rio-Chanona, E.A. Dynamic modeling and optimization of sustainable algal production with uncertainty using multivariate Gaussian processes. Comput. Chem. Eng.
**2018**, 118, 143–158. [Google Scholar] [CrossRef] - Nguyen, L.; Nguyen, D.K.; Nghiem, T.X.; Nguyen, T. Least square and Gaussian process for image based microalgal density estimation. Comput. Electron. Agric.
**2022**, 193, 106678. [Google Scholar] [CrossRef] - Tamburic, B.; Evenhuis, C.R.; Crosswell, J.R.; Ralph, P.J. An empirical process model to predict microalgal carbon fixation rates in photobioreactors. Algal Res.
**2018**, 31, 334–346. [Google Scholar] [CrossRef] - Tebbani, S.; Lopes, F.; Becerra Celis, G. Nonlinear control of continuous cultures of Porphyridium purpureum in a photobioreactor. Chem. Eng. Sci.
**2015**, 123, 207–219. [Google Scholar] [CrossRef] - Lucia, S.; Engell, S. Robust nonlinear model predictive control of a batch bioreactor using multi-stage stochastic programming. In Proceedings of the 2013 European Control Conference (ECC), Zurich, Switzerland, 17–19 July 2013; pp. 4124–4129. [Google Scholar]

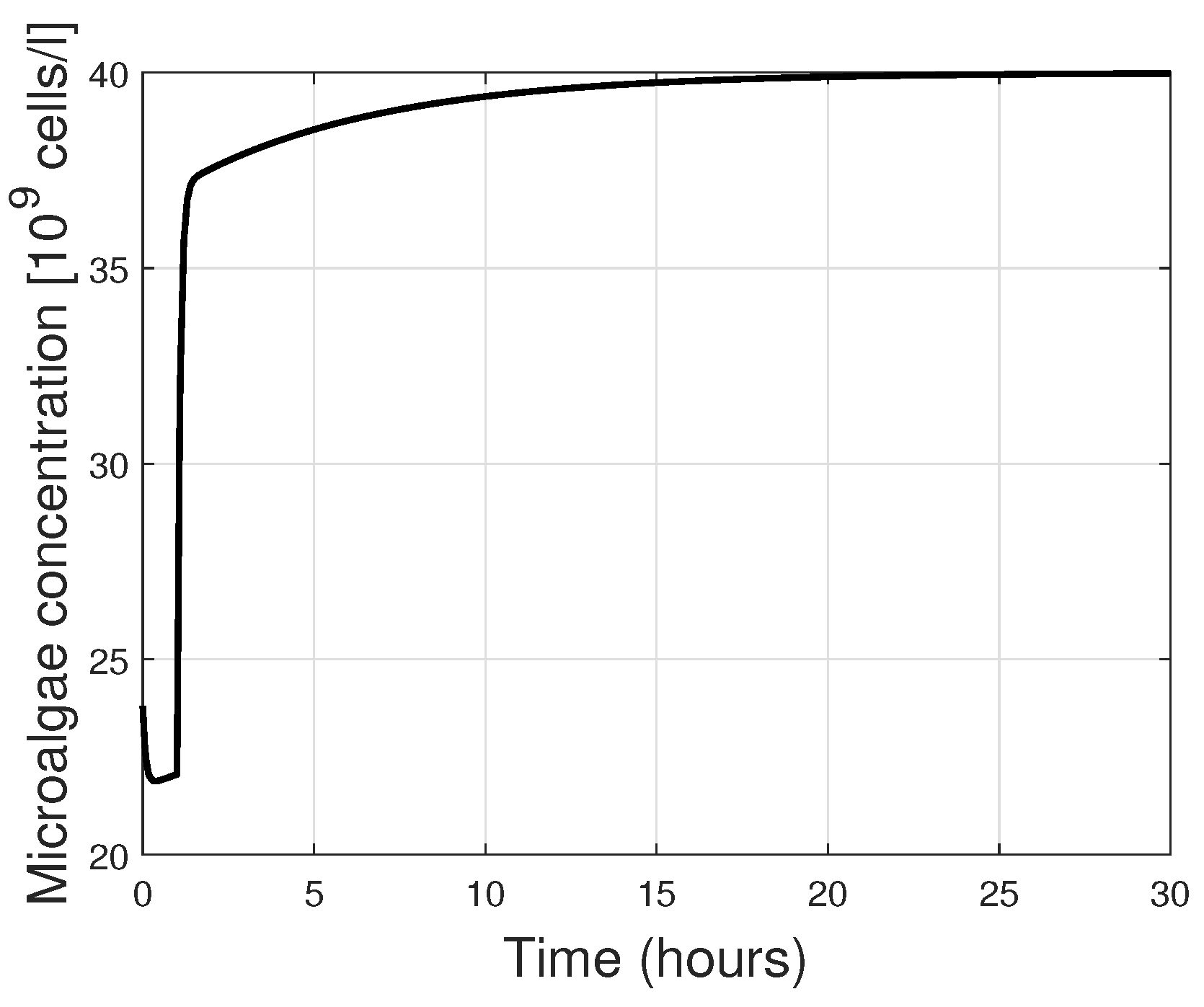

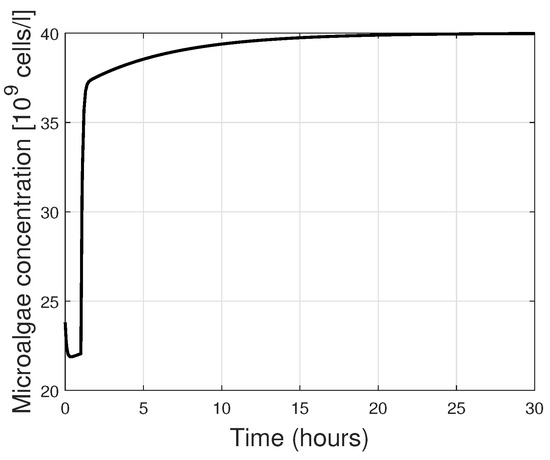

**Figure 4.**Achieved reference tracking under model mismatch and PI control, without input saturation.

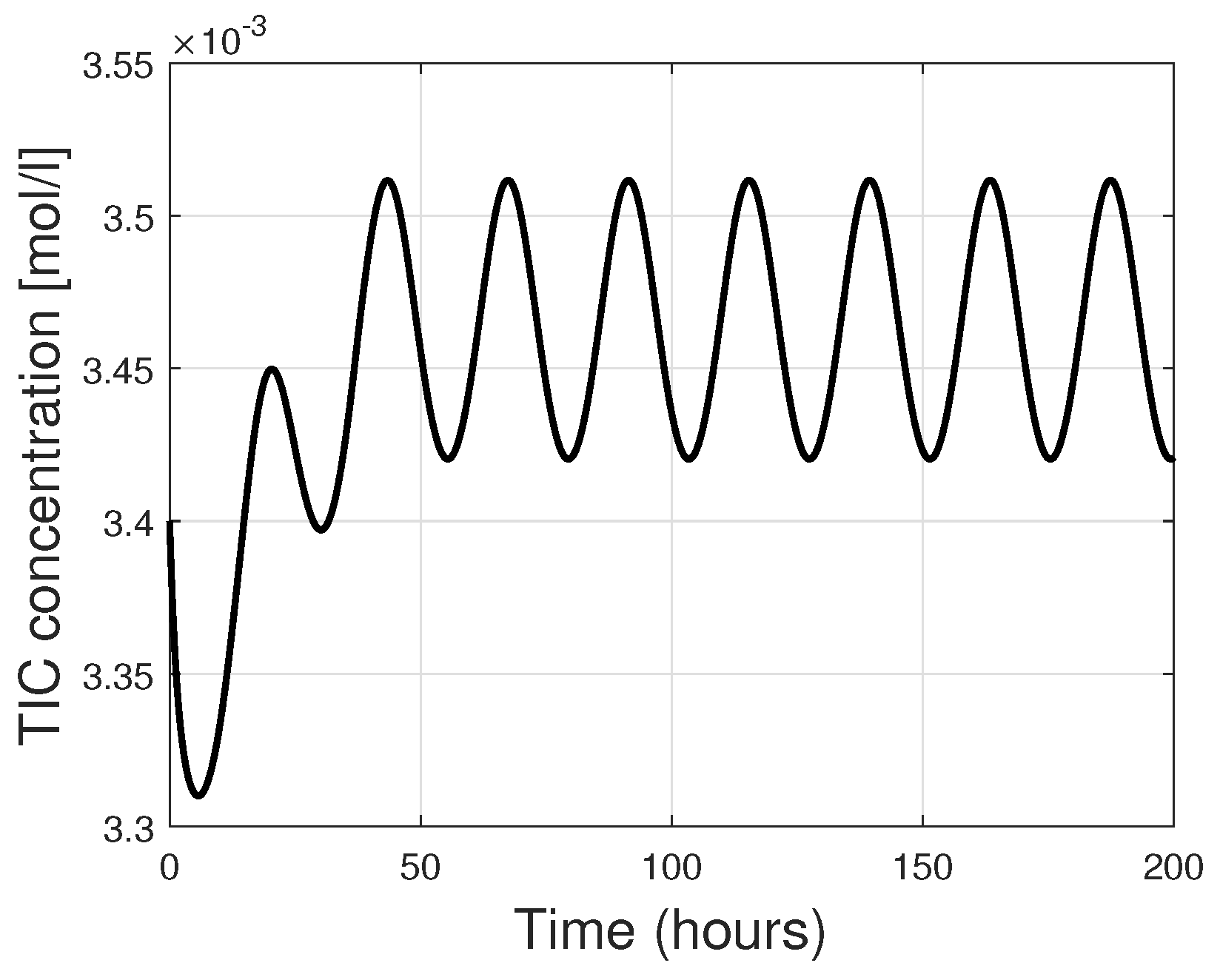

**Figure 15.**TIC concentration under input saturation, model mismatch, and sinusoidal light disturbance.

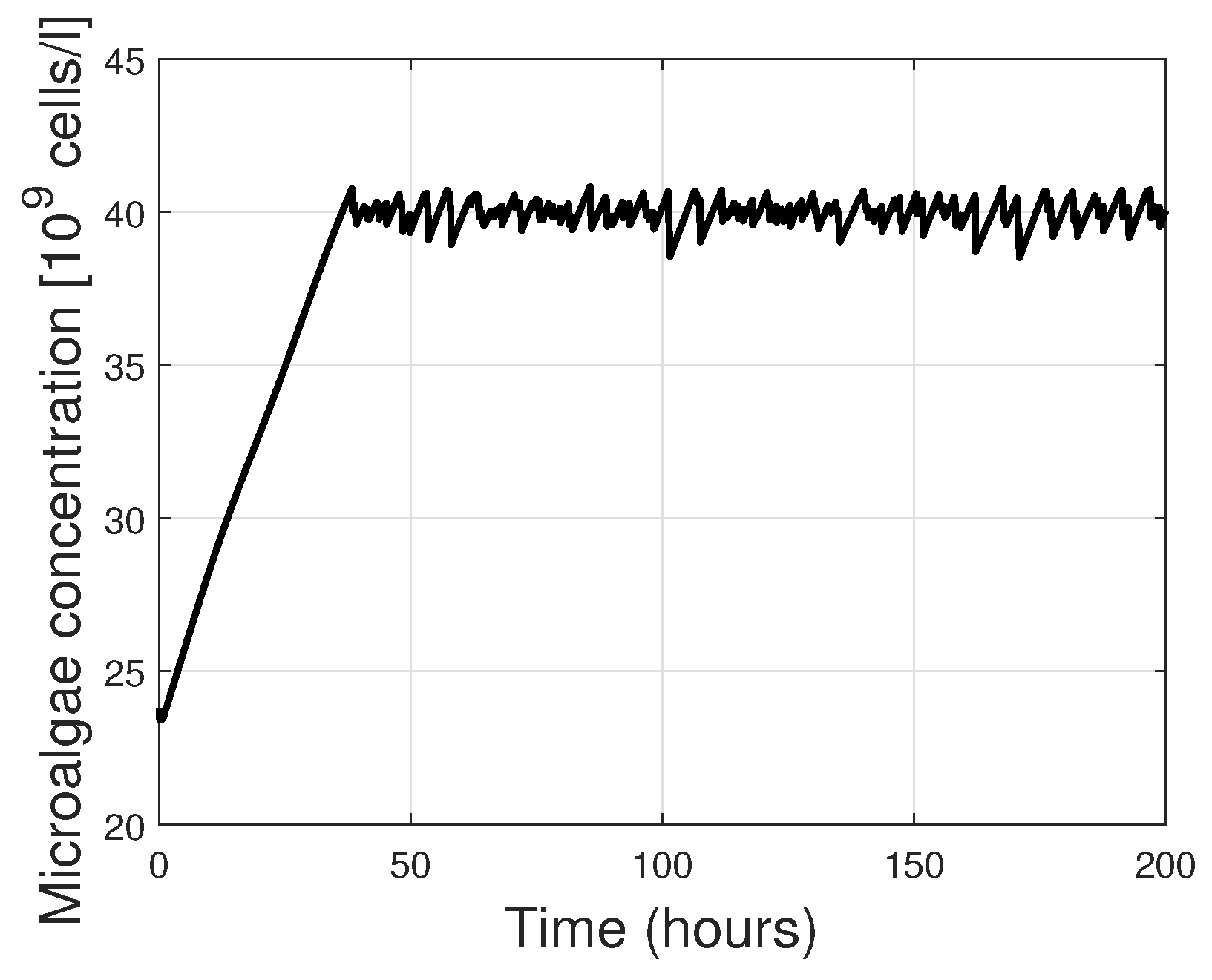

**Figure 16.**Reference tracking under input saturation, random model mismatch and sinusoidal light disturbance.

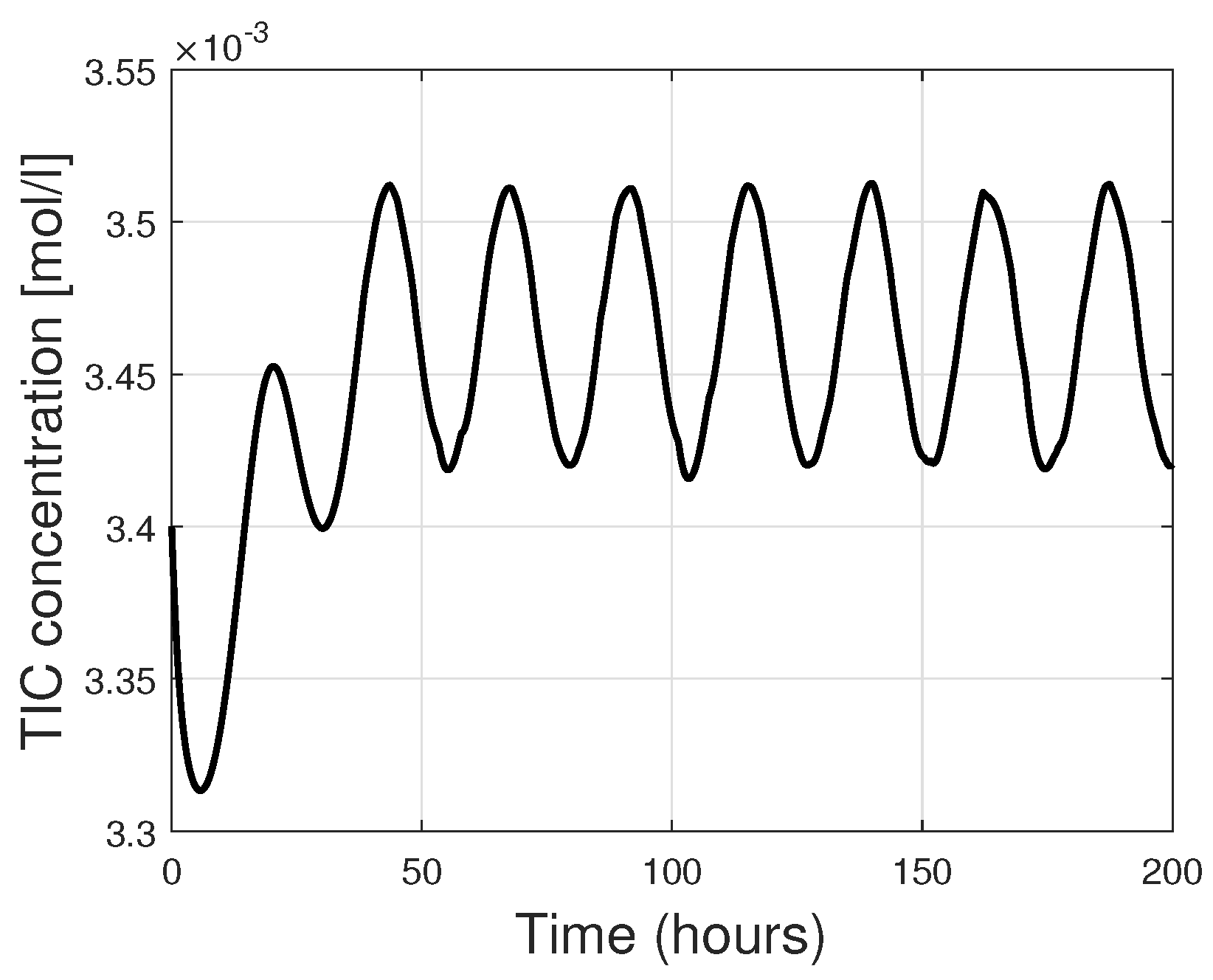

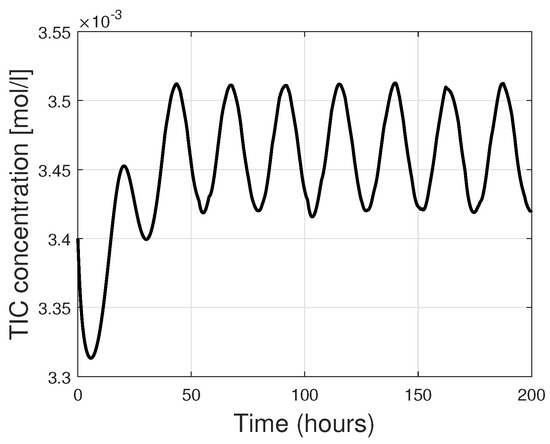

**Figure 17.**TIC concentration under input saturation, random model mismatch and sinusoidal light disturbance.

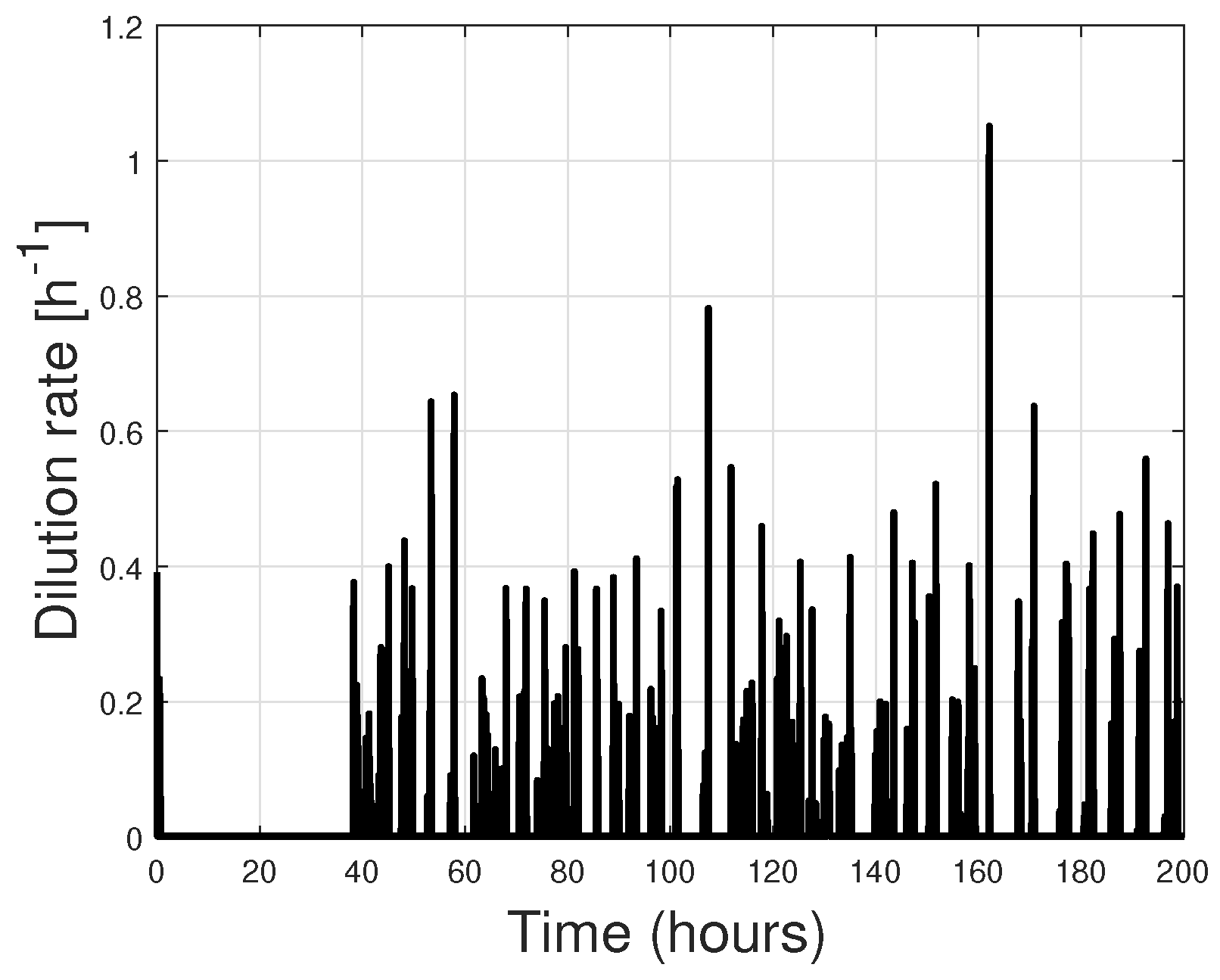

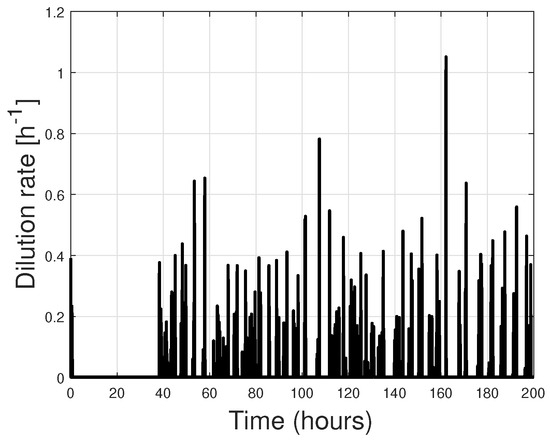

**Figure 18.**Dilution rate under input saturation, random model mismatch and sinusoidal light disturbance.

Notation | Meaning | Unit |
---|---|---|

X | biomass concentration | ${10}^{9}$ cells/L |

S | TIC concentration | mol/L |

D | dilution rate | h${}^{-1}$ |

$\mu $ | specific biomass growth rate | h${}^{-1}$ |

${\mu}_{max}$ | maximum specific growth rate | h${}^{-1}$ |

${Y}_{X/S}$ | conversion yield of carbon into biomass | ${10}^{9}$ cells/mol |

$\gamma $ | volumetric mass transfer coefficient of CO${}_{2}$ | h${}^{-1}$ |

${\left[{\mathrm{CO}}_{2}\right]}^{*}$ | CO${}_{2}$ concentration in equilibrium with the outlet gas phase | mol/L |

$\left[{\mathrm{CO}}_{2}\right]$ | dissolved CO${}_{2}$ concentration in the liquid | mol/L |

I | light intensity accessible per cell | $\mathsf{\mu}$E/(${10}^{9}$ cells)/s |

${\alpha}_{I}$ | light half-saturation constant | $\mathsf{\mu}$E/(${10}^{9}$ cells)/s |

${\alpha}_{S}$ | TIC half-saturation constant | mmol/(${10}^{9}$ cells) |

${I}_{in}$ | incident light intensity | $\mathsf{\mu}$E/(${10}^{9}$ cells)/s |

${I}_{out}$ | outgoing light intensities | $\mathsf{\mu}$E/m${}^{2}$/s |

${A}_{r}$ | PBR illuminated area | m${}^{2}$ |

V | effective PBR volume | L |

${c}_{1}$ | dimensionless constant | |

${c}_{2}$ | dimensionless constant | |

$pH$ | pH of the aqueous environment in the PBR | |

${k}_{1}$ | dissociation constant of CO${}_{2}$ and bicarbonate | mol/L |

${k}_{2}$ | dissociation constant of CO${}_{2}$ and bicarbonate | mol/L |

${P}_{C{O}_{2}}$ | partial CO${}_{2}$ pressure in the gas phase | atm |

H | Henry constant at 25 #xB0;C | atm L/mol |

F | input culture medium flow rate | L/h |

${r}_{C{O}_{2}}$ | CO${}_{2}$ fixation rate | g/L/day |

${\eta}_{C{O}_{2}}$ | CO${}_{2}$ fixation efficiency | % |

P | biomass productivity | g/L/day |

C | carbon content | w/w |

${M}_{C{O}_{2}}$ | molecular weight of CO${}_{2}$ | g/mol |

${M}_{C}$ | molecular weight of carbon | g/mol |

w | CO${}_{2}$ flow rate | g/day |

Parameter | Value | Unit |
---|---|---|

${I}_{in}$ | 90 | $\mathsf{\mu}$E/(${10}^{9}$ cells)/s |

${P}_{C{O}_{2}}$ | 0.05 | atm |

V | 9.6 | L |

${A}_{r}$ | 0.31 | m${}^{2}$ |

${k}_{1}$ | ${10}^{-6.35}$ | mol/L |

${k}_{2}$ | ${10}^{-10.3}$ | mol/L |

H | 29.41 | atm L/mol |

${Y}_{X/S}$ | 1211 | |

$\gamma $ | 1.4 | h${}^{-1}$ |

${\mu}_{max}$ | 1.07 | h${}^{-1}$ |

${c}_{1}$ | 0.493 | |

${c}_{2}$ | −0.925 | |

${\alpha}_{I}$ | 0.08 | $\mathsf{\mu}$E/(${10}^{9}$ cells)/s |

${\alpha}_{S}$ | 3.8 | mmol/(${10}^{9}$ cells) |

F | 0.12 | L/h |

$pH$ | 6.5 |
