Simulating the Hydraulic and Volume Change Behavior of Compacted Highly Expansive Soil under Potential Field Stress and Seasonal Climatic Variation
Abstract
:1. Introduction
2. Material Used
3. Sample Preparation
4. Testing Procedures and Equipment
5. Results and Discussions

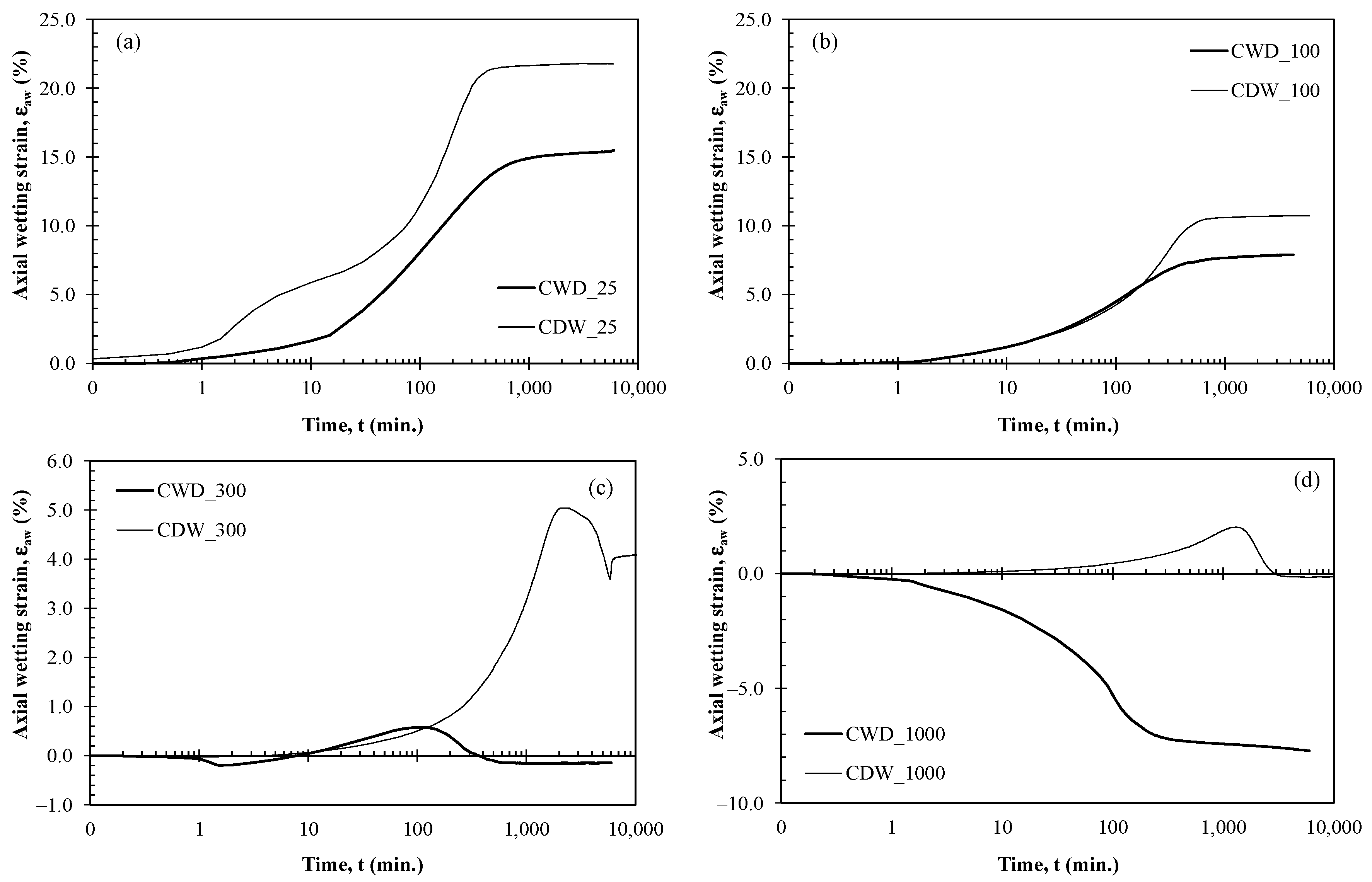

5.1. Volume Change Behavior during First Wetting Stage
5.2. Impact of Cyclic Wetting and Drying on Volume Change Behavior
5.3. Impact of Cyclic Wetting and Drying on Hydraulic Conductivity
6. Conclusions
- The observed VCP during the first wetting stage of both tested series was interpreted using the yield curve concept (LC curve) developed within the BExM model, with evidence of its enlargement as the tested sample was subjected to stresses (i.e., suction) greater than its previous stress history.
- The cyclic W/D process adopted, either CWD or CDW, has an impact on the H-VC behaviors of expansive soils, with the first cycle of wetting and drying being the most effective cycle for effectively reorienting the soil fabric towards an equilibrium state.
- Swell fatigue, experienced as accumulated shrinkage, was reported for both testing series, and this behavior was attributed to the initial placement condition, specified as a loose compacted state.
- An elastic response to the W/D process is achieved in the third to fourth cycle for both tested series in terms of H-VC behaviors.

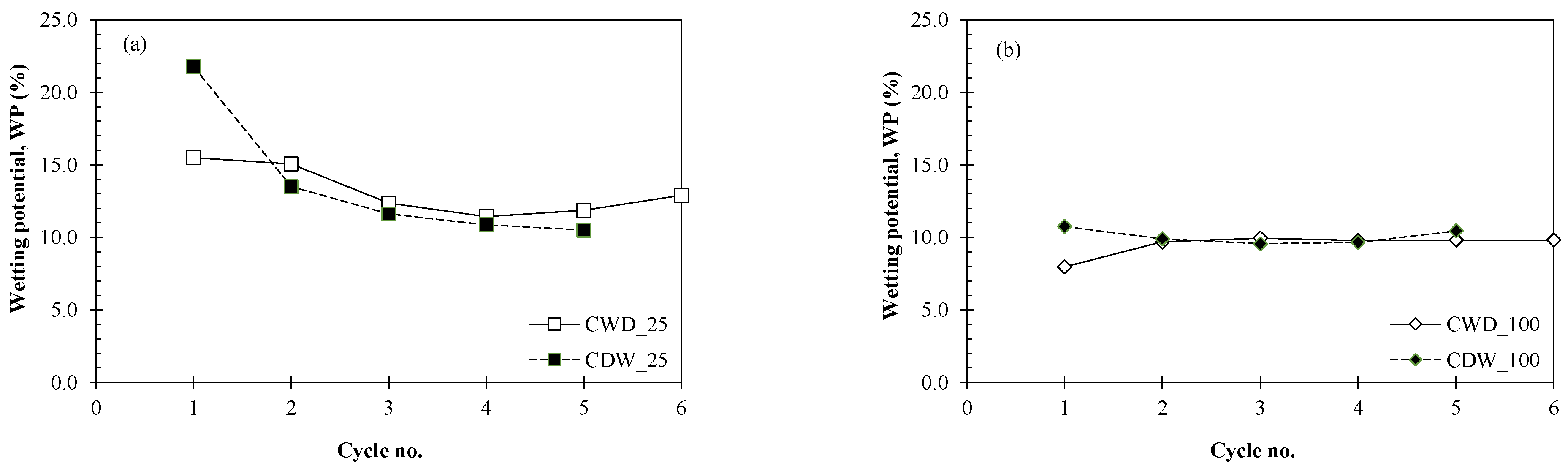

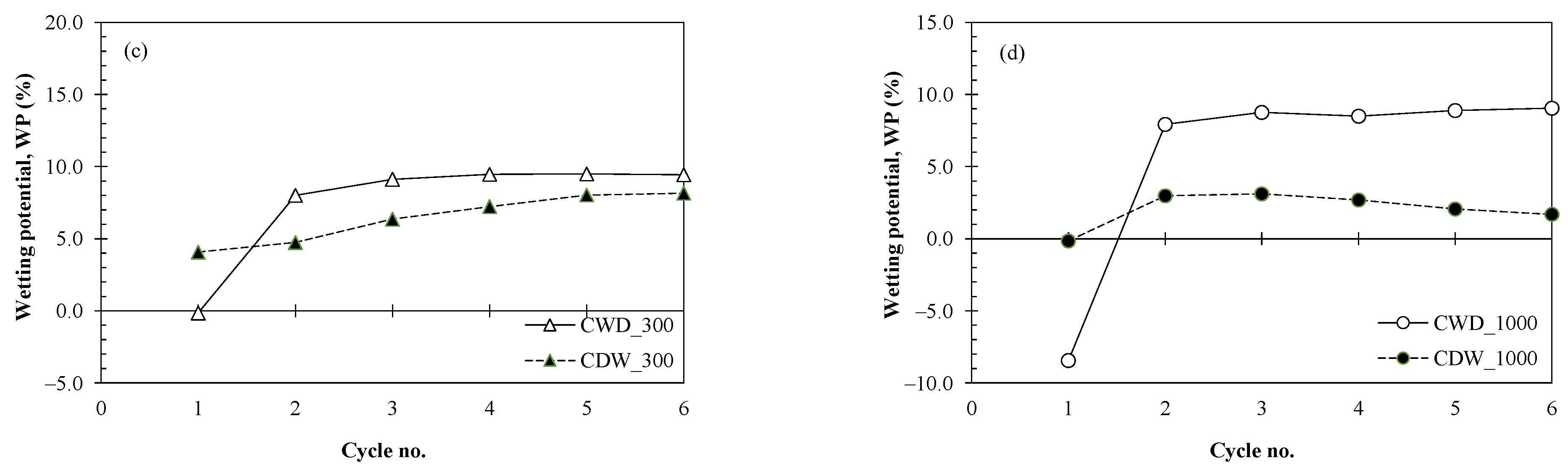

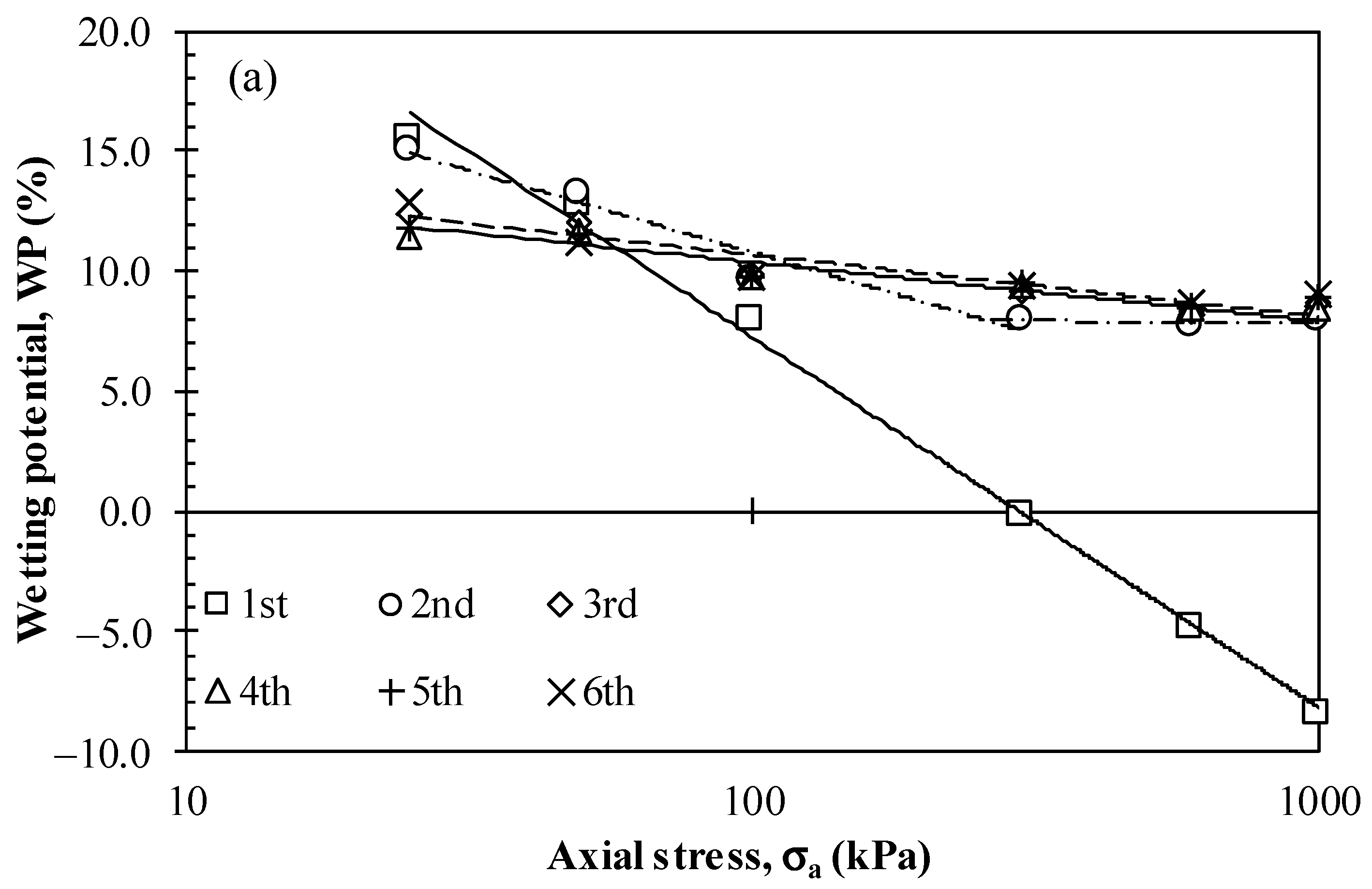

- The onset stage of the W/D affects the WP, where its values were generally lower for CDW than those of CWD. The difference between the values of both series at their equilibrium value increased as the σaw increased. A recommendation of subjecting the compacted layers to a drying process is suggested to eliminate the wetting potential of the compacted expansive soil.

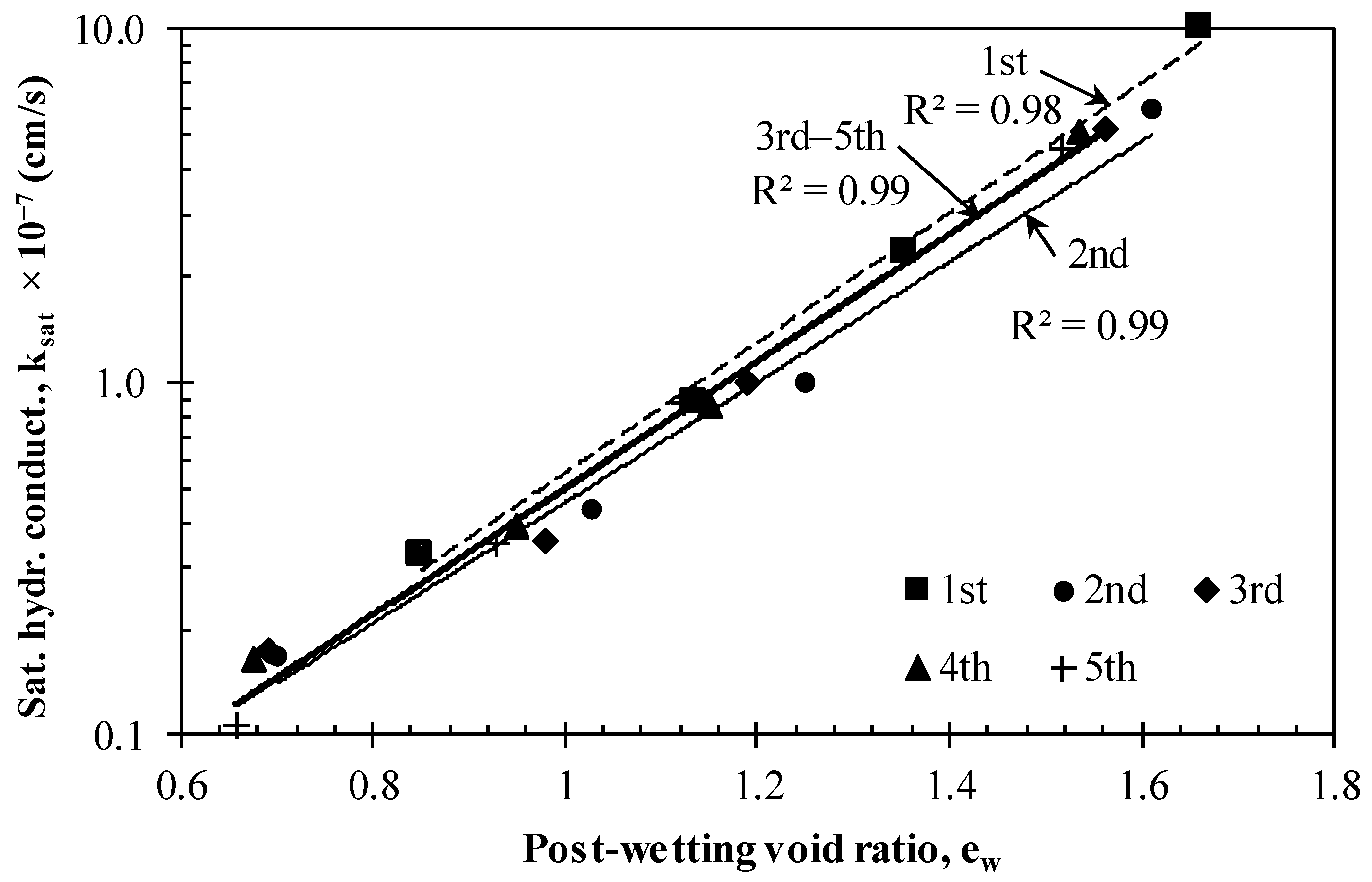

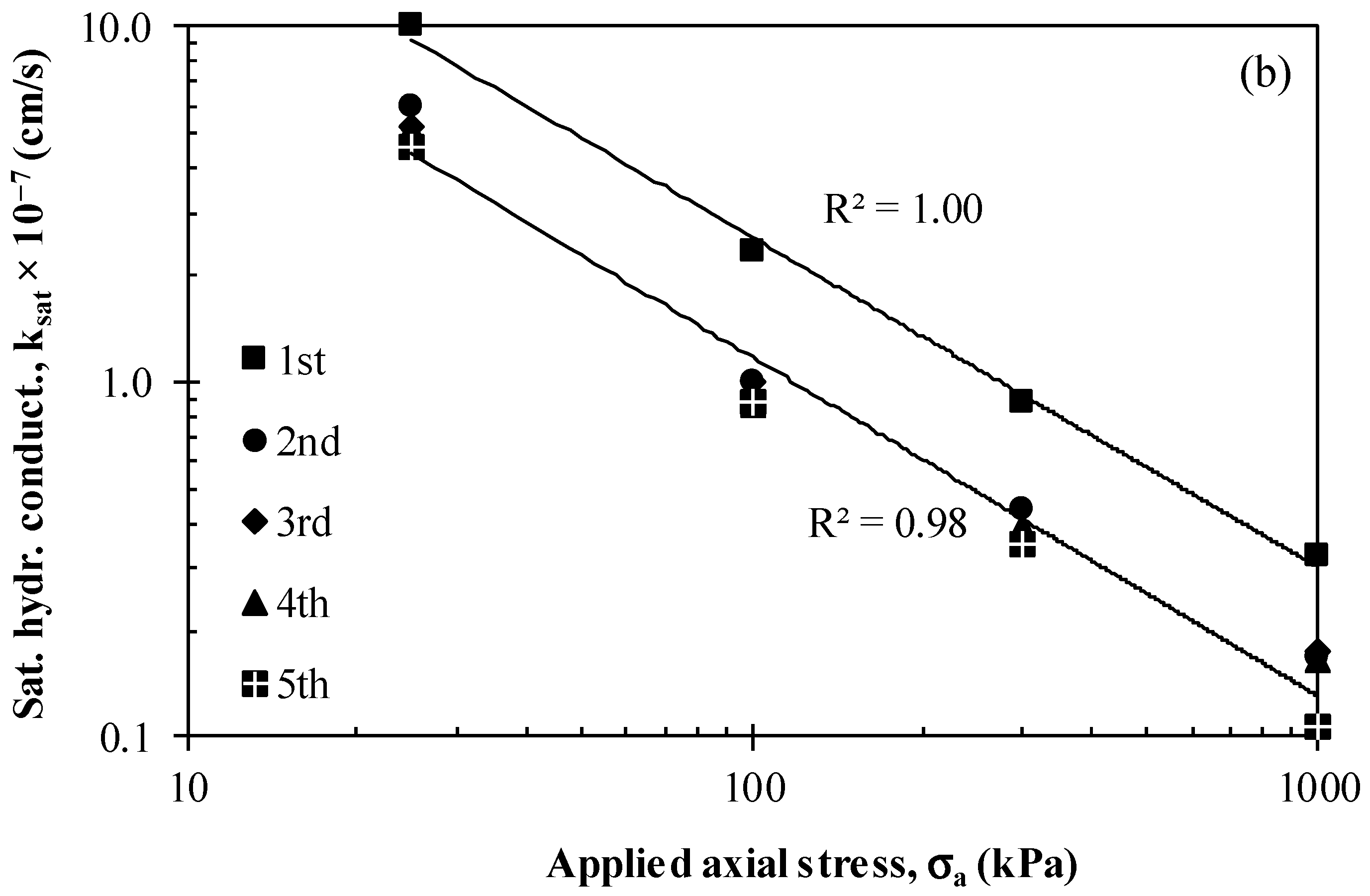

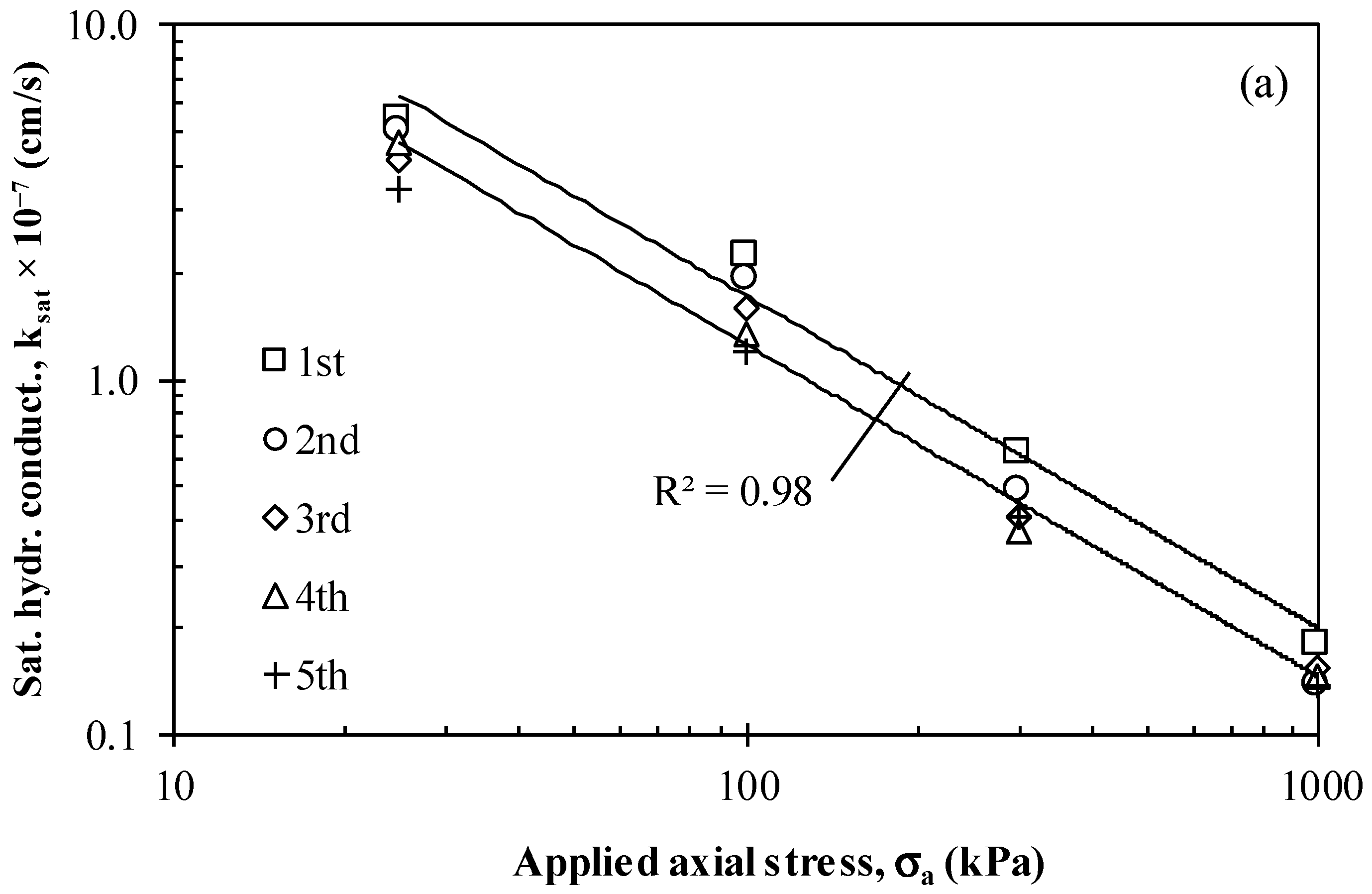

- A reduction trend of ksat with an advance in the W/D process is reported for both series under all the applied stress states, which is attributed to the accumulated shrinkage noted during repeated W/D cycles.

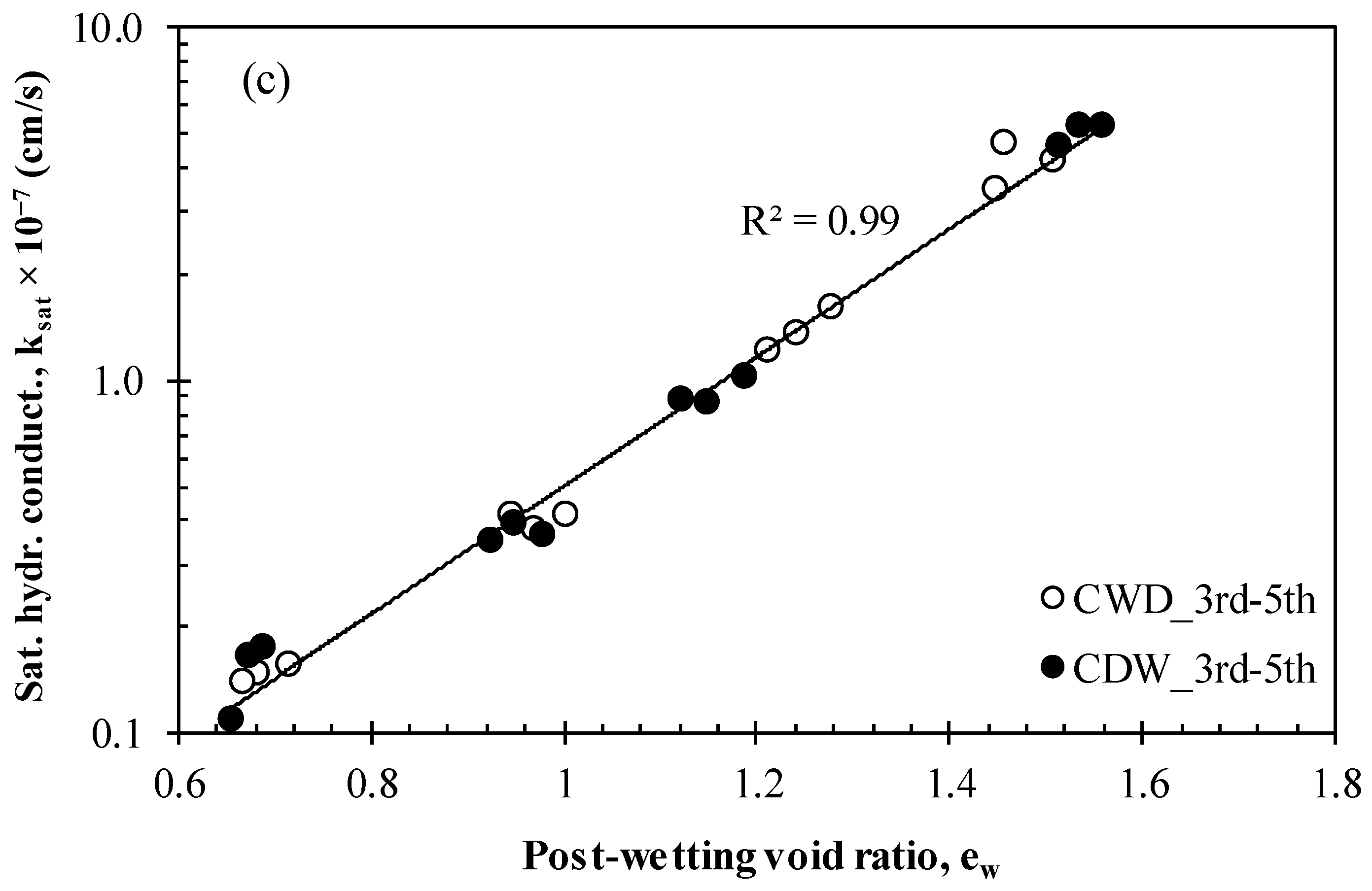

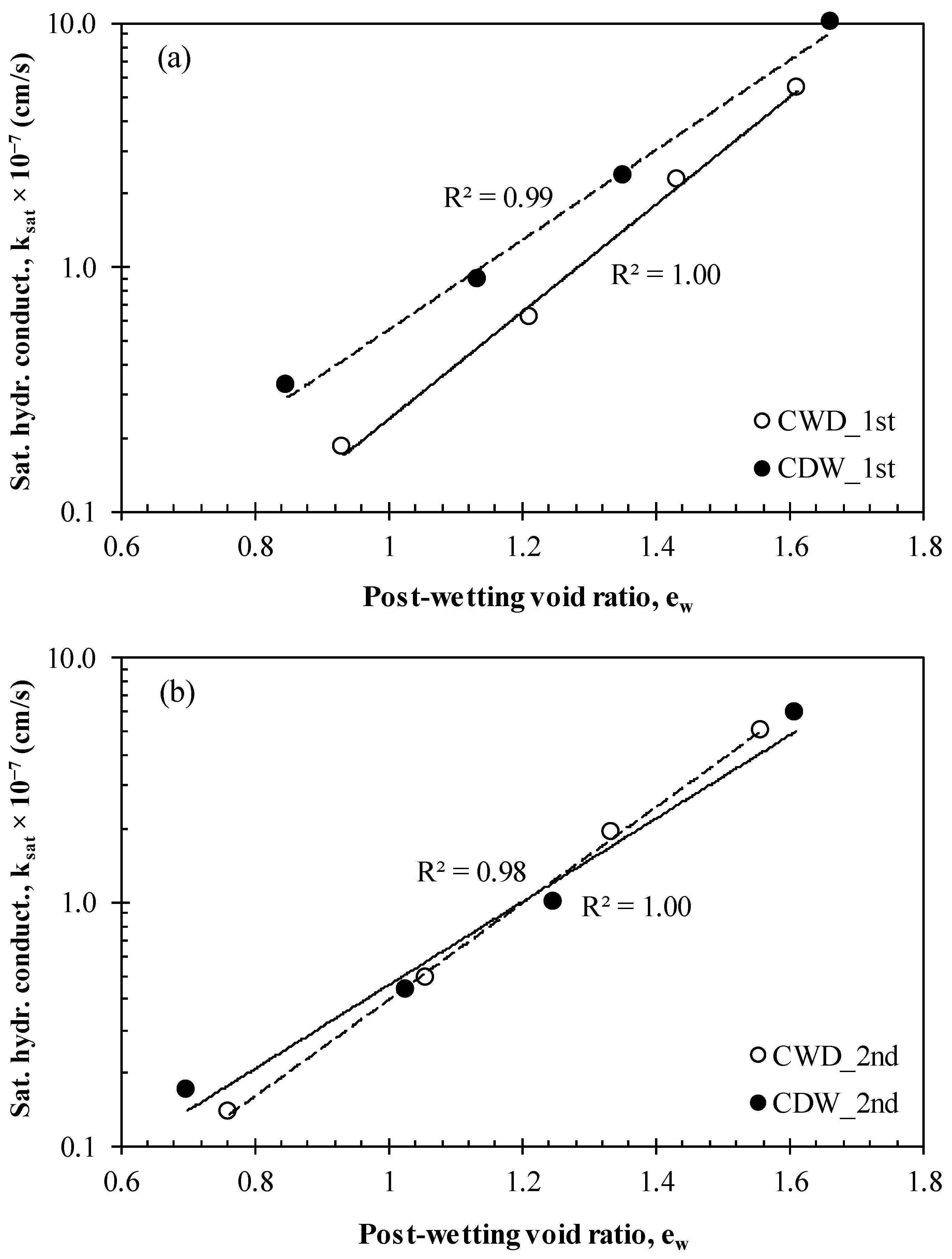

- A unique (ksat-ew) correlation that combines both series’ results starting from the third cycle is observed, while the first cycle showed higher values of ksat for the W/D process started with drying. Consequently, it is recommended to submerge the compacted clay barrier after its construction to obtain a barrier with the lowest values of hydraulic conductivity.
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Acknowledgments
Conflicts of Interest
Nomenclature
γd | Dry unit weight |
wc | Water content |
σa | Applied axial stress |
σo | Yield stress at pre-wetting suction |
σo* | Yield stress at saturation |
H-VC | Hydraulic and volume change |
LC | Load-collapse curve |
σaw | Axial wetting stress |
εaw | Axial wetting strain |
εae | Equilibrium axial strain |
W/D | Wetting and drying |
CWD | Cyclic wetting and drying |
CDW | Cyclic dying and wetting |
WP | Wetting potential |
DP | Drying potential |
NP | net axial strain |
VCP | Volume change potential |
ew | Post-wetting void ratio |
ksat | Saturated hydraulic conductivity |
References
- Al-Homoud, A.S.; Basma, A.A.; Husein Malkawi, A.I.; Al Bashabsheh, M.A. Cyclic Swelling Behavior of Clays. J. Geotech. Eng. 1995, 121, 562–565. [Google Scholar] [CrossRef]
- Basma, A.A.; Al-Homoud, A.S.; Husein, A. Laboratory Assessment of Swelling Pressure of Expansive Soils. Appl. Clay Sci. 1995, 9, 355–368. [Google Scholar] [CrossRef]
- Basma, A.A.; Al-Homoud, A.S.; Husein Malkawi, A.I.; Al-Bashabsheh, M.A. Swelling-Shrinkage Behavior of Natural Expansive Clays. Appl. Clay Sci. 1996, 11, 211–227. [Google Scholar] [CrossRef]
- Alonso, E.E.; Romero, E.; Hoffmann, C.; García-Escudero, E. Expansive Bentonite-Sand Mixtures in Cyclic Controlled-Suction Drying and Wetting. Eng. Geol. 2005, 81, 213–226. [Google Scholar] [CrossRef] [Green Version]
- Estabragh, A.R.; Parsaei, B.; Javadi, A.A. Laboratory Investigation of the Effect of Cyclic Wetting and Drying on the Behaviour of an Expansive Soil. Soils Found. 2015, 55, 304–314. [Google Scholar] [CrossRef] [Green Version]
- Nowamooz, H.; Mrad, M.; Abdallah, A.; Masrouri, F. Experimental and Numerical Studies of the Hydromechanical Behaviour of a Natural Unsaturated Swelling Soil. Can. Geotech. J. 2009, 46, 393–410. [Google Scholar] [CrossRef]
- Nowamooz, H.; Masrouri, F. Mechanical Behaviour of Expansive Soils after Several Drying and Wetting Cycles. Geomech. Geoeng. 2010, 5, 213–221. [Google Scholar] [CrossRef]
- Day, R.W. Swell-Shrink Behavior of Compacted Clay. J. Geotech. Geoenviron. Eng. ASCE 1994, 120, 618–623. [Google Scholar] [CrossRef]
- Estabragh, A.R.; Moghadas, M.; Javadi, A.A. Effect of Different Types of Wetting Fluids on the Behaviour of Expansive Soil during Wetting and Drying. Soils Found. 2013, 53, 617–627. [Google Scholar] [CrossRef] [Green Version]
- Estabragh, A.R.; Moghadas, M.; Javadi, A.A. Mechanical Behaviour of an Expansive Clay Mixture during Cycles of Wetting and Drying Inundated with Different Quality of Water. Eur. J. Environ. Civ. Eng. 2015, 19, 278–289. [Google Scholar] [CrossRef]
- Wheeler, S.J.; Sharma, R.S.; Buisson, M.S.R. Coupling of Hydraulic Hysteresis and Stress–Strain Behaviour in Unsaturated Soils. Géotechnique 2003, 53, 41–54. [Google Scholar] [CrossRef]
- Farulla, C.A.; Ferrari, A.; Romero, E. Mechanical Behaviour of Compacted Scaly Clay during Cyclic Controlled-Suction Testing in Experimental Unsaturated Soil Mechanics; Springer Proceedings in Physics; Springer: Berlin/Heidelberg, Germany, 2007; Volume 112, ISBN 0008-3674. [Google Scholar]
- Airò Farulla, C.; Ferrari, A.; Romero, E. Volume Change Behaviour of a Compacted Scaly Clay during Cyclic Suction Changes. Can. Geotech. J. 2010, 47, 688–703. [Google Scholar] [CrossRef]
- Zemenu, G.; Martine, A.; Roger, C. Analysis of the Behaviour of a Natural Expansive Soil under Cyclic Drying and Wetting. Bull. Eng. Geol. Environ. 2009, 68, 421–436. [Google Scholar] [CrossRef]
- Dong, J.G.; Xu, G.Y.; Lv, H.B.; Yang, J.Y. An Instrument for Wetting-Drying Cycle of Expansive Soil under Simulated Loads and Experimental Research. J. Eng. Res. 2019, 7, 1–12. [Google Scholar]
- Yazdandoust, F.; Yasrobi, S.S. Effect of Cyclic Wetting and Drying on Swelling Behavior of Polymer-Stabilized Expansive Clays. Appl. Clay Sci. 2010, 50, 461–468. [Google Scholar] [CrossRef]
- Sajedi, K.; Huat, B.B.K.; Bazaz, J.B. Effects of Cyclic Test in Decreasing Damages to Structures and Roads on Gypsum Soils. In Proceedings of the 6th International Conference on Case Histories in Geotechnical Engineering, Chicago, IL, USA, 11–16 August 2008; pp. 1–10. [Google Scholar]
- Allam, M.M.; Sridharan, A. Effect of Wetting and Drying on Shear Strength. J. Geotech. Eng. Div. ASCE 1981, 107, 421–438. [Google Scholar] [CrossRef]
- Doostmohammadi, R.; Moosavi, M.; Mutschler, T.; Osan, C. Influence of Cyclic Wetting and Drying on Swelling Behavior of Mudstone in South West of Iran. Environ. Geol. 2009, 58, 999–1009. [Google Scholar] [CrossRef]
- Guney, Y.; Sari, D.; Cetin, M.; Tuncan, M. Impact of Cyclic Wetting-Drying on Swelling Behavior of Lime-Stabilized Soil. Build. Environ. 2007, 42, 681–688. [Google Scholar] [CrossRef]
- Rosenbalm, D.; Zapata, C.E. Effect of Wetting and Drying Cycles on the Behavior of Compacted Expansive Soils. J. Mater. Civ. Eng. 2017, 29, 04016191. [Google Scholar] [CrossRef]
- Tripathy, S.; Rao, K.S.; Fredlund, D.G. Water Content-Void Ratio Swell-Shrink Paths of Compacted Expansive Soils. Can. Geotech. J. 2002, 39, 938–959. [Google Scholar] [CrossRef]
- Tripathy, S.; Subba Rao, K.S. Cyclic Swell-Shrink Behaviour of a Compacted Expansive Soil. Geotech. Geol. Eng. 2009, 27, 89–103. [Google Scholar] [CrossRef]
- Baille, W.; Tripathy, S.; Schanz, T. Swelling Pressures and One-Dimensional Compressibility Behaviour of Bentonite at Large Pressures. Appl. Clay Sci. 2010, 48, 324–333. [Google Scholar] [CrossRef]
- Hanafy, E.D.E. Swelling/Shrinkage Characteristic Curve of Desiccated Expansive Clays. Geotech. Test. J. 1991, 14, 206–211. [Google Scholar] [CrossRef]
- Krisdani, H.; Rahardjo, H.; Leong, E.C. Effects of Different Drying Rates on Shrinkage Characteristics of a Residual Soil and Soil Mixtures. Eng. Geol. 2008, 102, 31–37. [Google Scholar] [CrossRef]
- Wang, G.; Wei, X. Modeling Swelling–Shrinkage Behavior of Compacted Expansive Soils during Wetting–Drying Cycles. Can. Geotech. J. 2015, 52, 783–794. [Google Scholar] [CrossRef]
- Julina, M.; Thyagaraj, T. Combined Effects of Wet-Dry Cycles and Interacting Fluid on Desiccation Cracks and Hydraulic Conductivity of Compacted Clay. Eng. Geol. 2020, 267, 105505. [Google Scholar] [CrossRef]
- Akcanca, F.; Aytekin, M. Impact of Wetting-Drying Cycles on the Hydraulic Conductivity of Liners Made of Lime-Stabilized Sand-Bentonite Mixtures for Sanitary Landfills. Environ. Earth Sci. 2014, 72, 59–66. [Google Scholar] [CrossRef]
- Benchouk, A.; Derfouf, F.M.; Nabil, A. Behavior of Some Clays on Drying and Wetting Paths. Arab. J. Geosci. 2013, 6, 4565–4573. [Google Scholar] [CrossRef]
- Umezakin, T.; Kawamura, T. Shrinkage and Desaturation Properties during Desiccation of Reconstituted Cohesive Soil. Soils Found. 2013, 53, 47–63. [Google Scholar] [CrossRef] [Green Version]
- Mishra, A.K.; Dhawan, S.; Rao, S.M. Analysis of Swelling and Shrinkage Behavior of Compacted Clays. Geotech. Geol. Eng. 2008, 26, 289–298. [Google Scholar] [CrossRef]
- Ma, T.; Wei, C.; Yao, C.; Yi, P. Microstructural Evolution of Expansive Clay during Drying–Wetting Cycle. Acta Geotech. 2020, 15, 2355–2366. [Google Scholar] [CrossRef]
- Wu, Y.; Li, L.; Feng, X.; Zhang, R.; Ákos, T. Effect of Cyclic Wetting and Drying on the Microstructure of Slip Zone Soils in Huangtupo Landslide. J. Eng. Sci. Technol. Rev. 2016, 9, 209–216. [Google Scholar] [CrossRef]
- Estabragh, A.R.; Moghadas, M.; Javadi, A.A. Hydrochemical Effect of Different Quality Of Water on The Behaviour of an Expansive Soil During Wetting and Drying Cycles. Irrig. Drain. 2016, 65, 371–381. [Google Scholar] [CrossRef]
- Rao, K.S.S.; Rao, S.M.; Gangadhara, S. Swelling Behaviour of a Desiccated Clay. Geotest. J. 2000, 23, 193–198. [Google Scholar] [CrossRef]
- Nowamooz, H.; Masrouri, F. Hydromechanical Behaviour of an Expansive Bentonite/Silt Mixture in Cyclic Suction-Controlled Drying and Wetting Tests. Eng. Geol. 2008, 101, 154–164. [Google Scholar] [CrossRef]
- Zhang, R.; Yang, H.; Zheng, J. The Effect of Vertical Pressure on the Deformation and Strength of Expansive Soil during Cyclic Wetting and Drying; Geotechnical Special Publications (GSP): Reston, VA, USA, 2006; pp. 894–905. [Google Scholar] [CrossRef]
- Basma, A.A.; Al-Homoud, A.S.; Al-Tabari, E.Y. Effects of Methods of Drying on the Engineering Behavior of Clays. Appl. Clay Sci. 1994, 9, 151–164. [Google Scholar] [CrossRef]
- Tawfiq, S.; Nalbantoglu, Z. Swell-Shrink Behavior of Expansive Clays. In Proceedings of the 2nd International Conference on New Developments in Soil Mechanics and Geotechnical Engineering, Near East University, Nicosia, North Cyprus, 28–30 May 2009; pp. 28–30. [Google Scholar]
- Subba Rao, K.S.; Satyadas, G.C. Swelling Potential with Cycles of Swelling and Partial Shrinkage. In Proceedings of the 6th International Conference on Expansive, New Delhi, India, 1–4 December 1987; pp. 137–142. [Google Scholar]
- Chen, F.H. The Use of Piers to Prevent the Uplifting of Lightly Loaded Structures Founded on Expansive Soils. In Proceedings of the International Research and Engineering Conference on Expansive Clay Soils, College Station, TX, USA, 30 August–3 September 1965. [Google Scholar]
- Chen, F.H.; Ma, G.S. Swelling and Shrinkage Behaviour of Expansive Clays. In Proceedings of the 6th International Conference on Expansive, New Delhi, India, 1–4 December 1987; pp. 127–129. [Google Scholar]
- Popescu, M.E. Behaviour of Expansive Soils with Crumb Structures. In Proceedings of the Fourth International Conference on Expansive Soils, Denver, CO, USA, 16–18 June 1980; pp. 158–171. [Google Scholar]
- Osipov, V.I.; Bik, N.N.; Rumjantseva, N.A. Cyclic Swelling of Clays. Appl. Clay Sci. 1987, 2, 363–374. [Google Scholar] [CrossRef]
- Nowamooz, H. Equilibrium Stage of Soil Cracking and Subsidence after Several Wetting and Drying Cycles. Geotechnics 2023, 3, 193–211. [Google Scholar] [CrossRef]
- Abbas, M.F.; Shaker, A.A.; Al-Shamrani, M.A. Hydraulic and Volume Change Behaviors of Compacted Highly Expansive Soil under Cyclic Wetting and Drying. J. Rock Mech. Geotech. Eng. 2023, 15, 486–499. [Google Scholar] [CrossRef]
- Nowamooz, H.; Masrouri, F. Shrinkage/Swelling of Compacted Clayey Loose and Dense Soils. C. R. Mec. 2009, 337, 781–790. [Google Scholar] [CrossRef]
- Dif, A.E.; Bluemel, W.F. Expansive Soils under Cyclic Drying and Wetting. Geotech. Test. J. 1991, 14, 96–102. [Google Scholar] [CrossRef]
- Dafalla, M.; Shaker, A.A.; Al-Shamrani, M. Influence of Wetting and Drying on Swelling Parameters and Structure Performance. J. Perform. Constr. Facil. 2019, 33, 04018101. [Google Scholar] [CrossRef]
- Sharma, R.S.; Wheeler, S.J. Behaviour of an Unsaturated Highly Expansive Clay during Cycles of Wetting and Drying. In Proceedings of the Unsaturated Soils for Asia, Singapore, 18–19 May 2000; pp. 721–726. [Google Scholar]
- Huang, S.; Barbour, S.L.; Fredlund, D.G. Development and Verification of a Coefficient of Permeability Function for a Deformable Unsaturated Soil. Can. Geotech. J. 1998, 35, 411–425. [Google Scholar] [CrossRef]
- Romero, E.; Gens, A.; Lloret, A. Water Permeability, Water Retention and Microstructure of Unsaturated Compacted Boom Clay. Eng. Geol. 1999, 54, 117–127. [Google Scholar] [CrossRef]
- Watabe, Y.; Leroueil, S.; Le Bihan, J.P. Influence of Compaction Conditions on Pore-Size Distribution and Saturated Hydraulic Conductivity of a Glacial Till. Can. Geotech. J. 2000, 37, 1184–1194. [Google Scholar] [CrossRef]
- Deng, Y.F.; Tang, A.M.; Cui, Y.J.; Li, X.L. Study on the Hydraulic Conductivity of Boom Clay. Can. Geotech. J. 2011, 48, 1461–1470. [Google Scholar] [CrossRef] [Green Version]
- Sridharan, A.; Nagaraj, H.B. Hydraulic Conductivity of Remolded Fine-Grained Soils versus Index Properties. Geotech. Geol. Eng. 2005, 23, 43–60. [Google Scholar] [CrossRef]
- Leroueil, S.; Le Bihan, J.P.; Sebaihi, S.; Alicescu, V. Hydraulic Conductivity of Compacted Tills from Northern Quebec. Can. Geotech. J. 2002, 39, 1039–1049. [Google Scholar] [CrossRef]
- Abbas, M.F.; Elkady, T.Y.; Aldrees, A.A.; Shaker, A.A. Impact of Stress Path on Hydraulic and Mechanical Behavior of Compacted Al-Qatif Clay. Transp. Geotech. 2021, 26, 100417. [Google Scholar] [CrossRef]
- Huang, S.; Fredlund, D.G.; Barbour, S.L. Measurement of the Coefficient of Permeability for a Deformable Unsaturated Soil Using a Triaxial Permeameter. Can. Geotech. J. 1998, 35, 426–432. [Google Scholar] [CrossRef]
- Shear, D.; Olsen, H.; Nelson, K. Effects of Desiccation on the Hydraulic Conductivity Versus Void Ratio Relationship for a Natural Clay; Transportation Research Board: Washington, DC, USA, 1992; pp. 130–135. Available online: https://trid.trb.org/view/371568 (accessed on 18 April 2023).
- Louati, F.; Trabelsi, H.; Jamei, M. Exprimental and Numerical Investigation about Permeability of Clay Subjected to Humidification-Desiccation Cycles. In Proceedings of the 3ème Colloque International sur les sols non Satures (UNSAT Batna 2015), Batna, Algeria, 16–17 November 2015. [Google Scholar]
- Albrecht, B.A.; Benson, C.H. Effect of Desiccation on Compacted Natural Clays. J. Geotech. Geoenviron. Eng. 2001, 127, 67–75. [Google Scholar] [CrossRef]
- Day, R.W. Discussion of Hydraulic Conductivity of Desiccated Geosynthetic Clay Liners. J. Geotech. Geoenviron. Eng. ASCE 1997, 123, 484–486. [Google Scholar] [CrossRef]
- Louati, F.; Trabelsi, H.; Mehrez, J.; Taibi, S. Wet- Dry Cycles Effect on the Saturated Hydraulic Conductivity. In Proceedings of the 7th International Conference on Unsaturated Soils, UNSAT2018, Hongkong, China, 3–5 August 2018. [Google Scholar]
- Day, R.W. Discussion: Infiltration Tests on Fractured Compacted Clay. J. Geotech. Geoenviron. Eng. 1998, 124, 1149–1152. [Google Scholar] [CrossRef]
- Azam, S. Influence of Mineralogy on Swelling and Consolidation of Soils in Eastern Saudi Arabia. Can. Geotech. J. 2003, 40, 964–975. [Google Scholar] [CrossRef] [Green Version]
- Al-Sayari, S.J.; Zotl, J.G. Quaternary period in Saudi Arabia; Springer: Vienna, Austria, 1978. [Google Scholar]
- El-Naggar, Z. Foundation problems in sabkha deposits. In Short Course on Foundation Engineering for Practicing Engineers; CE Department, KFUPM: Dhahran, Saudi Arabia, 1988; pp. SD1–SD54. [Google Scholar]
- Azam, S.; Abduljauwad, S.N.; Al-Shayea, N.A.; Al-Amoudi, O.S.B. Expansive Characteristics of Gypsiferous/Anhydritic Soil Formations. Eng. Geol. 1998, 51, 89–107. [Google Scholar] [CrossRef]
- Al-Shayea, N.A. The Combined Effect of Clay and Moisture Content on the Behavior of Remolded Unsaturated Soils. Eng. Geol. 2001, 62, 319–342. [Google Scholar] [CrossRef]
- Elkady, T.Y.; Shaker, A.A.; Dhowain, A.W. Shear Strengths and Volume Changes of Sand–Attapulgite Clay Mixtures. Bull. Eng. Geol. Environ. 2015, 74, 595–609. [Google Scholar] [CrossRef]
- Shaker, A.A.; Elkady, T.Y. Hydraulic Performance of Sand–Clay Mixtures: Soil Fabric Perspective. Géotechn. Lett. 2015, 5, 198–204. [Google Scholar] [CrossRef]
- Shaker, A.A.; Elkady, T.Y. Investigation of the Hydraulic Efficiency of Sand-Natural Expansive Clay Mixtures. Int. J. GEOMATE 2016, 10, 1790–1795. [Google Scholar]
- Abbas, M.F. Multi-Dimensional Hydro-Mechanical Behavior of Compacted Highly Expansive Soils. Ph.D. Thesis, King Saud University, Riyadh, Saudi Arabia, 2016. [Google Scholar]
- ASTM D698; Standard Test Methods for Laboratory Compaction Characteristics of Soil Using Standard Effort (12,400 Ft-Lbf/Ft3 (600 KN-m/M3)). ASTM International: West Conshohocken, PA, USA, 2000.
- ASTM D4546; Standard Test Methods for One-Dimensional Swell or Settlement Potential of Cohesive. ASTM International: West Conshohocken, PA, USA, 2003.
- Gens, A.; Alonso, E.E. A Framework for the Behaviour of Unsaturated Expansive Clays. Can. Geotech. J. 1992, 29, 1013–1032. [Google Scholar] [CrossRef]
- Alonso, E.E.; Vaunat, J.; Gens, A. Modelling the Mechanical Behaviour of Expansive Clays. Eng. Geol. 1999, 54, 173–183. [Google Scholar] [CrossRef] [Green Version]
Characteristic | Value |
---|---|
Specific gravity, GS | 2.72 |
Liquid limit, wl (%) | 137 |
Plastic limit, wp (%) | 45 |
Shrinkage limit, ws (%) | 20 |
Plasticity index, PI (%) | 92 |
Unified soil classification system | CH a |
Optimum moisture content, wopt. (%) | 36 |
Maximum dry unit weight, γdmax (kN/m3) | 11.82 |
Compound | Concentration |
---|---|
SiO2 | 49.77 |
Al2O3 | 14.50 |
MgO | 6.95 |
Fe2O3 | 6.36 |
K2O | 4.01 |
CaO | 3.99 |
TiO2 | 0.68 |
So3 | 0.51 |
F | 0.42 |
Na2O | 0.35 |
P2O5 | 0.22 |
Cl | 0.18 |
LOI | 11.83 |
Sample ID | Wetting Stress | Equilibrium Axial Strain, eae (%) | Sat. Hydr. Conduct., ksat (×10−7 cm/s.) | ||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
saw (kN/m2) | 1st Cycle | 2nd Cycle | 3rd Cycle | 4th Cycle | 5th Cycle | 6th Cycle | 1st Cycle | 2nd Cycle | 3rd Cycle | 4th Cycle | 5th Cycle | 6th Cycle | |||||||
W | D | W | D | W | D | W | D | W | D | W | D | ||||||||
CWD_25 | 25 | 15.5 | −1.9 | 13.2 | −1.4 | 11.0 | −2.7 | 8.7 | −3.5 | 8.3 | −5.4 | 7.5 | −6.2 | 5.4 | 5.0 | 4.2 | 4.6 | 3.4 | 2.8 |
CWD_100 | 100 | 8.0 | −6.0 | 3.7 | −8.8 | 1.13 | −10 | −0.5 | −12 | −1.7 | −13 | −2.7 | −13 | 2.2 | 1.9 | 1.6 | 1.3 | 1.2 | 0.9 |
CWD_300 | 300 | −0.2 | −15 | −7.2 | −19 | −9.6 | −20 | −11 | −22 | −12 | −22 | −13 | −23 | 0.6 | 0.5 | 0.4 | 0.4 | 0.4 | 0.4 |
CWD_1000 | 1000 | −8.4 | −25 | −17 | −27 | −19 | −29 | −20 | −30 | −21 | −31 | −22 | −31 | 0.2 | 0.1 | 0.2 | 0.1 | 0.1 | 0.1 |
Sample ID | Wetting Stress | Equilibrium Axial Strain, εae (%) | Sat. Hydr. Conduct., ksat (×10−7 cm/s.) | ||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
σaw (kN/m2) | 1st Cycle | 2nd Cycle | 3rd Cycle | 4th Cycle | 5th Cycle | 6th Cycle | 1st Cycle | 2nd Cycle | 3rd Cycle | 4th Cycle | 5th Cycle | 6th Cycle | |||||||
W | D | W | D | W | D | W | D | W | D | W | D | ||||||||
CDW_25 | 25 | −3.0 | 18.7 | 2.9 | 16.4 | 2.6 | 14.3 | 2.2 | 13.1 | 1.7 | 12.3 | 10.1 | 6.0 | 5.2 | 5.2 | 4.6 | |||
CDW_100 | 100 | −6.5 | 4.2 | −10.3 | −0.4 | −12.5 | −3.0 | −14.4 | −4.7 | −16.3 | −5.9 | 2.3 | 1.0 | 1.0 | 0.9 | 0.9 | |||
CDW_300 | 300 | −5.7 | −1.6 | −11.1 | −6.3 | −14.8 | −8.4 | −17.0 | −9.8 | −18.8 | −10.8 | −19.8 | −11.6 | 0.9 | 0.4 | 0.4 | 0.4 | 0.3 | 0.3 |
CDW_1000 | 1000 | −10.8 | −11.0 | −20.6 | −17.6 | −21.2 | −18.0 | −21.5 | −18.8 | −21.6 | −19.5 | −21.7 | −20.0 | 0.3 | 0.2 | 0.2 | 0.2 | 0.1 | 0.1 |
