Experimental Investigation of Water-Retaining and Unsaturated Infiltration Characteristics of Loess Soils Imbued with Microplastics

Abstract

Microplastics are abundant in agricultural soils and have significant impacts on rainfall infiltration and soil water-retaining capacity. To explore the effect of microplastics on agricultural soil permeability by simulating the rainfall irrigation process, a one-dimensional vertical soil column rainfall infiltration test device was used to study the unsaturated infiltration characteristics of loess soil imbued with microplastics under rainfall conditions. The following conclusions could be obtained: the microplastic content (q), the microplastic particle size (p), and the soil density (γ) have effects on rainfall infiltration; the soil water-retaining capacity would be weakened owing to the existence of microplastics; and intermittent rainfall is preferred in agricultural irrigation. Finally, the permeability coefficient (k) and average flow rate (V) of the unsaturated soil are deduced together, and the relationship between the permeability coefficient (k) and the matrix suction (ψ) of the unsaturated loess soil containing microplastics is calculated by an example, proving good consistency between the experimental results and theoretical calculations. Microplastics represent negative effects on rainfall infiltration and soil water retention, so it is recommended to dispose of them.

1. Introduction

As a new type of pollutant found globally, microplastics are distributed from ocean to land, even at the North and South Poles [1]. Studies have shown that microplastics can change soil properties and impact plant growth [2]. Several studies have suggested that more microplastics exist on land than in the ocean [3,4] and that microplastics are imported from land to the ocean [5,6,7]. The sources of microplastics in agricultural soil are diverse and include the employment of plastic film and mulch, crop planting and fertilizing, irrigation water, the utilization of sludge, and atmospheric deposition [8,9,10]. The agricultural soil moisture cycle generally refers to the migration and transformation of rainwater, irrigation water, and steam water in unsaturated soil regions above groundwater. Microplastics are characterized by their small size, strong hydrophobicity, and relatively stable properties. Their enrichment in soil participates in the water cycle of agricultural soil and affects the water-retaining and unsaturated infiltration of agricultural soil, which directly affects the usage of water resources and plant growth, especially in areas affected by soil erosion [11,12,13]. As the soil type with the largest distribution area on the Loess Plateau, loess soil areas are experiencing the most serious soil erosion in China, and the change in their water-retaining ability and water permeability is of great importance for crop yields. Water resources are very significant in these areas, and it is of great necessity to make full use of rain.

Currently, research on microplastics has focused on microplastic traceability [14,15,16,17], microplastic distribution [18,19,20], microplastic transportation mechanisms [21,22,23,24,25], microplastic enrichment principles [14,17,26,27], and microplastic management methods [28,29,30,31,32]. There are few studies on the effects of microplastics on soil water-retaining ability and water permeability, and most have focused on measuring the coefficient of permeability by the hydrostatic head method, which reflects the change in soil water permeability in the presence or absence of microplastics [11]. However, the coefficient of permeability obtained by the hydrostatic head method represents the permeability coefficient of saturated soil; agricultural soil is normally in an unsaturated state, and the hydrostatic head method cannot reflect the changing water permeability and water-retaining ability of agricultural soil during the infiltration process [33,34]. Meanwhile, rainfall infiltration of soil is an unsaturated process, and the factors affecting rainfall infiltration embrace two aspects. One is rainfall conditions, such as rainfall type, intensity, and duration. The other is soil properties, such as soil type, infiltration characteristics, and initial moisture content [35,36]. With regard to the abundance of microplastics, studies on rainfall infiltration and the unsaturated permeability coefficient curves of soils containing microplastics are still lacking.

This study takes loess soils as the research object to explore the water-retaining and unsaturated infiltration characteristics of soil imbued with microplastics under rainfall conditions. To simulate the rainfall irrigation process, experiments based on the wetting front advancing method employ a one-dimensional vertical soil column rainfall infiltration test device to study the influence of the microplastic content (q), microplastic particle size (p), soil bulk density (γ), and intermittent rainfall ratio (i) on loess soil rainfall infiltration by analyzing the infiltration rate (λ), cumulative infiltration amount (Q), wetting peak depth (H), and average conductivity (C). The change law of volumetric moisture content (θ) at monitoring points could reflect soil water-retaining ability. Combined with the effective fitting of the power function of the wet peak bulk density advancing curve, the permeability coefficient (k) and average flow rate (V) of the unsaturated soil are deduced together and the relationship between the permeability coefficient (k) and the matrix suction (ψ) of the unsaturated loess soil with microplastics is calculated by an example.

2. Materials and Test Methods

2.1. Materials

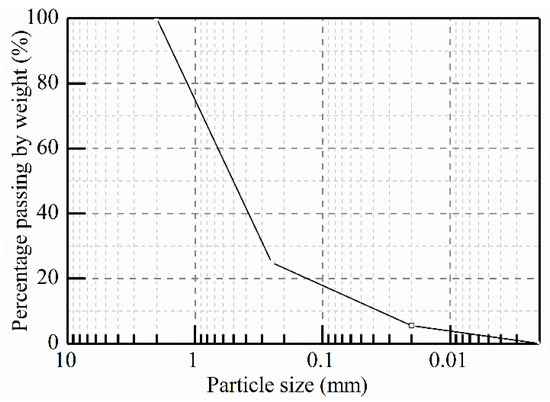

Loess soils are weakly developed soils and easily damaged. Loess soils are typical soils of the Loess Plateau. Particle size distribution analyses carried out on the studied sample reveal the following composition: 75.15% sand (particle size range 0.02~2 mm), 19.32% silt (particle size range 0.002~0.02 mm), and 5.53% clay (particle size range less than 0.002 mm) according to the international classification system of soil texture. The grain-size distribution curve is in A1 of the Appendix A. The maximum dry density and the minimum dry density of selected loess soil in the Shanbei area were 1.8 g/cm³ and 1.5 g/cm³ as measured by experiments. White spherical polystyrene plastics with good sorting and stability were used as microplastics for testing. The density of the spherical polystyrene plastics was 1.06 g/cm³, with a particle size deviation of less than 10%.

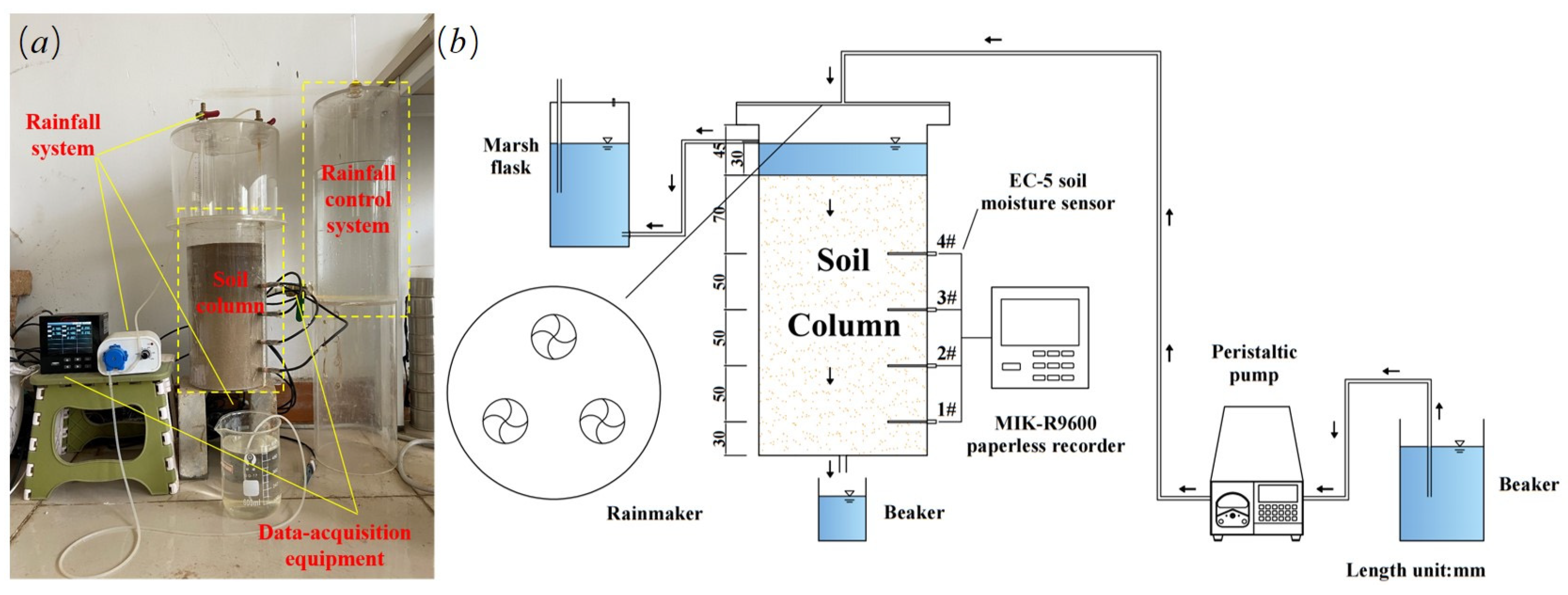

The one-dimensional vertical rainfall infiltration device consists of 4 parts, as shown in Figure 1a: a soil column, rainfall system (a peristaltic pump and a rainmaker), rainfall control system (a marsh flask), and data-acquisition equipment (EC-5 soil moisture sensors and a MIK-R9600 paperless recorder). A 140 mm inner diameter, 150 mm external diameter, 295 mm high plexiglass column was used as a container for the soil samples. A drainage port was set at the lower end of the one-dimensional vertical soil column to facilitate drainage. A peristaltic pump was used to regulate the amount of water entering the rainmaker to control rainfall intensity. A rainmaker was employed to create even rainfall. Four EC-5 soil moisture sensors were inserted into the soil column to monitor the volumetric water content θ or conductivity of the soil over time. The soil moisture sensors were numbered #4, #3, #2, and #1 from the top to the bottom of the soil column. The generation of surface runoff occurred in the later period of rainfall. The tensiometers were employed to measure the soil matric suction (ψ). All data were recorded by the MIK-R9600 paperless recorder automatically. The apparatus structure diagram of the rainfall infiltration test device is shown in Figure 1b.

2.2. Test Scheme and Experiment Procedure

The study designed 13 sets of experiments with different microplastic content (q), microplastic particle size (p), soil bulk density (γ), and intermittent rainfall ratio (i) and the test scheme is shown below (

Table 1. Test scheme.

No	Rain Interval Ratio	Soil Bulk Density	Microplastic Content	Microplastic Particle Size
	i	γ (g/cm3)	q (%)	p (μm)
1	\	1.57	0.00	5
2	\	1.57	0.05	5
3	\	1.57	0.10	5
4	\	1.57	0.25	5
5	\	1.57	0.50	5
6	\	1.57	0.25	3
7	\	1.57	0.25	8
8	\	1.61	0.25	5
9	\	1.65	0.25	5
10	\	1.73	0.25	5
11	1:2	1.57	0.25	5
12	1:1	1.57	0.25	5
13	2:1	1.57	0.25	5

). The rainfall intensity was set to 20 mm/h, which referred to the real rainfall situation in the local area, the same as the rain interval ratio (i). The i values were set to 1:2, 1:1, and 2:1, with 30 min for rain and 60 min for rest, 30 min for rain and 30 min for rest, and 60 min for rain and 30 min for rest, respectively.

The study assessed the influence of the 4 parameters above by analyzing the infiltration rate (λ), cumulative infiltration amount (Q), wetting peak height (H), and the change law of volumetric moisture content (θ) at monitoring points. The procedure includes 4 parts:

(1)

Prepare the device and fill the column with loess.

(2)

Ensure the rain interval ratio and adjust the rainfall system and the rainfall control system.

(3)

Strat the experiment until soil enters the saturated infiltration stage.

(4)

Collect data and undertake analysis.

2.3. Device Preparation

The density flotation method was used to wash the soil sample many times before the experiments to remove microplastics that had already been present in the soil sample began, and then the sample was dried. Invasive substances, such as litter and plant rhizomes in the soil sample, were removed to avoid affecting. The washed soil particles were stored in a cool and dry place for later use. The structure and porosity of loess were not disturbed during experiments. Spherical microplastics of different particle sizes were prepared in advance for standby application.

The samples were divided into 6 parts after weighing the soil mass required for each test. The soil column was filled and compacted in layers. Each layer of soil sample was shaved to ensure uniform sample loading and consistent compaction over the entire height to ensure soil homogeneity. Before loading the sample, a filter was attached to the water outlet at the bottom of the soil column to prevent the soil sample from flowing out of the water outlet and damaging the soil sample. Each time a soil sample layer was loaded, a soil moisture sensor and tensiometer were inserted in a timely fashion, especially the tensiometer. If the tensiometer was left in the air for too long, vaporization occurred. All apparatuses were inserted slowly to prevent apparatus damage and soil disturbance during the process. The second layer was filled only when the data on the MIK-R9600 data paperless recorder were normal. In a similar fashion, the sample loading process was implemented until the soil reached the specified height.

During the test, the wetting peak height (H) was measured by a 50 cm steel ruler, which was measured every 5 min in the early stage, every 10 min in the middle stage, and every 20 min or 30 min in the later stage. In the later stage, when the accumulated water height reached the height required by the experiments, a Marsh flask was used to control the accumulated water height. The accumulated water height remained at 3 cm, which was used to simulate a state where the accumulated water height remained unchanged after the generation of surface runoff in the later period of rainfall. During the test, EC-5 moisture sensors and the MIK-R9600 paperless recorder collected data at a frequency of 1 data point per minute. The test environment temperature was relatively stable and remained at 26~27 °C.

3. Results and Discussions

3.1. Effect of Microplastic Contents q on Moisture Transportation

A parameter infiltration rate (λ) (unit: mm/min) is defined, which indicates the amount of water infiltrated per unit area of the soil surface per unit time. The cumulative infiltration amount (Q) (unit: mm) is the cumulative infiltration amount per unit area of the soil column from the beginning of rainfall to a certain time. The average conductivity (C) of soil is the variation in the wetting peak depth (Δh) in a certain period of time (Δt). An analysis of the test results from No. 1 to No. 5 are shown below.

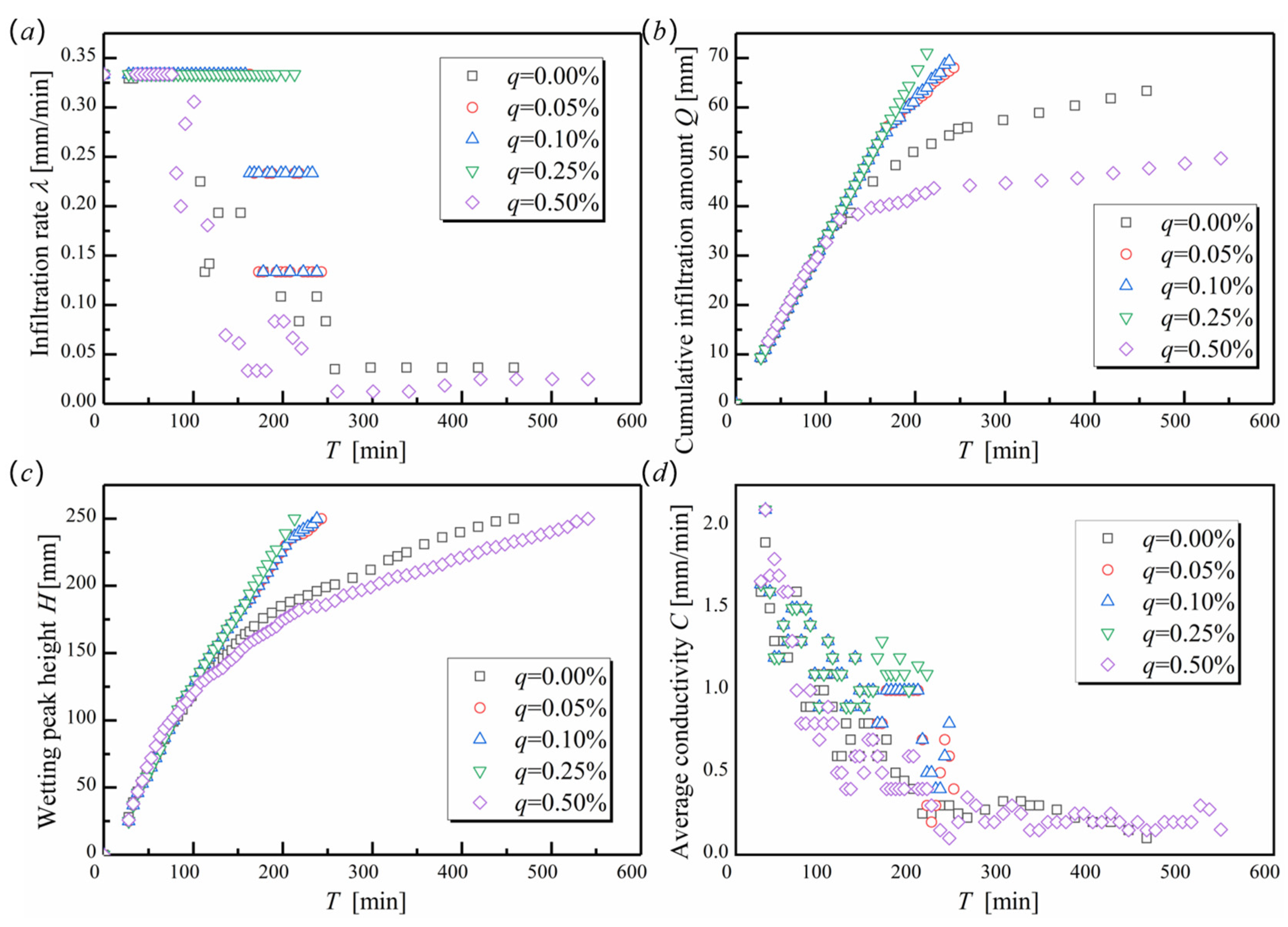

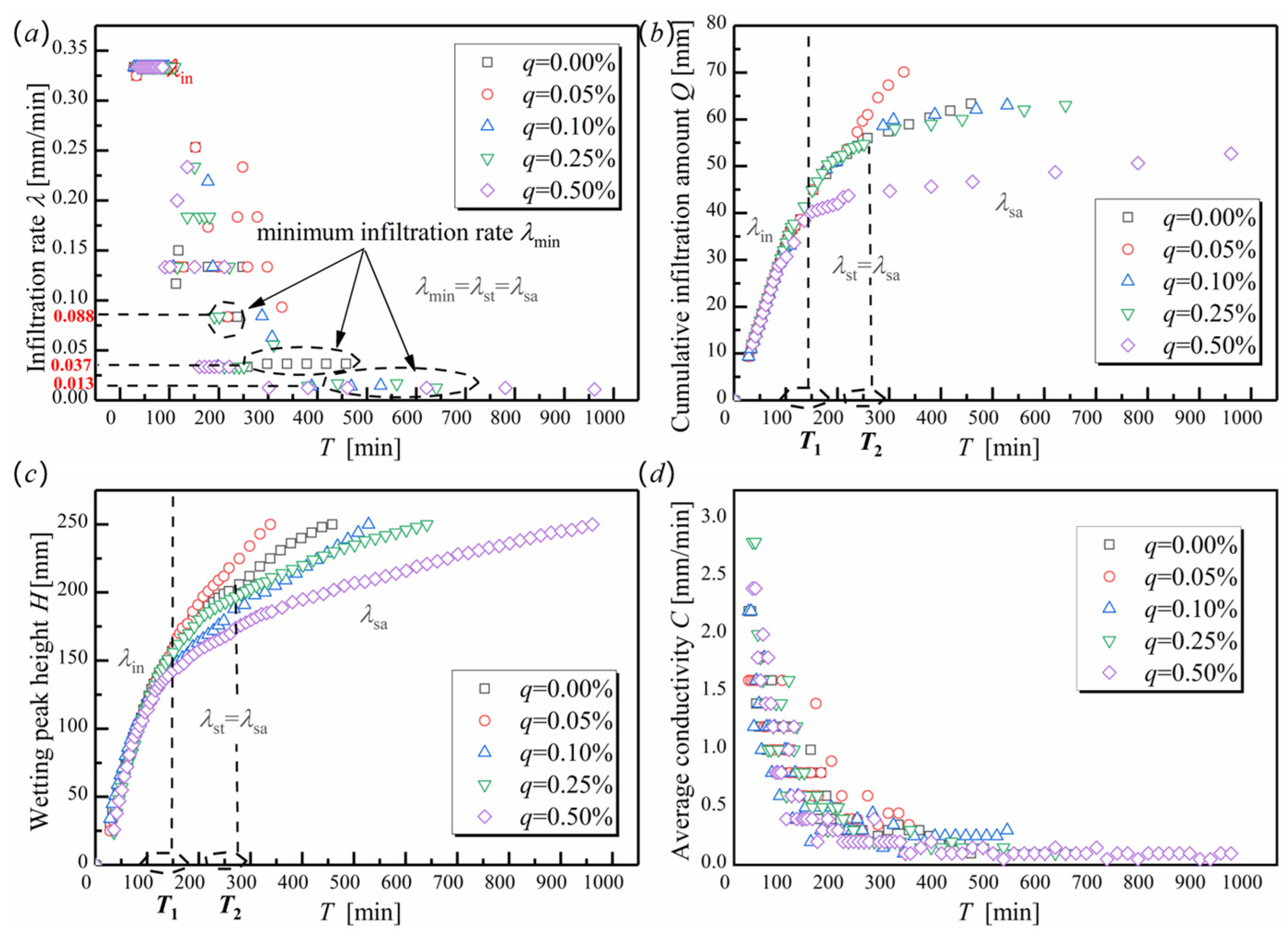

The time–history curve of infiltration rate λ (Figure 2a) reflects the slope change in the cumulative infiltration amount (Q) time–history curve (Figure 2b), and the time–history curve of average conductivity (C) (Figure 2d) reflects the slope change in the wetting peak depth (H) time–history curve (Figure 2c) under conditions of different microplastic contents (q). The minimum infiltration rate (λ_min) with a q value of 0.05% is larger than that of the blank experimental control group, while λ_min with a q of 0.10%, 0.25%, and 0.50% is smaller than that of the blank experimental control group. Compared with the blank experiment control group, when q is 0.05%, the Q value is the largest, the time required for rainwater infiltration into the soil column bottom is the shortest, and the λ value continues to decline and fluctuates greatly. When q values are 0.10%, 0.25%, and 0.50%, the Q values gradually decrease with increasing q and all are smaller than the Q value of the blank experimental control group. With the increase in the content, the time required for rainwater infiltration into the bottom of the soil column gradually increased, and it was longer than that of the blank control group. Analyzing the minimum infiltration rate (λ_min) (Figure 2a) and the time for rainwater infiltration into the bottom of the soil column (Figure 2b,c) compared with the blank experimental control group, it could be speculated that microplastics with q values of 0.05% promote rainwater infiltration, while microplastics with q values of 0.10%, 0.25%, and 0.50% hinder rainwater infiltration, and the content change does not affect the minimum infiltration ability. With increasing q values, the effect of blocking rainwater infiltration is stronger.

The soil sample with q of 0.05% did not represent stable infiltration, and the rainfall infiltration process showed no pressure infiltration or pressure infiltration. The rainfall infiltration shows three stages: no pressure infiltration, pressure infiltration, and saturated infiltration with regard to the q values of 0%, 0.1%, 0.25%, and 0.5%. According to Figure 2a,b and Table 1, in the no-pressure infiltration stage, the initial infiltration rates (λ_in) are constant and equal to the rainfall intensity. The water begins to accumulate on the soil column surface, and the surface soil enters a transient saturation state. The soil moisture content is low, and the matrix suction is large. The time–history curves represent slanted straight lines, and the average conductivity (C) is large, which means that rainwater is quickly absorbed and continuously transmitted to the interior of the soil. The no-pressure infiltration stage ends at T₁ with the existence of the accumulation point as a symbol. In the pressure infiltration stage, the λ value gradually decays to a stable value with rainfall duration; that is, the infiltration rate (λ_st) is stable, and the water height on the soil column surface changes stepwise to a stable state. The soil mass on the surface transfers to a fully saturated state. The curves in Figure 2b show an upward convex shape. The increase in magnitude in wetting peak depth (H) also decreases gradually at the same time, and the C values begin to decrease rapidly with rainfall duration. The pressure stage ends at T₂ with the existence of the saturated point as a symbol. In the saturated infiltration stage, the time–history curve of cumulative infiltration is a straight line, and its slope λ tends to be constant, which is the saturated infiltration rate (λ_sa) and is equal to the permeability coefficient of stable soil infiltration (λ_st = λ_sa = λ_min). The soil column undergoes saturated infiltration, and the C value tends to be stable. According to

Table 2. Time of water accumulation points and saturation points.

Microplastic Content q/%	Accumulation Points T1/min	Saturation Points T2/min	Time Difference (T2 − T1)/min
0.00	150	305	155
0.05	192	——	——
0.10	140	290	150
0.25	136	280	144
0.50	91	220	129

, microplastics with a q of 0.05% promote rainfall infiltration, and the water accumulation time is much longer than that of the other test samples. For other microplastic content samples, the more q values there were, the earlier the water accumulation point and saturation point appeared.

The existence of polystyrene microplastics in soils could fill the soil particle skeletons to bond and block water, and polystyrene microplastics themselves have strong hydrophobicity. Current research [37,38,39,40] shows that soil particles are often regarded as completely hydrophilic solids. The contact angle of soil increases and soil particles represent hydrophobic properties owing to the addition of hydrophobic materials. Meanwhile, microplastics would fill pores of soil particles and decrease the soil permeability coefficient, representing blocking effects. The two effects are contradictory and would play a dominant role in different situations with the change in soil compactness. When p is constant and q is relatively small, the strong hydrophobicity of microplastics plays a dominant role. Microplastics promote water infiltration. With q increasing, microplastics compact soil particles, representing blocking effects overall. The blocking effects enhance as q increases.

To explore the soil water-retaining capacity, the volume moisture content measured as θ by EC-5 moisture sensors with different q values are analyzed below.

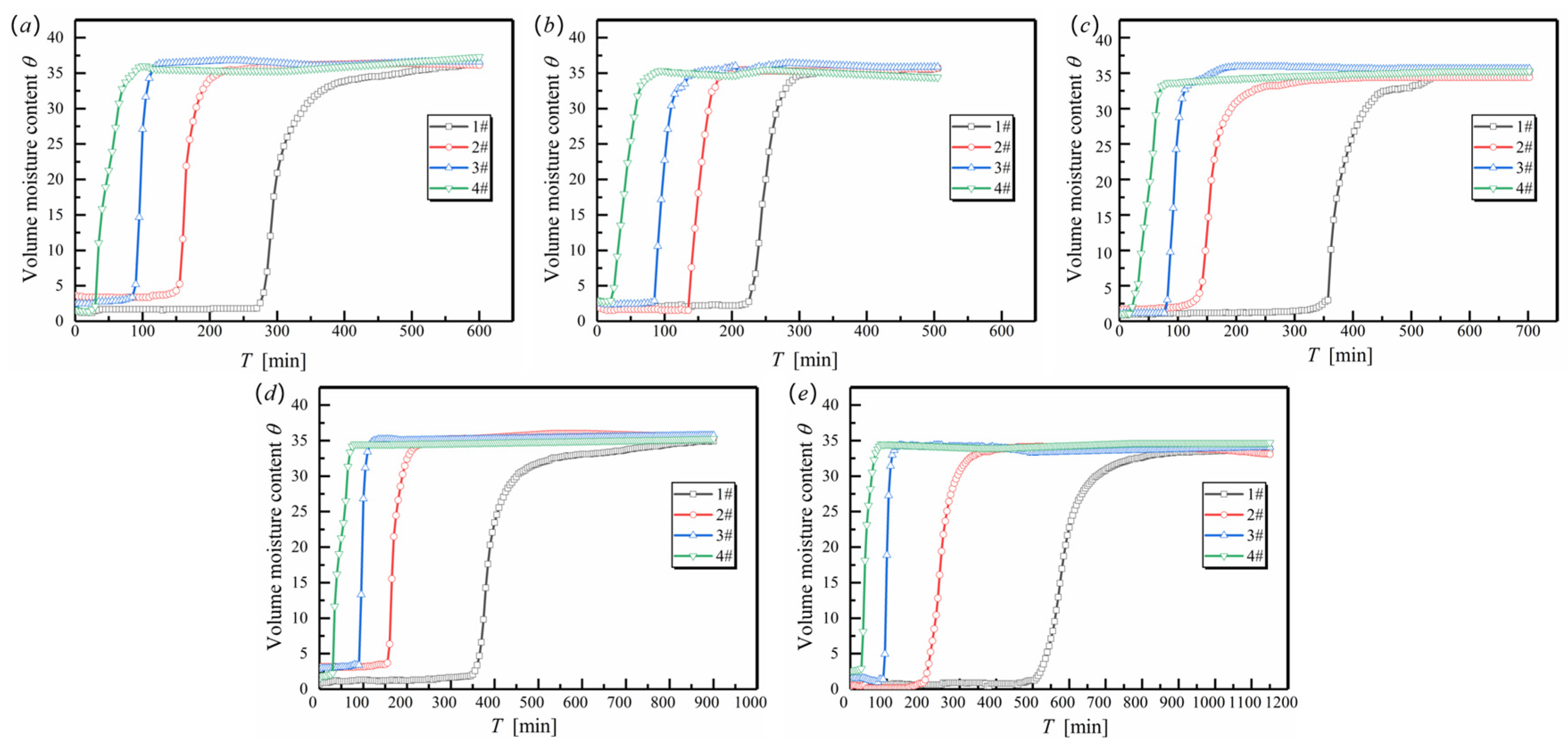

As shown in Figure 3, there is little difference in the time required for water to reach sensors #3 and #4. The time taken for water to reach sensors #1 and #2 is the shortest when q is 0.05%, while the time for water to transfer to sensors #1 and #2 gradually increases with increasing q values compared with other microplastic contents (q). The θ_max values with different q values are all less than that of the blank experiment control group. With q values increasing, the peak soil moisture content (θ_max) slightly decreases. Microplastics weaken the water-retaining capacity of loess soil due to the hydrophobic properties of microplastics.

3.2. Effect of Microplastic Particle Size p on Moisture Transportation

In this study, the microplastic content (q) is 0.25% and the soil bulk density (γ) is 1.57 g/cm³. By analyzing the test results from No. 4, No. 6, and No. 7, the results are shown below.

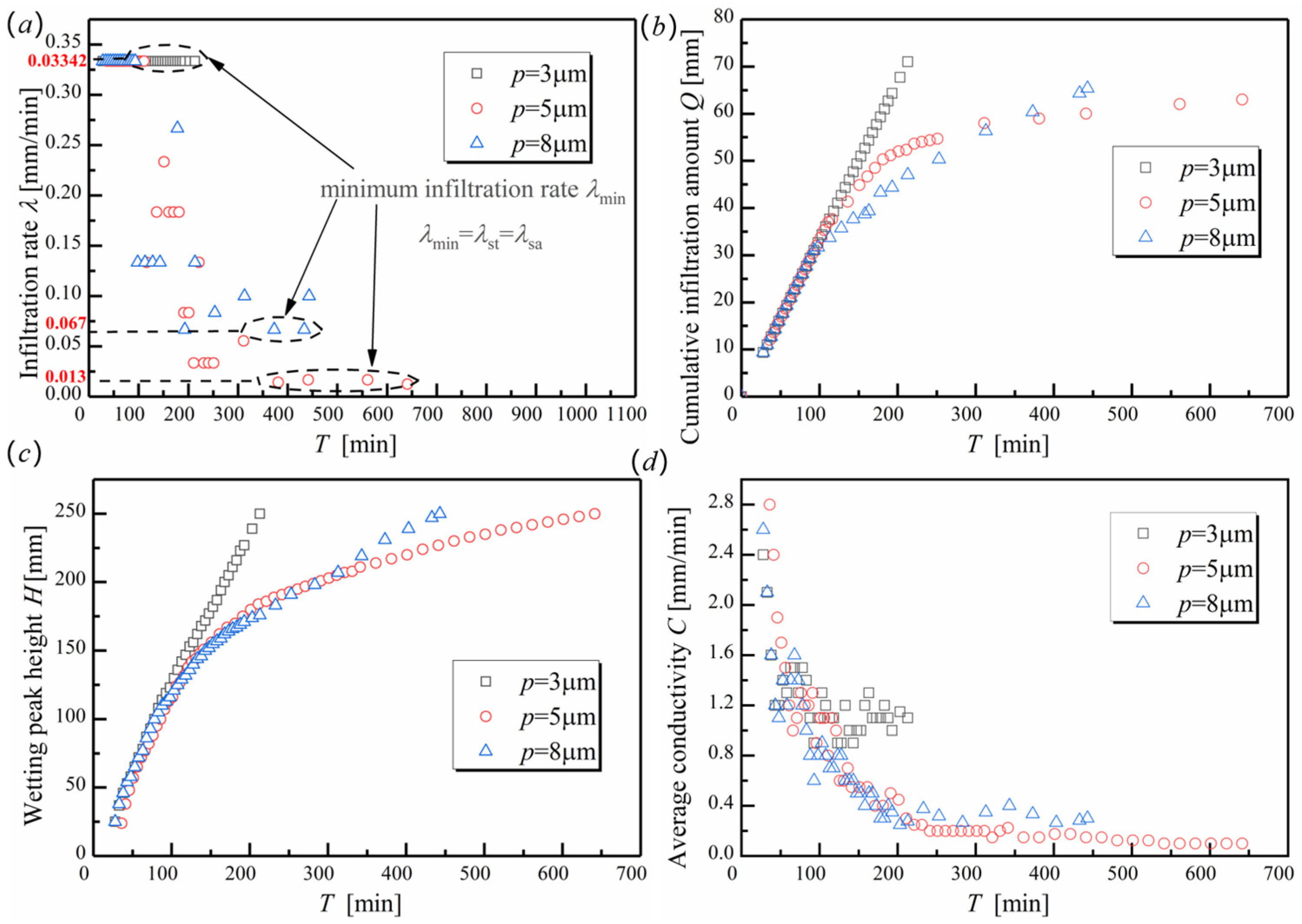

Similar to the analysis above, microplastics with a p of 3 μm were able to promote rainfall infiltration compared with the blank experimental control group. By supplementing rainwater infiltration tests (A2 of the Appendix A) with a p of 3 μm and a q of 0.00%, 0.05%, 0.10%, 0.25%, and 0.50%, no water may accumulate on the soil column surface for q values of 0.05%, 0.10%, and 0.25%, and the water accumulates on the surface for a q of 0.50%, indicating that with the decrease in p values, the q that promotes water infiltration increases, and the hydrophobic effect is obviously enhanced. Microplastics hinder water infiltration with p values of 5 μm and 8 μm. The microplastic amount with a p of 8 μm is less than that with a p of 5 μm, and the soil with a p of 8 μm is looser. The saturated infiltration rate is larger with a p of 8 μm. Therefore, microplastics with a p of 8 μm promote rainfall infiltration compared with microplastics with a p of 5 μm.

The soil sample with a p of 3 µm represents the no-pressure infiltration stage, while the rainfall infiltration shows no-pressure infiltration, pressure infiltration, and saturated infiltration with p values of 5 μm and 8 μm. According to Figure 4, the time–history curves of the cumulative infiltration amount (Q) with p values of 5 μm and 8 μm have intersections in the pressure infiltration stage. This means that the smaller the particle size of microplastics, the more conducive they are to rainwater infiltration in the pressure infiltration stage, while the larger the particle size of microplastics, the more favorable the rainwater infiltration in the saturated infiltration stage. As shown in Figure 4, significant differences appear in the saturated infiltration stage for curves with p values of 5 μm and 8 μm, indicating that the saturated infiltration stage of rainfall infiltration was severely affected by microplastic particle sizes.

Current research [39] shows that there exist three types of soil particles: large, medium, and small. The soil permeability coefficient is greatly affected by large pores compared with medium and small pores. When q is constant and p is small, microplastics fill few large pores of soil particles and present hydrophobic properties to promote water infiltration. Otherwise, with p increasing, more and more large pores are filled by microplastics, reducing the soil permeability coefficient. The existence of microplastics represents blocking effects. The blocking effects enhance as p increases. By controlling the mass of microplastics as constant, if p decreases, the amount of microplastics that compact soil particles should increase and blocking effects should increase. This explains the microplastic content range that promotes infiltration increases as p decreases.

To explore the soil water-retaining capacity, the volume moisture content measured θ by EC-5 moisture sensors with different p values are analyzed below.

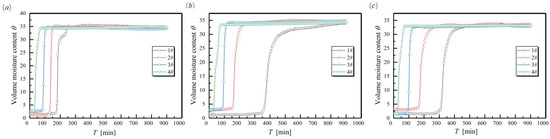

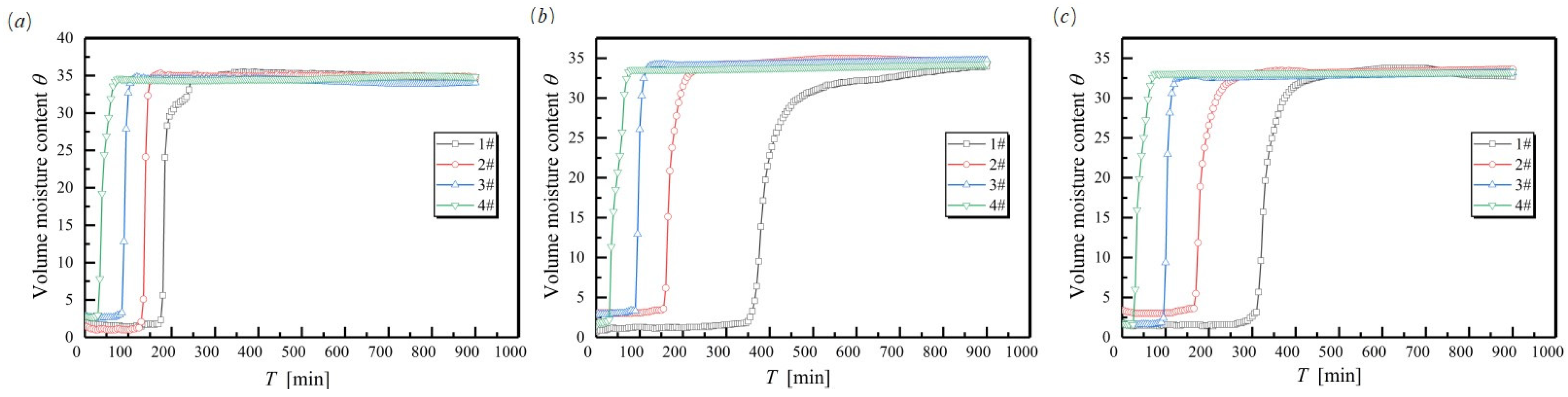

As shown in Figure 5, the θ_max values with different p values are all less than that of the blank experiment control group. There are few differences in θ_max with different p values. This indicates that the existence of microplastics reduces soil water-retaining capacity. The effects on soil water-retaining capacity change slightly as p increases.

3.3. Effect of Soil Bulk Density γ on Moisture Transportation

In this study, the microplastic content (q) is 0.25% and the microplastic particle size (p) is 5 μm. By analyzing the test results from No. 4, No. 8, No. 9, and No. 10, the results are shown below.

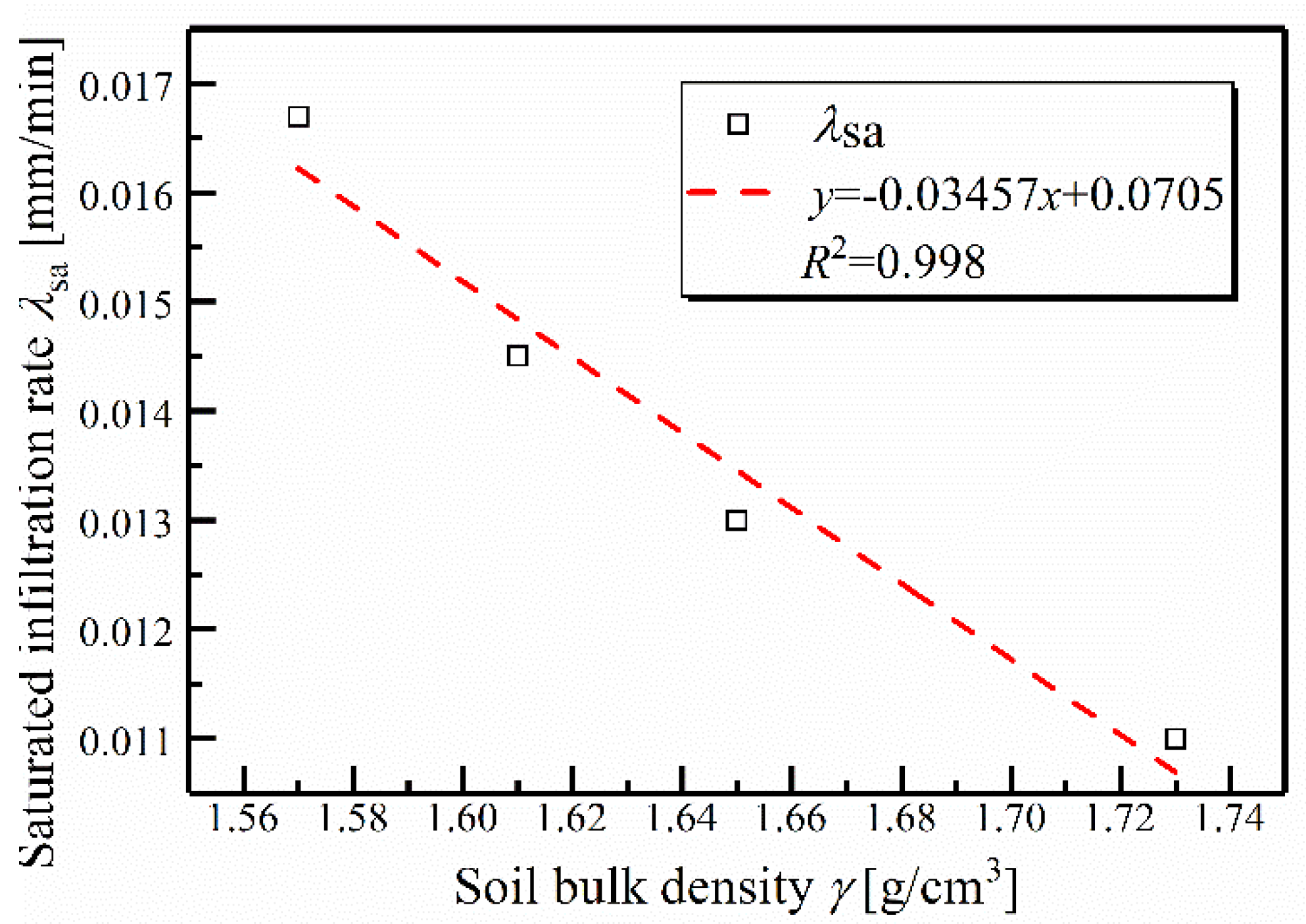

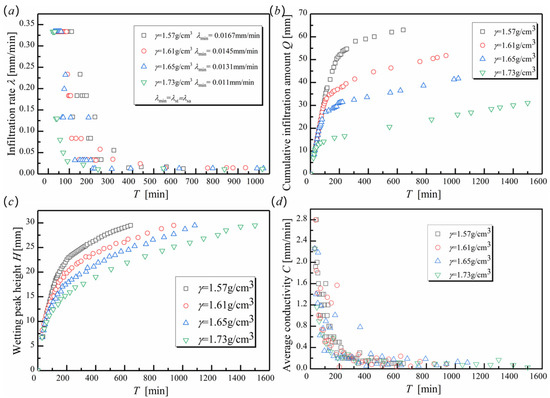

As shown in Figure 6, with increasing γ, the stable infiltration rate (λ_st) gradually decreases. This phenomenon is because the soil particles become more compact, the soil particle pores are smaller, and the soil infiltration rate (λ) is lower if the γ values increase. With the increase in γ, the cumulative infiltration amount (Q) gradually decreases. The rainfall infiltration shows three stages: no-pressure infiltration, pressure infiltration, and saturated infiltration. Meanwhile, with the increase in γ, the duration of the no-pressure stage gradually decreases, and the duration of the pressure stage also gradually shortens. The rainfall infiltration quickly transitions to the saturated infiltration stage. With the increase in γ, the time for rainwater to reach the soil column bottom gradually increases, and the saturated infiltration rate (λ_sa) gradually decreases. This is because as γ increases, the soil is denser, the porosity is smaller, and the amount of water passing through is less. It should also be noted that there is a good linear relationship between λ_sa and γ (A3 of the Appendix A).

To explore the soil water-retaining capacity, the volume moisture content measured as θ by EC-5 moisture sensors with different γ values are analyzed below.

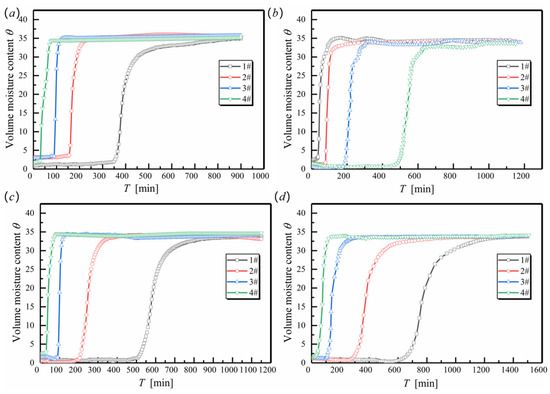

As shown in Figure 7, at the beginning, the rising time of θ at #1 and #2 is roughly the same, but with the increase in soil depth and γ, the rising time of θ is slightly delayed, and the time difference between the increase in θ at #3 and #4 also gradually increases. The θ_max values with different γ values are all less than that of the blank experiment control group. The soil peak moisture content (θ_max) with a relatively large bulk density (γ) would decrease slightly. The existence of microplastics would weaken the soil water-retaining capacity.

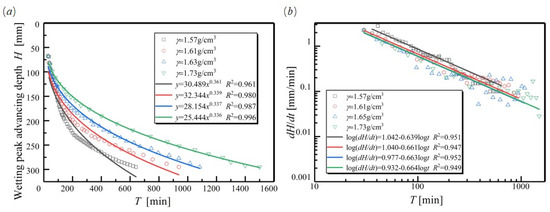

The time–history curve of wetting peak height (H) with different soil bulk densities (γ) could be fitted by a power function, which shows significant scale symmetry:

$$H=a{t}^b$$

(1)

Taking Equation (1) by the derivative of both sides with respect to time, the formula of wetting peak advancing velocity can be obtained:

$$\frac{dH}{dt}=ab{t}^{b-1}$$

(2)

To explore the physical meanings of parameters a and b, we take the derivative of Equation (2) with respect to time and take the logarithm of both sides of this equation:

$$\log \left(\frac{dH}{dt}\right)=\log \left(ab\right)+\left(b-1\right)\log t$$

(3)

where dH/dt is the advancing speed of the wetting peak; log(ab) is related to the initial advancing speed of the wetting peak; and b − 1 is the slope of Equation (3) and is related to the acceleration of the wetting peak advance. Combined with Equation (1), the time–history curves of the wetting peak advancing depth H and the wetting peak advancing speed dH/dt are shown in Figure 8.

It could be speculated that there is a linear relationship between the wetting peak advancing speed and time, which could be used to calculate the unsaturated soil permeability coefficient proposed with microplastics in Section 4.2.

3.4. Effect of Rain Interval Ratio i on Moisture Transportation

This study investigates the soil infiltration rate (λ) when the microplastic content (q) is 0.25%, the soil bulk density (γ) is 1.57 g/cm³ and the microplastic particle size (p) is 5 μm. By analyzing the test results from No. 11 to No. 13, the results are shown below.

The rainfall infiltration rate (λ) is barely unchanged for more than 600 min of rainfall duration, and the rainfall infiltration is stable under the circumstances of three different rain interval ratios (i). Therefore, the time–history curves only represent rainfall duration within 600 min. As shown in Figure 9, the rainfall infiltration process overall does not show no-pressure infiltration, pressure infiltration, or saturated infiltration. With time, the rainwater infiltration rate (λ) gradually decreases to approximately 0.013 mm/min regardless of the difference in i values. However, at the same time, the time–history curves of λ from high to low rain interval ratios (i) are 1:2, 1:1, and 2:1 in turn. It could be speculated that the rain interval ratio (i) has little influence on the saturated infiltration stage of the soil. It is easier for rainwater to infiltrate into the soil inside, and there is no significant loss of rainwater through surface runoff when i is equal to 1:2.

In the pressure infiltration stage, a water film begins to appear on the soil surface until ponding occurs and λ begins to decrease. Nonetheless, during the break time of rain, the water film and stagnant water disappear, and θ decreases. There appears to be a small rebound in λ. With changes in the rainfall cycle, the rate of decrease in λ and increase in rebound gradually decrease, while the magnitude of decrease and increase in rebound gradually decrease. It is shown that the time of λ changes in the time–history curve of λ is consistent with the alternating time between rainfall continuation and rainfall pause, and there is no hysteresis phenomenon, indicating that the infiltration rate responds rapidly to the transition of rainfall types. Below are the comparison figures of the time–history curves of infiltration rate (λ) of loess soil containing microplastics during rainwater infiltration under continuous rainfall conditions and intermittent rainfall conditions.

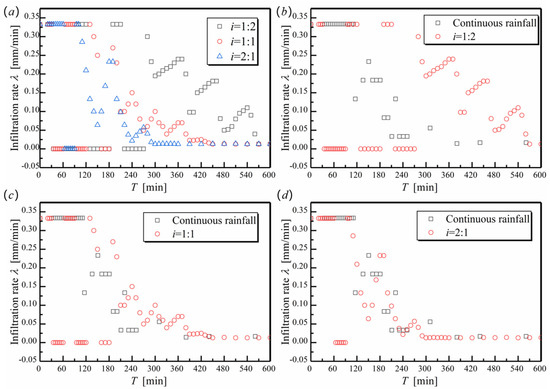

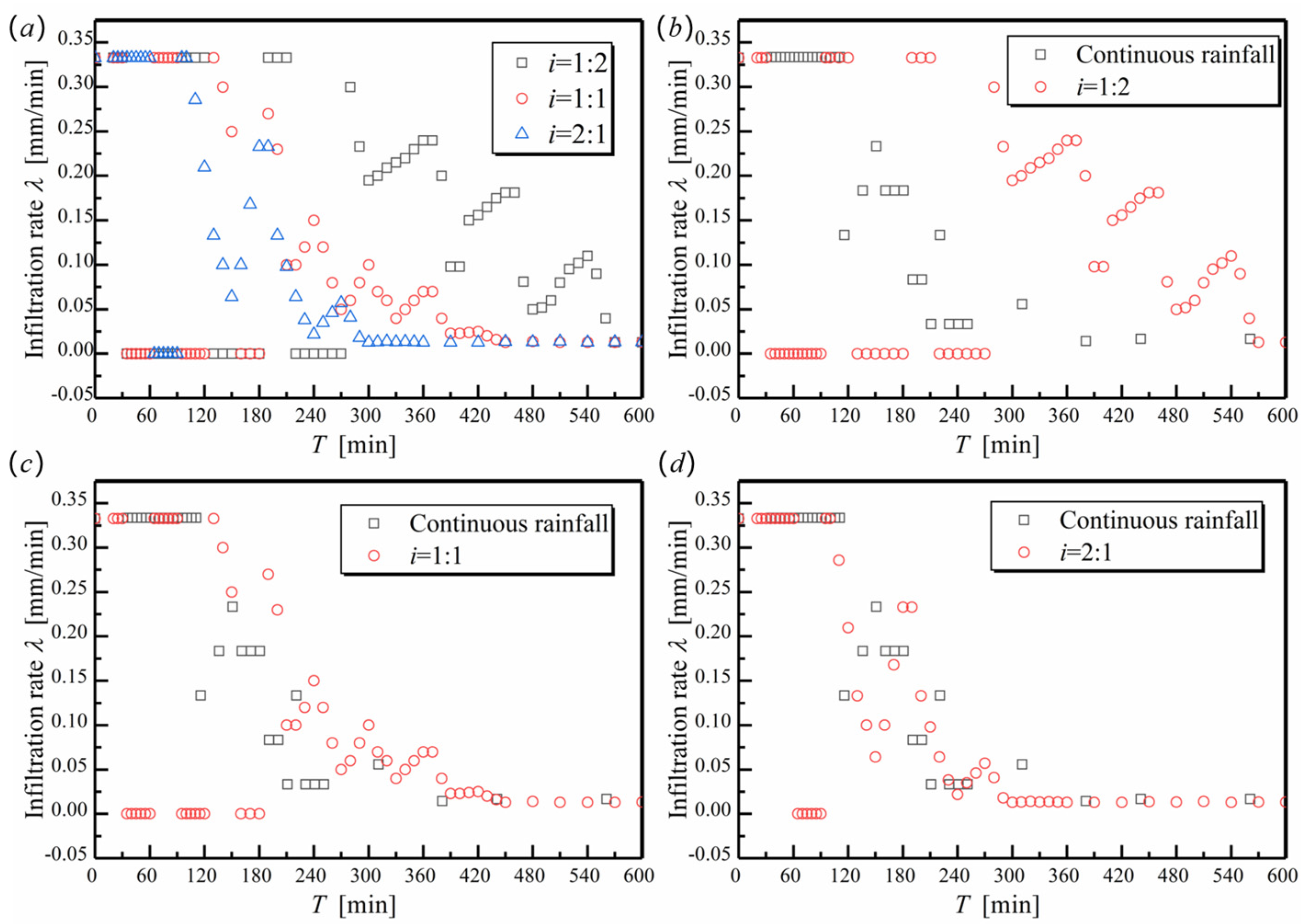

As shown in Figure 9, when rainfall conditions change from continuous rainfall to intermittent rainfall, the decline rate of λ in the early stage of rainfall changes from fast to slow, and λ under intermittent rainfall conditions is higher than that under continuous rainfall conditions at the same time. This shows that the rainwater infiltration speed is faster when rainfall changes to intermittent rainfall, and the Q value is larger in the middle and early stages. Owing to intermittent rainfall, rainwater needs to be redistributed, and the rainfall duration is long. There are few differences in λ when entering the saturated infiltration stage for continuous and intermittent rain, indicating that rain conditions have little effect on the saturated infiltration stage and that the rain interval ratio has a strong impact on the pressure infiltration stage owing to the rebound phenomenon above. For the soil column tests with rainfall durations longer than the rainfall intermittent time, the time–history curves are almost coincident, indicating that with the increase in rainfall duration, λ gradually became insensitive to the transition of rainfall type. Intermittent rainfall conditions are conducive to soil rainwater infiltration and do not generate excessive runoff on the surface. In agricultural irrigation, under the circumstances of the same irrigation water volume, the intermittent irrigation method is preferred, which is conducive to maximizing the use of water, and the infiltration time is long. Rainwater is beneficial to the absorption and utilization of plant rhizomes in the process of water redistribution in multiple rainfall cycles.

4. Coefficient of Permeability

4.1. Formula Derivation

The coefficient of permeability (θ) is an index that comprehensively reflects soil permeability and is the basis for seepage analysis and rainfall infiltration analysis, which has guiding significance for the seepage analysis of a project and for farmland irrigation. Below is the formula derivation process.

Assuming that the entire space of a soil flow area is filled with water flow, to make the flow in the soil flow model reflect the actual flow of the soil, the flow velocity of the water (V_w, unit: L/T) flow on any tiny area ΔA should be equal to the actual flow through the area ΔQ divided by ΔA, that is:

$$V_w=\Delta Q/\Delta A$$

(4)

Due to the volumetric water content of unsaturated soils at various cross-sectional locations and differences in the shape, width and direction of pores, the flow velocity here is also an average flow velocity that varies with location and time.

Assuming that the volumetric water content contour line and the matrix suction contour curve advance smoothly in a relatively short period of time, this requires that the volumetric water content distribution function θ(h, t) of different sections change the same with time, which can be converted into the following expression:

$$\theta \left(h,t+\Delta t\right)=\theta \left(h-\Delta h,t\right)$$

(5)

where Δh is the wetting peak infiltration depth during Δt.

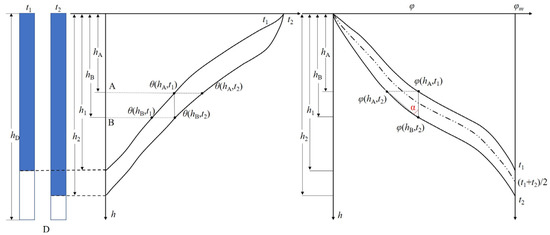

As shown in Figure 10, within a short distance of the soil column between A and B, the development schematic diagram of the wetting peak when the rainfall duration is t₁ and t₂, respectively. The distance traveled by the wetting peak is Δh, so during the rainfall duration Δt = t₂ − t₁ (shorter time, generally less than five minutes), the water flow through section A of the soil column is:

$$Q_{\mathrm{A}}=\Delta Q_{\mathrm{A}-\mathrm{D}}+Q_{\mathrm{D}}$$

(6)

where Q_A is the water flow through section A, Q_D is the water flow through section D, and ΔQ_A−D is the amount of water stored in vertical section AD of the soil column during time Δt. When the wetting peak does not reach the cross section, Q_A and Q_D are equal to 0. As the test stops until the water infiltrates to the bottom of the soil column, Q_D is 0. It can be seen from the previous analysis that θ can be integrated to obtain the total water content in a vertical section of the soil column, so the above formula can be written as:

$$Q_{\mathrm{A}}=\Delta Q_{\mathrm{A}-\mathrm{D}}={{\displaystyle \int }}_{h_{\mathrm{A}}}^{h_{\mathrm{D}}}\left(\theta \left(h,t_2\right)-\theta \left(h,t_1\right)\right)\mathrm{A}dh={{\displaystyle \int }}_{h_{\mathrm{A}}}^{h_{\mathrm{D}}}\theta \left(h,t_2\right)\mathrm{A}dh-{{\displaystyle \int }}_{h_{\mathrm{A}}}^{h_{\mathrm{D}}}\theta \left(h,t_1\right)\mathrm{A}dh$$

(7)

where θ (h, t₂) and θ (h, t₁) are the distribution functions of the soil volumetric moisture content θ at times t₂ and t₁, respectively; A is the cross-sectional area of the vertical soil column; and h_A and h_D are the distances between section A and section D from the soil column surface. Assuming that the vertical soil column is within a small time period Δt = t₂ − t₁, the height difference of the wetting peak in the vertical direction is Δh. The equations below can be obtained from the previous assumptions:

$$\begin{array}{c}{Q}_{\mathrm{A}}=\Delta Q_{\mathrm{A}-\mathrm{D}}={{\displaystyle \int }}_{h_{\mathrm{A}}}^{h_{\mathrm{D}}}\theta \left(h, t_2\right)\mathrm{A}dh-{{\displaystyle \int }}_{h_{\mathrm{A}}}^{h_{\mathrm{D}}}\theta \left(h,t_1\right)\mathrm{A}dh={{\displaystyle \int }}_{h_{\mathrm{A}}}^{h_{\mathrm{D}}}\theta \left(h-\Delta h,t_1\right)\mathrm{A}dh-{{\displaystyle \int }}_{h_{\mathrm{A}}}^{h_{\mathrm{D}}}\theta \left(h,t_1\right)\mathrm{A}dh\\ ={{\displaystyle \int }}_{h_{\mathrm{A}}-\Delta h}^{h_{\mathrm{A}}}\theta \left(h,t_1\right)\mathrm{A}dh-{{\displaystyle \int }}_{h_{\mathrm{D}}-\Delta h}^{h_{\mathrm{D}}}\theta \left(h,t_1\right)\mathrm{A}dh\end{array}$$

(8)

Based on the assumption that the distribution function of soil volumetric moisture content θ is a smooth function, the equations can be simplified as:

$${{\displaystyle \int }}_{h_{\mathrm{A}}-\Delta h}^{h_{\mathrm{A}}}\theta \left(h,t_1\right)\mathrm{A}dh\approx \frac{\left[\theta \left(h_{\mathrm{A}},t_2\right)+\theta \left(h_{\mathrm{A}},t_1\right)\right]\mathrm{A}\Delta h}{2}$$

(9)

$${{\displaystyle \int }}_{h_{\mathrm{D}}-\Delta h}^{h_{\mathrm{D}}}\theta \left(h,t_1\right)\mathrm{A}dh\approx \frac{\left[\theta \left(h_{\mathrm{D}},t_2\right)+\theta \left(h_{\mathrm{D}},t_1\right)\right]\mathrm{A}\Delta h}{2}\approx {\theta }_0\mathrm{A}h$$

(10)

where θ₀ is the initial volumetric moisture content of the vertical soil columns.

Inserting Equations (9) and (10) into Equations (4) and (8), the water flow Q_A and average flow rate of water flowing through section A V_A are:

$$Q_A=\frac{\left[\theta \left(h_{\mathrm{A}},t_2\right)+\theta \left(h_{\mathrm{A}},t_1\right)-2{\theta }_0\right]\mathrm{A}\left(h_{\mathrm{B}}-h_{\mathrm{A}}\right)}{2}$$

(11)

$$\begin{array}{c}{V}_A=\frac{\left\{0.5\left[\theta \left(h_{\mathrm{A}},t_2\right)+\theta \left(h_{\mathrm{A}},t_1\right)-2{\theta }_0\right]\mathrm{A}\right\}\Delta h}{t_2-t_1}\\ \hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}=\frac{\left\{0.5\left[\theta \left(h_{\mathrm{A}},t_2\right)+\theta \left(h_{\mathrm{A}},t_1\right)-2{\theta }_0\right]\mathrm{A}\right\}\left(h_{\mathrm{B}}-h_{\mathrm{A}}\right)}{t_2-t_1}\\ \hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}=\frac{\left\{0.5\left[\theta \left(h_{\mathrm{A}},t_2\right)+\theta \left(h_{\mathrm{A}},t_1\right)-2{\theta }_0\right]\mathrm{A}\right\}\left(h_2-h_1\right)}{t_2-t_1}\end{array}$$

(12)

where (h₂ − h₁)/(t₂ − t₁) is the wetting peak advancing speed. In a short time t, let t = (t₂ + t₁)/2 be the wetting peak advancing speed formula derived earlier, and by substituting the previously obtained wetting peak advancing speed formula into it, Equation (13) can be obtained:

$$V_A=\frac{\left\{0.5\left[\left(h_{\mathrm{A}},t_2\right)+\theta \left(h_{\mathrm{A}},t_1\right)-2{\theta }_0\right]\mathrm{A}\right\}\left(h_2-h_1\right)}{t_2-t_1}=\left\{0.5\left[\theta \left(h_{\mathrm{A}},t_2\right)+\theta \left(h_{\mathrm{A}},t_1\right)-2{\theta }_0\right]\mathrm{A}\right\}ab{\left(\frac{t_2+t_1}{2}\right)}^{b-1}$$

(13)

At (t₂ + t₁)/2 time, the hydraulic gradient between sections A and B is approximately equal to the tangent of the angle α in Figure 10 and can be obtained by the following formula:

$$i=\frac{\phi \left(h_{\mathrm{A}},t_1\right)-\phi \left(h_{\mathrm{A}},t_2\right)}{{\gamma }_w\left(h_{\mathrm{B}}-h_{\mathrm{A}}\right)}-1=\frac{\phi \left(h_{\mathrm{A}},t_1\right)-\phi \left(h_{\mathrm{A}},t_2\right)}{{\gamma }_w\left(h_2-h_1\right)}-1$$

(14)

Assuming that the permeability coefficient of unsaturated soil remains unchanged in a small time period Δt = t₂ − t₁ according to Darcy’s law, the following can be obtained:

$$Q_A=kiA\mathsf{\Delta }t$$

(15)

$$\begin{array}{c}k=\frac{Q_A}{iA\mathsf{\Delta }t}=\frac{0.5\left\{\left[\theta \left(h_{\mathrm{A}},t_2\right)+\theta \left(h_{\mathrm{A}},t_1\right)-2{\theta }_0\right]\mathrm{A}\mathsf{\Delta }h\right\}{\gamma }_w\mathsf{\Delta }h}{\left[\phi \left(h_{\mathrm{A}},t_1\right)-\phi \left(h_{\mathrm{A}},t_2\right)-{\gamma }_w\mathsf{\Delta }h\right]A\mathsf{\Delta }t}\\ \hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}=\frac{0.5\left[\theta \left(h_{\mathrm{A}},t_2\right)+\theta \left(h_{\mathrm{A}},t_1\right)-2{\theta }_0\right]\mathsf{\Delta }h{\gamma }_w}{\left[\phi \left(h_{\mathrm{A}},t_1\right)-\phi \left(h_{\mathrm{A}},t_2\right)-{\gamma }_w\mathsf{\Delta }h\right]}ab{\left(\frac{t_2+t_1}{2}\right)}^{b-1}\end{array}$$

(16)

4.2. Calculation Example

In this paper, the section of the #2 moisture sensor of the test soil column with a microplastic content q of 0.25%, a microplastic particle size p of 5 μm, a uniform rainfall intensity of 20 mm/h, and a soil bulk density γ of 1.57 g/cm³ is selected to solve the problem of the permeability coefficient of unsaturated remodeled loess soils with microplastics.

From the study above, the wetting peak infiltration rate of loess soil with microplastics varies greatly in the early stage of rainfall and tends to be stable with increasing rainfall duration. The power exponent is used for fitting, and the fitting effect is better. Below is the fitting function with the same meaning as Equation (4):

$$v=ab{t}^{b-1}=11.01t^{-0.639} R^2=0.987$$

(17)

The volumetric moisture content functions θ(h, t) and φ(h, t) of the section where the #2 moisture sensor of the loess soil column is located are measured by the moisture sensor and the tensiometer, respectively. Taking θ(h, t), φ(h, t), v = 11.01t^−0.639, θ₀ = 0.07, γ_w = 10 KN/m³, and Δt = t₂ − t₁ = 5 min into Equation (16), the permeability coefficient of unsaturated remolded loess soil with microplastics under different matrix suction values can be obtained, as shown in Figure 11.

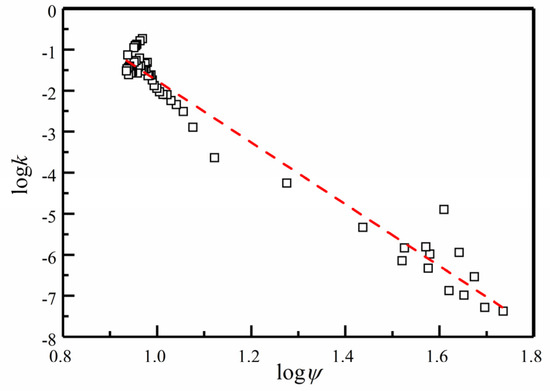

As shown in Figure 11, when the soil tends to be saturated, the matrix suction force ψ is small, and the permeability coefficient (k) is approximately equal to 0.0338 mm/min, which is in close proximity with the saturated permeability coefficient (λ) of 0.037 mm/min in Section 3.1. Therefore, the experimental results in this paper are consistent and reasonable with the theoretical calculation. Meanwhile, the distribution of the logarithm (lgk) and the matrix suction (lgφ) shows a linear distribution law, which can be fitted by a linear equation. The fitting curve under the double logarithmic coordinate is shown in Figure 11. The fitting equation is:

$$lgk=5.77-7.53lg\phi (R^2=0.987)$$

(18)

Therefore, according to the calculation method of the unsaturated soil permeability coefficient proposed with microplastics in this paper, combined with laboratory infiltration tests and soil–water characteristic curve tests, the permeability coefficient of unsaturated soil bodies can be obtained, which can be used for engineering seepage analysis and guidance for farmland soil irrigation.

5. Conclusions

Based on the wetting front advancing method, this paper employs a one-dimensional vertical soil column rainfall infiltration test device. By analyzing the experimental phenomena and data, the following conclusions are drawn:

(1) When the values of q and p are relatively small, microplastics reflect hydrophobic properties. With the increase in q, p, and γ, microplastics represent blocking effects owing to a significant increase in soil compactness. The rainfall infiltration process normally shows no-pressure infiltration, pressure infiltration, and saturated infiltration. When microplastics have the main effect of hydrophobic, saturated infiltration, even pressure infiltration would not appear. When microplastics have the main effect of blocking, saturated infiltration begins sooner.

(2) The soil water-retaining capacity would be weakened due to the existence of microplastics.

(3) Compared with continuous rainfall, intermittent rainfall is preferred in agricultural irrigation, which would not cause a large amount of surface runoff loss and is conducive to the maximum utilization of water.

(4) Based on the assumption that the volumetric moisture content contour and the matrix suction contour curve advance smoothly in a relatively short period of time, combined with the effective fitting of the power function of the wet peak bulk density advancing curve, the permeability coefficient (k) and average flow rate (V) of unsaturated soils are jointly derived. The relationship between the permeability coefficient (k) and matrix suction (ψ) of unsaturated loess soil containing microplastics was calculated by an example.
