Strength Estimation of Damaged Rock Considering Initial Damage Based on P-Wave Velocity Using Regression Analysis
Abstract
:1. Introduction
2. Materials and Methods
2.1. Test Instruments and Intact Rock Specimens
2.2. Test Procedure
3. Results
3.1. Analysis of the Typical Stress–Strain Curves

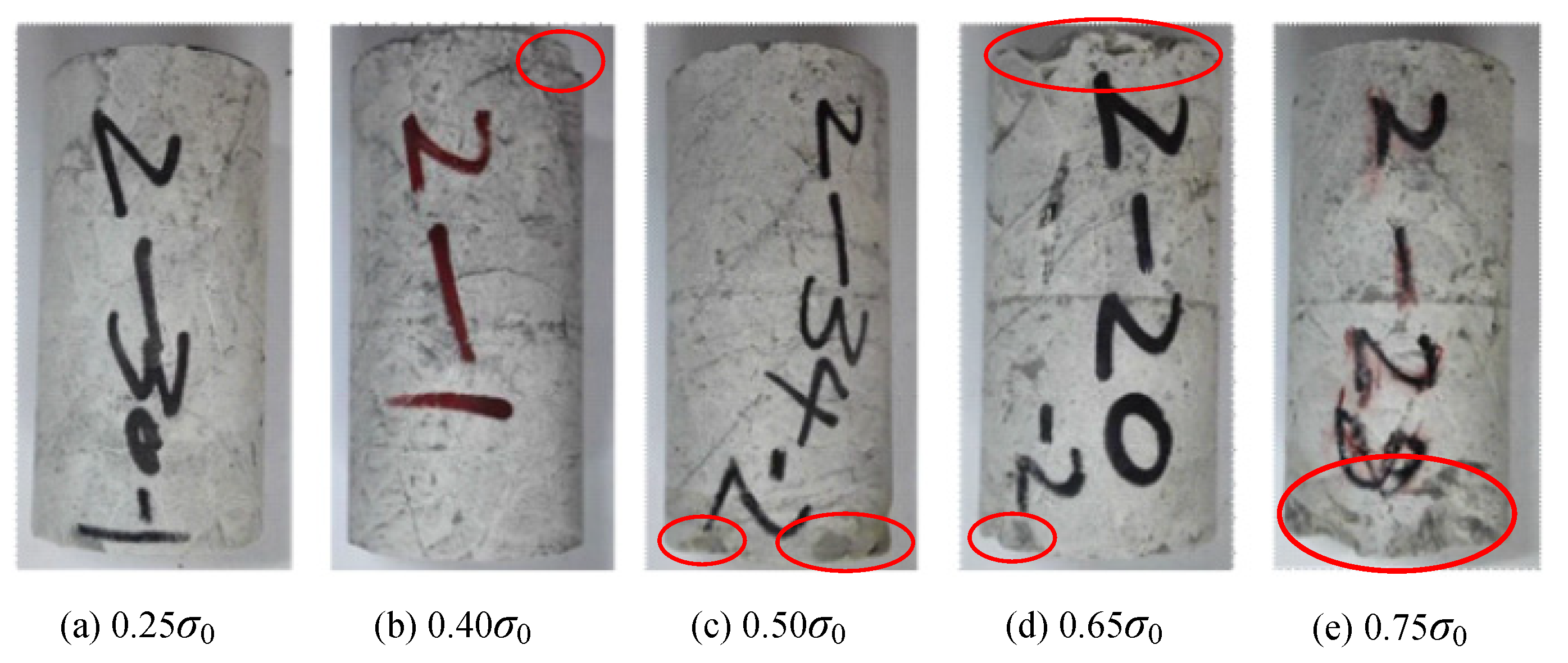

3.2. Multiscale Initial Damage Investigation
3.3. Multiscale Initial Damage Characterization Based on P-Wave Velocity
3.4. UCS and the 95% Confidence Interval
4. Strength Prediction Model
4.1. Model Fit and Parameter Analysis
- (1)
- Without considering the initial damage degree, the fitting curve slopes of the relationships between UCS and vp are essentially the same, but the intercepts are different. This means that the rock mass needs to be identified and classified in the field applications of engineering geology. The corresponding empirical formula can then be used for strength estimation.
- (2)
- The parameters of the empirical formulas, as shown in Figure 12, do not have any physical significance. Different empirical formulas can lead to prediction results with slightly different R2 values. It is particularly subjective and is similar to the direct empirical fitting of the strength and vp obtained in previous studies [11,12,13,14].
4.2. Adaptability Analysis of the Strength Prediction Model
4.2.1. Adaptability of the Prediction Model to Splitting Tensile Strength
4.2.2. Adaptability of the Prediction Model to Other Rocks
- (1)
- The fitting lines of the strength prediction model were highly consistent with the test data points of limestone, silty sandstone, fine sandstone, medium sandstone, mudstone, material similar to limestone, and intermittent jointed rock mass. More than 73% of the R2 values were greater than 0.80, indicating that the strength prediction model could offer good adaptability to other rocks.
- (2)
- Limited strength data for limestone and limestone rock masses were available in [31] (Figure 14), and the influence of data discreteness cannot be ruled out. The strength failure mode of mudstone in [34] was plastic failure, which differed from that of the brittle rock masses (Figure 15). The R2 value of the intermittent jointed rock mass reported by [22] was the lowest at 0.2655 (Figure 16). This is because Equation (6) was established on the assumption that the initial damage to the rock mass was macroscopically continuous. However, the initial damage to the intermittent jointed rock mass was macroscopically discontinuous. Therefore, the strength of mudstone and intermittently jointed rock mass cannot be predicted using the strength prediction model for brittle rock masses (Equation (6)).
- (3)
- Based on the comparability of the test results, only the three groups of rock specimens (silty sandstone, fine sandstone, and medium sandstone) in Figure 14 are compared. The larger the rock particle size, the smaller the correction parameter δ of the model (Equation (6)).
4.2.3. Comparison with Other Strength Prediction Models
5. Discussion
6. Conclusions
- (1)
- The strength prediction model for brittle rock masses considering multiscale initial damage based on P-wave velocity was proved to be reasonably practical, and its parameters had physical significance. The larger the rock particle size, the smaller the correction parameter of the strength prediction model.
- (2)
- The uniaxial compressive strength of the rock mass was linearly positively correlated with the square of the P-wave velocity and linearly inversely correlated with the initial damage. The line-fitted results were within the upper and lower limits of the 95% confidence interval of the UCS.
- (3)
- As the initial damage degree increased, the initial rock damage increased linearly, the P-wave velocity decay rate increased, the strength decreased monotonically, and the peak axial strain increased significantly. It was proved to be feasible to prepare damaged rock specimens with multiscale initial cracks under various uniaxial compressive stresses.
- (4)
- The strength prediction model, e.g., the uniaxial compressive strength prediction model and the splitting tensile strength prediction model, could offer good adaptability to other rocks, which can be used to obtain the strength of brittle rock masses directly in engineering geology projects.
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
References
- Mishra, D.; Basu, A. Estimation of uniaxial compressive strength of rock materials by index tests using regression analysis and fuzzy inference system. Eng. Geol. 2013, 160, 54–68. [Google Scholar] [CrossRef]
- Li, W.; Tan, Z.Y. Research on rock strength prediction based on least squares support vector machine. Geotech. Geol. Eng. 2017, 35, 385–393. [Google Scholar] [CrossRef]
- Yin, P.; Ma, J.; Yan, C.; Huang, L. Estimation of the shear strength of fractured Gosford sandstone based on fractal theory and numerical modelling. J. Pet. Sci. Eng. 2019, 182, 106278. [Google Scholar] [CrossRef]
- Chen, S.; Cao, X.; Yang, Z. Three Dimensional Statistical Damage Constitutive Model of Rock Based on Griffith Strength Criterion. Geotech. Geol. Eng. 2021, 39, 5549–5557. [Google Scholar] [CrossRef]
- Shen, J.; Wan, L.; Zuo, J. Non-linear Shear Strength Model for Coal Rocks. Rock Mech. Rock Eng. 2019, 52, 4123–4132. [Google Scholar] [CrossRef]
- Diamantis, K.; Gartzos, E.; Migiros, G. Study on uniaxial compressive strength, point load strength index, dynamic and physical properties of serpentinites from Central Greece: Test results and empirical relations. Eng. Geol. 2009, 108, 199–207. [Google Scholar] [CrossRef]
- Tiryaki, B. Predicting intact rock strength for mechanical excavation using multivariate statistics, artificial neural networks, and regression trees. Eng. Geol. 2008, 99, 51–60. [Google Scholar] [CrossRef]
- Öge, I.F. Prediction of cementitious grout take for a mine shaft permeation by adaptive neuro-fuzzy inference system and multiple regression. Eng. Geol. 2017, 228, 238–248. [Google Scholar] [CrossRef]
- Xie, C.; Nguyen, H.; Bui, X.-N.; Nguyen, V.-T.; Zhou, J. Predicting roof displacement of roadways in underground coal mines using adaptive neuro-fuzzy inference system optimized by various physics-based optimization algorithms. J. Rock Mech. Geotech. Eng. 2021, 13, 1452–1465. [Google Scholar] [CrossRef]
- Xie, C.; Nguyen, H.; Choi, Y.; Armaghani, D.J. Optimized functional linked neural network for predicting diaphragm wall deflection induced by braced excavations in clays. Geosci. Front. 2022, 13, 101313. [Google Scholar] [CrossRef]
- Kahraman, S. Evaluation of simple methods for assessing the uniaxial compressive strength of rock. Int. J. Rock Mech. Min. Sci. 2001, 38, 981–994. [Google Scholar] [CrossRef]
- Khandelwal, M. Correlating P-wave Velocity with the Physico-Mechanical Properties of Different Rocks. Pure Appl. Geophys. 2013, 170, 507–514. [Google Scholar] [CrossRef]
- Kurtuluş, C.; Sertçelik, I. Correlating physico-mechanical properties of intact rocks with P-wave velocity. Acta Geod. Geophys. 2016, 51, 571–582. [Google Scholar] [CrossRef] [Green Version]
- Khajevand, R.; Fereidooni, D. Assessing the empirical correlations between engineering properties and P wave velocity of some sedimentary rock samples from Damghan, northern Iran. Arab. J. Geosci. 2018, 11, 528. [Google Scholar] [CrossRef]
- Li, X.; Konietzky, H.; Li, X.; Wang, Y. Failure pattern of brittle rock governed by initial microcrack characteristics. Acta Geotech. 2019, 14, 1437–1457. [Google Scholar] [CrossRef]
- Zhang, Y.; Xu, Y.; Liu, X.; Yao, X.; Wang, S.; Liang, P.; Sun, L.B. Quantitative characterization and mesoscopic study of propagation and evo-lution of three-dimensional rock fractures based on CT. Rock. Soil Mech. 2021, 42, 2659–2671. [Google Scholar] [CrossRef]
- Ma, J.; Zhao, G.; Khalili, N. An elastoplastic damage model for fractured porous media. Mech. Mater. 2016, 100, 41–54. [Google Scholar] [CrossRef] [Green Version]
- Xu, X.; Gao, F.; Zhang, Z. Thermo-mechanical coupling damage constitutive model of rock based on the Hoek–Brown strength criterion. Int. J. Damage Mech. 2018, 27, 1213–1230. [Google Scholar] [CrossRef]
- Ma, J.; Chen, J.; Chen, W.; Huang, L. A coupled thermal-elastic-plastic-damage model for concrete subjected to dynamic loading. Int. J. Plast. 2022, 153, 103279. [Google Scholar] [CrossRef]
- Zhang, H.; Guo, P.; Wang, Y.; Zhao, Y.; Lin, H.; Liu, Y.; Shao, Y. Fracture Behavior of Rock with Initial Damage: Theoretical, Experimental, and Numerical Investigations. Geofluids 2020, 2020, 1–9. [Google Scholar] [CrossRef]
- Tang, X. A unified theory for elastic wave propagation through porous media containing cracks—An extension of Biot’s poroelastic wave theory. Sci. China Earth Sci. 2011, 54, 1441–1452. [Google Scholar] [CrossRef]
- Zhao, X.C.; Zhao, X.Y.; Guo, J.Q. Experimental study on acoustic and mechanical properties of intermittent jointed rock mass. Chin. J. Rock. Mech. Eng. 2020, 39, 1409–1419. [Google Scholar] [CrossRef]
- Huang, L.; Liang, J.; Ma, J.; Chen, W. A dynamic bounding surface plasticity damage model for rocks subjected to high strain rates and confinements. Int. J. Impact Eng. 2022, 168, 104306. [Google Scholar] [CrossRef]
- Fuqi, C.; Zhonghui, L.; Guoai, L.; Yang, W.; Shan, Y.; Shuaijie, L.; Yanhui, K. Influence of prefabricated fissure angle on sandstone damage and infrared radiation temperature characteristics. J. Geophys. Eng. 2018, 15, 1187–1196. [Google Scholar] [CrossRef] [Green Version]
- Hu, J.; Wen, G.; Lin, Q.; Cao, P.; Li, S. Mechanical properties and crack evolution of double-layer composite rock-like specimens with two parallel fissures under uniaxial compression. Theor. Appl. Fract. Mech. 2020, 108, 102610. [Google Scholar] [CrossRef]
- Cai, M.; Kaiser, P.K.; Tasaka, Y.; Maejima, T.; Morioka, H.; Minami, M. Generalized crack initiation and crack damage stress thresholds of brittle rock masses near underground excavations. Int. J. Rock Mech. Min. Sci. 2004, 41, 833–847. [Google Scholar] [CrossRef]
- Hou, R.B.; Zhang, K.; Tao, J. Effects of initial damage on time-dependent behavior of sandstone in uniaxial compressive creep test. Arch. Min. Sci. 2019, 64, 687–707. [Google Scholar] [CrossRef]
- Yan, C.B.; Li, G.Q.; Chen, D.L. Amended expressions of Hoek-Brown criterion based on blasting cumulative damage effects of rock mass. Chin. Rock Soil Mech. 2011, 32, 2951–2964. [Google Scholar] [CrossRef]
- Tarasińska, J. Confidence intervals for the power of Student’s t-test. Stat. Probab. Lett. 2005, 73, 125–130. [Google Scholar] [CrossRef]
- Liu, B.; Sang, H.; Wang, Z.; Kang, Y. Experimental Study on the Mechanical Properties of Rock Fracture after Grouting Reinforcement. Energies 2020, 13, 4814. [Google Scholar] [CrossRef]
- Xia, K.Z.; Chen, C.X.; Liu, X.M.; Zheng, Y.; Zhou, Y.C. Estimation of rock mass mechanical parameters based on ultrasonic velocity of rock mass and hoek-brown criterion and its application to engineering. Chin. J. Rock. Mech. Eng. 2013, 32, 1458–1466. [Google Scholar]
- Liu, T.X.; Long, W.; Hu, L.Y. Application of ultrasonicwave in strength measurement of similar materials of lime-stone. Chin. J. Transp. Sci. Eng. 2013, 29, 27–31. [Google Scholar] [CrossRef]
- Xie, J. Study on relations between acoustic wave velocity and mechanical parameters for limestone. Chin. J. Hunan Inst. Sci. Tech. (Nat. Sci.) 2020, 33, 34–37. [Google Scholar] [CrossRef]
- Wang, R.J.L.; Ren, M.; Liu, J.S.; Lipeng, Z.; Shengnan, X.; Ting, S. Study on correlation between rock wave velocity and strength parameters. Chin. Min. Res. Dev. 2021, 41, 87–91. [Google Scholar] [CrossRef]
P-Wave Velocity, vp/m∙s−1 | Elastic Modulus, E/GPa | |
---|---|---|
Intact rock | 5737.45 | 30.3390 |
0.25σ0 damaged rock | 5730.97 | 30.0992 |
0.40σ0 damaged rock | 5638.75 | 28.7756 |
0.50σ0 damaged rock | 5458.41 | 26.6792 |
0.65σ0 damaged rock | 5270.98 | 23.4593 |
0.75σ0 damaged rock | 5166.67 | 22.5601 |
Label of Each Group of Specimens | Intact Rock | 0.25σ0 Damaged Rock | 0.40σ0 Damaged Rock | 0.50σ0 Damaged Rock | 0.65σ0 Damaged Rock | 0.75σ0 Damaged Rock |
---|---|---|---|---|---|---|
No. 1 | 86.381 | 85.923 | 83.246 | 77.379 | 72.583 | 69.581 |
No. 2 | 87.284 | 86.354 | 83.579 | 77.726 | 72.943 | 69.670 |
No. 3 | 88.065 | 86.927 | 84.623 | 78.534 | 73.058 | 70.693 |
No. 4 | 88.268 | 87.026 | 84.865 | 79.142 | 73.267 | 70.761 |
No. 5 | 90.697 | 87.461 | 85.137 | 79.390 | 73.852 | 71.310 |
No. 6 | 89.165 | 86.239 | 83.824 | 77.768 | 72.583 | 70.015 |
No. 7 | 85.971 | 86.532 | 84.116 | 77.674 | 72.807 | 70.417 |
No. 8 | 87.029 | 86.903 | 84.261 | 78.033 | 72.941 | 70.176 |
No. 9 | 88.775 | 87.064 | 84.586 | 78.131 | 73.367 | 70.482 |
No. 10 | 90.782 | 87.348 | 85.116 | 78.377 | 73.619 | 70.906 |
88.242 | 86.778 | 84.335 | 78.214 | 73.102 | 70.4011 | |
2.740 | 0.248 | 0.417 | 0.427 | 0.178 | 0.301 | |
[87.058, 89.426] | [86.421, 87.134] | [83.873, 84.797] | [77.748, 78.682] | [72.780, 73.404] | [70.009, 70.794] |
