# Hybrid Finite-Discrete Element Modelling of Various Rock Fracture Modes during Three Conventional Bending Tests

^{1}

^{2}

^{3}

^{4}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. HFDEM for Modelling Dynamic Rock Fracture

#### 2.1. Transition from Continuum to Discontinuum

#### 2.2. The Straite Rate Effect

## 3. Calibration of HFDEM

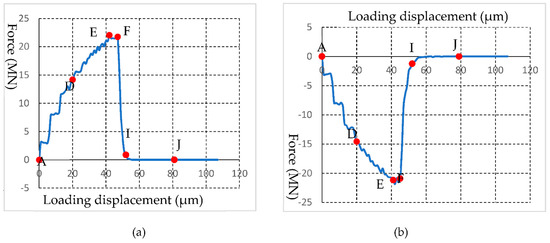

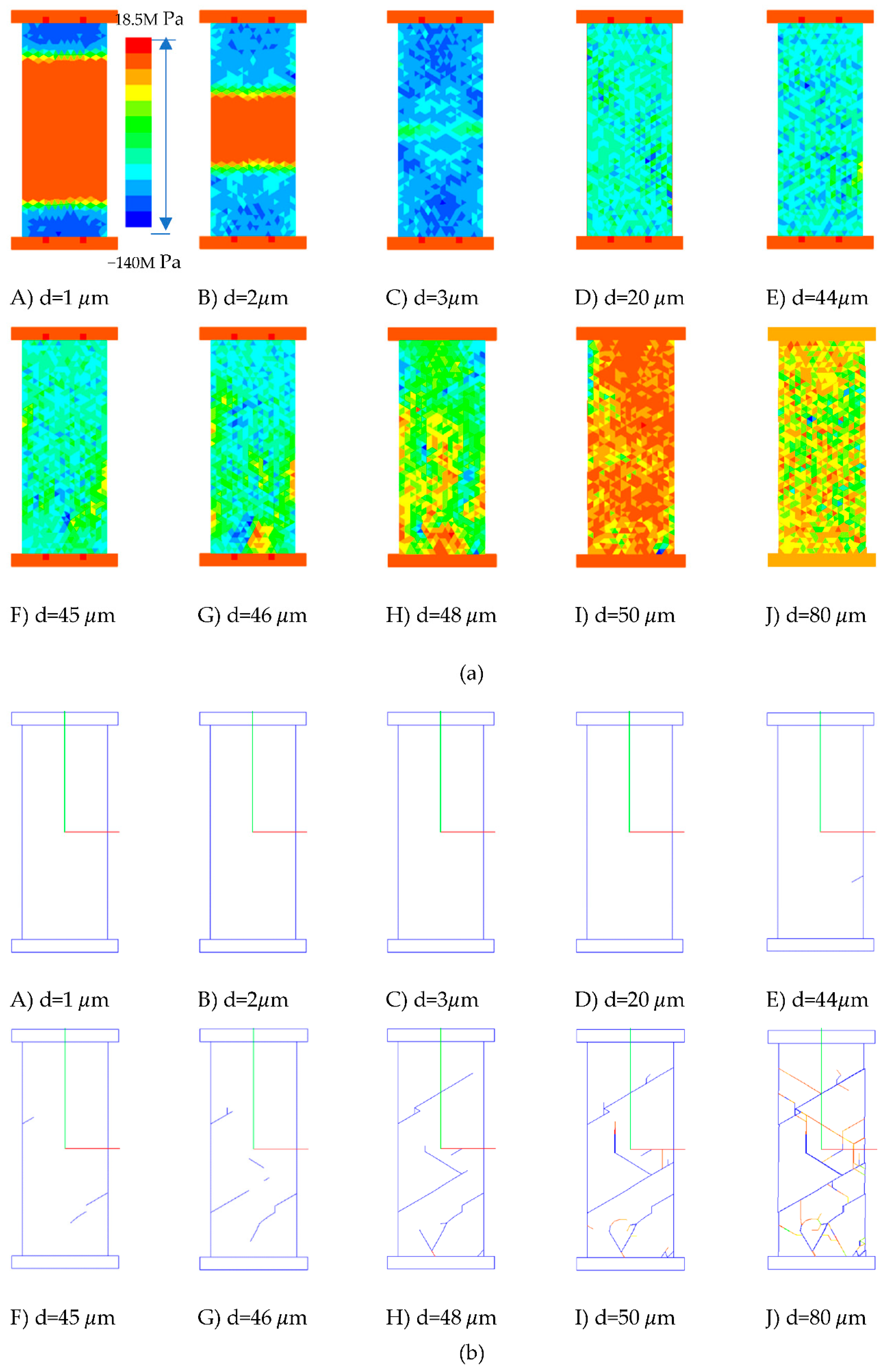

#### 3.1. Numerical Modelling UCS Test78

^{16}Mpa, compressive strength 100 × 10

^{16}Mpa, Young’s modulus 200 Gpa, surface friction coefficient 0.1, and Mode-I and Mode-II fracture energy release 3 × 10

^{12}${\mathrm{Nm}}^{-1}$. During the test, the loading rates of 1 m/s is applied on the two loading plates on the vertical direction while the plates are fixed in the horizontal direction. The loading rate, i.e., 1 m/s, is much higher than those in the laboratory test, which is about 0.05 mm/s. The reason to use a high loading rate is to significantly decrease computational time, as the increase in the loading rate can dramatically decrease the computational time. The processor used for the simulation is inter(R) Core (TM) i7-4500U with CPU from 1.80 GHz to 2.40 GHz, while the installed memory (RAM) is 16.0 GB. The system installed in the computer is Windows 8.1 with system type 64-bit Operating System. The current loading rate, i.e., 1 m/s, can reduce at least one order of magnitude in terms of the calculation time compared with loading rate for static tests in laboratory, i.e., around 0.05 m/s.

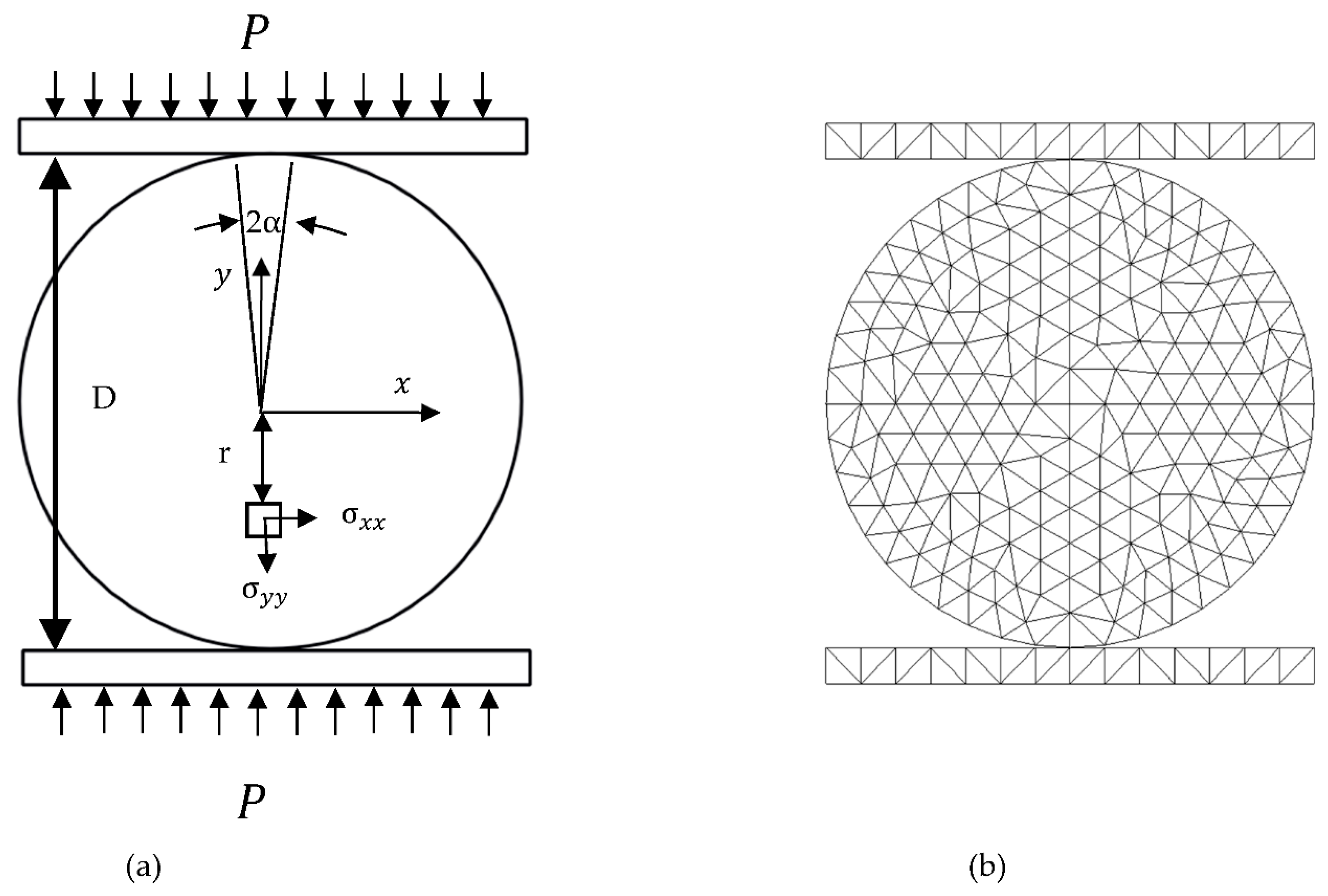

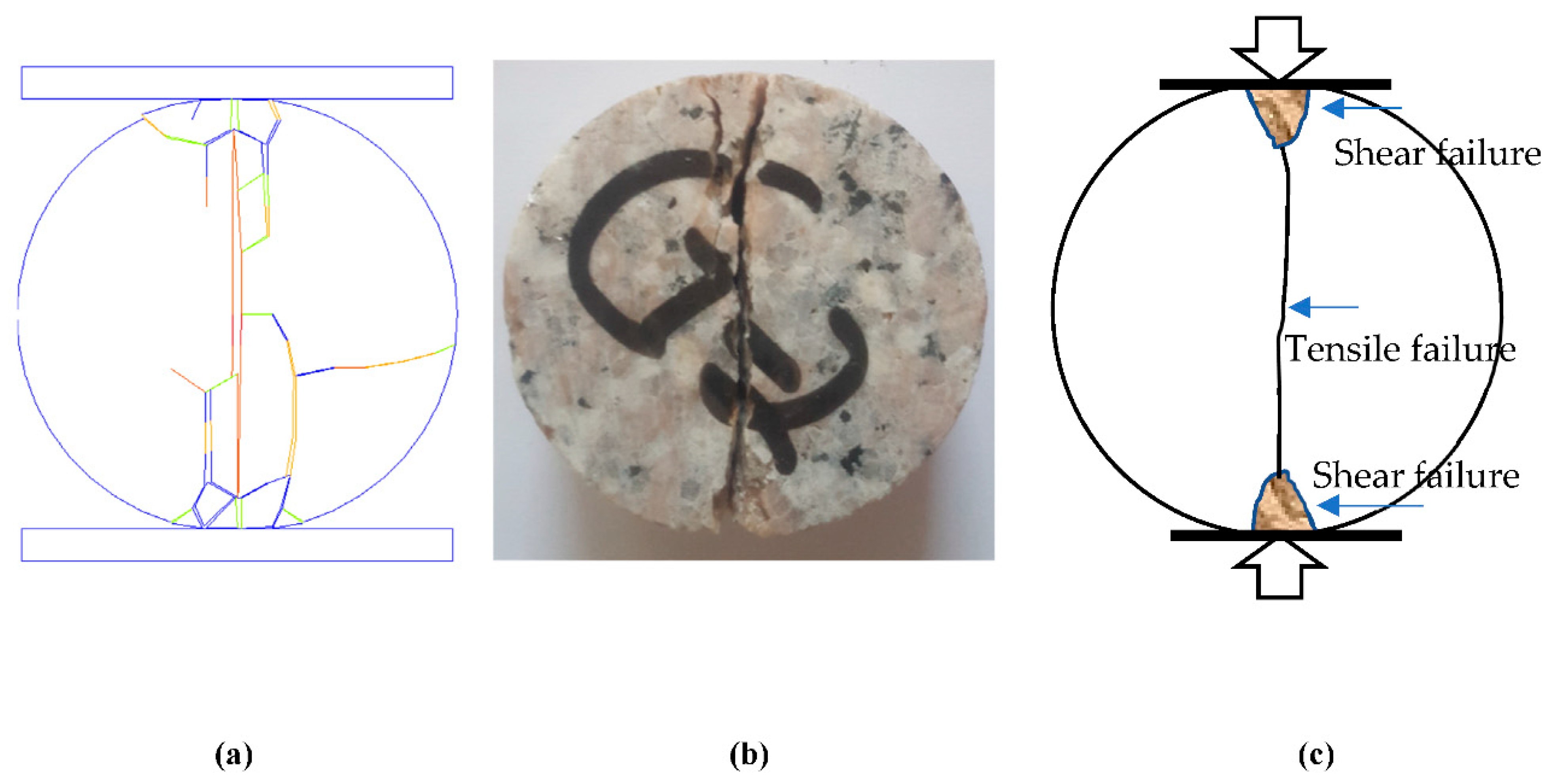

#### 3.2. Numerical Modelling Rock Fracture during BTS Tests

## 4. HFDEM Modelling Three Conventional Bending Tests

#### 4.1. 3PB Test

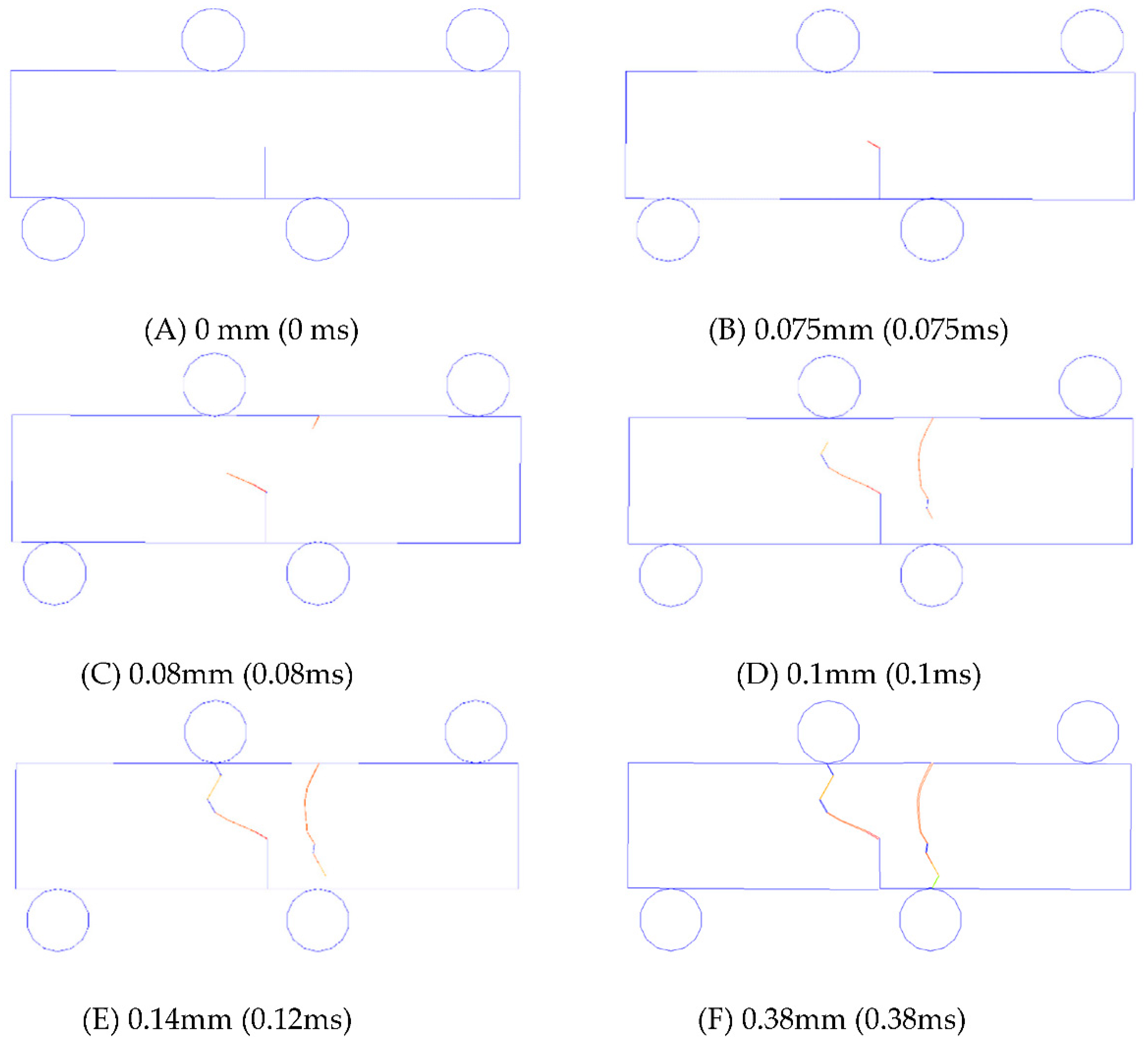

#### 4.2. Four-Point Bending Test (Pure Mode-II Fracture)

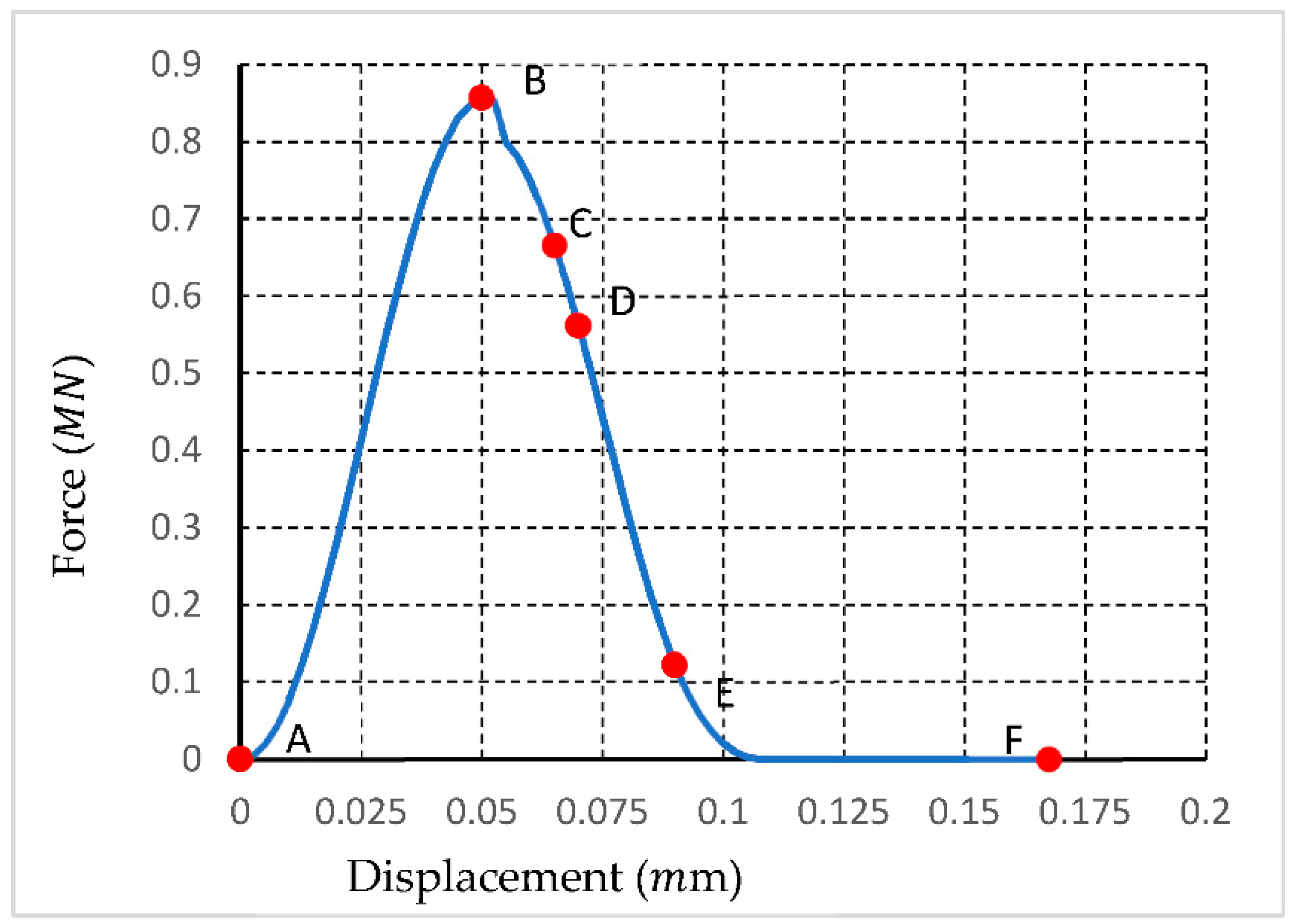

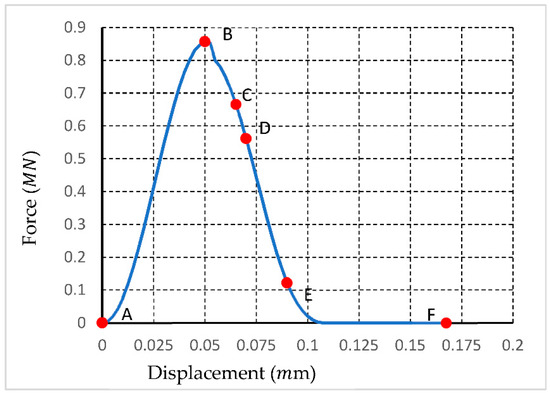

#### 4.3. Asymmetrical Three-Point Bending Test (Mixed-Mode I–II Fracture)

## 5. Discussion

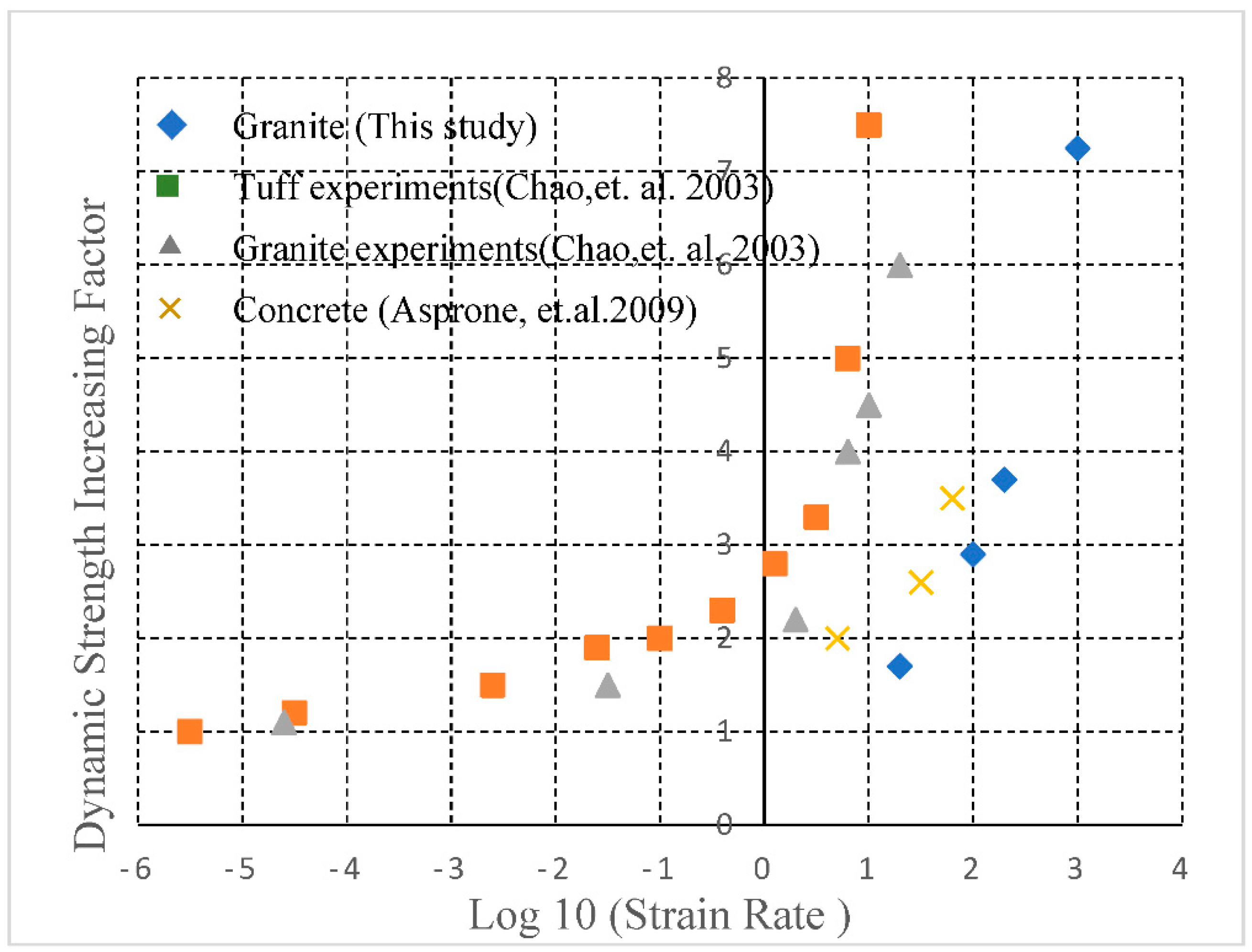

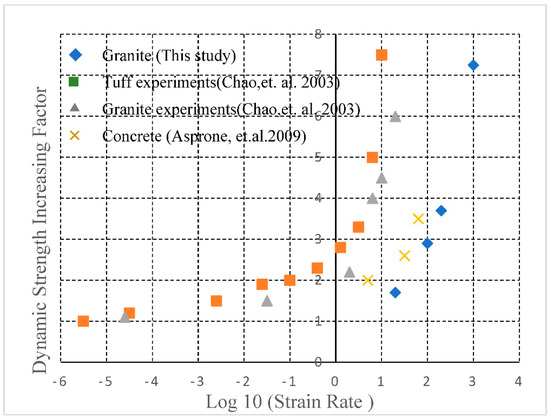

#### 5.1. Effect of the Strain Rate Rock Strength

#### 5.2. Loaidng Rate Influence on Rock Toughness

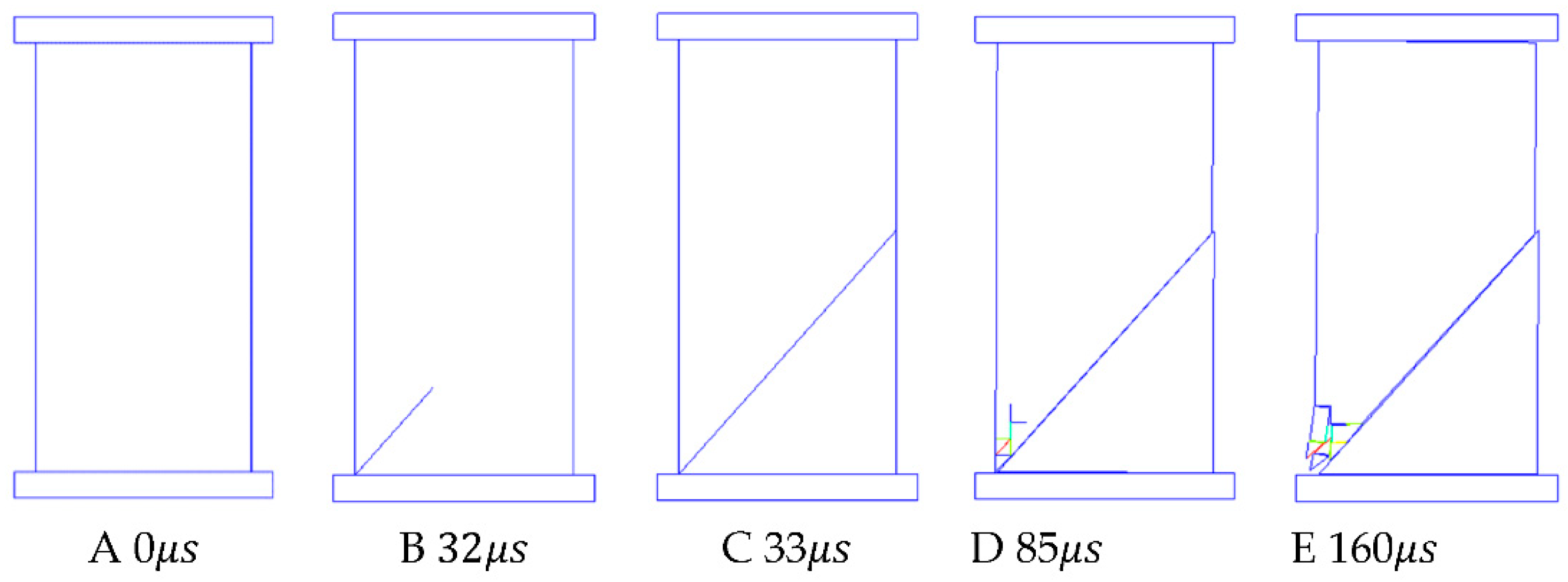

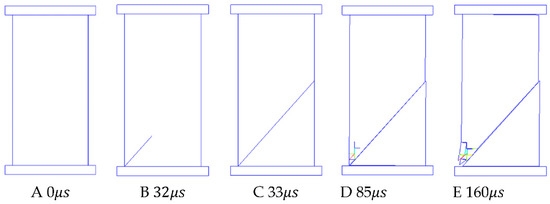

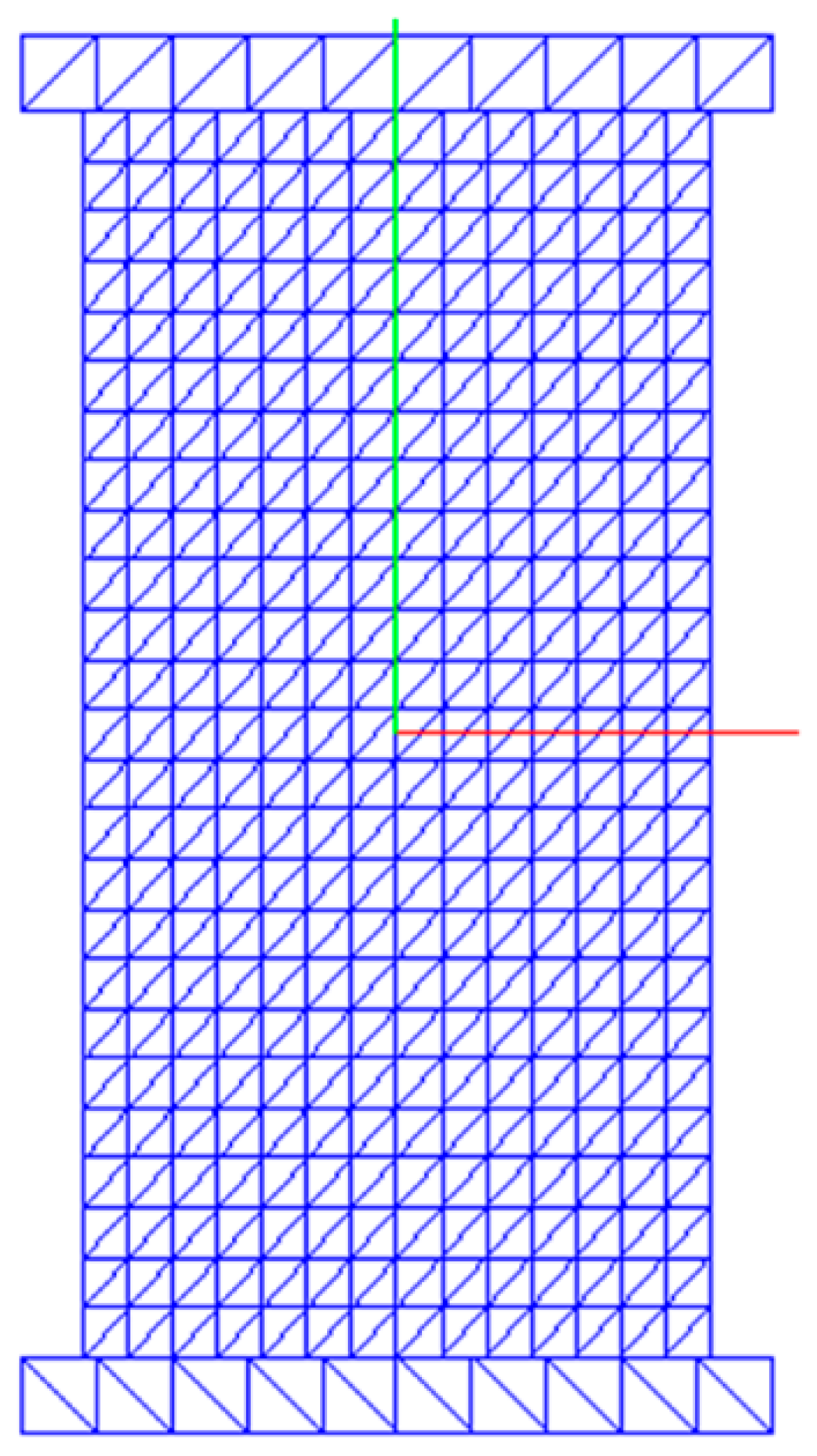

#### 5.3. Effect of the Mesh Orientation

## 6. Conclusions

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## References

- Donzé, F.V.; Richefeu, V.; Magnier, S.-A. Advances in discrete element method applied to soil, rock and concrete mechanics. State of the art of geotechnical engineering. Electron. J. Geotech. Eng.
**2009**, 44, 31. [Google Scholar] - Cundall, P.A. A computer model for simulating progressive, large-scale movement in blocky rock systems. Proc. Symp. Int. Soc. Rock Mech.
**1971**. Available online: https://www.scienceopen.com/document?vid=838c3a34-fe64-4dc6-8d2b-e9aee0c5b466 (accessed on 19 October 2021). - Lisjak, A.; Grasselli, G. A review of discrete modeling techniques for fracturing processes in discontinuous rock masses. J. Rock Mech. Geotech. Eng.
**2014**, 6, 301–314. [Google Scholar] [CrossRef] [Green Version] - Mayer, J.M.; Stead, D. Exploration into the causes of uncertainty in UDEC Grain Boundary Models. Comput. Geotech.
**2017**, 82, 110–123. [Google Scholar] [CrossRef] - Aliabadian, Z.; Sharafisafa, M.; Nazemi, M.; Khameneh, A.R.; Kazerani, T. Discrete element modeling of wave and fracture propagation in delay time breakage. Rock Dyn. Appl. State Art
**2013**, 7, 401–407. [Google Scholar] - Gutiérrez-Ch, J.G.; Senent, S.; Melentijevic, S.; Jimenez, R. Distinct element method simulations of rock-concrete interfaces under different boundary conditions. Eng. Geol.
**2018**, 240, 123–139. [Google Scholar] [CrossRef] - Gutiérrez-Ch, J.G.; Senent, S.; Estebanez, E.; Jimenez, R. Discrete element modelling of rock creep behaviour using rate process theory. Can. Geotech. J.
**2021**, 58, 1231–1246. [Google Scholar] [CrossRef] - Jing, L. A review of techniques, advances and outstanding issues in numerical modelling for rock mechanics and rock engi-neering. Int. J. Rock Mech. Min. Sci.
**2003**, 40, 283–353. [Google Scholar] [CrossRef] - Jing, L.; Hudson, J.A. Numerical methods in rock mechanics. Int. J. Rock Mech. Min. Sci.
**2002**, 39, 409–427. [Google Scholar] [CrossRef] - Board, M. UDEC (Universal Distinct Element Code) Version ICG1. 5; NUREG/CR-5429-Vol.2; Itasca Consulting Group, Inc.: Minneapolis, MN, USA, September 1989. [Google Scholar]
- Cundall, P.A.; Strack, O.D.L. The Distinct Element Method as a Tool for Research in Granular Material; University of Minnesota: Minneapolis, MN, USA, 1978. [Google Scholar]
- Shi, G.H.; Goodman, R.E. Two dimensional discontinuous deformation analysis. Int. J. Numer. Anal. Methods Geomech.
**1985**, 9, 541–556. [Google Scholar] [CrossRef] - Lin, C.T.; Amadei, B.; Jung, J.; Dwyer, J. Extensions of discontinuous deformation analysis for jointed rock masses. Int. J. Rock Mech. Min. Sci. Geomech. Abstr.
**1996**, 33, 671–694. [Google Scholar] [CrossRef] - Fukuda, D.; Mohammadnejad, M.; Liu, H.; Dehkhoda, S.; Chan, A.; Cho, S.; Min, G.; Han, H.; Kodama, J.; Fujii, Y. Development of a GPGPU-parallelized hybrid finite-discrete element method for modeling rock fracture. Int. J. Numer. Anal. Methods Geomech.
**2019**, 43, 1797–1824. [Google Scholar] [CrossRef] - Munjiza, A.A. The Combined Finite-Discrete Element Method; John Wiley & Sons Ltd.: Chichester, UK, 2004. [Google Scholar]
- An, H.; Liu, H.; Han, H.; Zheng, X.; Wang, X. Hybrid finite-discrete element modelling of dynamic fracture and resultant fragment casting and muck-piling by rock blast. Comput. Geotech.
**2017**, 81, 322–345. [Google Scholar] [CrossRef] - Mahabadi, O.K.; Grasselli, G.; Munjiza, A. Y-GUI: A graphical user interface and pre-processor for the combined finite-discrete element code, Y2D, incorporating material heterogeneity. Comput. Geosci.
**2010**, 36, 241–252. [Google Scholar] [CrossRef] - Liu, H.; Kou, S.; Lindqvist, P.-A.; Tang, C. Numerical studies on the failure process and associated microseismicity in rock under triaxial compression. Tectonophysics
**2004**, 384, 149–174. [Google Scholar] [CrossRef] - Zhao, J. Applicability of Mohr–Coulomb and Hoek–Brown strength criteria to the dynamic strength of brittle rock. Int. J. Rock Mech. Min. Sci.
**2000**, 37, 1115–1121. [Google Scholar] [CrossRef] - Bieniawski, Z.T.; Bernede, M.J. Suggested methods for determining the uniaxial compressive strength and deformability of rock materials: Part 1. Suggested method for determination of the uniaxial compressive strength of rock materials. Int. J. Rock Mech. Min. Sci. Geomech. Abstr.
**1979**, 16, 137. [Google Scholar] [CrossRef] - Timoshenko, S.P.; Goodier, J.N. Theory of Elasticity; McGraw-Hill: New York, NY, USA, 1970. [Google Scholar]
- Hondros, G. The evaluation of Poisson’s ratio and the modulus of materials of a low tensile resistance by the Brazilian (indirect tensile) test with particular reference to concrete. Aust. J. Appl. Sci.
**1959**, 10, 243–268. [Google Scholar] - Li, D.; Wong, L.N.Y. The Brazilian disc test for rock mechanics applications: Review and new insights. Rock Mech. Rock Eng.
**2013**, 46, 269–287. [Google Scholar] [CrossRef] - Hobbs, D.W. The tensile strength of rocks. Int. J. Rock Mech. Min. Sci. Geomech. Abstracts.
**1964**, 1, 385–396. [Google Scholar] [CrossRef] - An, H.; Liu, H.; Wang, X.; Shi, J.; Han, H. Hybrid continuum-discontinuum modelling of rock fracutre process in Brazilian tensile strength test. Civ. Eng. J.
**2017**, 26, 237–249. [Google Scholar] [CrossRef] - Brown, W.F.; Srawley, J.E. Plain Strain Fracture Toughness Testing of High Strength Metallic Materials; ASTM International: West Conshohocken, PA, USA, 1966. [Google Scholar]
- Rao, Q. Pure Shear Fracture of Brittle Rock-A Theoretical and Laboratory Study. Ph.D. Thesis, Luleå University of Technology, Luleå, Sweden, 1999. [Google Scholar]
- Whittaker, B.N.; Singh, R.N.; Sun, G. Rock Fracture Mechanics: Principles, Design, and Applications; Elsevier: Amsterdam, The Netherlands, 1992. [Google Scholar]
- Zhou, X.-P.; Qian, Q.-H.; Yang, H.-Q. Effect of loading rate on fracture characteristics of rock. J. Cent. South Univ. Technol.
**2010**, 17, 150–155. [Google Scholar] [CrossRef] - Liu, H.Y.; Kou, S.Q.; Lindqvist, P.-A.; Tang, C.A. Numerical Modelling of the Heterogeneous Rock Fracture Process Using Various Test Techniques. Rock Mech. Rock Eng.
**2006**, 40, 107–144. [Google Scholar] [CrossRef] - Asprone, D.; Cadoni, E.; Prota, A. Experimental analysis on tensile dynamic behavior of existing concrete under high strain rates. ACI Struct. J.
**2009**, 106, 106–113. [Google Scholar] - Cho, S.H.; Ogata, Y.; Kaneko, K. Strain-rate dependency of the dynamic tensile strength of rock. Int. J. Rock Mech. Min. Sci.
**2003**, 40, 763–777. [Google Scholar] [CrossRef] - Zhang, Z.X.; Kou, S.Q.; Yu, J.; Yu, Y.; Jiang, L.G.; Lindqvist, P.-A. Effects of loading rate on rock fracture. Int. J. Rock Mech. Min. Sci.
**1999**, 36, 597–611. [Google Scholar] [CrossRef]

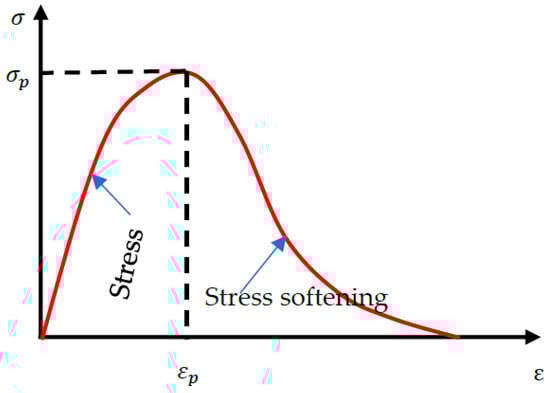

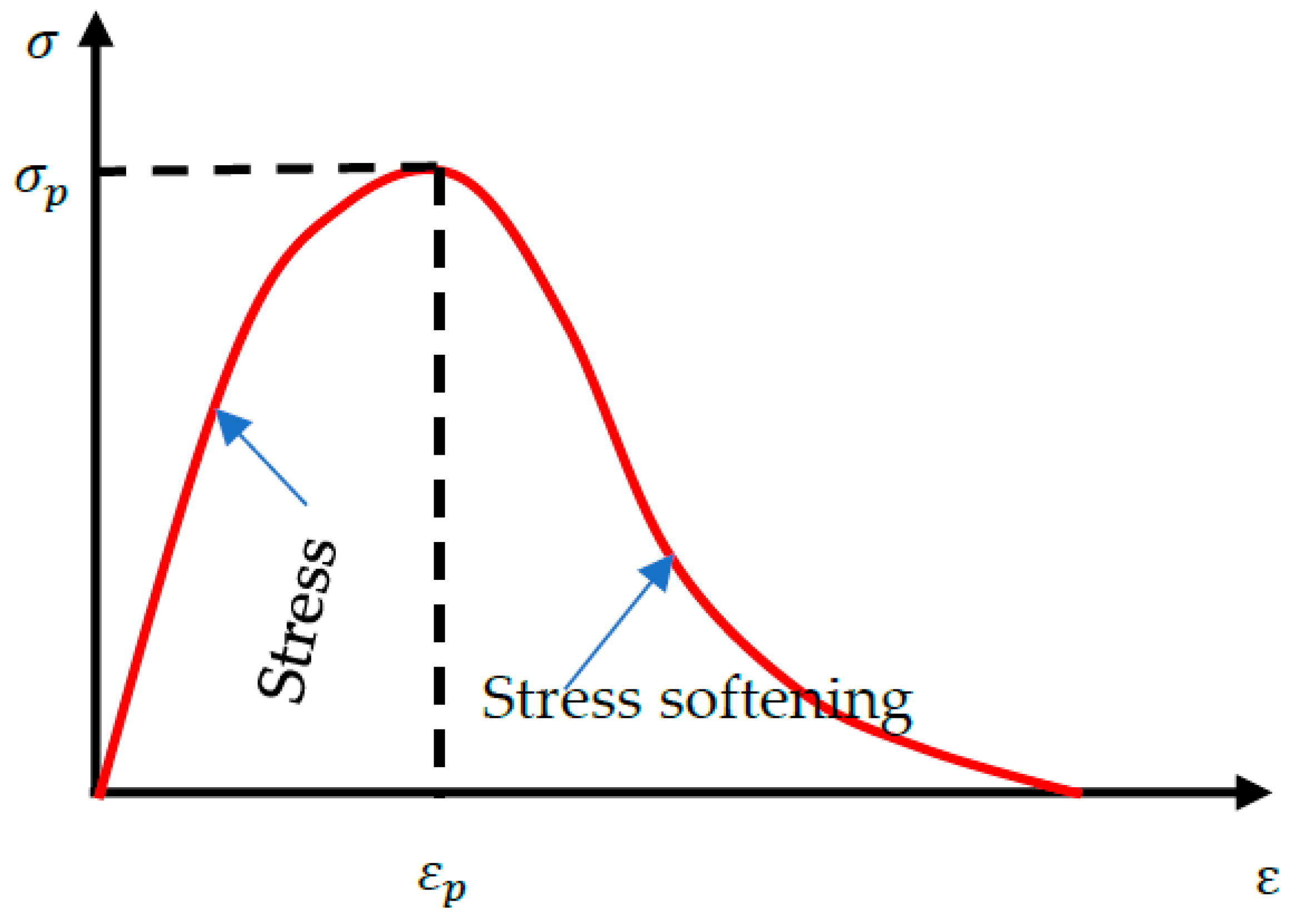

**Figure 1.**Typical brittle material stress–strain curve. $\sigma $, ${\sigma}_{p}$, $\mathsf{\epsilon}$, ${\epsilon}_{p}$ represent the stress loading, peak stress, strain, and peak strain, respectively.

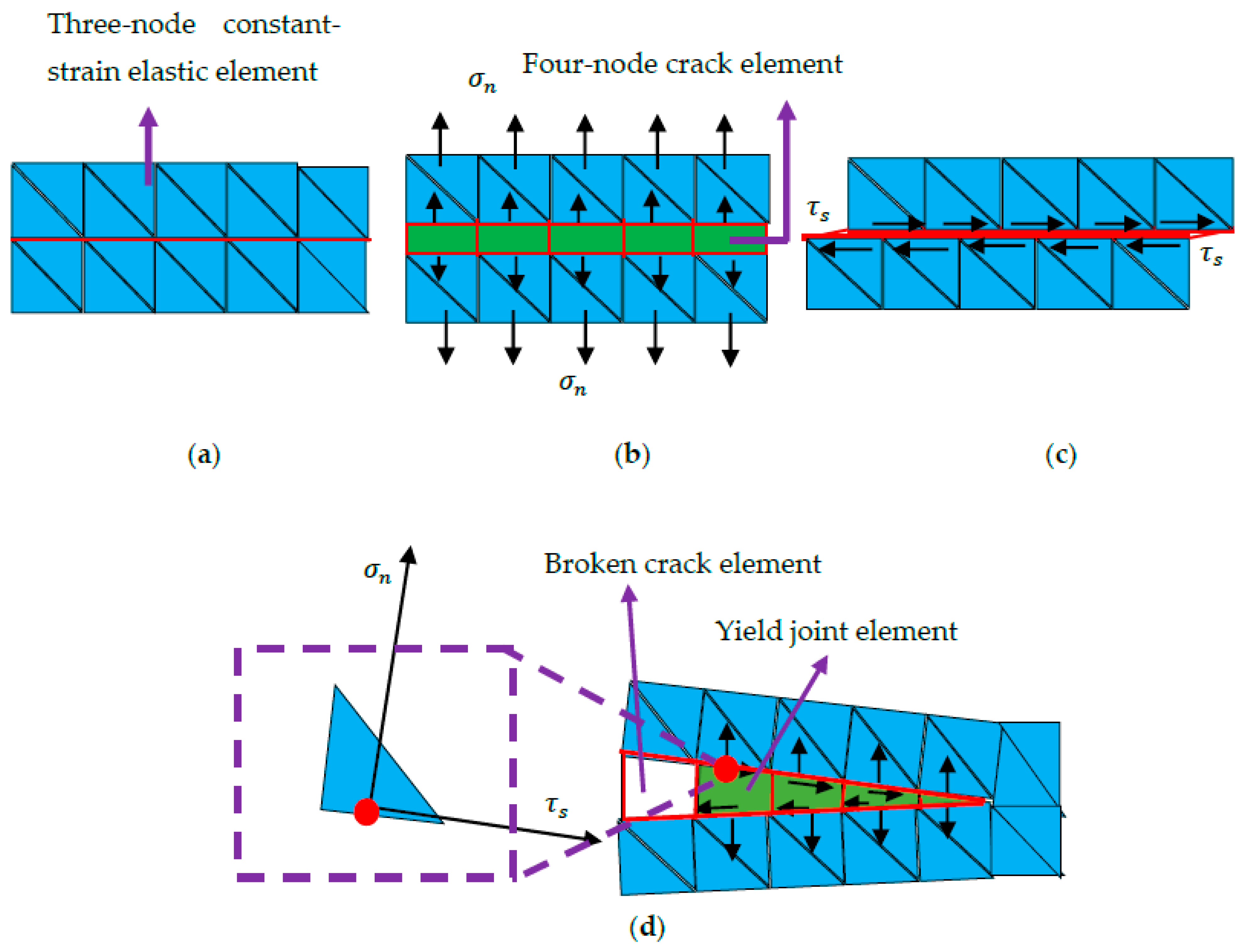

**Figure 2.**Hybrid Finite–discrete fracture model (red line represents edges of joint elements while the black line represents the edge of the finite elements): (

**a**) Without stress; (

**b**) Under tension condition; (

**c**) Under shear condition; (

**d**) Under both tension and shear condition.

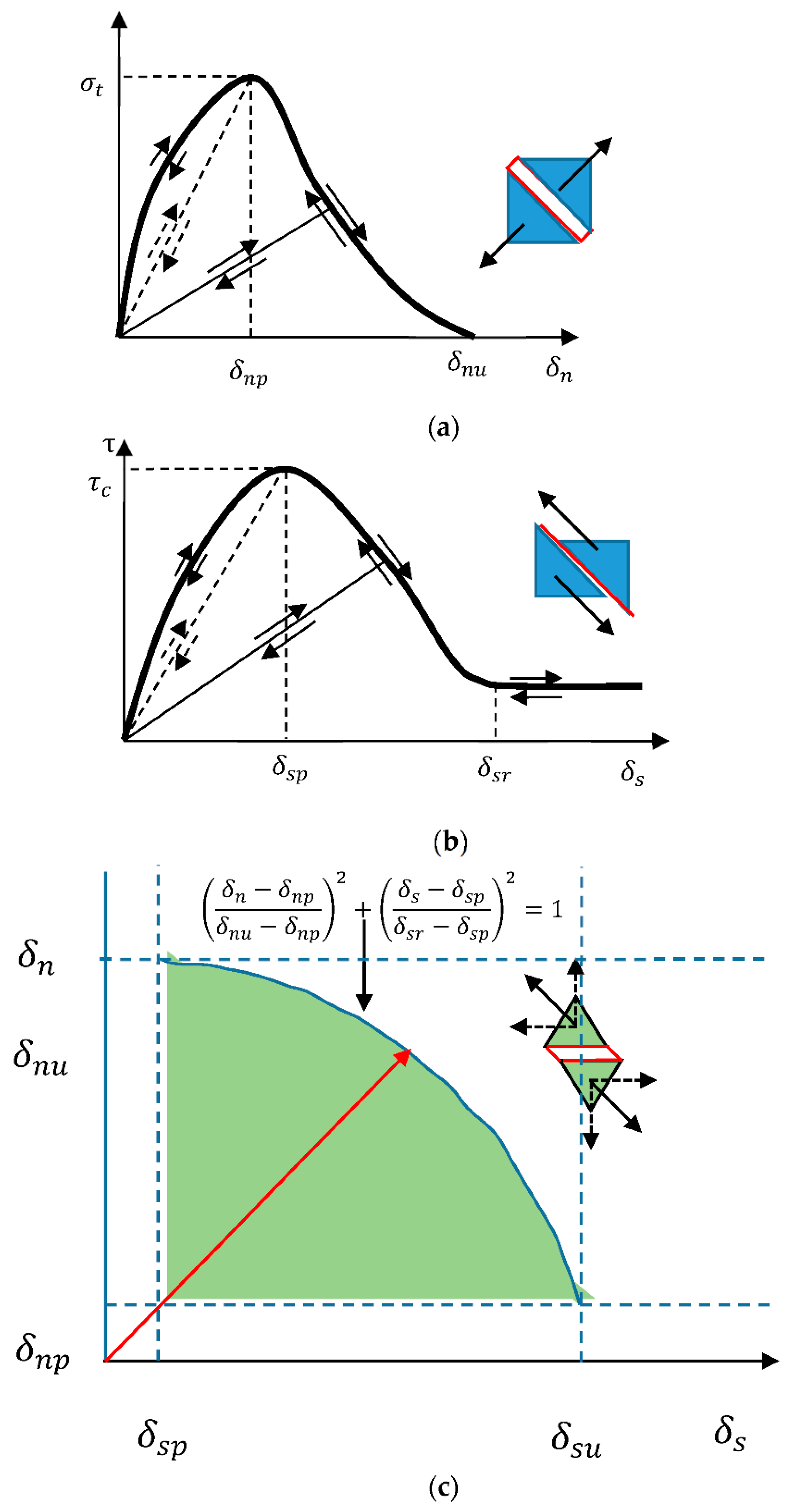

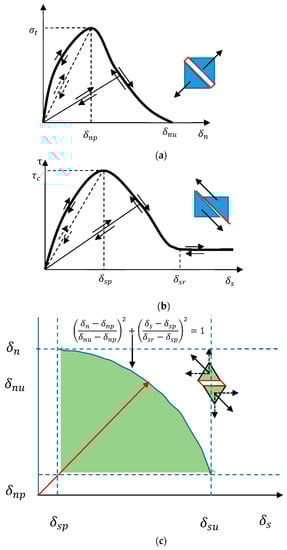

**Figure 3.**Bonding stress and opening or sliding displacement: (

**a**) Mode-I; (

**b**) Mode-II; (

**c**) Mixed mode I–II.

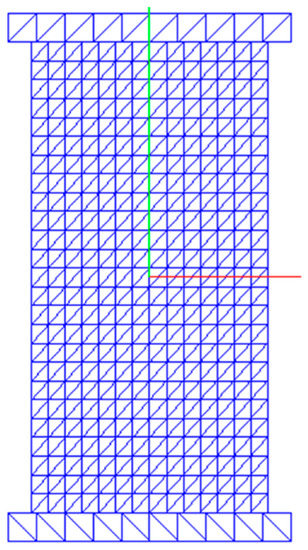

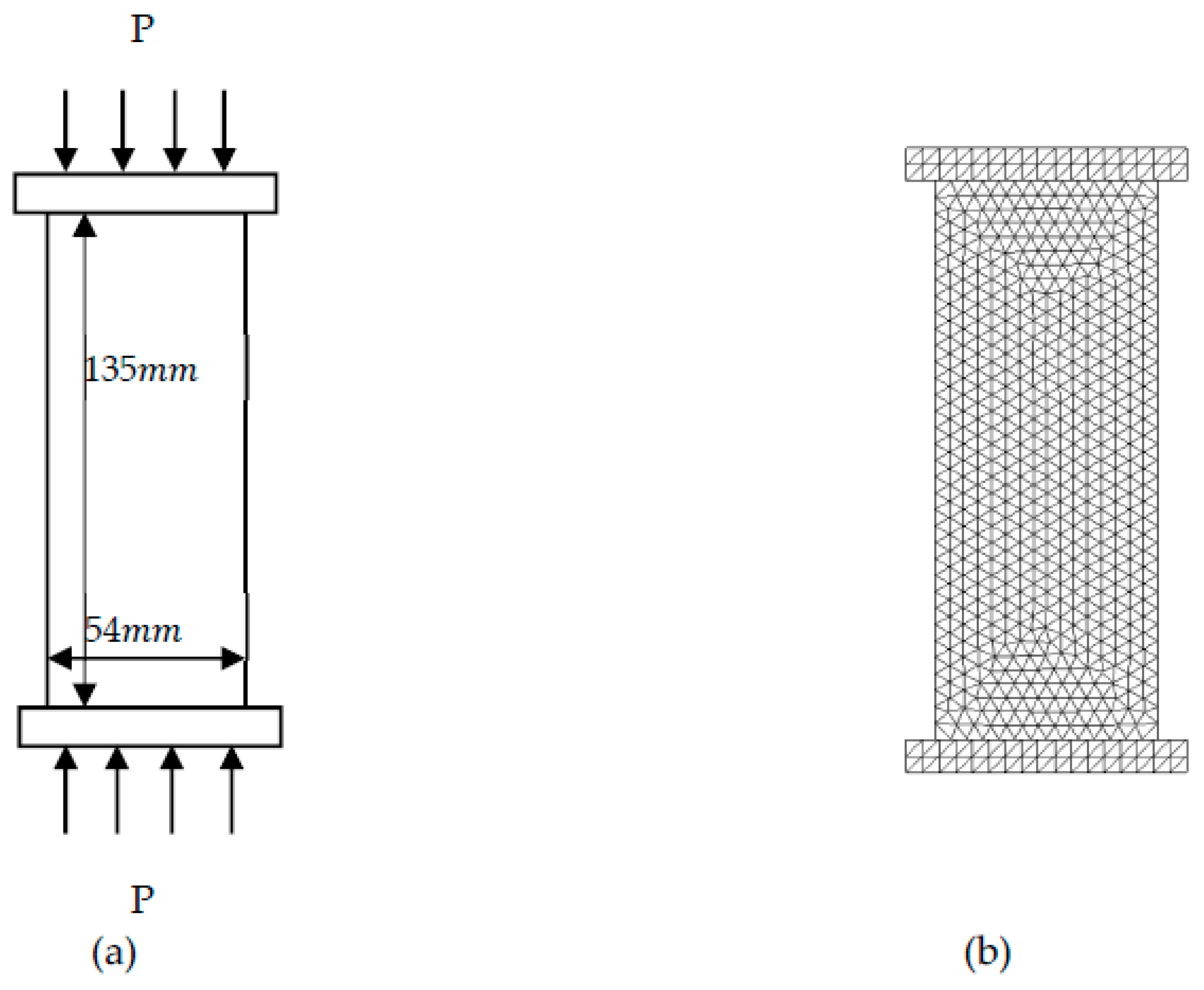

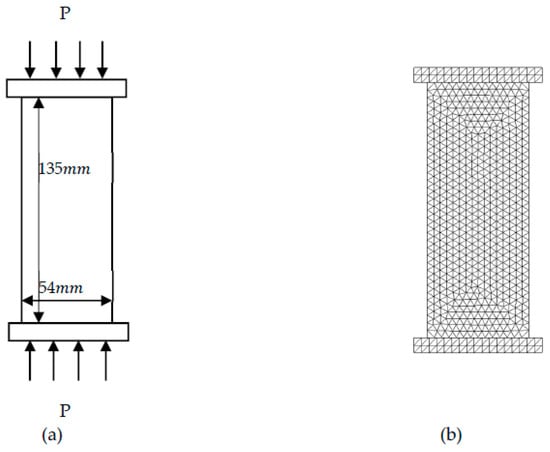

**Figure 4.**Geometrical and numerical model of uniaxial compression test: (

**a**) Geometrical model; (

**b**) Numerical model.

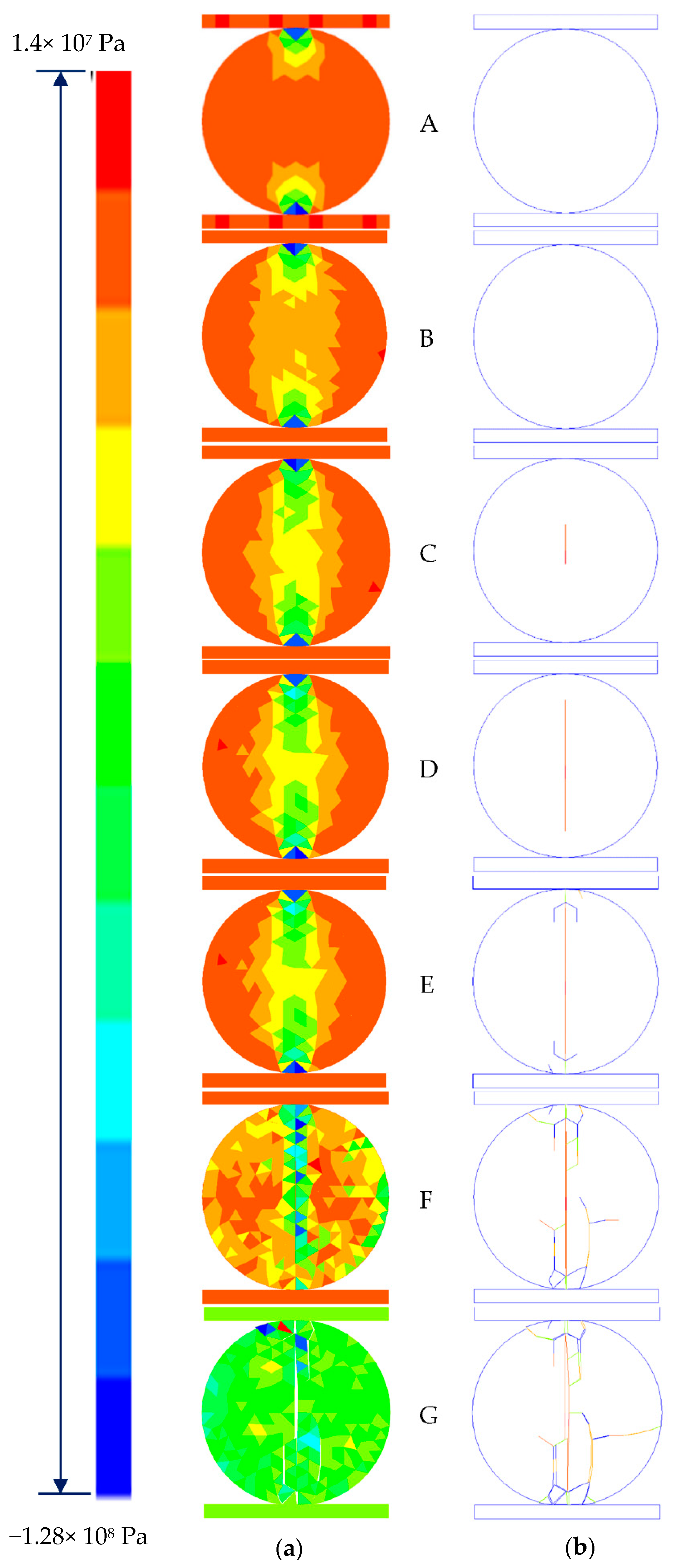

**Figure 8.**HFDEM modelling of Brazilian tensile strength tests: (

**a**) Minor principal stress; (

**b**) fracture propagation; (

**A**) d = 1$\text{}\mathsf{\mu}$m; (

**B**) d = $20\text{}\mathsf{\mu}$m; (

**C**) d = $33.5\text{}\mathsf{\mu}$m; (

**D**) d = $39\text{}\mathsf{\mu}$m; (

**E**) d = $41\text{}\mathsf{\mu}$m; (

**F**) d = $58\text{}\mathsf{\mu}$m; (

**G**) d = $166\text{}\mathsf{\mu}$m.

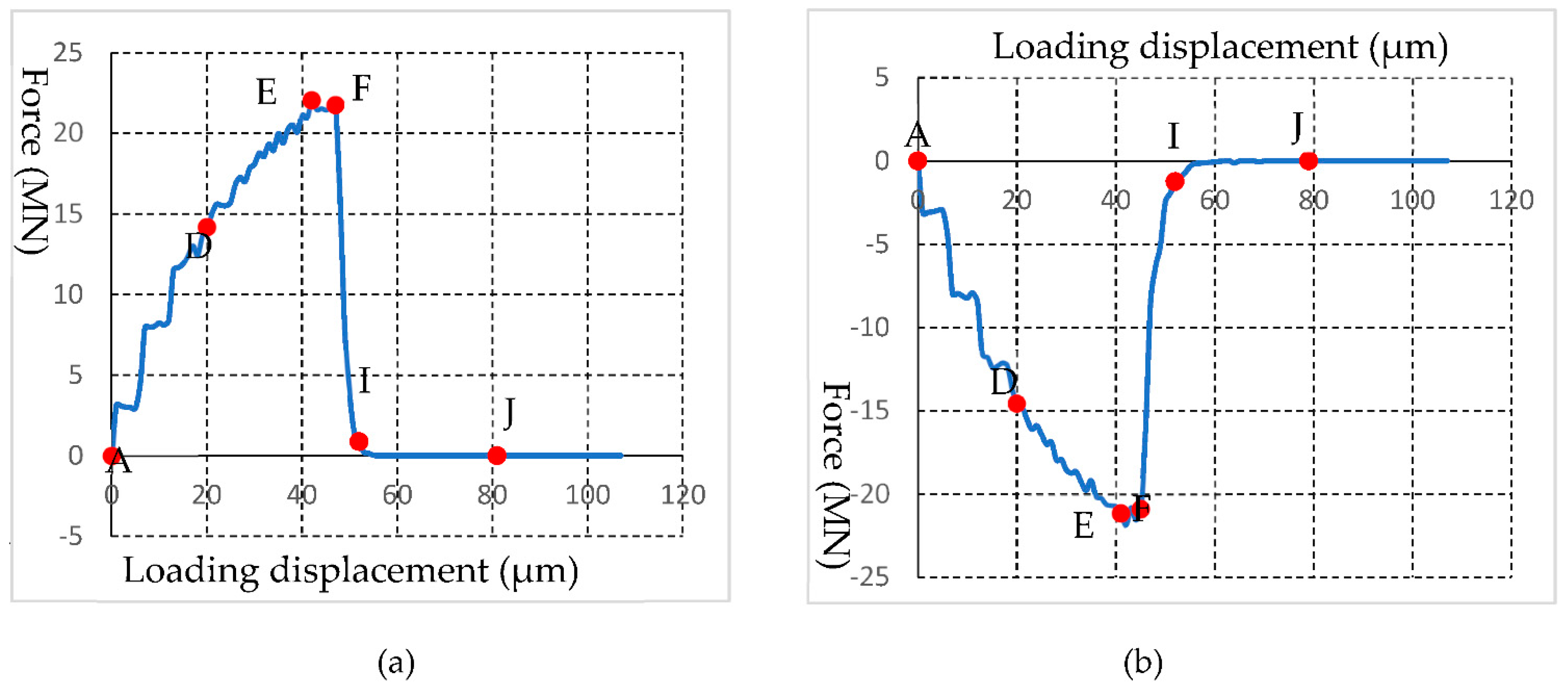

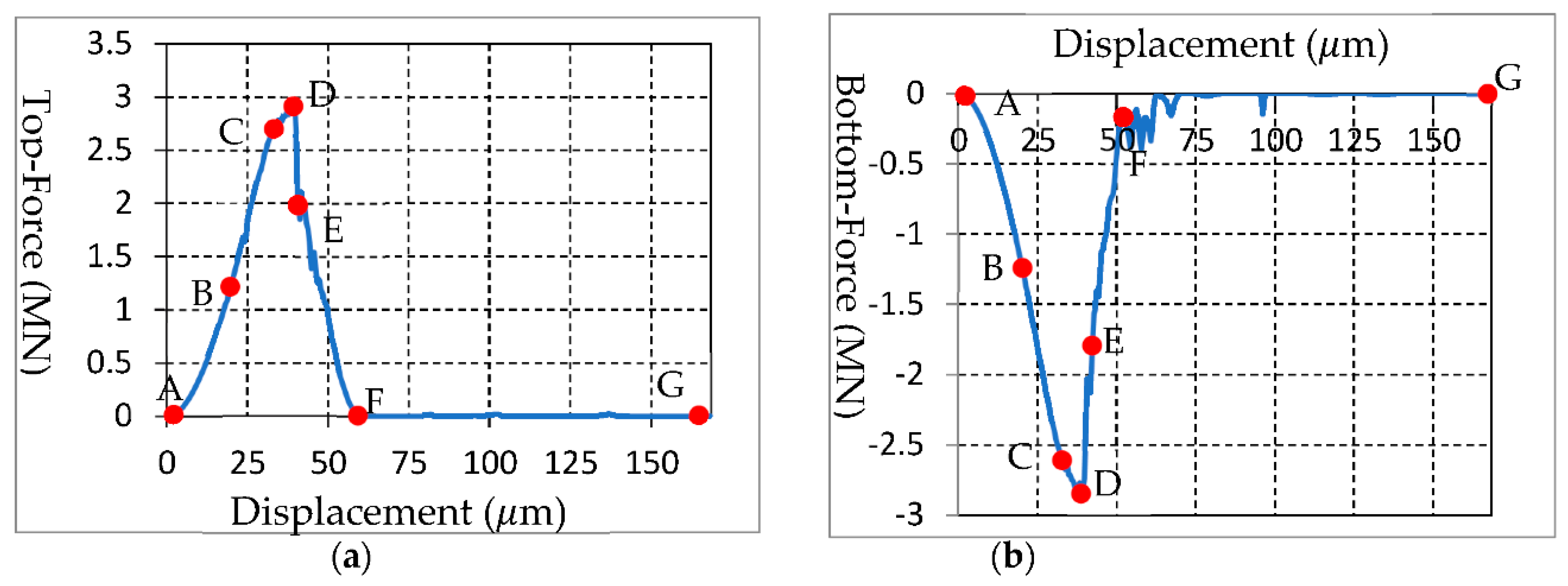

**Figure 9.**HFDEM obtained curves during BTS test: (

**a**) force from the top plate; (

**b**) force from the bottom plate.

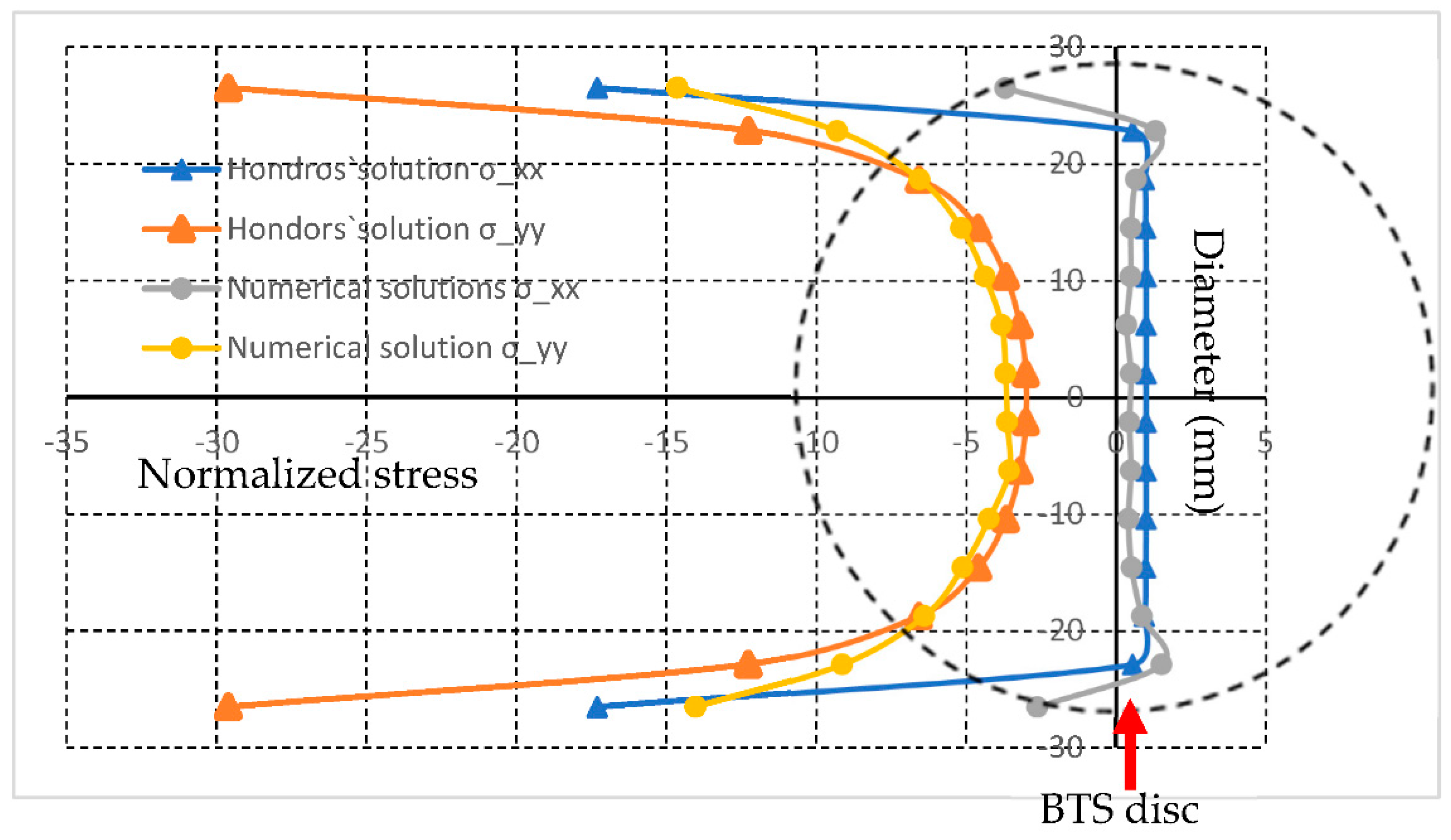

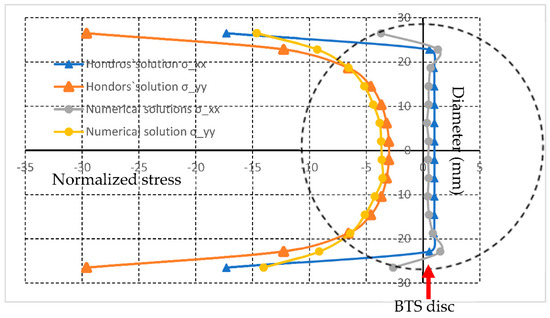

**Figure 10.**Comparison of the HFDEM obtained results with analytical solutions in terms of stress distribution.

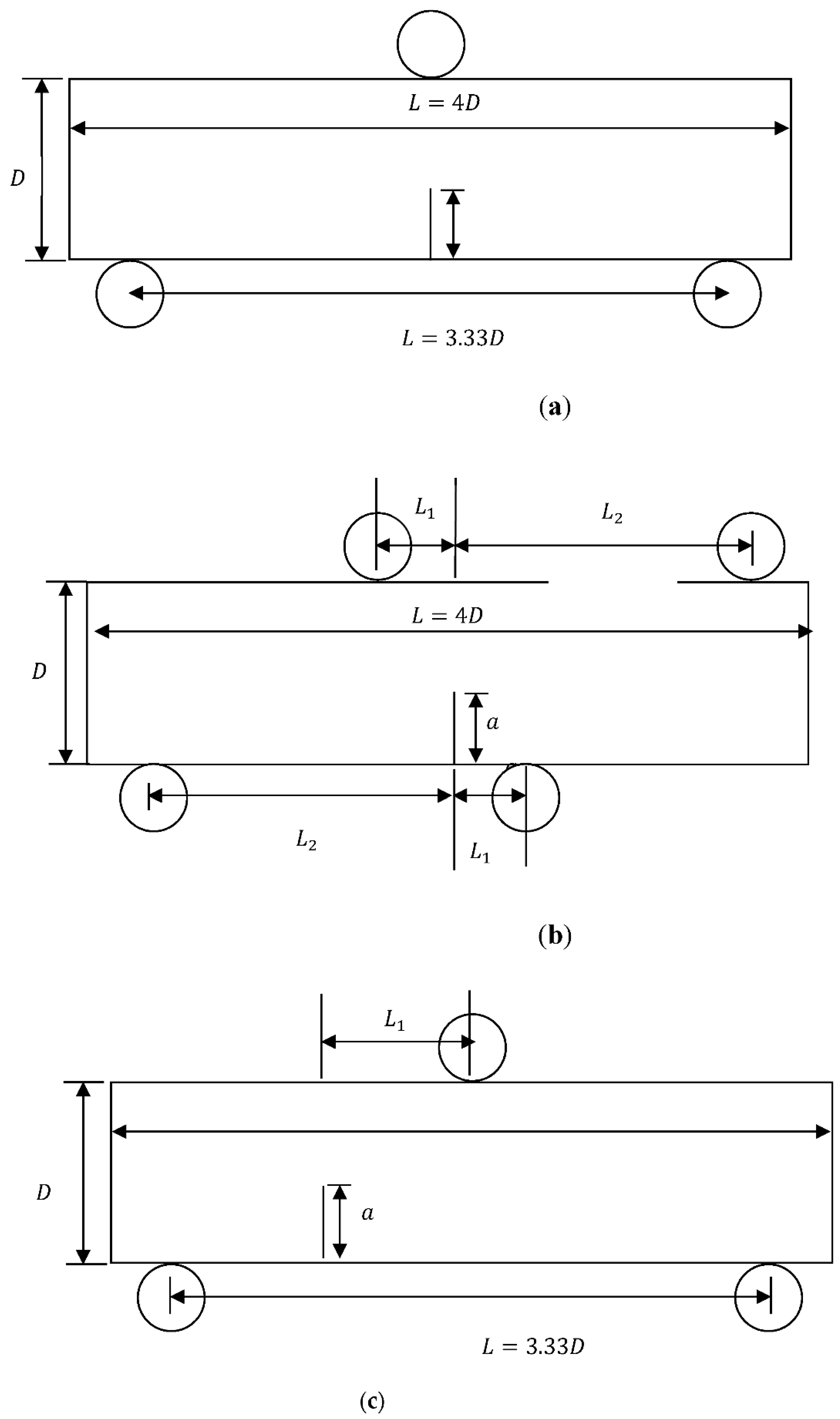

**Figure 12.**Geometrical mode for 3PB and 4PB tests: (

**a**) 3PB test; (

**b**) 4PB test; (

**c**) Asymmetrical A3PB test.

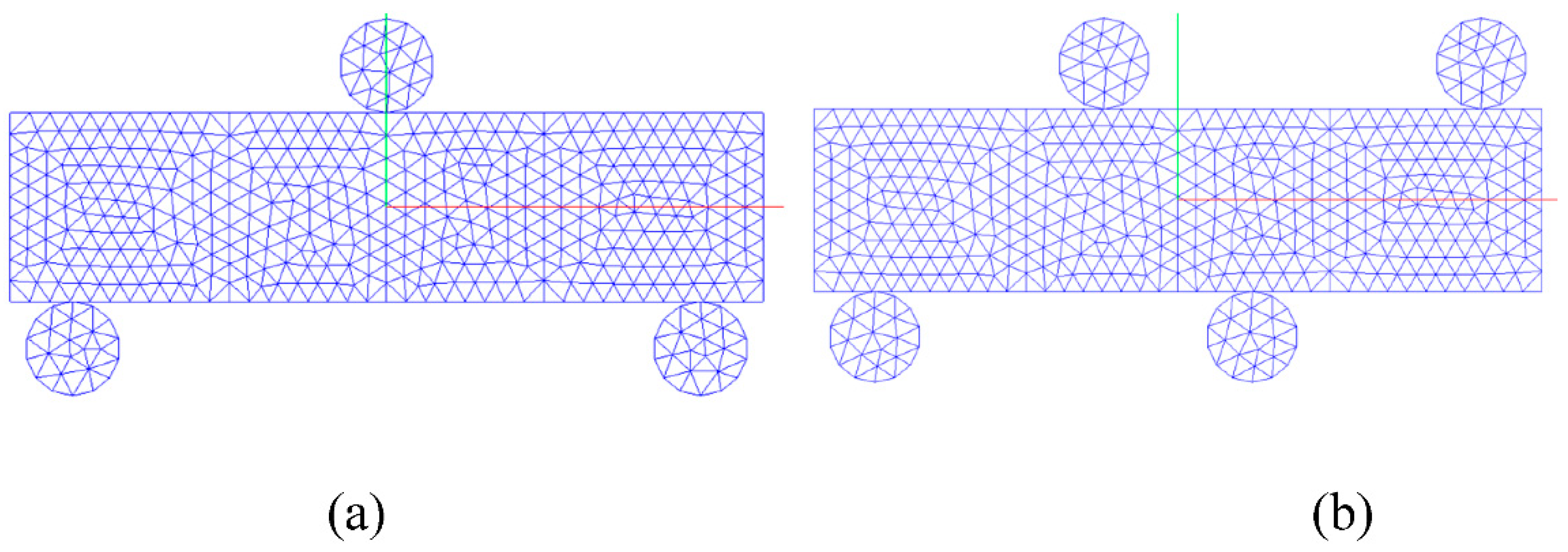

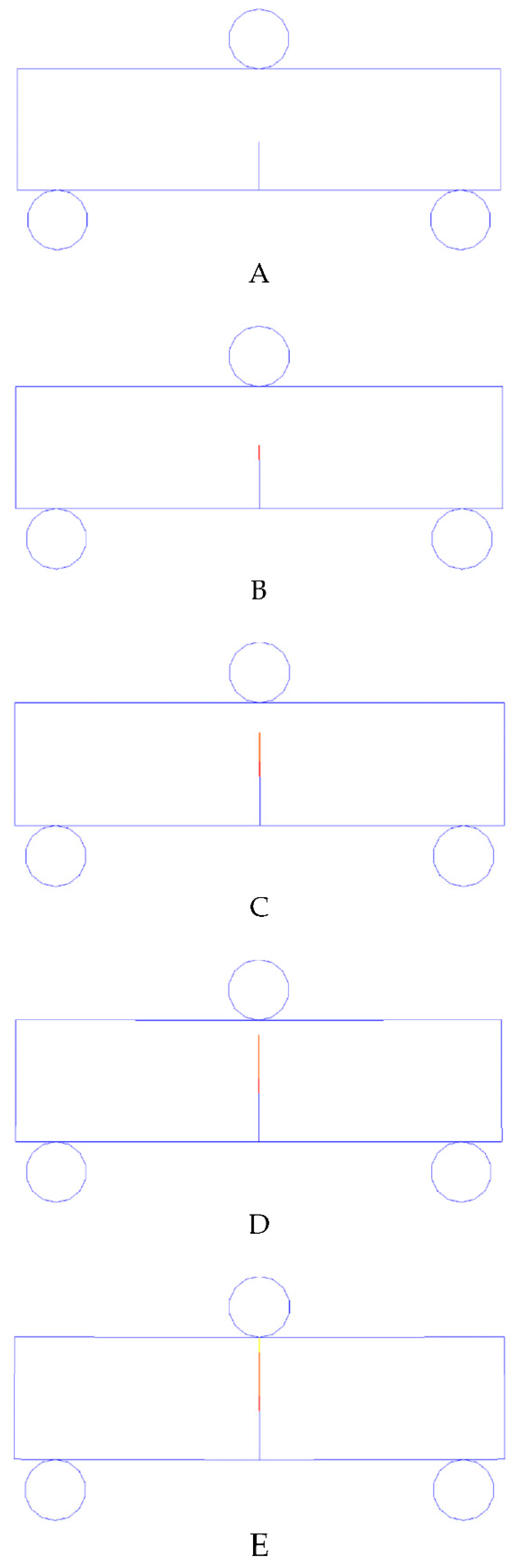

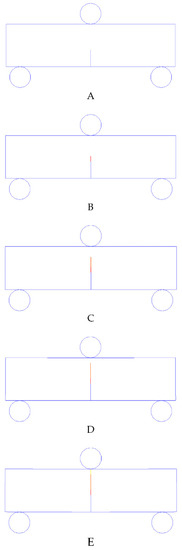

**Figure 14.**HFDEM modelling rock failure processes in 3PB test. (

**A**) Initial state; (

**B**) Crack initation; (

**C**) Crack propagation; (

**D**) Crack continual propagation; (

**E**) Crack completion.

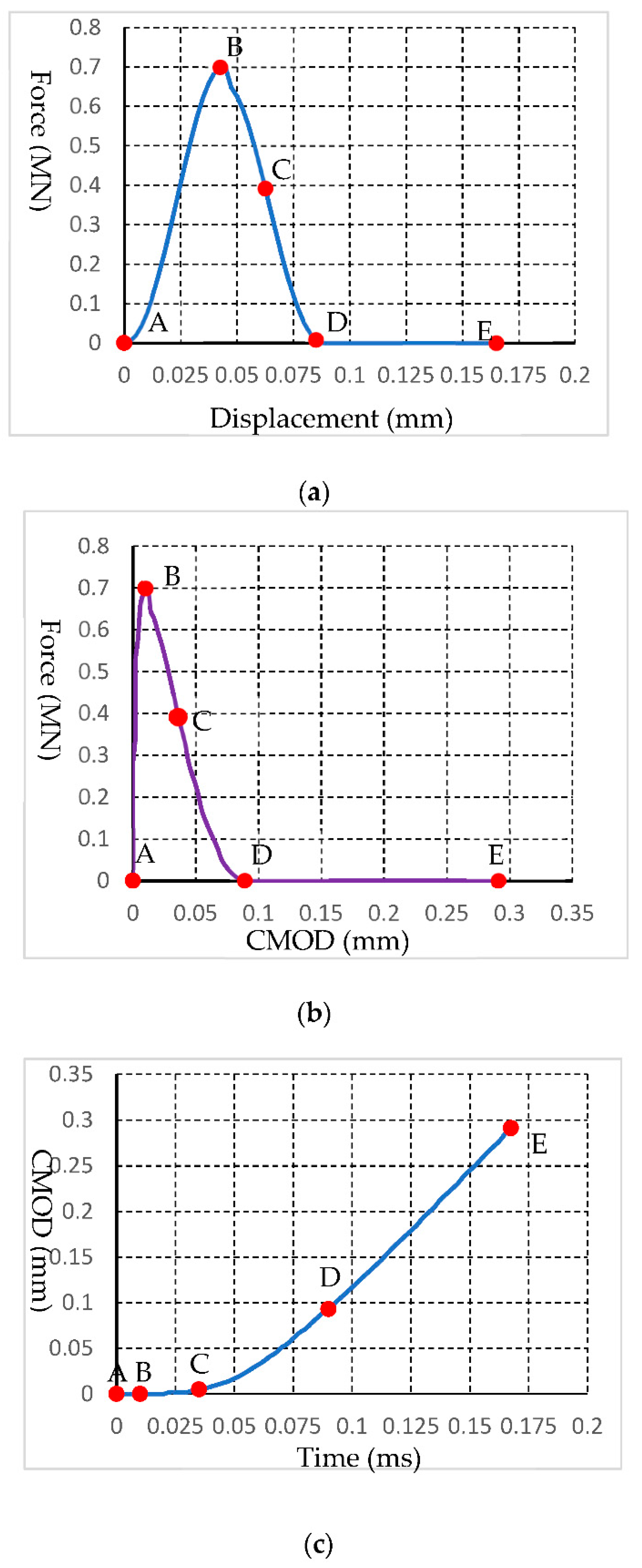

**Figure 15.**Curves for force-loading with displacement, CMOD, and Time during 3PB test: (

**a**) Force-loading displacement curve; (

**b**) Force-loading CMOD curve; (

**c**) Force-loading CMOD curve.

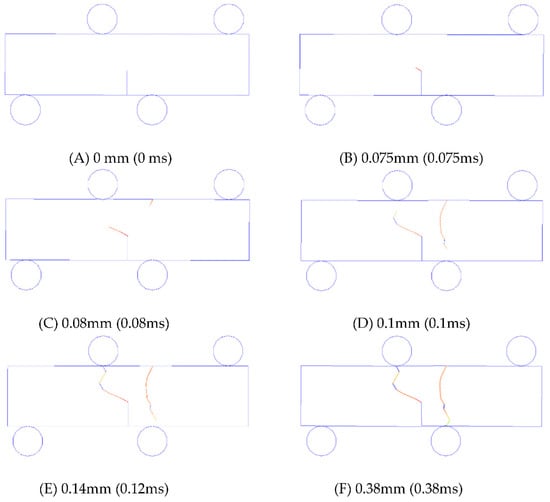

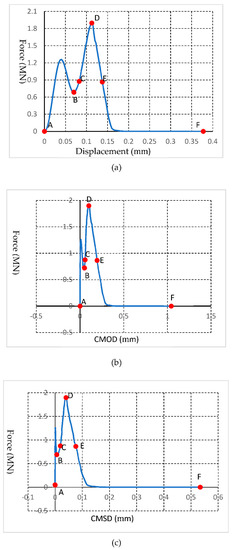

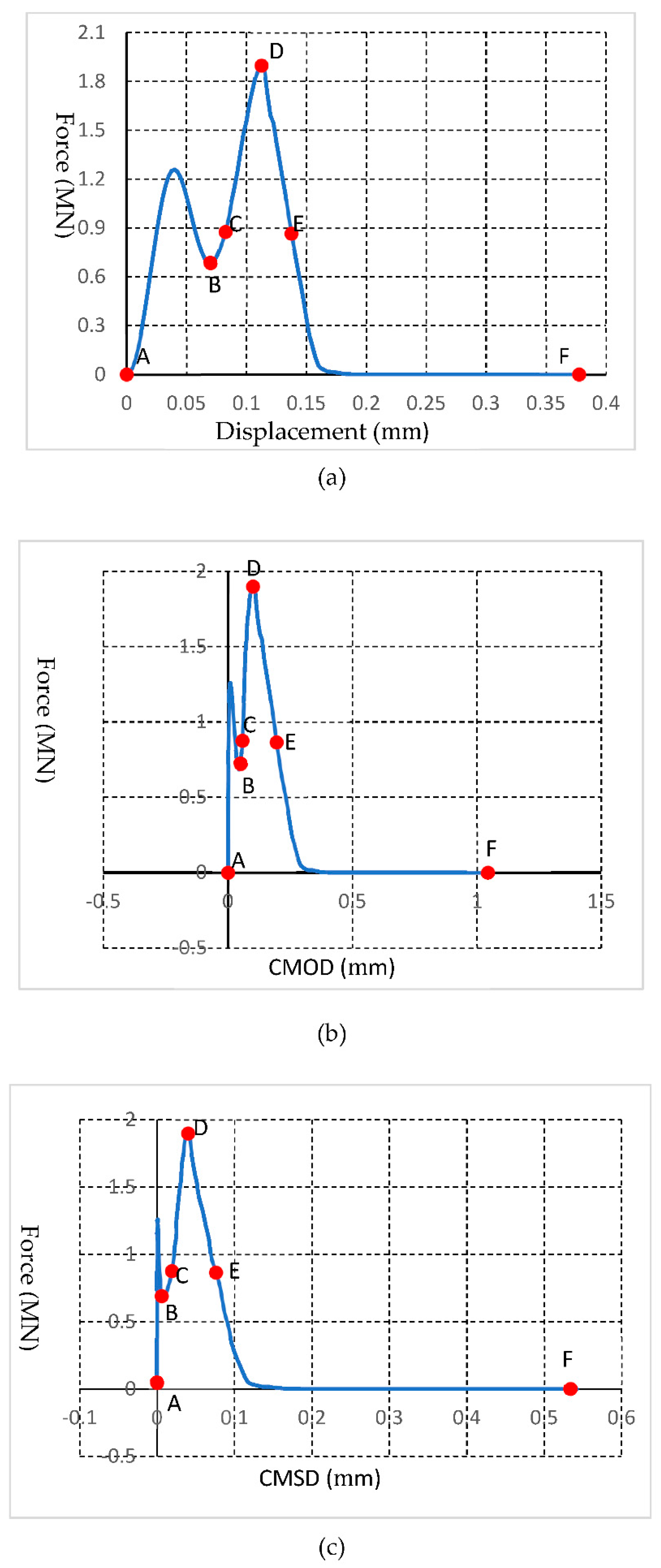

**Figure 17.**Force loading related curves for 4PB test: (

**a**) Force-loading displacement curve; (

**b**) Force-loading CMOD curve; (

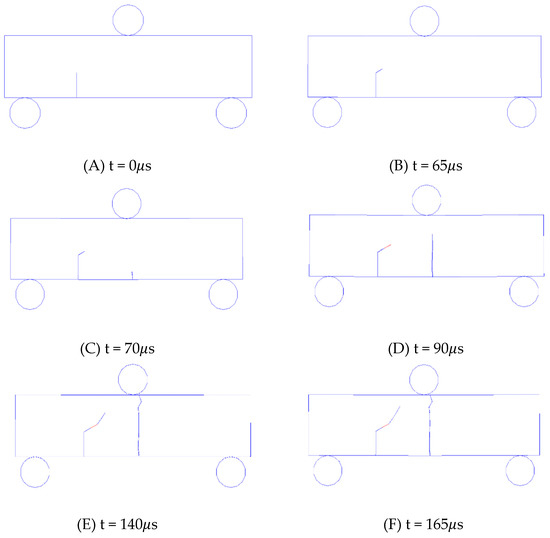

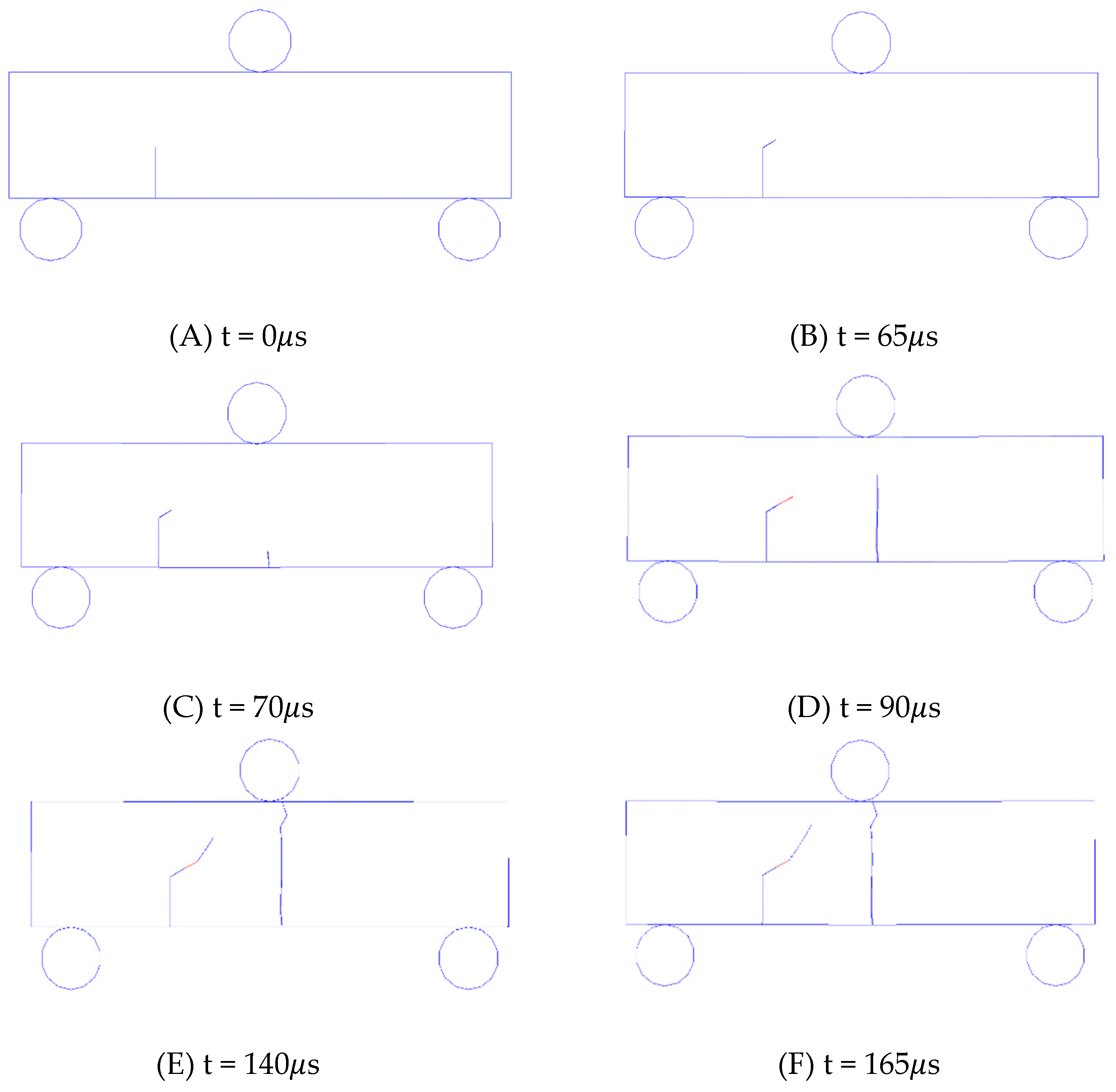

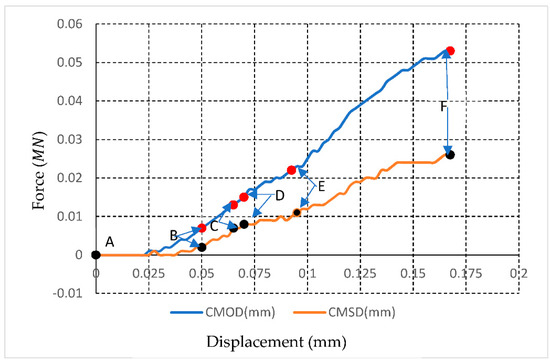

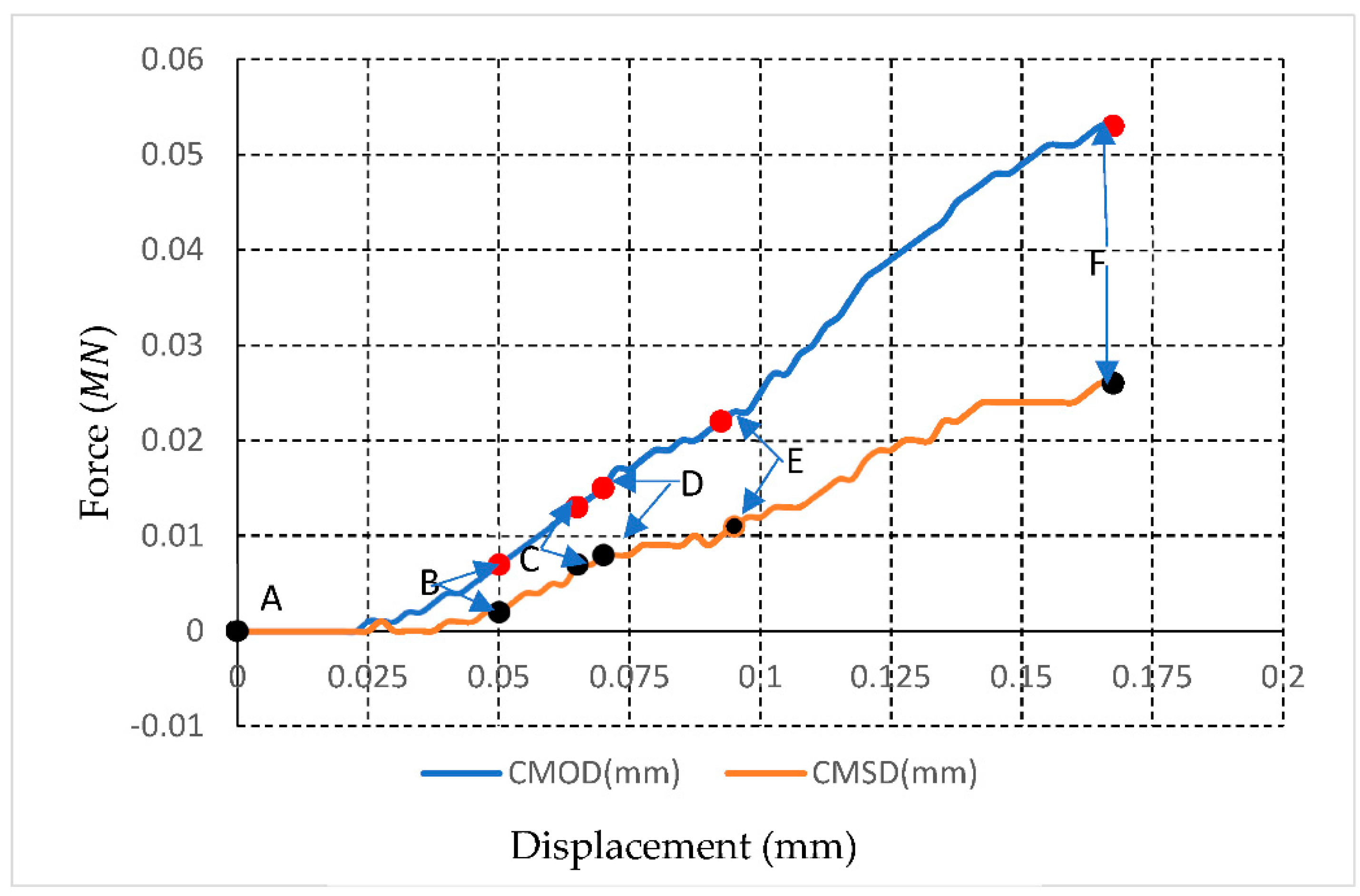

**c**) Force-loading CMSD curve.

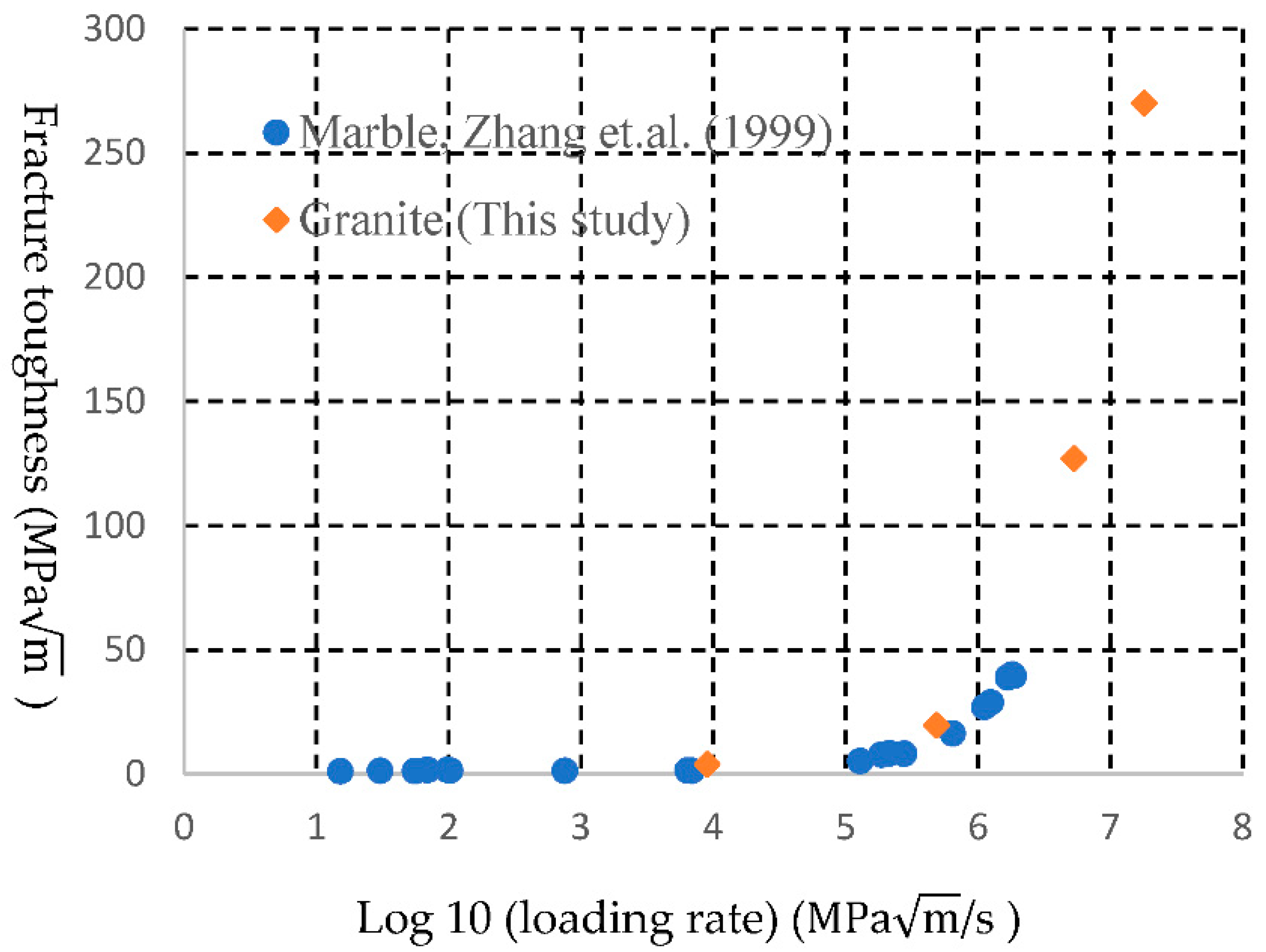

**Figure 22.**The modelled result and the experimental results [33] comparison t in terms of relationship between the fracture toughness (mode-I) and loading rate.
