# Soil Liquefaction Prediction Based on Bayesian Optimization and Support Vector Machines

^{1}

^{2}

^{3}

^{4}

^{5}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Process of Soil Liquefaction

## 3. Method

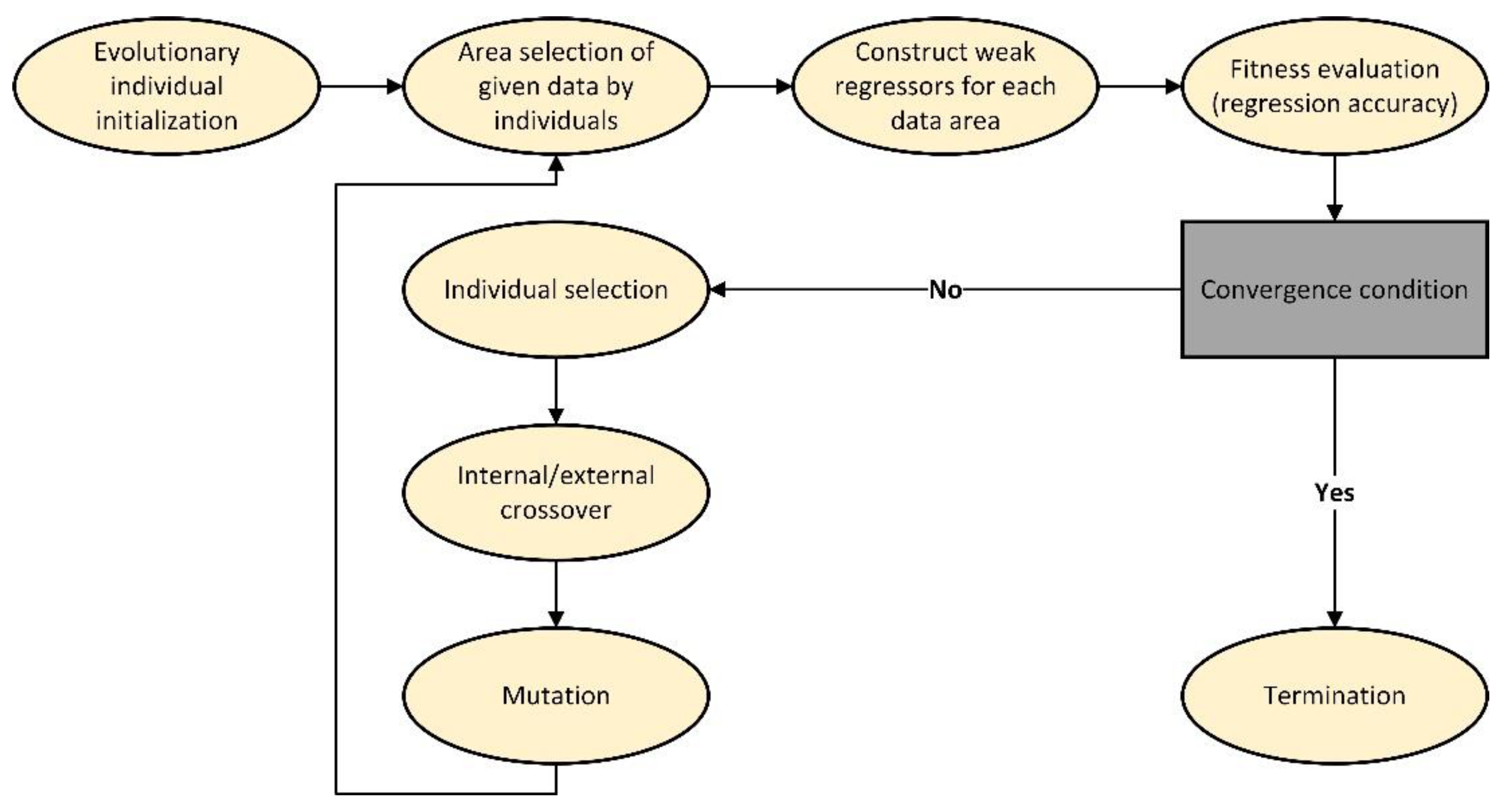

#### 3.1. Evolutionary Random Forest (ERF)

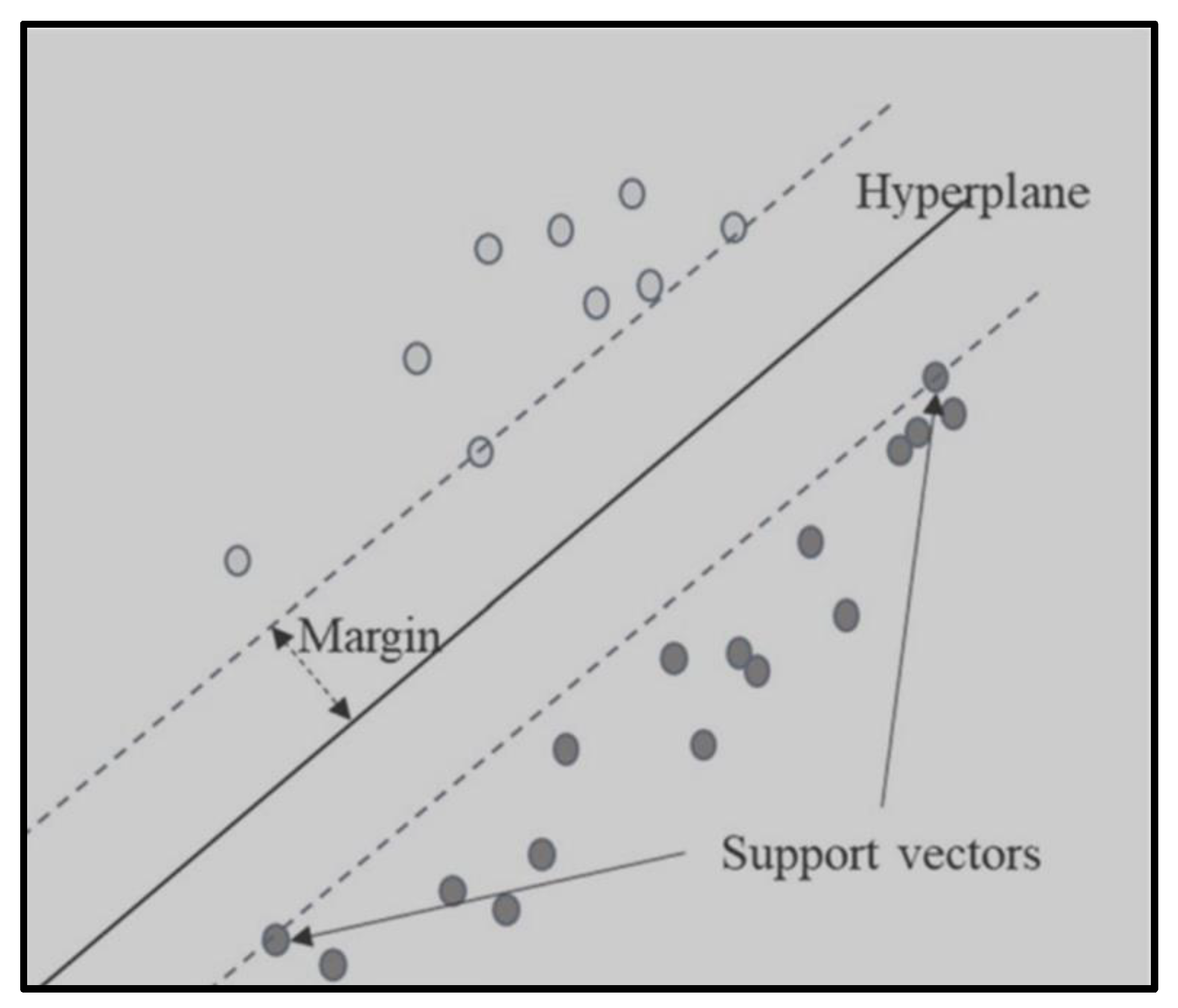

#### 3.2. Support Vector Machines

#### 3.3. Bayesian Optimization Algorithm

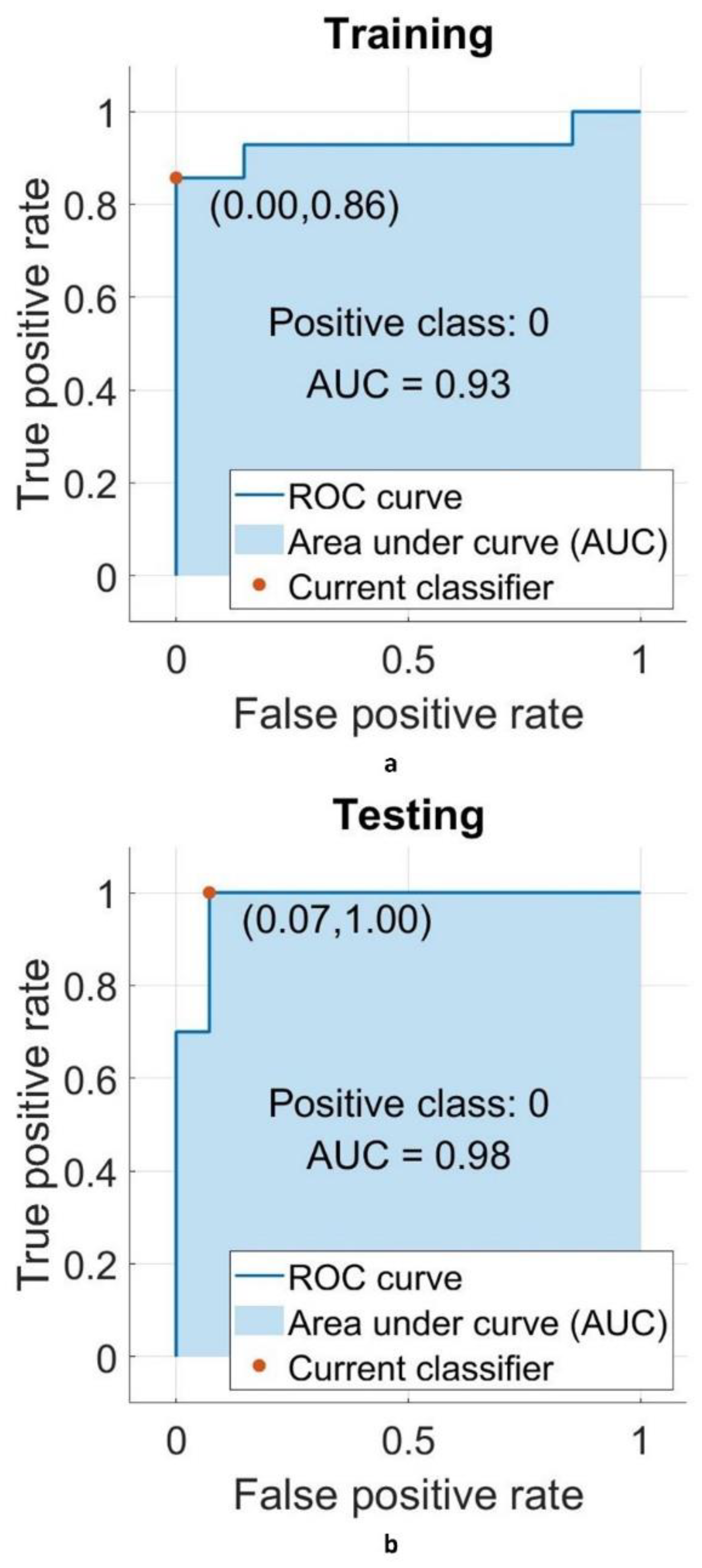

#### 3.4. Performance Criteria

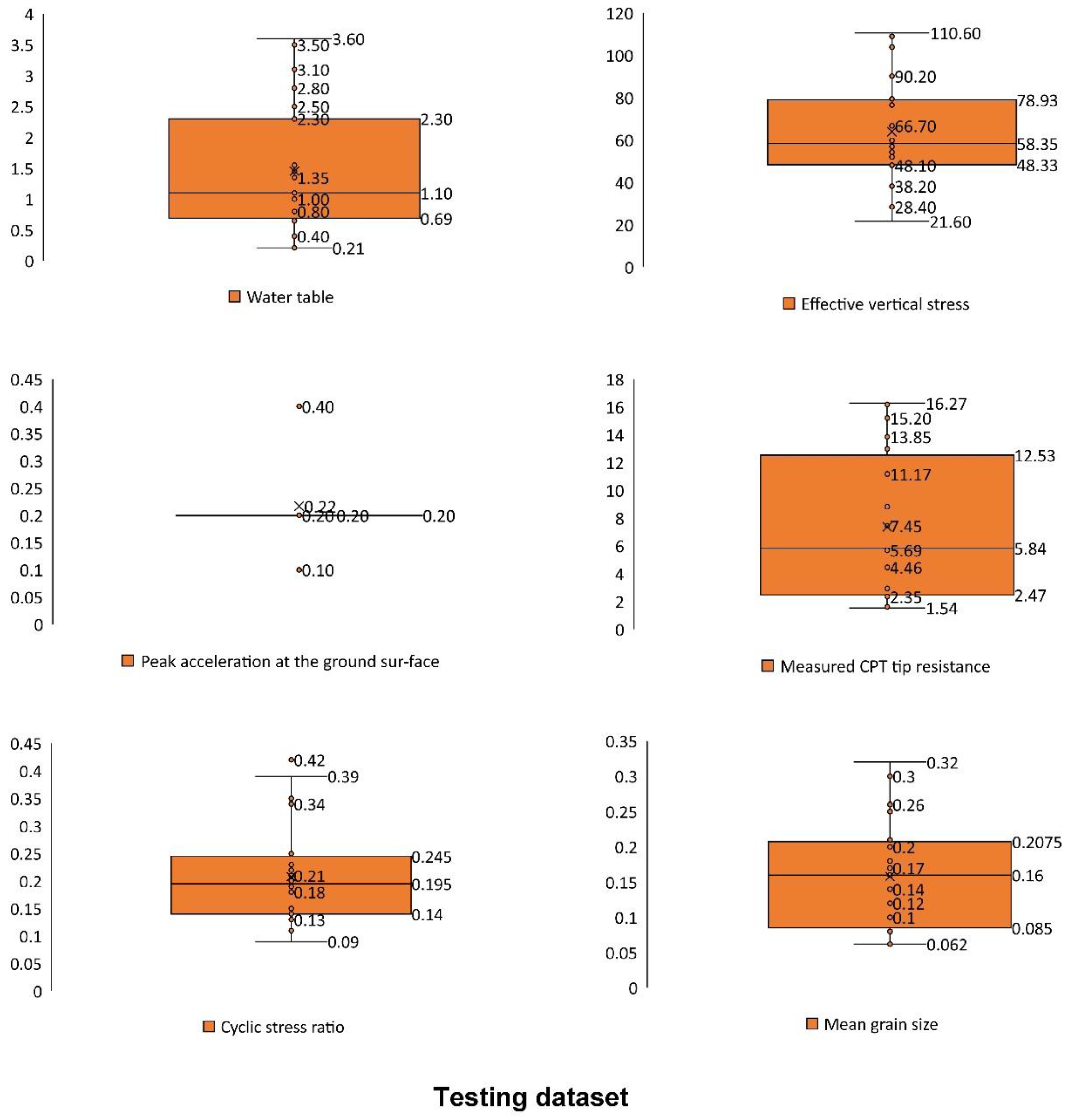

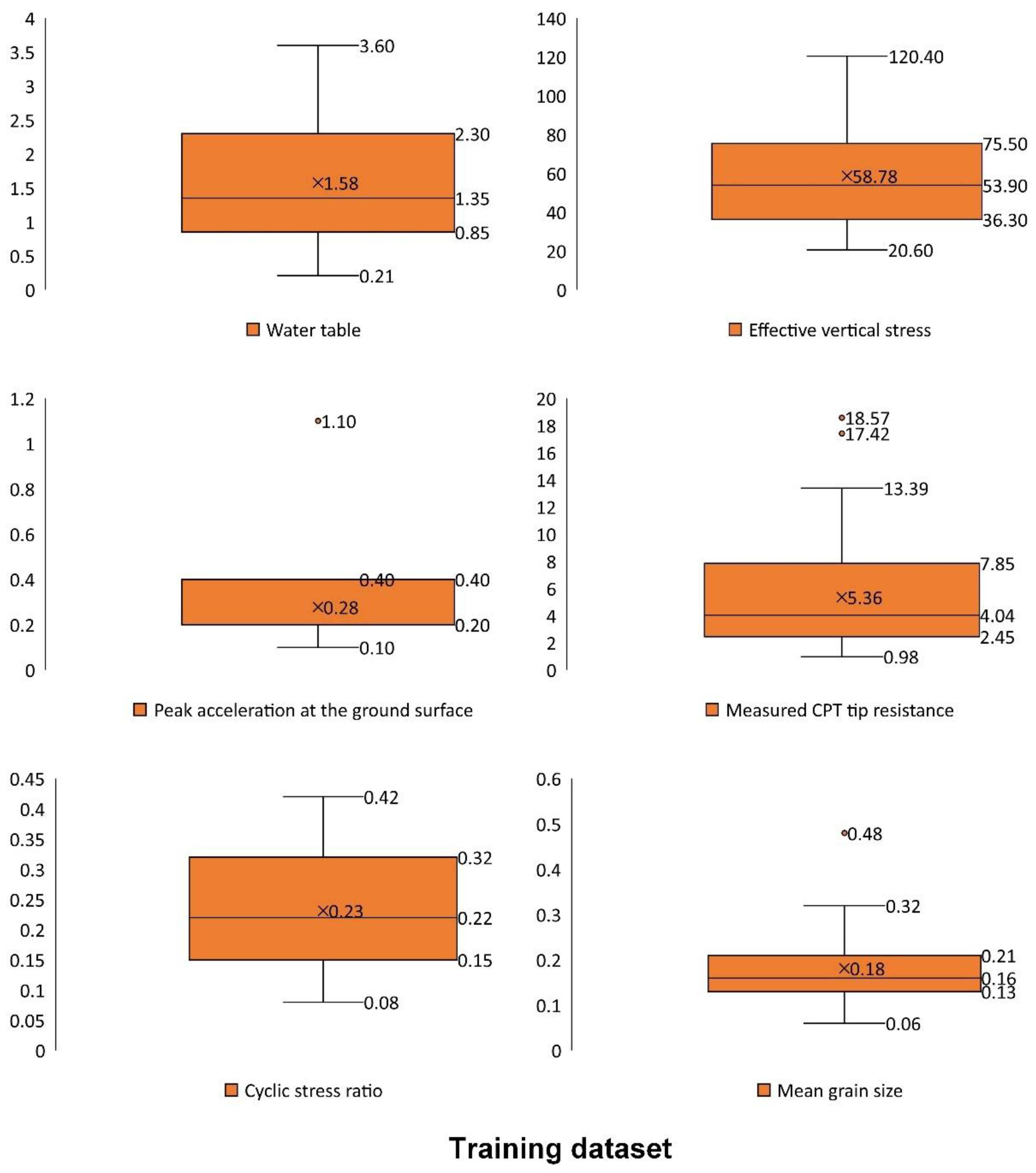

#### 3.5. Data for Modeling

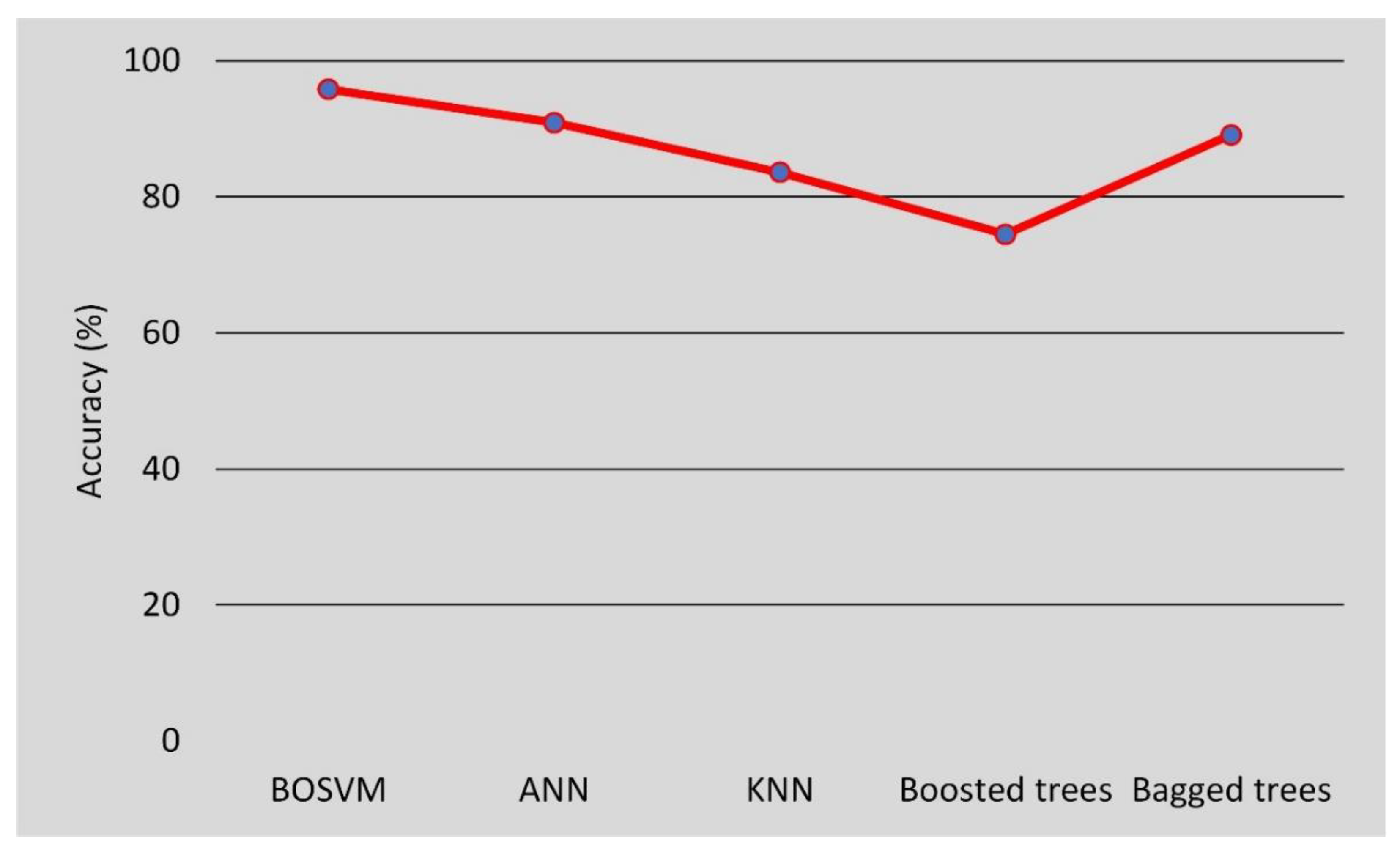

## 4. Results and Discussion

#### 4.1. Input Selection

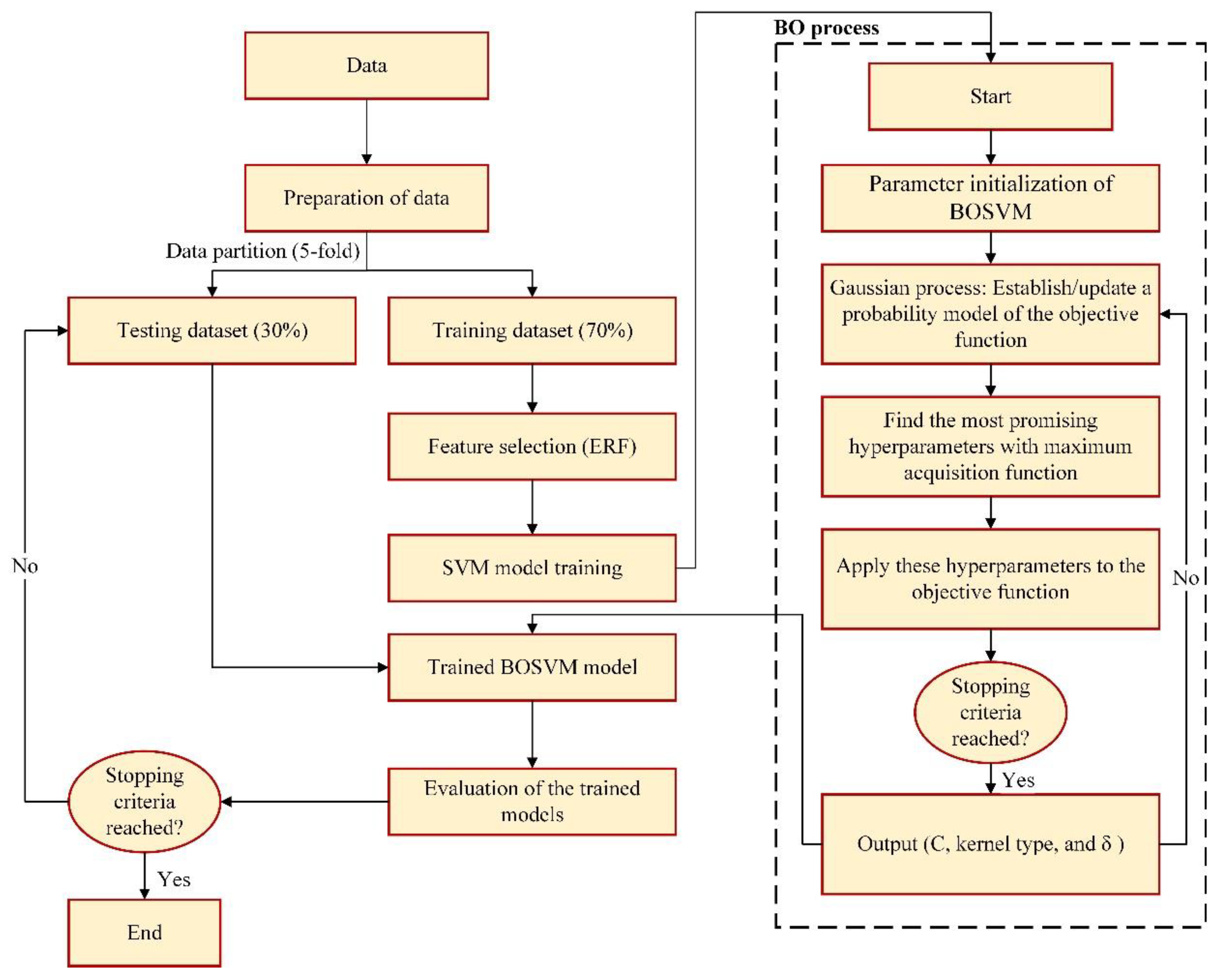

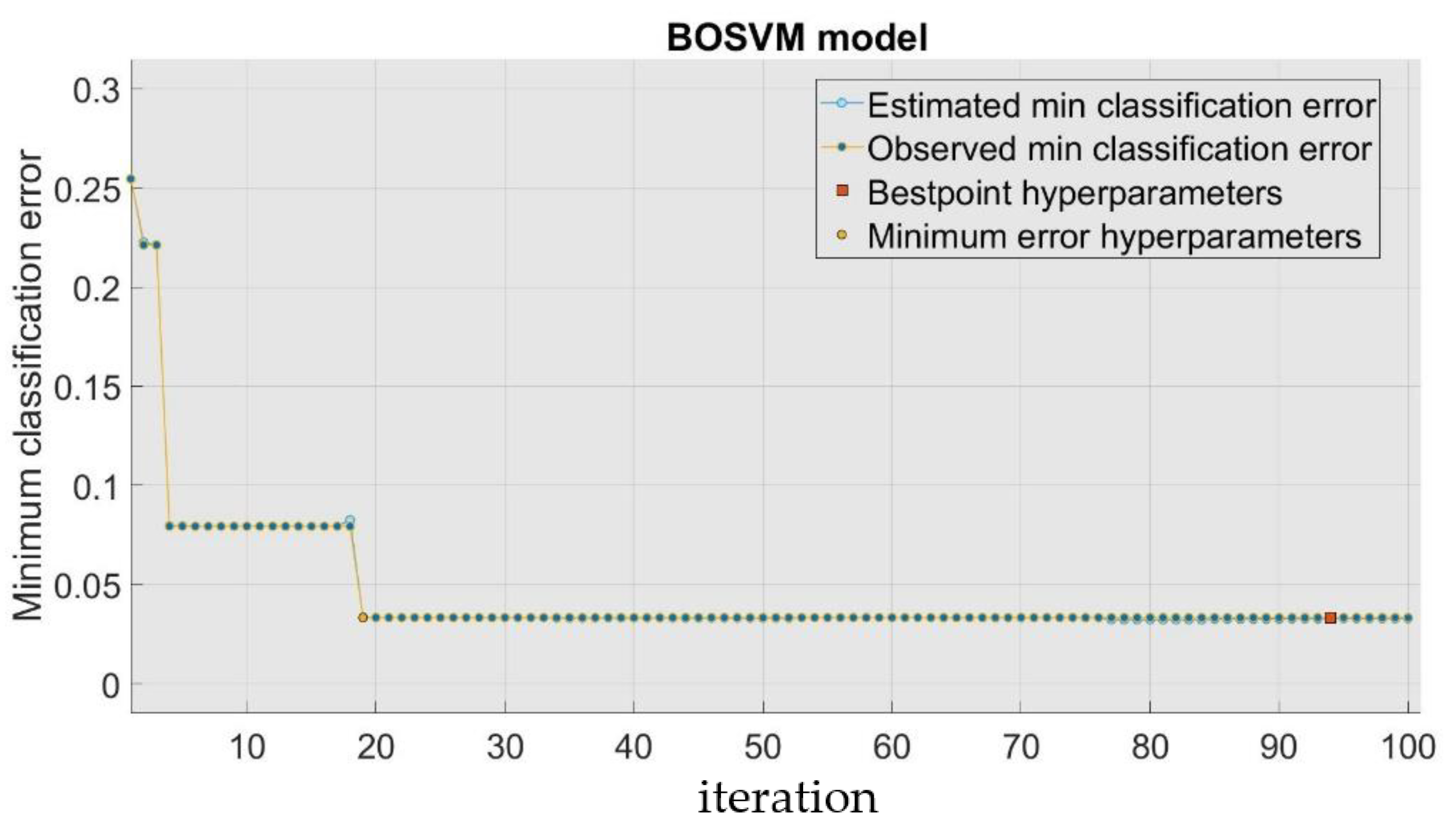

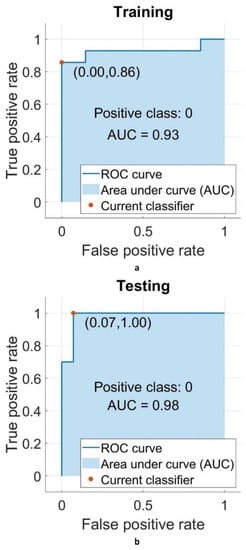

#### 4.2. BOSVM Model Development

- Examination of fitness: The fitness function is computed and assessed before optimizing the target parameter value. The fitness function in this study is classification error.
- Adjusting the settings: hyperparameter optimization criteria may be adjusted according to the outcomes of each iteration, if desired.
- Stop checking for conditions: Optimization stops once the best parameters have been found.

## 5. Limitations and Future Works

## 6. Conclusions

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Conflicts of Interest

## Abbreviations

Acronym | Term |

AUC | Area Under the ROC Curve |

ANN | Artificial Neural Network |

BO | Bayesian Optimization |

CPT | Cone Penetration Test |

CSR | Cyclic Stress Ratio |

DT | Decision Tree |

DE | Differential Evolution |

EGMDH | Ensemble Group Method of Data Handling |

ERF | Evolutionary Random Forest |

DMT | Flat Dilatometer Test |

FSVM | Fuzzy Support Vector Machine |

GA | Genetic Algorithm |

GWO | Grey Wolf Optimization |

KELM | Kernel Extreme Learning Machine |

KFDA | Kernel Fisher Discriminant Analysis |

LSSVM | Least Squares Support Vector Machine |

ML | Machine Learning |

MGGP | Multi-Gene Genetic Programming |

ANFIS | Neuro Fuzzy Inference System |

PSO | Particle Swarm Optimization |

RBFNN | Radial Basis Function Neural Network |

RF | Random Forest |

ROC | Receiver Operating Characteristic Curve |

Vs | Shear Wave Velocity |

SPT | Standard Penetration Test |

SVM | Support Vector Machine |
