Hyperspectral Modeling of Soil Organic Matter Based on Characteristic Wavelength in East China
Abstract
:1. Introduction

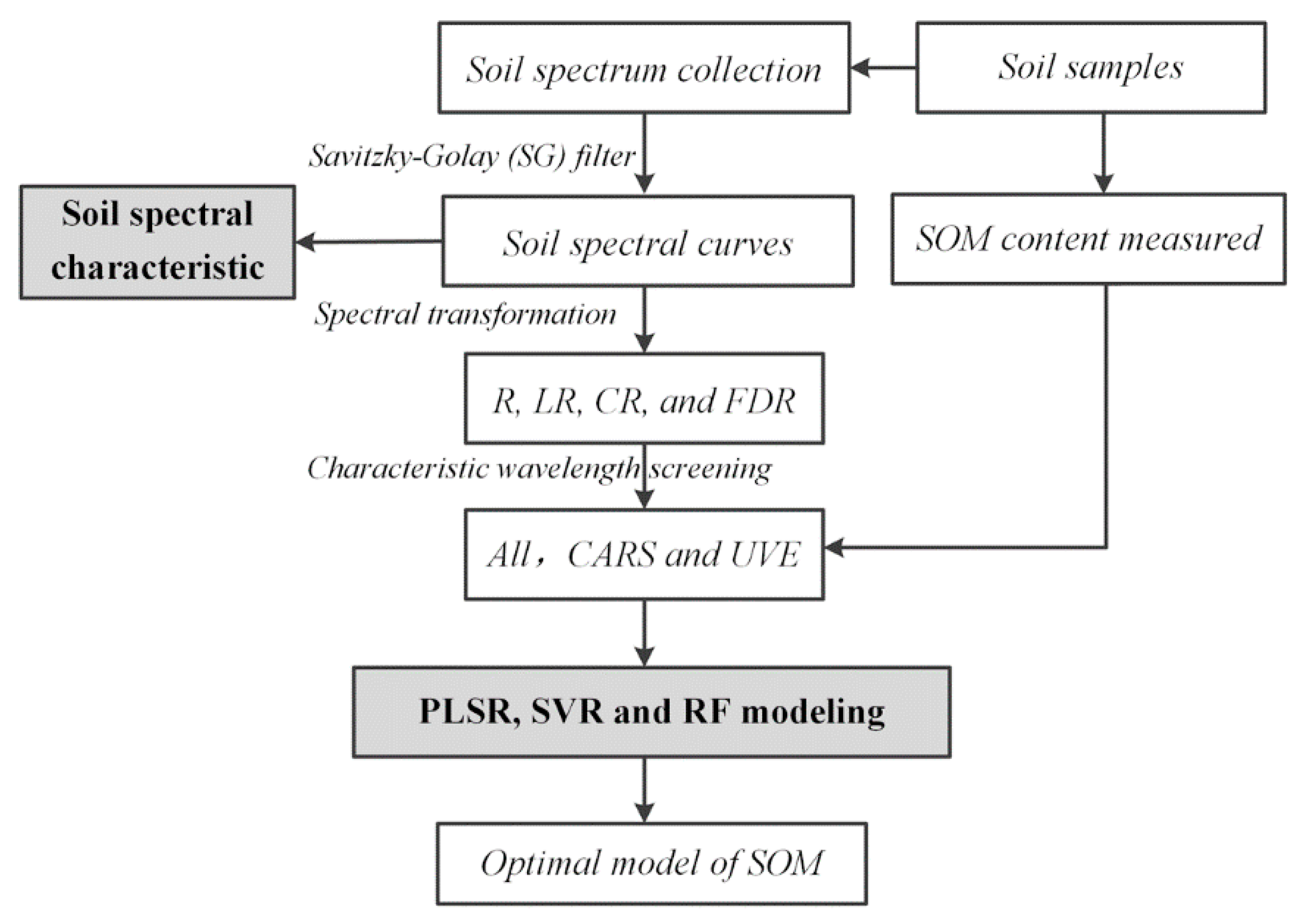

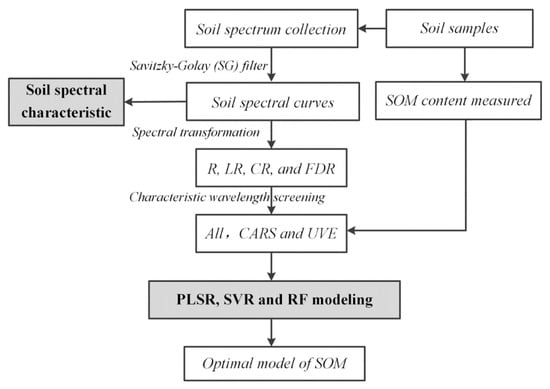

2. Materials and Methods

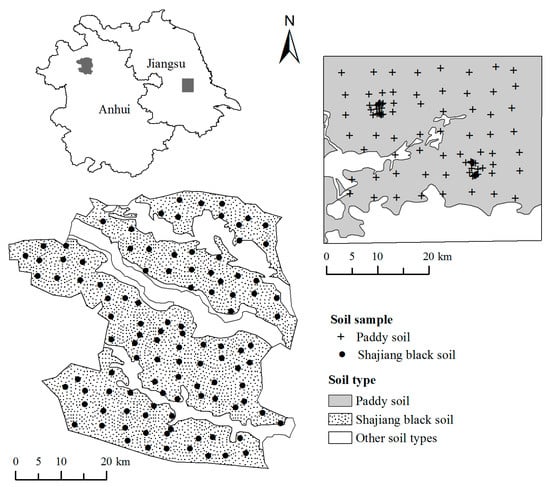

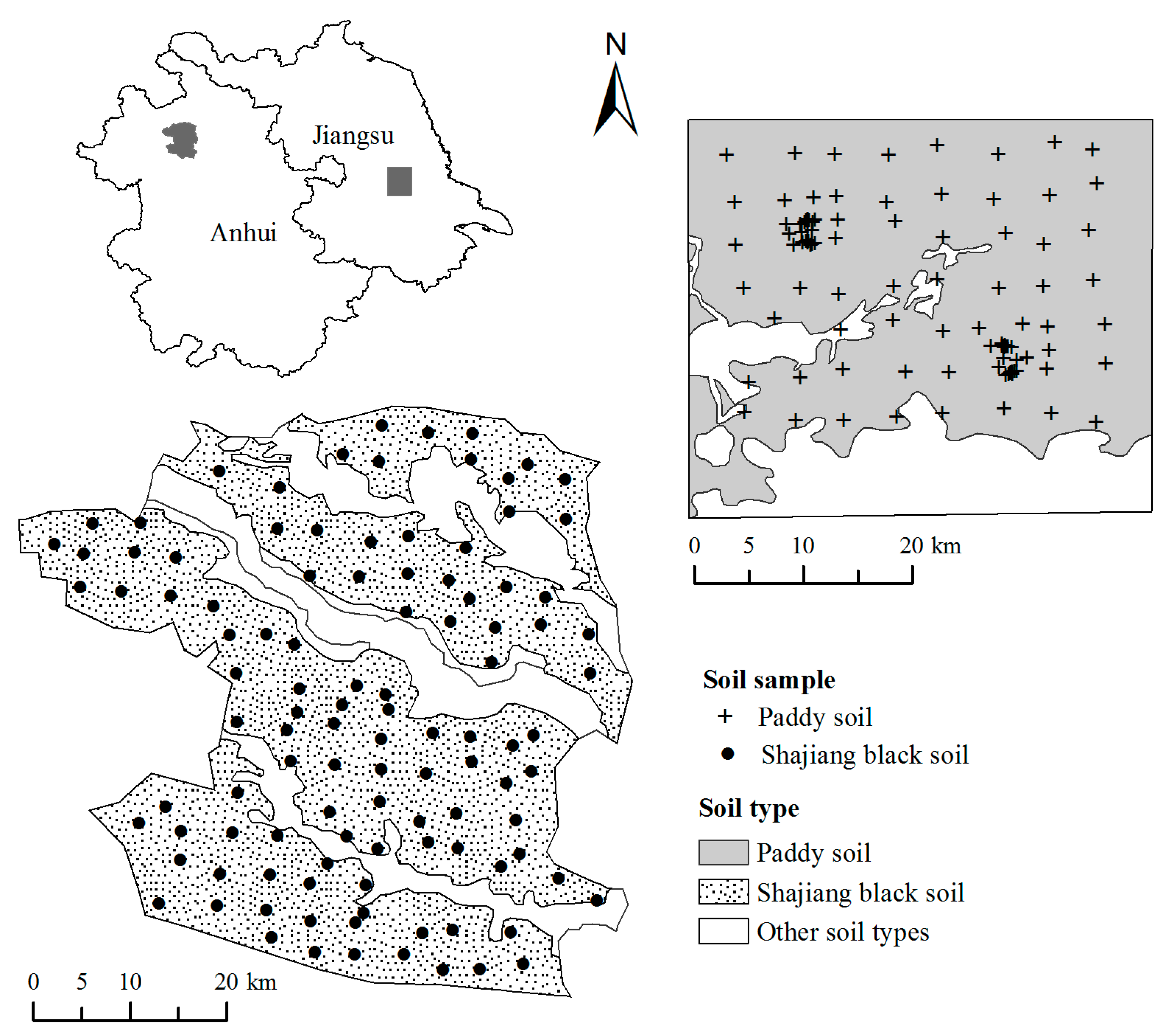

2.1. Study Area
2.2. Soil Sampling and Analysis
2.3. Soil Spectrum Collection and Preprocessing
2.4. Characteristic Wavelength Screening Algorithms
2.5. SOM Spectral Modeling
2.6. Model Evaluation
3. Results

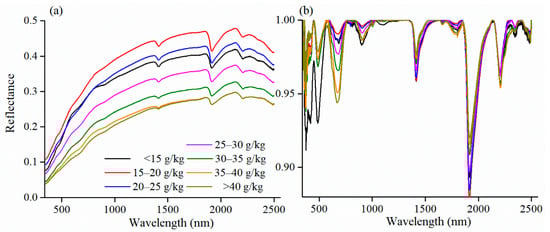

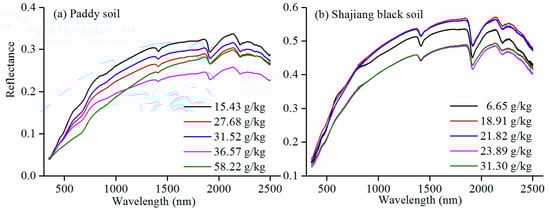

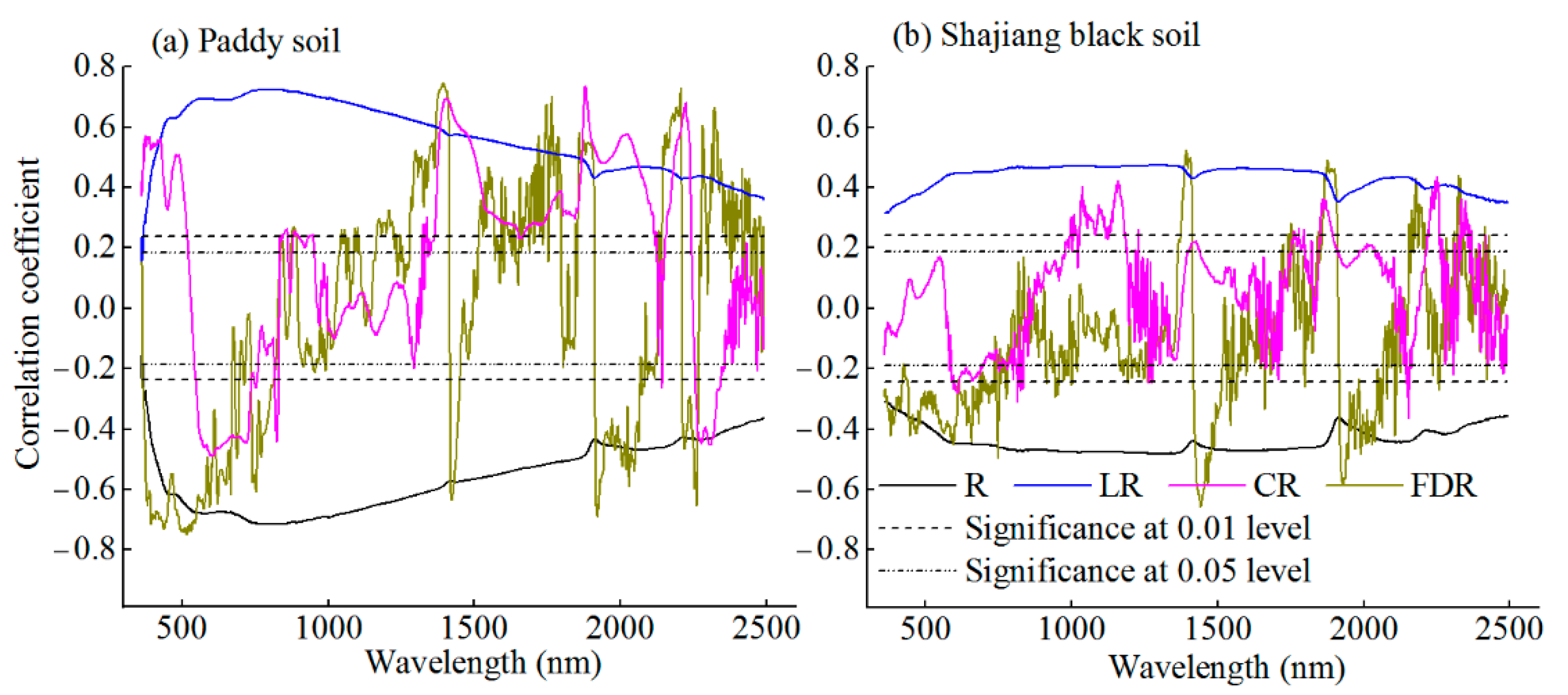

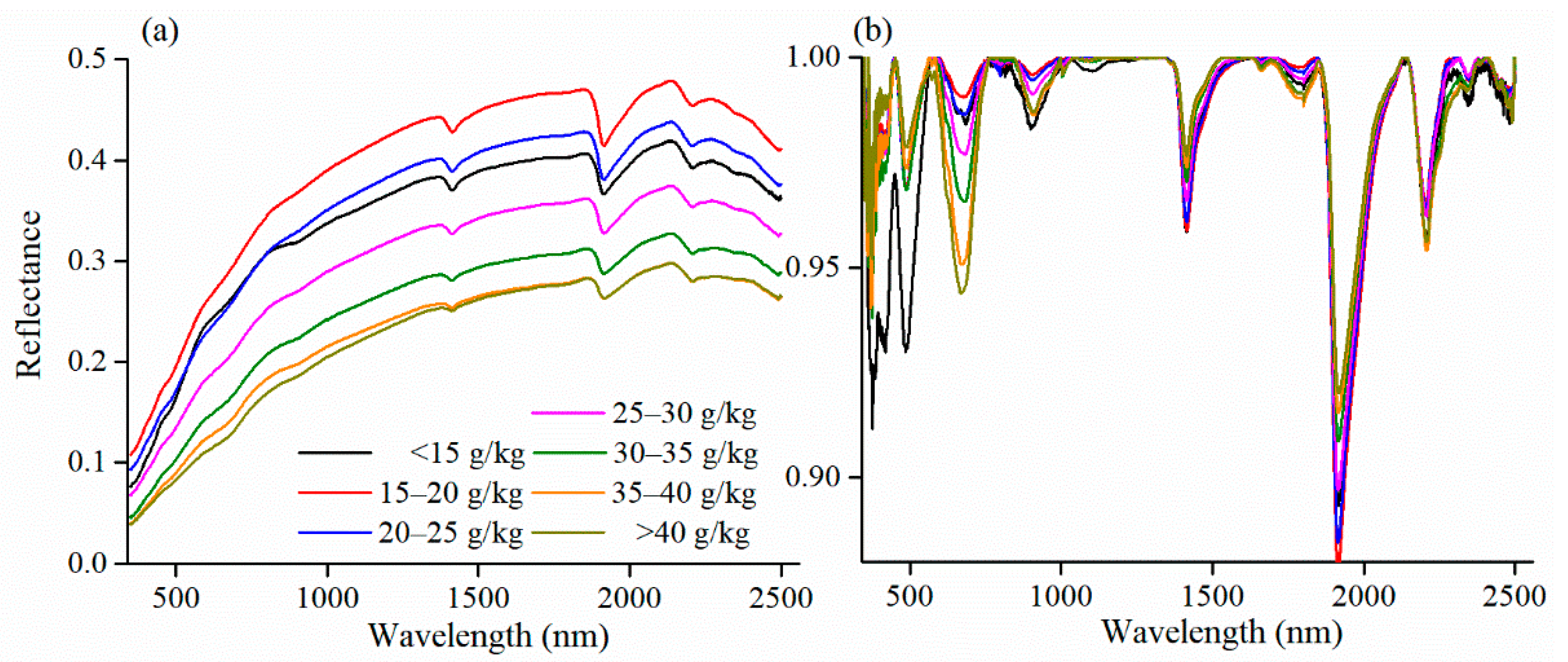

3.1. Characteristic of Soil Spectral Curves

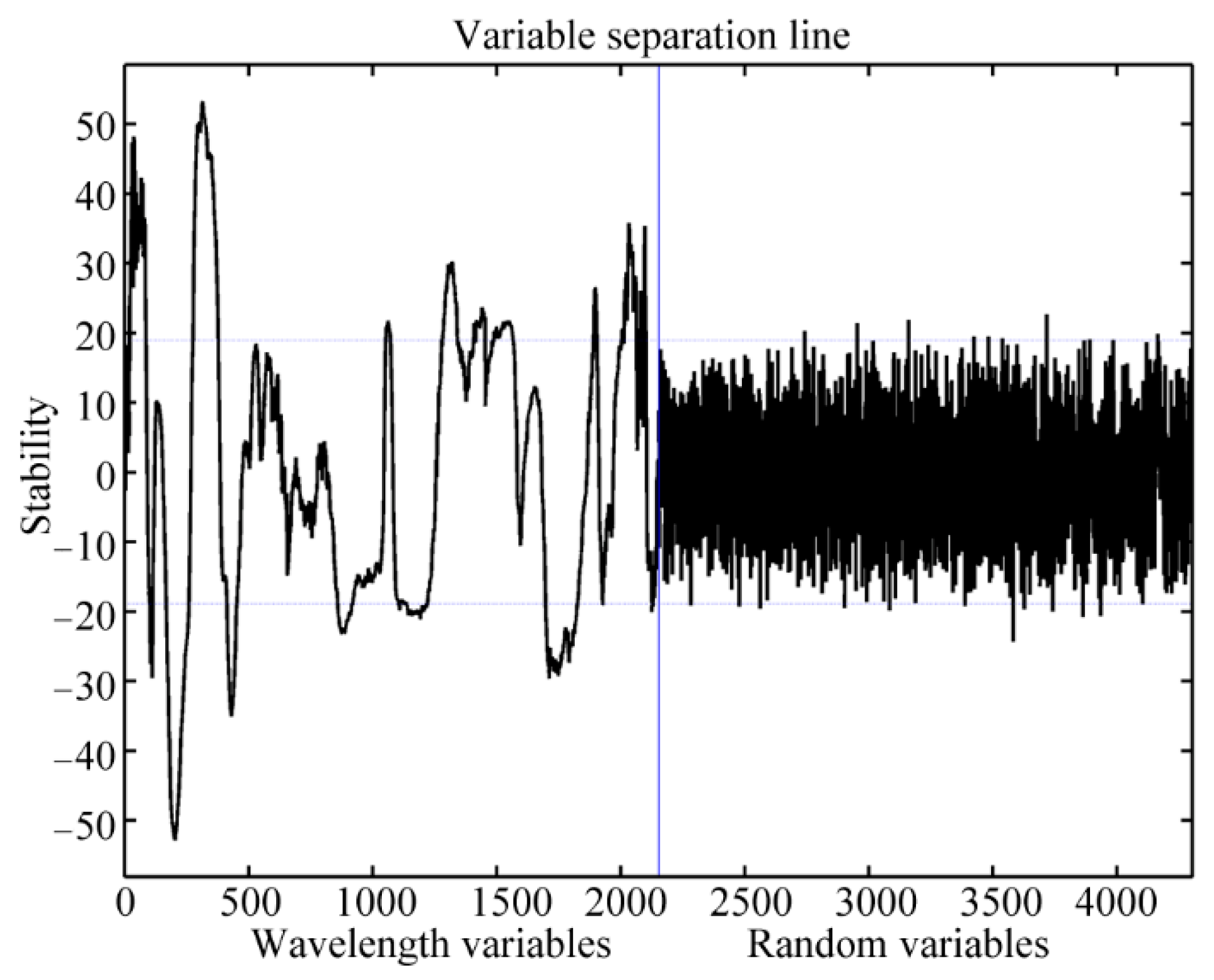

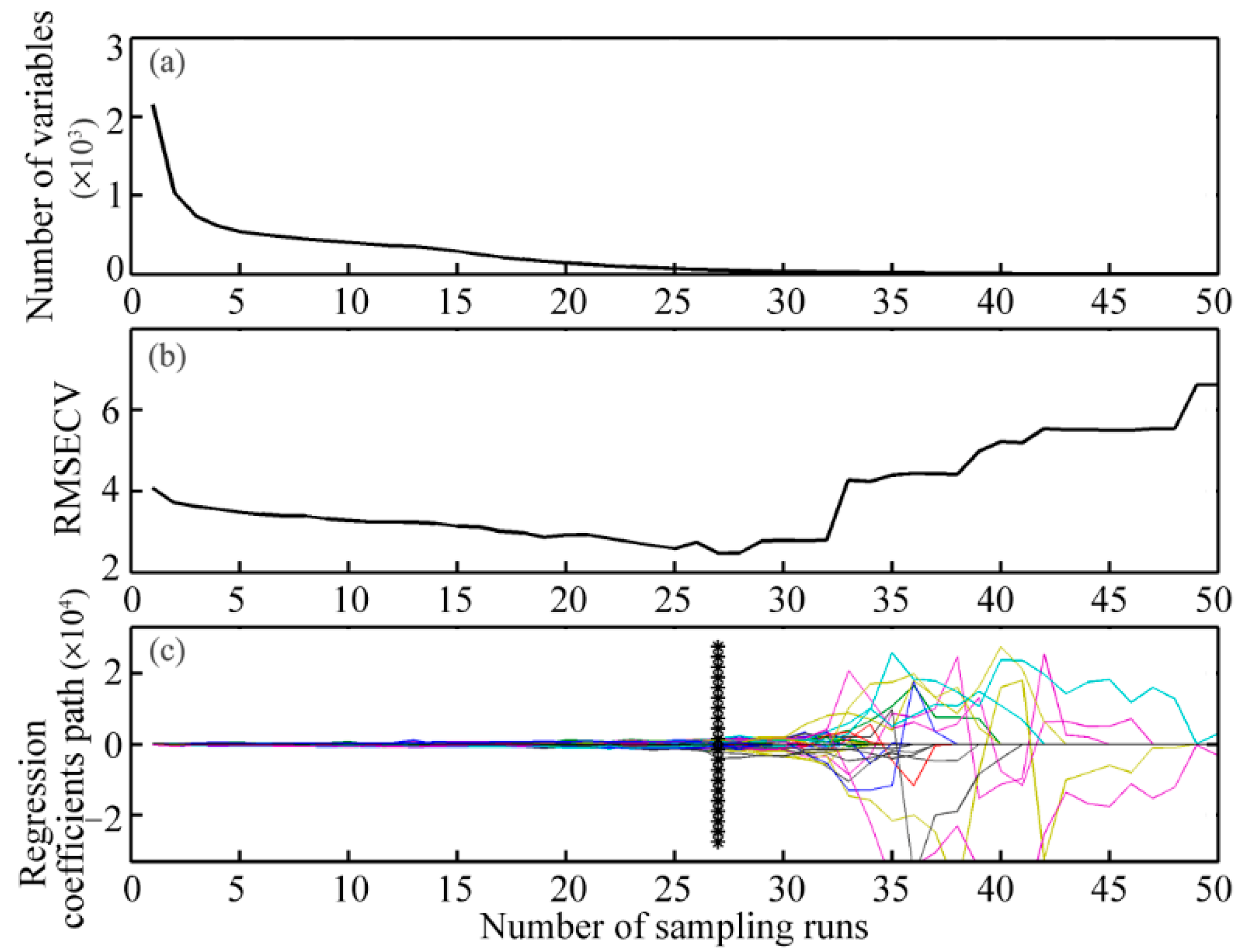

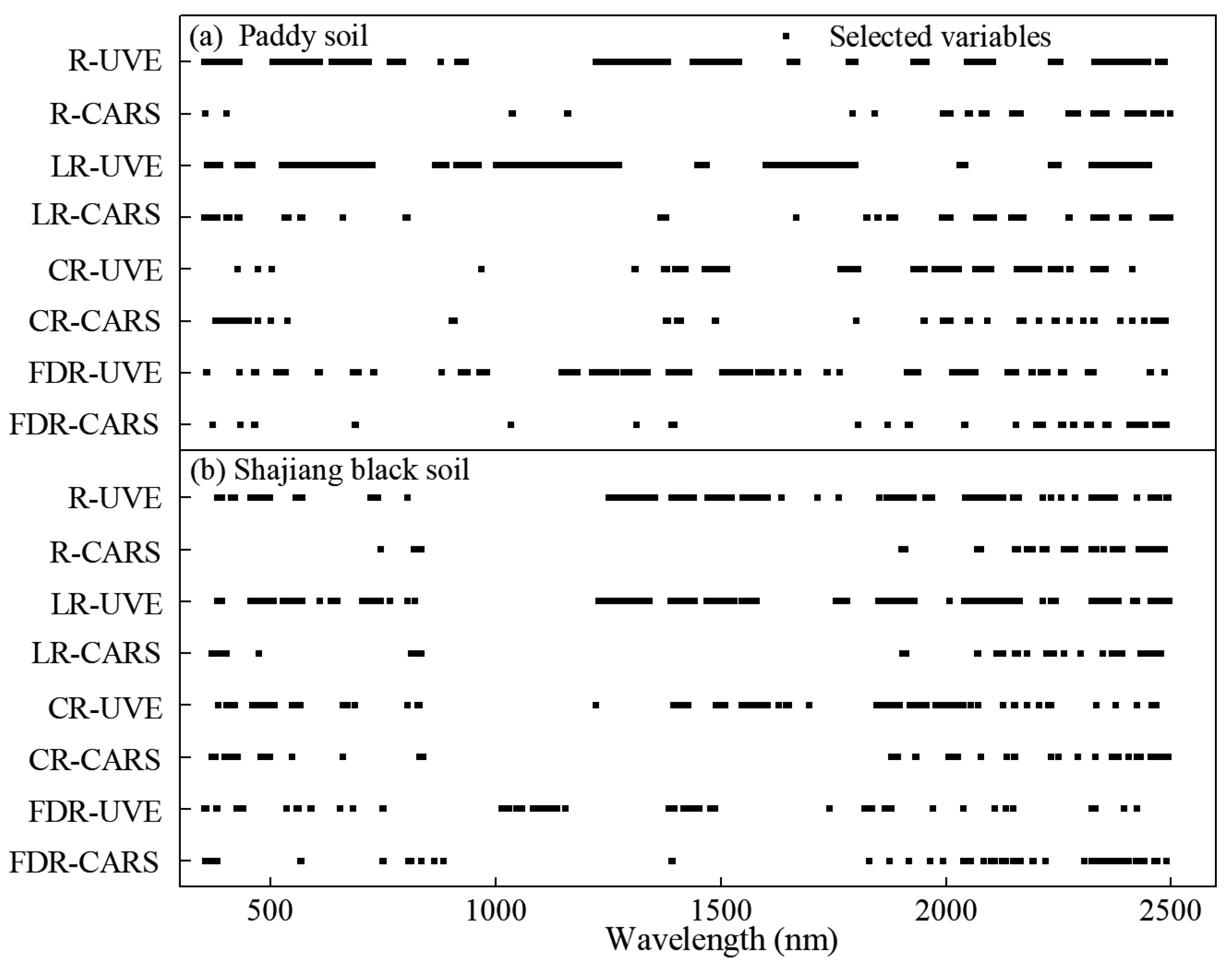

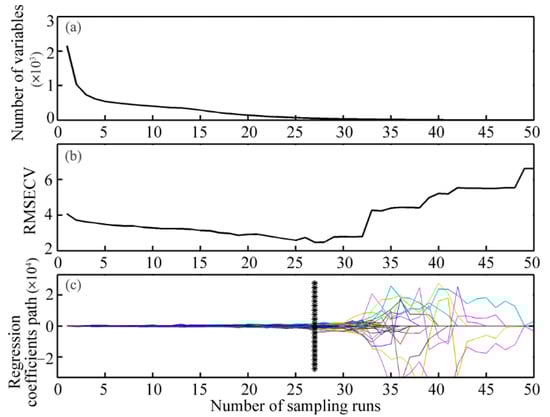

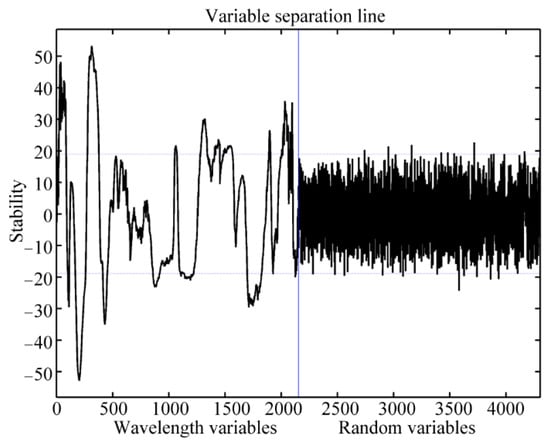

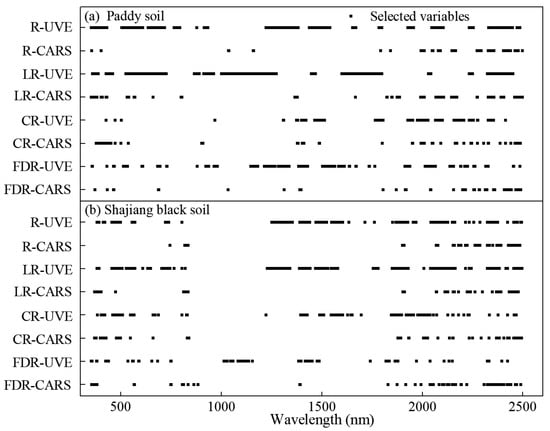

3.2. Results of Characteristic Wavelength Screening

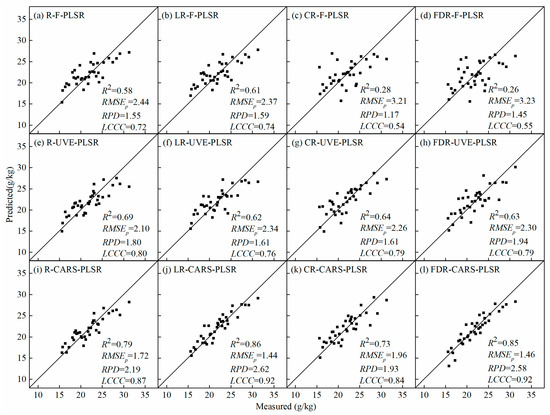

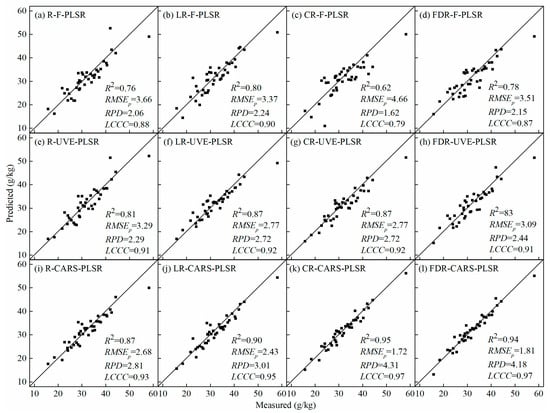

3.3. PLSR Modeling Based on Characteristic Wavelengths
3.4. SVR and RF Modeling Based on Characteristic Wavelengths
4. Discussion
5. Conclusions
Author Contributions
Funding
Conflicts of Interest
References
- Allen, R.M.; Laird, D.A. Quantitative prediction of biochar soil amendments by near-infrared reflectance spectroscopy. Soil Sci. Soc. Am. J. 2013, 77, 1784–1794. [Google Scholar] [CrossRef]
- Sommer, S.; Hill, J.; Mégier, J. The potential of remote sensing for monitoring rural land use changes and their effects on soil conditions. Agric. Ecosyst. Environ. 1998, 67, 197–209. [Google Scholar] [CrossRef]
- Bartholomeus, H.M.; Schaepman, M.E.; Kooistra, L.; Stevens, A.; Hoogmoed, W.B.; Spaargaren, O.S.P. Spectral reflectance based indices for soil organic carbon quantification. Geoderma 2008, 145, 28–36. [Google Scholar] [CrossRef]
- Dematte, J.A.M.; Campos, R.C.; Alves, M.C.; Fiorio, P.R.; Nanni, M.R. Visible-NIR reflectance: A new approach on soil evaluation. Geoderma 2004, 121, 95–112. [Google Scholar] [CrossRef]
- Bricklemyer, R.S.; Brown, D.J. On-the-go VisNIR: Potential and limitations for mapping soil clay and organic carbon. Comput. Electron. Agric. 2010, 70, 209–216. [Google Scholar] [CrossRef]
- Ben-Dor, E. Quantitative remote sensing of soil properties. In Advances in Agronomy; Academic Press: Cambridge, MA, USA, 2002; Volume 75, pp. 173–243. [Google Scholar]
- Ostovari, Y.; Ghorbani-Dashtaki, S.; Bahrami, H.-A.; Abbasi, M.; Dematte, J.A.M.; Arthur, E.; Panagos, P. Towards prediction of soil erodibility, SOM and CaCO3 using laboratory Vis-NIR spectra: A case study in a semi-arid region of Iran. Geoderma 2018, 314, 102–112. [Google Scholar]
- Ji, W.; ViscarraRossel, R.A.; Shi, Z. Improved estimates of organic carbon using proximally sensed vis–NIR spectra corrected by piecewise direct standardization. Eur. J. Soil Sci. 2015, 66, 670–678. [Google Scholar] [CrossRef]
- Minasny, B.; McBratney, A.B.; Pichon, L.; Sun, W.; Short, M.G. Evaluating near infrared spectroscopy for field prediction of soil properties. Aust. J. Soil Res. 2009, 47, 664–673. [Google Scholar] [CrossRef]
- Viscarra Rossel, R.A.; Behrens, T. Using data mining to model and interpret soil diffuse reflectance spectra. Geoderma 2010, 158, 46–54. [Google Scholar] [CrossRef]
- Riedel, F.; Denk, M.; Müller, I.; Barth, N.; Gläßer, C. Prediction of soil parameters using the spectral range between 350 and 15,000 nm: A case study based on the Permanent Soil Monitoring Program in Saxony, Germany. Geoderma 2018, 315, 188–198. [Google Scholar] [CrossRef]
- Gomez, C.; Chevallier, T.; Moulin, P.; Bouferra, I.; Hmaidi, K.; Arrouays, D.; Jolivet, C.; Barthès, B.G. Prediction of soil organic and inorganic carbon concentrations in Tunisian samples by mid-infrared reflectance spectroscopy using a French national library. Geoderma 2020, 375, 114469. [Google Scholar] [CrossRef]
- Bellon-Maurel, V.; McBratney, A. Near-infrared (NIR) and mid-infrared (MIR) spectroscopic techniques for assessing the amount of carbon stock in soils e Critical review and research perspectives. Soil Biol. Biochem. 2011, 43, 1398–1410. [Google Scholar] [CrossRef]
- Guo, L.; Zhang, H.; Chen, Y.; Qian, J. Combining environmental factors and lab VNIR spectral data to predict SOM by geospatial techniques. Chin. Geogr. Sci. 2019, 29, 258–269. [Google Scholar] [CrossRef] [Green Version]
- Liu, S.; Shen, H.; Chen, S.; Zhao, X.; Biswas, A.; Jia, X.; Shi, Z.; Fang, J. Estimating forest soil organic carbon content using vis-NIR spectroscopy: Implications for large-scale soil carbon spectroscopic assessment. Geoderma 2019, 348, 37–44. [Google Scholar] [CrossRef]
- Nocita, M.; Stevens, A.; Noon, C.; Wesemael, B.V. Prediction of soil organic carbon for different levels of soil moisture using Vis-NIR spectroscopy. Geoderma 2013, 199, 37–42. [Google Scholar] [CrossRef]
- Martin, P.D.; Malley, D.F.; Manning, G.; Fuller, L. Determination of soil organic carbon and nitrogen at the field level using near-infrared spectroscopy. Can. J. Soil Sci. 2002, 82, 413–422. [Google Scholar] [CrossRef]
- Mouazen, A.M.; Kuang, B.; Baerdemaeker, J.D.; Ramon, H. Comparison among principal component, partial least squares and back propagation neural network analyses for accuracy of measurement of selected soil properties with visible and near infrared spectroscopy. Geoderma 2010, 158, 23–31. [Google Scholar] [CrossRef]
- Shi, Z.; Ji, W.; Viscarra Rossel, R.A.; Chen, S.; Zhou, Y. Prediction of soil organic matter using a spatially constrained local partial least squares regression and the Chinese vis–NIR spectral library. Eur. J. Soil Sci. 2015, 66, 679–687. [Google Scholar] [CrossRef]
- Nawar, S.; Mouazen, A.M. Predictive performance of mobile vis-near infrared spectroscopy for key soil properties at different geographical scales by using spiking and data mining techniques. Catena 2017, 151, 118–129. [Google Scholar] [CrossRef] [Green Version]
- Jin, X.; Du, J.; Liu, H.; Wang, Z.; Song, K. Remote estimation of soil organic matter content in the Sanjiang Plain, Northest China: The optimal band algorithm versus the GRA-ANN model. Agric. For. Meteorol. 2016, 218–219, 250–260. [Google Scholar] [CrossRef]
- Morellos, A.; Pantazi, X.-E.; Moshou, D.; Alexandridis, T.; Whetton, R.; Tziotzios, G.; Wiebensohn, J.; Bill, R.; Mouazen, A.M. Machine learning based prediction of soil total nitrogen, organic carbon and moisture content by using VIS-NIR spectroscopy. Biosyst. Eng. 2016, 152, 104–116. [Google Scholar] [CrossRef] [Green Version]
- Dotto, A.C.; Dalmolin, R.S.D.; ten Caten, A.; Grunwald, S. A systematic study on the application of scatter-corrective and spectral-derivative preprocessing for multivariate prediction of soil organic carbon by Vis-NIR spectra. Geoderma 2018, 314, 262–274. [Google Scholar] [CrossRef]
- Padarian, J.; Minasny, B.; McBratney, A.B. Using deep learning to predict soil properties from regional spectral data. Geoderma Reg. 2019, 15, e00198. [Google Scholar] [CrossRef]
- Ji, W.J.; Li, X.; Li, C.X.; Zhou, Y.; Shi, Z. Using different data mining algorithms to predict soil organic matter based on visible-near infrared spectroscopy. Spectrosc. Spect. Anal. 2012, 32, 2393–2398. (In Chinese) [Google Scholar]
- Bao, Y.; Meng, X.; Ustin, S.; Wang, X.; Zhang, X.; Liu, H.; Tang, H. Vis-SWIR spectral prediction model for soil organic matter with different grouping strategies. Catena 2020, 195, 104703. [Google Scholar] [CrossRef]
- Vohland, M.; Ludwig, M.; Thiele-Bruhn, S.; Ludwig, B. Determination of soil properties with visible to near- and mid-infrared spectroscopy: Effects of spectral variable selection. Geoderma 2014, 223–225, 88–96. [Google Scholar] [CrossRef]
- Yang, H.; Kuang, B.; Mouazen, A.M. Quantitative analysis of soil nitrogen and carbon at a farm scale using visible and near infrared spectroscopy coupled with wavelength reduction. Eur. J. Soil Sci. 2012, 63, 410–420. [Google Scholar] [CrossRef]
- Li, H.; Liang, Y.; Xu, Q.; Cao, D. Key wavelengths screening using competitive adaptive reweighted sampling method for multivariate calibration. Anal. Chim. Acta 2009, 648, 77–84. [Google Scholar] [CrossRef]
- Ye, S.; Wang, D.; Min, S. Successive projections algorithm combined with uninformative variable elimination for spectral variable selection. Chemometr. Intell. Lab. Syst. 2007, 91, 194–199. [Google Scholar] [CrossRef]
- Zou, X.; Zhao, J.; Povey, M.J.W.; Mel, H.; Mao, H. Variables selection methods in near-infrared spectroscopy. Anal. Chim. Acta 2010, 667, 14–32. [Google Scholar]
- Yu, L.; Hong, Y.S.; Zhou, Y.; Zhu, Q.; Xu, L.; Li, J.Y.; Nie, Y. Wavelength variable selection methods for estimation of soil organic matter using hyperspectral technique. Trans. CSAE 2016, 32, 95–102. (In Chinese) [Google Scholar]
- Tang, H.T.; Meng, X.T.; Su, X.X.; Ma, T.; Liu, H.J.; Bao, Y.L.; Zhang, M.W.; Zhang, X.L.; Huo, H.Z. Hyperspectral prediction on soil organic matter of different types using CARS algorithm. Trans. CSAE 2021, 37, 105–113. (In Chinese) [Google Scholar]
- Zhang, H.L.; Luo, W.; Liu, X.M.; He, Y. Measurement of soil organic matter with near infrared spectroscopy combined genetic algorithm and successive projection algorithm. Spectrosc. Spect. Anal. 2017, 37, 584–587. (In Chinese) [Google Scholar]
- Nawar, S.; Buddenbaum, H.; Hill, J.; Kozak, J.; Mouazen, A.M. Estimating the soil clay content and organic matter by means of different calibration methods of vis-NIR diffuse reflectance spectroscopy. Soil Till. Res. 2016, 155, 510–522. [Google Scholar] [CrossRef] [Green Version]
- Hong, Y.; Chen, S.; Liu, Y.; Zhang, Y.; Yu, L.; Chen, Y.; Liu, Y.; Cheng, H.; Liu, Y. Combination of fractional order derivative and memory-based learning algorithm to improve the estimation accuracy of soil organic matter by visible and near-infrared spectroscopy. Catena 2019, 174, 104–116. [Google Scholar] [CrossRef]
- Wei, L.; Yuan, Z.; Wang, Z.; Zhao, L.; Zhang, Y.; Lu, X.; Cao, L. Hyperspectral inversion of soil organic matter content based on a combined spectral index model. Sensors 2020, 20, 2777. [Google Scholar] [CrossRef]
- Xie, S.; Ding, F.; Chen, S.; Wang, X.; Li, Y.; Ma, K. Prediction of soil organic matter content based on characteristic band selection method. Spectrochim. Acta A Mol. Biomol. Spectrosc. 2022, 273, 120949. [Google Scholar] [CrossRef]
- Shi, Y.; Zhao, J.; Song, X.; Qin, Z.; Wu, L.; Wang, H.; Tang, J. Hyperspectral band selection and modeling of soil organic matter content in a forest using the Ranger algorithm. PLoS ONE 2021, 16, e0253385. [Google Scholar] [CrossRef]
- Nelson, D.W.; Sommers, L.E. Total carbon, organic carbon, and organic matter. In Methods of Soil Analysis, Part2—Chemical and Microbiological Properties; Page, A.L., Miller, R.H., Keeney, D.R., Eds.; ASA-SSSA: Madison, WI, USA, 1982; pp. 539–594. [Google Scholar]
- Shi, Z.; Wang, Q.L.; Peng, J.; Ji, W.J.; Liu, H.J.; Li, X.; Rossel, R.A.V. Development of a national VNIR soil-spectral library for soil classification and prediction of organic matter concentrations. Sci. China Earth Sci. 2014, 44, 978–988. [Google Scholar]
- Stevens, A.; Ramirez-Lopez, L. An Introduction to the Prospectr Package. R Package Version 0.2.4. 2022. Available online: https://cran.r-project.org/web/packages/prospectr/ (accessed on 21 May 2022).
- Omidikia, N.; Kompany-Zareh, M. Uninformative variable elimination assisted by Gram–Schmidt Orthogonalization/successive projection algorithm for descriptor selection in QSAR. Chemometr. Intell. Lab. Syst. 2013, 128, 56–65. [Google Scholar] [CrossRef]
- Chu, X.L.; Yuan, H.F.; Lu, W.Z. Progress and application of spectral data pretreatment and wavelength selection methods in NIR analytical technique. Prog. Chem. 2004, 16, 528–542. (In Chinese) [Google Scholar]
- Meyer, D.; Dimitriadou, E.; Hornik, K.; Weingessel, A.; Leisch, F.; Chang, C.C.; Lin, C.C. Support Vector Machines: The Interface to Libsvm in Package e1071. R Package Version: 1.7-9. 2021. Available online: https://cran.r-project.org/web/packages/e1071/ (accessed on 21 May 2022).
- Liland, K.H.; Mevik, B.H.; Wehrens, R.; Hiemstra, P. pls: Partial Least Squares and Principal Component Regression. R Package Version 2.8–0. 2021. Available online: https://cran.r-project.org/web/packages/pls/ (accessed on 21 May 2022).
- R Core Team. R: A Language and Environment for Statistical Computing; R Foundation for Statistical Computing: Vienna, Austria, 2016. [Google Scholar]
- Baumgardner, M.F.; Kristof, S.; Johannsen, C.J.; Zachary, A. Effects of organic matter on the multispectral properties of soils. Indiana Acad. Sci. Proc. 1969, 79, 413–422. [Google Scholar]
- Stenberg, B.; Viscarra Rossel, R.A.; Mouazen, A.M.; Wetterlind, J. Visible and near infrared spectroscopy in soil science. Adv. Agron. 2010, 107, 163–215. [Google Scholar]
- Zheng, G.H.; Ryu, D.; Jiao, C.X.; Hong, C.Q. Estimation of organic matter content in Coastal soil using reflectance spectroscopy. Pedosphere 2016, 26, 130–136. [Google Scholar] [CrossRef]
- Terra, F.S.; Demattê, J.A.M.; Viscarra Rossel, R.A. Spectral libraries for quantitative analyses of tropical Brazilian soils: Comparing vis–NIR and mid-IR reflectance data. Geoderma 2015, 255–256, 81–93. [Google Scholar] [CrossRef]
- Knox, N.M.; Grunwald, S.; McDowell, M.L.; Bruland, G.L.; Myers, D.B.; Harris, W.G. Modelling soil carbon fractions with visible near-infrared (VNIR) and mid-infrared (MIR) spectroscopy. Geoderma 2015, 239–240, 229–239. [Google Scholar] [CrossRef]
- Lu, L.M.; Zhang, P.; Lu, H.L.; Liu, B.Y.; Zhao, M.S. Hyperspectral characteristics of soils in Huaibei plain and estimation of SOM content. Soils 2019, 51, 374–380. (In Chinese) [Google Scholar]
- Wang, Y.C.; Yang, G.J.; Zhu, J.S.; Gu, X.H.; Xu, P.; Liao, Q.H. Estimation of organic matter content of north Fluvo-aquic soil based on the coupling model of wavelet transform and partial least squares. Spectrosc. Spect. Anal. 2014, 34, 1922–1926. (In Chinese) [Google Scholar]
- Yang, H.F.; Zheng, L.M.; Gao, Z.Y.; Wang, R.L.; Wang, Y.B. Hyperspectral characteristics and quantitative estimation model of soil organic carbon in the Shajiang black soil. J. Anhui. Agric. Univ. 2018, 45, 101–109. (In Chinese) [Google Scholar]
Soil Type | Data Sets | n | Range (g/kg) | Mean (g/kg) | SD (a) | Skewness | Kurtosis | CV (b) (%) |
---|---|---|---|---|---|---|---|---|
Paddy soil | All samples | 111 | 15.43~58.22 | 32.13 | 7.21 | 0.50 | 0.92 | 22.44 |
Calibration sets | 74 | 15.43~52.49 | 31.93 | 7.03 | 0.23 | 0.16 | 22.01 | |
Validation sets | 37 | 18.43~58.22 | 32.52 | 7.64 | 0.95 | 2.20 | 23.50 | |
Shajiang black soil | All samples | 108 | 6.65~31.30 | 21.60 | 3.94 | −0.14 | 1.10 | 18.24 |
Calibration sets | 72 | 6.65~30.25 | 21.47 | 4.01 | −0.39 | 1.57 | 18.69 | |
Validation sets | 36 | 15.62~31.30 | 21.84 | 3.82 | 0.46 | −0.08 | 17.50 |
Soil Type | Model (a) | Number of Wavelengths | Calibration Sets | Validation Sets | RPD | LCCC | ||
---|---|---|---|---|---|---|---|---|
RMSEc (g/kg) | RMSEp (g/kg) | |||||||
Paddy soil | R-F-PLSR | Full spectra | 0.83 | 2.86 | 0.76 | 3.66 | 2.06 | 0.88 |
R-UVE-PLSR | 815 | 0.92 | 1.99 | 0.81 | 3.29 | 2.29 | 0.91 | |
R-CARS-PLSR | 61 | 0.91 | 2.09 | 0.87 | 2.68 | 2.81 | 0.93 | |
LR-F-PLSR | Full spectra | 0.95 | 1.62 | 0.80 | 3.37 | 2.24 | 0.90 | |
LR-UVE-PLSR | 884 | 0.90 | 2.16 | 0.86 | 2.77 | 2.72 | 0.92 | |
LR-CARS-PLSR | 125 | 0.95 | 1.58 | 0.90 | 2.43 | 3.01 | 0.95 | |
CR-F-PLSR | Full spectra | 0.70 | 3.81 | 0.62 | 4.66 | 1.62 | 0.79 | |
CR-UVE-PLSR | 268 | 0.88 | 2.38 | 0.87 | 2.77 | 2.72 | 0.92 | |
CR-CARS-PLSR | 70 | 0.97 | 1.21 | 0.95 | 1.72 | 4.31 | 0.97 | |
FDR-F-PLSR | Full spectra | 0.92 | 1.96 | 0.78 | 3.51 | 2.15 | 0.87 | |
FDR-UVE-PLSR | 300 | 0.88 | 2.38 | 0.83 | 3.09 | 2.44 | 0.91 | |
FDR-CARS-PLSR | 70 | 0.91 | 2.03 | 0.94 | 1.81 | 4.18 | 0.97 | |

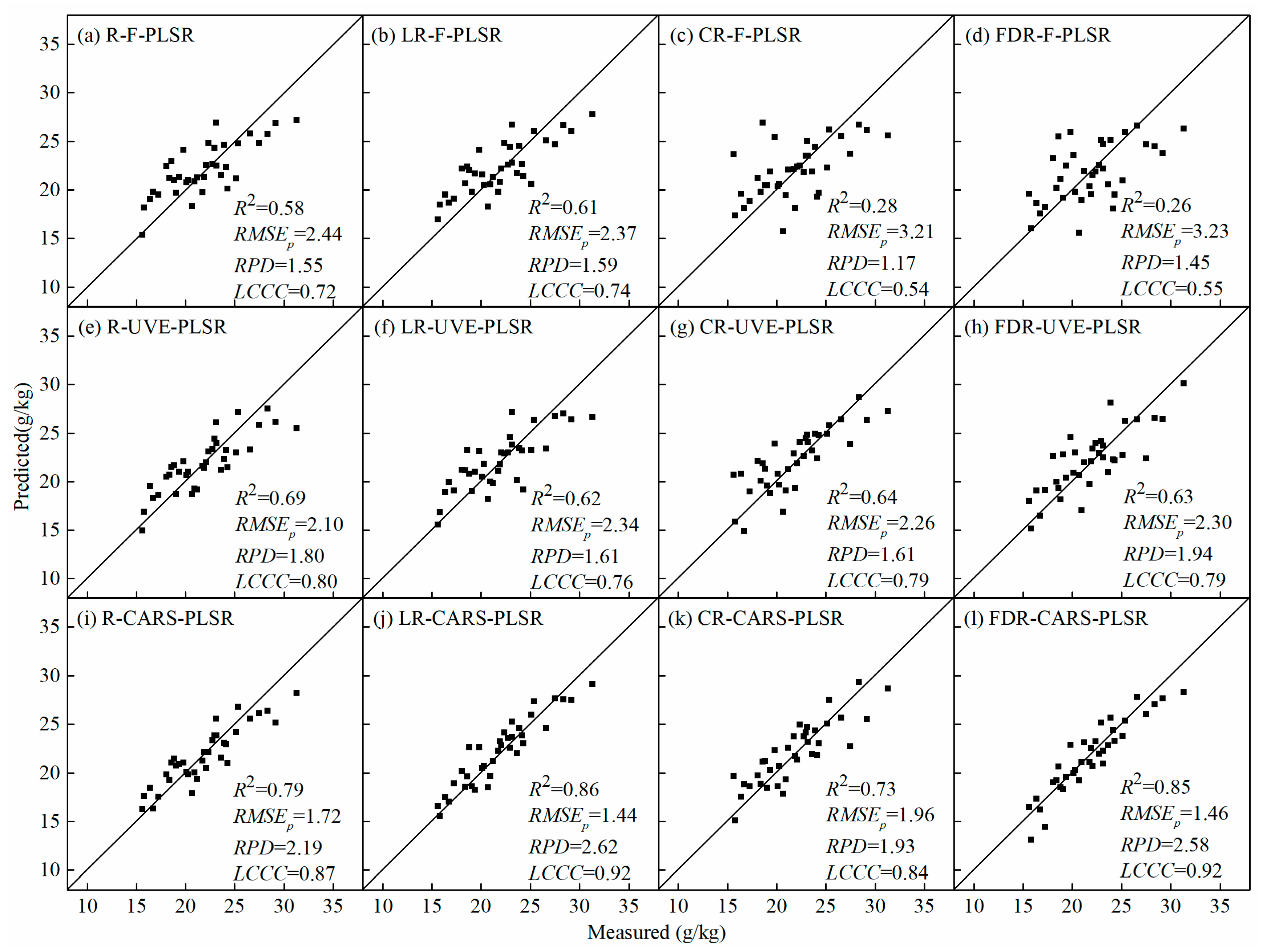

Shajiang black soil | R-F-PLSR | Full spectra | 0.85 | 1.53 | 0.58 | 2.44 | 1.55 | 0.72 |
R-UVE-PLSR | 366 | 0.82 | 1.67 | 0.69 | 2.10 | 1.80 | 0.80 | |
R-CARS-PLSR | 40 | 0.94 | 0.98 | 0.79 | 1.72 | 2.19 | 0.87 | |
LR-F-PLSR | Full spectra | 0.89 | 1.31 | 0.61 | 2.37 | 1.59 | 0.74 | |
LR-UVE-PLSR | 461 | 0.84 | 1.57 | 0.62 | 2.34 | 1.61 | 0.76 | |
LR-CARS-PLSR | 40 | 0.95 | 0.93 | 0.86 | 1.44 | 2.62 | 0.92 | |
CR-F-PLSR | Full spectra | 0.92 | 1.10 | 0.28 | 3.21 | 1.17 | 0.54 | |
CR-UVE-PLSR | 257 | 0.81 | 1.72 | 0.64 | 2.26 | 1.61 | 0.79 | |
CR-CARS-PLSR | 53 | 0.92 | 1.11 | 0.73 | 1.96 | 1.93 | 0.84 | |
FDR-F-PLSR | Full spectra | 0.96 | 0.78 | 0.26 | 3.23 | 1.45 | 0.55 | |
FDR-UVE-PLSR | 105 | 0.82 | 1.67 | 0.63 | 2.30 | 1.94 | 0.79 | |
FDR-CARS-PLSR | 61 | 0.98 | 0.55 | 0.85 | 1.46 | 2.58 | 0.92 |
Soil Type | Model (a) | Best Parameters | Calibration Sets | Validation Sets | RPD | LCCC | ||
---|---|---|---|---|---|---|---|---|
(C) | RMSEc (g/kg) | RMSEp (g/kg) | ||||||
Paddy soil | R-F-SVR | 16 | 0.99 | 0.66 | 0.75 | 4.03 | 1.87 | 0.85 |
R-UVE-SVR | 2 | 0.81 | 3.09 | 0.77 | 3.93 | 1.92 | 0.85 | |
R-CARS-SVR | 16 | 0.89 | 2.57 | 0.88 | 2.85 | 2.70 | 0.92 | |
LR-F-SVR | 4 | 0.95 | 1.60 | 0.83 | 3.20 | 2.36 | 0.90 | |
LR-UVE-SVR | 16 | 0.93 | 1.91 | 0.89 | 2.57 | 2.93 | 0.93 | |
LR-CARS-SVR | 16 | 0.94 | 1.72 | 0.92 | 2.33 | 3.24 | 0.95 | |
CR-F-SVR | 0.0625 | 0.99 | 0.68 | 0.79 | 3.56 | 2.12 | 0.86 | |
CR-UVE-SVR | 0.0625 | 0.90 | 2.20 | 0.85 | 3.08 | 2.45 | 0.91 | |
CR-CARS-SVR | 8 | 0.98 | 1.04 | 0.91 | 2.24 | 3.37 | 0.96 | |
FDR-F-SVR | 0.0625 | 0.99 | 0.65 | 0.76 | 3.96 | 1.90 | 0.86 | |
FDR-UVE-SVR | 0.0625 | 0.95 | 1.56 | 0.78 | 3.61 | 2.09 | 0.88 | |
FDR-CARS-SVR | 0.0625 | 0.93 | 1.94 | 0.91 | 2.37 | 3.18 | 0.94 | |
Shajiang black soil | R-F-SVR | 1 | 0.91 | 1.23 | 0.63 | 2.30 | 1.64 | 0.76 |
R-UVE-SVR | 8 | 0.87 | 1.46 | 0.66 | 2.20 | 1.71 | 0.79 | |
R-CARS-SVR | 16 | 0.94 | 1.00 | 0.77 | 1.79 | 2.10 | 0.86 | |
LR-F-SVR | 1 | 0.92 | 1.17 | 0.61 | 2.36 | 1.60 | 0.75 | |
LR-UVE-SVR | 2 | 0.79 | 1.81 | 0.70 | 2.09 | 1.80 | 0.81 | |
LR-CARS-SVR | 16 | 0.94 | 1.00 | 0.82 | 1.58 | 2.38 | 0.90 | |
CR-F-SVR | 0.0625 | 0.99 | 0.37 | 0.29 | 3.20 | 1.18 | 0.48 | |
CR-UVE-SVR | 0.0625 | 0.95 | 0.91 | 0.63 | 2.34 | 1.61 | 0.77 | |
CR-CARS-SVR | 1 | 0.97 | 0.71 | 0.69 | 2.16 | 1.74 | 0.83 | |
FDR-F-SVR | 0.0625 | 0.99 | 0.38 | 0.36 | 3.07 | 1.23 | 0.58 | |
FDR-UVE-SVR | 0.0625 | 0.91 | 1.18 | 0.67 | 2.23 | 1.69 | 0.77 | |
FDR-CARS-SVR | 0.0625 | 0.99 | 0.45 | 0.83 | 1.58 | 2.38 | 0.91 |
Soil Type | Model (a) | Best Parameters | Calibration Sets | Validation Sets | RPD | LCCC | ||
---|---|---|---|---|---|---|---|---|
(mtry, ntree) | RMSEc (g/kg) | RMSEp (g/kg) | ||||||
Paddy soil | R-F-RF | 9, 200 | 0.43 | 5.28 | 0.51 | 5.44 | 1.39 | 0.63 |
R-UVE-RF | 10, 500 | 0.52 | 5.19 | 0.35 | 5.30 | 1.10 | 0.63 | |
R-CARS-RF | 6, 100 | 0.43 | 5.65 | 0.25 | 5.78 | 1.17 | 0.45 | |
LR-F-RF | 8, 100 | 0.40 | 5.45 | 0.48 | 5.60 | 1.35 | 0.60 | |
LR-UVE-RF | 10, 1500 | 0.43 | 5.26 | 0.48 | 5.50 | 1.37 | 0.63 | |
LR-CARS-RF | 10, 100 | 0.47 | 5.07 | 0.50 | 5.56 | 1.36 | 0.58 | |
CR-F-RF | 6, 200 | 0.47 | 5.16 | 0.64 | 5.05 | 1.49 | 0.65 | |
CR-UVE-RF | 10, 100 | 0.59 | 4.88 | 0.34 | 5.48 | 1.02 | 0.69 | |
CR-CARS-RF | 8, 100 | 0.52 | 5.22 | 0.50 | 4.69 | 1.01 | 0.70 | |
FDR-F-RF | 7, 100 | 0.52 | 4.86 | 0.65 | 4.80 | 1.57 | 0.70 | |
FDR-UVE-RF | 10, 100 | 0.53 | 4.80 | 0.68 | 4.70 | 1.60 | 0.71 | |
FDR-CARS-RF | 6, 100 | 0.51 | 4.87 | 0.66 | 4.76 | 1.57 | 0.70 | |
Shajiang black soil | R-F-RF | 1, 1000 | 0.07 | 4.05 | 0.30 | 3.14 | 1.20 | 0.46 |
R-UVE-RF | 5, 100 | 0.08 | 4.06 | 0.26 | 3.26 | 1.19 | 0.48 | |
R-CARS-RF | 2, 100 | 0.10 | 3.96 | 0.22 | 0.52 | 1.12 | 0.36 | |
LR-F-RF | 1, 500 | 0.06 | 4.08 | 0.28 | 3.19 | 1.18 | 0.45 | |
LR-UVE-RF | 7, 200 | 0.04 | 4.17 | 0.31 | 3.13 | 1.20 | 0.48 | |
LR-CARS-RF | 1, 200 | 0.08 | 3.95 | 0.20 | 3.37 | 1.12 | 0.34 | |
CR-F-RF | 10, 100 | 0.12 | 3.75 | 0.14 | 3.51 | 1.07 | 0.20 | |
CR-UVE-RF | 8, 100 | 0.21 | 3.56 | 0.28 | 3.28 | 1.15 | 0.33 | |
CR-CARS-RF | 8, 200 | 0.20 | 3.64 | 0.21 | 3.41 | 1.09 | 0.26 | |
FDR-F-RF | 10, 100 | 0.30 | 3.39 | 0.51 | 2.84 | 1.33 | 0.53 | |
FDR-UVE-RF | 4, 100 | 0.52 | 2.84 | 0.46 | 2.79 | 1.40 | 0.61 | |
FDR-CARS-RF | 10, 100 | 0.56 | 2.93 | 0.60 | 2.73 | 1.38 | 0.56 |
