Post-Extraction Novel Ecosystems Support Plant and Vegetation Diversity in Urban-Industrial Landscapes

1
Institute of Biology, Biotechnology and Environmental Protection, Faculty of Natural Sciences, University of Silesia in Katowice, 28 Jagiellońska Str., 40-032 Katowice, Poland
2
Institute of Environmental Protection and Engineering, Faculty of Materials, Civil and Environmental Engineering, University of Bielsko-Biala, 2 Willowa Str., 43-309 Bielsko-Biała, Poland
3
Department of Pharmaceutical Botany, Faculty of Pharmaceutical Sciences in Sosnowiec, Medical University of Silesia in Katowice, 30 Ostrogórska Str., 41-200 Sosnowiec, Poland
4
Faculty of Science & Engineering, University of Wolverhampton, Wulfruna Str., Wolverhampton WV1 1LY, UK
*
Author to whom correspondence should be addressed.
Sustainability 2022, 14(13), 7611; https://doi.org/10.3390/su14137611
Submission received: 21 March 2022 / Revised: 9 May 2022 / Accepted: 15 June 2022 / Published: 22 June 2022

Abstract

:
Long-term exploitation of mineral resources has significantly changed the natural environment in urban-industrial landscapes. The changes on the surface of the extraction sites as a consequence of excavation of mineral resources provide specific mineral oligotrophic habitats on which plant species and thus vegetation can establish spontaneously. Some of these sites fulfill the prerequisites of novel ecosystems. This study was conducted on the spontaneous vegetation of post-extraction sites. Lists of species spontaneously covering these sites were prepared based on published data and our own records. This research revealed that species composition and vegetation types vary in time. These post-extraction novel ecosystems are also important for the presence of rare, endangered, and protected species noted in patches of different vegetation types. The variety of habitat conditions provided by these sites facilitates the occurrence of a wide spectrum of plants (both in terms of their socio-ecological origin and their ecological spectrum). This research proves how important these post-extraction novel ecosystems are for supporting plant and vegetation diversity in urban-industrial landscapes. Enhancing the biodiversity significantly increases the ecosystem services delivered by these sites and also the functioning of entire ecosystems. These natural processes on human habitats are essential in urban-industrial ecosystem landscape mosaics.

1. Introduction

In addition to the growth of cities, human industrial activity has increased all over Europe in recent centuries. Since 1800, urbanization has progressed much faster and reached proportions greater than at any other time in the history of the world. Industrialization and commercialization and the development of transport and communication have increased the economic pull of the city, and educational and recreational facilities have also played a crucial role in the growth of cities [1]. All of these are connected with the human pressure on the environment. The long duration of increasing exploitation of mineral resources has changed the natural environment significantly. Changes in the surface of the landscape influence not only the presence of plants and the conditions for developing vegetation but also the biological and environmental processes [2,3,4,5,6,7].
Long-term studies have shown that specific mineral oligotrophic sites which enrich the mosaic of urban-industrial environmental habitats are present as side-products of these places of extraction of mineral resources. These novel ecosystems can provide crucial ecosystem services in the landscape [8,9]. On such sites, biological systems develop spontaneously with previously unknown plant and animal species compositions [10,11,12,13]. This study of the spontaneous flora and vegetation of de novo established habitats such as opencast sandpits, quarries, coal-mine heaps, subsidence reservoirs, and post-coal mine sedimentation pools proved that these habitats are unique and very interesting and not only from the botanical point of view. The species composition and floristic richness of the spontaneous vegetation includes not only common but also rare, endangered, and protected species [14].
We have studied the spontaneously developed vegetation on post-coal mining sites in Upper Silesia for many years. Our long-term study has revealed that the species composition of vegetation patches is based on dominant plant species. Some much less abundant species accompany individuals of the dominant plant species. Furthermore, more than one hundred dominant species were recorded in spontaneous vegetation patches on the mineral substrate of post-coal mining sites. The main dominant herbaceous species of these sites are: Agrostis stolonifera, Calamagrostis epigejos, Carex hirta, Centaurea stoebe, Chamaenerion palustre, Chenopodium album, Cirsium arvense, C. vulgare, Daucus carota, Diplotaxis muralis, Echium vulgare, Eupatorium cannabinum, Hieracium pilosella, Hypericum perforatum, Leontodon autumnalis, Lotus corniculatus, Medicago lupulina, Melilotus albus, Odontites serotina, Phragmites australis, Picris hieracioides, Poa compressa, Puccinellia distans, Solidago gigantea, Tanacetum vulgare, and Tussilago farfara.
The following species were the most frequently recorded accompanying species of these sites: Cardaminopsis arenosa, Hieracium laevigatum, Petrorhagia prolifera, Phleum pratense, Sanguisorba minor, and Senecio viscosus. Our study revealed that this group of species is associated with a higher content of K+. According to the results of our study, there was also a group of species related to a higher content of water holding capacity (WHC%): Calystegia sepium, Dipsacus sylvestris, Epilobium parviflorum, Filago arvensis, Galeopsis tetrahit, Leontodon autumnalis, Lythrum salicaria, Petrorhagia prolifera, Phleum pratense, Plantago major, Rubus caesius, and Urtica dioica. Species associated with a higher pH and a high percentage of small substrate particle size were Apera spica-venti, Artemisia vulgaris, Crepis biennis, Reseda lutea, and Solidago virgaurea. Species associated with a high carbon content (TOC) in the soil were Agrostis vinealis, Chaenorhinum minus, Hieracium umbellatum, Senecio vulgaris, and Sonchus asper.
The accompanying species which occurred less frequently in our study were Achillea millefolium, Agrostis gigantea, Apera spica-venti, Arenaria serpyllifolia, Artemisia vulgaris, Astragalus glycyphyllos, Cardaminopsis arenosa, Centaurea jacea, Chaenorhinum minus, Cichorium intybus, Crepis biennis, Deschampsia caespitosa, Elymus repens, Erigeron annuus, Festuca arundinacea, F. rubra, Hieracium laevigatum, H. sabaudum, H. umbellatum, Juncus inflexus, Lactuca serriola, Lolium perenne, Lupulus polyphyllus, Melandrium album, Melilotus officinalis, Mentha arvensis, Oenothera biennis, Pastinaca sativa, Petrorhagia prolifera, Phleum pratense, Plantago lanceolata, P. major, Poa palustris, Reseda lutea, Rumex acetosa, R. acetosella, Sanguisorba minor, Senecio viscosus, S. vulgaris, Sisymbrium altissimum, Solidago virgaurea, Symphytum officinale, Thlaspi arvense, Trifolium arvense, T. campestre, T. pratense, T. repens, Verbascum lychnitis, Vicia angustifolia, V. cracca, V. hirsuta, and V. tetrasperma.
Extraction sites of mineral resources are scattered all over the urban-industrial region of Silesia, Poland, causing much alteration of the landscape. The long-term careful study of spontaneous colonization succession and the subsequent natural processes associated with the establishment of novel ecosystems provided much data. It has been shown that sites on which the novel ecosystems are established are very effective at obtaining benefits from spontaneous ecosystem functioning and ecosystem services when natural processes, i.e., succession, are involved [9,15,16,17,18,19,20,21,22]. The novel ecosystems of post-extraction or post-industrial sites are places where the ecological threshold must be crossed. Some studies have shown that the effectiveness of restoration within its classical definition is not possible anymore [23,24,25]. Novel ecosystems are developing on intensively transformed sites or have arisen and established de novo. These are characterized as unusual habitats. The vegetation and hence these ecosystems are composed of new plant and animal species assemblages selected by mechanisms of environmental filtering which are determined by synergetic feedback relations that have previously been unknown, unobserved, and not recorded in natural and semi-natural ecosystems [23,25,26].
The aims of the research were to: (i) present some aspects of the diversity of plant species composition and the spontaneous vegetation of highly transformed and newly created mineral habitats of novel ecosystems; and (ii) show the ecological spectrum of the assembled plant species with particular emphasis on the rare, endangered, and protected species growing spontaneously on the studied habitats.

2. Materials and Methods

2.1. Characteristics of the Research Area

The examined post-extraction sites (Table 1) are located all over the Silesian Voivodeship, which is located in the south of Poland, within three river basins: the Odra and the Vistula, and in a small part of the Danube [2,27]. Considering the physical and geographic division of Kondracki’s Poland [28] modified by Solon et al. [29], the Silesian Voivodeship is located within three units: Central European Lowlands, Polish Highlands, and Western Carpathians with Podkarpacie [29]. The Śląskie Voivodeship is distinguished by its rich mineral resources. The main mineral resources excavated in this region are hard coal, sand, gravel, and limestone. Intensive industrialization and urbanization have resulted in the transformation of the geographical environment [2,8]. The study area includes the largest urban and industrial agglomeration in Poland (Figure 1).

2.2. Data Acquisition

Plant species and vegetation communities have been recorded during the study focused on the analysis of the diversity of spontaneous vegetation patches on post-coal mine heaps [26] and sedimentation pools (authors’ own study); additionally, records from quarries, opencast sandpits, and subsidence reservoirs from the Silesia Region have mostly been obtained [35].
Most of the analyzed data were collected during the authors’ own field studies. Some of the data about the vascular plant species assembled in vegetation spontaneously occurring on post-mineral extraction sites were obtained from published papers [16,36,37,38,39,40,41,42,43,44,45,46,47,48]. All of these publications have been analyzed to show that some of the vascular plant species and subspecies spontaneously colonizing the studied post-mineral extraction sites are rare, protected, or endangered [49,50,51].
Based on the available published data [16,36,37,38,39,40,41,42,43,44,45,46,47,48,49,50,51] and our own field records, lists of species colonizing the mineral post-extraction sites were prepared. These articles were found using the different databases of peer reviewed journal articles (e.g., Google Scholar, Scopus, Web of Science, or Science Direct). The following habitats were analyzed during the research: quarries, opencast sandpits, post-coal mining heaps, subsidence reservoirs, and sedimentation pools. Our ecological analysis included: light index (L), thermal index (T), moisture index (F), trophism index (Tr), and soil acidity index (R). The values of the listed indicators were taken from the Pladias scale [52]. The use of this scale was connected with adjusting this scale to our flora. The syntaxonomic affiliation of plant species was also determined in this research [53,54]. Most of our analyses were based on data obtained during fieldwork at post-coal mine heaps. In order to present a wider perspective on mineral habitats, a comparison was made of the heaps with quarries, opencast sandpits, subsidence reservoirs, and sedimentation pools. The limitations of this study were connected with the number of available mineral extraction habitats as well as with the difficulties in accessing their location which were often in very difficult to access anthropogenic areas.
The significance of the variety in the analyzed socio-ecological groups of species of different ages and areas of heaps was presented. For the differences in participation of threat categories, contingency tables were used. The G-test, instead of the Chi-square test, was used (because of the possible zeros in the database table) with p-level at p < 0.05. The R language and environment with the package “DescTools” has been used for statistical analyzes.

3. Results

3.1. The Plant and Vegetation Diversity of the Post-Extraction Sites

Post-mineral extraction novel ecosystems play a crucial role in the urban-industrial landscape. These sites, including post-coal mine heaps and sedimentation pools, are spontaneously colonized by living organisms because these sites provide specific habitat conditions for growth and development of plants, and the living organisms associated with them, and their different plant communities [26]. Among the autotrophic organisms, the plant species accumulated energy into biomass and started the matter-energy ecosystem flow. Over 500 vascular plant species have been recorded, both on the post-coal mine heaps and the post-coal mining sedimentation pools [8,15,26,41,55]. Similar to these two types of post-coal mining sites, the vascular plant species flora of opencast sandpits, and quarries also showed high floristic richness [8,16,17,36,37,38,39,40,41,42,43,44,45,46,47,48]. Among the notable vascular plant species, 154 interesting species have been recorded which are rare, endangered, and protected.
The study of the habitat conditions affecting the diversity of the species composition of spontaneous vegetation on post-coal mining heaps and sedimentation pools in Upper Silesia has shown that both plant species number and abundance along with vegetation diversity are varied in time. In early establishment post-coal mining heaps (aged up to 10 years) and sedimentation pools, the development of the vascular plant species composition of the spontaneous vegetation patches is highly diverse.
Considering the diversity of the vegetation and the age of the heap, attention should be paid to the fact that it is a similar dependence to the diversity of the species composition of spontaneous vegetation. Vegetation types also vary with time. The highest diversity is found on the youngest sites (post-coal mining sites aged up to 10 years). The most common socio-ecological groups are karst vegetation, agricultural weeds, and patches of ruderal species. On the older sites (aged up to 30 years and older), the vegetation patches cover larger areas and mosaic patches are recognizable. With increasing age of the heap, the diversity of vegetation types is lower, and the share of the species associated with the forest socio-ecological group increases; hence, the sites aged more than 60 years are mainly dominated by forest species (Figure 2).
By analyzing the diversity of the vegetation species composition on post-coal mining heaps in relation to different areas (ha) of heaps, it was found that the post-coal mining heaps with an area of up to 50 ha are covered by the most diverse number of vegetation types. The vegetation patches recorded on these heaps are represented by all the main vegetation types. The patches of ruderal, aquatic, forest, and agricultural weed vegetation types were the most frequent (Figure 3).
Among the agricultural weeds, the following species are listed: Apera spica-venti, Chenopodium album, Ch. rubrum, Echinochloa crus-galli, Galeopsis tetrahit, Geranium robertianum, Senecio vulgaris, Tussilago farfara, Urtica dioica. The main karst species is Chamaenerion palustre, which is very abundant on post-coal mining heaps. The frequent salt marsh species are Atriplex prostrata subsp. salina, Puccinellia distans, Spergularia salina, and Triglochin palustre. The main fringe vegetation species are Calamagrostis epigejos, Calystegia sepium, Epilobium parviflorum, and Geranium robertianum. Grassland species recorded are Arenaria serpyllifolia, Cardaminopsis arenosa, Festuca rubra, Pastinaca sativa, Rumex acetosella, and Trifolium arvense, while among the forest species the following should be listed Betula pendula, Deschampsia flexuosa, Mycelis muralis, Pinus sylvestris, Populus tremula, Rubus caesius, Salix cinerea, Sambucus nigra, Solidago virgaurea, Sorbus aucuparia, and Trientalis europaea.
The studied sites are vitally important for many interesting vascular plant species. Rare, endangered, and protected species appear in all the studied habitat types. Most of them appear on heaps and sedimentation pools which are also rich in these species. According to Woźniak [8] as well as Bacler-Żbikowska and Nowak [30], the rare, endangered, and protected vascular plant species were recorded on different post-mineral extraction sites. These are the following: Centaurium erythraea subsp. erythraea, Epipactis atrorubens, E. palustris, Eriophorum latifolium, Liparis loeselii, Malaxis monophyllos, Melampyrum sylvaticum, Myricaria germanica, Najas marina, Neottia nidus-avis, Polypodium vulgare, Pyrola chlorantha, P. minor, Schoenoplectus tabernaemontani, and Utricularia australis. Among the rare, endangered, and protected plants species recorded on post-mineral extraction sites, many of them are threatened at the regional and country scale and represent different threat categories. Many of them are vulnerable (VU) on a regional scale, and on the other hand, near threatened (NT) at a country scale. It is worth noting that there are also high-risk species at the European and world scale among the studied species, e.g., the numerous and developing populations of Liparis loeselii. This species deserves particular attention because it is listed in Annex II of the EU Habitats Directive [56]. These rare, endangered, and protected plants species are a valuable element of the studied flora and enrich not only the diversity of these types of habitats, but also other urban and industrial landscapes.

3.2. The Ecological Spectrum of the Rare, Endangered, and Protected Plant Species of the Novel Ecosystem Habitats

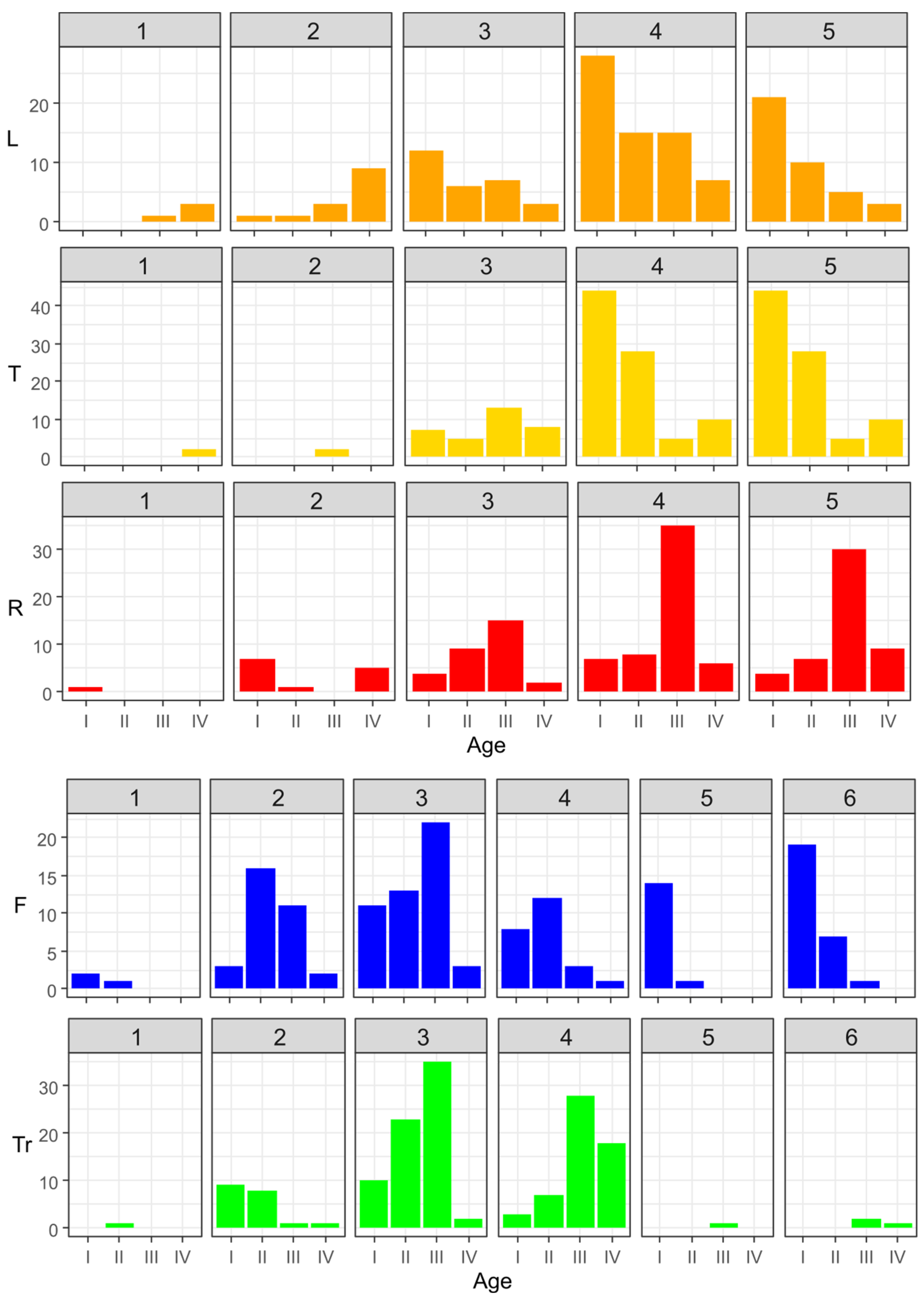

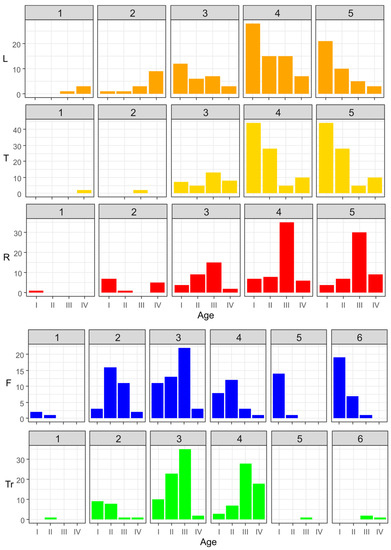

The ecological spectrum of rare, endangered, and protected plant species establishing, colonizing, spreading into, and assembled in vegetation patches on novel ecosystem habitats is presented here. The analysis of abiotic habitat conditions has been divided into groups in terms of the indicators of light, temperature, moisture, trophism, and soil acidity (Figure 4).
Considering the light index (L), it was found that moderate light and full light species predominate on the post-coal mining sites (aged up to 10 years). On these heaps, it is not possible to observe deep shade plants at all. On the older sites (aged up to 60 years and older), there is a greater variety of plants representative of a wide spectrum of the light index (1–5). In relation to the thermal index (T), in plants found in each age group of heaps, most species represent habitats with moderately cold and moderately warm climatic conditions. Only on older heaps are there fewer species associated with colder areas. For the moisture index (F), on the studied post-extraction sites, the numerous groups of species are representative of habitats with moderately moist conditions. In terms of the trophism index (Tr) of plants found in each age group of heaps, soils are mostly moderately rich and rich (with the occurrence of mesophrophic and eutrophic species). The differentiation of the soil acidity index (R) has shown a wider spectrum of this index in the case of plants on younger heaps. On heaps aged up to 60 years, there is a greater dominance of species on sub-neutral to neutral and alkaline soils. Only heaps of the first age category have shown species that represent each value of this index.
Explanations:
  • Differences in participation are significant according to G-test for L (G = 21.122, p = 0.006829), T (G = 33.496, p < 0.001), R (G = 21.964, p = 0.004983) and Tr (G = 41.935, p < 0.0001), and non-significant for F (G = 16.406, p = 0.08858).
  • The age of heaps: I—up to 10 years, II—up to 30 years, III—up to 60 years, IV—more than 60 years.
  • Light index (L): 1—deep shade, 2—moderate shade, 3—half shade, 4—moderate light, 5—full light.
  • Thermal index (T): 1—coldest areas in the country, mainly alpine and subnivean zones, 2—moderately cold areas, mainly subalpine and upper mountain zones, 3—moderately cold climatic conditions, lower mountain zone, northern division in lowlands and special microhabitats—raised bogs, 4—moderately warm climatic conditions, most of the lowland and colline region, 5—warmest regions and microhabitats.
  • Soil acidity index (R): 1—highly acidic soils (pH < 4), 2—acidic soils (4 ≤ pH < 5), 3—moderately acidic (5 ≤ pH < 6), 4—neutral soils (6 ≤ pH < 7), 5—alkaline (pH > 7).
  • Moisture index (F): 1—very dry habitats, 2—dry habitats, 3—fresh habitats, 4—moist habitats, 5—wet habitats, 6—aquatic.
  • Trophism index (Tr): 1—extremely poor (extremely oligotrophic) soils (water)—raised bogs, loose sand, dry coniferous forest, 2—poor (oligotrophic) soils (water)—fresh coniferous forest, 3—moderately poor (mesotrophic) soils (water)—mixed forest, acidophilous oak and beech forests, 4—rich (eutrophic) soils (water)—lowland, fertile beech forests, 5—very rich (extremely fertile) soils (water), 6—over-fertilized soils (water).

4. Discussion

4.1. Novel Habitats, Diversity of Plant Species and Vegetation

The feedback relations between various assemblages of organisms and abiotic elements of ecosystems are assessed based on our current scientific knowledge about natural and semi-natural ecosystems. There are many publications relating to relationships between novel ecosystems, habitat variability, biodiversity, ecosystem functioning, and ecosystem services. These subjects are still discussed and studied in the scientific literature [9,57,58]. Biodiversity is a multilevel, hierarchical system of increasing complexity of all levels of biological organization (genes, individual organisms, species populations, communities, and ecosystem mosaics). The role of individuals of single species in providing specific ecosystem services is difficult to estimate [59]. It is easier when the role of the keystone species is considered. The assemblages of living organisms, not individuals of separate species, directly interact with the abiotic habitat patch conditions. Diversity of the species composition of the diverse community patches reflects the complexity and plays a crucial role in enhancing resistance to habitat disturbances and biotic transformation such as by invasion of alien species [60]. In natural or semi-natural ecosystems, living organisms such as plants are assembled and persist in dynamic equilibrium with the habitat conditions. Species abundance and composition varies temporally and spatially within particular natural and semi-natural ecosystems. The gradients of abiotic parameters are the factors of spatial heterogeneity [61], and the dynamics of species populations lead to temporal heterogeneity in natural and semi-natural ecosystems [62]. Some studies have shown that vegetation species composition and their associated functional diversity underpin higher stability and resistance (resilience) of the ecosystem. It is known that ecosystem processes and functioning enhance the ability to provide a wider range of ecosystem services [9,42,63].
Modifications in biodiversity cause changes in ecosystem functioning. One gene altering the tolerance of a plant to stress can significantly increase the amount of biomass in a particular ecosystem. The differences in species composition and abundance of Fabaceae in vegetation patches can influence the nitrogen cycle [64]. The wide range of adaptive abilities of living organisms allows them to grow in de novo established habitats. The adaptive and evolutionary basis of biodiversity are responses to habitat constraints. The challenging conditions of post-mineral extraction sites and some other urban-industrial habitats created de novo and novel ecosystem habitats play a vitally important role in stimulating the adaptive and evolving processes of living organisms [65,66].
Vegetation, and its associated species diversity, is influencing the stimulation of soil-forming processes, atmosphere regulation, prevention of erosion, and the abundance of pollinators [57,67]. Scientific research confirms that enhancing biodiversity, particularly rare, protected, and endangered plant species, and vegetation, significantly influences ecosystem services and the functioning of entire ecosystems [4,21,68,69,70,71].
In the post-industrial landscape of Silesia (Silesian Upland), Bacler-Żbikowska and Nowak [30] distinguished 7.4% of notable rare, protected, and endangered species in the flora of the Silesia Region. The presence of rare, protected, and endangered species in the Silesian urban-industrial sites provides evidence that the conditions of some urban-industrial areas, particularly those of post-mineral extraction, are appropriate as refuges and secondary habitats for these species. The open post-mineral extraction poor oligotrophic areas enable the growth, spontaneous colonization, spread, establishment, persistence, and survival of rare, protected, and endangered plant species [30,72].
The importance of the diversity of the species composition of the spontaneous vegetation within novel ecosystem habitats for enhancing and maintaining biodiversity should be understood by decision makers and practitioners. The management of these sites in urban-industrial landscapes must be carried out based on the newest scientific environmental knowledge, particularly in respect to their provision of ecosystem services in densely populated urban-industrial areas.

4.2. Energy and Matter Flow

In natural and semi-natural habitats, an ecosystem is defined as a system of biotic and abiotic elements linked by processes due to which the flow of energy and matter takes place. Likewise, for novel ecosystems, the relationship between biodiversity and the functioning of ecosystems should not be based on studies of ecological groups of living organisms by looking only at species composition. The aspect of dynamics should not be overlooked. The research focused on the flux of energy absorbed by the autotrophic organisms, mostly plants, and matter flow through the system can be a key feature.
For novel ecosystems, indicators measuring different aspects of biodiversity along environmental and development gradients may prove helpful. The complexity of biodiversity at a certain scale, such as the richness of species in a landscape, may be important [73]. Among ecosystem processes, the measures of biomass or acquisition of nutrients can be utilized. Both are crucial in the assessment of ecosystem services.
Apart from measuring the dynamic ecosystem processes, it is important to predict the relationship between biodiversity change and the diversity of ecosystem processes and functioning. There is a need to measure the influence of biodiversity increase, or decrease, over a range of changes in environmental conditions. Similarly, it is important to be able to assess the influence of biodiversity change after anthropogenic and environmental stresses of socio-economic systems without loss of their value [74,75]. Analysis of the relationships between biodiversity change, ecological and ecosystem processes, and functioning (provision of services) is very important. Changes in climate are also very important [76]. A scientific understanding of the environmental processes can help to protect and enhance the maintenance of an ecosystem mosaic and to support the resilience of complex systems in urban-industrial landscapes. The need for models that reflect links between plant species composition of vegetation, biodiversity, and ecosystem processes is undeniable as the prerequisite for the provision of ecosystem services [77].

4.3. The Results of the Study in a Broader Context

The scope of the presented study limits the area that could be considered. The rare, endangered, and protected species can be analyzed only in accordance with a particular area under specific circumstances. In the broader sense, the scientific issues related to post-mineral extraction and some post-industrial habitat conditions enhance the adaptation process at a species, community, and ecosystem scale. In this respect, post-extraction and post-industrial sites should be considered in terms of the capability of individuals of selected plant species to tolerate challenging habitat conditions [78,79,80,81]. The role of some post-extraction and post-industrial sites in enhancing the local biodiversity and ecological processes, such as succession, is presented by Mota et al. [82,83] and Musarella et al. [84]. Woźniak et al. [85] pay particular attention to the functional diversity on such habitats. Such aspects affect the adaptation processes of living organisms and the increase of biodiversity on post-extraction and post-industrial sites should be reflected in the management decisions for these sites [86,87].

5. Conclusions

5.1. The Diversity of Plant Species and Vegetation of Novel Habitats

This research shows how important novel ecosystems on post-mineral extraction sites are at supporting plant and vegetation diversity within the urban-industrial landscape. The studied sites are vitally important for many interesting plant species (e.g., rare, endangered, and protected species). Ecological analysis of these species has shown that plants from a wide ecological spectrum appear in this type of habitat. Their occurrence is connected with the variety of habitat conditions provided by the environment of post-mineral extraction and of some post-industrial areas (giving rise to novel ecosystems). Thus, the habitat conditions of post-industrial areas help many living organisms to survive, particularly plants, in the urban-industrial landscape after the constraints caused by the massive eutrophication of terrestrial wetland and water habitats. An inter-related variety of natural processes are maintaining these urban ecosystems. Environmental function is of crucial importance in these mosaics of novel ecosystems within the urban-industrial landscape.

5.2. The Importance of Novel Ecosystems in Urban Post-Industrial Sites

The nutrient-poor, oligotrophic, post-mineral extraction sites enable the colonization and establishment of not only common but also rare, endangered, and protected plant species. Along with the occurrence of these plant species in the patches of recently assembled vegetation, natural processes enhance the diversity of above- and below-ground living organisms. The species composition of the vegetation is ruling the above- and below-ground ecosystem processes. This shows the close relationship between vascular plant species diversity, as the primary producers which promote energy and biomass during ecosystem functioning, and the provision of ecosystem services.

5.3. Novel Ecosystem Habitats—The Need for Good Environmental Decisions and the Possibilities of Management Projects

The occurrence of high species diversity within the recorded patches of spontaneous vegetation growing on post-extraction sites must be recognized during the environmental management of the legacy of these industrial sites. The management of novel ecosystem habitats also needs to be taken into account when making decisions about the long-term future of these post-industrial sites.

5.4. The Potential of Novel Ecosystems

In the future, these studies can be used for comparative purposes with other novel ecosystem habitats from other regions of Poland or with those of another country. Furthermore, this type of research could help in increasing our understanding of the potential of novel ecosystems and the role they play in the provision of ecosystem services.

Author Contributions

Conceptualization, G.W. and A.H.; methodology, D.C.; validation, G.W., D.C., T.N., B.B.-Ż. and A.H.; formal analysis, G.W., D.C., T.N., B.B.-Ż. and A.H.; investigation, G.W., D.C., T.N., B.B.-Ż. and A.H.; resources, G.W., D.C., T.N., B.B.-Ż. and A.H.; writing—original draft preparation, G.W. and A.H.; writing—review and editing, G.W., D.C., T.N., B.B.-Ż., L.B. and A.H.; visualization, D.C.; supervision, G.W.; project administration, G.W.; funding acquisition, G.W. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by The National Centre for Research and Development, Grant Number: NCN 6P04G05312 (Convergence and divergence of vegetation on the Carboniferous rocks); TANGO1/268600/NCBR/2015 (INFOREVITA—System wspomagania rewitalizacji zwałowisk odpadów pogórniczych przy użyciu narzędzi geoinformatycznych); National Science Centre Poland, Grant Number: OPUS 2017/25/B/NZ8/02449 (Ocena zależności pomiędzy funkcjonalną różnorodnością roślin, strukturą zespołów mikroorganizmów i bilans węgla w czasie spontanicznej sukcesji na terenach poprzemysłowych z wykorzystaniem analiz metatranskryptomicznych); OPUS 2019/35/B/ST10/04141 (Linking soil substrate biogeochemical properties and spontaneous succession on post-mining areas: novel ecosystems in a human-transformed landscape), Grant Number: PCN-1-037/K/1/F (Distribution, resources, ecology and conservation status of medicinal plant populations in southern Poland).

Conflicts of Interest

The authors declare no conflict of interest.

References and Note

  1. Mohita. Available online: https://www.yourarticlelibrary.com/essay/factors-influencing-growth-of-cities-around-the-world/24287 (accessed on 17 February 2022).
  2. Dulias, R.; Hibszer, A. Województwo śląskie. Przyroda. Gospodarka. Dziedzictwo Kulturowe; Wydawnictwo Kubajak: Kraków, Poland, 2004; pp. 1–224. [Google Scholar]
  3. MEA—Millennium Ecosystem Assessment. Ecosystems and Human Well-Being: Biodiversity Synthesis. World Resources Institute. Washington, DC. 2005. Available online: https://www.millenniumassessment.org/documents/document.354.aspx.pdf (accessed on 15 February 2022).
  4. de Groot, R.S.; Alkemade, R.; Braat, L.; Hein, L.; Willemen, L. Challenges in integrating the concept of ecosystem services and values in landscape planning, management and decision making. Ecol. Complex. 2010, 7, 260–272. [Google Scholar] [CrossRef]
  5. Chmura, D.; Molenda, T.; Błońska, A.; Woźniak, G. Sites of leachate inflows on coalmine heaps as refuges of rare mountainous species. Pol. J. Environ. Stud. 2011, 20, 551–557. [Google Scholar]
  6. Dulias, R. Geografia Fizyczna Wyżyny Śląskiej; Podręczniki i Skrypty Uniwersytetu Śląskiego w Katowicach nr 201; Wydawnictwo Uniwersytetu Śląskiego: Katowice, Poland, 2018; pp. 1–214. [Google Scholar]
  7. Kompała-Bąba, A.; Sierka, E.; Dyderski, M.K.; Bierza, W.; Magurno, F.; Besenyei, L.; Błońska, A.; Ryś, K.; Jagodziński, A.M.; Woźniak, G. Do the dominant plant species impact the substrate and vegetation composition of post-coal mining spoil heaps? Ecol. Eng. 2020, 143, 105685. [Google Scholar] [CrossRef]
  8. Woźniak, G. The Potential of Post-Excavation Novel Ecosystems of Enhancing Vegetation and Rare Plant Species Diversity, Influencing the Ecosystem Services Provision. J. Min. Mech. Eng. 2021, 1, 138–145. [Google Scholar]
  9. Woźniak, G.; Sierka, E.; Wheeler, A. Urban and Industrial Habitats: How Important They Are for Ecosystem Services. In Ecosystem Services and Global Ecology; Hufnagel, L., Ed.; IntechOpen: London, UK, 2018; pp. 169–194. [Google Scholar]
  10. Błońska, A.; Kompała-Bąba, A.; Sierka, E.; Besenyei, L.; Magurno, F.; Frydecka, K.; Bierza, W.; Woźniak, G. Impact of selected plant species on enzymatic activity of soil substratum on post-mining heaps. J. Ecol. Eng. 2019, 20, 138–144. [Google Scholar] [CrossRef]
  11. Błońska, A.; Kompała-Bąba, A.; Sierka, E.; Bierza, W.; Magurno, F.; Besenyei, L.; Ryś, K.; Woźniak, G. Diversity of vegetation dominated by selected grass species on coal-mine spoil heaps in terms of reclamation of post-industrial areas. J. Ecol. Eng. 2019, 20, 209–217. [Google Scholar] [CrossRef]
  12. Kompała-Bąba, A.; Bierza, W.; Sierka, E.; Błońska, A.; Besenyei, L.; Woźniak, G. The role of plants and soil properties in the enzyme activities of substrates on hard coal mine spoil heaps. Sci. Rep. 2021, 11, 5155. [Google Scholar] [CrossRef]
  13. Woźniak, G.; Dyderski, M.K.; Kompała-Bąba, A.; Jagodziński, A.M.; Pasierbiński, A.; Błońska, A.; Bierza, W.; Magurno, F.; Sierka, E. Use of remote sensing to track postindustrial vegetation development. Land Degrad. Dev. 2021, 32, 1426–1439. [Google Scholar] [CrossRef]
  14. Nowak, T.; Jędrzejczyk-Korycińska, M.; Kapusta, P.; Szarek-Łukaszewska, G. Chapter 8, Characteristics in the vascular plant flora in the Olkusz Ore-bearing Region. In Natural and Historical Values of the Olkusz Ore-Bearing Region; Godzik, B., Ed.; W. Szafer Institute of Botany Polish Academy of Sciences: Kraków, Poland, 2015; pp. 147–166. [Google Scholar]
  15. Woźniak, G. Primary succession on the sedimentation pools of coal mine. In Synanthropization of Plant Cover in New Polish Research; Faliński, J.B., Adamowski, W., Jackowiak, B., Eds.; Phytocoenosis (N.S.) Supplementum Cartographiae Geobotanicae; Wydawnictwo Uniwersytetu Warszawskiego: Warszawa, Poland, 1998; Volume 10, pp. 189–198. [Google Scholar]
  16. Woźniak, G.; Kompała, A. Gatunki chronione i rzadkie na nieużytkach poprzemysłowych. In Problemy Środowiska i Jego Ochrony; Nakonieczny, M., Ed.; Wydawnictwo Uniwersytetu Śląskiego: Katowice, Poland, 2000; Volume 8, pp. 101–109. [Google Scholar]
  17. Woźniak, G.; Kompała, A. Rola procesów naturalnych w rekultywacji nieużytków poprzemysłowych. Inżynieria Ekol. 2000, 1, 87–93. [Google Scholar]
  18. Bruggeman, D.J.; Jones, M.L.; Lupi, F.; Scribner, K.T. Landscape Equivalency Analysis: Methodology for Estimating Spatially Explicit Biodiversity Credits. Environ. Manag. 2005, 36, 518–534. [Google Scholar] [CrossRef]
  19. Kremen, C. Managing ecosystem services: What do we need to know about their ecology? Ecol. Lett. 2005, 8, 468–479. [Google Scholar] [CrossRef] [PubMed]
  20. Woźniak, G.; Cohn, E.V.J. Monitoring of spontaneous vegetation dynamics on post coal mining waste sites in Upper Silesia, Poland. In Geotechnical and Environmental Aspects of Waste Disposal Sites; Sarsby, R., Felton, A., Eds.; Taylor and Francis Group: London, UK, 2007; pp. 289–294. [Google Scholar]
  21. Larondelle, N.; Haase, D. Valuing post-mining landscapes using an ecosystem services approach—An example from Germany. Ecol. Indic. 2012, 18, 567–574. [Google Scholar] [CrossRef]
  22. Chmura, D.; Nejfeld, P.; Borowska, M.; Woźniak, G.; Nowak, T.; Tokarska-Guzik, B. The importance of land use type in Fallopia (Reynoutria) japonica invasion in the suburban environment. Pol. J. Ecol. 2013, 61, 379–384. [Google Scholar]
  23. Hobbs, R.J.; Higgs, E.; Harris, J.A. Novel ecosystems: Implications for conservation and restoration. Trends Ecol. Evol. 2009, 24, 599–605. [Google Scholar] [CrossRef]
  24. Tropek, R.; Kadlec, T.; Hejda, M.; Kocarek, P.; Skuhrovec, J.; Malenovsky, I.; Vodka, S.; Spitzer, L.; Banar, P.; Konvicka, M. Technical reclamations are wasting the conservation potential of post-mining sites. A case study of black coal spoil dumps. Ecol. Eng. 2012, 43, 13–18. [Google Scholar] [CrossRef]
  25. Hobbs, R.J.; Higgs, E.S.; Hall, C.M. (Eds.) Chapter 6, Defining novel ecosystems. In Novel Ecosystems: Intervening in the New Ecological World Order; John Wiley & Sons, Ltd.: Hoboken, NJ, USA, 2013; pp. 58–60. [Google Scholar]
  26. Woźniak, G. Zróżnicowanie Roślinności na Zwałach Pogórniczych Górnego Śląska; Instytut Botaniki im. W. Szafera PAN: Kraków, Poland, 2010; pp. 1–320. [Google Scholar]
  27. Opracowanie ekofizjograficzne do Planu Zagospodarowania Przestrzennego Województwa Śląskiego; Centrum Dziedzictwa Przyrody Górnego Śląska: Katowice, Poland, 2015; pp. 5–113.
  28. Kondracki, J. Geografia Regionalna Polski; Wydawnictwo Naukowe PWN: Warszawa, Poland, 2011; pp. 1–440. [Google Scholar]
  29. Solon, J.; Borzyszkowski, J.; Bidłasik, M.; Richling, A.; Badora, K.; Balon, J.; Brzezińska-Wójcik, T.; Chabudziński, Ł.; Dobrowolski, R.; Grzegorczyk, I.; et al. Physico-geographical mesoregions of Poland: Verification and adjustment of boundaries on the basis of contemporary spatial data. Geogr. Pol. 2018, 91, 143–170. [Google Scholar] [CrossRef]
  30. Bacler-Żbikowska, B.; Nowak, T. The Role of Post-Industrial Sites in Maintaining Species Diversity of Rare, Endangered and Protected Vascular Plant Species on the Example of the Silesian Upland. In Green Scenarios: Mining Industry Responses to Environmental Challenges of the Anthropocene Epoch; Dyczko, A., Jagodziński, A.M., Woźniak, G., Eds.; CRC Press Taylor & Francis Group: London, UK, 2022; pp. 259–277. [Google Scholar]
  31. Czylok, A. Wyrobiska po Eksploatacji Piasku na Wyżynie Śląskiej i ich Roślinność. In Zróżnicowanie i Przemiany Środowiska Przyrodniczo-Kulturowego Wyżyny Krakowsko-Częstochowskiej; Partyka, J., Ed.; Wyd. Ojcowski Park Narodowy: Ojców, Poland, 2004; pp. 205–212. [Google Scholar]
  32. Machowski, R. Zbiorniki w nieckach osiadania i zapadliskach w krajobrazie Wyżyny Śląskiej. Woda w przestrzeni przyrodniczej i kulturowej. Pr. Kom. Kraj. Kult. 2003, 2, 115–123. [Google Scholar]
  33. Rzętała, M. Funkcjonowanie Zbiorników Wodnych Oraz Przebieg Procesów Limnicznych w Warunkach Zróżnicowanej Antropopresji na Przykładzie Regionu Górnośląskiego; Wydawnictwo Uniwersytetu Śląskiego: Katowice, Poland, 2008; pp. 1–172. [Google Scholar]
  34. Rzętała, M.; Jaguś, A. New lake district in Europe: Origin and hydrochemical characteristic. Water Environ. J. 2012, 26, 108–117. [Google Scholar] [CrossRef]
  35. Bąba, W.; Kompała, A. Piaskownie jako centra bioróżnorodności. Sr. I Rozw. 2003, 7, 85–101. [Google Scholar]
  36. Celiński, F.; Ludera, F.; Rostański, K.; Sendek, A.; Wika, S. Nowe stanowiska rzadkich roślin naczyniowych na Górnym Śląsku i terenach przyległych. Cz. I i II. Zesz. Przyr. OTPN 1975, 14–15, 11–31. [Google Scholar]
  37. Celiński, F.; Rostański, K.; Sendek, A.; Wika, S.; Cabała, S. Nowe stanowiska rzadkich roślin naczyniowych na Górnym Śląsku i terenach przyległych. Cz. III. Zesz. Przyr. OTPN 1976, 16, 15–31. [Google Scholar]
  38. Bernacki, L.; Butwiłowska, B.; Bernacka, M. Występowanie Iris sibirica L. i Gladiolus imbricatus L. w zachodniej części Płaskowyżu Rybnickiego (Wyżyna Śląska). Acta Biol. Sil. 1997, 30, 153–160. [Google Scholar]
  39. Woźniak, G.; Rostański, A. Rola traw w spontanicznej sukcesji roślinnej na osadnikach ziemnych wód kopalnianych na Górnym Śląsku. Łąkarstwo W Polsce 2000, 3, 159–169. [Google Scholar]
  40. Pasierbiński, A.; Rostański, A. Zróżnicowanie flory naczyniowej zwałowisk pogórniczych zlokalizowanych na terenach leśnych aglomeracji katowickiej. Nat. Sil. Super. Supl. 2001, 5, 19–31. [Google Scholar]
  41. Rostański, A. Spontaniczne Kształtowanie Się Pokrywy Roślinnej na Zwałowiskach po Górnictwie Węgla Kamiennego na Górnym Śląsku; Prace Naukowe Uniwersytetu Śląskiego w Katowicach Nr 2410; Wydawnictwo Uniwersytetu Śląskiego: Katowice, Poland, 2006; pp. 1–230. [Google Scholar]
  42. Chmura, D.; Molenda, T. Nowe stanowisko omiegu górskiego Doronicum austriacum Jacg. na Górnym Śląsku. Chrońmy Przyr. Ojczystą 2007, 63, 20–24. [Google Scholar]
  43. Cabała, S.; Gębicki, C.; Pierzgalski, K.; Zygmunt, J. Przyroda Częstochowy—Strefy Ochronne I Stanowiska Cenne Przyrodniczo. Częstochowa, Poland. 2009. Available online: http://fe.czestochowa.pl/data/other/przyroda-czestochowy.pdf (accessed on 7 March 2022).
  44. Kompała-Bąba, A.; Bąba, W. Threatened and protected Species in the Kuźnica Warężyńska Sandpit (Wyżyna Śląska Upland, S Poland). In Rare, Relict and Endangered Plant and Fungi in Poland; Mirek, Z., Nikel, A., Eds.; W. Szafer Institute of Botany, Polish Academy of Sciences: Kraków, Poland, 2009; pp. 259–268. [Google Scholar]
  45. Błońska, A. Siedliska antropogeniczne na Wyżynie Śląskiej jako miejsca występowania rzadkich i zagrożonych gatunków torfowiskowych klasy Scheuchzerio-Caricetea nigrae (Nordh. 1937) R. Tx 1937. Woda-Sr.-Obsz. Wiej. 2010, 10, 7–19. [Google Scholar]
  46. Błońska, A.; Babczyńska-Sendek, B.; Koltuniak, A. Nowe stanowisko Orchis militaris (Orchidaceae) na Garbie Tarnogórskim (Wyżyna Śląska). Fragm. Florist. Geobot. Pol. 2011, 18, 177–180. [Google Scholar]
  47. Śliwińska-Wyrzychowska, A.; Bogdanowicz, M.; Musielińska, R.; Bąbelewska, A.; Witkowska, E. Krajobrazowe i botaniczne walory nieczynnego kamieniołomu Lipówka w Rudnikach koło Częstochowy. Pr. Kom. Kraj. Kult. 2014, 26, 45–55. [Google Scholar]
  48. Sieka, P.; Urbisz, A.; Babczyńska-Sendek, B. Godne ochrony stanowisko flory oraz roślinności kserotermicznej na wzgórzu Golcówka w Imielinie (Wyżyna Śląska). Chrońmy Przyr. Ojczystą 2015, 71, 380–387. [Google Scholar]
  49. Parusel, J.B.; Urbisz, A. (Eds.) Czerwona Lista Roślin Naczyniowych Województwa Śląskiego. In Strategia Ochrony Przyrody Województwa Śląskiego do Roku 2030. Raport o Stanie Przyrody Województwa Śląskiego. Czerwone Listy Wybranych Grup Grzybów i Roślin Województwa Śląskiego; Centrum Dziedzictwa Przyrody Górnego Śląska: Katowice, Poland, 2012; pp. 105–177. [Google Scholar]
  50. Journal of Laws (2014) item 1409—Regulation of the Minister of the Environment on the Protection of the Species of Plants, 9 October 2014 (legal act). (In Polish).
  51. Kaźmierczakowa, R.; Bloch-Orłowska, J.; Celka, Z.; Cwener, A.; Dajdok, Z.; Michalska-Hejduk, D.; Pawlikowski, P.; Szczęśniak, E.; Ziarnek, K. Polish Red List of Pteridophytes and Flowering Plants; Institute of Nature Conservation: Polish Academy of Sciences: Kraków, Poland, 2016; pp. 1–44. [Google Scholar]
  52. Pladias (2014–2020)—Database of the Czech Flora and Vegetation. Available online: https://pladias.cz/en/ (accessed on 26 February 2022).
  53. Zarzycki, K.; Trzcińska-Tacik, H.; Różański, W.; Szeląg, Z.; Wołek, J.; Korzeniak, U. Ecological Indicator Values of Vascular Plants of Poland; W. Szafer Institute of Botany; Polish Academy of Sciences: Kraków, Poland, 2002; pp. 1–183. [Google Scholar]
  54. Matuszkiewicz, W. Przewodnik do Oznaczania Zbiorowisk Roślinnych Polski; Wydawnictwo Naukowe PWN: Warszawa, Poland, 2012; pp. 1–536. [Google Scholar]
  55. Woźniak, G. Colonisation Process on Coal Mine Sedimentation Pools (Upper Silesia, Poland). Pol. Bot. Stud. 2006, 22, 561–568. [Google Scholar]
  56. The Habitats Directive 2019. Available online: https://ec.europa.eu/environment/nature/legislation/habitatsdirective/index_en.htm (accessed on 26 February 2022).
  57. Balvanera, P.; Quijas, S.; Martín-López, B.; Barrios, E.; Dee, L.; Isbell, F.; Durance, I.; White, P.; Blanchard, R.; de Groot, R. Chapter 4, The Links between Biodiversity and Ecosystem Services. In Routledge Handbook of Ecosystem Services; Potschin, M., Haines-Young, R., Fish, R., Turner, K., Eds.; Taylor & Francis Group: London, UK; New York, UK, 2016; pp. 45–59. [Google Scholar]
  58. Rotherham, I.D. Recombinant Ecology—A Hybrid Future? Springer: Cham, Switzerland, 2017; pp. XIX, 85. [Google Scholar]
  59. de Groot, R.; Jax, K.; Harrison, P. Links Between Biodiversity and Ecosystem Services. In OpenNESS Ecosystem Services Reference Book. EC FP7 Grant Agreement No. 308428; Potschin, M., Jax, K., Eds.; 2016; Available online: http://www.openness-project.eu/library/reference-book (accessed on 26 February 2022).
  60. Wilsey, B.J.; Polley, H.W. Reductions in grassland species evenness increase dicot seedling invasion and spittle bug infestation. Ecol. Lett. 2002, 5, 676–684. [Google Scholar] [CrossRef] [Green Version]
  61. Whittaker, R.H. Communities and Ecosystems, 2nd ed.; Macmillan Publishing Co.: New York, NY, USA, 1975; pp. 1–387. [Google Scholar]
  62. Ettema, C.H.; Wardle, D.A. Spatial soil ecology. Trends Ecol. Evol. 2002, 17, 177–183. [Google Scholar] [CrossRef]
  63. Yachi, S.; Loreau, M. Biodiversity and ecosystem productivity in a fluctuating environment: The insurance hypothesis. Proc. Natl. Acad. Sci. USA 1999, 96, 1463–1468. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  64. Martinelli, L.A.; Abdalla-Filho, A.L.; Gomes, T.F.; Lins, S.R.M.; Mariano, E.; Soltangheisi, A.; de Camargo, P.B.; Vieira, S.A.; Higuchi, N.; Nardoto, G.B. Partitioning of environmental and taxonomic controls on Brazilian foliar content of carbon and nitrogen and stable isotopes. Front. For. Glob. Change 2021, 4, 81. [Google Scholar] [CrossRef]
  65. Teixeira, C.P.; Fernandes, C.O. Novel ecosystems: A review of the concept in non-urban and urban contexts. Landsc. Ecol. 2019, 35, 23–39. [Google Scholar] [CrossRef]
  66. Milewska-Hendel, A.; Chmura, D.; Wyrwał, K.; Kurczyńska, E.U.; Kompała-Bąba, A.; Jagodziński, A.M.; Woźniak, G. Cell wall epitopes in grasses of different novel ecosystem habitats on post-industrial sites. Land Degrad. Dev. 2021, 32, 1680–1694. [Google Scholar] [CrossRef]
  67. Swift, M.J.; Izac, A.-M.N.; van Noordwijk, M. Biodiversity and ecosystems services in agricultural landscapes—Are we asking the right questions? Agr. Ecosyst. Environ. 2004, 104, 113–134. [Google Scholar] [CrossRef]
  68. Hockings, M. Systems for assessing the effectiveness of management in protected areas. Bioscience 2003, 53, 823–832. [Google Scholar] [CrossRef] [Green Version]
  69. Hockings, M.; Stolton, S.; Leverington, F.; Dudley, N.; Courrau, J. Evaluating Effectiveness: A Framework for Assessing Management Effectiveness of Protected Areas, 2nd ed.; IUCN: Gland, Switzerland; Cambridge, UK, 2006; pp. 1–105. [Google Scholar]
  70. Zipper, C.E.; Burger, J.A.; Skousen, J.G.; Angel, P.N.; Barton, C.D.; Davis, V.; Franklin, J.A. Restoring Forests and Associated Ecosystem Services on Appalachian Coal Surface Mines. Environ. Manag. 2011, 47, 751–765. [Google Scholar] [CrossRef]
  71. Wieliczko, B. Wykorzystanie Usług Ekosystemów w Zarządzaniu Zasobami Naturalnymi w Rolnictwie. Studia I Pr. Wydziału Nauk. Ekon. I Zarządzania Uniw. Śląskiego 2016, 46, 135–144. [Google Scholar]
  72. Besenyei, L. Returning Collieries Back to Nature in England, UK. In Green Scenarios: Mining Industry Responses to Environmental Challenges of the Anthropocene Epoch; Dyczko, A., Jagodziński, A.M., Woźniak, G., Eds.; CRC Press Taylor & Francis Group: London, UK, 2022; pp. 83–99. [Google Scholar]
  73. Srivastava, D.S.; Vellend, M. Biodiversity-Ecosystem Function Research: Is It Relevant to Conservation? Annu. Rev. Ecol. Evol. Syst. 2005, 36, 267–294. [Google Scholar] [CrossRef] [Green Version]
  74. Scheffer, M.; Carpenter, S.; Foley, J.A.; Folke, C.; Walker, B. Catastrophic shifts in ecosystems. Nature 2000, 413, 591–596. [Google Scholar] [CrossRef] [PubMed]
  75. Kinzig, A.P.; Ryan, P.; Etienne, M.; Allison, H.; Elmqvist, T.; Walker, B.H. Resilience and regime shifts: Assessing cascading effects. Ecol. Soc. 2006, 11, 20. [Google Scholar] [CrossRef] [Green Version]
  76. Shahzad, A.; Ullah, S.; Dar, A.A.; Sardar, M.F.; Mehmood, T.; Tufail, M.A.; Shakoor, A.; Haris, M. Nexus on climate change: Agriculture and possible solution to cope future climate change stresses. Environ. Sci. Pollut. R. 2021, 28, 14211–14232. [Google Scholar] [CrossRef] [PubMed]
  77. Perrings, C. Pests, pathogens and poverty: Biological Invasions and Agricultural Dependence. In Biodiversity Economics: Principles, Methods and Applications; Kontoleon, A., Pascual, U., Swanson, T., Eds.; Cambridge University Press: Cambridge, UK, 2007; pp. 131–165. [Google Scholar]
  78. Concas, S.; Lattanzi, P.; Bacchetta, G.; Barbafieri, M.; Vacca, A. Zn, Pb and Hg Contents of Pistacia lentiscus L. Grown on Heavy Metal-Rich Soils: Implications for Phytostabilization. Water Air Soil Poll. 2015, 226, 340. [Google Scholar] [CrossRef]
  79. Tamburini, E.; Sergi, S.; Serreli, L.; Bacchetta, G.; Millia, S.; Cappai, G.; Carucci, A. Bioaugmentation-assisted phytostabilisation of abandoned mine sites in South West Sardinia. Bull. Environ. Contam. Toxicol. 2017, 98, 310–316. [Google Scholar] [CrossRef]
  80. Bacchetta, G.; Boi, M.E.; Cappai, G.; De Giudici, G.; Piredda, M.; Porceddu, M. Metal tolerance capability of Helichrysum microphyllum Cambess. subsp. tyrrhenicum Bacch., Brullo & Giusso: A candidate for phytostabilization in abandoned mine sites. Bull. Environ. Contam. Toxicol. 2018, 101, 758–765. [Google Scholar]
  81. Boi, M.E.; Medas, D.; Aquilanti, G.; Bacchetta, G.; Birarda, G.; Cappai, G.; Carlomagno, I.; Casu, M.A.; Gianoncelli, A.; Meneghini, C.; et al. Mineralogy and Zn Chemical Speciation in a Soil-Plant System from a Metal-Extreme Environment: A Study on Helichrysum microphyllum subsp. tyrrhenicum (Campo Pisano Mine, SW Sardinia, Italy). Minerals 2020, 10, 259. [Google Scholar] [CrossRef] [Green Version]
  82. Mota, J.F.; Sola, A.J.; Dana, E.D.; Jiménez-Sánchez, M.L. Plant succession in abandoned gypsum quarries. Phytocoenologia 2003, 33, 13–28. [Google Scholar] [CrossRef]
  83. Mota, J.F.; Sola, A.J.; Jiménez-Sánchez, M.L.; Pérez-García, F.J.; Merlo, M.E. Gypsicolous flora, conservation and restoration of quarries in the southeast of the Iberian Peninsula. Biodivers. Conserv. 2004, 13, 1797–1808. [Google Scholar] [CrossRef]
  84. Musarella, C.M.; Mendoza-Fernández, A.J.; Mota, J.F.; Alessandrini, A.; Bacchetta, G.; Brullo, S.; Caldarella, O.; Ciaschetti, G.; Conti, F.; Martino, L.D.; et al. Checklist of gypsophilous vascular flora in Italy. PhytoKeys 2018, 103, 61–82. [Google Scholar] [CrossRef] [PubMed]
  85. Woźniak, G.; Chmura, D.; Błońska, A.; Tokarska-Guzik, B.; Sierka, E. Applicability of functional groups concept in analysis of spatiotemporal vegetation changes on manmade habitats. Pol. J. Environ. Stud. 2011, 20, 623–631. [Google Scholar]
  86. Bevilacqua, C.; Calabrò, F.; Spina, L.D. New Metropolitan Perspectives. Knowledge Dynamics, Innovation-driven Policies towards the Territories’ Attractiveness Volume 1; Smart Innovation Systems and Technologies; Springer: Cham, Switzerland, 2020; Volume 177, pp. 1–282. [Google Scholar]
  87. Massimo, D.E.; Musolino, M.; Malerba, A. Valuation to foster-up landscape preservation. Treasuring New Elements through Landscape Planning. In La Mediterranea Verso Il 2030. Studi e Ricerche Sul Patrimonoio Storico e Sui Paesaggi Antropici, Tra Conservazione e Rigenerazione; Mistretta, M., Mussari, B., Santini, A., Eds.; ArcHistoR Extra 6, Supplemento di ArcHistoR 12; 2019; pp. 674–687. Available online: http://pkp.unirc.it/ojs/index.php/archistor/article/view/541/467 (accessed on 26 February 2022).

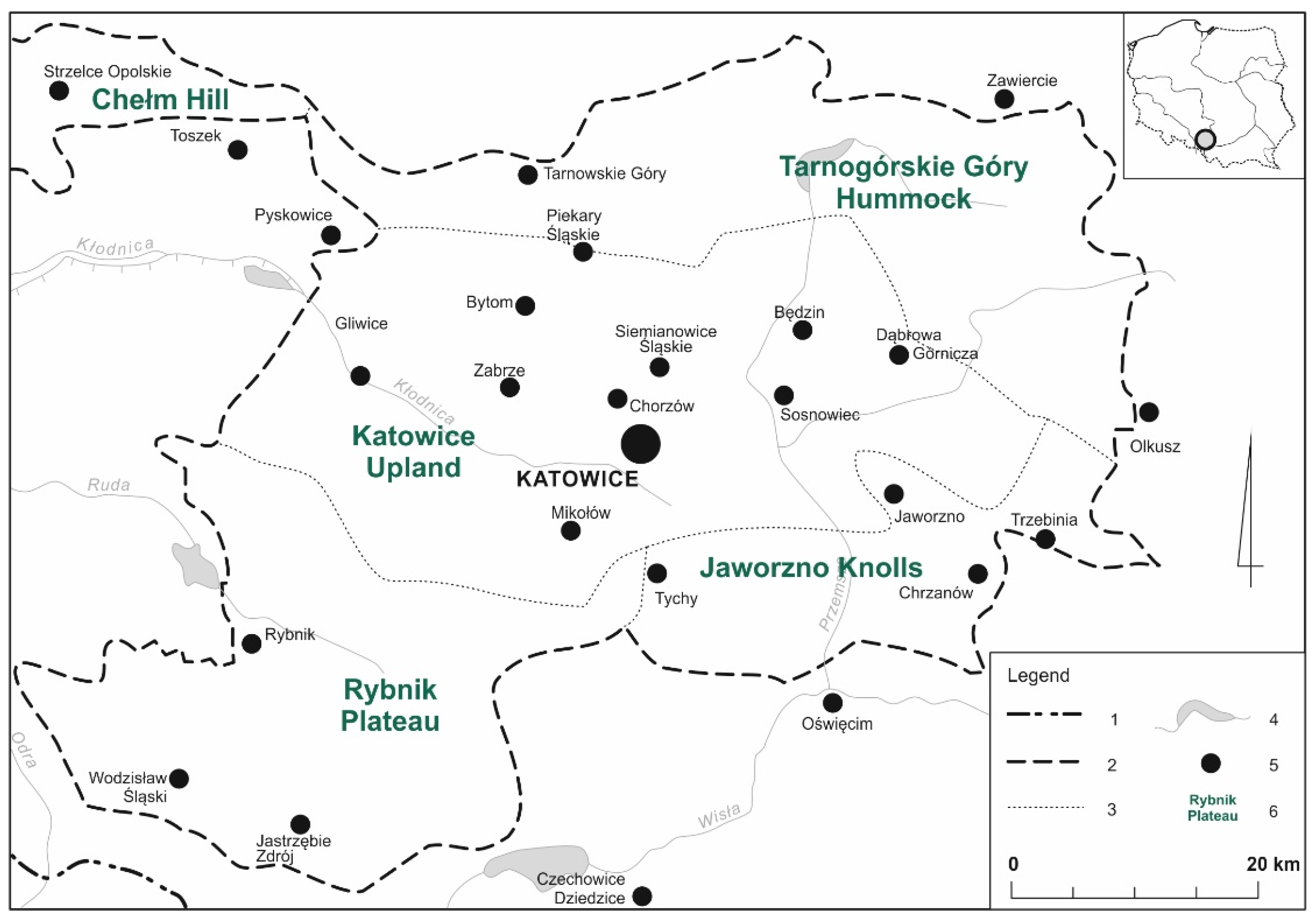

Figure 1. The location of the study area (south Poland), ([26]—modified): 1—state border, 2—border of the Silesian Upland, 3—minor geographical borders [28], 4—rivers and lakes, 5—towns and cities, 6—the name of physical and geographical regions.
Figure 1. The location of the study area (south Poland), ([26]—modified): 1—state border, 2—border of the Silesian Upland, 3—minor geographical borders [28], 4—rivers and lakes, 5—towns and cities, 6—the name of physical and geographical regions.
Sustainability 14 07611 g001

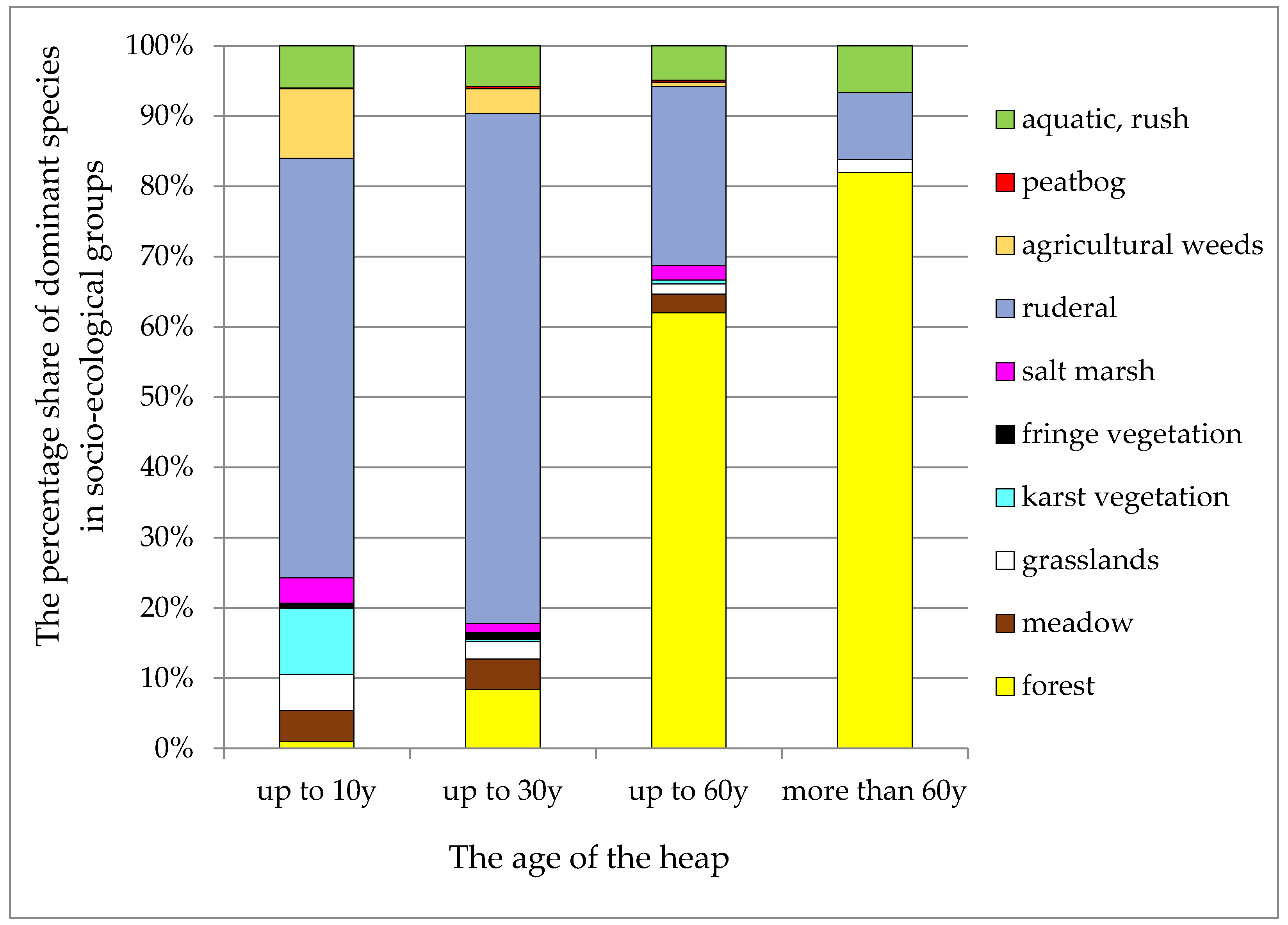

Figure 2. The percentage share of dominant species in socio-ecological groups in relation to the age of the heap. Explanations: y—years.
Figure 2. The percentage share of dominant species in socio-ecological groups in relation to the age of the heap. Explanations: y—years.
Sustainability 14 07611 g002

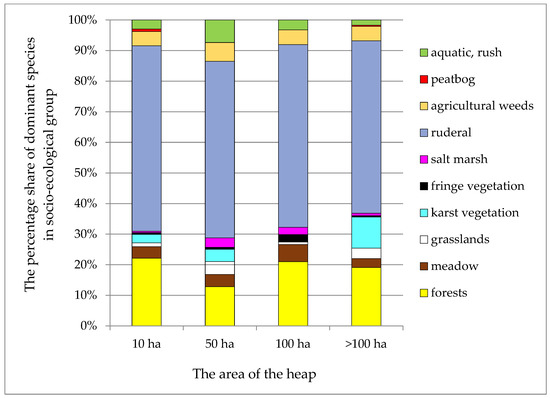

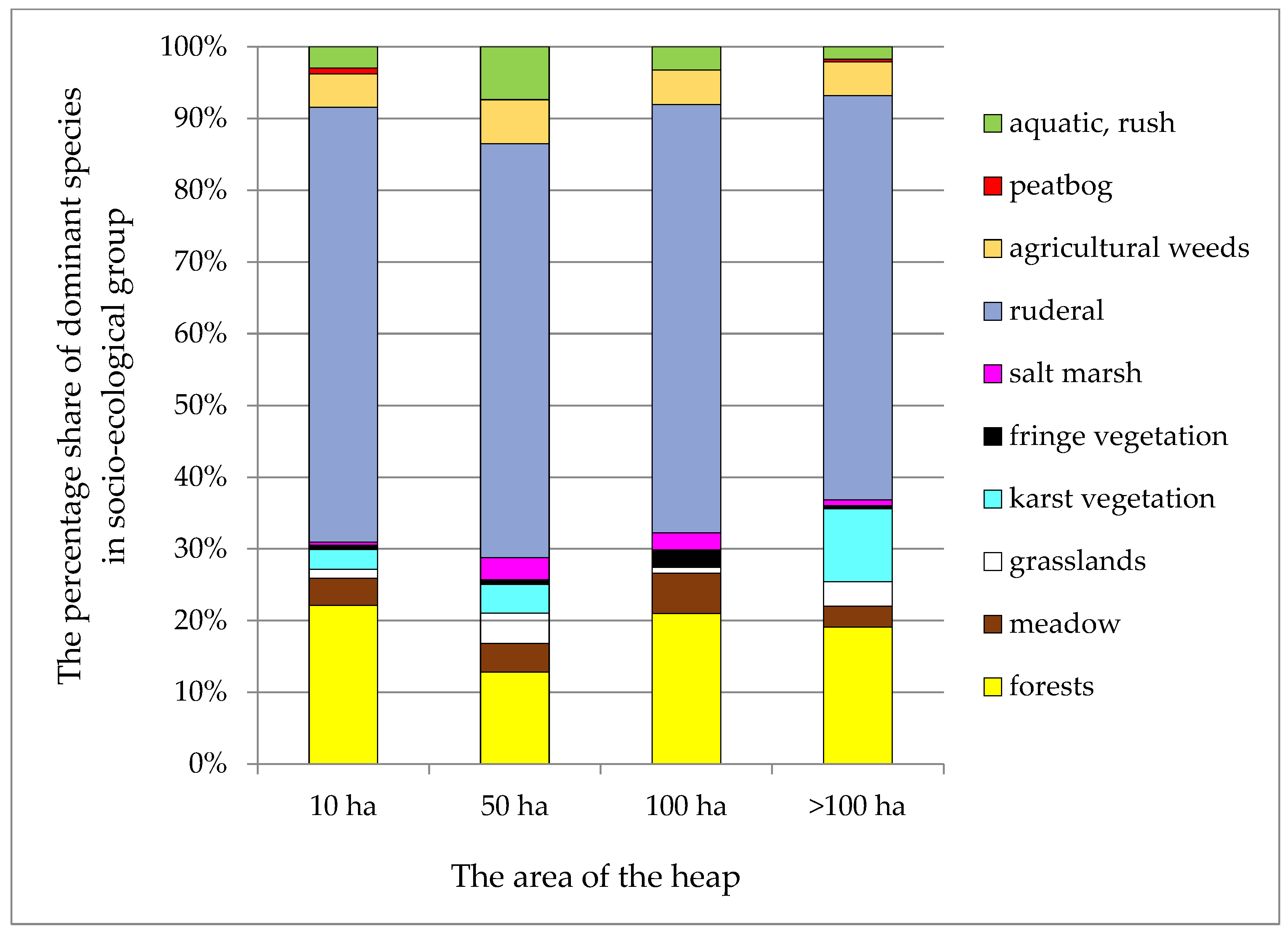

Figure 3. The percentage share of dominant species in socio-ecological groups in relation to the area of the heap.
Figure 3. The percentage share of dominant species in socio-ecological groups in relation to the area of the heap.
Sustainability 14 07611 g003
Figure 4. The participation of rare, endangered, and protected species recorded on post-coal mining heaps in relation to the values (1–6) of selected ecological indicators (L—light, T—temperature, R—soil reaction, F—moisture, and Tr—trophy) and the age class of the heap (I–IV) they were found on.
Figure 4. The participation of rare, endangered, and protected species recorded on post-coal mining heaps in relation to the values (1–6) of selected ecological indicators (L—light, T—temperature, R—soil reaction, F—moisture, and Tr—trophy) and the age class of the heap (I–IV) they were found on.
Sustainability 14 07611 g004
Table 1. Characteristics of the studied post-mineral extraction sites.
Table 1. Characteristics of the studied post-mineral extraction sites.
Types of Post-Mineral
Extraction Site
Characteristics of Site Types
QuarriesThe Silesian Upland is an area where carbonate rocks and coal mining are inherently related. Limestone excavation areas are suitable habitats for the growth and development of limestone rock and xerothermic species as well as shade-loving and photophilous (light-loving) species. Water accumulating at the bottom of the excavation contributes to the formation of water reservoirs and such habitats are inhabited by wetland plant species and peat bog vegetation [30].
Opencast sandpitsIn the Silesia region, sand excavations cover about 50 km2 [31]. Only a few of these are still active. The closed opencast sandpits have been managed to establish forests, some of which are subject to secondary vegetation succession, while others are filled with water. These studied post-mineral extraction sites are habitats for rare plant species.
HeapsPost-black coal mine heaps are very common in the Silesian Upland. On the other hand, heaps associated with zinc, lead ores, and smelters are less common [6]. Heaps are different in petrographic, mineral, chemical, granulometric, and pH composition. These areas provide mineral soil substrates suitable for colonization by living organisms. Plant communities formed during constant spontaneous biological processes are composed not only of common but also rare species under legal protection [26].
Subsidence reservoirsThe water reservoirs in the Silesian Upland are connected with subsidence and arose as a result of the side-effects of direct or indirect human activity, and are sometimes referred to as the “Silesian anthropogenic lake district”. They were created as a consequence of underground mining. These reservoirs, due to their function, constitute an essential natural resource [32,33,34]. They contribute to forming wetland habitats for plant and animal species not previously found in the area. These areas are vitally important as breeding habitats for birds [32].
Sedimentation poolsDuring the extraction of black hard coal, water comes out of the geological layers with dissolved mineral substances. The salty water is pumped out from the mine along with the coal dust into special areas with sedimentation pools. In these pools, the coal dust is deposited by gravity onto the bottom. These types of de novo establishment sites provide habitats with wide moisture gradients from aquatic habitats, through wetland to damp terrestrial ones [15].
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Woźniak, G.; Chmura, D.; Nowak, T.; Bacler-Żbikowska, B.; Besenyei, L.; Hutniczak, A. Post-Extraction Novel Ecosystems Support Plant and Vegetation Diversity in Urban-Industrial Landscapes. Sustainability 2022, 14, 7611. https://doi.org/10.3390/su14137611

AMA Style

Woźniak G, Chmura D, Nowak T, Bacler-Żbikowska B, Besenyei L, Hutniczak A. Post-Extraction Novel Ecosystems Support Plant and Vegetation Diversity in Urban-Industrial Landscapes. Sustainability. 2022; 14(13):7611. https://doi.org/10.3390/su14137611

Chicago/Turabian Style

Woźniak, Gabriela, Damian Chmura, Teresa Nowak, Barbara Bacler-Żbikowska, Lynn Besenyei, and Agnieszka Hutniczak. 2022. "Post-Extraction Novel Ecosystems Support Plant and Vegetation Diversity in Urban-Industrial Landscapes" Sustainability 14, no. 13: 7611. https://doi.org/10.3390/su14137611

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
